JUMP STARTER
WITH AIR COMPRESSOR
S8 Air
USER MANUAL
- 02 -
Thank you for purchasing the AstroAI Jump Starter with Air Compressor.
This product uses the ultra-powerful discharge technology of a lithium
battery to help users jumpstart car batteries that are fully depleted or
in a low-temperature environment. It also functions as an air compressor,
power bank and emergency flashlight; it is a must-have tool for the
outdoors.
We hope this product protects you on your journeys. AstroAI strives
to build tools that help you enjoy all of life’s adventures.
Questions or concerns? You are welcome to contact us via
INTRODUCTION
Please fully read and follow this manual before using this product
and keep it for future reference.
- 03 -
WARNINGS
Fully charge the product before use.
This product contains small accessories which are a choking
hazard for young children. Keep out of reach of children.
Do not aim the nozzle at people or any part of the human body.
Extended use is not recommended. Please cool down the product
for at least 10 minutes after 10 minutes of continuous use.
Please check the preset value and unit before use. Do not overinflate
the tire, high pressure may cause injuries.
The inflation hose will heat up during use, be mindful of the heat.
Do not use the product as a car battery and do not use it to start
the car while the jump starter is charging.
Do not connect the red clamp to the black clamp.
The product is intended only to start 12V vehicles and is prohibited for
use on non-12V equipment such as aircraft and 24V vehicles/boats.
Only use this product with the included battery clamps. Do not
use the jumper clamps or cables if they appear damaged.
Take o any metal accessories, such as rings, bracelets, or necklaces
before operating the jump starter.
Non-professionals should not disassemble, remodel, or repair the
product.
Before starting your car, clean the battery terminals and inspect
the jumper clamps for any damage. Dirty terminals and damaged
clamps can aect performance.
- 04 -
Fully insert the battery clamp’s blue plug into the socket. Failure
to do so may damage the device.
Repeatedly jumpstarting your vehicle in a short time frame will
increase the likelihood of damage. To prevent this, ensure the
jump starter has adequate breaks in between each use.
If you are using the jump starter several times in a row, allow a
60-second break in between each use.
Promptly remove the jump starter from the vehicle’s battery after
successfully jumpstarting your car. Failure to do so may cause
damage.
Do not place the product in a high temperature, humid environment,
or near flammable materials or strong magnetic fields.
Be aware of the product’s charging, working, and storage temperature
range. Do not expose it to direct sunlight or leave it in a high-tem-
perature environment for a long time.
If any abnormalities occur (e.g. overheating, smoking, or burning)
while using the jump starter, please turn it o, remove the clamps,
and immediately contact AstroAI customer support.
Handle the product with care to avoid dropping and other severe
impacts.
You may dispose of the lithium battery according to local guidelines
when its service life has ended.
- 05 -
PACKAGE INCLUDES
Jump Starter with Air Compressor
Smart Battery Clamps
USB-A to USB-C Charging Cable
Presta to Schrader Adapter
Needle Valve Adapter
Air Hose
Air Nozzle
Storage Bag
User Manual
× 1
× 1
× 1
× 1
× 1
× 1
× 1
× 1
× 1
- 06 -
DIAGRAM
5
4
3
2
6
7 8
1
Inflation Mode Display
Battery Level
Real-Time Pressure Value
Preset Pressure Value
Units
LED Flashlight
5V 2.4A USB-A Output Port
5V 2A USB-C Input Port
12V Jump Start Port
Light Button
“-” Button
Mode Button
Inflation Hose
Air Nozzle
Power Button
“+” Button
Needle Valve Adapter
Presta to Schrader Adapter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
9
11
12
13
14
10
17
18
15
16
- 07 -
21
BOOST
correct reverse
20
21
Storage Bag
USB-A to USB-C Charging Cable
Smart Battery Clamps
20
19
19
- 08 -
PREPARATION
How to Charge
To charge the jump starter, connect the included charging cable's
USB-C end into the device's charging port and the cable's USB-A
end to the power source. The power source can be any USB source
like 5V wall chargers, car chargers, etc.
(Note: charging block not included)
While charging, the power bars will flash from one to another. When
a bar changes from flashing to fully illuminated, it is charged to that
level. The remaining bars will continue flashing in a cycle until all four
bars are illuminated. The screen will turn o when the charging is
complete.
Indicator Battery Level
1 Bar
2 Bars
3 Bars
4 Bars
Under 25%
Between 25% and 50%
Between 50% and 75%
Between 75% and 100%
or
- 09 -
Note: For best jumping performance, ensure the jump starter’s battery
level exceeds 75% and turn o any electrical devices inside your
vehicle before starting your car.
INSTRUCTIONS
How to Jumpstart
1. Fully insert the smart battery clamps into the jump starter’s 12V port.
2. Connect the red clamp to the battery’s positive terminal (+) and
the black clamp to the battery’s negative terminal (-).
Proceed to the next step when the clamps’ indicator remains green.
For other indicator statuses, see the indicator light description table
below.
3. Start your engine.
4. Remove the clamps from the battery.
Black Red
BOOST
correct reverse
Green
- 10 -
Indicator Light of the Battery Clamps
BOOST
correct reverse
Illuminated red
Indication: Reversed polarities.
Operation: Please correctly reconnect the
positive and negative terminals of the clamps.
BOOST
correct reverse
Illuminated green
Indication: Clamps connected correctly.
Operation: Start your engine directly.
BOOST
correct reverse
Flashing green light
Indication: Low car battery voltage.
Operation: Press the Boost Button and wait
until the indicator turns green. Then, start
your car within 30 seconds.
BOOST
correct reverse
No Light
Indication: The vehicle battery may be damaged.
Operation: Retry steps 2 and 3 when the battery
clamps are correctly attached, or contact
AstroAI for further assistance.
- 11 -

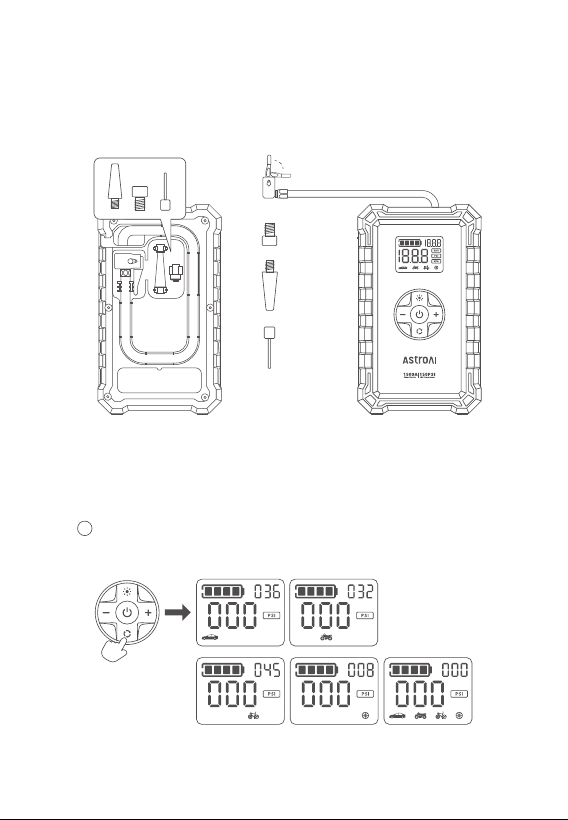

1. Connection: Choose an appropriate nozzle based on the inflatable
and tightly connect to it.
How to Inflate Tires
or
1
2. Setting: Press and hold the Power Button to turn on the unit. Then,
choose the appropriate inflation mode and adjust the preset pressure
value according to the required air pressure of the inflatable.
Press the Mode Button to switch between car, motorcycle, bicycle,
ball, and custom inflation modes.
- 12 -
3. Press the Power Button to start inflating. The machine will automatically
stop when the inflation is complete.
Tip 1: To avoid overinflation, please confirm the maximum inflation
pressure of the objects being inflated. Overinflating may cause explosions
and personal injuries.
3
4
2

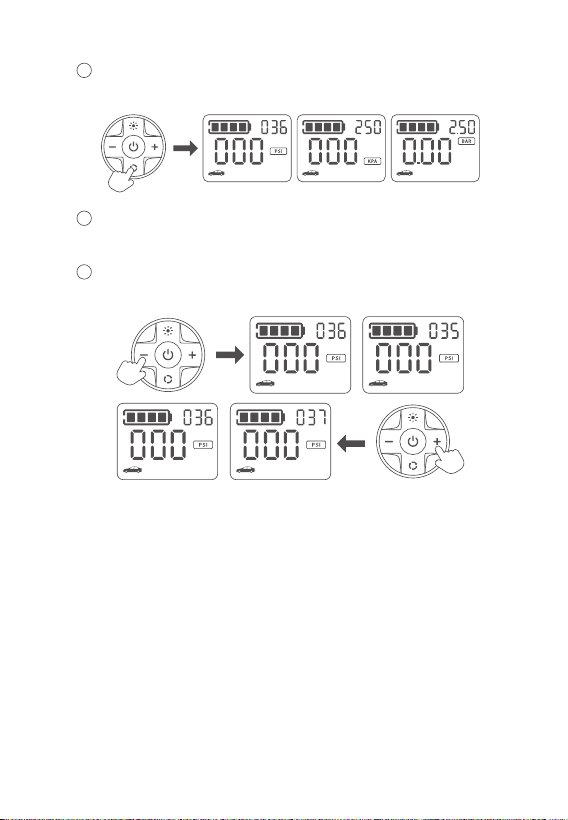

Press and hold the Mode Button to switch units between Bar,
PSI, and kPa.
Press the “+” and “-” Buttons to adjust the preset value by
0.5PSI (0.01Bar/1kPa) increments.
Press and hold the “+” and “-” Buttons to rapidly adjust the
preset value.
- 13 -
1. Insert the charging cable into the jump starter’s USB output port.
2. Connect the other end of the USB charging cable to the device being
charged.
3. Press and hold the Power Button for 2 seconds to turn on the device.
The jump starter will automatically detect the devices’ specifications
and charge them at the proper voltage.
Power Bank Function
When the machine is on, press the Light Button to turn on the LED
flashlight, press it again to switch between flashing, SOS, and o modes.
Illumination Function
Press and hold the Power Button for 2 seconds to turn the machine
on and o. It also turns o automatically when there is no external
load or output over 90 seconds.
How to Turn the Machine On/O
or
- 14 -
To maximize the battery’s performance and service life, please
charge the jump starter when its battery level is lower than 75%.
Please fully charge the jump starter if it will not be in use for an
extended amount of time. Charge it every three months to extend
its service life.
MAINTENANCE
SPECIFICATIONS
Model
Capacity
Jumpstart Current
Peak Current
USB-C Input
USB-A Output
Inflating Pressure Range
Air Compressor Accuracy
Operation Temperature
Charging Temperature
S8 Air
37Wh
500A (0.8S); 300A (2.6S)
1500A
5V 2A
5V 2.4A
0 ~ 150PSI (0 ~ 10.3Bar)
±1PSI
-4 ~ 122˚F (-20 ~ 50˚C)
32 ~ 113˚F (0 ~ 45˚C)
This jump starter features four built-in series-connected 3.7V lithium
batteries.
The battery pack capacity is 2500mAh (14.8V), equivalent to 10000mAh
(3.7V).
- 15 -
TROUBLESHOOTING/FAQ
Insucient power level; you may need to charge the jump starter.
Please charge your device to 75% or higher to successfully jumpstart
your car.
Inspect the battery terminals for any rust or dirt, as it could aect
the connection quality. Clean up any residue and try again.
If the jump starter overheats, it will turn on its overheating protection
feature and shut down for a few minutes. Once the unit cools down,
try again.
Check if the battery clamps are connected to the wrong terminals
(reversed).
Poor connection between the clamps and battery; ensure a tight
connection.
The vehicle cannot start because of issues unrelated to battery
power levels. Please use the appropriate equipment to check the
battery or error code of the vehicle.
Contact AstroAI for after-sales support.
Failure to Jumpstart
Insucient power level or the jump starter is still charging.
Contact AstroAI customer support.
Failure to Power On
The object’s pressure value is too low to detect.
Normal Inflation, but the Pressure Value is Zero
- 16 -
ERROR CODEANALYSIS
E1
Insucient battery level.
Check if the air hose leaks.
Check if there is a good seal on the air hose’s ends.
Check if the inflating object is leaking.
Slow Inflation
Check if the charging cable is connected correctly.
Ensure the outlet is powered.
If the jump starter overheats, it will turn on its overheating protection
feature and shut down for a few minutes. Once the unit cools down,
try again.
Contact AstroAI customer support.
Failure to Charge
Error: Abnormal inflation- the device has been continuously
inflating for 40 seconds, but the air pressure is still under
1.45PSI (10kPa/0.1Bar).
Solution: Check if the connection is secure or if the inflatable
is leaking air. Then press the Power Button to resume inflation.
E2
Error: Overheatingbattery cell with abnormal discharging.
Solution: When the cell temperature returns to normal,itwill
resume normalfunctionality; keep the device out of direct sunlight.
- 17 -
Each AstroAI Jump Starter with Air Compressor will be free from
defects in material and workmanship.
This warranty does not cover damage from neglect, misuse, contamination,
alteration, accident, or abnormal conditions of operation or handling.
This warranty covers the original purchaser only and is not transferable.
WARRANTY PERIOD
2-Year Limited Warranty from AstroAI
You may dispose of the jump starter when its service life has ended,
please recycle the recyclable parts according to local guidelines.
RECYCLING
E3
Error: Battery cell temperature too low; charger inserted but
the device is not charging.
Solution: Resume charging once the cell temperature returns
to normal.
E4
Error: The air compressor temperature is too high; immedi-
ately stop using it.
Solution:
When the temperature returns to normal, it will resume
its normal functionality.
