USER MANUAL
PORTABLE MULTIFUNCTIONAL
ELECTRIC PUMP
- 02 -
Thank you for purchasing the portable multifunctional air compressor
from AstroAI.
This air compressor, equipped with dual motors, can inflate objects quick-
ly. Additionally, the large, digital HD screen can be used to monitor air
pressure while inflating. It can not only fulfill inflation for regular tires but
also large inflatable objects.
Once the pre-set air pressure is reached, the air compressor will auto-
matically shut o (Please make sure the pressure you set is higher than
the current pressure of your tire.)
Thank you again for choosing AstroAI. If you have any questions or
concerns regarding your product, please contact us at
INTRODUCTION
Please fully read and understand this manual before using this
product and keep this manual for future reference.
!
- 03 -
WARNING
Read the instructions carefully before use; incorrect usage may
damage the product.
Please pay attention to the safety of electricity when using it.
Ensure the remaining battery can fulfill the task.
Please do not use the product for other procedures.
Keep the air compressor away from heat sources, such as a car's
exhaust pipe. Do not use the air compressor around flammable liquids
or gas. Keep the air compressor away from fire, corrosive liquids, and
strong magnetic fields.
Do not detach the air compressor.
Check the exterior of the air compressor before use, ensure it is intact.
Do not use it if any parts are damaged.
Risk of electric shock, do not use air compressor if it is damaged or if
wires are exposed.
Do not over-inflate tires. High-pressure air can cause injury.
Do not aim the nozzle at people or any part of a human body. Small
accessories are included, so please keep away from children.
Check the pre-set pressure value before use. The pre-set pressure
value should match the object to be inflated.
The air nozzle is compatible with all Schrader valves. For use with cars,
small trucks and SUVs, motorcycles, and bicycles. The large volume
hose is only applicable to low pressure and large capacity objects for
inflating and deflating, like inflatable rafts, air mattresses, floats.
PSI, kPa, Bar, kg/cm² are pressure units rather than pressure levels.
- 04 -
Please do not use the air compressor in the rain or where there are any
liquids. Do not store the air compressor in high temperatures or a
humid environment.
Disconnect the air compressor from all power sources when not in use.
During continuous use, the air compressor may get hot. Please be care-
ful to touch the air compressor during use or after use.
Please let the compressor cool for at least 10 minutes after every 20
minutes of use.
Do not use it on 24 V car power. Connect the air compressor to a 12 V
DC, 15 A cigarette lighter.
Move the product by the handle. Do not drag the air compressor by
pulling the power cord or the air hose.
Do not use chemical substances to clean the air compressor. Only use
mild soap, and a cloth dipped in hot water to clean the plastic parts.
The Rechargeable battery pack should be used in a clean, dry, well-ven-
tilated place; please keep the air compressor away from fire, heat, and
corrosive liquid.
The Rechargeable battery pack should be charged in time after
discharge. The discharge of the used battery may cause low battery or
even battery damage; thus, you must use a suitable charger to charge it
in time.
The Rechargeable battery pack is designed for emergency use; it
should not be used as a regular power supply.
Do not charge the Rechargeable battery pack when the air compressor
uses the Rechargeable battery pack to inflate objects.
If accessories are missing or damaged when you receive the package,
please contact us.
AC Power Plug
Accessories Storage Part
LED Light
Valve Cap Storage Part
Quick Connector
Rechargeable Battery Port
LED Button
Inflate Button
Power/Unit Button
Screen
Tire/Large Volume Button
Handle
“+” & “-” Buttons
Large Volume Hose
12 V Cigarette Lighter Plug
- 05 -

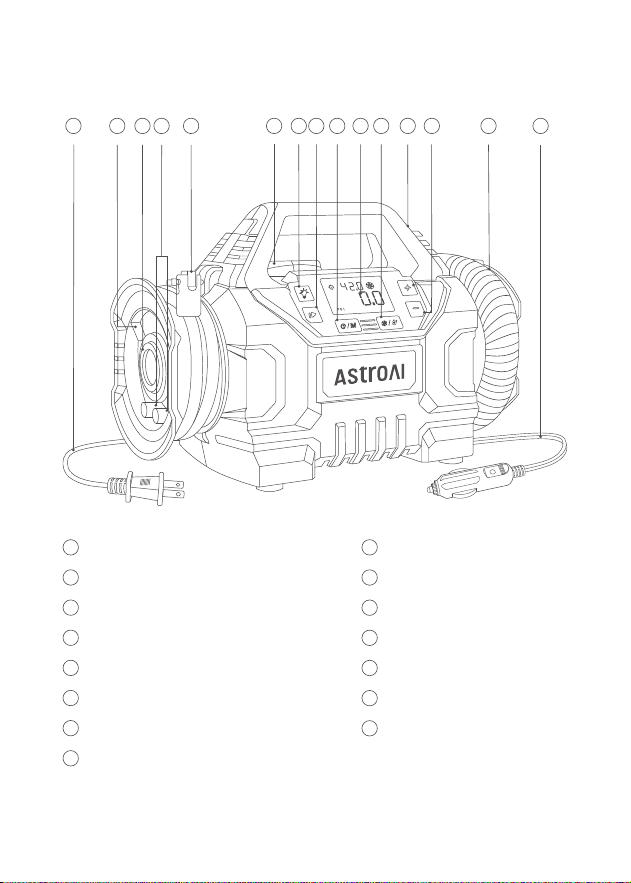

DIAGRAM
1
2
3
4
5
6
7
8
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
9
10
11
12
13
14
15
Replacement Fuse
Presta-Schrader Adapter
2 × Tire Valve Caps
3 × Large Volume Nozzles
- 06 -
2.0 AH Rechargeable Battery Pack
Rechargeable Battery Charger
2 × Air Nozzles
Needle Valve Adapter
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
- 07 -

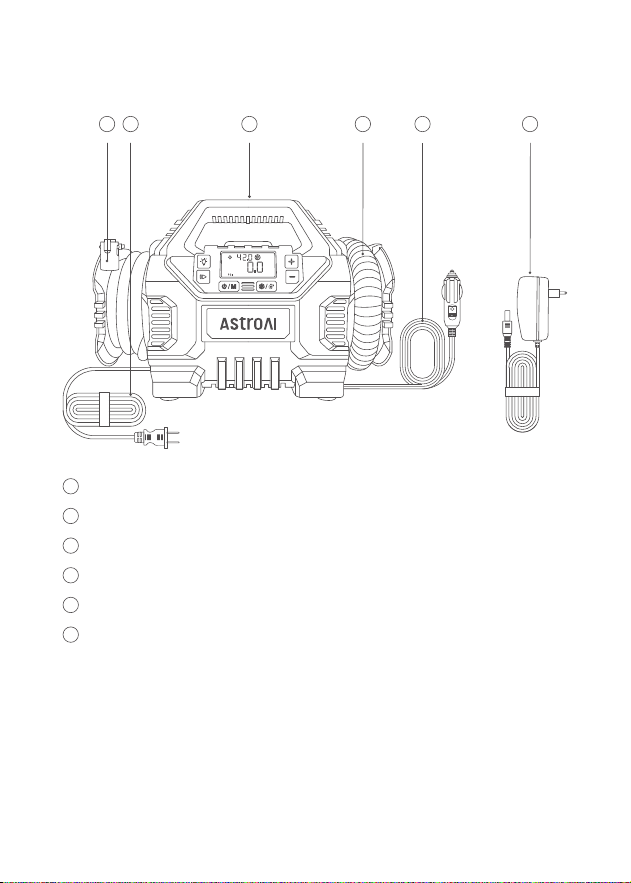

SIZE DESCRIPTION
Air Hose Length: 89 cm/2.91 ft
AC Power Cord Length: 3 m/9.84 ft
Air Compressor Size: 29.5 × 15 × 19.5 cm/11.61× 5.90 × 7.67 in
Large-Volume Hose: 43 cm/1.41 ft
DC Power Cord Length: 3 m/9.84 ft
Rechargeable Battery Charger: 1.8 m/5.9 ft
1
2
3
4
5
6
1 2 3 4 5 6
- 08 -
FEATURES
Three types of power supply.
Tire mode and Large-volume mode.
Auto Shuto: Once the pre-set air pressure is reached, the air compres-
sor will automatically shut o.
HD Large Screen: Provides accurate measurements. It is easy to oper-
ate, read and understand.
Longer Power Cord: AC 9.84 ft (3 m), DC 9.84 ft (3 m).
Portable Design: Easy to carry and store in the car.
The power cut memory function will automatically record your last set.
The power cord can be stored at the bottom of the air compressor.
FUNCTIONS
Three types of power supply.
Plug the DC plug into your car’s 12 V outlet.
Plug the AC plug into the AC socket.
Insert the 20 V Rechargeable battery pack into the Rechargeable
battery port at the back of the air compressor.
To ensure the service life of the air compressor, do not connect to multiple
types of power supplies at the same time.
- 09 -
INSTRUCTIONS
Ensure that your car engine is running before you use it.
1. Choose the power supply. (We recommend you connect one power supply only.)

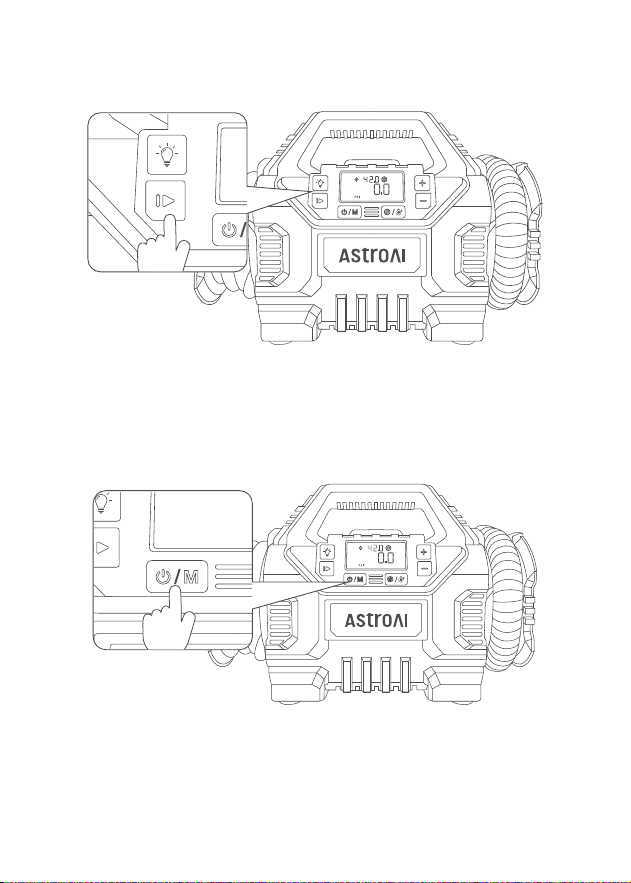

2. Press the Power/Unit Button to start the air compressor after the power is on.

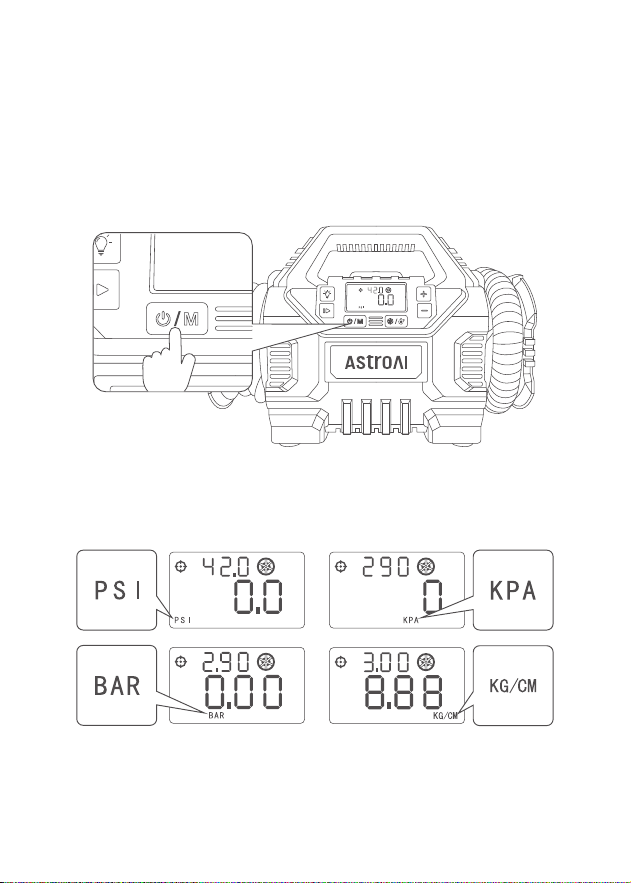

3. Press the Power/Unit Button again to choose a suitable unit (4 options:
PSI,Bar,kPa,kg/cm²).
- 10 -
5. Remove the valve cap from the valve stem of the tire, and connect the air
nozzle to the valve stem. Press the LED button “ ” on the side to illumi-
nate the environment. (Tips: for better sealing, when using the air nozzle,
align the valve stem, firmly press in, and flip the small lever.)

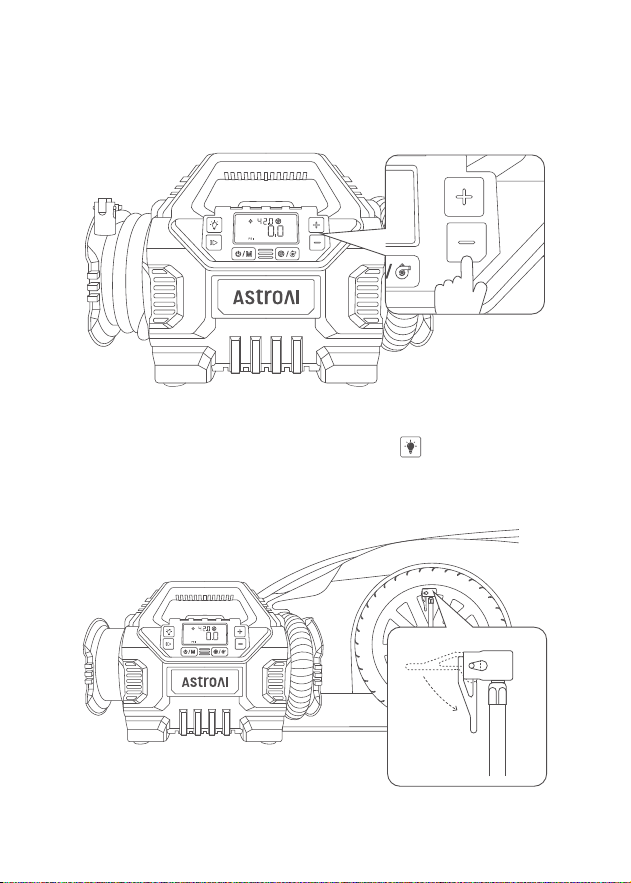

4. Use the “+” and “–” buttons to set the chosen pressure. Use the tire pres-
sure guide on the inside of the driver’ s door for guidance. Make sure that
the preset pressure is higher than the current pressure of your tire.
- 11 -

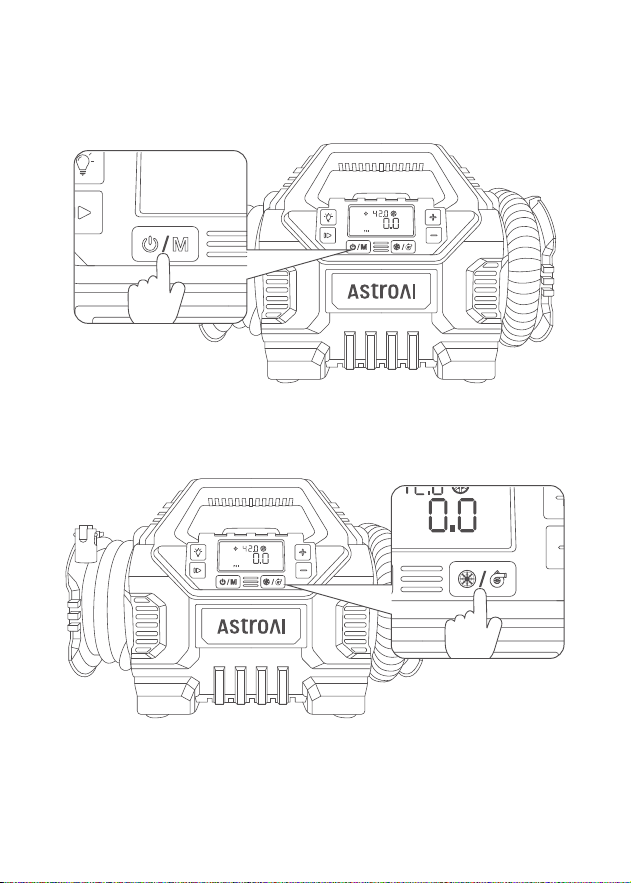

7. Press and hold the Power/Unit Button for 3 seconds to turn o the air
compressor after inflation. (When using the Rechargeable battery pack,
turning o the air compressor can maximize your power.)

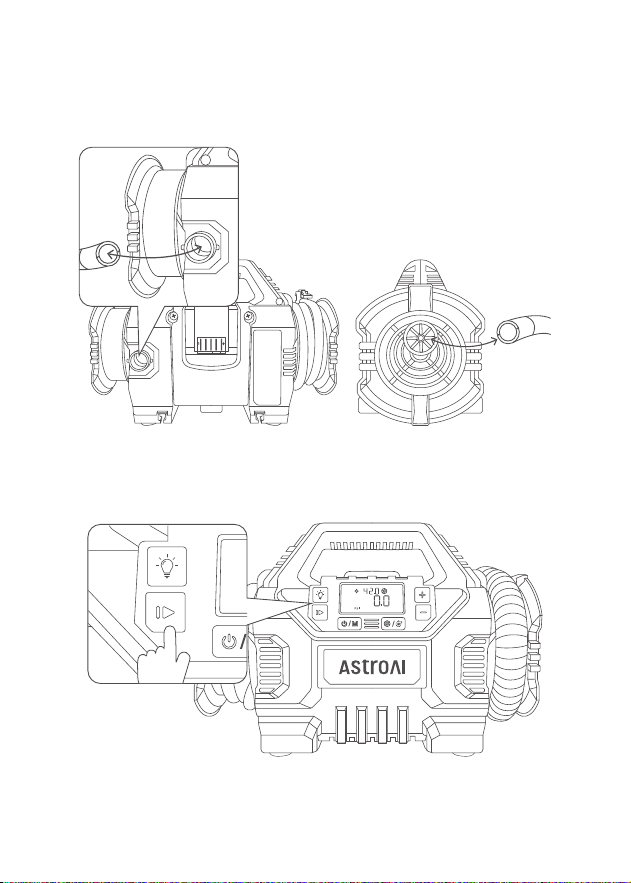

6. Press the Inflate Button, and the air compressor will be working.
- 12 -
Large-Volume mode
1. Press the Inflate Button, and the air compressor will be working.
2. Press Tire/Large volume Button to switch to the Large volume mode.
- 13 -
3. The hose gap should be inserted at the buckle position, and turn the hose
counterclockwise to the end. If you need to deflate, insert the hose as the
second picture instructed.
4. Choose a suitable nozzle to insert.
5. Press the Inflate Button to start the air compressor.
- 14 -
6. Press and hold the Power/Unit Button for 3 seconds to turn o the air
compressor after inflation. (When using the Rechargeable battery pack,
turning o the air compressor can maximize your power.)

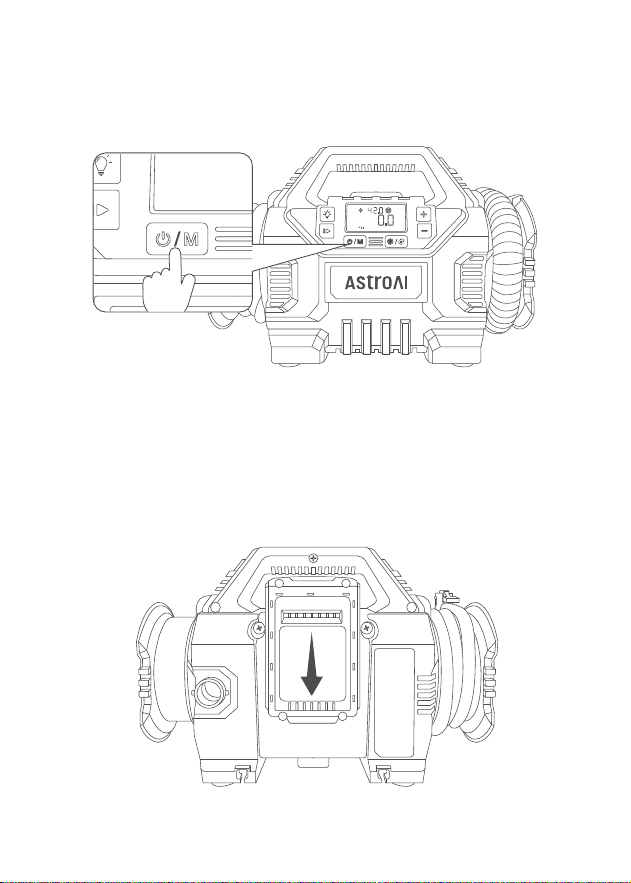

1. Push the Rechargeable battery pack along with the battery slot down-
ward until it is seamless.
The installment and removal of the Rechargeable battery pack (The
Rechargeable battery pack needs to be purchased separately).
- 15 -

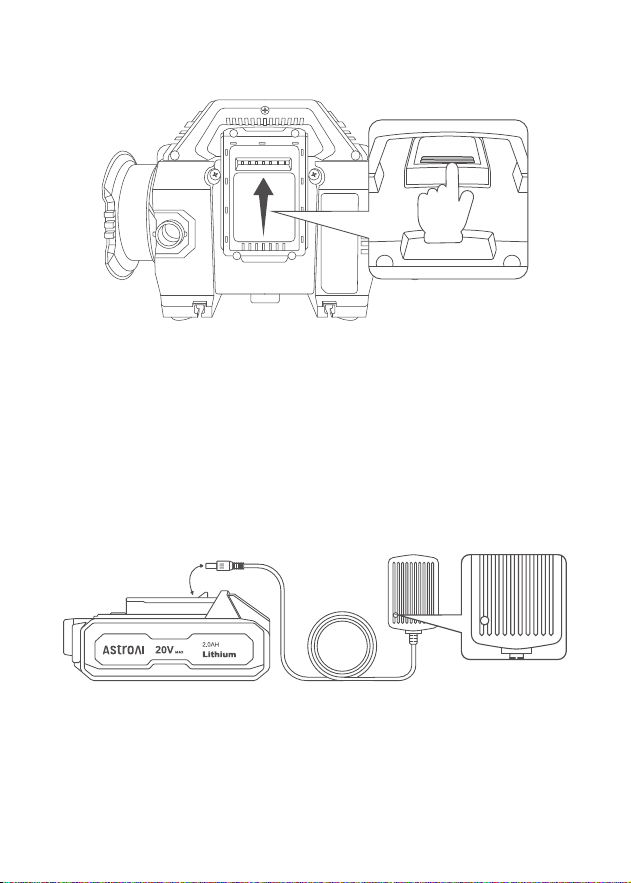

2. Hold the handle, press the button above the battery to remove the battery.
1. Connect the charger to the round hole jack of the Rechargeable battery
pack, plug the power charger. (When the LED light on the charger lights in
red, it indicates charging status; when the LED light lights in green, it
indicates that it's charged fully.)
Charging method of the Rechargeable battery pack.(The Rechargeable
battery pack and charger need to be purchased separately).
Ensure the in-line fuse is securely inserted correctly; replace the fuse if
necessary.
Check vehicle cigarette lighter fuse; it should be rated at 15 A.
Ensure there is a strong connection with the power cord and 12 V
socket.
Ensure the AC plug is plugged into the AC socket firmly.
Pre-set tire pressure is lower than current tire pressure, increase the
pre-set tire pressure to the manufacturer’s recommended level.
Ensure the Tire/Large volume button is correctly chosen.
Ensure the 2.0 AH Rechargeable battery pack is firmly inserted into the
Rechargeable battery port.
- 16 -
Air compressor will not inflate
TROUBLESHOOTING
Air compressor will not inflate
2. Press and hold the power button to know the remaining battery of the
Rechargeable battery pack; the battery lights will be lit when pressed.
- 17 -
Model
Working Voltage
SPECIFICATIONS
JY23P160-2301812
US/CA DC 12 V/AC 120V 60 Hz
18 V Rechargeable battery pack
JP DC 12 V/AC 100-110 V 50/60 Hz
18 V Rechargeable battery pack
EU/UK DC 12 V/AC 220-240 V 50/60 Hz
18 V Rechargeable battery pack
The air compressor is operating abnormally
The inflation nozzle is not connected correctly to the tire’s valve stem.
The DC/AC is connected poorly.
Pre-set tire pressure is lower than current tire pressure, increase the
pre-set tire pressure to the manufacturer’s recommended level.
Check if the Large-volume hose is inserted into the correct position.
Air leaking through the hose
Ensure there is a firm connection between the air nozzle and the tire valve.
Slow inflation
The inflation nozzle is not connected correctly to the tire’s valve stem.
Excessive use will slow the inflation rate of the air compressor. Let it
cool for 10 minutes.
- 18 -
PACKAGE INCLUDED
AstroAI Air Compressor
Air Nozzles
Needle Valve Adapter
Replacement Fuse
Tire Valve Caps
Large Volume Hose
×1
×2
×1
×1
×2
×1
RECYCLING
Rated Power
Maximum Working Pressure
Display Units
Maximum Amps
Continuous Operating Time
Dimensions
Certificates
100 W
160 PSI
PSI, Bar, kPa, kg/cm²
15 A
20 Minutes (Tire Mode)
10 Minutes (Large-Volume Mode)
11.61 × 5.90 × 7.67 in/29.5 × 15 × 19.5 mm
PSE/CE/UKCA/FCC
Rechargeable Battery Pack Charger
Large Volume Nozzles
2.0 AH Rechargeable Battery Pack
Presta-Schrader Adapter
User Manual
×1
×3
×1
×1
×1
You may dispose of the product when its service life has ended; please
recycle the recyclable parts according to local guidelines.
- 19 -
WARRANTY PERIOD
2- Year Limited Warranty from AstroAI.
Each AstroAI Portable Air Compressor will be free from defects in material
and workmanship. This warranty does not cover damage from neglect,
misuse, contamination, alteration, accident, or abnormal conditions of oper-
ation or handling.
This warranty covers the original purchaser only and is not transferable.
AstroAIalwayswantstoprovideourcustomerswithexcellentproductsas
wellascustomerservice.
Questions or concerns? We’re happy to help! Please contact us via
Web:www.astroai.com
E-mail:support@astroai.com
