Kwikset 488CSL SQT 26D Casey Push (Square) - Light Commercial - Half-Dummy

Installation Instruction - Transcript

• Page 1 - English - : wood block Recommended Tools Passage Hall Closet Privacy Bed Bath Entry Keyed Inactive NonRotating Tools will depend on install type This manual can be used to install a variety of levers Please determine your function type prior to installation Door Prep If you need help in preparing your door Installation and Reference Guide 54784001 Rev 01 English Installation Guide wwwkwiksetcom 18003275625 Welcome to the Kwikset family This guide will get you ready to install your new lever If you have any issues please visit our support center kwiksetcomsupport or call us at 18003275625 Drilling template

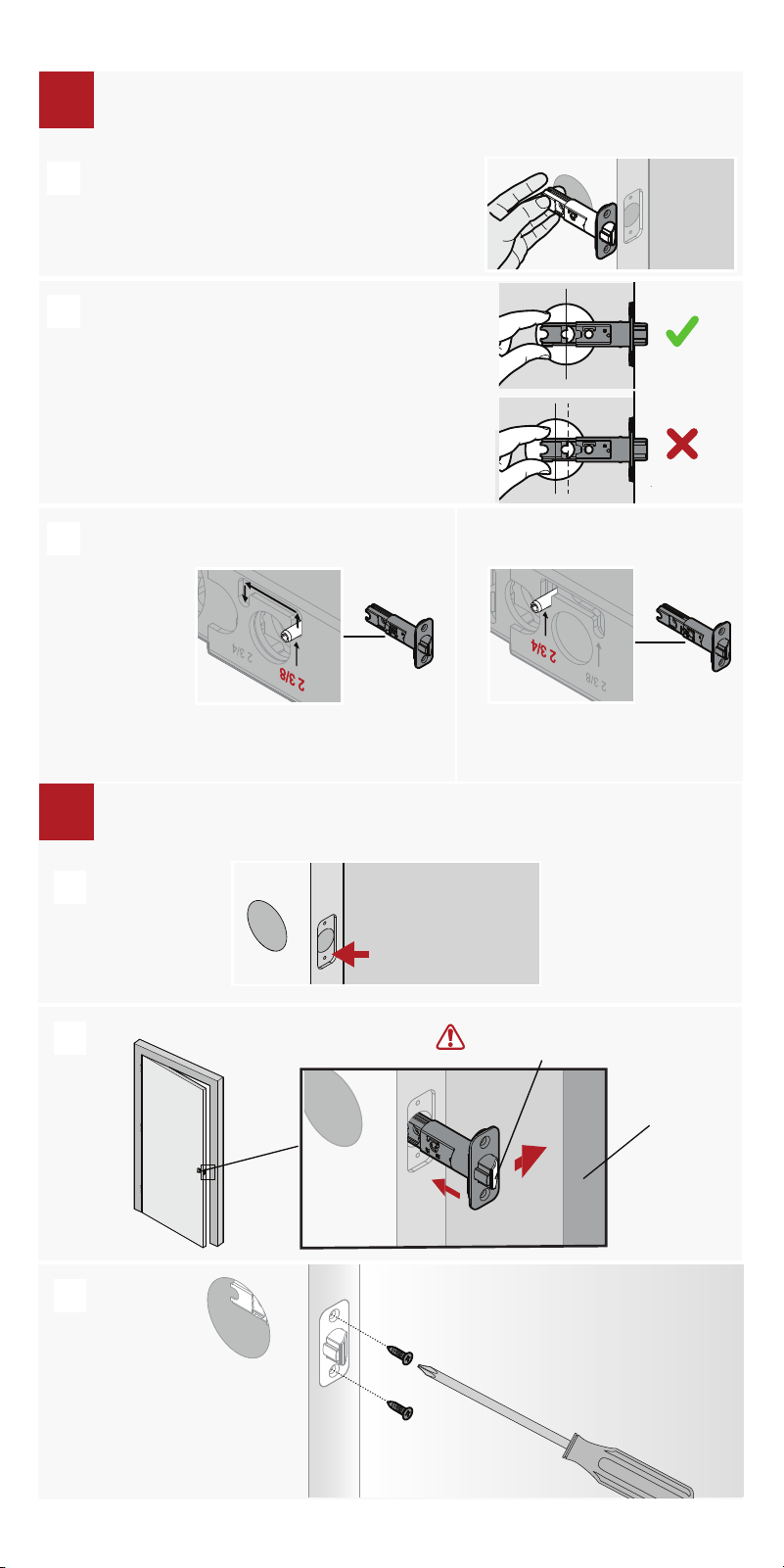

• Page 2 - English - : Hold the latch in front of the door hole with the latch face flush against the door edge If the latch holes are centered in the door hole no adjustment is required Proceed to step 2 If the latch holes are NOT centered adjust latch See Latch Adjustment step 1C Latch Adjustment only if needed Move the pin to extend the latch not centered centered A B C Adjust the backset of the latch if needed Door edge chiseled Install latch chiseled door Slant of latch bolt faces door frame Door frame A B C

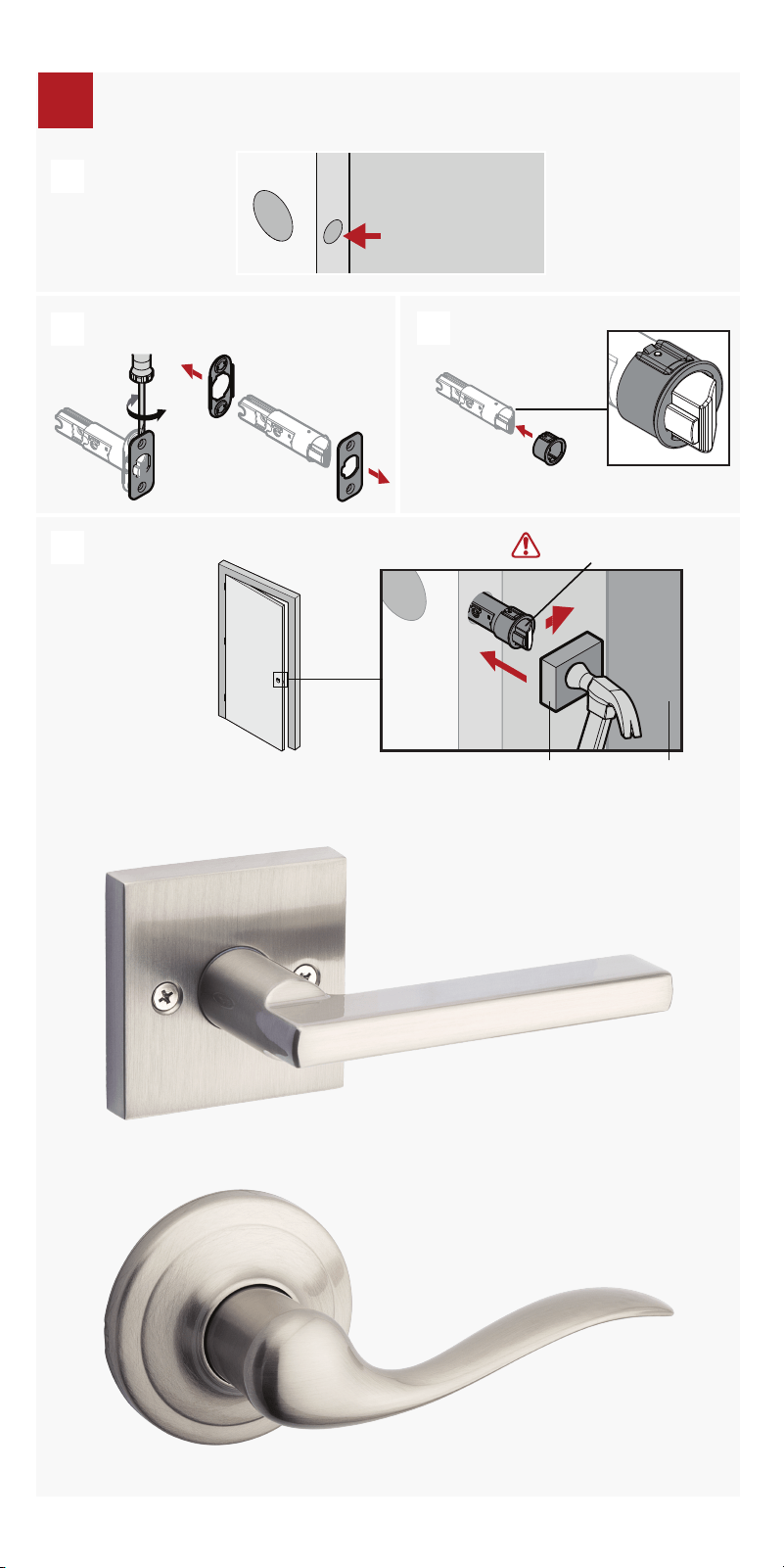

• Page 3 - English - : Door edge NOT chiseled Remove plates Install drivein collar Wood block Slant of latch bolt faces door frame Use hammer and wood block to tap in latch without damaging it Door frame Install latch nonchiseled door If screws are exposed proceed to the next page If screws are concealed proceed to page 5 A B D C

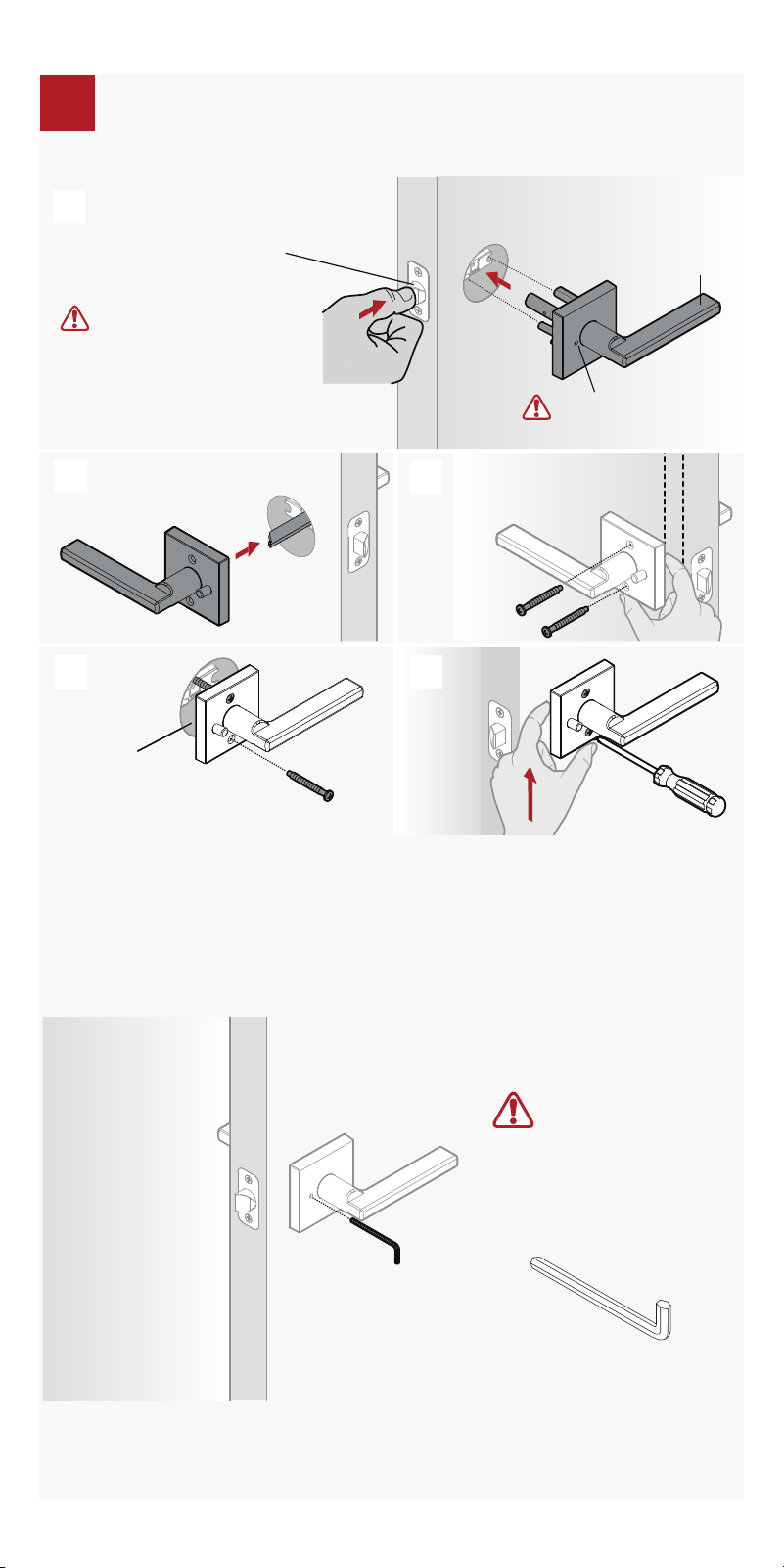

• Page 4 - English - : Install Passage Privacy amp Entry levers exposed screws IMPORTANT If installing a passage lock on an entry door make sure the lever without the screw holes is on the exterior side of the door A Lever handle faces away from latch Exterior Hole must be on the side for privacy levers Press latch bolt to install lever Tip Pull lever slightly away from door to see where screws insert B D C E Interior Keep parallel to the door edge Save the bedroom bathroom emergency unlock tool for future use For Privacy Locks ONLY

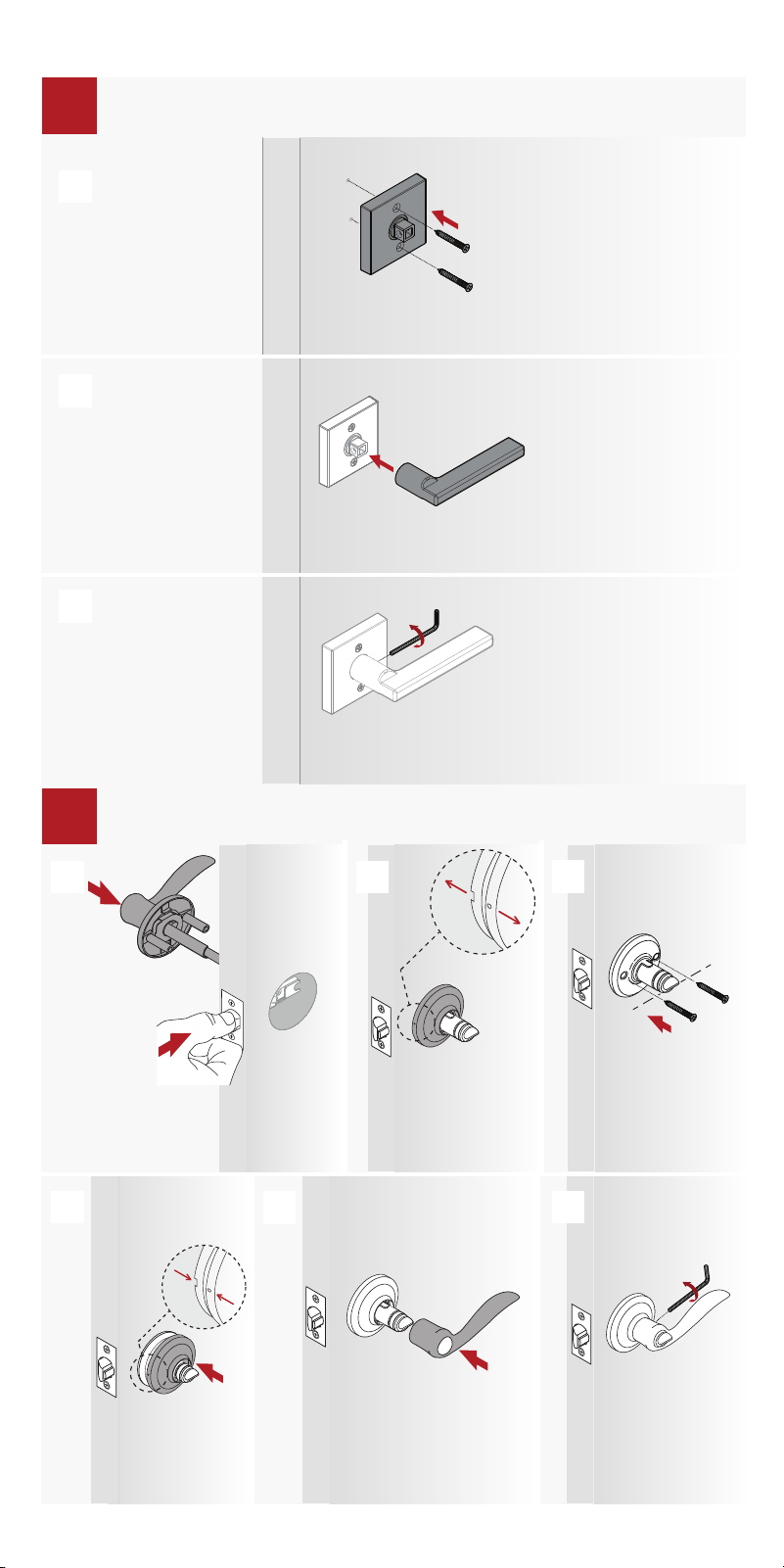

• Page 5 - English - : Install inactive nonrotating levers C B A A D F Interior Interior E Interior A B C Push bolt to install exterior lever Interior Keep turn button horizontal as shown Interior Install levers concealed screws Interior

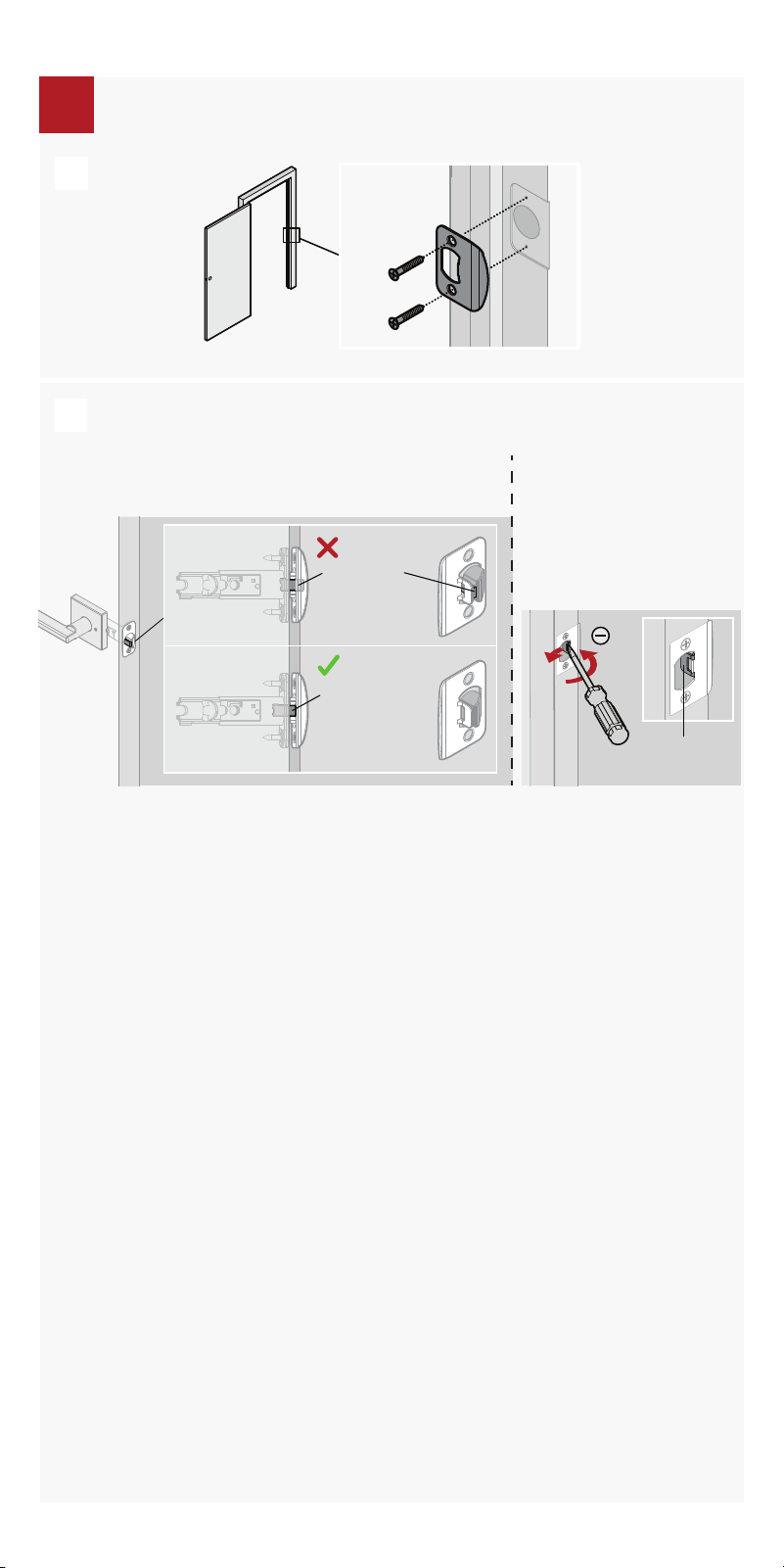

• Page 6 - English - : A If small bolt of latch enters strike hole reposition strike small bolt in strike hole small bolt NOT in strike hole If latch is loose in the strike adjust the strike tab so it grips the latch bolt better when the door is closed tab Close door test latch operation and make adjustments as needed B Install strike to door frame
• Page 7 - English - : Copyright 2024 ASSA ABLOY Americas Residential Inc All rights reserved SmartKey Rekeying Instructions For rekeying instructions you can also visit httpswwwkwiksetcomsupportanswershowtorekeyyoursmartkeysecuritylocks WARNING This Manufacturer advises that no lock can provide complete security by itself This lock may be defeated by forcible or technical means or evaded by entry elsewhere on the property No lock can substitute for caution awareness of your environment and common sense Builders hardware is available in multiple performance grades to suit the application In order to enhance security and reduce risk you should consult a qualified locksmith or other security professional If you have any issues please visit our support center kwiksetcomsupport or call us at 18003275625
