CAUTION:
Weight on this product should not exceed 300 lbs.
Owner's Manual
This Product is Distributed Exclusively by
2040 N Alliance Ave, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Product May Vary Slightly From Pictured.
Exercise can present a
health risk. Consult a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
discontinue use of this
equipment. Serious bodily
injury can occur if this
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
!
WARNING
STAMINA PRODUCTS
MADE IN CHINA
© 2018 Stamina Products, Inc.
2018, 08
United States and/or
International patents apply
and/or are pending. See
www.staminaproducts.com
for details.
When calling for parts or
service, please specify
the following numbers
:
Model#: 55-4700B
S/N: _____________
TABLE OF CONTENTS
3
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning, Caution & Notice Labels
... 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Operational Instructions ........................... 13
Storage ....................................................... 19
Maintenance ............................................... 19
Conditioning Guidelines ........................... 20
Warm-Up and Cool-Down ......................... 21

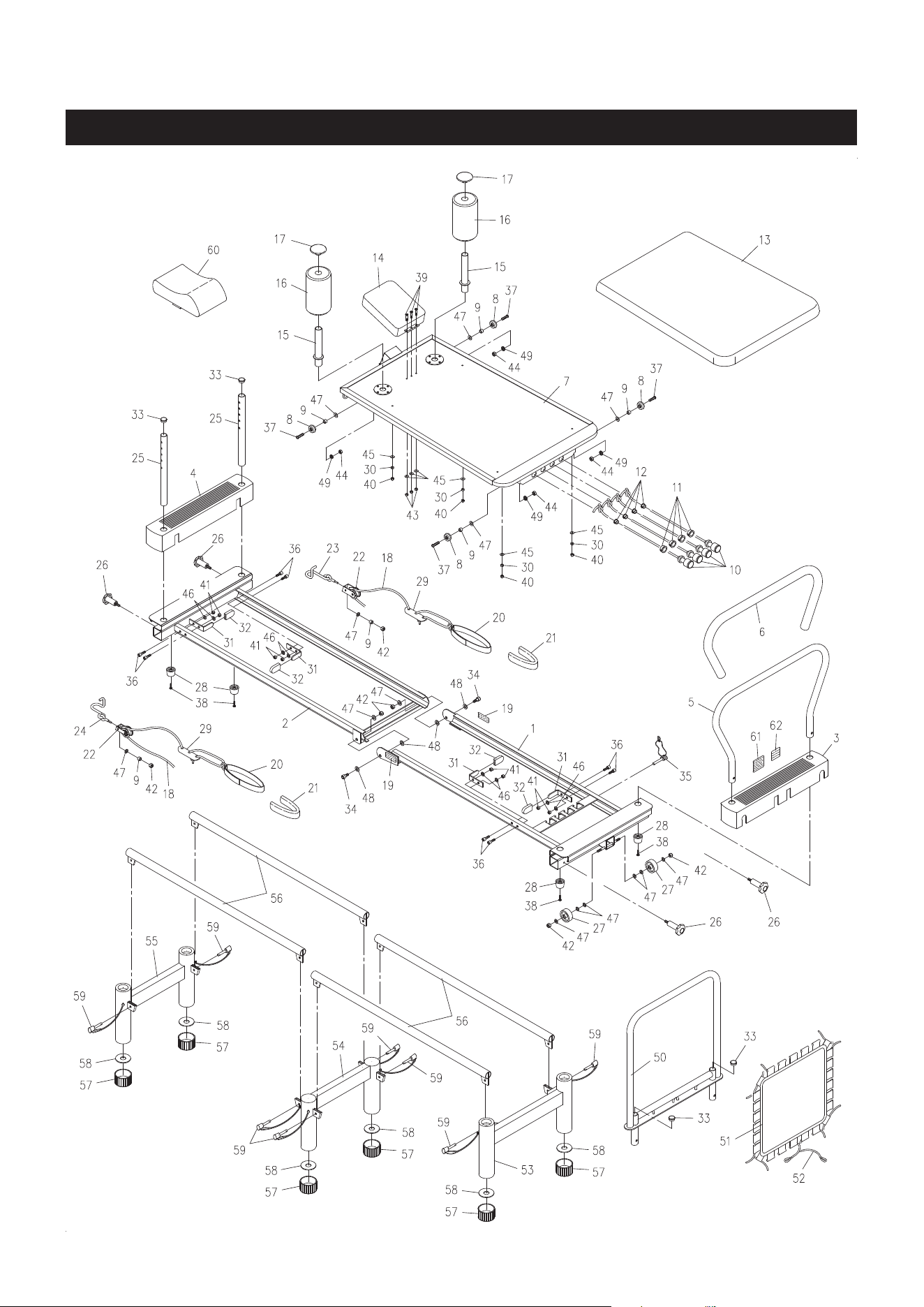

Product Parts Drawing .............................. 22
Parts List .................................................... 23
Warranty ..................................................... 25
Notes ........................................................... 26
Fax/Mail Ordering Form ............................ 27
SAFETY INSTRUCTIONS
1. Save these instructions and ensure that other exercisers read this manual prior to using the AeroPilates®
Premier Studio for the rst time.
2. Read all warnings and cautions posted on the AeroPilates® Premier Studio.
3. The AeroPilates® Premier Studio should only be used after a thorough review of the Owner’s Manual.
Make sure that it is properly assembled and tightened before use.
4. We recommend that two people be available for assembly of this product.
5. Make sure that all eight (8) pull pins are fully inserted before using the AeroPilates® Premier Studio.
6. When exercising on this product, do not exercise at an intensity that causes the product itself to move. This
could result in damage to your joints and to the product.
7. Keep children away from the AeroPilates® Premier Studio. Do not allow children to use or play on the
AeroPilates® Premier Studio. Keep children and pets away from the AeroPilates® Premier Studio when
it is in use.
8. It is recommended that you place this exercise equipment on an equipment mat.
9. Set up and operate the AeroPilates® Premier Studio on a solid level surface. Do not position the
AeroPilates® Premier Studio on loose rugs or uneven surfaces.
10. Make sure that adequate space is available for access to and around the AeroPilates® Premier Studio.
11. Before using, inspect the AeroPilates® Premier Studio for worn or loose components, and tighten or
replace any worn or loose components prior to use.
12. When folding or unfolding the AeroPilates® Premier Studio, keep all children away from the AeroPilates®
Premier Studio and make sure your hands are clear of any folding or pinch point.
13. Consult a physician prior to commencing an exercise program and follow his/her recommendations in
developing your tness program. If at any time during exercise you feel faint, dizzy, or experience pain, stop
and consult your physician.
14. Always choose the workout which best ts your physical strength and exibility level. Know your limits and
train within them. Always use common sense when exercising.
15. Do not wear loose or dangling clothing while using the AeroPilates® Premier Studio.
16. Be careful to maintain your balance while using, mounting, dismounting, or assembling the AeroPilates®
Premier Studio. Loss of balance may result in a fall and bodily injury.
17. The AeroPilates® Premier Studio should not be used by persons weighing over 300 pounds.
18. The AeroPilates® Premier Studio should be used by only one person at a time.
19. The AeroPilates® Premier Studio is for consumer use only. It is not for use in public or semipublic
facilities.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
The Tension Cords(10) and Bungee Cord(52) contain natural rubber latex which
may cause allergic reactions.
To reduce the risk of serious injury, read the following Safety Instructions
before using the AeroPilates® Premier Studio.
!
WARNING
!
WARNING
!
CAUTION
!
WARNING
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please go online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
2040 N Alliance Ave
Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
BEFORE YOU BEGIN
5
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY : Combination Wrench
Socket Wrench
Front Frame
Foam Pad
Headrest
Rope
Pulley Set
Front Cover
Pull Pin
Hand/Foot Strap
Pulley Riser
Front Stand
Wheel
Locking Knob
Rear Cover
Tension Cord
Platform Cushion
Rear Frame
Rear Stand
Middle Stand
Pulley Riser
Left Pulley Hook
Right Pulley
Hook
Connection Bar
Platform
Cardio
Rebounder
Caution Label
Headpad
Footbar
Thank you for choosing the AeroPilates®
Premier Studio. We take great pride in producing
this quality product and hope it will provide many
hours of quality exercise to make you feel better,
look better, and enjoy life to its fullest.
It's a proven fact that a regular exercise
program can improve your physical and mental
health. Too often, our busy lifestyles limit our time
and opportunity to exercise. The AeroPilates®
Premier Studio provides a convenient and simple
method to begin your journey of getting your body
in shape and achieving a happier and healthier
lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See
page 5 for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
AeroPilates® Premier Studio.
Although Stamina constructs its products with
the nest materials and uses the highest standards
of manufacturing and quality control, there can
sometimes be missing parts or incorrectly sized
parts. If you have any questions or problems with
the parts included with your AeroPilates® Premier
Studio, please do not return the product. Contact
us FIRST!
If a part is missing or defective, please go to
staminaproducts.com under the Customer Care
section and order the part needed, or call us toll
free at 1-800-375-7520 (in the U.S.). Our Customer
Care Staff is available to assist you from 7:30
A.M. to 5:00 P.M. (Central Time) Monday through
Thursday and 8:00 A.M. to 3:00 P.M. (Central
Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
Serial Decal
Front Cover
Endcap
Rope Adjustment Bracket
6
This chart is provided to help identify the warning, caution, and notice labels on the AeroPilates®
Premier Studio. Please take a moment to familiarize yourself with all of the warning, caution, and
notice labels.

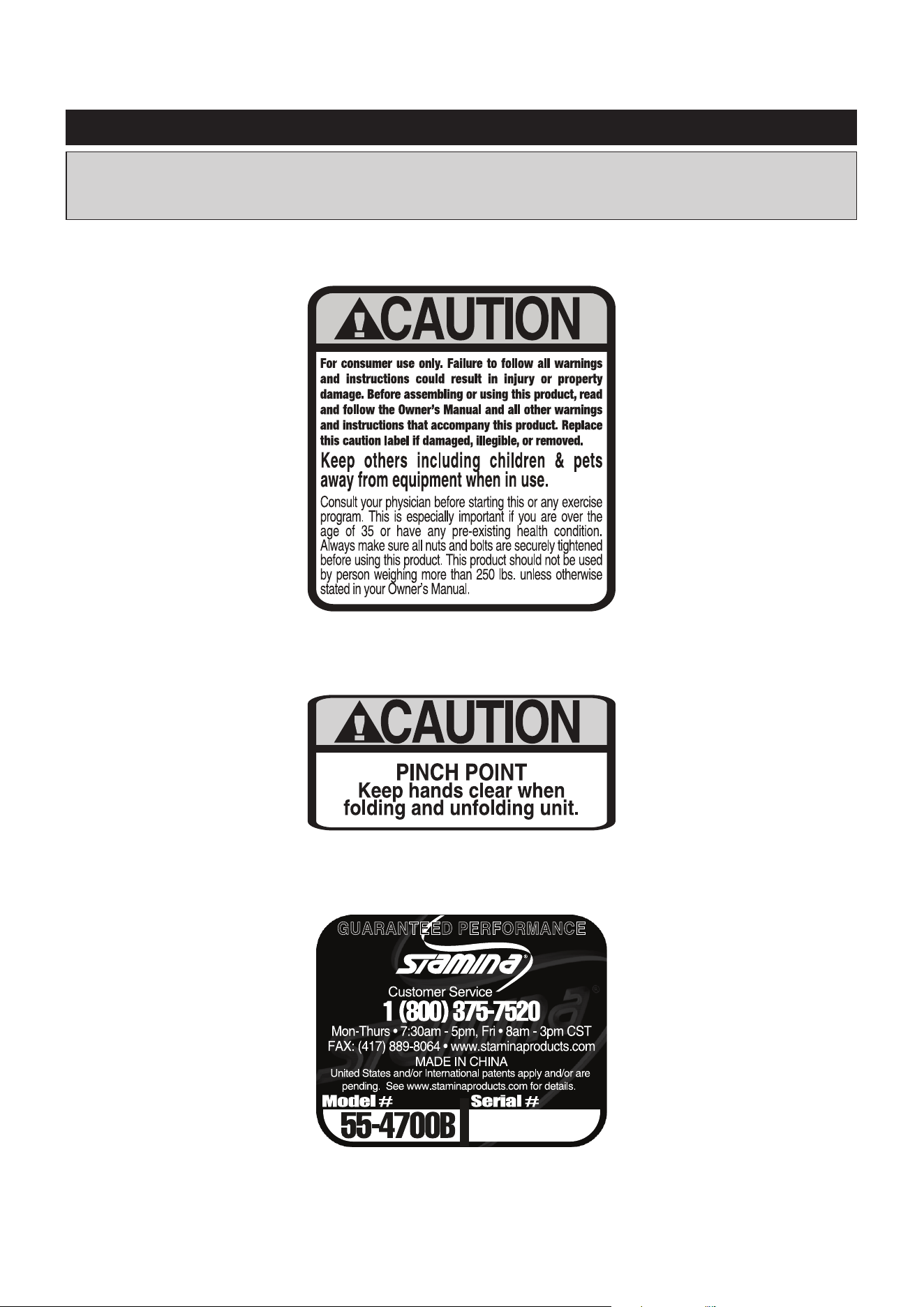

EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(61)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(62)
PINCH POINT CAUTION LABEL(19)
Part Number and Description Qty
7
47 Washer (M8) 6
42 Nylock Nut (M8 x 1.25) 2
38 Screw, Round Head (M5 x 0.8 x 25mm) 4
28 Rubber Foot 4
27 Wheel 2
26 Locking Knob 4
length
length
mm.
in.
INCHES
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
ASSEMBLY INSTRUCTIONS
8
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520
(in the U.S.). Our Customer Care Sta is available to assist you from 7:30 A.M. to 5:00 P.M. (Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
STEP 1
Connect the REAR STAND(55), the narrower one, to the MIDDLE STAND(54) with two CONNECTION
BARS(56), inserting the ns on the CONNECTION BARS(56) into the gaps in the double anges on the
STANDS(55, 54). Then lock the CONNECTION BARS(56) in the place by inserting the PULL PINS(59)
through the double anges. Repeat to connect the FRONT STAND(53) to the MIDDLE STAND(54).
Fin
Double
Flanges
Fin
Double
Flanges
FRONT
REAR
ASSEMBLY INSTRUCTIONS
9
STEP 2
Remove your AeroPilates® Premier Studio from its packaging, placing the product on its side with the
LOCKING PIN(35) side upward. Remove the LOCKING PIN(35) and unfold the MAIN FRAME ASSEMBLY
separating the half that has the attached LOCKING PIN(35). When completed, the frame should form a
“V” with the frame ends separated approximately three feet.
STEP 3
Attach the four RUBBER FEET(28) to the FRONT FRAME(1) and REAR FRAME(2) with ROUND HEAD
SCREWS(M5x0.8x25mm)(38). The ROUND HEAD SCREWS(M5x0.8x25mm)(38) are already in the
RUBBER FEET(28). Attach the WHEELS(27) to the FRONT FRAME(1) with WASHERS(M8)(47) and
NYLOCK NUTS(M8x1.25)(42).
STEP 4
Unfold your AeroPilates® Premier Studio to a at position by moving the FRONT FRAME(1) away from
the platform end of the product in a clockwise position until fully extended.
ASSEMBLY INSTRUCTIONS
10
STEP 5
Remove the paper covering from the foam tape inside the FRONT COVER(3). Place the FRONT COVER(3)
over the FRONT FRAME(1) and press the cover securely into place.
STEP 6
Make sure that the threaded holes in the FOOTBAR(5) are facing toward the end of the AeroPilates®
Premier Studio as shown in the illustration. Insert the FOOTBAR(5) into the mounting holes located in the
FRONT COVER(3) and FRONT FRAME(1). Insert the FOOTBAR(5) all the way to the bottom and lock it
in place with the LOCKING KNOBS(26).
NOTE: You can choose to insert the CARDIO REBOUNDER(50) into the FRONT FRAME(1) and lock in
position with the LOCKING KNOBS(26). Refer to the inset drawing.
ASSEMBLY INSTRUCTIONS
11
STEP 7
Remove the paper covering from the foam tape inside the REAR COVER(4). Place the REAR COVER(4)
over the REAR FRAME(2) and press the cover securely into place.
STEP 8
Insert the PULLEY RISERS(25) into the mounting holes in the REAR COVER(4) and REAR FRAME(2). Insert
the PULLEY RISERS(25) all the way to the bottom, align the threaded holes in the PULLEY RISERS(25)
with the holes in the REAR FRAME(2), and lock the PULLEY RISERS(25) in position with the LOCKING
KNOBS(26).
STEP 9
Refer to the detail drawing showing an enlarged view of the left PULLEY RISER(25) and the LEFT PULLEY
HOOK(23). With the pulley facing down, insert the LEFT PULLEY HOOK(23) into the left PULLEY RISER(25)
from the inside as shown. Swing the pulley forward as shown and the LEFT PULLEY HOOK(23) will be in
position for use. Use the same procedure to install the RIGHT PULLEY HOOK(24) on the right PULLEY
RISER(25).
ASSEMBLY INSTRUCTIONS
12
STEP 10
Insert the FOAM PAD ASSEMBLIES(16) into the holes located on the PLATFORM(7). Place the HAND/
FOOT STRAPS(20) onto the FOAM PAD ASSEMBLIES(16) for storage.
STEP 11
Refer to the inset drawing. To prevent the PLATFORM(7) from moving while placing the AeroPilates®
Premier Studio onto its stand, attach one of the TENSION CORDS(10) in the slot on the FRONT FRAME(1).
Place the AeroPilates® Premier Studio onto the stand as shown in the illustration.
NOTE: The rubber feet of the AeroPilates® Premier Studio must t into the FRONT STAND(53) and
the REAR STAND(55). The FRONT STAND(53) is wider than the REAR STAND(55). The footbar
end of your AeroPilates® Premier Studio will t into the top of the FRONT STAND(53) and the
headrest end of your AeroPilates® Premier Studio will t into the REAR STAND(55).
(53) Front Stand
( Wider )
(55) Rear Stand
( Narrower )
Slots
OPERATIONAL INSTRUCTIONS
13
Support
Bracket
LOAD ADJUSTMENT
The resistance of the PLATFORM(7) can be adjusted by
securing the TENSION CORDS(10) in the slots on the FRONT
FRAME(1). You can achieve various levels of resistance by
securing dierent numbers of the TENSION CORDS(10) in
the slots.
NOTE: Over time your TENSION CORDS(10) will relax. To
increase resistance in the TENSION CORDS(10),
stretch and re-tie the tension cords in a more taut
position.
Slots
HEADREST ADJUSTMENT
The HEADREST(14) on the PLATFORM(7) can be positioned
at or at an incline by simply pivoting the support bracket
underneath the HEADREST(14).
ROPE LENGTH ADJUSTMENT
The position of the HAND/FOOT STRAP(20) can be adjusted by pulling the ROPE(18) through the
ROPE ADJUSTMENT BRACKET(29) as shown. Be sure to adjust both HAND/FOOT STRAPS(20) to
the same position on both sides.
OPERATIONAL INSTRUCTIONS
14
HEADPAD ADJUSTMENT AND USE
The HEADPAD(60) is designed to support the natural curve
of your neck. It can be used to provide comfort, support and
postural alignment for reformer exercises that are performed
while lying on your back. Do not use the HEADPAD(60) for
exercises that require you to lift your hips higher than your
head.
With the HEADREST(14) in the flat position, place the
HEADPAD(60) on top of the HEADREST(14) with the
thickest part of the HEADPAD(60) under your neck. Make
sure that the elastic strap on the HEADPAD(60) is around
the HEADREST(14).
Make sure that both FOAM PADS(16) are in
the platform when using the HEADPAD(60)
attached to the HEADREST(14).
15
OPERATIONAL INSTRUCTIONS
Ideal rope length will vary depending on your height and limb length. To determine your ideal rope length,
begin by placing the hand/foot straps over the shoulder rests as shown below. Adjust the ropes so they are
taut. For complete rope length adjustment instructions, see additional Rope Length Adjustment instructions
in this Owner’s Manual.
CUSTOMIZING ROPE LENGTH
Next, lie on the reformer with your hands in the straps with shoulders against the shoulder rests. Reach
your hands toward the ceiling until they are directly over the back edge of the reformer platform as shown
below. In this position, the reformer platform should be at rest with no tension on the ropes. If there is still
tension on the ropes in this position, lengthen the ropes. If you lose tension before reaching the arm position
shown below, shorten the ropes.
OPERATIONAL INSTRUCTIONS
16
Standard Setting- the top hole
The standard height setting for the reformer pulleys is the top setting. At the top setting, the pull of the ropes
provides the most support and feedback for the body. Place your pulleys at the top setting to most easily
achieve proper form and to engage the core muscles.
Variable settings- lower holes
You can add variety to your routine by using dierent pulley settings. The lower you set the pulleys, the
less guidance and support you receive from the ropes. By providing less guidance and support, the lower
settings further challenge strength and coordination.
PULLEY HEIGHT ADJUSTMENT
17
OPERATIONAL INSTRUCTIONS
RESISTANCE CORD STRENGTH
The AeroPilates® workout wall chart and workout DVDs indicate which cords to use for each exercise.
To replace or add a tension cord, rst carefully release the
platform and tip your machine on its side. Untie
the knot that secures the cord you are replacing and simply pull it out. Thread the new cord through the
metal holes from the end of the platform to the other end.
Pull tightly on the cord stretching it to the point that allows you to tie a double knot, and release the cord
into place.
TENSION CORD SELECTION
TENSION CORD REPLACEMENT
TENSION
CORDS
YELLOW
BLACK
RED
approximately 16 pounds
approximately 24 pounds
approximately 34 pounds
CORD RESISTANCE
1 2 3 4
The approximate maximum resistance provided by each cord is outlined in the chart below. Frequency
of use, type of use and user weight will have an eect on the strength of your cords. Over time cord
strength will gradually decrease. If your reformer is under the 90 day warranty, replacement cords are
available by contacting Stamina customer care at customer[email protected]. If your reformer
is not under warranty or you would like to add dierent tension cords, you can purchase new cords by
visiting our website www.aeropilates.com.
18
OPERATIONAL INSTRUCTIONS
To replace a platform roller, rst remove the platform by releasing the cords and sliding the platform all the
way back to the top end or rear frame of the machine. Tip your machine on its side, bend the machine at
the hinge, and simply slide the platform o the frame.
Turn the
platform upside down so it is cord side up. Using a crescent wrench and at head screwdriver,
remove the screw that is holding the roller in place. Replace the old roller with the new one, add the washer,
push the screw through the roller and tighten with the nut. Do not overtighten the nut. Roller must turn freely.
PLATFORM ROLLER REPLACEMENT
You can nd use and maintenance instructional video clips at www.staminaproducts.com.
WEBSITE RESOURCES
1 2 3 4
The safety and integrity designed into the AeroPilates® Premier Studio can only be maintained when
the AeroPilates® Premier Studio is regularly examined for damage and wear. Special attention should
be given to the following:
STORAGE
MAINTENANCE
19
1. It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
2. Worn or damaged components must be replaced immediately or the AeroPilates® Premier Studio
should be removed from service until repair is made.
3. Verify that the CAUTION LABEL(68) and PINCH POINT CAUTION LABEL(70) are in place and
easy to read. Call Stamina Products immediately at 1-800-375-7520 for a replacement caution labe if
one is missing or damaged.
4. Verify that the ROPES(18) are properly installed on the PULLEY SETS(22).
5. Check the condition of the ROPES(18) and replace if they are frayed or worn.
6. Check the PLASTIC SNAP HOOKS(19) on the ends of the ROPES(18). Replace the ROPES(18) if
PLASTIC SNAP HOOKS(19) are damaged or deformed.
7. Check the TENSION CORDS(10). If any of the TENSION CORDS(10) are stretched and loose, re-tie
the knot on the end of the cord. Replace TENSION CORDS(10) that are frayed or worn.
8. Check the BUNGEE CORD(52) on the CARDIO REBOUNDER(50) for wear. Replace the BUNGEE
CORD(52) if it is frayed or worn.
9. Check the PULLEY SETS(22) for excessive wear. Replace worn PULLEY SETS(22).
10. Check the HAND/FOOT STRAPS(20) for damage. Replace damaged parts.
11. Check the FOAM SLEEVE(6) and FOAM PADS(16) and replace if damaged or worn.
12. Check the STOP PLATES(31) for looseness or damage and replace any damaged parts.
13. Check the PLATFORM CUSHION(13) and replace if it is damaged or worn.
14. Check and clean the ROLLERS(8) and the rolling surfaces on the rails. Clean by wiping with a dry
cloth.
15. Only Stamina Products supplied components should be used to maintain/repair the AeroPilates®
Premier Studio.
16. Keep your AeroPilates® Premier Studio clean by wiping it o with an absorbent cloth after use.
1. To store the AeroPilates® Premier Studio, simply keep it in a clean dry place.
2. It is recommended that two people be available to move the AeroPilates® Premier Studio.
3. To move the AeroPilates® Premier Studio: First, attach one of the TENSION CORDS(10) in the slot
on the FRONT FRAME(1) to prevent the PLATFORM(7) from moving. Second, grasp the FRONT
and REAR FRAME(1, 2) to remove the AeroPilates® Premier Studio from its stand. Third, lift up
the AeroPilates® Premier Studio from the REAR FRAME(2) to move the AeroPilates® Premier
Studio with the transport wheels on the FRONT FRAME(1). Fourth, grasp both ends of the stand to
move it.
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
three ngers on your wrist and take a six second heartbeat count. Multiply
the results by ten to nd your heart rate. For example, if your six second
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
build up to higher intensity as you become more aerobically t.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
20
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Stretching
Stretching while your muscles are warm after a proper warm-up and again after your
strength or aerobic training session is very important. Muscles stretch more easily at these times
because of their elevated temperature, which greatly reduces the risk of injury. Stretches should be held
for 15 to 30 seconds. Do not bounce.
Suggested Stretching Exercises
Remember to always check with your physician before starting any exercise program.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool-down should include the stretches listed above and should be
completed after each strength training session.
Lower Body Stretch
Place feet shoulder-width
apart and lean forward.
Keep this position for 30
seconds using the body as a
natural weight to stretch the
backs of the legs.
DO NOT BOUNCE!
When the pull on the back of
the legs lessens, gradually
try a lower position.
Floor Stretch
While sitting on the oor,
open the legs as wide as
possible. Stretch the upper
body toward the knee on the
right leg by using your arms
to pull your chest to your
thighs. Hold this stretch 10
to 30 seconds.
DO NOT BOUNCE!
Do this stretch 10 times.
Repeat the stretch with the
left leg.
Bent Over Leg Stretch
Stand with feet shoulder-
width apart and lean forward
as illustrated. Using the
arms, gently pull the upper
body towards the right leg.
Let the head hang down.
DO NOT BOUNCE!
Hold the position a minimum
of 10 seconds. Repeat
pulling the upper body to
the left leg. Do this stretch
several times slowly.
Bent Torso Pulls
While sitting on the oor,
have legs apart, one leg
straight and one knee bent.
Pull the chest down to touch
the thigh on the leg that is
bent, and twist at the waist.
Hold this position at least 10
seconds. Repeat 10 times
on each side.
21
PRODUCT PARTS DRAWING
22
FRONT
BACK
PARTS LIST
23
PART# PART NAME QTY
1 Front Frame 1
2 Rear Frame 1
3 Front Cover 1
4 Rear Cover 1
5 Footbar 1
6 Foam Sleeve 1
7 Platform 1
8 Roller 4
9 Roller Spacer 6
10 Tension Cord 4
11 Support Bushing 4
12 Stop Bushing 4
13 Platform Cushion 1
14 Headrest 1
15 Foam Pad Tube 2
16 Foam Pad 2
17 Foam Cap 2
18 Rope 2
19 Pinch Point Caution Label 2
20 Hand/Foot Strap 2
21 Furry Grip 2
22 Pulley Set 2
23 Left Pulley Hook 1
24 Right Pulley Hook 1
25 Pulley Riser 2
26 Locking Knob 4
27 Wheel 2
28 Rubber Foot 4
29 Rope Adjustment Bracket 2
30 Nut (M5 x 0.8) 4
31 Stop Plate 4
32 Stop Pad 4
33 Round Plug (25mm) 4
34 Shaft Bolt, Socket Head (M8 x 1.25 x 20mm) 2
35 Locking Pin 1
36 Bolt, Socket Head (M6 x 1 x 14mm) 8
37 Bolt, Round Head (M8 x 1.25 x 30mm) 4
38 Screw, Round Head (M5 x 0.8 x 25mm) 4
39 Screw, Flat Head (M5 x 0.8 x 25mm) 3
40 Acorn Nut (M5 x 0.8) 4
41 Nylock Nut (M6 x 1) 8
42 Nylock Nut (M8 x 1.25) 6
43 Nylock Nut (M5 x 0.8) 3
44 Nut (M8 x 1.25) 4
45 Washer (M5) 7
46 Washer (M6) 8
47 Washer (M8) 14
PARTS LIST
24
PART# PART NAME QTY
48 Washer (M10) 4
49 Lock Washer (M8) 4
50 Cardio Rebounder 1
51 Mat 1
52 Bungee Cord 1
53 Front Stand 1
54 Middle Stand 1
55 Rear Stand 1
56 Connection Bar 4
57 Endcap 6
58 Large Washer (2 3/8” diameter) 6
59 Pull Pin 8
60 Headpad 1
61 Caution Label 1
62 Serial Decal 1
63 Combination Wrench 1
64 Socket Wrench 1
65 Manual 1
66 Workout Chart 1
67 AeroPilates Basic Workout Package (DVD) 1
68 AeroPilates Primer (DVD) 1
LIMITED WARRANTY
MODEL 55-4700B
25
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and three
years on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
prot making enterprise, and all other use which is not for personal purposes.
To implement this limited warranty, send a written notice stating your name, date, and place of purchase
and a brief description of the defect along with your receipt to Stamina Products, Inc. 2040 N Alliance
Ave, Springeld, Missouri, USA, MO 65803, or email us at customer[email protected], or call
us at 1-800-375-7520. If the defect is covered under this limited warranty, you will be requested to return
the product or part to us for free repair or replacement at our option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED
MORE THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These
warranties are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE
WITH THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR
REPLACEMENT IS THE EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any
implied warranty, Stamina reserves the right to require the product to be returned for inspection, at the
purchaser’s expense, to Stamina’s premises in Springeld, Missouri. Return of the enclosed warranty
registration card is not required for warranty coverage, but is merely a way of establishing the date and
place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY. This warranty gives you specic legal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
The laws in some states aect the disclaimer or limitation of implied warranties and consequential and
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
on implied warranties and consequential and incidental damages shall be deemed to be modied to the
extent necessary to comply with applicable law.
NOTES
26
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
Would you like to receive email information or special oers from Stamina Products?* ____Yes ____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
2040 N Alliance Ave, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
Would you like to recieve email information or special oers from Stamina Products? Register at contact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
2040 N Alliance Ave, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
If you don’t have internet access, you can call customer care at 1-800-375-7520, or ll out and mail the product registration form
below to Stamina Products, Inc.; 2040 N Alliance Ave, Springeld, MO 65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
