48-59-1806
6 Bay M18 Battery Charger
Oct. 2012

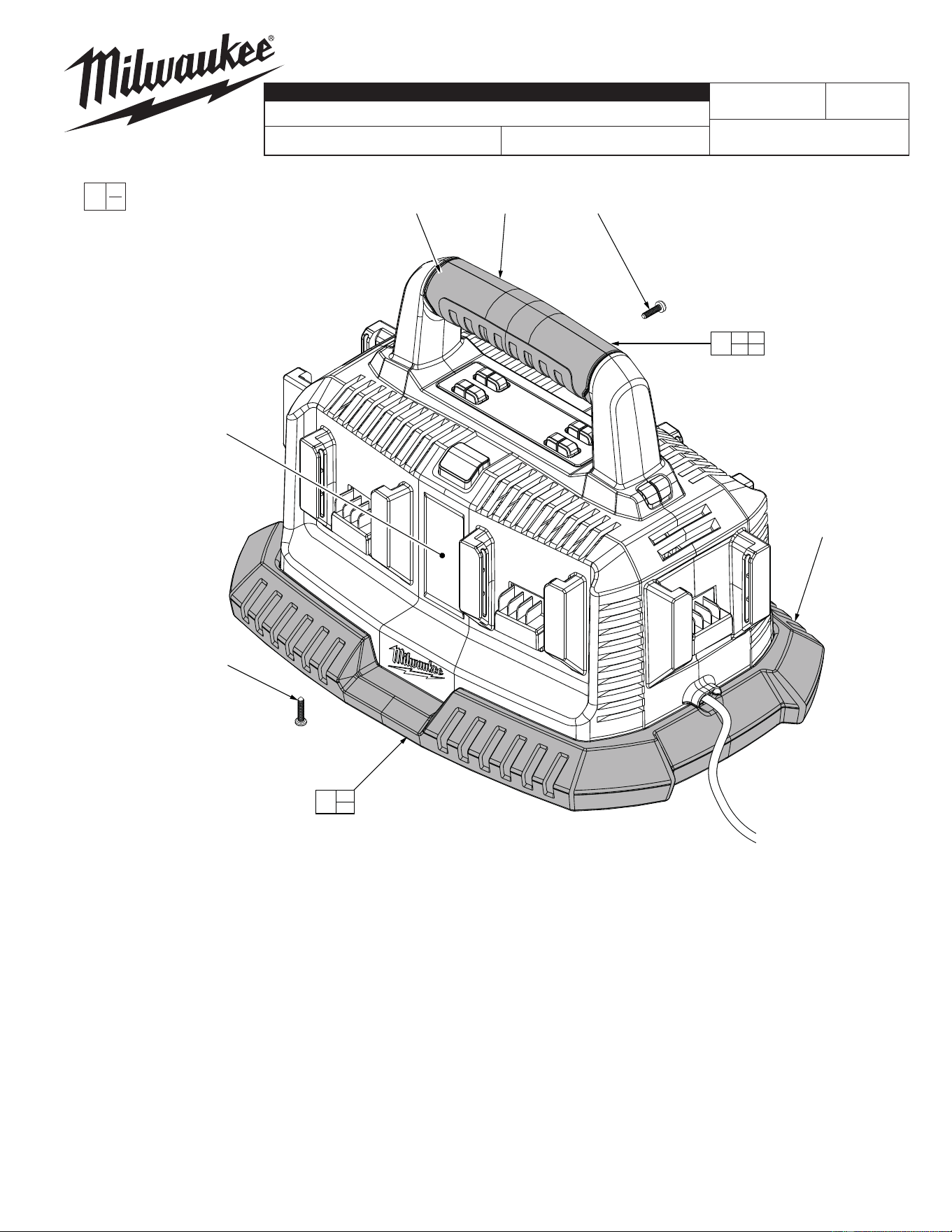

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 31-44-2730 Handle Grip Kit (1)
2 --------------- Front Grip Halve (1)
3 --------------- Rear Grip Halve (1)
4 --------------- Screw - For Grip (2)
5 31-06-0250 Base Kit (1)
6 --------------- Base (1)
7 --------------- Screw - For Base (8)
8 12-20-1806 Service Nameplate (1)
9 10-20-1806 Warning Label (Not Shown) (1)
FIG. NOTES
8,9 A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
54-04-1825
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
E50A
(2x)
(8x)
2 3 4
8
7
6
7
5
2 3
4
1
6
