20V MAX LEAF
BLOWER
2515068 - Instruction Manual
Manufactured and sold
under licence
CONTENTS
Safety Instructions 1
Safety Instructions 2
Safety Instructions 3
Safety Symbols 4
Technical Specification 5
Charging the Battery, Important Charging Notes 6
Installing & Removing the Battery, Assembly 7
Operation, Cleaning & Maintenance 8
Troubleshooting 9
Warranty, Decloration 10
WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
1
INTENDED USE.
Only operate the Leaf Blower for
its intended purpose and within the
parameters specified in this manual.
This garden tool is for domestic use only.
It is not for commercial use.
This garden tool is not intended for use in
wet or damp conditions.
The garden tool is not intended for use by
persons with reduced physical, sensory or
mental capabilities, or lack of experience
or knowledge, unless supervised or given
appropriate instruction concerning the
product’s use by a person responsible for
their safety.
This garden tool is not a toy and is not
for use by children. Keep the tool, any
attachment and its power cord out of
reach.
IMPORTANT SAFETY INFORMATION.
WARNING! When using any electrically-
powered appliance, these basic safety
precautions should always be followed to
reduce risk of fire, electric shock, or injury
to persons or property.
Read all of this manual carefully before
operating the appliance.
Before operating the Leaf Blower, make
sure that you know how to switch off the
appliance in an emergency.
Retain this manual for future reference.
WARNING! Secure long hair so that it
is above shoulder length. Keep loose
clothing, ties, tassels and hanging straps
away from openings and moving parts.
Always be sure that the appliance is in a
safe operating condition and that all parts
are secure before use.
Do not operate the product if any parts
appear defective or worn.
Do not attempt to pick up burning
materials such as lit cigarette ends.
Do not operate the Leaf Blower in a
gaseous or explosive atmosphere as
motors in the appliances can spark and
may ignite fumes.
Do not place the inlet or outlet of the
Blower near eyes or ears when operating.
Never blow debris in the direction of
bystanders.
Do not use in rainy conditions or leave
outdoors while it is raining.
Use your product only in daylight.
Do not cross gravel paths or roads whilst
the appliance is switched on during use.
Walk, never run.
Do not place the appliance down on
gravel while it is switched on.
Always be sure of your footing,
particularly on slopes. Do not overreach
and keep your balance at all times.
Do not pick up matter that may be
contaminated with flammable or
combustible liquids such as gasoline, or
use in areas where such matter might be
present.
Do not place any objects into the
openings. Never use if the openings are
blocked. Keep free of hair, lint, dust and
anything that may reduce the airflow.
WARNING! Always use the appliance in
the manner outlined in this manual. The
Leaf Blower is designed to be used in an
upright mode. Any other use may result
in injury. Never operate the Leaf Blower
whilst lying on its side or upside down.
TRAINING.
Read the instructions carefully.
Be familiar with the controls and the
proper use of the appliance.
Do not allow children or any person
unfamiliar with these instructions to
operate the appliance. Local regulations
may restrict the age of the operator.
Never use the appliance while people,
especially children, or pets are nearby.
Remember that the operator will be
held responsible for accidents or hazards
occurring to other people or their
property.
PREPARATION.
Do not operate the Leaf Blower barefoot
or in open sandals.
To protect your feet and legs, always wear
stout shoes or boots and long trousers.
Freshly cut grass is damp and slippery
wearing suitable footwear will enhance
your safety.
Use appropriate protective equipment.
Wear safety spectacles or goggles whilst
operating this appliance.
Use ear protection if the sound level
seems uncomfortable when using the
appliance.
BATTERY/CHARGER USE AND CARE.
Recharge only with the charger specified
by the manufacturer. A charger that is
suitable for one type of battery pack
may create a risk of fire when used with
another battery pack.
Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create a risk of
injury and fire.
An extension cord should not be used
unless absolutely necessary. Use of an
improper extension cord could result in
the risk of fire or electric shock.
The charger is not intended to be used
for any purpose other than charging
rechargeable batteries. Any other use may
result in risk of fire or electric shock.
First read the safety instructions and then
follow the charging notes and procedures.
The charger is only designed to operate
on standard household electrical power.
Do not attempt to use it on any other
voltage.
Never attempt to connect 2 chargers
together.
Do not place any object on top of the
charger or place the charger on a soft
surface that may result in excessive
internal heat.
Do not attempt to disassemble the
charger. Take it to an electrician or power
tool repairer when service or repair is
required. Incorrect reassembly may result
in a risk of electric shock or fire.
Do not expose the battery to direct
sunlight for long periods of time.
Protect the battery and charger against
water and moisture.
Protect the battery from heat and fire.
Place the charger in a position away from
any heat source.
Remove the battery when the appliance is
not in use or stored for periods of time.
When the battery pack is not in use, keep
it away from other metal objects such as
paper clips, coins, keys, nails, screws or
other small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together
may result in burns or a fire.
To facilitate cooling of the battery pack
after use, avoid placing the charger or
battery pack in a warm environment, such
as a metal shed, or an uninsulated trailer.
The battery pack is not fully charged out
of the box.
To reduce the risk of electric shock,
unplug the charger from the outlet before
attempting any cleaning. Removing the
battery pack will not reduce this risk.
To reduce risk of damage to the electric
plug and cord, pull by the plug rather
than the cord when disconnecting the
charger.
WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
STORAGE AND MAINTENANCE.
Locate the power tool out of reach of
children, in a dry, locked unit.
Do not store or use the tool and battery
pack in locations where the temperature
may exceed 40°C (such as inside sheds or
metal buildings in summer).
Ensure the handles remain clean and free
from oil and moisture so as to maintain
proper grip during operation.
Ensure the motor has fully stopped and
the battery removed before cleaning,
clearing a blockage, checking, or carrying
out any maintenance on the machine.
Regularly check external nuts and fixings
to ensure vibration caused by normal use
has not begun to loosen them.
Make sure the cord is located so that it
will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
3
Never attempt to open the battery pack
for any reason or if the plastic housing
of the battery pack breaks or cracks,
immediately discontinue use and do not
recharge.
Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid comes into contact with
eyes, additionally seek medical help.
Liquid ejected from the battery may
cause irritation or burns.
Have your power tool serviced by a
qualified repair person using identical
replacement parts only. This will ensure
that the safety of the power tool is
maintained.
Do not dispose of the battery in a fire.
Do not incinerate the battery pack even
if it is seriously damaged or is completely
worn out.
Do not dispose of the battery in
household waste. Deliver the batteries
to a collection centre for old batteries
where they will be recycled in an
environmentally friendly way.
USE PRECAUTION
For your safety
EAR & EYE
PROTECTION
Must be worn
PROTECTIVE GLOVES
Must be worn when
operating
UNSUITABLE WEATHER
Do not use in wet
conditions
INSTRUCTION
MANUAL
Read and understand
SUITABLE FOOTWEAR
Must be worn
SAFE DISTANCE
Mind bystanders
SAFETY SYMBOLS
The following safety symbols may appear on this product. Please ensure you understand their meanings before
operating this tool in order to prevent personal injury and avoid damage to the tool.
DUST MASK
Must be worn
REMOVE BATTERY
From the appliance
before cleaning
RISK OF INJURY
Keep hands at a
safe distance
5
20
V
BATTERY
MAX
1
Hours
CHARGE
TIME
12000
RPM
ROTATION
SPEED
1500mAh
Li-Ion
BATTERY

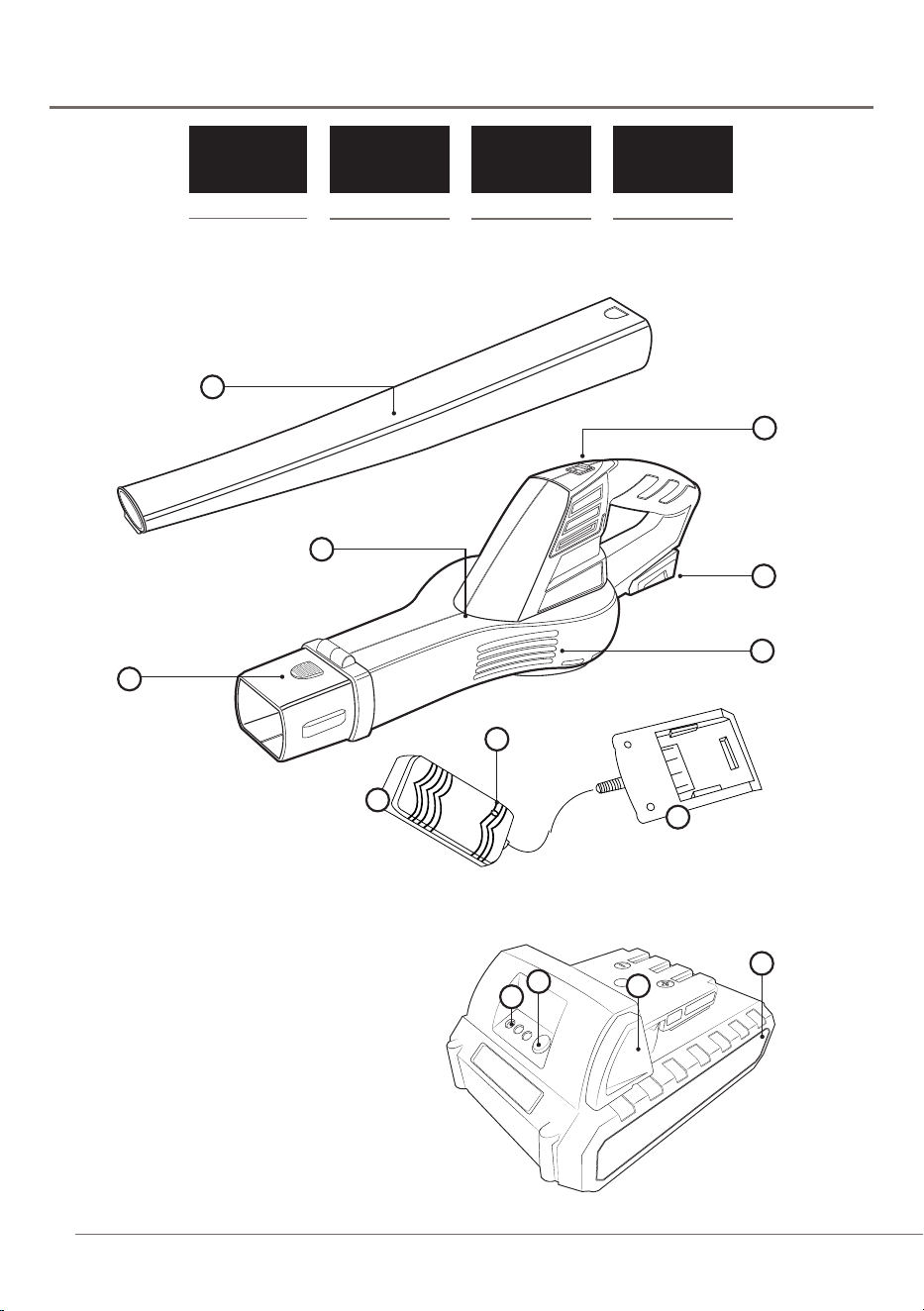

TECHNICAL SPECIFICATION
1. Detachable Chute.
2. Motor Unit.
3. Power Switch.
4. Battery Compartment.
5. Air Inlets.
6. Chute Release Button.
7. Battery Charger.
8. 20V Max Battery.
9. Battery Release.
10. Battery Level Indicator Lights.
11. Battery Indicator Light Button.
12. Charger Indicator Light.
13. Charger adapter.
7
8
11
9
10
1
2
3
4
5
6
12
13
CHARGING THE LITHIUM-ION
BATTERY PACK
Plug the Charger Adaptor Plug (12) into a mains
power outlet. The green Charge Indicator Light
(11) on the Charger Adaptor Plug will illuminate to
indicate that power is being supplied.
With the 20V Max Battery (8) sitting flat on a bench/
table, align the Battery with the Battery Charger
Adaptor (10) and slide the Battery into the recess of
the battery terminals to create a firm connection.
NOTE: The Battery only fits one way. If it will not fit,
this means that it is upside down.
The Battery will take up to 1 hour to charge. Charging
will begin automatically.
LEVEL OF CHARGE
Pressing the Charge Indicator Button (A) will indicate
the degree of charge by means of the Charge Light
(B) and Charge Indicator Lights (C).
If the Charge Light turns red and the Charge Indicator
Lights fail to come on, the battery requires charging.
If the Charge Light does not light up, and the Charge
Indicator Lights turn green, the battery is charged.
The Charge Indicator Lights indicate the level of
charge as follows:
1 light flashing = The Battery is low/requires charging.
2 solid green lights = The Battery is partially charged.
3 solid green lights = The Battery is fully charged.
You can also press the Charge Indicator Button whilst
the device is charging:
If the Charge Indicator Lights turn green and flicker,
the battery is charging.
If the Charge Indicator Lights turn green and do not
flicker, the battery is fully charged.
NOTE: The Battery will not reach its full charge the
first time it is charged.
IF THE LIGHT ON THE CHARGER ADAPTOR FAILS
TO COME ON:
Check that the Charger Adaptor Plug is securely
plugged into the mains power outlet and switched on.
Check that the Battery Charger Adaptor is securely
connected into the socket of the Battery.
IF THE BATTERY DOES NOT CHARGE PROPERLY:
Check the power outlet by plugging in a lamp or
other appliance.
If charging problems persist, have the complete tool
checked by an electrician or qualified power tool
repairer.
IMPORTANT CHARGING NOTES:
DISCHARGING
To protect the Battery against deep discharging when
the Battery is flat, a protective circuit will switch off
the
Leaf blower. Do not continue to press the ON/
OFF Switch (3) after an automatic shut-off as this will
damage the Battery.
The Battery must be re charged before further use.
NOTE: Up to 30 minutes cooling time may be
required (depending on ambient temperature and
the operation being performed) before the Battery
will start the charging cycle.
CAUTION: This unit’s Battery pack has low voltage
protection. This means that, when fully discharged,
the unit will suddenly stop and will require charging.
You will not experience the normal tapering off or
slowing down of power as seen with other battery
types.
OVERHEATING
The Battery Charger Adaptor and Battery may
become warm to the touch while charging. This is
normal and is not a fault with the product. Use the
Battery Charger Adaptor at normal room
temperature whenever possible.
CAUTION: To prevent overheating, do not cover the
charging unit and do not charge the Battery in direct
sunlight or near heat sources.
CAUTION: Always remove the Charger Adaptor Plug
from the mains power outlet when not in use.
A
Charge
Indicator
Button
C
Charge Indicator
Lights
B
Charge
Light
7
INSTALLING & REMOVING
THE BATTERY
WARNING! Always switch off the tool before removing or inserting the Battery.

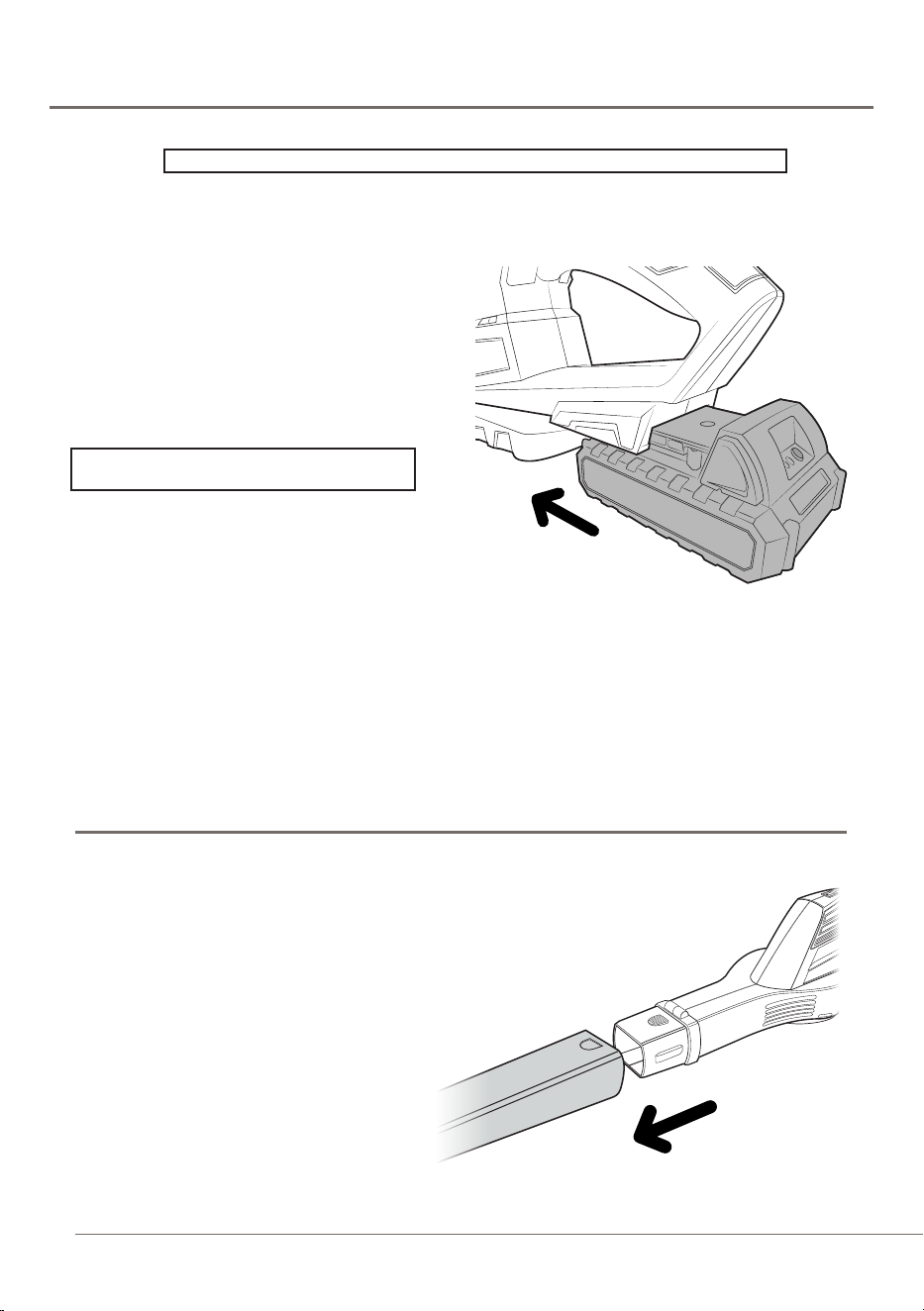

Align the notches in the base of the Leaf Blower
Handle with those on the Battery and slide the
Battery and Leaf Blower together until the Battery
locks into place.
CAUTION: Do not use excessive force when inserting
the Battery if resistance occurs. If the Battery does
not slide in easily, it is not being inserted correctly
and could cause damage to the Battery, terminals or
the Leaf Blower.
WARNING: Do not operate the switches whilst
inserting the Battery.
REMOVING THE BATTERY
Press the Battery Release Button to release the
Battery from the Leaf Blower and slide up and away
from the body to remove.
ASSEMBLY
Simply slide the MOTOR UNIT (2) into the larger end
of the DETACHABLE CHUTE (1).
Ensure the CHUTE RELEASE BUTTON (6) protrudes
through the small opening at the end of the
DETACHABLE CHUTE (1).
OPERATION

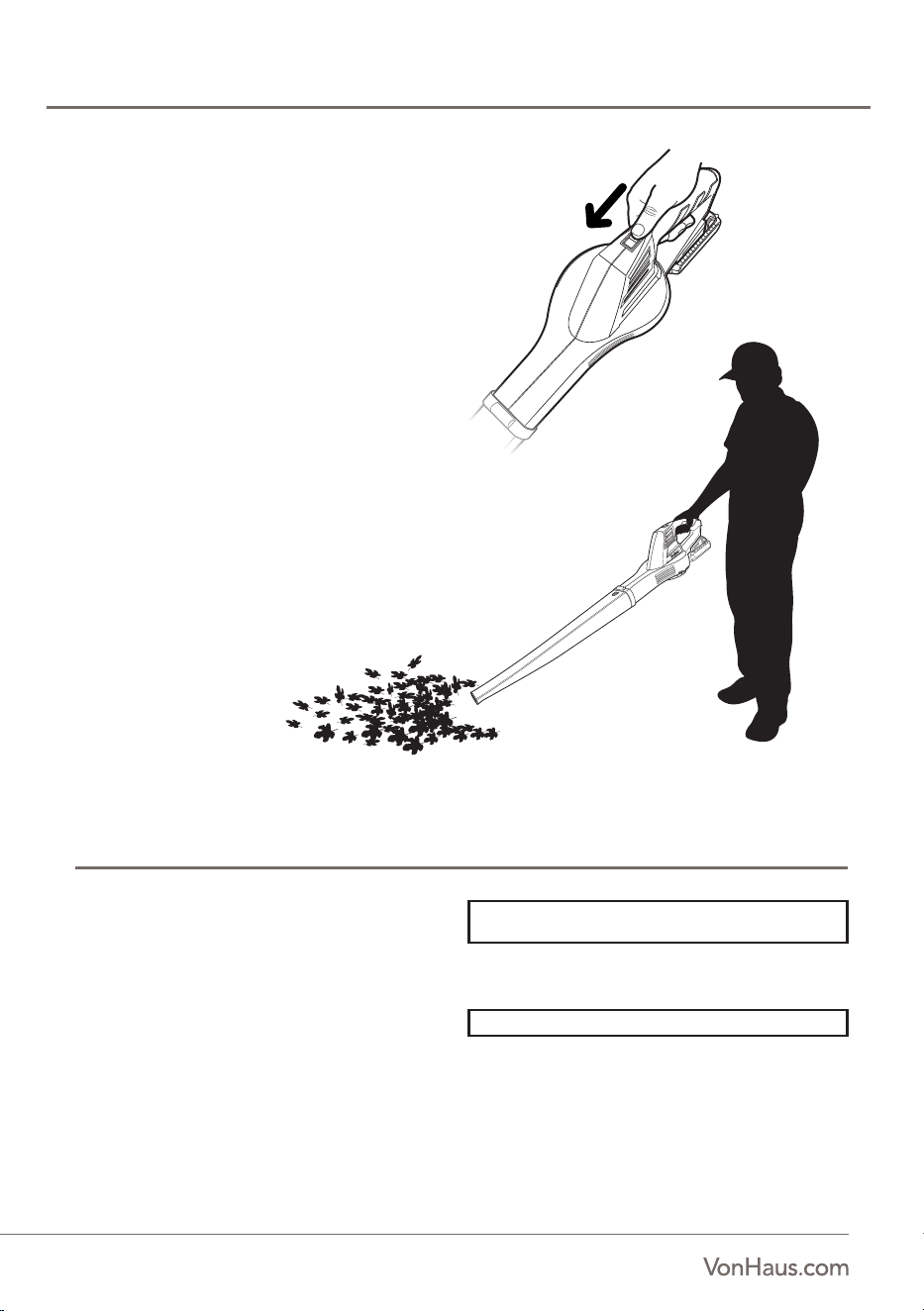

To start the Leaf Blower push the POWER SWITCH (3).
NOTE: When the Leaf Blower starts up there may be
some kickback, always ensure you are stood firmly and
have a firm grip.
Point the Leaf Blower towards the ground ensuring
there are no bystanders nearby.
POWERING OFF THE Leaf Blower
To power off the 20V Max Leaf Blower, pull back the
POWER SWITCH (3).
Wait until the Leaf Blower come to a complete stop
before carrying out any maintenance or storing the
tool.
CLEANING & MAINTENANCE
Before storing, always remove the Battery from the
tool.
Store the tool in a secure, dry place, out of reach of
children and animals.
Do not place other objects on top of the Leaf Blower
when storing.
Storing the tool outside in a damp environment such
as a garden shed may cause certain components to
corrode.
CAUTION: Do not use abrasive materials to clean the
product.
WARNING! Do not immerse any part of the tool in
water or any other liquid.
Clean the exterior of the machine thoroughly using a
soft brush and cloth.
WARNING! Do not use water or solvents.
Remove any debris, especially from the AIR INLET (5)
slots on the MOTOR UNIT (2) housing.
9
TROUBLESHOOTING
Problem Solution
Ensure the 20V MAX BATTERY (8) is correctly
inserted into the BATTERY COMPARTMENT (4).
Check the battery is fully charged before use.
The Leaf Blower may have overheated due to
continual usage. Remove the BATTERY (8) and
allow the unit to cool for 60 minutes before next
use.
If the problem persists, contact DOMU Brands
customer services for technical support.
Switch off the Leaf Blower and check the AIR
INLETS (5) for any potential blockages. Remove
using a soft bristled brush before continuing to use.
Ensure the 20V MAX BATTERY (8) is fully charged.
If the problem persists, contact DOMU Brands
customer services for technical support.
Tool will not start.
Air velocity decreases.
CUSTOMER SERVICE
If you are having difficulty using this product and require support, please contact [email protected]
DECLARATION OF CONFORMITY
We:
DOMU Brands Ltd
6th Floor The Tower
Deva City Office Park
Manchester
M3 7BF
Declare under our sole responsibility that the product:
SKU: 2515068
Description: VonHaus 20V Max Leaf Blower.
To which this declaration relates is in conformity with the following directives:
2014/30/EU, 2006/42/EC, 2000/14/EC, 2011/65/EU.
COPYRIGHT
All material in this instruction manual are copyrighted by DOMU Brands.
Any unauthorised use may violate worldwide copyright, trademark, and other laws.
DISPOSAL INFORMATION
PRODUCT DISPOSAL INFORMATION
For electrical products sold within the European
Community, at the end of the electrical product’s useful
life, it should not be disposed of with household waste.
Please recycle where facilities exist.
Contact your local authority for details of collection
schemes in your area.
IN ALL CIRCUMSTANCES:
Do not dispose of in domestic waste.
Do not incinerate.
Do not abandon in the environment.
Do not dispose of WEEE as unsorted municipal waste.
HEALTH AND SAFETY FOR BATTERIES
Do not put in fire or mutilate – cells may burst and
release toxic material.
Do not short-circuit cells as this may cause fire or burns.
The battery must be removed from the appliance before
being scrapped.
The battery is to be disposed of safely.
BATTERY DISPOSAL INFORMATION
Do not mutilate batteries as corrosive electrolytes and
flammable materials will be released.
Do not incinerate – Danger of explosion and release of
toxic fumes.
Do not dispose of batteries or cells in a charged
condition.
Expired lithium-ion batteries must be recycled/disposed
of in accordance with the appropriate regulation or
legislation. They should be returned to your local
warranty agent/stockist.
WARRANTY
To register your product and find out if you qualify for a free extended warranty please go to
Vonhaus.com/warranty.
Please retain a proof of purchase receipt or statement as proof of the purchase date.
The warranty only applies if the product is used solely in the manner indicated in the Warnings page of this
manual, and all other instructions have been followed accurately. Any abuse of the product or the manner in
which it is used will invalidate the warranty.
Returned goods will not be accepted unless re-packaged in its original packaging and accompanied by a
relevant and completed returns form. This does not affect your statutory rights.
No rights are given under this warranty to a person acquiring the appliance second-hand or for commercial or
communal use.
VonHaus
®
is a registered trademark of DOMU Brands Ltd
Made in China for DOMU Brands Ltd M24 2RW
Thank you for purchasing the 20V Max Leaf Blower.
