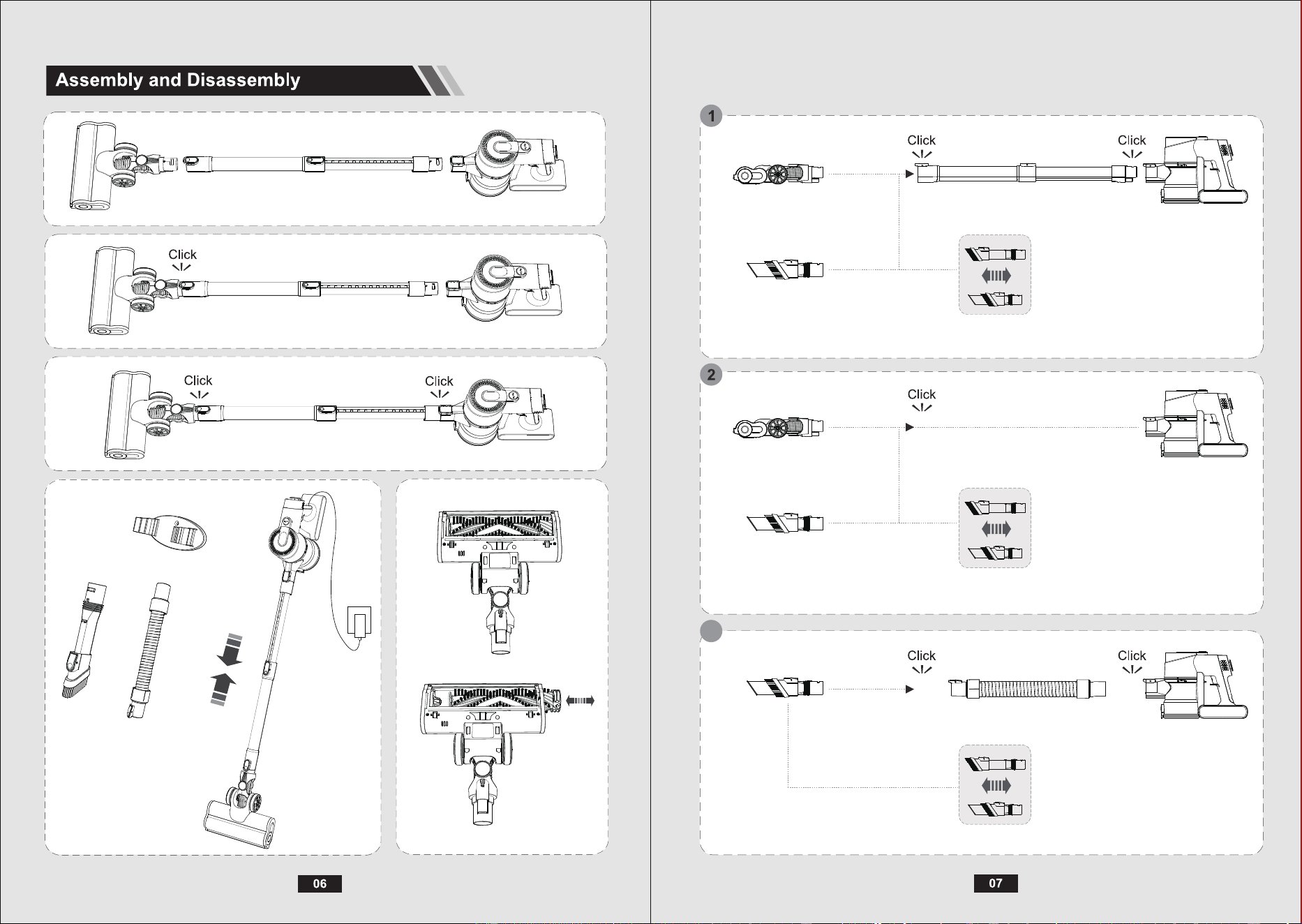

Assembly and Disassembly
Screen Signs and AUTOMATIC
CUT-OUT Protection
Accessory Instructions
Charging
Filters Disassembly
Ready to Use
Daily Maintenance
Product Technical Parameters
Troubleshooting
Warranty
https://devoac.com/[email protected]
Cordless Stick Vacuum Cleaner V90
V90
devoacTech CUSTOMER CARE
Thank you for choosing to buy a devoacTech appliance.
After activating your 1 year guarantee, your devoacTech appliance will
be covered for parts and labour for 1 years from the date of purchase,
subject to the terms of the guarantee.
If you have any queries regarding your devoacTech appliance,
please visit devoac.com for online help, general tips and
useful information about devoacTech.
Alternatively, you can contact us by email address: support@devoacTech.com.
with details of where/when you bought the applianc
Most questions can be solved
over the email by our trained devoacTech Aftersales Service staff.
devoacTech contact details
https://devoac.com/
If you need information about repairs or replacement parts, or if you have questions
about your warranty, devoacTech is happy to be of service.
https://devoac.com/[email protected]
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
1. Charging port
2. Air exhaust
3. Main switch
4. Main monitor release button
5. Dust cup
6. Dust cup release button
7. Handle
8. Suction level control button
9. LCD display
10. Electric extend tube release button
11. Telescopic tube adjustment switch
12. Electric extend tube
13. Motorize floor brush release button
14. Motorize floor brush
15. Roller button
3
.
.
Flexible Hose
Can be connected with long crevice or 2-in-1 brush, perfect for cleaning
comers inside the car or cabinet.
2-in-1 Brush
Can be switch into a brush or a crevice; suitable for fabric surface and
corners.
Soft Roller Brush
Can be installed into the cleaner head; Perfect for hard floors, performs
better for removing fine dirt from wood floor.
Stiff Roller Brush
Can be installed into the cleaner head; Ideal for both hard floors
and carpets.
Working Status
Battery Energy Reminder
Maintenance Alert
Working Status - When the vacuum is working, the fan icon will keep spinning.
Battery Energy Reminder - When the battery in low voltage, it will flash red,
please stop using and recharge the battery pack.
Maintenance Alert - When this icon turns red, it means the machine need to be
maintained.
Automatic Cut-out Protection: Once there are brush bar blockages or twine,
the brush will automatically cut out, please then stop the machine and clean the
brush rollers. Ensure the machine is disconnected from the charger and Be
careful not to pull the 'ON' trigger before looking for blockages. Failure to do so
could result in personal injury.
devoacTech
Insert the power plug into the charging port on the handle; connect the
power adaptor with the power supply to charge the main monitor.
1
2
Replace HEPA
Air Outlet and Noise Reduction Component
If you feel the suction power of the vacuum is getting weaker,
please replace the HEPA.
1. Lift up the body release button to separate the body.
2. Rotate the dust cup away from the machine head.
3. Pull out the handle and extract the HEPA at the same time.
Filters Disassembly
1
3
2-1
2-2
Clean the Filters
If the stainless strainer and the HEPA filter are too dirty, you could use water to clean the
stainless strainer, and use the leaning gadget to clean the HEPA filter. Then Please ensure
the strainer and filter are completely dry before refitting.
3.95kg
0.56kg
350W DC 25.9W
5.5Hours 2000mAh
DC 31V 450mA
Model No. V90
1. Press the side button of the cleaner head
to take out the roller brush.
2. Use the 2-in-1 cleaning gadget to cut and
remove the tangled hair.
In order to maximize performance of the vacuum, please
regularly maintain its components.
3. Press the strip button on the side to
take out the strip, clean it and
remove the tangle hair.
Press the strip button on the side to
take out the strip, clean it and remove
the tangle hair.
Thank you for selecting a devoacTech product.
If the solutions above cannot solve the problem, or the issue you met is not listed, please do
not return this product to the store. devoacTech is happy to be of service.
Connection between power
cord and vacuum cleaner is loose.
Only apply to eligible purchases made directly from the devoacTech authorized distributors.
Warranty coverage applies to the original owner and to the original product only and is
not transferable.
If your appliance operates improperly while in use under normal household conditions
within the warranty period, please contact our customer support
[[email protected]] or visit https://devoac.com/ to fill out the warranty form to
initiate a warranty claim.
For more warranty details, please refer to https://devoac.com/
All rights are reserved by devoacTech official website.
