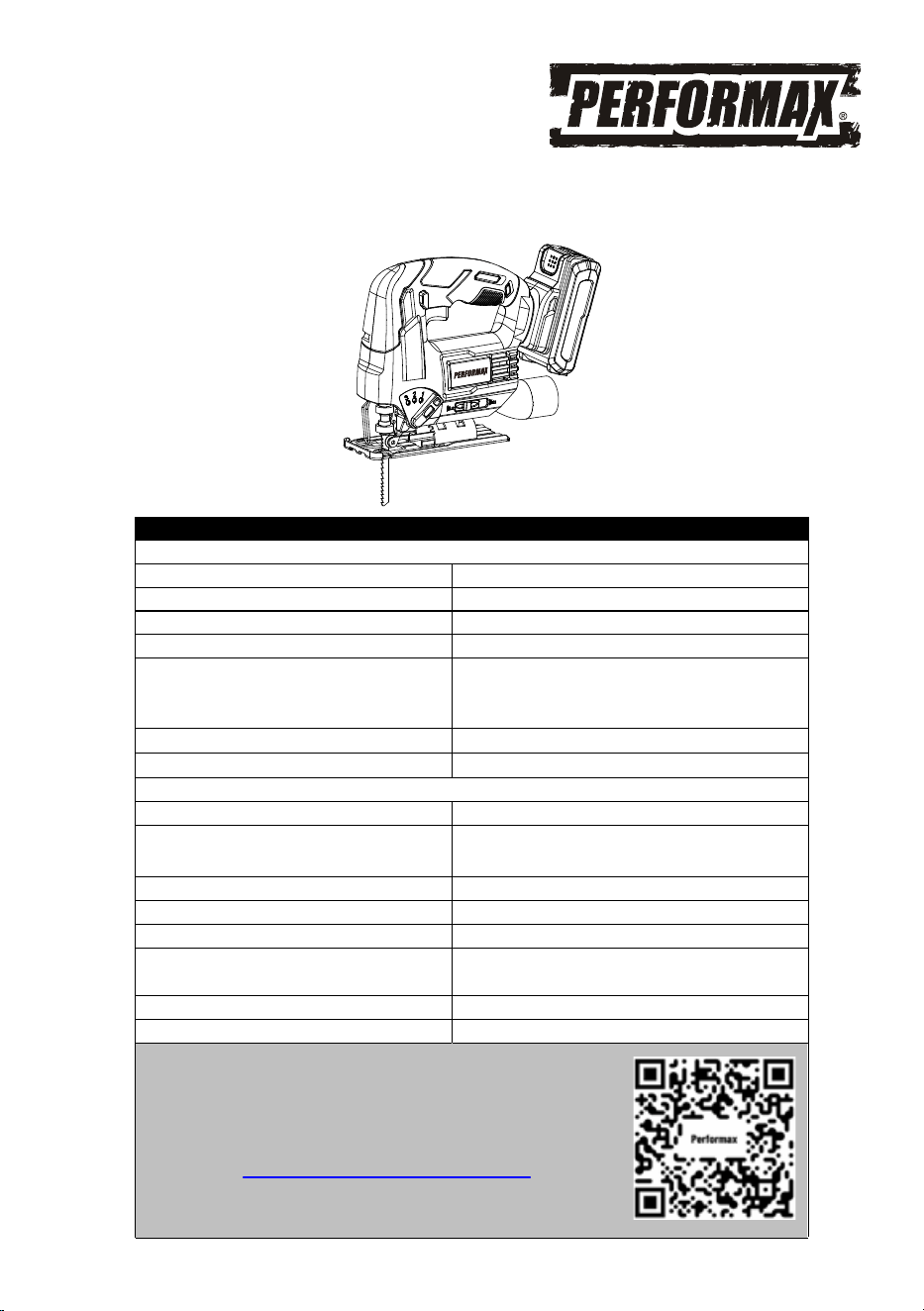

20 VOLT LITHIUM ION JIGSAW
241-9048
Owner’s Manual
PRODUCT SPECIFICATIONS
JIGSAW
Variable speed: 0-2700 SPM (no load)
Stroke length: 3/4" (20mm)
Blade change system: Tool free
Blade types: "T" shank
Cutting depth: Wood: Wood 3-3/16" (80mm)
Metal: Metal – 3/16" (5mm)
Aluminum 9/16" (15mm)
Orbital settings: 3 plus neutral
Base plate bevel: 0–45°
BATTERY & CHARGER
Battery: 20 V, Lithium ion
Charge time: Approx. 100 minutes for 2Ah battery
and 200 minutes for 4Ah battery
Charger input: 100–240V AC, 50–60 Hz
Charger output: 21.5 V DC, 1.5 A
Weight: 4.39 lbs with battery
Need Assistance?
• Technical questions
• Replacement parts
• Parts missing from package
Email us at:
Call us on our toll-free customer support line:1-866-349-8665
(9-5pm Monday-Friday EST)
Replacement battery:
Replacement charger:
Replacement battery&charger kit:
236-9049, 236-9050, 267-3206,
267-3207
236-9051, 267-3002, 267-3205
241-9040
Scan here for support
2
Product specifications ………….……………………………………………………. 1
Table of contents ……………………………………………………………………... 2
General safety warnings …………………………………………………………….. 3–4
Eye, ear & lung protection …………………………………………………………… 3–4
Electrical safety ………………………………………………………………………. 4
Power tool safety ……………………………………………………………………... 5–6
General safety rules ………………………………………………………………….. 5
Work area ………………………………………………………………….………….. 5
Electrical safety ………………………………………………………………………. 5
Personal safety ……………………………………………………………………….. 5–6
Power tool use and care .……………………………………………………………. 6
Battery tool use and care ……………………………………………………………. 6
Service ………………………………………………………………………………… 6
Specific safety rules ………………………………………………………………….. 7
Battery & charger safety ………………………………………………………….…. 8
Battery pack recycling ……………………………………………………………….. 8
Symbols ……………………………………………………………………………….. 9
Know your jigsaw ..........……………………………………………………………… 10
Assembly and operating …………………………………………………………….. 10–16
Charging the battery pack …………………………………………………………… 10
Installing a battery pack ……………………………………………………………… 11
Installing a blade ……………………………………………………………………... 12
Removing a blade …………………………………………………………………... 12
Setting the bevel cutting angle ………..…………………………………………….. 12
Setting the orbital cutting angle …………………………………………………….. 1
3
Trigger switch …………………………………………………………....................... 13
Lock-off button ………………………………………………………....................... 13
Installing the vacuum adaptor ………………………………………....................... 13
Vacuum port switch …………………………………………………....................... 14
Materials you can cut ………………………………………………....................... 14
General cutting ………………………………………………………....................... 14
Bevel cutting …………………………………………………………....................... 15
Plunge cutting ………………………………………………………....................... 15
Metal cutting …………………………………………………………....................... 15-16
Maintenance …………………………………………………………………………... 16

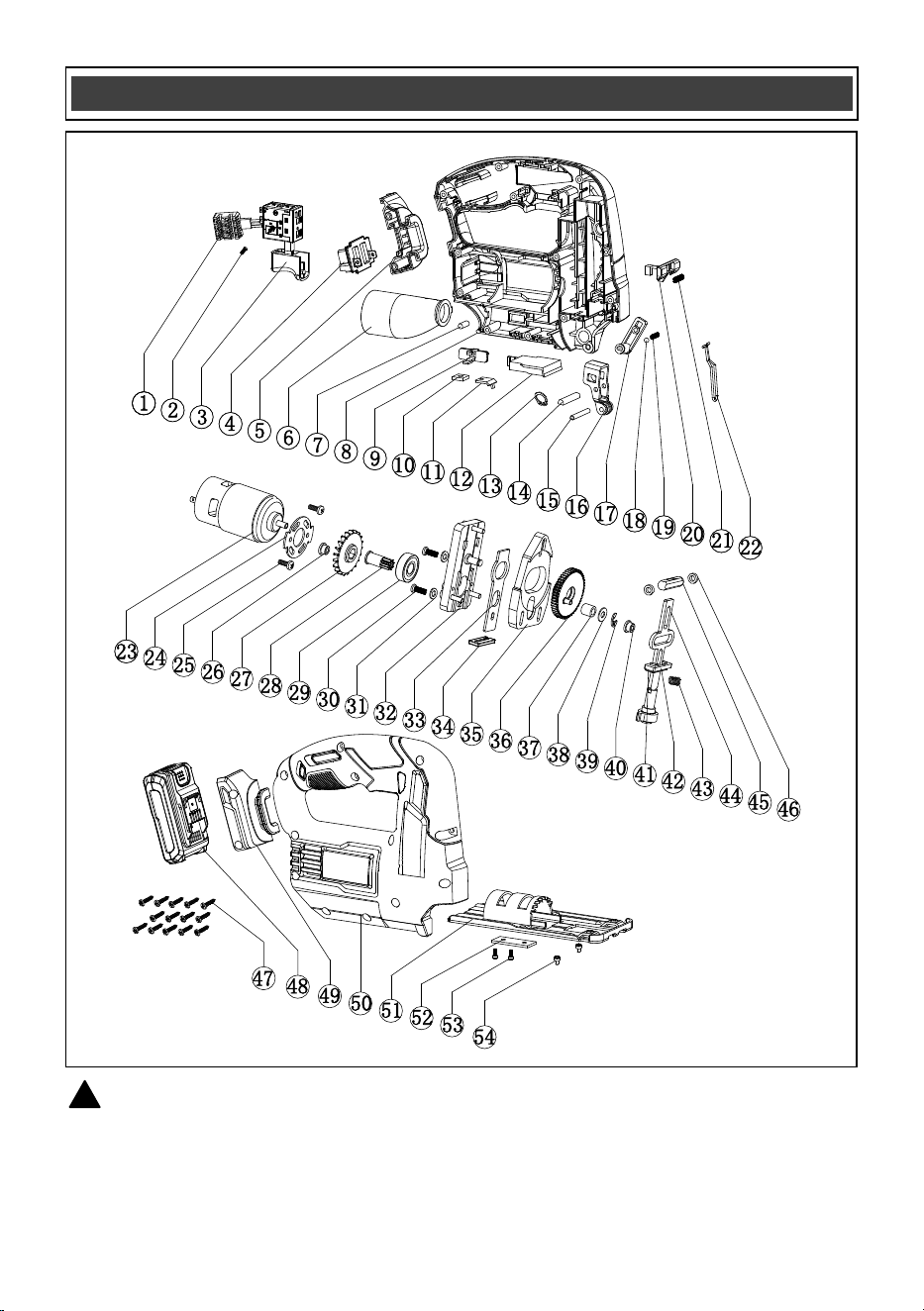

Exploded view ………………………………………………………………………… 17
Parts list ……………………………………………………………………………….. 18-19
Warranty ……………………………………………………………………….……… 20
TABLE OF CONTENTS
3
EYE, EAR & LUNG PROTECTION
This instruction manual includes the following:
General Safety Warnings
Specific Safety Rules and Symbols
Functional Description
Assembly
Operation
Maintenance
!
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if
broken during the operation of a power tool.
WARNING: Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is noisy.
!
GENERAL SAFETY WARNINGS
WARNING: Before using this tool or any of its accessories, read this
manual and follow all Safety Rules and Operating Instructions. The important
precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common
sense and caution are factors which cannot be built into the product.
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
4
ELECTRICAL SAFETY
GENERAL SAFETY WARNINGS
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
WARNING: Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain chemicals that are
known to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
Lead from lead-based paints
Crystalline silica from bricks, cement, and other masonry products
Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies, according to how
often this type of work is performed. In order to reduce exposure to these
chemicals, work in a we
ll-ventilated area, and use approved safety
equipment, such as a dust mask that is specifically designed to filter out
microscopic particles.
!
WARNING: To avoid electrical hazards, fire hazards or damage to the
tool, use proper circuit protection.
This tool charger is wired at the factory for 120 V AC operation. It must be
connected to a 120 V AC, 15 A circuit that is protected by a time-delayed
fuse or circuit breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut or damaged in any way.
SAVE THESE INSTRUCTIONS FOR REFERENCE
5
WARNING: Read all safety warnings
and instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future
reference.
Work area safety
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adap
ter plugs with earthed
(grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric
shock.
Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use
an extension cord suitable for
outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of a ground fault
circuit interrupter (GFCI) reduces the risk of
electric shock.
Personal safety
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or he
aring protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the
switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
Dress properly. Do not wear loose clothing
or jewelry. Keep
your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in
moving parts.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
POWER TOOL SAFETY
!
Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpect-
ed situations.
Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or
temperature above 113°F (45°C) may cause
explosion.
Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instruc-
tions. Charging improperly or at temperatures
outside the specified range may damage the
battery and increase the risk of fire.
6
PERSONAL SAFETY – cont’d
Power tool use and care
Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons u
nfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could resu
lt in a hazardous situation.
Hold power tool by insulated gripping
surfaces, because the blade may contact its
own cord. Cutting a "live" wire may make
exposed metal parts of the tool "live" and could
give the operator an electric shock.
Battery tool use and care
Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small
metal objects that can make a connection
fro
m one terminal to another. Shorting the
battery terminals together may cause burns or a
fire.
Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
Service
Have your power tool serviced by a qualified
Never service damaged battery packs.
Service of battery packs should only be
performed by the manufacturer or authorized
service providers.
repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
POWER TOOL SAFETY
7
WARNING: Know your cordless
jig saw. Do not plug in the charger or
install the battery in the tool until you have
read and understand this Instruction Manual.
Learn the tool’s applications and limitations,
as well as the specific potential hazards
related to this tool. Following this rule will
reduce the risk
Hold the tool by insulated gripping surfaces
when performing an operation where the saw
blade may contact hidden wiring. Contact with a
"live" wire will make exposed metal parts of the
tool "live" and shock the operator.
Always make sure the work surface is free of
nails and other foreign objects. Cutting into a
nail can cause the blade and the tool to jump
and damage the blade.
Never hold the workpiece in one hand and
the tool in the other hand when sawing.
Never place your hands near or below the
cutting surface. Clamping the material and
guiding the tool with both hands is much
safer.
Never lay the workpiece on hard surfaces
like concrete, stone, etc. The protruding
blade may cause the tool to jump.
DANGER: Always remove the battery
from the saw when changing the blade
and when making adjustments.
Use only "T" shank blades that are
designed specifically for jigsaw use.
Never use a broken blade, as it will not be
securely held in the tool.
After changing a blade, make sure the
blade is securely held in the blade holder.
Loose blades will be violently thrown.
Never touch the blade during or immedi-
ately after use. After use, the blade is too
hot to be touched by bare hands.
Never use dull or damaged blades. Sharp
blades must be handled with care.
Damaged blades can snap during use.
Dull blades require more force to cut the
workpiece, possibly causing the blade to
break.
Always use the straight reciprocating
action when cutting metal. Blades will last
longer and will be less likely to break.
of electric shock, fire, or serious
injury.
Always wear eye protection. Any
power tool can throw foreign
objects into your eyes and cause
permanent eye damage.
ALWAYS wear safety goggles (not glasses) that
comply with ANSI safety standard Z87.1.
Everyday glasses have only impact resistant
lenses. They ARE NOT safety glasses.
WARNING: Glasses or goggles not in
compliance with ANSI Z87.1 could cause
serious injury when they break.
WARNING: Always use a safety shield,
hearing protection and dust mask when
drilling concrete.
WARNING: To avoid fire or toxic
reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar highly
volatile solvents to clean the tool.
SPECIFIC SAFETY RULES
SAVE THESE INSTRUCTIONS FOR REFERENCE
SAVE THESE INSTRUCTIONS FOR REFERENCE
!
!
!
!
8
WARNING: Only use the charger
supplied with this kit to charge Perfor-
max® and Yardworks® 20V battery
236-9049, 236-9050, 267-3206, 267-3207,
other types of batteries may burst causing
personal injury and damage.
Do not store or carry the battery in a manner in
which metal objects could contact the exposed
metal end. Do not place the battery in aprons,
pockets, drawers, etc. with loose nails, screws,
keys etc. The battery could short circuit causing
a fire, personal injury or damage to the battery.
Never attempt to open the battery for any
reason. If the housing of the battery breaks or
cracks, immediately discontinue use and do not
recharge.
Do not charge the battery if it is wet or shows
any evidence of corrosion.
A small leakage from the battery may occur
under extreme usage, charging or temperature
conditions. This does not indicate a failure.
However, if the outer seal is broken and this
leakage gets on your ski
n, follow these steps:
1. Wash immediately with soap and water.
2. Neutralize with a mild acid such as lemon
juice or vinegar.
3. If liquid gets into your eyes, flush
immediately with clean water for a
minimum of 10 minutes and seek medical
attention.
NOTE: The battery liquid is slightly acidic.
Do not incinerate the battery. It can explode in a
fire.
Do not use an extension cord. Plug the charger
cord directly into an electrical outlet.
Use the charger only in a standard
120V, 60 Hz electrical outlet.
Do not use the charger in wet or damp
conditions. It is intended for indoor use only.
Do not use the charger near sink
Do not immerse the charger in water. Do not
allow the cord to hang over the edge of a
BATTERY & CHARGER SAFETY
SAVE THESE INSTRUCTIONS FOR REFERENCE
!
table or counter or touch hot surfaces. The
charger should be placed away from sinks and
hot surfaces.
Do not operate charger if the cord or plug is
damaged. Replace the damaged cord and plug
immediately.
Do not operate the charger if it has received a
sharp blow, been dropped or otherwise
damaged in any way. Have a qualified
technician examine the charger and repair it if
necessary. Do not disassemble the charger.
Do NOT charge the batteries when the work
area or the battery temperature is at or below
32°F (0°C) or above 113°F (45°C).
Unplug the charger when not in use and before
cleaning or maintenance.
BATTERY PACK RECYCLING
To preserve our natural resources, please
recycle or dispose of batteries properly.
The batteries charged by this charger may
contain chemicals and metals that are harmful
to the environment. Never dispose of re-
chargeable batteries in your normal household
garbage
or in landfill sites as they will add to the
pollution of the environment.
Please call 1-800-822-8837 for the location of
your nearest RBRC battery recycling location.
9

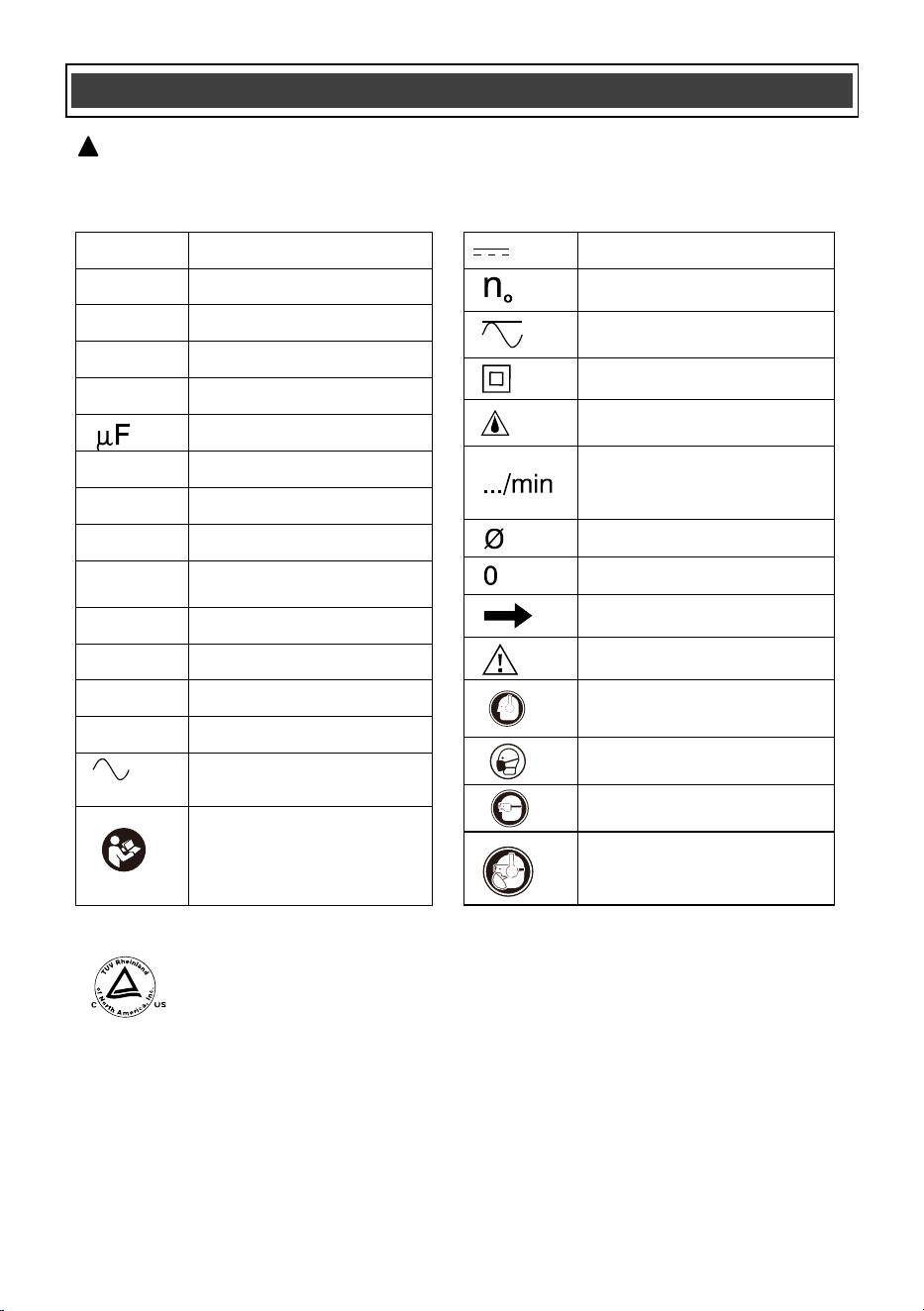

SYMBOLS
WARNING: Some of the following symbols may appear on the jigsaw.
Study these symbols and learn their meaning. Proper interpretation of these symbols
will allow for more efficient and safer operation of this tool.
!
This symbol designates that this tool is listed with U.S.
requirements by TÜV Rheinland (Shanghai) Co., Ltd.
UL62841-1，UL62841-2-11
CSA C22.2# 62841-1, 62841-2-11
JD5263
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Read instruction manual.
To reduce the risk of
injury, user must read
instruction manual.
V
Volts
A
Amperes
Hz
Hertz
W
Watts
kW
Kilowatts
Microfarads
kg
Kilograms
H
Hours
N/cm
2
Newtons per square
centimeter
Pa
Pascals
OPM
Oscillations per minute
Min
Minutes
S
Seconds
or a.c.
Alternating current
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Revolutions or
reciprocations per
minute
Diameter
Off position
Directional Arrow
Warning symbol
Wear hearing protection.
Wear breathing protection.
Wear eye protection.
or DC
lbs
Pounds, Weight
10

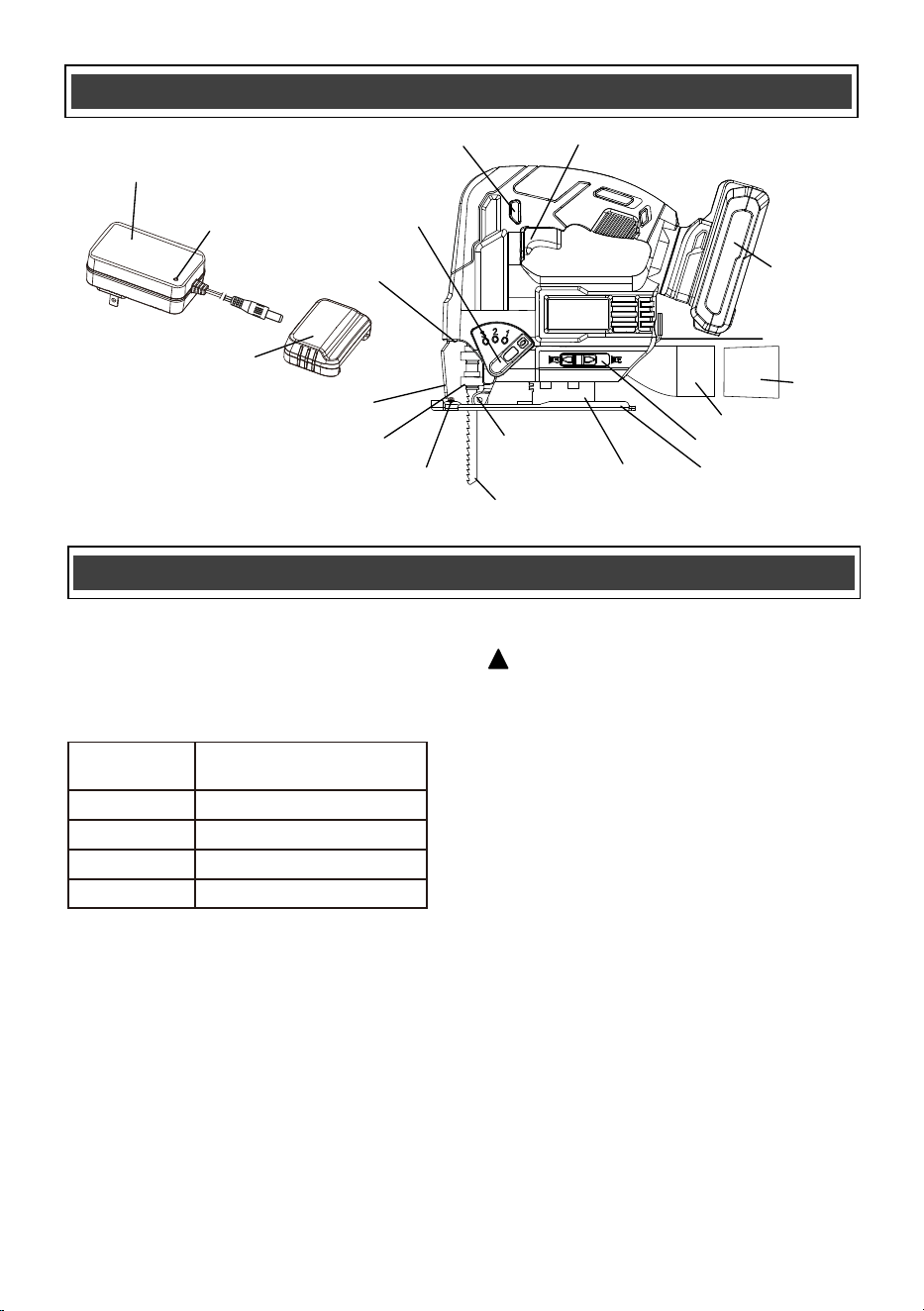

KNOW YOUR JIGSAW
Orbital
action lever
Blade guard
Blade clamp
Edge guide
locking screw
Blade guide
roller
Blade
Lock-off button
Variable speed trigger switch
Battery
Bevel angle
scale
Vacuum port switch
Sole plate
Dust port
Hex key
LED light
work-light
Vacuum
adapter
ASSEMBLY AND OPERATING

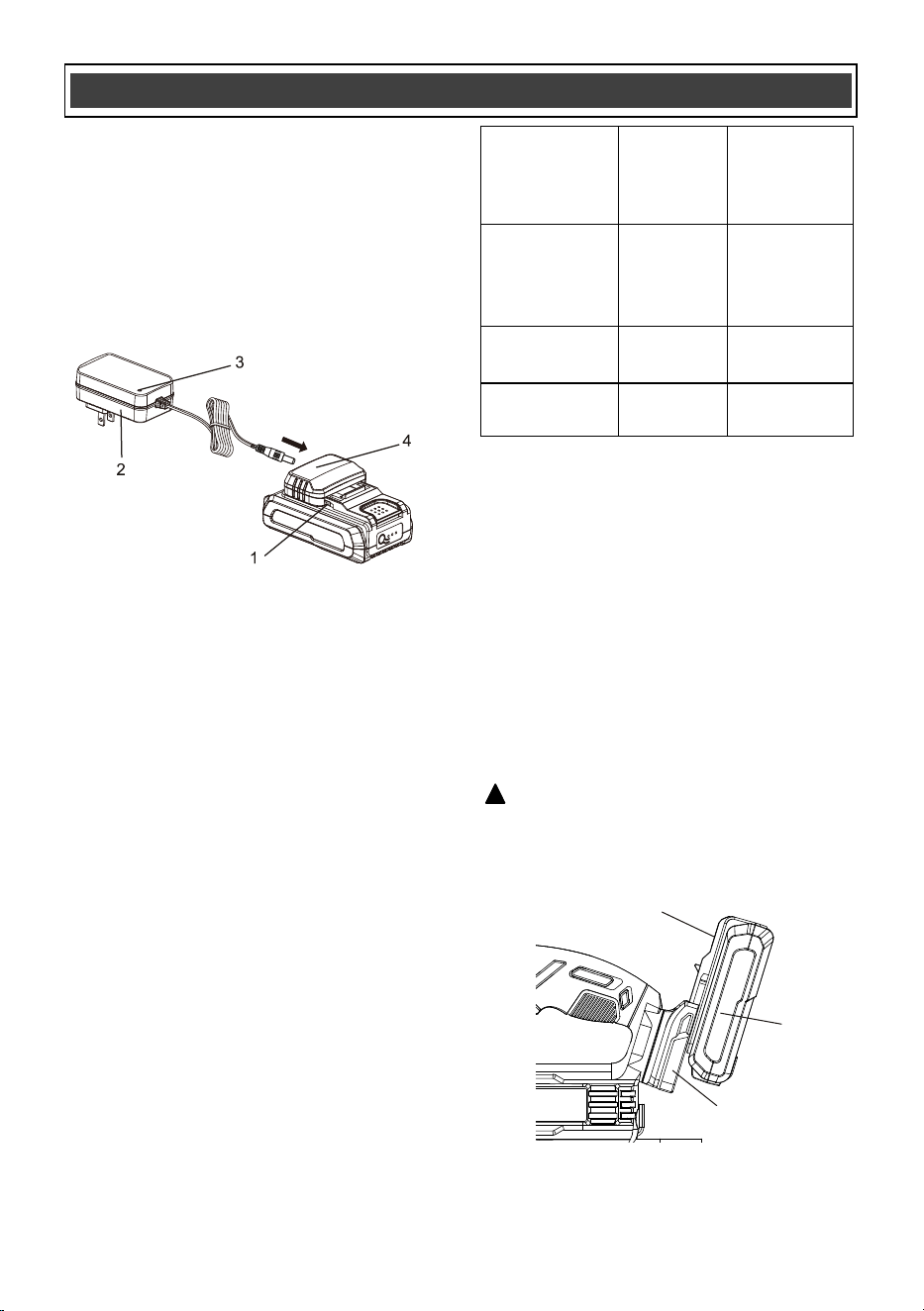

CHARGING THE BATTERY PACK
WARNING: Do not use the charger
outdoors or expose it to wet or damp
conditions. Water entering the charger will
increase the risk of electric shock.
NOTICE: Lithium-Ion battery packs are
shipped partially charged. Before using it
the first time, you must fully charge it.
NOTICE: You can only charge one battery at
a time with the charger provided.
1. Plug the battery charger adapter into the
battery charger cap and then plug the adapter
(2) into a power supply (120V~60Hz). The
charging status indicator LED light (3) will turn
green indicating that the charger is working
correctly.
2. Align the raised ribs of the battery (1) with the
battery-mounting slots in the battery charge
cap (4); slide the cap onto the battery. If
installed correctly the charging status indicator
light on the charger will turn red indicating the
battery is charging (see chart on this page) and
the battery charge level indicator lights on the
battery will flash.
!
BATTERY CHARGE LEVEL INDICATOR LIGHTS
To check the battery charge level, press the
push button on the battery pack. The LED
indicator lights will show the current charge
levels as indicated in chart below.
NOTE:
If one indicator light begins to flash, the battery
charge level is under 10% capacity and should
be recharged soon.
If three indicator lights begin to flash at a rate of
1 or 2 times per second, the battery is too hot,
and cool the battery till its temperature drops
below 152°F (67°C).
If three indicator lights begin to flash at a rate of
5 times per second, the battery is defective,
please recycle or dispose of batteries properly,
or contact Customer Service.
Indicator
Lights
3 lights on
2 lights on
1 light on
1 light flashing
Battery Charge Level
70%<Charge Level≤100%
40%<Charge Level≤70%
10%<Charge Level≤40%
Charge Level ≤10%
Battery charger adapter
Charging status
indicator light
Battery charger cap
11
ASSEMBLY AND OPERATING
Fig. 2
2
1
3
INSTALLING THE BATTERY PACK
1. Remove the discharged battery pack (1)
from the tool by pressing the battery
release button (2) on the front of the
battery pack and pulling the battery pack
out of the tool handle (3) (Fig. 2).
2. Insert the fully charged battery pack into
the matching slots in the tool handle where
the discharged battery pack has been
removed.
NOTE: The battery release button will
“click” into place when the battery pack is
fully installed.
WARNING: Do not immerse battery
pack in water. Sudden cooling could cause a
hot battery to explode or leak.
!
Charging
status
indicator light
Green NO
Charger
connected
to power
supply
Red YES
Battery is
being charged
Green YES
Battery fully
charged
Charger cap
installed
on battery
Charging
Status
CHARGING THE BATTERY CONT’D
3. When the battery is fully charged the light on
the charger will turn green and the lights on the
battery will turn off or keeps on. Once the
charge cap is removed from the battery (never
check while charging cap is installed on the
battery) you may confirm the charge status of
the battery. When fully charged all battery
charge level indicator lights should be lit.
NOTE:
The battery cannot be correctly charged on
the charger if the battery pack is too hot or
too cold and not within normal temperature
range 41°F (5°C) - 113°F (45°C). Allow the
battery pack to reach normal temperature,
and charging will begin.
The battery pack will fully charge if left on
the charger, but it will not overcharge.
A significantly reduced runtime after fully
charging the battery pack indicates that the
batteries are nearing the end of their usable
life and must be replaced.
The charger may become warm during
charging. This is a normal part of its
operation. Always charge in a well-ventilated
area.
If the battery pack is completely discharged
and no LEDs flash when it is connected to
the charger, this indicates a malfunctioning
battery. In this case, do not attempt to
charge the battery.
Fig. 1
12

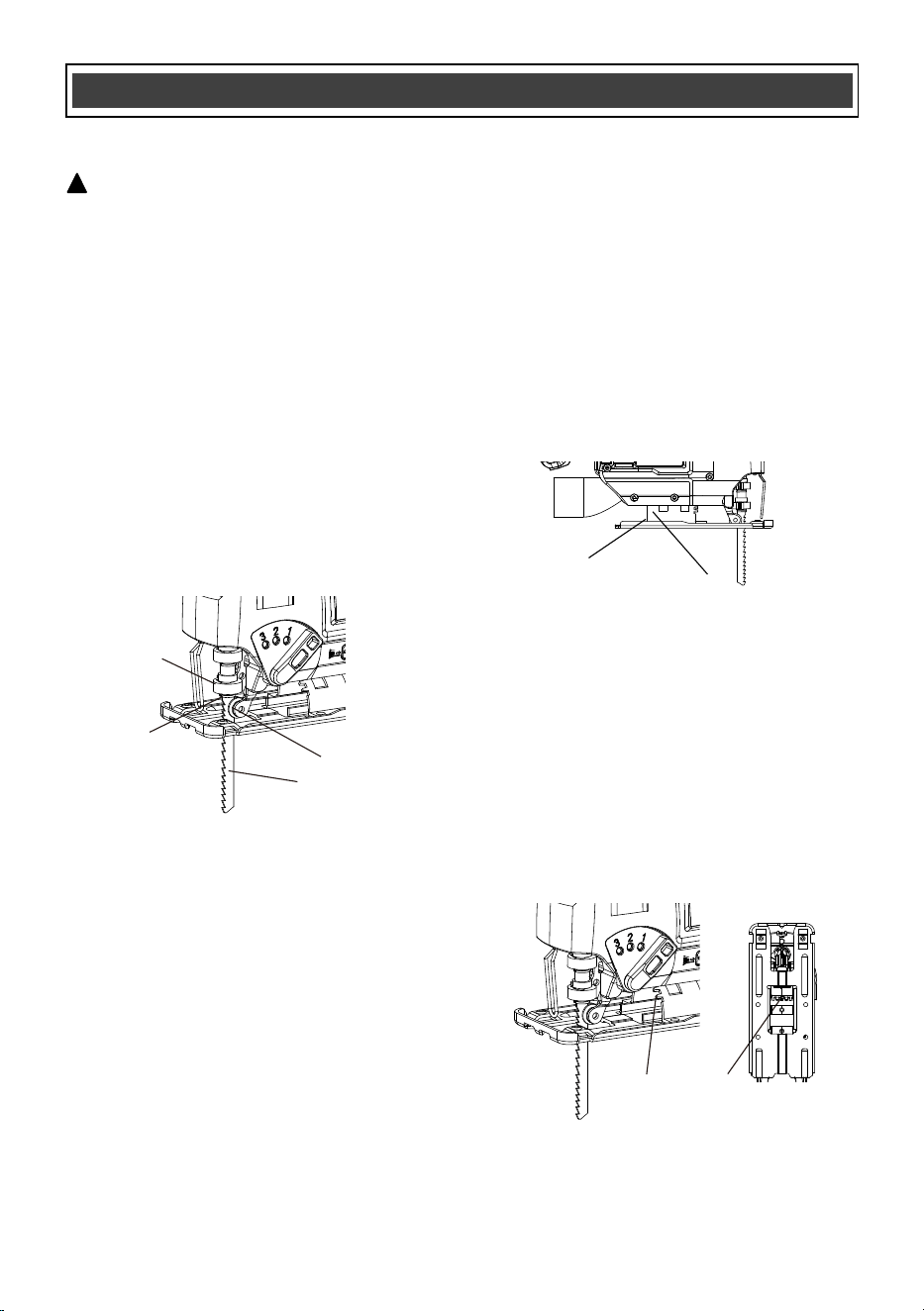

SETTING THE BEVEL CUTTING ANGLEINSTALLING A BLADE
REMOVING A BLADE
ASSEMBLY AND OPERATING
1. To install a blade in the jigsaw, push the
locking lever of the blade camp (1) to the
front (Fig. 3).
2. Insert the appropriate blade (2) into the
blade slot (3) as far as it will go.
NOTE: Make sure the rear edge of the blade is
nested in the blade guide roller (4).
3. Release the blade-locking lever.
NOTE: The blade will automatically be locked
into the blade holder. Pull outward on the blade
to ensure it is properly locked into the blade
holder.
Repeat steps above.
Bevel cutting angles may be adjusted from 0° to
45° either left or right. To adjust the
bevel angle:
1. Use the provided hex key to loosen the two
screws holding the base onto the jigsaw.
Then adjust your base sole plate until the
sole plate can be rotated.
2. Bevel angles (3) are marked on a scale
located on the side of the base (Fig. 4).
3. Slide the base toward the back of the
jigsaw and align the bevel angle with the
edge of the base (4).
4. Slide the base toward to engage the bevel
angle slot (5) with the indexing pin (6).
(Fig. 5).
5. Tightenthe two screws holding the base
onto the jigsaw.
NOTE:
a) Use a protractor to check the bevel angle
between the blade and the base.
b) To set the bevel angle at intermediate
angles, do not slide the base backward.
WARNING: Always remove battery
before installing or removing a blade or
adjusting the jigsaw in any way.
!
Fig. 3
Fig. 4
Fig. 5
4
5 6
4
2
1
3
3
13

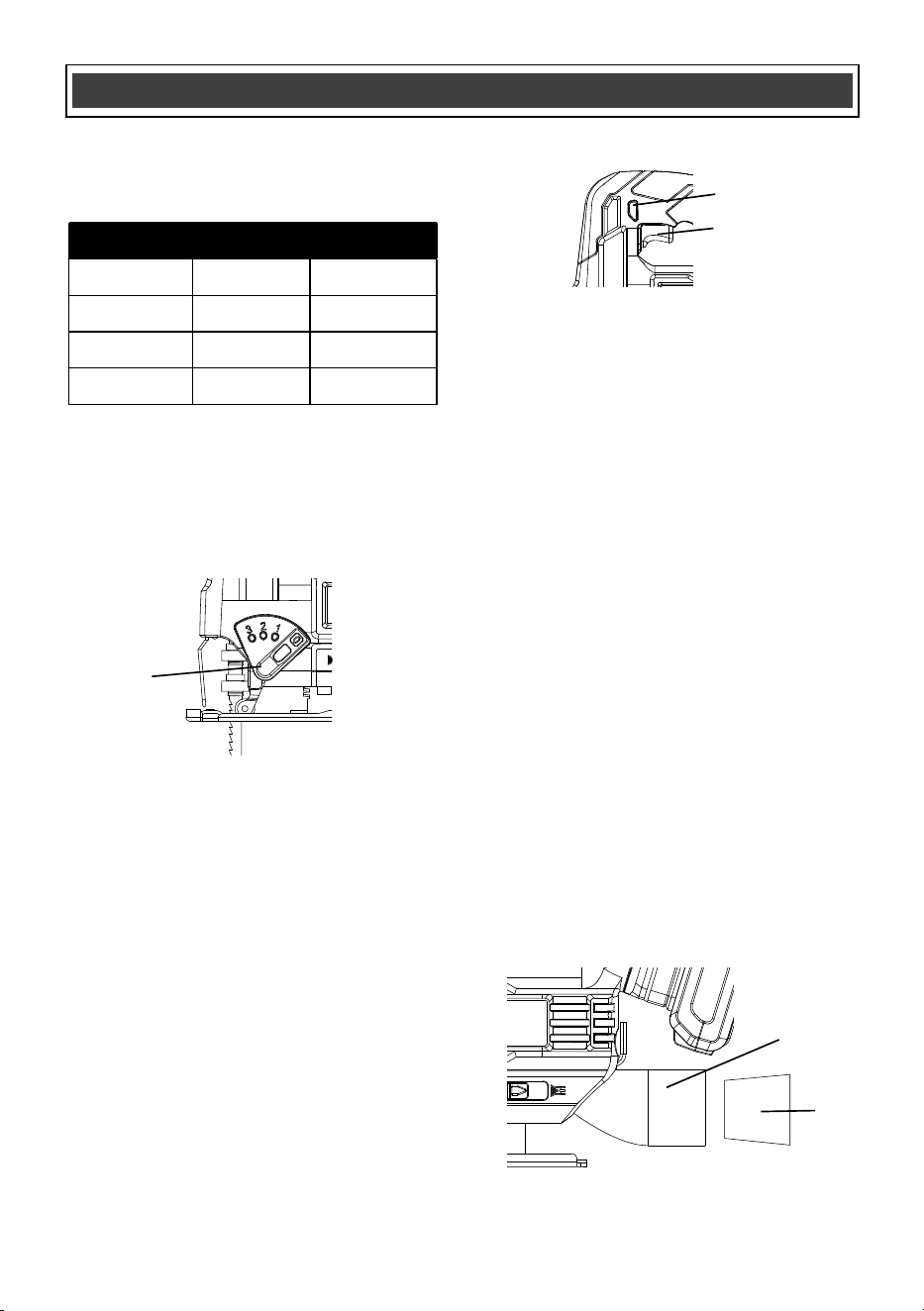

ASSEMBLY AND OPERATING
SETTING THE ORBITAL CUTTING ANGLE
The variable orbital cutting action allows you to
select one of four different blade angles.
To set the orbital cutting angle, rotate the orbital
cutting lever forward or backward to the desired
setting number (1) (Fig. 6).
NOTE: The orbital setting button will “click” at
each of the four positions. Slide the orbital
button slightly forward or backward until it locks
into place.
The trigger switch turns the jigsaw ON and
OFF.
1. To turn the jigsaw ON, push the lock-off
button (2) and squeeze the trigger
switch (1) (Fig.7).
2. To turn the jigsaw OFF, release the trigger
switch.
VARIABLE TRIGGER SWITCH
The jigsaw is equipped with an LED work-light.
The light will illuminate when the trigger switch
is squeezed , and will automatically turn off after
the trigger is released.
LED WORKLIGHT
Your jigsaw is equipped with a "lock-off" button
which reduces the possibility of accidental
starting (Fig.7). The lock-off button is located on
the handle above the variable speed trigger
switch (1). You must depress the lock-off button
(2) in order to pull the variable speed trigger
switch (1) . The lock resets each time the trigger
is released.
LOCK-OFF BUTTON
To reduce the amount of loose sawdust
produced while cutting, a workshop vacuum
can be attached to the jigsaw by using the
vacuum adapter supplied with the jigsaw.
To install the 1-3/8” to 1-1/4” vacuum adapter
(1), insert the adapter into the 1-3/8” vacuum
port (2) in the rear of the jigsaw housing (Fig. 8).
NOTES:
a) The vacuum adapter is slightly tapered. If
the adapter is too large to be inserted into
the vacuum port, insert the opposite end of
the adaptor into the vacuum port.
b) Twist the adapter slightly as it is pressed
into the vacuum port to ensure it is fully
inserted.
INSTALLING THE VACUUM ADAPTOR
Fig. 6
Fig. 8
Fig. 7
Position Angle Material
0 Neutral Metal
1 Small Hard wood
2 Large Soft wood
3 Full Styrofoam
1
2
1
1
2
DANGER: Any workpiece that is not
adequately clamped in place may come
loose and cause serious injury. Never
hold the workpiece with your hand.
!
WARNING: Keep your hands and
fingers away from between the motor
housing and the blade holder. Do not
reach underneath the workpiece while
the jigsaw is running.
!
14
ASSEMBLY AND OPERATING
VACUUM PORT SWITCH
During normal use without the vacuum adaptor
installed, the vacuum port switch (1) must be
slid toward the rear of the tool (Fig. 9). This will
allow the internal motor fan to continuously blow
the sawdust away from the cutting mark. When
the vacuum adaptor is installed, the vacuum
port switch must be slid toward the front of the
tool. This position the internal baffle to divert the
sawdust through the vacuum port so it can be
evacuated by the workshop vacuum.
This jigsaw is a versatile tool that allows you to
cut many different types of materials.
Some of these materials include:
• Wood products such as lumber, hardwood,
plywood, composite board, and panelling
• Drywall
• Styrofoam
• Fibre board and plastic
• Metals such as pipe, steel rods, sheet steel,
aluminum, brass, and copper.
NOTE: There are many different types of blades
available. Generally, there are metal cutting
blades (fine teeth) and wood cutting blades
(coarse teeth). Use the correct blade for your
application. The packaging on the blade will
indicate the type of materials each blade is
designed to cut.

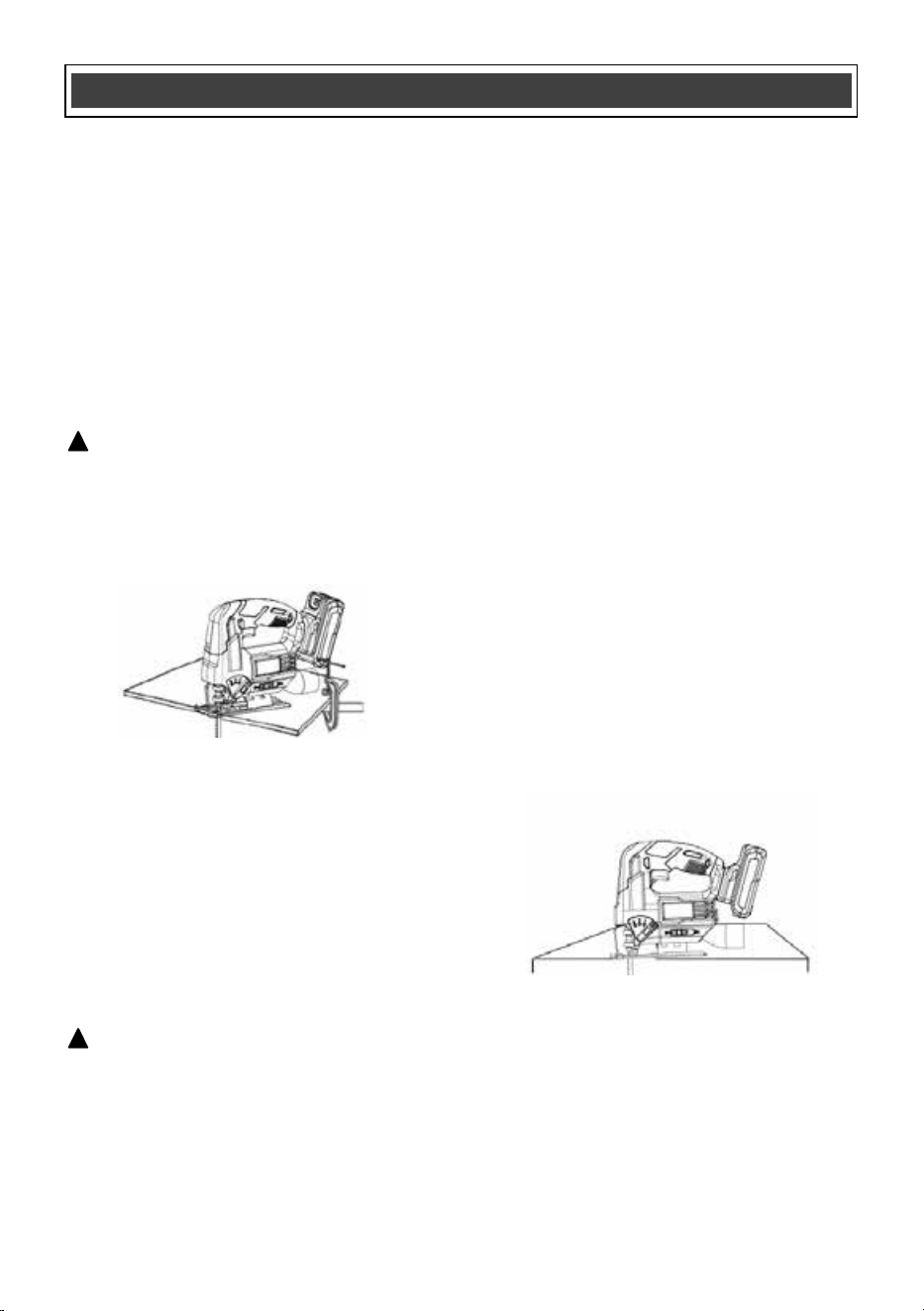

MATERIALS YOU CAN CUT
1. Clearly mark the workpiece to locate the
position of the cut.
2. Hold smaller workpieces with a vise.
Clamp larger workpieces to a workbench
or table.
3. Rest the front of the jigsaw base on the
workpiece and align cutting edge of the
blade with the cutting line on your
workpiece (Fig. 10).
GENERAL CUTTING
Fig. 9
WARNING: For safety reasons, the
operator must read the sections of
this Owner’s Manual entitled "GEN-
ERAL SAFETY WARNINGS",
"POWER TOOL SAFETY","SPECIFIC
SAFETY RULES","EXTENSION CORD
SAFETY" and "SYMBOLS" before
using this jigsaw.
Verify the following every time the
jigsaw is used:
1. The blade is tight and sharp.
2. All adjustments are tight.
3. The workpiece is properly secured.
4. Safety glasses and hearing
protection are being worn.
Failure to adhere to these safety
rules can greatly increase the
chances of injury.
!
1
CAUTION: Do not force the jigsaw.
Use only enough force to keep the
blade cutting. Excessive pressure on
the blade will cause it to bend and
twist, which may result in breaking the
blade.
!
4. While firmly gripping the jigsaw, and with
the blade NOT in contact with the surface
to be cut, start the jigsaw by squeezing the
variable speed trigger switch.
5. Once the jigsaw has reached the desired
speed, gradually bring the moving blade
into contact with the workpiece at the
appropriate location.
NOTE: Apply enough downward pressure to
keep the jigsaw steady and only enough
forward pressure to keep the blade cutting
freely.
15
ASSEMBLY AND OPERATING
Bevel cutting angles may be adjusted from 0° to
45° either left or right. To adjust the bevel angle,
refer to Fig. 6, 7.
Once the cutting angle has been verified,
proceed with the cutting activity as outlined in
"GENERAL CUTTING" above.
BEVEL CUTTING
Many types of metal can be cut with your
jigsaw. When cutting any kind of material,
be careful not to twist or bend the blades. Do
not force the blade. If the blade chatters or
vibrates excessively, use a finer toothed blade.
If the blade heats excessively, reduce the speed
of cutting. If the blade teeth become clogged
METAL CUTTING
WARNING: To avoid loss of control,
broken blades or damage to the
workpiece, always use extreme caution
when making plunge cuts. It is not
recommended to plunge cut any
material other than wood. Wherever
possible, drill a pilot hole 3/8" (9.5 mm)
!
PLUNGE CUTTING
Fig. 10
Fig. 11
or larger in the area to be cut out and
start cutting with the blade in the pilot
hole. This will avoid the need to
plunge cut.
NOTE:
Use only blades with 7 teeth per inch
for plunge cutting.
1. To plunge cut an inside hole, clearly mark
the cutting line on the workpiece.
2. Set the bevel angle at 0°, and then lock the
base plate.
3. Tilt the jigsaw forward so it rests on the
front edge of the base plate and in a
position where the blade will NOT touch
the workpiece when the switch is turned
ON (Fig. 11).
NOTE: Make sure the saw blade is inside the
area to be cut.
4. Start the jigsaw and slowly lower the blade
onto the workpiece while making sure the
front of the saw base remains in contact
with the workpiece. Allow the blade to
slowly cut through the wood.
5. Continue lowering the blade into the
workpiece until the jigsaw base rests flat on
the workpiece. Continue sawing toward the
cutting line and complete the cut as
required.
16
GENERAL
WARNING: When servicing, use only
identical replacement parts. The use of any
other part may create a hazard or cause
product damage.
DO NOT use solvents when cleaning plastic
parts. Plastics are susceptible to damage from
various types of commercial solvents and may
be damaged by their use. Use a clean cloth to
remove dirt, dust, oil, grease etc.
WARNING: Do not allow brake fluids,
gasoline, petroleum-based products,
penetrating oils, etc. to come into contact
with plastic parts. They contain chemicals
that can damage, weaken or destroy plastic.
DO NOT abuse power tools. Abusive practices
can damage the tool and the workpiece.
WARNING: DO NOT attempt to modify
tools or create accessories. Any such
alteration or modification is misuse and
could result in a hazardous condition leading
to possible serious injury. It will also void
the warranty.
LUBRICATION
All of the bearings in this tool are lubricated with
a sufficient amount of high-grade lubricant for
the life of the unit under normal conditions.
Therefore, no further lubrication is required.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
To preserve our natural resources, please
recycle or dispose of batteries properly.
The batteries accompanying this tool may
contain chemicals and metals that are harmful
to the environment. Never dispose of
rechargeable batteries in your normal household
garbage or in landfill sites, because they will add
to the pollution of the env
ironment.
Consult your local waste authority for
information regarding available recycling and
disposal options.
WARNING: Upon removal of the battery
pack, cover the terminals of the battery pack
with electrical tape or heavy-duty adhesive
tape. Never touch both terminals with metal
objects or body parts, because a short
circuit may result. Keep away from children.
Do not attempt to destroy or disassemble
battery pack or remove any of its
components. Rechargeable batteries must
be recycled or disposed of properly. Failure
to comply with these warnings could result
in fire and serious injury.
MAINTENANCE
!
!
!
!
ASSEMBLY AND OPERATING
when cutting soft metals, such as aluminum,
use a coarser blade with fewer teeth per inch.
Use kerosene when cutting soft metals and oil
when cutting steel to keep the blade cool and to
extend the blade life. Clamp all work firmly and
saw as close as possible to the clamping point
to eliminate any vibration of the work being cut.
When cutting conduit, pipe or angle iron, clamp
the workpiece in a vise if possible
and saw close to the vise. To cut thin sheet
materials, "sandwich" the material
between hardboard or plywood and clamp the
layers to eliminate material vibration
and tearing. By doing this, the material will be
cut smoothly. Lay out your pattern or
cutting lines on top of the "sandwich".
METAL CUTTING
17
WARNING: When servicing, use only original equipment replacement parts. The use of any
other parts may create a safety hazard or cause damage to the jigsaw.
Any attempt to repair or replace electrical parts on this multi-function power tool may create a safety
hazard unless repairs are performed by a qualified technician. For more information, call the Toll-free
Helpline, at 1-866-349-8665.
!
AVAILABLE PARTS
18
Key # Part # Part Name
1 2020180023 Heat sink
2 4020010153 Screw M3x6
3 1060050031 Switch
4 3150170032 Contact plate
5 3010060023 Left foot
6 3180040121 Dust port
7 3140060049 Rubber cup
8 3010060022 Left housing
9 3120120136 Blow switch button
10 2030240008 Square nut
11 2030030286 Positioning plate
12 3150130144 Blow way
13 4100020012 Circlip, dia. 10
14 2040290087 Pendulumn axle
15 4110030001 Roller pin, dia.4x27.5
16 1170020037 Blade support
17 3120060080 Pendulumn knob
18 4080060001 Steel ball, dia. 5
19 2050060080 Spring
20 3120040089 Lock-off lever
21 2050060218 Spring
22 2050080182 Finger guard
23 1030080020 Motor
24 2030220007 Motor flange
25 4020010143 Screw M4x8
26 2010120008 Connecting shaft
27 3150010113 Fan
28 2040050156 Motor gear
29 4010010043 Bearing gear
30 4020010158 Screw M4x10
31 4040010043 Flat washer
32 1170050012 Fixing seat
33 2030030265
Pendulumn plate
34 3140050021 Grease stopper
35 2010130050 Counterblance
36 2010010111 Big gear
37 4010020040 Needle bearing
38 2030020140 Washer
39 4100020004 Circlip, dia. 6
40 2010210024 Plunger roller
41 2030170028 Fixing frame
42 2010150050 Front support
43 2050060220 Spring
44 1150010046
Plunger
45 2010150051 Back support
46 3140060049 Rubber pad
AVAILABLE PARTS
Always order by PART NUMBER, not by key number.
19
Key # Part # Part Name
47 4030010099 Tapping screw ST3.9x14
48 1290090062 Battery
49 3010060023 Right foot
50 3010060022 Right housing
51 1150020134 Base plate
52 2030030009
Connecting plate
53 4020080003 Hex screw M4x14
54 4020080013 Hex screw M4x6
AVAILABLE PARTS
2
Rev 2.2 28/08/2025
Distributed by: Menard, Inc., Eau Claire, WI 54703
PERFORMAX
®
20 VOLTJIGSAW
20
2-YEAR LIMITED WARRANTY:
This PERFORMAX
®
brand power tool carries a 2-Year Limited Warranty to the
original purchaser. If, during normal use, this PERFORMAX
®
power tool breaks
or fails due to a defect in material or workmanship within two (2) years from the
date of original purchase, simply bring this tool with the original sales receipt
back to your nearest MENARDS® retail store. At its discretion, PERFORMAX
®
agrees to have the tool or any defective part(s) repaired or replaced with the
same or similar PERFORMAX
®
product or part free of charge, within the stated
warranty period, when returned by the original purchaser with original sales
receipt. Not withstanding the foregoing, this limited warranty does not cover any
damage that has resulted from abuse or misuse of the Merchandise. This
warranty: (1) excludes expendable parts including but not lim
ited to blades,
brushes, belts, bits, light bulbs, and/or batteries; (2) shall be void if this tool is
used for commercial and/or rental purposes; and (3) does not cover any losses,
injuries to persons/property or costs. This warranty does give you specific legal
rights and you may have other rights, which vary from state to state. Be careful,
tools are dangerous if improperly used or maintained. Seller’s employe
es are
not qualified to advise you on the use of this Merchandise. Any oral
representation(s) made will not be binding on seller or its employees. The rights
under this limited warranty are to the original purchaser of the Merchandise and
may not be transferred to any subsequent owner. This limited warranty is in lieu
of all warranties, expressed or implied including warranties or merchantability
and fitness for a particular
purpose. Seller shall not be liable for any special,
incidental, or consequential damages. The sole exclusive remedy against the
seller will be for the replacement of any defects as provided herein, as long as
the seller is willing or able to replace this product or is willing to refund the
purchase price as provided above. For insurance purposes, seller is not allowed
to demonstrate any of these power tools for you.
Fo
r questions / comments, technical assistance or repair parts –
Please Call Toll Free at: 1-866-349-8665 (M-F 9am-5pm EST) or email
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
