Visit our website at: http://www.harborfreight.com
email our technical support at: [email protected]
57613
18
V
LITHIUM
CORDLESS JIG SAW KIT
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 23k
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
Copyright
©
2021 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 57613
SaFety OperatiOn MaintenanceSetup
table of contents
Safety ......................................................... 2
Specifications ............................................. 7
Setup .......................................................... 7
Operation .................................................... 9
Maintenance .............................................. 12

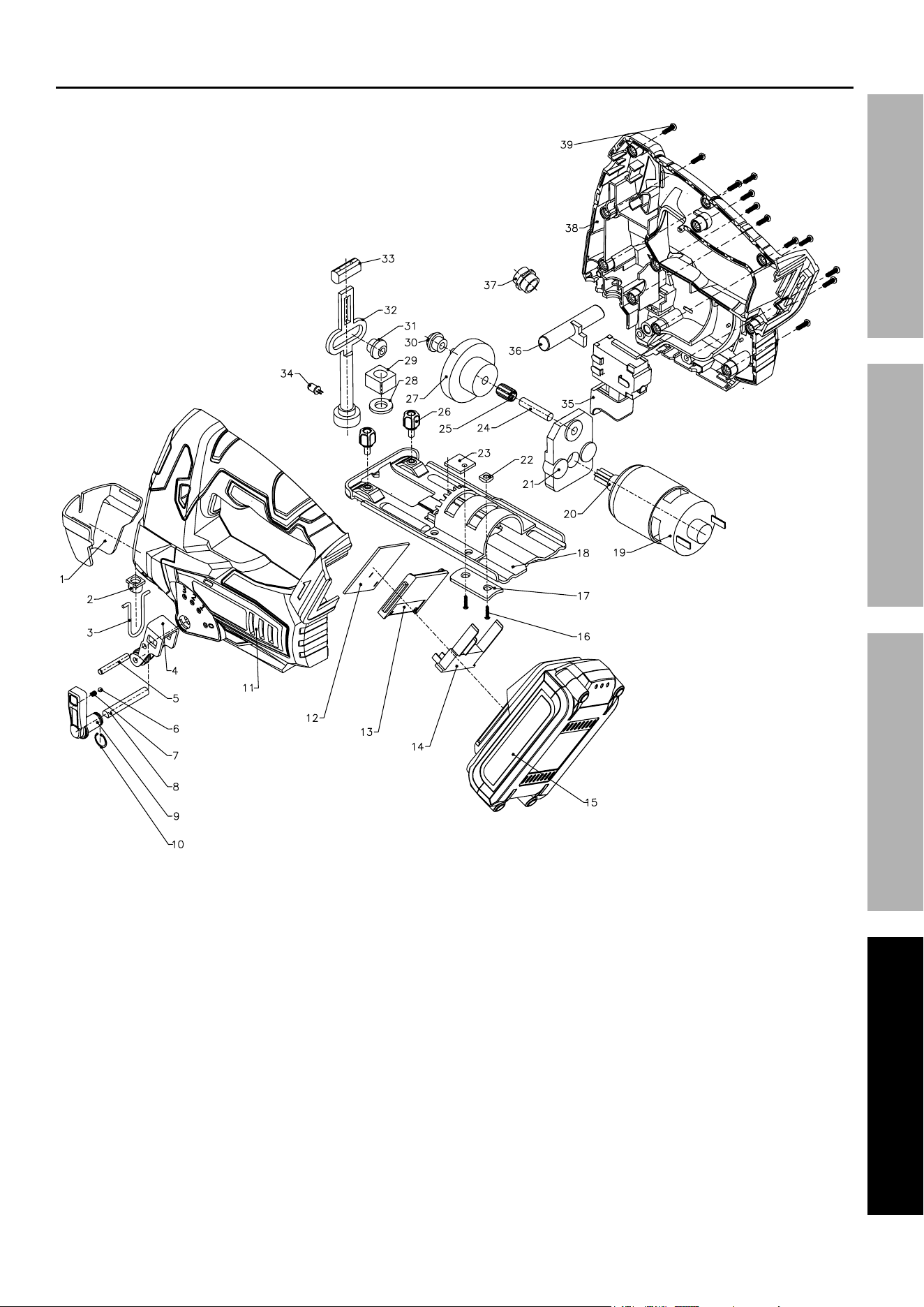

Parts List and Diagram .............................. 14
Warranty .................................................... 16
WarninG SyMBOLS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFety inFOrMatiOn
General power tool Safety Warnings
read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
Page 3For technical questions, please call 1-888-866-5797.Item 57613
SaFetyOperatiOnMaintenance Setup
2. electrical safety
a. power tool plugs must match the outlet.
never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b. avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
d. Do not abuse the cord. never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
f. if operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFci) protected supply. Use of
a GFCI reduces the risk of electric shock.
3. personal safety
a. Do not stare at operating lamp.
b. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating power tools
may result in serious personal injury.
c. use personal protective equipment. always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
d. prevent unintentional starting. ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energizing power
tools that have the switch on invites accidents.
e. remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
f. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
g. Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewelry or long hair
can be caught in moving parts.
h. if devices are provided for the connection
of dust extraction and collection
facilities, ensure these are connected
and properly used. Use of dust collection
can reduce dust-related hazards.
i. Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
j. Only use safety equipment that has been
approved by an appropriate standards agency.
Unapproved safety equipment may not provide
adequate protection. Eye protection must be
ANSI‑approved and breathing protection
must be NIOSH‑approved for the
specific hazards in the work area.
k. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
l. When using a handheld power tool,
maintain a firm grip on the tool with
both hands to resist starting torque.
m. Do not leave the tool unattended when the
Battery Pack is connected. Turn off the tool,
and remove the Battery Pack before leaving.
n. This product is not a toy.
Keep it out of reach of children.
o. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
p. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
4. power tool use and care
a. Do not force the power tool. use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
b. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
Page 4 For technical questions, please call 1-888-866-5797. Item 57613
SaFety OperatiOn MaintenanceSetup
c. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools and accessories.
check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. if damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
h. Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces
do not allow for safe handling and control
of the tool in unexpected situations.
5. Service
a. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
b. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Safety instructions for reciprocating saws
a. Hold the power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make
exposed metal parts of the power tool “ live”
and could give the operator an electric shock.
b. use clamps or another practical way to
secure and support the workpiece to a
stable platform. Holding the workpiece
by hand or against your body leaves it
unstable and may lead to loss of control.
7. Battery tool use and care
a. prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to battery pack, picking up or carrying the
power tool. Carrying the power tool with your
finger on the switch or energizing power tool
that have the switch on invites accidents.
b. Disconnect the battery pack from the
power tool before making any adjustments,
changing accessories, or storing power
tool. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
c. recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of fire when used with another battery pack.
d. use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
e. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
f. under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
g. Do not use a battery pack or power tool that
is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
h. Do not expose a battery pack or power
tool to fire or excessive temperature.
Exposure to fire or temperature above
140°F may cause explosion.
i. Follow all charging instructions and do
not charge the battery pack or power tool
outside of the temperature range specified
in the instructions. Charging improperly or at
temperatures outside of the specified range may
damage the battery and increase the risk of fire.
j. Have servicing performed by a qualified
repair person using only identical
replacement parts. This will ensure that
the safety of the product is maintained.
k. Do not modify or attempt to repair the power
tool or the battery pack except as indicated
in the instructions for use and care.
Page 5For technical questions, please call 1-888-866-5797.Item 57613
SaFetyOperatiOnMaintenance Setup
l. The battery Charger gets hot during
use. The Charger’s heat can build up
to unsafe levels and create a fire
hazard if it does not receive adequate
ventilation, due to an electrical fault, or if it is
used in a hot environment. Do not place the
Charger on a flammable surface. Do not obstruct
any vents on the Charger. especially avoid
placing the charger on carpets and rugs; they
are not only flammable, but they also obstruct
vents under the charger. Place the Charger on
a stable, solid, nonflammable surface (such as a
stable metal workbench or concrete floor) at least
1 foot away from all flammable objects, such as
drapes or walls. Keep a fire extinguisher and a
smoke detector in the area. Frequently monitor
the Charger and Battery Pack while charging.
8. Lithium Battery Safety Warnings
LitHiuM BatterieS StOre
a LarGe aMOunt OF enerGy anD
WiLL Vent Fire Or eXpLODe
iF MiStreateD:
a. Keep Battery Pack dry.
b. DO NOT DO ANY OF THE FOLLOWING
TO THE BATTERY PACK:
• Open,
• Drop,
• Short-circuit,
• puncture,
• incinerate, or
• expose to temperatures greater than 140°F.
c. Charge Battery Pack only according
to its Charger’s instructions.
d. Inspect Battery Pack before every use;
do not use or charge if damaged.
9. Vibration Safety
This tool vibrates during use.
Repeated or long‑term exposure to vibration may
cause temporary or permanent physical injury,
particularly to the hands, arms and shoulders.
To reduce the risk of vibration‑related injury:
a. Anyone using vibrating tools regularly or for
an extended period should first be examined
by a doctor and then have regular medical
check‑ups to ensure medical problems are not
being caused or worsened from use. Pregnant
women or people who have impaired blood
circulation to the hand, past hand injuries,
nervous system disorders, diabetes, or
Raynaud’s Disease should not use this tool.
If you feel any symptoms related to
vibration (such as tingling, numbness,
and white or blue fingers), seek medical
advice as soon as possible.
b. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
c. Wear suitable gloves to reduce the
vibration effects on the user.
d. Use tools with the lowest vibration
when there is a choice.
e. Include vibration‑free periods each day of work.
f. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
g. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SaVe tHeSe inStructiOnS.
Page 6 For technical questions, please call 1-888-866-5797. Item 57613
SaFety OperatiOn MaintenanceSetup
Grounding
tO preVent eLectric SHOcK anD DeatH FrOM incOrrect GrOunDinG:
check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the charger. Do not use the charger
if the power cord or plug is damaged. if damaged, have it repaired by a service facility before
use. if the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
extension cords
note: Extension cords must not be used with this item’s Charger.
Symbology
Double Insulated
V
Volts
~
Alternating Current
a
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI‑approved
safety goggles with side shields.
Read the manual before
set‑up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover Charger
ventilation ducts.
Charge on fireproof surface only.
WARNING marking concerning
Risk of Electric Shock.
Properly connect Charger’s power
cord to appropriate outlet.
Page 7For technical questions, please call 1-888-866-5797.Item 57613
SaFetyOperatiOnMaintenance Setup
Specifications
Charger Input Rating 120VAC / 60Hz / 200mA
Battery Rating 18VDC / 1.3Ah
Battery Type Li‑ion
No Load Speed n
0
: 0‑2500/min
Blade Style T‑shank
Materials
Wood
Steel
Plastic
cautiOn! The use of optical instruments
with this product will increase eye hazard.
Setup - Before use:
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
note: For additional information regarding the parts listed in the
following pages, refer to Parts List and Diagram on page 14.
charging
1. Place the Battery Pack on a dry fireproof surface in
a room where the temperature is from 50–104° F.
note: If recharging a newly spent Battery Pack,
allow it to cool completely before charging.
2. Examine the Battery Pack. It must be
undamaged, and a Li‑ion type Battery Pack.
Do not charge a cracked, open, or
leaking Battery pack, or charge a
non-recommended type of Battery pack.
3. Plug the Power Supply into a grounded,
120VAC, 60Hz receptacle.
4. Connect the Power Supply to the Battery.
note: The Battery Pack’s capacity will increase
somewhat during the first few charging cycles.
A fully discharged Battery Pack will take about 5 to 7
hours to fully charge. Recharging the Battery Pack
for more than 7 hours can damage the battery cells.
5. While charging, the Battery Pack, Charger, and
Power Supply may become warm to the touch.
This is normal, and does not indicate a problem.
6. The red LED will light continuously when the
Battery Pack is charged. Unplug the Charger and
disconnect it from the Battery Pack when finished.
7. Allow the Battery Pack to cool
completely before using it.
Page 8 For technical questions, please call 1-888-866-5797. Item 57613
SaFety OperatiOn MaintenanceSetup
Functions
trigger
trigger
Lock
LeD Guide
Button
Blade
Guide
Orbital
action
Switch
Blade
Guard
Shoe
Blade (sold
separately)
Page 9For technical questions, please call 1-888-866-5797.Item 57613
SaFetyOperatiOnMaintenance Setup
Operating instructions
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
Make sure that the trigger is in the off-position and remove its Battery
pack before performing any procedure in this section.
tool changing
installing Blade
cautiOn! To prevent injury, if replacing Blade,
make sure Blade is cool before touching it.
1. Turn Saw upside‑down. Open Chuck by
turning clockwise. Chuck will move to the
left, creating space for the Blade.
chuck
2. Install Blade with teeth pointing toward front of Saw.
3. Release Chuck to close it.
4. Check that Blade is firmly locked in place.
cautiOn! To prevent injury: Before attaching Battery
Pack for each use, wearing work gloves, pull on the
Blade to make sure it is securely locked in the Chuck.
Setting and testing
Setting Bevel angle
1. Turn Saw upside‑down.
2. Loosen the two screws with the supplied wrench.
3. Slide the shoe back slightly to disengage gears.
4. Rotate shoe to desired bevel angle.
5. Slide shoe forward to engage gears.
6. Tighten the two screws with the supplied wrench.
Shoe
2
4
5 3
Page 10 For technical questions, please call 1-888-866-5797. Item 57613
SaFety OperatiOn MaintenanceSetup
Setting Orbital action Switch
Use the Orbital Action Switch to set one
of the following cutting modes:
a. Straight cutting. Set the Lever to “O”. The
blade travels vertically up and down only.
b. Orbital cutting. Set the Lever to “1”, “2”, or “3”.
The blade travels in a circular motion, up and
down and forward and backward. The higher
the number, the larger the orbit of the blade.
note: Do not use Orbital Action to
cut metal or hardwoods.
nOtice: Do not adjust settings
while the Saw is operating.
Workpiece and Work area Set up
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Secure loose workpieces using a vise or clamps
(not included) to prevent movement while working.
3. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
This is especially critical for plunge cuts.
cautiOn! to prevent injury, do not use on
workpieces thicker than the minimum blade
extension at their maximum thickness.
Blade tip can strike workpiece and may shatter.
Page 11For technical questions, please call 1-888-866-5797.Item 57613
SaFetyOperatiOnMaintenance Setup
General instructions for use
cautiOn! to prevent injury, do not use on
workpieces thicker than the minimum blade
extension at their maximum thickness.
Blade tip can strike workpiece and may shatter.
1. Make sure that the Trigger is in the off‑position
and locked, then attach the Battery Pack.
2. Make all necessary adjustments to the Saw.
3. Make sure that all guards are in place in
proper working order and that all adjustment
knobs are tight before operation.
4. Hold Saw so that Blade is near the start of
cut, but not touching the workpiece.
iMpOrtant: Do not start the Saw if the
Blade is in contact with anything.
5. Firmly grip the Handle with one hand, push Trigger
Lock from either side, then press Trigger.
6. To increase speed, apply more pressure to
Trigger. To decrease speed, apply less pressure.
note: When cutting softer materials, use a faster speed.
When cutting harder materials, use a slower speed.
7. Allow the Saw to come up to full speed
before touching the workpiece.
8. Guide the Blade into the workpiece.
WarninG! tO preVent SeriOuS inJury:
Keep the Shoe pressed firmly against the
workpiece while cutting to prevent kickback.
9. Maintain a smooth motion, guiding the Blade
through the material as it is cut. Follow the cut.
Do not press too hard. If the Saw slows down as
it is cutting, apply less pressure on the Saw.
10. To stop the Saw, release the Trigger.
11. Allow the Saw to come to a complete
stop before setting it down.
12. To prevent accidents, turn off the tool and
remove its Battery Pack after use. Clean, then
store the tool indoors out of children’s reach.
Page 12 For technical questions, please call 1-888-866-5797. Item 57613
SaFety OperatiOn MaintenanceSetup
Maintenance and Servicing instructions
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
Make sure that the trigger is in the off-position and remove its Battery
pack before performing any procedure in this section.
tO preVent SeriOuS inJury FrOM tOOL FaiLure:
Do not use damaged equipment. if abnormal noise or vibration
occurs, have the problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BeFOre eacH uSe, inspect the general
condition of the tool. Check for:
• leaking, swollen, or cracked battery pack,
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. aFter uSe, wipe external surfaces
of the tool with clean cloth.
3. tO cLean: The ventilation openings should
be kept clean and free of dirt and debris. Wear
ANSI‑approved safety goggles and NIOSH‑
approved dust mask/respirator before cleaning
ducts. The most effective way to clean the
ventilation openings is with compressed air.
4. Li‑Ion BATTERY MUST BE RECYCLED OR
DISPOSED OF PROPERLY.
Do not short, incinerate or open battery.
5. For blade changing instructions see Setting
and Testing on page 9.
6. Disconnect battery pack and store battery pack,
charger, and tool in dry, indoor area out of
reach of children and away from metal objects
(i.e., paperclips, coins) to prevent shorting.
Page 13For technical questions, please call 1-888-866-5797.Item 57613
SaFetyOperatiOnMaintenance Setup
troubleshooting
problem possible causes Likely Solutions
Tool will not start. 1. Battery Pack not properly
connected.
2. Battery Pack not properly
charged.
3. Battery Pack burnt‑out.
4. Internal damage or wear.
(Carbon brushes or
Trigger, for example.)
1. Remove Battery Pack, make sure there are no
obstructions, reinsert the Battery Pack according
to its shape (it should only fit one way), and press
firmly until the Battery Pack locks in place.
2. Make sure Charger is connected and
operating properly. Give enough time for
Battery Pack to recharge properly.
3. Dispose of old Battery Pack
properly or recycle. Replace Battery Pack.
4. Have technician service tool.
Tool operates slowly. 1. Forcing tool to work too fast.
2. Battery Pack wearing out.
1. Allow tool to work at its own rate.
2. Dispose of old Battery Pack
properly or recycle. Replace Battery Pack.
Performance
decreases over time.
1. Carbon brushes worn
or damaged.
2. Blade dull or damaged.
1. Have qualified technician replace brushes.
2. Keep blades sharp. Replace as needed.
Excessive noise
or rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Blade dull or damaged.
3. Blocked motor housing vents.
1. Allow tool to work at its own rate.
2. Keep blades sharp. Replace as needed.
3. Wear ANSI‑approved safety goggles and
NIOSH‑approved dust mask/respirator while
blowing dust out of motor using compressed air.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect Battery pack and charger power supply before service.
Page 14 For technical questions, please call 1-888-866-5797. Item 57613
SaFety OperatiOn MaintenanceSetup
part Description Qty
1
Protective Cover
1
2
Cover
1
3
Blade Guard
1
4
Cutter Lifting Support Assembly
1
5
Cutter Lifting Support Pin
1
6
Steel Ball
1
7
Steel Ball Spring
1
8
Cutter Lifting Locating Pin
1
9
Cutter Lifting Knob
1
10
O‑Ring
1
11
Left Enclosure
1
12
Circuit Board
1
13
Circuit Board Fixed Holder
1
14
Power Contact Assembly
1
15
Battery Pack
1
16
Screw
2
17
Baseplate Locking Plate
1
18
Shoe
1
19
Motor
1
20
Motor Gear
1
part Description Qty
21
Motor & Gear Fixed Plate
2
22
Baseplate Fixed Nut
1
23
Baseplate Locating Block
1
24
Eccentric Axle
1
25
Baseplate Locating Block
1
26
Needle Bearing
1
27
Eccentric Wheel
1
28
Dust Washer
1
29
Active Steel Sleeve
1
30
Eccentric Bushing
1
31
Eccentric Bushing
1
32
Slide Bar Assembly
1
33
Slide Bar Bearing
1
34
LED Lamp
1
35
Trigger
1
36
Trigger Lock
1
37
Cover
1
38
Right Enclosure
1
39
Screw
12
parts List and Diagram
pLeaSe reaD tHe FOLLOWinG careFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
parts List
record product’s Serial number Here:
note: if product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175418814 when ordering parts.
Page 15For technical questions, please call 1-888-866-5797.Item 57613
SaFetyOperatiOnMaintenance Setup
assembly Diagram
26677 agoura road • calabasas, ca 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
