Installation Plan
Washing Machine
PWM 908 DP
Always read the operating and installation instructions before
setting up, installing, and commissioning the machine.
This prevents both personal injury and damage to the machine.
en-US
11 282 580/05
2 11 282 580/05
Please have the model and serial number of your machine available when contacting Technical Service.
U.S.A.
Miele, Inc.
National Headquarters
9 Independence Way
Princeton, NJ 08540
Phone: 800-991-9380
www.mieleusa.com/professional
Technical Service & Support
Phone: 800-991-9380
Miele & Cie. KG
Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Legend:
Connection required
Connection optional or required,
depending on model
DV
Drain valve
KW
Cold water connection
AW
Drain connection
DP
Drain pump
B
Machine anchoring
PA
Equipotential bonding and grounding
DOS
Dispenser connection
SLA
Peak-load connection
EL
Electrical connection
APCL SST
Closed plinth
F
Machine feet, adjustable
APCL OB
Open plinth
KG
Payment system
APCL 001
Washer-dryer stacking kit
KGA
Payment system connection
WW
Hot water connection
XKM
Communication module
All rights reserved.
PWM 908 en-US
11 282 580/05 3

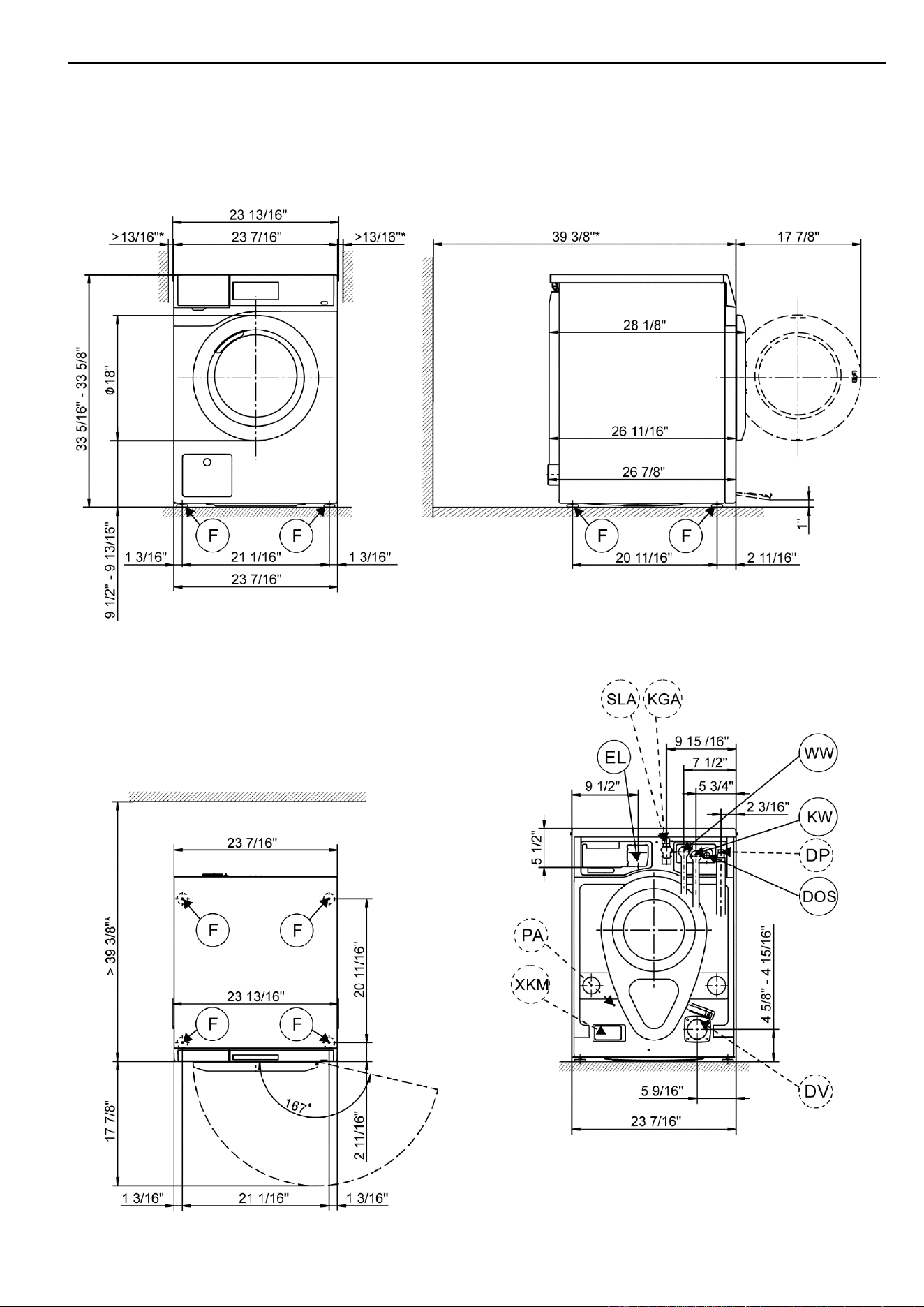

Machine dimensions -measurements in inches-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
4 11 282 580/05

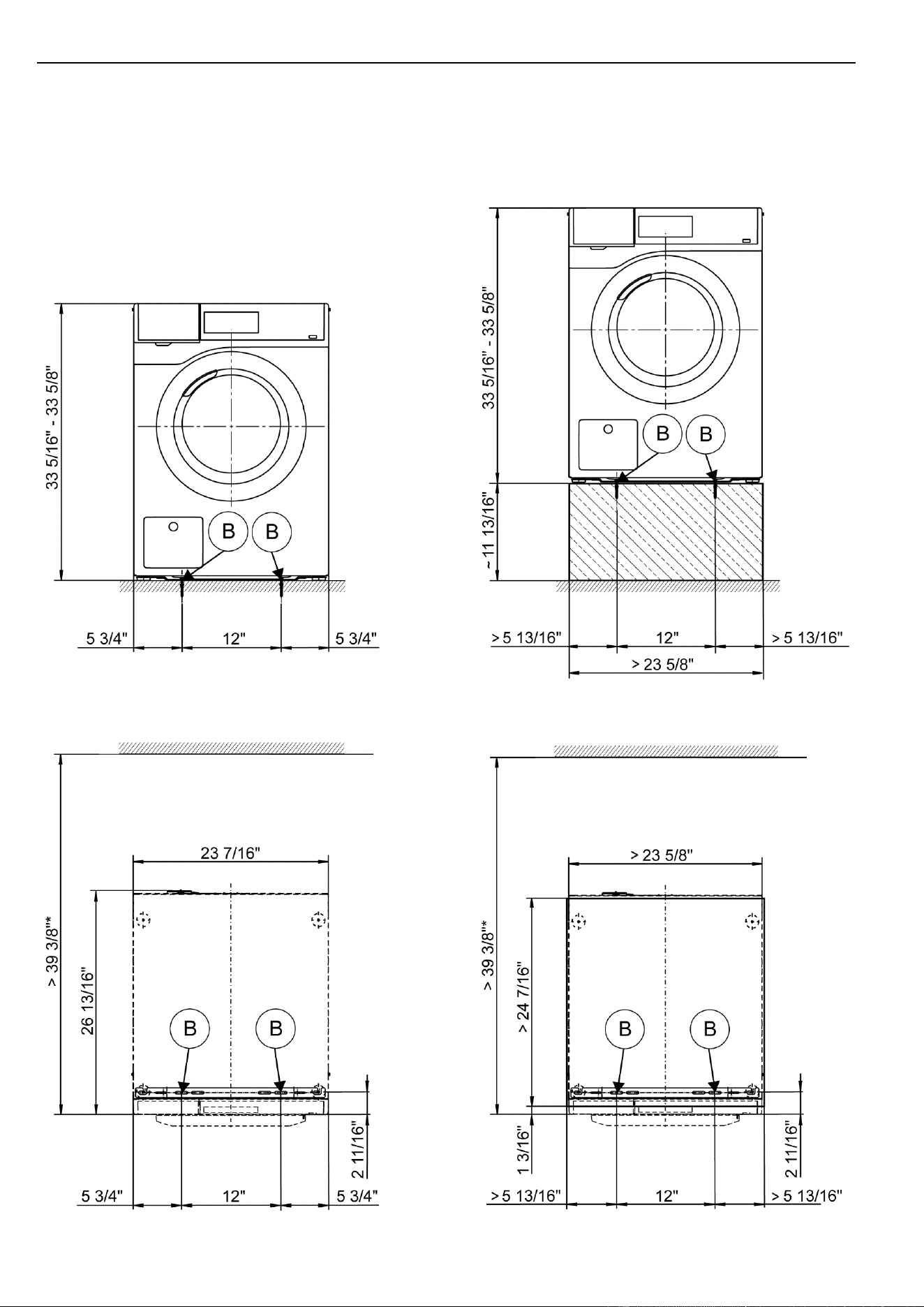

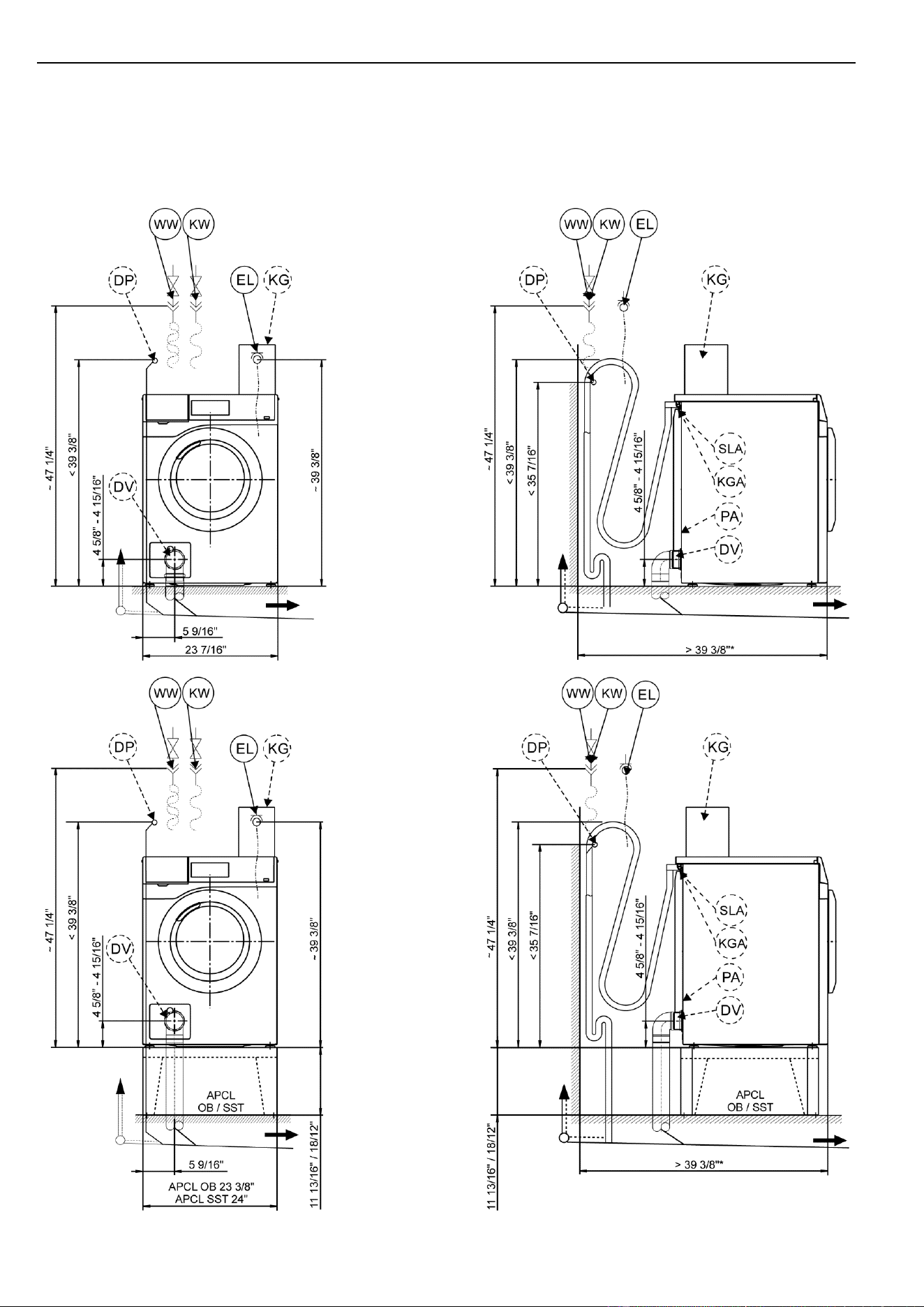

Installation -measurements in inches-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
11 282 580/05 5

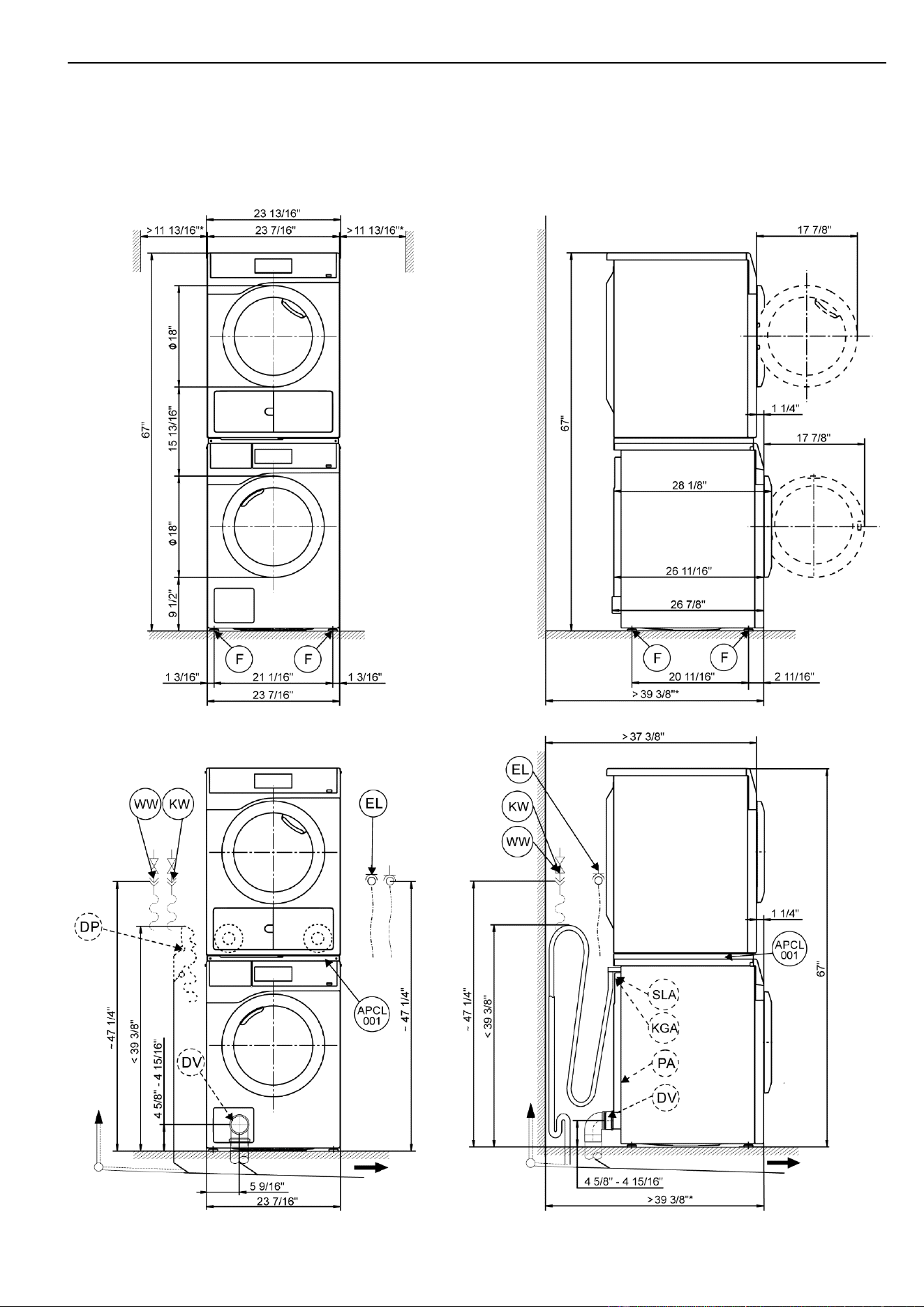

Washer-dryer stack -measurements in inches-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
6 11 282 580/05

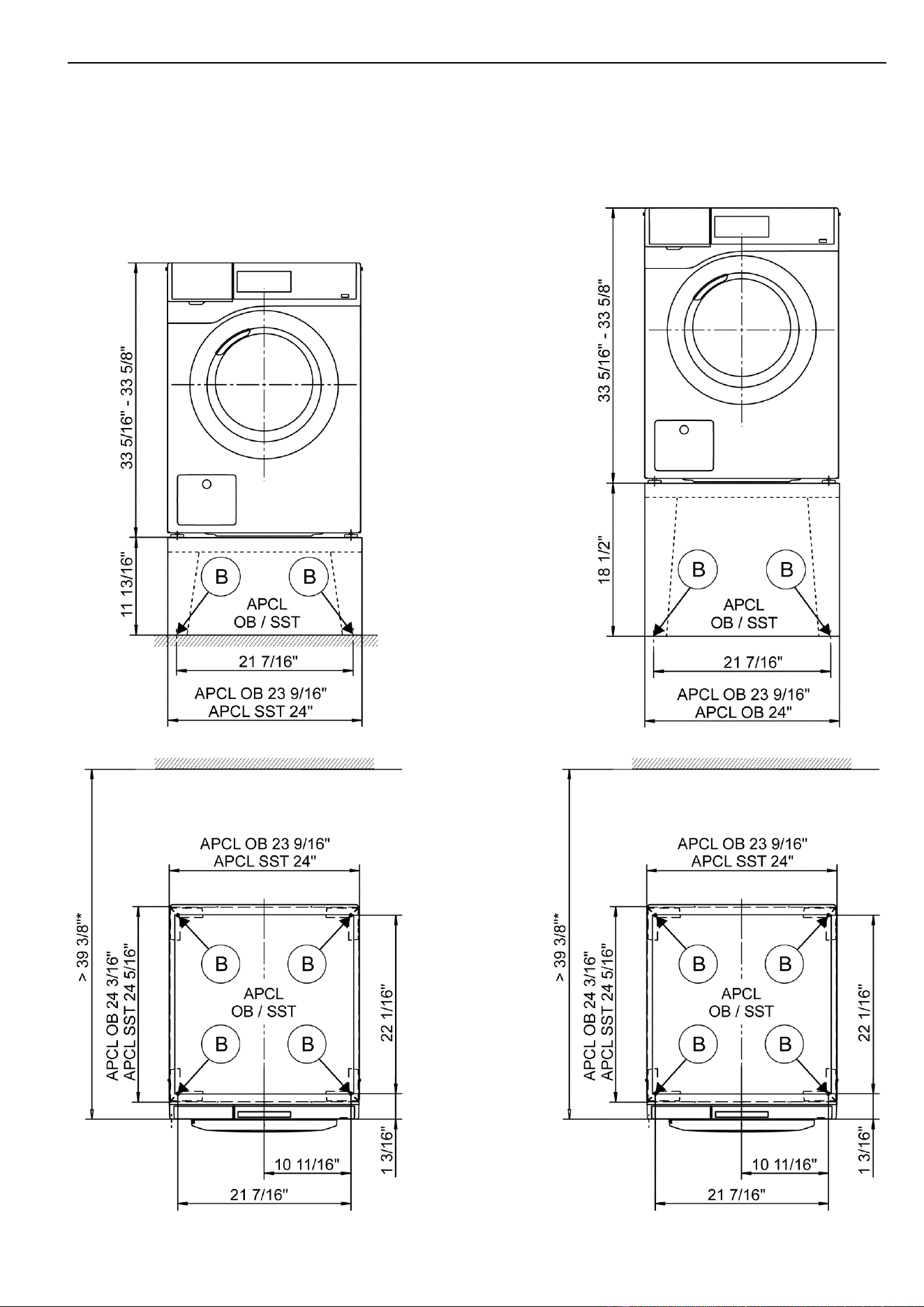

Installation -measurements in inches-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
11 282 580/05 7
Installation -measurements in inches-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
8 11 282 580/05
Machine dimensions -measurements in millimeters-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
11 282 580/05 9

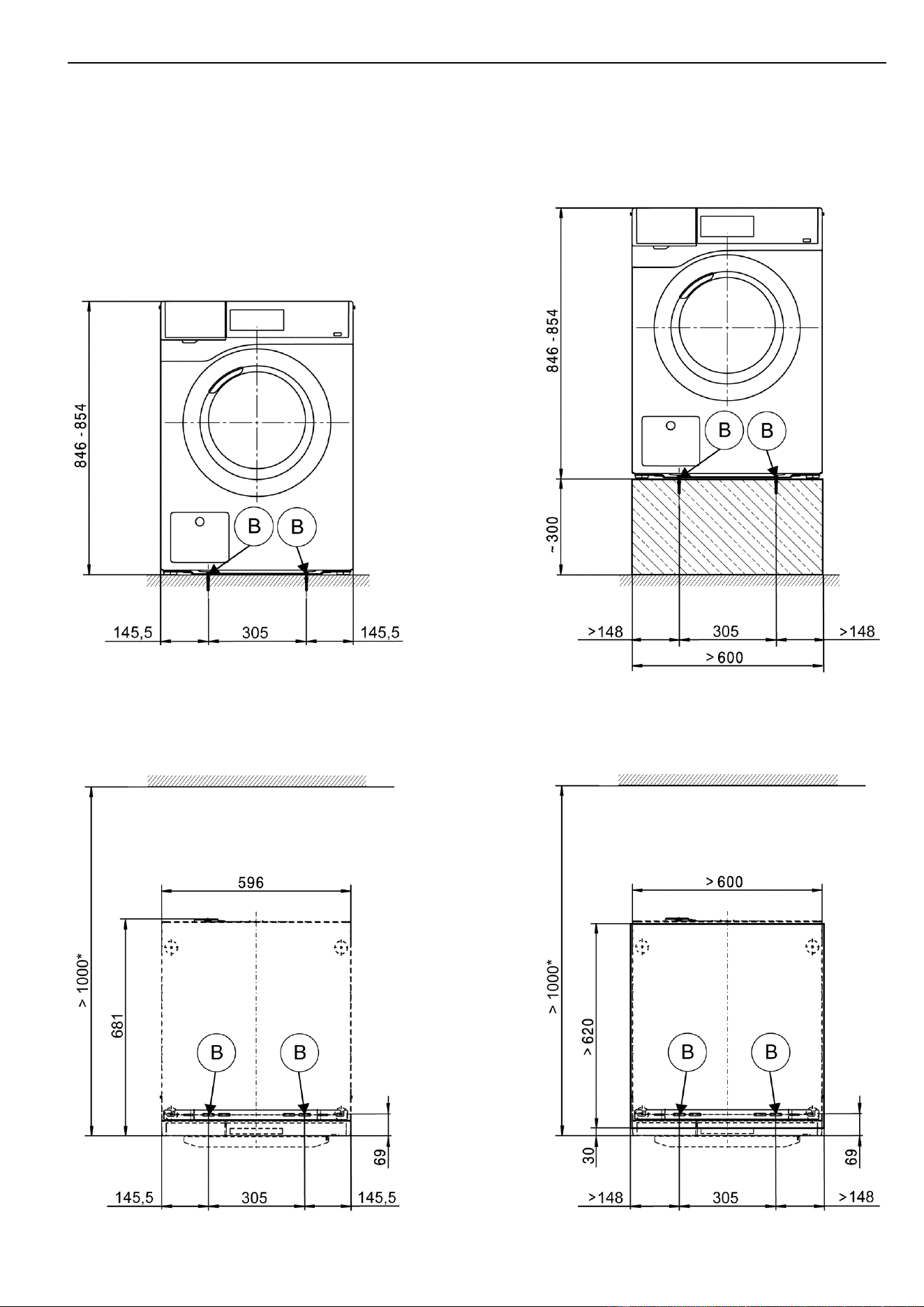

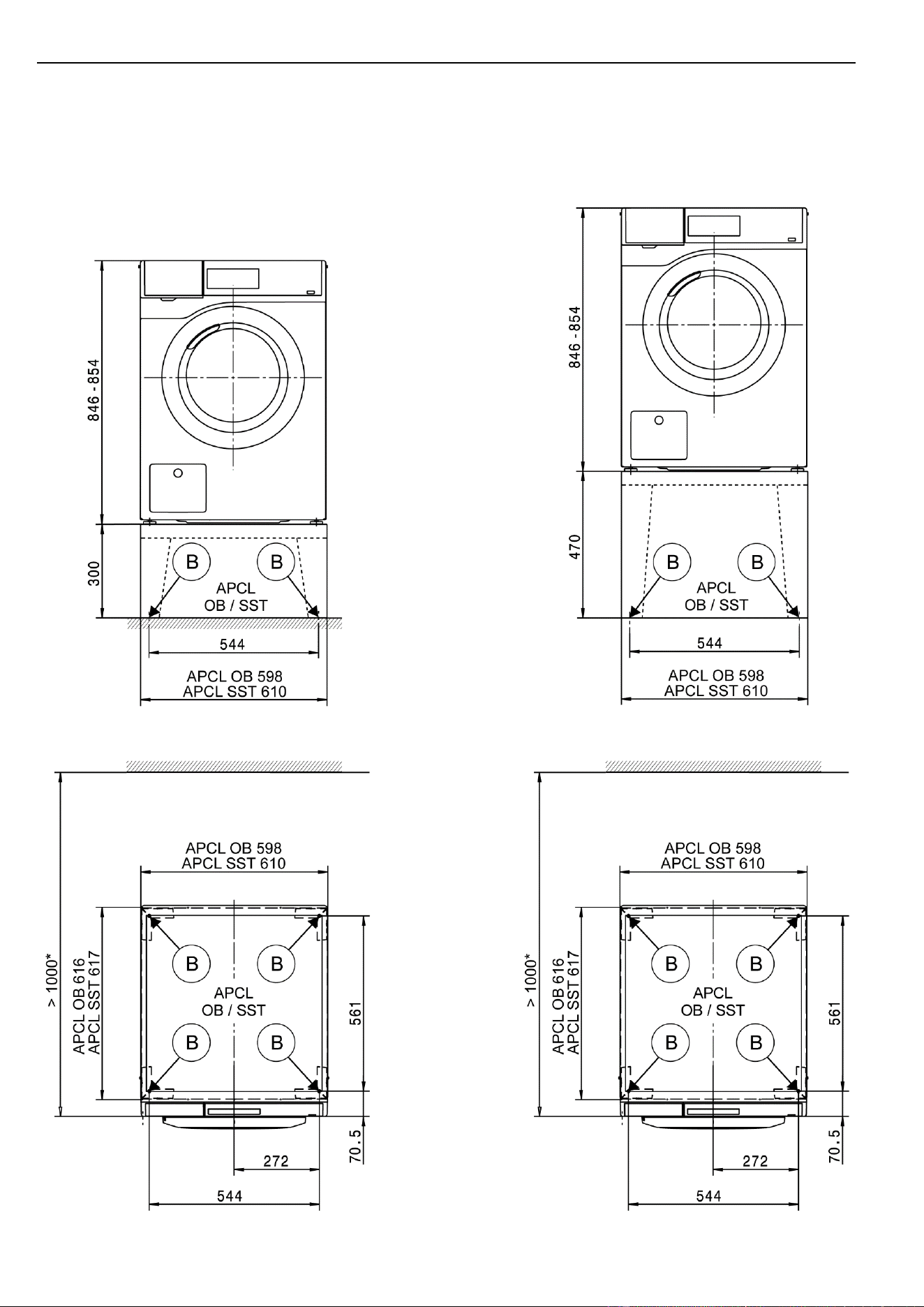

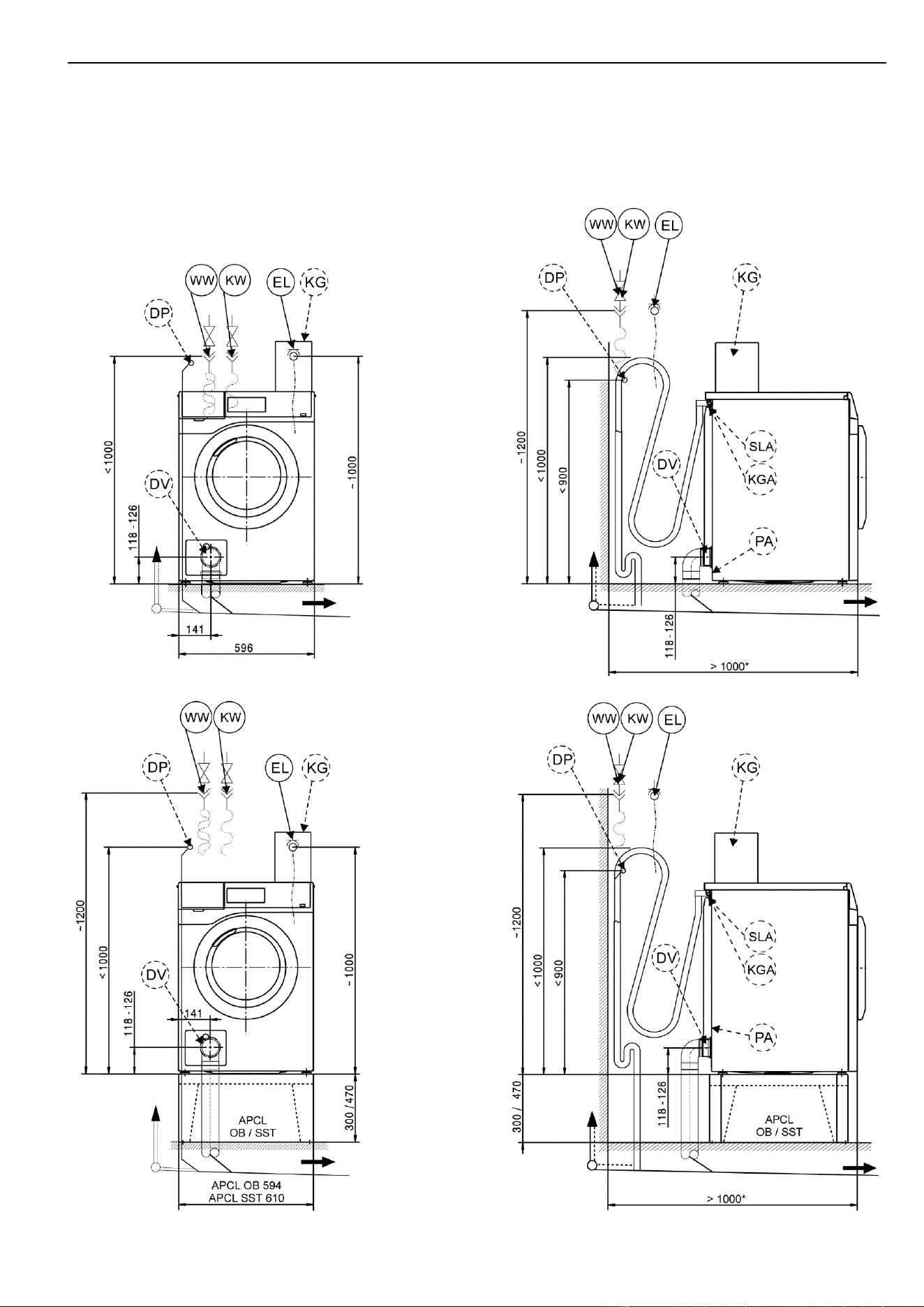

Installation -measurements in millimeters-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
10 11 282 580/05

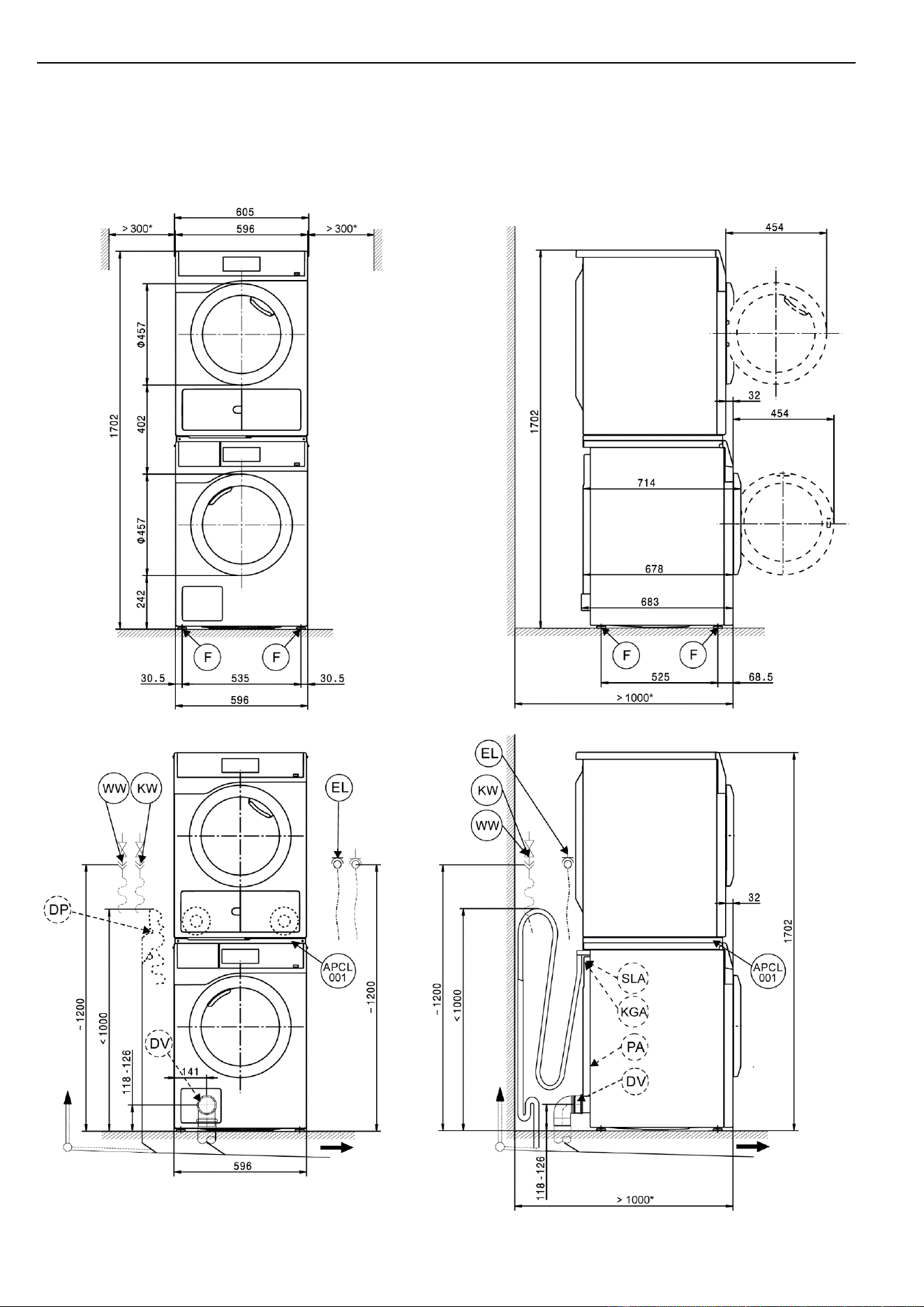

Washer-dryer stack -measurements in millimeters-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
11 282 580/05 11

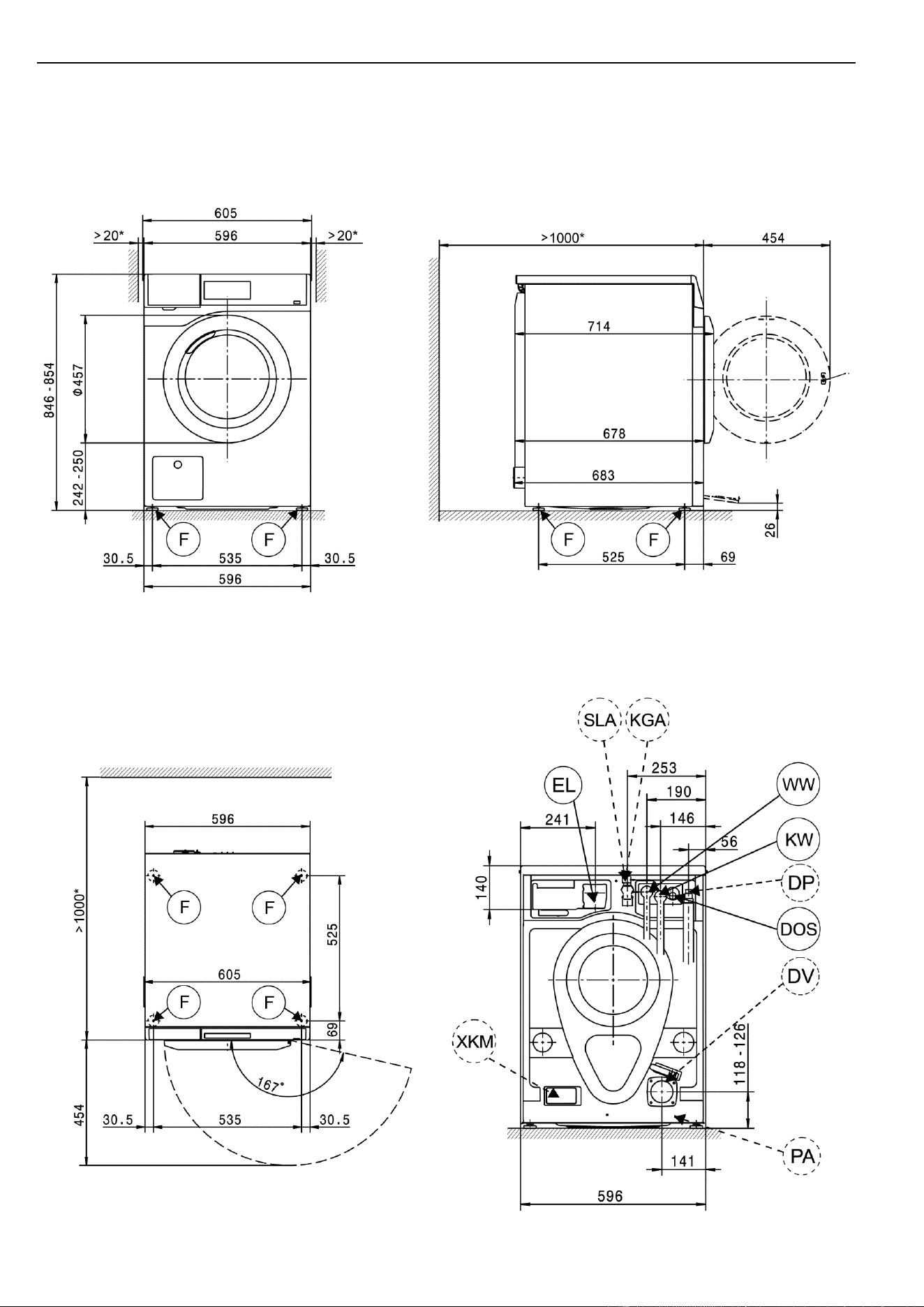

Installation -measurements in millimeters-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
12 11 282 580/05
Installation -measurements in millimeters-
* The distances between the machine and the wall are recommendations to help make it easier to carry out service
work. If installation space is limited, the machine can also be pushed up against the wall.
PWM 908 en-US
= standard, = optional, + = only on request, - not available
11 282 580/05 13
Technical data
PWM 908 DP
PWM 908 DP
Drum volume
19.3
gal
73
l
Capacity
19.8
lb
9.0
kg
Door opening diameter
11 13/16"
300
mm
Max. spin speed
1,600
rpm
1,600
rpm
g-factor
613
613
Residual moisture (standard load according to DIN 60456)
48
%
48
%
Electrical connection (EL)
Standard voltage for CDN & USA
2 AC 208–240 V
2 AC 208–240 V
Frequency
60
Hz
60
Hz
Total rated load
4.0–5.2
kW
4.0–5.2
kW
Fuse rating
2 x 30
A
2 x 30
A
Power cord min. cross-section
3 x AWG10
3 x AWG10
Wire with plug NEMA L6–30
Wire length
78 3/4"
2,000
mm
Non-standard voltage MAR 208–240 (Marine)
2 AC 208–240 V
2 AC 208–240 V
Frequency
60
Hz
60
Hz
Total rated load
4.0–5.2
kW
4.0–5.2
kW
Fuse rating
2 x 30
A
2 x 30
A
Power cord min. cross-section
3 x AWG10
3 x AWG10
Wire with plug NEMA L6–30
Wire length
78 3/4"
2,000
mm
Cold water (KW)
Permissible water flow pressure
14.5–145
PSI
100–1,000
kPa
Required flow rate (cold water connection only)
2.9
gal/min
11
l/min
Required flow rate (with additional hot water connection)
2.6
gal/min
10
l/min
Average water consumption (60°C standard programme)
10.5
gal/h
40
l/h
Connection to be provided on site, external thread according to DIN 44991 (flat seal)
¾"
¾"
Connection hose ½" with ¾" threaded union
Connection hose length
61"
1,550
mm
Hot water (WW)
Max. water intake temperature
158
°F
70
°C
Permissible water flow pressure
14.5–145
PSI
100–1,000
kPa
Required flow rate
2.9
gal/min
11
l/min
Average water consumption (60°C standard programme)
3.4
gal/h
13
l/h
Connection to be provided on site, external thread according to DIN 44991 (flat seal)
¾"
¾"
Connection hose ½" with ¾" threaded union
Connection hose length
61"
1,550
mm
Drain pump (DP)
Hose connection (external diameter)
7/8"
22 / DN22
mm
Max. drainage temperature
194
°F
90
°C
On-site hose sleeve (int. diameter x length)
22 x 30
mm
22 x 30
mm
Max. transient flow rate
6.8
gal/min
26
l/min
Max. delivery head (from lower edge of machine)
39 3/8"
1,000
mm
Drain hose DN 22 with connector (supplied as standard)
Connection hose length
59 1/16"
1,500
mm
Potential equalization (PA)
Machine connection (separate kit required)
Features available via the XCI-Box accessory
Peak load/energy management
Payment system connection
Liquid dispensing (DOS)
Possible no. of dispensing pumps
1–6
1–6
PWM 908 en-US
= standard, = optional, + = only on request, - not available
14 11 282 580/05
Technical data
PWM 908 DP
PWM 908 DP
Installation on machine feet (F)
No. of machine feet
4
No.
4
No.
Machine foot, height-adjustable with thread
+5/16"
+8
mm
Machine foot diameter
1.57”
40
mm
Anchoring (B)
Standard floor anchoring
Floor anchor kit (for 2 machine feet) with anchors
Wood screws according to DIN 571
6 x 50
mm
6 x 50
mm
Rawl plugs (diameter x length)
8 x 40
mm
8 x 40
mm
Anchoring of Miele Plinths
Accessory: Miele Plinth installation (fasteners included)
Required anchor points
4
No.
4
No.
Wood screws according to DIN 571
8 x 65
mm
8 x 65
mm
Rawl plugs (diameter x length)
12 x 60
mm
12 x 60
mm
Plinth floor anchoring (to be provided on site)
Machine installation on on-site plinth (concrete or masonry)
Min. plinth installation footprint (W/D)
23 5/8" / 25 9/16"
600/650
mm
Wood screws according to DIN 571
6 x 50
mm
6 x 50
mm
Rawl plugs (diameter x length)
8 x 40
mm
8 x 40
mm
Machine data
Overall machine dimensions (H/W/D)
33 15/32" / 23 13/16" / 28 7/64"
850/605/714
mm
Casing dimensions (H/W/D)
33 15/32" / 23 7/16" / 26 11/16"
850/596/678
mm
Site-access dimensions (H/W)
Min. site-access opening (excl. packaging)
35 7/16" / 23 13/16"
900/605
mm
Installation dimensions
Side gap
13/16"
20
mm
Recommended side gap – washer-dryer stack
11 13/16"
300
mm
Recommended distance to opposite wall from front of machine
39 3/8"
1,000
mm
Weights and floor loads
Machine weight (net weight)
227
lb
103
kg
Max. floor load in operation
2,820
N
2,820
N
Max. floor load, static
1,380
N
1,380
N
Max. floor load, dynamic
1,365
N
1,365
N
Emissions
Sound pressure level (in accordance with EN ISO 11204/11203)
<70
dB(A)
<70
dB(A)
Heat dissipation rate to installation site
250
W
250
W
PWM 908 en-US
11 282 580/05 15
Installation and planning notes
Installation requirements
The machine should only be connected to a power supply provided in
accordance with all appropriate local and national legislation and
regulations.
In addition, all regulations issued by the appropriate utilities as well as
standards relating to occupational safety and all applicable valid
regulations and technical standards must be observed.
Transportation and site access
The washing machine must not be moved without the shipping struts
in place. Keep the struts in a safe place. They must be refitted if the
machine is to be moved again (e.g., when moving house).
General operating conditions
Ambient temperature in installation room: +36°F to +95°F (+2°C to
+35°C).
Depending on the nature of the installation site, sound emissions and
vibration may occur. Miele recommends having the installation site
inspected and seeking the advice of a professional in instances where
increased noise may cause a nuisance.
Electrical connection
Depending on the model, the machine will be delivered with a wire
with/without a plug.
The machine may only be connected to an electrical system that
conforms to national and local codes and regulations. This connection
must be made by a qualified electrician.
The data tag indicates the nominal power consumption and the
appropriate fuse rating. Compare the specifications on the data tag
with those of the electrical power supply.
The machine can either be hard-wired or connected using a plug-and-
socket connection in accordance with IEC 60309-1. Miele always
recommends connecting the machine via a plug and socket so that
electrical safety checks can be carried out easily (during repair or
service work, for example).
If the machine is hard-wired, a dual circuit breaker must be provided
on site. When switched off, there must be an all-pole contact gap of at
least 3 mm in the isolator switch (including circuit breakers, breakers,
and relays according to IEC/EN 60947).
The plug connector or isolator switch should be easily accessible at all
times. If the machine is disconnected from the electricity supply, the
isolator must be lockable or the point of disconnection must be
monitored at all times.
New connections, modifications to the system, or servicing of the
ground conductor, including determining the correct fuse rating, must
be carried out by a qualified electrician, as they are familiar with the
pertinent regulations and the specific requirements of the electric
utility company.
If converting the machine to an alternative voltage, follow the
instructions in the wiring diagram. Conversion must be performed
by Miele Technical Service or by an authorized service technician.
The heater rating must also be adapted.
References to cable cross-sections in the technical data refer only to
the required power cord. Please consult relevant local and national
regulations when calculating any other wire gauges.
Cold water connection
The washing machine should be connected to a domestic water
supply in accordance with current local and national safety
regulations.
Connection to the water supply should be carried out by a qualified
plumber using a stopcock with a threaded union. If a stopcock is not
available, the qualified plumber should connect the machine to the
domestic water supply.
A suitable connection hose with a threaded union is supplied with the
machine.
Longer hoses 8' 2 1/2" or 13' 1 1/2" (2.5 m or 4.0 m) in length are
available from Miele Technical Service or from your Miele dealer as
accessories.
Hot water connection
The same connection requirements as for cold water also apply to hot
water (max. 158°F/70°C).
A suitable connection hose with a threaded union is supplied with the
machine.
The hot water connection appliance also requires a cold water
connection.
In the event that hot water is not available on site, connection of the
second hose must be made to a cold water supply.
Alternatively, the hot water connection should be blocked using the
enclosed blind stopper and the machine controls set to cold water
intake.
The required amount of hot water should be added to the cold water
volume.
Drain valve (depending on model)
The machine is drained using a motorized drain valve. It can be
connected directly to the on-site drainage system (without a siphon) or
via a floor drain (gully with odor trap).
A vented drainage system is vital for unimpeded drainage. If on-site
venting is insufficient, a vent kit (mat. no. 05 239 540) is available from
your Miele dealer or Miele Technical Service.
If several machines are connected to a single drain pipe, this should
be sufficiently large to allow all machines to drain simultaneously.
Drain pump (depending on model)
The suds are drained through a drain pump with a 1 m delivery head.
For the water to drain freely, the hose must be installed free of kinks.
Drainage options:
1. Connected securely to a plastic drain pipe with a rubber nipple
(there is no need to use a siphon).
2. Connected securely to a sink with a plastic nipple.
3. Connected securely to a floor drain.
PWM 908 en-US
16 11 282 580/05

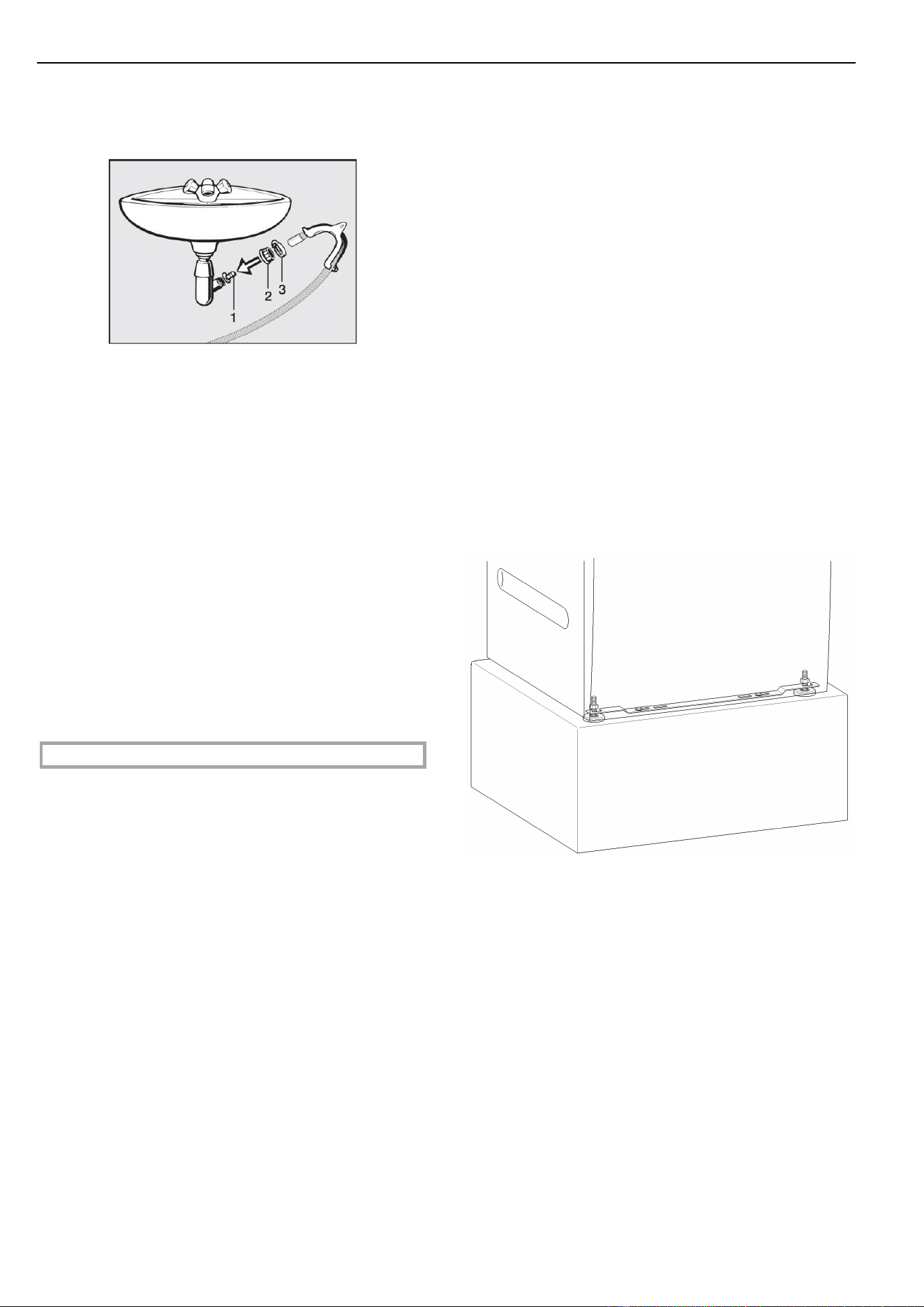

Connecting the drain hose to a sink drain outlet
The drain hose can be connected securely to a suitable sink drain
outlet.
If required, the hose can be extended to a length of up to 16.4 ft (5 m).
Accessories are available from your Miele dealer or Miele Technical
Service.
For a drain height of more than 3' 3 3/8" (1 m) up to a max. of 1.6 m),
a replacement drain pump is available from Miele Technical Service or
your Miele dealer.
Equipotential bonding and grounding
If necessary, an equipotential bond with good contact connection must
be provided in accordance with all appropriate national and local
regulations.
Material for equipotential bonding and grounding must be provided on
site or using a kit available from Miele Technical Service.
Peak load/Energy management
The machine can be connected to a peak-load or energy
management system using an optional kit.
When the peak-load function is activated, the heating is deactivated.
A message appears in the display to inform you of this.
Liquid dispensing connection
External liquid dispenser pumps with a “container empty” indicator can
be used to dispense liquid detergents.
The dispenser pumps can only be programmed with MDU.
It is particularly important to follow the manufacturer’s instructions
when using a combination of detergents, additives, and special-
purpose products.
Payment system
This washing machine can be equipped with a single-machine
payment system as an optional accessory using an optional kit
(XCI-Box / XCI-AD).
The programming required for connecting a payment system can be
carried out during the initial commissioning process. After initial
commissioning, changes may only be carried out by your Miele dealer
or Miele Technical Service.
Interface
The machine can be retrofitted with an XKM 3200 WL PLT
communication module.
This module can be used as a WiFi or LAN interface.
The LAN interface provided via the module complies with SELV
(Safety Extra Low Voltage) in accordance with EN 60950. Connected
appliances must also comply with SELV. The LAN connection uses a
RJ45 connector in accordance with EIA/TIA 568-B.
Installation
The machine must be installed on a perfectly smooth, level, and firm
surface which is able to withstand the quoted loads.
The floor load created by the machine is concentrated and transferred
to the installation footprint via the machine feet.
The machine should be leveled in both directions with the aid of the
adjustable feet.
Plinth installation
The washing machine can be installed on a machine plinth (open or
box plinth, available as an optional Miele accessory) or on a concrete
plinth to be provided on site.
The quality of the concrete and its strength must be assessed
according to the machine load. Ensure that any raised concrete plinth
is adequately bonded to the floor below.
If the washing machine is installed on a concrete or masonry plinth, it
must be secured using the anchors supplied with the machine.
Otherwise, there is a risk of the washing machine moving about during
spinning and falling off the plinth.
The anchors provided can be used to bolt the machine to the floor by
both front feet. The fasteners provided are intended for use in bolting
the machine to a concrete floor.
Washer-dryer stack
The washing machine can be installed as a washer-dryer stack
together with a Miele Tumble Dryer. A stacking kit (optional
accessory) is required for this.
Installation of the stacking kit must be performed by Miele Technical
Service or an authorized Miele service technician.
