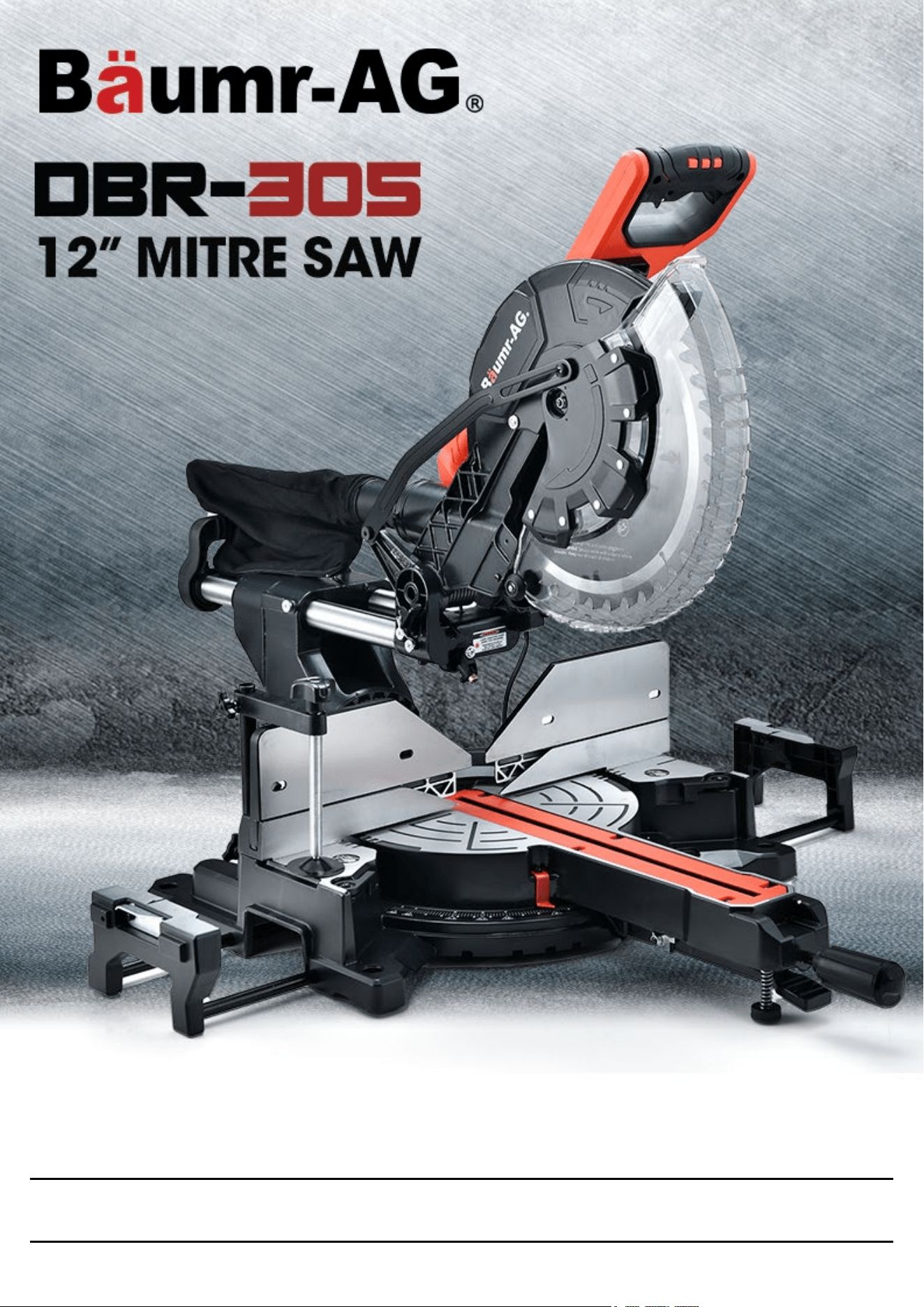

BAUMR-AG SAWMITBMRA30DR 305mm Dual Bevel Sliding Compound User Manual

User Manual

[Revision 2.0 December 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

DBR-305 12” Mitre Saw

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Important Safety Reminders

• WARNING! READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS

MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE

REFERENCE.

Child Choking Hazard!

• WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Additional Safety Instructions for Cut-Off Machines

• Make sure that all devices screening the saw blade are in perfect working order.

• Make sure that the saw blade is screened correctly.

• Never block the saw blade guard. Repair a jammed saw blade guard before using the machine again.

• Do not use saw blades made of HSS steel.

• Do not use bent, deformed, or otherwise damaged saw blades.

• Do not use saw blades which do not meet the specifications stated in this manual.

• Before sawing, remove all nails and other metal objects from the workpiece.

• Never start sawing before the saw reaches its full speed.

• Securely clamp the workpiece. Never attempt to saw extremely small workpieces.

• Only leave the machine after switching off and when the saw blade has come to a complete standstill. Pull down the saw head and press in the

locking knob.

• Never try to slow the saw blade down by exerting pressure on the side.

• Before performing maintenance to the machine, always unplug the machine.

• Wear safety glasses.

• Wear ear protection.

• Wear a dust mask.

Electrical Safety

Always check that the power supply corresponds to the voltage on the rating plate.

Additional Safety Instructions for Lasers

• WARNING! THE LASER BEAM POTENTIALLY CAUSES SEVERE EYE DAMAGE. NEVER LOOK OR STARE DIRECTLY INTO THE LASER

BEAM.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

• During use, do not point the laser beam at people, directly or indirectly through reflecting surfaces.

• This laser complies with class 2 according to EN 60825-1/A11, 1996. The unit includes no servicing components. Do not open the housing for

any reason. If the unit is damaged, have the damage repaired by an authorised repair agent.

• Using the laser:

• The laser beam is used for projection of the cut on the workpiece.

• Switch the laser on by means of the on/off switch.

• Lower the head while the machine is switched off.

• Check that the laser line aligns with the cutting line as marked on the workpiece.

• Raise the head and switch on the machine.

• Follow the “Instructions for use” to perform a cut.

• After use, switch off the laser.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 5

Parts Identification ....................................................................................................................................... 8

Assembly ..................................................................................................................................................... 10

Operation ..................................................................................................................................................... 11

Transport ..................................................................................................................................................... 12

Maintenance ................................................................................................................................................ 13

Specifications ............................................................................................................................................. 15

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Parts Identification

10

30

6

8

4

3

16

14

12

21

7

9

15

13

26

5

11

20

1

29

2

22

25

24

23

27

28

17

31

19

18

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

No. Name No. Name No. Name

1 Cutting arm 12 Guide 23

Groove depth adjustment

screw

2

Lock button

13

6mm Allen key

24

Groove stop

3 Operating handle 14 Mitre table 25 Groove depth locking nut

4

Top fixed guard

15

Mitre angle scale

26

45° adjustment screw

5 Workpiece clamp 16 Table insert 27 0° adjustment screw

6 Rotary guard 17 ON/OFF switch 28 Switch blocking button

7

Guard retracting arm

18

Mite lock button

29

Table extension (x2)

8

Guard screw

19

Mite lock

30

Laser unit

9

Dust bag

20

Spindle lock button

31

Laser ON/OFF switch

10 Bevel lock 21 Sliding rod

11 Bevel scale 22 Sliding rod locking knob

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Assembly

Dust Bag

1. Clamp the dust bag (9) to the dust bag connection.

2. Empty the dust bag when it is 2/3 full.

Table Extension Brackets

1. Insert the brackets (29) into the openings on the sides of the base.

2. Lock the brackets with the screws on the front of the base plate.

Workpiece Clamp

The adjustable workpiece clamp (5) can be placed on both the left and the right.

Always fix the workpiece in place using the workpiece clamp.

Placement of the Machine

1. The machine must be attached to a solid and flat surface using nuts and bolts (not supplied).

2. First, mark out the mounting holes on the workbench.

3. Drill holes on the marked locations.

4. Position the machine on the workbench and insert the bolts through the mounting holes.

5. Fit locking rings and tighten the bolts properly.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Operation

Always fix the workpiece in place. Position the workpiece clamp in such a way that the sawing

movement cannot be hindered.

Lock Button

To protect the saw blade during transport, the head can be pressed down until it is locked. Pull out the lock

button (2), then turn it 90° to the left or right to raise and lock the head.

Switching the Saw On

1. Press the switch blocking button (28) to the left and press the ON/OFF switch (17).

2. Let go of the ON/OFF switch to turn the saw OFF.

Using the Laser

1. The laser (30) is used to project the cut onto the workpiece.

2. Activate the laser using the ON/OFF switch (31).

3. Lower the head while the machine is switched OFF.

4. Check whether the laser line is in line with the sawing as marked on the workpiece.

5. Raise the head and switch on the machine.

6. Follow the ‘Instructions for use’ to make a saw cut.

7. Switch OFF the laser after use.

Adjusting the Laser Line

1. Remove the laser unit cover.

2. Unscrew the two screws near the laser.

3. Clamp your workpiece onto the sawing table, start the saw and make a partial cut to reveal the two sides of

the cut.

4. Turn the laser until the beam of the laser guide is aligned with the two sides of the saw cut.

5. Keep pressing the laser after the changes have been made and tighten the screws.

6. Put the cover back onto the laser unit.

Sawing Narrow Workpieces

1. Place the material to be cut on the sawing table and make sure itis securely fixed so that it does not move

during sawing.

2. Slide the saw head back as far as possible and lock the sliding rod by turning the locking knob (22). Make

sure that the locking handle of the rotary table (18) and the right-angled locking handle (19) have been

tightened before you start sawing.

3. Switch the machine ON and allow the saw blade to get up to speed.

4. Move the saw head downwards by pressing softly while still allowing the saw to do most of the work.

Sawing Wide Workpieces

1. Unscrew the locking knob (22) of the sliding rod.

2. Pull the saw head towards you.

3. Switch the machine on and allow the saw blade to get up to speed.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

4. Allow the saw head to descend into the workpiece.

5. Press the saw head forwards (as far as it can go).

6. Let go of the ON/OFF switch. Wait until the saw blade has come to a standstill before raising the saw head.

Never pull the saw head towards you when sawing.

Sawing a Mitre Cut

1. Unscrew the table locking handle (18).

2. Pull up the mitre lock (19).

3. Set the mitre table (14) to the desired angle and tighten the locking handle (18).

Sawing a Bevel

1. Unscrew the bevel locking handle (10) and tilt the saw head to the left until the desired angle has been

reached.

2. Retighten the bevel locking handle (10).

Composite Mitre Sawing

Composite mitre sawing is a process whereby vertical mitre sawing is combined with a bevel in a workpiece.

Composite mitre sawing can be achieved by simultaneously setting a mitre angle and a bevel.

Setting the Sawing Depth

1. Slide the groove stop (24) forwards.

2. Unscrew the groove depth locking nut (25) to unlock the blade depth adjustment screw (23).

3. Lower the cutting arm to the desired depth.

4. Screw the groove depth locking nut (25) tight in this position to lock the blade depth adjustment screw (23).

Transport

Lock the saw head in the lowest position if the saw has to be transported.

1. Remove the plug from the socket.

2. Press the cutting arm down and pull out the lock button (2). Screw the button tight to lock the saw head in

the lowest position.

3. Tighten the bevel lock (10) and the sliding rod locking knob (22) properly.

4. Only lift the saw using the operating handle (3) on the base.

Do not lift the saw using the guides.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Maintenance

Always disconnect the machine from the mains supply before changing settings or performing

maintenance. Make sure that, after changing the settings, all Allen keys have been removed and that all

screws and bolts have been tightened.

•

The device does not contain any parts which have to be maintained by the user.

•

Keep the motor ventilation openings clean.

•

Make sure that all working operating elements are free of dust.

•

Never clean the machine using water or chemical cleaning agents.

•

Wipe clean with a dry cloth.

•

Store the machine in a dry place.

•

Lubricate the screw thread of the locking screw with a drop of oil from time to time.

•

Every now and again you may see sparks through the ventilation openings. This is normal and does not

damage the machine.

Precision Setting of the Cutting Angles

Although the machine has been precisely set up in the factory, it is advisable to check the 0 ° and 90° settings to

make sure that these have not moved during transportation.

Disconnect the machine from the mains supply before checking or changing settings.

To check the 0° mitre table setting, set the mitre table (14) to 0° and tighten the mitre locking handle (18).

1. Use a set square to check whether the angle between the right guide and the saw blade is 90°.

2. In the same way check whether the angle of the saw blade

3. is 90° compared to the front of the rotary table.

4. If necessary, adjust the tilt angle of the saw head to the 90° position with the adjustment screw (27).

5. Check the 45° angle with a set square and, if necessary, adjust with the adjustment screw (26).

Replacing a Saw Blade

Only use saw blades which are sharp and undamaged. You should replace cracked or bent saw blades

immediately. Do not use saw blades made from HSS steel. Use saw blades which are suitable for a

number of revolutions of at least 4,500 min

-1

. Make sure that the spindle diameter and the saw blade bore

match. Always disconnect the machine from the mains supply before removing a saw blade. Always

wear work gloves when replacing a saw blade.

1. Press down the operating handle (3) and pull the lock button (2) to release the cutting arm (1).

2. Move the cutting arm (1) to its highest position.

3. Unscrew the guard screw (8) with a Philips screwdriver.

4. Pull the rotary guard (6) over the top fixed guard (4) to access the lock nut.

5. Raise the rotary guard (6) and press the spindle lock button (20). Turn the saw blade until it locks the

spindle.

6. Use the 6 mm Allen key supplied to loosen and remove the lock nut (unscrew clockwise because the lock

nut has a left-handed thread).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

7. Remove the flat washer, the outer flange, and the saw blade. Remove sawdust and dirt.

8. Lubricate both flanges with a drop of oil.

9. Place a new saw blade on the spindle and make sure that the inside flange is behind the saw blade.

10. Refit the outermost flange.

11. Press the spindle lock button (20) and add the flat washer and the lock nut.

12. Screw the lock nut tight with the Allen key (anticlockwise).

13. Lower the rotary guard (6), hold onto it, and insert the guard screw (8) and screw it tight.

14. Reconnect the machine to the mains supply and start it to check whether the saw blade is turning correctly.

Moving the Machine

1. Make sure that the saw head is locked in the lowest position before moving the machine.

2. Tighten all adjustment screws and handles.

3. Use the transportation handle (16) to lift the machine. Do not lift the machine by the operating handle (14).

Cleaning and maintenance

The machine does not require any special maintenance.

•

Regularly clean the ventilation slots.

•

From time to time, apply a drop of oil to the thread of the fixing screw.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-305 12” Mitre Saw

Specifications

Rated power 2200W

No-load speed 5000 rpm

Blade diameter 12-inch (305mm)

Blade teeth 40T

Swivel range ±50°

Bevel tilt range ±45°

Cutting Capacity

0°×0°: 340×105mm,

45°×0°: 235×105mm,

0°×45°: L 340×60mm, R 340×40mm

45°×45°: L 235×60mm, R 235×40mm

Laser Class 2

Input voltage 220-240V / 50Hz

Power Plug Australian Standard

Minimal Assembly required

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
