ABOUT SHIELD TV
Thank you for choosing NVIDIA SHIELD TV. This user guide will help you get
started and provides tips for getting the most out of your SHIELD device.
IN THE BOX
SHIELD TV comes with the following:
SHIELD TV
SHIELD Remote
Power cord
A Quick Start guide and Support booklet are also included.
GET STARTED
WHAT YOU NEED
Here's what you'll need to start using your SHIELD TV:
1. TV or monitor with HDMI port (HDCP compatible)
2. High-speed HDMI 2.0 cable
3. Internet connection via Wi-Fi or Ethernet
4. A Google account
SET UP
Here's how to plug in your =SHIELD TV Pro and connect your remote:
1. Connect your SHIELD TV to your TV with a high-speed HDMI 2.0
cable.
• Make sure your TV or monitor is off, and plug one end of
the HDMI cable into the HDMI port on the back of your SHIELD
TV. Plug the other end of the cable into an HDMI port on your TV
or receiver.
2. Connect your SHIELD TV to power, using the power cord.
• Plug one end of the power cable into the back of your
SHIELD TV and plug the other end into a power outlet. SHIELD
TV will automatically power on as you plug it in and you will see
the green light turn on. When you are not using it, it will
automatically go into sleep mode and the green light will turn on.
3. OPTIONAL: Connect your SHIELD TV to Ethernet. If you do not
use an Ethernet connection, you can connect to your Wi-Fi network
later.
4. Turn on your TV and change to the HDMI input that your SHIELD
TV is plugged into.
• Check the label on the HDMI port on your TV or monitor.
5. Follow the on-screen instructions to sign in to your Google account and
to connect to Wi-Fi (if needed)
CONNECTING SHIELD REMOTE
SHIELD Remote comes automatically paired with your SHIELD TV. Just press
the Select button to get started.
HELP CONNECTING TO WI-FI
If your network requires web authentication (captive portal), SHIELD TV will
bring up the authentication web page and allow you to sign in.
Try these troubleshooting steps if your device won't connect to Wi-Fi.
CONFIGURE SHIELD REMOTE FOR VOLUME CONTROL
Your SHIELD remote can control your TV/AVR using IR. To set up IR or CEC
volume control, go to Settings > Device Preferences > Display &
Sound > Volume control
Options for volume control are:
- HDMI-CEC (recommended if your TV or receiver supports it)
- IR (requires you to point the remote at your TV or receiver)
KNOW YOUR SHIELD TV
SHIELD TV
Side View
Ethernet
Power in
Remote locator
HDMI
microSD slot
SHIELD REMOTE
1
3
2
4
5
6
7
8
9
10
11
12
13
14
Built-in Microphone
Power Button
Settings Button (customizable in Settings > Devices & Accessories > Customize Settings
button)
Navigation Ring (Up, Down, Right, Left)
Select Button
Back Button
Home Button
Fast-forward Button
Play/Pause Button
Rewind Button
Voice Search Button
Increase Volume
Decrease Volume
Open Netflix
1
2
3
4
5
6
7
8
9
10
11
12
13
14
HOW TO USE SHIELD REMOTE
To
Action
Navigate
Use the navigation ring (Up, Down, Left or Right)
Select an item
Press Select button
Go to the previous
screen
Press Back button
Go to Home screen
Press Home button
Access recent apps
Double press Home button
Access all apps
Press and hold Home button
Broadcast and record
games
Press and hold Home button (NVIDIA Share must be enabled)
Access Settings
Press Settings button or hold the BACK button (from the home screen)
Sleep SHIELD
Press Power Button (TV will power off if HDMI-CEC or IR power control
are enabled)
Voice search with
Google Assistant
Press and release the Voice Search button and then say your
command. Try "Play Stranger Things" or “What’s the weather?”
Adjust volume
Press the volume up or volume down buttons.
Fast-forward
Press the fast-forward button
Rewind
Press the rewind button
Play or Pause
Press the play/pause button
Put remote in pairing
mode
Press and hold the Home + Back button until the buttons flash
HOW TO CONNECT YOUR REMOTE
SHIELD Remote comes automatically paired with your SHIELD TV out of the
box. Simply press the Select button to turn it on. To connect a new remote to
SHIELD follow the instructions at nvidia.com/connect
NOTE SHIELD remote turns on and off automatically. If the remote
does not respond, you may need to replace the batteries in your
remote. The battery level can be checked in the SHIELD
accessories app.
CUSTOMIZABLE SETTINGS BUTTON
The Settings button opens Settings by default, but can be customized to
perform your favorite activity. To change the Settings button behavior, go to
Settings > Remotes & Accessories > Customize Settings button.
LOCATE LOST SHIELD REMOTE
Your SHIELD Remote has a locator feature. When activated your SHIELD
remote will play an audible tune. This audio finder will stop playing after 10
seconds. There are several ways to active this feature
- Remote locator button on SHIELD
o Locate the remote locator button on one end of your SHIELD
(above the HDMI port) and press to start locating your SHIELD.
- SHIELD TV mobile app (iOS/Android)
o Download the SHIELD TV app for your device is you have not
already done so.
o Tap “more options” in the app (three dots in the upper right hand
corner).
o Tap “find my remote”
- Google Home
o Important note: Your Google Home must be on the same network
as your SHIELD and use the same Google Account you have
signed into your SHIELD with.
o On a Google Home device, say “OK Google, start SHIELD remote
locator”
- Amazon Echo devices
o Important note: You must have already paired your Echo device
to SHIELD using the Amazon Alexa skill.
o On your Echo device, say “Alexa, Ask SHIELD to find my remote”
- 2nd accessory or Android TV app
o Go to Settings > Remotes & Accessories > SHIELD Accessories
> SHIELD remote and select “Find this accessory”.
Note: The remote locator will only work if your SHIELD remote is connected
to your SHIELD. Common reasons the locator feature may not work include
• Power is lost to your SHIELD (check power cable connection).
• Critically low/empty battery levels on your remote.
• Pairing between remote and SHIELD are lost.
RENAMING YOUR SHIELD REMOTE
Your SHIELD Remote can be given a custom name. To rename your SHIELD
Remote, go to Remotes & Accessories > SHIELD Accessories > Active
controller > Accessory name.
HOW TO REPLACE YOUR REMOTE BATTERIES
Your SHIELD Remote uses (2) AAA batteries to power the remote. To
replace the batteries, follow these instructions.
1. Slide cover off the back of the SHIELD remote.
- Locate the downward arrow on the back of the SHIELD remote.
- With your thumb, press in and down to slide the back cover off.
2. Replace the batteries with the "+" terminal facing down.
3. Slide the battery tray back into your SHIELD Remote until a soft
click is heard.
ENABLE AUTOMATIC SYSTEM UPGRADES
Your SHIELD can automatically download and install system upgrades. To
enable this feature, go to Settings > Device Preferences >
About > System upgrade and turn on “Auto-upgrade”. You can also
specify a time for SHIELD to apply the upgrade.
CHECK FOR SYSTEM UPGRADE
System upgrades are pushed to your SHIELD TV directly from NVIDIA. A
notification banner will appear at the top of the SHIELD TV home screen when
an upgrade is available. Select “Details” on this notification and your SHIELD
TV will automatically download and apply the update. You can also manually
check for updates by going to Settings > Device Preferences >
About > System upgrade.
INTRODUCTION TO ANDROID TV

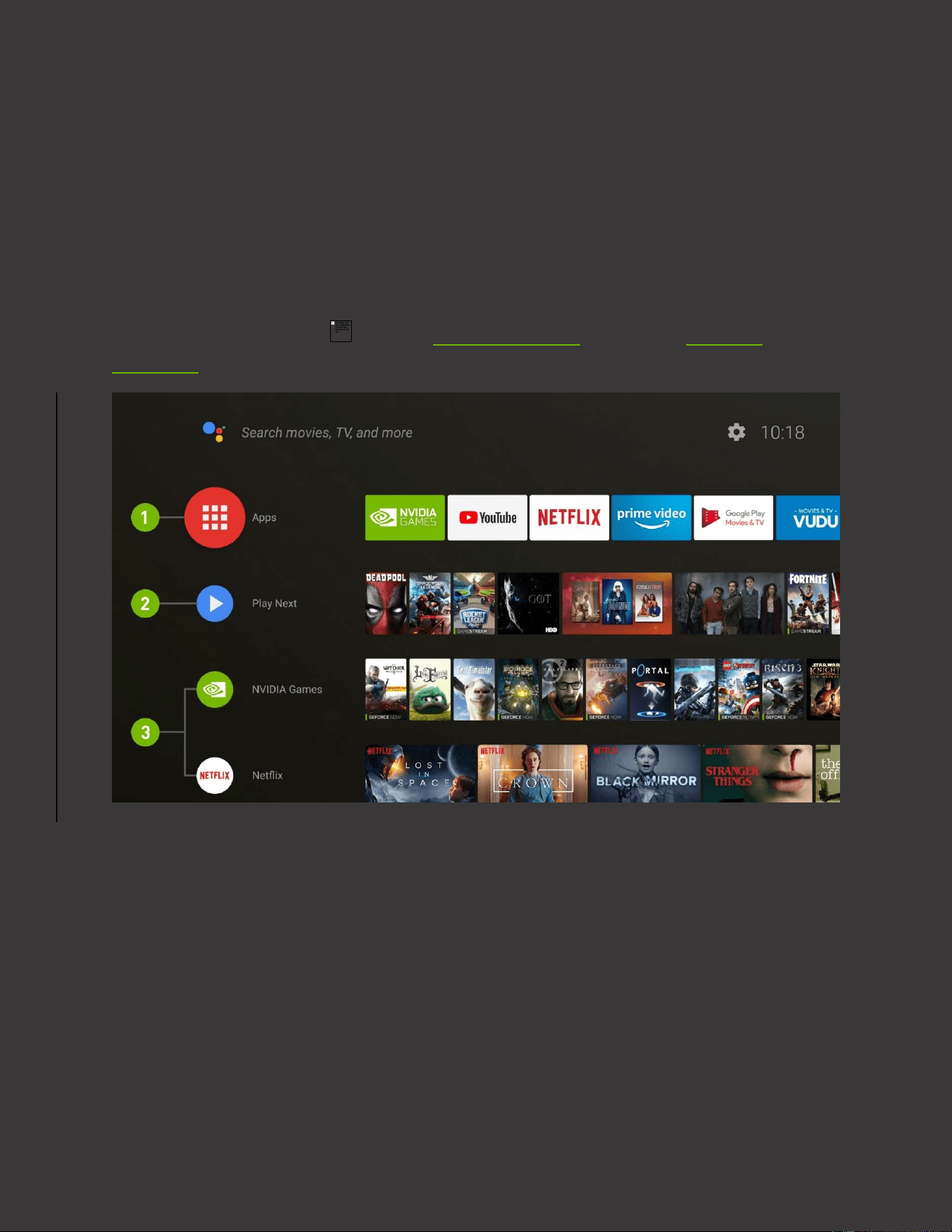

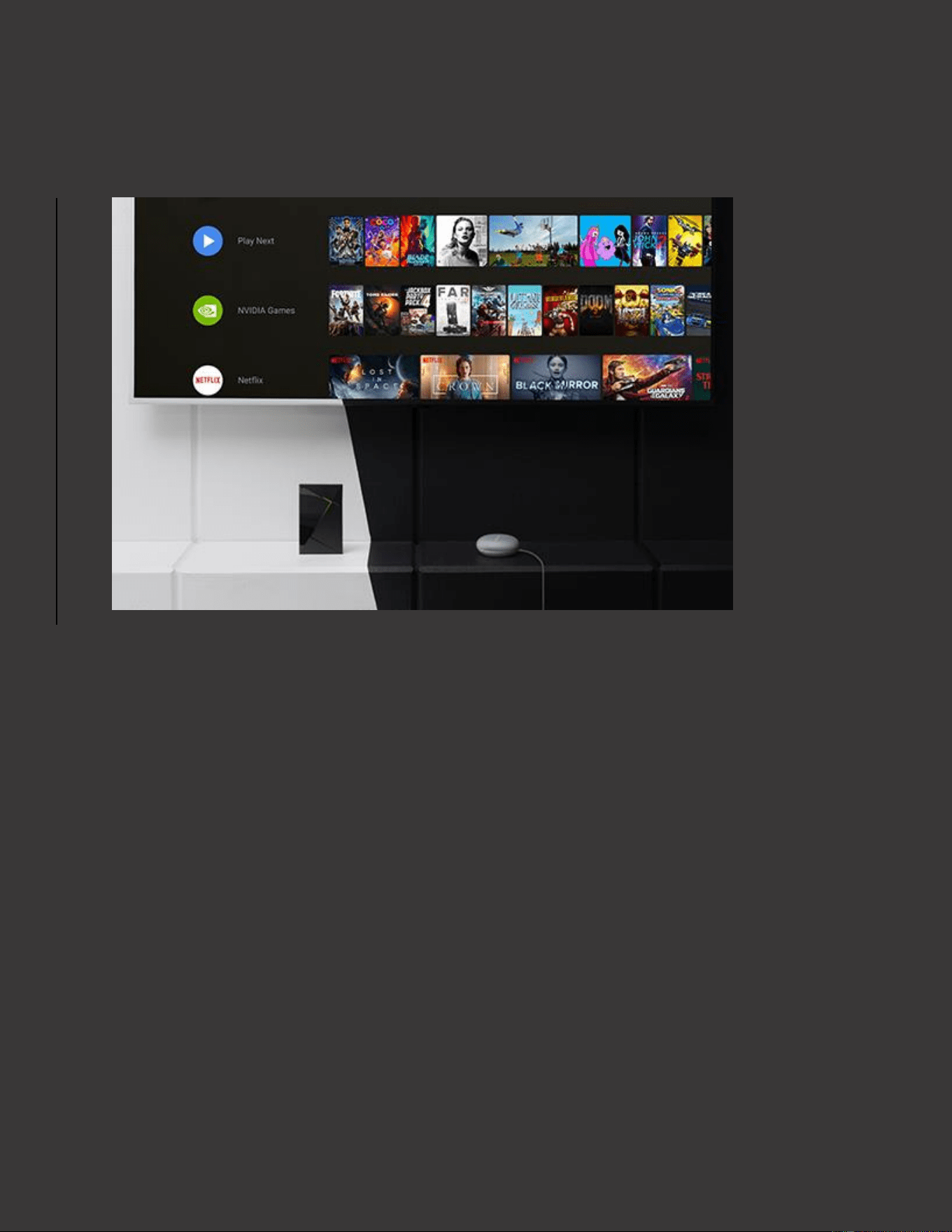

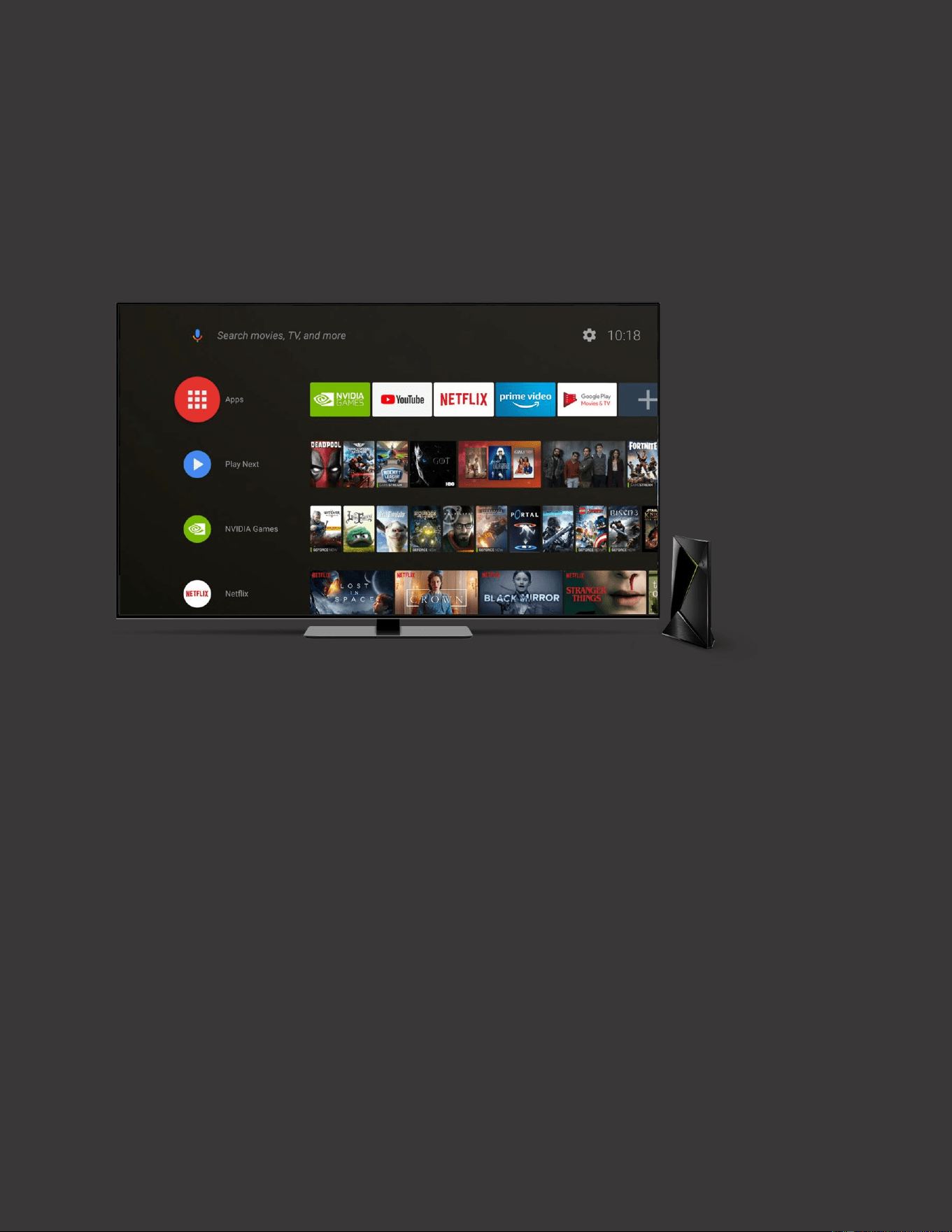

BASIC LAYOUT AND NAVIGATION
From the Android TV home screen, you can easily access movies, TV shows,
music, apps, games, and settings. To get to the Home screen at any time,
press the Home button on your SHIELD remote or on your SHIELD
controller.
(1) Favorite Apps
You choose the apps and the order! Hold the Select button on an app to move
it. To access all your apps, hold the Home button or select the red Apps icon.

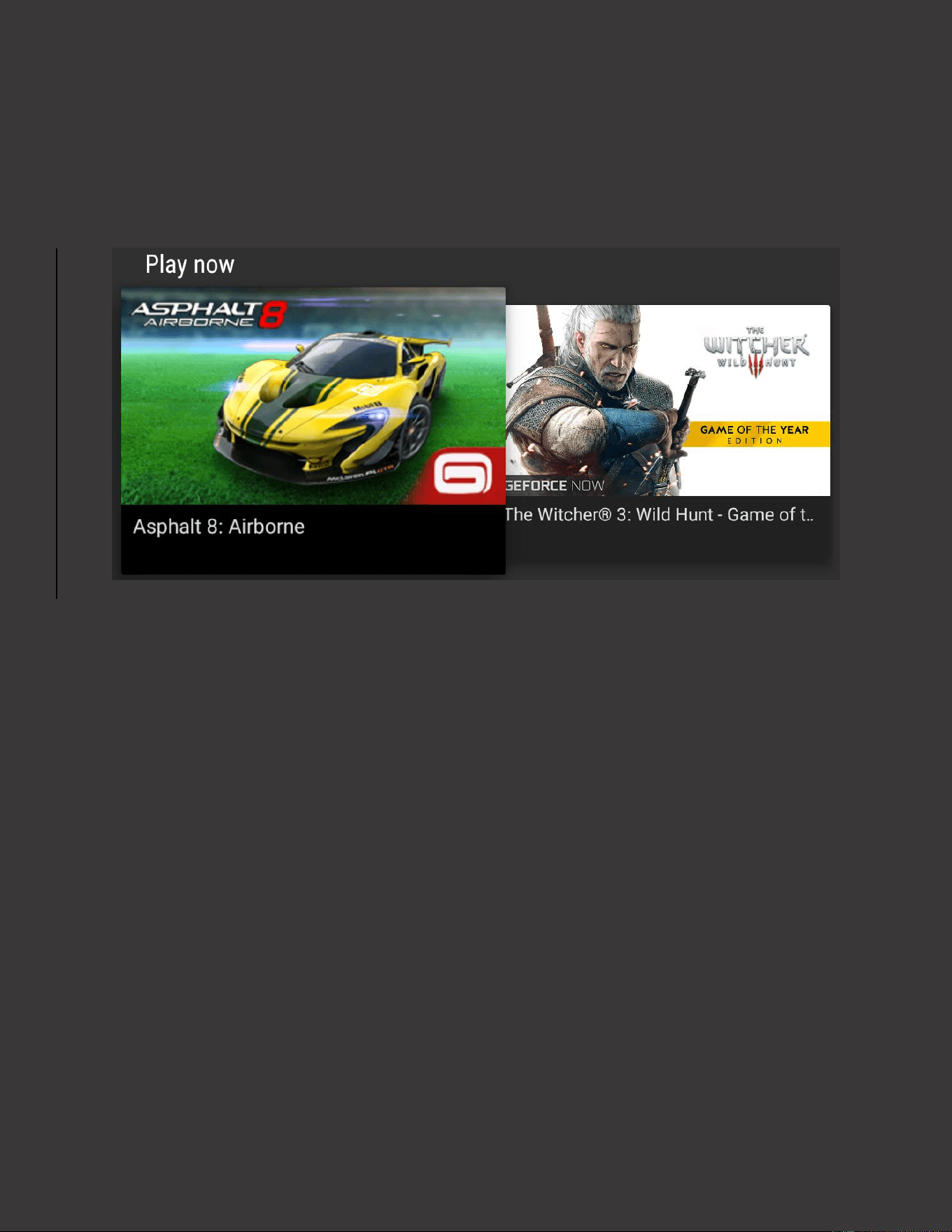

(2) Play Next
Continue where you left off in TV shows, movies, and games. To add content
to Play Next, navigate to the content and hold the Select button.
NOTE: Not all apps support Play Next
(3) Channels
Discover new entertainment from your favorite apps. You choose the
channels and the order. Navigate left on a channel to move or remove it.
NOTE: Not all apps support Channels
Search
You can also search on Android TV by navigating to the top of the Home
screen and selecting the search icon. You can also initiate Voice search
instantly at any time by pressing the NVIDIA button on your SHIELD
Controller
or by pressing the Voice search button on your SHIELD Remote. Learn more
about what you can search for on Android TV.

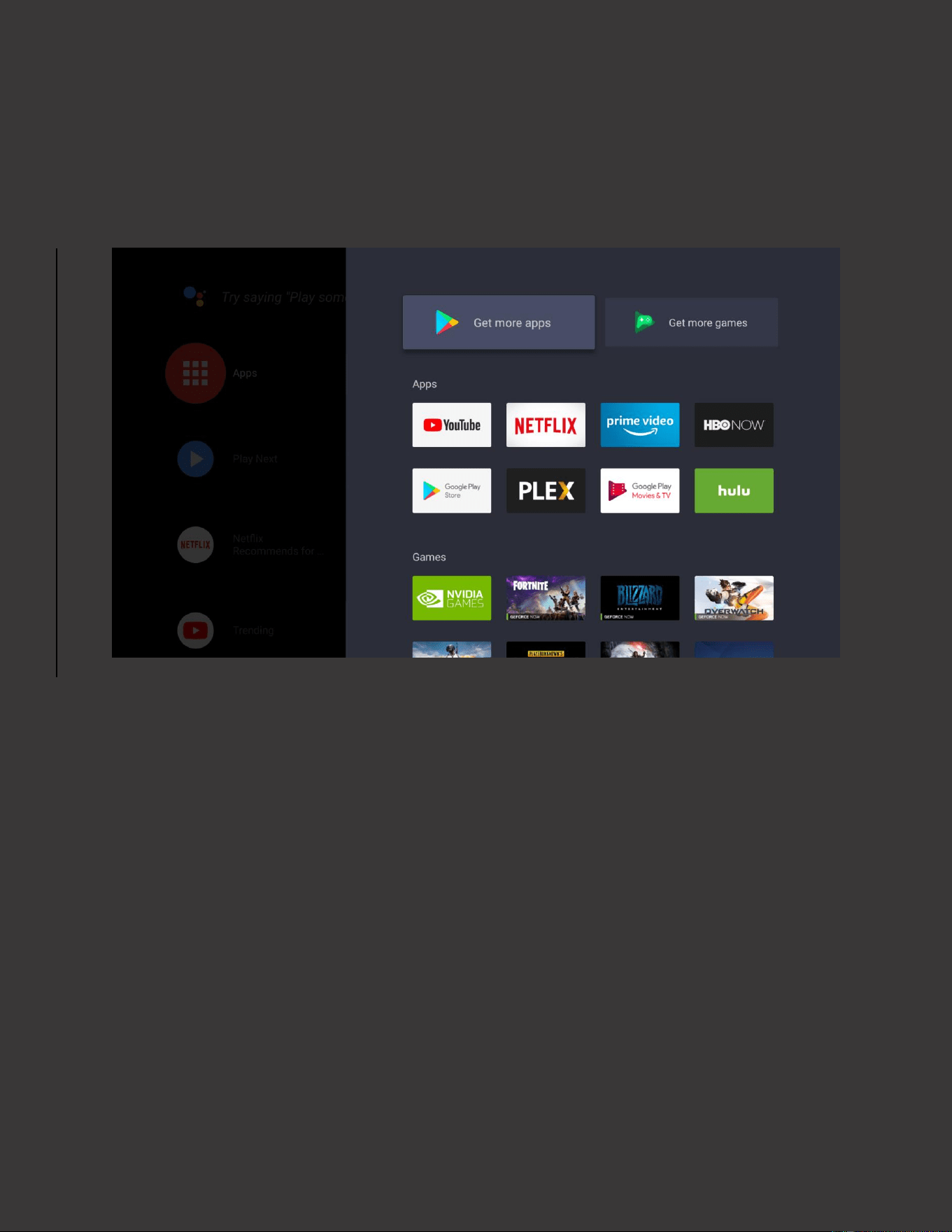

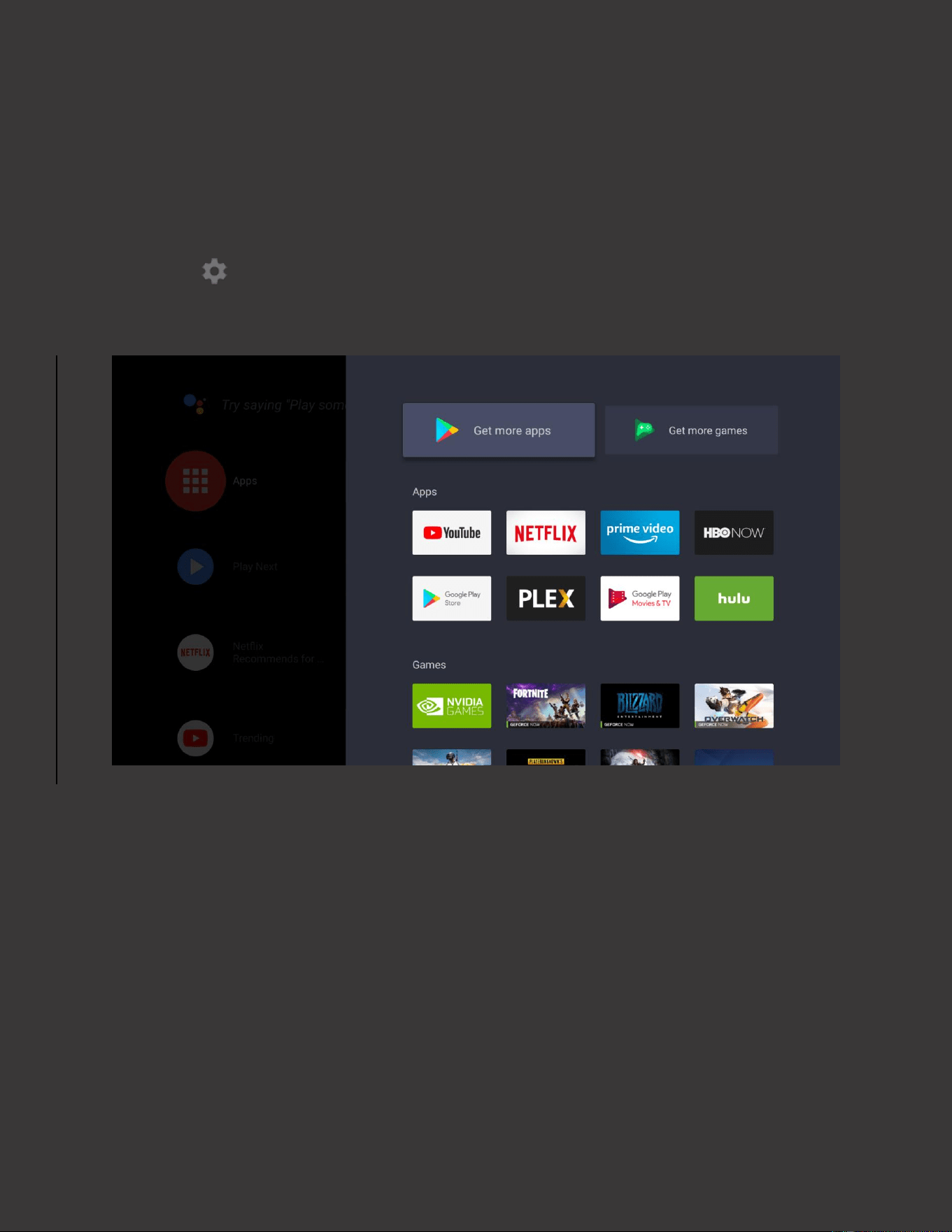

APPS AND GAMES
All installed apps and games can be accessed by selecting the "Apps" icon on
the home screen, or by long pressing "Home" on your SHIELD Remote
Get more apps (Google Play Store)
Use this shortcut to access the Google Play Store to find the latest apps
available for SHIELD TV
Launch app or game
Press select to immediate launch the app.
Move, Uninstall, or add to "Favorite Apps row
Long press select to access the app menu.
QUICK SETTINGS
Quick settings provides easy access to commonly used settings and can be
accessed by pressing the “Settings” button on your SHIELD remote. Quick
settings entries are customizable. To add, remove, or re-order entries, go to
Settings > Device Preferences > System > Customize Quick Settings
AI UPSCALING
SHIELD delivers AI powered upscaling, capable of intelligently scaling lower
resolution video to your TV’s native resolution. With this new feature, HD
movies on Netflix or Prime Video will look sharper on your 4K display.
By default, “Enhanced” upscaling is enabled on your SHIELD. To enable “AI-
Enchanced” upscaling, go to Settings > AI upscaling and select “AI-
Enhanced”.
Detail enhancement is an “AI-Enhanced” only option and can be customized
based on your own preference. A side by side demo mode is available to
compare “Basic” to AI upscaling.
NOTE: AI Upscaling is not available for the following types of content:
-
- Video resolution is less than 480p
- Bideo frame rate higher than 30Hz
- Video content color space is RGB, HDR or Dolby Vision
AI Enhanced upscaling will fallback to “Enhanced” Inin these cases
GOOGLE ASSISTANT ON SHIELD TV
USING GOOGLE ASSISTANT
With Google Assistant on SHIELD you can find Movies and TV Shows, launch
apps and games, and control your smart home. It's everything you love about
Google Home, but enhanced for your living room.
Availability
Google Assistant for SHIELD is currently available for the following languages
• US English
• UK English
• Canadian English
• Australian English
• French
• German
• Spanish
• Italian
Additional support for other countries is planned but not yet available.
Using your Google Assistant
On your SHIELD remote:
1. From any app or the home screen press and release the Voice search
button (SHIELD remote).
2. Hold your SHIELD Remote in front of you and say your question. Your
assistant results appear as soon as you finish speaking.
NOTE If you are in a room with a lot of background noise or other
people speaking, when you are done speaking immediately press
Select on your SHIELD remote to submit the voice search. This will
stop the voice detection from continuing to listen.
Displaying more results
In most cases, you can get more results by pressing UP on the SHIELD
Remote. Search results from other apps are displayed in this menu.
Hands free “Ok Google”
If you own a SHIELD Controller 2017, you can say "OK Google" or "Hey
Google" to begin your request.
To enable this feature go to Settings > Device Preferences > Google
Assistant > Enable “OK Google” Detection
What You Do with Google Assistant on SHIELD
Check out the examples below to learn about some of the things you can do
with Google Assistant on SHIELD TV.
Turn your TV and SHIELD Off (requires HDMI CEC control enabled)
• "Turn off the TV"
Search for Movies or TV Shows
Search by title
• "Show me Batman movies"
• "I want to watch Arrested Development"
Search by director or actor
• "Show me movies directed by Steven Spielberg"
• "Show me TV shows with Chris Pratt"
Use any combination of search terms
• "Show me action movies with Tom Cruise"
• "Show me comedies with The Rock"
Instantly play your favorite shows
Some apps like Netflix, Hulu, YouTube, and HBO Now can start playing
shows automatically.
• "Watch Stranger Things on Netflix"
• "Play cat videos on YouTube"
Launch your favorite app

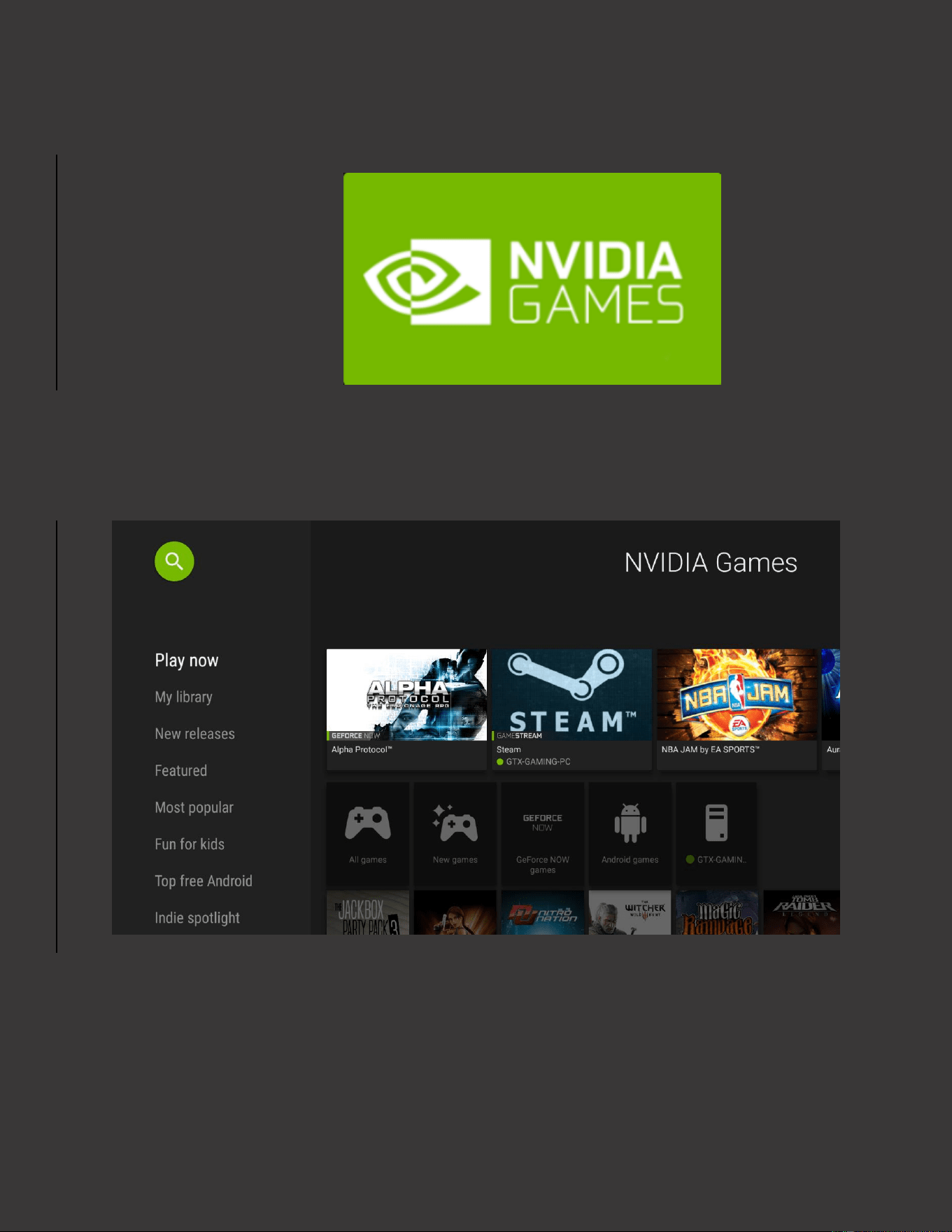

• "Open NVIDIA Games"
• "Launch Netflix"
Control your smart home
By linking your smart home devices to Google Assistant, you can control your
lights and switches using your voice.
• "Turn on the living room lights"
• "Dim the lights to 50%"
Plan your day
• "What's my first meeting today?"
• "How long is my commute this morning"
Show photos from your Google Photos account
• "Show me my pictures from 2010"
• "Show me my pictures of cars"
And More
Follow this link to see examples of what you can do with your Google
Assistant
What apps show up in search results
You may also see search results from apps you've installed on your Android
TV. These results will show up in a separate row. Some search results will
be available in a few different apps. When you select the content, you'll be
able to choose the app you'd like to use. You may customize results by going
to Settings > Device Preferences > Google Assistant > Searchable
apps and enable the apps you want to see results from.
Performing a Voice search within an app
You may also use voice search within many apps. If you initiate a voice
search within an app, you will get search results only from that app.
Additional help and information
For help with setting up Google Assistant on SHIELD TV
visit http://nvidia.custhelp.com/app/answers/detail/a_id/4554
.
SLEEP NOW OR RESTART
SLEEP NOW
SHIELD TV will automatically go to sleep after the time period:
1. On the SHIELD TV Home screen, select Settings > Device
Preferences > Screen saver.
2. Select When to start.
3. Select one of the options.
RESTART
To restart:
1. On the SHIELD TV settings, select "Restart"
2. If this is unsuccessful, you can also unplug the power cord, wait
10 seconds, and then plug the power cord back in.
SLEEP TIMING AND SCREEN SAVER
You can set up a screen saver for your SHIELD TV that displays photos and
colorful designs. Daydream uses a collection of scenic photos.
CHOOSE YOUR SCREEN SAVER
1. On the SHIELD TV Home screen, select Settings > Device
Preferences > Screen saver .
2. Select Screen saver again.
3. Choose from the available options.
SET WAIT TIME FOR SCREEN SAVER
You can choose how long it takes for your screen saver to start when not
using your SHIELD TV:
1. On the SHIELD TV Home screen, select Settings > Device
Preferences > Screen saver .
2. Select Put device to sleep.
3. Select one of the options.
ADD BLUETOOTH ACCESSORIES
You can use Bluetooth accessories, such as a wireless keyboard, mouse or
game controller with your SHIELD TV.
To add a Bluetooth accessory:
1. On the SHIELD TV screen, select Settings .
2. Under Remote & accessories, select Add accessory . You
SHIELD TV will search for Bluetooth accessories within range.
3. Put your accessory in connecting mode.
4. You'll see your accessory listed on the TV screen. Select your
accessory.
5. Your SHIELD TV will connect with your accessory.
TROUBLE ADDING BLUETOOTH ACCESSORY
Try these troubleshooting steps if your Bluetooth accessory won't connect.
4K HDR/DOLBY VISION DISPLAY SETUP
Your SHIELD TV supports 4K Ultra HD (3840 x 2160p) resolution content with
HDR10 or Dolby Vision, from many apps.
To ensure that your SHIELD TV is optimized for 4K video output, keep your
device updated with the latest system software.
Watching 4K content from SHIELD TV requires a 4K display with HDMI 2.0
and HDCP 2.2 support. Make sure SHIELD TV is connected to an HDMI
input that supports HDCP 2.2. Consult your 4K display's user guide to find the
correct HDMI port to plug SHIELD TV into for watching 4K content.
NOTE Most 4K streaming content requires HDCP 2.2 compatible
ports. See your 4K display's user guide for further details.
Consider using the HDMI-UHD port for 4K support. Some TVs by
default have UHD input disabled in TV settings, so please make sure that
UHD is enabled in the settings for your TV for this input.
ENABLE DOLBY VISION/HDR10 ON SHIELD
Your SHIELD will automatically set to a HDR10 capable display mode when
detected.
If you own a Dolby Vision compatible display at 4K resolutions with 60Hz
refresh rate, enable Dolby Vision by selecting Settings > Device
Preferences > Display & Sound > Dolby Vision
If you are unable to enable “Dolby Vision”, your HDMI cables may be the
issue. Try replacing them with higher quality cables and try again.
If your TV supports 4K Dolby Vision at lower refresh rates, you can change
your display mode at Settings > Device Preferences > Display & Sound
> Advanced display settings > Custom display mode and select any mode
labelled “Dolby Vision Ready”.
WARNING: Selecting lower refresh rate display modes will cause
home screen and app navigation to appear slow.
ENABLE DOLBY VISION/HDR10 ON YOUR TV
Some HDR TVs do not have HDR output enabled by default for HDMI. To
enable HDR output from SHIELD, refer to your TV owner's manual. Here are
the settings for some of the common TVs:
• Samsung HDR TVs: Menu > Picture > Picture Options > HDMI
UHD Color > On > Restart
• LG HDR TVs: Home > HDMI > Settings > Advanced > Picture >
HDMI ULTRA DEEP COLOR > On > Restart
• Sony HDR TVs: Home > Settings > External inputs > HDMI signal
format > HDMI [select the SHIELD input] > Enhanced mode (TV will
reboot)
WATCHING NETFLIX 4K OR HDR
To watch Netflix shows in 4K or HDR, you may need to upgrade your Netflix
service account to the "4 screen plan." Consult Netflix's article on their latest
requirements to stream 4K or HDR
content. http://help.netflix.com/en/node/42384
AVR / SURROUND AUDIO SETUP
SHIELD TV supports Dolby Digital (AC3), Dolby Digital Plus (E-AC3), Dolby
ATMOS, Dolby TrueHD, DTS:X, and DTS Core Audio Streams over
HDMI. Dolby audio can be decoded/converted to the best available format for
your home theater. DTS audio will not be converted and will be passed
directly to the HDMI output.
In order to experience surround sound, use an AV receiver or TV capable of
decoding these audio streams.
NOTE If your receiver or HDMI TV does not have the capability to
decode the streams, then there may not be any audio.
NOTE Make sure your receiver has been updated with the latest
firmware. In some cases, this can resolve compatibility or audio/video issues.
(I) Recommended setup: SHIELD ➔ AVR ➔ TV
1. Connect your SHIELD TV to a receiver with an HDMI cable.
2. Plug another HDMI cable from your receiver's HDMI OUT port to
the TV.
NOTE If you have a 4K or HDR TV, you must attach HDMI 2.0
compatible cables between both the SHIELD and the AVR and
between the AVR and the display. Your AVR must also be
compatible with HDMI 2.0 (HDCP 2.2) signal.
(II) Soundbar or legacy AVR: SHIELD ➔ TV ➔ AVR
WARNING: This configuration should only be used if your Soundbar
or AVR does not support 4K, HDR or Dolby Vision. Your soundbar
must support Dolby Digital
1. Connect your SHIELD TV to a TV with an HDMI cable.
2. Connect TV to the receiver using Optical SPDIF or HDMI Audio Return
Channel (HDMI-ARC)
3. Under Settings > Device Preferences > Display & Sound >
Advanced sound settings > Available formats select Manual and
disable all Dolby formats except AC3.
ENABLE SHIELD TO TURN ON AND OFF
YOUR TV/AVR
SHIELD can control the power of your TV/AVR using HDMI-CEC. Go to
Display & Sound > Power control to customize how your SHIELD controls
your TV/AVR.
If your TV/AVR does not support HDMI-CEC, you can configure your SHIELD
remote to send IR commands to your devices from this menu.
.
NOTE Most TVs have HDMI-CEC "turn TV off" disabled in the TV
settings menu. HDMI-CEC (One Touch Play and TV off) must be
enabled in your TV's settings. Search for your TV manufacturer's
name and HDMI-CEC to find out what they call it and how to enable
it.
AV SYNC
Use of an AV Receiver with HDMI for video may result in audio lagging behind
video. First try using the receiver AV sync settings to calibrate. If this does
not work, use the AV sync slider utility in Settings > Device Preferences
> Display & sound > Advanced settings > Audio video sync to calibrate
for audio delay. The AV sync slider allows you to advance audio by 1 second
(in small increments of 10ms) to synchronize the audio and video.
Note that this tool is effective only when SHIELD is connected to your AV
Receiver over HDMI (i.e. audio/video over HDMI); it is not meant to be used
when a headset is plugged into SHIELD
Controller/SHIELD Remote or
Bluetooth audio device.
If video lags behind audio (i.e. audio is ahead of video) then use your AV
receiver’s settings to delay audio.
ADJUST FOR OVERSCAN
For TVs that don't provide their own overscan settings, use this setting to
adjust the picture size to fit the screen.
Go to Settings > Device Preferences > Display & Sound > Advanced
Settings > Adjust for overscan to resize the picture on your TV or
display. Use the UP and DOWN d-pad buttons on your remote to maximize
the picture on your TV. Make sure the green triangles are completely visible
to avoid overscan.
ABOUT SHIELD SCREEN
Details about your SHIELD TV can be found at Settings > Device
Preferences > About.
From this menu, you can
• Manually check for system upgrades
• Change your SHIELD’s name
• Legal information
• Find additional system information, including
o Serial number
o IP address
o Network MAC address
RESET SHIELD
RESET TO FACTORY SETTINGS
NOTE By performing a factory data reset, all data will be wiped from
your SHIELD. Data associated with your Google account can be
recovered. Any device settings will also be removed.
RESET THROUGH SETTINGS
To reset your SHIELD TV to factory settings, follow these steps:
1. From the Home screen, select Settings > Device Preferences
> Reset.
2. Select Reset.
3. Then select Erase everything to confirm and reset your device.
CONNECTING STORAGE TO YOUR
SHIELD
Additional microSD storage can be connected to your SHIELD. Connected
storage is automatically connected as “removable storage” and SHIELD can
read and write directly to the storage device. Apps and app data cannot be
installed on “removable storage”. To increase storage for installing apps,
connected storage must be formatted as “device storage”.
To format your storage device for “device storage”, select
Settings > Device Preferences > Storage > [Storage device] > Set up
as device storage. This will format and encrypt your storage device.
SHIELD TV is compatible with the FAT32, exFAT, NTFS, and HFS+ file
systems.
HOW TO ADD NETWORK STORAGE
Your SHIELD TV device can add Network Addressable Storage (NAS)
devices. This can be useful if you have a large amount of personal media
shared on a network you would like to access on your SHIELD TV (e.g., PLEX
Media Server)
To add a NAS,
1. Select Settings > Device Preferences > Storage > Network
storage."
2. Any network discoverable drives will be located under "Available
Network Storage."
3. If your NAS is hidden or does not broadcast, you can select
"manually add a network storage."
ADJUSTING DISPLAY MODES
(RESOLUTION,REFRESH RATE, COLOR
SPACE)
To change your display mode, go to Settings > Device Preferences >
Display & Sound > Resolution to select form a list of popular display modes.
Dolby Vision compatible modes are not enabled by default and can be
selected here.
If you would like to select a custom display mode, go to Settings > Device
Preferences > Display & Sound > Advanced display settings > Custom
display mode to see a list of all modes available for your display.
NOTE If you choose a refresh rate other than 60Hz, you will
experience slow performance in applications that support 60Hz
(Android TV home page, games, and 60Hz videos).
MATCH FRAME RATE (BETA)
Important Note: This is an experimental feature (beta). Not all apps support
this feature and some TV’s may have difficulty setting to some refresh rates.
PLEX and KODI already support automatic refresh rate matching.
If you are streaming content at a frame rate that does not match your display’s
refresh rate, SHIELD will automatically convert the content to match your
display.
SHIELD also includes an experimental feature to match your display refresh
rate with the content frame rate. To use this feature.
1. Start playing a video on SHIELD.
2. Press the “Settings” button to bring out the settings menu and select
“Match frame rate (beta)” from the Quest Settings.
Note: Once playback is stopped, the display’s refresh rate will return to its
original setting. You will need to manually activate this setting every time you
want to match frame rates.
Optional: Customize your remote Setting button to match frame rate. Go to
Settings > Remotes & Accessories > Customize Settings button and
select “Match frame rate (beta)”.
For more information or troubleshooting for this feature, see our KB article on
this topic http://Brian to create URL here
HOW TO TRANSFER CONTENT TO
SHIELD
From a PC, you can access internal and attached storage on your SHIELD
TV.
OVER LOCAL NETWORK
Your SHIELD TV can become discoverable as a network addressable device.
1. Enable Settings > Device Preferences > Storage > Transfer
files over local network
2. The following page will have the information needed to log into
your SHIELD TV to transfer files in and out of your storage.
CONTROL SHIELD WITH GOOGLE
HOME
Log into the same Google account on your Google Home as you do with your
SHIELD TV to control your TV hands-free.
Basic Commands
“Turn on [SHIELD]”
“Turn off [SHIELD]”
“Open [name of app] on [SHIELD]”
Playback Features
“Play [name of Netflix, HBO NOW, CBS, Viki, or Starz show] on [SHIELD]”
“Play [name of song] on [name of app] on [SHIELD]”
“Watch [name of channel] on YouTube TV on [SHIELD]”
“Play [video title] on YouTube on [SHIELD]”
“Pause on [SHIELD]”
“Play on [SHIELD]”
Photos and Smart Home
“Show me my pictures from Egypt on [SHIELD]”
“Show me my pictures from last weekend on [SHIELD]”
“Dim the lights”
“Set the temperature to 72 degrees”
NOTE: Change the name of your [SHIELD] by going to
Settings > Device Preferences > About > Device name
CONTROL SHIELD WITH ALEXA AND
AMAZON ECHO
Pair your SHIELD with an Amazon Echo device to launch apps, turn your
SHIELD on or off, or even control playback.
Locate the NVIDIA SHIELD TV skill on the Alexa app on your mobile device
and follow the instructions.
Voice commands that currently work, with more on the way:
Getting Started
“Alexa, turn on SHIELD.”
“Alexa, turn off SHIELD.”
Opening Entertainment apps
“Alexa, open Prime Video (on SHIELD).”
“Alexa, open HBO NOW (on SHIELD).”
Using Media Controls
“Alexa, pause (on SHIELD).”
“Alexa, play (on SHIELD).”
“Alexa, next (on SHIELD).”
“Alexa, previous (on SHIELD).”
“Alexa, fast-forward ten minutes (on SHIELD).”
Navigating SHIELD
“Alexa, go to settings (on SHIELD).”
“Alexa, go home (on SHIELD).”
“Alexa, go to control settings (on SHIELD).”
NVIDIA GAMES
The NVIDIA Games app makes it
easy to find all the games you can play on your SHIELD TV. Whether you've
downloaded an Android game from the Google Play Store, subscribed to
GeForce NOW, or linked your GeForce RTX or GTX gaming PC for
GameStream, you can find them all within NVIDIA Games.
PLAY NOW
The Play now row will show recent games you have played on your SHIELD
TV, as well as suggest new games based on what you enjoy playing

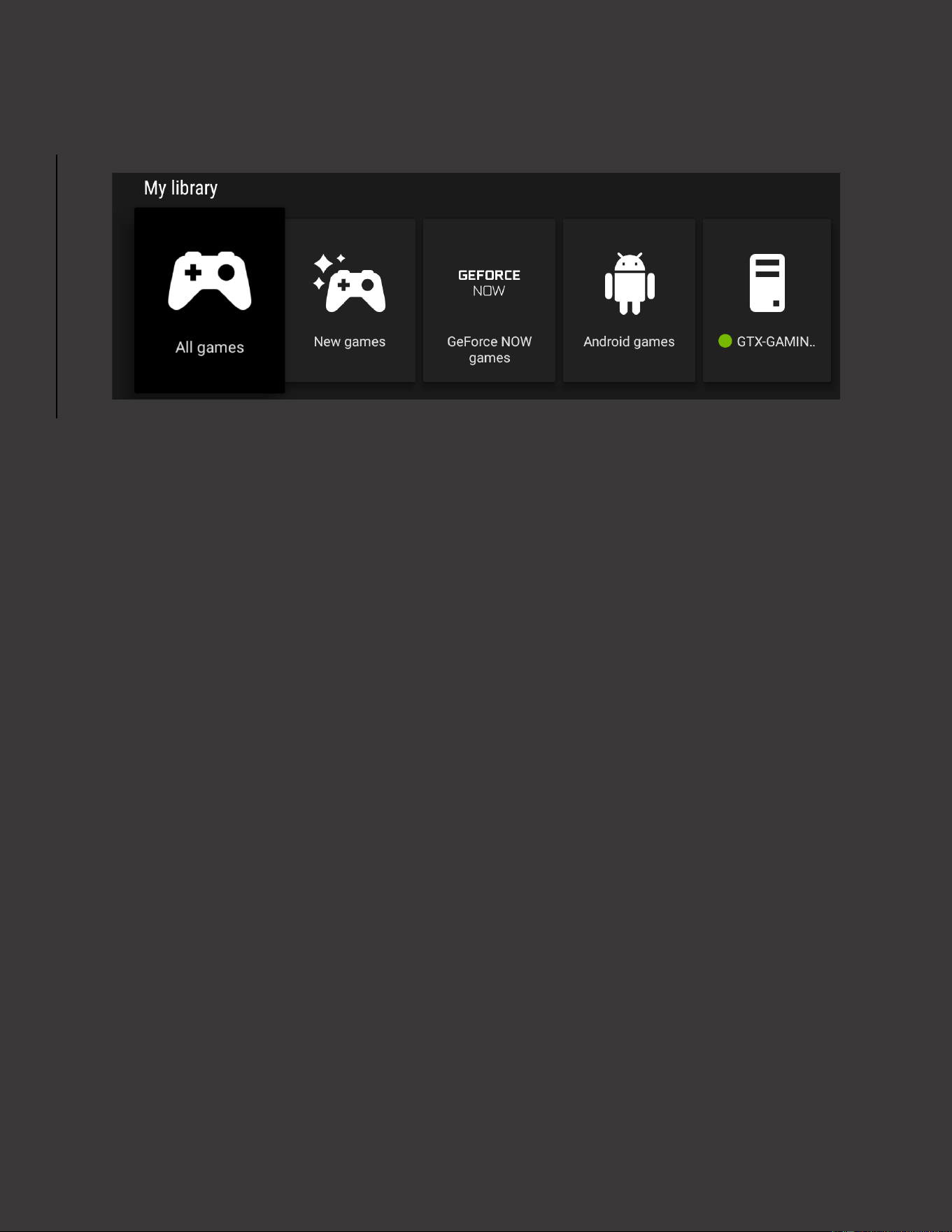

MY LIBRARY
The My library row contains all games currently available on your SHIELD
TV.
ALL GAMES
Your entire collection of games playable on your SHIELD TV. This includes
installed Android games, GeForce NOW games, and GameStream games.
NEW GAMES
Recently installed games and newly-released GeForce NOW games will be
displayed in this section.
ANDROID GAMES
Your entire collection of currently installed Android games.
GEFORCE NOW
All GeForce NOW games available to be streamed from the cloud can be
found here. This will include free games included with subscription as well as
games you've purchased.
GAMESTREAM
Every GameStream-ready game linked with your NVIDIA account can be
found here. If you have multiple GameStream PCs in your network, each
game tile will display the PC you can stream from.
GEFORCE NOW GAMES
GeForce NOW beta is a cloud streaming service that turns your SHIELD TV
or Tablet into a GeForce-powered PC gaming rig, so you can game from the
same couch where you stream your favorite shows and movies. With
hundreds of supported titles and features like cloud saves and cross-play on
laptops and desktops, you can pick up a game from wherever you left off.
NOTE To stream games at 720p resolution and 30 frames per
second, you need a broadband minimum download speed of 5 Mbps
(10 Mbps recommended). To stream games at 1080p resolution and
60 frames per second, you need a broadband minimum download
speed of 30 Mbps (50 Mbps recommended). Ethernet connectivity is
recommended for the best experience.
NOTE Navigate through NVIDIA Games using the D-pad or left
thumbstick on the game controller.
LOGIN
GeForce
NOW is currently free during its beta. SHIELD owners receive
immediate GeForce NOW access for one account. Due to popular demand,
there’s a waitlist for additional accounts to help keep game sessions
instantaneous.
Launch the NVIDIA Games app and select any GeForce NOW game to get
started. You will be prompted to log in with an NVIDIA account. If you do not
have an NVIDIA account, you can create one during the activation process.
INSTALL AND PLAY GAMES
Click on any GeForce NOW game to install it on your virtual gaming PC.
GeForce NOW comes with a collection of free games like Tomb
Raider and Fortnite, but you can also access over 200 games you have
purchesed from digital stores like Steam or U-Play. Log into the digital store
associated with your account to confirm ownership or purchase the game. If
you don’t own it, you can always purchase it. The game will be saved in “My
Library” to quickly play the next time you log in.
SUPPORTED INPUT DEVICES
Gamepad Required
These games require at least a gamepad like the SHIELD Controller to Play.
Partial Gamepad Support
These games can be mostly played with a controller, but may require a mouse
or keyboard for certain actions (Control menus, type in character names,
etc). Download the SHIELD TV app on your mobile phone or use the On-
Screen Controls to use the virtual mouse and keyboard.
Keyboard and mouse required
These games require connecting a mouse and keyboard to SHIELD to play
properly. See this link for a list of recommended wireless accessories.
IN-GAME MICROPHONE
GeForce Now on SHIELD support in-game microphone for communicating
with teammates. Your SHIELD Controller has a built in microphone which can
be used. Wireless headsets with 3.5mm connectors can also be connected to
the controller as well. Read our GeForce NOW - Microphone FAQ for more
information.

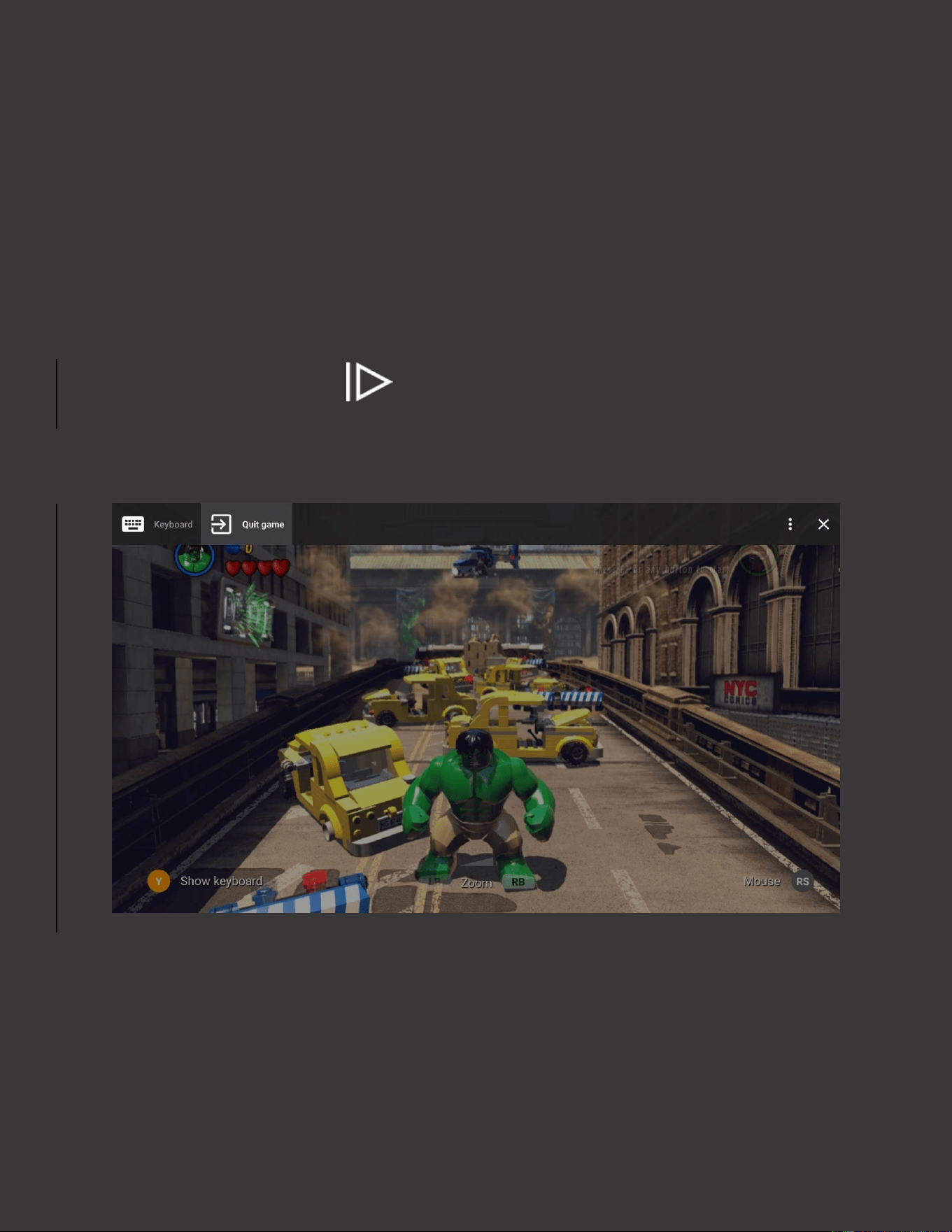

USING ON-SCREEN CONTROLS
On-screen controls provide users with additional controls necessary to
navigate some GeForce NOW games. To access the on-screen controls,
press and hold the Start button.
The on-screen controls will bring up a menu screen with three options:
Keyboard, Quit, and three-dot menu.
If you need to input information into a dialog, use the "Keyboard" selection. If
you want to quit the game, select "Quit game."
Most of the navigation options are straightforward. Clicking the three-dot
menu > Help will display the full list of available functions.
NVIDIA GAMESTREAM
GameStream gives you the power to access your favorite games from your GeForce®
GTX-powered PC on your SHIELD TV or SHIELD Tablet. Jump directly into Steam®
Big Picture mode from the Steam app on SHIELD. The redesigned NVIDIA
GameStream™ technology makes the experience faster and smoother -- all with
amazing 60 FPS gaming at up to 4K HDR.
To learn more about getting started with GameStream see our GameStream User's
Guide.

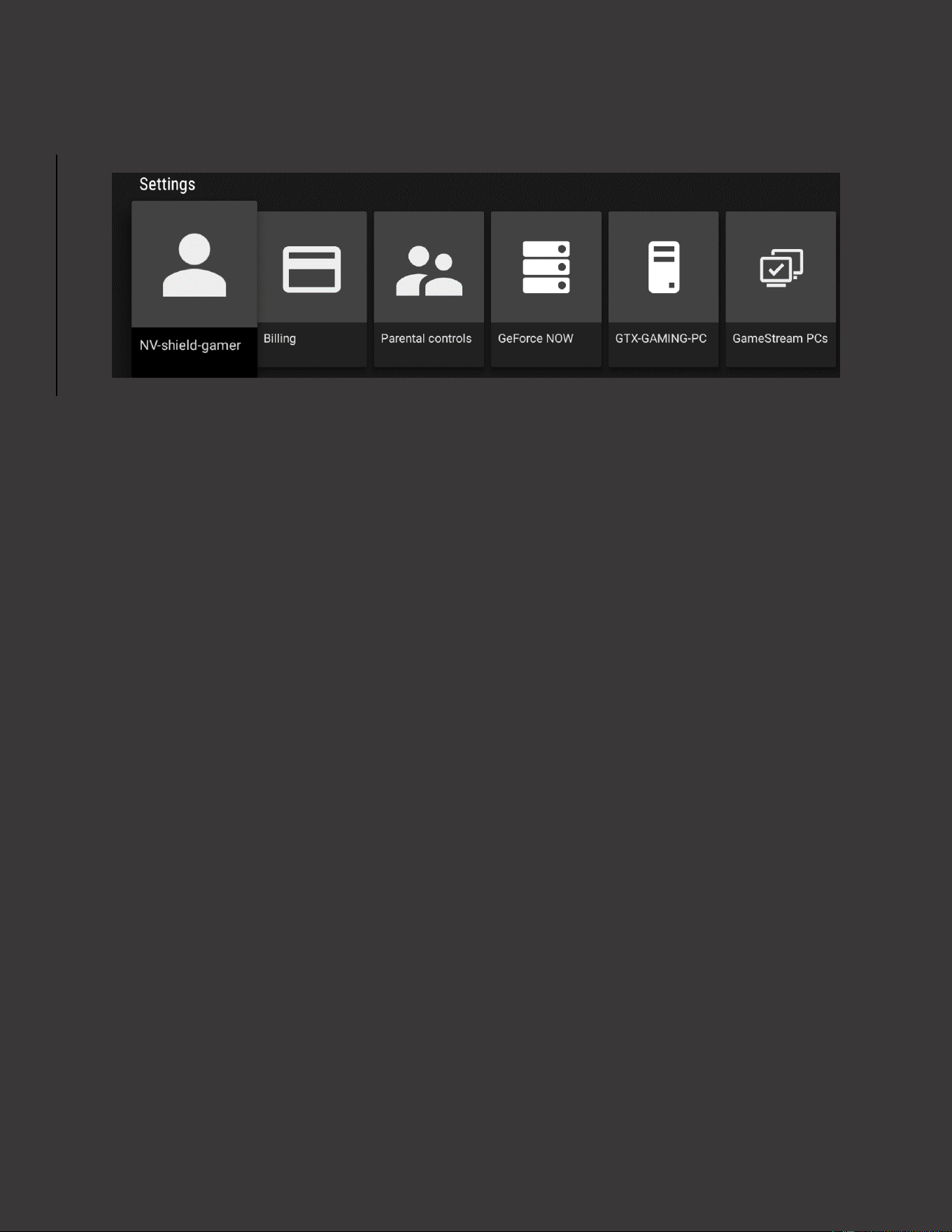

SETTINGS
USER PROFILE
Log into your NVIDIA account to get access to GeForce NOW or
GameStream. If you are currently logged in, you will display your NVIDIA
account name.
BILLING
Add payment information here. Billing information is used to renew your
GeForce NOW monthly subscriptions, as well as purchasing new games on
the GeForce NOW service.
PARENTAL CONTROLS
Enable age-appropriate filtering for games displayed in NVIDIA games.
GEFORCE NOW
Edit GeForce NOW server and streaming configuration settings.
GAMESTREAM PC
Edit server and streaming quality configuration settings.
SHIELD TV REMOTE APP
The NVIDIA SHIELD TV app lets you control your SHIELD TV, launch apps,
and log in to your favorite GeForce NOW games on SHIELD even faster.
The app gives you instant access to a virtual mouse and keyboard, which
makes it simple for you to enter your username and password into game
services.
FEATURES
GeForce NOW Controls
• Virtual mouse touchpad
• Virtual keyboard (US English)
SHIELD TV Remote Controls
• App launcher: Tap on the app banner to immediately
launch app on your SHIELD TV
• D-pad navigation (up/down/right/left) and Select
• Android buttons (Back, Start, Home)
• Media playback (Play, Pause, Fast Forward, Rewind)
• Volume control
SETUP INSTRUCTIONS
1. Install the SHIELD TV app on your Android or iOS device
2. Connect your phone to the same network as your SHIELD TV
3. Launch the SHIELD TV app and select your SHIELD under
discovered devices
4. Pair your device with SHIELD TV by entering the 6-digit code
displayed on your TV
CHROMECAST 4K
Your SHIELD TV can also utilize Chromecast technology for casting your
entertainment media from your phone, tablet, or laptop straight to the big
screen. Both iOS and Android devices support Google Cast.
CAST TO SHIELD
1. Ensure that both your casting source (smartphone, tablet, laptop,
etc.) and the SHIELD TV are connected to the same network.
2. On your source device, open a Google Cast-enabled application
such as YouTube.
3. Touch or click the Cast icon .
4. Choose the Android TV you'd like to cast to. In this case, select
'SHIELD.'
5. Press Play on your phone or tablet. The content should start
playing on you Android TV, and the Cast icon on your device will be
filled in .
Supported apps vary by country. For more information about available apps
in your country, visit g.co/castapps.
MIRROR CASTING TO SHIELD
SHIELD TV also supports mirror casting from select Android devices. To
learn which devices are supported and for instructions on how to mirror your
screen to SHIELD TV,
visit https://support.google.com/googlecast/answer/6104896.
TROUBLESHOOTING SHIELD
Before using this troubleshooting guide, make sure that your SHIELD
is updated with the latest system update, available automatically if your
SHIELD is connected to the Internet.
If you are unable to resolve the issues you are having with the troubleshooting
steps in this guide, you may find a resolution in the GeForce Experience
Forums > SHIELD section.
Useful tips and tricks can also be found on our SHIELD FAQ and our SHIELD
support page.
If you are still unable to resolve the issues you are having, please contact
NVIDIA support.
HEALTH AND SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
NVIDIA products are designed to operate safely when installed and used
according to the product instructions and general safety practices. The
guidelines included in this document explain the potential risks associated
with equipment operation and provide important safety practices designed to
minimize these risks. By carefully following the information contained in this
document you can protect yourself from hazards and create a safer
environment.
This product is designed and tested to meet IEC-60950-1, the Standard for
Safety of Information Technology Equipment. This also covers the national
implementation of IEC-60950-1 based safety standards around the world e.g.
UL-60950-1. These standards reduce the risk of injury from the following
hazards:
• Electric shock: Hazardous voltage levels contained in parts of
the product
• Fire: Overload, temperature, material flammability
• Mechanical: Sharp edges, moving parts, instability
• Energy: Circuits with high energy levels (240 volt-amps) or
potential as burn hazards
• Heath: Accessible parts of the product at high temperatures
• Chemical: Chemical fumes and vapors
• Radiation: Noise, ionizing, laser, ultrasonic waves
Retain and follow all product safety and operating instructions. Always refer
to the documentation supplied with your equipment. Observe all warnings on
the product and in the operating instructions.
Read all safety information below and operating instructions before
using the SHIELD to avoid injury.
WARNING: FAILURE TO FOLLOW THESE SAFETY
INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK OR OTHER
INJURY OR DAMAGE.
ELECTRICAL EQUIPMENT CAN BE HAZARDOUS IF
MISUSED. OPERATION OF THIS PRODUCT, OR SIMILAR PRODUCTS,
MUST ALWAYS BE SUPERVISED BY AN ADULT. DO NOT ALLOW
CHILDREN ACCESS TO THE INTERIOR OF ANY ELECTRICAL PRODUCT
AND DO NOT PERMIT THEM TO HANDLE ANY CABLES.
To reduce the risk of bodily injury, electric shock, fire, and damage to the
equipment, observe the safety labels included on the equipment.
SYMBOLS ON EQUIPMENT
This symbol in conjunction with any of the following symbols
indicates the presence of a potential hazard. The potential for injury
exists if warnings are not observed. Consult your documentation for
specific details.
This symbol indicates the presence of hazardous energy circuits or
electric shock hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards,
do not open this enclosure. Refer all maintenance, upgrades, and
servicing to qualified personnel.
This symbol indicates the presence of electric shock hazards. The
area contains no user or field serviceable parts. Do not open for any
reason.
GENERAL PRECAUTIONS
To reduce the risk of electric shock, personal injury, or damage to the
equipment, observe the following precautions:
• Follow all cautions and instructions marked on the equipment.
• Do not bend, drop, crush, puncture, incinerate, or push objects
into openings of the device.
• Do not connect or disconnect any cables or perform maintenance
or reconfiguration of this product during an electrical storm.
• Do not use the SHIELD TV in rain or near sink, or other wet
locations. Take care not to spill any food or liquid into the device. In
case the SHIELD device gets wet, unplug all cables and turn off before
cleaning, and allow it to dry thoroughly before turning it on again.
• Do not expose the SHIELD TV to any gas which is not normally
contained in the atmosphere. It may cause mis-operation or defects.
• Never turn on any equipment when there is evidence of fire,
water, or structural damage.
• Place the product away from radiators, heat registers, stoves,
amplifiers, or other appliances that produce heat.
• Never force a connector into a port. Check for obstructions on the
port. If the connector and port don't join with reasonable ease, they
probably don't match. Make sure that the connector matches the port
and that you have positioned the connector correctly in relation to the
port.
• Operate the AC adapter in a ventilated area.
• When you are using the NVIDIA SHIELD TV, it is normal for the
system and/or AC power adapter to get warm.
• Do not use conductive tools that could bridge live parts.
• Do not make mechanical or electrical modifications to the
equipment.
• Never attempt to reconnect the SHIELD TV yourself. This device
does not contain any user-serviceable parts. Do not attempt to open,
disassemble, or remove the battery. You run the risk of electric shock..
• Operate the SHIELD TV in a place where the temperature is
always between 5 and 30°C (41 to 86°F).
• Store the SHIELD TV in a place where the temperature is always
between 0 and 35°C (32 to 95°F) with relative humidity of 70% or
lower. When taking the device from a low temperature condition, allow
the device to reach room temperature before turning the power on.
• Use this product only with approved equipment and/or
accessories
• If the product sustains damage requiring service, disconnect the
product from the AC electrical outlet and refer servicing to an NVIDIA
authorized service provider.
Proposition 65 WARNING: This product contains chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm. (California law requires this warning be
provided to California customers.
A lire avant toute utilisation d'un jeu vidéo par vous-même ou par votre enfant.
I. - Précautions à prendre dans tous les cas pour l'utilisation d'un jeu
vidéo.
Evitez de jouer si vous êtes fatigué ou si vous manquez de sommeil.
Assurez-vous que vous jouez dans une pièce bien éclairée en modérant la
luminosité de votre écran.
Lorsque vous utilisez un jeu vidéo susceptible d'être connecté à un écran,
jouez à bonne distance de cet écran de télévision et aussi loin que le permet
le cordon de raccordement.
En cours d'utilisation, faites des pauses de dix à quinze minutes toutes les
heures.
II. - Avertissement sur l'épilepsie.
Certaines personnes sont susceptibles de faire des crises d'épilepsie
comportant, le cas échéant, des pertes de conscience à la vue, notamment,
de certains types de stimulations lumineuses fortes: succession rapide
d'images ou répétition de figures géométriques simples, d'éclairs ou
d'explosions. Ces personnes s'exposent à des crises lorsqu'elles jouent à
certains jeux vidéo comportant de telles stimulations, alors même qu'elles
n'ont pas d'antécédent médical ou n'ont jamais été sujettes elles-mêmes à
des crises d'épilepsie.
Si vous-même ou un membre de votre famille avez déjà présenté des
symptômes liés à l'épilepsie (crise ou perte de conscience) en présence de
stimulations lumineuses, consultez votre médecin avant toute utilisation.
Les parents se doivent également d'être particulièrement attentifs à leurs
enfants lorsqu'ils jouent avec des jeux vidéo. Si vous-même ou votre enfant
présentez un des symptômes suivants : vertige, trouble de la vision,
contraction des yeux ou des muscles, trouble de l'orientation, mouvement
involontaire ou convulsion, perte momentanée de conscience, il faut cesser
immédiatement de jouer et consulter un médecin.
POWER RATING
19 V DC, 2.1 A
COMPLIANCE
The SHIELD Android TV Game Console is compliant with the regulations listed in this section.
United States
Federal Communications Commission (FCC)
FCC ID: VOB-P3430
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including any interference that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Warning: The FCC requires that you be notified that any changes or modifications to this device not
expressly approved by the manufacturer could void the user’s authority to operate the equipment. Only
those antennas with same type and lesser/equal gain filed under this FCC ID number can be used with
this device.
RF Radiation Exposure Statement:
SHIELD Android TV Game Console has been tested and complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment when used with the NVIDIA accessories supplied or
designated for this product. During testing, SHIELD was placed in positions that simulate use against the
body. The use of any other accessories may not ensure compliance with FCC RF exposure guidelines.
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provided with antenna installation instructions and
consider removing the no-collocation statement.
Underwriters Laboratories (UL)
I.T.E. E204896
Canada
Innovation, Science and Economic Development Canada (ISED)
IC: 7361A-P3430
CAN ICES-3(B)/NMB-3(B)
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’ Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre
le fonctionnement.
Caution: operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite systems
Be advised that high-power radars are allocated as primary users of the bands 5250-5350 MHz and
5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices
Attention: les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux
Être informé des radars à haute puissance sont alloués principaux utilisateurs de bandes 5250 à 5350
MHz et 5850 MHz, à 5650 et que ces radars pourraient provoquer des interférences et / ou
endommager les appareils RL-EL. radars à haute puissance sont alloués utilisateurs primaires des bandes
5250 à 5350 MHz et 5850 MHz, ce à 5650 et que ces radars pourraient provoquer des interférences et /
ou endommager les périphériques RL-EL.
RF Radiation Exposure Statement:
SHIELD Android TV Game Console has been tested and complies with IC RSS 102 RF radiation exposure
limits set forth for an uncontrolled environment when used with the NVIDIA accessories supplied or
designated for this product. During testing, the SHIELD Tablet was placed in positions that simulate use
against the body. The use of any other accessories may not ensure compliance with IC RSS 102RF
exposure guidelines.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Déclaration d'exposition aux radiations:
SHIELD Android TV Game Console a ete testee conformemment aux normes d’exposition d’emission RF
de la IC RSS 102 pour un environement non controle lors d’utilisation avec les accessoires fournis or
recommendes par NVIDIA. Pendant les tests, la tablette SHIELD a ete positionnee afin de simule la
presence du corps humain. L’utilisation d’accessoires autres que ceux recommendes par NVIDIA ne
guarantis pas la compatibilite avec les normes d’emission RF de la IC RSS 102.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou
émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20
centimètres entre le radiateur et votre corps.
European Union
European Conformity; Conformité Européenne (CE)
This device complies with the following Directives:
• Radio Equipment Directive 2014/53/EU
• RoHS Directive 2011/65/EU
• Energy-related Products Directive (ErP) 2009/125/EC
The full text of EU declaration of conformity is available at the following internet address:
www.nvidia.com/support
A copy of the Declaration of Conformity to the essential requirements may be obtained directly from
NVIDIA GmbH (Bavaria Towers – Blue Tower, Einsteinstrasse 172, D-81677 Munich, Germany).
This device operates in the following frequency bands and maximum transmitted power:
Frequency Band
Max. EIRP(dBm)
Max. EIRP(mW)
2400.0 - 2483.5 MHz
20.0
100
5150.0 - 5350.0 MHz
23.0
200
5470.0 – 5725.0
MHz
23.0
200
5725.0 – 5875.0
MHz
14.0
25
Warning:
• Operation in the 5150 – 5350 MHz frequency band is restricted to Indoor Use Only.
• This equipment should be installed and operated with a minimum distance of 20 centimeters between
the radiator and your body.
• Any changes or modifications to this device not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
A LIRE AVANT TOUTE UTILISATION D'UN JEU VIDEO PAR VOUS-MEME OU PAR VOTRE ENFANT
I. - Précautions à prendre dans tous les cas pour l'utilisation d'un jeu vidéo.
Evitez de jouer si vous êtes fatigué ou si vous manquez de sommeil.
Assurez-vous que vous jouez dans une pièce bien éclairée en modérant la luminosité de votre écran.
Lorsque vous utilisez un jeu vidéo susceptible d'être connecté à un écran, jouez à bonne distance de cet
écran de télévision et aussi loin que le permet le cordon de raccordement.
BE BG CZ DK DE EE IE EL ES FR HR
IT CY LV LT LU HU MT NL AT PL PT
RO SI SK FI SE UK IS LI NO CH TR
En cours d'utilisation, faites des pauses de dix à quinze minutes toutes les heures.
II. - Avertissement sur l'épilepsie.
Certaines personnes sont susceptibles de faire des crises d'épilepsie comportant, le cas échéant, des
pertes de conscience à la vue, notamment, de certains types de stimulations lumineuses fortes:
succession rapide d'images ou répétition de figures géométriques simples, d'éclairs ou d'explosions. Ces
personnes s'exposent à des crises lorsqu'elles jouent à certains jeux vidéo comportant de telles
stimulations, alors même qu'elles n'ont pas d'antécédent médical ou n'ont jamais été sujettes elles-
mêmes à des crises d'épilepsie. Si vous-même ou un membre de votre famille avez déjà présenté des
symptômes liés à l'épilepsie (crise ou perte de conscience) en présence de stimulations lumineuses,
consultez votre médecin avant toute utilisation. Les parents se doivent également d'être
particulièrement attentifs à leurs enfants lorsqu'ils jouent avec des jeux vidéo. Si vous-même ou votre
enfant présentez un des symptômes suivants : vertige, trouble de la vision, contraction des yeux ou des
muscles, trouble de l'orientation, mouvement involontaire ou convulsion, perte momentanée de
conscience, il faut cesser immédiatement de jouer et consulter un médecin.
Australia and New Zealand
Australian Communications and Media Authority
This product meets the applicable EMC requirements for Class B, I.T.E equipment and applicable radio
equipment requirements
This product meets the applicable requirements for telecommunications equipment and can legally be
connected to a telecommunications network.
Japan
Voluntary Control Council for Interference (VCCI)
Radio/ Telecommunications Certification
W52/ W53は屋内使用限定
Japan RoHS Material Content Declaration
日本工業規格JIS C 0950:2008により、2006年7月1日以降に販売される特定分野の電気およ
び電子機器について、製造者による含有物質の表示が義務付けられます。
機器名称：メディアストリームコンソール
主な分類
特定化学物質記号
Pb
Hg
Cd
Cr(VI)
PBB
PBDE
メディアストリームコンソ
ール
除外項
目
0
0
0
0
0
電源
除外項
目
0
0
0
0
0
ケーブル/コネクター
除外項
目
0
0
0
0
0
プロセッサー
除外項
目
0
0
0
0
0
システムメモリ
除外項
目
0
0
0
0
0
プリント基板
除外項
目
0
0
0
0
0
機械部品
除外項
目
0
0
0
0
0
はんだ付け材料
0
0
0
0
0
0
フラックス、クリームはん
だ、ラベル、その他消耗品
0
0
0
0
0
0
XXX-XXXXXX
注：
1.「0」は、特定化学物質の含有率が日本工業規格JIS C 0950:2008に記載されている含有率
基準値より低いことを示します。
2.「除外項目」は、特定化学物質が含有マークの除外項目に該当するため、特定化学物質に
ついて、日本工業規格JIS C 0950:2008に基づく含有マークの表示が不要であることを示しま
す。
3.「0.1wt%超」または「0.01wt%超」は、特定化学物質の含有率が日本工業規格JIS C
0950:2008 に記載されている含有率基準値を超えていることを示します。
A Japanese regulatory requirement, defined by specification JIS C 0950: 2008, mandates that
manufacturers provide Material Content Declarations for certain categories of electronic
products offered for sale after July 1, 2006.
Product Model Number: Media Streaming Console
Major Classification
Symbols of Specified Chemical Substance
Pb
Hg
Cd
Cr(VI)
PBB
PBDE
Media Streaming Console
Exempt
0
0
0
0
0
Power adapter
Exempt
0
0
0
0
0
Cables/Connectors
Exempt
0
0
0
0
0
Processor
Exempt
0
0
0
0
0
System memory
Exempt
0
0
0
0
0
PCA
Exempt
0
0
0
0
0
Mechanicals
Exempt
0
0
0
0
0
Soldering material
0
0
0
0
0
0
Flux, Solder Paste, label and
other consumable materials
0
0
0
0
0
0
Notes:
1. “0” indicates that the level of the specified chemical substance is less than the threshold
level specified in the standard, JIS C 0950: 2008.
2. “Exempt” indicates that the specified chemical substance is exempt from marking and it is
not required to display the marking for that specified chemical substance per the standard,
JIS C 0950: 2008.
3. “Exceeding 0.1wt%” or “Exceeding 0.01wt%” is entered in the table if the level of the
specified chemical substance exceeds the threshold level specified in the standard, JIS C
0950: 2008.
South Korea
Radio Research Agency (RRA)
Korean Agency for Technology and Standards (KATS)
R-R-NVA-P3430
B급 기기
이 기기는 가정용(B급) 전자파적합기기로서 주
(가정용 방송 통신기자재)
로 가정에서 사용하는 것을 목적으로 하며, 모
든 지역에서 사용할 수 있습니다.
Korea RoHS Material Content Declaration
확인 및 평가 양식은 제품에 포함 된 유해 물질의 허용 기준의 준수에 관한
문
준비
상호 :
앤비디아홍콩홀딩즈리미티드( 영업소)
법인등록번호
110181-
0036373
대표자성명
카렌테레사번즈
사업자등록번호:
120-84-
06711
주소
서울특별시 강남구 영동대로 511, 2101호 ( 삼성동, 코엑스무역타워)
제품 내용
제품의 종류
해당없음
제품명(규격)
해당없음
세부모델명(번호):
해당없음
제품출시일
해당없음
제품의 중량
해당없음
제조, 수입업자
앤비디아
엔비디아의 그래픽 카드제품은 전기 전자제품 및 자동차의 자원순환에 관한 법률 시행령 제
11조 제 1항에 의거한 법 시행행규칙 제 3조에에따른 유해물질함유 기준을 확인 및 평가한
결과, 이를 준수하였음을 공표합니다.
구비서류 : 없음
작성방법
① 제품의 종류는 "전기.전자제품 및 자동차의 자원순환에관한 법률 시행령" 제 8조 제 1항
및 제 2항에 따른 품목별로 구분하여 기재합니다.
② 전기 전자 제품의 경우 모델명 (번호), 자동차의 경우, 제원관리번호를 기재합니다.
③ 해당제품의 제조업자 또는 수입업자를 기재합니다.
Confirmation and Evaluation Form Concerning the Adherence to Acceptable
Standards of Hazardous Materials Contained in Products
Statement
Prepared
by
Company Name:
Nvidia HongKong
Holding Ltd.Korea
branch
Corporate
Identification
Number:
110181-
0036373
Name of Company
Representative:
Karen Theresa Burns
Business Registration
Number:
120-84-
06711
Address
2788 San Tomas Expressway, Santa Clara, CA 95051
Product Information
Product Category:
N/A
Name of Product:
N/A
Detailed Product
Model Name
(Number):
N/A
Date of first market
release:
N/A
Weight of Product:
N/A
Manufacturer
and/or Importer:
NVIDIA Corporation
This for is publicly certify That NVIDIA Company has undergone the confirmation and
evaluation procedures for the acceptable amounts of hazardous materials contained in
graphic card according to the regulations stipulated in Article 3 of the ‘Status on the
Recycling of Electrical and Electronic Products, and Automobiles’ and that company has
graphic card adhered to the Enforcement Regulations of Article 11, Item 1 of the statute.
Attachment: None
＊Preparing the Form
① Please indicate the product category according to the categories listed in Article 8, Items
1and 2 of the ‘ Enforcement Ordinance of the Statute on the Recycling of Electrical,
Electronic and Automobile Materials’
② For electrical and electronic products, please indicate the Model Name (and number).
For automobiles, please indicate the Vehicle Identification Number.
③ Please indicate the name of manufacturer and/or importer of the product.
Taiwan
National Communications Commission
注意！
依據 低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特
性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得
繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
XXXXXXXXXXXXX
X
在5.250~5.350GHz頻帶內操作之無線資訊傳輸設備，限於室內使用
Russia/Kazakhstan/Belarus
Customs Union Technical Regulations (CU TR)
This device complies with the technical regulations of the Customs Union (CU TR)
This device complies with the rules set forth by Federal Agency of Communications and the Ministry of
Communications and Mass Media Federal Security Service notification has been filed.
Federal Security Service notification has been filed.
Singapore
Infocomm Media Development Authority of Singapore (IMDA)
Bluetooth
Declaration ID: D046888
Complies with
IMDA Standards
DA00006A
Wi-Fi ALLIANCE
®
Wi-Fi CERTIFIED™
Certification ID: WFA91178
NOTICES AND TRADEMARKS
The information provided in this document is believed to be accurate and reliable as
of the date provided. However, NVIDIA Corporation (“NVIDIA”) does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information. NVIDIA shall have no liability for the
consequences or use of such information or for any infringement of patents or other
rights of third parties that may result from its use. This publication supersedes and
replaces all other specifications for the product that may have been previously
supplied.
NVIDIA reserves the right to make corrections, modifications, enhancements,
improvements, and other changes to this specification, at any time and/or to
discontinue any product or service without notice. Customer should obtain the latest
relevant specification before placing orders and should verify that such information
is current and complete.
NVIDIA products are sold subject to the NVIDIA standard terms and conditions of
sale supplied at the time of order acknowledgment, unless otherwise agreed in an
individual sales agreement signed by authorized representatives of NVIDIA and
customer. NVIDIA hereby expressly objects to applying any customer general terms
and conditions with regard to the purchase of the NVIDIA product referenced in this
specification.
NVIDIA products are not designed, authorized or warranted to be suitable for use in
medical, military, aircraft, space or life support equipment, nor in applications where
failure or malfunction of the NVIDIA product can reasonably be expected to result in
personal injury, death or property or environmental damage. NVIDIA accepts no
liability for inclusion and/or use of NVIDIA products in such equipment or
applications and therefore such inclusion and/or use is at customer’s own risk.
NVIDIA makes no representation or warranty that products based on these
specifications will be suitable for any specified use without further testing or
modification. Testing of all parameters of each product is not necessarily performed
by NVIDIA. It is customer’s sole responsibility to ensure the product is suitable and fit
for the application planned by customer and to do the necessary testing for the
application in order to avoid a default of the application or the product. Weaknesses
in customer’s product designs may affect the quality and reliability of the NVIDIA
product and may result in additional or different conditions and/or requirements
beyond those contained in this specification. NVIDIA does not accept any liability
related to any default, damage, costs or problem which may be based on or
attributable to: (i) the use of the NVIDIA product in any manner that is contrary to
this specification, or (ii) customer product designs.
No license, either expressed or implied, is granted under any NVIDIA patent right,
copyright, or other NVIDIA intellectual property right under this specification.
Information published by NVIDIA regarding third-party products or services does not
constitute a license from NVIDIA to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third
party under the patents or other intellectual property rights of the third party, or a
license from NVIDIA under the patents or other intellectual property rights of
NVIDIA. Reproduction of information in this specification is permissible only if
reproduction is approved by NVIDIA in writing, is reproduced without alteration, and
is accompanied by all associated conditions, limitations, and notices.
ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS,
DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY,
“MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES,
EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE
MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF
NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR
PURPOSE. Notwithstanding any damages that customer might incur for any reason
whatsoever, NVIDIA’s aggregate and cumulative liability towards customer for the
products described herein shall be limited in accordance with the NVIDIA terms and
conditions of sale for the product.
HDMI
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
ARM
ARM, AMBA and ARM Powered are registered trademarks of ARM Limited. Cortex,
MPCore and Mali are trademarks of ARM Limited. All other brands or product names
are the property of their respective holders. ʺARMʺ is used to represent ARM
Holdings plc; its operating company ARM Limited; and the regional subsidiaries ARM
Inc.; ARM KK; ARM Korea Limited.; ARM Taiwan Limited; ARM France SAS; ARM
Consulting (Shanghai) Co. Ltd.; ARM Germany GmbH; ARM Embedded Technologies
Pvt. Ltd.; ARM Norway, AS and ARM Sweden AB.
OpenCL
OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc.
Dolby
Dolby, Dolby Atmos, Dolby Audio, Dolby Vision and the double-D symbol are
trademarks of Dolby Laboratories.
Trademarks
NVIDIA, the NVIDIA logo, GeForce, and SHIELD TV are trademarks and/or registered
trademarks of NVIDIA Corporation in the U.S. and other countries. Other company
and product names may be trademarks of the respective companies with which they
are associated.
Google, Android, and Gmail are trademarks and/or registered trademarks of Google
Inc.
The Bluetooth® word, mark, and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks is under license.
Wi-Fi CERTIFIED and Wi-Fi CERTIFIED Miracast are registered marks of the Wi-Fi
Alliance.
Steam is a trademark of Valve.
Other trademarks and trade names are those of their respective owners.
Copyright
© 2015 NVIDIA Corporation. All rights reserved.
