OWNER'S MANUAL

This is the main product document for model W1820.

The file format is pdf, 96 pages, you can download this manual here .

background
OWNER'S MANUAL
(FOR MODELS MANUFACTURED SINCE 09/11)
MODEL W1819/W1820
10" CABINET SAW
Phone: (360) 734-3482 • Online Technical Support: [email protected]
COPYRIGHT © JULY, 2010 BY WOODSTOCK INTERNATIONAL, INC.  REVISED APRIL, 2018 (HE)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#13060TRBLTSJB Printed in China
232857
background
This manual provides critical safety instructions on the proper setup,
operation, maintenance, and service of this machine/tool. Save this
document, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual
may result in fire or serious personal injury—including amputation,
electrocution, or death.
The owner of this machine/tool is solely responsible for its safe use.
This responsibility includes but is not limited to proper installation in
a safe environment, personnel training and usage authorization,
proper inspection and maintenance, manual availability and compre-
hension, application of safety devices, cutting/sanding/grinding tool
integrity, and the usage of personal protective equipment.
The manufacturer will not be held liable for injury or property
damage from negligence, improper training, machine modifications or
misuse.
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
Work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.
background
SET UPELECTRICAL MAINTENANCE
SERVICE PARTS
OPERATIONS
SAFETYINTRODUCTION
USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!
INTRODUCTION......................................2
Contact Info ....................................... 2
Manual Accuracy .................................. 2
Controls and Features ........................... 3
Model W1819 Specifications .................... 4
Model W1820 Specifications .................... 7
SAFETY.............................................. 10
Standard Machinery Safety Instructions .... 10
Additional Safety for Table Saws ............ 12
Preventing Kickback ........................... 13
Protecting Yourself From Kickback .......... 13
Glossary of Terms .............................. 14
ELECTRICAL........................................ 15
Circuit Requirements .......................... 15
Grounding Requirements ...................... 16
Extension Cords ................................ 16
SETUP............................................... 17
Unpacking ....................................... 17
Items Needed for Setup ....................... 17
Inventory ........................................ 18
Fence Inventory W1819 ....................... 19
Fence Inventory W1820 ....................... 20
Machine Placement ............................ 21
Cleaning Machine ............................... 21
Assembly ......................................... 22
Dust Collection ................................. 29
Test Run .......................................... 30
OPERATIONS....................................... 31
General .......................................... 31
Basic Controls ................................... 31
Non-Through & Through Cuts ................ 32
Blade Selection ................................. 33
Blade Installation .............................. 35
Blade Guard Assembly ......................... 36
Riving Knife ..................................... 38
Workpiece Inspection .......................... 39
Ripping ........................................... 40
Crosscutting ..................................... 41
Miter Cuts ....................................... 42
Miter Fence ..................................... 42
Flip Stop ......................................... 43
Blade Tilt & Bevel Cuts........................ 43
Dado Cutting .................................... 44
Rabbet Cutting ................................. 47
Resawing ......................................... 49
Table Saw Accessories ......................... 53
SHOP-MADE.SAFETY.ACCESSORIES............. 55
Featherboards .................................. 55
Push Sticks ...................................... 58
Push Blocks ...................................... 59
Narrow-Rip Auxiliary Fence & Push Block .. 60
Outfeed & Support Tables .................... 62
Crosscut Sled .................................... 62
MAINTENANCE..................................... 63
Schedule ......................................... 63
Cleaning ......................................... 63
Lubrication ...................................... 64
SERVICE............................................. 65
General .......................................... 65
Blade Tilt Stops ................................. 65
Miter Slot to Blade Parallelism ............... 67
Spreader or Riving Knife Alignment ......... 68
Fence Adjustments ............................. 70
Fence Scale Calibration ....................... 72
Miter Gauge Adjustments ..................... 73
Belt Tension & Replacement ................. 74
Electrical Safety Instructions ................. 75
Model W1819/W1820 Wiring Diagram ....... 76
Troubleshooting ................................. 77
PARTS............................................... 79
Body .............................................. 79
Trunnion ......................................... 81
Blade Guard ..................................... 84
Miter Gauge ..................................... 85
Fence ............................................. 86
W1819 Extension Wing & Rails ............... 87
W1820 Extension Wing & Rails ............... 88
Machine Labels ................................. 89
WARRANTY......................................... 93
Contents
background
-2-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
INTRODUCTION
We are proud to provide a high-quality owner’s
manual with your new machine!
We
made every effort to be exact with
the
instructions, specifications, drawings, and pho-
tographs contained inside. Sometimes we make
mistakes, but our policy of continuous improve-
ment
also means that sometimes. the
. machine.
you.receive.will.be.slightly.different.than.what.
is.shown.in.the.manual
.
If you find this to be the case, and the difference
between the manual and machine leaves you
confused about a procedure
,
check our website
for an updated version. W
e post current
manuals
and
manual updates for free
on our website at
www.
woodstockint.com.
Alternatively, you can call our Technical Support
for help. Before calling, make sure you write
down the
Manufacture.Date and Serial.Number
from the machine ID label (see below). Also, if
available, have a copy of your original.purchase.
receipt on hand. This information is required for
all Tech Support calls.
MODEL XXXX
MACHINE NAME
Motor:
Specification:
Specification:
Specification:
Specification:
Weight:
Specifications
To reduce risk of serious personal injury when using this
machine:
1. Read & understand owner’s manual before operating.
2. Always wear approved eye protection and respirator.
3. Only plug power cord into a grounded outlet.
4. Only use this machine to collect wood dust/chips—never
use to collect glass, metal, liquids, asbestos, silica,
animal parts, biohazards, burning material/ashes, etc.
5. Always disconnect power before servicing or cleaning.
6. Do not expose to rain or wet areas.
7. Keep hands, long hair, and loose clothing away from
inlet.
8. Never leave machine unattended while it is running.
9. Do not use if cord/plug becomes damaged—promptly
repair and protect cord from future damage.
10. Do not use without dust bag or filters in place.
11. Always wear a respirator when emptying bags.
12. Prevent unauthorized use by children or untrained users.
Date
Serial Number
Manufactured for Woodstock in Taiwan
WARNING!
Manufacture
Date
Serial Number
Ma n ual.Accuracy
We are committed to customer satisfaction. If
you have any questions or need help, use the
information below to contact us.
IMPORTANT:.Before.contacting,.please.get.the.
original.purchase. receipt,. serial.number,. and.
manufacture.date.of.your.machine..This.infor-
mation. is. required. for. all. Technical. Support.
calls.and.it.will.help.us.help.you.faster..
Woodstock International Technical Support
Phone: (360) 734-3482
Email: [email protected]
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Technical Documentation Manager
P.O. Box 2309
Bellingham, WA 98227
Email: [email protected]
Contact.Info
background
-3-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
Controls.and.Feat ures

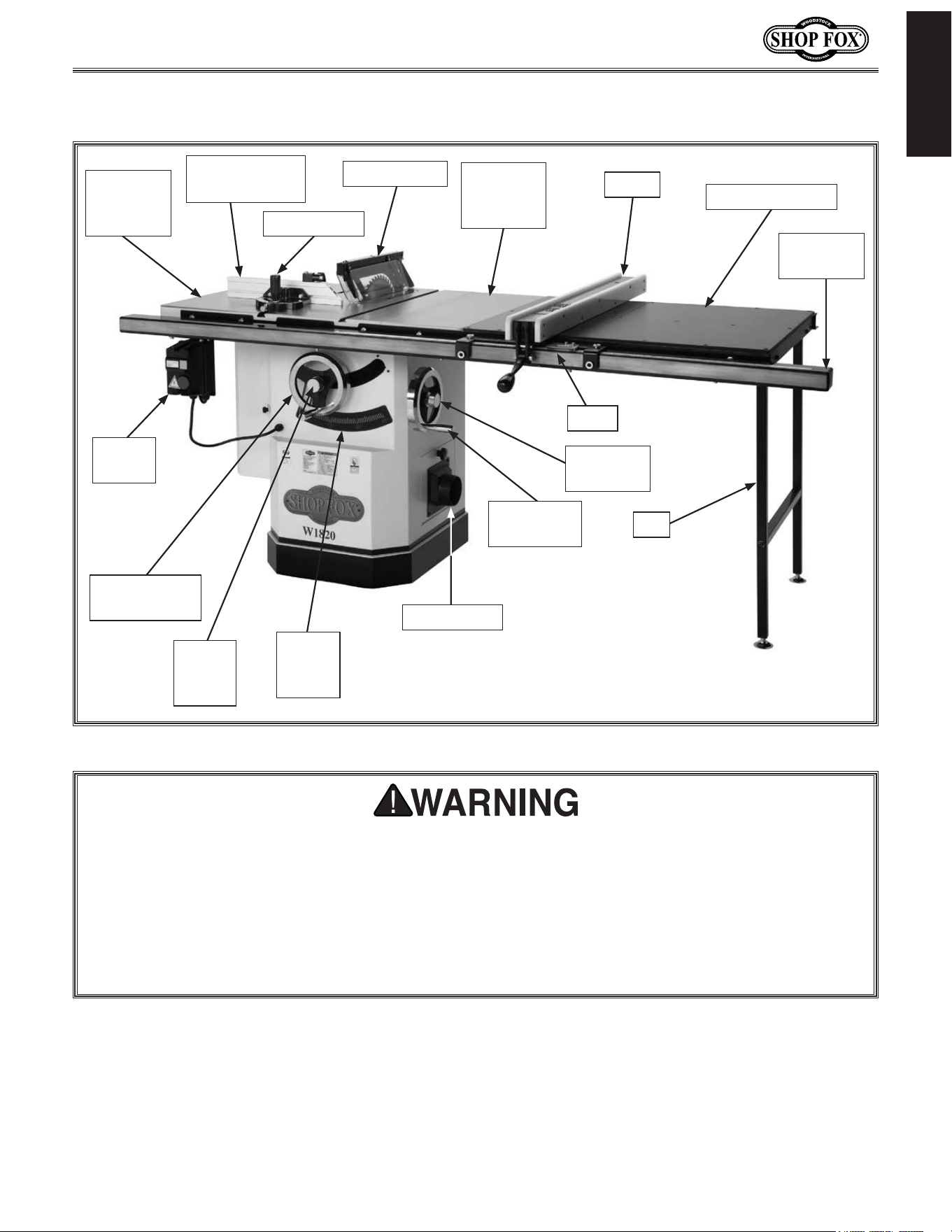

Figure.1..Identification (Model W1820 shown).
Front Rail
Tube
Fence
Extension Table
Blade
Height
Lock
Blade Height
Handwheel
Blade Tilt
Lock
Blade Guard
Scale
Left
Extension
Wing
Right
Extension
Wing
On/Off
Switch
Leg
Blade Tilt
Handwheel
Table
Tilt
Scale
4" Dust Port
Miter Fence
with Flip Stop
Miter Gauge
For Your Own Safety Read Instruction Manual Before Operating Jointer
a). Wear.eye.protection.
b). Always.keep.cutterhead.and.drive.guards.in.place.and.in.proper.operating.condition..
ALWAYS.replace.cutterhead.guard.after.rabbeting.operations.
c). Never.make.jointing.or.rabbeting.cuts.deeper.than.
1
⁄8".or.planing.cuts.deeper.than.
1
⁄16"
d). Always.use.hold-down.or.push.blocks.when.jointing.material.narrower.than.3".or.surface.
planing.material.thinner.than.3".
e). Never.perform.jointing,.planing,.or.rabbeting.cuts.on.pieces.shorter.than.8".in.length.
background
-4-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
Model W1819 Machine Specifications, Page 1 of 3
MODEL W1819
10" 3 HP CABINET TABLE SAW WITH RIVING KNIFE
Product Dimensions
Weight.......................................................................................................... 507 lbs.
Width (side‐to‐side) x Depth (front‐to‐back) x Height................................... 62 x 45‐1/2 x 40 in.
Footprint (Length x Width)......................................................................... 22‐1/4 x 20 in.
Shipping Dimensions
Carton #1
Type........................................................................... Cardboard Box on Wood Skids
Content.......................................................................... Machine & Table Extension
Weight................................................................................................... 457 lbs.
Length x Width x Height..................................................................... 40 x 30 x 32 in.
Carton #2
Type............................................................................................. Cardboard Box
Content.................................................................................................... Fence
Weight.................................................................................................... 25 lbs.
Length x Width x Height...................................................................... 42 x 17 x 7 in.
Carton #3
Type............................................................................................. Cardboard Box
Content..................................................................................................... Rails
Weight.................................................................................................... 45 lbs.
Length x Width x Height....................................................................... 68 x 7 x 5 in.
Electrical
Power Requirement.................................................................... 230V, Single‐Phase, 60 Hz
Prewired Voltage................................................................................................. 230V
Full‐Load Current Rating....................................................................................... 12.8A
Minimum Circuit Size............................................................................................. 20A
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length............................................................................................... 6 ft.
Power Cord Gauge............................................................................................ 14 AWG
Plug Included....................................................................................................... Yes
Included Plug Type............................................................................................... 6‐20
Switch Type............................................................ Magnetic Switch w/Overload Protection
background
-5-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
Model W1819 Machine Specifications, Page 2 of 3
Motors
Main
Horsepower................................................................................................. 3 HP
Phase.............................................................................................. Single‐Phase
Amps....................................................................................................... 12.8A
Speed.................................................................................................. 3450 RPM
Type......................................................................... TEFC Capacitor‐Start Induction
Power Transfer ........................................................................... Triple V‐Belt Drive
Bearings............................................................... Shielded & Permanently Lubricated
Main Specifications
Main Information
Table Saw Type........................................................................................ Cabinet
Maximum Blade Diameter............................................................................... 10 in.
Arbor Size................................................................................................ 5/8 in.
Arbor Speed.......................................................................................... 4300 RPM
Maximum Width of Dado............................................................................ 13/16 in.
Blade Tilt Direction........................................................................................ Left
Max Blade Tilt.......................................................................................... 45 deg.
Maximum Depth of Cut At 90 Degrees............................................................ 3‐1/8 in.
Maximum Depth of Cut At 45 Degrees........................................................... 2‐3/16 in.
Max Rip Right of Blade w/Included Fence & Rails............................................. 29‐1/2 in.
Max Rip Left of Blade w/Included Fence & Rails.............................................. 13‐1/2 in.
Additional Blade Information
Included Blade Information........................................................................ 10" x 40T
Riving Knife/Spreader Thickness................................................................... 0.100 in.
Required Blade Body Thickness........................................................... 0.071 – 0.094 in.
Required Blade Kerf Thickness............................................................ 0.102 – 0.126 in.
Rim Speed at Max Blade Diameter.............................................................. 11,300 FPM
Table Information
Floor to Table Height.................................................................................... 34 in.
Table Size with Extension Wings Width......................................................... 53‐3/8 in.
Table Size with Extension Wings Depth............................................................... 27 in.
Distance Front of Table to Center of Blade..................................................... 17‐1/8 in.
Distance Front of Table to Blade At Maximum Cut............................................ 12‐1/2 in.
Main Table Size Thickness.......................................................................... 1‐7/8 in.
Fence Information
Fence Type................................................................. Camlock T‐Shape w/HDPE Face
Fence Size Length................................................................................. 39‐5/16 in.
Fence Size Width..................................................................................... 3‐7/8 in.
Fence Size Height.................................................................................... 2‐1/2 in.
Fence Rail Type......................................................................... Square Steel Tubing
Fence Rail Length........................................................................................ 62 in.
Fence Rail Width..................................................................................... 2‐3/4 in.
Fence Rail Height.......................................................................................... 2 in.
Miter Gauge Information
Miter Gauge Slot Type.................................................................................. T‐Slot
Miter Gauge Slot Size Width.......................................................................... 3/4 in.
Miter Gauge Slot Size Height.......................................................................... 3/8 in.
background
-6-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
Model W1819 Machine Specifications, Page 3 of 3
Construction
Table............................................................................. Precision‐Ground Cast Iron
Wings............................................................................. Precision‐Ground Cast Iron
Cabinet...................................................................................... Pre‐Formed Steel
Trunnions.............................................................................................. Cast Iron
Fence Assembly................................................................ Steel with HDPE Side Plates
Rails......................................................................................................... Steel
Miter Guage Construction......................................................... Cast Iron with Steel Bar
Guard......................................................................................... Steel and Plastic
Body/Cabinet Paint Type/Finish........................................................... Powder Coated
Arbor Bearings.......................................................... Sealed & Permanently Lubricated
Other Related Information
Number of Dust Ports......................................................................................... 1
Dust Port Size.............................................................................................. 4 in.
Compatible Mobile Base............................................................................... D2057A
Other
Country of Origin ............................................................................................... China
Warranty ....................................................................................................... 2 Years
Approximate Assembly & Setup Time ...................................................................... 1 Hour
Serial Number Location ...................................................................... ID Label on Cabinet
ISO 9001 Factory .................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................... Yes
Features
T‐slot miter gauge with extruded aluminum fence and flip stop
Precision‐Ground Cast‐Iron Table
Cast‐Iron Trunnions
4" Dust Port
Riving Knife and Blade Guard
Camlock T‐Shaped Fence with HDPE Face
Quick‐Release Device for Changing Guard/Riving Knife
Powder Coated Paint
Standard and Dado Table Inserts
Quick Release Riving Knife
Quick Release Motor Guard
Quick Release Splitter Assembly
Easy Glide Fence System
Knurled Knobs for Adjusting Fence
Nylon Runners Inside Fence Head Assembly
Recessed Screw Holding Table Insert
background
-7-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
Model W1820 Machine Specifications, Page 1 of 3
MODEL W1820
10" 3 HP CABINET TABLE SAW WITH RIVING KNIFE AND LONG RAILS
Product Dimensions
Weight.......................................................................................................... 546 lbs.
Width (side‐to‐side) x Depth (front‐to‐back) x Height................................... 82 x 45‐1/2 x 40 in.
Footprint (Length x Width)......................................................................... 22‐1/4 x 20 in.
Shipping Dimensions
Carton #1
Type........................................................................... Cardboard Box on Wood Skids
Content.......................................................................... Machine & Table Extension
Weight................................................................................................... 474 lbs.
Length x Width x Height..................................................................... 33 x 30 x 40 in.
Carton #2
Type............................................................................................. Cardboard Box
Content.................................................................................................... Fence
Weight.................................................................................................... 24 lbs.
Length x Width x Height...................................................................... 43 x 17 x 8 in.
Carton #3
Type............................................................................................. Cardboard Box
Content..................................................................................................... Rails
Weight.................................................................................................... 69 lbs.
Length x Width x Height....................................................................... 90 x 7 x 5 in.
Electrical
Power Requirement.................................................................... 230V, Single‐Phase, 60 Hz
Prewired Voltage................................................................................................. 230V
Full‐Load Current Rating....................................................................................... 12.8A
Minimum Circuit Size............................................................................................. 20A
Connection Type......................................................................................... Cord & Plug
Power Cord Included.............................................................................................. Yes
Power Cord Length............................................................................................... 6 ft.
Power Cord Gauge............................................................................................ 14 AWG
Plug Included....................................................................................................... Yes
Included Plug Type............................................................................................... 6‐20
Switch Type............................................................ Magnetic Switch w/Overload Protection
background
-8-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
Model W1820 Machine Specifications, Page 2 of 3
Motors
Main
Horsepower................................................................................................. 3 HP
Phase.............................................................................................. Single‐Phase
Amps....................................................................................................... 12.8A
Speed.................................................................................................. 3450 RPM
Type......................................................................... TEFC Capacitor‐Start Induction
Power Transfer ........................................................................... Triple V‐Belt Drive
Bearings............................................................... Shielded & Permanently Lubricated
Main Specifications
Main Information
Table Saw Type........................................................................................ Cabinet
Maximum Blade Diameter............................................................................... 10 in.
Arbor Size................................................................................................ 5/8 in.
Arbor Speed.......................................................................................... 4300 RPM
Maximum Width of Dado............................................................................ 13/16 in.
Blade Tilt Direction........................................................................................ Left
Max Blade Tilt.......................................................................................... 45 deg.
Maximum Depth of Cut At 90 Degrees............................................................ 3‐1/8 in.
Maximum Depth of Cut At 45 Degrees........................................................... 2‐3/16 in.
Max Rip Right of Blade w/Included Fence & Rails.................................................. 49 in.
Max Rip Left of Blade w/Included Fence & Rails.............................................. 13‐1/2 in.
Additional Blade Information
Included Blade Information........................................................................ 10" x 40T
Riving Knife/Spreader Thickness................................................................... 0.100 in.
Required Blade Body Thickness........................................................... 0.071 – 0.094 in.
Required Blade Kerf Thickness............................................................ 0.102 – 0.126 in.
Rim Speed at Max Blade Diameter.............................................................. 11,300 FPM
Table Information
Floor to Table Height.................................................................................... 34 in.
Table Size with Extension Wings Width............................................................... 72 in.
Table Size with Extension Wings Depth............................................................... 27 in.
Distance Front of Table to Center of Blade..................................................... 17‐1/8 in.
Distance Front of Table to Blade At Maximum Cut............................................ 12‐1/2 in.
Main Table Size Thickness.......................................................................... 1‐7/8 in.
Fence Information
Fence Type................................................................. Camlock T‐Shape w/HDPE Face
Fence Size Length................................................................................. 39‐5/16 in.
Fence Size Width..................................................................................... 3‐7/8 in.
Fence Size Height.................................................................................... 2‐1/2 in.
Fence Rail Type......................................................................... Square Steel Tubing
Fence Rail Length........................................................................................ 82 in.
Fence Rail Width..................................................................................... 2‐3/4 in.
Fence Rail Height.......................................................................................... 2 in.
Miter Gauge Information
Miter Gauge Slot Type.................................................................................. T‐Slot
Miter Gauge Slot Size Width.......................................................................... 3/4 in.
Miter Gauge Slot Size Height.......................................................................... 3/8 in.
background
-9-
Model W1819/W1820 (Mfg. Since 09/11)
INTRODUCTION
Model W1820 Machine Specifications, Page 3 of 3
Construction
Table............................................................................. Precision‐Ground Cast Iron
Wings............................................................................. Precision‐Ground Cast Iron
Cabinet...................................................................................... Pre‐Formed Steel
Trunnions.............................................................................................. Cast Iron
Fence Assembly................................................................ Steel with HDPE Side Plates
Rails......................................................................................................... Steel
Miter Guage Construction......................................................... Cast Iron with Steel Bar
Guard......................................................................................... Steel and Plastic
Body/Cabinet Paint Type/Finish........................................................... Powder Coated
Arbor Bearings.......................................................... Sealed & Permanently Lubricated
Other Related Information
Number of Dust Ports......................................................................................... 1
Dust Port Size.............................................................................................. 4 in.
Compatible Mobile Base............................................................................... D2057A
Other
Country of Origin ............................................................................................... China
Warranty ....................................................................................................... 2 Years
Approximate Assembly & Setup Time ...................................................................... 1 Hour
Serial Number Location ...................................................................... ID Label on Cabinet
ISO 9001 Factory .................................................................................................. Yes
Certified by a Nationally Recognized Testing Laboratory (NRTL) ......................................... Yes
Features
Precision‐Ground Cast‐Iron Table
Cast‐Iron Trunnions
4" Dust Port
T‐Slot Miter Gauge
Riving Knife and Blade Guard
Camlock T‐Shaped Fence with HDPE Face
Quick‐Release Device for Changing Guard/Riving Knife
Powder Coated Paint
Standard and Dado Table Inserts
Quick Release Riving Knife
Quick Release Motor Guard
Quick Release Splitter Assembly
Easy Glide Fence System
Knurled Knobs for Adjusting Fence
Nylon Runners Inside Fence Head Assembly
T‐Square Type Fence System
Recessed Screw Holding Table Insert
Device on Blade Guard Allows Enabling or Disabling of Anti‐Kickback Pawls
background
-10-
Model W1819/W1820 (Mfg. Since 09/11)
SAFETY
Indicates.a.potentially.hazardous.situation.which,.if.not.avoided,.
MAY.result.in.minor.or.moderate.injury.
Indicates.an.imminently.hazardous.situation.which,.if.not.avoided,.
WILL.result.in.death.or.serious.injury.
Indicates.a.potentially.hazardous.situation.which,.if.not.avoided,.
COULD.result.in.death.or.serious.injury.
This.symbol.is.used.to.alert.the.user.to.useful.information.about.
proper.operation.of.the.equipment.or.a.situation.that.may.cause.
damage.to.the.machinery.
NOTICE
Read and understand this
owner’s manual BEFORE using machine.
Untrained operators
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this
machine. When machine is not being used,
disconnect power, remove switch keys, or
lock-out machine to prevent unauthorized
use—especially around children. Make
workshop kid proof!
Do not use
machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increases the risk of
accidents and injury.
Full mental
alertness is required for safe operation of
machinery. Never operate under the influence
of drugs or alcohol, when tired, or when
distracted.
ELECTRICAL.EQUIPMENT.INJURY.RISKS..You can
be shocked, burned, or killed by touching live
machinery. To reduce this risk, only allow an
electrician or qualified service personnel to
do electrical installation or repair work, and
always disconnect power before accessing or
exposing electrical equipment.
DISCONNECT.POWER.FIRST..Always disconnect
machine from power supply BEFORE making
adjustments, changing tooling, or servicing
machine. This eliminates the risk of injury
from unintended startup or contact with live
electrical components.
EYE.PROTECTION..Always wear ANSI-approved
safety glasses or a face shield when operating
or observing machinery to reduce the risk of
eye injury or blindness from flying particles.
Everyday eyeglasses are not approved safety
glasses.
St and ard.Machinery.S afety.Instructions
For.Your.Own.Safety,
Read.Ma n ual.Before.Operat ing.Ma chine
The. purpose. of. s afety. symbols. is. to. attract. your. attention. to. possible. hazardous. conditions.. This.
themselves.do.not.eliminate. danger. and. are.not.a.substitute.for.proper.accident. prevention. mea-
sures—this.responsibility.is.ultimately.up.to.the.operator!
SAFETY
St and ard.Machinery.Safety.Instructions
background
-11-
Model W1819/W1820 (Mfg. Since 09/11)
SAFETY
clothing, apparel, or jewelry that can become
entangled in moving parts. Always tie back
or cover long hair. Wear non-slip footwear to
avoid accidental slips, which could cause loss
of workpiece control.
.DUST..Dust created while using
machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material, and always wear a NIOSH-approved
respirator to reduce your risk.
Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing loss.
Tools left on
machinery can become dangerous projectiles
upon startup. Never leave chuck keys,
wrenches, or any other tools on machine.
Always verify removal before starting!
Only use machine for its
intended purpose—never make modifications
without prior approval from Woodstock
International. Modifying machine or using
it differently than intended will void the
warranty and may result in malfunction or
mechanical failure that leads to serious
personal injury or death!
Keep proper footing and
balance at all times when operating machine.
Do not overreach! Avoid awkward hand
positions that make workpiece control difficult
or increase the risk of accidental injury.
Keep children and
bystanders at a safe distance from the work
area. Stop using machine if they become a
distraction.
which it was designed.
NEVER.STAND.ON.MACHINE..Serious injury may
occur if machine is tipped or if the cutting
tool is unintentionally contacted.
STABLE.MACHINE..
operation greatly increases risk of injury or
is stable and mobile base (if used) is locked.
USE.RECOMMENDED.ACCESSORIES..Consult
this owner’s manual or the manufacturer for
recommended accessories. Using improper
accessories will increase risk of serious injury.
UNATTENDED.OPERATION..To reduce the risk
of accidental injury, turn machine OFF and
ensure all moving parts completely stop
before walking away. Never leave machine
running while unattended.
MAINTAIN.WITH.CARE..Follow all maintenance
instructions and lubrication schedules to
keep machine in good working condition. A
machine that is improperly maintained could
or death.
CHECK.DAMAGED.PARTS..Regularly inspect
machine for any condition that may affect
safe operation. Immediately repair or replace
damaged or mis-adjusted parts before
operating machine.
MAINTAIN.POWER.CORDS..When disconnecting
cord-connected machines from power, grab
and pull the plug—NOT the cord. Pulling the
cord may damage the wires inside, resulting
in a short. Do not handle cord/plug with wet
hands. Avoid cord damage by keeping it away
chemicals, and wet/damp locations.
background
-12-
Model W1819/W1820 (Mfg. Since 09/11)
SAFETY
Additional.Safety.for.Table.Saws
Serious cuts, amputation, or death can occur from contact with rotating saw blade during
operation. Workpieces, broken blades, or flying particles thrown by blade can blind or strike
operators or bystanders with deadly force. To reduce the risk of these hazards, operator and
bystanders MUST completely heed the hazards and warnings below.
FENCE. To reduce risk of kickback, make sure
fence remains properly adjusted and parallel with
blade. Always lock fence before using.
CUT-OFF PIECES. To avoid risk of injury due to
blade contact, turn saw OFF and allow blade to
near blade or trapped between blade and table
pieces away from blade while saw is running.
BLADE ADJUSTMENTS. Adjusting blade height
or tilt during operation increases risk of crashing
blade and sending metal fragments flying with
adjust blade height and tilt when blade is com-
pletely stopped and saw is OFF.
CHANGING BLADES. Accidental startup while
changing saw blade can result in serious injury.
To reduce risk of accidental blade contact, always
disconnect power before changing blades.
DAMAGED SAW BLADES. Damaged saw blade
teeth can become deadly projectiles. Never use
blades that have been dropped or damaged.
DADO AND RABBET OPERATIONS. Dado and
rabbeting operations require special attention
since they must be performed with blade guard
removed, which increases risk of blade contact.
DO NOT attempt dado or rabbeting operations
without first reading these sections in this man-
ual.
CUTTING CORRECT MATERIAL. Cutting metal,
glass, stone, tile, etc., increases risk of operator
injury due to kickback or flying particles. Only cut
natural and man-made wood products, laminate-
covered wood products, and some plastics. Never
cut materials not intended for this saw.
HAND & BODY POSITIONING. Keep hands away
from saw blade and out of blade path during
operation, so they cannot accidentally slip into
blade. Only operate at front of machine and
always stand to side of blade path. Never reach
behind or over blade.
BLADE GUARD. The blade guard protects opera-
tor from rotating saw blade. Make sure blade
guard is installed, adjusted correctly, and used
for all possible “through cuts.” Promptly repair or
replace if damaged. Re-install immediately after
operations that require its removal.
RIVING KNIFE. Use riving knife for all “non-
through cuts.” Make sure it is aligned and posi-
tioned correctly. Promptly repair or replace it if
damaged.
KICKBACK. Kickback occurs when saw blade
ejects workpiece back toward operator. Know
how to reduce risk of kickback, and learn how to
protect yourself if it does occur.
FEEDING WORKPIECE. Feeding workpiece incor-
rectly increases risk of kickback. Always allow
blade to reach full speed before cutting, feed
workpiece from front of saw, making sure work-
piece is flat against table and a fence, miter
gauge, or other guide is used to feed workpiece in
a straight line. Feed cuts through to completion.
Never start saw with workpiece touching blade
or pull workpiece from behind blade. Never back
workpiece out of cut, move it sideways, or per-
form a “freehand” operation. Never plunge cut.
PUSH STICKS/PUSH BLOCKS. To reduce risk of
accidental blade contact, use push sticks/push
blocks whenever possible. In event of an acci-
dent, these will often take damage that would
have occurred to hands/fingers.
background
-13-
Model W1819/W1820 (Mfg. Since 09/11)
SAFETY
Statistics. show. that. most. common. acci-
dents.among.table.saw.users.can.be.linked.
to.kickback..Kickback.is.typically.defined.
as. the. high-speed. ejection. of. stock. from.
the. table. saw. toward. its. operator.. In.
addition. to. the. danger. of. the. operator.
or.others.in.the.area.being.struck.by.the.
flying.stock,.it. is. often.the.case.that.the.
operator’s.hands.are.pulled.into.the.blade.
during.the.kickback.
Below.are.ways.to.avoid.the.most.common.
causes.of.kickback:
• Only cut workpieces with at least one
smooth and straight edge. DO NOT cut
warped, cupped or twisted wood.
• Keep the blade guard installed and working
correctly for all through-cuts.
• Never attempt freehand cuts. If the
workpiece is not fed parallel with the
blade, kickback will likely occur. Always use
the rip fence or miter gauge to support the
workpiece.
• Make sure the spreader or riving knife
is aligned with the blade. A misaligned
spreader or riving knife can cause the
workpiece to catch or bind, increasing the
chance of kickback.
• Take the time to check and adjust the rip
fence parallel with the blade; otherwise,
the chances of kickback are extreme.
• The spreader or riving knife maintains the
kerf in the workpiece, reducing the chance
of kickback. Always use the riving knife for
all non-through operations, unless a dado
blade is installed. Always use the spreader
with the blade guard for all through cuts.
• Feed cuts through to completion. Anytime
you stop feeding a workpiece in the middle
of a cut, the chance of kickback is greatly
increased.
• Keep the blade guard installed and in good
working order. Only remove it when per-
forming non-through cuts and immediately
re-install the blade guard when finished.
Remember, always use the riving knife for all
non-through operations, unless a dado blade
is installed.
• Make multiple, shallow passes when per-
forming a non-through cut. Making a deep
non-through cut will greatly increase the
chance of kickback.
Preventing.Kickback
Even.if.you.know.how.to.prevent.kickback,.
it.may.still.happen..Here.are.some.ways.to .
protect.yourself.if.kickback.DO E S.o ccur:
• Stand to the side of the blade during every
cut. If kickback does occur, the thrown
workpiece usually travels directly in front
of the blade.
• Wear safety glasses or a face shield. In the
event of kickback, your eyes and face are
the most vulnerable part of your body.
• Never, for any reason, place your hand
behind the blade. Should kickback occur,
your hand may be pulled into the blade,
which could cause amputation.
• Use a push stick to keep your hands farther
away from the moving blade. If kickback
occurs, the push stick will most likely take
the damage that your hand would have
received.
• Use featherboards or anti-kickback devices
to prevent or slow down kickback.
Protecting.Yourself.
From.Kickback
• Never move the workpiece backwards or
try to back it out of a cut while the blade
is moving. If you cannot complete a cut for
some reason, stop the saw motor and allow
the blade to completely stop before backing
the workpiece out. Promptly fix the condi-
tion that prevented you from completing
the cut before starting the saw again.
background
-14-
Model W1819/W1820 (Mfg. Since 09/11)
SAFETY
The following is a list of common definitions, terms and phrases used throughout this manual as they relate
to this table saw and woodworking in general. Become familiar with these terms for assembling, adjusting
or operating this machine.
Glossary.of.Terms
Arbor: Rotating metal shaft to which saw blade
is mounted that extends from the drive
mechanism.
Bevel Edge Cut: Tilting the arbor and saw
blade to an angle between 0° and 45° to
cut a beveled edge onto a workpiece.
Blade Guard: Metal or plastic safety device
that mounts over the saw blade. Its
function is to prevent the operator from
coming into contact with the saw blade.
Crosscut: Cutting operation in which the fence
is used to cut across the grain, or the miter
gauge is used to cut across the shortest
width of the workpiece.
Dado Blade: Blade or set of blades that are
used to cut wide grooves and rabbets.
Dado Cut: "Non-through" cutting operation that
uses a dado blade to cut a flat-bottomed
groove into the face of the workpiece.
Featherboard: Safety device used to keep the
workpiece against the rip fence and table
surface.
Kerf: The resulting cut or gap in the workpiece
after the saw blade passes through during
a cutting operation.
Kickback: An event in which the workpiece is
propelled back towards the operator at a
high rate of speed.
Parallel: Being an equal distance apart at every
point along two given lines or planes. I.e.
the rip fence face is parallel to the face of
the saw blade.
Non-Through.Cut: A cut in which the blade
does not cut through the top of the
workpiece. Refer to Page.32 for more
details.
Perpendicular: Lines or planes that intersect
and form right angles. I.e. the blade is
perpendicular to the table surface.
Push.Stick: Safety device used to push the
workpiece through a cutting operation.
Used most often when rip cutting thin
workpieces.
Rabbet: Cutting operation that creates an
L-shaped channel along the edge of the
workpiece.
Riving.Knife: Metal plate located behind the
blade. It maintains the kerf opening in the
wood when performing a cutting operation.
Refer to Page.38 for more details.
Straightedge: A tool used to check the flatness,
parallelism, or consistency of a surface(s).
Through.Cut: A sawing operation in which the
workpiece is completely sawn through.
Rip.Cut: Cutting operation in which the rip
fence is used to cut with the grain, or
across the widest width of the workpiece.
background
-15-
Model W1819/W1820 (Mfg. Since 09/11)
ELECTRICAL
ELECTRICAL
Circuit.Requirements
This machine must be connected to the correct size and
type of power supply circuit, or fire or electrical damage
may occur. Read through this section to determine if an
adequate power supply circuit is available. If a correct
circuit is not available, a qualified electrician MUST install
one before you can connect the machine to power.
A power supply circuit includes all electrical equipment
between the breaker box or fuse panel in the building
and the machine. The power supply circuit used for
this machine must be sized to safely handle the full-
load current drawn from the machine for an extended
period of time. (If this machine is connected to a circuit
protected by fuses, use a time delay fuse marked D.)
Circuit.Requirements
This machine is prewired to operate on a 220V power
supply circuit that has a verified ground and meets the
following requirements:
Circuit. Type................220V/240V,.60.Hz,.Single-Phase
Circuit.Size.............................................. 20.Amps
Plug/Receptacle..................................... NEMA.6-20
Full-Load.Current.Rating
The full-load current rating is the amperage a machine
draws at 100% of the rated output power. On machines
with multiple motors, this is the amperage drawn by the
largest motor or sum of all motors and electrical devices
that might operate at one time during normal operations.
Full-Load.Current.Rating............................12.8.Amps
The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instructed to do later in
this manual.
Incorrectly wiring or grounding this
machine can cause electrocution, fire,
or machine damage. To reduce this risk,
only an electrician or qualified service
personnel should do any required
electrical work on this machine.
NOTICE
The.circuit. requirements.listed. in. this.
manual. apply. to
.a.dedicated.circuit—
where.only.one.machine.will.be.running.
at. a. time.. If. this. machine. will. be.
connected. to. a. shared. circuit. where.
multiple.machines.will.be.running.at.the.
same.time,.consult.with.an.electrician.
to. ensure. that. the. circuit. is. properly.
sized.for.safe.operation.
background
-16-
Model W1819/W1820 (Mfg. Since 09/11)
ELECTRICAL
Grounding.Requirements
Extension.Cords
This machine MUST be grounded. In the event of certain
types of
malfunctions or breakdowns, grounding provides
a path of least resistance for electric current
to travel—in
order
to reduce the risk of electric shock.
Improper connection of the equipment-grounding
wire
will
increase
the risk of electric shock. The wire with green
insulation
(with/without yellow stripes) is the equipment-
grounding
wire. If repair or replacement of the power
cord or plug is necessary, do not connect the equipment-
grounding
wire to a live (current carrying) terminal.
Check with a qualified electrician or service personnel
if
you do not understand these grounding requirements,
or if
you are in doubt about whether the tool is
properly grounded.
If you ever notice that a cord or
plug is damaged or worn, disconnect it from power, and
immediately replace it with a new one.
Grounding Prong
Current Carrying Prongs
6-20 PLUG
GROUNDED
6-20 RECEPTACLE

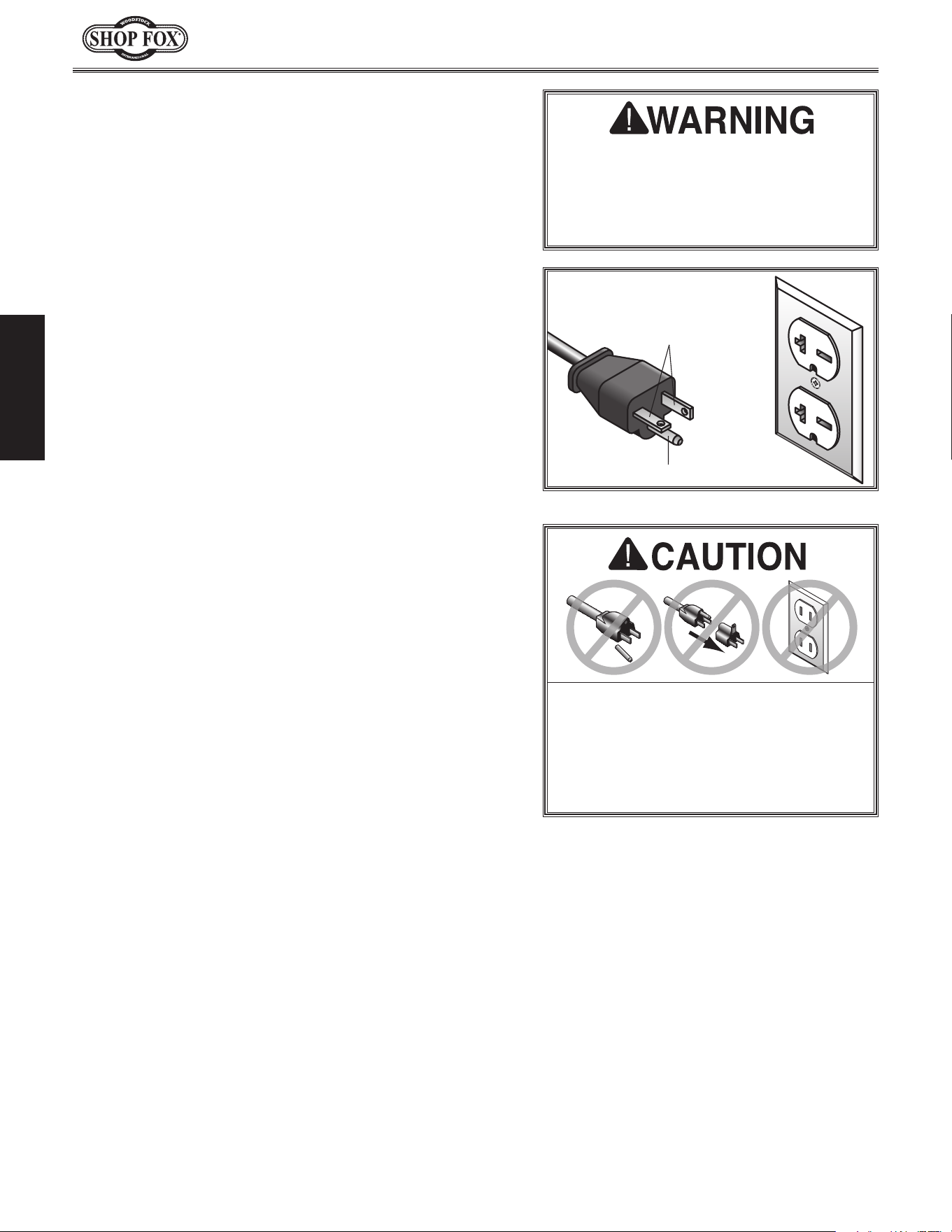

Figure.2. NEMA 6-20 plug & receptacle.
This machine is equipped with a power cord that has an
equipment-grounding
wire and NEM A 6-20 grounding plug.
The plug
must only be inserted into a matching
receptacle
(
see Figure) that is properly installed and grounded in
accordance with local codes and ordinances.
For.220V.Connection
We do not recommend using an extension cord with
this machine. Extension cords cause voltage drop, which
may damage electrical components and shorten motor
life. Voltage drop increases with longer extension cords
and smaller gauge sizes (higher gauge numbers indicate
smaller sizes).
Any extension cord used with this machine must contain a
ground wire
, match the required
plug and receptacle, and
meet the following requirements:
The machine must be properly set up
before it is safe to operate. DO NOT
connect this machine to the power
source until instructed to do later in
this manual.
DO NOT modify the provided plug or
use an adapter if the plug will not
fit the receptacle. Instead, have an
electrician install the proper receptacle
on a power supply circuit that meets
the requirements for this machine.
Minimum.Gauge.Size.at.220V....................... 14.AWG
Maximum.Length.(Shorter.is.Better).................50.ft.
background
-17-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
This machine has been carefully packaged for safe
transportation. If you notice the machine has been
damaged during shipping, please contact your authorized
Shop Fox dealer immediately.
Unpacking
SET UP
The following items are needed, but not included, to
setup your machine.
Description. Qty
• Safety Glasses for Each Person ..........................1
• Degreaser or Solvent for Cleaning ................Varies
• Disposable Rags for Cleaning ......................Varies
• Straightedge ................................................1
• Level .........................................................1
• Dust Collection System ...................................1
• 4" Dust Hose ................................................1
• 4" Hose Clamp ..............................................1
• Assistant for Lifting .......................................1
• Needle Nose Pliers ........................................1
• Wrench or Socket 17mm .................................1
• Wrenches or Sockets 13mm ..............................2
• Wrench or Socket 10mm .................................1
• Wrench 14mm ..............................................1
• Adjustable Wrench ........................................1
Items.Needed.for.Setup
USE. helpers. or. power.
lifting. equipment. to. lift.
this.machine.. Otherwise,.
serious. personal. injury.
may.occur..
Wear. safety. glasses. during. the. entire.
setup.process!
This. machine. presents.
serious. injury. hazards.
to.untrained.users..Read.
through.this.entire.man-
ual. to. become. familiar.
with. the. controls. and.
operations.before. start-
ing.the.machine!
background
-18-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
The following is a description of the main components
shipped each W1819/W1820 model. Lay the components
out to inventory them.
Note:.If you can't find an item on this list, check the
mounting location on the machine or examine the
packaging materials carefully. Occasionally we pre-install
certain components for shipping purposes.
Box.Contents:.(Figures.3–5). Qty
A.. Main Table Saw Unit .......................................1
B.. Extension Wings ............................................2
C. Dust Port ....................................................1
D.. Motor Door ................................ ..................1
E.. Blade Guard Assembly ....................................1
F. Riving Knife .................................................1
G. Miter Fence and Flip Stop ................................1
H. Wrench 27mm ..............................................1
I.. Wrench 22/24mm ..........................................1
J.. Dado Table Insert ..........................................1
K.. Hex Wrench Set (Eight Pieces) 1.5-8mm ...............1
L.. Key 5 x 5 x 40 ..............................................1
M. Handwheel Lock Knob ....................................1
N. Handwheel Handle ........................................1
O. Handwheel ..................................................1
P.. Push Stick ...................................................1
Q.. Saw Blade 10" x 40T .......................................1
Hardware.(Not.Shown)
Qty
• Phillips Head Screw M6-1 x 12 (Magnetic Switch) ....1
• Hex Bolts M6-1 x 12 (Magnetic Switch) ................2
• Lock Washers 6mm (Magnetic Switch) .................3
• Flat Washers 6mm (Magnetic Switch) ..................3
Inventory

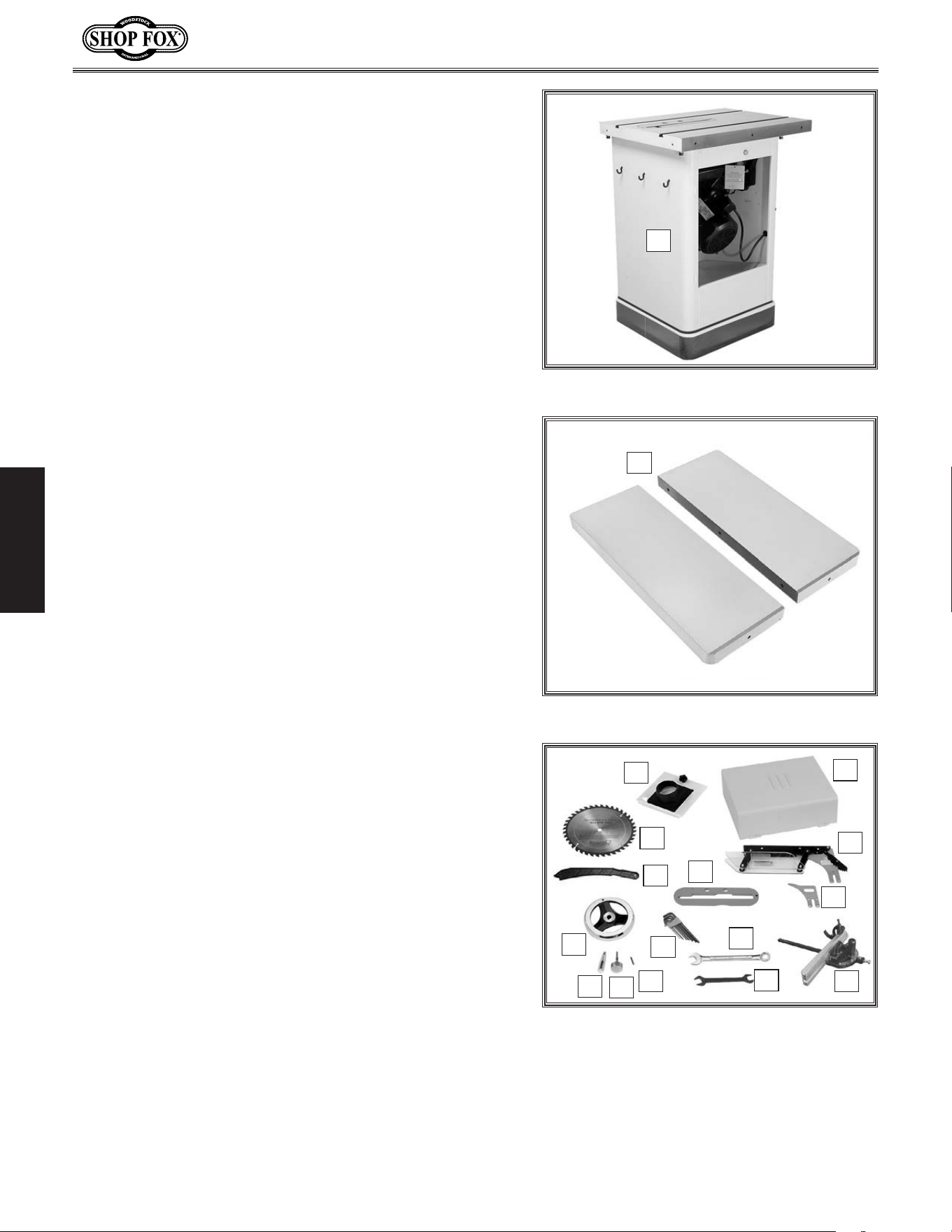

Figure.3. Main table saw unit.
A
Figure.4. Extension wings.
B
Figure.5..Component inventory.
H
O
P
Q
I
J
K
L
M
N
C
D
E
F
G
background
-19-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
Fence.Inventory.W1819
Components. Qty
A. Front Rail Rectangular Tube 62" .........................1
B. Front Rail 50"...............................................1
C. Rear Rail 50" ................................................1
D. Fence Assembly ............................................1
E.. Fence Handle ...............................................1
F. Rear Rail Foot M12-1.75 ..................................1
G. Hex Wrench 6mm ..........................................1
H. Extension Table 27" x 13
3
⁄4" .............................1
I. Front Rail Tape Scale .....................................1
Hardware.and.Tools.(Not.Shown). Qty
• Cap Screws M6-1 x 16 (Front Rail/Tube) ...............3
• Flat Washers 6mm (Front Rail/Tube) ...................3
• Lock Washers (Front Rail/Tube) .........................3
• Hex Bolts M8-1.25 x 40 (Front & Rear Rails) ..........6
• Flat Washers 8mm (Front & Rear Rails) .............. 14
• Lock Washers 8mm (Front & Rear Rails) ...............8
• Hex Nuts M8-1.25 (Front & Rear Rails) ................6
• Hex Bolts
5
⁄16-18 x 1 (Rear Rail).........................2
• Hex Bolts M8-1.25 x 40 (Extension Table) .............4
• Hex Nuts M8-1.25 (Extension Table) ....................4
• Flat Washers 8mm (Extension Table) ...................8
• Lock Washers 8mm (Extension Table) ..................4
Figure.6. Inventory needed to install the
fence on the Model W1819.
E
F
G
A
B
C
D
Figure.7. W1819 extension table.
I
H
background
-20-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
Fence.Inventory.W1820
Components. Qty
A. Front Rail Rectangular Tube 82" .........................1
B. Front Rail 70"...............................................1
C. Rear Rail 70" ................................................1
D. Legs ..........................................................2
E. Fence Assembly ............................................1
F. Hex Wrench 6mm ..........................................1
G. Rear Rail Foot ..............................................1
H. Fence Handle ...............................................1
I. Extension Table ............................................1
J. Front Rail Tape Scale .....................................1
Hardware.and.Tools.(Not.Shown). Qty
• Cap Screws M6-1 x 16 (Front Rail/Tube) ...............5
• Flat Washers 6mm (Front Rail/Tube) ...................5
• Lock Washers (Front Rail/Tube) .........................5
• Hex Bolts M8-1.25 x 40 (Front & Rear Rails) ..........6
• Flat Washers 8mm (Front & Rear Rails) .............. 14
• Lock Washers 8mm (Front & Rear Rails) ...............8
• Hex Nuts M8-1.25 (Front & Rear Rails) ................6
• Hex Bolts
5
⁄16-18 x 1 (Rear Rail).........................2
• Hex Bolts M8-1.25 x 40 (Extension Table) .............6
• Hex Nuts M8-1.25 (Extension Table) ....................6
• Flat Washers 8mm (Extension Table) ................. 12
• Lock Washers 8mm (Extension Table) ..................6
• Cap Screws M8-1.25 x 40 (Legs) .........................6
• Flat Washers 8mm (Legs) ............................... 10
• Lock Washers 8mm (Legs) ................................6
• Hex Nuts M8-1.25 (Legs) .................................4

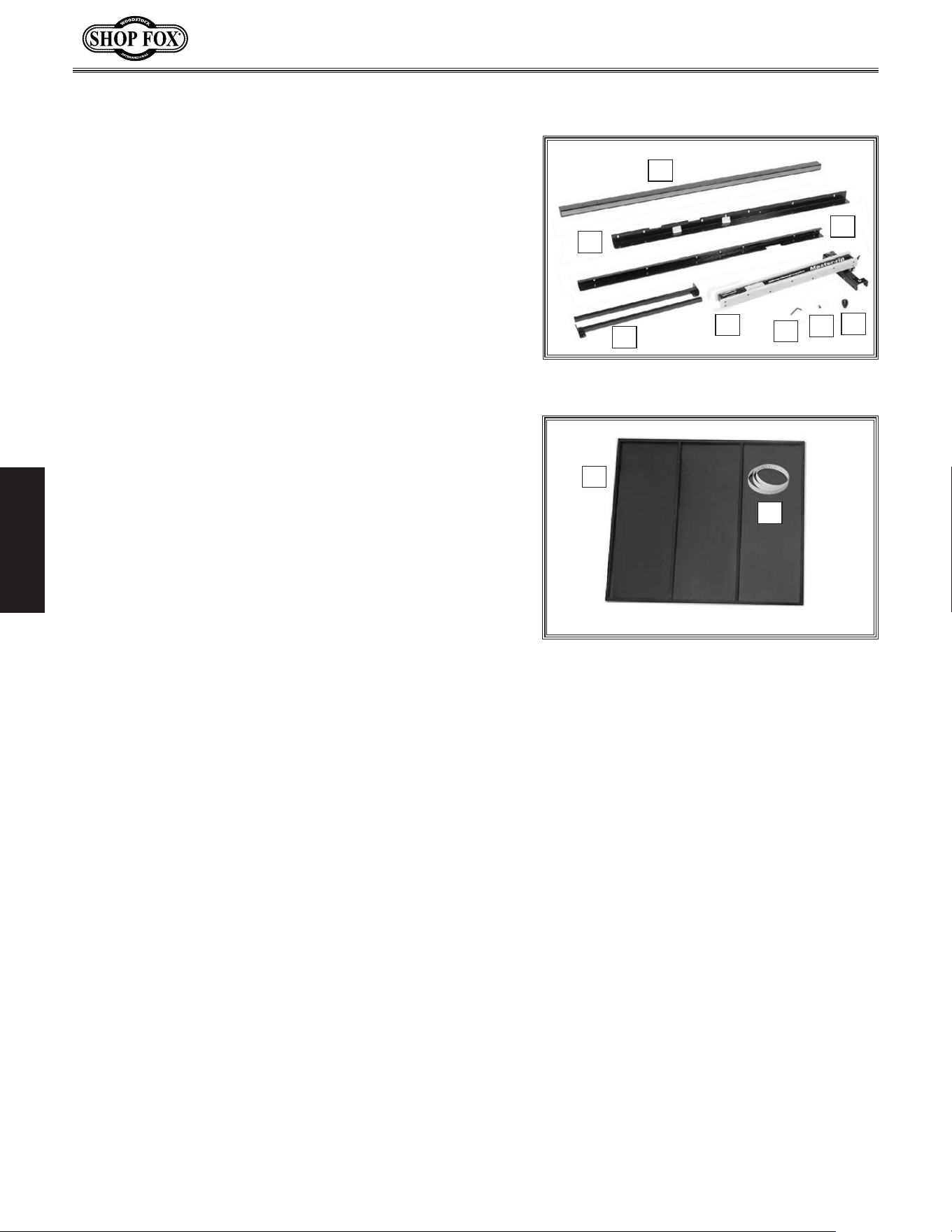

Figure.8. Inventory needed to install the
fence on the Model W1820.
E
F
G
A
B
C
D
H
Figure.9. W1820 extension table.
I
J
background
-21-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
•. Floor. Load: This machine distributes a
heavy load in a small footprint. Some
residential floors may require additional
bracing to support both machine and
operator.
•. Working.Clearances: Consider existing and
anticipated needs, size of material to be
processed through the machine, and space
for auxiliary stands, work tables or other
machinery when establishing a location for
your table saw.
•. Lighting: Lighting should be bright enough
to eliminate shadow and prevent eye strain.
•. Electrical:.Electrical circuits must be
dedicated or large enough to handle
amperage requirements. Outlets must be
located near each machine, so power or
extension cords are clear of high-traffic
areas. Follow local electrical codes for
proper installation of new lighting, outlets,
or circuits.
MAK E. your. shop. “child.
safe.”. Ensure. that. your.
workplace. is . inaccessible.
to. children. by. closing. and.
locking.all.entrances.when.
you.are.away..NEVER.allow.
untrained. visitors. in. your.
shop. when. assembling,.
adjusting. or. operating.
equipment..
Cleani ng.MachineMachine.Placement
USE. helpers. or. power.
lifting. equipment. to. lift.
this.machine.. Otherwise,.
serious. personal. injury.
may.occur..
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but
it will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper
care of your machine's unpainted surfaces.
There are many ways to remove this rust
preventative, but the following steps work well
in a wide variety of situations. Always follow the
manufacturer’s instructions with any cleaning
product you use and make sure you work in a
well-ventilated area to minimize exposure to
toxic fumes.
Before.cleaning,.gather.the.following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic.steps.for.removing.rust.preventative:
1.
Put on safety glasses.
2.
Coat the rust preventative with a liberal
amount of cleaner/degreaser, then let it
soak for 5–10 minutes.
3.
Wipe off the surfaces. If your cleaner/
degreaser is effective, the rust
preventative will wipe off easily. If you
have a plastic paint scraper, scrape off as
much as you can first, then wipe off the
rest with the rag.
4.
Repeat Steps.2–3 as necessary until clean,
then coat all unpainted surfaces with a
quality metal protectant to prevent rust.
Avoid. chlorine-based. solvents,. such. as.
acetone. or. brake. par ts. cleaner,. that. may.
damage.painted.surfaces..
background
-22-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
Assembly steps are the same for the Model W1819 and
W1820 except where noted. Assembly consists of install-
ing minor components, the extension wings, front and rear
rails, extension table, and the legs (Model W1820 only).
To.assemble.the.table.saw,.do.these.steps:
1. Pull the magnetic switch out of the saw cabinet and
install the door by inserting the door pins into the
hinge sockets on the cabinet (see Figure 10).
Assembly
Figure.12. Handwheel installed.
Figure.10. Door installed.
Hinge
Socket
Figure.11. Handwheel set screw.
Lock Knob
Handle
Figure.13. Shipping brace location.
Shipping Brace
2. Place the included 5 x 5 x 40 key in the handwheel
shaft and slide the handwheel onto the shaft on the
front of the table saw. Use the included 2.5mm hex
wrench to tighten the set screw (see Figure.11) on
the side of the handwheel until it is secure.
3. Thread the handwheel lock knob into the center of
the handwheel and tighten, then install the handle
into the handwheel and tighten with a 14mm wrench
(see Figure.12).
4. Remove the shipping brace (see Figure.13) using
a 17mm wrench and a pair of needle nose pliers.
Re-install the M10-1.5 x 25 hex bolt, flat washer, hex
nut and the cotter pin, and save the shipping brace.
background
-23-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP

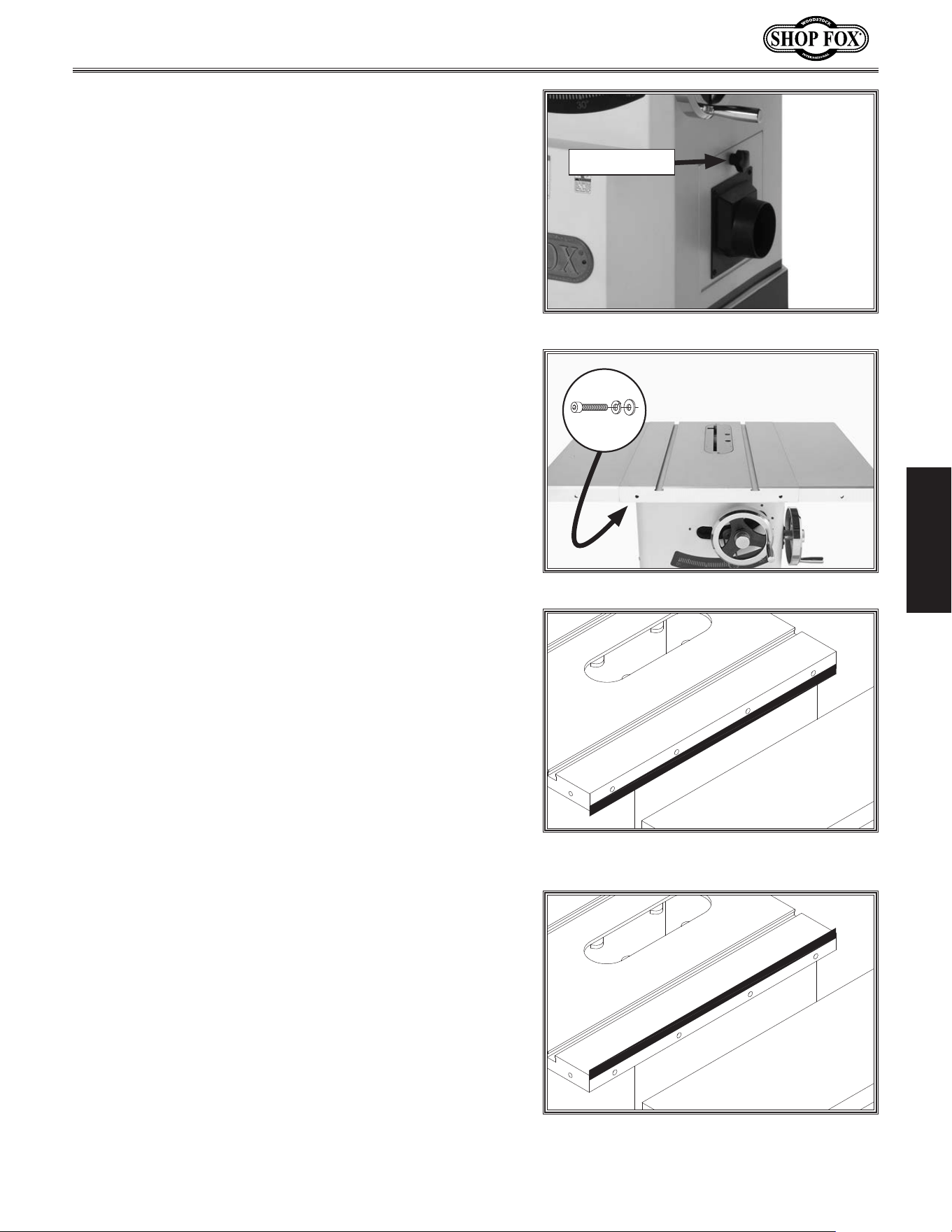

5. Insert the lip of the lower part of the dust port into
the cabinet and tighten the thumb knob to secure
(see Figure.14).
6. Remove the M8-1.25 x 30 cap screws, 8mm flat
washers, and 8mm lock washers from the ends of the
main table.
7. Inspect the extension wings and main table mating
surfaces for burrs or foreign materials that may
inhibit assembly.
The mating edges of the wings and the table must
be clean, smooth, and flat. Use a wire brush or file
if necessary to clean up the edges. This step will
ensure that the wings mount properly to the main
table.
8. While a helper holds the wings in place, attach
each extension wing to the main table with the four
M8-1.25 x 30 cap screws, 8mm lock washers, and
8mm flat washers removed in Step.6 (see Figure
15).
9. Place the straightedge across the extension wings
and main table to make sure that the combined
table surface is flush and flat.
— If the combined table surface is flat, skip to the
next step.
— If the outside end of the extension wing tilts
down, use a strip of masking tape along the
bottom edge of the main table to shim the
extension wing up (Figure.16).
— If the outside end of the extension wing tilts up,
use a strip of masking tape along the top edge of
the main table to shim the extension wing down
(Figure.17).
Note:.After re-installing wings, remove all excess
masking tape with a razor blade.
Figure.16. Masking tape location for tilting
the extension wing up.
Figure.17. Masking tape location for
adjusting the extension wing down.
Figure.15. Extension wings installed.
x4
Figure.14. Dust port installed.
Thumb Knob
background
-24-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP

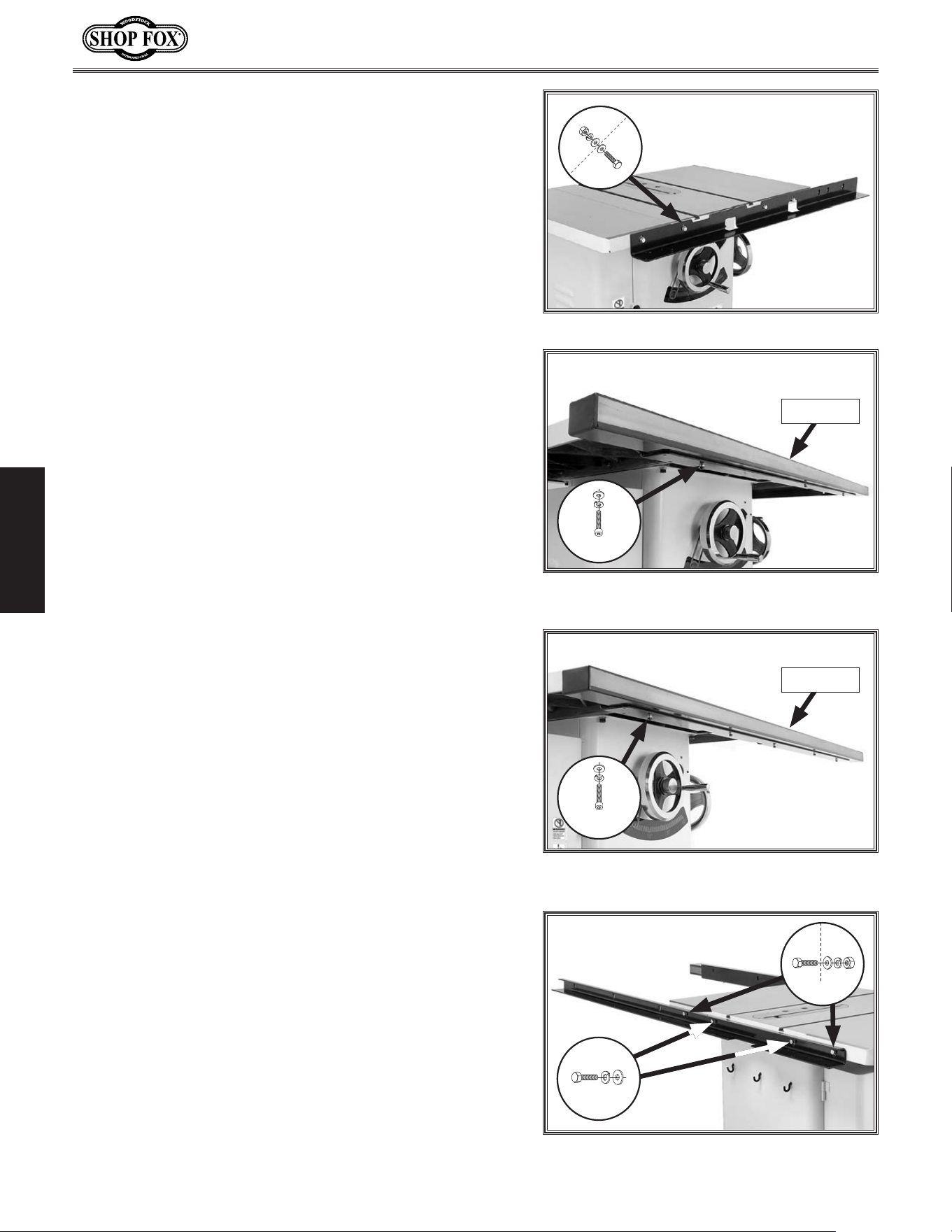

10.. Install the front rail onto the table and extension
wings with four M8-1.25 x 40 hex bolts, eight 8mm
flat washers, four 8mm lock washers, and four
M8-1.25 hex nuts, as shown in Figure.18.
Before final tightening, make sure the front rail is
set
3
⁄16" below the beveled edge along the entire
length of the table.
12. Attach the rear rail to the main table using two
5
⁄16-
18 x 1 hex bolts, 8mm lock washers and 8mm flat
washers, as shown in Figure 21.
13. Secure the rear rail to the extension wings with two
M8-1.25 x 40 hex bolts, four 8mm flat washers, two
8mm lock washers and two M8-1.25 hex nuts.
11. W1819.ONLY: Install the 62" front rail tube onto the
50" front rail with the three M6-1 x 16 cap screws,
6mm flat washers, and 6mm lock washers, as shown
in Figure.19.
. W1820.ONLY:.Install the 82" front rail tube onto the
70" front rail with five M6-1 x 16 cap screws, 6mm
lock washers, and 6mm flat washers, as shown in
Figure.20.
Figure.18. Front rail installed (W1819).
Figure.19. Model W1819 tube attached to
front rail.
x3
x4
Figure.20. Model W1820 tube attached to
front rail.
x5
Figure.21. Rear rail installed (W1820).
x2
Rail Tube
Rail Tube
x2
background

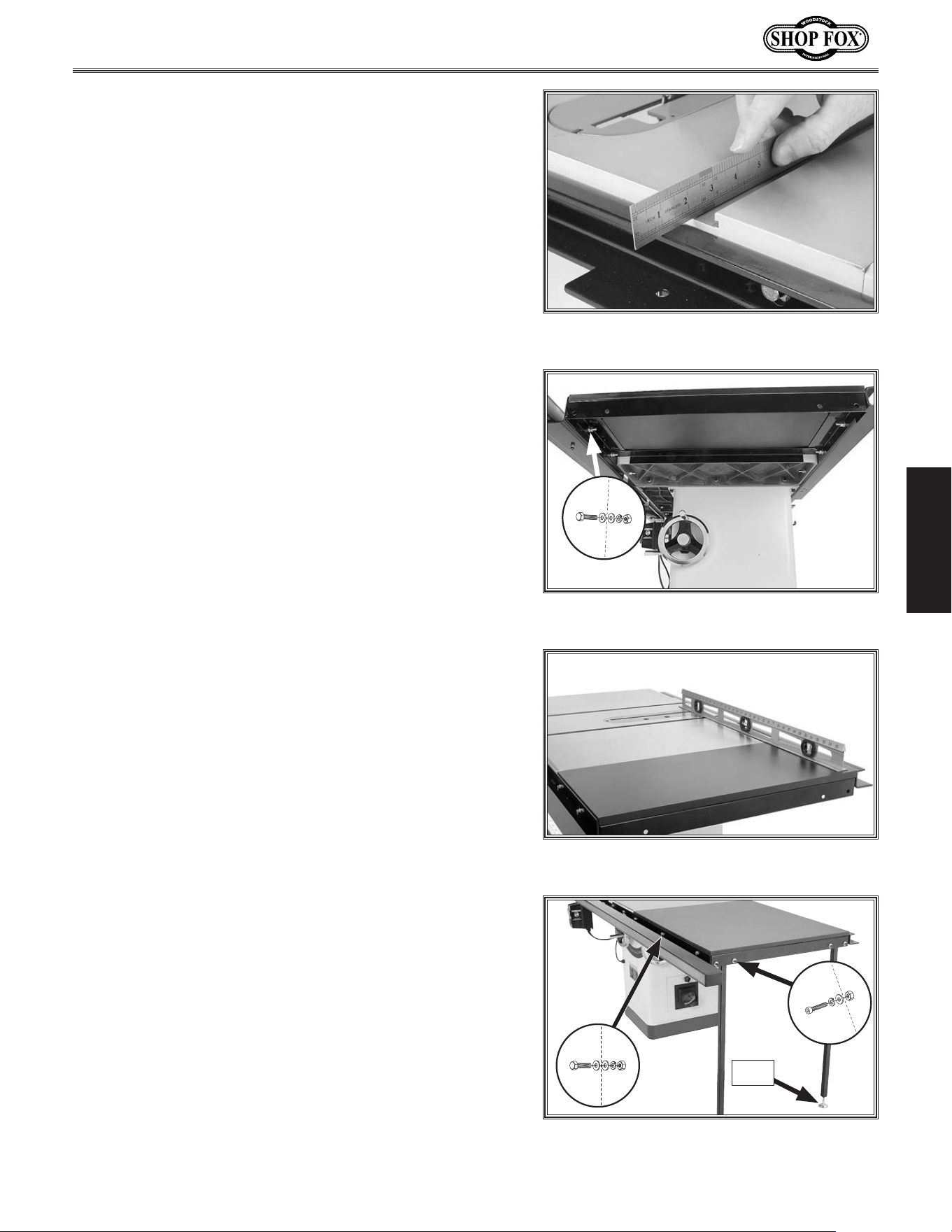

-25-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
Note: Before tightening the fasteners, check to make sure
the top edge of the rear rail is flush with the lowest edge
of both T-slots (see Figure 22), so the miter gauge will
slide smoothly when installed later.
W1819.Extension.Table
1. Install the extension table between the front and
rear rails with the four M8-1.25 x 40 hex bolts, eight
8mm flat washers, four 8mm lock washers, and four
M8-1.25 hex nuts (see Figure.23).
2. Using a long straightedge, adjust the extension table
so it is flat (both flush and parallel) with the main
table and extension wings (see Figure.24), then
tighten the fasteners.
W1820.Extension.Table
1. Remove the six M6-1 x 16 hex bolts, (12) 6mm flat
washers, six 6mm lock washers, and six M6-1 hex
nuts from the extension table.
2. While an assistant holds the extension table between
the front and rear rails, fasten the extension table
to the rails with the fasteners removed in Step.1.
3. Thread the feet into the legs with the two M8-1.25
x 60 hex bolts, place the legs under the table, and
thread the feet out until the top of each leg is
against the underside corner of the table.
4. Use the four M8-1.25 x 20 cap screws, 8mm lock
washers, 8mm flat washers, and M8-1.25 hex nuts to
secure the legs to the end of the extension table, as
shown in Figure.25.
Figure.22. Verifying rear rail is flush with
bottom of T-slot.
Figure 23. Model W1819 extension table
installed.
Figure.24. Adjusting Model W1819
extension table flush with wing and table.
Figure.25. Model W1820 extension table
installed.
x4
Foot
x4
background
-26-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
5. Adjust the extension table so it is flat (both flush
and parallel) with the main table, using a long
straightedge (similar to the method shown in Figure.
24). This can be done by loosening the mounting
bolts and adjusting the feet up/down as needed.
6. Tighten the extension table mounting bolts, and
tighten the hex nuts on the feet up against the legs
so they will not move.
Fence.&.Miter.Gauge
1.. Attach the fence handle to the fence and thread
the rear rail foot into the bottom of the fence (see
Figure.26).
2.. Place the fence on the rails on the right hand side of
the blade (see Figure.27).
Note:.Make sure the cam foot contacts the cam on
the fence lock handle before you place the fence on
the rail, otherwise the fence will not lock onto the
rail tube.
3.. Slide the miter gauge into the T-slot on the left hand
side of the blade.
Magnetic.Switch
1. Install the magnetic switch onto the bottom left
hand side of the front rail using two M6-1 x 12 hex
bolts, 6mm lock washers, and 6mm flat washers, as
shown in Figure.28.
2. Secure the top of the switch to the rail with an M6-1
x 12 Phillip head screw, 6mm lock washer, and flat
washer.
Saw.Blade
1.. Remove the table insert by unscrewing the screw
that fastens it to the table.
2. Raise the arbor all the way up and set the blade
angle at 0º.
3. Remove the arbor nut and arbor flange from the
arbor, slide on the included 10" saw blade, making
sure the teeth face the front of the saw, then install
the arbor flange and arbor nut onto the blade. See
Page.35 for additional details.

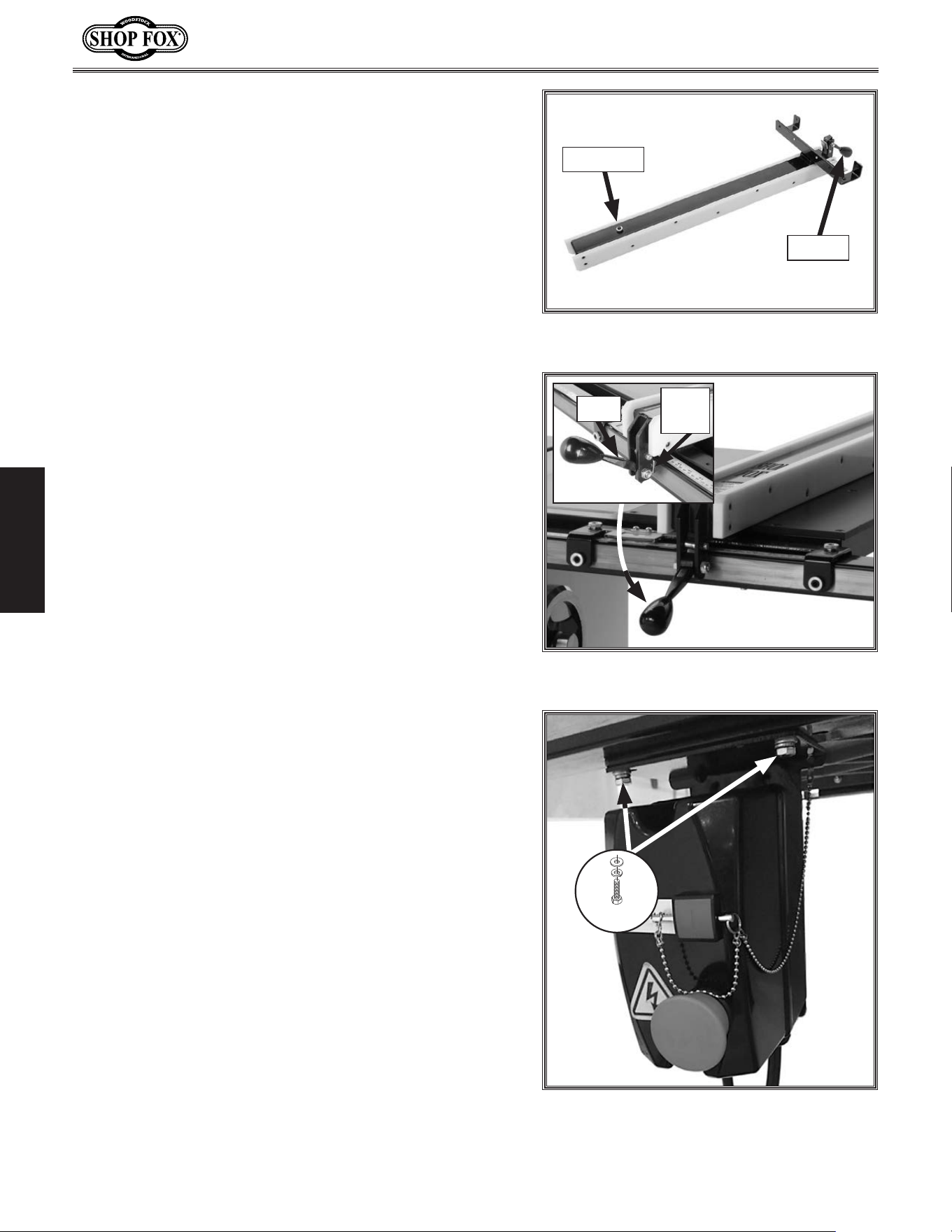

Figure.26. Fence assembled.
Figure.27. Fence installed on rails.
Cam
Cam
Foot
Rear Foot
Handle
Figure.28. Magnetic switch installed.
x2

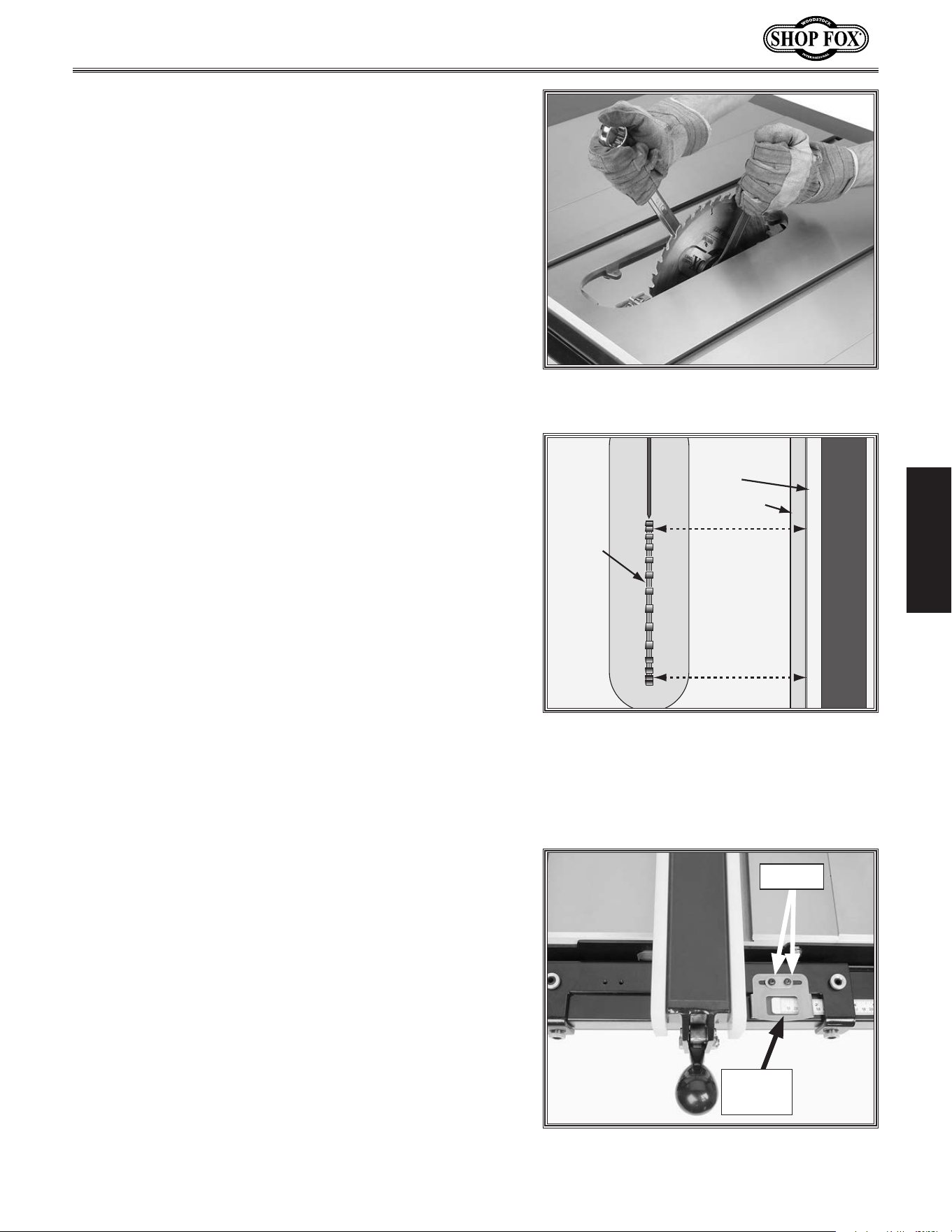

background
-27-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
4. Put on a pair of heavy leather gloves and use the
included arbor wrenches to tighten the arbor nut
(turn clockwise to tighten), as shown in Figure.29.
Checking.Fence.Parallelism
1. Slide the fence along the rail. If it drags across the
table, then adjust the foot at the rear of the fence
with a 6mm hex wrench to raise the fence off of
the table, just enough so that the gap between the
fence and the table is even from front to back.
2. Slide the fence up against the right hand edge of the
miter slot, and lock it in place. Examine how the
fence lines up with the miter slot (see Figure.30).
. Note: It is permissible for the back of the fence
to pivot outward not more than
1
⁄64" from being
parallel to the blade. This creates a slightly larger
opening between the fence and the rear of the
blade to reduce the risk of workpiece binding
or burning as it is fed through the cut. Many
woodworkers intentionally set up their fence in this
manner. Keep this in mind before adjusting your
fence. For more details see Figure 109 on Page 71.
— If the fence/miter slot are still parallel with the
blade, proceed to Step.Fence.Scale.
— If the fence is not parallel to the blade/miter
slot, then you MUST adjust the fence, as described
in Fence.Adjustments on Page.70, so that it is
parallel to the blade.
— If the miter slot is not parallel with the blade, you
must follow the procedures described in Miter.Slot.
to.Blade.Parallelism on Page.67.
Fence.Scale.
Since the adhesive fence scale will be difficult to remove
once it installed, determine whether you will use the
pointer window on the right or the left side of the fence
before installing the scale.
The pointer window may come pre-installed on the left
side of the fence. However, we recommend loosening the
mounting screws on the window and re-installing it on the
right side of the fence (see Figure.31) so workpieces will
not cover the pointer window when preparing to cut.
Figure.29. Securing blade.
Fence is
Parallel to
Miter Slot,
which is
Parallel to
Blade
Miter Slot
Blade
Fence
Figure.30. Checking fence parallelism with
blade.
Figure.31. Aligning rail tape with scale
pointer.
Screws
Pointer
Window
background
-28-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP
On the Model W1819, if you move the pointer window to
the right side of the fence, you may have to trim the last
two inches of the scale so it will not protrude past the
end of the fence tube.
One option for using the pointer window on the left side
of the fence is to use it in conjunction with a small, left-
reading scale (not included).
To.install.the.fence.scale,.do.these.steps:.
1. Slide the fence up against the saw blade and lock it
in place.
2.. Place the front rail tape scale on the fence tube,
making sure it is parallel with the tube and that the
"0" end is directly under the red line on the pointer
window, as shown in Figure.31.
3. Lightly mark the "0" location on the fence tube with
a pencil, then remove the fence.
4. Peel the tape and carefully align the "0" mark on the
scale with the pencil mark you made on the fence
tube.
— If you make a mistake, loosen the screws on the
pointer window, slide the fence against the blade,
adjust the pointer window so the red line on the
window is over the 0" mark on the tape, then
secure the screws.
Blade.Guard
1. Re-install the table insert, slide the knurled knob out
(see Figure.32) and rotate it forward so it engages
the upper bracket.
2.. Slide the blade guard spreader all the way down
into the adjustment block, then rotate the knurled
knob so it disengages the bracket and the locking pin
engages the hole in the center of the spreader.
3. Give the spreader an upward tug to verify that it is
locked.
The blade guard, when properly installed, should
look like Figure.33, and should pivot freely so it
touches the table surface in the down position. It
should also swing up high enough to accommodate
the workpiece.
Figure.33. Blade guard installed.
Figure.32. Knurled knob used to secure
spreader.
Locking Pin
Knurled
Knob
Bracket
Adjustment Block
background
-29-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP

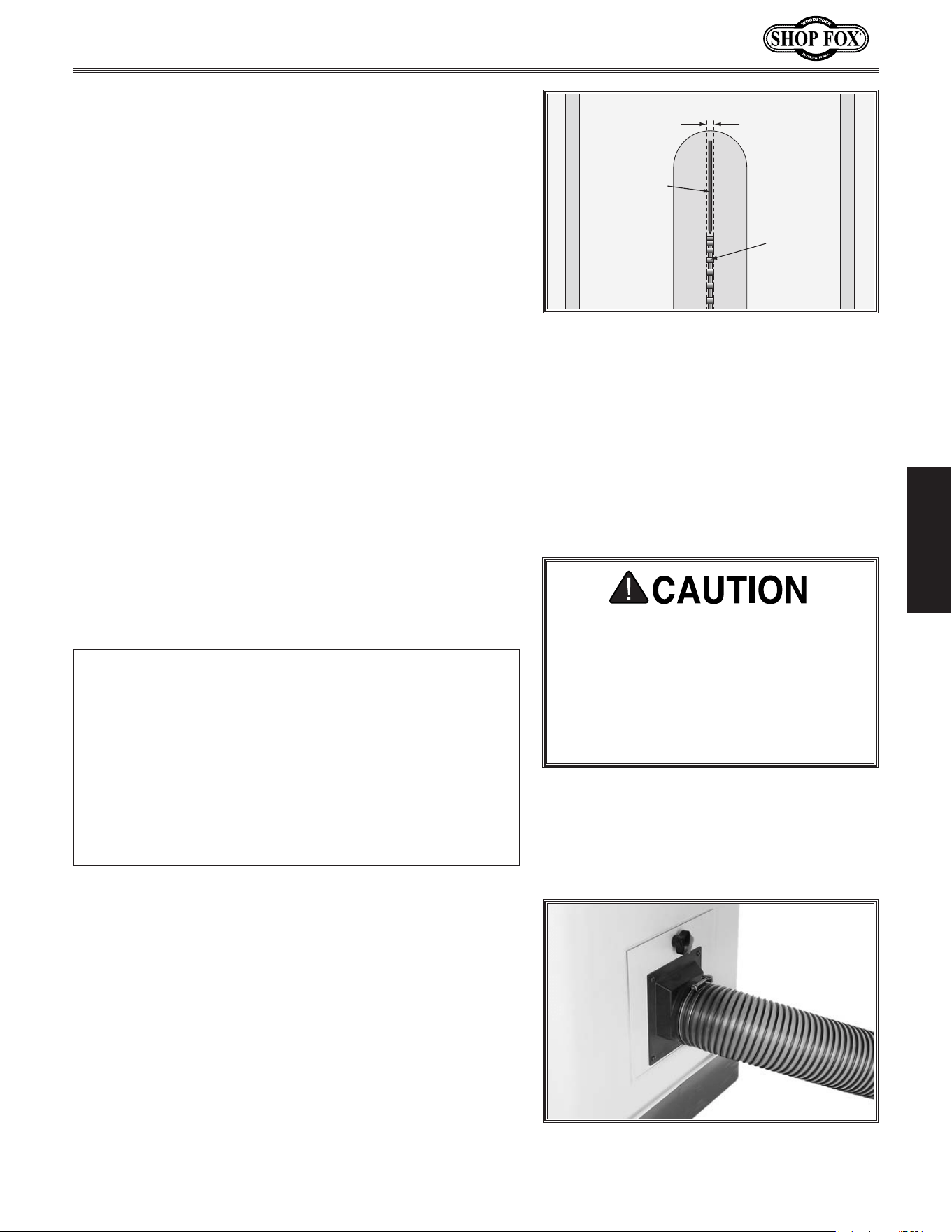

Alignment
Zone
Spreader or
Riving Knife
Blade
Figure.34. Spreader/riving knife alignment
zone.
4. Adjust the set screws to make sure the table insert
is flush with the table (use a straightedge as a
guide), then tighten the button head screw to secure
the table insert in place.
5. Place a straightedge against the blade and the
spreader. When properly aligned, the spreader/
riving knife will be parallel with the blade and in the
"Alignment Zone," shown in Figure.34.
— If the spreader/riving knife is not inside the
alignment zone and not parallel with the
blade, then it needs to be adjusted. Proceed to
"Adjusting Alignment" on Page.69.
— If the spreader/riving knife is not parallel with
the blade, it may be bent. Proceed to "Checking
Alignment" on Page.68 to determine if the
spreader/riving knife is bent.
Dust.Co llection
To connect a dust collection hose, do these steps:
1. Fit a 4" dust hose over the dust port, as shown in
Figure 35, and tightly secure in place with a hose
clamp.
2. Tug the hose to make sure it does not come
off. Note:.A tight fit is necessary for proper
performance.
Components.and.Hardware.Needed:. Qty
Dust Hose 4 " (not included) ...................................1
Hose Clamps 4" (not included) ................................2
Dust Collection System (not included) ......................1
DO. NOT. operate. the. M odel. W1819.
or. W1820. without. an. adequate. dust.
collection. system.. This. saw. creates.
substantial. amounts. of. wood. dust.
while.operating..Failure.to.use.a. dust.
collection. system. can. result. in. short.
and.long-term.respiratory.illness.
Recommended.CFM.at.Dust.Port:.400.CFM
Do not confuse this CFM recommendation with the rating
of the dust collector. To determine the CFM at the dust
port, you must consider these variables: (1) CFM rating of
the dust collector, (2) hose type and length between the
dust collector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines throughout
the system. Explaining how to calculate these variables
is beyond the scope of this manual. Consult an expert or
purchase a good dust collection "how-to" book.
Figure.35. Dust hose attached to dust
port.
background
-30-
Model W1819/W1820 (Mfg. Since 09/11)
SETUP

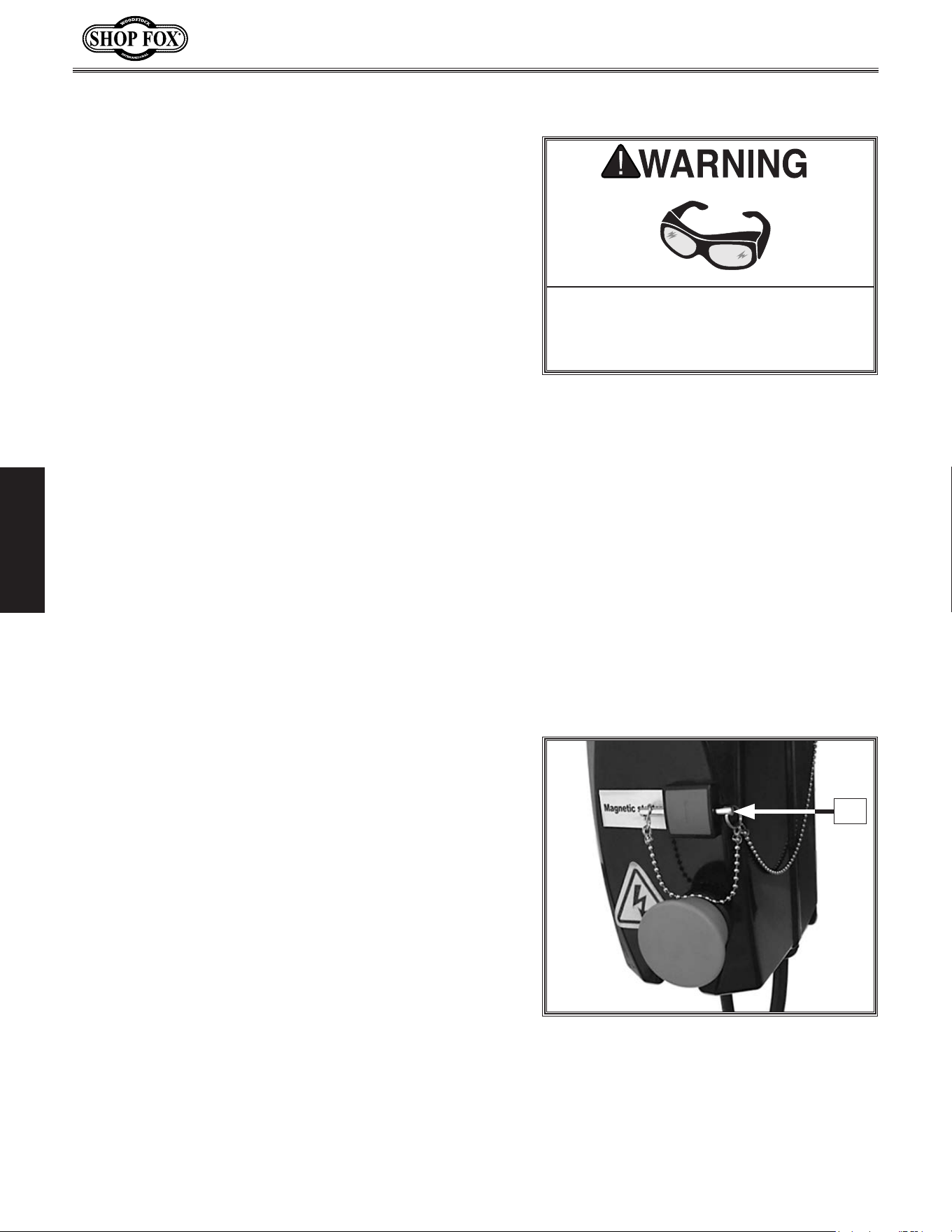

Figure.36. Switch disabling pin inserted
into ON button.
Pin
Once the assembly is complete, test run the machine to
make sure it runs properly for regular operations. The
test run consists of verifying the following: 1) The motor
powers up and runs correctly, and 2) the safety disabling
mechanism on the switch works correctly.
If, during the test run, you cannot easily locate the source
of an unusual noise or vibration, stop using the machine
immediately, then review Troubleshooting on Page.77.
If you still cannot remedy a problem, contact our Tech
Support at (360) 734-3482 for assistance.
To.test.run.the.machine,.do.these.steps:
1. Make sure you have read the safety instructions at
the beginning of the manual and that the machine is
fully assembled and set up properly.
2. Make sure all tools and objects used during setup are
cleared away from the machine.
3. Connect the machine to the power source.
4. Verify that the machine is operating correctly by
turning the machine ON.
— When operating correctly, the machine runs
smoothly with little or no vibration or rubbing
noises.
— Investigate and correct strange or unusual noises
or vibrations before operating the machine further.
Always disconnect the machine from power when
investigating or correcting potential problems.
5. Turn the machine OFF.
6. Insert the switch disabling pin through the green ON
button, as shown in Figure.36.
7. Press the green ON button to test the disabling
feature on the switch.
— If the machine does not start, the switch disabling
feature is working as designed.
— If the machine starts, immediately stop the
machine. The switch disabling feature is not
working correctly. This safety feature must
work properly before proceeding with regular
operations. Call Tech Support for help.
Test. Run
Projectiles. thrown. from. the. machine.
could. cause. serious. eye. injury.. Wear.
safety. glasses. to. reduce. the. risk. of.
injury.
background
-31-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
OPERATIONS
General
This machine will perform many types of operations
that are beyond the scope of this manual. Many of these
operations can be dangerous or deadly if performed
incorrectly.
The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If.at.any.
time.you.are.experiencing.difficulties.performing.any.
operation,.stop.using.the.machine!
If you are an inexperienced operator, we strongly
recommend that you read books or trade articles, or seek
training from an experienced Table Saw operator before
performing any unfamiliar operations. Above.all,.your.
safety.should.come.first!
READ.and.understand.this.entire.instruc-
tion. manual. before. using. this. machine..
Serious. personal. injury. may. occur. if.
safety.and.operational.information.is.not.
understood. and. followed.. DO. NOT. risk.
your.safety.by.not.reading!
Basic.Controls
ON Button: Starts the motor (see Figure 37).
Safety Pin & Chain: When installed, disables the ON
Button, preventing accidental startup (see Figure 37).
Emergency Stop/Reset Button: Turns machine OFF.
Rotate clockwise to reset (see Figure 37).

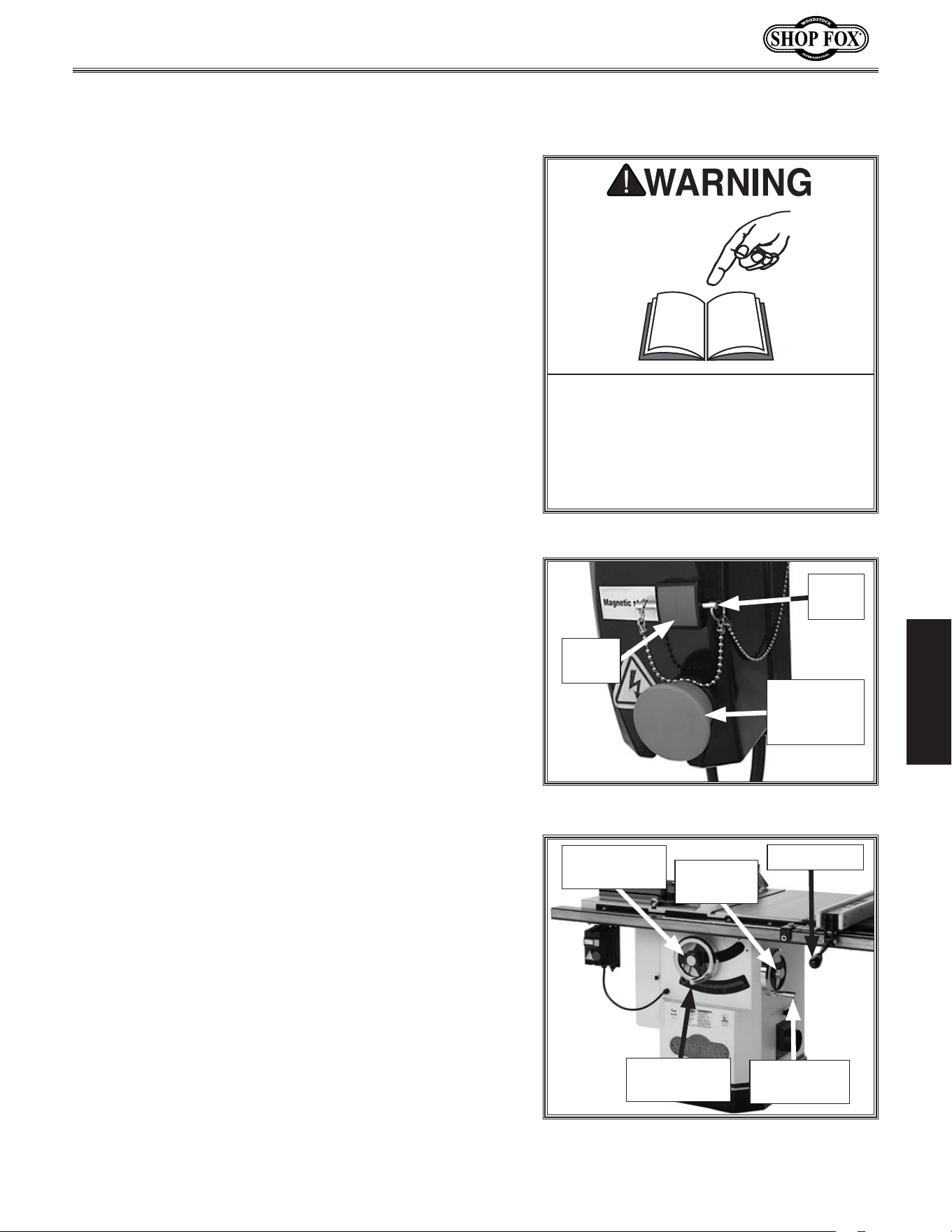

Figure.37. ON/OFF switch disabled.
Safety
Pin
Blade Tilt: To adjust the blade tilt, loosen the blade tilt
lock, turn the blade tilt handwheel to position the blade
at the desired angle, then tighten the lock shown in
Figure 38.
Blade Height: To set the blade height, unlock the blade
height lock, turn the handwheel to set the blade height
approximately
1
⁄4" higher than the workpiece, then
re-tighten the blade height lock.
Fence Lock: After adjusting the fence to the desired
width of cut, lock it in place by firmly pushing the fence
lock down until it stops.
Blade Height
Lock
Blade Tilt
Lock
Blade Height
Handwheel
Blade Tilt
Handwheel
Fence Lock
Figure.38..Basic table saw controls.
Emergency
Stop/Reset
Button
ON
Button

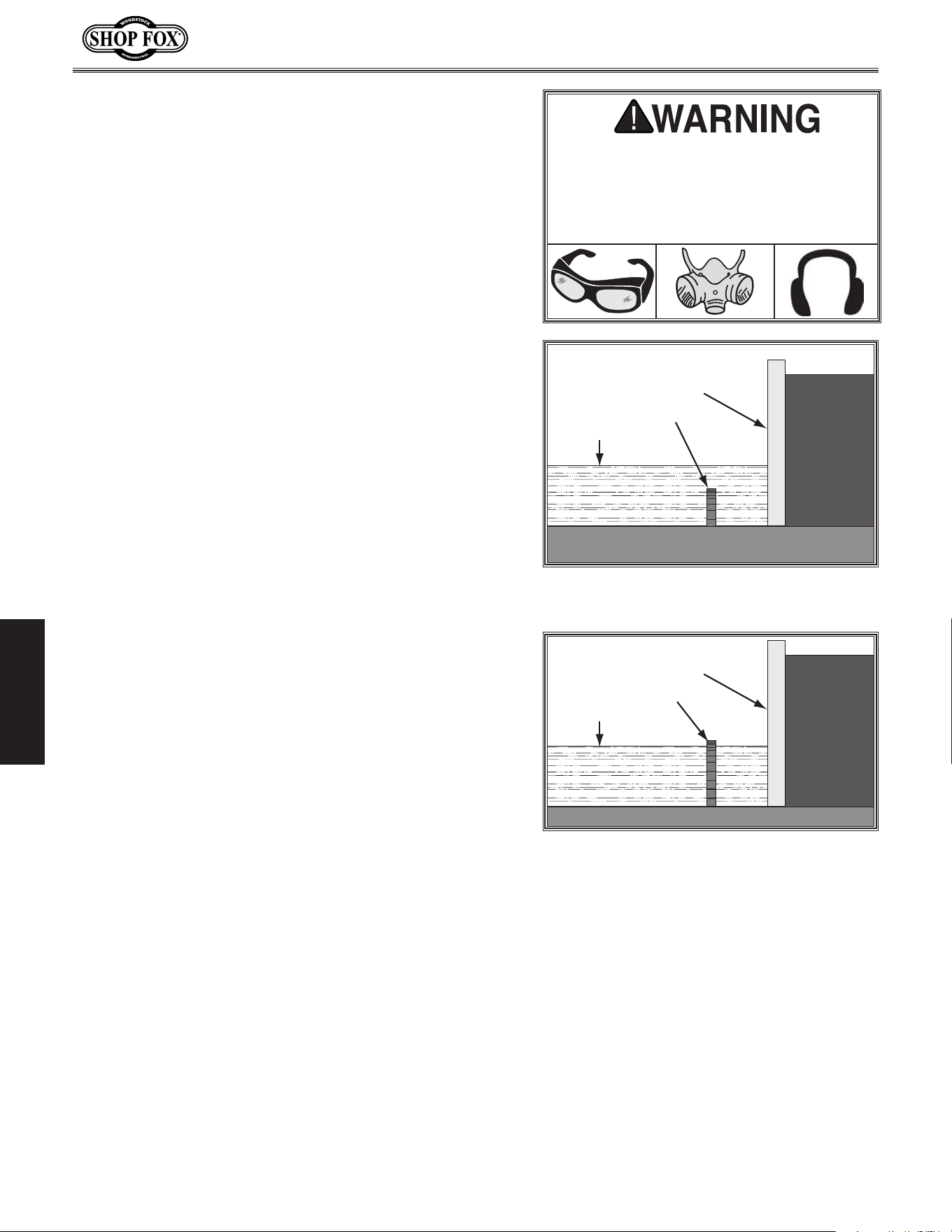

background
-32-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Non-Through.&.Through.
Cu ts
Non-Through.Cuts
A non-through cut is a sawing operation where the blade
does not protrude above the top face of the wood stock,
as shown in Figure.39.
Examples of non-through cuts include dadoes and
rabbets. Non-through cuts have a higher risk of injury
from kickback because the spreader and blade guard
must be removed. When making non-through cuts with a
standard blade, the riving knife MUST be installed. When
making non-through cuts with a dado blade, extreme
care, including using multiple light passes must be used,
because the blade guard cannot be used.
The.following.non-through.cuts.are.de scribed.in.this.
manual.on.the.pages.noted.below:
•. Dado Cutting:.Page.44
•. Rabbet Cutting:.Page.47
•. Resawing: Page.49
Figure.40. Example of a through cut
(blade guard not shown for illustrative
clarity).
Fence
Saw Blade
Workpiece
Fence
Saw Blade
Workpiece
Figure.39. Example of a non-through cut.
Through.Cuts
A through cut is a sawing operation in which the
workpiece is completely sawn through, as shown in Figure.
40. Examples of through cuts are rip cuts, cross cuts,
miter cuts, and beveled cuts. The blade guard assembly
MUST be used when performing through cuts.
The.following.through.cuts.are.described.in.this.manual.
on.the.pages.noted.below:
•. Ripping:.Page.40
•. Crosscutting:.Page.41
•. Miter Cuts:.Page.42
•. Blade Tilt & Bevel Cuts:.Page.43
Damage. to. your. eyes,. lungs,. and. ears.
could. result. from. using. this. machine.
without.proper.protective.gear.. Always.
wear. safety. glasses,. a. respirator,. and.
hearing.protection.during.operation.
background
-33-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

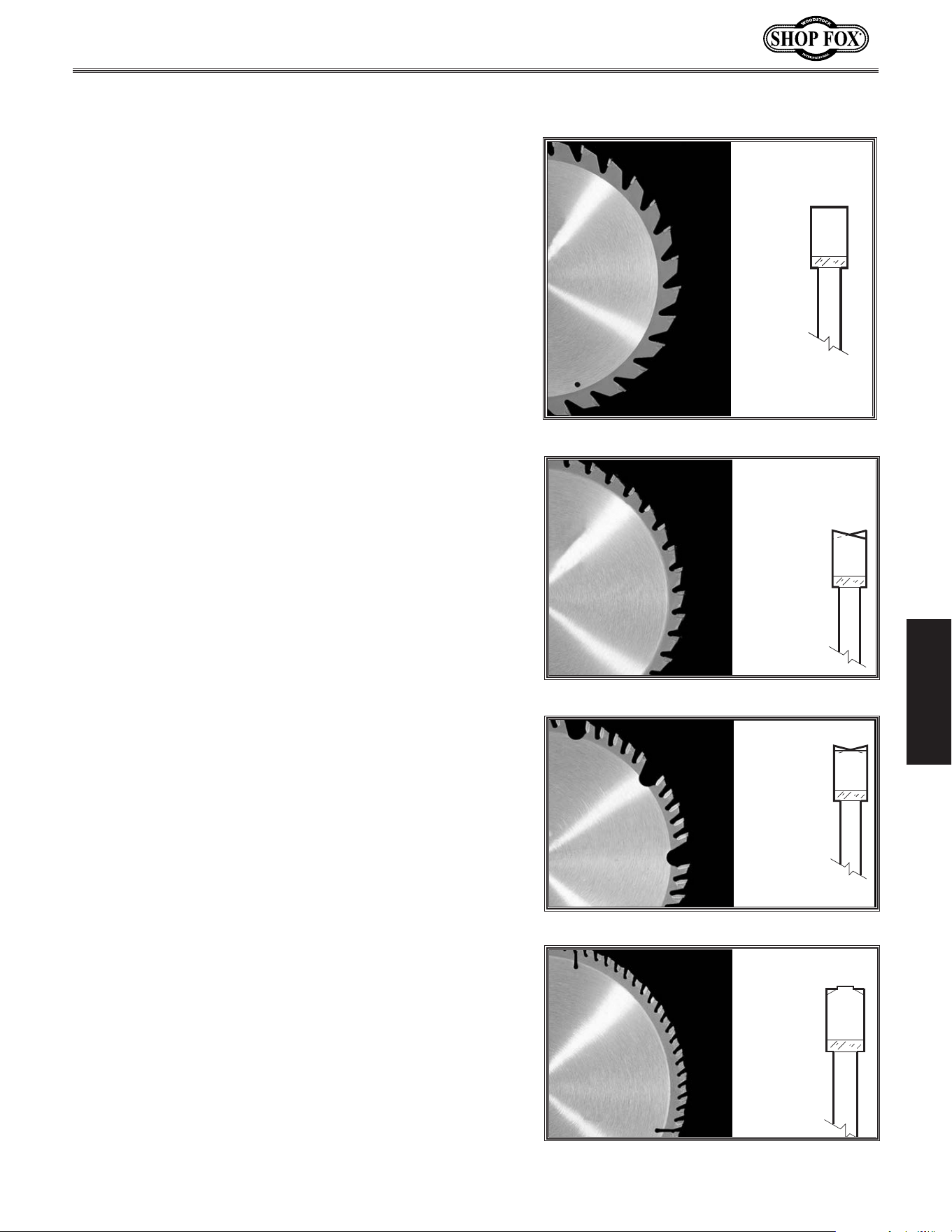

Blade.Selection
Ripping.blade.features.(see Figure.41):.
• Best for cutting with the grain of the workpiece.
• 20-40 teeth.
• Flat-top ground tooth profile.
• Large gullets for large chip removal.
Flat
Top
Blade
Figure.41. Ripping blade.
Crosscut. blade.features.(see Figure.42):
• Best for cutting across the grain of the workpiece.
• 60-80 teeth.
• Alternate top bevel tooth profile.
• Small hook angle and a shallow gullet.
Combination.blade.features.(see Figure.43):
• Adequate for cutting both with and across the grain.
• 40-50 teeth.
• Alternate top bevel and flat, or alternate top bevel
and raker tooth profile.
• Teeth are arranged in groups of five.
• Gullets are small and shallow within the groups of
five teeth, similar to a cross-cut blade; then large
and deep between each group of five, like a ripping
blade.
L aminate.blade.features.(see Figure.44):
• Best for cutting plywood or veneer.
• 40-80 teeth.
• Triple chip tooth profile.
• Very shallow gullet.
Alternate
Top
Bevel
Figure.42. Crosscutting blade.
Alternate
Top
Bevel
and
Flat
Triple
Chip
Blade
Figure.44..Laminate blade.
Figure.43..Combination blade.
background
-34-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

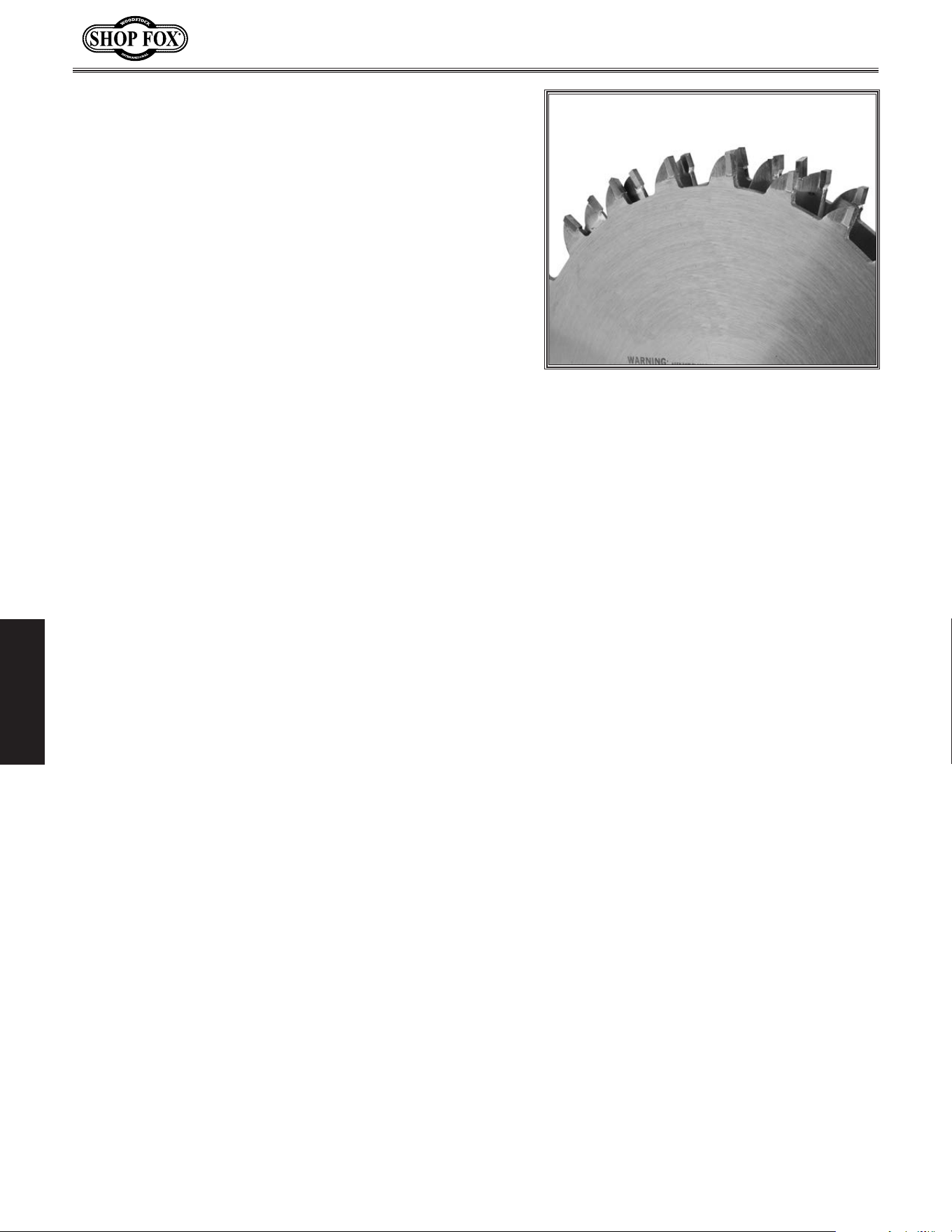

Figure.45..Stacked dado blade.
Dado.Blades.(see Figure.45):.
There are two types of dado blades: stacked and wobble.
• Stacked.Dado.Blade: These dedicated dado cutting
blade sets consist of up to 8 individual blades.
Multiple cutters are "stacked" between two outside
blades. The width of the dado is determined by the
combination of cutters that are “stacked” together.
The dado is cut in a single pass leaving a smooth and
square channel in the face of the workpiece. Stacked
dado blades are the most expensive option, but are
worth considering if your projects require a lot of
visible dado cuts. A stacked dado blade is shown in
Figure.45.
• Wobble.Dado.Blade: Also a dedicated dado blade,
a wobble blade usually consists of a single blade
that is tilted on the arbor shaft while it is spinning.
The channel is cut in the face of the workpiece as
the blade passes through its pre-adjusted width of
travel. Wobble blades are an inexpensive option
when visibly pleasing channels are not a concern.
.
Thin.Kerf.Blade
A blade with a kerf or thickness that is thinner than
a standard blade. Since thin kerf blades are typically
the same thickness of the spreader or riving knife—and
in some cases thinner—we DO NOT recommend that
they be used on this saw due to the increased risk of
kickback. The acceptable kerf range is 0.102"– 0.126"
(2.6mm–3.2mm).
Note:.This section on blade selection is by no
means comprehensive. Always follow the saw blade
manufacturer's recommendations to ensure safe and
efficient operation of your table saw.
background
-35-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Blade.Installation
The saw blade is sharp. Use extra care or wear
gloves when handling the blade or working near it.
Review this section, even if your saw blade came pre-
installed.
To.install.the.blade,.do.these.steps:
1. DISCONNECT THE SAW FROM POWER!
2. Put on heavy leather gloves and raise the arbor all
the way up.
3. Remove the table insert and blade guard/riving
knife, depending on what is installed.
4. Use the arbor wrenches to loosen and remove the
arbor nut, flange, and blade.
Note: The arbor nut has right hand threads; turn it
counterclockwise to loosen.
5.. Slide the blade over the arbor with the teeth facing
the front of the saw, as shown in Figure.46.
6... Re-install the arbor flange and the arbor nut (see
Figure.47), and tighten them against the blade with
the wrenches included with the saw. DO NOT over-
tighten.

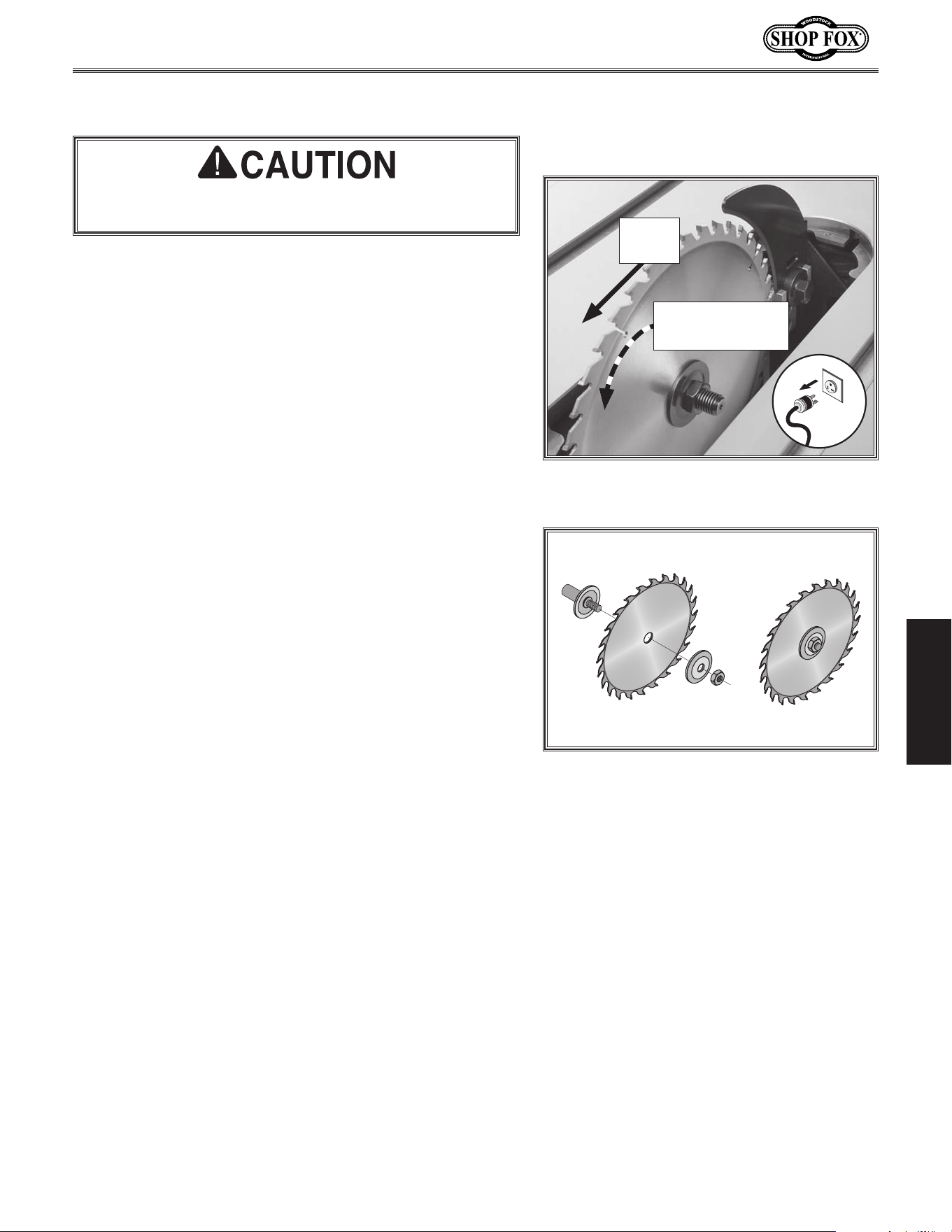

Figure.46. Example of correct blade
direction.
Teeth Direction
& Blade Rotation
Front
of Saw
Figure.47. Blade installation.
background
-36-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Blade.Guard.Assembly
The term "blade guard" refers to the assembly that con-
sists of the clear polycarbonate shield, the spreader, and
the anti-kickback pawls on each side of the spreader
(Figure. 48). Each of these components have important
safety functions during the operation of the saw.
Guard
The clear polycarbonate guard allows the operator to
see the blade cut the workpiece during operation. This
guard is designed to lift as the workpiece is pushed into
the blade and remain in contact with the workpiece
throughout the entire cut.
The guard reduces injury risk by providing a barrier
around the blade that prevents accidental contact and
contains flying wood chips.
To ensure that the guard does its job effectively, it must
always be in the downward position against the table
in the resting position during idle operation, and the
hinge mechanism must be maintained in good working
condition so the guard can freely pivot up and down to
accommodate the height of the workpiece and return to
the table surface.
Spreader
The spreader is a metal plate that prevents the newly
cut kerf of the workpiece from pinching the backside of
the blade, causing kickback. The spreader also acts as a
barrier behind the blade to shield hands from being pulled
into the blade if a kickback occurs.
Figure.48. Blade guard assembly
components.
Clear Shield
Spreader
Anti-Kickback
Pawl
In order to work properly, the spreader
cannot be bent or misaligned with the
blade. If the spreader gets accidentally
bent, take the time to straighten it
or just replace it. Using a bent or
misaligned spreader will increase the
risk of kickback!
To ensure that the blade spreader works safely, the
following requirements MUST be met when installing
new blades:
•. Blade.Diameter:.10"
• Spreader.Thickness:.0.1".(2.5mm)
• Required. Blade. Body. Thickness. (excluding. teeth):.
0.071–0.094".
. (1.8–2.4mm)
• Required. Blade. Kerf. Thickness:. 0.102"–. 0.126".
(2.6mm–3.2mm)
The spreader MUST be aligned/adjusted to the blade.
These requirements are not applicable to dado
blades.
background
-37-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Anti-Kickback.Pawls
The anti-kickback pawls allow the workpiece to travel in
only one direction. If the workpiece moves backwards,
such as during a kickback, the pawls will dig into the
workpiece to slow or stop it.
To work properly, the pawls must return to their bottom-
most position after pivoting, as shown in Figure 49, and
they must not be engaged in the arresting hooks. If the
pawls fail to return to the bottom position, the pivot
spring may have been dislodged or broken and will need
to be fixed/replaced.
Disabling Pawls
To disable the pawls, rotate the arresting hooks
downward, then place the pawls on each of the hooks, as
shown in Figure 50.
Use your best judgment before retracting the pawls,
as they are provided for your safety. Certain situations
could warrant retracting the pawls. For example, you
might retract the pawls if you are concerned about them
scratching a delicate workpiece, or if you believe that
they will obstruct a narrow workpiece and cause feeding
difficulty or loss of control.

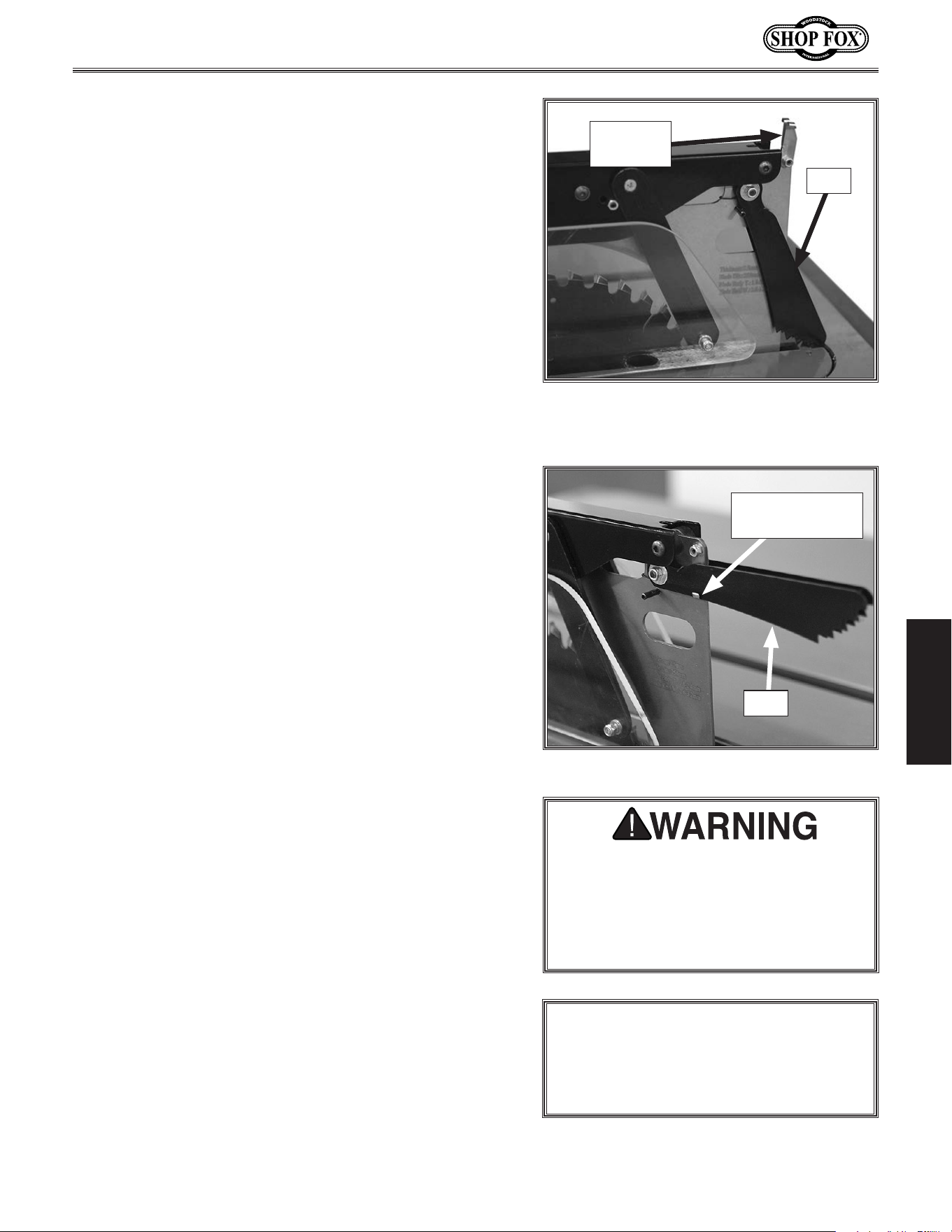

Figure 49. Pawls in return position.
Figure 50. Pawl disabled.
Pawl
Arresting
Hooks
Arresting Hooks
(One Shown)
Pawl
Enabling Pawls
To enable the pawls, lift up on each pawl and move
them outward and down until they both touch the table
surface, as shown in Figure 49.
When.to.Use.the.Blade.Guard
The blade guard assembly MUST always be installed on
the saw for all normal through cuts (those where the
blade cuts all the way through the thickness of the
workpiece).
When.Not.to.Use.the.Blade.Guard
The blade guard cannot be used on any non-through
cuts (those in which the blade does not cut all the way
through the thickness of the workpiece).
Sometimes the blade guard or its components can get in
the way when cutting very narrow workpieces or other
specialized cuts. Because the blade guard is provided to
decrease your risk of injury, it should not be used if it
gets in the way of making a safe cut. Use good judgment!
We. do. not. recommend. disabling. the.
pawls. during. normal. operations. unless.
absolutely.necessary..In.most.situations,.
disabling. the. pawls. will. increa se. your.
risk. of. serious. personal. injury. in. the.
event.of.a.kickback..
NOTICE
Whenever. the. blade. guard. cannot.
be. used,. the. riving. knife. must. be.
installed.

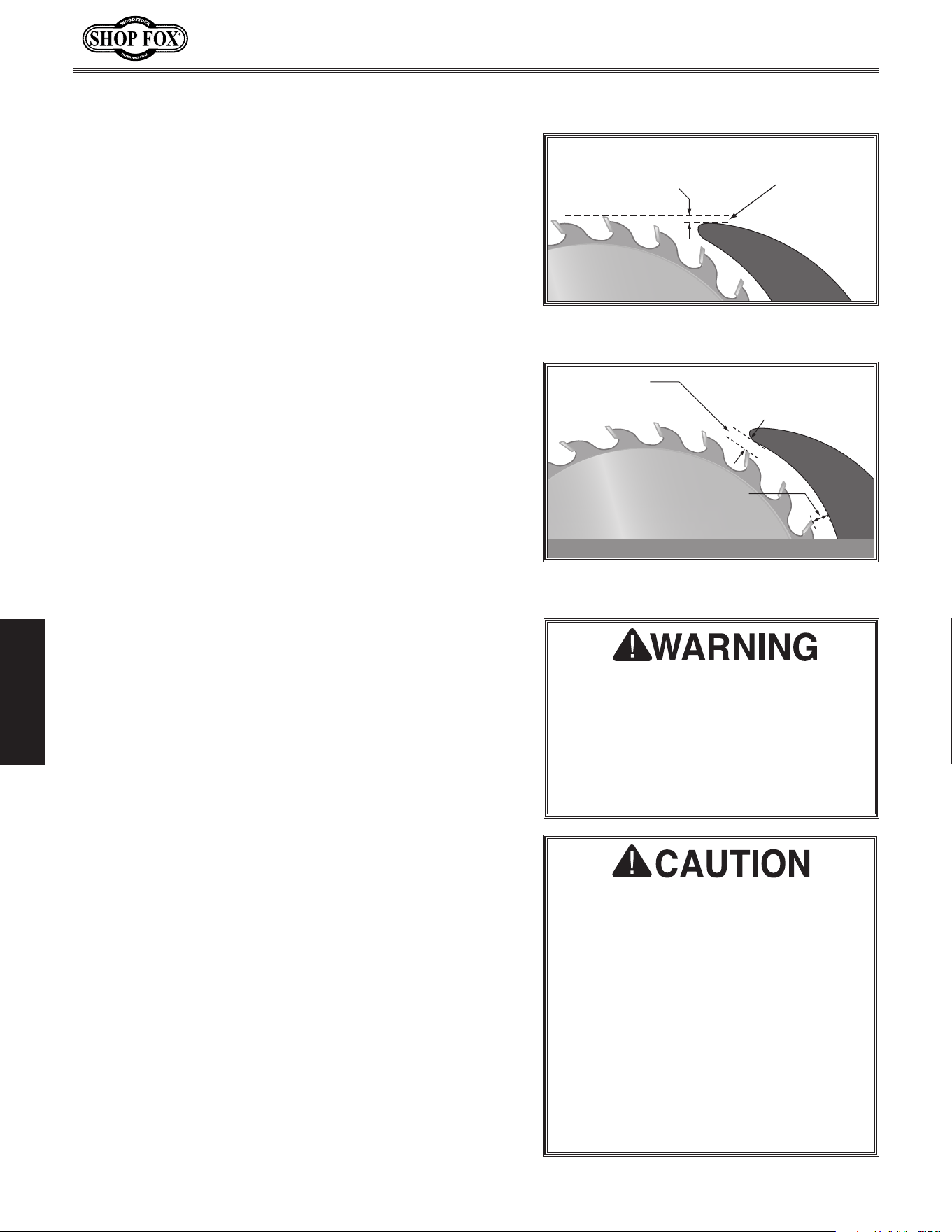

background
-38-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Riving.Knife
The riving knife works in the same manner as the spread-
er on the blade guard assembly. It is a metal plate that
prevents the newly cut workpiece from pinching the back-
side of the blade and causing kickback.
The key difference between the spreader and the riving
knife is that the riving knife mounts below the blade's
highest point of rotation, as shown in Figure.51.
The height difference between the riving knife and the
blade allows the workpiece to pass over the blade during
non-through cuts (those in which the blade does not cut
all the way through the thickness of the workpiece).
The riving knife acts as a barrier behind the blade to
reduce the risk of hands being pulled into the blade if
a kickback occurs. The riving knife must be kept within
the range shown in Figure 52. For that reason, we only
recommend using a 10" blade for operations that require
use of the riving knife.
Figure.51. Height difference between
riving knife and blade.
Height Difference
Minimum 1mm
Maximum 5mm
Riving
Knife
Figure 52. Allowable top and bottom
distances between riving knife and blade.
Minimum 3mm
Top Distance
Bottom Distance
Maximum 8mm
Minimum 3mm
Maximum 8mm
Table
Riving
Knife
In. order. to. work. properly,. the. riving.
knife. cannot. be. bent. or. misaligned.
with. the. blade.. If. the. r iving. knife. gets.
accidentally. bent,. take. the. time. to.
straighten. it. or. just. replace. it.. Using.
a. bent. or. misaligned. riving. knife. will.
increase.the.risk.of.kickback!
To ensure riving knife works safely, the
following requirements MUST be met
when installing new blades:
•. Blade.Diameter:.10"
• Riving.Knife.Thickness:.0.1".(2.5mm)
• Required. Blade. Body. Thickness.
(excluding.teeth):.0.071–0.094".(1.8–
2.4mm)
• Required. Blade. Kerf. Thickness:.
0.102"–.0.126".(2.6mm–3.2mm).
.Riving knife MUST be aligned to blade;
These Requirements do not apply to
dado blades.
How.to.Install.the.Riving.Knife.
The riving knife is installed in a similar manner to the
blade guard and spreader. Refer to Blade Guard on Page.
36 for installation instructions.
When.to.Use.the.Riving.Knife
Use the riving knife for all non-through cuts made with
a standard table saw blade (i.e., dadoes or rabbet cuts
in which a dado blade is NOT used, and when using a
tenoning jig). Also, use the riving knife for those special
operations where the blade guard or its components get
in the way of safe operation, such as with very narrow
cuts.
When Not to Use the Riving Knife
The riving knife CANNOT be used with a dado blade
that has a diameter smaller than 10." Otherwise, the
riving knife height will exceed the blade height and the
workpiece will hit the riving knife during the cut, forcing
the operator into a dangerous situation of trying to turn
the saw off with the workpiece stuck halfway through the
cut.
In addition, although it is possible to use the riving knife
for through cutting operations, the blade guard assembly
offers far more injury protection and risk reduction than
the riving knife. Therefore, we strongly recommend that
you use the blade guard assembly instead of the riving
knife for through cuts.
background
-39-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Workpiece.Inspec tion
Some workpieces are not safe to cut or may
require modification before they can be made
safe to cut.
Before.cutting,.get.in.the.habit.of.inspecting.
all.workpieces.for.the.following:
• Material Type: This machine is intended
for cutting natural and man-made wood
products, laminate covered wood products,
and some plastics. Cutting drywall or
cementious backer board creates extremely
fine dust and may reduce the life of the
bearings. This machine is NOT designed to
cut metal, glass, stone, tile, etc.; cutting
these materials with a table saw may lead
to injury.
• Foreign Objects: Nails, staples, dirt,
rocks and other foreign objects are often
embedded in wood. While cutting, these
objects can become dislodged and hit the
operator, cause kickback, or break the
blade, which might then fly apart. Always
visually inspect your workpiece for these
items. If they can't be removed, DO NOT
cut the workpiece.
•. Large/Loose Knots:.Loose knots can
become dislodged during the cutting
operation. Large knots can cause kickback
and machine damage. Choose workpieces
that do not have large/loose knots or plan
ahead to avoid cutting through them.
•. Wet or "Green" Stock: Cutting wood
with a moisture content over 20% causes
unnecessary wear on the blades, increases
the risk of kickback, yields poor results.
• Excessive Warping: Workpieces with
excessive cupping, bowing, or twisting are
dangerous to cut because they are unstable
and often unpredictable when being
cut. DO NOT use workpieces with these
characteristics!
• Minor Warping: Workpieces with slight
cupping can be safely supported if the
cupped side is facing the table or the
fence.
background
-40-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

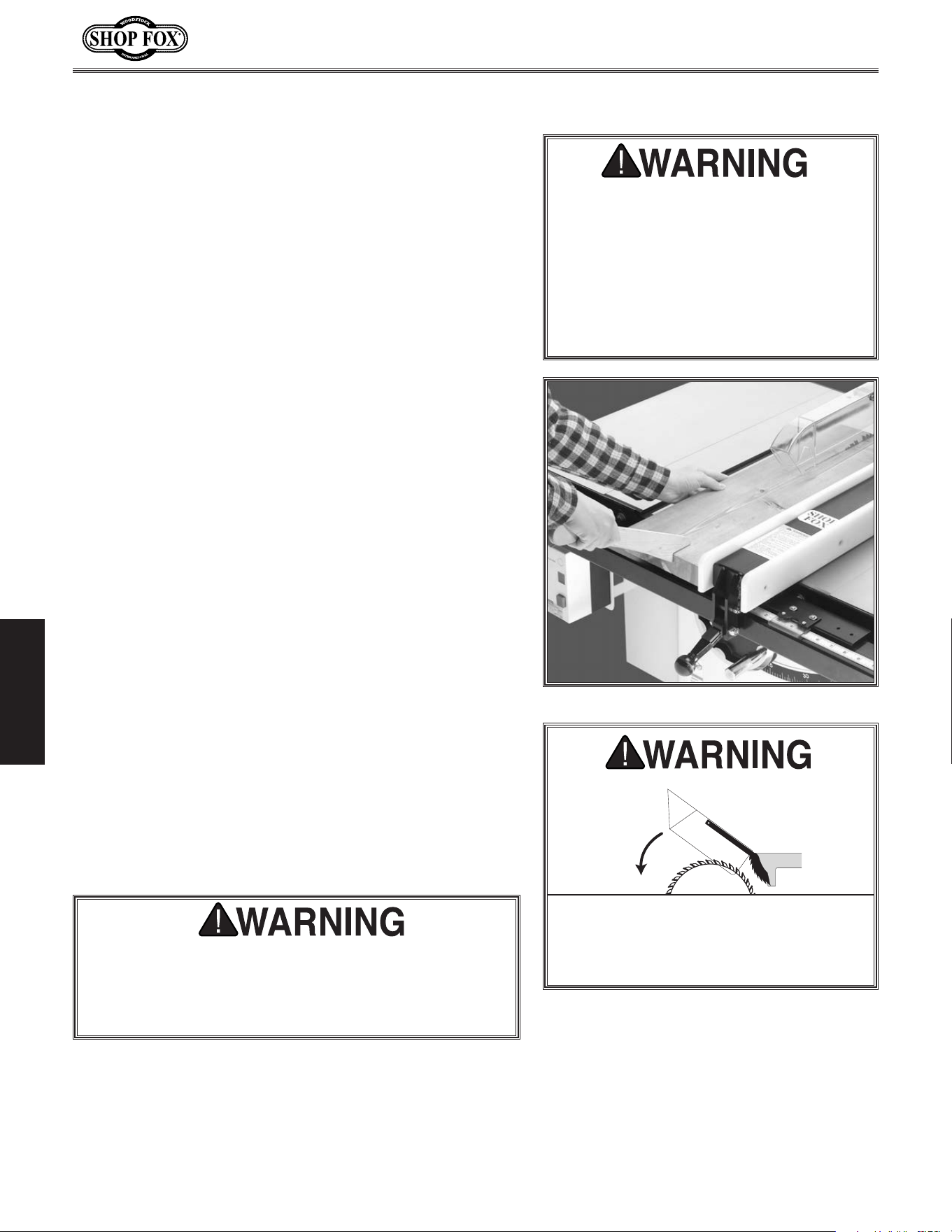

Ripping
"Ripping" means cutting with the grain of a natural wood
workpiece. In other man-made materials such as MDF or
plywood, ripping simply means cutting lengthwise.
To.make.a.r ip.cut,.do.these.steps:
1. Review Preventing.Kickback on Page.13.and take
the necessary precautions to prevent kickback.
2. If using natural wood, joint one long edge of the
workpiece on a jointer.
3.. DISCONNECT THE SAW FROM POWER!
4. Ensure that the blade guard/spreader is installed.
5. Set the fence to the desired width of cut on the
scale.
6. Adjust the blade height so the highest saw tooth
protrudes approximately
1
/4" above the workpiece.
7.. Set up safety devices such as featherboards or other
anti-kickback devices.
8. Rotate the blade by hand to make sure it does not
come into contact with any of the safety devices.
9. Plug the saw into the power source, turn it ON, and
allow it to reach full speed.
Note: The jointed edge of the workpiece must slide
against the fence during the cutting operation.
10.. Use a push stick to feed the workpiece through
the saw blade, as shown in Figure.53, until the
workpiece is completely past the saw blade.
Serious. injury. can. be. caused. by.
kickback.. Kickback. is. a. high-speed.
expulsion.of.stock.from.the.table.saw.
toward. an. operator.. The. operator. or.
bystanders. may. be. struck. by. flying.
stock,. or. the. operator’s. hands. can.
be. pulled. into. the. blade. during. the.
kickback.
Figure.53..Typical ripping operation.
Keep.the.blade.guard.installed.and.in.
the. down. position.. Failure. to. do. this.
could.result.in .serious.personal.injury.
or.death.
Turn. OFF. the. saw. and. allow. the. blade. to. come. to.
a.complete.stop.before.removing.the.cut-off.piece..
Failure.to.follow.this.warning.could.result. in.serious.
personal.injury.

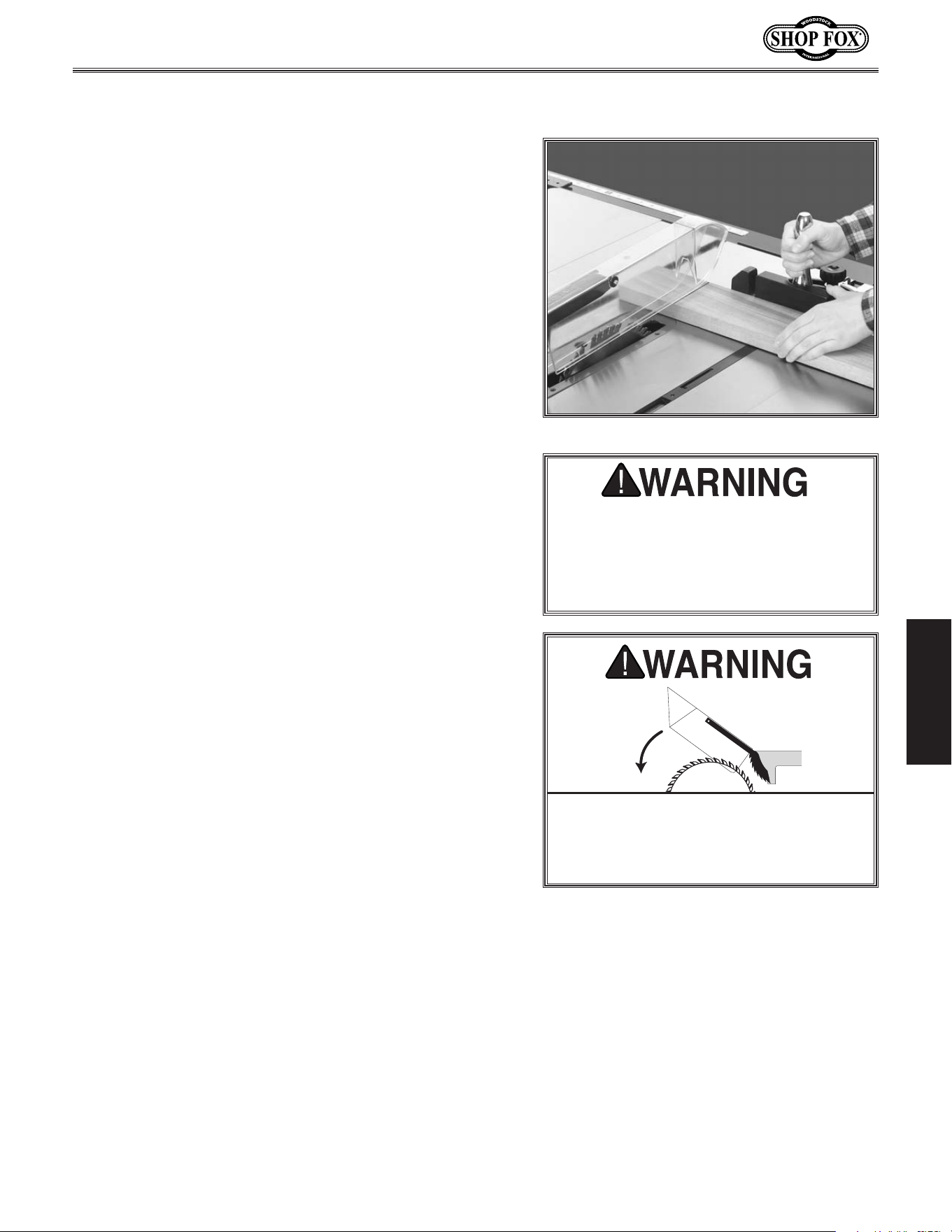

background
-41-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Crosscutting
"Crosscutting" means cutting across the grain of a natural
wood workpiece. In other man-made materials, such as
MDF or plywood, crosscuttting means cutting across the
width of the workpiece.
To.make.a.crosscut. using.the.miter.gauge,.do.these.
steps:
1.. DISCONNECT THE SAW FROM POWER!
2.. Ensure that the blade guard/spreader is installed.
3. Move the rip fence aside and position the miter
gauge, adjusted to 90°, in a miter slot.
4. Adjust the blade height so the teeth protrude
approximately
1
/4" above the workpiece.
5. Slide the miter gauge near the blade and adjust the
workpiece so the blade will cut on the waste side of
the line.
6. Plug in the table saw, turn it ON, and allow it to
reach full speed.
7. Hold the workpiece firmly against the face of the
miter gauge (see Figure.54) and ease it through the
blade until the workpiece is completely past the saw
blade.
Figure.54..Typical crosscutting operation.
Turn.OFF.the. saw.and.allow.the.blade.
to. come. to. a. complete. stop. before.
removing. the. cut-off. piece.. Failure.
to. follow. this. warning. could. result. in.
serious.personal.injury.
Keep.the.blade.guard.installed.and.in.
the. down. position.. Failure. to. do. this.
could.result.in.serious.personal.injury.
or.death.
background
-42-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

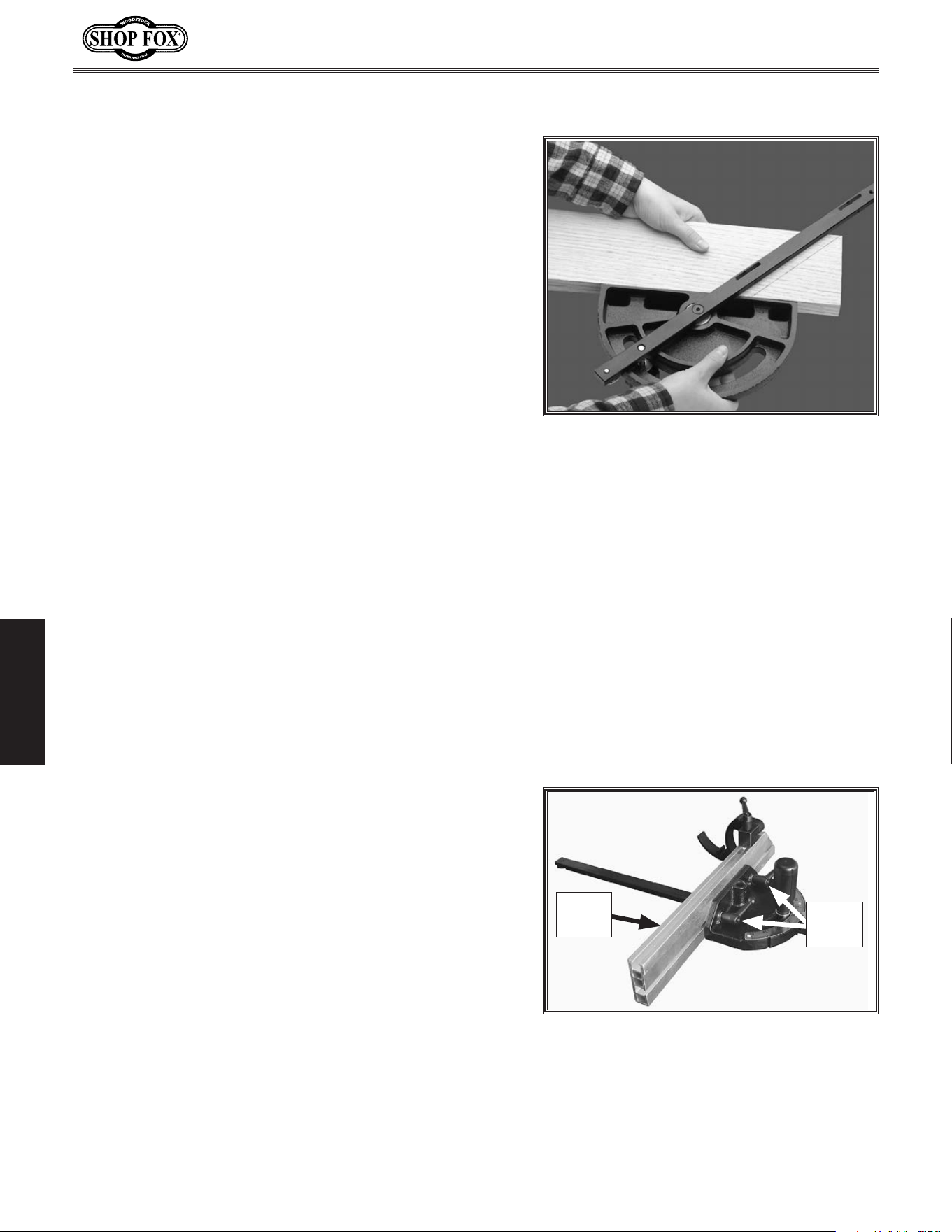

Figure.55. Example of marking miter line.
Miter.Cuts
A miter is an angled crosscut. Miters are usually cut in the
same manner as crosscuts, using the miter gauge and a
predetermined mark on the workpiece.
To.perform.a. miter.cut,.do.these.steps:
1.. DISCONNECT THE SAW FROM POWER!
2.. Ensure that the blade guard/spreader is installed.
3. Determine the angle of your cut. If the angle needs
to be very precise, use a protractor to set the miter
gauge to the blade.
4. Place the face of the miter gauge against the edge
of the workpiece and place the bar across the face
of the workpiece. Use the bar as a guide to mark
your cut, as shown in Figure.55.
5. Place the miter gauge back into the slot and hold
the workpiece firm against the miter gauge body.
Slide the miter gauge near the blade and adjust the
workpiece so the blade will cut on the waste side of
the line.
6. Proceed to make the cut in the same manner as
described in the Crosscutting instructions on Page.
41.
Figure.56. Miter fence lock levers.
Miter.Fence
The miter fence provides greater workpiece support than
the miter gauge alone, especially for longer workpieces.
Simply loosen the lock levers shown in Figure.56, slide
the miter fence in the needed direction for the cutting
operation, then tighten the levers. Make sure the miter
fence does not contact the blade guard or blade when
moved through its full range of travel.
Lock
Levers
Miter
Fence
background
-43-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Blade.Tilt.&.Bevel.Cuts
When the blade tilt stop bolts are properly adjusted, as
described on Page.65, the blade tilt handwheel allows the
operator to tilt the blade to the left, anywhere between
0° and 45°. This is used most often when cutting bevels
or compound miters. Figure.58 shows an example of the
blade when tilted to 45°.

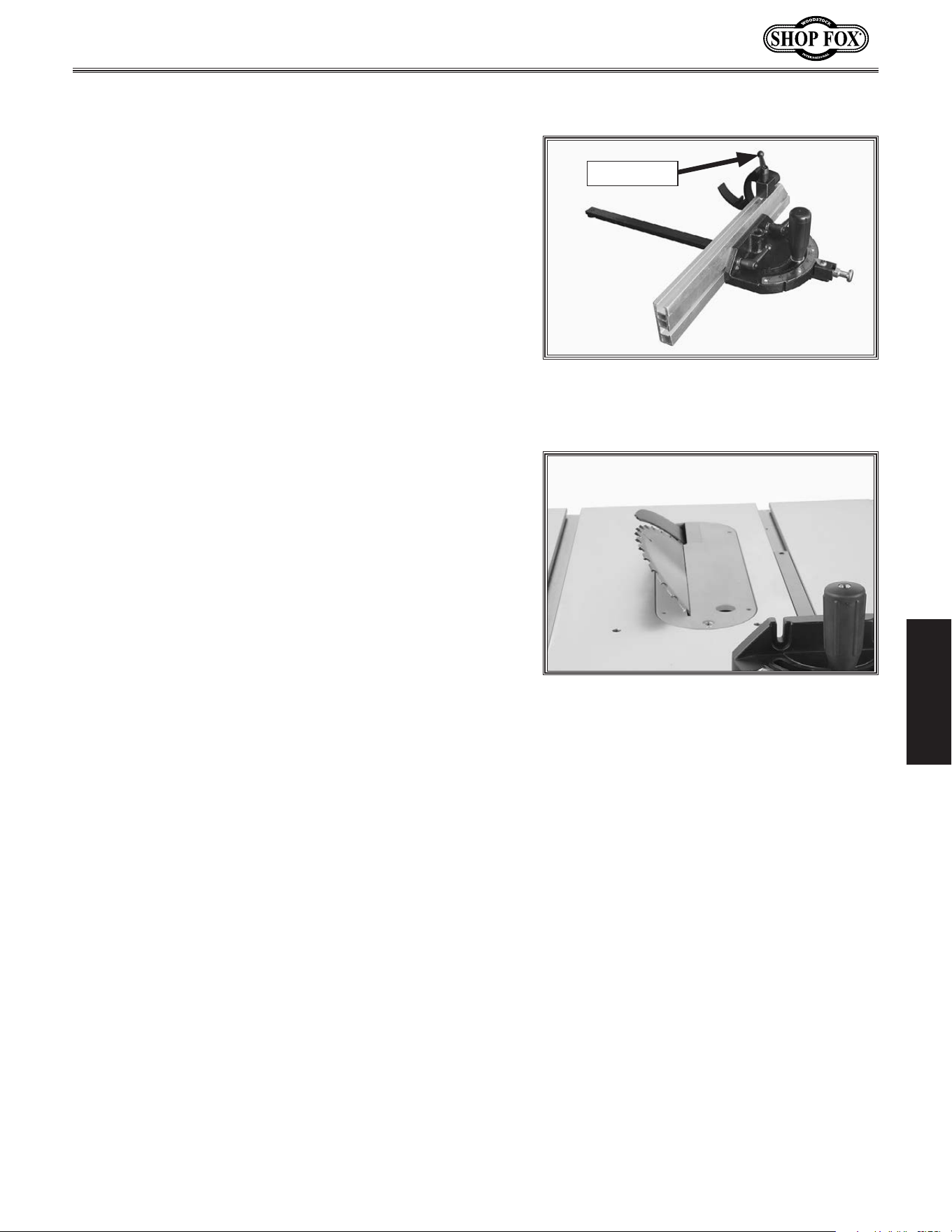

Figure.58. Blade tilted to 45° for bevel
cutting on a typical table saw.
Flip.Stop
The flip stop can be positioned anywhere along the top
of the miter fence and secured in place with a lock lever
(see Figure.57), the same distance away from the blade
as your desired width of cut.
The flip stop can be used in the down position to make
multiple cuts of the same width. It can be pivoted
(hence the name “flip”) out of the way to allow longer
workpieces to be cut, then pivoted back down to make
additional cuts at the specified cutting width.
Figure 57. Flip stop lock lever.
Lock Lever
background
-44-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Dado.Cutting
Commonly used in furniture joinery, a dado is a straight
channel cut in the face of the workpiece. Dadoes can be
cut using either a dedicated dado blade or a standard
saw blade. Figure 59 shows a cutaway view of a dado cut
being made with a dado blade.
The included dado table insert must be installed and used
when a dado blade is installed—unless a zero clearance
table insert is used instead.
The table saw motor is pushed to its limits when making
a dado cut with a dado blade. If the motor starts to bog
down, slow down your feed rate, reduce the depth of cut
and make multiple shallow passes.
Installing.a.Dado.Blade
1.. DISCONNECT THE SAW FROM POWER!
2. Remove the table insert, the blade guard assembly
or riving knife, and the saw blade.
3. Attach and adjust the dado blade system according
to the dado blade manufacturer’s instructions
4. Install the dado insert.
Dado Blade
Workpiece
Fence

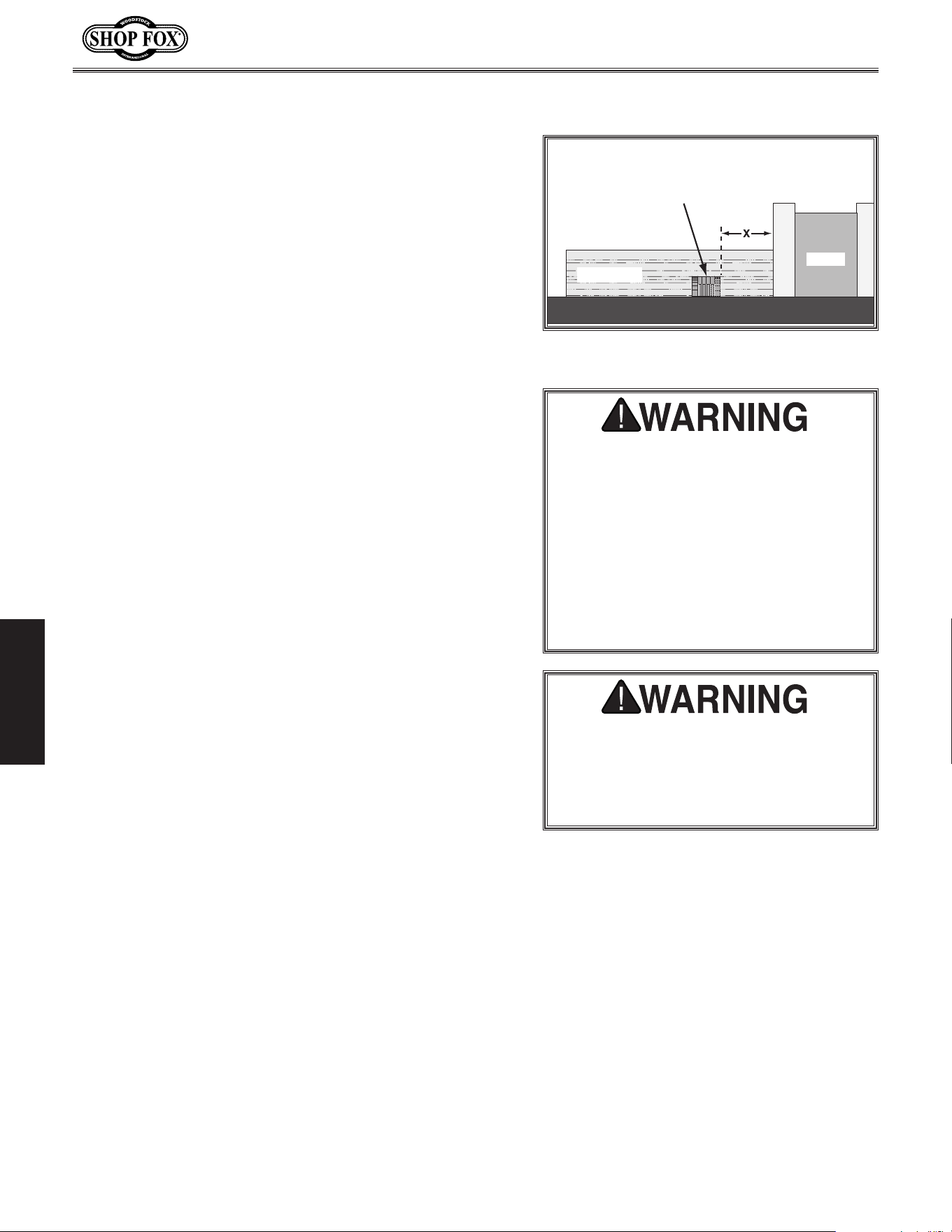

Figure.59..Example of a dado cut with a
dado blade.
DO. NOT. make. a. through-cut. with.
a. dado. blade.. Dado. blades. are. not.
designed. for. through. cuts.. Failure. to.
follow. this. warning. could. result. in.
serious.personal.injury..
Dado. blades. have. a. higher. risk. of.
kickback. than. normal. blades. because.
their.large.size.applies.stronger.forces.
to. the. workpiece.. This. risk. increases.
relative.to.the.depth.and.width.of. the.
cut.. To. minimize. your. risk. of. serious.
personal. injury,. ensure. that. stock. is.
flat. and. straight,. and. make. multiple.
light. cuts. (rather. than. one. deep. cut).
to.achieve.the.desired.cutting.depth.
background
-45-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Cutting.Dadoes.with.a.Dado.Blade
Because dado blades are so much wider than standard
blades, they place a much greater amount of force against
the workpiece when cutting.
To avoid injury, dado cuts require a much slower feed rate
than normal cuts, and they are best done with multiple
light cuts that get progressively deeper until the desired
depth of cut is achieved, as demonstrated in Figure 60.
To.cut.a.dado.with.a.dado.blade,.d o.these.steps:
1. Adjust the dado blade to the desired depth of cut.
2. Adjust the distance between the fence and the
inside edge of the blade, as shown in Figure.59 on
Page.44.
— If dadoing across the workpiece, use the miter
gauge and carefully line up the desired cut
with the dado blade. DO NOT use the fence in
combination with the miter gauge.
3. Reconnect the saw to the power source.
4. Turn the saw ON. The blade should run smooth, with
no vibrations.
5. When the blade has reached full speed, perform a
test cut with a scrap piece of wood.
6. If the cut is satisfactory, repeat the cut with the
actual workpiece.

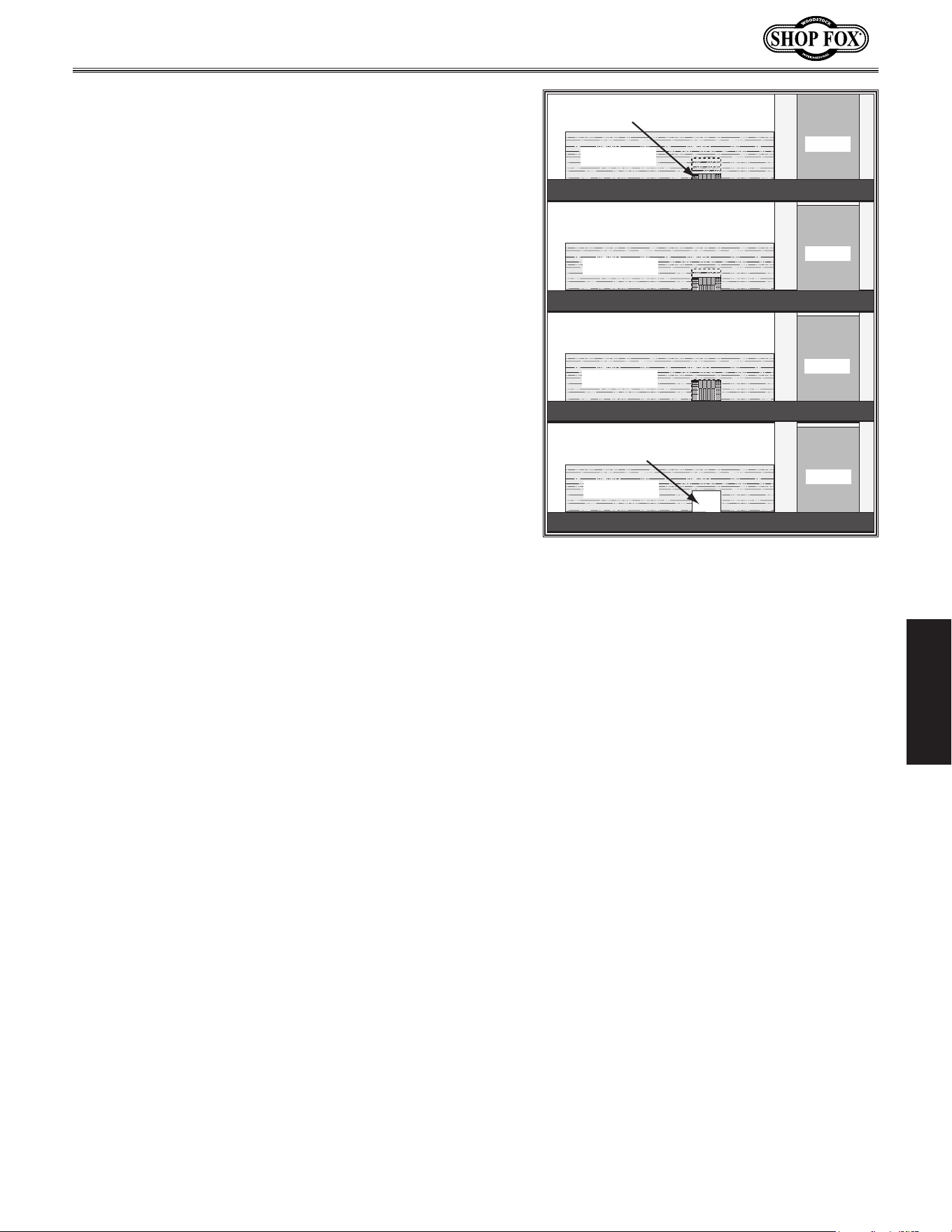

Figure.60. Example of dado being cut with
multiple light cuts, instead of one deep
cut.
Dado Blade
Workpiece
Fence
Cut 1
Workpiece
Fence
Cut 2
Workpiece
Fence
Cut 3
Finished
Dado Cut
Workpiece
Fence
background
-46-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

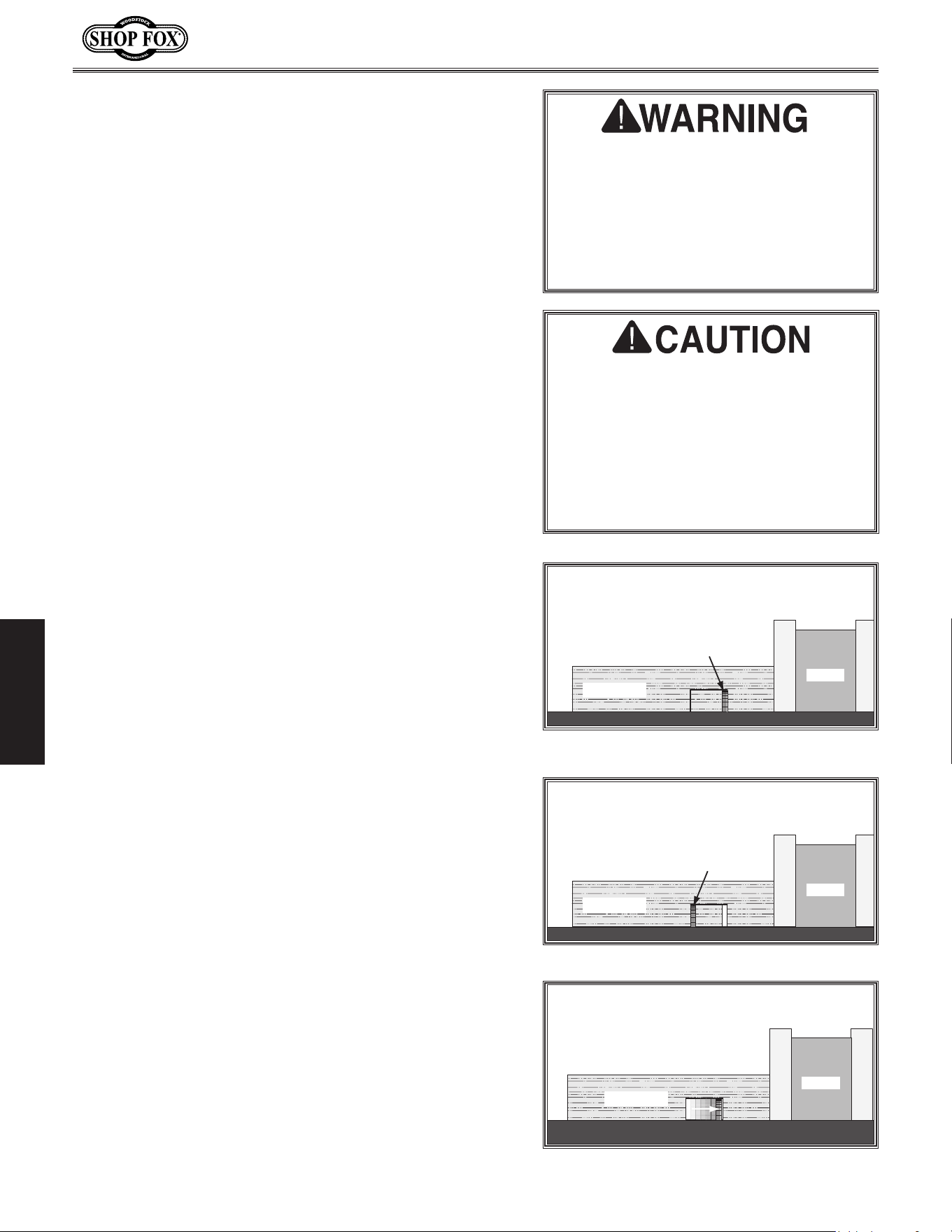

Cutting.Dadoes.with.a.Standard.Blade
A ripping blade is typically the best blade to use for
cutting dadoes when using a standard blade because it
removes sawdust very efficiently. See Page.33.for blade
details.
To.use.a.standard.saw.blade.to.cut.dadoes,.do.these.
steps:
1.. DISCONNECT THE SAW FROM POWER!
2. Ensure that the riving knife and standard table insert
are installed and properly adjusted.
3. Mark the width of the dado cut on the workpiece..
Include marks on the edge of the workpiece so the
cut path can be aligned when the workpiece is lying
on the table.
4. Raise the blade up to the desired depth of cut
(depth of dado channel desired).
— If dadoing across the workpiece, use the miter
gauge to support the workpiece, and align the
blade to cut one of the dado sides. DO NOT use
the fence in combination with the miter gauge.
— If dadoing the length of a workpiece, align the
blade to cut one of the dado sides as shown in
Figure.61.
5. Reconnect the saw to the power source and turn the
saw ON. Allow the blade to reach full speed.
6. Perform the cutting operation.
7. Re-adjust the fence so the blade is aligned with the
other edge of the intended dado channel (Figure.
62).
. Note:.Be sure to keep the cuts within your marks;
otherwise, the dado will be too big.
8. Continue making cuts toward the center of the dado
until the dado is complete (see Figure.63).
The.danger.of.kickback.increases.rela-
tive.to.the.depth.and.width.of.a.cut..
Reduce.the.risk.of.kickback.by.making.
multiple.passes.to.achieve.the.desired.
depth. of. cut.. Failure. to. follow. these.
warnings. could. result. in. serious. per-
sonal.injury.
Blade
Workpiece
Fence
Cut 1
Figure.61..Single-blade dado first cut.
Workpiece
Fence
Cut 2
Blade
Figure.62..Single-blade dado second cut.
Workpiece
Fence
Cuts 3+
Figure.63..Additional cuts.
Always.use.push.sticks,.featherboards,.
push.paddles.and.other.safety.accesso-
ries.whenever.possible.to.increase.safe-
ty. and. control. during. operations. that.
require. the. blade. guard. and. spreader.
to. be. removed. from. the. saw.. ALWAYS.
replace. the. blade. guard. after. dadoing.
is.complete.
background
-47-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Rip Fence
Sacrificial Fence
Dado Insert
Blade Cut-Out

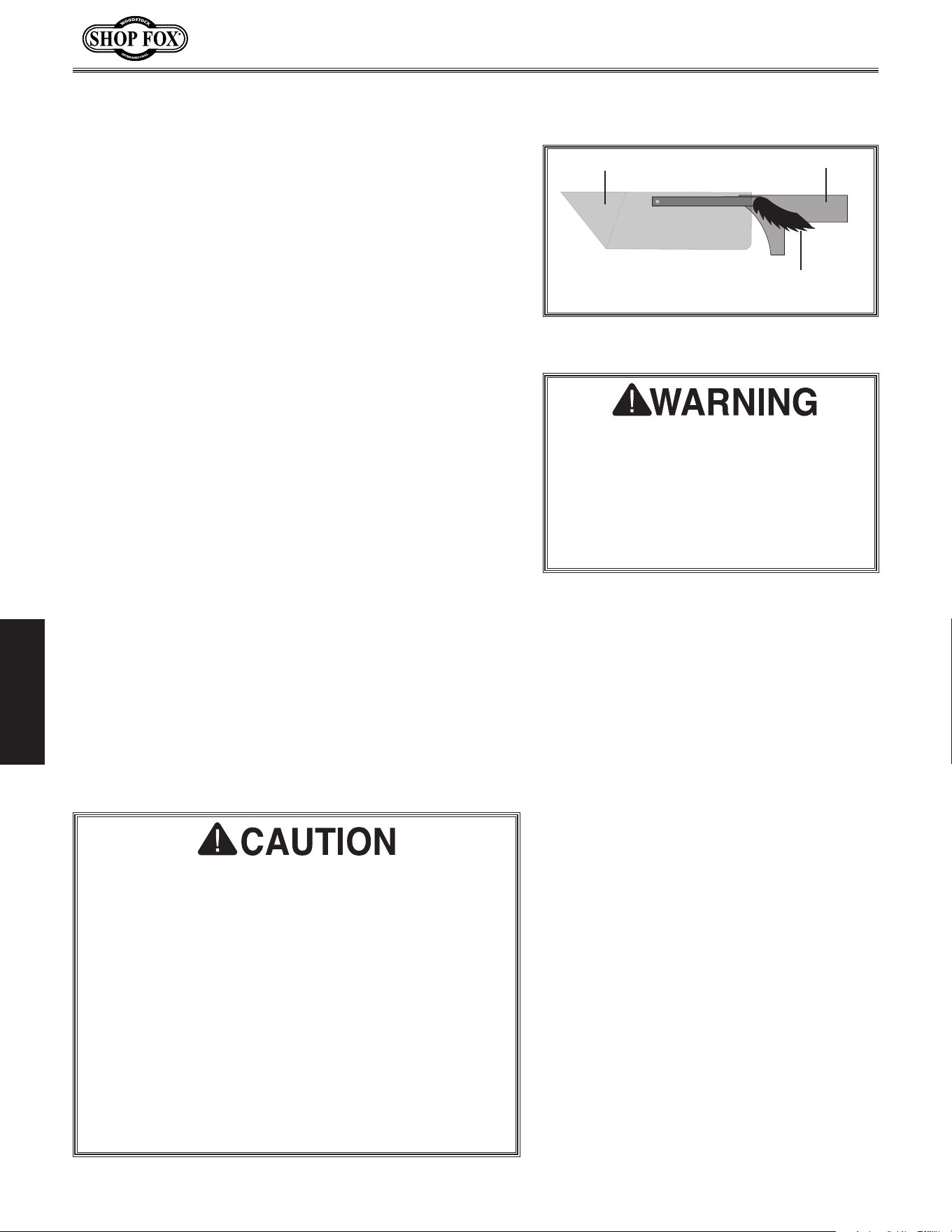

Figure.64..Sacrificial fence.
Rabbet .Cutting
You. may. experience. kickback. during.
this. procedure.. Stand. to. the. side. of.
the. blade. and. wear. safety. glasses. or.
a. face. shield. to. prevent. injury. when.
cutting.rabbets.
Workpiece
Fence
Dado Blade
Sacrificial Fence
Figure.65..Rabbet cutting with a dado
blade
Always.use.push.sticks,.featherboards,.
push. paddles. and. other. safety.
accessories. whenever. possible. to.
increase. safety. and. control. during.
operations. which. require. that. the.
blade. guard. and. splitter. must. be.
removed. from. the. saw.. ALWAYS.
replace.the.blade.guard.after.dadoing.
is.complete.
Commonly used in furniture joinery, a rabbet is an
L-shaped groove cut in the edge of the workpiece.
Rabbets can be cut with either a dado blade or a standard
saw blade.
Rabbet cutting on the edge of the workpiece requires a
sacrificial fence attachment as shown in Figure.64. Make
the sacrificial fence the same length as the fence and
3
⁄4" thick. Attach it to the fence with screws or clamps,
making sure they are all secure and tight. Raise the
blade into the sacrificial fence to the height needed.
Cutting.Rabbets.with.Dado.Blade
1.. DISCONNECT THE SAW FROM POWER!
2.. Adjust the dado blade to the height needed for the
rabbeting operation. When cutting deep rabbets, take
more than one pass to reduce the risk of kickback.
3. Adjust the fence and align the workpiece to perform
the cutting operation, as shown in Figure.65.
4. Reconnect the saw to the power source and turn
the saw ON. When the blade has reached full speed,
perform a test cut with a scrap piece of wood.
.
— If the cut is satisfactory, repeat the cut with the
final workpiece.
Dado blades have a higher risk of kickback than normal
blades because their larger size applies stronger force
to the workpiece. This risk increases relative to the
depth and width of the cut. To minimize your risk of
serious personal injury, ensure that the stock is flat
and straight, and make multiple light cuts (rather than
one deep cut) to achieve the desired cutting depth.
background
-48-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Cutting.Rabbets.with.Standard.Blade
A ripping blade is typically the best blade to use for
cutting rabbets when using a standard blade because it
removes sawdust very efficiently (see Page 33 for blade
details about ripping blades). Also, a sacrificial fence is
not required when cutting rabbets with a standard blade.
To.cut.a.rabbet.with.a.standard.blade,.do.these.steps:
1.. DISCONNECT THE SAW FROM POWER!
2. Ensure that the riving knife and standard table insert
are installed.
3. Mark the width of the rabbet cut on the edge of the
workpiece, so you can clearly identify the intended
cut.
4. Raise the blade up to the desired depth of cut
(depth of rabbet channel desired). When cutting
deep rabbets, take more than one pass to reduce
the risk of kickback.
5. Stand the workpiece on edge, as shown in Figure.66,
then adjust the fence so the blade is aligned with the
inside of your rabbet channel.
6. Reconnect the saw to the power source and turn the
saw ON. When the blade has reached full speed, per-
form a test cut with a scrap piece of wood.
— If the cut is satisfactory, repeat the cut with the
final workpiece.
7. Lay the workpiece flat on the table, adjust the
saw blade height to intersect with the first cut, as
shown in Figure.67,.then perform the second cut to
complete the rabbet.
The.danger.of.kickback.increases.rela-
tive.to.the.depth.of.a.cut..Reduce.the.
risk. of. kickback. by. making. multiple.
passes.to.achieve.the.desired.depth.of.
cut.. Failure. to. follow. these. warnings.
could.result.in.serious.personal.injury.

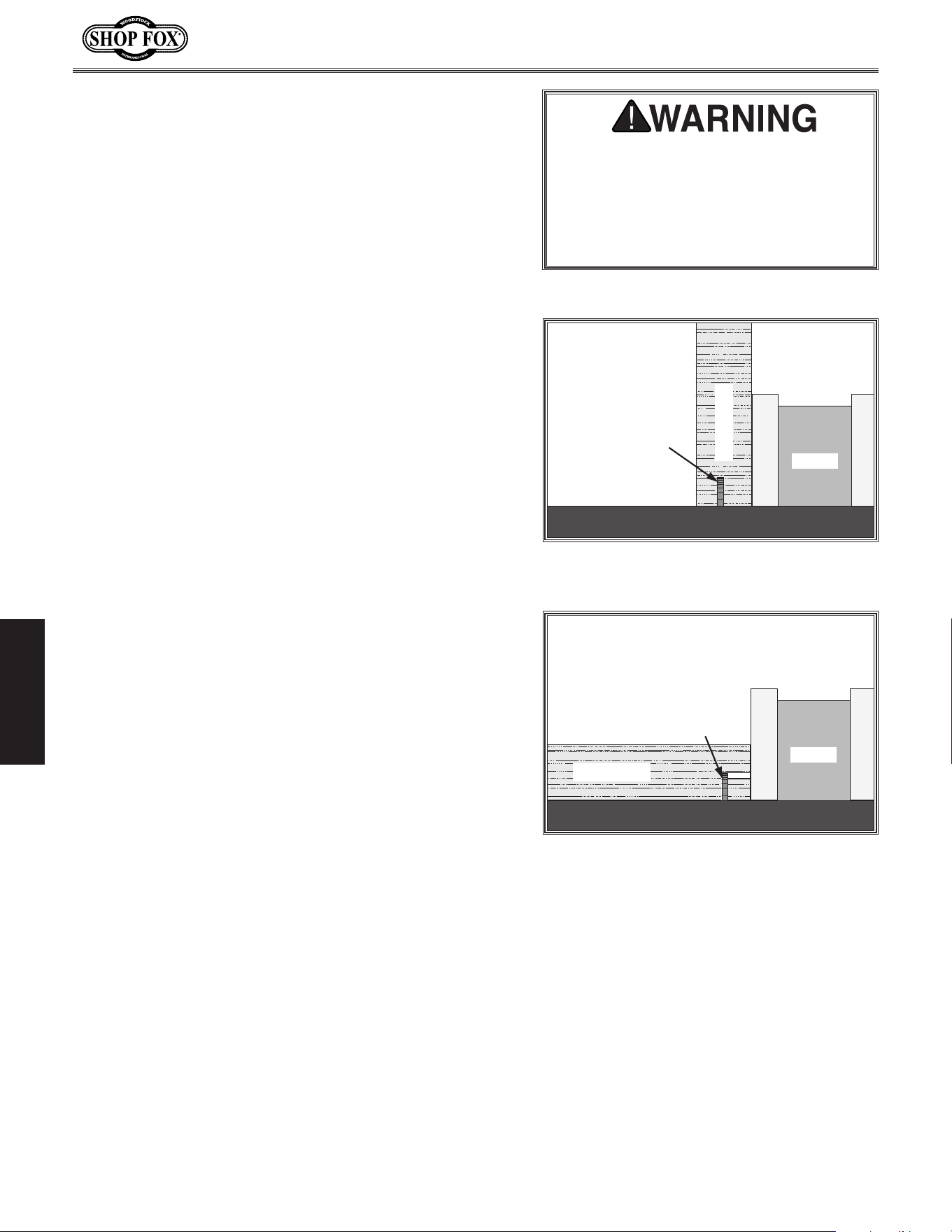

Figure.66..Rabbet cutting with a standard
blade.
Fence
Blade
Workpiece
Figure.67..Rabbet cutting with a standard
blade.
Workpiece
Fence
Blade
background
-49-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Resawing
Resawing is the process of cutting a thick piece of stock
into one or more thinner pieces. Although resawing can
be done with a table saw, we strongly recommend that
you use a bandsaw instead.
A bandsaw is the ideal machine for resawing, and
resawing with one is fairly easy and safe. A table saw
is not intended for resawing, and resawing with one
is difficult and dangerous due to the increased risk of
kickback from binding and deep cuts, and the increased
risk of injury from having to remove the guard.
If you insist on resawing with a table saw, DO NOT do
so without using a resaw barrier and wearing a full face
shield. The following instructions describe how to build a
resaw barrier and add an auxiliary fence to your standard
fence, to reduce the risk injury from resawing on a table
saw.
Note: This table saw can only resaw wood that is less
than 6
3
⁄8" tall.
Resawing. on.a.table.saw.increases.the.
chances. of. kickback.. Serious. injury.
can. be. caused. by. kickback.. Kickback.
is.a.high-speed.expulsion.of.stock.from.
the.table.saw.toward.an.operator..The.
operator.or.bystanders.may.be.struck.
by. flying. stock,. or. the. operator’s.
hands. can. be. pulled. into. the. blade.
during.kickback.
Resawing. operations. require. proper.
procedures. to. avoid. serious. injury..
Extra. care. must. be. taken. to. prevent.
kickback. when. resawing.. Any. tilting.
or. movement. of. the. workpiece. away.
from.the.fence.will.cause.kickback..Be.
certain.that.stock.is.flat.and.straight..
Failure.to.follow.these.warnings.could.
result.in.serious.personal.injury.
background
-50-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Making.Resaw.Barrier
The resaw barrier acts in tandem with the rip fence when
resawing to provide tall support for the workpiece to
minimize the probability of it binding against the blade
and causing kickback.
Tools.Needed.for.the.Resaw.Barrier:
Table Saw ........................................................1
Jointer and Planer ............................. Recommended
Clamps ................................................2 Minimum
Drill and Drill Bits ...............................................1
Components.Needed.for.the.Resaw.Barrier:
Wood*
3
⁄4" x 6" x Length of Table Saw Fence ...............1
Wood*
3
⁄4" x 3" x Length of Table Saw Fence ...............1
Wood Screws #10 x 2" ..........................................4
Wood Glue ........................................... As Needed
* Only use furniture grade plywood, kiln dried hardwood,
or UHMH plastic to prevent warping.
To.build.the.resaw.barrier,.do.these.steps:
1. Cut your wood pieces to the size specified above.
If you are using hardwood, cut the pieces oversize,
then joint and plane them to the correct size to
make sure they are square and flat.
2.. Pre-drill and countersink 4 holes approximately
3
⁄8"
from the bottom of the 6" tall board. These will
be use as pilot holes when attaching the board to
another piece in the next step.
3. Glue the end of the 3" board, then clamp the boards
at a 90° angle with the larger board in the vertical
position, as shown in Figure.68, fasten together with
the wood screws.

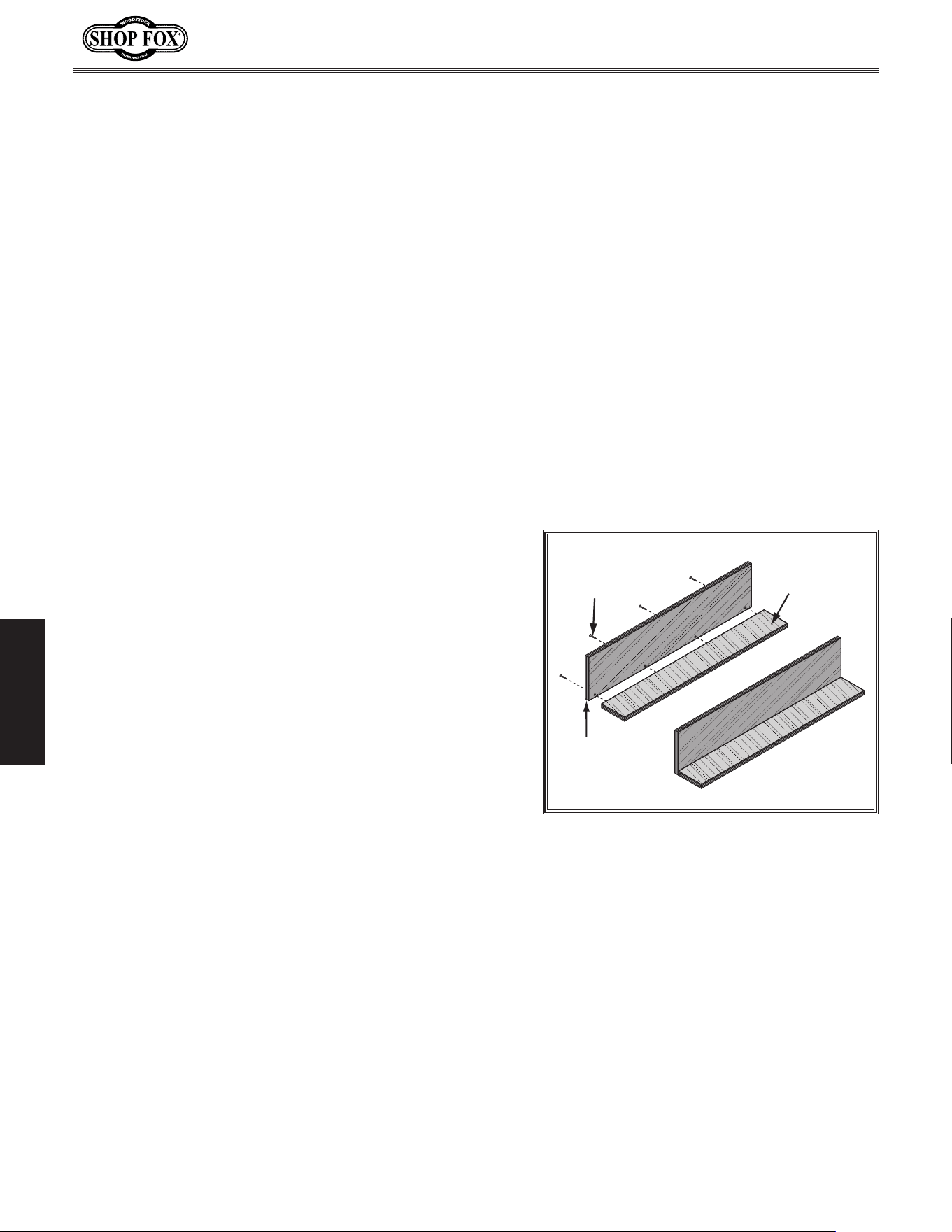

Figure.68. Clamping the resawing barrier.
#10 x 2"
Wood Screw
Assembled
Resaw Barrier
3
⁄
4
"
3
⁄
4
"
Auxiliary.Fence
The auxiliary fence is necessary if you are resawing a
workpiece that is taller than it is wide. It should be no
less than
1
⁄2" shorter than the board to be resawn.
Components.Needed.for.the.Auxiliary.Fence:
Hardwood or Plywood
3
⁄4" x (Height) x Length of Table
Saw Fence ........................................................1
Tools.Needed.for.the.Resaw.Barrier:
Table Saw ........................................................1
Jointer and Planer ............................. Recommended
Clamps ................................................2 Minimum
background
-51-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Resawing.Operations
The table saw motor is pushed to its limits when
resawing. If the motor starts to bog down, slow down
your feed rate. Motor overloading and blade wear can
be reduced by using a ripping blade. Ripping blades are
designed to clear the sawdust quickly.
Components.Needed.for.Resawing:
Zero Clearance Insert ..........................................1
Ripping Blade 10" ...............................................1
Clamps ............................................................2
Shop Made Auxiliary Fence ....................................1
Shop Made Resaw Barrier ......................................1
To.perform.resawing.operations,.do.these.steps:
1. DISCONNECT THE SAW FROM POWER!
2. Remove the standard table insert and the blade
guard assembly.
3. Install a ripping blade and the riving knife, lower the
blade below the table, then install a zero clearance
table insert.
Fence
Body
Auxiliary
Fence
Fence
Facing

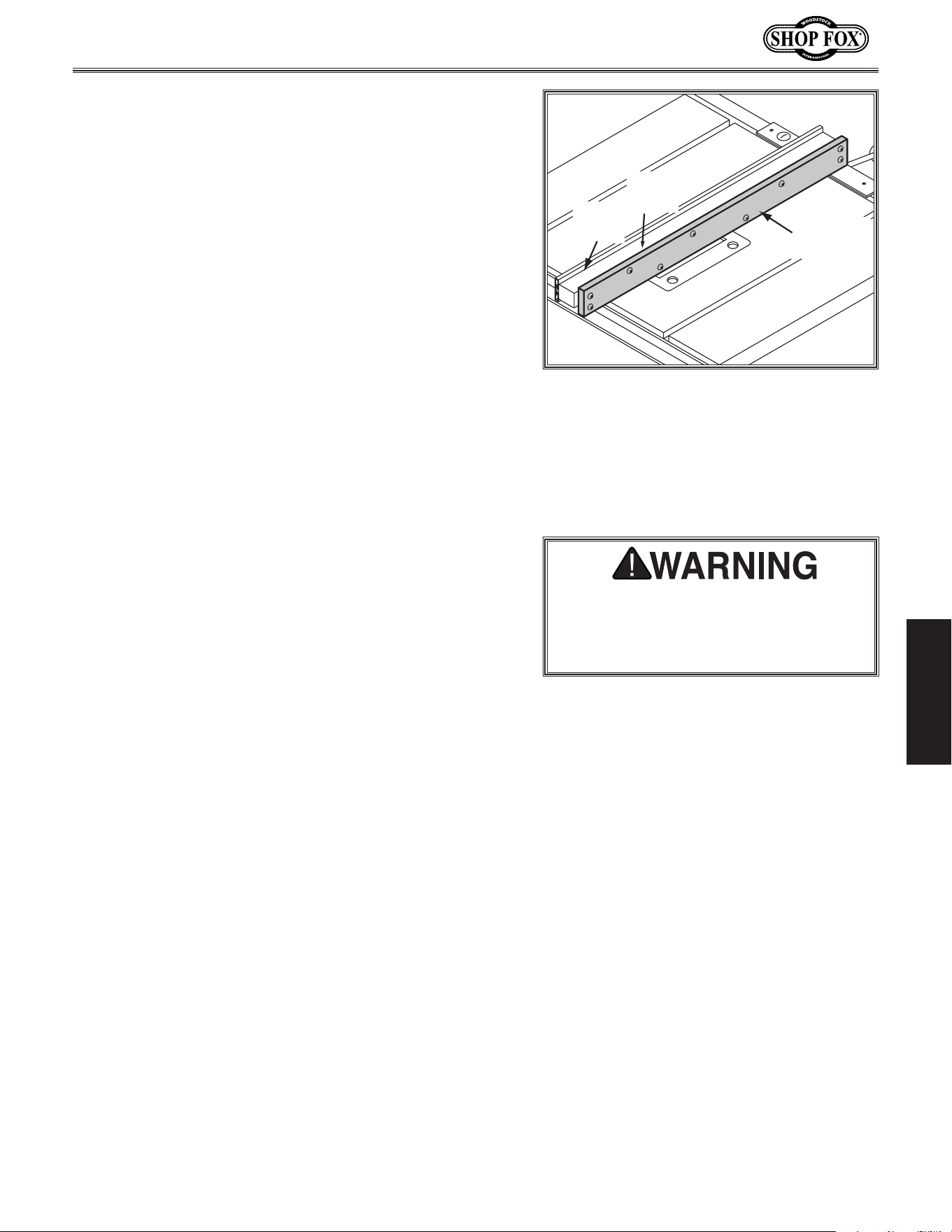

Figure.69. Auxiliary fence.
You. may. experience. kickback. during.
this. procedure.. Stand. to. the. side. of.
the.blade.and.wear.a.full.face.shield.to.
prevent.injury.when.resawing.
To.build.the.auxiliary.fence,.do.these.steps:
1. Cut the auxiliary fence board to size. If you are using
hardwood, cut the board oversize, then joint and
plane the board to the correct size to make sure the
board is square and flat.
Note:.Only use furniture grade plywood or kiln dried
hardwood to prevent warping.
2. Unthread the fence face mounting hardware and
remove the fence face from the fence assembly.
3.. Place the auxiliary fence next the fence face you
removed in Step.1, mark the location of the nine
mounting holes on the auxiliary fence, then drill the
holes.
4. Use the mounting hardware that had previously
attached the fence face to attach the auxiliary
fence. The end result should be similar to Figure.69.
background
-52-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

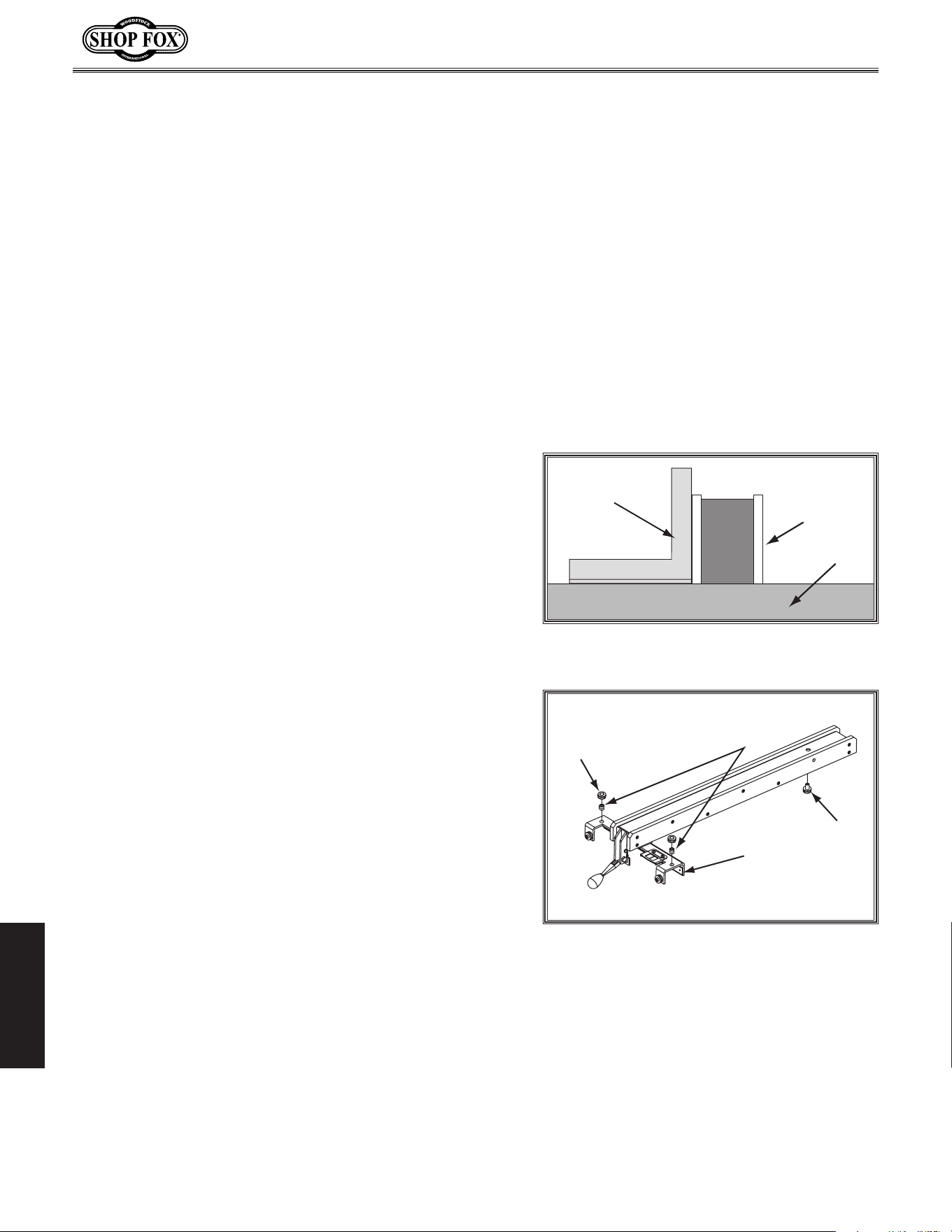

4. Attach the auxiliary fence to the standard fence and
set it to the desired width.
Note:.When figuring out the correct width, do not
forget to account for blade kerf and the inaccuracy
of the fence scale while the auxiliary fence is
installed. Typically it is best to use a measuring
tape to set the fence.
5. Place the workpiece against the auxiliary fence and
slide the resaw barrier against the workpiece, as
shown in Figure.70. Now clamp the resaw barrier to
the top of the table saw at both ends.
6. Slide the workpiece over the blade to make sure it
moves smoothly, then remove the workpiece.
7. Raise the blade approximately an inch, or close
to half the height of the workpiece (Figure.71),
whichever is less.
8. Plug in the table saw, turn it ON, and use a push
stick or push block to feed the workpiece through
the blade, using a slow and steady feed rate.
9. Flip the workpiece end for end, keeping the same
side against the fence, and run the workpiece
through the blade.
10. Repeat Steps.7–9 until the blade is close to half
of the height of the board to be resawn. The ideal
completed resaw cut will leave a
1
⁄8" connection
when the resawing is complete as shown in Figure.
71. Leaving a
1
⁄8" connection will reduce the risk of
kickback.
11. Turn OFF the table saw, then separate the parts of
the workpiece and hand plane the remaining ridge to
remove it.
12.. When finished resawing, remove the resaw barrier
and auxiliary fence, then re-install the blade guard/
spreader or riving knife and standard table insert.

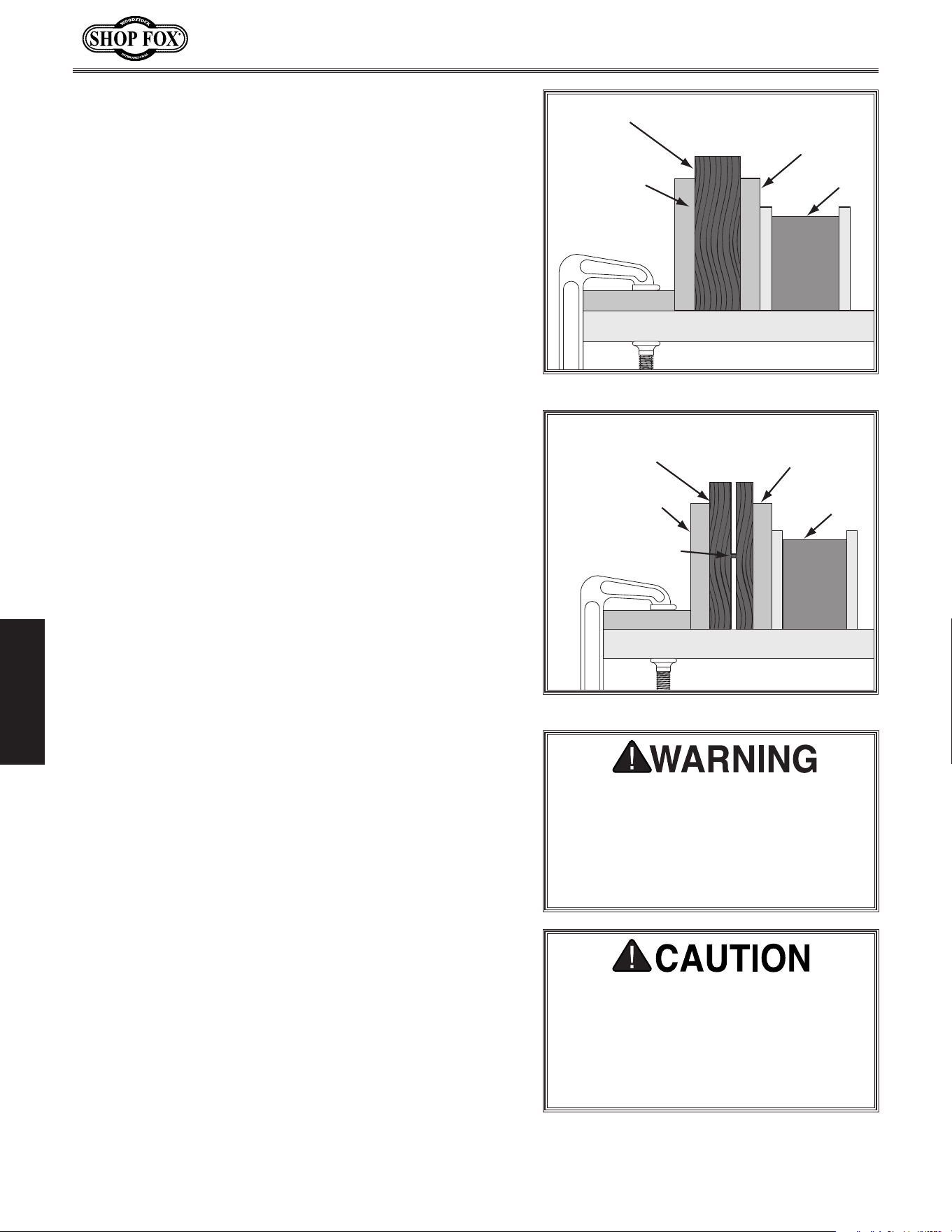

Figure.70. Ideal resaw workpiece setup.
Auxiliary
Fence
Fence
Resaw
Barrier
Workpiece
(Front View)
Figure.71. Ideal completed resaw cut.
Auxiliary
Fence
Fence
Resaw
Barrier
1
/
8
" Connection
Workpiece
Always.use.push.sticks.or.push.paddles.
to. increase. safety. and. control. during.
operations.which.require.that.the.blade.
guard. and. spreader. must. be. removed.
from.the.saw..ALWAYS.replace.the.blade.
guard.after.resawing.is.complete.
The. danger. of. kickback. increases.
relative. to. the. depth. of. a. cut.. Reduce.
the.risk.of.kickback.by.making.multiple.
passes.to. achieve.the. desired.depth.of.
cut.. Failure. to. follow. these. warnings.
could.result.in.serious.personal.injury.
background
-53-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

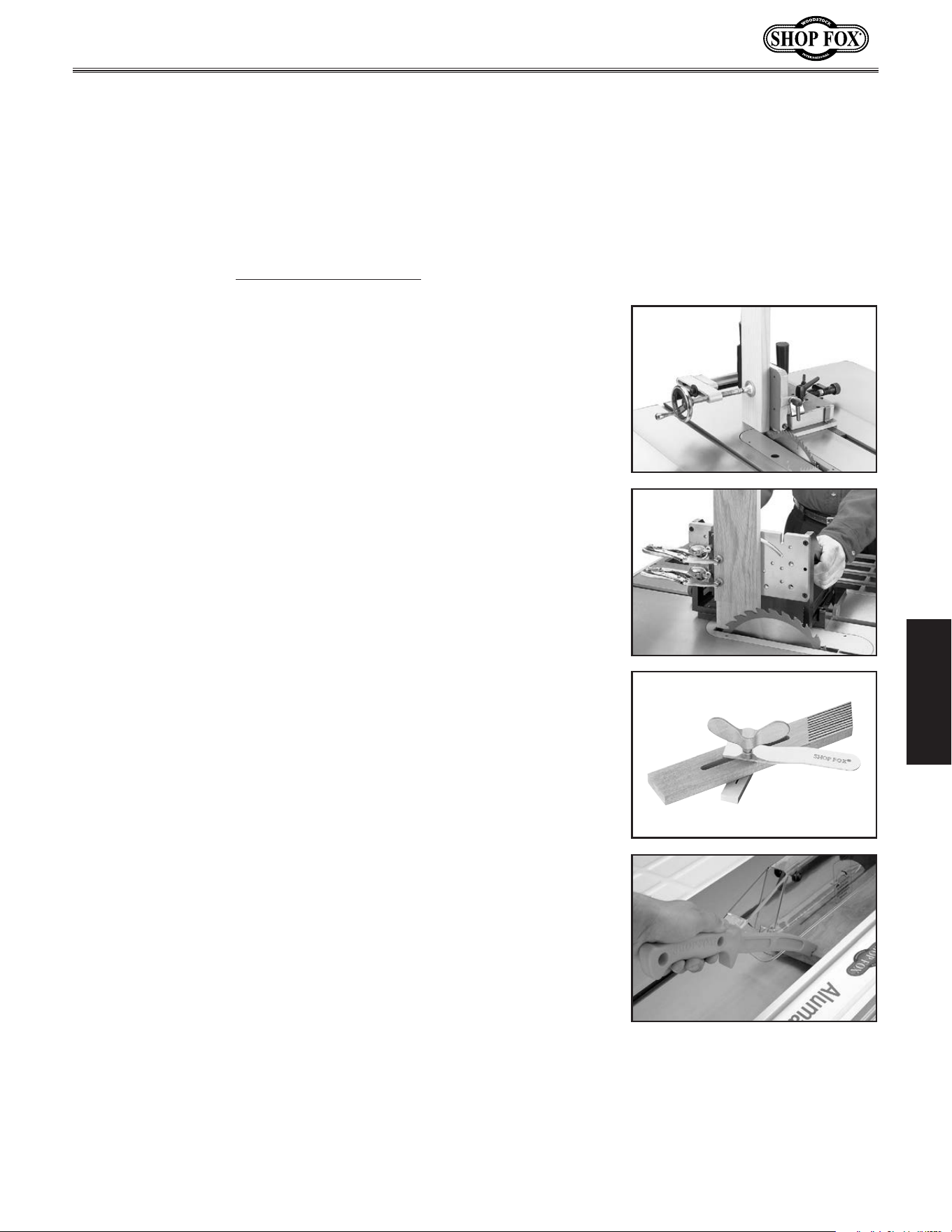

The.Mo del.D3246.Shop Fox.Tenoning.Jig.can.help.you.produce
perfect tenons for mortise and tenon joinery. This tenoning jig also
adjusts for angled tenon cutting set-ups. Standard
3
/8" x
3
/4" miter bar
fits all miter gauge slots including T-slots.
The Model.D3096.Shop Fox.Featherboard can reduce the risk of
kick-back and help you achieve consistent results. Designed to lock
into standard
3
/8" x
3
/4" miter gauge slots, these featherboards are
adjustable for various stock widths and miter slot locations. No drill-
ing or bulky clamp arrangements.
The Model.W1500 Shop Fox.Right.Angle.Jig.is constructed using
top quality aluminum castings and plates which are machined to
exacting tolerances. It has the perfect weight-use ratio to dampen
vibration, yet is still light enough to easily slide the workpiece
through the machining process. Its quality and precision are evident
from the first cut. Cut tenons, dados, rail ends, and finger joints
safely and with complete accuracy.
The Mo del D 3122.Shop Fox.Push.Stick.can help you keep your
hands a safe distance from blades and cutters while still maintaining
control of the workpiece against machine fences. A true necessity
when running narrow stock. Durable handle is designed for maximum
control. Measure 13
1
/2" overall.
ACCESSORIES
Table.Saw.Accessories
The following Table Saw accessories may be available through your local Woodstock International Inc.
Dealer. If you do not have a dealer in your area, these products are also available through online dealers.
Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of dealers at:
1-800-840-8420 or at sales@woodstockint.com.
background
-54-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

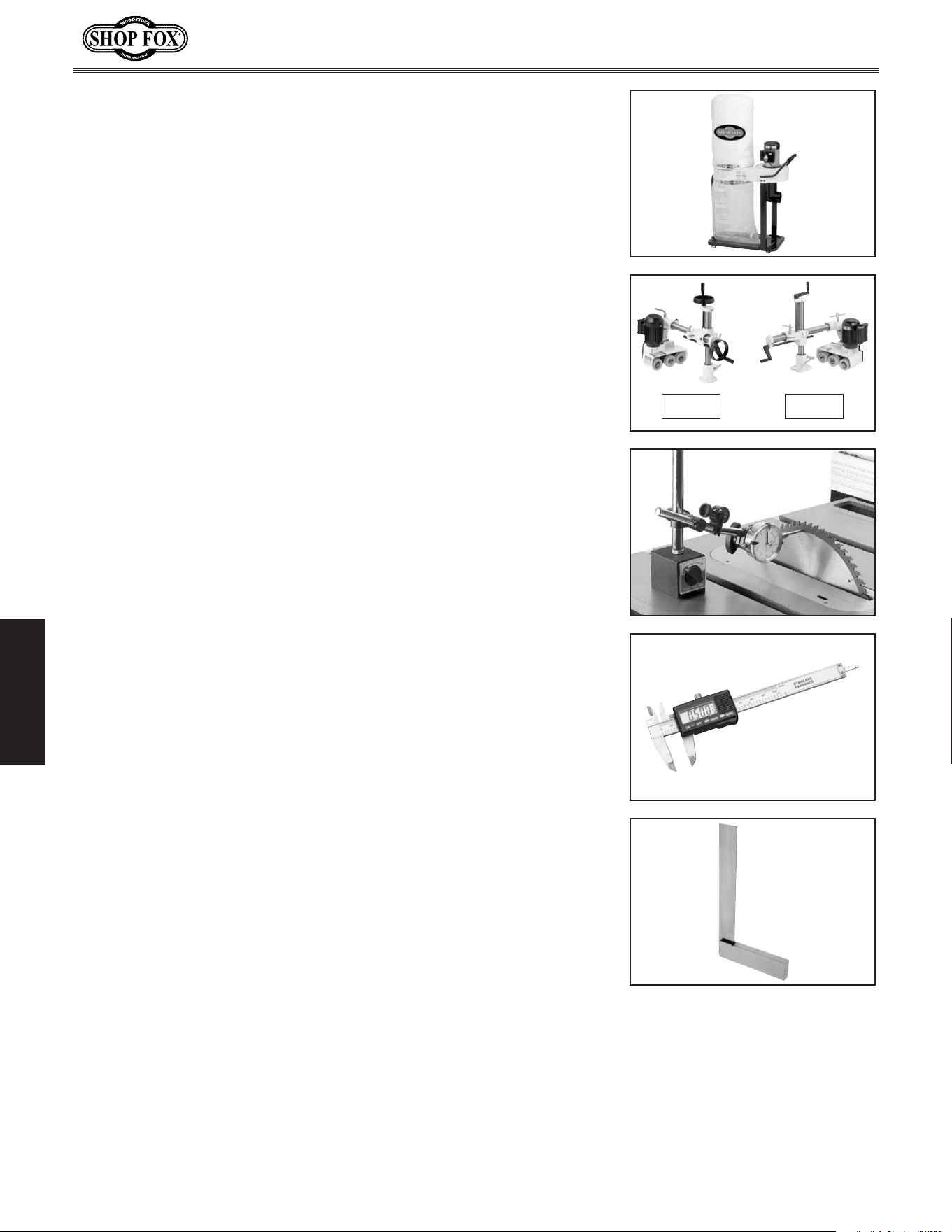

The.Model.D3207 Magnetic.Base.with.Dial.Indicator.in.Case is the
best value in precision measuring instruments. Powerful magnetic
base with infinitely adjustable control arm, fine tuning beam
and magnetic switch. Add to this the 1" travel dial indicator with
divisions of 0.001", 0.100" per revolution, and a 0.100" counter, and
any setup job is a snap.
Bald.Eagle.Digit al.Calipers are equipped with the following features:
Extra-large LCD readout. Accuracy: ± 0.001"/ 0.02mm. Resolution:
0.0005/0.01mm. Inch and metric digital display. Stainless steel
construction. Built-in computer interface port with automatic shutoff.
BE1031: 4" Digital Caliper
BE1033: 8" Digital Caliper
High-precision Aluminum.Squares are perfect for square layouts and
machine setup.
D3383: 4" Precision Square
D3384: 6" Precision Square
Power.Feeders.will make light work out of those big jobs with
greater accuracy and safety. The.Model.W1765.features a
1
⁄4 H P,
110V, 1.8 Amp motor. The Model.W1766 features a
1
⁄2 HP, 220V, 4
Amp motor. Both models feature forward/reverse, XYZ adjustment,
multiple feed speeds, and synthetic rubber wheels.
W1765 W1766
The Mo del W1727.Shop Fox.1.HP.Dust.Collector.is the perfect
companion for the Model W1819/W1820. It packs a 1 HP, 110V/220V,
single-phase motor and 800 CFM air suction capacity.
background
-55-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Featherbo ards
Easily made from scrap stock, featherboards (Figure.72).
provide an added degree of protection against kickback,
especially when used together with push sticks. They
also maintain pressure on the workpiece to keep it
against the fence or table while cutting, which makes
the operation easier and safer because the cut can be
completed without the operator’s hands getting near the
blade. The angled ends and flexibility of the fingers allow
the workpiece to move in only one direction, which helps
slow/stop the workpiece if a kickback occurs.
Making.a.Featherboard
This sub-section covers the two basic types of
featherboards: 1) Those secured by clamps to the table or
fence, or 2) those secured by a wood runner that mounts
in the table saw miter slot.
Materials for Clamp-Mounted Featherboard
Hardwood
3
⁄4" x 3"-6" x 10"-28" ...............................1
Materials for Miter Slot-Mounted Featherboard
Hardwood
3
⁄4" x 3"-6" x 10"-28" ...............................1
Hardwood
3
⁄8" x (Miter Slot Width) x 5"L ...................1
Wing Nut
1
/4"-20 .................................................1
Flat Head Screw
1
⁄4"-20 x 2" ..................................1
Flat Washer
1
⁄4"-20 .............................................1
To make a featherboard, do these steps:
1. Cut a hardwood board
3
⁄4" thick to size. The length
and width of the board can vary according to your
design. Most featherboards are 10"–28" long and 3"–6"
wide. Make sure the wood grain runs parallel with
the length of the featherboard, so the fingers you
create in Step.3 will bend without breaking.
2. Cut a 30º angle at one end of the board.
SHOP-MADE.SA FETY.ACCESSORIES
A
B
30°
2"—3"
1
/
16
"—
1
/
8
"
Kerf
1
/
16
"—
1
/
8
"
Kerf
2"—3"
10" (Minimum)
Initial Cut
Progressively
Longer Cuts
3
/
8
"
3
/
8
"

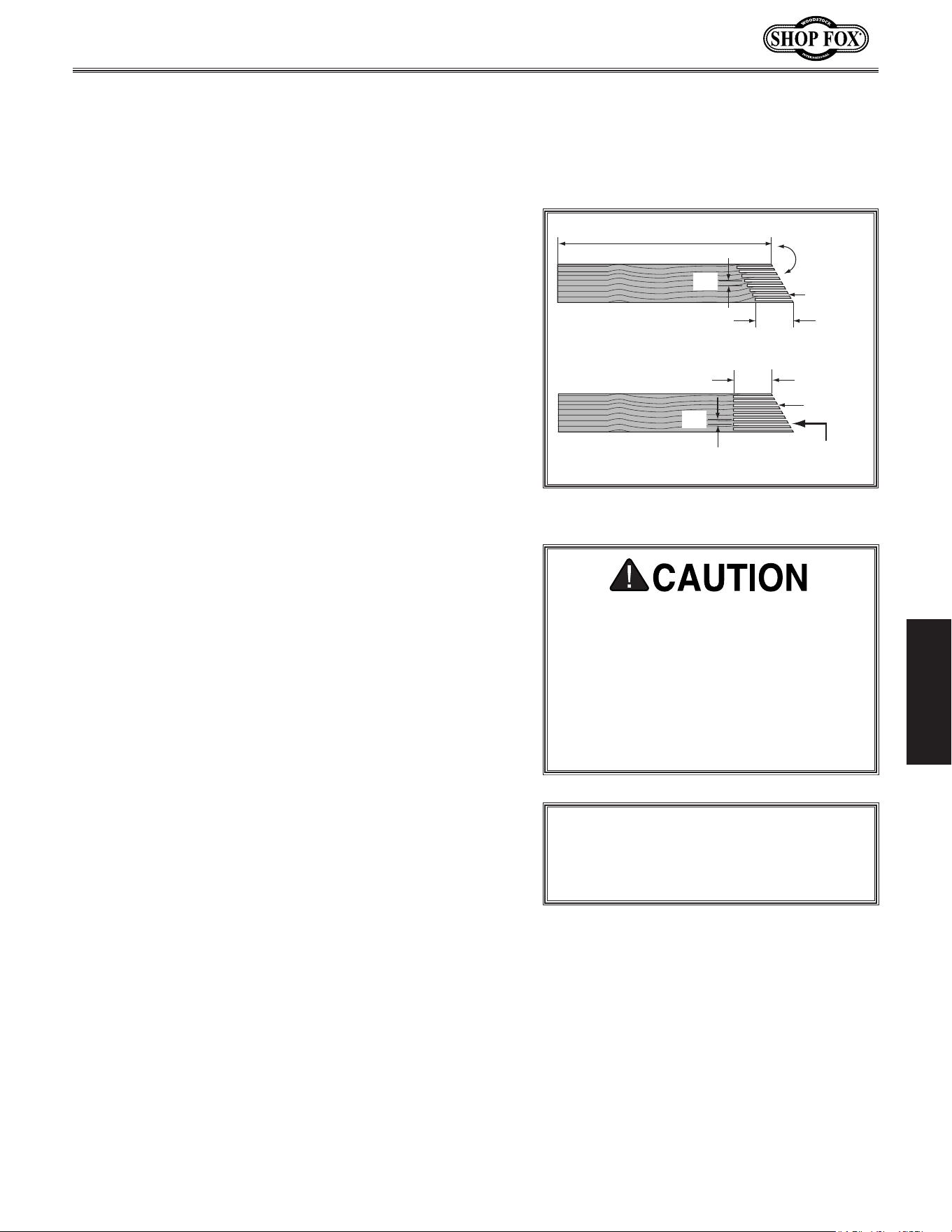

Figure.72. Patterns for featherboards
(top view shown).
We.recommend.using.a.bandsaw.for.
making.fingers.because.it.tends.to.
be.safer..A. table.saw.can.be.used,.
but.it.will.over-cut.the.underside.of.
the.ends,.produce.a.thicker.kerf,.and.
require.you.to.stop.the.blade.half-
way.through.the.cut,.which.can.be.
dangerous..
NOTICE
Only.steps.1–3.are.required.to.make.a.
clamp-mounted .featherboard.
background
-56-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
1"—2"
4"—5"
1
/
4
"—
3
/
8
" Slot
Figure.73. Slot routed in featherboard.
5"
5"
4" Slot
(Top View)
(Side View)
3
/
8
"
Countersink on Bottom
1
/
4
" Hole
Figure.74. Miter bar pattern.
(Side View)
Wing Nut
Miter Bar
Featherboard
Flat Head Screw
Flat Washer
Figure.75. Assembling miter slot
featherboard components.
4. Rout a
1
⁄4"–
3
⁄8" wide slot 4"–5" long in the workpiece
and 1"–2" from the short end of the featherboard
(see Figure.73).
5. Cut a miter bar that will fit in the table miter slot
approximately 5" long, as shown in Figure.74.
Tip:.Consider making the miter bar longer for larger
featherboards—approximately half the length of the
total featherboard—to support the force applied to
the featherboard during use.
. Tip: The length of the flat head screw depends on
the thickness of the featherboard—though 1
1
⁄2" to 2"
lengths usually work.
Now, proceed to Mounting.Featherboard.in.Miter.
Slot on Page.57.
6. Drill a
1
⁄4" hole in the center of the bar, then
countersink the bottom to fit a
1
⁄4"-20 flat head
screw.
7. Mark a 4" line through the center of the countersunk
hole, then use a jig saw with a narrow blade to cut
it out.
8. Assemble the miter bar and featherboard with a
1
⁄4"-
20 x flat head screw, flat washer, and a wing nut or
a star knob (see Figure.75). Congratulations! Your
featherboard is complete.
3. Make a series of end cuts with the grain,
approximately
3
⁄8"–
1
⁄4" apart and 2"–3" long, as shown
in Figure.72.(A).
Alternatively, start cuts at 2"-3" deep, then make
them progressively deeper, as shown in Figure.72.
(B).
IMPORTANT: Cuts made across the grain will result
in weak fingers that easily break when flexed. When
made correctly, the fingers should withstand flexing
from moderate pressure. To test the finger flexibility,
push firmly on the ends with your thumb. If the
fingers do not flex, they are likely too thick (the
cuts are too far apart).
background
-57-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

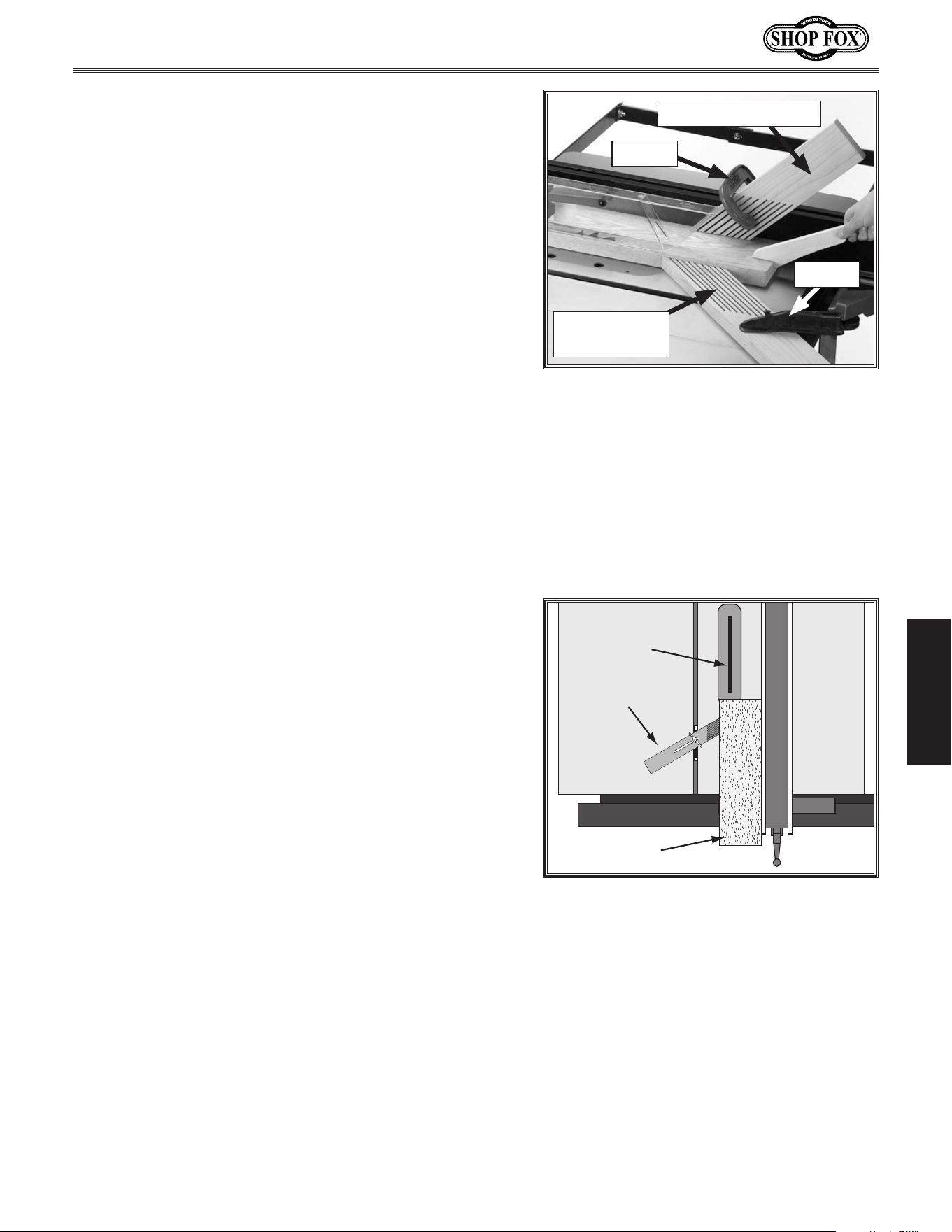

Mounting.Featherboards.with.Clamps
1. Lower the saw blade, then adjust the fence to the
desired width and secure it.
2. Place the workpiece against the fence, making sure
it is 1" in front of the blade.
3. Place a featherboard on the table away from the
blade so all fingers point forward and contact the
workpiece (see Figure.76).
4. Secure the featherboard to the table with a clamp.
5. Check the featherboard by pushing it with your
thumb to ensure it is secure.
— If the featherboard moves, tighten the clamp
more.
6. Mount a second featherboard to the fence with
another clamp (see Figure.76), then repeat Step.5
to ensure it is secure.
Mounting.Featherboard.in.Miter.Slot
1. Lower the saw blade, then adjust the fence to the
desired width and secure it.
2.. Place the workpiece evenly against the fence, with
the end approximately 1" in front of the blade.
3. Slide the featherboard miter bar into the miter slot,
making sure the fingers slant toward the blade, as
shown in Figure.77.
4. Position the fingered edge of the featherboard
against the edge of the workpiece, so that all
of the fingers contact the workpiece. Slide the
featherboard toward the blade until the first finger
is nearly even with the end of the workpiece, which
should be approximately 1" away from the blade.
5. Double check the workpiece and the featherboard to
ensure they are properly positioned as described in
Step.4. Then secure the featherboard to the table.
Check the featherboard by hand to make sure it is
tight.
Note: The featherboard should be placed firmly
enough against the workpiece to keep it against the
fence but not so tight that it is difficult to feed the
workpiece.
Figure.76. Example of featherboards
secured with clamps.
Featherboard
Blade
Workpiece
Figure.77. Featherboard installed in miter
slot and supporting workpiece for ripping
cut.
Fence Featherboard
Table
Featherboard
Clamp
Clamp
background
-58-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS

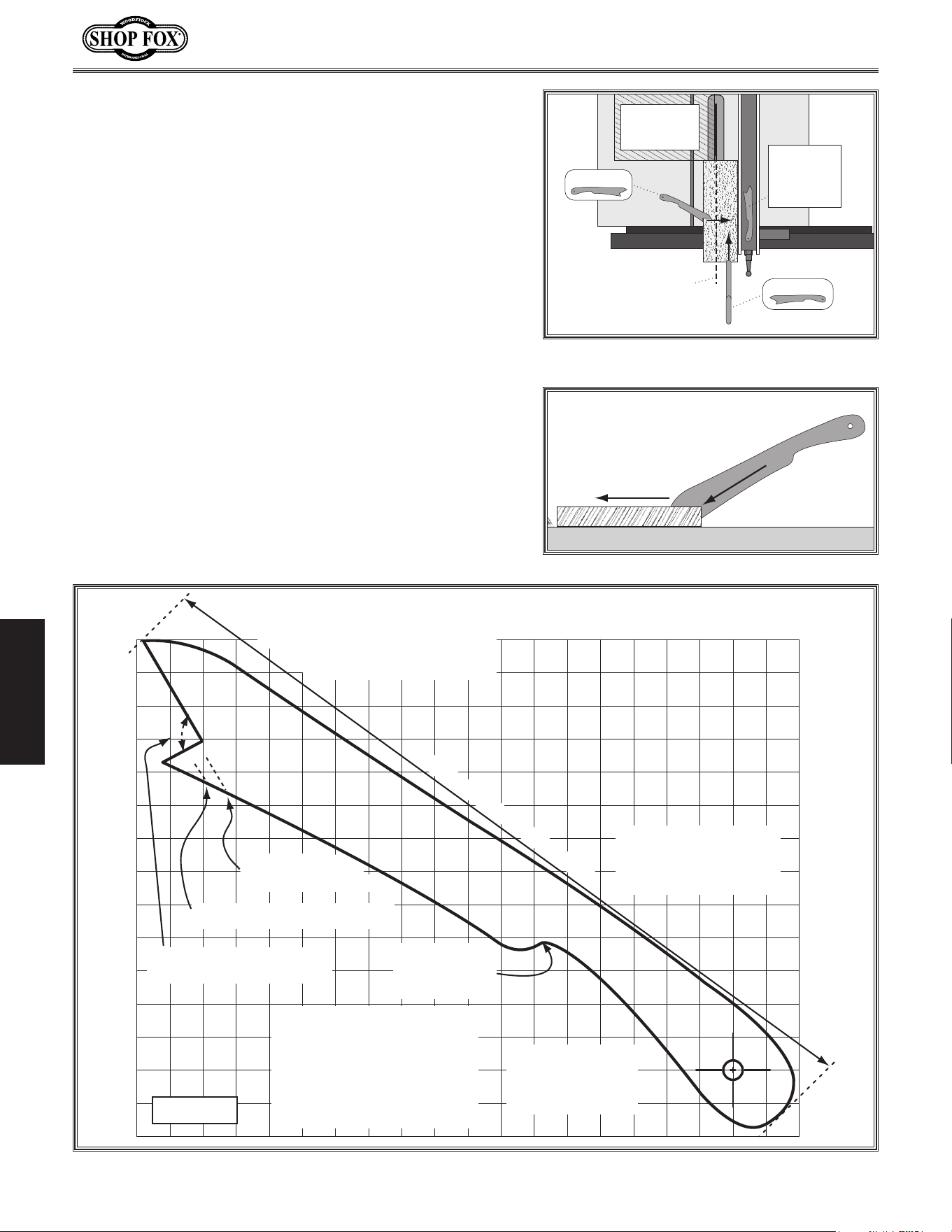

Push.Sticks
When used correctly, push sticks reduce the risk of injury
by keeping hands away from the blade while cutting. In
the event of an accident, a push stick can absorb damage
that would have otherwise happened to hands or fingers.
Use push sticks whenever your hands will get within 12"
of the blade. To maintain control when cutting large
workpieces, start the cut by feeding with your hands then
use push sticks to finish the cut, so your hands are not on
the end of the workpiece as it passes through the blade.
Feeding: Place the notched end of the push stick
against the end of the workpiece (see inset Figure.78),
and move the workpiece into the blade with steady
downward and forward pressure.
Supporting: A second push stick can be used to keep the
workpiece firmly against the fence while cutting. When
using a push stick in this manner, only apply pressure
before the blade; otherwise, pushing the workpiece
against or behind the blade will increase the risk of
kickback (see Figure.78).
90º
Cut here to
push
1
⁄4" stock
Cut here to push
1
⁄2" stock
Notch for placing on
corners of workpieces
15
3
/
4
" Minimum Length
MATERIAL: Only use hard-
wood, sturdy plywood, or
high-density plastic. Do not
use softwood that may break
under pressure or metal that
can break teeth from the
blade!
SANDING: Sand
edges to remove
rough edges and
increase comfort.
SIZING: Push stick must
be at least 15
3
⁄4" long.
Use
1
⁄2"—
3
⁄4" thick
material.
Notch to help
prevent hand
from slipping
1
⁄2" Grid
Figure.80. Template for a basic shop-made push stick (not shown at actual size).
Making.a.Push.Stick
Use this template to make
your own push stick.
Figure.79. Side view of push stick in-use.
Feeding
Supporting
Blade
Path
Push Stick
Push Stick
Push Stick
Prohibition
Zone
Store Push
Stick Here
for Easy
Access
Figure.78. Using push sticks to rip narrow
stock.
background
-59-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Push.Blocks
When used correctly, a push block reduces the risk of
injury by keeping hands away from the blade while
cutting. In the event of an accident, a push block often
takes the damage that would have otherwise happened
to hands or fingers.
A push block can be used in place of or in addition to
a push stick for feeding workpieces into the blade. Due
to their design, push blocks allow the operator to apply
firm downward pressure on the workpiece that could not
otherwise be achieved with a push stick.
The push block design on this page (see Figure.83) can
be used in two different ways (see Figure.82). Typically,
the bottom of the push block is used until the end of the
workpiece reaches the blade.
The notched end of the push block is then used to push
the workpiece the rest of the way through the cut,
keeping the operator's hands at a safe distance from the
blade. A push stick is often used at the same time in the
other hand to support the workpiece during the cut.
Figure.82. Side view of push block in use.
Blade
Path
Push Stick
Push
Block
Push Stick
Prohibition
Zone
Feeding
Supporting
Figure.81. Using a push block and push
stick to make a rip cut.
9"−10" Minimum Length
Lip for pushing workpiece
Handle for
firm grip
Make push block with
1
⁄2"—
3
⁄4" thick material
1
⁄4"—
1
⁄2"
4"
Notch for use
as a push stick
1
⁄2" Grid
CAUTION: Only use hardwood, sturdy plywood, or
high-density plastic. Do not use softwood that
may break under pressure or metal that can break
teeth from the blade!
CAUTION: Bottom
of handle must be
at least 4" above
bottom of push
block to keep
hand away from
blade.
Figure.83. Template for a basic shop-made push stick (not shown at actual size).
Making.a.Push.Block
Use this template to make your own push block.
background
-60-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Narrow-Rip.Auxiliary.
Fen ce.&.Push.Block
There are designs for hundreds of specialty jigs that can
be found in books, trade magazines, and the internet.
These types of jigs can greatly improve the safety and
consistency of cuts. They are particularly useful during
production runs when dozens or hundreds of the same
type of cut need to be made.
The narrow-rip auxiliary fence and push block system
shown in this section is an example of a specialty jig that
can be made to increase the safety of very narrow rip
cuts.
Making.a.Narrow-Rip.Push.Block.for.an.
Auxiliary.Fence
Materials for Narrow-Rip Push Block & Auxiliary Fence
Hardwood
3
⁄4" x 3" x Length of Fence .......................1
Plywood
1
⁄2" x 5
1
/4" x Length of Fence .....................1
Plywood
1
⁄2" x 10" x 5"-9" .....................................1
Plywood
1
⁄2" x 15" x 5
3
⁄8" ......................................1
Wood Screws #8 x 1
1
/4" ............................ As Needed
To.make.a.narrow-rip.push.block,.do.these.steps:
1. Cut a piece of
1
⁄2" thick plywood 5
1
⁄4" wide and as
long as your table saw fence; cut a piece of
3
⁄4"
thick hardwood 3" wide and as long as your table
saw fence, as shown in Figure.84.
Note: We recommend cutting the hardwood board
oversize, then jointing and planing it to the correct
size to make sure the board is square and flat. Only
use furniture-grade plywood or kiln-dried hardwood
to prevent warping.
2. Pre-drill and countersink eight pilot holes
3
⁄8" from
the bottom of the 3" wide board, as shown in Figure.
85, then fasten the 5
1
⁄4" and 3" wide boards with
eight #8 x 1
1
⁄4" wood screws.
4. Using the
1
⁄2" material you used in the previous
steps, cut out pieces for the push block per the
dimensions shown in Figure.86; for the handle, cut
a piece 10" long by 5"–9" high and shape it as desired
to fit in your hand.
5. Attach the handle to the base with #8 x 1
1
⁄4" wood
screws, attach the lip to the base with cyanoacrylate
type wood glue.
Length of Table
Saw Rip Fence
Length of Table
Saw Rip Fence
3"
3
⁄4" Hardwood
5
1
⁄4"
3
⁄4" Plywood

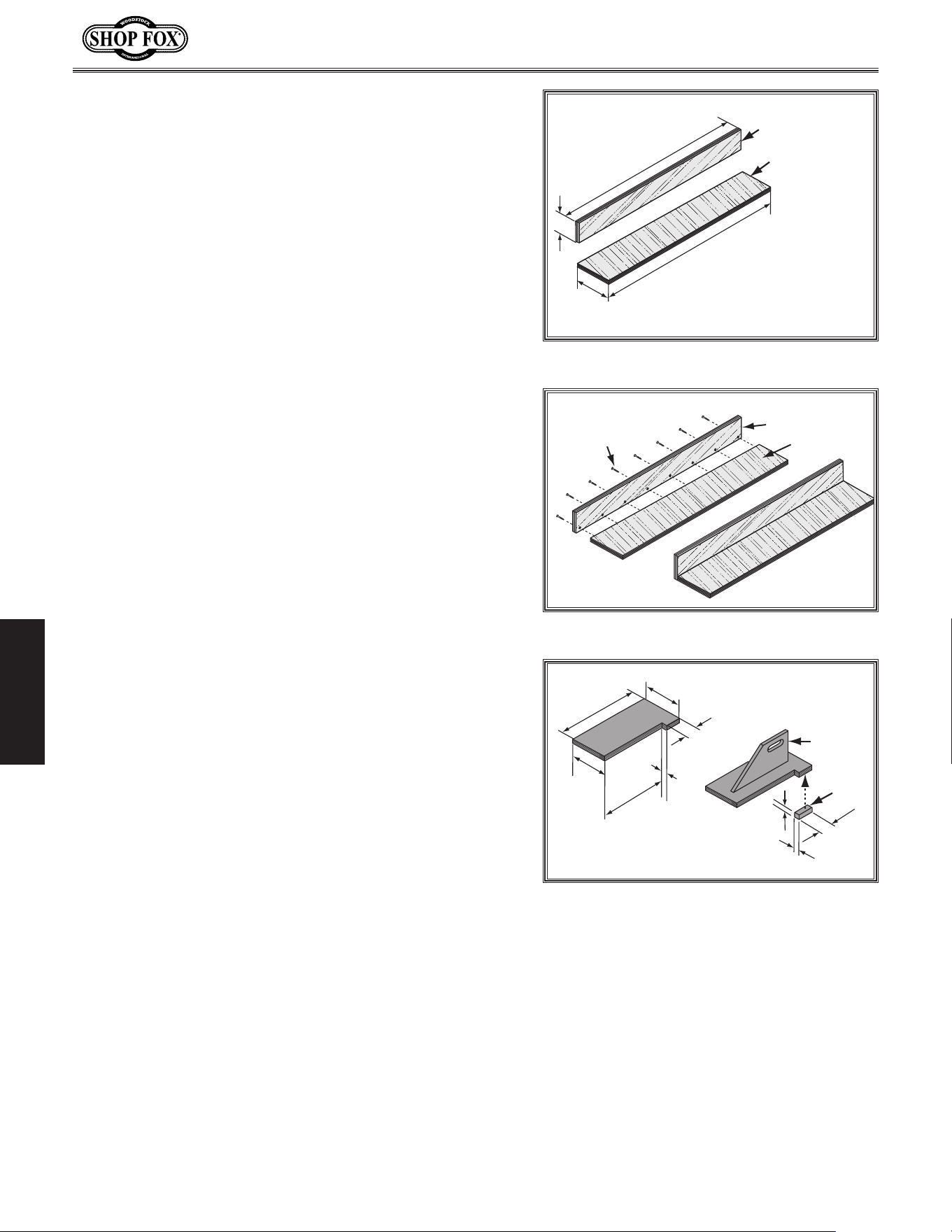

Figure.84. Auxiliary fence dimensions.
Figure.85..Location of pilot holes.
3
⁄4" Plywood
Completed
Fence
3
⁄4" Hardwood
#8 x 1
1
⁄2"
Wood Screw
5
5
⁄8"
15"
5
1
⁄4"
12
1
⁄2"
2
1
⁄2"
3
⁄8"
Lip
Handle
3
⁄8"
3
⁄8"
2
1
⁄2"
Figure.86. Push block dimensions and
construction.
background
-61-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
Using.the.Auxiliary.Fence.and.Push.Block
1. Place the auxiliary fence on the table and clamp it
to the fence at both ends, then adjust the distance
between the auxiliary fence and the blade—this
determines how wide the workpiece will be ripped
(see Figure.87).
2. Install the blade guard, then secure the spreader
pawls in the upright position, as shown in Figure 50
on Page.37, so they do not interfere with the push
block lip.
3. Place the workpiece 1" in front of the blade and
evenly against the table and the auxiliary fence.
4.. Turn the saw ON, then begin ripping the workpiece
using a push stick for side support.
As the workpiece nears the end of the cut, place
the push block on the auxiliary fence with the lip
directly behind the workpiece, then release the
push stick just before it is even with the blade (see
Figure.89). Guide the workpiece the rest of the way
through the cut with the push block, then re-install
the pawls on the spreader when cutting operations
are finished.
Workpiece
Cutting
Width
Blade
Auxilliary Fence

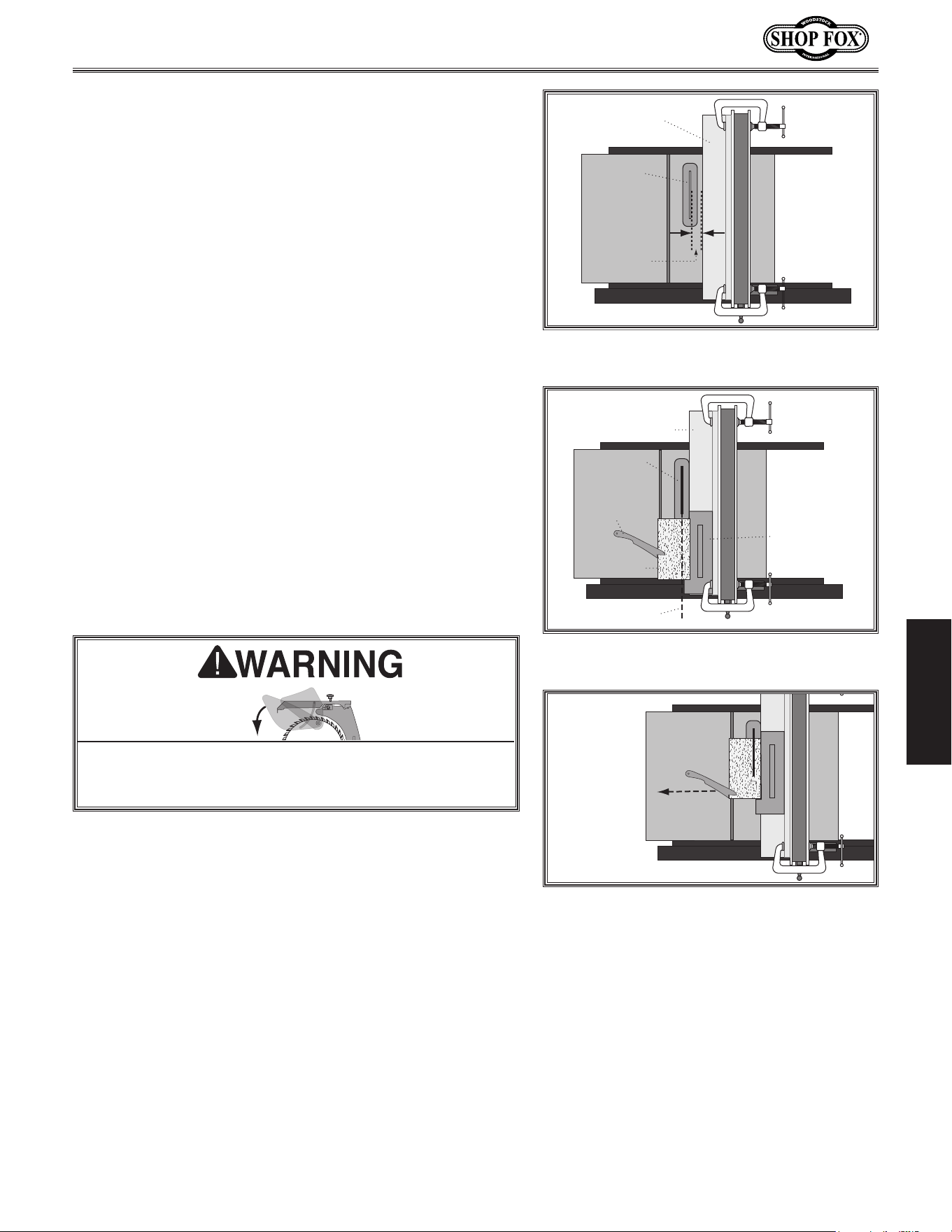

Figure.87. Adjusting ripping distance
between blade and auxiliary fence.
Auxilliary Fence
Blade
Workpiece
Push Stick
for Side
Support
Blade Path
Push
Block
Figure.88. Adjusting ripping distance
between blade and auxiliary fence.
Release
Push Stick
Before Blade
Figure 89. Ripping with push block.
Keep.the.blade.guard.installed.and.in.the.down.
position..Failure.to.do.this.could.result.in.serious.
personal.injury. or.d eath.
background
-62-
Model W1819/W1820 (Mfg. Since 09/11)
OPERATIONS
One of the best accessories for improving the safety and
ease of using a table saw is simply placing a large table
(outfeed table) behind the saw to catch the workpiece
(see Figure.90). Additionally, another table to the left
of the saw (support table) can also help support large
workpieces so they can be cut safely and accurately.
A crosscut sled (see Figure .91) is a fantastic way to
improve the safety and accuracy of crosscutting on the
table saw. Most expert table operator uses a crosscut
sled when they have to crosscut a large volume of work,
because the sled offers substantial protection against
kickback when crosscutting.
Outfeed.&.Support.Tables
Crosscut.Sled

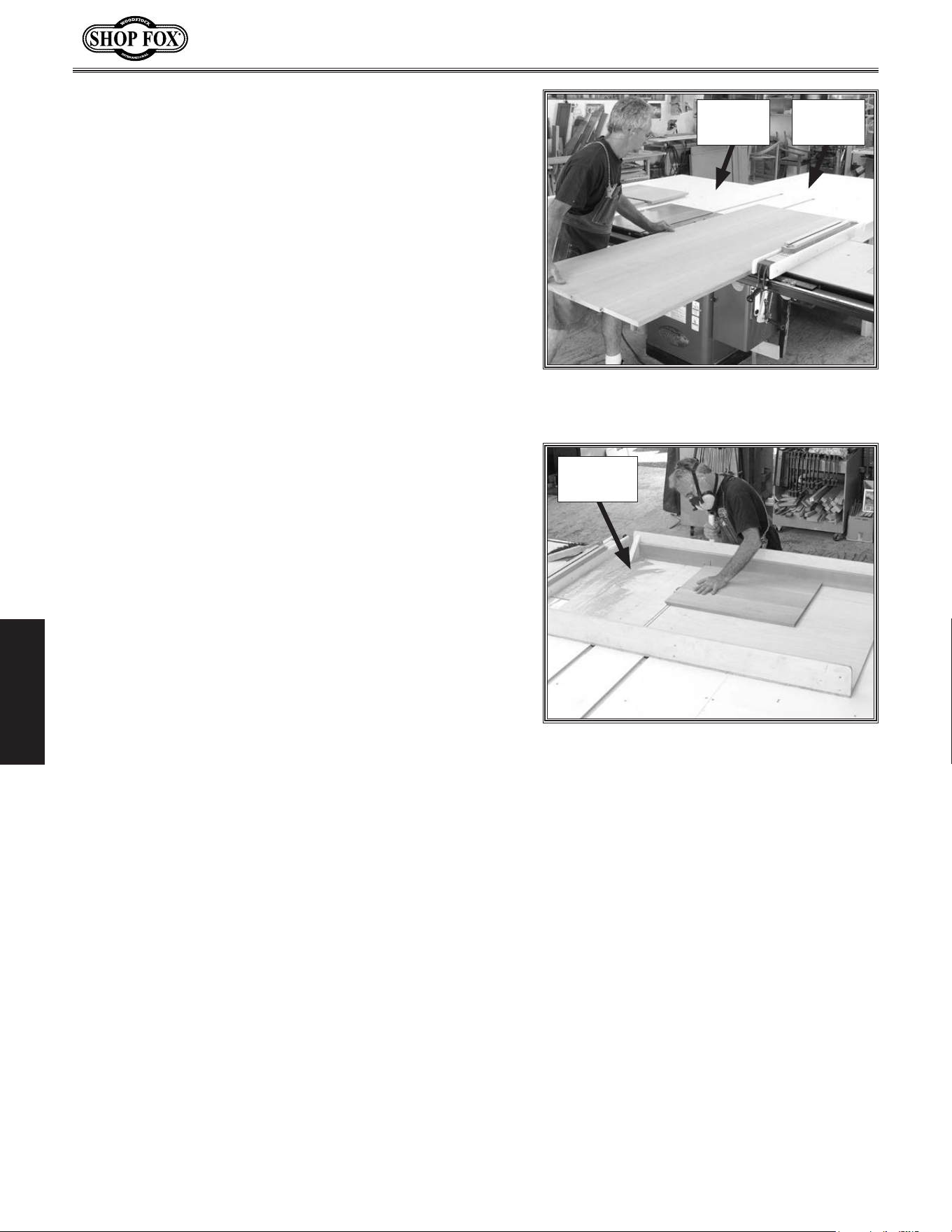

Figure.90. Example of outfeed & support
tables.
Figure.91..Example of crosscut sled.
Crosscut
Sled
Outfeed
Table
Support
Table
background
-63-
Model W1819/W1820 (Mfg. Since 09/11)
MAINTENANCE
MAINTENANCE
Cleaning the Model W1819/W1820 is relatively easy.
Vacuum excess wood chips and sawdust, and wipe off the
remaining dust with a dry cloth. If any resin has built up,
use a resin dissolving cleaner to remove it.
After cleaning, treat all unpainted cast iron and steel with
a non-staining lubricant.
Occasionally it will become necessary to clean the
internal parts with more than a vacuum. To do this,
remove the table top and clean the internal parts with
resin/pitch dissolver or mineral spirits and a stiff wire
brush or steel wool. DO NOT USE WATER. WATER WILL
CAUSE CAST IRON TO RUST.
Make sure the internal workings are dry before using
the saw again, so that wood dust will not accumulate.
If any essential lubrication is removed during cleaning,
re-lubricate those areas.
Cleani ng
For optimum performance from your machine, follow this
maintenance schedule and refer to any specific instructions
given in this section.
Daily.Check:
• Inspect blades for damage or wear.
• Check for loose mounting bolts/arbor nut.
• Check cords, plugs, and switch for damage.
• Check for any other condition that could hamper the
safe operation of this machine.
• Wipe the table clean after every use—this ensures
moisture from wood dust does not remain on bare
metal surfaces.
Weekly.Maintenance:
• Wipe down the table surface and grooves with a
lubricant and rust preventive such as SLIPIT
®
.
• Vacuum dust buildup from the motor housing and
trunnions.
• Clean the pitch and resin from the saw blade with a
cleaner like OxiSolv
®
Blade & Bit Cleaner.
Monthly.Maintenance:
•. Check/tighten the belt tension (Page.74).
Schedule
MAKE. SURE. that. your. machine. is.
unplugged.during.all. maintenance. pro-
cedures!.If.this.warning.is.ignored,.seri-
ous.personal.injury.may.occur.
background
-64-
Model W1819/W1820 (Mfg. Since 09/11)
MAINTENANCE
Lubrication
An essential step for lubrication is cleaning the compo-
nents before lubricating them.
This step is critical because dust and chips build up on
lubricated components, which makes them hard to move.
Simply adding more grease to built-up grime will not
result in smooth moving components.
Clean the components in this section with an oil/grease
solvent cleaner.
The following are the main components that need to be
lubricated:
• Trunnion Slides and Orientation Gears
• Worm Gears, Trunnion and Bearing Housing Teeth
Trunnion.Slides.&.Orientation.Gears
Clean the trunnion slides with mineral spirits and a rag,
and brush a dab of lithium grease into each groove. Move
the blade tilt back and forth to spread the grease (see
Figure.92).
Also use a wire brush and mineral spirits to clean any
debris or grime off the orientation gears, then apply
lithium grease to the gears with a brush.

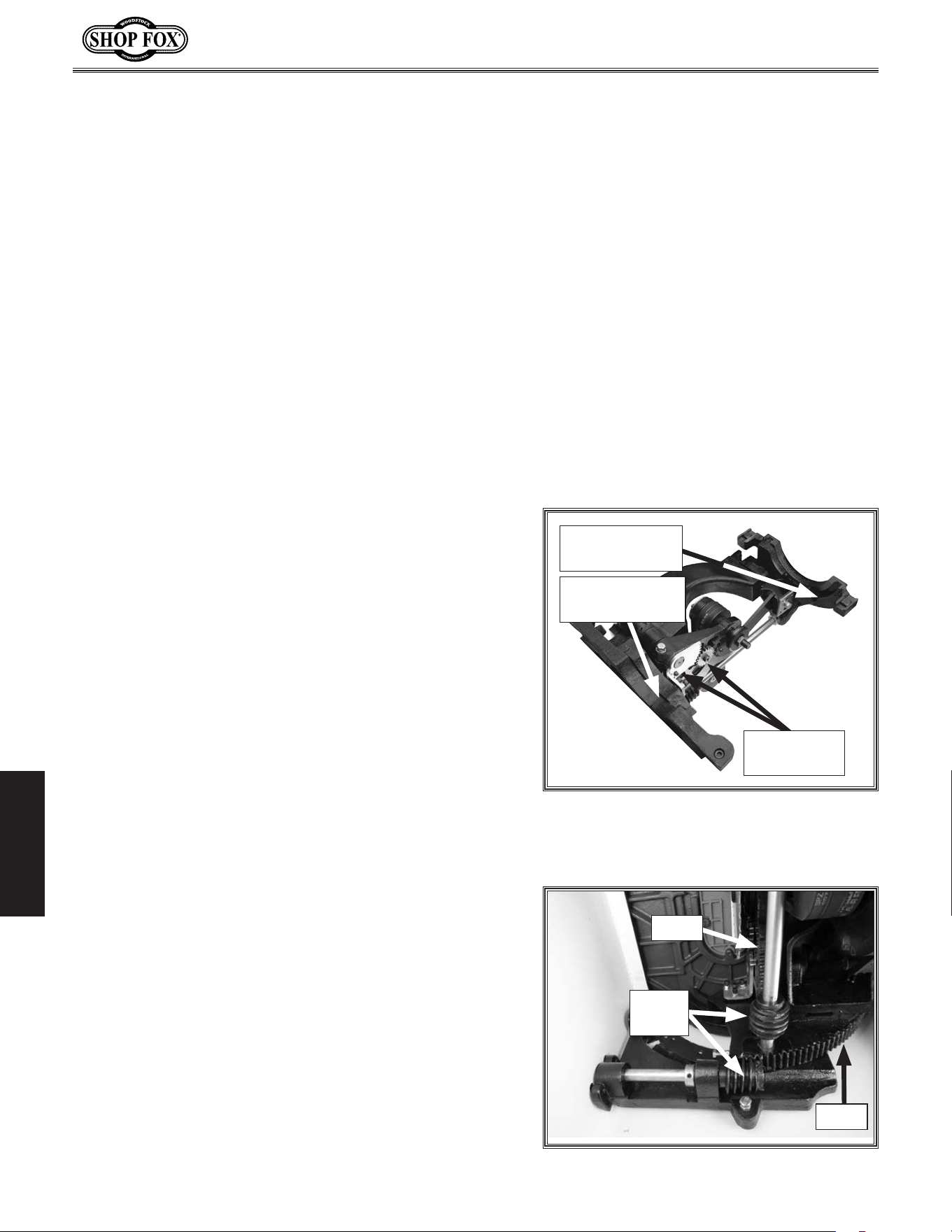

Figure.92. Trunnion slides and tilt
leadscrew.
Rear Trunnion
Slide
Front Trunnion
Slide
Worm.Gears,.Trunnion.and.Bearing.Housing.
Teeth
Clean away any built up grime and debris with a wire
brush and mineral spirits from the worm gears and
the teeth (see FIgure.93) on the bearing housing and
trunnion. Then use a brush or rag to apply a thin coat of
white lithium grease to the gears and teeth.
Figure.93..Worm gears and teeth.
Worm
Gears
Teeth
Teeth
Orientation
Gears
background
-65-
Model W1819/W1820 (Mfg. Since 09/11)

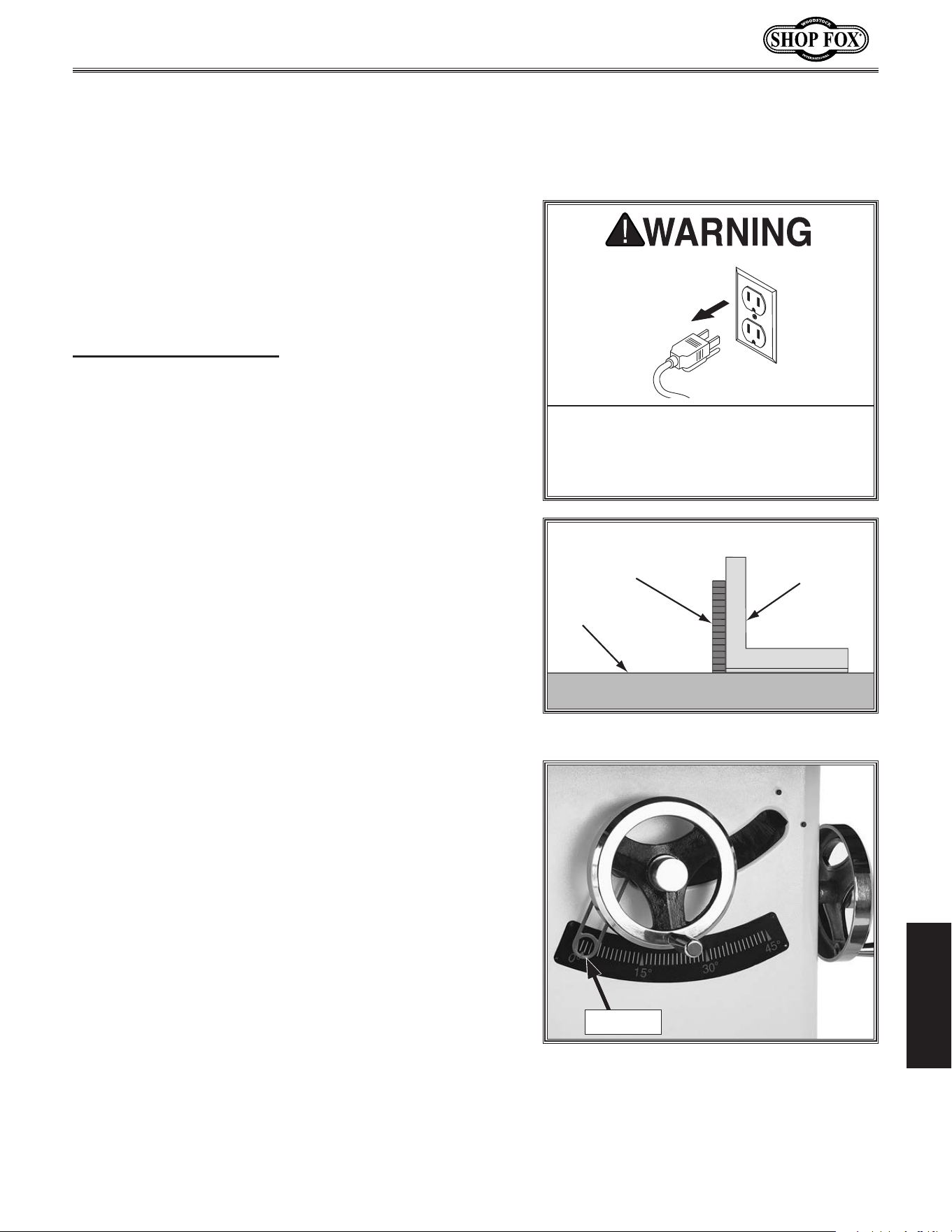

SERVICE
SERVICE
This section covers the most common service adjustments
or procedures that may need to be made during the life
of your machine.
If you require additional machine service not included
in this section, please contact Woodstock International
Technical Support at (360) 734-3482 or send e-mail to:
tech-support@shopfox.biz.
General
The table saw features stop bolts that stop the blade
exactly at 45° and 90° when tilting it with the handwheel.
The tilt scale reads "0" when the blade is 90° to the table.
The stops have been set at the factory and should require
no adjustments, unless you notice that your cuts are not
accurate.
Blade.Tilt.Stops
MAKE. SURE. that. your. machine. is.
unplugged. during. all. service. proce-
dures!. If. this. warning. is. ignored,. seri-
ous.personal.injury.may.occur.
Tools.Needed. Qty
90°.Square .......................................................1
45° Square .......................................................1
Hex Wrench 3mm ...............................................1
Wrench 10mm ...................................................1
Wrench 13mm ...................................................1
Setting.90°.Stop.Bolt
1.. DISCONNECT THE SAW FROM POWER!
2. Raise the blade as high as it will go, then tilt it toward
0° until it stops and cannot be tilted any more.
3.. Place a 90° square against the table and blade so
it contacts the blade evenly from bottom to top, as
shown in Figure.94. Make sure a blade tooth does not
obstruct the placement of the square.
— If the blade is 90° to the table, then adjustments
do not need to be made. Make sure the tilt
indicator arrow shown in Figure.95 points to
the 0° mark on the scale. Adjust the position
by loosening the button head screw, moving the
indicator with your fingers, then tightening the
screw.
— If the blade is not 90° to the table, you will need
to adjust the 90° stop screw. Proceed to the next
step.
Figure.94..Checking blade at 90°.
Table
90° Square
Blade
Figure.95. Tilt indicator arrow.
Indicator
background
-66-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE
4. Tilt the blade away from 0° by about 5°, so there is
room for the stop bolt to move.
5. Open the motor access cover, loosen the jam nut
shown in Figures. 96–97, adjust the stop bolt up or
down according to how far off the blade was from
90°. Repeat Step.3 and, if necessary, make additional
adjustments to the stop bolt until the table stops at
90°.
6.. Tighten the jam nut, then close the motor cover.
Figure.96. 90° stop bolt and jam nut.
90° Stop
Bolt & Jam
Nut
Figure.97. 90° stop bolt and jam nut
(table removed for clarity).
90° Stop Bolt &
Jam Nut
Figure.98..Checking blade at 45°.
Blade
45° Square
Table
Setting.45°.Stop.Bolt
1.. DISCONNECT THE SAW FROM POWER!
2. Raise the blade as high as it will go, then tilt it
towards 45° until it stops and cannot be tilted any
more.
3.. Place a 45° square against the table and blade so
it contacts the blade evenly from bottom to top, as
shown in Figure.98. Make sure a blade tooth does not
obstruct the placement of the square.
— If the blade is 45° to the table, then adjustments
do not need to be made.
— If the blade is not 45° to the table, you will need
to adjust the 45° stop screw. Proceed to the next
step.
4. Tilt the blade to 15°, so there is room for the stop
bolt to move, then remove the dust port to access the
stop bolt.
5. Loosen the jam nut on the 45° stop bolt (see Figure.
99) with a 13mm wrench, adjust the stop bolt up or
down according to how far off the blade was from
45°.
6. Continue adjusting the stop bolt until it contacts the
cabinet when the blade is at 45°, then tighten the
jam nut.
7. Close the dust port.
Figure.99. 45° stop bolt and jam nut.
45° Stop Bolt &
Jam Nut
background
-67-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

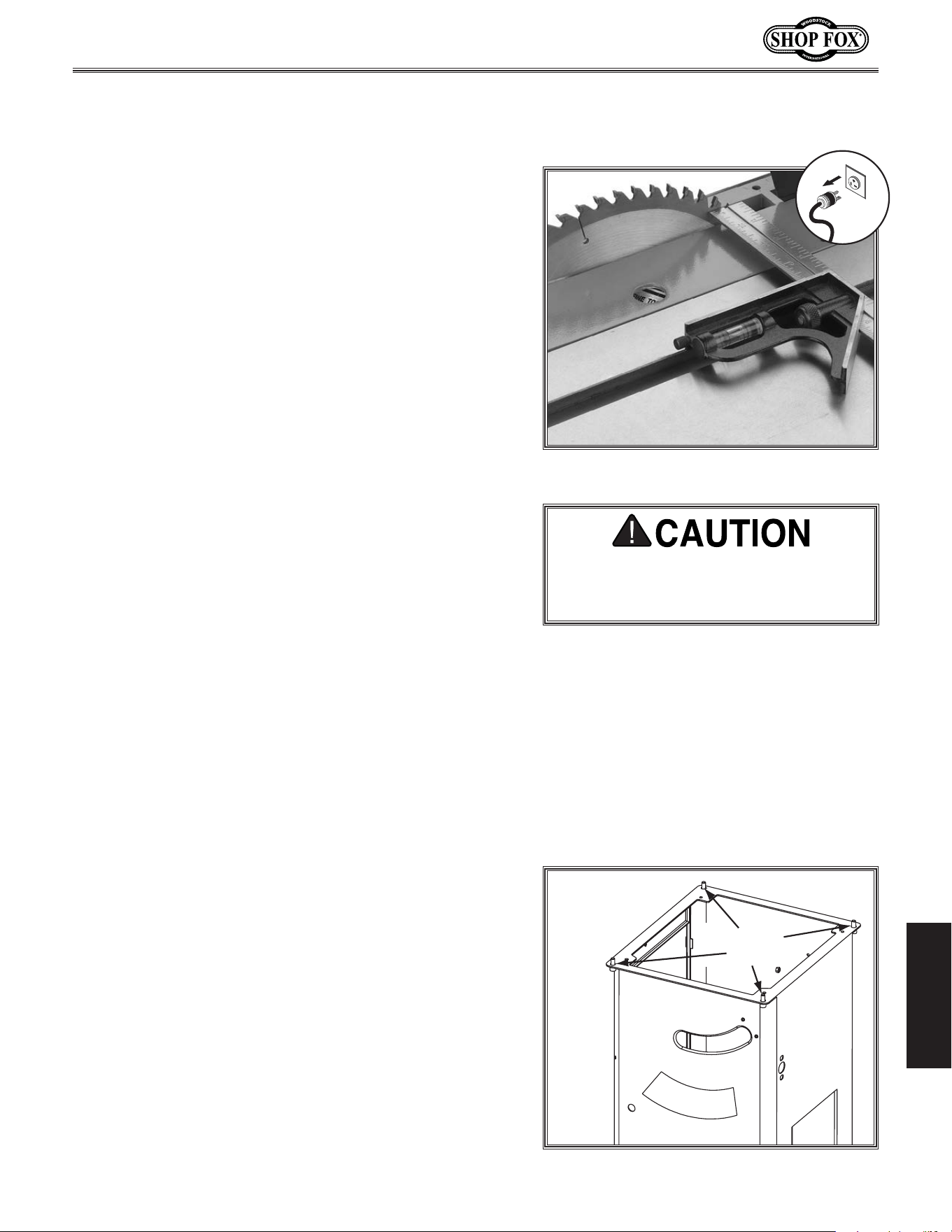

Miter.Slot.to.Blade.
Parallelism
Figure 100. Example of adjusting blade to
miter slot.
Your table saw will give the best results if the miter slot
and the rip fence are parallel to the blade. If either of
these are not exactly parallel, your cuts and your fin-
ished work will be lower in quality, but more importantly,
the risk of kickback will be increased. Take the time to
adjust your table saw properly. A few minutes now will
be time well spent.
Tools.Needed. Qty
Adjustable Square ..............................................1
Marker ............................................................1
To.adjust.the.blade.parallel.to.the.miter.slot,.do.these.
steps:
1.. DISCONNECT THE SAW FROM POWER!
2.. Use an adjustable square to measure the distance
from the miter slot to a carbide tip on the blade, as
shown in Figure.100. Make sure that the face of the
adjustable square is even along the miter slot.
3.. With the end of the adjustable square just touching
the tooth or carbide tip, lock the square in place.
Now, mark the carbide tip with a marker where you
made this measurement.
4.. Rotate the marked blade tip to the other end of the
table insert.
5.. Slide the adjustable square down to the other end
of the table insert, and compare the distance from
the marked blade tip to the end of the adjustable
square.
— If the blade tip measurement is not the same, the
table will need to be adjusted. Proceed to Step.6.
— If the blade tip measurement is the same on both
sides, go to Step.7.
6.. To adjust the table, loosen the four cap screws
in the table mounting locations (see Figure.101)
and slightly tap the table in the needed direction.
Repeat Steps 2–5.until the blade and miter slot are
parallel.
7.. Tighten the table mounting cap screws in a
crisscross, alternating manner.
The.saw.blade.is.dangerously.sharp..Use.
extra. care. or. wear. gloves. when. han-
dling.the.blade.or.working.near.it.
Figure 101. Table mounting bolts.
Mounting
Bolts
background
-68-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

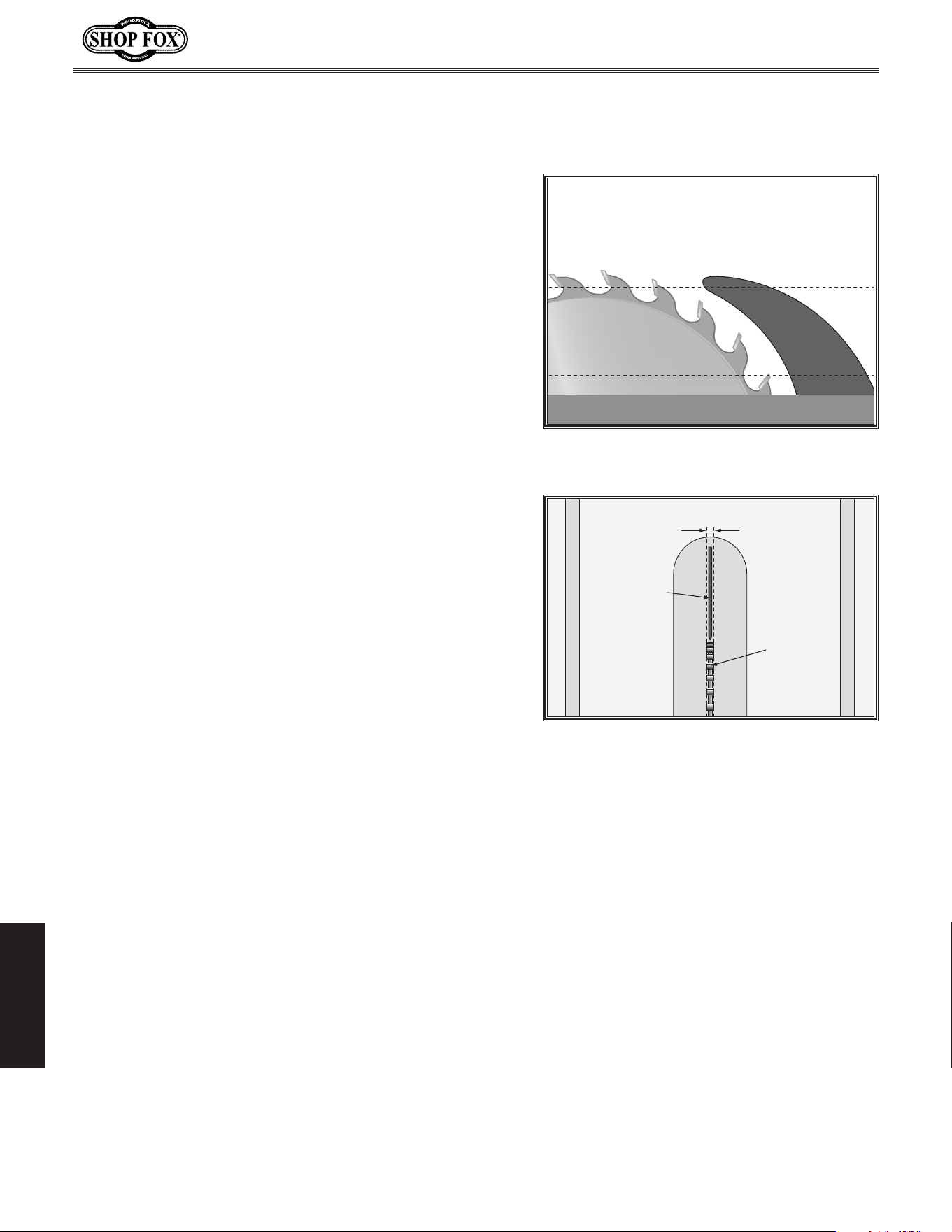

Spreader.or.Riving.Knife.
Alignment
Checking.Alignment
The blade guard spreader and riving knife must be aligned
with the blade when installed. If the spreader/riving knife
is not aligned with the blade, then the workpiece will
before forced sideways during the cut, which will increase
the risk of kickback.
Tools.Needed. Qty
Straightedge .....................................................1
To.check.the.spreader/riving.knife.alignment,.do.these.
steps:
1. DISCONNECT THE SAW FROM POWER!
2. Raise the saw blade to the maximum height so you
have easy working access.
3. Place the straightedge alternately against the top
and bottom of blade and spreader/riving knife, as
shown in Figure.102. The spreader/riving knife
should be parallel with the blade along its length at
both positions, and it should be in the "Alignment
Zone," as shown in Figure.103.
— If the spreader/riving knife is not parallel with the
blade and inside the alignment zone, then it needs
to be adjusted. Proceed to Adjusting.Alignment
instructions.
— If the spreader/riving knife is not parallel with the
blade at either the top or bottom, it may be bent.
4. Remove the spreader/riving knife and place it on a
flat surface and check to see if the spreader/riving
knife lays evenly along its length.
— If the spreader/riving knife does not lay evenly,
proceed to Adjusting.Bent.Spreader/Riving.Knife
on Page.69.
Figure.103. Spreader/riving knife
alignment zone.
Alignment
Zone
Spreader or
Riving Knife
Blade
Figure.102. Checking top and bottom
riving knife parallelism with blade.
Table
Riving
Knife
Top Alignment
Bottom Alignment
background
-69-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

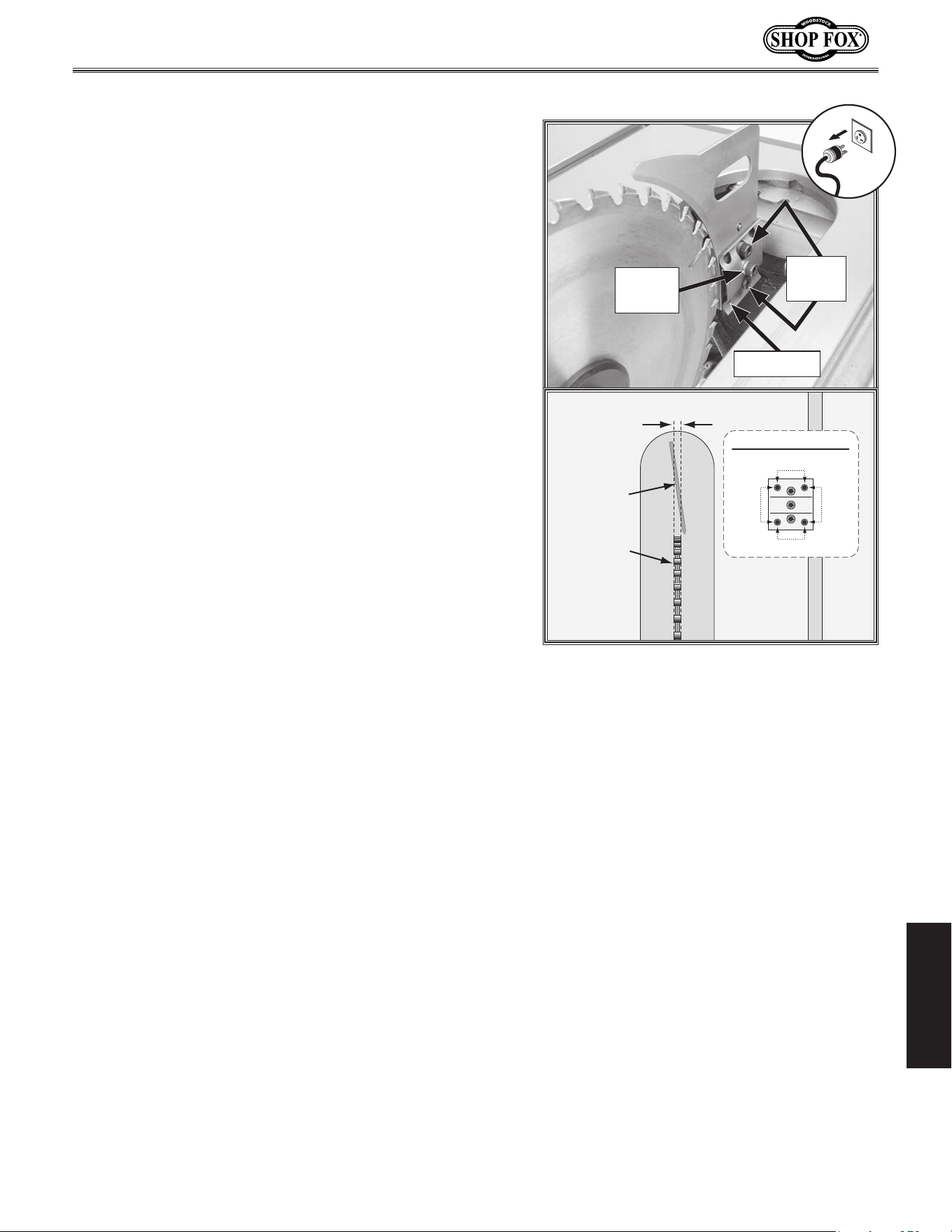

Adjusting.Alignment
The spreader/riving knife mounting position can be
adjusted into alignment with the blade using the set
screws on the spreader/riving knife mounting block.
Possible.Tools.Needed. Qty
Hex Wrench 3mm ...............................................1
Hex Wrench 5mm ...............................................1
To adjust the spreader/riving knife position, do these
steps:
1. DISCONNECT THE SAW FROM POWER!
2.. Remove the table insert.
3. Adjust each pair of set screws that controls the
direction required to move the mounting block so
the riving knife can be aligned with the blade (see
Figure.104). Make sure to move both screws in even
increments.
4... Re-install the table insert.
5. Follow Checking.Alignment,.Steps.1–3.to determine
if the spreader/riving knife is parallel with the blade
and inside the "Alignment Zone."
— If the spreader/riving knife is in the alignment
zone, no additional steps are necessary.
— If the spreader/riving knife is still not in the
alignment zone, continue adjusting the set screws
on the mounting block as necessary to correctly
position the spreader/riving knife.
6. Tighten the two cap screws on the mounting block to
secure the spreader/riving knife adjustment.
Cap
Screws
Set Screw
Figure.104..Set screws for adjusting
spreader/riving knife position.
Alignment
Zone
Misaligned
Splitter or
Riving Knife
Blade
Adjustment Block
Top Control
Side
Control
Side
Control
Bottom Control
Center
Screw
Cap
Screws
Adjusting.Bent.Spreader/Riving.Knife
1.. DISCONNECT THE SAW FROM POWER!
2. Bend the spreader or riving knife by hand while
installed, then follow Steps.1–3 in Checking.
Alignment to determine if it is parallel with the
blade and inside the "Alignment Zone" (refer to
Checking.Alignment).
— If this does not work, remove it to straighten.
— If you cannot straighten it properly, replace it.
background
-70-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE
Fence.Adjustments
There are four main adjustments for the fence: (1) square,
(2) height, (3) parallelism, and (4) clamping pressure.
Keep in mind that these adjustments are interconnected
and some trial-and-error may be needed to achieve
satisfactory results.
Tools.Needed. Qty
Hex Wrench 6mm ...............................................1
Square ............................................................1
Felt-Tipped Marker .............................................1
Square.and.Height
The fence face must be square to the table in order to
produce square cuts. The fence should be adjusted so it
does not drag across the table surface.
To.check/adjust.the.fence.height.and.squareness.to.the.
table,.do.these.steps:
1. DISCONNECT THE SAW FROM POWER!
2. Place a square on the table against the face of the
fence (see Figure.105) to check if the fence is square
to the table.
— If the fence is square to table, go to Step.4.
— If the fence is not square to table, go to Step.3.
3. Adjust the set screws (see Figure.106) on top of the
fence bracket to ensure the fence face is 90° to the
table, then tighten the knurled lock nuts.
4.. Look at the gap between the fence and table top.
— If the gap is approximately
1
⁄16" and even from the
front of the table to the back, then no additional
adjustments are necessary.
— If the gap is uneven, if the fence height is more
than
1
⁄8", or if the fence touches the table, then
continue with Step.5.
5. Adjust the fence height with the rear rail foot
until the gap between the table and the fence is
approximately
1
⁄16" and even from the front of the
table to the back. Note: If the front end of the
fence needs to be adjusted up or down, use the
set screws from Figure 106; turn them in even
increments and recheck the squareness afterwards.
Figure.105. Checking if fence is square to
table.
90° Square
Fence
Table
Figure.106. Fence components used to
adjust fence height and squareness to
table.
Fence
Bracket
Set Screws
Lock Nut
Rear Rail
Foot
background
-71-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

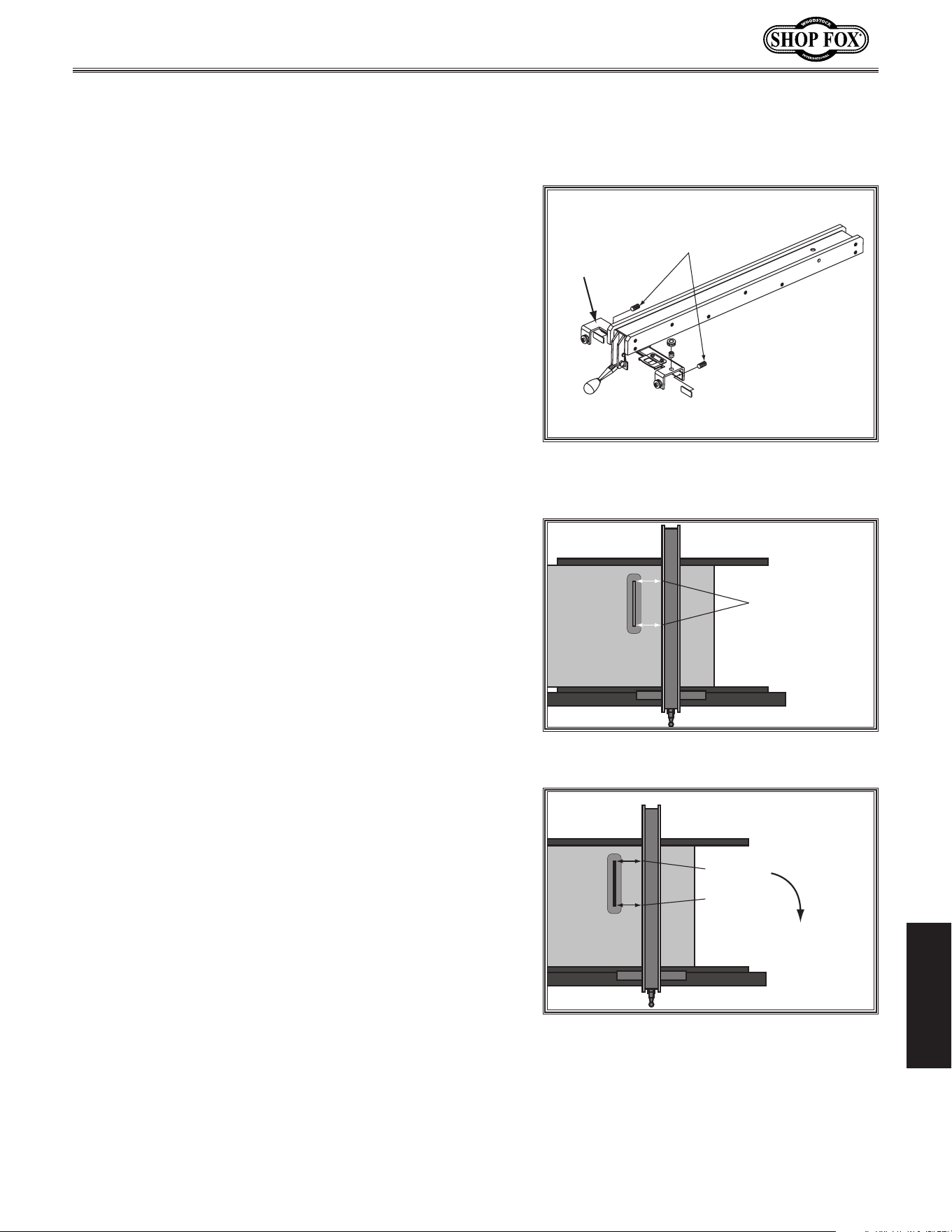

Clamping Pressure and Parallelism
Set screws on the rear side of the fence bracket adjust
the clamping pressure to hold your fence securely, and
position the fence parallel to the blade.
To.adjust.the.fence.clamping.pressure.and.parallelism.
to.the.blade,.do.these.steps:
1. DISCONNECT THE SAW FROM POWER!
2. Remove the fence.
3. Equally adjust the set screws shown in Figure.107
on the rear side of the front bracket as necessary
until the clamping pressure is strong enough that the
fence will not move as pressure is applied against it.
Figure.107. Location of set screws used
to adjust fence parallelism and clamping
pressure.
Set Screws
Fence
Bracket
4. Place the fence approximately 4" away from the
blade.
5. Measure the distance between the fence and the
front of the blade at one end of the table insert,
then mark the tooth that you measured from with a
felt-tipped marker.
6. Rotate the blade to the other end of the table insert
(see Figure.108), and recheck the distance between
the fence and the blade to ensure they are parallel.
7. Use trial-and-error to adjust the set screws so the
fence is parallel to the blade and the clamping
pressure is sufficient.
. Optional: Some woodworkers prefer to offset the
rear of the fence
1
⁄64" from the blade, as shown in
Figure 109, to help prevent the workpiece from
binding and burning.
The argument is that this offset adjustment reduces
the chance of kickback by alleviating potential
binding that may occur between the backside of
the blade and fence. The trade-off is slightly less
accurate cuts.
Figure.108. Example of fence aligned
parallel to miter slot.
Space
Between
Fence & Blade
Even
Figure.109. Adjusting fence with a
1
⁄64"
offset.
X"
X" +
1
/64"
Extra Space
to Prevent Binding
X = Your Measurement
background
-72-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

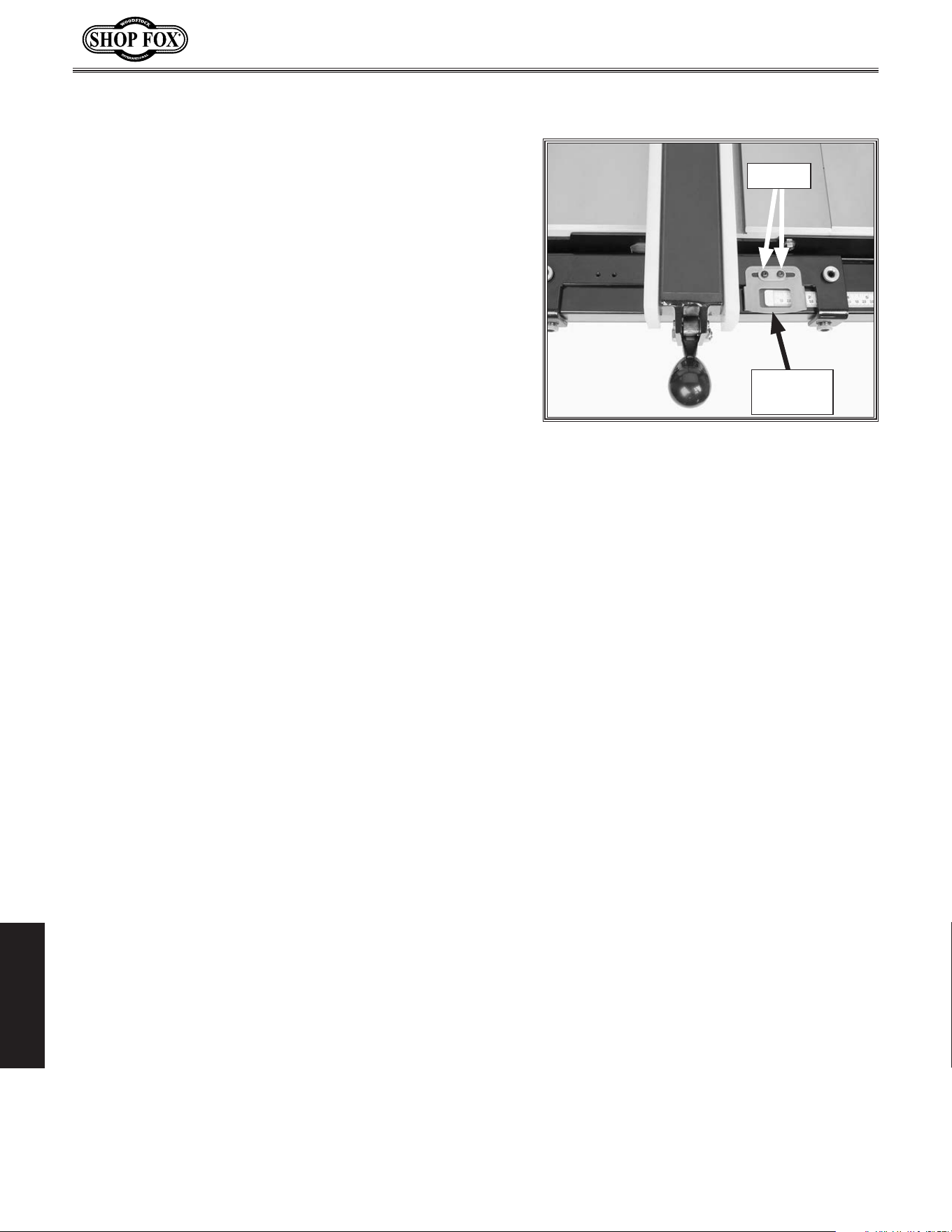

Fence.Scale.Calibration
The fence scale indicator window, shown in Figure.110,
can be calibrated with the fence scale if you notice that
your cuts do not accurately match what is shown on the
fence scale. The indicator adjusts by loosening the two
mounting screws and sliding it in the desired direction.
Tools.Needed. Qty
Hex Wrench 2.5mm .............................................1
Scrap Piece of Wood ............................................1
To.calibrate.the.fence.scale.indicator.windows,.do.
these.steps:
1. Position and lock the fence at 13", as indicated by
the scale, cut your scrap piece of wood.
2. Reposition and lock the fence at 12", as indicated by
the scale.
3. Flip your scrap piece of wood over, placing the side
that was cut in Step.2 against the fence, and cut
your scrap piece of wood.
4. Measure the width of the freshly cut workpiece with
a tape measure. The workpiece width should be
exactly 12". If it is not, then adjust the indicator
window to match the width of the workpiece.
Figure.110. Fence indicator window.
Screws
Indicator
Window
background
-73-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

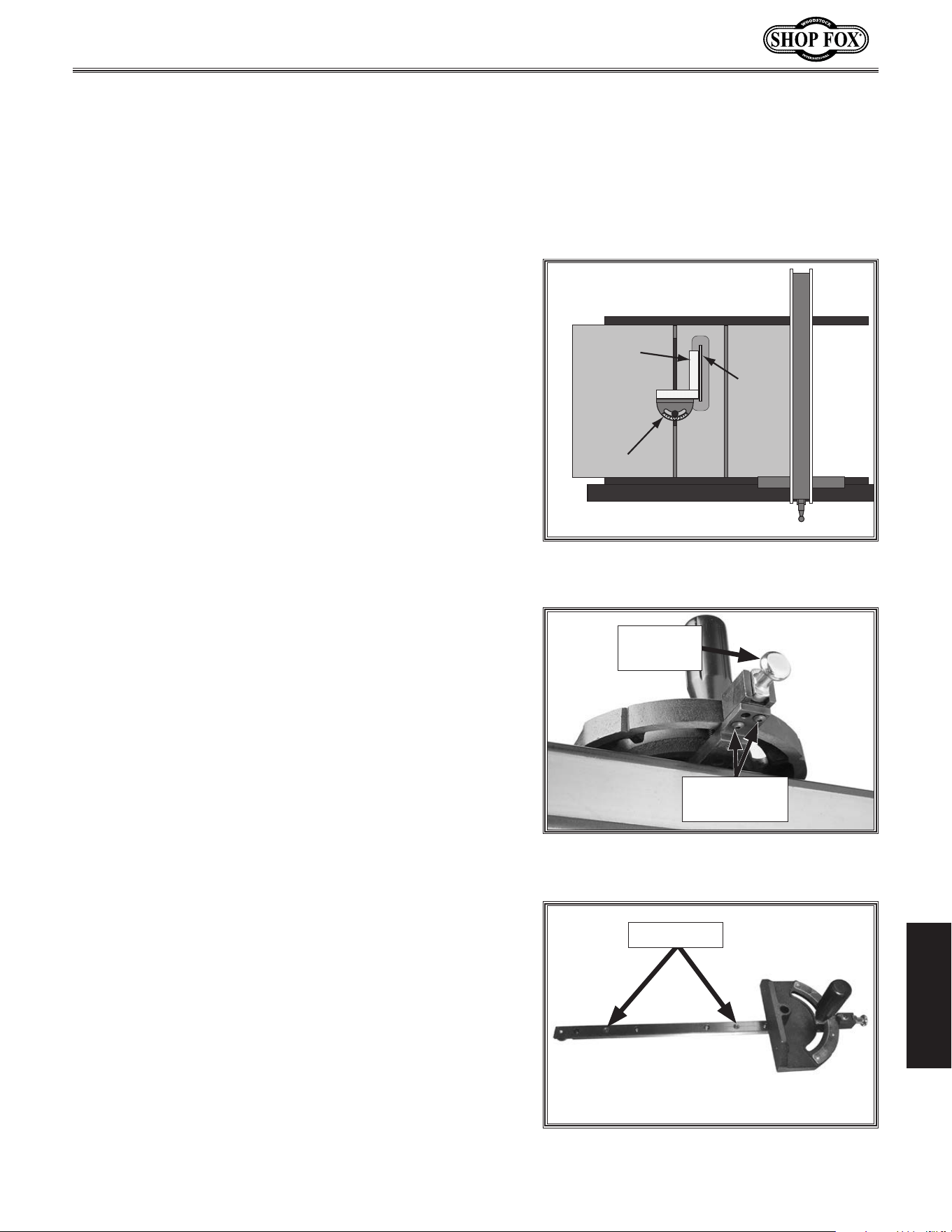

Miter.Gauge.Adjustments
The miter gauge can be adjusted so it is perpendicular to
the blade and so it is snug in the T-slot.
Tools.Needed. Qty
90° Square .......................................................1
45° Square .......................................................1
Hex Wrench 2.5mm .............................................1
Hex Wrench 2mm ...............................................1
Hex Wrench 3mm ...............................................1
Checking/Setting.90°.Stops
1. DISCONNECT THE SAW FROM POWER!
2. Slide the miter gauge into the T-slot on the table.
3. Loosen the miter gauge lock knob, pull out the
positive stop knob, then pivot the miter gauge body
to 90° so the stop knob springs into position.
Figure.111. Checking 90° stop on miter
gauge.
Square
Miter Gauge
Blade
Figure.112. Screws for adjusting miter
gauge body.
Button Head
Cap Screws
Positive
Stop Knob
5. Loosen the button head cap screws on the positive
stop knob block (see Figure. 112), adjust the miter
body until it is flush with the square, then tighten the
screws.
6. Loosen the screw on the front of the miter bar, adjust
the pointer to 0°, then tighten the screw.
4. Place the 90° square evenly against the face of the
miter gauge and the blade, as shown in Figure.111.
— If the square touches the miter body and the body
of the blade (not the teeth) evenly at the same
time, then it is square to the blade and the 90°
stop is set correctly. No further adjustments are
necessary.
— If the square does not touch the miter body and
blade body evenly at the same time, then proceed
to Step.5.
Adjusting.Miter.Bar.Tightness
The miter bar can be adjusted so it fits more tightly in
the miter slot.
To increase the miter bar tightness, tighten the set
screws shown in Figure.113; to decrease the miter bar
tightness, loosen the set screws.
Figure.113. Screws for adjusting miter bar
in miter slot.
Set Screws
background
-74-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

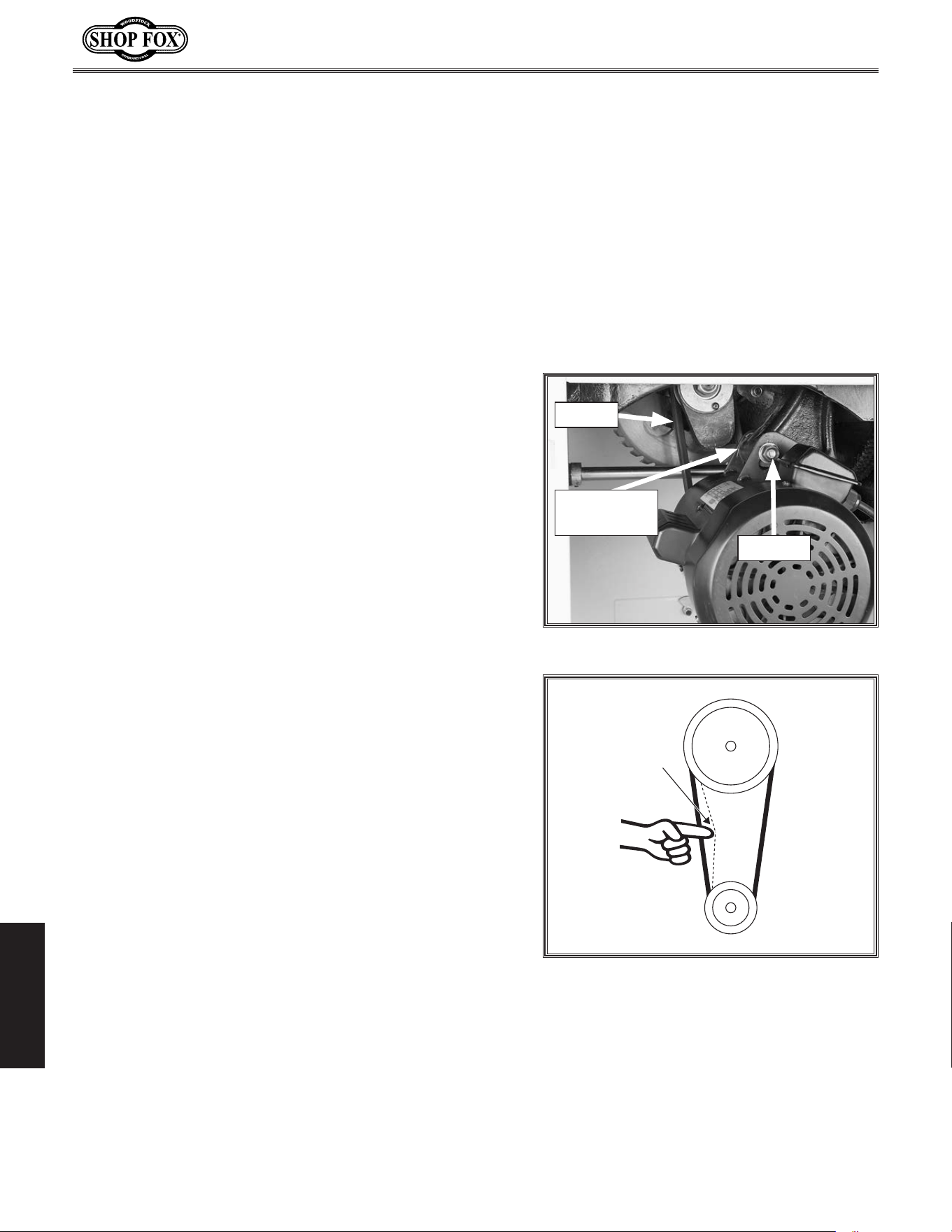

Belt.Tension.&.
Replace ment
Tools.Needed. Qty
Wrenches 18mm .................................................2
Tensioning.Belt
1. DISCONNECT THE SAW FROM POWER!
2. Lower the blade completely, then open the motor
cabinet.
3. Loosen the hex nuts on the motor shown in Figure.
114, and pivot the motor up and down to make sure
that it is movable.
4. Press down on the motor with one hand to keep the
belt tension tight, then tighten the hex nuts.
5. Press each V-belt in the center to check the belt
tension.
The belts are correctly tensioned when there is
approximately
1
⁄2" deflection when they are pushed
with moderate pressure, as shown in Figure.115.
— If there is more than
1
⁄2" deflection when the
V-belts are pushed with moderate pressure, loosen
the hex nuts, adjust the motor downward, then
tighten the hex nuts.
6. Close the motor access cover.
Replacing.Belt
1.. DISCONNECT THE SAW FROM POWER!
2. Lower the blade completely, then open the motor
access cover.
3. Loosen the hex nuts that secure the motor (see
Figure.114).and raise the motor fully to remove
tension on the V-belts. Roll the V-belts off of the
arbor and motor pulleys. Install a new matching
set of V-belts onto the pulleys, lower the motor to
tension the V-belts, then tighten the hex nuts.
4. Follow Step.5 in the Tensioning.Belt subsection to
check V-belt tension, then close the motor cover.
The three V-belts stretch slightly as the saw is used. Most
of the belt stretching will happen during the first 16 hours
of use, but it may continue in small increments through
continued use.
Pulley
Deflection
Pulley
1
/
4
”
Figure.115. Checking belt tension.
Figure.114. Motor mounting nut.
V-Belts
Hex Nut
(Not Shown)
Hex Nut
background
-75-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE

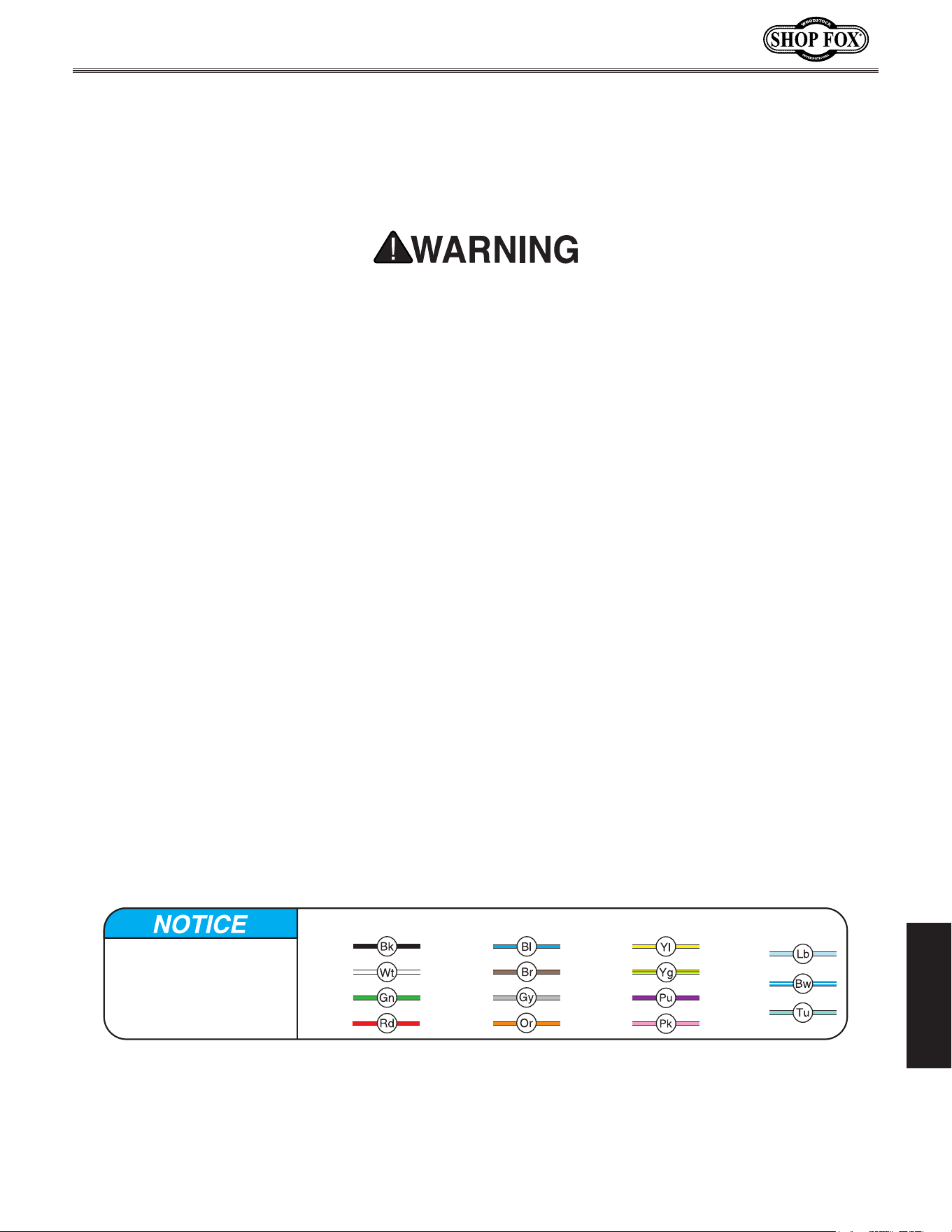

These pages are current at the time of printing. However, in the spirit of improvement, we may
make changes to the electrical systems of future machines. Study this diagram carefully. If you notice
differences between your machine and these wiring diagrams, call Woodstock International Technical
Support at (360) 734-3482.
SHOCK HAZARD.
Working on wiring that is
connected to a power source is extremely
dangerous. Touching electrified parts will
result in personal injury including but not
limited to severe burns, electrocution,
or death. Disconnect the power from
the machine before servicing electrical
components!
QUALIFIED ELECTRICIAN
. Due to the inherent
hazards of electricity, only a qualified
electrician should perform wiring tasks on this
machine. If you are not a qualified electrician,
get help from one before attempting any kind
of wiring job.
WIRE CONNECTIONS.
All connections must be
tight to prevent wires from loosening during
machine operation. Double-check all wires
disconnected or connected during any wiring
task to ensure tight connections.
WIRE/COMPONENT DAMAGE
. Damaged wires
or components increase the risk of serious
personal injury, fire, or machine damage.
If you notice that any wires or components
are damaged while performing a wiring task,
replace those wires or components before
completing the task.
MOTOR WIRING
. The motor wiring shown in these
diagrams is current at the time of printing,
but it may not match your machine. Always
use the wiring diagram inside the motor
junction box.
MODIFICATIONS. Using aftermarket parts or
modifying the wiring beyond what is shown
in the diagram may lead to unpredictable
results, including serious injury or fire.
CAPACITORS/INVERTERS. Some capacitors and
power inverters store an electrical charge for
up to five minutes after being disconnected
from the power source. To avoid being
shocked, wait at least this long before working
on these components.
ELECTRICAL REQUIREMENTS. You MUST follow
the electrical requirements at the beginning
of this manual when connecting your machine
to a power source.
EXPERIENCING DIFFICULTIES. If you are
experiencing difficulties understanding the
information included in this section, contact
our Technical Support at (360) 734-3482.
Electrical.Safety.Instructions
The photos and diagrams
included in this section are
best viewed in color. You
can view these pages in
color at www.shopfox.biz.
BLACK
WHITE
GREEN
RED
BLUE
BROWN
GRAY
ORANGE
YELLOW
YELLOW
GREEN
PURPLE
PINK
LIGHT
BLUE
BLUE
WHITE
TUR-
QUOISE
WIRING DIAGRAM COLOR KEY
background
-76-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE
Ground
220V
MOTOR
Start
Capacitor
200MFD
250VAC
Run
Capacitor
25MFD
370VAC
3L2 5L3
13
NO
2T1
4T2
6T3
A1 A2
14
NO
TEST
H
97 NO
98 NO
14
12
18
16
95 NC
96 NC
2T1
4T2
6T3
OFF
CHINT
NR2-25
1L1
CHINT
NCI-18
220V
60HZ
M5
A2
ON
CHINT
NP2
Hot
Hot
Ground
220
VAC
Ground
6-20 Plug
(As Recommended)
G
1 2NC
STOP
Read
Page 75
Before
Wiring
Model.W1819/W1820.Wiring.Diagram
Figure.119.
Start capacitor.
Figure.118.
Run capacitor.
Figure.116. Magnetic switch.
Figure.117. Motor wiring.
background
-77-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE
Troubleshooting
This section covers the most common problems and corrections with this type of
machine. WARNING!.DO.NOT.make.any.adjustments.until.power.is.disconnected.and.
moving.parts.have.come.to.a.complete.stop!
Symptom Possible Cause Possible Solution
Machine does not start or a
breaker trips.
1. Locking pin installed.
2. Blown fuse.
3. Power supply switched OFF or at
fault.
4. Plug/receptacle at fault/wired
wrong.
5. Motor connection wired wrong.
6. Wall circuit breaker tripped.
7. Wiring open/has high resistance.
8. Motor ON/OFF switch at fault.
9. Start capacitor at fault.
10. Motor at fault.
1. Remove locking pin from ON button.
2. Replace fuse/ensure no shorts.
3. Ensure power supply is on/has correct voltage.
4. Test for good contacts; correct the wiring.
5. Correct motor wiring connections.
6. Ensure circuit size is correct/replace weak breaker.
7. Check/fix broken, disconnected, or corroded wires.
8. Replace switch.
9. Test/replace if faulty.
10. Test/repair/replace.
Machine stalls or is under-
powered.
1. Feed rate/cutting speed too fast.
2. Workpiece material unsuitable for
machine.
3. Workpiece crooked; fence mis-
adjusted.
4. Machine undersized for task.
5. Run capacitor at fault.
6. Belt slipping.
7. Motor wired incorrectly.
8. Plug/receptacle at fault.
9. Pulley/sprocket slipping on shaft.
10. Motor bearings at fault.
11. Contactor not energized/has poor
contacts.
12. Motor overheated.
13. Motor at fault.
1. Decrease feed rate/cutting speed.
2. Only cut wood/ensure moisture is below 20%.
3. Straighten or replace workpiece/adjust fence.
4. Use correct blade/reduce feed rate or depth of
cut.
5. Test/repair/replace.
6. Tension/replace belt (Page 74).
7. Wire motor correctly.
8. Test for good contacts/correct wiring.
9. Replace loose pulley/shaft.
10. Test/repair/replace.
11. Test all legs for power/replace if faulty.
12. Clean motor, let cool, and reduce workload.
13. Test/repair/replace.
Machine has vibration or
noisy operation.
1. Motor or component loose.
2. Blade at fault.
3. Belts worn or loose.
4. Pulley loose.
5. Motor mount loose/broken.
6. Machine incorrectly mounted.
7. Arbor pulley loose.
8. Motor fan rubbing on fan cover.
9. Arbor bearings at fault.
10. Motor bearings at fault.
1. Inspect/replace damaged bolts/nuts, and re-tighten
with thread locking fluid.
2. Replace warped/bent blade; resharpen dull blade.
3. Tension/replace belts (Page 74).
4. Realign/replace shaft, pulley, setscrew, and key.
5. Tighten/replace.
6. Tighten mounting bolts; relocate/shim machine.
7. Retighten/replace arbor pulley.
8. Fix/replace fan cover; replace loose/damaged fan.
9. Replace arbor housing bearings; replace arbor.
10. Test by rotating shaft; grinding/loose shaft requires
bearing replacement.
background
-78-
Model W1819/W1820 (Mfg. Since 09/11)
SERVICE
Symptom Possible Cause Possible Solution
Blade is not aligned with
miter slot or fence.
1. Blade is warped.
2. Table top is not parallel to blade.
3. Fence is not parallel to blade.
1. Replace blade (Page 35).
2. Make table parallel to blade (Page 67).
3. Make fence parallel to blade (Page 70).
Blade does not reach 90°. 1. 90° stop bolt is out of adjustment.
2. Sawdust stuck on stop bolt.
1. Adjust 90° stop bolt (Page 65).
2. Clean sawdust off stop bolt.
Blade hits insert at 45°. 1. 45° stop bolt is out of adjustment.
2. Sawdust stuck on stop bolt.
3. Hole in insert is inadequate.
4. Table out of alignment.
5. Blade position is incorrect.
1. Adjust 45° stop bolt (Page 65).
2. Clean sawdust off stop bolt.
3. File or mill the hole in the insert.
4. Align blade to the table (Page 67).
5. Adjust blade position.
Board binds or burns when
feeding through table saw.
1. Dull blade.
2. Blade is warped.
3. Fence is not parallel to blade.
4. Table top is not parallel to blade.
1. Replace blade.
2. Replace blade (Page 35).
3. Make fence parallel to blade (Page 70).
4. Make table parallel to blade (Page 67).
background
-79-
Model W1819/W1820 (Mfg. Since 09/11)

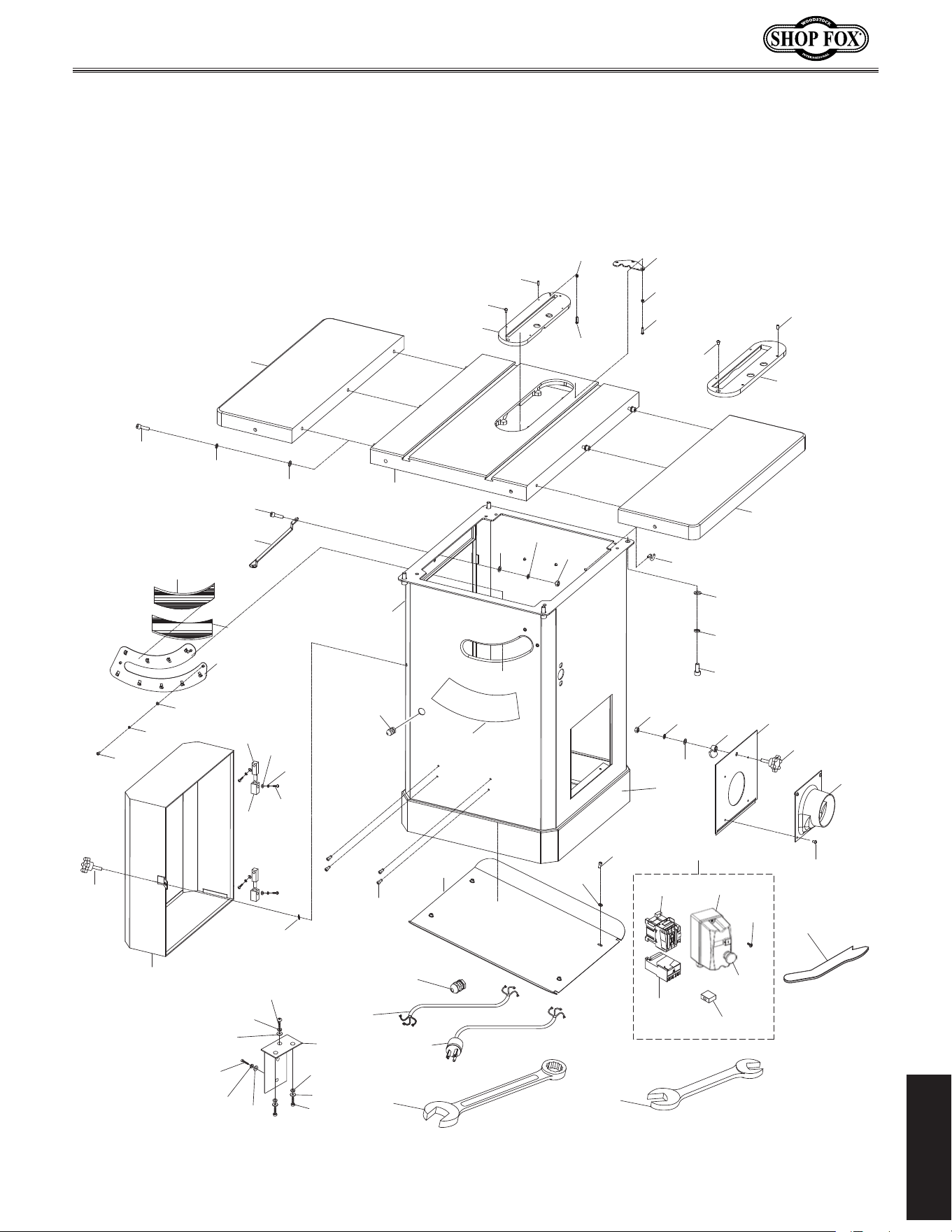

PARTS
155V2
155-1
155-2
155-3V2
155-6
155-5
108
109
109
156
110
110
168
169
170
171
101
102
103
104
105
106
107
108
109
114
115
118
119
120
121
122
123
124
125
126
127
127
128
129
130
131
132
132
133
133
134
136
140
141
142
143
144
145
146
146-1
146-2
147
148
149
150
151
152
153
153
154
164
163
172
166
165
173
177
174
175
176
155-4
178
179
PARTS
Body
background
-80-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
Body.Parts.List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 X1819101 CABINET STAND 146 X1819146 DUST SHIELD
102 X1819102 CAP SCREW M10-1.25 X 25 146-1 X1819146-1 UPPER BRUSH
103 X1819103 LOCK WASHER 10MM 146-2 X1819146-2 LOWER BRUSH
104 X1819104 FLAT WASHER 10MM 147 X1819147 PHLP HD SCR M4-.7 X 12
105 X1819105 TILT SCALE 148 X1819148 FLAT WASHER 4MM
106 X1819106 STRAIN RELIEF 149 X1819149 LOCK WASHER 4MM
107 X1819107 BASE PLATE 150 X1819150 HOOK
108 X1819108 PHLP HD SCR M6-1 X 12 151 X1819151 INT TOOTH WASHER 6MM
109 X1819109 FLAT WASHER 6MM 152 X1819152 LIMIT PLATE
110 X1819110 LOCK WASHER 6MM 153 X1819153 HEX NUT M5-.8
114 X1819114 MOTOR COVER 154 X1819154 PHLP HD SCR M5-.8 X 20
115 X1819115 KNOB BOLT M6-1 155V2 X1819155V2 MAG SWITCH ASSY CHINT V2.1.15
118 X1819118 CLEAN-OUT DOOR 155-1 X1819155-1 CONTACTOR CHINT NC1-1810
119 X1819119 DOOR LATCH 155-2 X1819155-2 OL RELAY CHINT NR2-25N 12-18A
120 X1819120 KNOB BOLT M8-1.25 155-3V2 X1819155-3V2 SWITCH BOX FRONT/BACK V2.1.15
121 X1819121 FLAT WASHER 8MM 155-4 X1819155-4 MAG SWITCH COVER SCREW
122 X1819122 LOCK WASHER 8MM 155-5 X1819155-5 ON/OFF SWITCH CHINT NP2
123 X1819123 HEX NUT M8-1.25 155-6 X1819155-6 E-STOP BUTTON ANIUEC LA158-BE102
124 X1819124 DUST HOOD 156 X1819156 SWITCH BRACKET
125 X1819125 PHLP HD SCR M5-.8 X 8 163 X1819163 STRAIN RELIEF
126 X1819126 TABLE 164 X1819164 MOTOR CORD 14AWG 3C
127 X1819127 EXTENSION WING 165 X1819165 POWER CORD W/PLUG
128 X1819128 CAP SCREW M8-1.25 X 30 166 X1819166 BLACK TRIM TAPE
129 X1819129 LOCK WASHER 8MM 168 X1819168 HEX BOLT M6-1 X 12
130 X1819130 FLAT WASHER 8MM 169 X1819169 BUTTON HD CAP SCR M5-.8 X 16
131 X1819131 STANDARD TABLE INSERT 170 X1819170 LOCK WASHER 5MM
132 X1819132 SET SCREW M5-.8 X 12 171 X1819171 FLAT WASHER 5MM
133 X1819133 PHLP HD SCR M5-.8 X 12 172 X1819172 PUSH STICK
134 X1819134 PHLP HD SCR M5-.8 X 20 173 X1819173 UPPER HINGE BLOCK
136 X1819136 DADO TABLE INSERT 174 X1819174 FLAT WASHER 5MM
140 X1819140 STEEL BLIND RIVET 4 X 10MM 175 X1819175 LOCK WASHER 5MM
141 X1819141 SHIPPING BRACE 176 X1819176 BUTTON HD CAP SCR M5-.8 X 12
142 X1819142 HEX BOLT M10-1.5 X 20 177 X1819177 LOWER HINGE BLOCK
143 X1819143 FLAT WASHER 10MM 178 X1819178 ARBOR WRENCH 27MM COMBO
144 X1819144 LOCK WASHER 10MM 179 X1819179 ARBOR WRENCH 22 X 24MM OPEN-ENDS
145 X1819145 HEX NUT M10-1.5
background
-81-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS

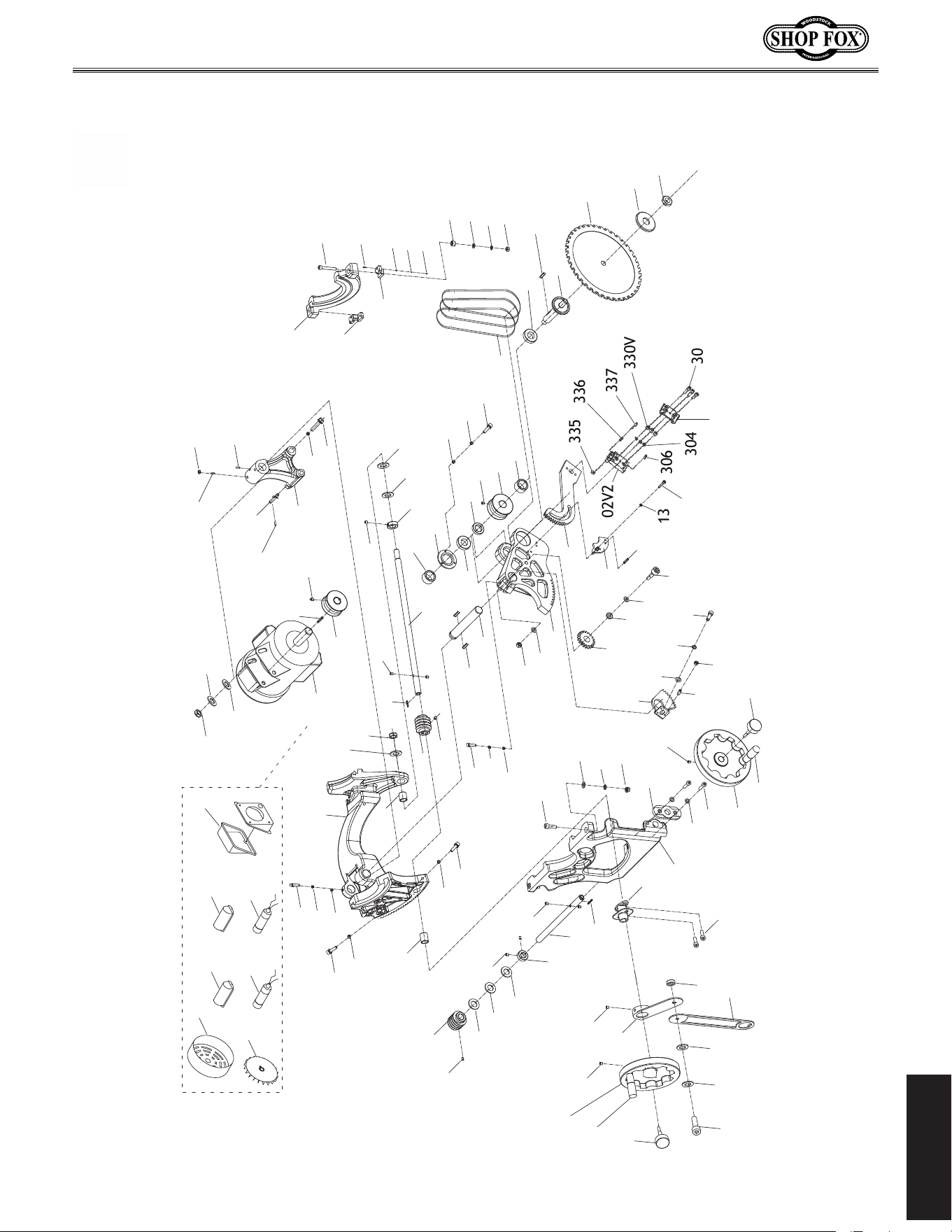

Trunnion
201
202
203
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
216
217
217
218
219
219
220
220
221
221
222
222
222
222
223
223
224
224
225
226
227
228
229
230
231
232
232
233
234
234-1
234-2
234-3
234-4
234-5
234-6
234-7
235
236
237
238
238
239
240
241
242
243
244
245
246
252
253
253
254
255
255
257
258
259
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
280
281
282
283
284
285
286
287
288
295
296
297
298
299
300
301
302V2
305V2
306
304
307V2
310
311
313
314
315
316
317
318
319
320
321
322
323
324
325
326
330V2
335
336
337
334
202-1
202-1
background
-82-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
Trunnion.Parts.List
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 X1819201 HANDWHEEL LOCK KNOB 240 X1819240 HEX NUT M12-1.75
202 X1819202 HANDWHEEL HANDLE 241 X1819241 MOTOR FRAME SUPPORT
202-1 X1819202-1 HANDWHEEL 242 X1819242 SET SCREW M8-1.25 X 12
203 X1819203 SET SCREW M5-.8 X 12 243 X1819243 SET SCREW M8-1.25 X 30
204 X1819204 TILT POINTER PIVOT 244 X1819244 HEX NUT M8-1.25
205 X1819205 SET SCREW M5-.8 X 6 245 X1819245 ELEVATION SHAFT
206 X1819206 TILT POINTER 246 X1819246 LOCK NUT M18-1.5
207 X1819207 CAP SCREW M6-1 X 12 252 X1819252 HEX BOLT M8-1.25 X 20
208 X1819208 LOCK WASHER 6MM 253 X1819253 HEX NUT M8-1.25
209 X1819209 FLAT WASHER 6MM 254 X1819254 HEX BOLT M8-1.25 X 35
210 X1819210 HEX NUT M6-1 255 X1819255 SHAFT SLEEVE
211 X1819211 TILT POINTER BRACKET 257 X1819257 SET SCREW M8-1.25 X 8
212 X1819212 CAP SCREW M5-.8 X 25 258 X1819258 COMPRESSION SPRING
213 X1819213 TILT SHAFT BRACKET 259 X1819259 STEEL BALL 8MM
214 X1819214 CAP SCREW M8-1.25 X 25 263 X1819263 REAR TRUNNION
215 X1819215 LOCK WASHER 8MM 264 X1819264 SPACER
216 X1819216 SHAFT PIN 265 X1819265 CAP SCREW M8-1.25 X 30
217 X1819217 KEY 5 X 5 X 36 266 X1819266 FLAT WASHER 8MM
218 X1819218 TILT SHAFT 267 X1819267 LOCK WASHER 8MM
219 X1819219 LOCK COLLAR 268 X1819268 HEX NUT M8-1.25
220 X1819220 SET SCREW M6-1 X 8 269 X1819269 PIVOT SHAFT
221 X1819221 LOCK WASHER 18MM 270 X1819270 KEY 6 X 6 X 50
222 X1819222 COPPER WASHER 18MM 271 X1819271 PIVOT BRACKET
223 X1819223 WORM 272 X1819272 HEX BOLT M10-1.5 X 45
224 X1819224 SET SCREW M6-1 X 10 273 X1819273 LOCK WASHER 10MM
225 X1819225 FRONT TRUNNION 274 X1819274 FLAT WASHER 10MM
226 X1819226 CAP SCREW M10-1.5 X 30 275 X1819275 ARBOR NUT
227 X1819227 FLAT WASHER 10MM 276 X1819276 ARBOR FLANGE
228 X1819228 LOCK WASHER 10MM 277 X1819277 BLADE 10" 40TPI 5/8" BORE
229 X1819229 HEX NUT M10-1.5 278 X1819278 BLADE ARBOR
230 X1819230 BELT SPZ 625 279 X1819279 KEY 5 X 5 X 30
231 X1819231 MOTOR PULLEY 280 X1819280 BALL BEARING 6005ZZ
232 X1819232 SET SCREW M5-.8 X 12 281 X1819281 FRONT PULLEY SPACER
233 X1819233 KEY 5 X 5 X 30 282 X1819282 ARBOR PULLEY
234 X1819234 MOTOR 3HP 220V 1PH 283 X1819283 REAR PULLEY SPACER
234-1 X1819234-1 MOTOR FAN COVER 284 X1819284 FLANGE RING
234-2 X1819234-2 MOTOR FAN 285 X1819285 PHLP HD SCR M5-.8 X 12
234-3 X1819234-3 R CAPACITOR 25M 370V 1-3/4 X 3 286 X1819286 LOCK WASHER 5MM
234-4 X1819234-4 R CAPACITOR COVER 287 X1819287 FLAT WASHER 5MM
234-5 X1819234-5 S CAP 200M 250V 1-1/4 X 2-3/4 288 X1819288 LOCK NUT M16-1.5
234-6 X1819234-6 S CAPACITOR COVER 295 X1819295 REAR TRUNNION BRACKET
234-7 X1819234-7 MOTOR JUNCTION BOX 296 X1819296 FRONT TRUNNION BRACKET
235 X1819235 ORIENTATION PIN 297 X1819297 CAP SCREW M8-1.25 X 30
236 X1819236 ROLL PIN 4 X 28 298 X1819298 FLAT WASHER 8MM
237 X1819237 HEX BOLT M12-1.75 X 100 299 X1819299 LOCK WASHER 8MM
238 X1819238 FLAT WASHER 12MM 300 X1819300 HEX NUT M8-1.25
239 X1819239 LOCK WASHER 12MM
background
-83-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
Trunnion.Parts.List
REF PART # DESCRIPTION REF PART # DESCRIPTION
301 X1819301 BULL GEAR 319 X1819319 GEAR BUSHING
302V2 X1819302V2 SPLITTER ADJUSTMENT BLOCK V2.10.15 320 X1819320 PLATE GEAR
304 X1819304 LOCK WASHER 6MM 321 X1819321 SET SCREW M6-1 X 20
305V2 X1819305V2 HEX BOLT M6-1 X 30 V2.10.15 322 X1819322 HEX NUT M6-1
306 X1819306 SET SCREW M6-1 X 12 323 X1819323 FENDER WASHER 10MM
307V2 X1819307V2 SPLITTER TIGHTENING CLIP V2.10.15 324 X1819324 FLAT WASHER 8MM
310 X1819310 ORIENTATION PLATE 325 X1819325 LOCK WASHER 8MM
311 X1819311 ROLL PIN 5 X 25 326 X1819326 CAP SCREW M8-1.25 X 20
313 X1819313 LOCK WASHER 5MM 330V2 X1819330V2 SPACER V2.10.15
314 X1819314 CAP SCREW M5-.8 X 25 334 X1819334 MAIN TRUNNION
315 X1819315 GEAR 335 X1819335 PIN KNOB
316 X1819316 CAP SCREW M10-1.5 X 40 336 X1819336 COMPRESSION SPRING
317 X1819317 FLAT WASHER 10MM 337 X1819337 POSITION PIN SET
318 X1819318 LOCK NUT M10-1.5
background
-84-
Model W1819/W1820 (Mfg. Since 09/11)

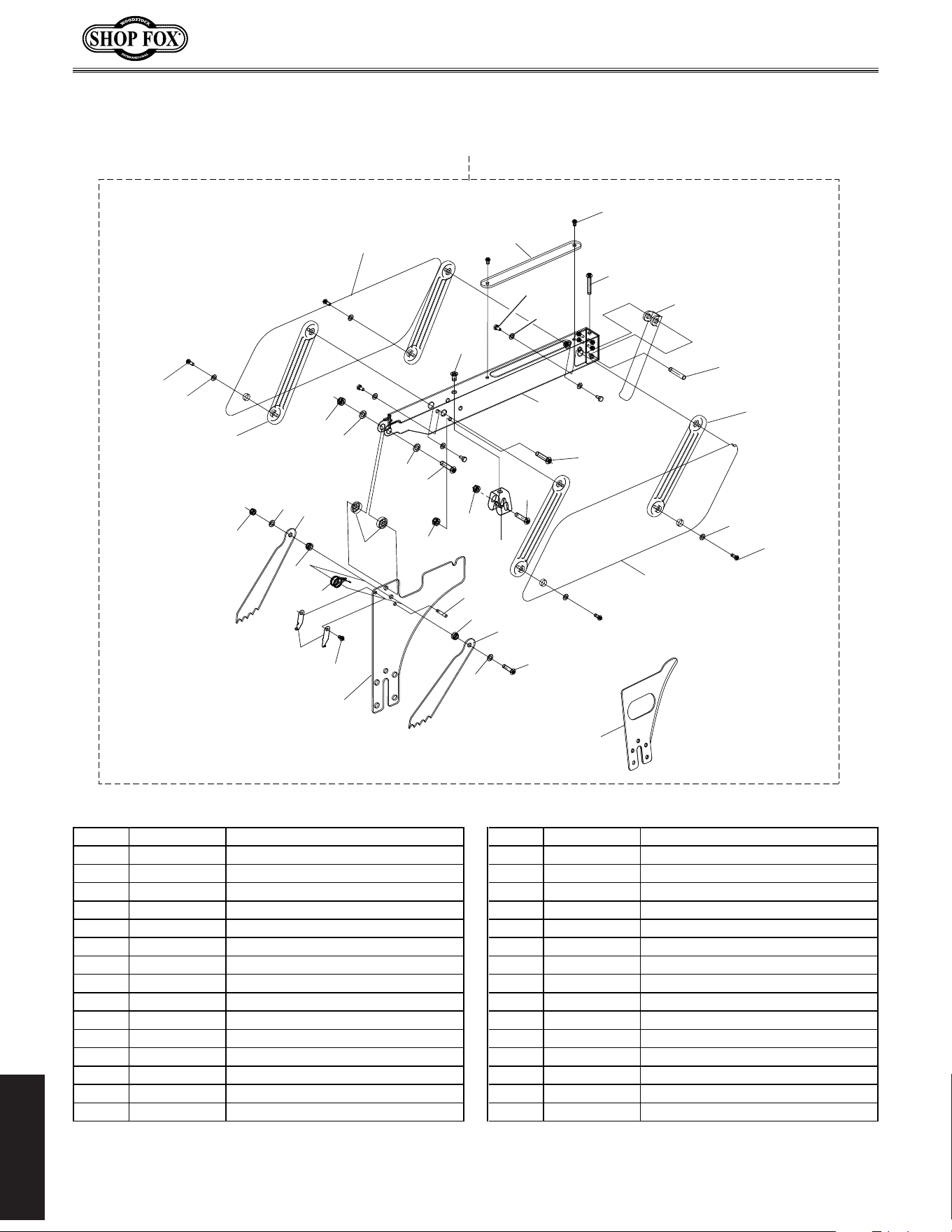

PARTS
Blade.Guard
REF PART # DESCRIPTION REF PART # DESCRIPTION
401AV3 X1819401AV3 BLADE GUARD ASSEMBLY V3.02.11 440V2 XPB122M HEX BOLT M4-.7 X 8
415 XPRP39M ROLL PIN 4 X 20 441V2 XPS62M PHLP HD SCR M6-1 X 30
419 X1819419 TORSION SPRING 442V2 X1819442V2 GUARD SPACER V2.10.10
422V2 X1819422V2 SUPPORT ARM V2.10.10 445 X1819445 PAWL SPACER
423 XPS47M PHLP HD SCR M6-1 X 25 446 XPB42M HEX BOLT M5-.8 X 20
424 XPW03M FLAT WASHER 6MM 447 XPLN02M LOCK NUT M5-.8
426 X1819426 TOP GUARD PLASTIC 448 XPW02M FLAT WASHER 5MM
427 XPS17M PHLP HD SCR M4-.7 X 6 449 X1819449 PAWL
428 X1819428 FRONT GUARD PLASTIC 450V2 X1819450V2 SPREADER V2.10.10
429V2 X1819429V2 ROLL PIN 6 X 32 451 X1819451 RIVING KNIFE
431V2 X1819431V2 SIDE GUARD PLASTIC V2.10.10 452V2 X1819452V2 RIVET V2.02.11
432V2 X1819432V2 GUARD SWING ARM V2.10.10 453 X1819453 PAWL HOOK 2-PC
433V2 XPS38M PHLP HD SCR M4-.7 X 10 454V2 X1819454V2 RIVET 5 X 12MM V2.02.11
434 XPW02M FLAT WASHER 5MM 456 X1819456 GUARD CLAMP
435V2 XPLN03M LOCK NUT M6-1 457 XPS531M PHLP HD SCR M6-1 X 35
439V2 XPW02M FLAT WASHER 5MM 458V2 XPB11M HEX BOLT M5-.8 X 8
401AV3
415
419
422V2
423
424
424
426
427
428
429V2
431V2
431V2
432V2
432V2
456
457
433V2
433V2
434
434
435V2
452V2
453
458V2
454V2
439V2
440V2
441V2
442V2
445
445
446
447
447
448
448
449
449
450V2
451
435V2

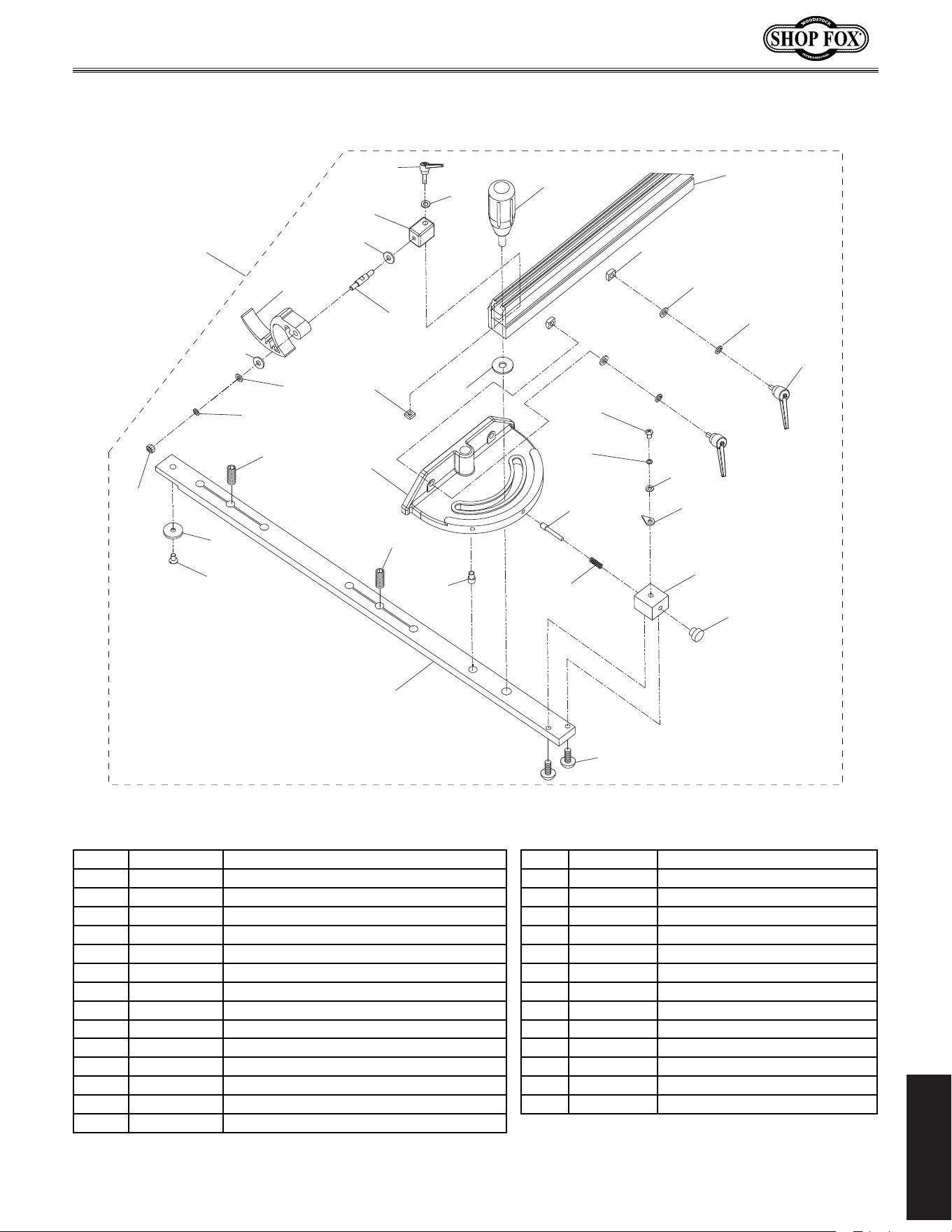

background
-85-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
Miter.Gauge
REF PART # DESCRIPTION REF PART # DESCRIPTION
501AV3 X1819501AV3 MITER GAUGE ASSEMBLY V3.10.15 518 X1819518 MITER KNOB
501V2 X1819501V2 MITER BAR V2.10.15 519 X1819519 FENDER WASHER 8MM
505 X1819505 T-SLOT WASHER 520 X1819520 MITER GAUGE FENCE
506 X1819506 FLAT HD SCR M5-.8 X 8 521 X1819521 T-NUT M6-1
507 X1819507 MITER BODY PIVOT PIN 522 X1819522 FLAT WASHER 6MM
508 X1819508 MITER GUAGE BODY 523V2 X1819523V2 PLASTIC WASHER 6MM
509 X1819509 STOP PIN KNOB 524V2 X1819524V2 LOCK LEVER M6-1 X 25 V2.12.10
510V2 X1819510V2 STOP PIN BLOCK V2.10.15 525 X1819525 FLIP STOP BRACKET
511 X1819511 COMPRESSION SPRING 526V2 X1819526V2 LOCK LEVER M6-1 X 32 V2.12.10
512 X1819512 STOP PIN 527 X1819527 FLIP STOP PIVOT SHAFT
513V2 X1819513V2 BUTTON HD CAP SCR M4-.7 X 10 V2.10.15 528 X1819528 FLIP STOP
514 X1819514 POINTER 529 X1819529 LOCK NUT M6-1
515 X1819515 FLAT WASHER 4MM 530 X1819530 SET SCREW M8-1.25 X 6
516 X1819516 LOCK WASHER 4MM 531 X1819531 TEFLON WASHER
517 X1819517 PHLP HD SCR M4-.7 X 8
501AV3
501V2
505
506
507
530
530
508
509
510V2
513V2
511
512
514
515
516
517
518
519
520
521
522
523V2
524V2
525
526V2
527
528
531
531
529
522
522
523V2
521

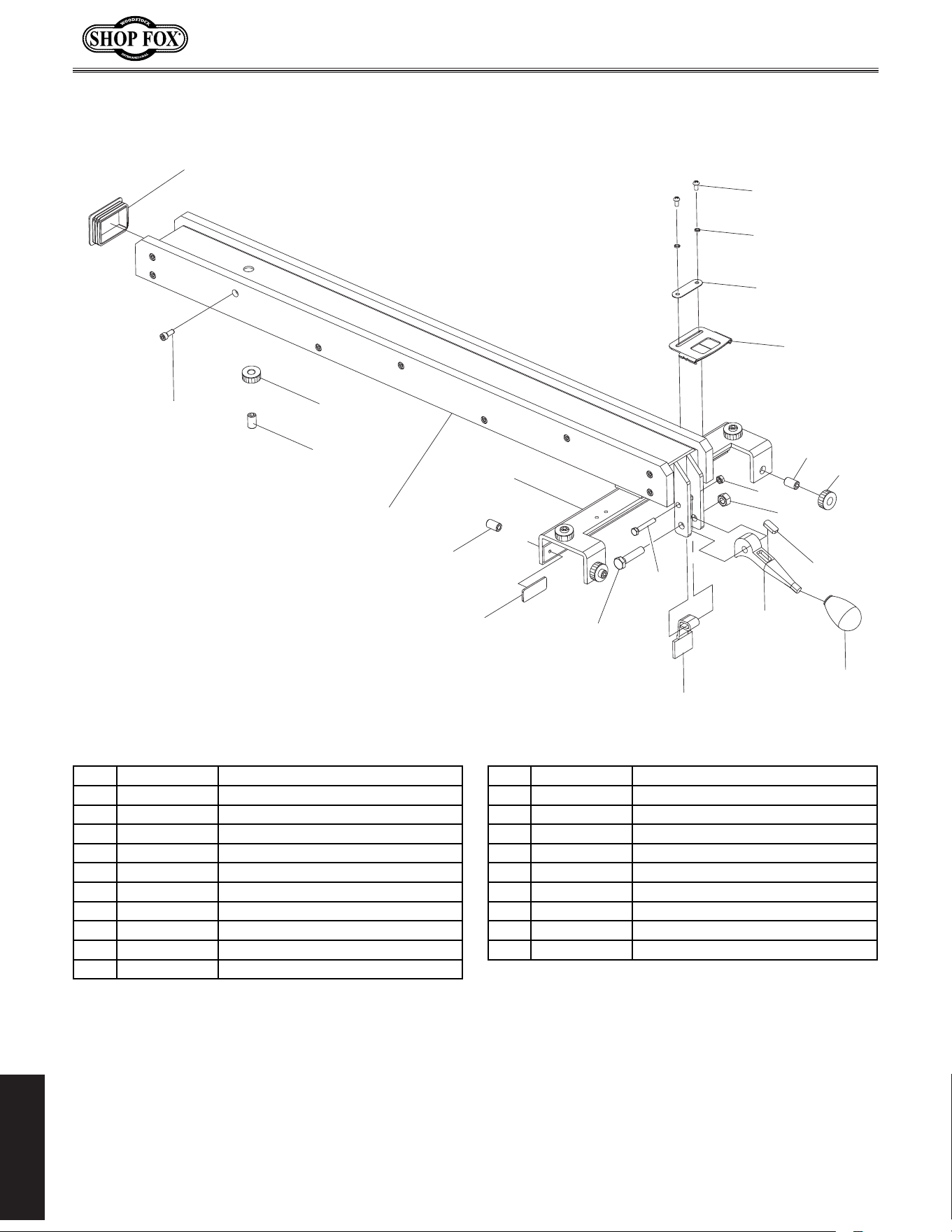

background
-86-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 X1819601 FENCE END CAP 612 X1819612 HEX BOLT M6-1 X 40
602 X1819602 FENCE FACE 613 X1819613 LOCK NUT M6-1
603 X1819603 CAP SCREW M6-1 X 16 614 X1819614 HEX BOLT M10-1.5 X 45
604 X1819604 GLIDE PAD 615 X1819615 LOCK NUT M10-1.5
605 X1819605 FENCE SCALE WINDOW 616 X1819616 LOCK FOOT
606 X1819606 BRASS GLIDE SCREW M12-1.75 X 16 617 X1819617 MAGNET
607 X1819607 PHLP HD SCR M5-.8 X 10 618 X1819618 FENCE LOCK LEVER
608 X1819608 LOCK WASHER 5MM 619 X1819619 FENCE LOCK KNOB
609 X1819609 SCALE INDICATOR 620 X1819620 BRASS GLIDE SCREW M12-1.75 X 30
610 X1819610 FENCE BODY 621 X1819621 KNURLED KNOB M12-1.75
611 X1819611 ALIGNMENT SET SCREW
601
602
603
604
605
606
607
608
609
611
612
613
614
615
616
617
618
619
620
621
621
610

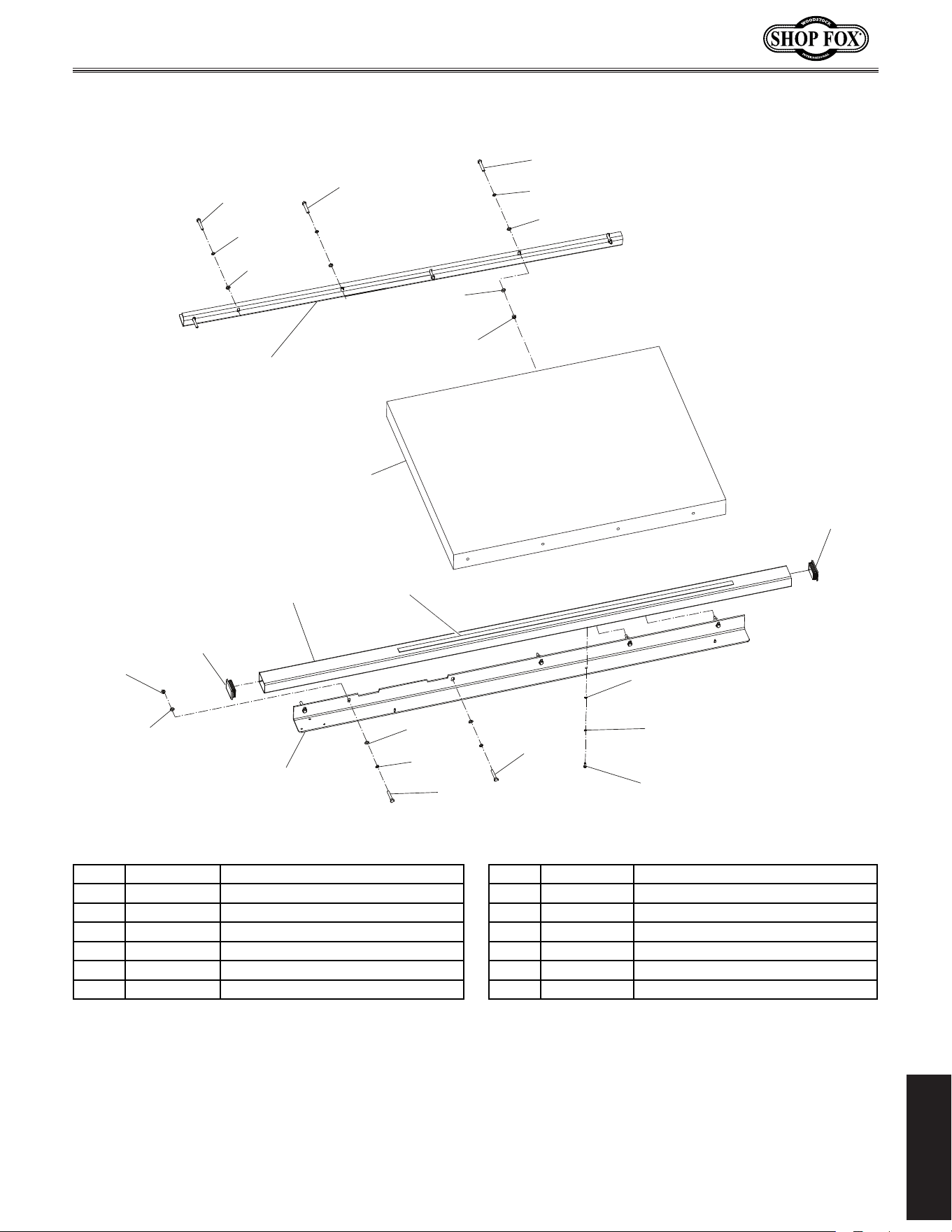

background
-87-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
W1819.Extension.Wing.&.Rails
REF PART # DESCRIPTION REF PART # DESCRIPTION
701 X1819701 GUIDE TUBE END CAP 708V2 X1819708V2 HEX BOLT 5/16-18 X 1 V2.10.15
702 X1819702 GUIDE TUBE 709 X1819709 LOCK WASHER 8MM
703V2 X1819703V2 FENCE SCALE V2.09.11 710 X1819710 FLAT WASHER 8MM
704 X1819704 FRONT RAIL 711 X1819711 REAR RAIL
705 X1819705 CAP SCREW M6-1 X 16 712 X1819712 HEX BOLT M8-1.25 X 40
706 X1819706 LOCK WASHER 6MM 713 X1819713 HEX NUT M8-1.25
707 X1819707 FLAT WASHER 6MM 714V2 X1819714V2 EXTENSION WING V2.10.15
701
702
703V2
704
705
708V2
709
710
711
712
713
710
701
709
710
706
707
713
714V2
710
708V2
710
709
712
712
background

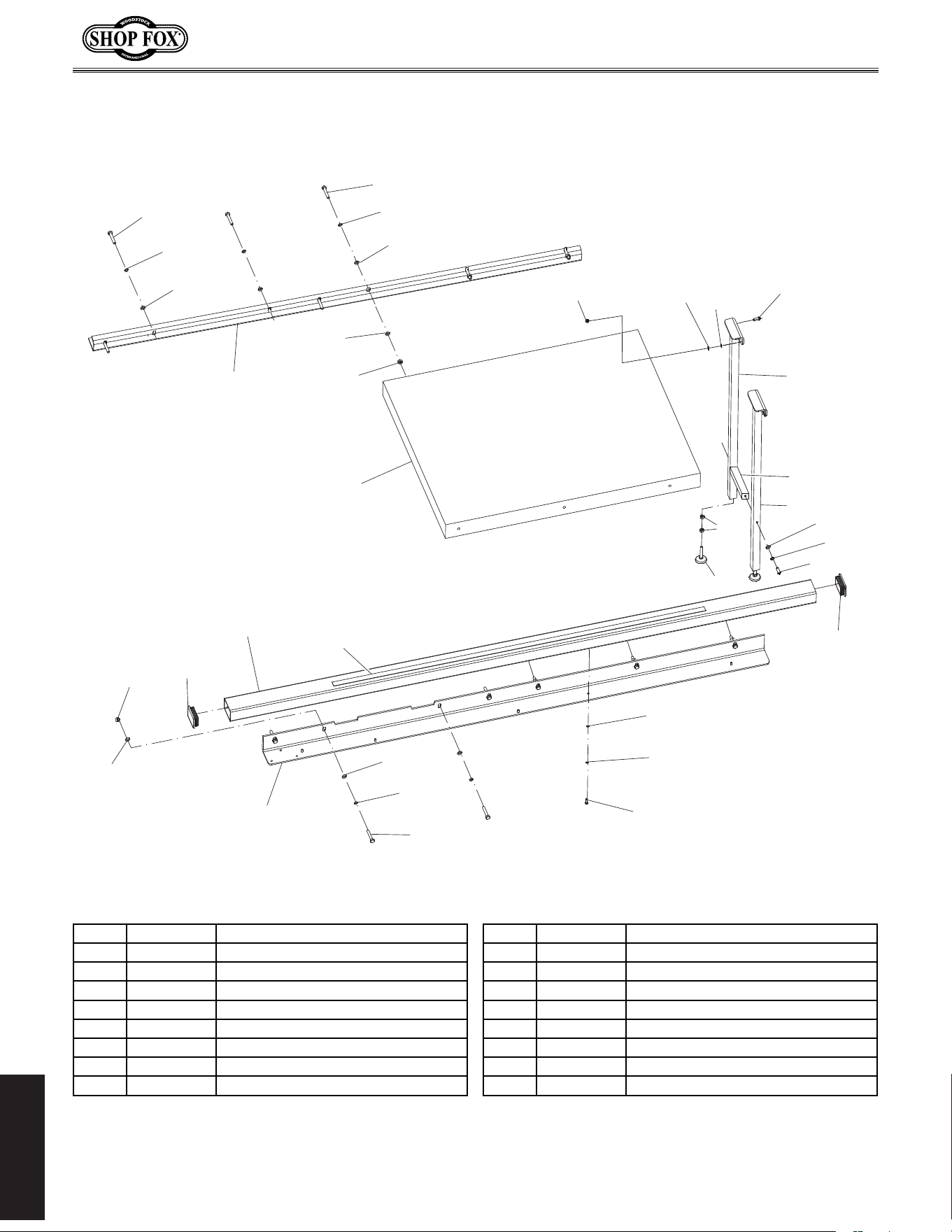

-88-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
W1820.Extension.Wing.&.Rails
REF PART # DESCRIPTION REF PART # DESCRIPTION
701 X1820701 GUIDE TUBE END CAP 720V2 X1820720V2 EXTENSION WING V2.10.15
705 X1820705 CAP SCREW M6-1 X 16 722 X1820722 LEG
706 X1820706 LOCK WASHER 6MM 723 X1820723 LEG CROSS BAR
707 X1820707 FLAT WASHER 6MM 725V2 X1820725V2 FOOT V2.10.15
708V2 X1820708V2 HEX BOLT 5/16-18 X 1 V2.10.15 727 X1820727 BUTTON HD CAP SCR M8-1.25 X 40
709 X1820709 LOCK WASHER 8MM 728 X1820728 REAR RAIL
710 X1820710 FLAT WASHER 8MM 729 X1820729 GUIDE TUBE
712 X1820712 HEX BOLT M8-1.25 X 40 730V2 X1820730V2 FENCE SCALE V2.09.11
713 X1820713 HEX NUT M8-1.25 731 X1820731 FRONT RAIL
701
705
708V2
709
710
712
713
720V2
722
722
727
725V2
727
728
729
730V2
731
710
710
709
713
710
709
713
706
707
710
709
713
710
701
709
710
712
723
background

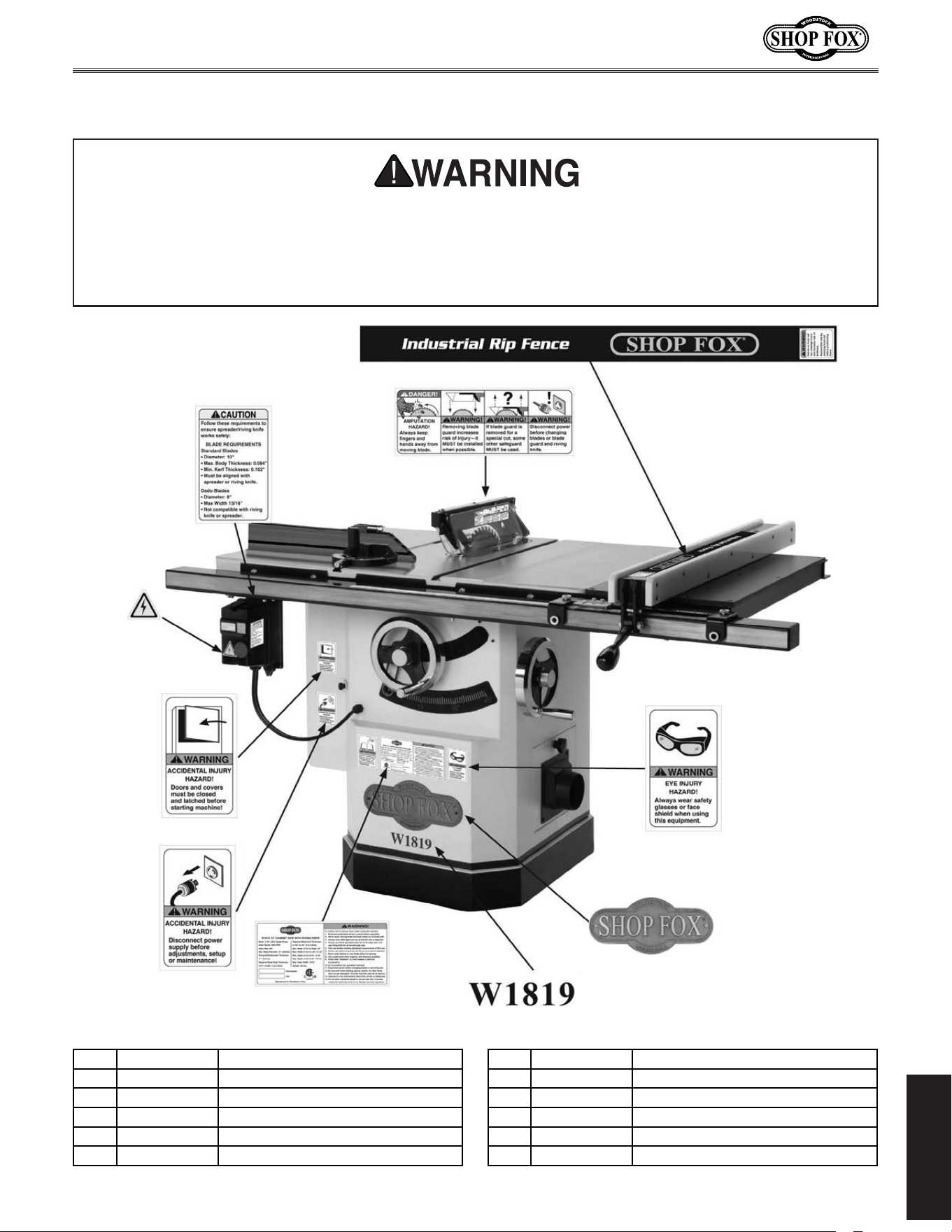

-89-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
Machine.Labels
Safety.labels. warn. about. machine.hazards. and. how.to. prevent. machine.damage. or. injury.. The.
owner. of. this. machine. MUST. maintain. the. original. location. and. readability. of. all. labels. on. this.
machine..If.any.label.is.removed.or.becomes.unreadable,.REPLACE.that.label.before.allowing.the.
machine.to.enter.service.again..Contact.Woodstock.International,.Inc..at.(360).734-3482.or.www.
shopfoxtools.com.to.order.new.labels..
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 X1819801 ELECTRICITY LABEL 807 X1819807 MODEL NUMBER LABEL W1819
802 X1819802 TABLE SAW PRECAUTIONS LABEL 807 X1820807 MODEL NUMBER LABEL W1820
803 X1819803 BLADE GUARD WARNING LABEL 808 X1819808 MACHINE ID LABEL W1819
804 X1819804 RIP FENCE LABEL 808 X1820808 MACHINE ID LABEL W1820
805 X1819805 EYE INJURY HAZARD LABEL 809 X1819809 DISCONNECT POWER LABEL
806 X1819806 SHOP FOX NAMEPLATE 810 X1819810 MOTOR COVER WARNING LABEL
801
802
803
804
805
806
807
808
809
810
background
-90-
Model W1819/W1820 (Mfg. Since 09/11)
PARTS
background
Model W1819/W1820 (Mfg. Since 09/11)
background
tape along edges--please do not staple
Fold along dotted lIne
Fold along dotted lIne
Woodstock international inc.
p.o. box 2309
bellingham, Wa 98227-2309
place
stamp
Here
background
WARRANTY
Woodstock International, Inc. warrants all Shop Fox machinery to be free of defects from workmanship
and materials for a period of two years from the date of original purchase by the original owner.
This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or
accidents, lack of maintenance, or reimbursement of third party expenses incurred.
Woodstock International, Inc. will repair, replace, or arrange for a dealer refund at its expense and
at its option, the Shop Fox machine or machine part, which in proper and intended use has proven to
be defective, provided that the original owner returns the product prepaid to an authorized warranty
or repair facility as designated by our Bellingham, Washington office with proof of their purchase of
the product within two years, and provides Woodstock International, Inc. reasonable opportunity to
verify the alleged defect through inspection. If it is determined there is no defect, or that the defect
resulted from causes not within the scope of Woodstock International Inc.'s warranty, then the original
owner must bear the cost of storing and returning the product.
This is Woodstock International, Inc.’s sole written warranty and any and all warranties that may be
implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited
to the duration of this written warranty. We do not warrant that Shop Fox machinery complies with
the provisions of any law, acts or electrical codes. We do not reimburse for third party repairs. In no
event shall Woodstock International, Inc.’s liability under this limited warranty exceed the purchase
price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be
tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries
to persons or property or for incidental, contingent, special or consequential damages arising from the
use of our products.
Every effort has been made to ensure that all Shop Fox machinery meets high quality and durability
standards. We reserve the right to change specifications at any time because of our commitment to
continuously improve the quality of our products.
WARRANTY
background

Specifications

Indexed Terms: Table Saw

Shop Fox W1820 Questions and Answers

Find answers or ask new question.
See other models: W1666 W1685
Questions and Answers
