Instruction Manual
TABLE SAW
HYTS1800E
WARNING: Read the instructions carefully before use.
www.hyundaipowerproducts.co.uk
2
Contents
Introduction……..……………………………3
Safety Information…..…………………..4-13
Understand Your Machine.…..…………...4
Personal Safety...…….……………………4-5
Inspect Your Machine…………………...5-6
Work Area…….……………………………....6
Table Saw Safety…………………………….7
During Use…….………………………………8
Batteries…….…………………………………9
Electricity…….………………...……………...10
Double Insulated Devices…......…….........10
Vibrations….…………………………..........11
Noise…….……………………………..........11
Residual Risks…………………....................12
Intended Use………………………............13

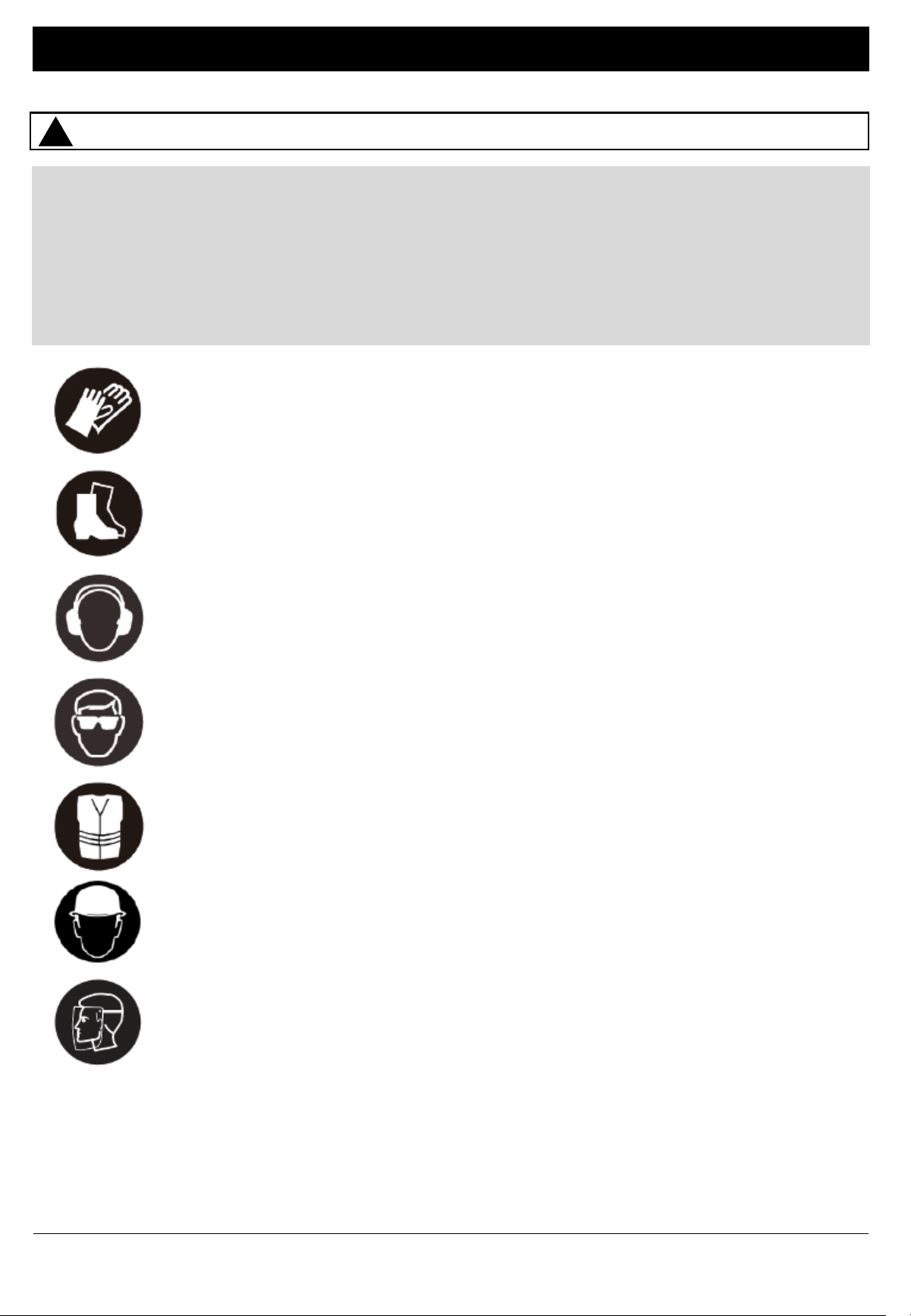

Personal Protective Equipment…...........14

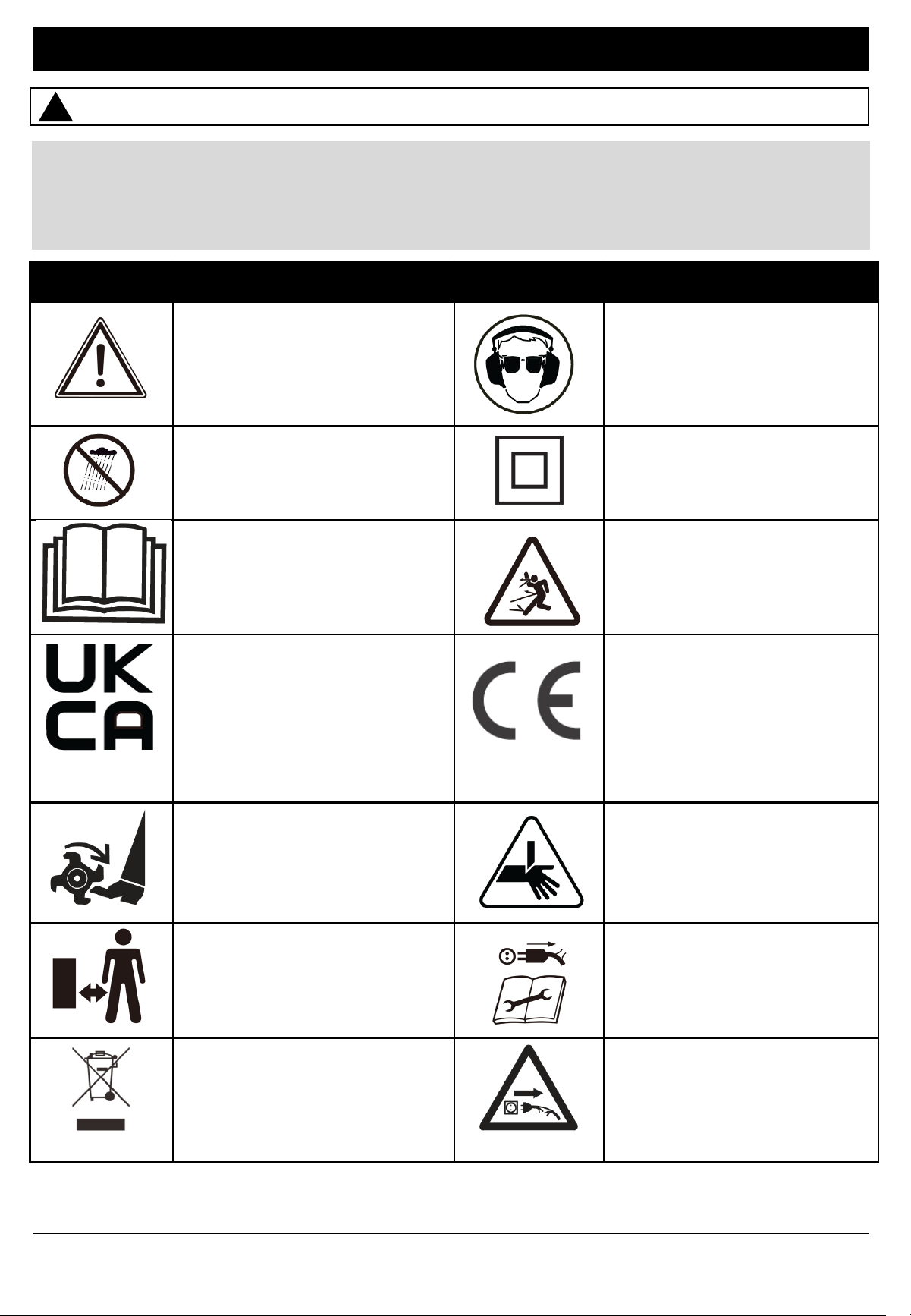

Symbols On The Machine………………..15
Unboxing…………………………...............15

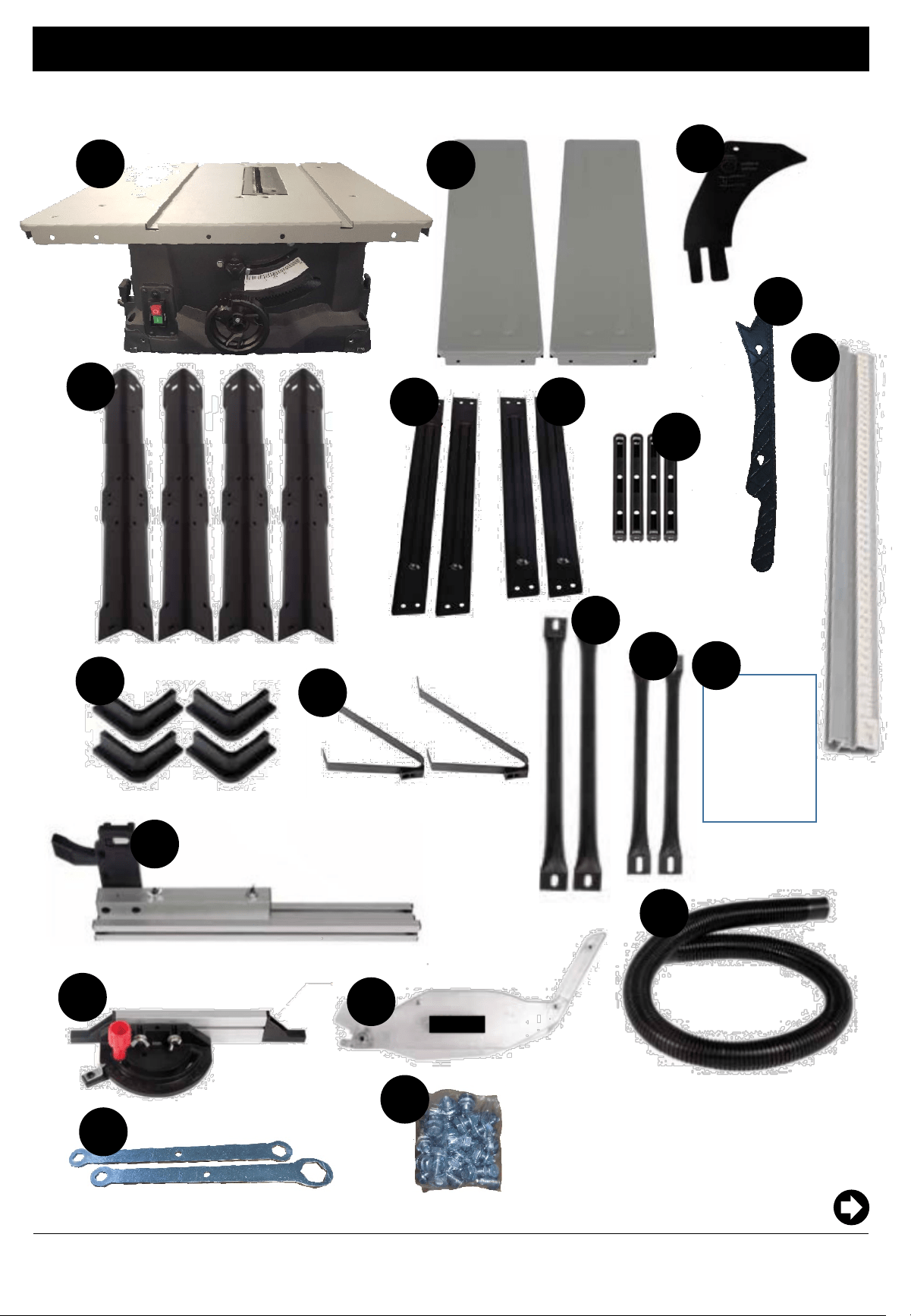

In The Box………………………............16-17

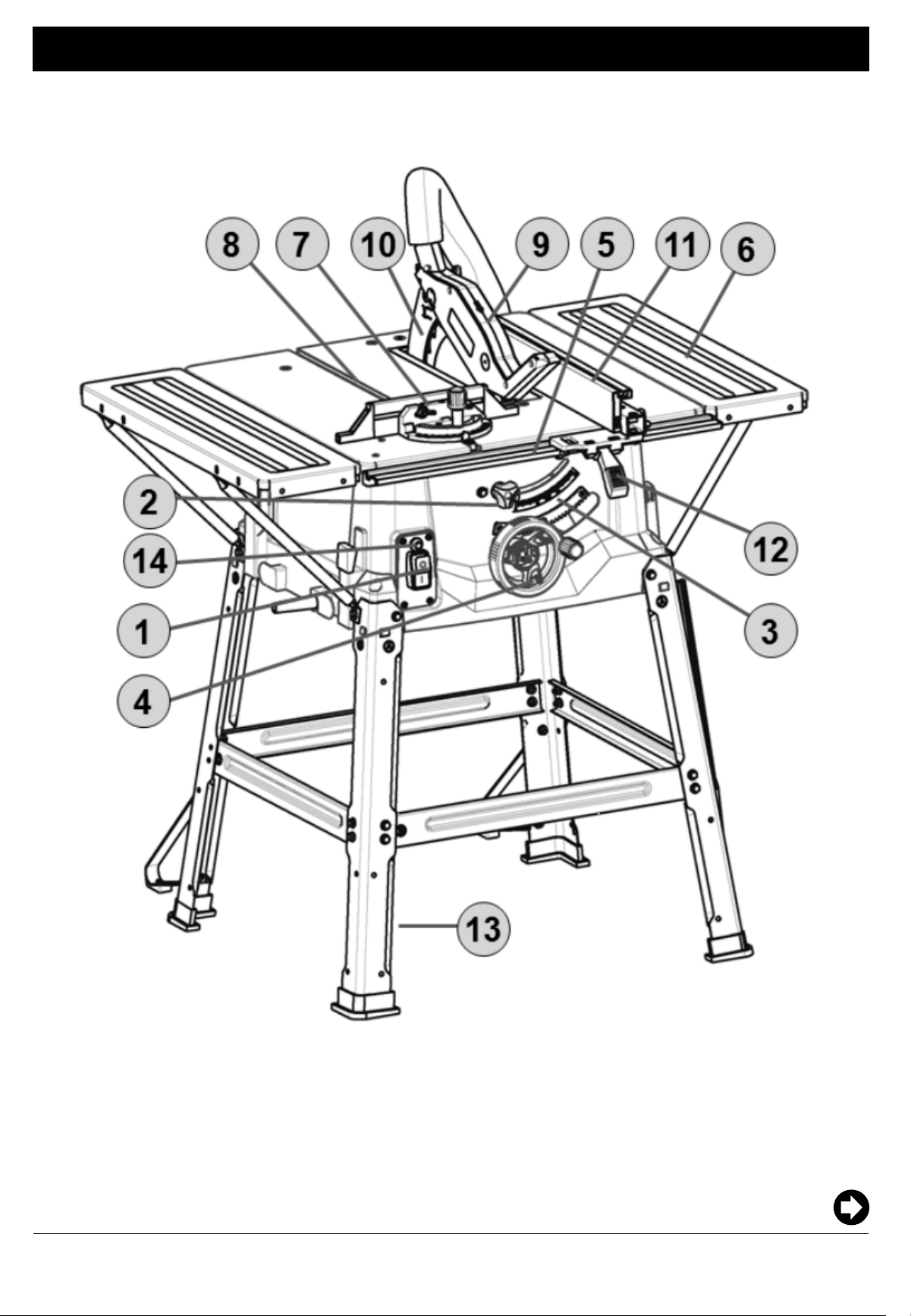

Features…………………………...........18-19
Assembly……..…………………….......20-28
Assembly Overview…………………………20

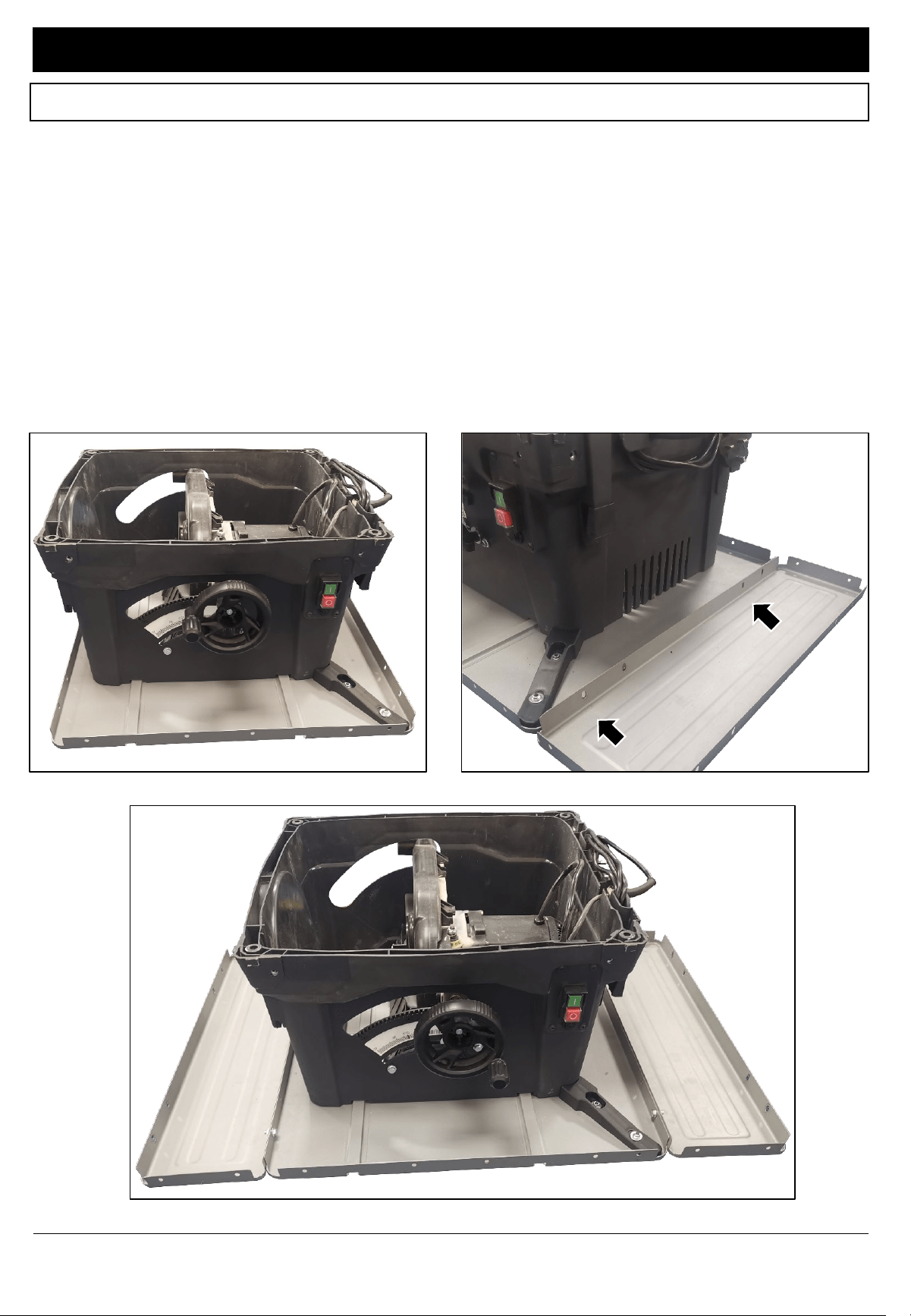

Attach Table Extensions……………………21

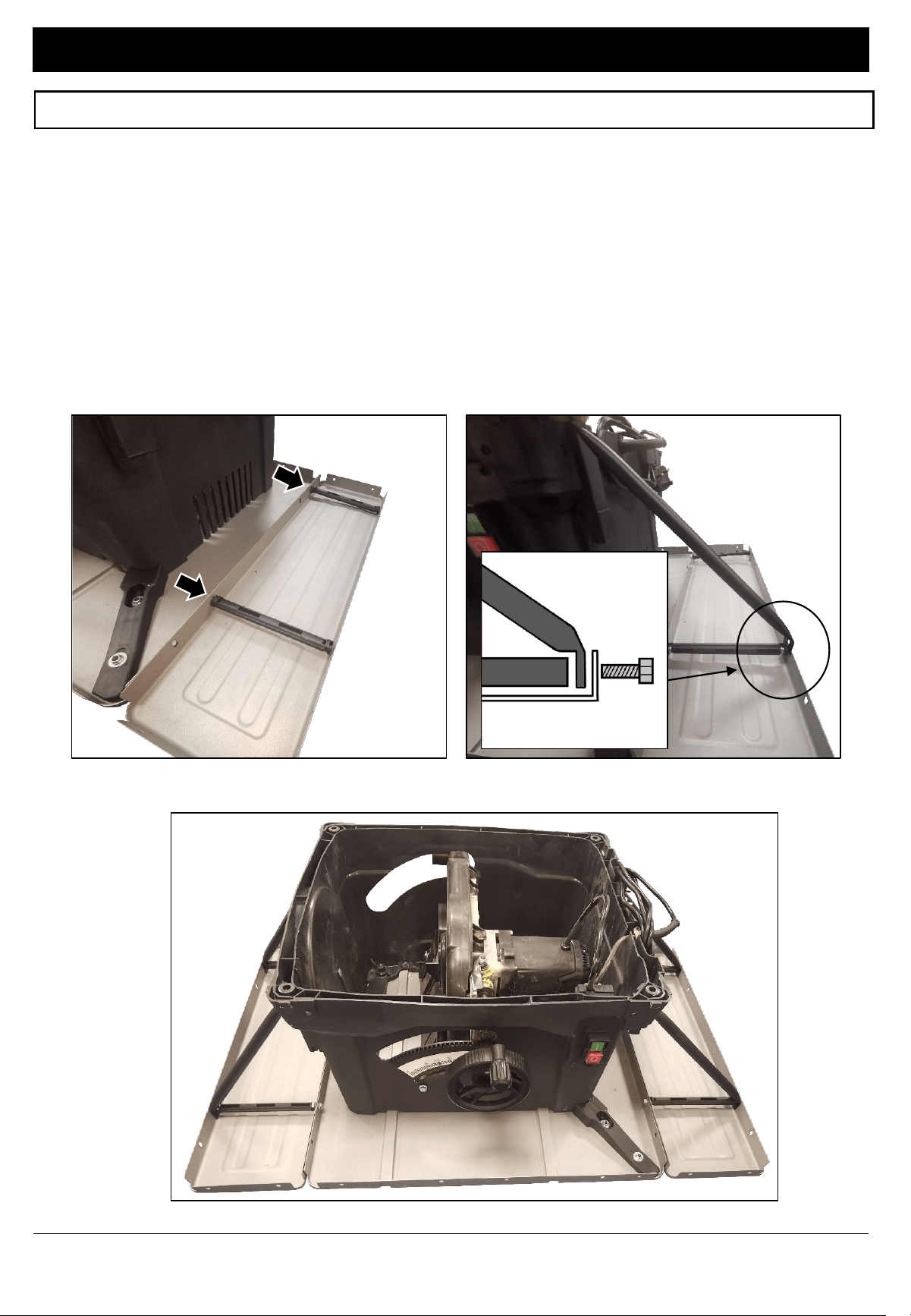

Attach Extension Supports…………………22

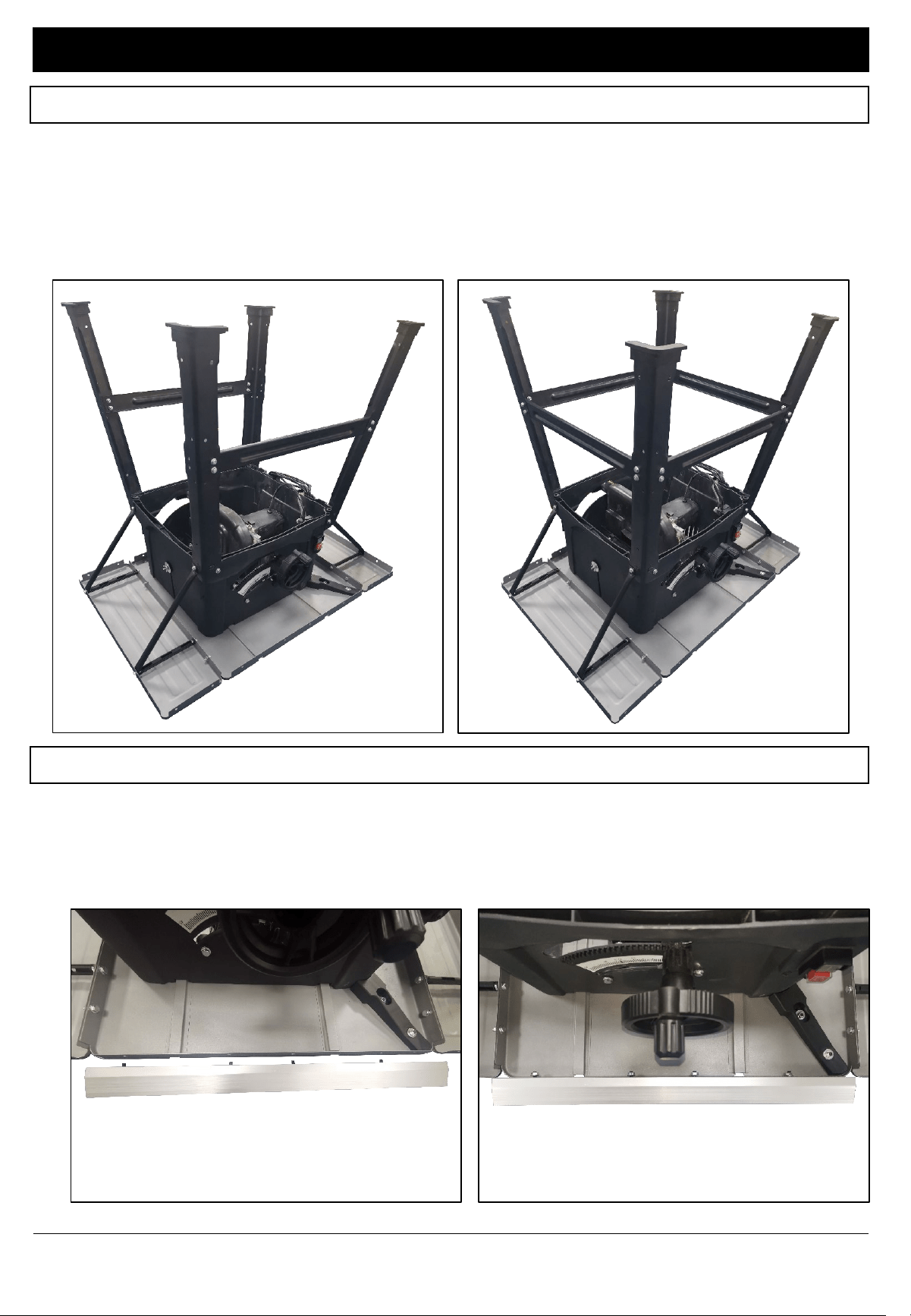

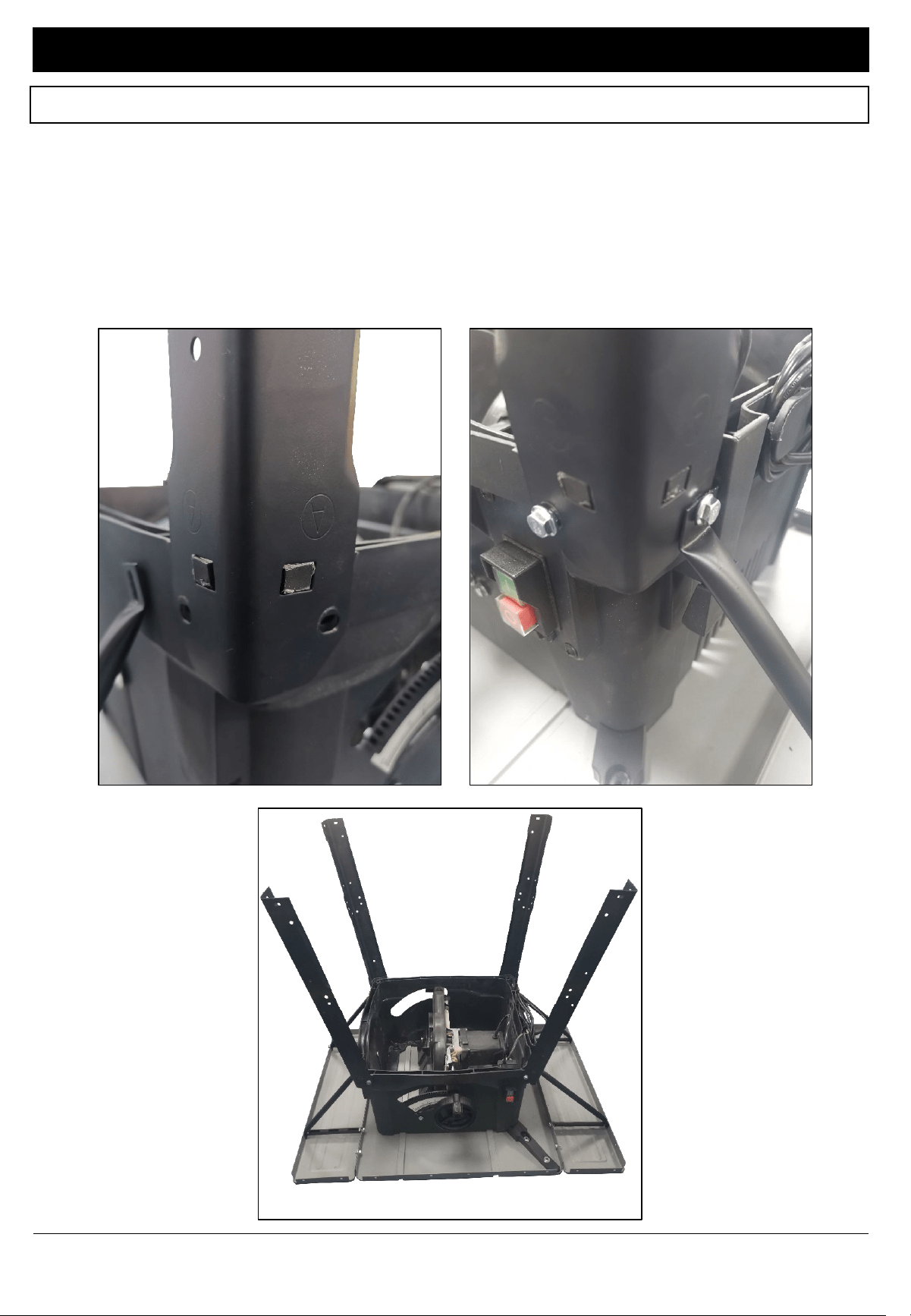

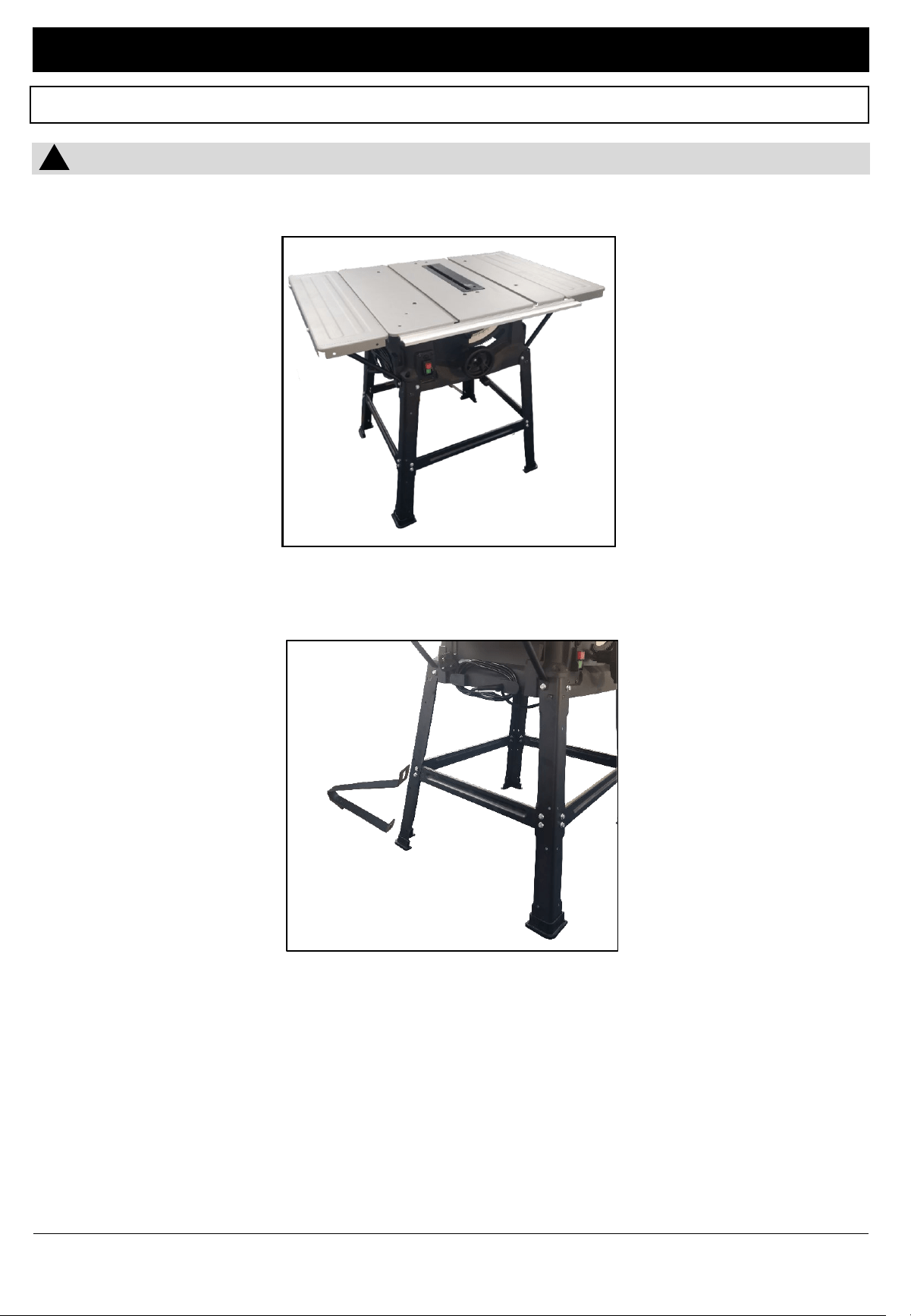

Attach Legs…………………………………..23
Attach Leg Braces…………………………..24
Install Fence Rail……………………………..25
Install Riving Knife…………………………….26

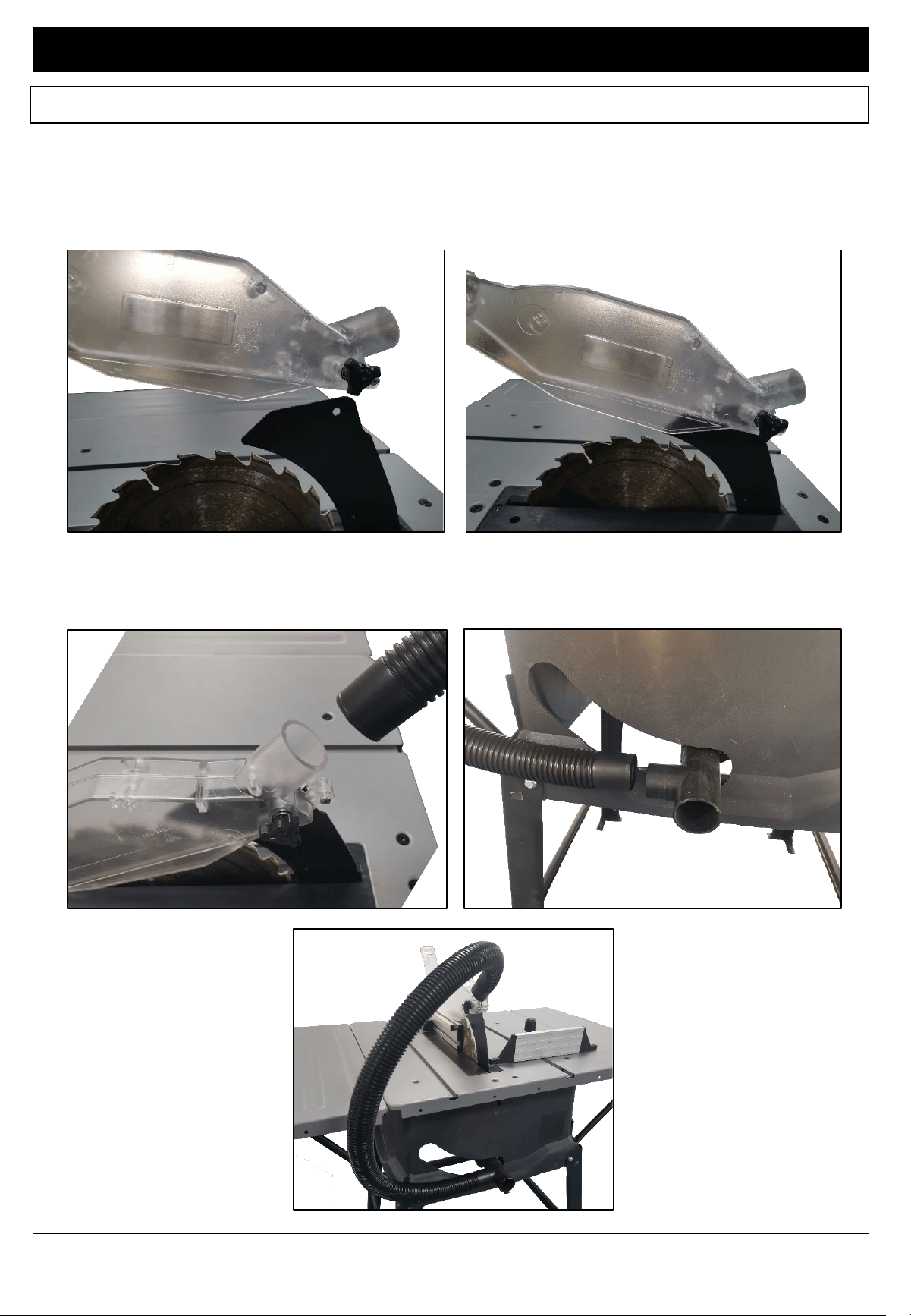

Install Blade Guard and Extraction Hose..27

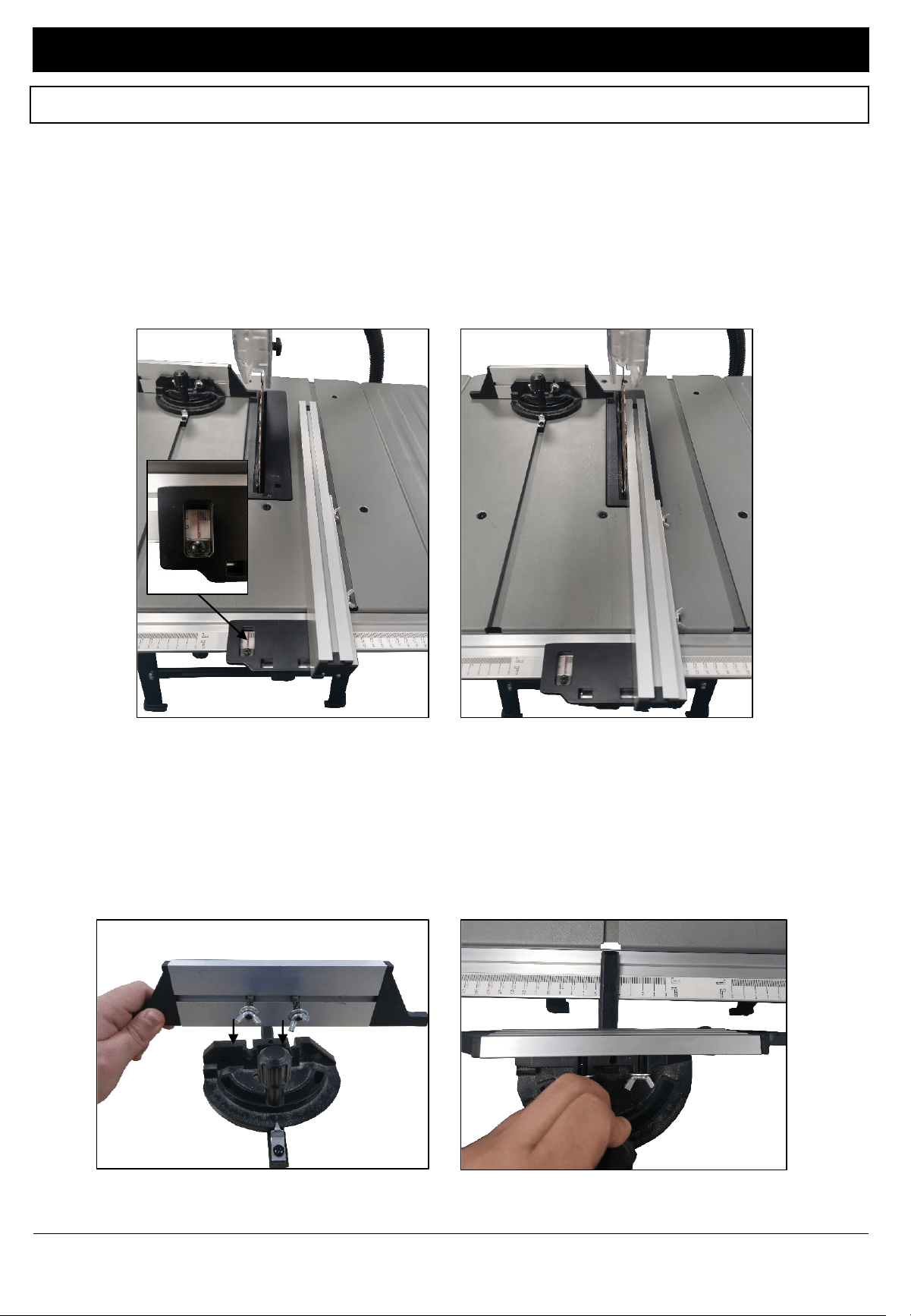

Install Mitre Gauge and Fence Rail ……..28
Operation……...………………………..29-32

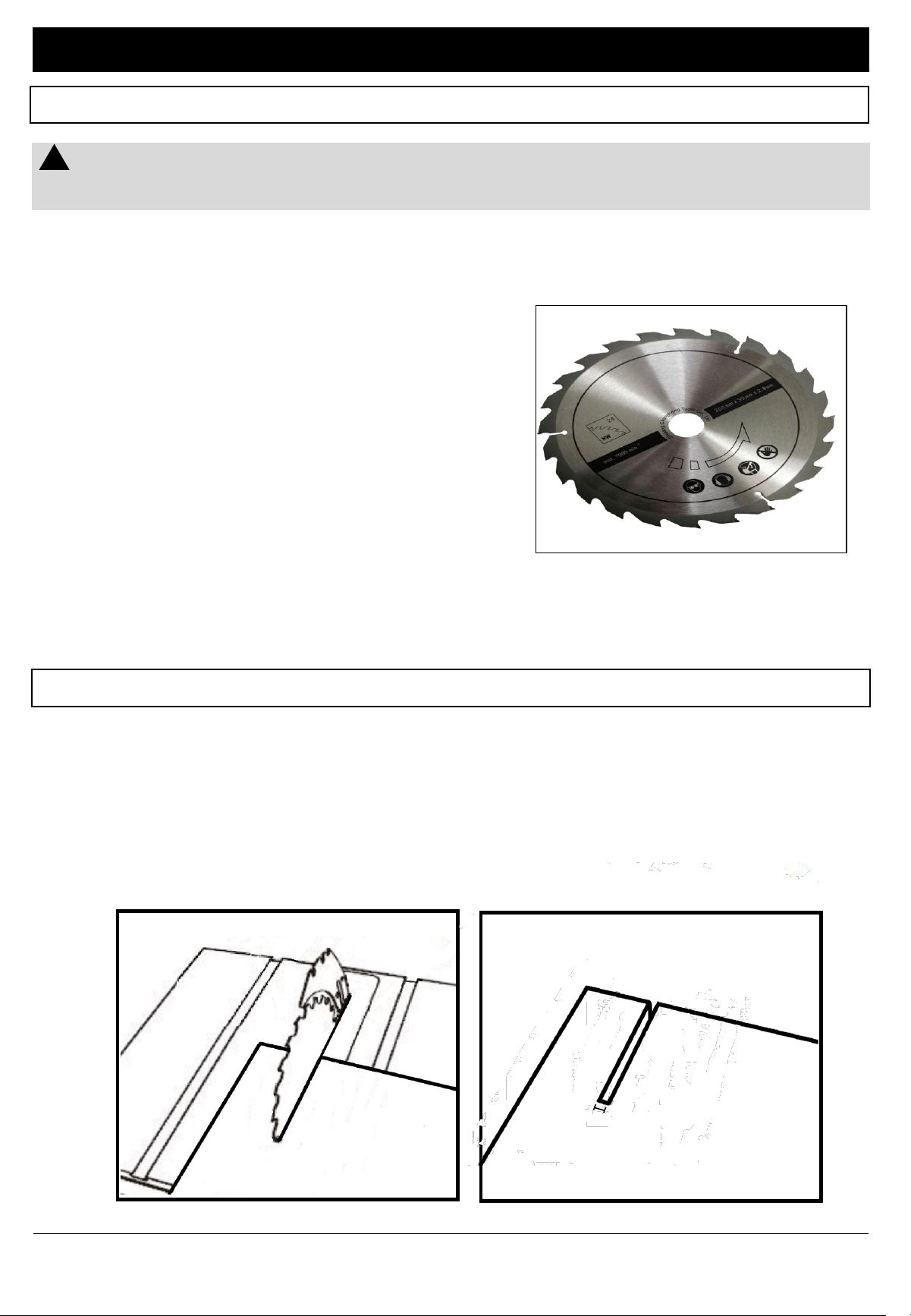

Blade Dimensions…………………………..29

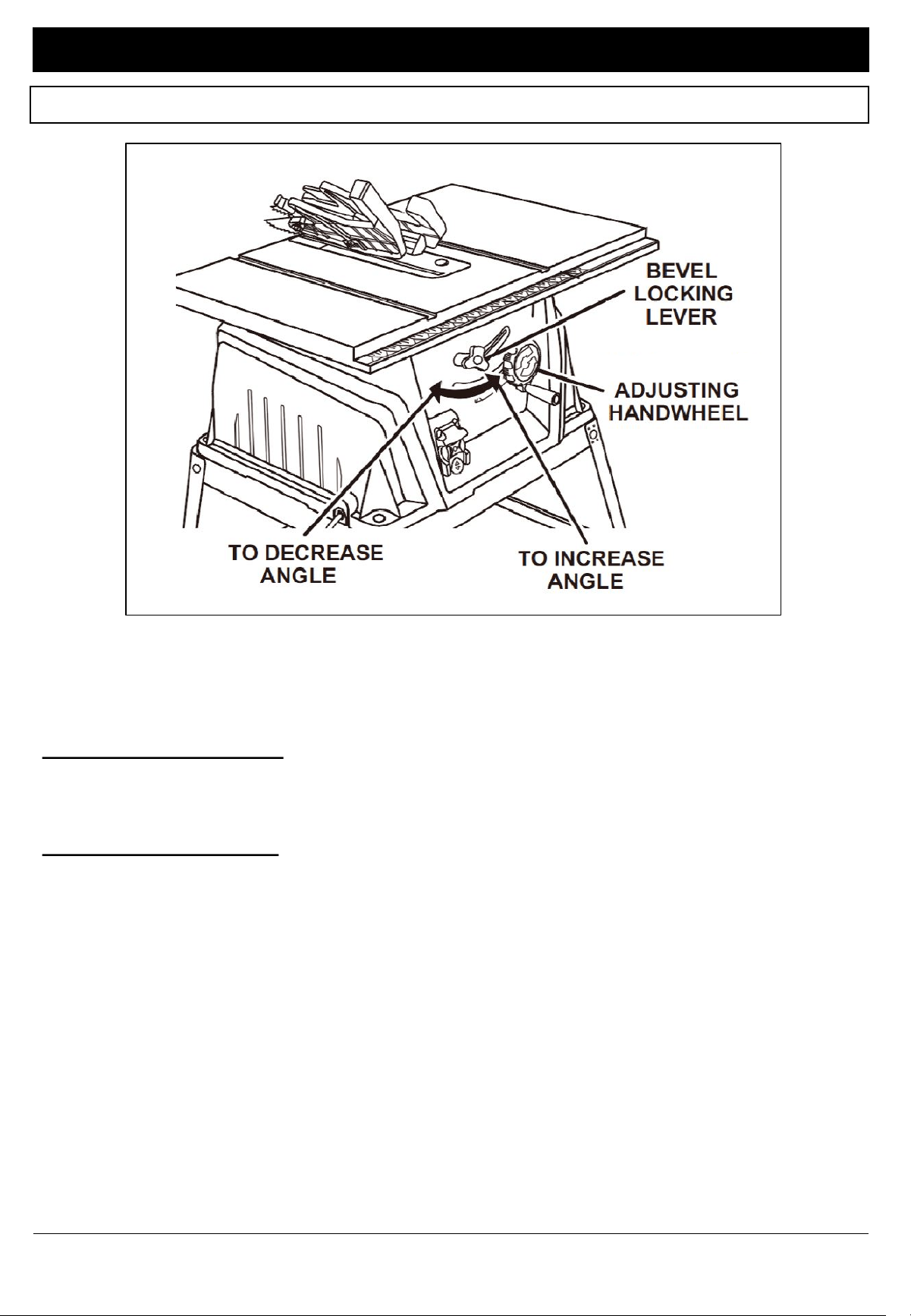

Blade Adjustment…………………………..30

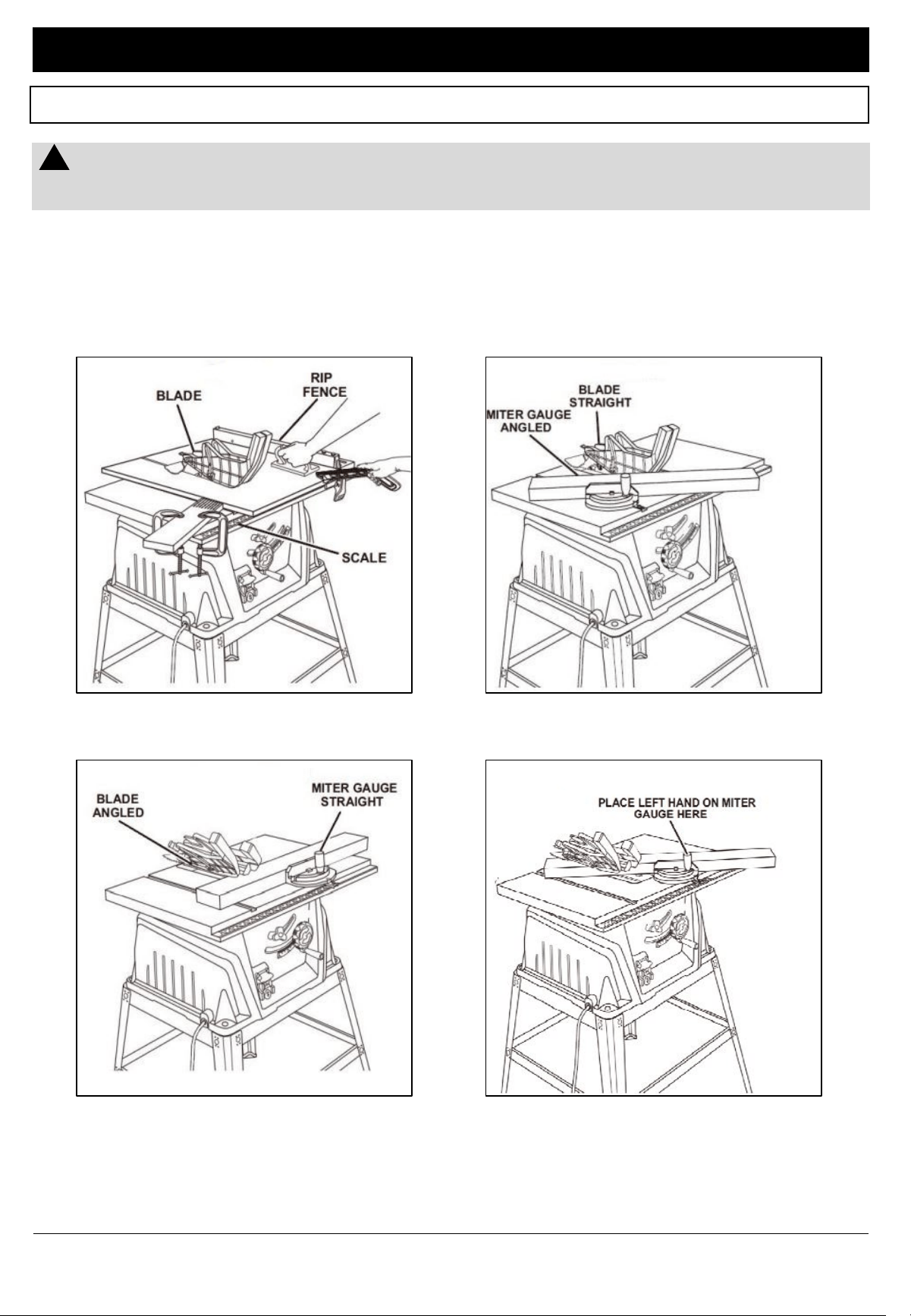

Cutting Illustrations………………………….31

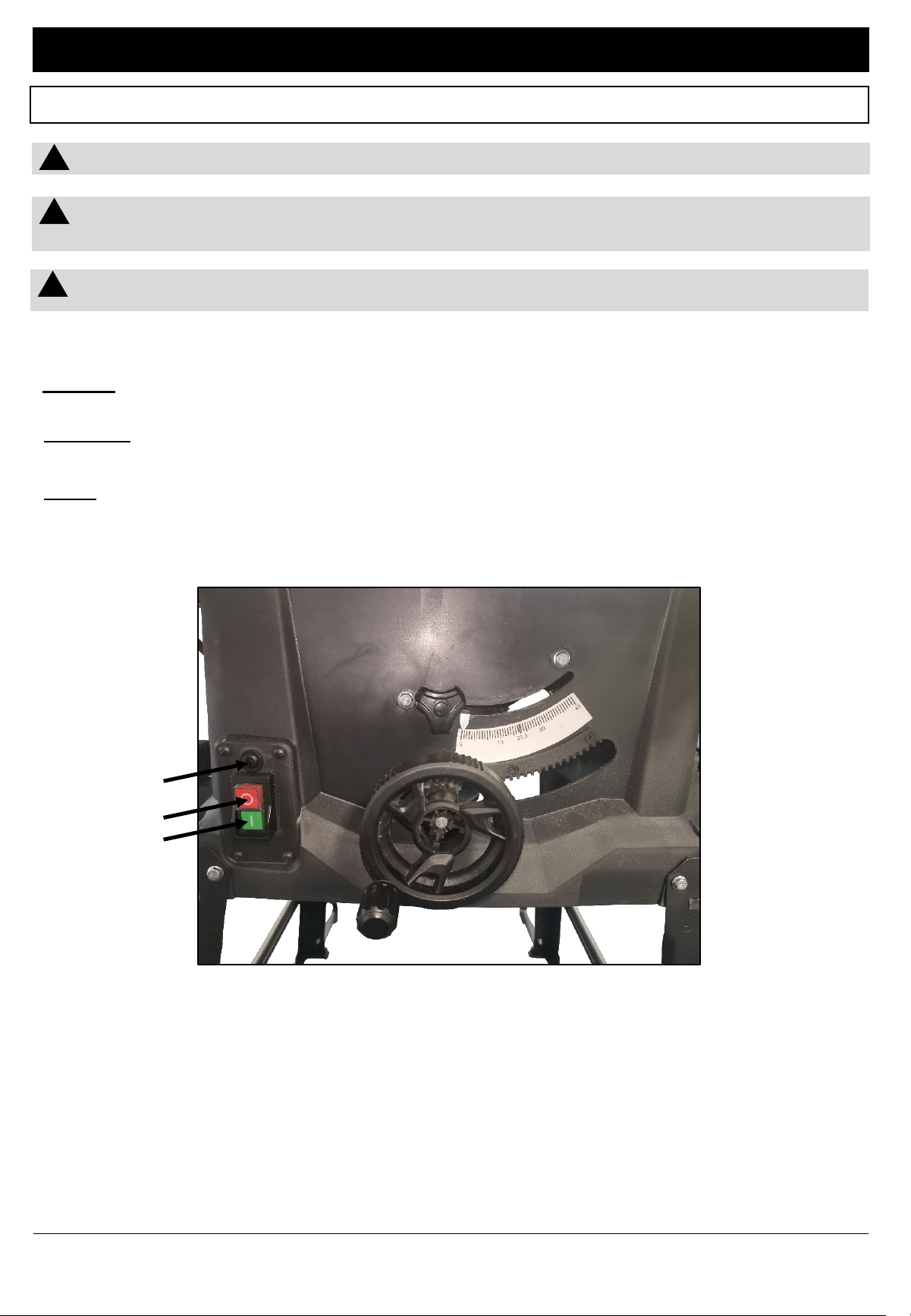

Starting and Stopping……………………...32
Maintenance & Care…..……………..33-35
General Maintenance.……………………33

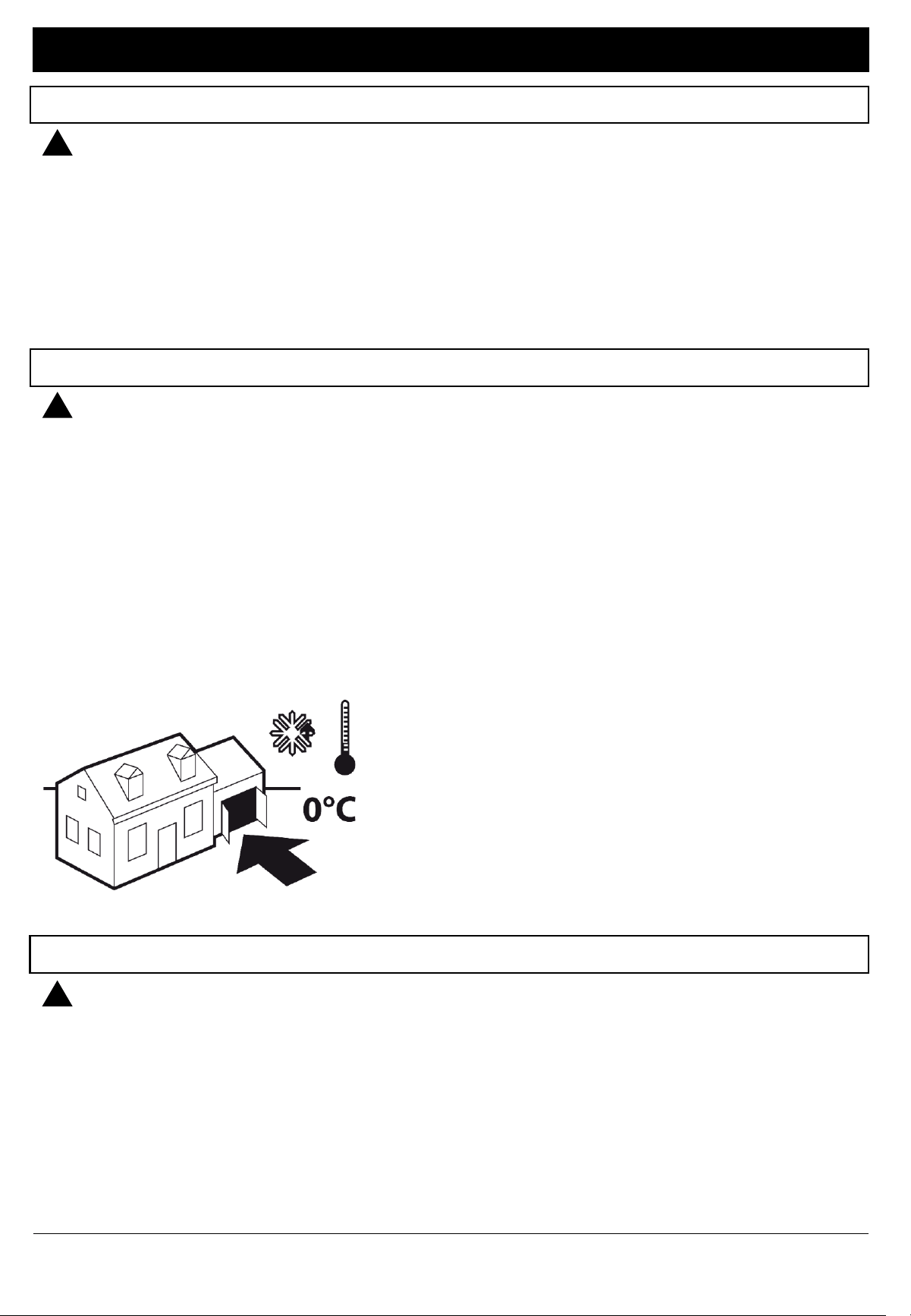

Storage…….…….…...………………………33
Cleaning…….…...………………………......33

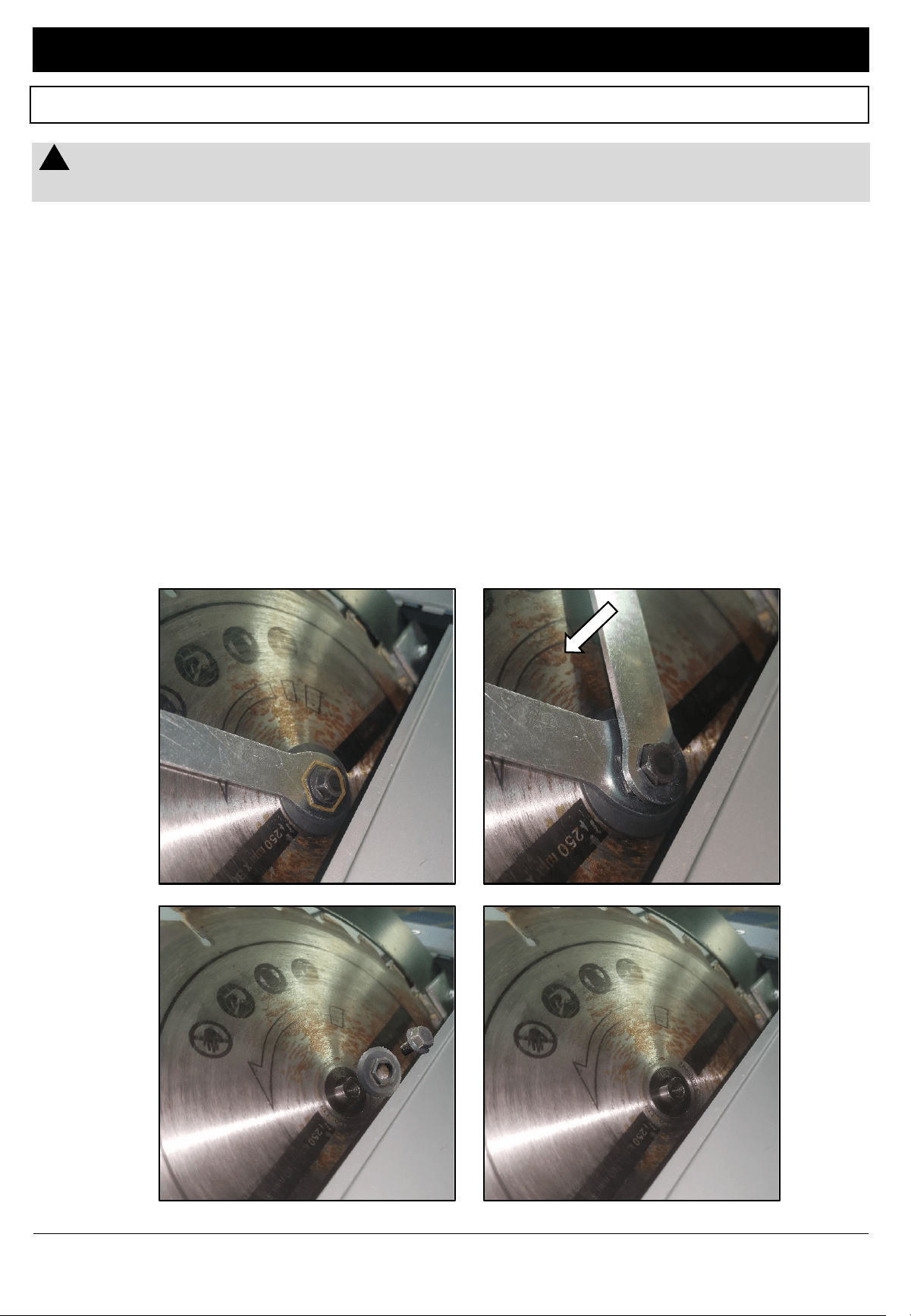

Blade Replacement……....……………….34

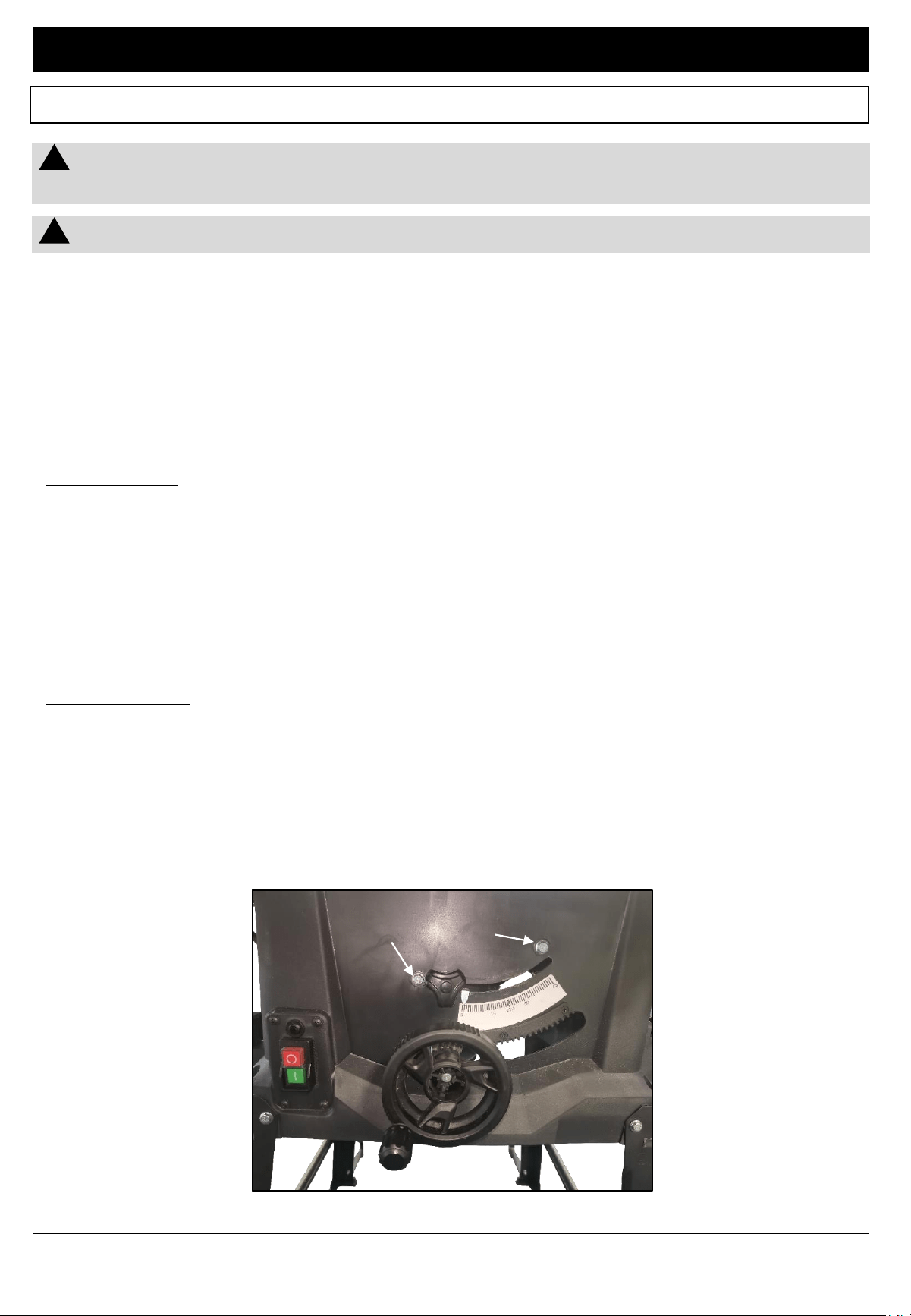

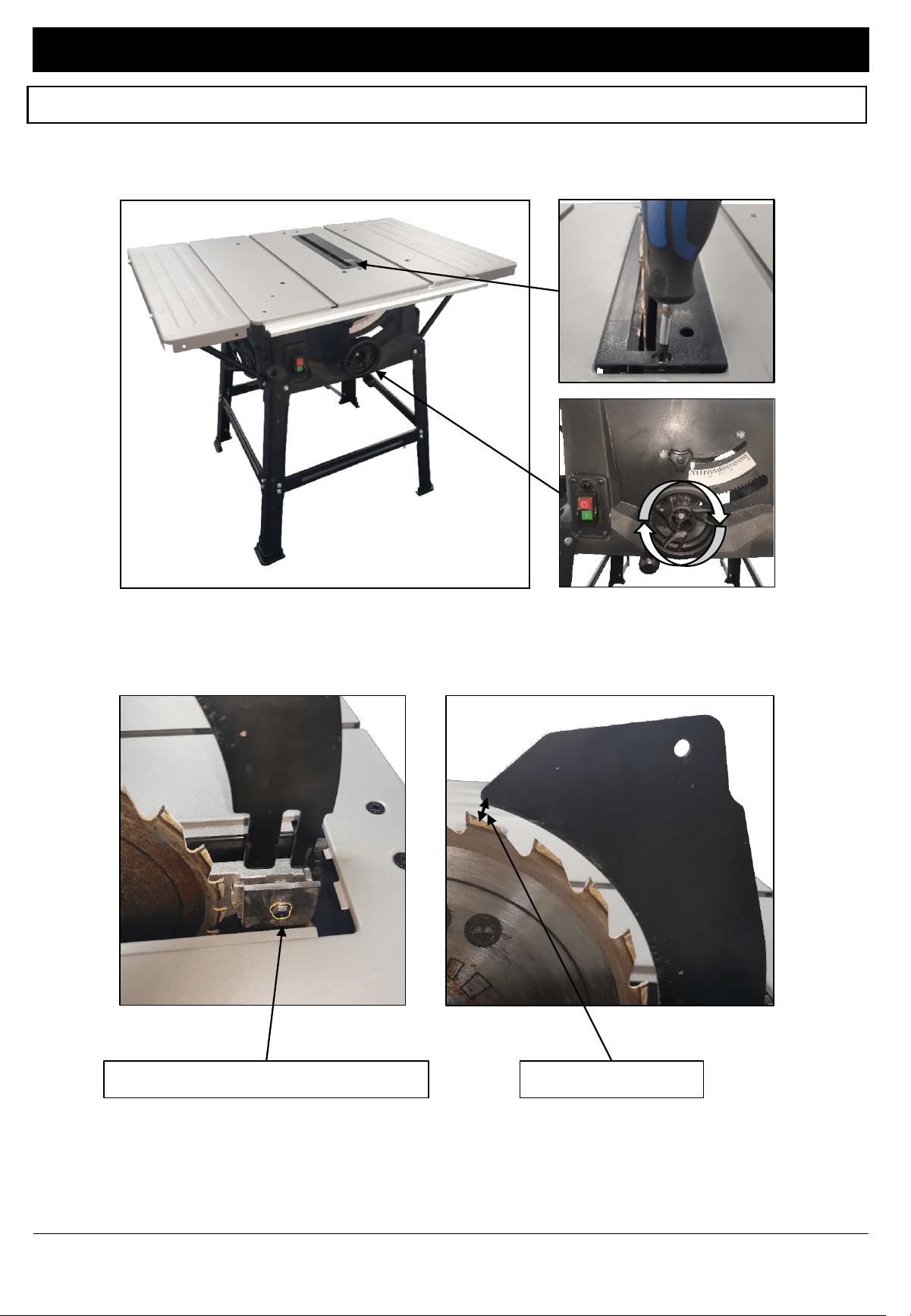

Blade Angle Calibration.........……………35
Specifications……………………...............37
Recycling And Disposal..………………...38
Declaration Of Conformity…..…………..39
Notes………………………………...…..40-41
Useful Information…..……………………..42
Our YouTube Channel…..………………..42
Warranty…………………………………….42
Manual Updates….……………………….42
Returning Your Product….……………….42
Leaving A Review….……………………...42
Ordering Spare Parts.……………………..42
Product Record…..………………………...43
Contact Us…..……………………………....44
Troubleshooting….….………………………36
www.hyundaipowerproducts.co.uk
3
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you
have any problems, before leaving negative feedback, please contact us to give
us a chance to resolve the issue. We would be delighted if you left us positive
feedback! Thank you for purchasing this product.
Important!
This manual has been produced by Hyundai Power Products and should be kept
with the product. Please read and understand these instructions before you use
your product. Failure to do this may result in personal injury or damage to the
product.
The safety precautions and warnings are to ensure your safety and protect you
from harm or damage to the product.
The information contained in this manual was accurate at the time of production,
however HYUNDAI Power Products may make modifications to the product
without notification.
WARNING: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING
THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
www.hyundaipowerproducts.co.uk
4
Safety Information
Understand Your Machine
• WARNING! You must read these instructions carefully before operating the
machine. Make sure that you are familiar with the controls and properly operate
the machine. You must learn how to stop the machine quickly. If you do not follow
the warnings and instructions, it may result in fire and/or serious injury. Make sure to
save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations
and potential hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to
stop the machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be
loaned, rented, or sold, always provide this manual and any needed safety
training before operation. The user can prevent and is responsible for accidents or
injuries that may occur to themselves, to other people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your
application.
• Know how to stop the machine quickly in case of emergency. Understand the
use of all controls.
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
• When using this machine for the first time and before actual work, you MUST
learn how to handle the machine from an experienced or skilled person.
Personal Safety
• WARNING! Never allow children or people unfamiliar with these instructions to
use the product. Local regulations can restrict the minimum age of the operator.
• Keep children, pets, and other people not using the unit away from the work
area (at least 15m). Be alert and shut off the unit if anyone enters work area. Keep
children under the watchful care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating
the machine. Never operate the machine when unwell or tired, or if you have
taken alcohol, medicine, drugs or any substances which may slow your reflexes
and compromise judgment. A moment of inattention while operating the machine
may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times
when operating or repairing the machine. Always wear anti-slip and resistant work
footwear and long trousers while using the machine. Do not use the machine
when barefoot, wearing sandals or similar lightweight footwear. Do not wear
chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie long
hair back. Always wear protective earplugs. Loose clothes, jewellery, or long hair
can be caught in moving parts. Protect eyes, face, and head from objects that
may be thrown from the unit. Always wear safety goggles or safety glasses with
side shields when operating.
•Always keep hands and feet away from all moving parts during operation.
Moving parts can cut or crush body parts. Always keep hands and feet away from
all pinch points.
!
!
www.hyundaipowerproducts.co.uk
5
Safety Information
Personal Safety (Continued)
• Do not touch parts that might be hot from operation. Allow parts to cool before
attempting to maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables
better control of the machine in unexpected situations. Extending your body too
far can result in a loss of balance and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement
should occur during assembly, installation, and operation, maintenance, repairing
or moving.
• Keep in mind that the operator or user is responsible for accidents, hazards or
unexpected events involving the machine that occur to other people or their
property. It is the responsibility of the user to assess the potential risk of the area
where work is being carried out. The operator or user must take all necessary
precautions to ensure their own safety and that of others, especially on slopes or
rough, slippery and unstable ground.
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working
order. Make sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical
condition. Replace damaged, missing, or failed parts before using it. Check for fuel
leaks. Keep the machine in safe working condition.
• Do not use the machine if the machine’s switch does not turn off the machine
when running. Any machine that can’t be controlled with the switch is dangerous
and must be replaced.
• Regularly check to see that keys and adjusting wrenches are removed from the
machine area before starting it. A wrench or a key that is left attached to a
rotating part of the machine may result in personal injury.
• If the machine should start to vibrate abnormally, stop the machine and check
immediately for the cause. Vibration is generally a warning sign of trouble.
• Avoid accidental starting. Be sure the switch is off before transporting the
machine or performing any maintenance or service on the unit. Transporting or
performing maintenance or service on a machine with its switch on invites
accidents.
• Do not tamper with or disable safety systems.
• Only use manufacturer-recommended attachments.
• Before using, always visually inspect to see that the tools are not worn out or
damaged. Replace worn out or damaged elements and bolts in set to preserve
balance.
• Keep the machine in good operating condition. Operating the machine in poor
or questionable condition could result in serious injury.
• Be sure all safety devices are in working order and warning labels are in place.
These items are installed for your safety.
!
!
www.hyundaipowerproducts.co.uk
6
Safety Information
Work Area
• You must only work in daylight or with good artificial light in good visibility
conditions. Do not work at night, at times of heavy fog, or at any other times when
your field of vision might be limited and it would be difficult to gain a clear view of
the area.
• Keep people, children and animals away from the working area.
• Operate on flat, level ground.
• DO NOT work on wet ground. If there has been heavy rain on the working site,
wait until the ground has dried up.
• Never park the machine in a place with unstable ground which could give way.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or
roads. Stay alert for hidden hazards or traffic.
• Do not work in the rain, when there is a thunderstorm or lightning risk, at times of
strong or gale force winds, or at any other times when the weather conditions
might make it unsafe to use this product. If there is bad weather conditions, do not
use the machine.
• Make sure you thoroughly inspect the entire work area and remove all objects
and anything that could be thrown by the machine or could damage the
machine (branches, stones, wire, toys, etc). Attempting to clear the work area
whilst using the machine will reduce your concentration and creates a trip hazard.
Any liquid spilled on the floor may result in you slipping.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles,
water valves, bases for washing lines etc. Make sure that you check for hidden
electrical cables or similar on the surface of the lawn. ALWAYS run the machine
around these objects. NEVER run the machine over foreign objects.
• DO NOT operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust. Power tools may create sparks, which may
ignite the dust or fumes.
• This machine is only for outdoor use.
!
www.hyundaipowerproducts.co.uk
7
Safety Information
Table Saw Safety
!
• Keep guards in place. Guards must be in working order and be properly
mounted. A guard that is loose, damaged, or is not functioning correctly must
be repaired or replaced.
• Always use saw blade guard, riving knife and anti-kickback device for every
through–cutting operation. For through-cutting operations where the saw blade
cuts completely through the thickness of the workpiece, the guard and other
safety devices help reduce the risk of injury.
• Make sure the saw blade is not contacting the guard, riving knife or the
workpiece before the switch is turned on. Inadvertent contact of these items
with the saw blade could cause a hazardous condition.
• Adjust the riving knife as described in this instruction manual. Incorrect spacing,
positioning and alignment can make the riving knife ineffective in reducing the
likelihood of kickback.
• Never use the mitre gauge to feed the workpiece when ripping and do not use
the rip fence as a length stop when cross cutting with the mitre gauge. Guiding
the workpiece with the rip fence and the mitre gauge at the same time
increases the likelihood of saw blade binding and kickback.
• Use only the push stick provided by the manufacturer or constructed in
accordance with he instructions. This push stick provides sufficient distance of
the hand from the saw blade.
• Do not perform any operation “freehand”. Always use either the rip fence or the
mitre gauge to position and guide the workpiece. “Freehand” means using your
hands to support or guide the workpiece, in lieu of a rip fence or mitre gauge.
Freehand sawing leads to misalignment, binding and kickback.
• Feed workpiece at an even pace. Do not bend or twist the workpiece. If
jamming occurs, turn the tool off immediately, unplug the tool then clear the
jam. Jamming the saw blade by the workpiece can cause kickback or stall the
motor
• Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw
blade or misaligned line of cut in the workpiece with respect to the saw blade or
when a part of the workpiece binds between the saw blade and the rip fence
or other fixed object. 6 Most frequently during kickback, the workpiece is lifted
from the table by the rear portion of the saw blade and is propelled towards the
operator.
www.hyundaipowerproducts.co.uk
8
Safety Information
During Use
• Do not operate the machine in confined areas where there may be a risk of
crushing the operator between the machine and another object.
• Never attempt to make any adjustments, while the machine is running.
• You must switch off the machine:
- Before checking or working on the machine.
- When transporting the machine.
- Whenever you leave the machine unattended.
- If the machine starts to vibrate abnormally.
• WARNING! If something breaks or an accident happens whilst working, you must
turn off the machine immediately and move the machine away to prevent further
damage. If an accident happens with injuries or third parties are injured, carry out
the first aid measures most suitable for the situation immediately and contact the
medical authorities for any necessary health care. Carefully remove any debris
that might cause damage or harm persons or animals should it not be seen.
• After striking a foreign object, stop the machine immediately and inspect the
machine thoroughly for damage. Repair the damage before continuing.
• Keep extension cord away from moving parts.
• Never operate the machine with damaged guards or without the guard in
place.
• Keep hands and feet away from the moving parts at all times especially when
switching on the motor.
• Never cut more than one workpiece, stacked vertically or horizontally. The saw
blade could pick up one or more pieces and cause kickback.
• Use extra caution when cutting a workpiece that is twisted, knotted, warped or
does not have a straight edge to guide it with a mitre gauge or along the
fence. A warped, knotted, or twisted workpiece is unstable and causes
misalignment of the kerf with the saw blade, binding and kickback
• Use extra caution when making a cut into blind areas of assembled workpieces.
The protruding saw blade may cut objects that can cause kickback.
• Never hold and press the workpiece that is being cut off against the rotating
saw blade. Pressing the workpiece being cut off against the saw blade will
create a binding condition and kickback.
• Never reach over or in back of the saw blade to pull or to support the
workpiece. Accidental contact with the saw blade may occur or kickback may
drag your fingers into the saw blade.
• Never stand directly in line with the saw blade. Always position your body on the
same side of the saw blade as the fence. Kickback may propel the workpiece
at high velocity towards anyone standing in front and in line with the saw blade
!
www.hyundaipowerproducts.co.uk
9
Safety Information
Batteries (Where Present)
Batteries present a risk if they become damaged by the possible leaking of
electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care
should be taken when working on or near them. NOTE: the electrolyte may be in a
liquid or gel form.
Should you come in to contact with electrolyte you should;
• Remove all clothing contaminated with electrolyte. If you cannot remove then
saturate them in water.
• Get medical assistance as soon as possible.
You must advise the medical staff of the type of acid.
• Lead/acid battery = dilute sulphuric acid.
• Nickel/cadmium = potassium hydroxide alkali electrolyte.
• Use fresh running water to wash off excess electrolyte, continue this until medical
assistance arrives. Make sure that you do not wash the electrolyte to another part
of your body or face.
• If electrolyte comes in to contact with Eyes the electrolyte needs to be
immediately washed away with large amounts of water. Make sure that you do
not wash the electrolyte to another part of your face or body.
• Gasses from charging batteries are highly flammable and great care should be
taken to charge in well ventilated areas.
• There is an explosion risk if the battery terminals are short circuited,
when connecting/disconnecting ALWAYS exercise great care so that
the terminals or battery leads are NOT allowed to touch and cause a
spark. ALWAYS use suitable insulated tools.
Electricity (Where Applicable)
DANGER : ELECTRICITY CAN KILL – NEVER WORK ON LIVE / ENERGISED EQUIPMENT.
!
!
• Prior to carrying out any maintenance work you MUST identify electrical
. isolation methods and isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all
electrical cables, plugs and connectors for the following;
- Are intact and have no signs of damage, to include but not limited to bare wires,
chaffing, cuts and loose wiring.
- If there are any signs of damage, the damaged item MUST be taken out of
service until the damage has been repaired by an electrically competent person.
- All trailing cables should be routed so as not to cause any kind of trip hazard.
- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
www.hyundaipowerproducts.co.uk
10
Safety Information
Electricity (Continued)
• Power tools plug must match the outlet. Never modify the plug in any way. DO
NOT use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electric shock.
• DO NOT expose this power tool to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock. DO NOT abuse the power cord. Never
use the cord for carrying, pulling or unplugging the power tool. Keep the cord
away from heat, oil and sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock. When operating a power tool, use an
extension cord suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
• IMPORTANT: Make sure that the electric circuit is fused, and that the power,
voltage and frequency of the motor is supported by your mains supply. Also, make
sure that your power supply is earthed. Connect your machine to earth. Never
open the ON/OFF switchbox. However, if it should become necessary to do so,
contact a qualified electrician. Make sure that you will never touch live contacts,
specifically when you plug or unplug your machine. This machine and its power
cord must never get into contact with water.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
• To prevent electric shock, use only with an extension cord suitable for outdoor
use. For additional protection, the installation of a residual current device (RCD)
having a rated residual operating current not exceeding 30mA is advisable.
• Before use, check that the extension cord is in good condition. When using an
extension cord, make sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in
loss of power and overheating.
• Do not allow any part of the machine to make contact with water while it is in
operation. If the appliance becomes wet while turned off, wipe dry before starting.
Do not touch the appliance or its plug with wet hands or while standing in water.
Wearing rubber boots offers some protection.
• Before use, check the supply and extension cord for signs of damage or aging. If
the cord becomes damaged during use, disconnect the cord from the supply
immediately. If the supply cord is damaged, it must be replaced by the
manufacturer or a qualified person in order to avoid a hazard.
!
Double-Insulated Appliances
In a double-insulated appliance, two systems of insulation are provided instead of
grounding. No grounding means that it is already provided on a double-insulated
appliance. Servicing a double-insulated appliance requires extreme care and
knowledge of the system, and should be performed only by qualified service
personnel. Replacement parts for a double-insulated appliance must be identical
to the parts they replace.
!
www.hyundaipowerproducts.co.uk
11
Safety Information
Vibrations (Where Applicable)
• Prolonged use of hand held (operated) machines will cause the user to feel the effects
of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or
carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate
temperature, causing numbness and heat sensations and may cause nerve damage and
circulatory tissue death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking
and other diseases that affect blood vessels and blood circulation as well as large and
long-lasting impact of shocks are considered factors in the formation of white finger. Note
the following to reduce the risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule
out the carpal tunnel syndrome. Long-term and regular users are therefore recommended
to observe the condition of your hands and fingers. Seek medical attention immediately if
any of the above symptoms should occur.
Noise (Where Applicable)
• The operating noise of the machine can damage your hearing. When wearing
protection such as earplugs or ear defenders to protect your hearing. Long-term and
regular users are advised to have hearing checked regularly. Be especially vigilant and
cautious when wearing ear protection because your ability to hear alarm warnings will be
reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved
times and for certain periods. Limit the working time to a minimum. For your personal
protection and protection of people working nearby it is also advisable for them to wear
hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of .
. conformity.
!
!
Residual Risks
Even when tool is used as prescribed it is not possible to eliminate all residual risk
factors. The following hazards may arise in connection with the tool’s construction
and design:
1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.
Health defects resulting from vibration emission if the power tool is being used over
longer period of time or not adequately managed and properly maintained.
WARNING! This machine produces an electromagnetic field during operation.
This field may under some circumstances interfere with active or passive medical
implants. To reduce the risk of serious or fatal injury, we recommend persons with
medical implants to consult their physician and the medical implant manufacturer
before operating this machine.
!
!
www.hyundaipowerproducts.co.uk
12
Safety Information
Intended Use
The HYTS1800E is an electric Table Saw from HYUNDAI. The HYTS1800E is powered
by a 1800W HYUNDAI motor.
This machine is a specifically a pedestrian tool, manufactured according to the
latest safety requirements. Every precaution is only effective when it’s followed
exactly.
Intended Use
This machine was designed and manufactured for cutting wood and timber,
allowing for multi-angled accurate cuts.
User Types
This machine is intended for use by consumers, i.e. non professional operators. The
machine is intended for “DIY” and domestic use only.
Improper Use
Any other usage not in keeping with the above mentioned ones may be
hazardous and harm persons and/or damage things. Examples of improper use
may include, but are not limited to:
- Using the machine to cut metals and ceramics.
- Using the machine on multiples workpieces at once.
- Using the machine to open any form of container.
!
www.hyundaipowerproducts.co.uk
13
Safety Information
Personal Protective Equipment
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size,
fit, etc. If more than one item of PPE is worn at the same time, make sure they can
be used together, e.g. wearing safety glasses may disturb the seal of a respirator,
causing air leaks.
!
Hand Protection Must Be Worn
Protective electrically non-conductive gloves are highly
recommended when working.
Foot Protection Must Be Worn
Non-skid heavy duty footwear are highly recommended when
working.
Hearing Protection Must Be Worn
Suitable safety hearing protection is recommended.
Eye Protection Must Be Worn
Always wear safety glasses/goggles and/or face shields. Everyday
eyeglasses have only impact resistant lenses; they are not safety
glasses/goggles.
Protective Clothing Must Be Worn
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings,
wrist watches), which can be caught in moving parts.
Head Protection Must Be Worn
Wear a safety helmet with a safety visor.
Face Shield Must Be Worn
Wear a face shield to protect your face.
www.hyundaipowerproducts.co.uk
14
Safety Information
Symbols On The Machine
We have provided safety messages in this manual and on the machine. This
information alerts you to potential hazards that could hurt you or others. Please
read these messages carefully. However, we may not have listed all of the possible
hazards, you must also use your own judgement.
!
Symbol Description Symbol Description
Safety alert – Indicates a
precaution, a warning or a
danger.
Wear eye and hearing
protection. For protection
against injury, wear ear
defenders and safety
goggles.
Do not expose to rain. Class II tools symbol.
Read operator’s manual. Keep bystanders at a safe
distance away from the
work area.
The UKCA (UK Conformity
Assessed) marking is a UK
product marking that is
required for goods being
placed on the market in
Great Britain (England,
Wales and Scotland).
This product complies with
the European directives
and an evaluation method
of conformity for these
directives was done.
Danger! Rotating parts –
keep hands and feet away
from moving parts.
Sharp blades can cut limbs.
Keep bystanders at a safe
distance away from the
work area.
Switch off and unplug the
device before cleaning or
performing maintenance
on it.
This product should not be
disposed of in domestic
waste. Please contact your
local recycling centre for
disposal service.
Do not use the machine if
the cable is damaged.
www.hyundaipowerproducts.co.uk
15
Unboxing
WARNING : Unboxing and assembling the machine should be done on a flat,
surface with enough room. Disposal of the packaging should be done in
accordance with the local regulations in force.
!
WARNING : Some of the packaging material may be harmful to children. Keep
out of reach of children.
1. Carefully remove the product from the packaging and examine it for any sign of
damage caused during shipping.
2. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately.
3. You must keep the packaging material in case the machine needs to be
returned or repaired.
4. Ensure that you have all the accessories and tools you need for assembly and
operation including the suitable personal protective equipment.
!
www.hyundaipowerproducts.co.uk
16
In The Box
*Not To Scale
A
B
Descriptions on next page
C
D
E
F
G
H
I
J
K
L
Q
P
O
M
Manual
N
S
R
T
www.hyundaipowerproducts.co.uk
17
Box Contents
A
Main Body (Saw Blade Fitted)
Table Extensions x2
Legs x4
Leg Brace A x2
Leg Brace B x2
Extension Strut x4
Riving Knife
Rubber Feet x4
Leg Stabilisers x2
Push Stick
Fence Rail
Support Bracket A (right) x2
Support Bracket B (left) x2
User Manual
Extraction Hose
Rip Fence
Mitre Gauge (In 2 Pieces)
Blade Guard
Spanner x2
Packet of Nuts and Bolts (28 Nuts & 40 Bolts)
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
www.hyundaipowerproducts.co.uk
18
Features
Descriptions on next page
www.hyundaipowerproducts.co.uk
19
Features
1
On/Off Switch
Used to start and stop the machine.
Bevel Locking Lever
This is used to secure the blade at different angles
Bevel Gauge
This is used to measure which angle the blade is set to.
Blade Adjustment Wheel
Adjusts the height of the cutting blade
Fence Rail with Scale
The Rip Fence is secured to this rail
Table Extension
Edges to increase the table size.
Mitre Gauge
Gauge used to make angled mitre cuts
Mitre Guide
Pathway which guides the Mitre Gauge.
Blade Guard
Protects the user from the sharp blade
Riving Knife
Prevents wood jamming and kickback
Rip Fence
Helps guide the wood when making rip cuts.
Rip Fence Locking Lever
This locks the rip fence into position for use.
Base
Supports and Elevates the main body
Reset Switch
Used to reset the machine in the event of overloading, overheating or
jamming
2
3
4
5
6
7
8
9
10
11
12
13
14
www.hyundaipowerproducts.co.uk
20
Assembly Overview
STEP 1 : Attach Table Extensions – Page 20
STEP 5 : Installing Fence Rail – Page 24
STEP 2 : Attach the Extensions Supports – Page 21
STEP 3 : Attaching Legs – Page 22
STEP 4 : Attaching Let Braces – Page 23
STEP 6 : Riving Knife Installation – Page 25
STEP 7 : Blade Guard and Extraction Hose – Page 26
STEP 8 : Mitre Gauge and Fence Rail – Page 27
www.hyundaipowerproducts.co.uk
21
Assembly
STEP 1 : Attach Table Extensions
1. On a flat even surface, put the Main Body (A) upside down. Use a soft barrier
between the machine and the surface to prevent scratches i.e. cardboard or
rubber mat.
2. Line up the Table Extensions (B), and insert a bolt through the holes marked A &
C
3. Using the spanners included, secure each bolt with nut. Mirror this on both sides
A
B
D
C
www.hyundaipowerproducts.co.uk
22
Assembly
STEP 2 : Attach the Extensions Supports
1. With the remaining available holes, line up and insert an Extension Strut (F).
Secure this with 1 bolt from the inside edge.
2. Now between the Extension Strut (F) and the Table Extension (B) insert a Support
Bracket. The longer Support Bracket (A) goes on the right side of the machine.
And the Shorter Support Bracket (B) goes on the left. Secure with a bolt on the
outer edge.
3. Repeat on both sides, in each corner of the machine.
Left Side
Right Side
www.hyundaipowerproducts.co.uk
23
Assembly
STEP 3 : Attaching Legs
1. On each corner, locate a Leg (C) using the squares tabs on the main body
2. Secure with Bolts. Ensure the Support brackets on both sides are also secured. Simply
pass a bolt through these, and then secure to the main body.
3. At this stage, secure the Rubber Feet (H) to each leg.
www.hyundaipowerproducts.co.uk
24
Assembly
STEP 4 : Attaching Let Braces
1. With included nuts and bolts, attach Leg Brace (A) to the front and rear pair of the
legs. Ensure the Leg Brace is attached on the inside of these edges.
2. Repeat with Leg Brace (B) on the left and right
Ensure all nuts and bolts are tight at this stage.
STEP 5 : Installing Fence Rail
1. Line up the threads on the Fence rail (K) to the holes on the edge of the table
top and insert.
2. Tighten the nuts, but not completely, they will need to be adjusted in the next
steps
www.hyundaipowerproducts.co.uk
25
Assembly
STEP 5 : Installing Fence Rail
1. With assistance from another person, turn the HYTS1800E over on to it’s feet.
1. Do NOT attempt the next step by yourself.
!
3. It’s a good opportunity at this stage to check your Table Saw and table
extensions are level. Using either a Bubble Level or a flat edge, run it across the
Table saw to ensure a flat even work surface.
If uneven, slightly loosen the bolts of the Table extensions and adjust as required.
1. Using the nuts and bolts provided, secure the Leg Stabillisers (I).
www.hyundaipowerproducts.co.uk
26
Assembly
STEP 6 : Riving Knife Installation
1. Using a screwdriver, remove the Blade cover. Also wind the Blade Adjustment
wheel clockwise to raise the blade completely.
2. Using the spanners provided, loosen the bolt on the Riving Knife Clamp. Insert the
Riving knife (G) into the clamp, ensuring a 3mm-5mm gap and tighten.
Bolt for the Riving Knife Clamp
3. Re-install the Blade cover over both blade and the Riving knife.
3mm-5mm Gap
www.hyundaipowerproducts.co.uk
27
Assembly
STEP 7 : Blade Guard and Extraction Hose
1. Fully loosen the handnut on the Blade Guard (R).Align the handnut on the Blade
Guard (R) to the Hole at the top of the Riving Knife (G). Tighten the handnut to
secure the Blade Guard (R).
2. Insert the Extraction hose onto the back of the blade guard, and then onto the
extraction port at the rear of the machine.
www.hyundaipowerproducts.co.uk
28
Assembly
STEP 8 : Mitre Gauge and Fence Rail
1. Insert the Rip Fence (P) into the Fence Rail (K).
Using the indicator on the Rip Fence, align it with “0” on the Fence Rail and
secure by pressing the Lever down.
2. As the bolts securing your Fence Rail shouldn’t be fully tight, you should be able
to move the Rip Fence flush with the blade. This is the “True Zero” point of the
Table Saw. Tighten the bolts securing the Fence Rail fully secure the True Zero
point.
3. Align the Bolts and Wingnuts of the Mitre Plate with the 2 indentations in the Mitre
base. Secure these tight.
4. Slide the completed Mitre Gauge into the grove of the table.
www.hyundaipowerproducts.co.uk
29
Operation
Blade Dimensions
The HYTS1800E comes with a 24 tooth Tungsten Carbide Tipped (TCT)
blade. This Saw blade will be proficient in both Rip and Cross cuts, although
may be more suited to rip cutting.
Specification of Included Blade:
Total Diameter : 250mm
Centre Bore: 30mm
Kerf (Blade Thickness): 2.8mm
Teeth: 24
Blades can be bought from good DIY retailers , just ensure the centre bore
and diameter are the same as the included saw blade (250mm x 30mm).
Blade “Kerf” is the width which is taken away by the blade. The included
blade has a 2.8mm kerf, which when making non-through cuts, the blade
would leave a 2.8mm wide cut in the wood. *The below images are just for
representation purposes, always use a blade guard for through cuts*
2.8mm Wide
“kerf”
Blade Kerf
!
NEVER use sawblades suitable for metal or ceramic cutting. The
HYTS1600E is only suitable for wooden sawblade applications.
www.hyundaipowerproducts.co.uk
30
Operation
Blade Adjustment
Blade Height Adjustment – To adjust the working height of the blade, turn the Blade
Adjusting Handwheel Clockwise. Turn the Blade Adjusting Handwheel Anti-
Clockwise to lower the blade
Blade Angle Adjustment – To adjust the angle on the blade, loosen the Bevel
Locking Lever. This allows to increase or decrease the cutting angle. The angle can
just adjusted just by moving the Adjusting Handwheel, but also by pressing the
Handwheel in and rotating it will allow more accurate angle selection. When you
have reached the desired angle, tighten the Bevel Locking Lever to secure.
www.hyundaipowerproducts.co.uk
31
Operation
Cutting Illustrations
All the illustrations below are simply suggestions how to use the HYTS1800E.
Genpower Ltd is not liable for any damages to the machine, materials/possessions
or persons.
Rip Cut
Mitre Cut
Bevel Cross Cut Bevel (Compound) Mitre Cut
If the desired cut is less than 100mm away from the saw blade, you MUST use
the pushrod to ensure no contact with the sawblade.
!
www.hyundaipowerproducts.co.uk
32
Operation
Starting and Stopping
Reset
1. Before plugging the machine into a power source, ensure the switch if OFF
!
1. Before starting the machine, you MUST fully read and understand the Instruction
Manual
!
OFF
ON
Starting – To Start the machine, press the Green ON button
1. NEVER try to start the machine with any work material in the blade
!
Stopping – To Stop the machine, press the Red OFF button. Allow to stop
completely.
Reset – Press the RESET button above the OFF button in the event of a Thermal
Overload, or stoppage due to Jamming
www.hyundaipowerproducts.co.uk
33
Maintenance & Care
General Maintenance
WARNING : Turn OFF the machine, allow all moving parts to come to a
complete stop, and disconnect the power cord before maintaining the machine.
You need to wear proper clothing and protective gloves whenever your hands are
at risk.
• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working
condition.
• Replace worn or damaged parts for safety. Only use manufacturer-
recommended parts and accessories.
!
Storage
Keep the machine stored in a dry, level area away from damp, moisture and
rain fall. Allow the machine to cool down before storing.
• Make sure the machine is clean and dry before storing.
• Make sure the machine is stored away from direct sunlight. Store indoors or in a
safe, locked protected area during severe weather and winter months.
• Ensure the machine is stored in a position, where any persons cannot step on to
attempt to reach items up high, due to risk of movement.
• DO NOT store the machine near an ignition source, such as a wood stove, gas
or electric heater, or an appliance or heater with a pilot light.
• Store the machine out of reach of children or anyone who is not familiar with
operation.
• DO NOT stack other items on top of the machine when in storage.
!
Cleaning
Always remove the electric plug from the mains supply before any cleaning is
undertaken.
• Remove any grass and mud after each use to prevent it from drying. Use a
clean cloth to remove dirt, grease, etc.
• DO NOT use any water on any part of the main machine.
• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to
damage from various types of commercial solvents and may be damaged by
their use.
• Always ensure that ventilation openings are kept clear of debris.
!
www.hyundaipowerproducts.co.uk
34
Maintenance & Care
Blade Replacement
1. Ensure the machine is UNPLUGGED from a power source before performing the
followings steps.
!
REMOVE the Blade Guard and Blade cover and Extraction Hose . These only ever
need to be removed unless damaged or performing maintenance.
1. Tilt the blade to 45
0
for ease of access.
2. Using the largest spanner included, secure on the Spindle Collar Nut.
3. Then place the other included spanner on the Spindle bolt.
4. To remove, hold the larger spanner firm preventing the blade from rotating,
then rotate the other spanner anti-clockwise. Remove both the Spindle Collar
nut and Bolt. The Saw Blade can then be lifted off the spindle and replaced.
5. Simple do the previous steps backwards to secure a new sawblade.
www.hyundaipowerproducts.co.uk
35
Maintenance & Care
Blade Angle Calibration
1. Ensure the machine is UNPLUGGED from a power source before performing the
followings steps.
!
REMOVE the Blade Guard and Blade cover and Extraction Hose . These only ever
need to be removed unless damaged or performing maintenance.
The Angle of the blade is calibrated from the factory, but after extended use the
blade can move out of specification. Using tools such as a Pivot Square, or a
Digital Level Box (NOT Included), it’s possible to put the machine back into
specification.
0
0
Calibration
1. Put the Machine at 0
0
reading on the bevel gauge.
2. Using your Tool Measure the current blade angle
3. Partially loosen the Bevel Calibration Bolt A. Now apply pressure to the blade to
reach the desired Angle. Tighten Bevel Calibration Bolt A to confirm the new
calibration
45
0
Calibration
1. Put the Machine at 45
0
reading on the bevel gauge.
2. Using your Tool Measure the current blade angle
3. Partially loosen the Bevel Calibration Bolt B. Now apply pressure to the blade to
reach the desired Angle. Tighten Bevel Calibration Bolt B to confirm the new
calibration
1. Specialist Tools are required to perform this step.
!
A B
www.hyundaipowerproducts.co.uk
36
Maintenance & Care
Troubleshooting
Problem Possible Cause Possible Solution
Machine will not start. Fuse in mains plug blown
/ faulty
Check fuse in mains plug
and replace is necessary.
Internal wiring fault. Contact your service
dealer.
Machine functions
intermittently.
Internal wiring fault. Contact your service
dealer.
NOTE : All corrective actions should be carried out by suitably qualified
person/s.
!
www.hyundaipowerproducts.co.uk
37
Technical Data
Specification
Model HYTS1800E
Voltage 230-240V
Frequency 50Hz
No-load Speed 5000r/min
Include Blade Dimensions 250mm x 30mm x 2.8mm x 24T
Cutting Range (Degrees) 0
0
– 45
0
Operating Height 829mm
Table Top Dimensions 563mm x 583mm x 28mm
Maximum Cutting Height @ 0
o
85mm
Maximum Cutting Height @ 45
o
65mm
Cable length 2 metres
Rated Power 1800W
Net Weight 19.45kg
Sound Pressure Level 91 dB(A)
KpA Uncertainty 3dB
LWA Sound Power Level 104dB(A)
KWA uncertainty 3dB
www.hyundaipowerproducts.co.uk
38
Recycling & Disposal
Recycling & Disposal
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or
Batteries is passed onto you by us.
So when it becomes necessary to dispose of your machine you must take it to your
local Civic Amenity Site. For further information please contact your local Authority
for disposal advice.
You MUST make sure that all unused oil and fuel is disposed of correctly either
beforehand or at your local Civic Amenity Site.
• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your
domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling
centre.
• Certain products contain batteries which should not be disposed of in your
domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling
centre.
• Unwanted packaging and materials should be stored and taken to a recycling
centre so it can be disposed of in a manner which is compatible with the
environment.
We are a Member of the VALPAK National Compliance Scheme and our
registration number is RM08660. For further information about disposal please
contact your Local Authority.
You can also get more advice and guidance about recycling at the following
website http://www.recycle-more.co.uk
Should you pass this product on to another user either sold or loaned, you MUST
pass on this user manual. This will make sure that all other users can use and
maintain this machine safely.
1. Environmental protection should be a priority of considerable importance when
using the machine, for the benefit of both social coexistence and the environment
in which we live. Try not to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of
packaging, oils, fuel, filters, damaged parts or any elements which have a strong
impact on the environment. This waste must not be disposed of as normal waste. It
needs to be separated and taken to specified waste disposal centres where the
material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after
mowing.
4. When disposing, do not pollute the environment with the machine, but hand it
over to a disposal centre, in accordance with the local laws in force.
Environmental Protection
www.hyundaipowerproducts.co.uk
39
EU Declaration Of Conformity
Importer and Authorised Representative
Genpower Ltd
Isaac Way, Pembroke Dock, SA72 4RW
Country of Origin: China
Description: 1800W Table Saw
SKU Code: HYTS1800E
Date of Issue: 09/06/2021
Regulations and Directives of Compliance
• 2006/42/EC The Machine Directive
• 2014/30/EU EMC Directive
• 2000/14/EC Noise Emissions
• 2011/65/EU RoHS
Statement of Declaration
We the importer and authorised representative of the product described confirm
conformity within the provisions of applicable regulations and directives listed
within this document.
Signed on Behalf of Genpower Ltd
Place of Issue: Genpower Ltd
Signatory Name: Roland Llewellin
Position: Managing Director
……………………………………
www.hyundaipowerproducts.co.uk
40
Notes
www.hyundaipowerproducts.co.uk
41
Notes
www.hyundaipowerproducts.co.uk
42
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to YouTube and search ‘Hyundai Power Products’.
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an
error, omission or something unclear, please contact us for assistance. We reserve
the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online. All our manuals can be downloaded at:
www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have
any problems, before leaving negative feedback, please contact us to give us a
chance to resolve the issue. We would be delighted if you left us positive
feedback! To leave a review, please go to:
uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
You can find the spare part you are looking for at power-spares.co.uk
Warranty
Proof of purchase will be required before you make a warranty claim. Full warranty
terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
43
Product Record
Information
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
Date Of Purchase:……………………………………………………………………………….....
Dealer Name:………………………………………………………………………………………..
Dealer Phone:…………………………………………………………………………………….....
Model Number:…………………………………………………………………………………......
Serial / Batch Number:………………………………………………………………………........
www.hyundaipowerproducts.co.uk
44
Contact Us
Need Help? Talk To Our Experts
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687 880
Email
aftersal[email protected].uk
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Post
Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW.
Hyundai Support Website
Go to hyundaisupport.co.uk
Importer:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UK, SA72 4RW.
T: +44 (0) 1646 687 880
E: info@hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland
Licensed by Hyundai Corporation, Korea
