Instruction Manual
Electric Lawn Mower
HYM3313E
WARNING: Read the instructions carefully before use.
www.hyundaipowerproducts.co.uk
2
Contents
Introduction……..……………………………3
Safety Information…..…………………..4-13
Understand Your Machine.…..…………...4
Personal Safety...…….……………………4-5
Inspect Your Machine…………………......5
Work Area…….……………………………....6
During Use…….………………………………7
Vibrations……………………………………..8
Noise…………………………………………...8
Residual Risks…………………………………8
Electricity…….………………...……………..9
Double Insulated Devices…......…….......10
Lawnmower Specific Safety……………..10
Personal Protective Equipment .............11
Symbols on the Machine……...…...........12
Intended Use……………...………………..13
Unboxing…………………………...............14
Features..…………………………...............15
Assembly……..…………………….......16-20
Assembly Safety……………………………16
Lower Handles…..…..………………...…...16
Upper Handles………………………..….…17
Handle Position Adjustment……………..17
Grass Collection Box……....………..….…18
Power Cable………...………..………...….19
Cable Strain Reliever……………………...19
Cable Clips...………………………………..20
Operation……...………………………..21-23
Starting….……………….……....................21
Stopping………………….………………....21
Mower Deck Grass Fins…………………...21
Cutting Height Adjustment…..……….….22
Grass Indicator……………………………..23
Collection Box Emptying………………....23
Lawn Care……………………………….….24
Maintenance & Care……………….…25-32
General Maintenance……….………...…25
Replacement Parts/Spares Info....……...26
Exploded Parts Diagrams & Lists…….27-30
Blade Maintenance……………………....31
Cleaning…………………………………….31
Troubleshooting…………………….………32
Technical Data…………...........................33
Machine Specification……………………33
Recycling And Disposal..………………...34
Declaration Of Conformity…..…………..35
Useful Information…..……………………..36
Our YouTube Channel…..………………..36
Warranty…………………………………….36
Manual Updates….……………………….36
Returning Your Product….……………….36
Leaving A Review….……………………...36
Ordering Spare Parts.……………………..36
Product Record…..………………………...37
Notes…………………………………………38
Contact Us…..……………………………....39
www.hyundaipowerproducts.co.uk
3
Introduction
Thank You For Purchasing Your HYUNDAI Product
We work very hard to give all of our customers the best possible service. If you
have any problems, before leaving negative feedback, please contact us to give
us a chance to resolve the issue. We would be delighted if you left us positive
feedback! Thank you for purchasing this product.
Important!
This manual has been produced by Hyundai Power Products and should be kept
with the product. Please read and understand these instructions before you use
your product. Failure to do this may result in personal injury or damage to the
product.
The safety precautions and warnings are to ensure your safety and protect you
from harm or damage to the product.
The information contained in this manual was accurate at the time of production,
however HYUNDAI Power Products may make modifications to the product
without notification.
WARNING: READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING
THE MACHINE. Keep for future reference and pass it on if the machine is
loaned or sold to another user.
!
www.hyundaipowerproducts.co.uk
4
Safety Information
Understand Your Machine
• WARNING! You must read these instructions carefully before operating the
machine. Make sure that you are familiar with the controls and properly operate
the machine. You must learn how to stop the machine quickly. If you do not
follow the warnings and instructions, it may result in fire and/or serious injury.
Make sure to save all warnings and instructions for future reference.
• Read this manual and labels affixed to the machine to understand its limitations
and potential hazards.
• Be thoroughly familiar with the controls and their proper operation. Know how to
stop the machine and disengage the controls quickly.
• If the unit is to be used by someone other than original purchaser, or is to be
loaned, rented, or sold, always provide this manual and any needed safety
training before operation. The user can prevent and is responsible for accidents
or injuries that may occur to themselves, to other people, or to property.
• Do not force the machine beyond its limits. Use the correct machine for your
application.
• Know how to stop the machine quickly in case of emergency. Understand the
use of all controls.
Personal Safety
• ALL MAINTENANCE other than that listed in this manual, should be carried out by
professionally trained and certified personnel.
• WARNING! Never allow children or people unfamiliar with these instructions to
use the product. Local regulations can restrict the minimum age of the
operator.
• Keep children, pets, and other people not using the unit away from the work
area. Be alert and shut off the unit if anyone enters work area. Keep children
under the watchful care of a responsible adult.
• Stay alert, watch what you are doing and use common sense when operating
the machine. Never operate the machine when unwell or tired, or if you have
taken alcohol, medicine, drugs or any substances which may slow your reflexes
and compromise judgment. A moment of inattention while operating the
machine may result in serious personal injury.
• Appropriate Personal Protective Equipment (PPE), MUST be worn at all times
when operating or repairing the machine. Always wear anti-slip and resistant
work footwear and long trousers while using the machine. Do not use the
machine when barefoot, wearing sandals or similar lightweight footwear. Do not
wear chains, bracelets or clothing that is loose fitting or hanging ties or cords. Tie
long hair back. Always wear protective earplugs. Loose clothes, jewellery, or
long hair can be caught in moving parts. Protect eyes, face, and head from
objects that may be thrown from the unit. Always wear safety goggles or safety
glasses with side shields when operating.
!
!
www.hyundaipowerproducts.co.uk
5
Safety Information
Personal Safety (Continued)
• Always keep hands and feet away from all moving parts during operation.
Moving parts can cut or crush body parts.
• Always keep hands and feet away from all pinch points.
• Do not touch parts that might be hot from operation. Allow parts to cool before
attempting to maintain, adjust, or service.
• Do not overreach. Keep proper footing and balance at all times. This enables
better control of the machine in unexpected situations. Extending your body too
far can result in a loss of balance and you may fall which will result in injury.
• Never place any part of your body where it would be in danger if movement
should occur during assembly, installation, and operation, maintenance,
repairing or moving.
• Start the machine carefully according to instructions and with feet away from
the moving parts.
• Do not place your hands or feet near or under rotating parts. Keep away from
any discharge openings.
• Keep in mind that the operator or user is responsible for accidents, hazards or
unexpected events involving the machine that occur to other people or their
property. It is the responsibility of the user to assess the potential risk of the area
where work is being carried out. The operator or user must take all necessary
precautions to ensure their own safety and that of others, especially on slopes or
rough, slippery and unstable ground.
• Always keep a safe distance from the rotary blade, given by the length of the
handle.
Inspect Your Machine
• Check your machine before starting it. Keep guards in place and in working
order. Make sure all nuts, bolts, etc., are securely tightened.
• You must check the general condition of the machine before use.
• Never operate the machine when it is in need of repair or is in poor mechanical
condition. Replace damaged, missing, or failed parts before using it. Do not use
the machine if the machine’s switch does not turn off when running.
!
!
www.hyundaipowerproducts.co.uk
6
Safety Information
Work Area
• Make sure you thoroughly inspect the entire work area and remove all objects
and anything that could be thrown by the machine or could damage the
machine (branches, stones, wire, toys, etc.). Attempting to clear the work area
whilst using the machine will reduce your concentration and creates a trip
hazard. Any liquid spilled on the floor may result in you slipping.
• You must only work in daylight or with good artificial light in good visibility
conditions. Keep people, children and animals away from the working area.
Distractions can cause you to lose control.
• Operate on flat, level ground.
• Use the unit in dry conditions only. Protect it from rain and moisture. If there has
been heavy rain on the working site, wait until the ground has dried up.
• Never park the machine in a place with unstable ground which could give way.
• You must pay special attention when approaching obstacles that could
compromise visibility.
• When mowing on slopes, you must mow across the slope and not up and down
it. When changing direction, you need to be careful that the wheels do not hit
any obstacles (such as roots, branches, stones, etc.) that can cause the
lawnmower to slide sideways or make you lose control of it. Make sure on slopes
you have a steady foothold.
• The lawnmower must never be used on slopes of over 20°, regardless of the
mowing direction.
• You must be careful near ravines, ditches or embankments.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or
roads. Stay alert for hidden hazards or traffic.
• Find and locate all fixed objects in the ground, such as sprinkler systems, poles,
water valves, bases for washing lines etc. Make sure that you check for hidden
electrical cables or similar on the surface of the lawn. ALWAYS run the machine
around these objects. NEVER intentionally run the machine over foreign objects.
• Pay the utmost attention when working on frozen ground as the machine may
tend to skid.
• Do not work in the rain or when there is a thunderstorm or lightning risk. If there is
bad weather conditions, do not use the machine.
• Never run over gravel while the motor is running. There is a risk of being hit by
stones.
• Switch the lawnmower off before tilting or transporting it, e.g. from/to lawn or
over paths
!
www.hyundaipowerproducts.co.uk
7
Safety Information
During Use
• Always hold the unit with both hands when operating. Keep a firm grip on the handlebars.
• Be aware that the machine may unexpectedly bounce upward or jump forward if the
machine should strike buried obstacles such as large rocks or roots. Maintain a safe distance
as provided by the handle frame.
• Walk, never run with the machine.
• Use extreme caution when in reverse or pulling the machine towards you.
• Do not operate the machine in confined areas where there may be a risk of trapping the
operator between the machine and another object.
• Be very careful when pulling the machine toward you. You must look behind you to make
sure there are no obstacles.
• Do not allow the machine to pull you along, you must walk and never run..
• WARNING! If something breaks or an accident happens whilst working, you must turn off the
machine immediately and move the machine away to prevent further damage. If an
accident happens with injuries or third parties are injured, carry out the first aid measures
most suitable for the situation immediately and contact the medical authorities for any
necessary health care. Carefully remove any debris that might cause damage or harm
persons or animals should it not be seen.
• Do not switch on the motor until your feet are at a safe distance from the blade. Be careful
and never reach into the rotating blade.
• Ensure that you have a firm footing and mow slowly. Be particularly careful when changing
direction. There is a risk of tripping!
• The excessive speed of movement or the absence of maintenance have a significant
influence on noise emissions and vibrations. It is necessary to take preventive steps to
eliminate possible damage due to high levels of noise and stress from vibration. You must
maintain the machine well, wear ear protection and take breaks from working.
• Never open the discharge flap while the motor is running.
• Do not tilt the lawnmower when switching on the motor. If the lawnmower is running, do not
lift whilst the motor is running either.
• Stop the machine and allow all moving parts stop before removing the grass collection box
or adjusting the cutting height.
• After striking a foreign object, you must inspect the machine for damage and make repairs
before using it again. Any inspection or repairs must be carried out with the machine
unplugged.
• After emptying the grass catcher, carefully re-attach it and ensure that the grass catcher is
attached securely to the lawnmower.
• Do not switch on the unit if there are persons (particularly children) or animals in the
immediate vicinity. Ensure that children do not play with the unit. Stop working if you notice
that persons (particularly children) or pets are nearby. When stopping work, never leave the
unit unattended and keep it in a safe place.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch invites accidents
Always ensure the machine is unplugged from the power source and all moving parts are
stationary before:
• Checking or working on the machine.
• Cleaning the machine.
• Before clearing blockages or unclogging the discharge chute.
• When lifting or transporting the machine.
• Whenever you leave the machine unattended.
• If the unit starts vibrating excessively.
!
www.hyundaipowerproducts.co.uk
8
Safety Information
Vibrations (Where Applicable)
• Prolonged use of hand held (operated) machines will cause the user to feel the effects
of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or
carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate
temperature, causing numbness and heat sensations and may cause nerve damage and
circulatory tissue death.
• Not all factors that lead to white finger disease are known, but cold weather, smoking
and other diseases that affect blood vessels and blood circulation as well as large and
long-lasting impact of shocks are considered factors in the formation of white finger. Note
the following to reduce the risk of white finger and carpal tunnel syndrome;
• Wear gloves and keep your hands warm.
• Take regular breaks.
• All of the above precautions may help reduce the risk of white finger disease but not rule
out the carpal tunnel syndrome. Long-term and regular users are therefore recommended
to observe the condition of your hands and fingers. Seek medical attention immediately if
any of the above symptoms should occur.
Noise (Where Applicable)
• The operating noise of the machine can damage your hearing. When wearing
protection such as earplugs or ear defenders to protect your hearing. Long-term and
regular users are advised to have hearing checked regularly. Be especially vigilant and
cautious when wearing ear protection because your ability to hear alarm warnings will be
reduced.
• Noise emissions for this equipment is unavoidable. Carry out noisy work at approved
times and for certain periods. Limit the working time to a minimum. For your personal
protection and protection of people working nearby it is also advisable for them to wear
hearing protection.
• See Certificate of Conformity section for Outdoor Noise declaration of .
. conformity.
!
!
Residual Risks
Even when tool is used as prescribed it is not possible to eliminate all residual risk factors.
The following hazards may arise in connection with the tool’s construction and design:
1. Damage to lungs if an effective dust mask is not worn.
2. Damage to hearing if effective hearing protection is not worn.
Health defects resulting from vibration emission if the power tool is being used over longer
period of time or not adequately managed and properly maintained.
WARNING! This machine produces an electromagnetic field during operation. This field
may under some circumstances interfere with active or passive medical implants. To
reduce the risk of serious or fatal injury, we recommend persons with medical implants to
consult their physician and the medical implant manufacturer before operating this
machine.
!
!
• Prior to carrying out any maintenance work you MUST identify electrical
. isolation methods and isolate all electrical supplies.
• Prior to use and with all electrical supplies isolated, you MUST check all
electrical cables, plugs and connectors for the following;
- Are intact and have no signs of damage, to include but not limited to bare wires,
chaffing, cuts and loose wiring.
- If there are any signs of damage, the damaged item MUST be taken out of service
until the damage has been repaired by an electrically competent person.
- All trailing cables should be routed so as not to cause any kind of trip hazard.
- NEVER work on or near electricity with wet hands, wet clothing and wet gloves.
• Power tools plug must match the outlet. Never modify the plug in any way. DO NOT
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
• DO NOT expose this power tool to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock. DO NOT abuse the power cord. Never use the
cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat,
oil and sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock. When operating a power tool, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• IMPORTANT: Make sure that the electric circuit is fused, and that the power, voltage
and frequency of the motor is supported by your mains supply. Also, make sure that
your power supply is earthed. Connect your machine to earth. Never open the ON/OFF
switchbox. However, if it should become necessary to do so, contact a qualified
electrician. Make sure that you will never touch live contacts, specifically when you
plug or unplug your machine. This machine and its power cord must never get into
contact with water.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
• To prevent electric shock, use only with an extension cord suitable for outdoor
use. For additional protection, the installation of a residual current device (RCD) having
a rated residual operating current not exceeding 30mA is advisable.
• Before use, check that the extension cord is in good condition. When using an
extension cord, make sure to use one heavy enough to carry the current your product
will draw. An undersized cord will cause a drop in line voltage resulting in loss of power
and overheating.
• Do not allow any part of the machine to make contact with water while it is in
operation. If the appliance becomes wet while turned off, wipe dry before starting.
Do not touch the appliance or its plug with wet hands or while standing in water.
Wearing rubber boots offers some protection.
• Before use, check the supply and extension cord for signs of damage or aging. If the
cord becomes damaged during use, disconnect the cord from the supply
immediately. If the supply cord is damaged, it must be replaced by the
manufacturer or a qualified person in order to avoid a hazard.
www.hyundaipowerproducts.co.uk
9
Safety Information
DANGER : ELECTRICITY CAN KILL – NEVER WORK ON LIVE / ENERGISED EQUIPMENT.
Electricity (Where Applicable)
!
www.hyundaipowerproducts.co.uk
10
Safety Information
Double-Insulated Appliances
In a double-insulated appliance, two systems of insulation are provided instead of
grounding. Servicing a double-insulated appliance requires extreme care and
knowledge of the system, and should be performed only by qualified service
personnel. Replacement parts for a double-insulated appliance must be identical
to the parts they replace.
!
Lawnmower Specific Safety
!
There’s specific hazards and danger when using a lawn mower. These hazards are
a result of using the machine within it’s intended use. Additional hazards can result
if the machine is not used correctly. These are but not limited to:
• Moving Blade Hazard – Due to the nature of the lawn mower, a rotational blade
is part of it’s operation. The user should NEVER tilt the machine during use, this will
increase the chance of harm or injury.
• Projectile Hazard – Because of the high speed of the mower blade, the
machine can propel small objects like rocks, sticks, toys and other debris which
can be found in a garden environment. It’s important to wear correct PPE to
protect the body from these potential projectiles. You must keep this in mind
when operating the machine with other persons present. They must be a safe
distance away from the machine.
• Trip & Fall Hazard – Operating a lawn mower requires stability and balance
during operation. Not every lawn is perfectly flat, so it’s important to be aware of
the terrain as pushing a lawn mower can lead to losing balance. Trips and falls
can lead to fractures, sprains and even head injuries. To prevent this wear
suitable footwear, operate at a comfortable speed and be mindful of slippery
and uneven surfaces.
• Physical Competency – A push mower requires a level of strength and co-
ordination to maneuverer and control effectively. Insufficient capability can
lead to accidents such as losing control of the mower or running over obstacles.
www.hyundaipowerproducts.co.uk
11
Safety Information
Personal Protective Equipment
Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when
operating or repairing the machine. No protective equipment can ensure 100%
protection.
When selecting PPE, make sure it’s CE marked and it suits the user in terms of size,
fit, etc. If more than one item of PPE is worn at the same time, make sure they can
be used together, e.g. wearing safety glasses may disturb the seal of a respirator,
causing air leaks.
!
Hand Protection Must Be Worn
Protective electrically non-conductive gloves are highly
recommended when working.
Foot Protection Must Be Worn
Non-skid heavy duty footwear are highly recommended when
working.
Hearing Protection Must Be Worn
Suitable safety hearing protection is recommended.
Eye Protection Must Be Worn
Always wear safety glasses/goggles and/or face shields. Everyday
eyeglasses have only impact resistant lenses; they are not safety
glasses/goggles.
Protective Clothing Must Be Worn
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings,
wrist watches), which can be caught in moving parts.
Head Protection Must Be Worn
Wear a safety helmet with a safety visor.
Face Shield Must Be Worn
Wear a face shield to protect your face.
www.hyundaipowerproducts.co.uk
12
Safety Information

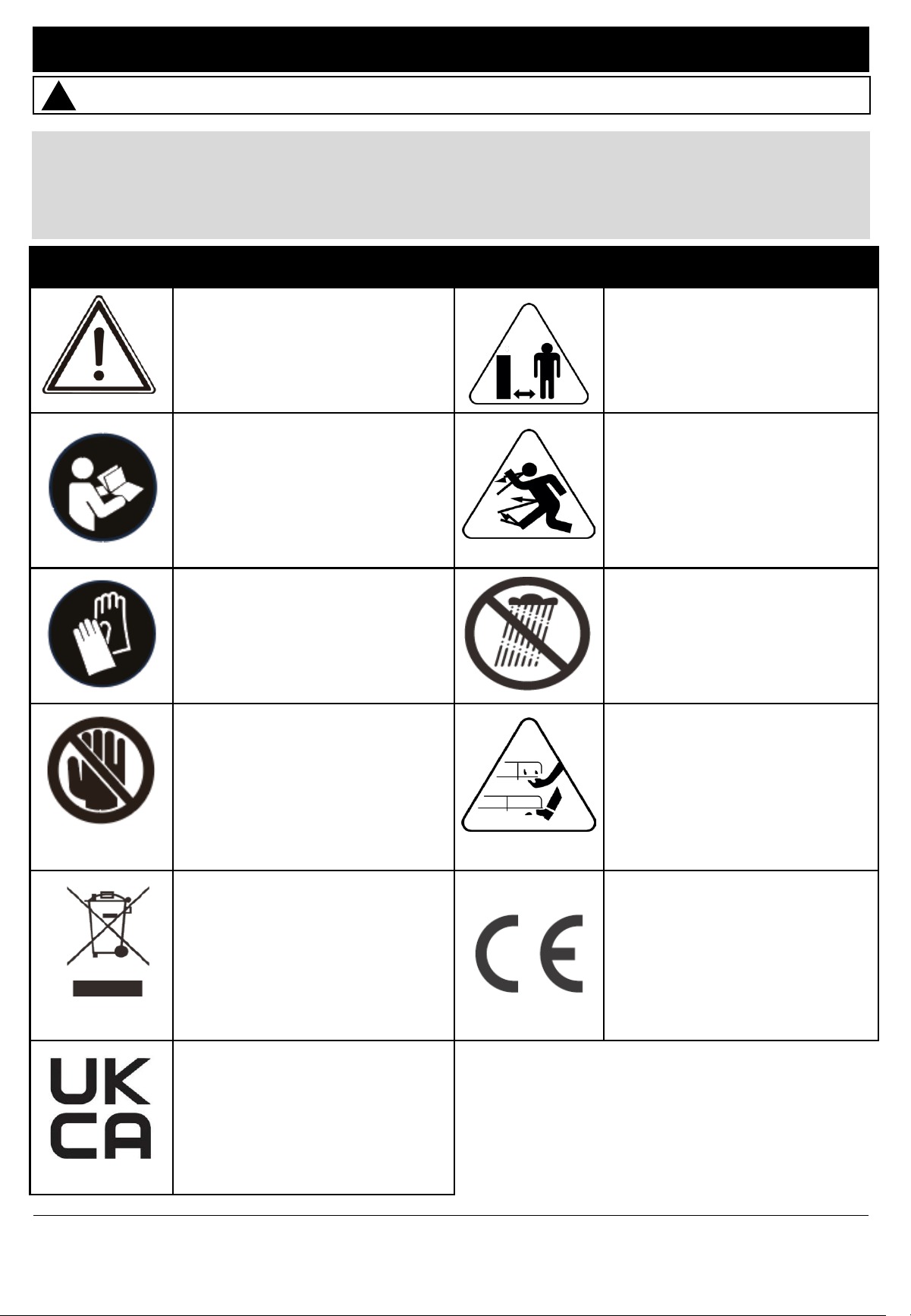

Symbols On The Machine
We have provided safety messages in this manual and on the machine. This
information alerts you to potential hazards that could hurt you or others. Please
read these messages carefully. However, we may not have listed all of the possible
hazards, you must also use your own judgement.
!
Symbol Description Symbol Description
Safety alert – Indicates a
precaution, a warning or a
danger.
Keep away from the danger
area.
Read operator’s manual. Keep all bystanders and
animals at least 15 metres
away from the machine
during operation. If
approached, stop the
machine immediately.
Hand protection must be worn Do not expose the product to
rain or wet conditions.
Sharp blades can cut limbs. Keep hands and feet away
from cutting parts.
This product should not be
disposed of in domestic waste.
Please contact your local
recycling centre for disposal
service.
This product complies with the
European directives and an
evaluation method of
conformity for these directives
was done
The UKCA (UK Conformity
Assessed) marking is a UK
product marking that is
required for goods being
placed on the market in Great
Britain (England, Wales and
Scotland).
www.hyundaipowerproducts.co.uk
13
Safety Information
Intended Use
The HYM3313E is an electric lawnmower from HYUNDAI. The HYM3313E has a cutting width
of 330mm and is powered by a 1300W Motor
The HYM3313E is a garden tool and precisely a pedestrian controlled lawnmower. The
machine is essentially composed of a motor which drives a blade enclosed in a casing,
equipped with wheels and a handle. The operator is able to operate the machine and use
the main controls, always staying behind the handle at a safe distance from the rotating
blade.
If the operator leaves the machine, the machine will stop within a few seconds.
The lawnmower is manufactured according to the latest safety requirements. These
include a blade brake that stops the machine and blade when you let go of the OPC
lever. Every precaution is only effective when it is followed exactly.
Intended Use
This machine was designed and manufactured for cutting and collecting grass in gardens
and grassy areas, in areas in proportion to its cutting capacity, controlled by a pedestrian
operator.
User Types
This machine is intended for use by consumers, i.e. non professional operators. The
machine is intended for “DIY” and domestic use only.
This garden tool is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the machine by a person
responsible for their safety. Never allow children or people unfamiliar with these instructions
to use the garden tool.
Supervise children. This will ensure that children do not play with the unit.
Any other use is not as intended. Improper use is not covered by the warranty and the
manufacturer will reject any liability. The user is liable for all injuries to third parties and
damage to their property. Operate the unit only in the technical condition as stipulated
and delivered by the manufacturer. Arbitrary changes to the unit will exclude the
manufacturer from any liability for resulting injury and/or damage.
Improper Use
Any other usage not in keeping with the above mentioned ones may be hazardous and
harm persons and/or damage things. Examples of improper use may include, but are not
limited to:
-transporting people, children or animals on the machine
-letting yourself be transported by the machine
-using the machine to tow or push loads
-using the machine for leaf or debris collection
-using the machine to trim hedges, or cutting anything other than grass
-use of the machine by more than one person
-using the blade on surfaces other than grass
!
www.hyundaipowerproducts.co.uk
14
Unboxing
WARNING : Unboxing and assembling the machine should be done on a flat,
surface with enough room. Disposal of the packaging should be done in
accordance with the local regulations in force.
!
WARNING : Some of the packaging material may be harmful to children. Keep
out of reach of children.
1. Carefully remove the product from the packaging and examine it for any sign of
damage caused during shipping.
2. Lay the contents out and check them. If any part is damaged or missing, you
must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately.
3. You must keep the packaging material in case the machine needs to be
returned or repaired.
4. Ensure that you have all the accessories and tools you need for assembly and
operation including the suitable personal protective equipment.
We recommend that you fill out the information in the ‘Product Record’ section. If
you need to contact an authorised dealer or customer service, you may need to
provide this information.
!
www.hyundaipowerproducts.co.uk
15

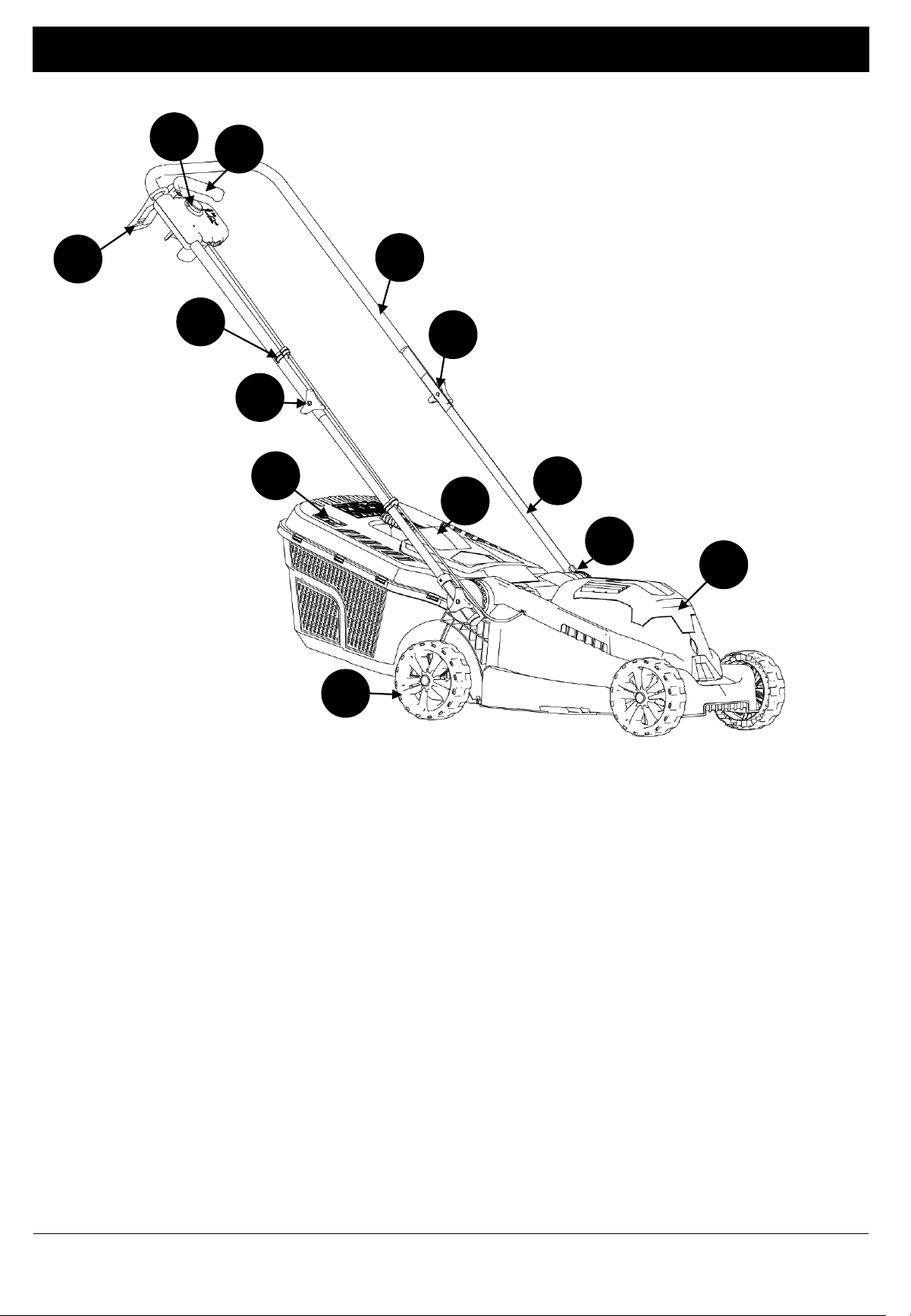

Features
*Not To Scale
A. Main Body – The main deck of the machine, this houses the motor
and the blade
B. Handle Position Adjustment Indicator – Shows Handle current
angle
C. Lower Handle
D. Bolt
E. Upper Handle
F. Operator Presence Control Lever – A lever put into place for
safety, to ensure no accidental operation
G. On/Off safety button
H. Cable Strain Reliever – helps support the power cable/
I. Cable Clip
J. Wing Nut
K. Grass Level Indicator Flap – When the grass collection box is full,
the indicator flap will be closed.
L. Grass Collection Box
M. Wheel
I
J
M
K
L
H
A
C
B
D
E
F
G
WARNING - Before assembly ensure the machine isn’t plugged into a power
source to avoid accidental starting.
www.hyundaipowerproducts.co.uk
16
Assembly
HYM3313E Assembly – Safety
!
CAUTION - This guide is meant to serve as a quick reference for operating your
HYUNDAI machine. We always advise reading the manual in full before operation.

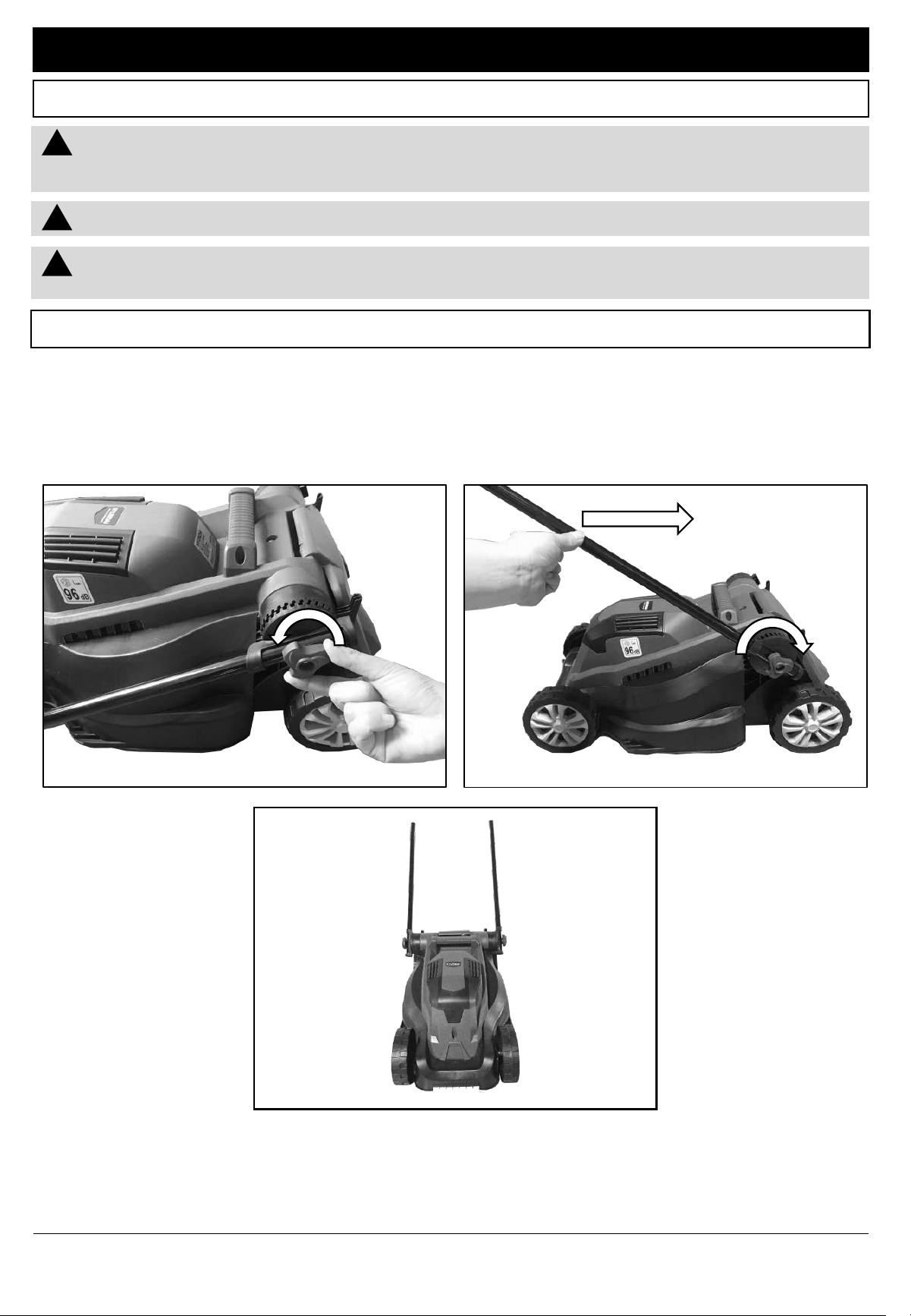

1. Loosen the wingnut by turning it anti-clockwise. Do not remove the wingnut.
2. Move the lower handle toward the rear of the machine, and then tighten the
wingnut by turning it clockwise.
3. Repeat on both sides.
!
NOTE - Images may vary depending on model.
!
HYM3313E Assembly – Lower Handles

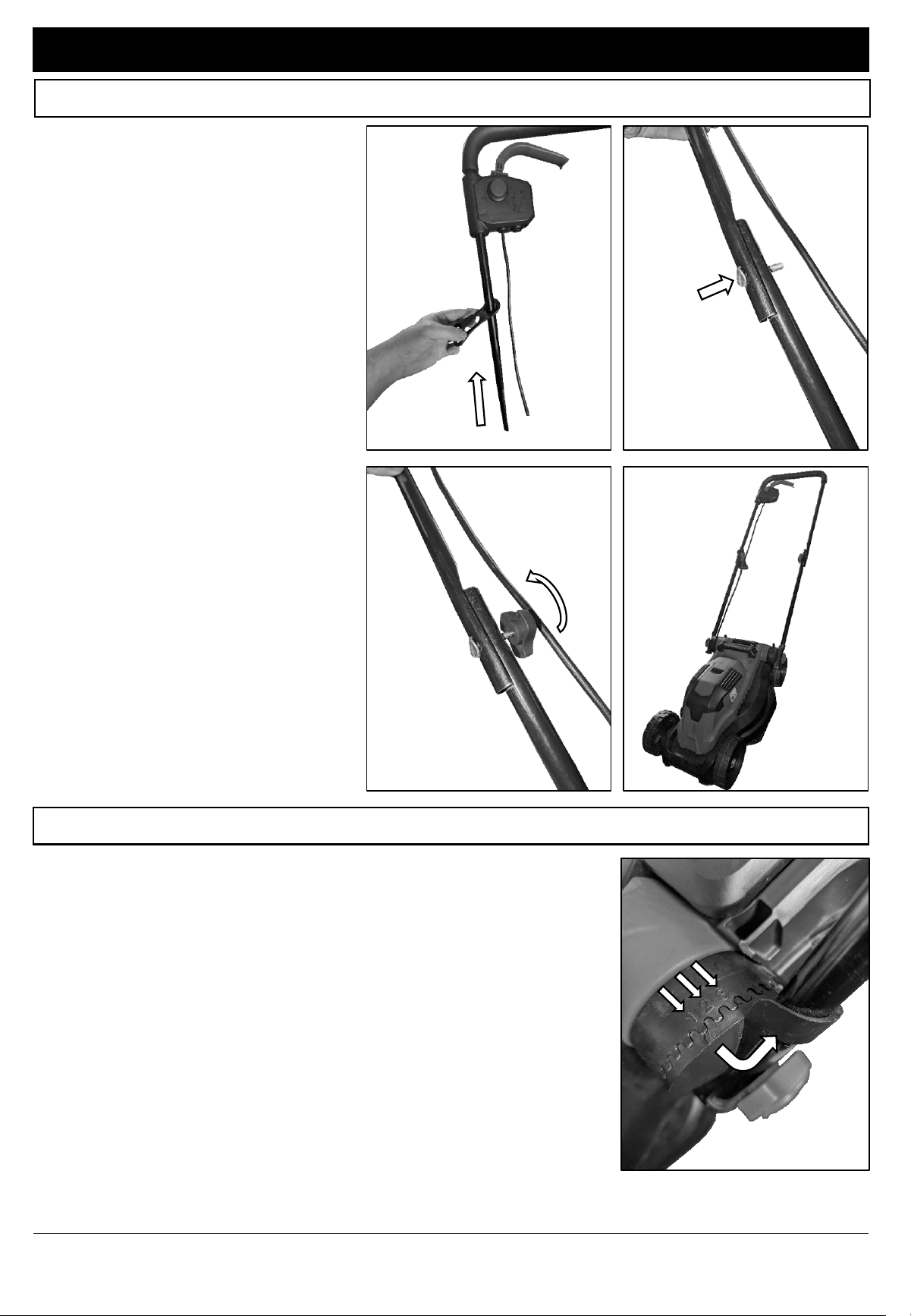

1. Place the Cable
Reliever on Upper
Handle (E) as
shown below.
2. Secure the Upper
handles (E) by
placing a Bolt (D)
through both the
lower and upper
handles. Secure
with a Wing-Nut
(H).
3. Your machine
should look the
same as below.
HYM3313E Assembly – Upper Handle
www.hyundaipowerproducts.co.uk
17
Assembly
HYM3313E Handle Position Adjustment
The handles have 3 available positions to aid
operator comfort.
To select the height simply slacken off the wing-nut
attached to lower handles. This will allow you move
the locator out and select another position.
www.hyundaipowerproducts.co.uk
18
Assembly

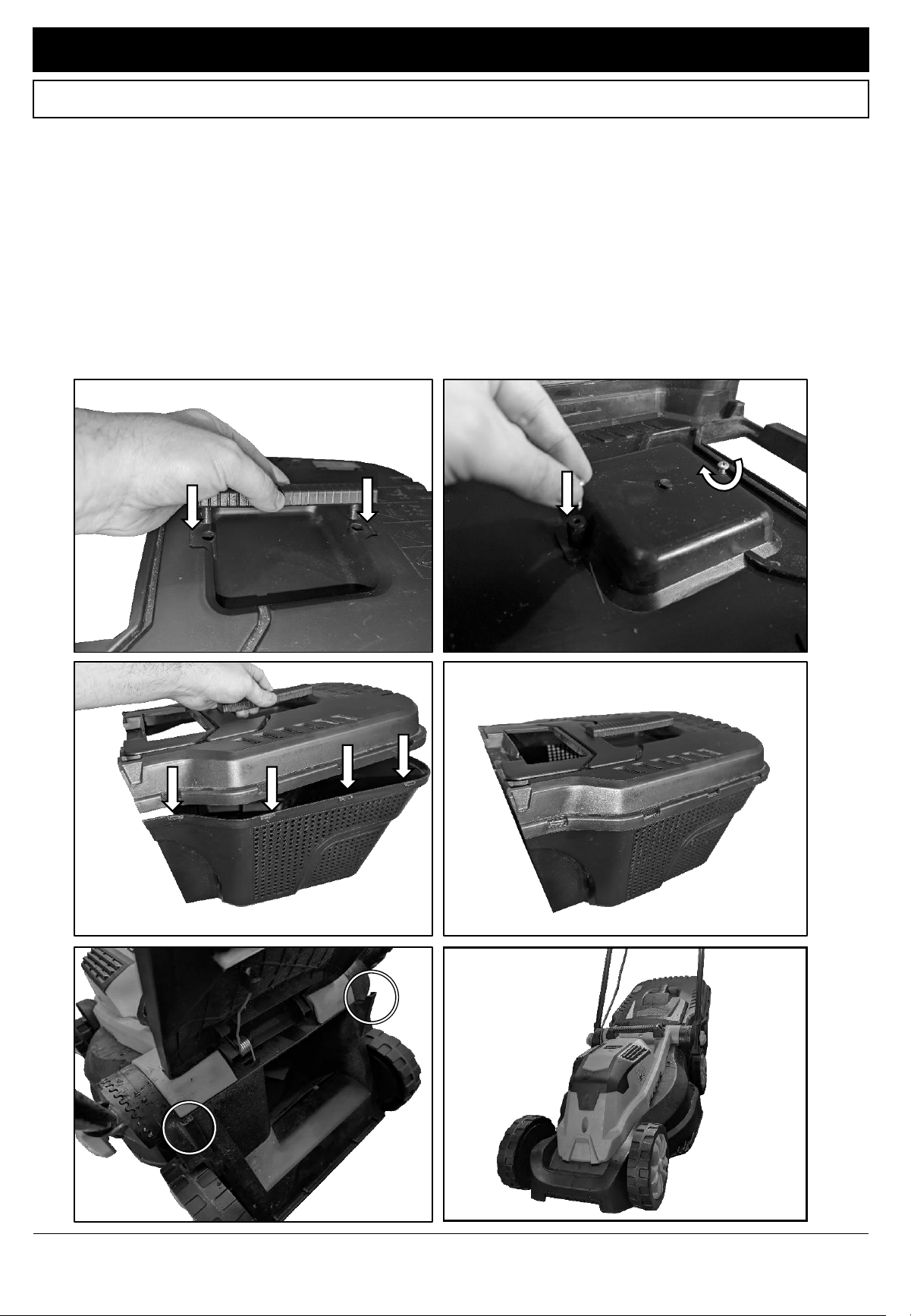

HYM3313E Assembly – Grass Collection Box
1. Place the handle into location at the top Grass Collection box (L).
Turn over and secure by installing the screws included.
2. Combine the top and bottom halves of the Grass Collection box.
There’s clips around the edges of both which need to be clicked
into place.
3. The Grass Collection is fitted to the hooks at the rear of the
machine. Lift the Rear Discharge Flap and then hook on the Grass
Collection box.
www.hyundaipowerproducts.co.uk
19
Assembly
HYM3313E Assembly – Power Cable
HYM3313E Assembly – Cable Strain Reliever

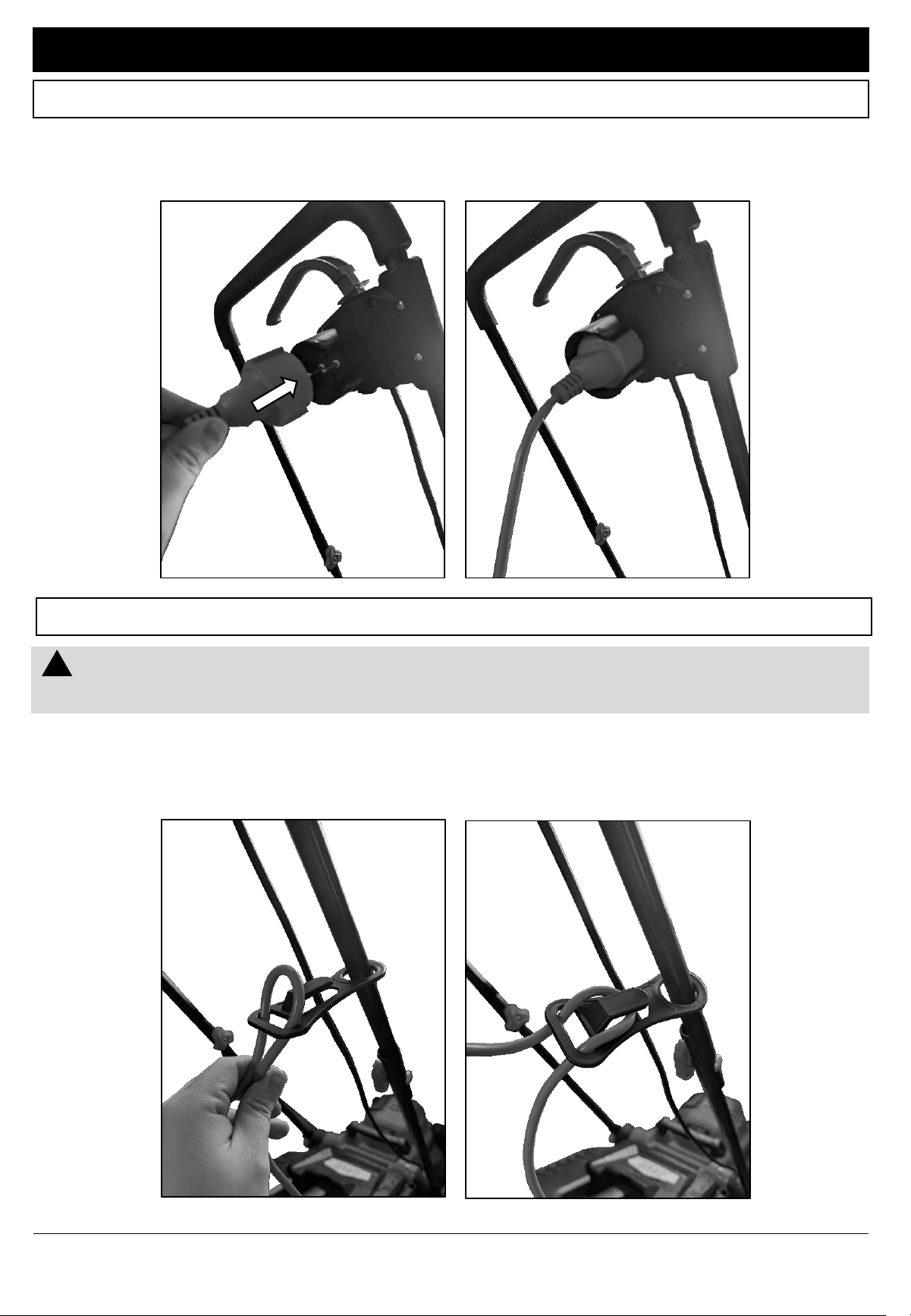

This machine comes equipped with a removable power cable. Simply push the
power cable into place as shown below.
!
CAUTION – To safely operate this machine you must use the cable strain
reliever. This will prevent the power cable from detaching during operation
Simply create a loop in the power cable and pass it through the lower hole of the
cable strain reliever. Then pass the loop over the hook and pull slightly to secure
into place.
www.hyundaipowerproducts.co.uk
20
Assembly
HYM3313E Assembly – Cable Clips

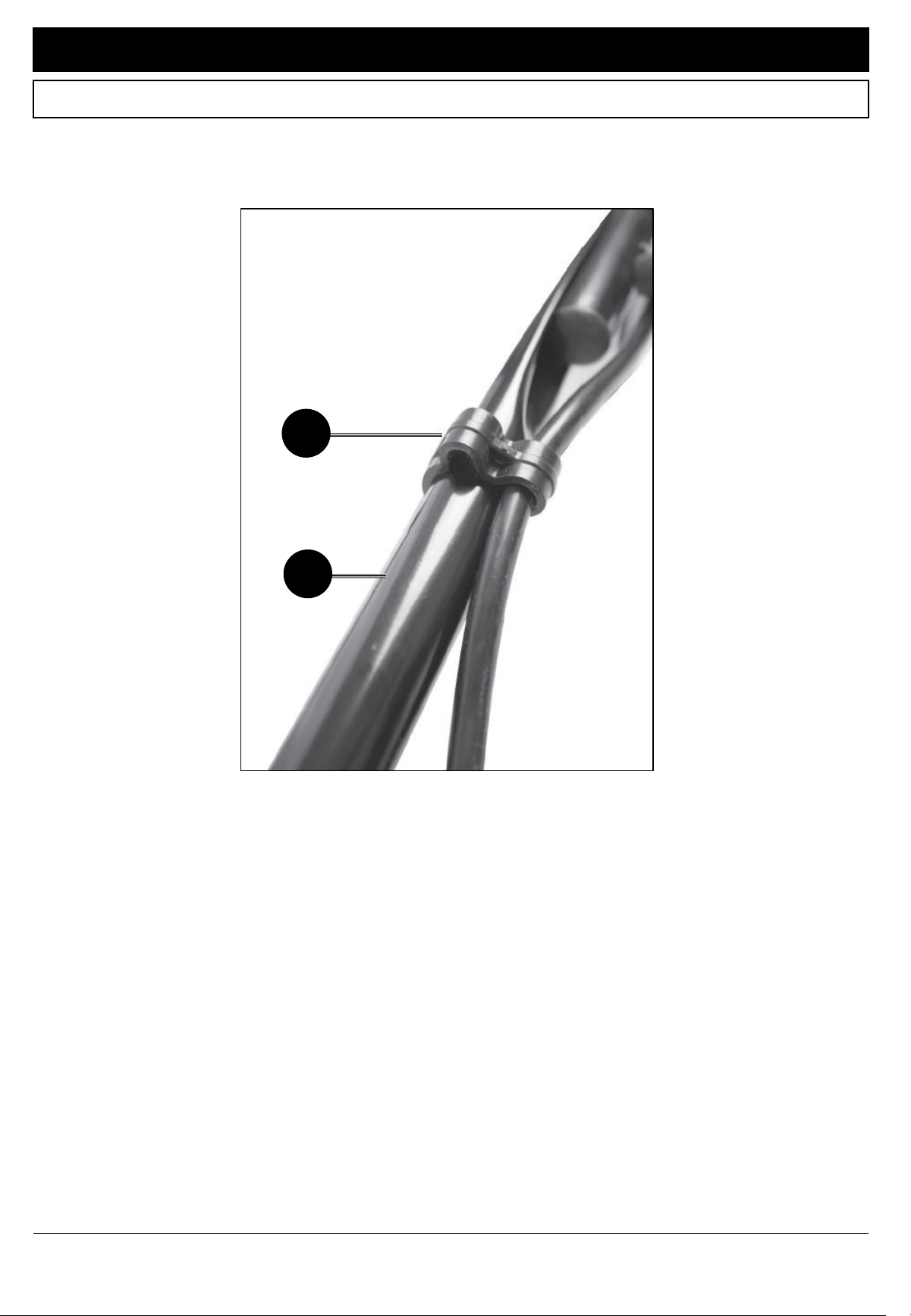

Attach the cable onto the right-hand Lower Handle (C) using the Cable Clips (I)
provided. This will keep the cable secure and tight to the machine
C
I
www.hyundaipowerproducts.co.uk
21
Operation

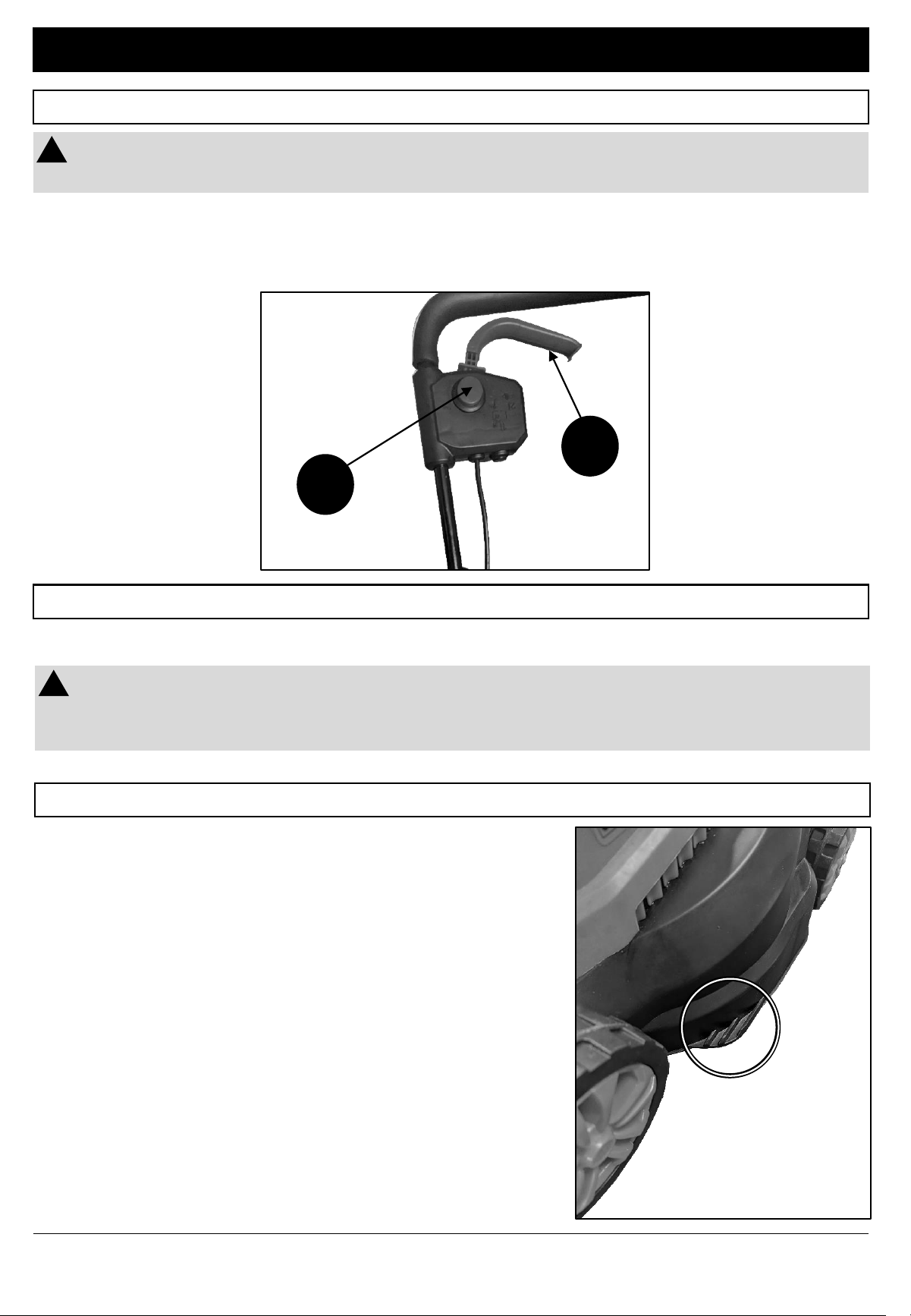

HYM3313E Starting
!
WARNING - Before Operation you MUST read and fully understand the whole
user manual
1
2
1. To Start the Machine hold the Safety On/Off Safety Button (2) down.
2. At the same time, pull the OPC Lever (1). The machine should start.
3. When the machine has started, you can release the Safety Start Button.
HYM3313E Stopping
To Stop the machine release the Start/Stop Trigger. The machine should stop.
!
WARNING – After stopping the machine, for a few seconds the blade beneath
the machine will keep rotating. Allowing time for this to stop before any other
Operation or Maintenance
HYM3313E Mower Deck Grass Fins
The HYM3313E’s deck features grass fins, which
help to channel grass on the edges of lawns, close
to fences & walls into the mower blade. The deck is
wider than the wheel base; this paired with the
grass fins helps ensure a clean cut on the edge of
your lawns minimising stray blades of grass.
www.hyundaipowerproducts.co.uk
22
Operation
HYM3313E Cutting Height Adjustment

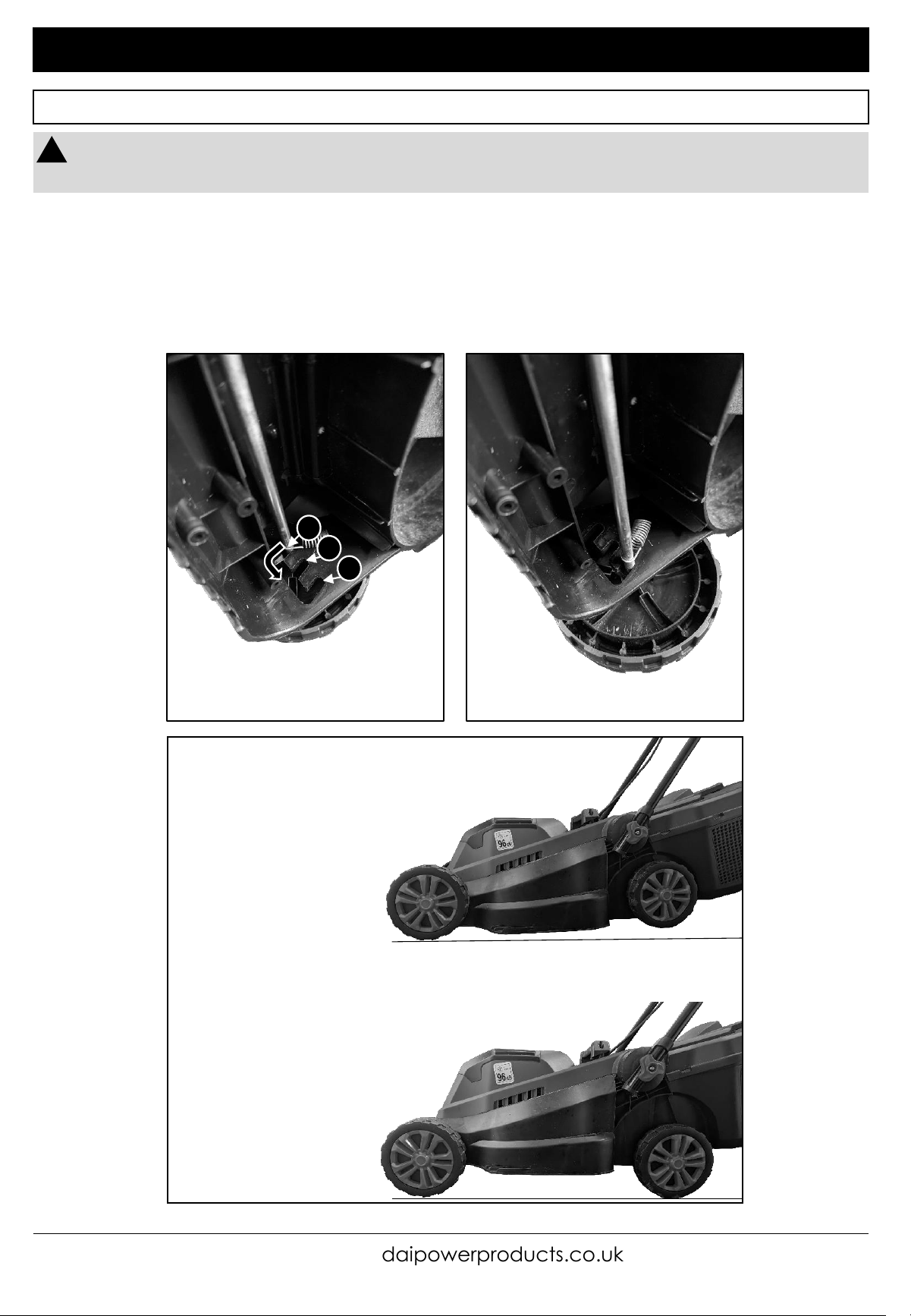

1. To adjust the cutting height, turn the machine on it’s side.
2. The Axle is spring loaded into position. You must pull the Axle out of it’s location,
and move up or down to select a different position/cutting height.
3. The method of height adjustment is the same on both front and back wheels.
For an optimal cutting result, match the height setting on both axles.
!
WARNING – When adjusting the cutting height, ALWAYS ensure the machine is
off and the cutting blade is not spinning
1
2
3
Lowest Height = 20mm
Highest Height = 60mm
Middle Height = 40mm
www.hyundaipowerproducts.co.uk
23
Operation

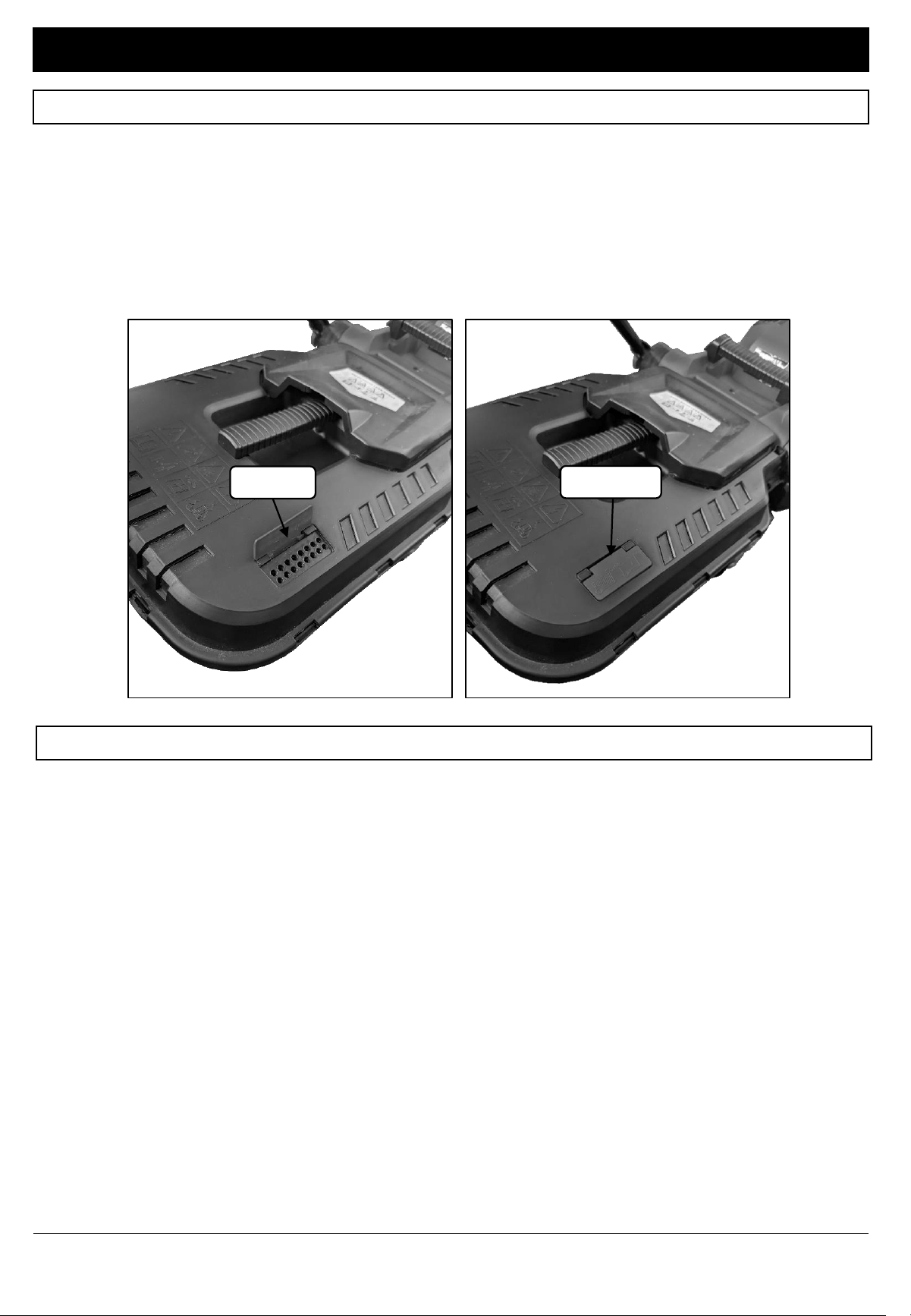

HYM3313E Grass Indicator
The Grass Collection Box has a Grass level indicator Flap (K). This allows the user to
know at a glance if the Collection Box needs emptying.
If the grass level indicator flap is open allowing air through it (as shown below) it
isn’t yet full.
If it is closed, this indicated the Grass Collection Box needs to be emptied
HYM3313E Grass Collection Box Emptying
Empty the grass collector frequently during use. Do not wait until it is completely
full. We recommend emptying it when it is half full.
1. Switch the motor off.
2. Wait until the blade stops.
3. Lift the Rear Discharge Flap.
4. Remove the Grass Collection Box.
5. Lower the Rear Outlet Guard down again.
6. Empty the grass collector.
7. Before re-fitting, remove any obstructions from the rear discharge chute.
Open
Closed
www.hyundaipowerproducts.co.uk
24
Lawn Care
General Tips
• Maintain a constant cutting height. Do not shorten the grass to less than half its
original height.
• Under certain conditions, such as very tall grass, it may be necessary to raise the
height of cut to reduce pushing effort, prevent overloading of the motor and
leaving clumps of grass clippings.
• It may also be necessary to reduce ground speed and/or push the lawnmower
over the area a second time. For extremely heavy cutting, reduce the width of
cut by overlapping the previously cut path and mow slowly.
How Often Should I Mow?
Spring (March, April & May)
Mow once a week on a high to medium height setting.
Summer (June, July & August)
Mow twice a week under good growing conditions on a low setting. In dry
conditions, mow once a week on a medium to high height setting.
Autumn (September, October & November)
Mow once a week on a medium height setting.
Winter (December, January & February)
Mow as required on a high height setting.
www.hyundaipowerproducts.co.uk
25
Maintenance & Care
General Maintenance
WARNING : Turn OFF the machine, allow all moving parts to come to a
complete stop, and disconnect the power cord before maintaining the machine.
You need to wear proper clothing and protective gloves whenever your hands are
at risk.
• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working
condition.
• Replace worn or damaged parts for safety. Only use manufacturer-
recommended parts and accessories.
• Lubricate the Wheel every 100 hours
• Periodically check the wires around the machines for damage and loose
connections.
• Always check the brakes of the machines are working correctly
• Regularly examine the batteries, ensure they are clean and dry.
• Always Charge your batteries to full charge before use
!
Storage
Keep the machine stored in a dry, level area away from damp, moisture and
rain fall. Allow the machine to cool down before storing.
• Make sure the machine is clean and dry before storing.
• Ensure the machine is stored in a position, where any persons cannot step on, to
attempt to reach items up high, due to risk of movement.
• DO NOT store the machine near an ignition source, such as a wood stove, gas
or electric heater, or an appliance or heater with a pilot light.
• Store the machine out of reach of children or anyone who is not familiar with
operation.
• DO NOT stack other items on top of the machine when in storage.
• Make sure the machine is stored away from direct sunlight. Store indoors or in a
safe, frost-free area during severe weather and winter months.
!
www.hyundaipowerproducts.co.uk
26
Replacement Parts/Spares Information
To maintain your machine in peak operating condition, proper maintenance and
care are crucial. Some machines have consumable parts that will need
replacement to ensure they continue operating at their full potential. Power-
Spares provide manufacturer parts for all your machines, ensuring they remain in
peak condition.
Power-Spares has your back if you damage your lawn mower blade, find your
spark plugs not sparking, or snap your recoil. Power-Spares operates under the
trading name of Genpower Limited.
As part of the Genpower family, Power-Spares offers you the expertise, efficiency,
and quality assurance of a large organisation. We leverage the latest
warehousing, distribution, customer service, and inventory management
technology to ensure you receive your parts as quickly as possible.
With extensive stock-holding of spare parts in our UK warehouses, Power-Spares is
ready to assist you promptly when your machine needs repair. We’re Committed
to help you get back up and running as quickly as possible.
About Power Spares
Same Day Dispatch*No Hassle Returns
Over 10,000 Spare Parts
QR Code – Scan the QR code for a direct link
to our website
Our Website : power-spares.co.uk
Call us : 01646 404406
Email us : sales@power-spares.co.uk
www.hyundaipowerproducts.co.uk
27

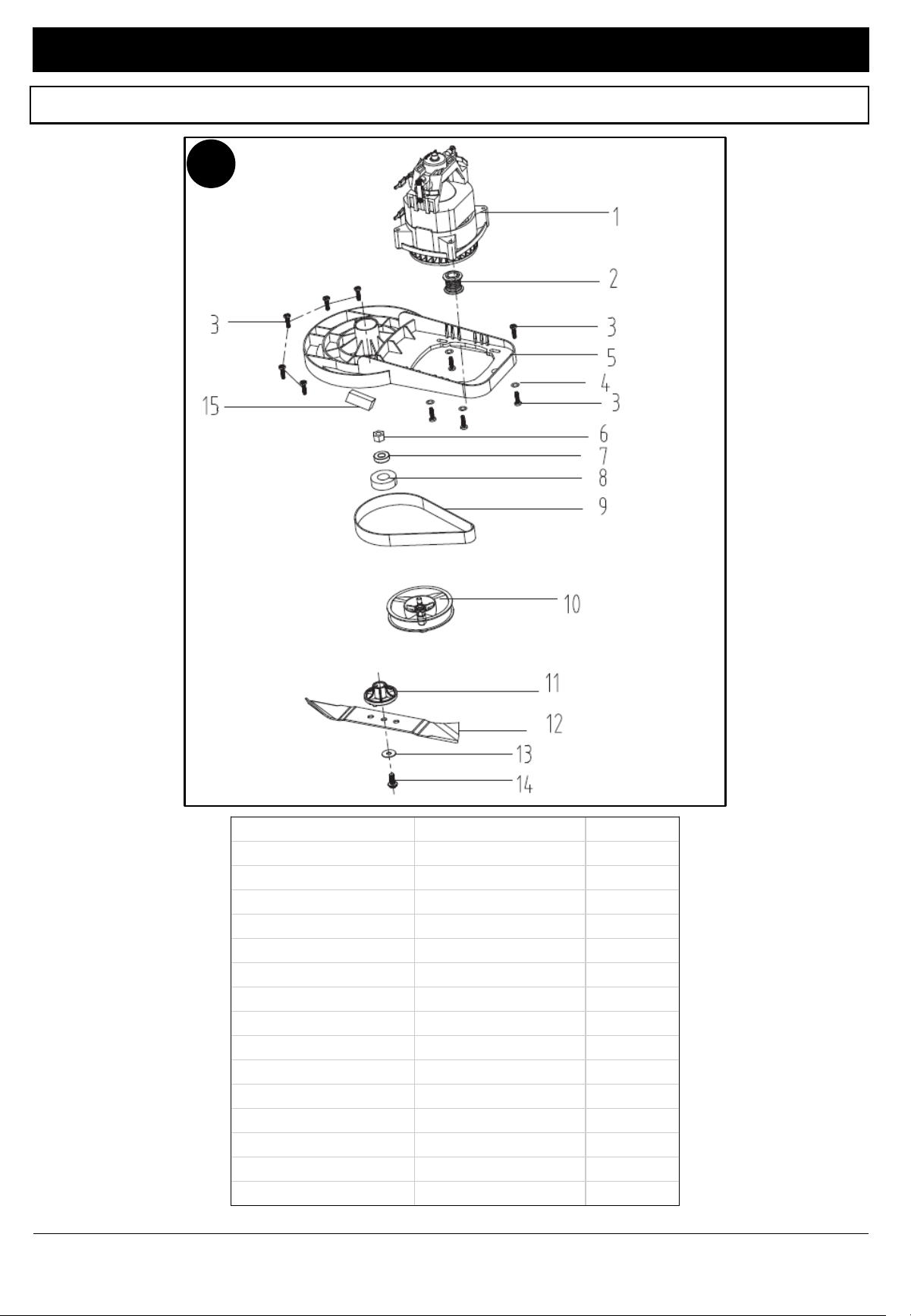

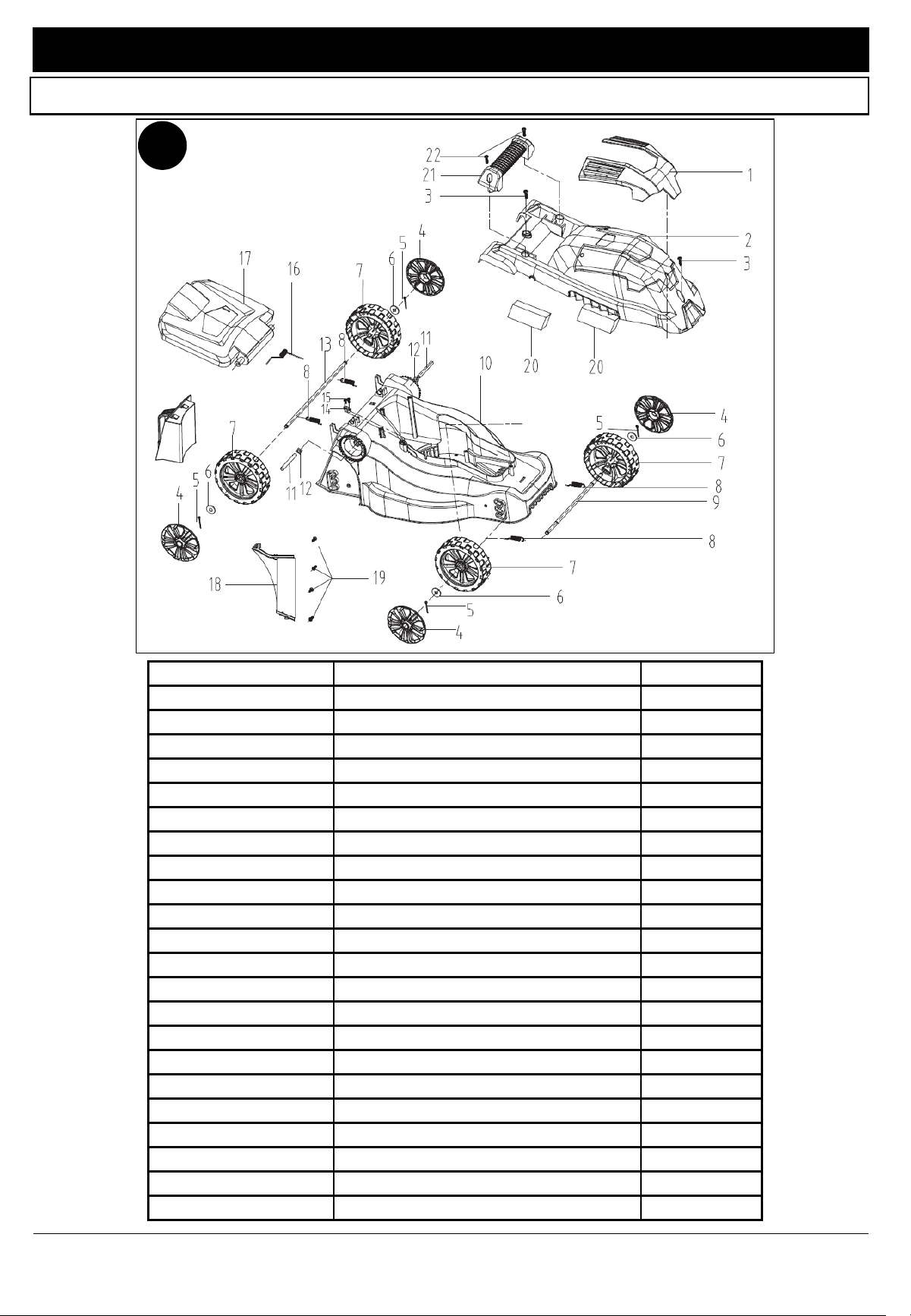

Technical Data

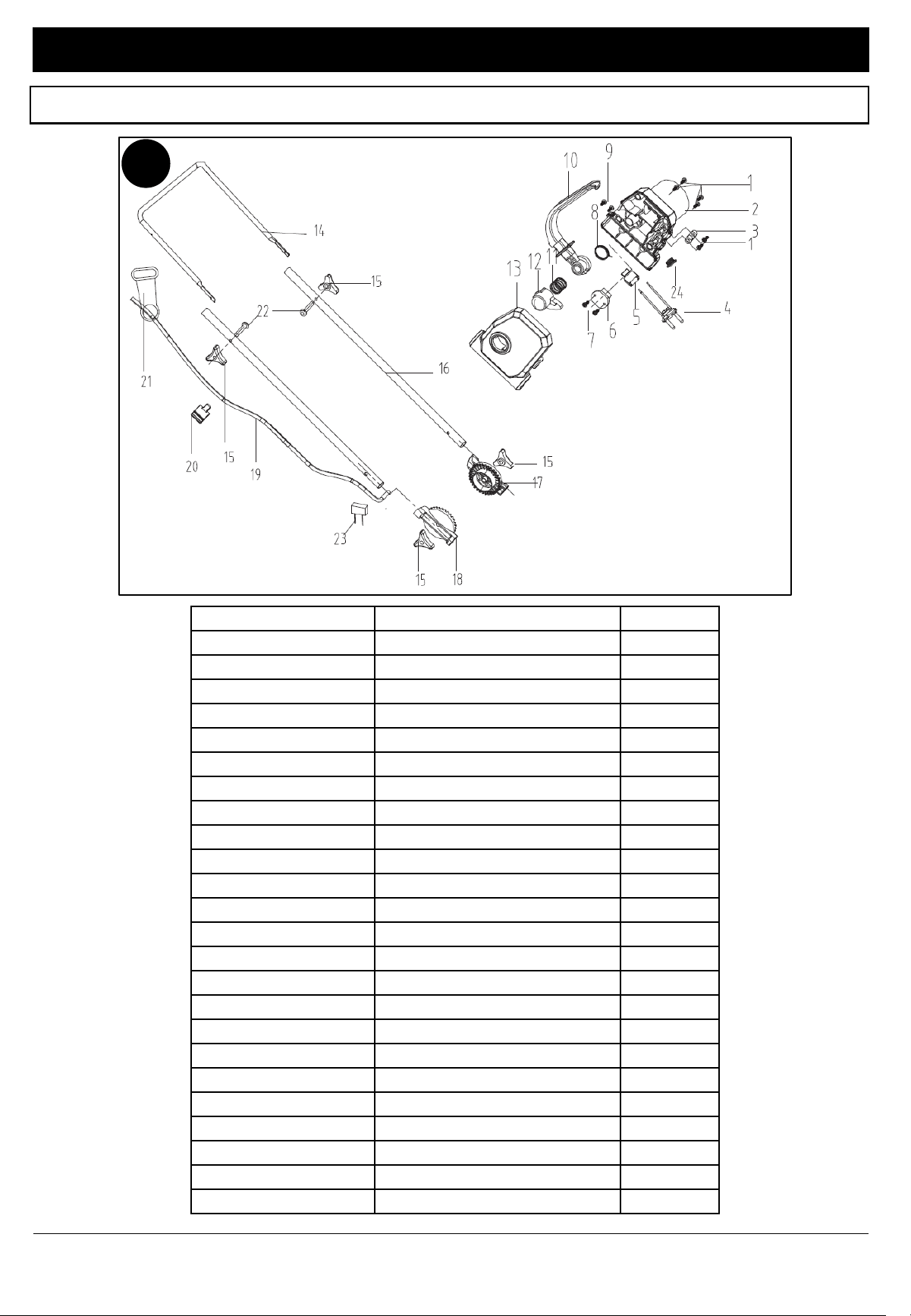

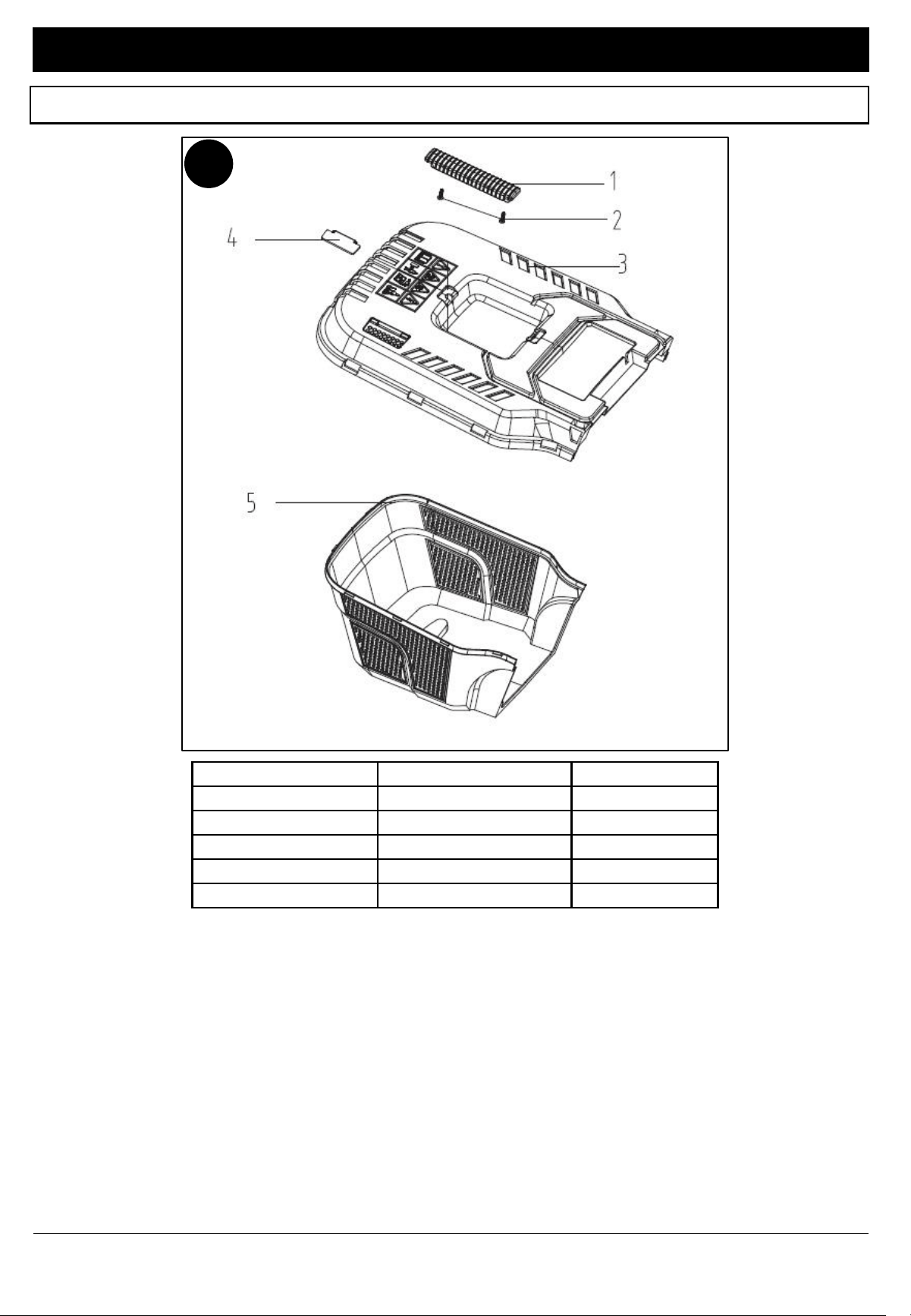

Exploded Diagram
Image Reference
Description
Quantity
A1 Tapping screw 10
A2
Switch box lower cover
1
A3 Cord clamping plate 1
A4 Connector 1
A5 Rocker switch 1
A6 Waterproof plug 1
A7 Tapping screw 2
A8 Trigger spring 1
A9 Tapping screw 2
A10 Trigger 1
A11 Button spring 1
A12 Safety button 1
A13
Switch box upper cover
1
A14 Upper handrail 1
A15 Knob 4
A16 Lower handrail 2
A17 Left handrail seat 1
A18 Right handrail seat 1
A19 Cord 1
A20 Cord clip 1
A21 Cord hook 1
A22 Bolt 2
A23 Capacitor 1
A24 Rubber plug 1
A
www.hyundaipowerproducts.co.uk
28
Technical Data
Exploded Diagram
Image Reference
Description Quantity
B1
Motor cover decorative sheet
1
B2 Motor cover 1
B3 Tapping screw 3
B4 Wheel cover 4
B5 Elastic cotter pin 4
B6 Flat washer 4
B7 Wheel 4
B8 Axle spring 4
B9 Front axle 1
B10 Chassis 1
B11 Double-end bolt 1
B12 Nut 2
B13 Rear axle 2
B14 Cord clamping plate 1
B15 Tapping screw 1
B16 Torsional spring 2
B17 Grass box cover 1
B18 Chassis baffle 1
B19 Tapping screw 1
B20 Dust sponge 4
B21 Carry handle 3
B22 Tapping screw 1
B
www.hyundaipowerproducts.co.uk
29
Technical Data
Exploded Diagram
Image Reference
Description Quantity
C1 Carry handle 1
C2 Tapping screw 2
C3 Upper cover 1
C4
Air handling panel
1
C5 Lower cover 1
C
www.hyundaipowerproducts.co.uk
30
Technical Data
Exploded Diagram
Image Reference
Description
Quantity
D1 Motor 1
D2
Small belt pulley
1
D3
Tapping screw
10
D4 Flat washer 4
D5 Motor bracket 1
D6 Nylon nut 1
D7 Bearing 609Z 1
D8 Bearing 6002Z 1
D9 Ribbed belt 1
D10 Belt sheave 1
D11 Balde holder 1
D12 Balde 1
D13 Flat washer 1
D14 Flange bolt 1
D15 Dust sponge 1
D
www.hyundaipowerproducts.co.uk
31
Maintenance & Care

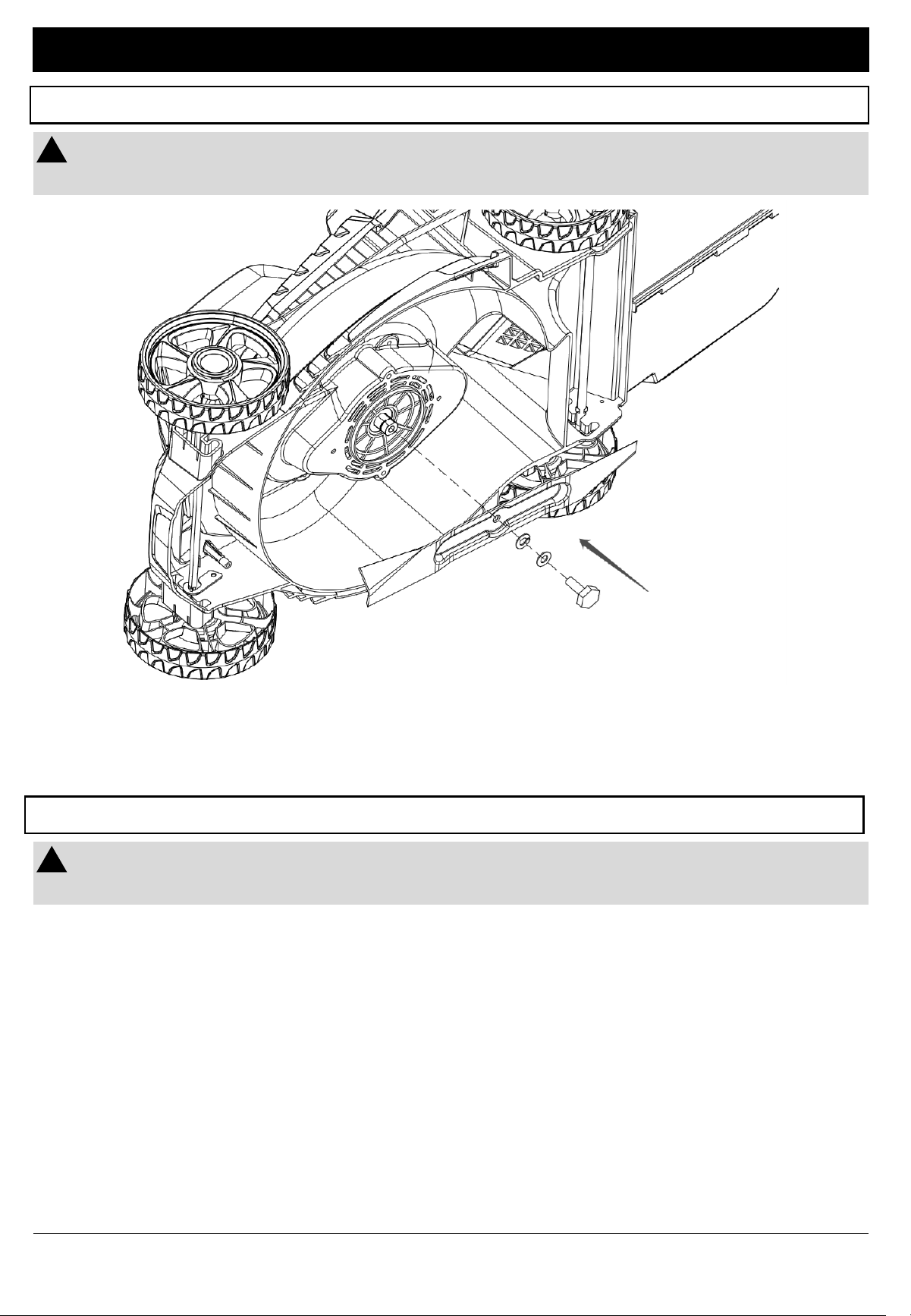

Blade Maintenance
!
WARNING - To prevent injury from the blade, have a specialist perform all work
such as replacing or sharpening the blade (special tools and skills required).
Only use original spare parts: The use of non-original and/or incorrectly fitted parts
will jeopardise the safety of the machine, may cause accidents or personal injuries
for which the Manufacturer is under no circumstance liable or responsible.
Cleaning
1. Clean the equipment immediately after use with a damp cloth and some soft,
non-abrasive soap. Do not use cleaning agents or harsh solvents; these may
damage the plastic parts in the equipment. Ensure that no water penetrates
the equipment’s interior.
2. Remove grass and mud from inside the deck to prevent it from drying. This
could cause problems the next time the lawnmower is used.
3. Keep all safety devices, air vents and the motor housing free of dirt and dust as
much as possible.
4. Dry the machine completely. Keep the handles dry, clean and free of oil and
grease.
5. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage
!
WARNING – Only Damp Clothes/Sponges should be used to clean. Using
Running Water or Liquid Detergents can cause damage and unsafe operation.
www.hyundaipowerproducts.co.uk
32
Maintenance & Care
Troubleshooting
Fault
Possible Remedy
Motor won’t start
•
Check the fuse in the plug.
•
Check the cable for damage.
•
Make sure you are holding in the Stop/Start Safety
button while pulling the OPC lever.
•
If the motor is hot, leave to cool down and try again.
•
Check underneath for excessive build-up of grass
clippings which may be jamming the blade.
Mower not collecting grass
•
Make sure deck around the blade is clean and no
debris is present
•
Ensure the rear chute between the deck and grass
collection box has no grass build up or debris
Mower does not cut grass
cleanly
•
Replace or re-sharpen the blade; contact an
authorized service center
•
Correct the cutting height
www.hyundaipowerproducts.co.uk
33
Technical Data
Machine Specification
Model
HYM3313E
Voltage
(V)
230
-240
Frequency
(Hz)
50
-60
Rated
Power (W)
1300
Cutting Width (cm)
33
No
-Load Speed (rpm)
3600
Blade Type
Steel
Cutting
Heights (mm)
20,
40, 60
Grass
Collection Box Capacity (L)
30
Wheel Size (Inches
)
5.5
Box Dimensions
LxWxH
600*370*290
Net Weight (Kg)
7.5
Gross Weight
(Kg)
8.5
Vibrations (m/s
2
)
2.79
(k=1.5)
Sound Pressure Level
LpA (dBA)
79.3
Pressure Level Uncertainty
KpA
(
dBA)
3
Sound Power Level
LwA (dBA)
90.3
Power Level Uncertainty
KwA
(
dBA)
3
www.hyundaipowerproducts.co.uk
34
Recycling & Disposal
Recycling & Disposal
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic
Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or
Batteries is passed onto you by us.
So when it becomes necessary to dispose of your machine you must take it to your
local Civic Amenity Site. For further information please contact your local Authority
for disposal advice.
You MUST make sure that all unused oil and fuel is disposed of correctly either
beforehand or at your local Civic Amenity Site.
• Under NO circumstances must any fuel or oil be put down any drains.
• Certain products contain WEEE waste which should not be disposed of in your
domestic waste.
• You MUST recycle WEEE in accordance with your local authority or recycling
centre.
• Certain products contain batteries which should not be disposed of in your
domestic waste.
• You MUST recycle batteries in accordance with your local authority or recycling
centre.
• Unwanted packaging and materials should be stored and taken to a recycling
centre so it can be disposed of in a manner which is compatible with the
environment.
We are a Member of the VALPAK National Compliance Scheme and our
registration number is RM08660. For further information about disposal please
contact your Local Authority.
You can also get more advice and guidance about recycling at the following
website http://www.recycle-more.co.uk
Should you pass this product on to another user either sold or loaned, you MUST
pass on this user manual. This will make sure that all other users can use and
maintain this machine safely.
1. Environmental protection should be a priority of considerable importance when
using the machine, for the benefit of both social coexistence and the environment
in which we live. Try not to cause any disturbance to the surrounding area.
2. You must comply with local regulations and provisions for the disposal of
packaging, oils, fuel, filters, damaged parts or any elements which have a strong
impact on the environment. This waste must not be disposed of as normal waste. It
needs to be separated and taken to specified waste disposal centres where the
material will be recycled.
3. You must comply with local regulations for the disposal of waste materials after
mowing.
4. When disposing, do not pollute the environment with the machine, but hand it
over to a disposal centre, in accordance with the local laws in force.
Environmental Protection
www.hyundaipowerproducts.co.uk
35
EU Declaration Of Conformity
Importer and Authorised Representative
Genpower Ltd
Isaac Way, Pembroke Dock, SA72 4RW
Country of Origin: China
Description: Electric Lawn Mower
SKU Code: HYM3313E
Date of Issue: 01/12/2023
Regulations and Directives of Compliance
• 2006/42/EC The Machinery Directive
• 2014/30/EU Annex ll Electromagnetic Compatibility Directive
• 2011/65/EU RoHS
• 2000/14/EC Noise Emissions in the Environment by Equipment for use Outdoors
Conforming
to the Following Requirements and Documents
•
EN 60335-2-77:2010
•
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019
•
Delclaration for 2000/14/EC Noise Emissions in the Environment by Equipment for
use Outdoors.
Statement of Declaration
We the importer and authorised representative of the product described confirm
conformity within the provisions of applicable regulations and directives listed
within this document.
Signed on Behalf of Genpower Ltd
Place of Issue: Genpower Ltd
Signatory Name: Roland Llewellin
Position: Managing Director
……………………………………
www.hyundaipowerproducts.co.uk
36
Useful Information
Check Out Our YouTube Channel
Our videos on YouTube include:
• Unboxing
• Assembly of your machine
• How to service your machine
• Products in use
• ‘How To’ videos
• Product features
Go to YouTube and search ‘Hyundai Power Products’.
Manual Updates
Our manuals are constantly being reviewed and updated. Should you find an
error, omission or something unclear, please contact us for assistance. We reserve
the right to make any modifications without prior notice whenever necessary.
Our latest manuals are also placed online. All our manuals can be downloaded at:
www.hyundaipowerproducts.co.uk
Returning Your Product
If you are returning your product, please contact the dealer for their returns policy.
Leaving A Review
We work very hard to give all of our customers the best possible service. If you have
any problems, before leaving negative feedback, please contact us to give us a
chance to resolve the issue. We would be delighted if you left us positive
feedback! To leave a review, please go to:
uk.trustpilot.com/review/hyundaipowerequipment.co.uk
Ordering Spare Parts
You can find the spare part you are looking for at power-spares.co.uk
Warranty
Proof of purchase will be required before you make a warranty claim. Full warranty
terms and conditions can be found on the HYUNDAI POWER PRODUCTS website:
www.hyundaipowerproducts.co.uk
www.hyundaipowerproducts.co.uk
37
Product Record
Information
As soon as you have purchased the machine, we recommend that you fill out the
following. If you need to contact an authorised dealer or customer service for
information on servicing, you may need to provide the following information.
Date Of Purchase:……………………………………………………………………………….....
Dealer Name:………………………………………………………………………………………..
Dealer Phone:…………………………………………………………………………………….....
Model Number:…………………………………………………………………………………......
Serial/Batch Number:………………………………………………………..………………........
www.hyundaipowerproducts.co.uk
38
Notes
www.hyundaipowerproducts.co.uk
39
Contact Us
Need Help? Talk To Our Experts
Our friendly aftersales team will be more than happy to help you.
Phone
Call our team on 01646 687 880
Email
Online Live Chat
Go to www.hyundaipowerproducts.co.uk
Post
Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW.
Hyundai Support Website
Go to hyundaisupport.co.uk
For Inquiries, Please Contact:
GENPOWER LTD
Isaac Way, London Road,
Pembroke Dock, UK, SA72 4RW.
T: +44 (0) 1646 687 880
E: [email protected].uk
www.hyundaipowerproducts.co.uk
Imported / Distributed by Genpower Ltd for
the United Kingdom & Ireland
Licensed by Hyundai Corporation Holdings, Korea
