Installation Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions................................... 2
2 Installation dimensions......................................... 3
3 Transporting the device......................................... 3
4 Side by side assembly.......................................... 4
The manufacturer is continually working on the further develop-
ment of all types and models. Please be aware that we reserve
the right to make changes to the shape, equipment and tech-
nology.

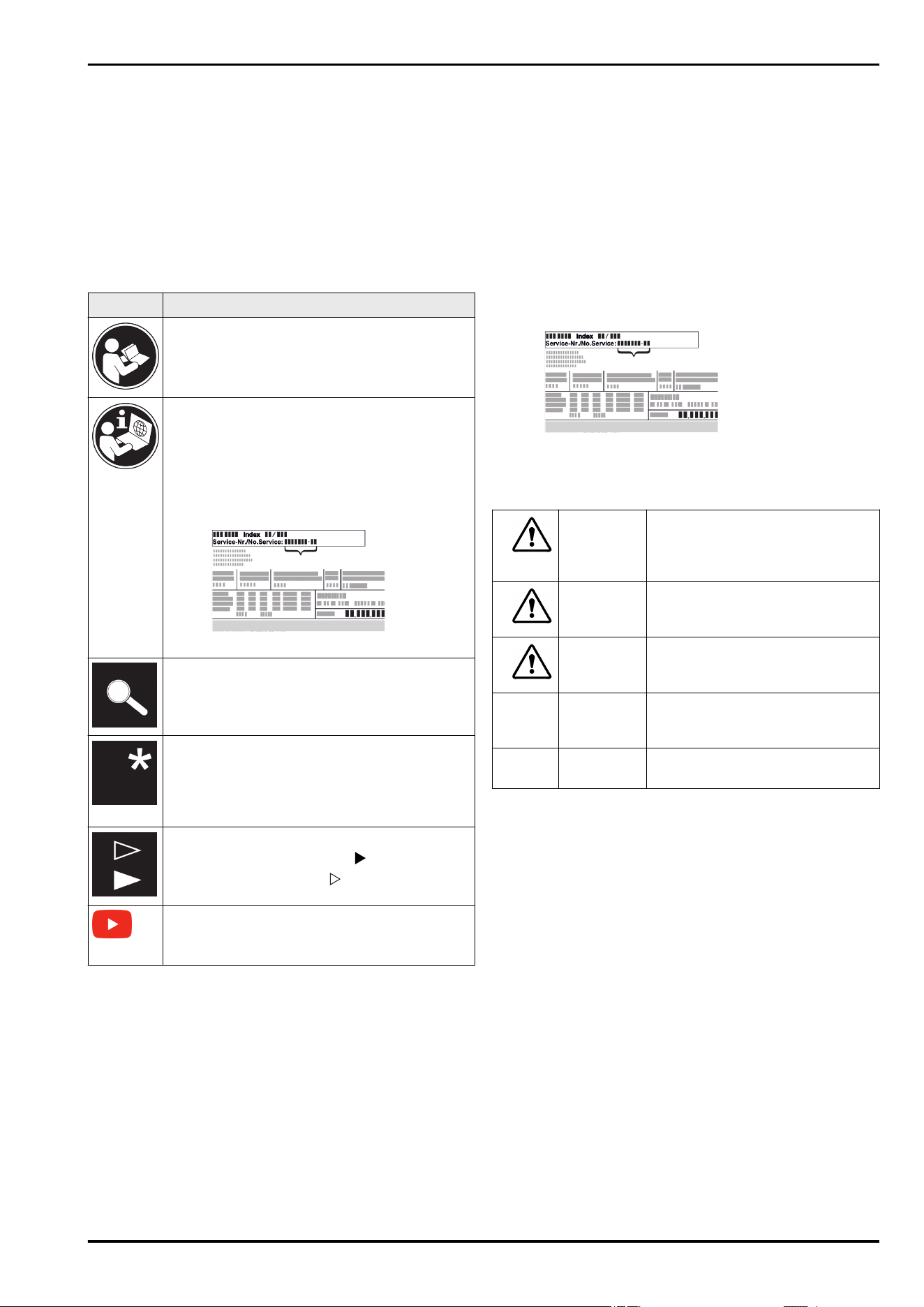

Symbol Explanation
Read instructions
Please read the information in these instructions
carefully to understand all of the benefits of your
new appliance.
Full instructions on the internet
You can find detailed instructions on the internet
using the QR code on the front of these
instruction or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.
Example illustration
Check appliance
Check all parts for transport damage. If you have
any complaints, please contact your agent or
customer service.
Differences
These instructions apply to a range of models, so
differences are possible. Sections that apply to
certain models only are marked with an asterisk
(*).
Instructions and results
Instructions are marked with a
.
Results are marked with a
.
Videos
Videos about the appliances are available on the
YouTube channels of Liebherr-Hausgeräte.
1 General safety instructions
-
Please keep this assembly manual in a safe
place so you can refer back to it at any time.
-
If you pass the appliance on, please hand this
assembly manual to the next user.
-
Read this assembly manual carefully before
installation and use to ensure safe and
correct use of the appliance. Follow the
instructions, safety instructions and warning
messages included at all times. They are
important for ensuring you can operate and
install the appliance safely and without any
problems.
-
First read the general safety instructions
in the “General safety instructions” section
of the operating instructions, which
accompany these installation instructions,
and follow them. If you cannot find the
operating instructions, you can down-
load the operating instructions from the
internet by entering the service number
at
home.liebherr.com/fridge-manuals. The
service number can be found on the serial
tag:
-
Observe the warning messages and other
detailed information in the other sections
when installing the appliance:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful instructions and
tips.
General safety instructions
2 * Depending on model and options
2 Installation dimensions

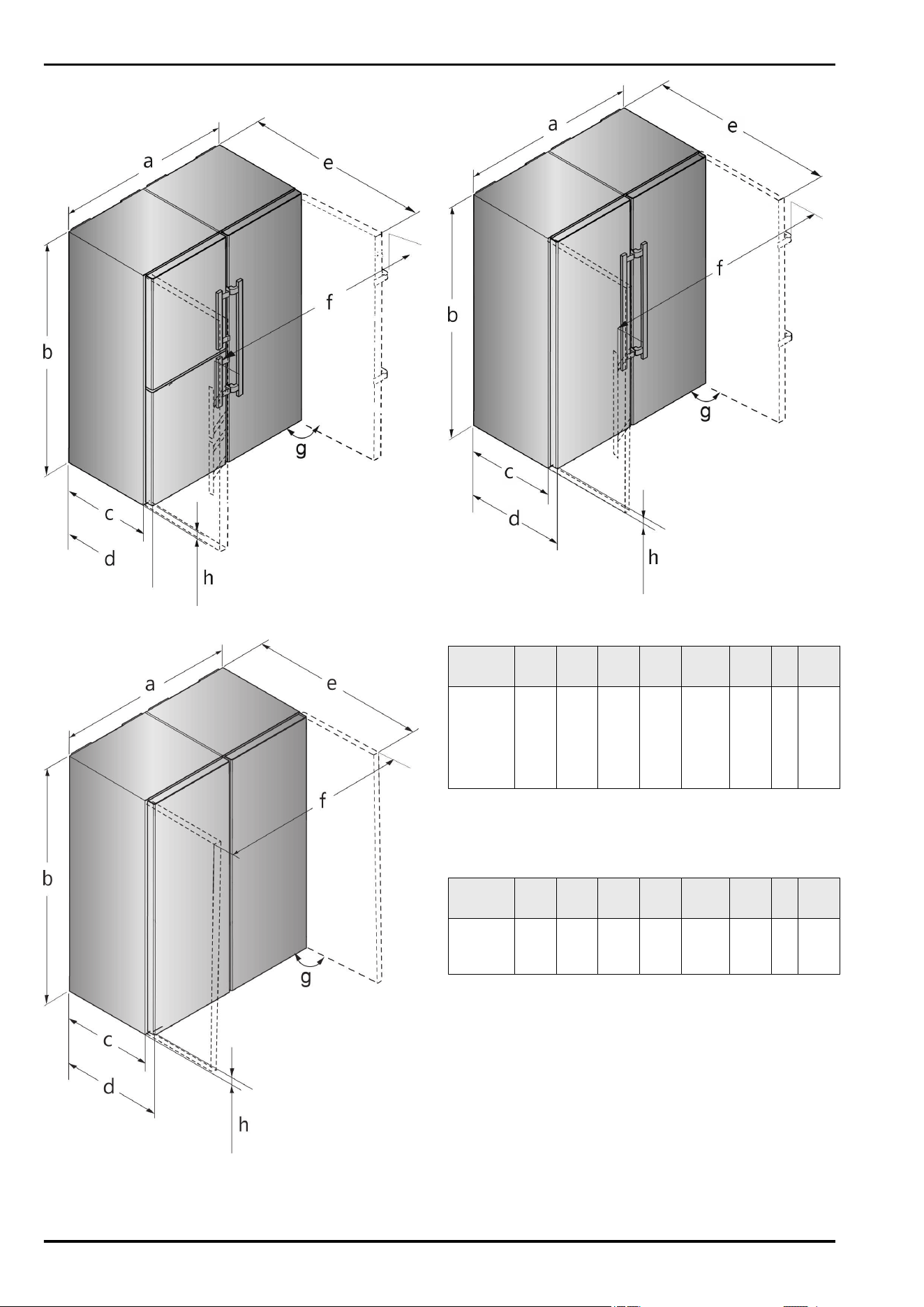

Fig. 1 Example illustration
Fig. 2 Example illustration
Fig. 3 Example illustration
For appliances with a lever handle
Model a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
g
[°]
h
[mm]
S(BN)
(CN)
(FN)(sd)
(st)(bd)
(bs)(d)
(h) 52..(i)
1204 1855
611
x
675
x
1222
x
1318 90 35
x
The use of wall spacers increases the dimensions by 15 mm .
With the door open the dimensions apply to an opening angle
of 90 °. Clearances vary depending on the opening angle.
For appliances with recessed grip
Model a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
g
[°]
h
[mm]
SFN(sd)
(sf)(bd)
(e) 52…
1226 1855
611
x
675
x
1217
x
1252 90 35
x
The use of wall spacers increases the dimensions by 15 mm .
With the door open, the dimensions apply to an opening angle
of 90 °. Clearances vary depending on the opening angle.
3 Transporting the device
u
Transport the appliance in its packaging.
u
Transport the appliance upright.
u
Use two people to transport the appliance.
Installation dimensions
* Depending on model and options 3
4 Side by side assembly
Set up the freezer or the appliance with the freezer compart-
ment from the left when viewed from the front. These appli-
ances are equipped with a side-wall heater on the right hand
side to prevent condensation forming.
All the assembly components are supplied with the appliance.

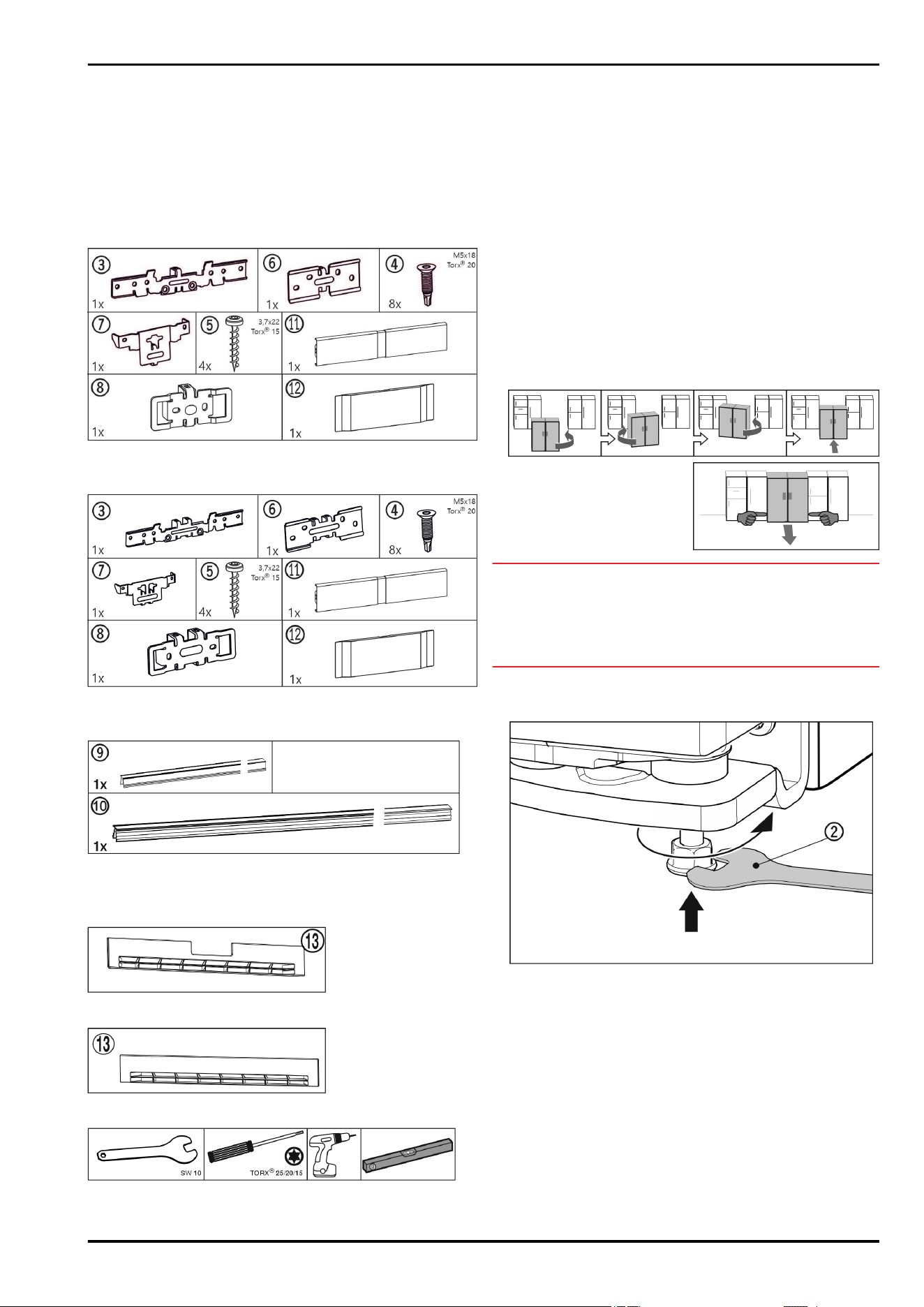

Assembly parts in the accessory kit
For appliances with lever handle
Fig. 4
For appliances with recessed grip
Fig. 5
For all appliances
Fig. 6
Base trims
For appliances with bottom soft stop mechanism
Fig. 7
For appliances without bottom soft stop mechanism
Fig. 8
Tool for assembly
Fig. 9
Ensure that the following tools are to hand:
q
Size 10 open-ended spanner (supplied)
q
Torx® 25/20/15 screwdriver
q
Cordless screwdriver
q
Spirit level
Information on moving the SBS combination:
q
Set up the appliances as close to the final position as
possible before assembly.
The appliances must be accessible on all sides for correct
assembly.
q
When moving the appliances after assembly, always take
hold from the front outer corners. Never press your knee
against the side walls or door.
q
The SBS combination can be moved most easily when
moved diagonally, that is by alternately pushing from the left
and right corners.
If the combination is standing directly in front of the recess,
push it in straight.
q
If the combination has to
be pulled out of the recess
again, take hold of the
bottom third of the combi-
nation and pull forward
straight.
NOTICE
Risk of damage when moving the combined SBS appliance!
The combined SBS appliance is heavy once assembled. The
appliance may be dented by improper movement.
u
Observe the information given on moving the appliance (see
above).
u
Take off all protective film from the exterior of the appliance.
Bottom front of the appliance:
Fig. 10
u
Tighten the outer adjusting feet. The appliances can be
moved easier.
u
Push both appliances to approx. 10 mm of each other so
that they are positioned flush facing forwards.
u
Straighten the appliances up using a spirit level on the top of
the appliance.
Top front of the appliance:
Side by side assembly
4 * Depending on model and options
Fig. 11
u
Remove the existing covers.
u

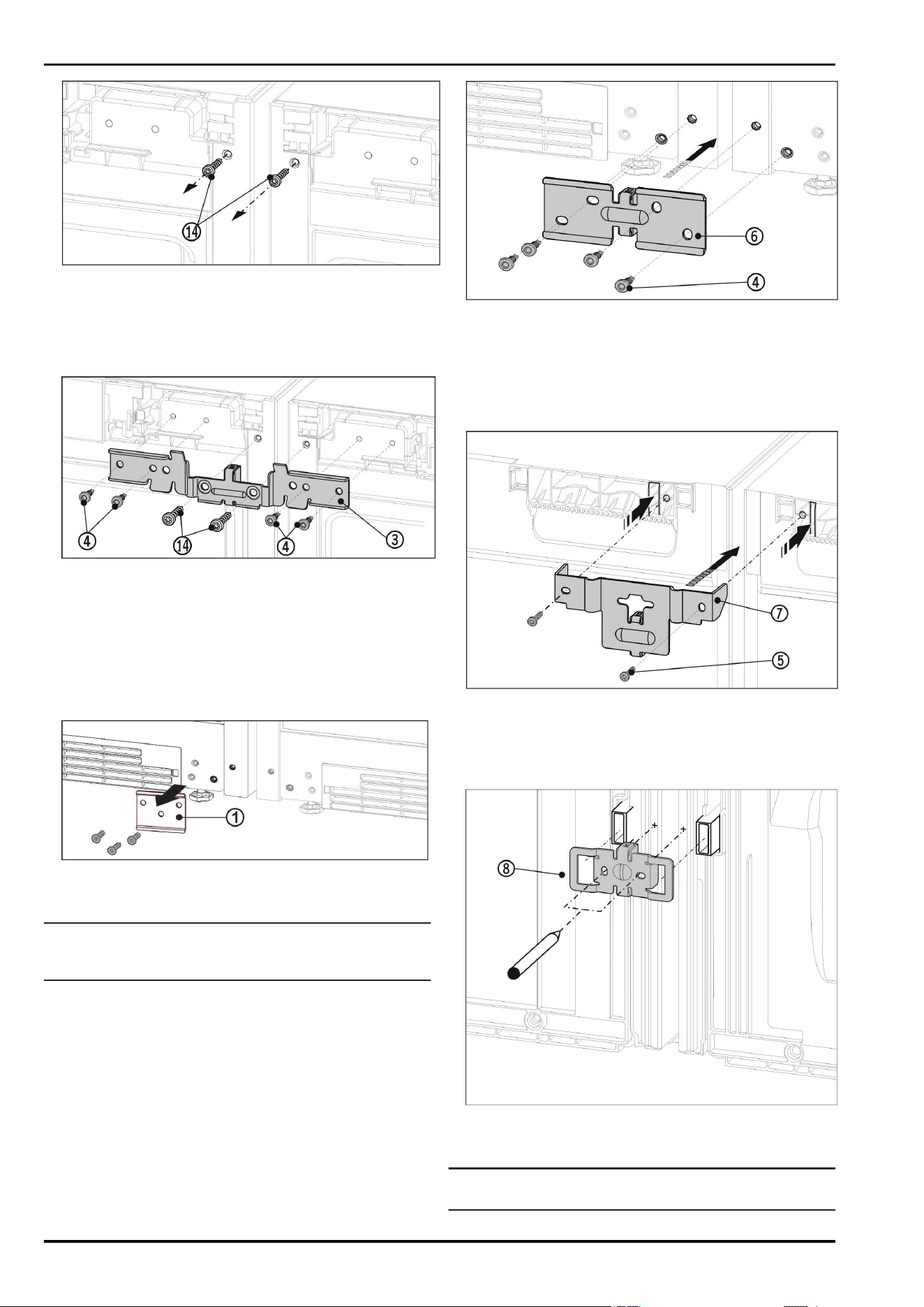

Before fitting the top bracket remove both earthing screws
Fig. 11 (14)
.
u
Store the earthing screws safely. The screws will be
necessary for fitting the bracket as shown below.
Fig. 12 Example illustration
u
Slide the bracket
Fig. 12 (3)
onto the pins with the spacer
between the appliances. Loosely screw in the brackets alter-
nately right and left with four screws
Fig. 12 (4)
and the
previously removed earthing screws
Fig. 12 (14)
.
u
If necessary: Check the appliance is stood straight by laying
a spirit level on the top of the appliance.
Bottom front of the appliance:
u
Remove the existing covers.
Fig. 13
u
If the metal plate
Fig. 13 (1)
is installed, unscrew the metal
plate.
Note
If you want to transport the appliance or set it up as an indi-
vidual appliance, you must re-attach the metal plate.
Fig. 14 Example illustration
u
Slide the bracket
Fig. 14 (6)
on with the spacer between
the appliances and screw in loosely with the 4 screws
Fig. 14 (4)
.
u
If necessary: Set up the appliances so that they are level.
u
Tighten the screws firmly at the top and bottom.
Top rear of the appliance:
Fig. 15 Example illustration
u
Slide the bracket
Fig. 15 (7)
onto the appliance ceiling with
the lugs and with the spacer between the appliances. Screw
in firmly with 2 screws
Fig. 15 (5)
.
Bottom rear of the appliance:
Fig. 16 Example illustration
u
Slide the bracket
Fig. 16 (8)
on with the slots over the
retainer for the wall spacers.
Note
Holes for the screws must be pre-drilled.
Side by side assembly
* Depending on model and options 5
u
Mark the position of the holes to be drilled with a pencil.
u
Remove the bracket again.
Fig. 17
Note
Only drill through the metal plate. Drilling depth approx. 1 mm.
u

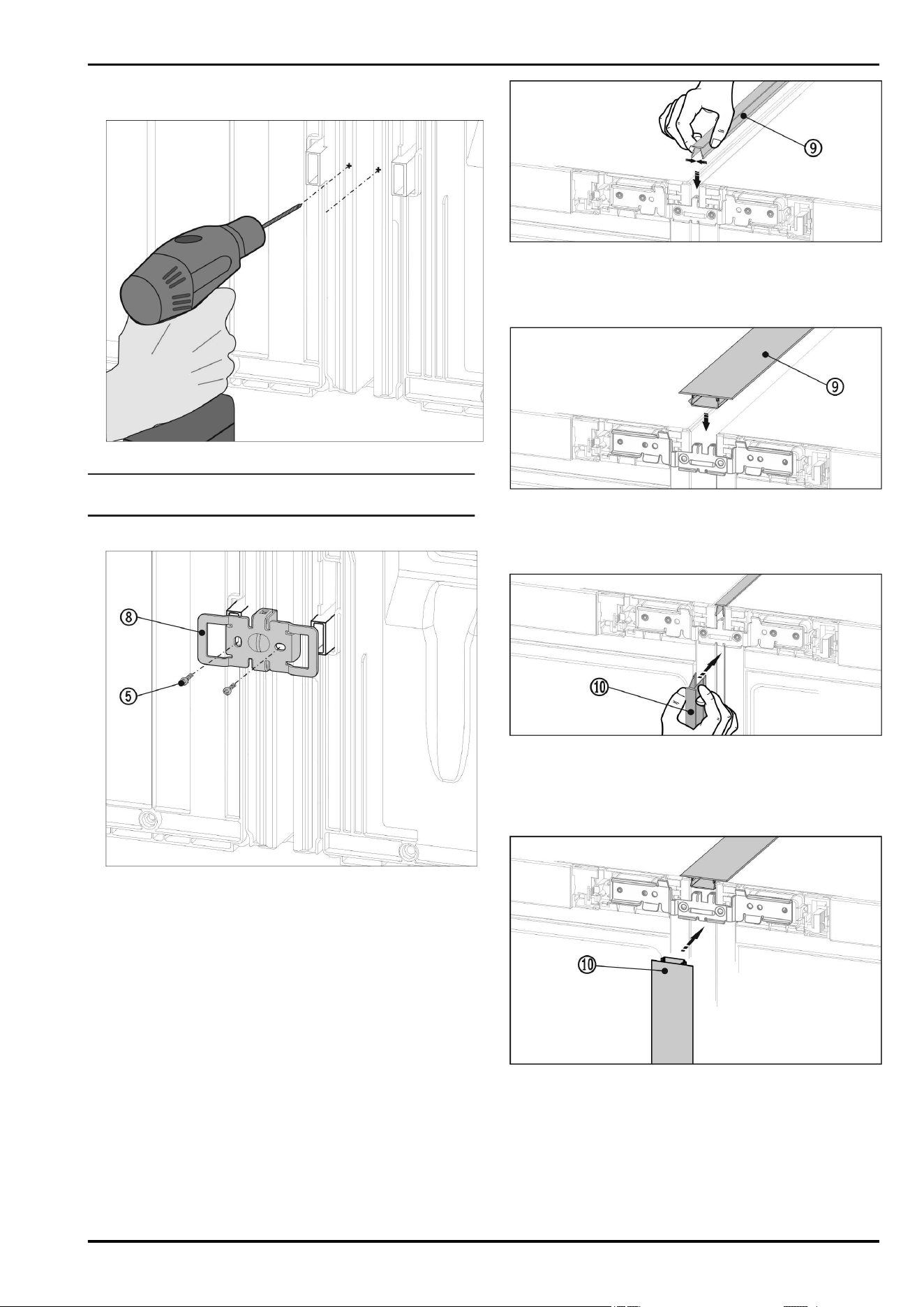

Pre-drill the screw holes with a 3 mm drill and deburr.
Fig. 18 Example illustration
u
Slide the bracket
Fig. 18 (8)
on once more with the slots over
the retainer for the wall spacers.
u
Screw in tightly with the 2 screws
Fig. 18 (5)
.
Before fitting the top and front cover strips, push the two bars
together over the whole length. The strips can be inserted more
easily into the gap. Use a soft cloth to push the strips in to avoid
dents in the surface of the cover strips. Press the strips into the
gap carefully and evenly in order to achieve an optimum bond.
For appliances with lever handle
Fig. 19
u
On the top press the short cover strip
Fig. 19 (9)
into the
horizontal gap.
For appliances with recessed grip
Fig. 20
u
On the top press the short cover strip
Fig. 20 (9)
into the
horizontal gap.
For appliances with lever handle
Fig. 21
u
On the front, press the long cover strip
Fig. 21 (10)
into the
vertical gap. Ensure that the strip rests on the connecting
plate.
For appliances with recessed grip
Fig. 22
u
On the front, press the long cover strip
Fig. 22 (10)
into the
vertical gap. Ensure that the strip rests on the connecting
plate.
u
Take off the protective film from the cover strip.*
Top front of the appliance:
Side by side assembly
6 * Depending on model and options
Fig. 23 Example illustration
u

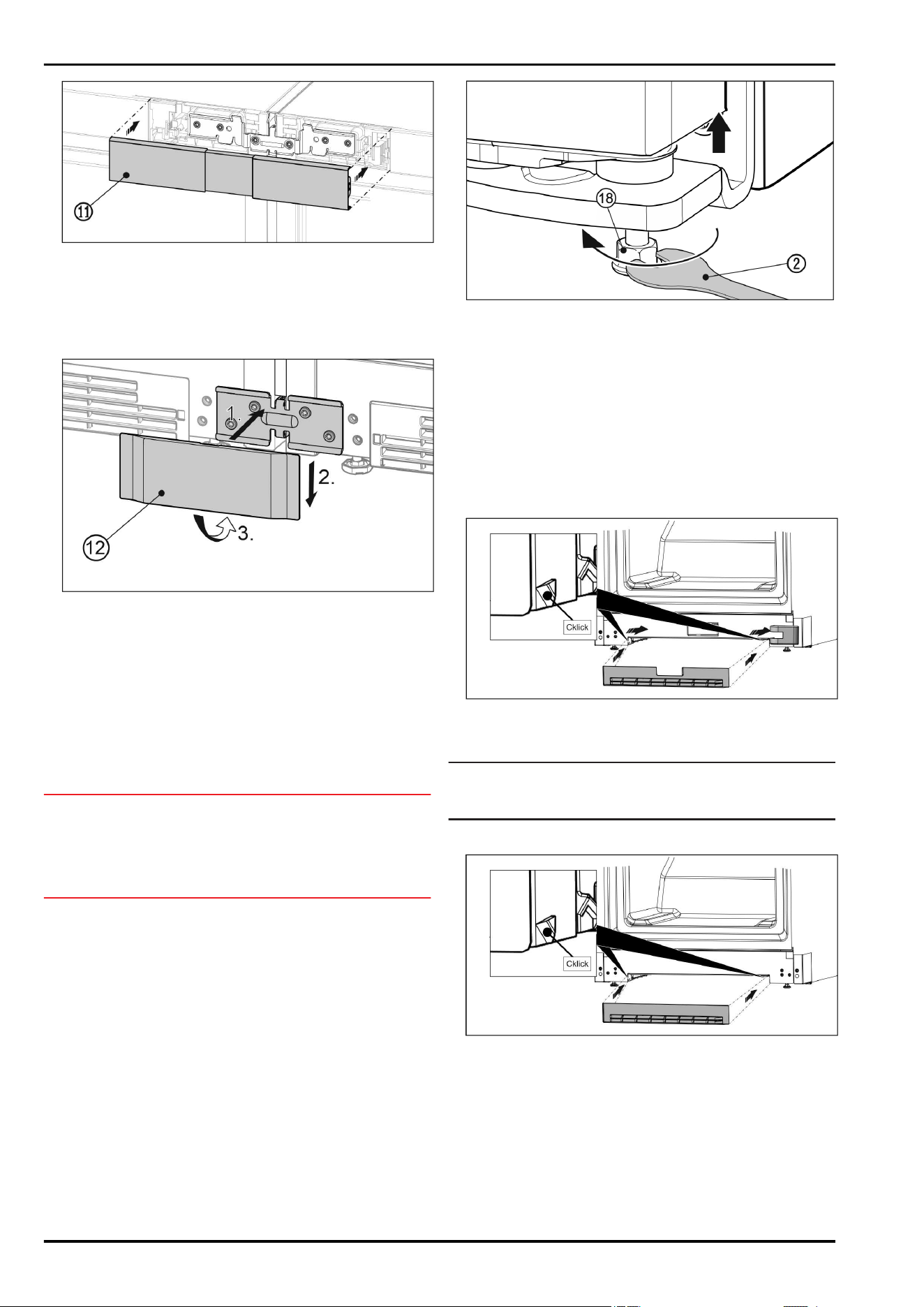

Snap the top cover
Fig. 23 (11)
onto the still open gap
between the two control panel trims. Make sure that the
outer sides of the cover form a flush finish with the control
panel trims.
Bottom front of the appliance
Fig. 24 Example illustration
u
Place the bottom cover
Fig. 24 (12)
onto the bracket from
the front
Fig. 24 (1)
, slide it down
Fig. 24 (2)
and snap it in at
the bottom
Fig. 24 (3)
.
u
To disassemble the cover, insert a screwdriver at the bottom
on the side below the cover and release both lower hooks.
The cover can swing out upwards.
u
Connect the combination electrically. See the installation
guide.
Appliances with IceMaker:
u
Connect the appliance to the fixed water connection. See
the installation guide.
NOTICE
Risk of damage when moving the combined SBS appliance!
The combined SBS appliance is heavy once assembled. The
appliance may be dented by improper movement.
u
Observe the information given on moving the appliance (see
above).
u
Carefully push the SBS combination into the specified posi-
tion.
u
If necessary, align the SBS combination using the levelling
feet.
u
Then prop up the door: Lower outer adjusting feet on the
bearing bracket until they are resting on the floor.
The doors can be straightened at height on the outer lower
bearing brackets:
u
Open door to 90 °.
Fig. 25
u
To lift the door, unscrew the adjusting foot
Fig. 25 (18)
clock-
wise using the supplied open-ended spanner
Fig. 25 (2)
until the foot makes contact with the floor. Then continue
turning until the door is adjusted to the right height. When
delivered, the bearing pin is completely screwed in.
Fit decorative base trim.
After you have assembled and straightened out the appliances,
the base trims can be fitted at the bottom of the appliances.
The base trims are decorative and will not affect the function-
ality of the appliances.
For appliances with bottom soft stop mechanism
Fig. 26
u
Secure the base trim recess at the bottom of the appliance,
as shown in the figure.
Note
The trim must be pushed to a little behind the bearing bracket
cover.
For appliances without bottom soft stop mechanism
Fig. 27
u
Secure the base trim recess at the bottom of the appliance,
as shown in the figure.
Side by side assembly
* Depending on model and options 7
home.liebherr.com/fridge-manuals
Side-by-Side combinations
Issue date: 20220622
Part number index: 7086149-00
Liebherr-Hausgeräte Marica EOOD
Bezirk Plovdiv
4202 Radinovo
Bulgarien
