Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.

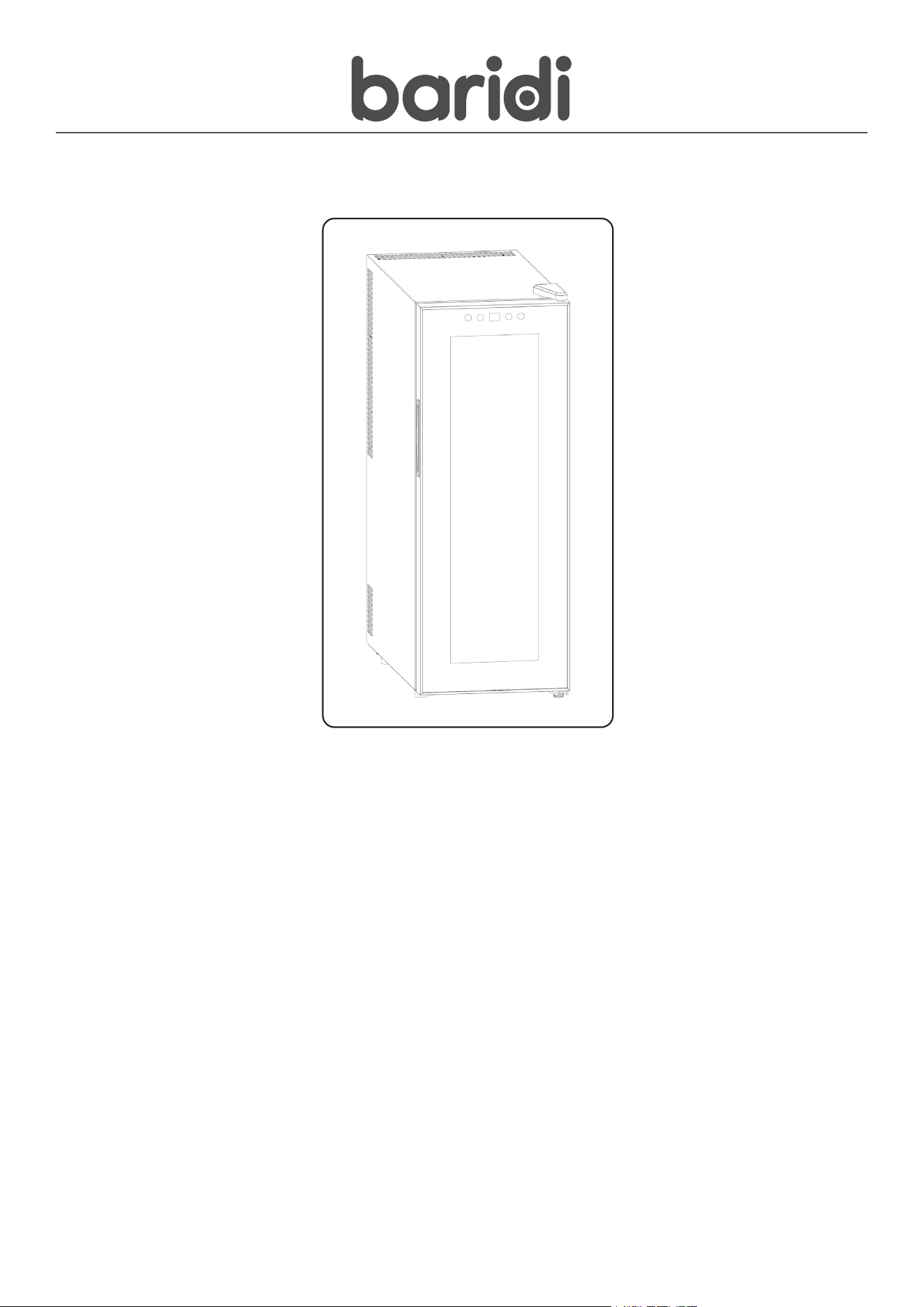

Baridi 12 Bottle Wine Fridge Cooler, Super Quiet 25dB, Touch
Control, LED
Model No’s: DH73.V3, DH74.V2
DH73.V3 DH74.V2 Issue: 1 29/07/24
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions. Use the product correctly and with care
for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
Specication
• Model no: DH73.V3, DH74.V2
• Capacity: 12 Bottles
• Frequency: 50Hz
• Product Dimensions DH73: 273 x 547 x 740mm DH74: 273 x 547 x 740mm
• Maximum Bottle Height: 330mm
• Noise Level DH73: 25dB DH74: 25dB
• Power Cable Length: 2m
• Rated Current: 55W
• Climate Class: N
• Foaming Gas: Cyclopentane
• Temperature Range DH73: 12-18ºC DH74: 12-18°C
• Voltage: 230V
.SAFETY INSTRUCTIONS
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using.
• Inspect power supply leads, plugs and all electrical connections for wear and damage.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensure that any faulty item is repaired or is replaced immediately by a qualied electrician.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
• Ensure that repairs are carried out by a qualied electrician.
• Sealey recommend that an RCD (Residual Current Device) is used with all electrical products.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the correct fuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
GENERAL SAFETY
• WARNING!
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
• To avoid a hazard due to instability of the appliance, it must be xed in accordance with the instructions.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the
manufacturer.
• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, ofces and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
• To avoid contamination of drink, please respect the following instructions:
• Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h, ush the water system connected to a water supply if water has not been drawn for
5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing
within the appliance.
Indoor use
only
• INSTALLATION
• The unit is designed to be free-standing. Ventilation Space - there should be a total of at least 200cm³around the fridge, a minimum space
of 20mm is required for the rear and top of the fridge, 30mm for both sides and 50mm under the base. This will maximise the efciency,
performance and life of the fridge and also ensure that there is sufcient space for the hinge to operate effectively. DO NOT locate the unit in a
damp or moist location.
• Ensure that the oor surface is strong and stable enough to support the unit when it is fully loaded.
• Level the unit when in location by using the adjustable levelling feet in each corner.
• Once in position allow the unit to rest for an hour before turning it on.
• Allow the unit 2 - 3 hours to reach set temperature after switching on before placing any items in the compartment.
• It is recommended the fridge is installed in a location where the ambient temperature is between 16-32°C. If the ambient temperature is above
or below recommended temperature the performance of the unit may be affected. For example placing the unit in extreme hot or cold conditions
may cause the interior temperature to uctuate. The range of 8-18°C may not be reached.
OPERATION
CONTROL PANEL
• Set temperature display in °F or °C by pressing this button for 2 seconds. Fahrenheit or Celsius temperature reading will appear in the
LED temperature display window.
• LIGHT
• Press button once to turn light on/off. Light turns off automatically after 10 minutes.
• CONTROL PANEL LOCK
• Fridge has an automatic control panel lock which activates 20 seconds after the last button has been touched.
• Push the button for 2 seconds to unlock the control panel. A beep will sound to denote the panel is now active.
• SET TEMPERATURE
• Push up/down buttons to select temperature. Each press = 1°C.
• NOTE: When using fridge for the rst time or restarting after it has been shut off for a long time, there could be a variance between the
temperature selected and the one indicated on the LED readout. This is normal and is due to the length of the activation time. Once the fridge has
been running for a few hours, everything will get back to normal operation.
• INSTALLATION
• Position so that the mains plug is accessible.
• Keep out of direct sunlight.
• DO NOT place next to any heat generating appliance.
• DO NOT place directly onto the ground. Use a suitable stand.
• Fridge will perform better at an ambient temperature of 16-32°C. Power off if the ambient temperature is lower than 10°C.
• After plugging in the fridge, allow the unit to cool down for 2-3 hours before use.
• VENTILATION is very important for this type of thermoelectric cooler. The product’s life will be reduced if correct ventilation requirements are not
met:
• There should be at least 200cm³ for ventilation.
TROUBLESHOOTING
Fault Possible reason Action
No cooling No power Check mains supply
PCB Replace PCB
Fan broken Replace fan
Leakage Replace heat pump
Cooling module broken Fit new cooling module
Poor cooling performance High ambient temperature Room temperature is hotter than normal
Poor insulation Door is opened too often
Poor ventilation Install fridge according to requirements in
the manual
Door gasket failure Replace gasket
Silicone failed on surface of the
cooling module
Replace silicone on surface of cooling
module
Noisy Dust Clean dust from the fan
Fan broken Fit new fan
Heat pump faulty Fit new heat pump
Environment Protection and Waste Protection and Electrical Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of it’s useful life, please dispose of it in
an environmentally friendly way. Drain any fluids (if applicable) into approved containers, in accordance with local waste regulations. Under the
Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the user that this product contains one or more batteries. It
is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is
accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Frost or ice inside fridge No defrosting Turn o for an hour then restart
Low ambient temperature
