Baridi 1.5L Ice Cream Machine with Fast Freeze Compressor
Cooling - Black
Model No. DH240
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly
maintained, give you years of trouble free performance.

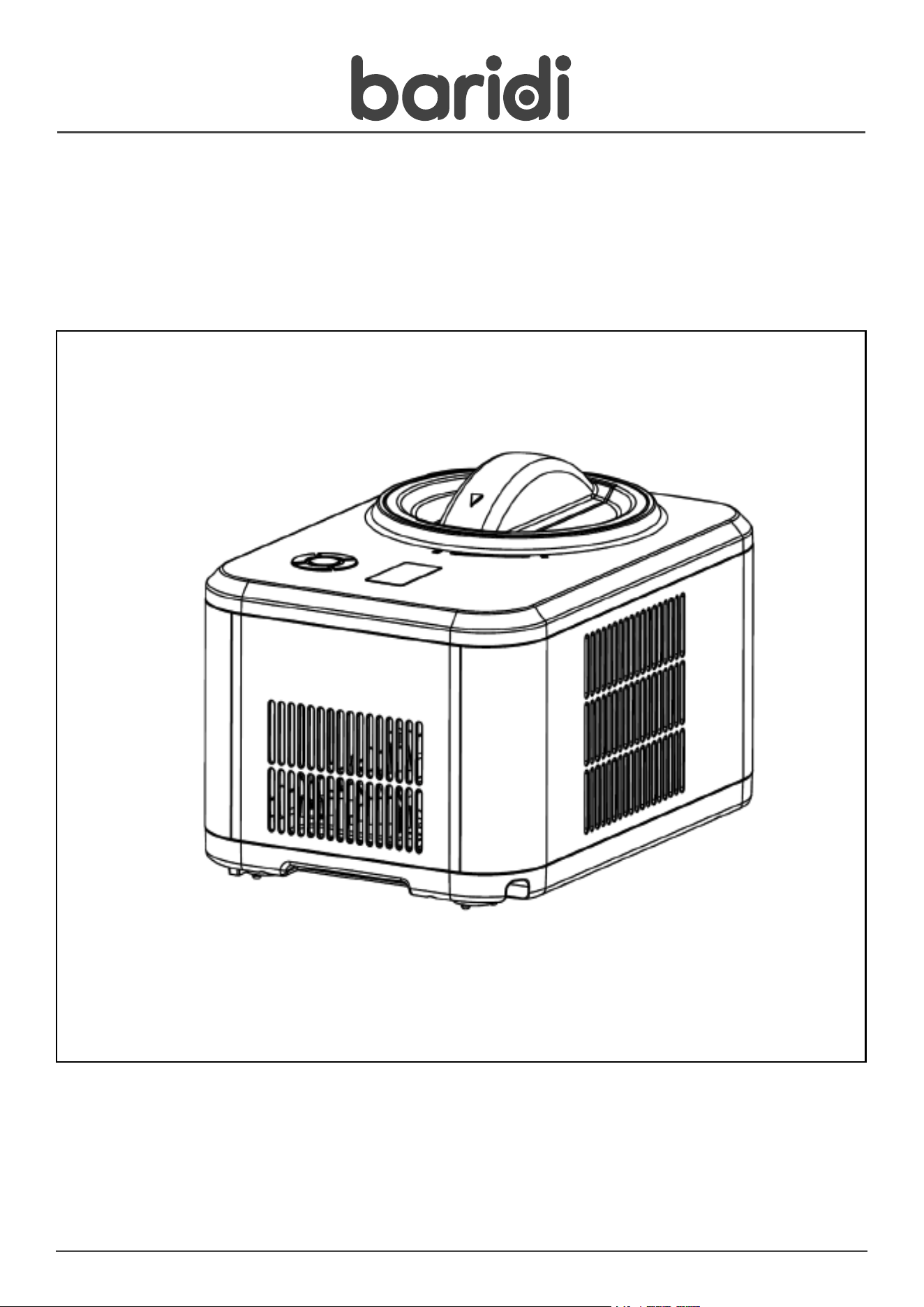

LINE
DRAWING
www.dellonda.co.uk
DH240 Issue:2 08/05/24
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings & cautions. Use the product correctly and with
care for the purpose for which it is intended. Failure to do so may cause damage and/or personal injury and will invalidate the warranty. Keep
these instructions safe for future use.
Refer to
instruction
manual
Warning:
ammable
Specication
Capacity 1.5L
Cooling Range -18 to -35°C
Energy Rating G
Nett Weight 8.7kg
Power Consumption 120W
Product Dimensions (W x D x H) 245 x 380 x 270mm
Supply 220-240V - 50Hz
Vesicant Cyclopentane (C
5
H
10
)
Safety Instructions
ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
9 Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products.
Electrical safety information. It is important that the following information is read and understood:
9 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9 Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse.
8 DO NOT pull or carry the appliance by the power cable.
8 DO NOT pull the plug from the socket by the cable.
8 DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately by a
qualied electrician.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use. If the supply cord is damaged it must
be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.
Ensure that repairs are carried out by a qualied electrician.
GENERAL SAFETY
• Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities those with lack of experience and
knowledge can use the appliance, if they have been given supervision or instruction concerning use of the appliance in a safe way to
understand the hazards involved.
• Children shall NOT play with the appliance. Cleaning and user maintenance of the appliance shall not be made by children without
supervision.
• The appliance shall be disconnected from its power source during service and when replacing parts and, if that the removal of the plug is
foreseen, it shall be clearly indicated that the removal of the plug has to be such that an operator can check from any of the points to which
he has access that the plug remains removed.
8 DO NOT store explosive substances such as aerosol cans with a ammable propellant in this appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, ofces and other
working environments; – farm houses and by clients in hotels, motels and other residential type environments: bed and breakfast type
environments, catering and similar non-retail applications.
• To avoid contamination of food, please respect the following instructions:
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING! DO NOT locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
8 DO NOT expose to rain.
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING! DO NOT use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the
manufacturer.
WARNING! DO NOT damage the refrigerant circuit.
WARNING! DO NOT use electrical appliances inside the food storage compartments of the appliance, unless they are of the type
recommended by the manufacturer.
3
• Caution: risk of re / Flammable materials The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance,
a natural gas with a high level of environmental compatibility, which is nevertheless ammable. During transportation and installation of
the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.
• If the refrigerant circuit should be damaged:
• Avoid opening ames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.
• The plug must be removed before cleaning, maintaining or lling the appliance
8 DO NOT upend this product or incline it over a 45
o
angle.
• To protect against risk of electric shock, DO NOT pour water on cord, plug and ventilation, immerse the appliance in water or any other
liquid.
• Unplug the appliance after using or before cleaning.
• Keep the appliance 8cm from other objects to ensure the good heat releasing.
8 DO NOT use the accessories which are not recommended by Manufacturer.
8 DO NOT use the appliance close to naked ames, hot plates or stoves.
8 DO NOT switch on the power button frequently (ensure 5min. interval at least) to avoid the damage of compressor.
• Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid re and short circuit.
• When removing the ice cream, DO NOT knock the barrel or edge of barrel to protect the barrel from damage.
8 DO NOT switch on the power before install well the barrel or blender blade.
• The initial temperature of the ingredients is 20±3
o
DO NOT put the ingredients into freezer for pre-freeze, as it will easily make the blender
blade blocked before the ice cream is in good condition.
8 DO NOT remove the blender blade when the appliance is on working.
8 DO NOT use outdoors.
• Never clean with scouring powders or hard implements.
ASSEMBLY
WARNING!: Please ensure the ice cream maker is unplugged from power supply.
• IMPORTANT: Always place Ice Cream Maker upright on a at surface in order that the built-in compressor can provide best performance.
Place the mixing bowl (g.1.4) into the xed bowl in the machine body.
Clip the motor (g.1.1) into the motor mounting lid (g.1.2).
Press the mixing blade (g.1.3) onto the motor shaft to x it in position.
Place the assembled motor, lid and blade into the mixing bowl and rotate whole unit clockwise to lock into position.
Key to g. 1
Item Description
1 Motor
2 Motor mounting lid
3 Mixing blade
4 Mixing bowl
5 Control Panel (see Operating section)
1
2
3
4
5
g. 1
4
BEFORE MAKING ICE CREAM
• Before use, thoroughly wash all parts that will come into contact with the ice cream (including the xed bowl, removable bowl, mixing blade,
transparent lid, rell lid, measuring cup and spoon).
• The initial temperature of the ingredients is to be 20±3
o
C. DO NOT put the ingredients into freezer for pre-freezing as this will make the mixing
blade blocked and possibly overload the motor before the ice cream is in edible condition.
• Prepare recipe ingredients from your own recipe or from the recipe section and carefully pour the ingredients into the mixing bowl.
• NOTE: You should not freeze the mixture in advance, this machine has a built-in compressor that freezes the ingredients whilst in operation to
make the ice cream.
• CONTROLS
• MODES
• ICE CREAM MODE - See Operation Section
• SINGLE COOLING MODE
• Single cooling function is a standalone function if the user would like to cool the contents of the bowl only.
• SINGLE MIXING MODE
• Single mixing function is the same as Single Cooling mode, but only mixes the contents of the bowl whereas if the ice cream function is selected
it will do both.
• YOGHURT MODE - See Operation Section
• KEEP COOL MODE
• Keep cool function comes on automatically after using the ice cream/yoghurt function. If the machine is not used after operation, this will be on
for one hour, after the hour has nished the machine will go into standby mode.
•
• OPERATION
WARNING! To avoid contamination of food, regularly clean all surfaces that can come in contact with food and accessible drainage
systems.
• Operation process for making Ice cream
• Press the On / Off button to power up the machine.
• Press the Start / Pause button to start the machine.
• Press the Function Selection button to select the Ice Cream mode icon.
• The Ice cream default production mode time is 60 minutes. If you need to adjust the working time, press the “+” and “-” buttons. Press the button
once to change for 1 minute, and hold for 2 seconds to change quickly, up to 60 minutes.
• After setting the time, press the Start / Pause button to count down the time and start making ice cream at the same time.
• In this process, if you press the start / Pause button, the machine will stop working, and the screen will display the time when it stops. If
you press the Start / Pause button again,the machine will continue to work according to the currently set mode and the remaining time.
• When the time or soft hardness reaches the set value, 10 beeps will prompt completion.
• After the production process is completed, if there is no other operation, it will automatically enter the insulation program.
• Consume ice cream or store it in the refrigerator to avoid melting.
• Operation process for single cooling function
• Press the On / Off button to power up the machine.
• Press the Function Selection button, select the Cooling mode icon and enter the single cooling mode.
• In the single cooling mode, if you need to adjust the working time, press the “+” and “-” buttons. Press the button once to change for 1 minute, and
press it for 2 seconds to change quickly, up to 60 minutes.
• After setting the time, press Start / Pause button to start refrigeration. In this process, if you press the button, the machine will stop working, and
• the screen will display the time when it stops. If you press the Start / Pause button again, you will continue to work according to the currently set
mode and the remaining time. When the time reaches the set value the unit will emit 10 beeps.
• Operation process for single mixing
• Press the On / Off button to power up the machine.
• Press the Function Selection button, select the icon and enter the single mixing mode.
• Press the Start / Pause button to start the machine.
• In the single mixing mode, if you need to adjust the working time, press the “+” and “-” buttons. Press the button once to change for 1 minute, and
press it for 2 seconds to change quickly, up to 60 minutes.
• After setting the time, press the Start button to start single mixing, and select the time to start the countdown. In this process, if you press the
button, the machine will stop working, and the screen will display the time when it stops. If you press the button again, you will continue to work
• according to the currently set mode and the remaining time.
• When the time reaches the set value or the Motor / Compressor Self Protection mode engages (see Function section), 10 beeps will prompt the
completion of mixing.
Working time display
Cooling
mode
Mixing
mode
Ice Cream
mode
Yoghurt
mode
On / Off
Increase
working time
Start / Pause
Function selection
Decrease
working time
5
• OPERATION PROCESS FOR YOGURT FUNCTION
• Press the On / Off button to power up the machine.
• Press the Function Selection button, select the Yoghurt icon and enter the yogurt mode.
• Press the Start / Pause button to start the machine.
• In the Yogurt mode, if you need to adjust the working time, press the “+” and “-” buttons. Press the button once to change for 1 minute, and press
it for 2 seconds to change quickly, up to 60 minutes.
• After setting the time, press Start button to start refrigeration, and select the time to start countdown. In this process, if you press the button, the
machine will stop working, and the screen will display the time when it stops. If you press the button again, you will continue to work according to
the currently set mode and the remaining time.
• When the time reaches the set value, 10 beeps will prompt completion.
• KEEP COOL FUNCTION
• Ice cream insulation function:
• If Ice cream cannot be eaten or stored immediately after the completion of production, this could cause the ice-cream to melt.
• When the ice-cream making is completed but no one operates the unit, it will automatically enter the insulation program.
• The insulation time is 1 hour. After 1 hour, the machine will enter the standby state.
• MOTOR SELF-PROTECTION FUNCTION
• In the Single mixing and Ice cream modes, as the production time becomes longer, the ice cream becomes harder and harder, and the mixing
motor will be locked in advance. At this time, the PCB will monitor the motor and automatically stop the motor to ensure the service life of the
mixing motor.
• COMPRESSOR SELF-PROTECTION FUNCTION
• When the compressor stops after Ice cream mode or Cooling only mode and either mode is immediately selected again, the compressor will have
a self-protection time of about 3 minutes. However, after the power cord is plugged in, the machine is restarted by default. At this time, there is no
delay in selecting Ice cream mode or Cooling only mode.
• MAINTENANCE
• WARNING!: The plug must be removed before cleaning to avoid electric shock.
• Take out the mixing blade, rinse in clean warm water and wipe it with a dampened cloth.
• Take out the removable bowl, clean it with a dampened soft cloth.
• Wipe the transparent lid and rell lid with a dampened cloth.
• Remove any residue, spills or on the body or other places with a dampened cloth, and do not pour water on cord, plug and ventilation, immerse
the appliance in water or any other liquid.
• Allow drying thoroughly with a dry cloth, then return the component to the home position.
• RECIPES
• WARNING! To avoid contamination of food, regularly clean all surfaces that can come in contact with food and accessible drainage systems.
• ICE CREAM RECIPE MANUAL
• VANILLA ICE CREAM
• 240g whole milk
• 115g granulated sugar
• 180g heavy cream, well chilled
• 1 – 2 teaspoons pure vanilla extract, to taste
• In a medium bowl, use a hand mixer or a whisk to combine the milk and granulated sugar until the sugar is dissolved, about 1 – 2 minutes on
low speed. Stir in the heavy cream and vanilla to taste. Turn machine on, pour mixture into freezer bowl through ingredient spout and let mix until
thickened, about 50 – 60 minutes.
• BASIC CHOCOLATE ICE CREAM
• 240g whole milk
• 115g granulated sugar
• 240g bitter-sweet or semi-sweet chocolate (your favourite), broken into 1.2cm pieces
• 240g heavy cream, well chilled
• 1 teaspoon pure vanilla extract
• Heat the whole milk until it is just bubbling around the edges (this may be done on the hob or in a microwave). In a blender or food processor
tted with the metal blade, pulse to process the sugar with the chocolate until the chocolate is very nely chopped. Add the hot milk, process until
well blended and smooth. Transfer to a medium bowl and let the chocolate mixture cool completely. Stir in the heavy cream and vanilla to taste.
• Turn the machine on, pour mixture into freezer bowl through ingredient spout and let mix until thickened, about 30 – 40 minutes.
• Nutritional analysis per serving:
• FRESH STRAWBERRY ICE CREAM
• 250g fresh ripe strawberries, stemmed and sliced
• 52.5g freshly squeezed lemon juice
• 115g sugar, divided
• 240g whole milk
• 240g heavy cream
• 1 teaspoon pure vanilla extract
• In a small bowl, combine the strawberries with the lemon juice and 115g of the sugar; stir gently and allow to the strawberries to macerate in the
juices for 2 hours.
• In a medium bowl, use a hand mixer or a whisk to combine the milk ,and granulated sugar until the sugar is dissolved. Stir in the heavy cream plus
any accumulated juices from the strawberries and vanilla. Turn the machine on, pour mixture into freezer bowl through ingredient spout and let
mix until thickened, about 30 – 40 minutes. Add the sliced strawberries during the last 5 minutes of freezing.
• FRESH LEMON SORBET
• 350g sugar
• 420g water
• 120g freshly squeezed lemon juice
6
• 0.5 tablespoon nely chopped lemon zest
• Combine the sugar and water in a medium saucepan and bring to a boil over medium-high heat. Reduce heat to low and simmer without stirring
until the sugar dissolves, about 3 – 5 minutes. Cool completely. This is called a simple syrup, and may be made ahead in larger quantities to have
on hand for making fresh lemon sorbet. Keep refrigerated until ready to use.
• When cool, add the lemon juice and zest; stir to combine. Turn the machine on, pour the lemon mixture into freezer bowl through ingredient spout
and mix until thickened, about 50 – 60 minutes.
• CHOCOLATE FROZEN YOGURT
• 240g whole milk
• 180g bitter-sweet or semisweet chocolate, chopped
• 400g low-fat vanilla yogurt
• 50g sugar
• Combine the milk and chocolate in a blender or food processor tted with the metal blade and process until well blended and smooth, then Add
the yogurt and sugar; process until smooth, about 15 seconds. Wait for full cooling. Turn the machine on, pour mixture into freezer bowl through
ingredient spout and let mix until thickened, about 50-60 minutes.
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 suppor[email protected] www.dellonda.co.uk
Environment Protection, Waste Electrical and Waste Electronic Equipment Regulations
(WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has reached the end of its useful life, please dispose
of in an environmentally friendly way. Drain any uids (if applicable) into approved containers, in accordance with local waste regulations.
Please note that this product contains one or more batteries. It is our policy to continually improve products and we reserve the right to
alter data, specications and parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months
from purchase date, proof of which is required for any claim.
