Model No.s - DH94 (White), DH95 (Black)
Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard, this
product will, if used according to these instructions, and properly maintained, give you years of trouble
free performance.
DH94, DH95 Issue:1 27/01/22

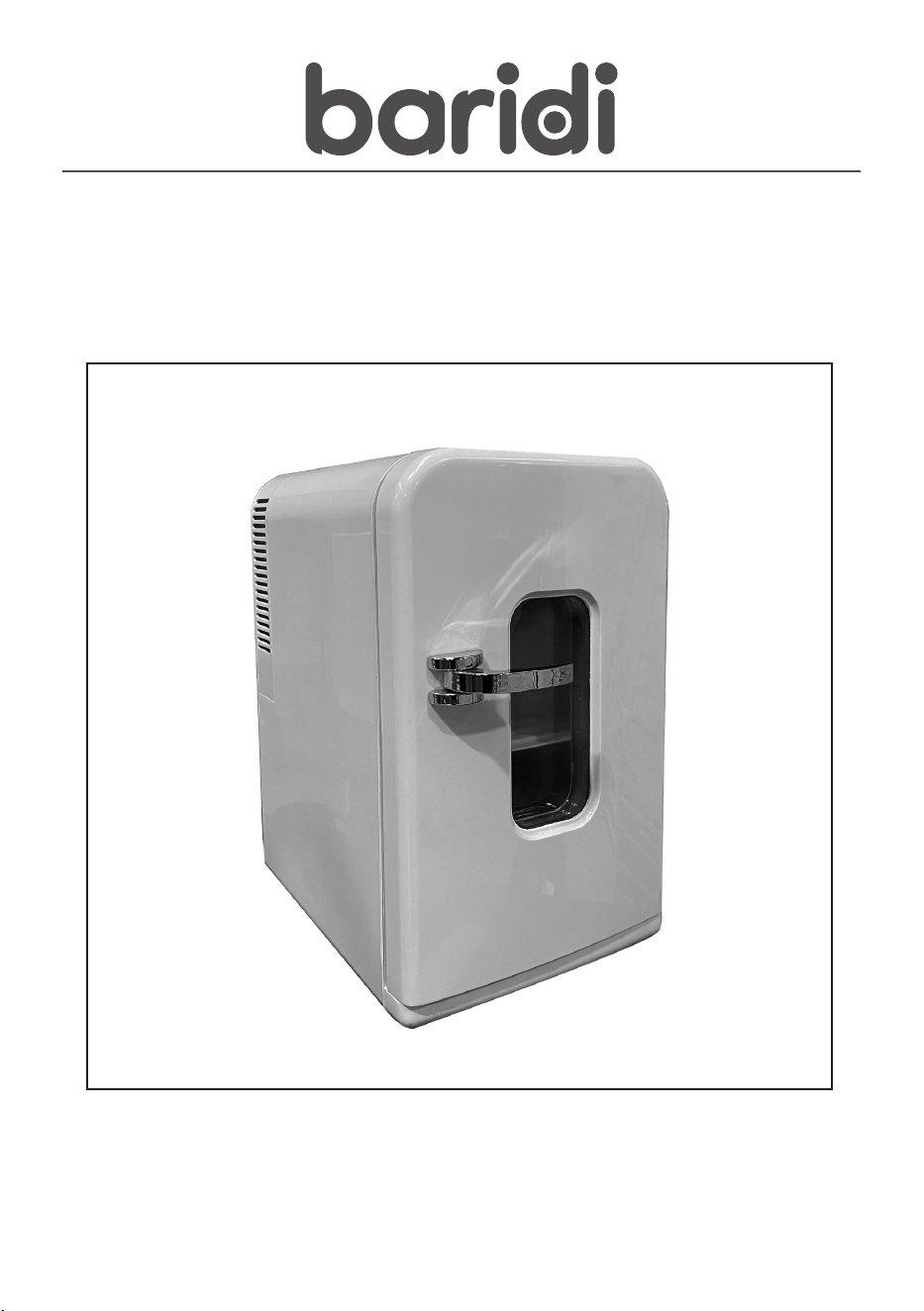

Baridi 15L Mini Fridge Cooler & Warmer
12V/230V Perfect for Car Bedroom,
Camping
2
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instruction
manual
About the Product
15L mini fridge/warmer is perfect for road trips
and for the home. Ideal for storing cans, food,
makeup, cosmetics. Can be used for cooling
and warming. Features carry handle making it
easy and convenient to move around. Supplied
with an AC to DC adaptor, giving you the option
to use at home as well in your vehicle with a
12V battery.
SAFETY INSTRUCTIONS
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to
check the following:
• Check all electrical equipment and appliances
to ensure that they are safe before using.
Inspect power supply leads, plugs and all
electrical connections for wear and damage.
Dellonda recommend that an RCD (Residual
Current Device) is used with all electrical
products. You may obtain an RCD by
contacting your local domestic stockist.
If the product is used in the course of
business duties, it must be maintained in a
safe condition and should be routinely PAT
(Portable Appliance Test) tested.
• Electrical safety information: It is important
that the following information is read and
understood.
• Ensure that the insulation on all cables and on
the appliance is safe before connecting it to
the power supply.
• Regularly inspect power supply cables and
plugs for wear or damage and check all
connections to ensure that they are secure.
• Important: Ensure that the voltage rating on
the appliance suits the power supply to be
used and that the plug is tted with the correct
fuse - see fuse rating in these instructions.
• DO NOT pull or carry the appliance by the
power cable.
• DO NOT pull the plug from the socket by the
cable.
• DO NOT use worn or damaged cables, plugs or
connectors.
• Ensure that any faulty item is repaired or
replaced immediately by a qualied electrician.
• This product is tted with a BS1363/A 13 Amp
3 pin plug.
• If the cable or plug is damaged during use,
switch off the electricity supply and remove
from use.
• Replace a damaged plug with a BS1363/A 13
Amp 3 pin plug. If in doubt contact a qualied
electrician.
• Class II products are wired with live (brown)
and neutral (blue) only, and are marked with
the Class II symbol.
A) Connect the BROWN live wire to the live
terminal ‘L’.
B) Connect the BLUE neutral wire to the
neutral terminal ‘N’.
C) Check that there
are no bare wires
and ensure that all
wires are correctly
connected.
Ensure that cable
outer sheath extends
inside the cable
restraint and that the
restraint is tight
DO NOT connect
either wire to the
earth terminal.
• Baridi recommend that repairs are carried out
by a qualied electrician.
• Modern vehicles contain extensive electronic
systems. You are required to check with
the vehicle manufacturer, for any specic
Keep unit dry
Recommended fuse rating:
3A
3
instructions regarding the use of this type of
equipment on each vehicle. No liability will
be accepted for damage/injury, where this
product is not used in accordance with all
instructions.
• GENERAL SAFETY
• Leave the unit to stand on a level surface
for 6 hours after unpacking and before rst
switch-on.
• Keep the unit horizontal while it is running.
• Allow 10cm side and 20cm rear space for
ventilation.
• Keep the unit dry and away from any heat
source.
• SPECIFICATION
• Model no’s.:..........DH94 (White) DH95 (Black)
• Capacity........................................................15L
•
Power Consumption.................................93kWh
• Dimensions (w x d x h)......330 x 260 x 420mm
• Noise Power/Pressure...............................53dB
• OPERATION
• COOLING FUNCTION
The cooler’s regulated chiller function lets
you chill food and drink. For the best results,
It is recommended that items placed in the
cooler be pre-chilled to assist the cooler
reaching the lowest temperature as quickly as
possible. These will hold their temperature.
This function is ideal when switching on the
appliance and when the outside temperature
is warm.
In ECO mode, the cooler will automatically
regulate the temperature, so as to consume
as little electricity as possible. This function
is ideal for when the appliance is cold on the
inside or the temperature outside is cool.
Cooler will continue to operate as long as
power is supplied. Contents will stay cool for
some time after unit is disconnected or turned
off. However, temperature will rise to that of
the surrounding air over time. Exercise normal
cautions that you would for any food in a
cooling device.
• DO NOT put ice or icepacks in the cooler. It will
take about 30 minutes to reach the maximum
cooling temperature of 15
o
C below that of
ambient (minimum 10
o
C).
• HEATING FUNCTION
The cooler’s regulated heater function lets
you heat food and drink. This function is ideal
when the outside temperature is cold.
In ECO mode, the cooler will automatically
regulate the temperature, so as to consume as
little electricity as possible.
This function is ideal when the outside
temperature is not very cold.
It is recommended that items placed in the
warmer be pre-heated to assist the warmer
reaching the highest temperature as quickly
as possible. Warmer will continue to operate
as long as power is supplied. It will take about
30 minutes to reach the maximum warming
temperature of approximately 60
o
C.
• NOTE: The warmer is intended to maintain the
temperature of pre-heated food and beverages
only. It is not designed to heat up cold items or
for storing open containers or liquids.
• DO NOT eat or drink perishable items that
may have become spoiled without proper
temperature control. Move selector switch to
the OFF position and unplug after use. Empty
contents, clean and store in a cool, dry place.
• DO NOT switch unit between Cooler and
Warmer modes. Turn unit off and wait at least
30 minutes before changing modes.
• OPERATING THE UNIT 220V (see g.1)
• Plug the 220V power cord into the rear of your
cooler if using mains power..
• Plug the AC 220V plug into the supply.
• Move the switch into the positions for the
desired function: HOT or COLD, and ECO
mode or MAX mode.
• NOTE: ECO mode is only available when using
AC power mode.
• The LED indicator light, green for cooling red
for heating, will illuminate to show the unit is
working.
• Place items inside the storage compartment
and close the lid.
• OPERATING THE UNIT 12V (see g.1)
• Plug the 12V power cord on rear of your cooler
if using accessory socket.
• Plug the 12V DC plug into the 12V DC socket
in your vehicle or other 12V DC power supply.
• Move the switch into the position of the
fig.1
LED
LED
4
desired function, HOT or COLD, and MAX
• The LED indicator light is green for cooling and
red for heating. They will illuminate to show
the unit is working and which mode it is in.
• Place items inside the storage compartment
and close the lid.
• MAINTENANCE
• Remove the power plug from the unit when
performing cleaning or maintenance.
• DO NOT use abrasive or chemical cleaning
materials on any surface of the unit.
• Wipe interior and exterior surfaces with a
damp cloth and dry thoroughly with a clean
dry cloth.
• For more soiled surfaces use a neutral
detergent, wipe down with a clean damp cloth
and dry thoroughly with a clean dry cloth.
• Wipe the internals dry using a clean, dry cloth
to absorb any remaining liquid.
Environment Protection, Waste Electrical and Waste
Electronic Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of its useful life, please dispose of in an environmentally friendly way.
Drain any uids (if applicable) into approved containers, in accordance with local waste
regulations. It is our policy to continually improve products and we reserve the right to alter
data, specications and parts without prior notice. No liability is accepted for incorrect use
of this product. Guarantee is 12 months from purchase date, proof of which is required for
any claim.
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
