Introduction
Unpack Your Printer
BMP®41 Label Printer System Specifications
Physical and Environmental Characteristics
Firmware Upgrades
External View
Power Source
Loading the BMP41-BP NiMH Battery Pack
AC Power Adapter
Connecting
Connecting to a PC
1. Turn the printer on.
2. Insert the Brady Printer Drivers CD into the CD drive of your computer.
3. Follow the prompts on the screen for installation of a particular driver.
1. In Windows XP, click Start, then choose Settings>Printers and Faxes. OR In Windows 7, click Start, then choose Devices & Printers. OR In Windows 8, using the Search feature in the Charms bar, search for Devices and Printers.
2. In the list of available printers, right click BMP41 and choose Printing Preferences.
3. Click button.
4. On the Advanced Options screen, click Properties button for Custom Settings.
5. On the Custom Settings screen, click the down arrow in Cutter Option field and select if you want to pause the printer for cutting at the end of each label or at the end of the job.
6. Click OK to accept the changes. (You may have to click OK a number of times as you back out of the Printing Preferences screens.)
Media Cartridge
Load Cartridge
Unload Cartridge
Power On
Display Screen
Keypad
Navigation and Editing Keys
Function Keys
Menus
Dialog Boxes
2. Press the up/down and left/right navigation keys to move to the different fields.
Drop Down Field Lists
1. Press Enter to open the drop down list.
2. Use up/down navigation keys to highlight the desired option.
3. Press Enter to select the option.
Data Fields
1. Using navigation keys, navigate to the data field.
2. Enter data using the keyboard.
3. Use navigation keys to move off the field after entering data.
Spinner Boxes
1. Navigate to the field containing the spinner box.
2. Press Enter .
3. Use the up/down navigation keys to toggle through the range of values.
4. When the desired value is reached, press Enter .
Radio Buttons and Option Boxes
1. Navigate to the desired option.
Accept Dialog Box Edits
1. Navigate to at the bottom of the dialog box.
Cancel a Menu or Dialog Box
1. Press Backspace .
Setup
1. Press Setup .
2. Using navigation keys, choose the setup function to change.
Pause/Cut
1. Press Setup .
2. Using navigation keys, choose Pause/Cut>On.
Config
Time/Date
Units
Language
1. Press Setup .
2. Using navigation keys, choose Language>desired language.
Font Settings
Getting Started
Entering Text
Editing Text
1. Press Clear .
2. Choose the desired option.
5. Press Backspace to cancel the Clear All function.
2. Choose Size>Auto.
Printing a Label
2. Push the cutter lever down as far as it will go.
3. Gently pull the label away from the label exit chute.
Formatting
Font
1. Press Font .
2. Choose Size>font size desired.
1. Choose Custom and enter the font size.
1. Hold the [Shift] key and press the Up/Down navigation keys enough times to reach the desired font size.
1. Position the cursor where the attribute should take affect.
2. Press Font .
3. Choose the desired attribute, then choose ON.
5. Enter the text to be affected by the attribute.
1. Press Font .
2. Choose the attribute, then choose OFF.
2. Press Font .
3. Choose the attribute, then choose ON.
3. Choose the attribute, then choose OFF.
1. Position the cursor where Expand or Condense should take affect.
3. Choose Exp/Cond>percentage desired.
2. Press Font .
3. Choose Exp/Cond>percentage desired.
Superscript/Subscript
1. Position the cursor in the line of text where the superscript or subscript character will display.
3. Type the character to be displayed in superscript or subscript.
1. Enter the text that should display in super- or subscript.
4. To remove the highlighting, press any navigation key.
Symbols
1. Position the cursor at the point where you want the symbol to display.
3. Navigate to the desired symbol category.
4. Press Enter to pick the symbol category.
5. Using navigation keys, select the desired symbol.
6. Press Enter .
1. Position the cursor to the right of the symbol.
Date and Time
1. Position the cursor at the point on the label where you want the date and/or time to be inserted.
Labels and Areas
Fixed Length
1. Press Label Settings .
2. Navigate to Length>Fixed.
3. Enter the desired fixed length in the pop-up field.
Add Areas
1. Press Area .
2. Choose Add.
Go To An Area
1. Press Area .
2. Choose GoTo, then enter the number of the label or area to go to.
Delete Area
1. Navigate to the area you want to delete.
3. Choose Delete.
Justification
1. Navigate to the label or area where justification is to be applied.
2. To apply justification to a label, press Label Settings .
3. Choose H. Justify or V. Justify.
4. Choose the horizontal or vertical justification desired.
Rotate
1. Navigate to the label or area where rotation will take affect.
2. To set rotation for the label, press Label Settings .
3. Choose Rotate>degree of rotation.
1. Press Backspace
Frame
1. To add a frame to a label, press Label Settings .
2. Choose Frame>frame type.
1. Navigate to the label or area that contains the Frame.
2. Press Label Settings .
3. Chooses Frame>None.
Reverse
1. Press Label Settings .
2. Choose Reverse>ON.
1. Navigate to the label or area displayed in Reverse.
2. Press Label Settings .
3. Choose Reverse>OFF.
Vertical Text
1. Navigate to the label or area where you want to display text vertically.
3. Choose Vertical>On.
1. Navigate to the label or area displaying data as Vertical Text.
3. Choose Vertical>OFF.
Barcode
1. Press Label Settings .
2. Navigate to Barcode main menu.
4. Use navigation keys to access the various fields that you want to change. (See page 23 for more information on working with dialog boxes.)
Add a Barcode
1. Position the cursor where you want to add the barcode.
3. Enter the barcode data.
4. Press Barcode again.
Edit Barcode Data
1. Position the cursor in the barcode text.
2. Edit the barcode text.
Serialization
How Serialization Works
Examples of Serialization
Add Serialization
1. Position the cursor on the label where you want the serialization to display.
3. With the cursor immediately displayed in the Start Value field of Sequence #1, enter the start value of the sequence.
4. In the End Value field, enter the end value of the sequence.
5. In the Increment field, enter the increment value.
7. Complete Steps 1 through 6 above.
8. On the Editing screen, navigate to the next sequence location (cursor position) on the label.
9. Press Serial .
11. In the Sequence #2 Start Value field, enter the start value for that sequence.
12. In the Sequence #2 End Value field, enter the end value for that sequence.
13. In the Sequence #2 Increment field, enter the increment for that sequence.
14. Navigate to the Linked option box and press Enter .
Edit a Sequence
1. Press Serial .
2. Navigate to the value fields to change and enter the new value.
File Management
File Naming Standards
Save
1. Press File .
3. Navigate to the External option box.
5. Navigate to
and press Enter .
7. Navigate to and press Enter .
11. To enter a different file name repeat Step 9.
1. Press Clear .
3. Press Enter to delete the label from the display.
Open a File
1. Press File .
3. Indicate if the file to open is stored internally on the BMP®41 Label Printer, or externally on a thumb drive.
5. Navigate to the desired folder to open and press Enter .
7. Press Enter to remove the error message and install the correct media to accommodate the data.

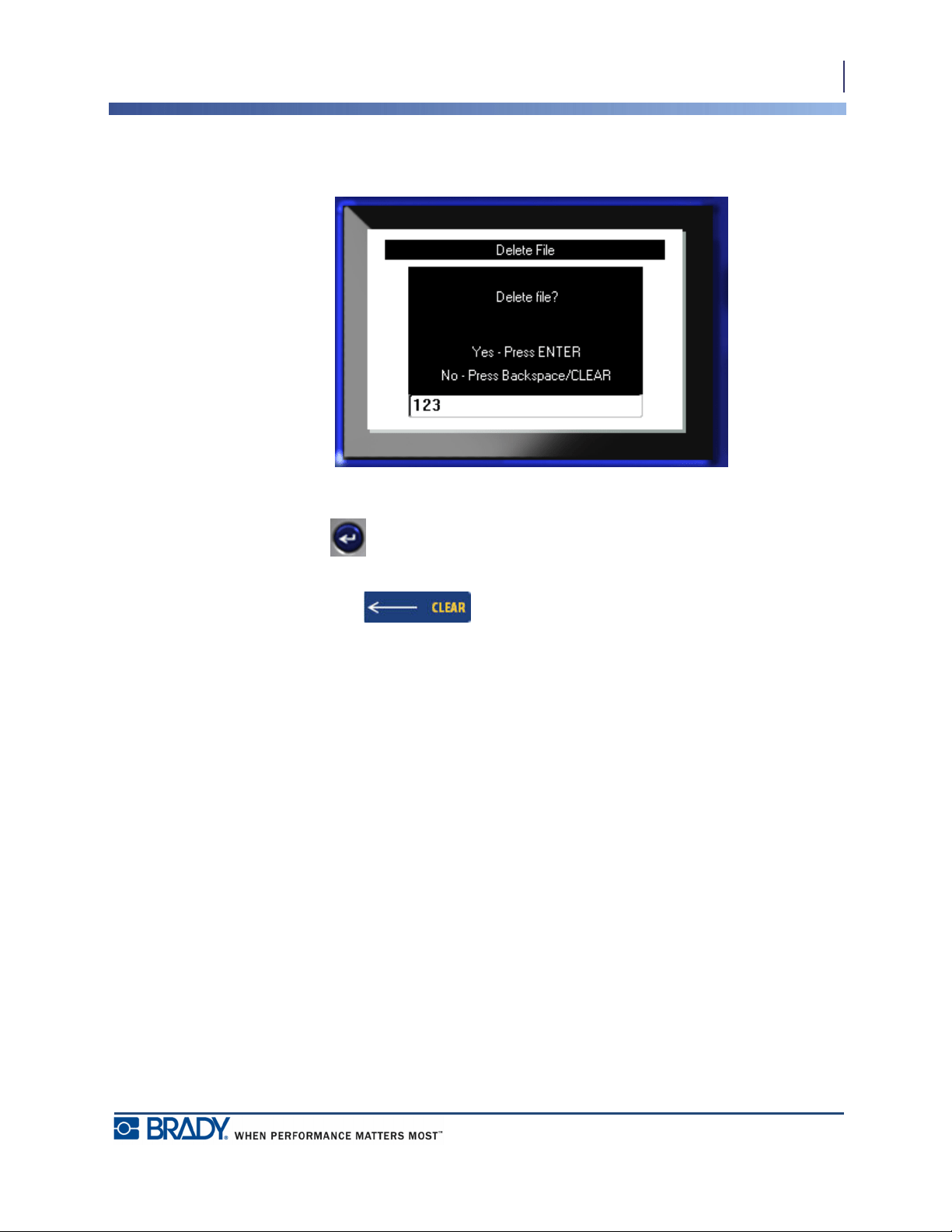

Delete a File
1. Press File .
3. In the dialog box presented, use navigation keys to move to the option box indicating if the file to be deleted is stored internally on the BMP®41 Label Printer, or externally on a thumb drive, PC, etc.
4. Press Enter .
5. Using navigation keys, choose the file to delete.
6. Press Enter .
Printing
1. Press Print .
2. Push the cutter lever down as far as it will go.
3. Gently pull the label from the rollers.
Cancel a Print Job
1. Press Shift+FN+Print
Print Preview
1. Press Backspace .
1. Press Left/Right navigation keys, as applicable.
1. Press Up/Down navigation keys, as applicable.
Multi-Print
1. Press Multi-Print .
2. With the cursor in the No. of Copies field, enter the number of copies desired.
3. Navigate to the Collate option box and press Enter to remove the checkmark.
4. Navigate to the From field, under Print Range, and enter the number of the first label to be printed.
5. Navigate to the To field, under Print Range, and enter the number of the last label to be printed.
1. Navigate to the Mirrored Print option box and press Enter to place a checkmark in the field.
2. When finished with desired options, navigate to and press Enter .
Label Types
Accessing a Label Type
1. Press Label Type .
2. Choose the desired Label Type.
4. Enter data requested in the dialog box.
General Label Type
1. Press Label Type .
2. Choose General.
WireMarker
1. Press Label Type .
2. For continuous media, choose WireMarker>wiremarker size.
4. Enter the wiremarker data.
Terminal Block, Patch Panel, 66 Block
1. Press Label Type .
2. Navigate to the desired label type and press Enter .
4. Navigate to the Separator field and, from the drop down list, select the separator to use.
5. Navigate to the Orientation field and, from the drop down list, select the desired layout.
6. Navigate to the Terminal Repeat field and indicate the size of the gap between each terminal (with a minimum of 0.2 inches).
7. In the Number of Terminals field, enter the number of terminals on the block for which the label is intended.
9. Complete the Serialization values. (See “Add Serialization” on page 66 for more information.)

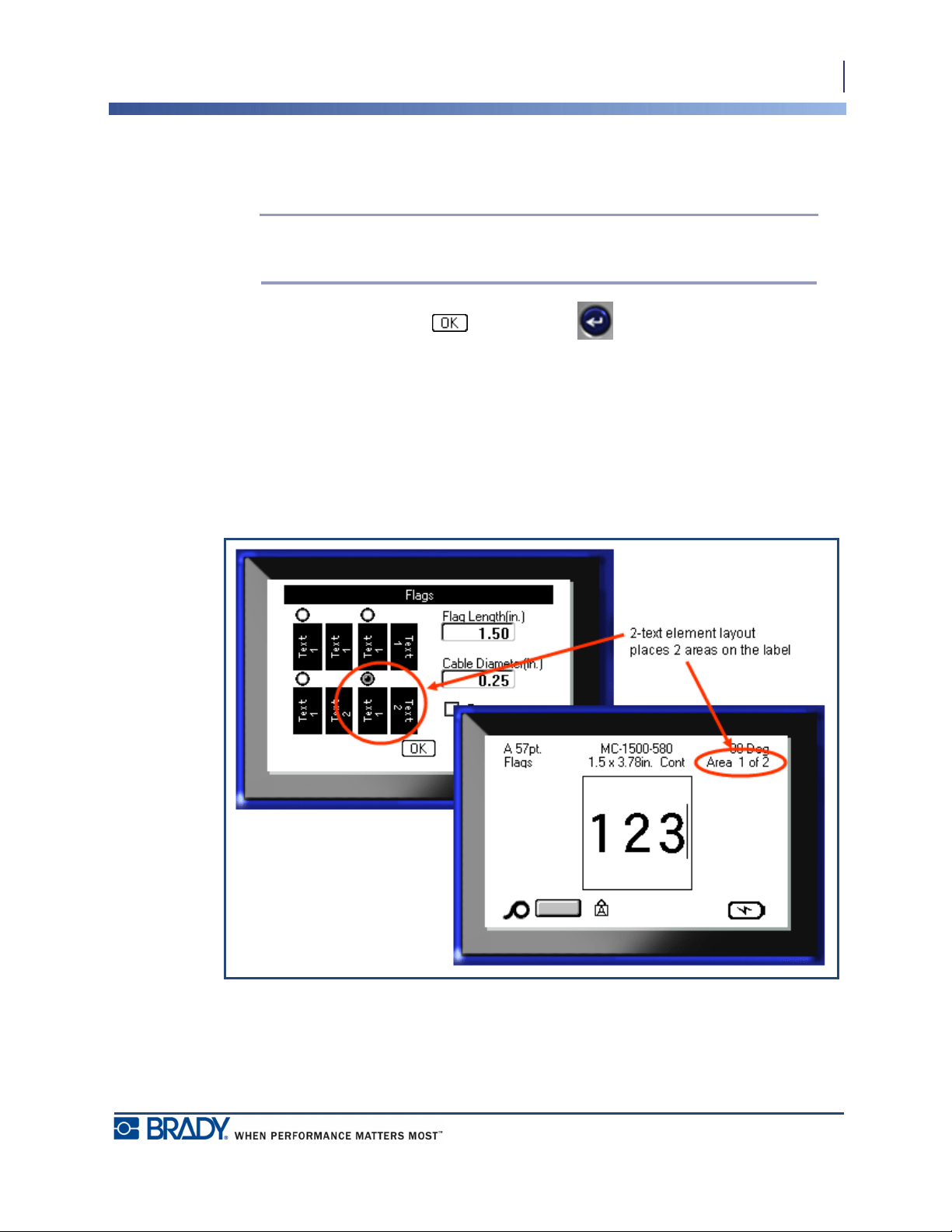

Flags
1. Press Label Type .
2. Choose Flags and press Enter .
3. Navigate to the radio button of the desired layout and press Enter .
4. If continuous media is installed, navigate to the Flag Length field and enter the length of the flag (the part that contains the text).
5. Navigate to the Cable Diameter field and enter the diameter of the wire/cable to which the flag will be applied.
110-Block, Bix Block Label Type
1. Press Label Type .
2. Navigate to 110-Block or Bix block and press Enter .
3. In the Block Type field, from the drop down list, choose the pair configuration to use.
4. In the Sequence Type field, from the drop down list, select the Sequence Type to use.
5. In the Start Value field (except when “None” is selected in the Sequence Type field), enter the first number of the sequence.
6. In the # of Strips field, enter the number of strips (labels) to be created in the block configuration chosen.
DesiStrip
1. Press Label Type .
2. Navigate to DesiStrip and press Enter .
3. In the Length field, press Backspace to clear the default length.
4. Enter the new length of the individual strip.
5. Navigate to and press Enter .
Troubleshooting
3. Reprint the label(s).
Cleaning the Printer
1. Lightly moisten a soft (non-scratching) cloth with isopropyl alcohol. OR Use pre-moistened static-free cloths available with the Brady PCK-6 Cleaning Kit.
2. Gently wipe the display screen until clean.
1. Turn the printer off.
2. Open the printer cover and remove any cartridge currently in the printer.
3. Using a lint-free swab moistened with isopropyl alcohol (or a swab from the Brady PCK- 6 Cleaning Kit), gently swab the print head.
4. With the same moistened swab, gently brush the platen roller.

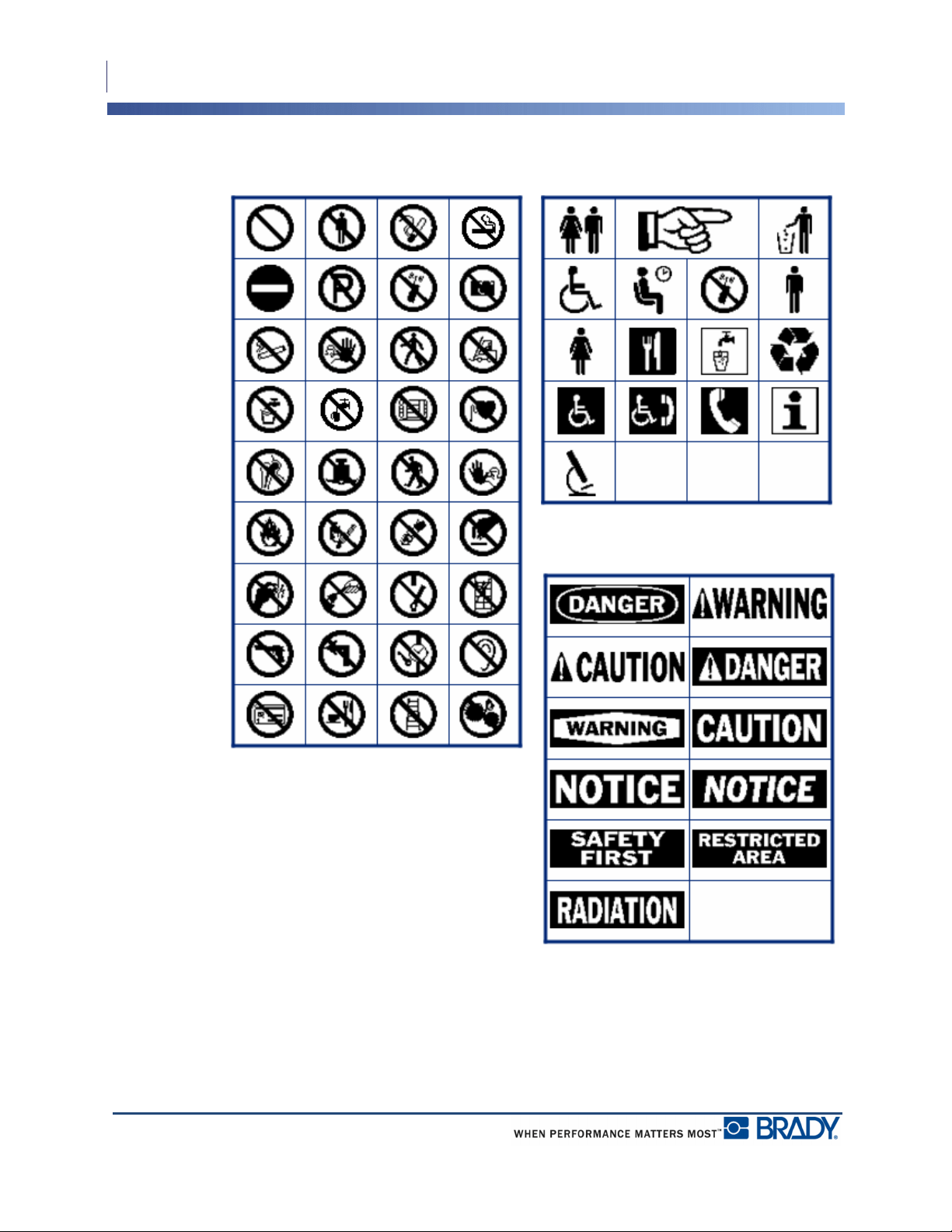

Appendix A - Symbols
Copyright Info_EN.pdf
Copyright
Trademarks
UNITED STATES
INDUSTRY CANADA
EUROPE
1. Disassemble printer and locate the lithium cell battery located on the main circuit board.
2. To remove, push down on the center tab of the battery retainer, remove the battery from the board, and dispose of in accordance with local regulations.
1. Turn the printer over, open the battery compartment door, and remove the NiMH battery.
2. Release the battery from the printer and dispose of in accordance with local regulations.
BRADY Warranty
Technical Support
Technical Support Numbers/On-line Help
Repair and Replacement Parts
Page 1/124
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Page 53
Page 54
Page 55
Page 56
Page 57
Page 58
Page 59
Page 60
Page 61
Page 62
Page 63
Page 64
Page 65
Page 66
Page 67
Page 68
Page 69
Page 70
Page 71
Page 72
Page 73
Page 74
Page 75
Page 76
Page 77
Page 78
Page 79
Page 80
Page 81
Page 82
Page 83
Page 84
Page 85
Page 86
Page 87
Page 88
Page 89
Page 90
Page 91
Page 92
Page 93
Page 94
Page 95
Page 96
Page 97
Page 98
Page 99
Page 100
Page 101
Page 102
Page 103
Page 104
Page 105
Page 106
Page 107
Page 108
Page 109
Page 110
Page 111
Page 112
Page 113
Page 114
Page 115
Page 116
Page 117
Page 118
Page 119
Page 120
Page 121
Page 122
Page 123
Page 124
Contents
Table of Contents
Search
Previous
Next
Troubleshooting
Bookmarks
BMP
®
41
LABEL PRINTER
USER’S MANUAL
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 44659618_bmp41-kit-el.pdf
File size: 4 MB
File Language: English
Pages: 124
Author: Brady
File created: 2013-06-06
Published:
2024-01-10
Updated: 2024-01-09
Download File
Other documents for Brady BMP41-KIT-EL
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Brady
Model: BMP41-KIT-EL
Category:
Printer - Copier - Fax - Scanner
View in the file:
Full Specifications
See other models:
BMP51
M210
DA6940GR
BMP21-PLUS
BMP21-PLUS-KIT1
Related Products
Vitamix 20OUNCECONTAINERSTARTERKIT
Philips SGP6025BB/27
Samsung F-ADT-STR-KT-1
Rinnai KWL503
Insignia NS-GN3DSSK101
Remington BHT6450-AT
Karcher K 5
Corsair CD-9010002-NA
Corsair CD-9010001-NA
Forte FGR488BWWBBSS
Forte FGR488BSSSSBB
Forte FGR488BWWSSBB
Cafe CXQW1H1PPBZ
Fisher & Paykel 24478
Fisher & Paykel 24470
Table of Contents
×
Introduction
13
Unpack Your Printer
14
BMP®41 Label Printer System Specifications
15
Physical and Environmental Characteristics
15
Firmware Upgrades
16
External View
17
Power Source
18
Loading the BMP41-BP NiMH Battery Pack
20
AC Power Adapter
21
Connecting
22
Connecting to a PC
23
1. Turn the printer on.
23
2. Insert the Brady Printer Drivers CD into the CD drive of your computer.
23
3. Follow the prompts on the screen for installation of a particular driver.
23
1. In Windows XP, click Start, then choose Settings>Printers and Faxes. OR In Windows 7, click Start, then choose Devices & Printers. OR In Windows 8, using the Search feature in the Charms bar, search for Devices and Printers.
23
2. In the list of available printers, right click BMP41 and choose Printing Preferences.
23
3. Click button.
23
4. On the Advanced Options screen, click Properties button for Custom Settings.
24
5. On the Custom Settings screen, click the down arrow in Cutter Option field and select if you want to pause the printer for cutting at the end of each label or at the end of the job.
24
6. Click OK to accept the changes. (You may have to click OK a number of times as you back out of the Printing Preferences screens.)
24
Media Cartridge
25
Load Cartridge
25
Unload Cartridge
26
Power On
27
Display Screen
28
Keypad
29
Navigation and Editing Keys
29
Function Keys
32
Menus
34
Dialog Boxes
35
2. Press the up/down and left/right navigation keys to move to the different fields.
35
Drop Down Field Lists
36
1. Press Enter to open the drop down list.
36
2. Use up/down navigation keys to highlight the desired option.
36
3. Press Enter to select the option.
36
Data Fields
37
1. Using navigation keys, navigate to the data field.
37
2. Enter data using the keyboard.
37
3. Use navigation keys to move off the field after entering data.
37
Spinner Boxes
38
1. Navigate to the field containing the spinner box.
38
2. Press Enter .
38
3. Use the up/down navigation keys to toggle through the range of values.
38
4. When the desired value is reached, press Enter .
38
Radio Buttons and Option Boxes
39
1. Navigate to the desired option.
39
Accept Dialog Box Edits
39
1. Navigate to at the bottom of the dialog box.
39
Cancel a Menu or Dialog Box
39
1. Press Backspace .
39
Setup
40
1. Press Setup .
40
2. Using navigation keys, choose the setup function to change.
40
Pause/Cut
40
1. Press Setup .
40
2. Using navigation keys, choose Pause/Cut>On.
40
Config
41
Time/Date
42
Units
42
Language
43
1. Press Setup .
43
2. Using navigation keys, choose Language>desired language.
43
Font Settings
43
Getting Started
45
Entering Text
45
Editing Text
45
1. Press Clear .
46
2. Choose the desired option.
46
5. Press Backspace to cancel the Clear All function.
47
2. Choose Size>Auto.
49
Printing a Label
49
2. Push the cutter lever down as far as it will go.
49
3. Gently pull the label away from the label exit chute.
49
Formatting
51
Font
51
1. Press Font .
52
2. Choose Size>font size desired.
52
1. Choose Custom and enter the font size.
52
1. Hold the [Shift] key and press the Up/Down navigation keys enough times to reach the desired font size.
53
1. Position the cursor where the attribute should take affect.
53
2. Press Font .
53
3. Choose the desired attribute, then choose ON.
53
5. Enter the text to be affected by the attribute.
53
1. Press Font .
53
2. Choose the attribute, then choose OFF.
53
2. Press Font .
54
3. Choose the attribute, then choose ON.
54
3. Choose the attribute, then choose OFF.
54
1. Position the cursor where Expand or Condense should take affect.
55
3. Choose Exp/Cond>percentage desired.
55
2. Press Font .
55
3. Choose Exp/Cond>percentage desired.
55
Superscript/Subscript
56
1. Position the cursor in the line of text where the superscript or subscript character will display.
56
3. Type the character to be displayed in superscript or subscript.
56
1. Enter the text that should display in super- or subscript.
56
4. To remove the highlighting, press any navigation key.
56
Symbols
57
1. Position the cursor at the point where you want the symbol to display.
57
3. Navigate to the desired symbol category.
57
4. Press Enter to pick the symbol category.
57
5. Using navigation keys, select the desired symbol.
57
6. Press Enter .
57
1. Position the cursor to the right of the symbol.
58
Date and Time
59
1. Position the cursor at the point on the label where you want the date and/or time to be inserted.
59
Labels and Areas
60
Fixed Length
61
1. Press Label Settings .
61
2. Navigate to Length>Fixed.
61
3. Enter the desired fixed length in the pop-up field.
61
Add Areas
62
1. Press Area .
62
2. Choose Add.
62
Go To An Area
62
1. Press Area .
62
2. Choose GoTo, then enter the number of the label or area to go to.
62
Delete Area
63
1. Navigate to the area you want to delete.
63
3. Choose Delete.
63
Justification
64
1. Navigate to the label or area where justification is to be applied.
64
2. To apply justification to a label, press Label Settings .
64
3. Choose H. Justify or V. Justify.
64
4. Choose the horizontal or vertical justification desired.
64
Rotate
65
1. Navigate to the label or area where rotation will take affect.
65
2. To set rotation for the label, press Label Settings .
65
3. Choose Rotate>degree of rotation.
65
1. Press Backspace
66
Frame
67
1. To add a frame to a label, press Label Settings .
67
2. Choose Frame>frame type.
67
1. Navigate to the label or area that contains the Frame.
67
2. Press Label Settings .
67
3. Chooses Frame>None.
67
Reverse
68
1. Press Label Settings .
68
2. Choose Reverse>ON.
68
1. Navigate to the label or area displayed in Reverse.
68
2. Press Label Settings .
68
3. Choose Reverse>OFF.
68
Vertical Text
69
1. Navigate to the label or area where you want to display text vertically.
69
3. Choose Vertical>On.
69
1. Navigate to the label or area displaying data as Vertical Text.
70
3. Choose Vertical>OFF.
70
Barcode
71
1. Press Label Settings .
71
2. Navigate to Barcode main menu.
71
4. Use navigation keys to access the various fields that you want to change. (See page 23 for more information on working with dialog boxes.)
72
Add a Barcode
72
1. Position the cursor where you want to add the barcode.
72
3. Enter the barcode data.
72
4. Press Barcode again.
73
Edit Barcode Data
74
1. Position the cursor in the barcode text.
74
2. Edit the barcode text.
74
Serialization
75
How Serialization Works
75
Examples of Serialization
76
Add Serialization
78
1. Position the cursor on the label where you want the serialization to display.
78
3. With the cursor immediately displayed in the Start Value field of Sequence #1, enter the start value of the sequence.
78
4. In the End Value field, enter the end value of the sequence.
78
5. In the Increment field, enter the increment value.
78
7. Complete Steps 1 through 6 above.
79
8. On the Editing screen, navigate to the next sequence location (cursor position) on the label.
79
9. Press Serial .
79
11. In the Sequence #2 Start Value field, enter the start value for that sequence.
79
12. In the Sequence #2 End Value field, enter the end value for that sequence.
79
13. In the Sequence #2 Increment field, enter the increment for that sequence.
79
14. Navigate to the Linked option box and press Enter .
80
Edit a Sequence
80
1. Press Serial .
80
2. Navigate to the value fields to change and enter the new value.
80
File Management
81
File Naming Standards
81
Save
81
1. Press File .
81
3. Navigate to the External option box.
82
5. Navigate to
and press Enter .
83
7. Navigate to and press Enter .
83
11. To enter a different file name repeat Step 9.
84
1. Press Clear .
85
3. Press Enter to delete the label from the display.
85
Open a File
86
1. Press File .
86
3. Indicate if the file to open is stored internally on the BMP®41 Label Printer, or externally on a thumb drive.
86
5. Navigate to the desired folder to open and press Enter .
86
7. Press Enter to remove the error message and install the correct media to accommodate the data.
87
Delete a File
88
1. Press File .
88
3. In the dialog box presented, use navigation keys to move to the option box indicating if the file to be deleted is stored internally on the BMP®41 Label Printer, or externally on a thumb drive, PC, etc.
88
4. Press Enter .
88
5. Using navigation keys, choose the file to delete.
88
6. Press Enter .
88
Printing
91
1. Press Print .
91
2. Push the cutter lever down as far as it will go.
91
3. Gently pull the label from the rollers.
91
Cancel a Print Job
91
1. Press Shift+FN+Print
91
Print Preview
92
1. Press Backspace .
92
1. Press Left/Right navigation keys, as applicable.
93
1. Press Up/Down navigation keys, as applicable.
93
Multi-Print
94
1. Press Multi-Print .
95
2. With the cursor in the No. of Copies field, enter the number of copies desired.
95
3. Navigate to the Collate option box and press Enter to remove the checkmark.
95
4. Navigate to the From field, under Print Range, and enter the number of the first label to be printed.
95
5. Navigate to the To field, under Print Range, and enter the number of the last label to be printed.
95
1. Navigate to the Mirrored Print option box and press Enter to place a checkmark in the field.
96
2. When finished with desired options, navigate to and press Enter .
96
Label Types
97
Accessing a Label Type
97
1. Press Label Type .
97
2. Choose the desired Label Type.
97
4. Enter data requested in the dialog box.
97
General Label Type
99
1. Press Label Type .
99
2. Choose General.
99
WireMarker
100
1. Press Label Type .
100
2. For continuous media, choose WireMarker>wiremarker size.
100
4. Enter the wiremarker data.
100
Terminal Block, Patch Panel, 66 Block
102
1. Press Label Type .
102
2. Navigate to the desired label type and press Enter .
102
4. Navigate to the Separator field and, from the drop down list, select the separator to use.
103
5. Navigate to the Orientation field and, from the drop down list, select the desired layout.
103
6. Navigate to the Terminal Repeat field and indicate the size of the gap between each terminal (with a minimum of 0.2 inches).
103
7. In the Number of Terminals field, enter the number of terminals on the block for which the label is intended.
103
9. Complete the Serialization values. (See “Add Serialization” on page 66 for more information.)
103
Flags
104
1. Press Label Type .
104
2. Choose Flags and press Enter .
104
3. Navigate to the radio button of the desired layout and press Enter .
104
4. If continuous media is installed, navigate to the Flag Length field and enter the length of the flag (the part that contains the text).
104
5. Navigate to the Cable Diameter field and enter the diameter of the wire/cable to which the flag will be applied.
104
110-Block, Bix Block Label Type
106
1. Press Label Type .
106
2. Navigate to 110-Block or Bix block and press Enter .
106
3. In the Block Type field, from the drop down list, choose the pair configuration to use.
107
4. In the Sequence Type field, from the drop down list, select the Sequence Type to use.
108
5. In the Start Value field (except when “None” is selected in the Sequence Type field), enter the first number of the sequence.
108
6. In the # of Strips field, enter the number of strips (labels) to be created in the block configuration chosen.
108
DesiStrip
109
1. Press Label Type .
109
2. Navigate to DesiStrip and press Enter .
109
3. In the Length field, press Backspace to clear the default length.
109
4. Enter the new length of the individual strip.
109
5. Navigate to and press Enter .
109
Troubleshooting
111
3. Reprint the label(s).
113
Cleaning the Printer
116
1. Lightly moisten a soft (non-scratching) cloth with isopropyl alcohol. OR Use pre-moistened static-free cloths available with the Brady PCK-6 Cleaning Kit.
116
2. Gently wipe the display screen until clean.
116
1. Turn the printer off.
116
2. Open the printer cover and remove any cartridge currently in the printer.
116
3. Using a lint-free swab moistened with isopropyl alcohol (or a swab from the Brady PCK- 6 Cleaning Kit), gently swab the print head.
116
4. With the same moistened swab, gently brush the platen roller.
116
Appendix A - Symbols
117
Copyright Info_EN.pdf
0
Copyright
3
Trademarks
3
UNITED STATES
4
INDUSTRY CANADA
4
EUROPE
4
1. Disassemble printer and locate the lithium cell battery located on the main circuit board.
5
2. To remove, push down on the center tab of the battery retainer, remove the battery from the board, and dispose of in accordance with local regulations.
5
1. Turn the printer over, open the battery compartment door, and remove the NiMH battery.
5
2. Release the battery from the printer and dispose of in accordance with local regulations.
5
BRADY Warranty
6
Technical Support
7
Technical Support Numbers/On-line Help
7
Repair and Replacement Parts
7
Search:
×
Search
