User Manual Brady BMP51 139814 Printer with Rechargeable

User Manual

For BMP51.

Loading ...

Summary of Contents for Brady BMP51:

Introduction0

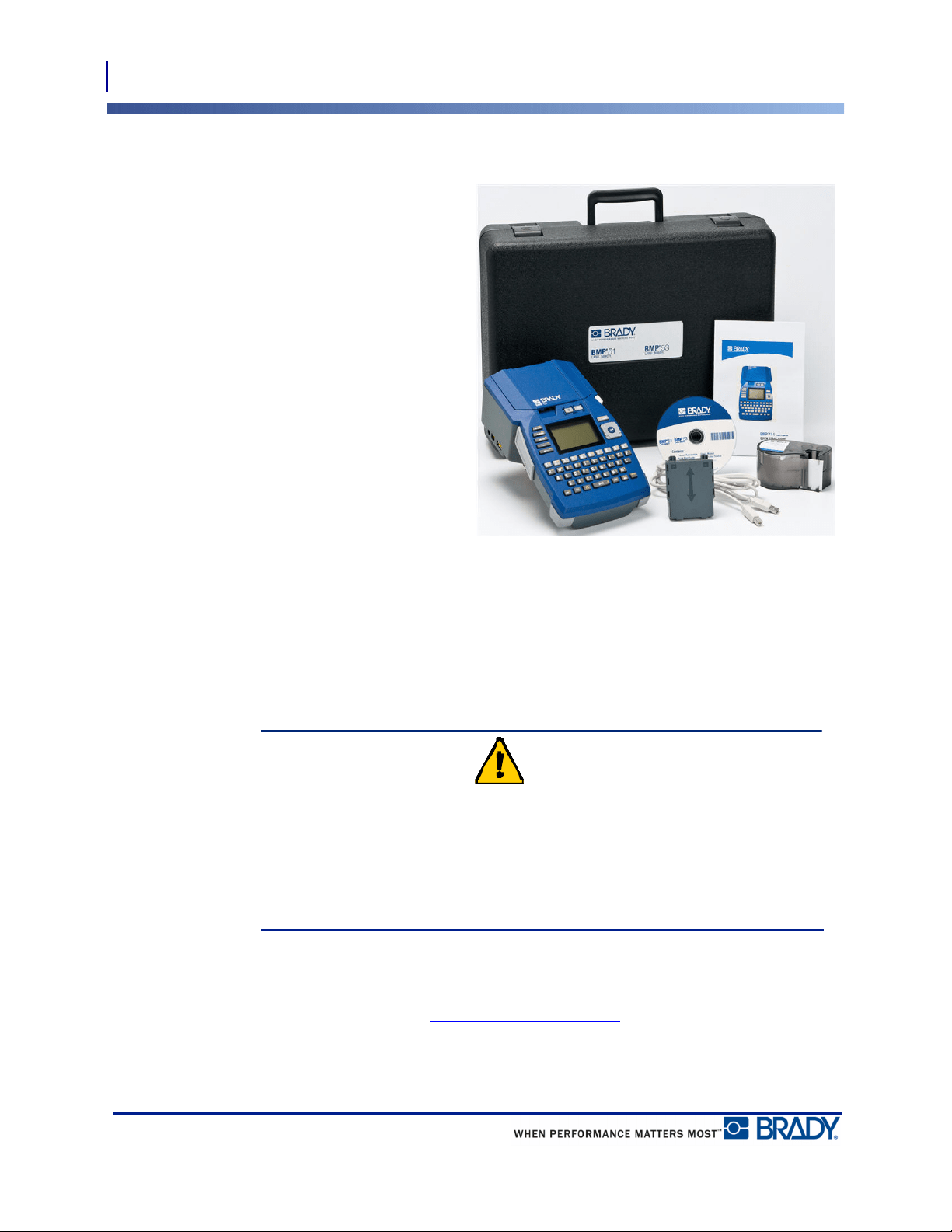

- Unpack Your Printer0
- BMP®51 System Specifications0
- Physical and Environmental Characteristics0
- Firmware Upgrades0
External View0
Power Source0
- Loading the Battery Tray0
- Loading the BMP Lithium Ion Battery Pack0
- AC Power Adapter0
Connecting0
- Connecting to a PC0
- Wireless Driver Installation0
  - 1. Insert the Brady Printer Drivers CD into the CD drive of your computer.0
  - 2. Follow the prompts on the screen for installation of a particular driver.0
Media Cartridge0
- Load Cartridge0
  - 2. With the cartridge label facing up, drop the cartridge into the cartridge well, pushing gently until it snaps into place. Close the cover by pushing down on it until it snaps into place. Note: If using the shorter cartridge, hold the cartridge by ...0
- Unload Cartridge0
  - 3. Placing your fingers in the cartridge grip areas, grasp the cartridge and pull it out. Note: If using the shorter cartridge, grab the cartridge fin and pull up.0
Power On0
- Display Screen0
Keypad0

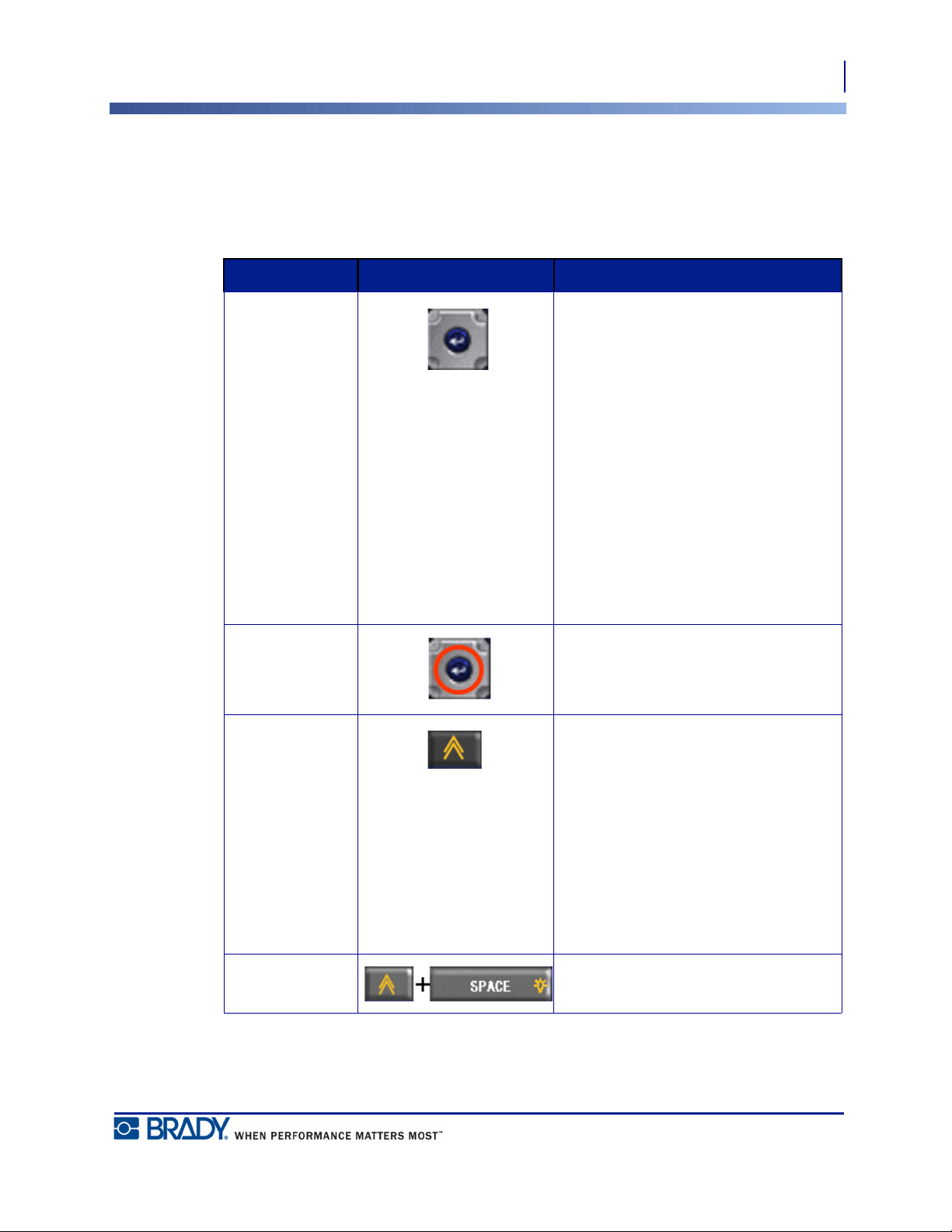

- Navigation and Editing Keys0
- Function Keys0
Menus0
Dialog Boxes0
- 2. Press the up/down and left/right navigation keys to move to the different fields.0
- Drop Down Field Lists0
- Data Fields0
- Spinner Boxes0

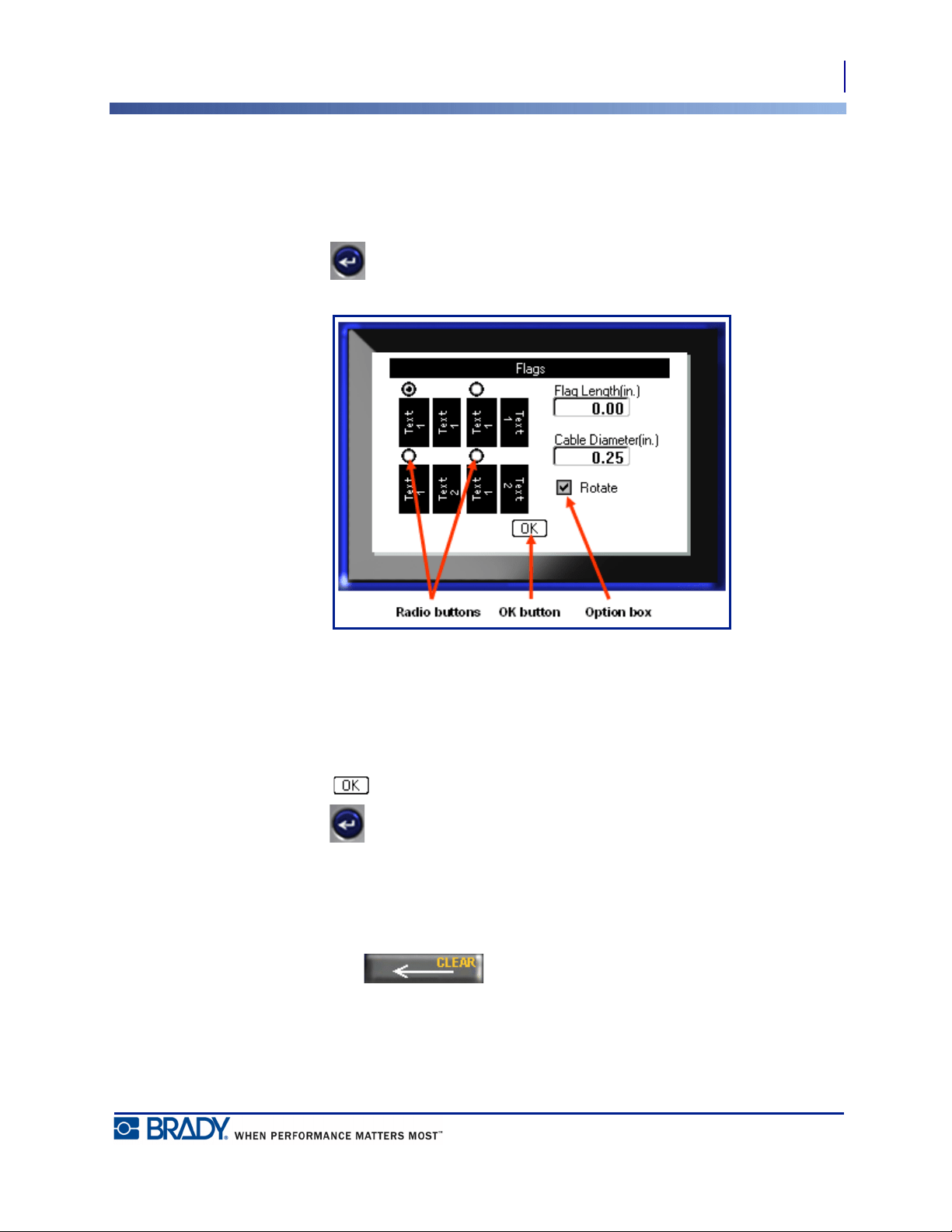

- Radio Buttons and Option Boxes0
  - 1. Navigate to the desired option.0
- Accept Dialog Box Edits0
  - 1. Navigate to at the bottom of the dialog box.0
- Cancel a Menu or Dialog Box0
  - 1. Press Backspace .0
Setup0
- 1. Press Setup .0
- 2. Using navigation keys, choose the setup function to change.0
- Pause/Cut0
  - 1. Press Setup .0
  - 2. Using navigation keys, choose Pause/Cut>On.0
- Wireless0
- Config0

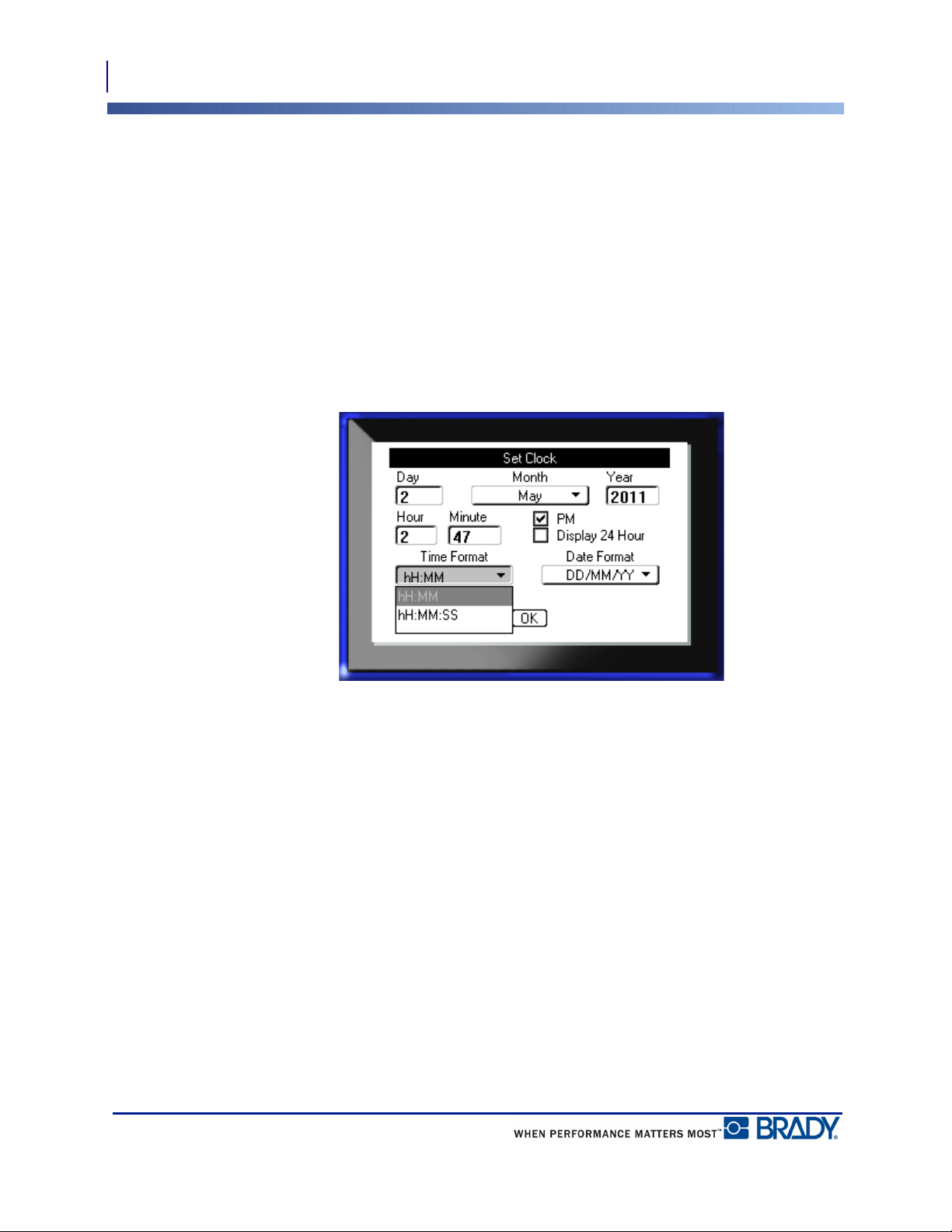

- Time/Date0
- Units0
- Language0
  - 1. Press Setup .0
  - 2. Using navigation keys, choose Language>desired language.0
- Font Settings0
Getting Started47
- Entering Text47
- Editing Text47
- Printing a Label51
  - 2. Push the cutter lever down as far as it will go.51
  - 3. Gently pull the label away from the label exit chute.51
Formatting53

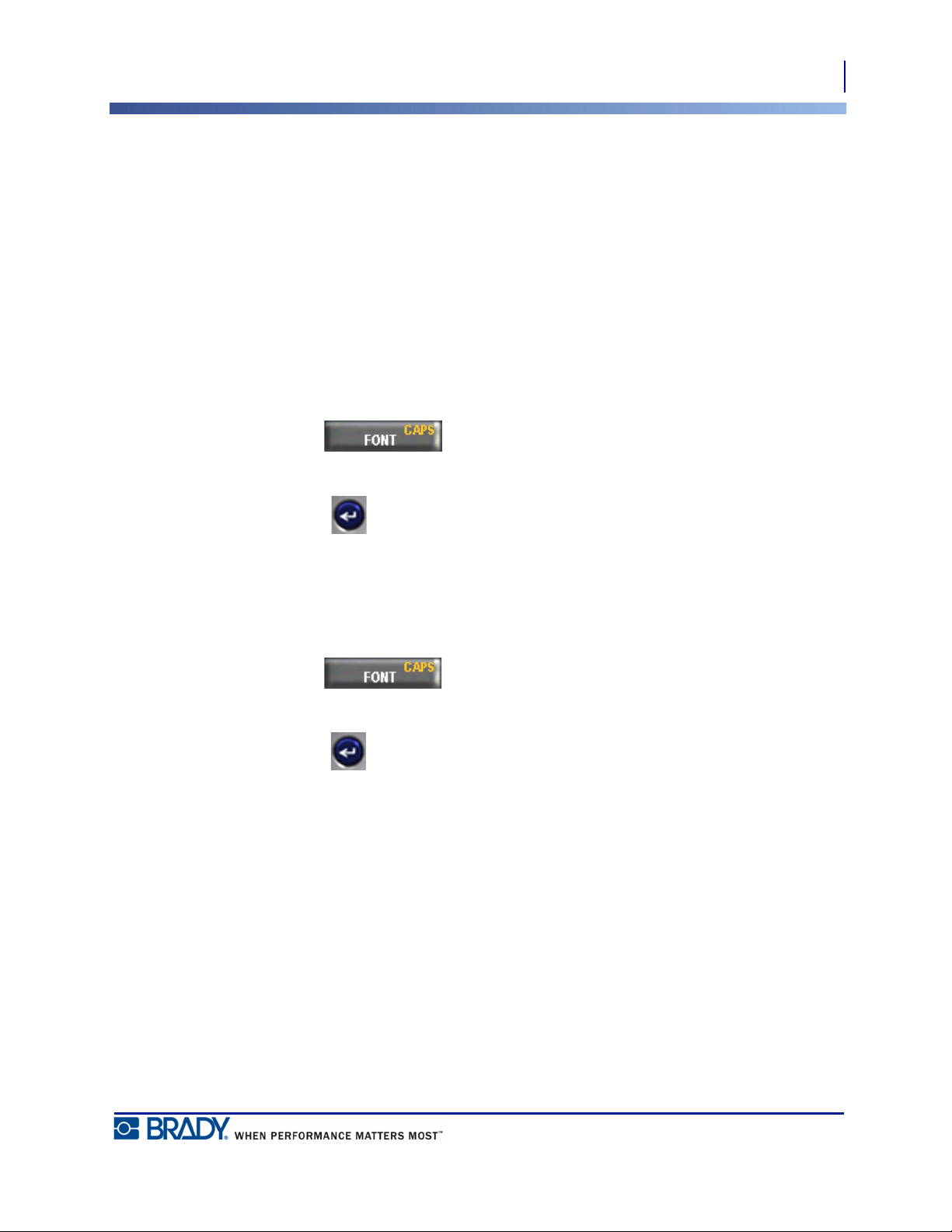

- Font53
- Superscript/Subscript58

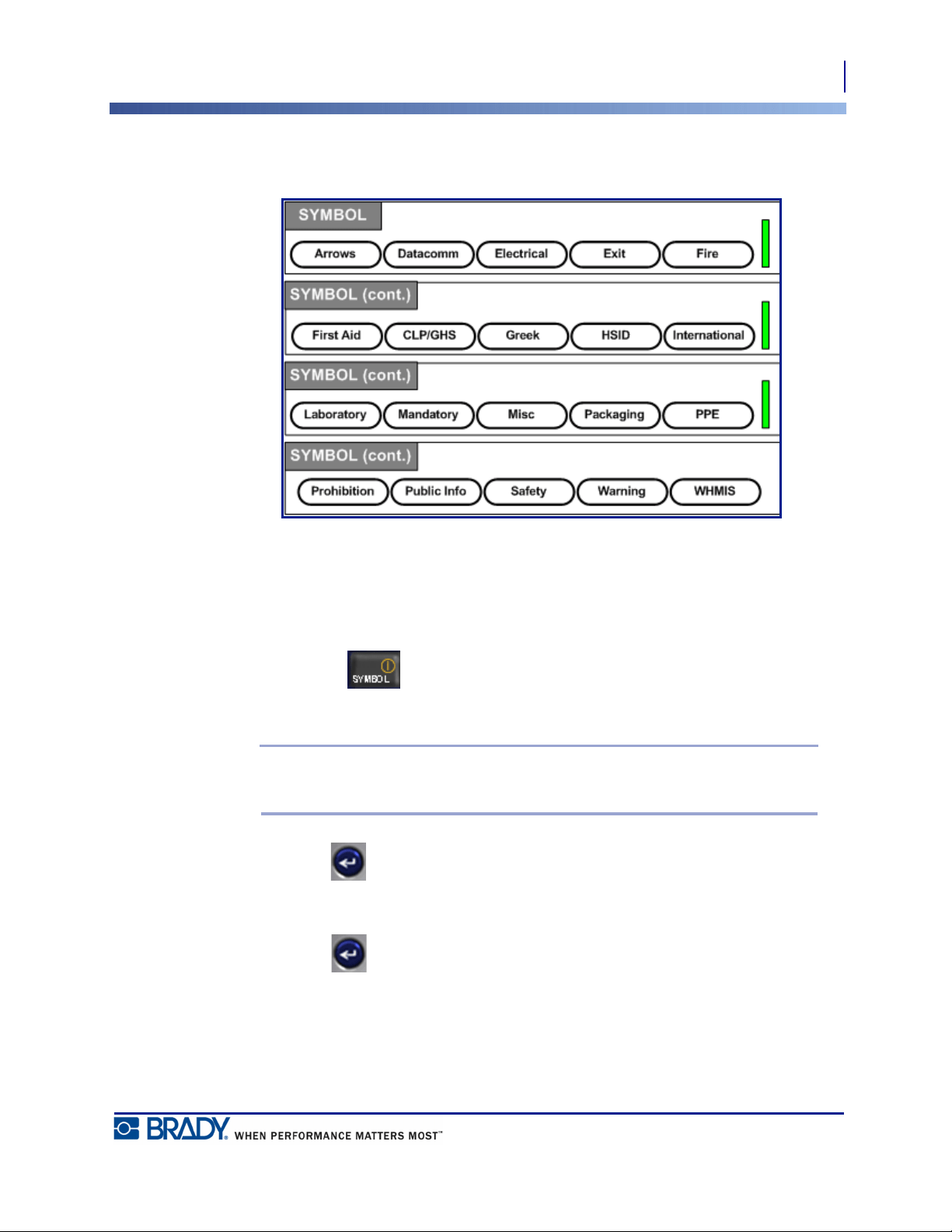

- Symbols59
- Date and Time61
  - 1. Position the cursor at the point on the label where you want the date and/or time to be inserted.61
Labels and Areas62
- Fixed Length63

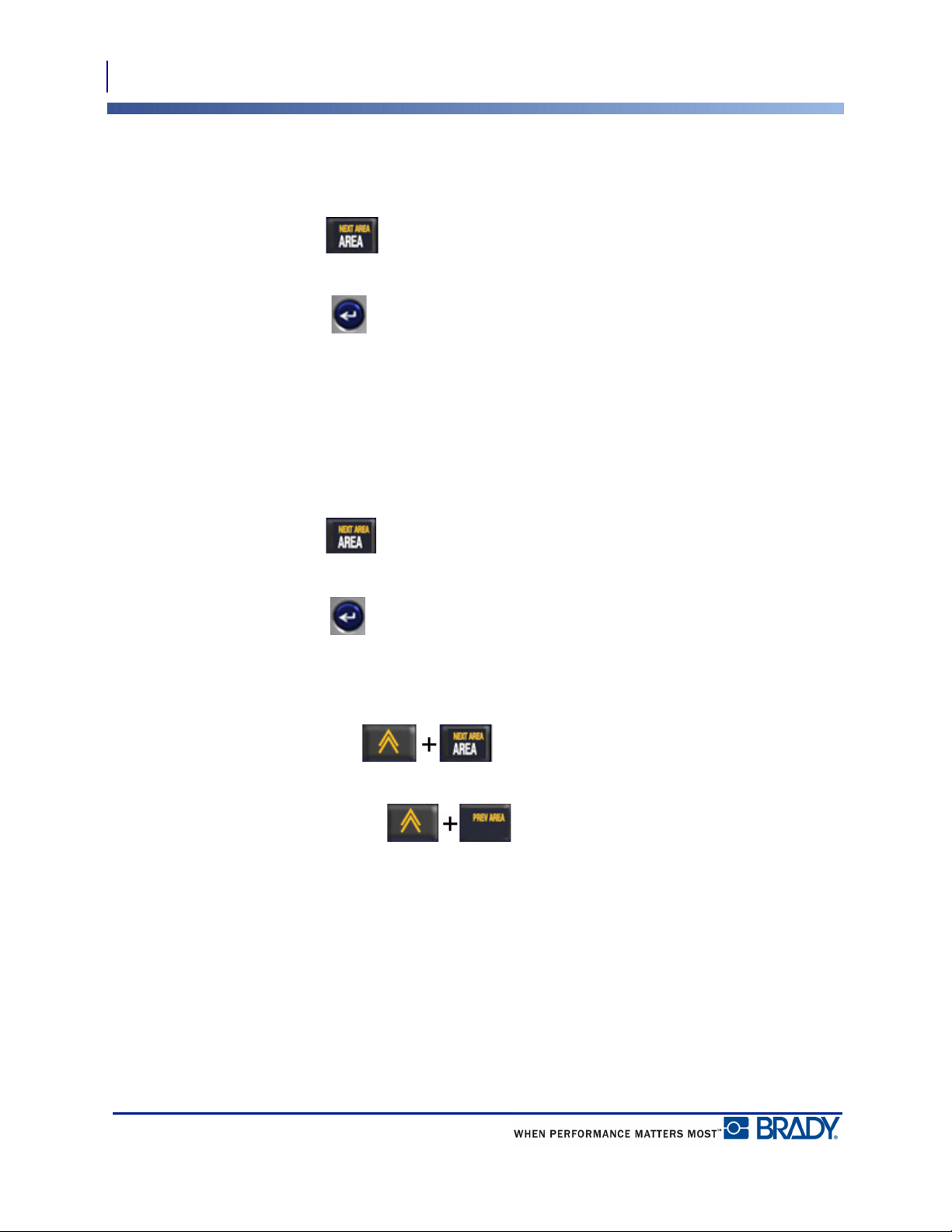

- Add Areas64
  - 1. Press Area .64
  - 2. Choose Add.64
- Go To An Area64
  - 1. Press Area .64
  - 2. Choose GoTo, then enter the number of the label or area to go to.64

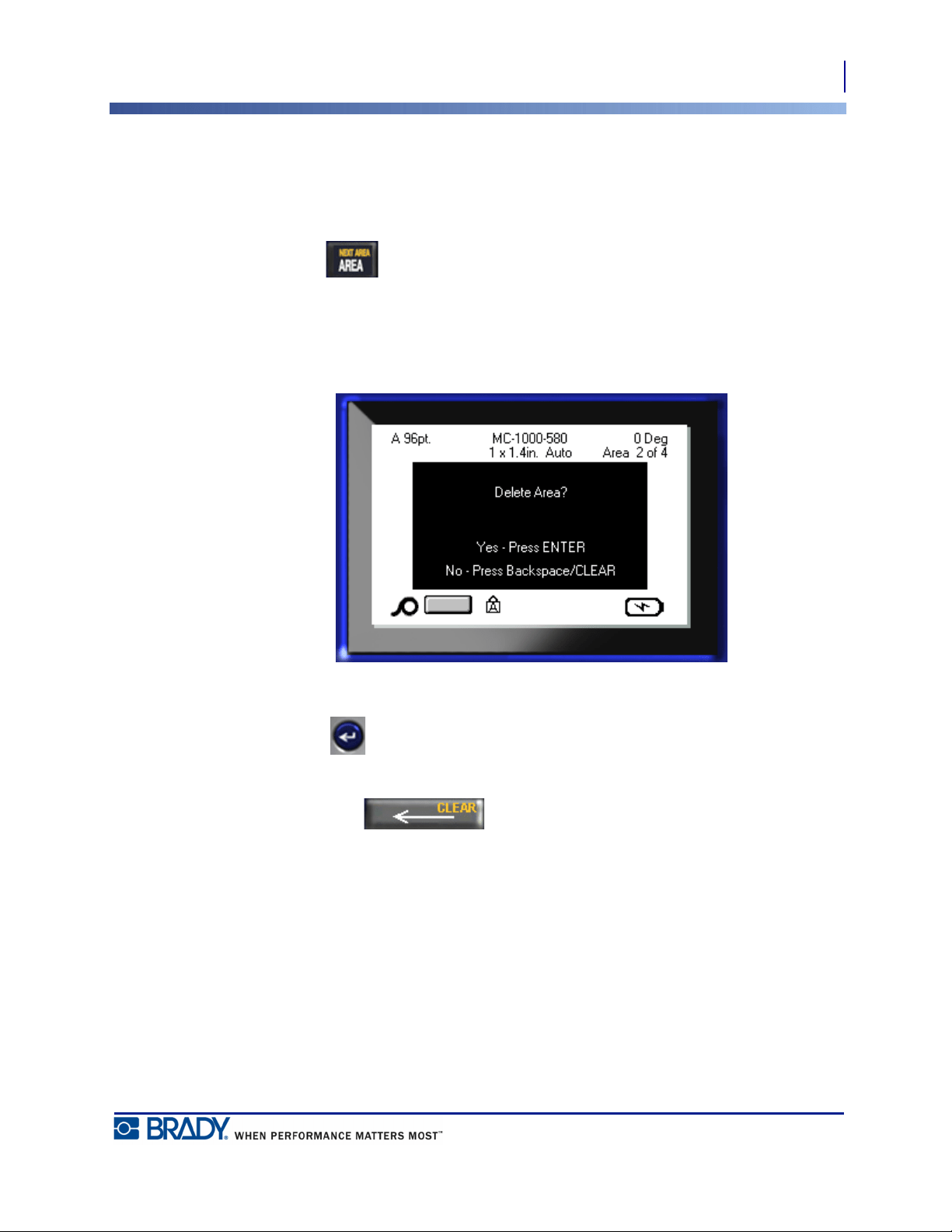

- Delete Area65
  - 1. Navigate to the area you want to delete.65
  - 3. Choose Delete.65
- Justification66
- Rotate67
- Frame69
- Reverse70
- Vertical Text71
- Barcode73
- Add a Barcode74
- Edit Barcode Data76
  - 1. Position the cursor in the barcode text.76
  - 2. Edit the barcode text.76
Serialization77
- How Serialization Works77
- Examples of Serialization78
- Add Serialization80
- Edit a Sequence82
  - 1. Press Serial .82
  - 2. Navigate to the value fields to change and enter the new value.82
File Management83
- File Naming Standards83
- Save83
- Open a File88
- Delete a File90
Printing93
- 1. Press Print .93
- 2. Push the cutter lever down as far as it will go.93
- 3. Gently pull the label from the rollers.93
- Cancel a Print Job93
  - 1. Press Shift+Alt+Print93
- Print Preview94
- Multi-Print96
Label Types99
- Accessing a Label Type99
General Label Type101
- 1. Press Label Type .101
- 2. Choose General.101
WireMarker102
- 1. Press Label Type .102
- 2. For continuous media, choose WireMarker>wiremarker size.102
- 4. Enter the wiremarker data.102

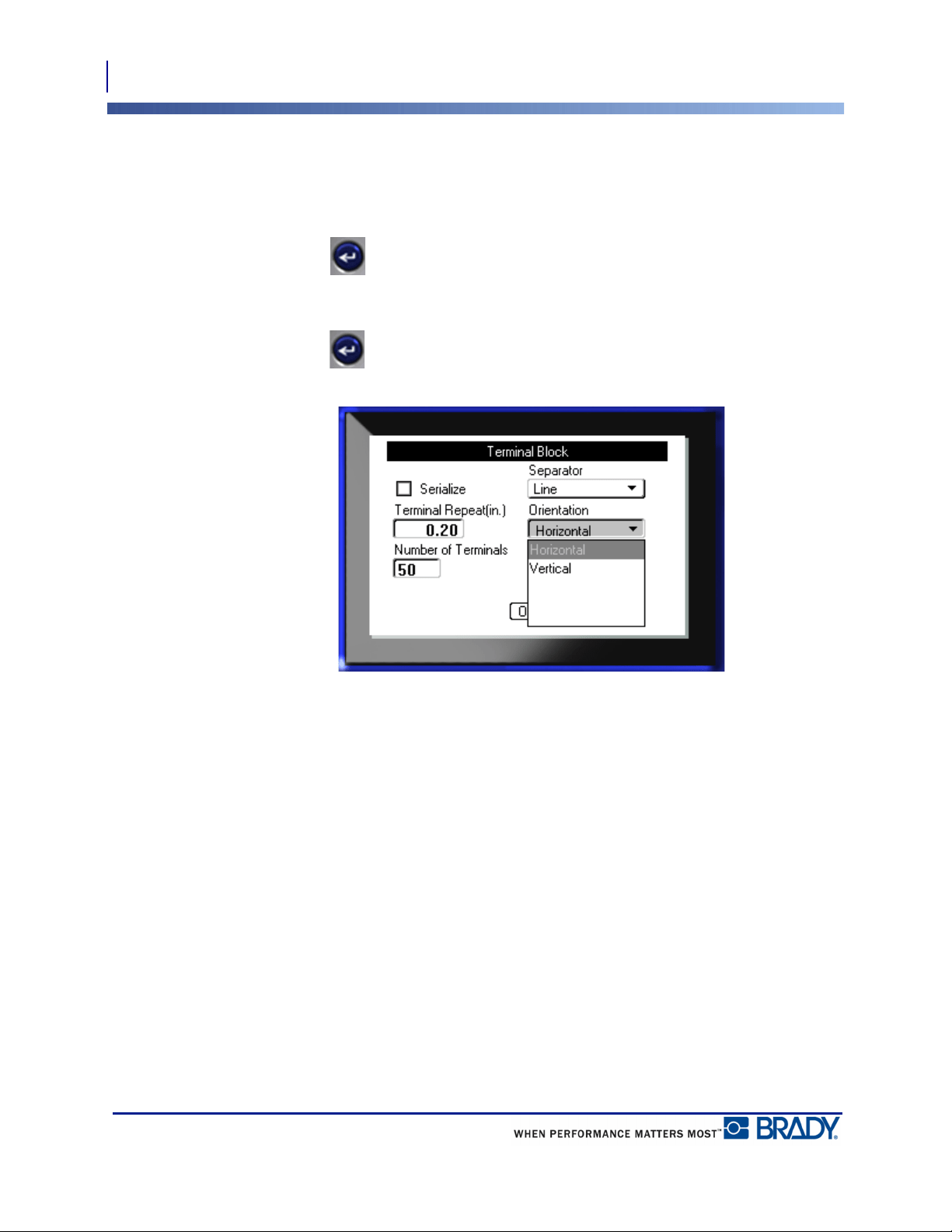

Terminal Block, Patch Panel, 66 Block104
- 1. Press Label Type .104
- 2. Navigate to the desired label type and press Enter .104
- 4. Navigate to the Separator field and, from the drop down list, select the separator to use.105
- 5. Navigate to the Orientation field and, from the drop down list, select the desired layout.105
- 6. Navigate to the Terminal Repeat field and indicate the size of the gap between each terminal (with a minimum of 0.2 inches).105
- 7. In the Number of Terminals field, enter the number of terminals on the block for which the label is intended.105
- 9. Complete the Serialization values. (See “Add Serialization” on page 68 for more information.)105

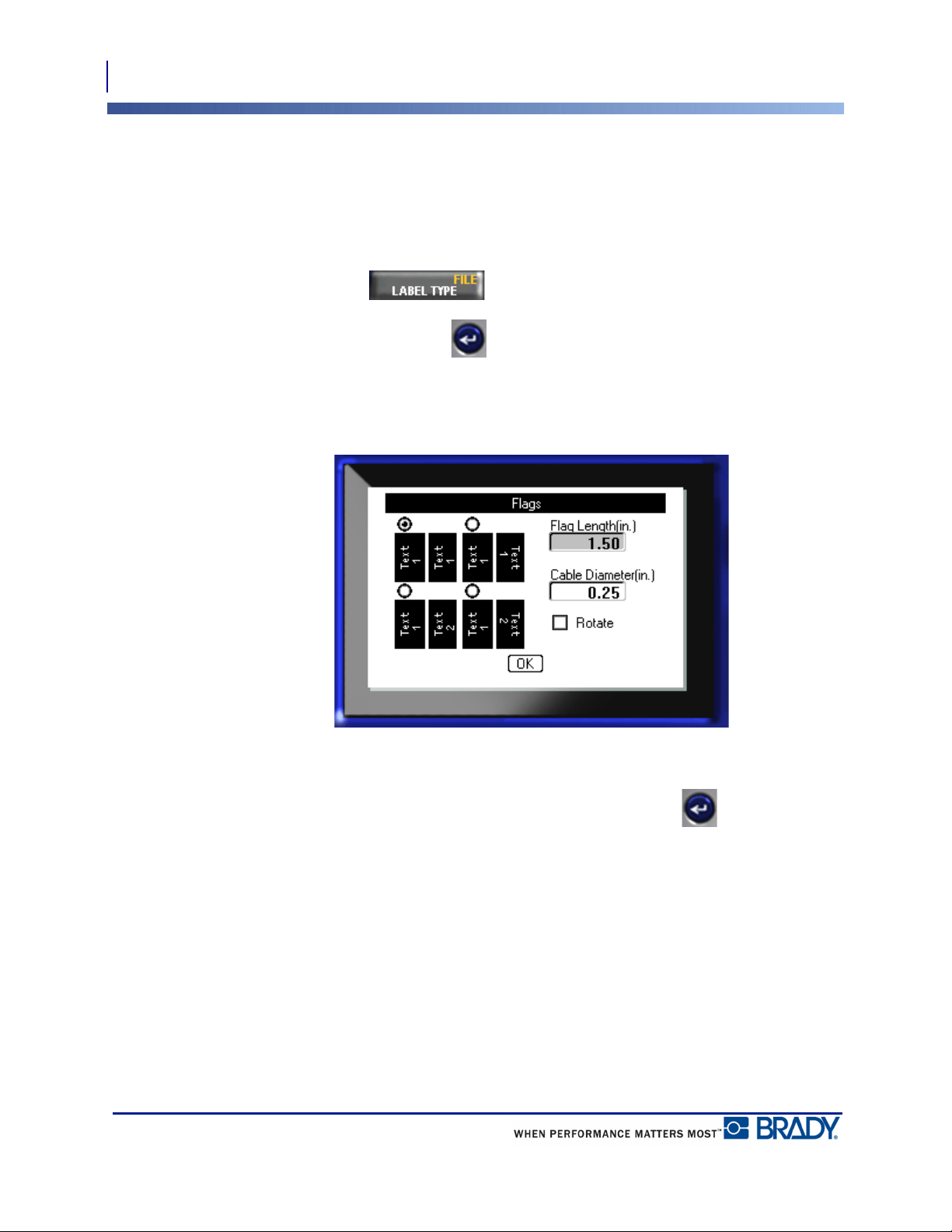

Flags106
- 1. Press Label Type .106
- 2. Choose Flags and press Enter .106
- 3. Navigate to the radio button of the desired layout and press Enter .106
- 4. If continuous media is installed, navigate to the Flag Length field and enter the length of the flag (the part that contains the text).106
- 5. Navigate to the Cable Diameter field and enter the diameter of the wire/cable to which the flag will be applied.106

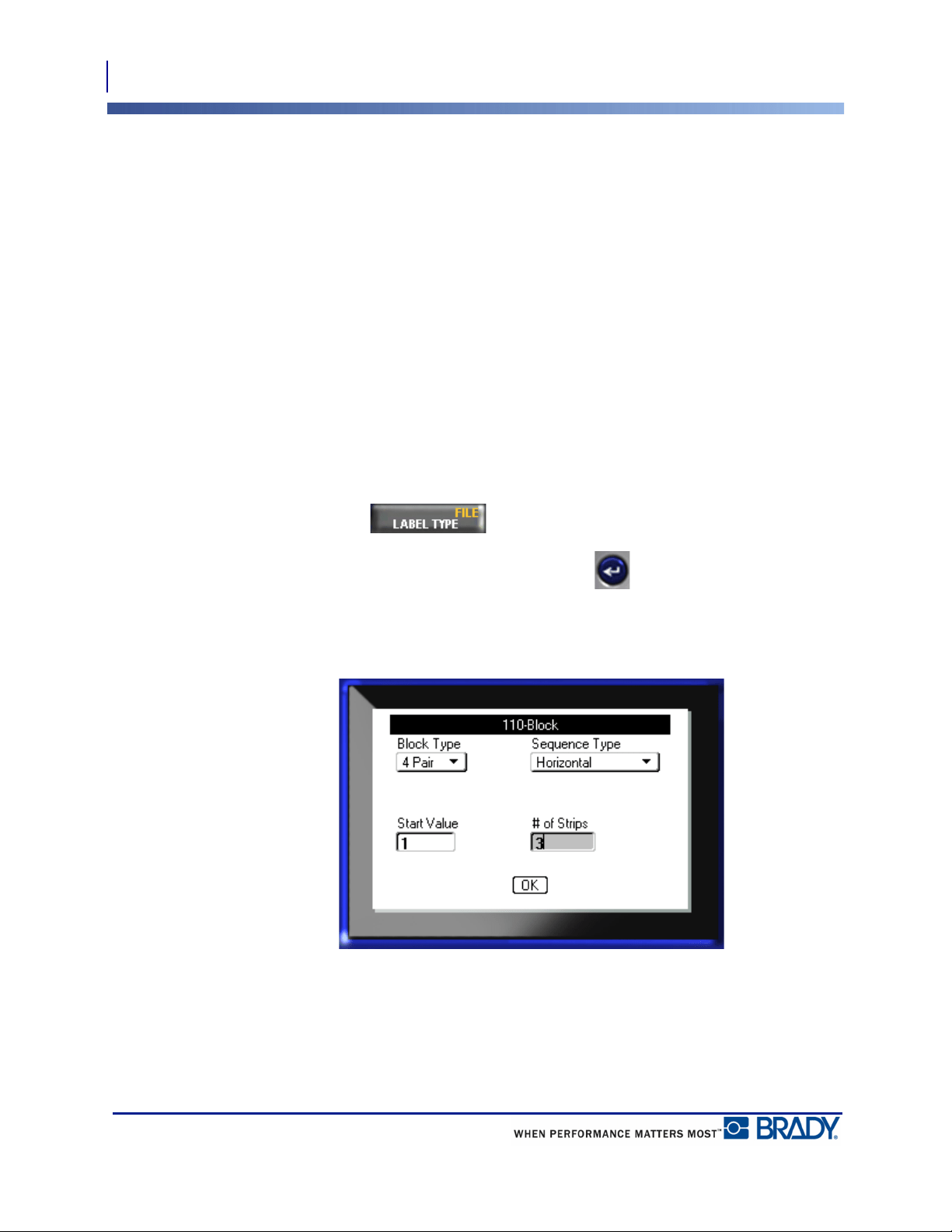

110-Block, Bix Block Label Type108
- 1. Press Label Type .108
- 2. Navigate to 110-Block or Bix block and press Enter .108
- 3. In the Block Type field, from the drop down list, choose the pair configuration to use.109
- 4. In the Sequence Type field, from the drop down list, select the Sequence Type to use.110
- 5. In the Start Value field (except when “None” is selected in the Sequence Type field), enter the first number of the sequence.110
- 6. In the # of Strips field, enter the number of strips (labels) to be created in the block configuration chosen.110
Vial111
- 1. Press Label Type .111
- 2. Choose Vial>/vial size.111
- 3. Press Enter .111
- 4. Enter the data.111
DesiStrip111
- 1. Press Label Type .111
- 2. Navigate to DesiStrip and press Enter .111
- 3. In the Length field, press Backspace to clear the default length.111
- 4. Enter the new length of the individual strip.111
- 5. Navigate to and press Enter .111

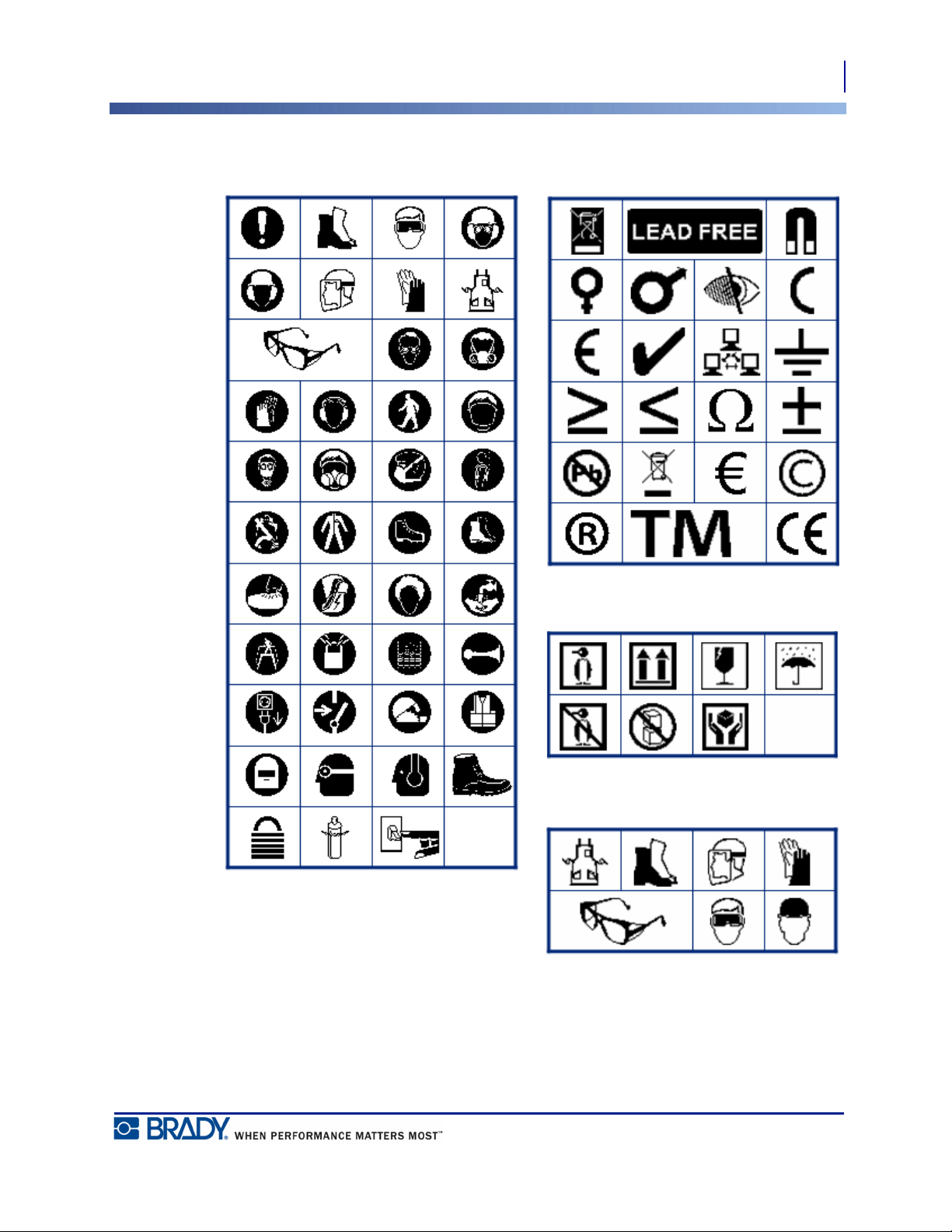

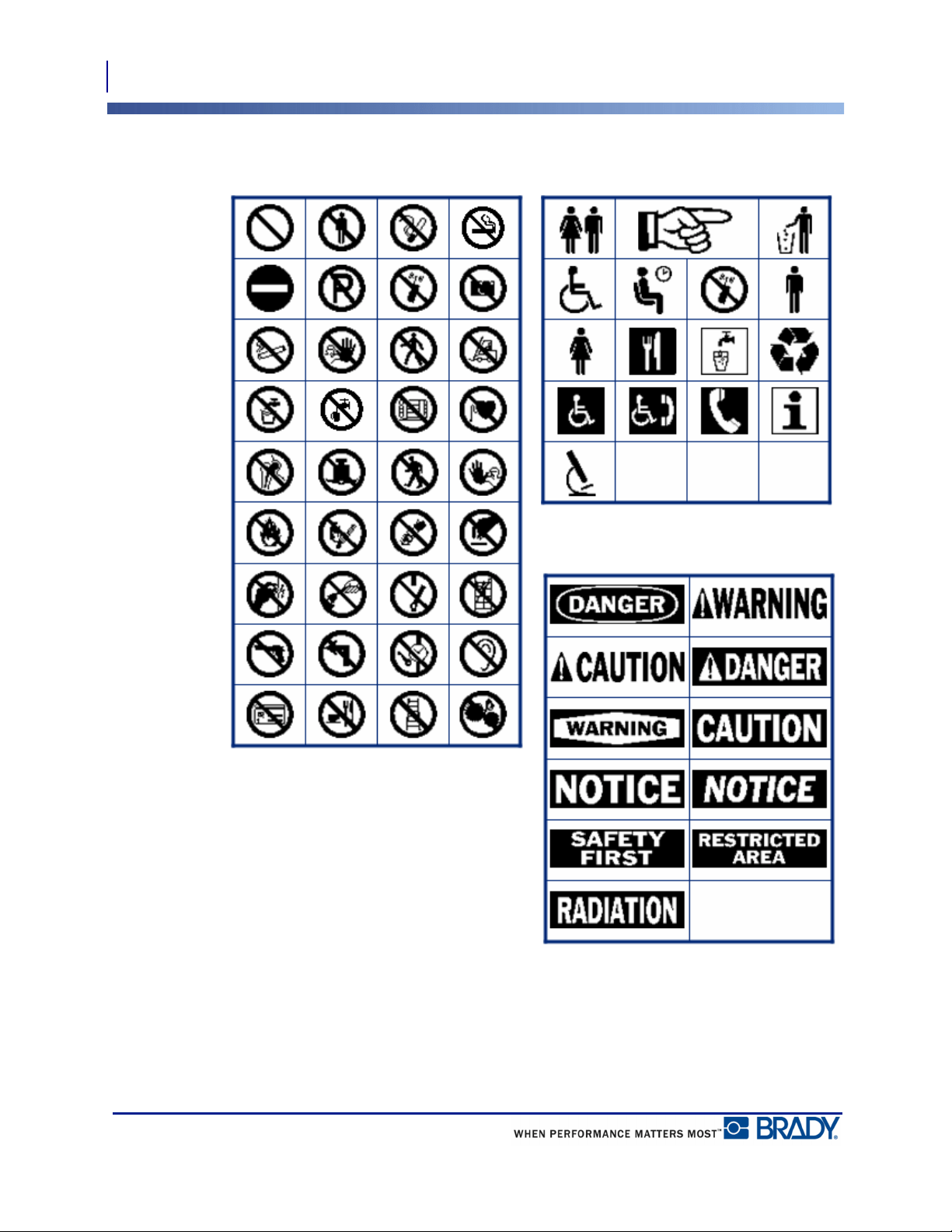

Appendix A - Symbols113
Copyright Info-6-28-11_EN.pdf0
- Copyright3
  - Trademarks3
- UNITED STATES4
  - INDUSTRY CANADA4
  - EUROPE4
- BRADY Warranty6
- Technical Support7
  - Technical Support Numbers/On-line Help7
  - Repair and Replacement Parts7
Introduction 8-05-11_EN.pdf0
- Introduction13
- External View17
- Power Source18
- Connecting23
  - Connecting to a PC24
  - Wireless Driver Installation26
    - 1. Insert the Brady Printer Drivers CD into the CD drive of your computer.26
    - 2. Follow the prompts on the screen for installation of a particular driver.26

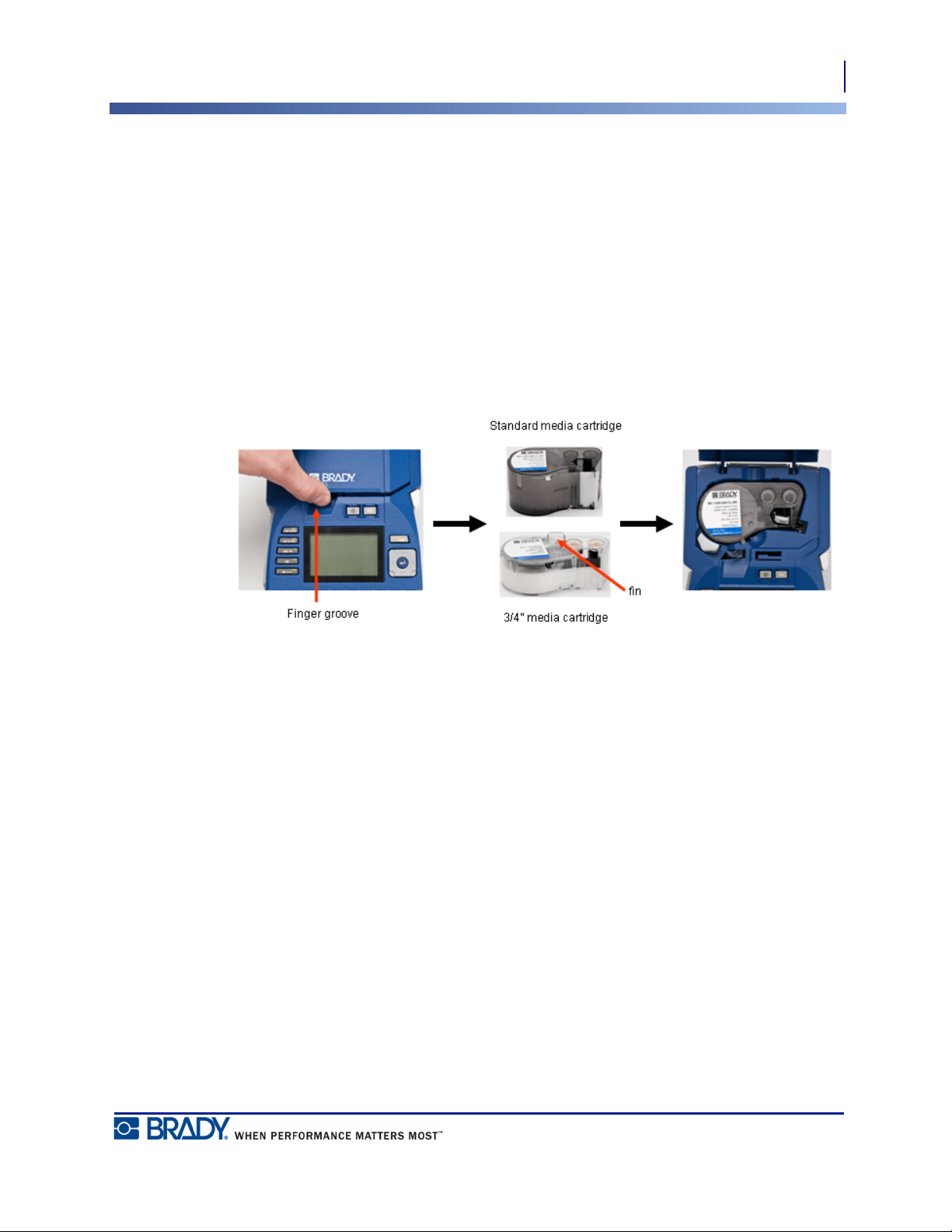

- Media Cartridge27
  - Load Cartridge27
    - 2. With the cartridge label facing up, drop the cartridge into the cartridge well, pushing gently until it snaps into place. Close the cover by pushing down on it until it snaps into place. Note: If using the shorter cartridge, hold the cartridge by ...27
  - Unload Cartridge28
    - 3. Placing your fingers in the cartridge grip areas, grasp the cartridge and pull it out. Note: If using the shorter cartridge, grab the cartridge fin and pull up.28
- Power On29
  - Display Screen30
- Keypad31
  - Navigation and Editing Keys31
  - Function Keys34
- Menus36
- Dialog Boxes37
- Setup42
