CARLTON 39
INSTALLATION AND OPERATION MANUAL
Model #CAR-39
Direct Vent Gas Fireplace
ͷ Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
ͷ WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the re department.
ͷ Installation and service must be performed by
a qualied installer, service agency or the gas
supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property
damage.
This appliance may be installed in an
aermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rang plate. This
appliance is not converble for use with other
gases, unless a cered kit is used.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
English and French installation manuals are available through your local
dealer. Visit our website www.kozyheat.com.
Les manuels d’installation en français et en anglais sont disponibles chez
votre détaillant local. Visitez www.kozyheat.com.
DANGER
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns
from the hot viewing glass is provided with this
appliance and shall be installed for the protection
of children and other at-risk individuals.
Hussong Mfg. Co., Inc.
CAR-39 Report No: 19-535
Rev. 11, February 2022
Starting Serial Number: 10 107000 22
Read this manual before installation or operating this appliance. Please retain this owner’s manual for future reference.
CONGRATULATIONS!
We welcome you as a new owner of a Kozy Heat gas replace. Kozy Heat products are designed
with superior components and materials, and assembled by trained craftsmen who take pride in
their work. To ensure you receive a quality product, the burner and valve assembly are 100 percent
test-red, and the complete replace is thoroughly inspected before packaging. Our commitment to
quality and customer satisfaction has remained the same for over 40 years. We offer a complete line of
gas, wood, and electric replaces, along with stylish accessories to complement any decor. Adding
a replace is one of the best ways to increase the value of your home, and we are proud to offer a
network of dealers throughout the country to help make your experience everything you imagine. We
pride ourselves in being dedicated not only to functionality and reliability, but also customer safety.
We offer our continual support and guidance to help you achieve the maximum benet and
enjoyment from your Kozy Heat gas replace.
Jim Hussong
President
Dudley Hussong
Board Chairman
Homeowner Reference Information
We recommend you record the following information:
Model Name: ____________________________________________
Serial Number: ___________________________________________
Dealership Purchased from: ________________________________
Date purchased/installed: __________________________________
Location of replace: ______________________________________
Dealer phone: ___________________________________________
Notes: ______________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
#CAR-39
R.11 February 2022
3
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
TABLE OF CONTENTS
HOMEOWNER REFERENCE INFORMATION .................................3
TABLE OF CONTENTS ..................................................................... 5
1.0 INTRODUCTION ......................................................................7
1.1 Appliance Certication ............................................................................ 7
1.2 California Proposition 65 Warning ....................................................... 7
1.3 Requirements for the Commonwealth of Massachusetts ........... 7
2.0 SPECIFICATIONS ..................................................................... 8
2.1 Heating Specications.............................................................................. 8
2.2 Electrical Specications ........................................................................... 8

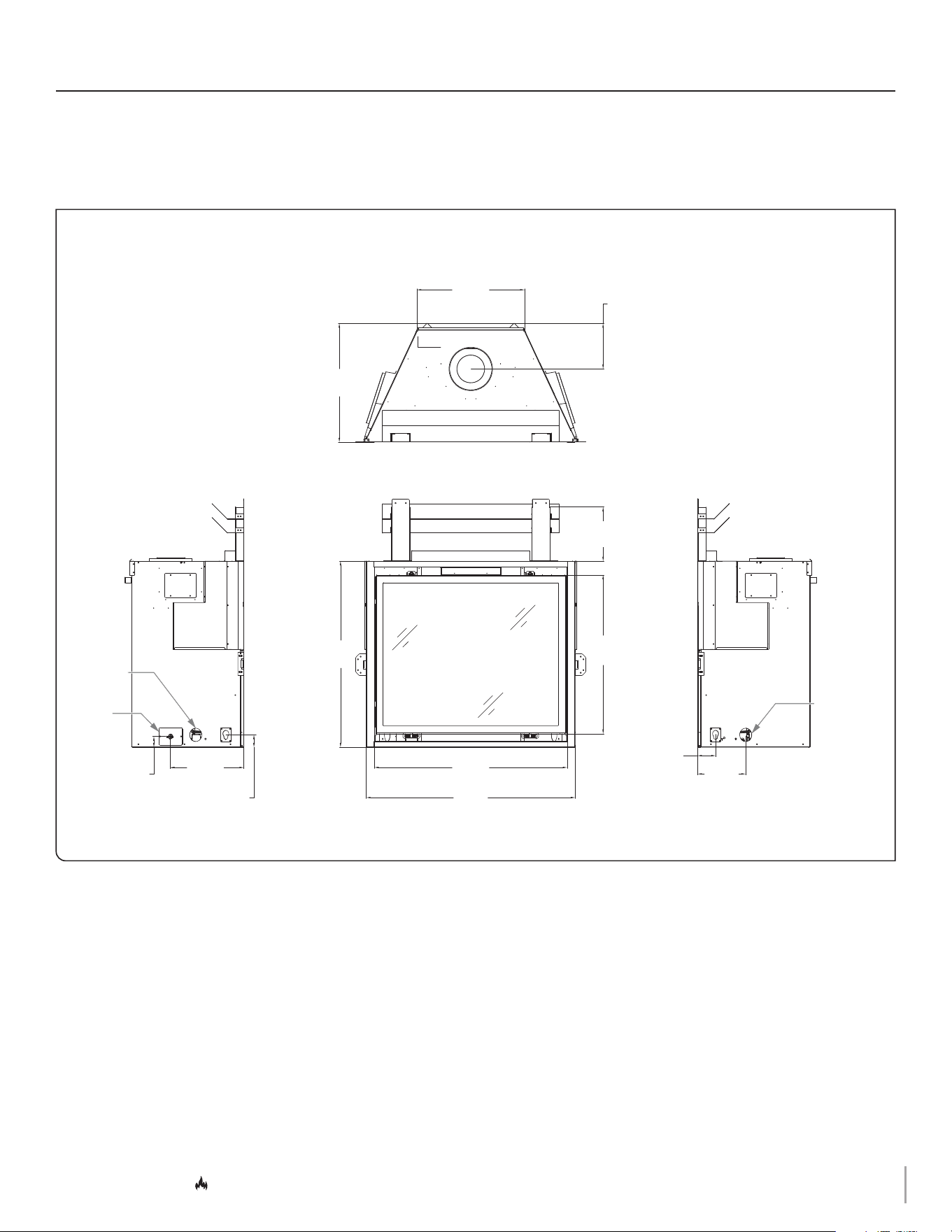

2.3 Appliance Dimensions ............................................................................. 9

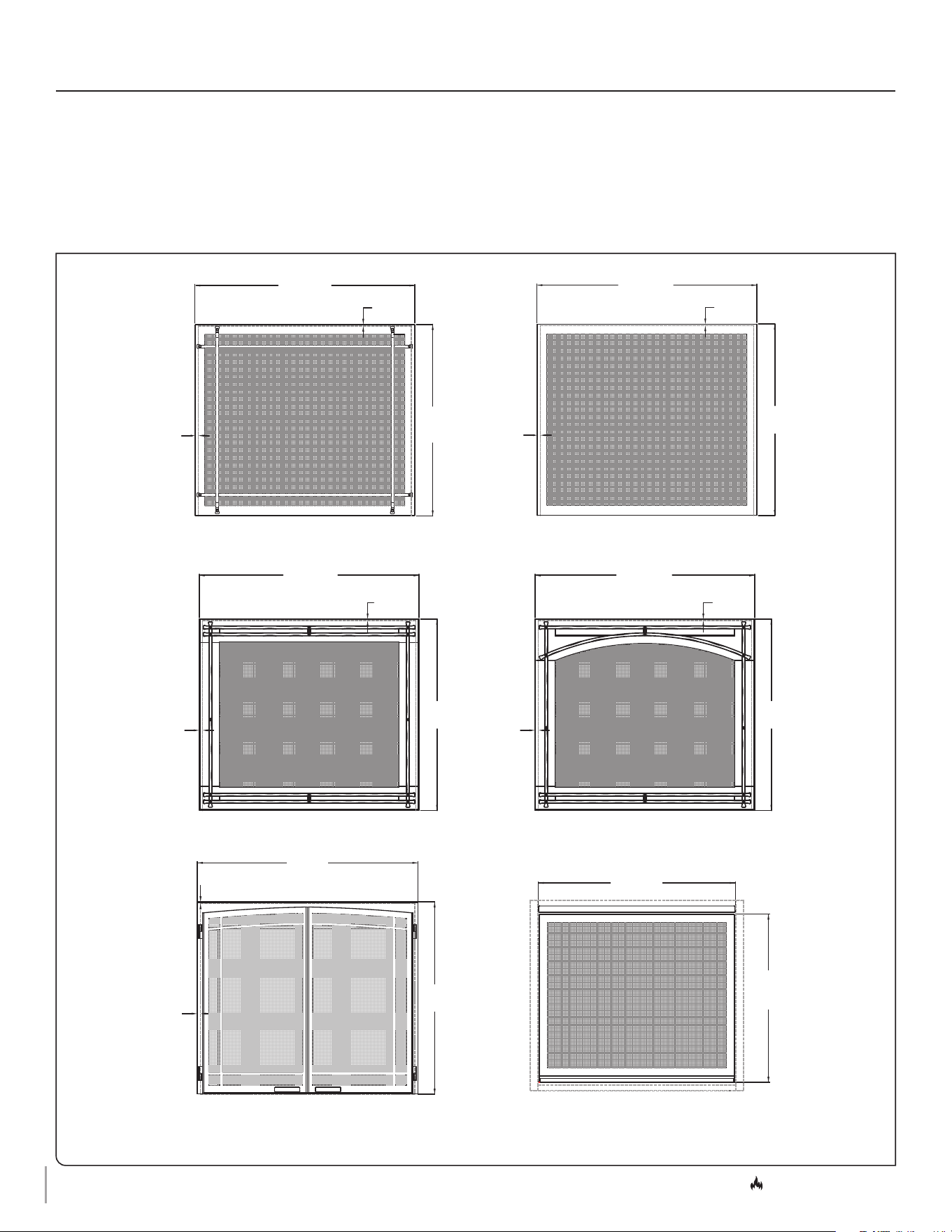

2.4 Barrier Dimensions .................................................................................... 10
3.0 FRAMING .................................................................................11
3.1 Installation Planning ................................................................................. 11
3.2 Appliance Placement Considerations ................................................. 11
3.3 Stand-o Assembly and Header Heat Shields ................................. 12

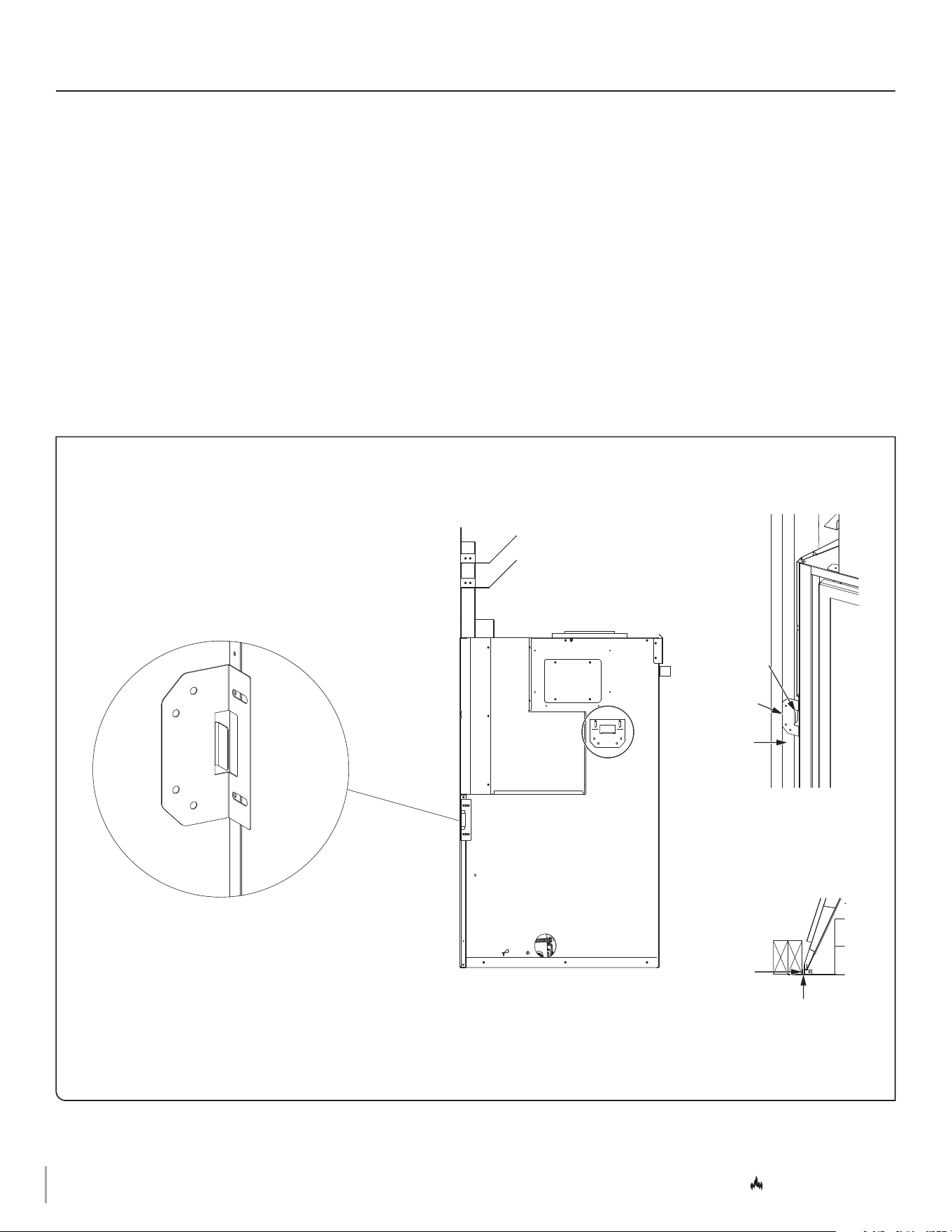

3.4 Nailing Flange Assembly and Installation ......................................... 14
3.5 Clearances to Combustibles ................................................................... 15
3.6 Rough Framing ...........................................................................................16
3.7 Outdoor Covered Fireplace Installation ............................................. 19
3.8 Exterior and Interior Heat Transfer Kit Cover Plate(s) .................... 21
4.0 FACING AND FINISHING .........................................................22
4.1 Facing and Finishing Requirements ................................................... 22
4.2 Optional Finishing Trim Kit (FTK): #C39-FTK ..................................... 27
4.3 Safety Barrier Installation ........................................................................ 28
5.0 GAS LINE CONNECTION .........................................................31
5.1 Gas Conversion ...........................................................................................31
5.2 Gas Line Installation .................................................................................. 31
6.0 TERMINATION LOCATIONS ....................................................32
6.1 Vertical Vent Termination ........................................................................ 32
6.2 Minimum Natural Draft Vent Termination Clearances .................. 33
7.0 VENTING ..................................................................................34
7.1 Approved Vent Systems ........................................................................... 34
7.3 Natural Draft Vent Restriction ............................................................... 35
7.4 Vent Heat Shield Assembly Installation.............................................. 36
7.5 Natural Draft Vent Installation ............................................................... 37
7.6 #800-1 Series Direct Vent Termination Kit(s) Installation ............. 42
8.0 FIREPLACE SETUP ................................................................... 43
8.1 Glass Frame Assembly .............................................................................. 43
8.2 Light Kit .......................................................................................................... 43
8.3 Bottom Frame Removal and Installation ........................................... 43

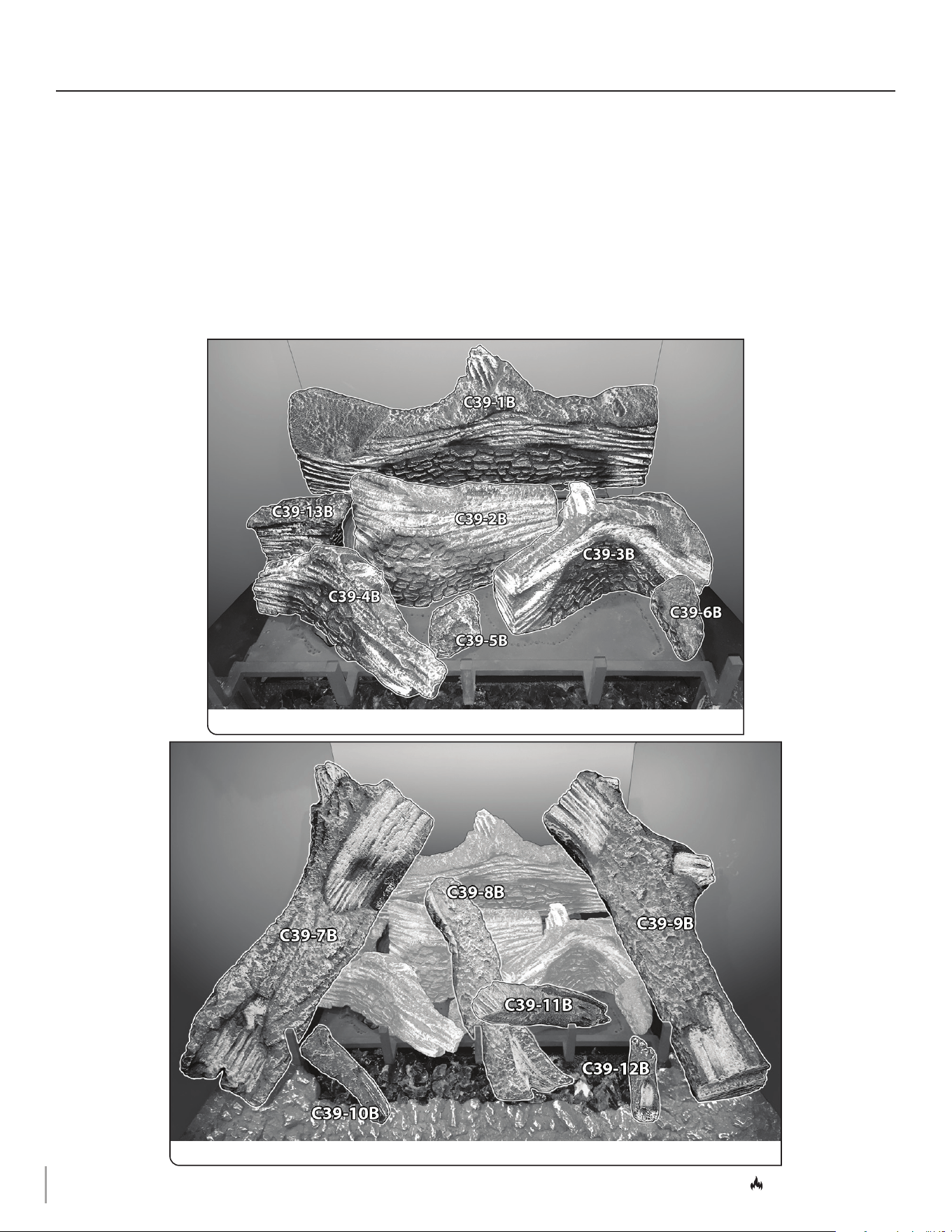

8.4 #C39-50B Log Set Installation ................................................................ 44
8.5 Control Board Removal and Installation ............................................ 45

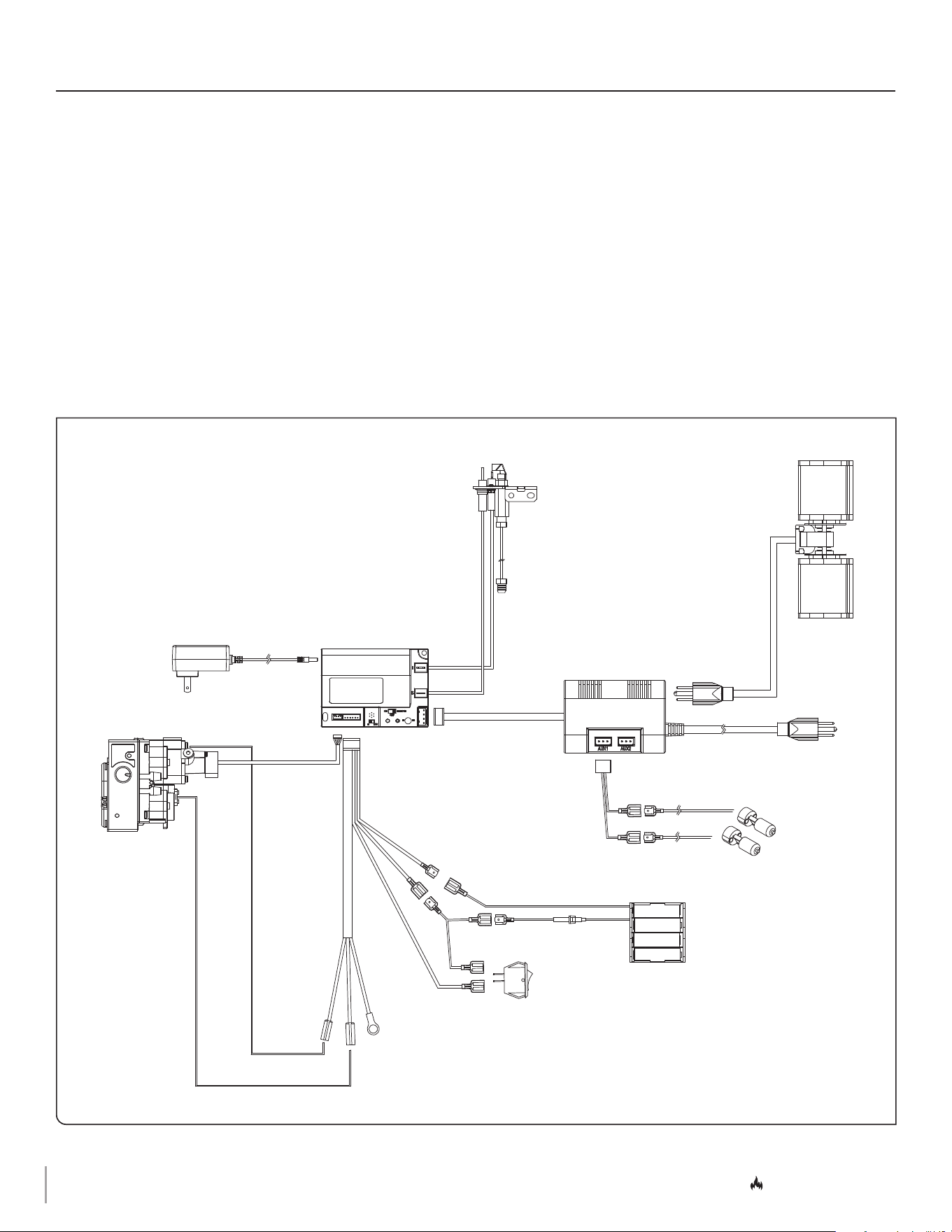

9.0 ELECTRICAL INFORMATION .................................................. 46
10.0 OPERATING INSTRUCTIONS ................................................ 47
10.1 Setup Komfort 8K1 Control Module ................................................. 48
10.2 Initialize the Komfort 8K1 Control System ...................................... 48
10.3 Automatic Safety Turn-o .................................................................... 48
10.4 Backup Battery Operation .................................................................... 48
10.5 Control System 7 Day Time-out .......................................................... 48
10.6 Komfort 8K1 Control System Ignition Sequence.......................... 48
10.7 Additional Diagnostic Information ...................................................48

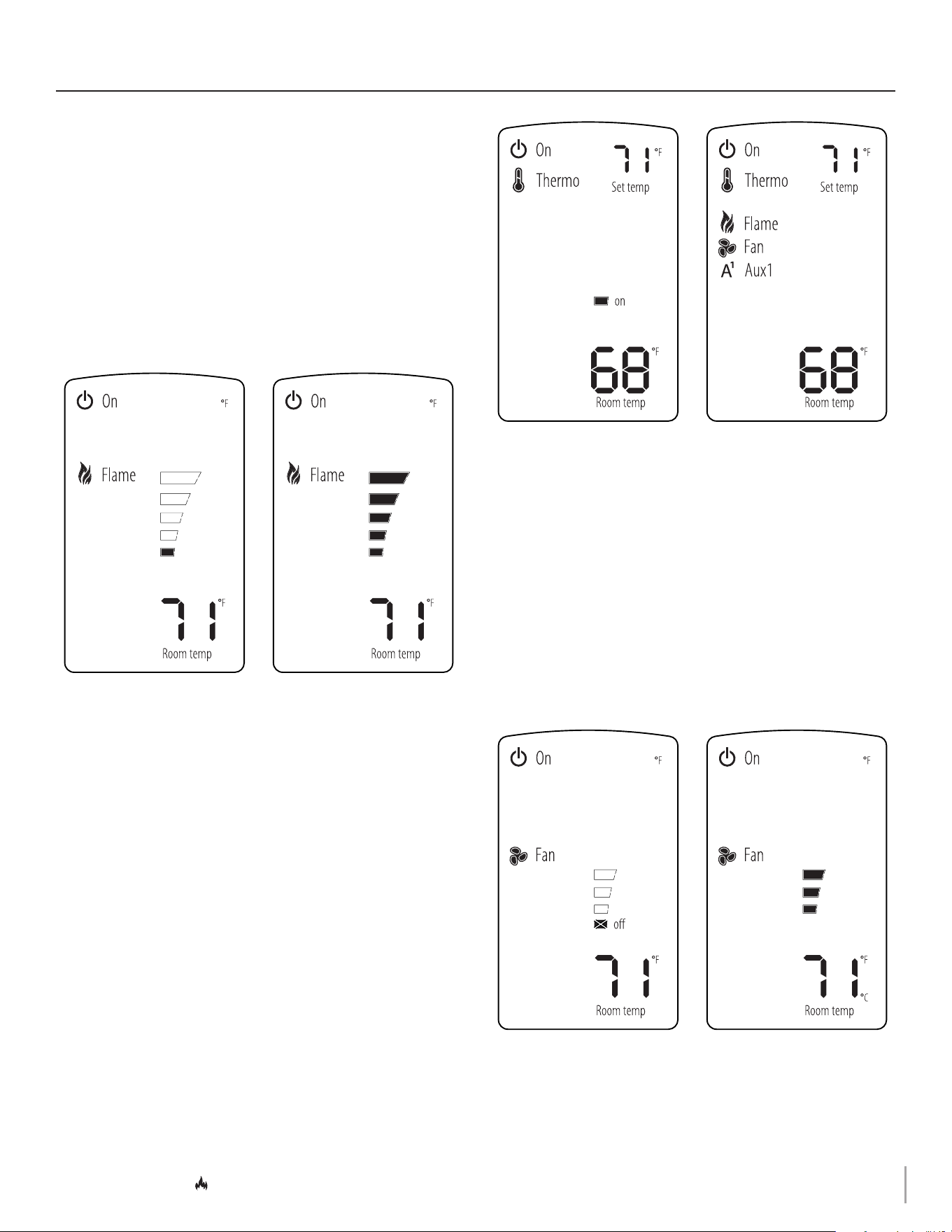

10.8 Remote Control Operation ................................................................... 49
11.0 ADJUSTMENT ........................................................................53
11.1 Pressure Testing ........................................................................................ 53
11.2 Burner Flame Adjustments .................................................................. 54
12.0 TROUBLESHOOTING............................................................. 56
13.0 MAINTENANCE......................................................................59
13.1 Firebox ......................................................................................................... 59
13.2 Fan ................................................................................................................. 59
13.3 Vent System ............................................................................................... 59
13.4 Glass Assembly ......................................................................................... 59
13.5 Burner and Pilot System ....................................................................... 60
14.0 REPLACEMENT PARTS LIST..................................................61
LIMITED LIFETIME WARRANTY ....................................................63
#CAR-39
R.11 February 2022
5
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
Appliance Certication–Requirements for Massachusetts
SECTION 1 INTRODUCTION
#CAR-39
R.11 February 2022
#CAR-39
R.11 February 2022
7
HUSSONG MFG. CO., INC.
KOZY HEAT FIREPLACES
1.1 Appliance Certication
Laboratory: PFS in Cottage Grove, Wisconsin
Standards:
ANSI Z21.88-2017/CSA 2.33-2017, Vented Gas Fireplace Heaters
CSA 2.17 2017, Gas-Fired Appliances for Use at High Altitudes
This installation must conform with local codes, or in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
the Natural Gas and Propane Installation Code, CSA B149.1.
1.2 California Proposition 65 Warning
WARNING: This product can expose you to chemicals including
Carbon Monoxide, that is an externally vented by-product of fuel
combustion, which is [are] known to the State of California to cause
birth defects or other reproductive harm. For more information, visit
www.P65Warnings.ca.gov.
1.3 Requirements for the
Commonwealth of Massachusetts
The following requirements reference various Massachusetts and
national codes not contained in this manual.
For all sidewall horizontally vented gas fueled equipment installed
in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than (7) feet above nished grade in the area of the venting,
including but not limited to decks and porches, the following
requirements shall be satised:
1.3.1 Installation of Carbon Monoxide Detectors
At time of installation of side wall horizontally vented gas fueled
equipment, the installing plumber or gas-tter shall observe that
a hard wired carbon monoxide detector with an alarm and battery
back-up is installed on the oor level where the gas equipment is
to be installed. In addition, the installing plumber or gas-tter shall
observe that a battery operated or hard wired carbon monoxide
detector is installed on each additional level of the dwelling, building
or structure served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property owner
to secure the services of qualied licensed professionals for the
installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled
equipment is installed in a crawl space or attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed
on the next adjacent oor level. In the event that the requirements
of this subdivision can not be met at the time of completion of
installation, the owner shall have a period of thirty (30) days to
comply with the above requirements; provided, however, that during
said thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
1.3.2 Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the
above provisions shall comply with NFPA 720 and be ANSI/UL 2034
listed and IAS certied.
1.3.3 Signage
A metal or plastic identication plate shall be permanently mounted
to the exterior of the building at a minimum of eight (8) feet
above grade directly in line with the exhaust vent terminal for the
horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print no less the one-half inch (½) in size, “GAS VENT
DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
1.3.4 Inspection
The state or local gas inspector of the side wall horizontally vented
gas fueled equipment shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide detectors and
signage installed in accordance with the provisions of 248 CMR 5.08
(2) (a) 1 through 4.
1.3.5 Exemptions
The following equipment is exempt from 248 CMR 5.08 (2) (a) 1
through 4: The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition of NFPA 54 as
adopted by the Board; and Product Approved side wall horizontally
vented gas fueled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or in part for
residential purposes.
1.3.6 Manufacturer Requirements
1.3.6.1 Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally
vented gas equipment provides a venting system design or venting
system components with the equipment, the instructions provided
by the manufacturer for installation of the equipment and the
venting system shall include:
• Detailed instructions for the installation of the venting system
design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
1.3.7 Gas Equipment Venting
System NOT Provided
When the manufacturer of Product Approved side wall horizontally
vented gas equipment does not provide the parts for venting the
ue gases, but identies “special venting systems”, the following
requirements shall be satised by the manufacturer:
• The referenced “special venting systems” instructions shall
be included with the appliance or equipment installation
instructions and;
• The “special venting systems” shall be Product Approved by the
Board, and the instructions for that system shall include a parts
list and detailed installation instructions.
A copy of all installation instructions for all Product Approved
side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting
design instructions shall remain with the appliance or equipment at
the completion of the installation.
1.0 INTRODUCTION
SECTION 2 SPECIFICATIONS
Heating Specications–Electrical Specications
#CAR-39
R.11 February 2022
#CAR-39
R.11 February 2022
8
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
2.0 SPECIFICATIONS
2.1 Heating Specications
Natural Gas Propane
Maximum
Input Rating
40,000 Btu/h
(11.7 kW)
40,000 Btu/h
(11.7 kW)
Minimum
Input Rating
20,000 Btu/h
(5.9 kW)
20,000 Btu/h
(5.9 kW)
Manifold Pressure
(High)
3.5” WC
(0.87 kPa)
10” WC
(2.49 kPa)
Manifold Pressure
(Low)
1” WC
(0.24 kPa)
2.7” WC
(0.67 kPa)
Orice Size (DMS) FRONT: #44
BACK: #45
FRONT: #55
BACK: #55
2.1.1 Altitude Adjustment
This appliance may be installed at higher altitudes. Please refer to
National Fuel Gas Code ANSI Z223.1/NFPA 54, CSA-B149.1 Natural
Gas and Propane Installation Code, local authorities, or codes having
jurisdiction in you area regarding derate guidelines.
2.1.1.1 US Installations
Refer to the American Gas Association guidelines for the gas designed
appliances derating method. For elevations above 2,000’ (610 m),
input ratings are to be reduced by 4% for each 1,000’ (305 m) above
sea level.
2.1.1.2 Canadian Installations
When the appliance is installed at elevations above 4,500’ (1,372 m),
the certied high altitude rating shall be reduced at the rate of 4% for
each additional 1,000’ (305 m).
2.2 Electrical Specications
• The junction box in this appliance requires 120VAC, 60Hz,
and 6 Amps.
• Verify the household breaker is shut o prior to working on any
electrical lines.
• The AC power supply to this appliance must be hot at all times
and shall not have a switch installed in it.
Appliance Dimensions
SECTION 2 SPECIFICATIONS
#CAR-39
R.11 February 2022
9
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
2.3 Appliance Dimensions
87⁄16”
(214mm)
1915⁄16”
(507mm)
22”
(559mm)
34
½”
(876mm)
2”
(51mm)
13
9⁄16”
(345mm)
25⁄16”
(58mm)
35
¾”
(908mm)
38¾”
(984mm)
29
7⁄16”
(747mm)
10”
(254mm)
3
5⁄16”
(85mm)
8
15⁄16”
(226mm)
LEFT SIDE FRONT SIDE RIGHT SIDE
TOP VIEW
Alternate
gas line hole
Preferred gas
line hole
Electrical
access
FIGURE 2.1 #CAR-39 Dimensions
Barrier Dimensions
SECTION 2 SPECIFICATIONS
#CAR-39
R.11 February 2022
10
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
2.4 Barrier Dimensions
WARNING: A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be installed for
the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with
Hussong Mfg. Co., Inc.’s barriers for this appliance.
IMPORTANT: Consider the height of hearth nish material when
building a replace platform. Use the drawing below for overlap
dimensions to ensure the barrier can t with nishing materials.
For installation instructions, refer to section 4.3, SAFETY BARRIER
INSTALLATION on page 28.
34¾”
(882mm)
5⁄8”
(16mm)
40”
(1016mm)
5⁄16”
(8mm)
35
3⁄8”
(898mm)
30
½”
(774mm)
40”
(1016mm)
5⁄8”
(16mm)
5⁄16”
(8mm)
34
¾”
(882mm)
5⁄8”
(16mm)
5⁄16”
(8mm)
40”
(1016mm)
34
¾”
(882mm)
SIDE
OVERLAP
TOP OVERLAP
SIDE
OVERLAP
TOP OVERLAP
TOP OVERLAP
SIDE
OVERLAP
C39-PSF C39-FRSF
C39A-FPDSF2
C39-RSF2
TOP AND SIDES OVERLAP TOP AND SIDES OVERLAP
34¾”
(882mm)
5⁄8”
(16mm)
40”
(1016mm)
5⁄16”
(8mm)
34
¾”
(882mm)
5⁄8”
(16mm)
40”
(1016mm)
5⁄16”
(8mm)
SIDE
OVERLAP
TOP OVERLAP
SIDE
OVERLAP
TOP OVERLAP
C39R-MSF C39A-MSF
TOP AND SIDES OVERLAP TOP AND SIDES OVERLAP
NO OVERLAP - INSIDE FIT
TOP AND SIDES OVERLAP
FIGURE 2.2 Safety Barrier Dimensions
Installation Planning
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
11
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.0 FRAMING
3.1 Installation Planning
• Heat Transfer Kit(s) allows you to transfer heat to a specic area
inside your home (interior) or directly outside (exterior). This
appliance can have (2) heat transfer kits installed at the same
time. It can be up to two of the same heat transfer kits, or a
combination of interior and exterior kits. See the HTK-EXT and/or
HTK-INT manuals for further information.
If you are planning an installation with the use of an exterior
and/or interior kit, the minimum dimensions listed in this
section will apply for your framing installation. You will need to
remove the cover plates as instructed in section 3.8, EXTERIOR
AND INTERIOR HEAT TRANSFER KIT COVER PLATE(S)
on page 21.
• If planning to convert to propane, it is easier to complete the gas
conversion before framing in the replace. See the #LCK-C39-D
manual for complete conversion instructions. If you convert the
replace to propane after replace installation, you will have to
remove the control board. See section 8.5, CONTROL BOARD
REMOVAL AND INSTALLATION on page 45 for access to the
control board before and after installation.

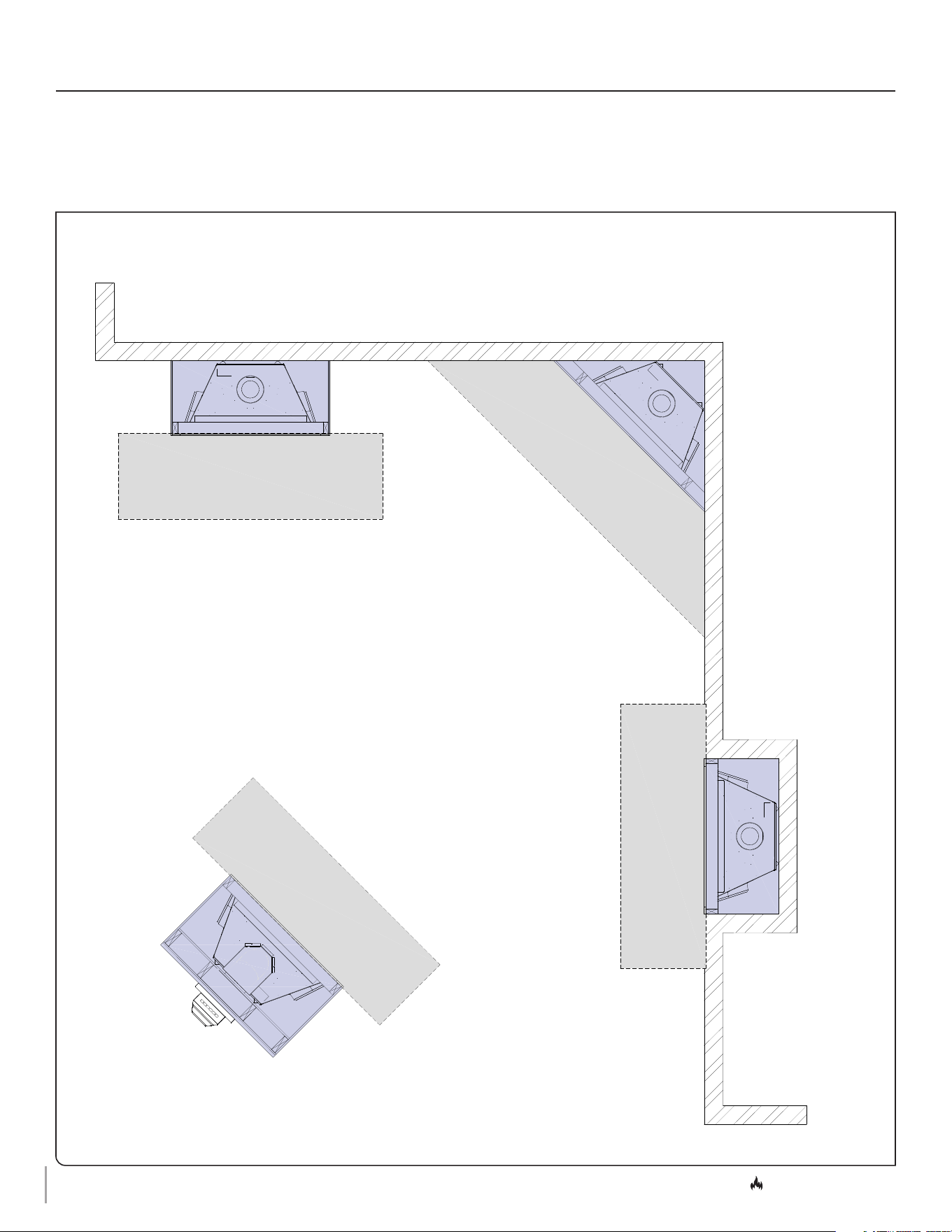

3.2 Appliance Placement Considerations
WARNING: Due to high temperatures, the appliance should be located
out of trac and away from furniture and draperies.
• This appliance must be installed on a level surface capable of
supporting the replace and venting. Determine your vent
requirements before framing your appliance.
• This replace may be installed in a bedroom.
• Please be aware of the large amount of heat this replace will
produce when determining a location.
Stand-o Assembly and Header Heat Shields
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
12
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.3 Stand-o Assembly and
Header Heat Shields
NOTE: If planning to install an optional trim kit assembly, please refer
to section 4.2, OPTIONAL FINISHING TRIM KIT (FTK): #C39-FTK
on page 27 before installing the stand-o assembly and header
heat shields.
The stand-o assembly provides:
• Minimum distance to header
• Contact point for non-combustible material above the replace
• Attachment for the header heat shield
3.3.1 Stand-o Assembly, Insulation Piece,
and Header Heat Shields Adjustment
The stand-o assembly, header heat shields, and insulation piece
are adjustable to accommodate the installation of non-combustible
material.

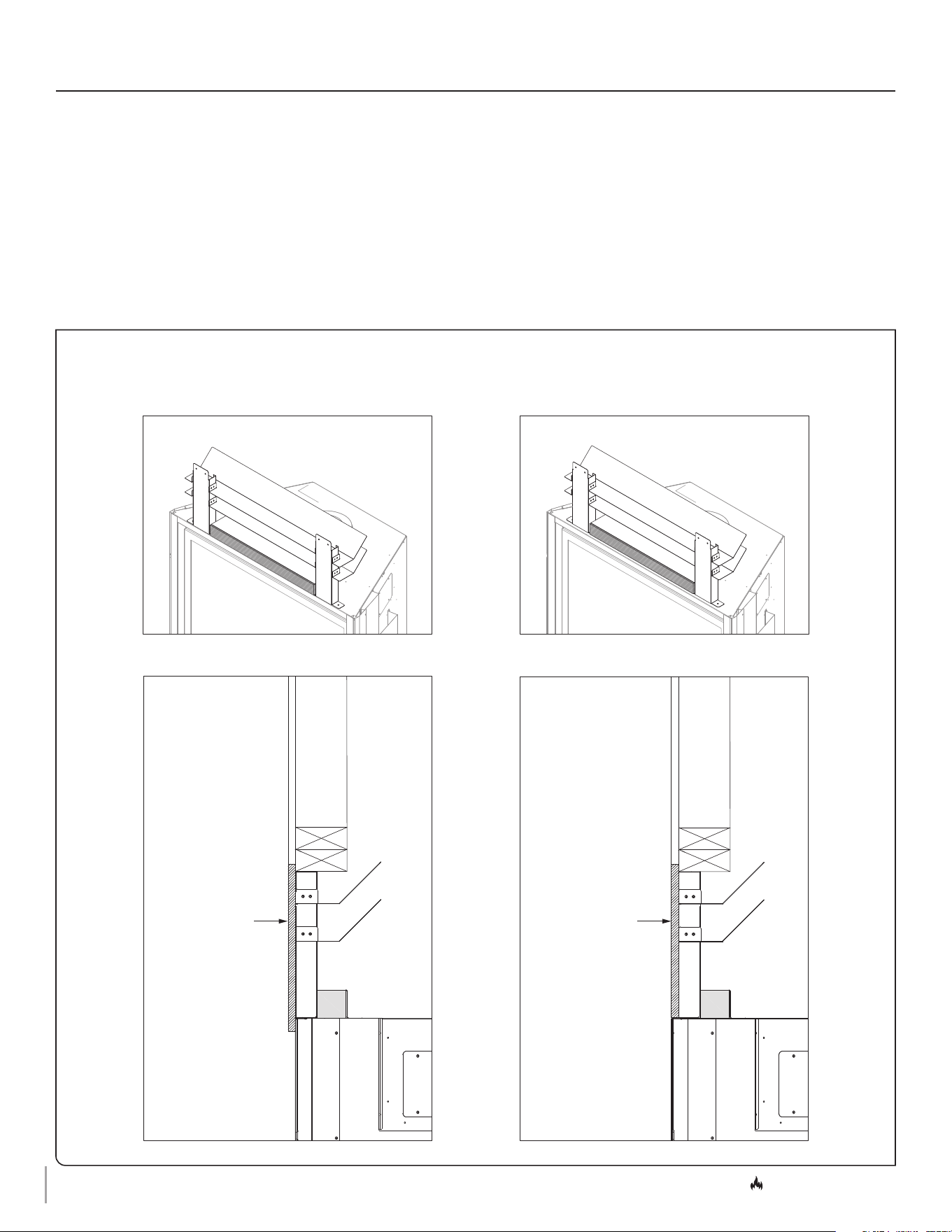

If you install the stand-o assembly in a forward position, the non-
combustible material will overlap the face of the replace. If you
install the stand-o assembly further back from the replace face, the
typical 1/2” (12mm) non-combustible material will be ush with the
replace face. See FIGURE 3.1 below.
See the following page for installation instructions.
Typical 1/2” (12mm) non-combustible
material will overlap the front face of the replace
Fireplace front flush with typical
1/2” (12mm) non-combustible material
Side View
Side View
Stand-off Assembly, Insulation Piece, and Header Heat Shields Adjustment
Non-combustible
material
Non-combustible
material
FIGURE 3.1 Stand-o Assembly, Header Heat Shields, and Insulation Piece Adjustment
Stand-o Assembly and Header Heat Shields
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
13
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

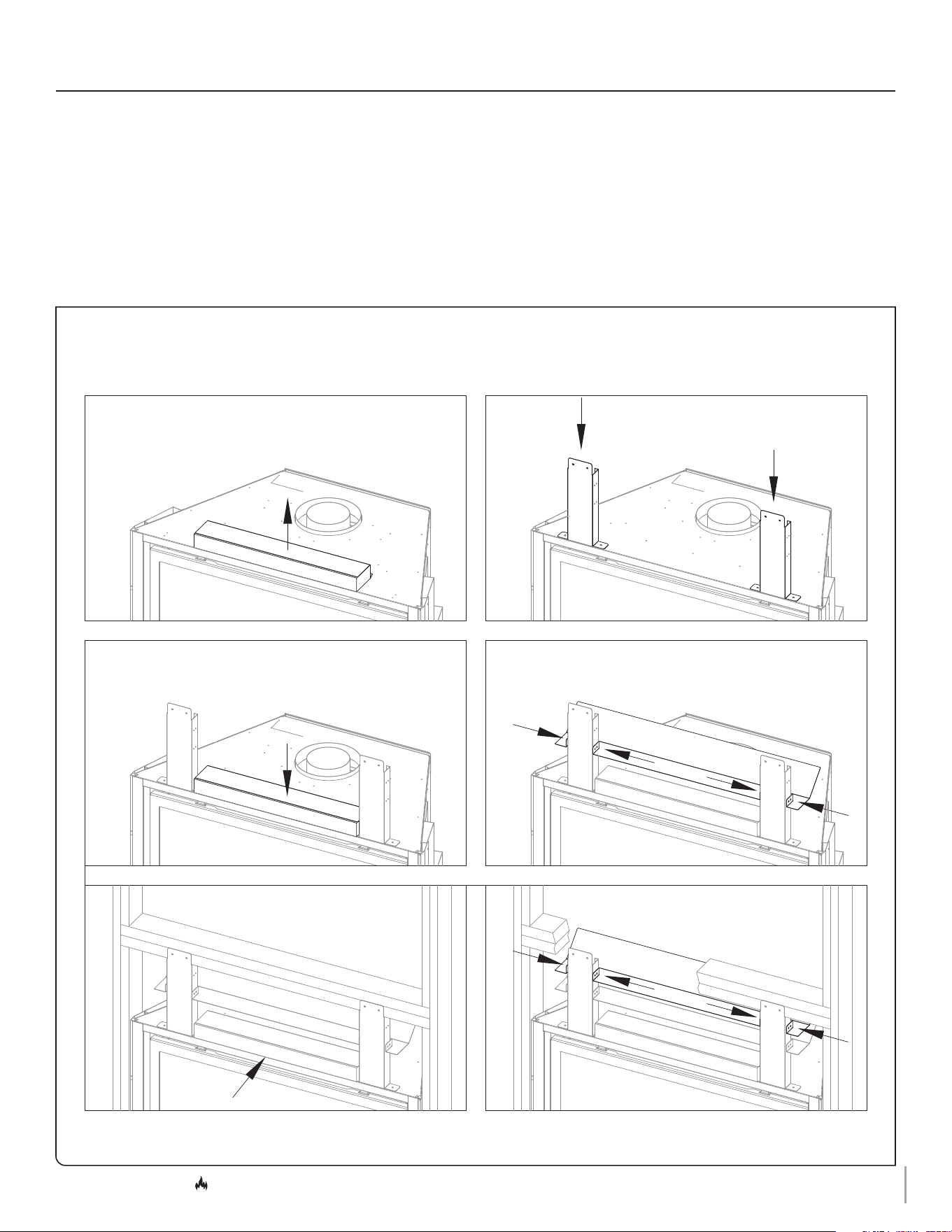

3.3.2 Stand-o Assembly, Insulation Piece,
and Header Heat Shields Installation

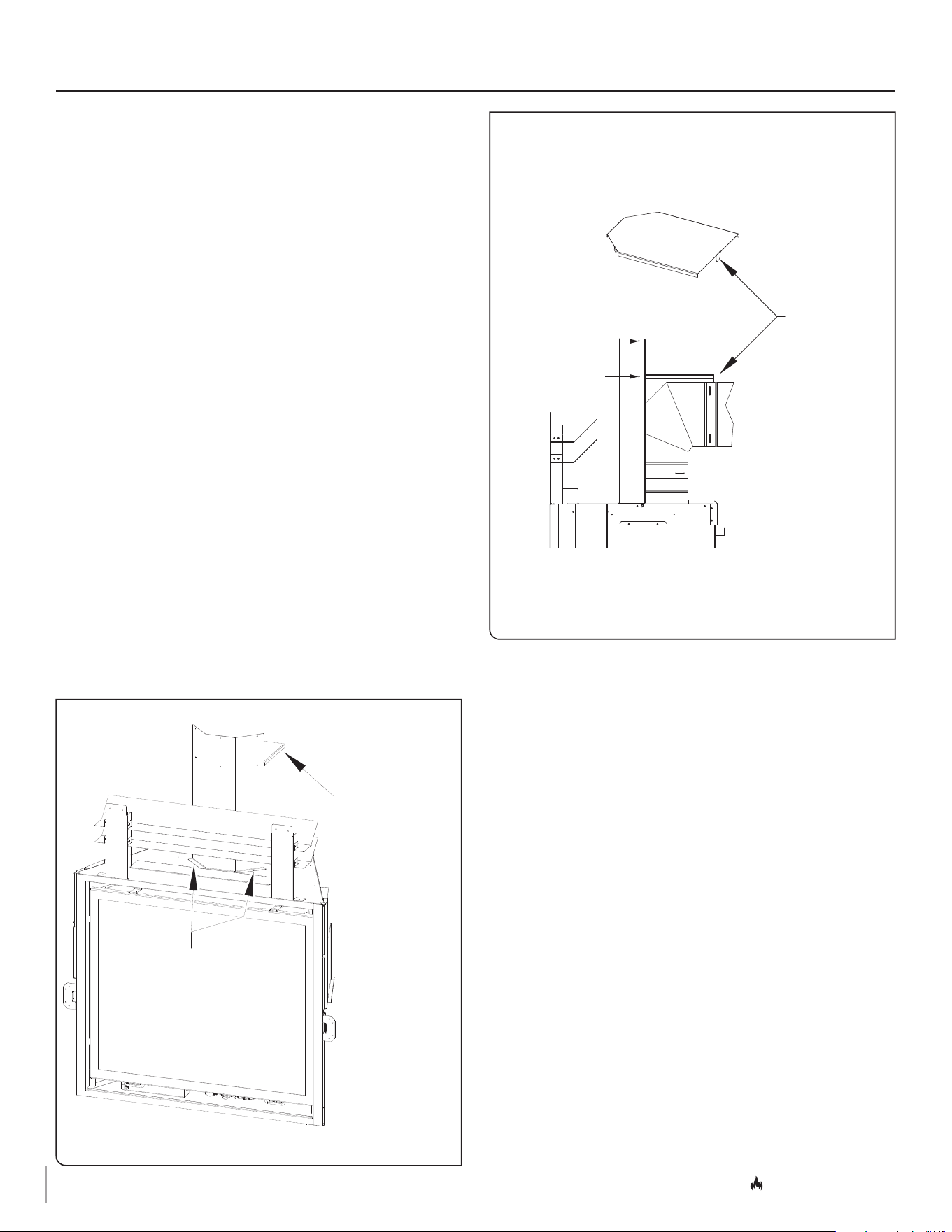

1. Locate the stand-o assembly, header heat shields, and
insulation piece on top of the replace, as shipped.
2. Align the holes in the stand-o assembly with the holes on top
of the replace in order to accommodate your nishing material
installation. Attach the stand-o assembly to the replace using
(4) screws, as shown.
3. Place the insulation piece in between the two stand-o
assemblies, as shown. The insulation piece must be pushed tight
against the required non-combustible material (board).
4. Attach the lower header heat shield to the stand-o assembly
as shown. Start at the bottom and align the holes on the lower
header heat shield with the holes on stand-o assembly and
attach with (8) screws.
5. Position appliance into rough opening before attaching the
upper header heat shield. Attach the upper header heat shield to
the stand-o assembly with (8) screws.
Stand-off Assembly, Insulation piece, and Header Heat Shields Installation
(overlap installation shown)
FIGURE 3.2 Stand-o Assembly, Header Heat Shields, and Insulation Piece Installation
Nailing Flange Assembly and Installation
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
14
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.4 Nailing Flange Assembly
and Installation
CAUTION: Never permanently remove these assemblies from the
replace—they must be secured regardless of nish material used.
The nailing anges MUST BE INSTALLED for all applications.
1. Remove (2) nailing anges from the right and left side of the
replace.
2. Align nailing ange with holes on outside corners of replace,
with the stand-o anges on the nailing anges facing away
from the replace
3. Secure the nailing anges to the replace with screws (provided)
through the slots in nailing anges.
4. Bend perforation on nailing ange until parallel with replace
face. Do not bend toward replace face.
5. UNTIL ALL FRAMING REQUIREMENTS ARE COMPLETED:
Position framing stud against the small stand-o (located on
backside of nailing ange). Secure with nails or screws.
• When installed, the nailing anges provide the minimum
1/2” (13mm) clearance from the sides of the replace
to framing.
Back view
Side view
Front view
Top view
Nailing flange installed
Nailing flange
as shipped
Stand-off flange
Nailing flange
Framing stud
Stand-off
flange
Framing stud
1/2” (13mm)
CLEARANCE
FIGURE 3.3 Nailing Flange Installation
Clearances to Combustibles
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
15
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.5 Clearances to Combustibles
Table 3.1, Minimum Appliance Clearances to Combustible Material
From appliance top stand-o assembly 0” 0mm
From appliance left and right stand-o brackets 0” 0mm
From appliance back stand-o brackets 0” 0mm
From appliance corners 1/4” 6mm
From appliance front 36” 914mm
Appliance side to adjacent sidewall 1-1/4” 32mm
Appliance top to 3/4” (19mm) trim 10” 254mm
Mantel 10” (254mm) deep from appliance top 14” 356mm
Appliance top to replace enclosure top 30” 762mm
Minimum height of replace enclosure 64-1/2” 1638mm
1”
(25mm)
22”
(559mm)
39
¾”
(1010mm)
12
9⁄16”
(318mm)
¼”
(6mm)
44
5⁄16”
(1125mm)
31
5⁄16”
(796mm)
625⁄8”
(1591mm)
1”
(25mm)
22”
(559mm)
39¾”
(1010mm)
39
¾”
(1010mm)
Typical Corner Installation
Typical Horizontal InstallationTypical Vertical Installation
Includes 1/2” (13mm) typical nish
with flush mount

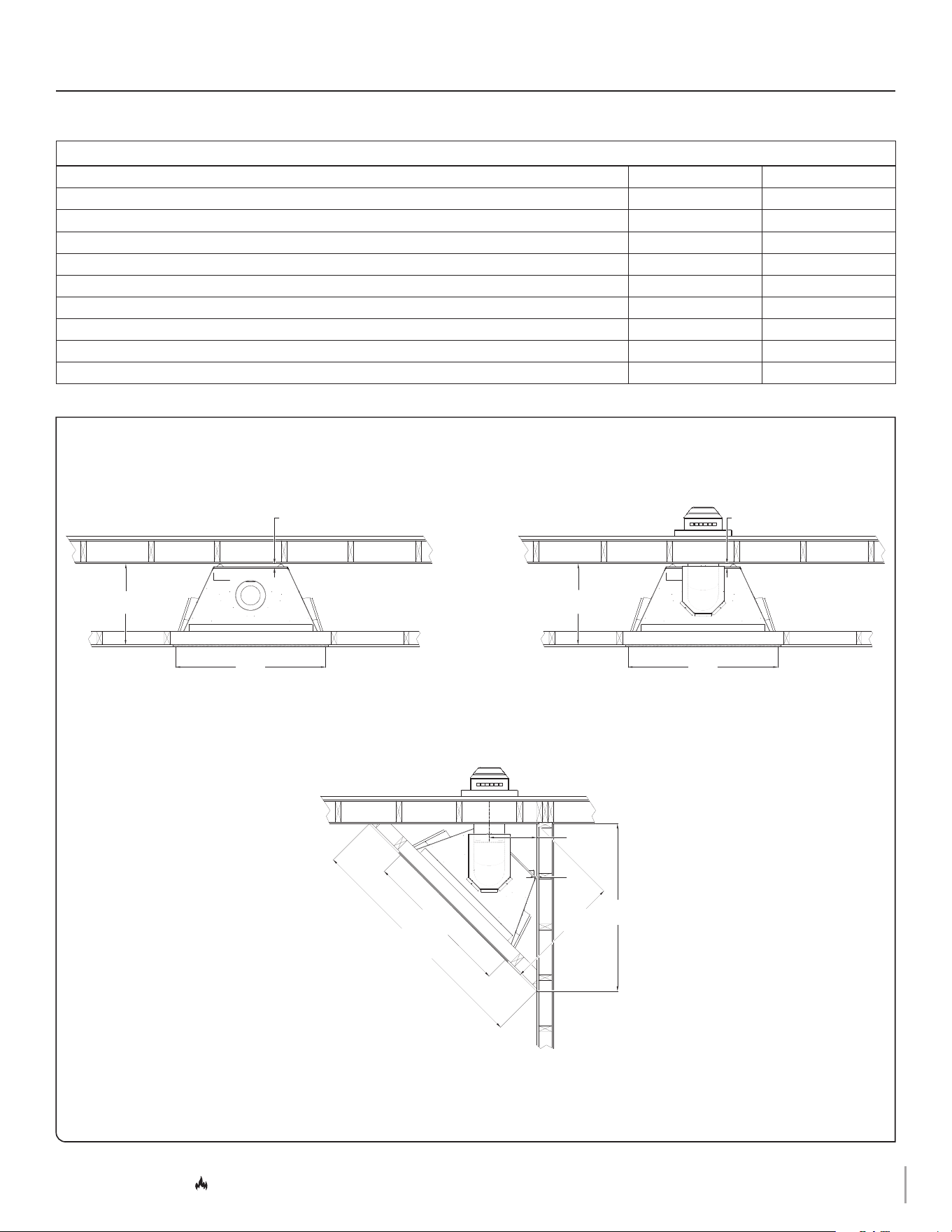

FIGURE 3.4 Clearance to Combustibles
Nominal 2“ x 4” framing used in enclosure framing
Rough Framing–Rough-in Wall Enclosure
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
16
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.6 Rough Framing
3.6.1 Rough-in Wall Enclosure
WARNING: Provide adequate clearance in front of the replace for
barrier removal, component access, gas line installation, service
access, etc.
CAUTION: Cold air transfer area. The replace enclosure must comply
with all clearances as outlined in this manual, and be constructed
in compliance with local building codes. Outside walls should be
insulated to prevent cold air from entering room.
• Floor protection in front of the replace is not required.
Combustible material may be used if installing a hearth
extension. Consider the thickness of the hearth extension
nishing material if building a replac
e platform. The bottom
of the replace must be level with nished hearth extension for
proper t of the safety barriers.
• The bottom of the replace must be placed directly on a wood
or non-combustible surface (not linoleum or carpet). If this
appliance is to be installed directly on carpeting, tile, or other
combustible material other than wood ooring, this appliance
shall be installed on a metal or wood panel extending the full
width and depth of the appliance.
• This replace may be elevated o the oor, provided it is
properly supported by framing materials and maintains ceiling
clearances. If installed above oor level, a solid, continuous
platform must be constructed below the replace.
• If masonry (optional) is to be used, prepare the foundation
necessary for the full masonry load.
3.6.1.1 TV Recess Construction
WARNING: All clearances to venting must be maintained.
Mounting a television above a replace is a common practice. Mantel
depth, ceiling heights, and wall and mantel construction material all
aect television surface temperatures. Most television manufacturers
specify in their instructions that a television should not be installed
on, near, or above a heat source.
Television location rests solely on the homeowner. It is the home
owner’s responsibility that the preferred TV mounting and mantel
design will not exceed the listed maximum operation temperature of
their electronic goods.
Tests performed determined that surface temperatures did not exceed
150°F (66°C) when a 4¼” (108mm) deep recess is constructed above the
replace.
22”
(559mm)
39¾”
(1010mm)
44
½”
(1130mm)
4
¼”
(108mm)
64
½”
(1638mm)
44
½”
(1130mm)
39¾”
(1010mm)
22”
(559mm)
Includes 1/2” (13mm) typical nish material with flush mount
Double horizontal
header
1/2” (13mm)
typical nish material
1/2” (13mm)
typical nish material

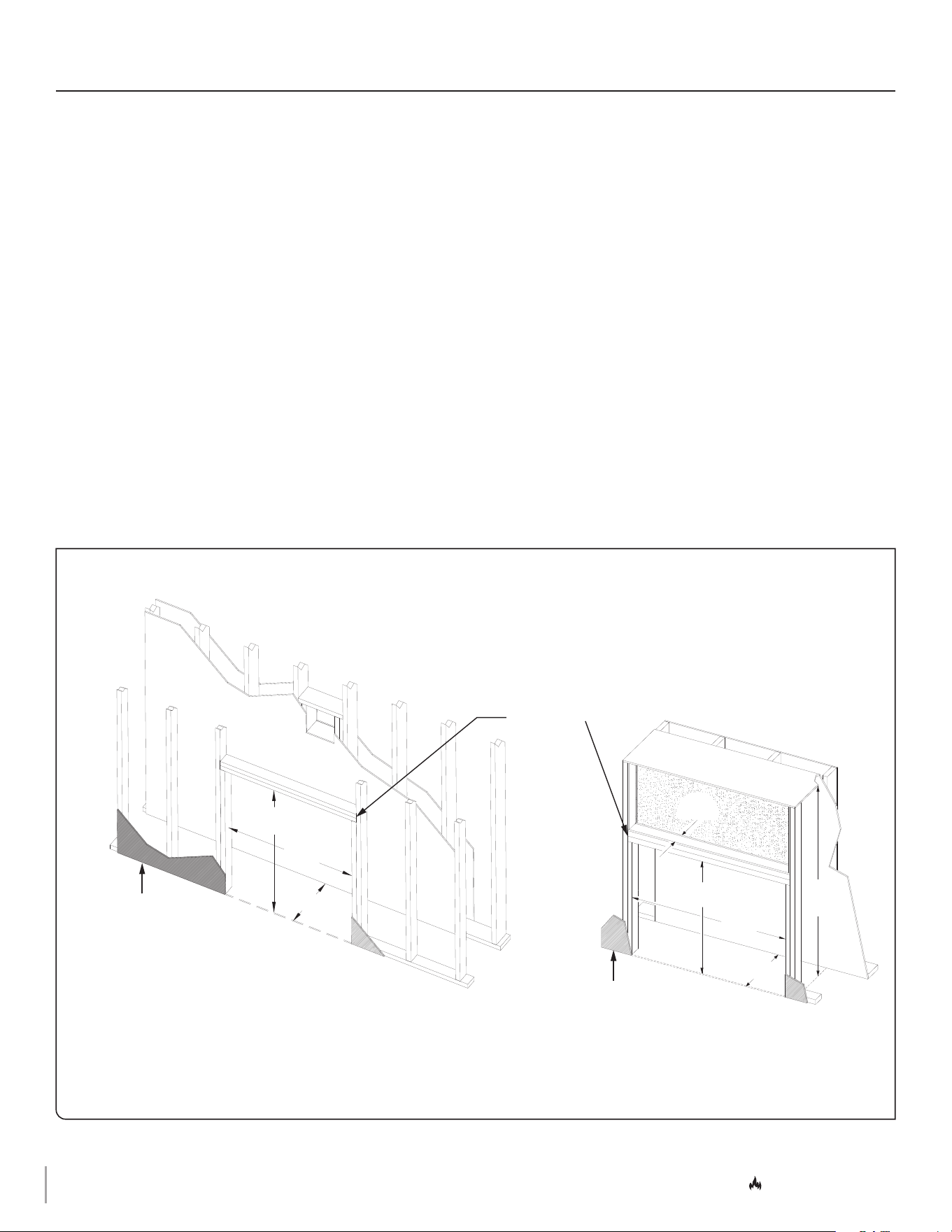

FIGURE 3.5 Framing Dimensions and TV Recess Construction
Nominal 2“ x 4” framing used in enclosure framing
Rough Framing–Rough-in Vent Termination
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
17
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.6.2 Rough-in Vent Termination
This is a cold air transfer area. The replace enclosure must comply
with all clearances as outlined in this manual, and be constructed
in compliance with local building codes. Outside walls should be
insulated to prevent cold air from entering room.

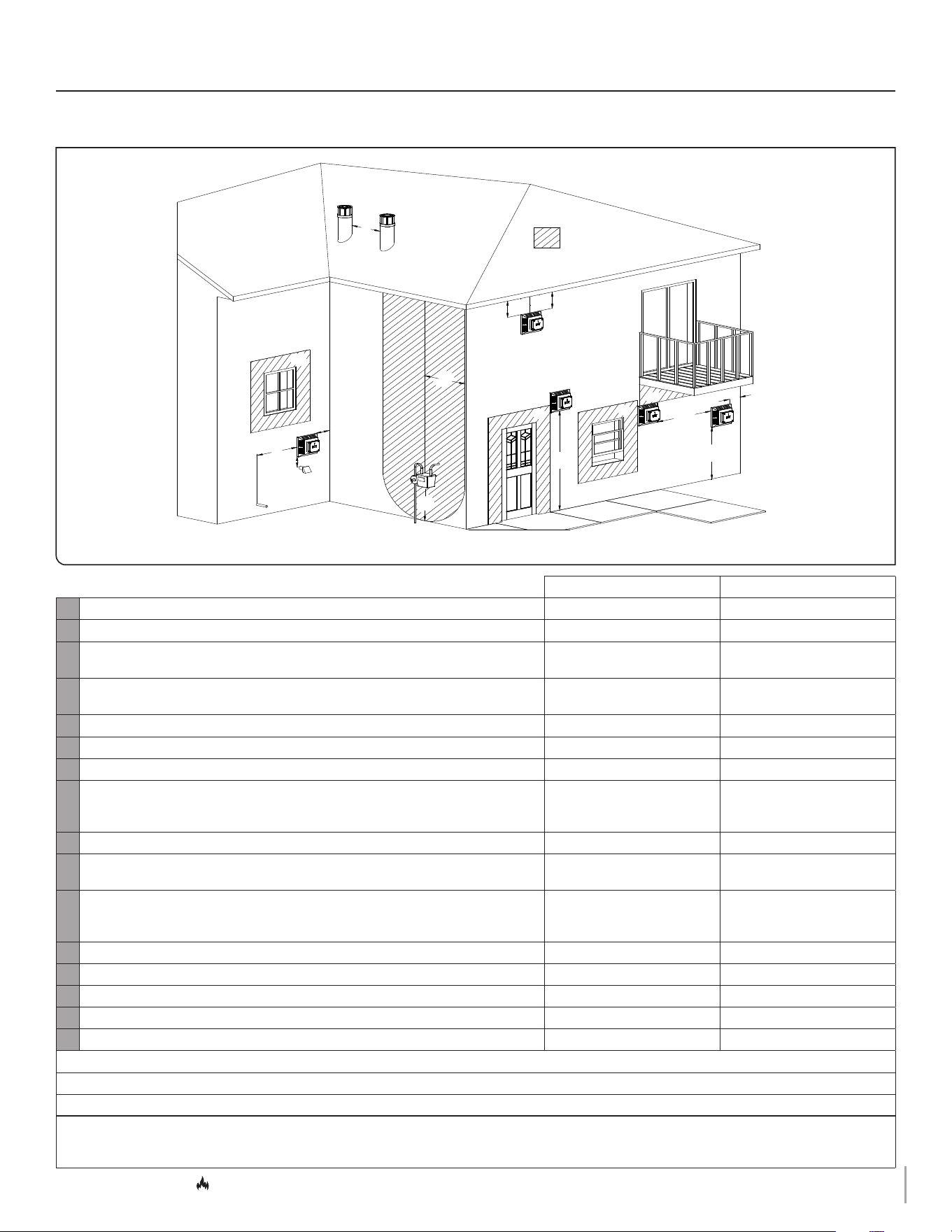

Exterior vent termination location must be in compliance with section
6.2, MINIMUM VENT TERMINATION CLEARANCES on page 33.
DO NOT RECESS THE VENT CAP INTO WALL OR SIDING.
IMPORTANT - METAL FAB VENT SYSTEM: When installing Metal Fab
vent pipe, an adapter must be used. This will increase the minimum
height for the center of the vent pipe by 3-1/4” (83mm) when framing
the wall pass through.
3.6.2.1 Clearances
• A minimum of 1” (25mm) clearance on all sides of the vertical
vent pipe must be maintained.
• A minimum of 1” (25mm) clearance from the top surface on the
horizontal pipe must be maintained.
• A minimum of 1” (25mm) clearance on the sides and bottom
surfaces on the horizontal pipe must be maintained.
3.6.2.2 Vertical Terminations
Follow vent pipe manufacturer’s installation instructions for vertical
terminations.
• Attic insulation shields may be insulated using unfaced
insulation products listed as non-combustible per ASTM E 136.
3.6.2.3 Horizontal Terminations
IMPORTANT: Horizontal vent sections require 1/4” (6mm) rise for every
12” (305mm) of travel for natural draft applications.
• Elbows listed with approved vent systems for this appliance
vary in vertical length. Please consult the vent manufacturer’s
instructions to determine the elbow dimension used for
installation. Adjust the wall pass-through rough opening
dimensions to maintain clearance requirements.
• Kozy Heat’s #800-WPT3, or wall thimble products that comply
with the required 1” (25mm) top clearance to combustibles, must
be installed for all horizontal (rigid or exible) vent runs that pass
through interior or exterior walls. These wall thimble products
may be insulated using unfaced insulation products listed as
noncombustible per ASTM E 136.
#800-WPT3 covers wall thickness 4” (101mm) to 6-1/2” (165mm).
Rough Framing–Rough-in Vent Termination
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
18
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.6.2.4 Wall Pass Through Information and Framing
1. Measure from oor level of the replace to the center of where
the vent pipe will penetrate the wall. The dimensions in FIGURE
3.6 are used with a Simpson DuraVent elbow.
2. Cut and frame an opening in the wall to allow the vent system to
run level through the wall pass-through.
3. Follow the vent pipe manufacturer’s installation instructions for
natural draft vent installation.
• Rigid pipe dimensions in FIGURE 3.6 reect Simpson
Duravent 5” x 8” coaxial pipe. Other manufacturers product
dimensions may vary.
• Flexible pipe framing dimensions in FIGURE 3.6 reect Kozy
Heat #800 Series Flexible Vent System.
22”
(559mm)
1”
(25mm)
46
¼”
(1175mm)
52
¼”
(1327mm)
1”
(25mm)
22”
(559mm)
1”
(25mm)
1”
(25mm)
52
¼”
(1327mm)
22”
(559mm)
1”
(25mm)
1”
(25mm)
Minimum horizontal
termination - Natural Gas
Minimum horizontal
termination -Propane
Minimum horizontal #800-1 venting
Natural gas and propane
#800-WPT3* Framing Dimensions
*Ships with #800-1 Kit
11”
(279mm)
11”
(279mm)
5
7⁄16”
(139mm)

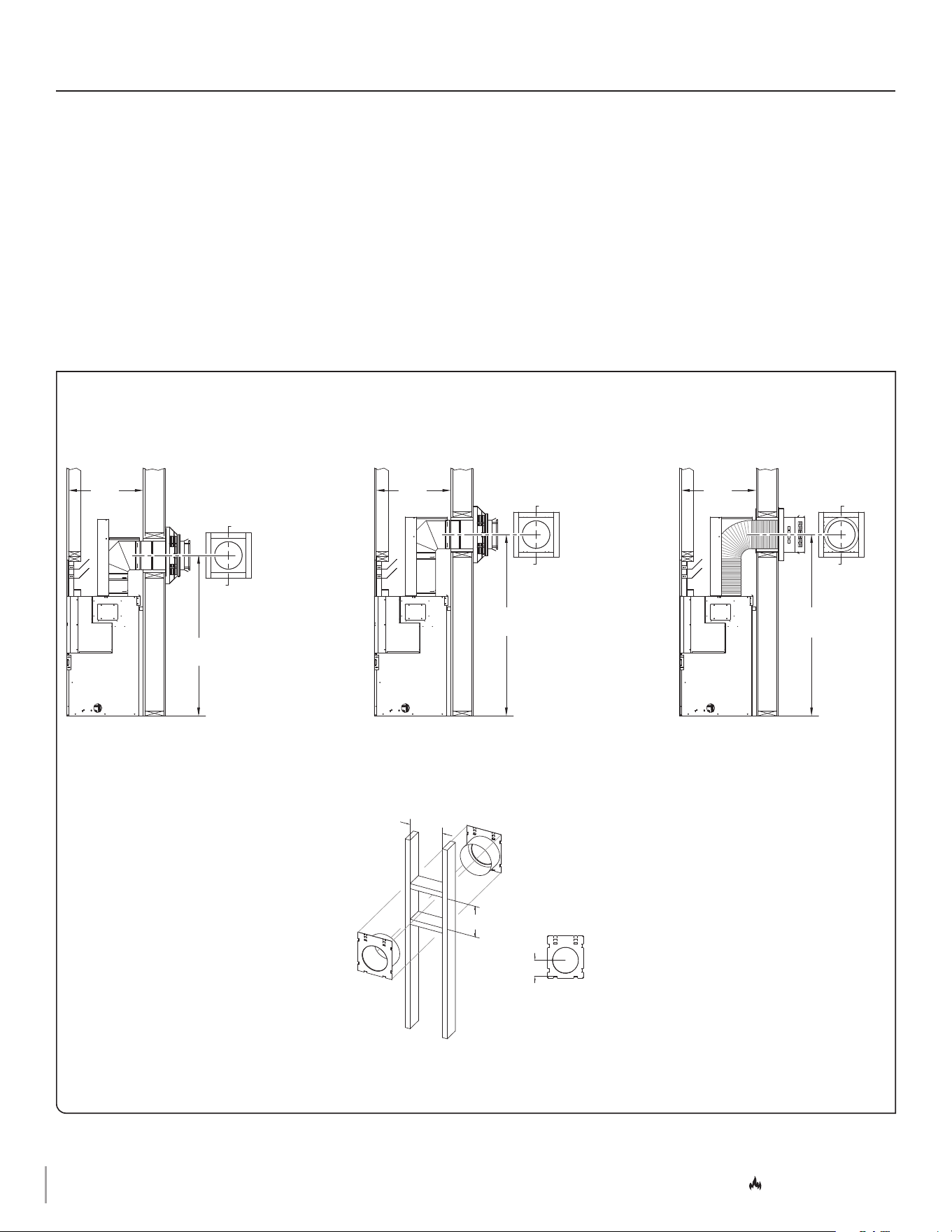

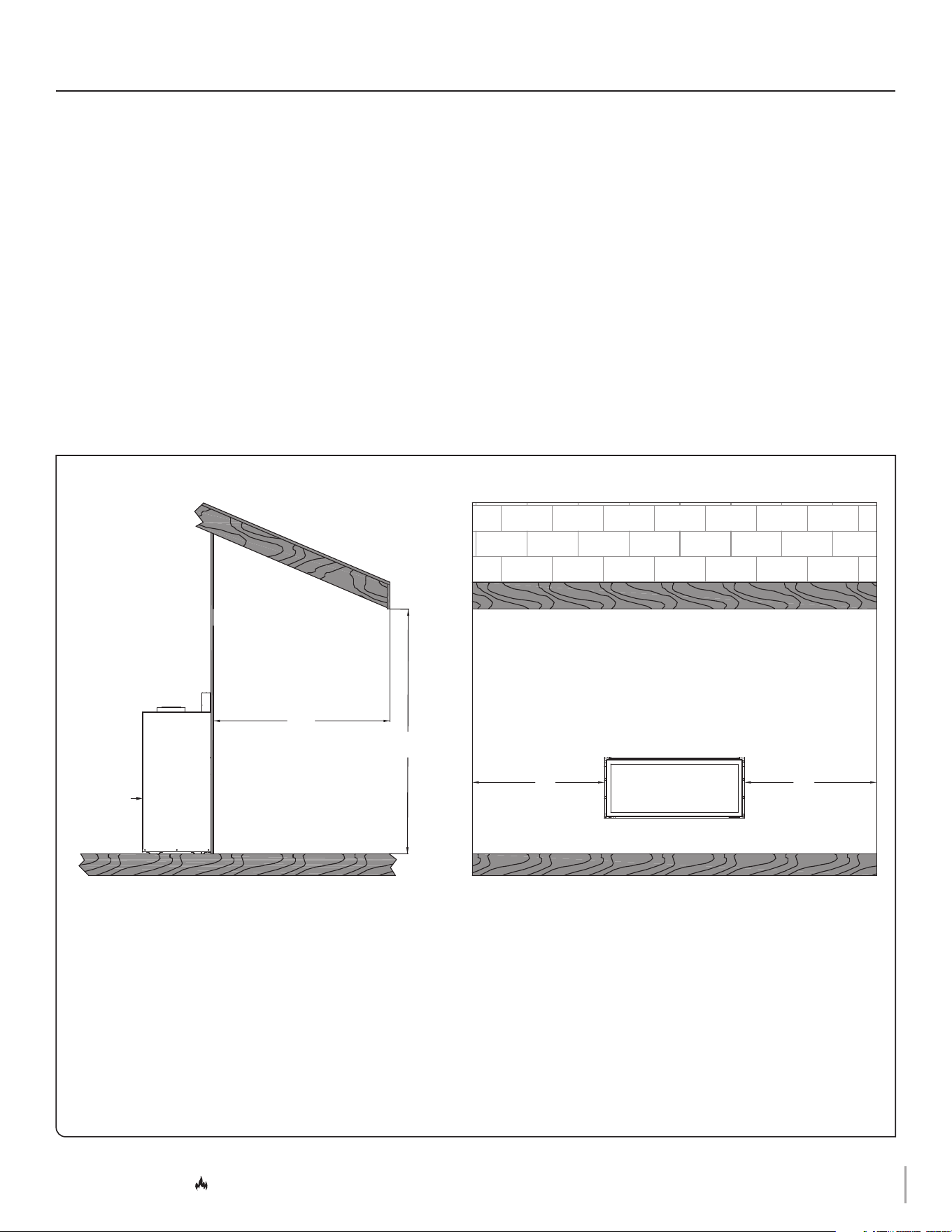

FIGURE 3.6 Rough-in Vent Termination Framing Dimensions
Nominal 2“ x 4” framing used in enclosure framing
Outdoor Covered Fireplace Installation
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
19
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.7 Outdoor Covered Fireplace Installation
An outdoor covered replace installation allows a replace to be
installed in an outdoor covered area, where the appliance is protected
from direct precipitation.
Follow the instructions and illustrations on this page and the
following page for installation procedures.
3.7.1 Safety Screen Barriers
Hussong Mfg. Co., Inc. highly recommends to use black painted
safety barriers in outdoor installations. Other screen barriers that
incorporate a plated or patina nish are highly susceptible to
oxidation and discoloration.
3.7.2 Requirements
• The continuous insulated building envelope and weatherproof
membrane are not to be interrupted by replace installation. See
FIGURE 3.8 on the following page.
• Fireplace operation is approved from 40°F to 110°F.
• All wiring connections shall be in accordance with outdoor
requirements of NECA NFPA 70.
• All clearances and requirements in your appliance manual must
be adhered to.
A
B
CC
The overhang (A) must be a minimum of 1/2 or
greater of the roofline elevation (B) above the base
of the fireplace.
The width of the overhang to each side of the
appliance (C) must be a minimum of 1/2 or
greater of the roofline elevation (B) above the
base of the fireplace.
EXAMPLE: If roofline (B) is 10’ above the base of fireplace, the overhang (A) must be 5’
or greater. The width of the overhang to EACH side of the fireplace (C) must be 5’ or greater.
SIDE OF
FIREPLACE
BACK OF
FIREPLACE
FRONT OF
FIREPLACE
ROOF OVERHANG
FIGURE 3.7 Outdoor Covered Fireplace Install - 1
Outdoor Covered Fireplace Installation
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
20
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.7.3 Outdoor Covered Fireplace Installation (continued)
Continuous insulated building
envelope and weatherproof
membrane are not interrupted by
replace installation
Free standing structure
(weatherproof enclosure)
INSIDE
OUTSIDE
INSIDE
Minimum weatherproof
overhang in front and sides
Minimum weatherproof
overhang in front and sides
Minimum weatherproof
overhang in front and sides
Minimum weatherproof
overhang in front and sides
FIGURE 3.8 Outdoor Covered Installation - 2 (your replace may look dierent than the one shown)
Exterior and Interior Heat Transfer Kit Cover Plate(s)
SECTION 3 FRAMING
#CAR-39
R.11 February 2022
21
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
3.8 Exterior and Interior Heat
Transfer Kit Cover Plate(s)
IMPORTANT: Only remove the cover plates that are required specically
for your application or installation.
FIGURE 3.9 shows removal of the Heat Transfer Kit cover plates. There
are (2) square cover plates located on the left and the right side of the
outer shell of the appliance. This appliance can have (2) Heat Transfer
Kits installed at the same time. It can be up to two of the same heat
transfer kit or a combination of interior and exterior kits.

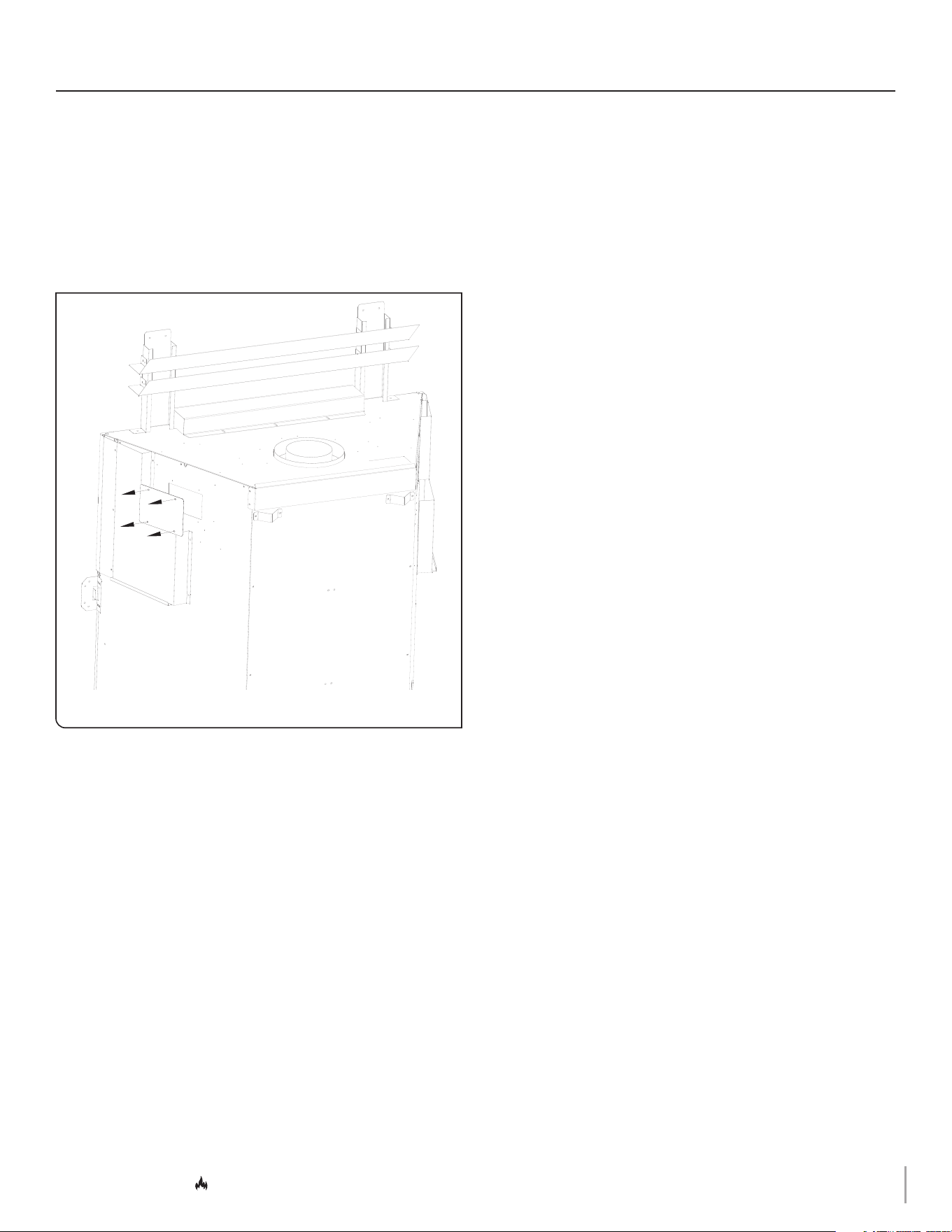

FIGURE 3.9 Cover Plate Removal
Facing and Finishing Requirements
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
22
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
4.0 FACING AND FINISHING
4.1 Facing and Finishing Requirements
WARNING: Maintain all minimum clearances to combustibles from the
appliance and vent system.
4.1.1 Mantel and Hearth Requirements
WARNING: All minimum clearances to combustible material MUST be
maintained.
• Combustible Mantel Projections - As referenced in FIGURE
4.1, the 3/4" trim mantel can start at 10" (254mm) above the
top of the appliance with a 10" (254mm) mantel starting at 14"
(354mm) above the top of the appliance. Mantel projections
can increase 1" (25mm) of depth for every 1" (25mm) of height
starting at the 10" (254mm) mantel.
• Non-combustible Mantel Projections - Minimum Vertical
and Maximum Horizontal: A minimum vertical clearance of
6" (152mm) above the top of the appliance to a maximum 6"
(152mm) depth of a non-combustible mantel. Follow projection
1" (25mm) up for every 1" (25mm) deeper. See FIGURE 4.2
on page 24.
4.1.2 Adjacent Sidewall Requirements
• The adjacent sidewall minimum clearance is 1-1/4" (32mm) from
the appliance sides. See FIGURE 4.3 on page 25.
4.1.3 Finishing Recommendations
NOTE: The surface area above the appliance may be aected by high
temperatures emitted from this appliance. To help avoid or reduce the
possibility of the sheetrock to crack, Hussong Mfg. Co., Inc. recommends
the following methods:
• The front face of the unit to the insulation piece and stand-
o assembly will accommodate typical 1/2" (12mm) non-
combustible facing material. The non-combustible facing
material will sit on top of the unit and be pushed back tight
against the insulation piece in-between the stand-o assembly
pieces, allowing the unit front to be ush with non-combustible
facing material. These components are adjustable for the non-
combustible facing material to be ush with the replace or
to overlap the replace face. Refer to section 3.3, STAND-OFF
ASSEMBLY AND HEADER HEAT SHIELDS on page 12.
• This appliance is shipped with a 1/2" thick non-combustible
material (board) that overlaps the header and the sides of
framing. See section FIGURE 4.4, NON-COMBUSTIBLE
MATERIAL on page 26. Screws are allowed to penetrate the
steel framing assembly to attach nishing material.
• An optional nishing trim kit #C39-FTK provides a nished
edge to hide unnished edge materials. See Section section
4.2, OPTIONAL FINISHING TRIM KIT (FTK): #C39-FTK
on page 27.
• Ensure the non-combustible material and sheetrock is dry and
dust free.
• For taping and mudding seams, we recommend heat
resilient tape, mesh and joint compounds, such as Durabond.
Joint compound must be cured as per manufacturer’s
recommendations.
• For a painted surface, use a high quality acrylic latex primer
and nish coat. Avoid at or light-colored paints to prevent
discoloring.
Facing and Finishing Requirements
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
23
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
64½”
(1638mm)
34
½”
(876mm)
¾” (19mm)
trim
14”
(356mm)
16”
(406mm)
18”
(457mm)
10”
(254mm)
14” (356mm)
12” (305mm)
10” (254mm)
Non-combustible
material only
Insulation piece MUST rest
against non-combustible material
Combustible floor
Non-combustible zone

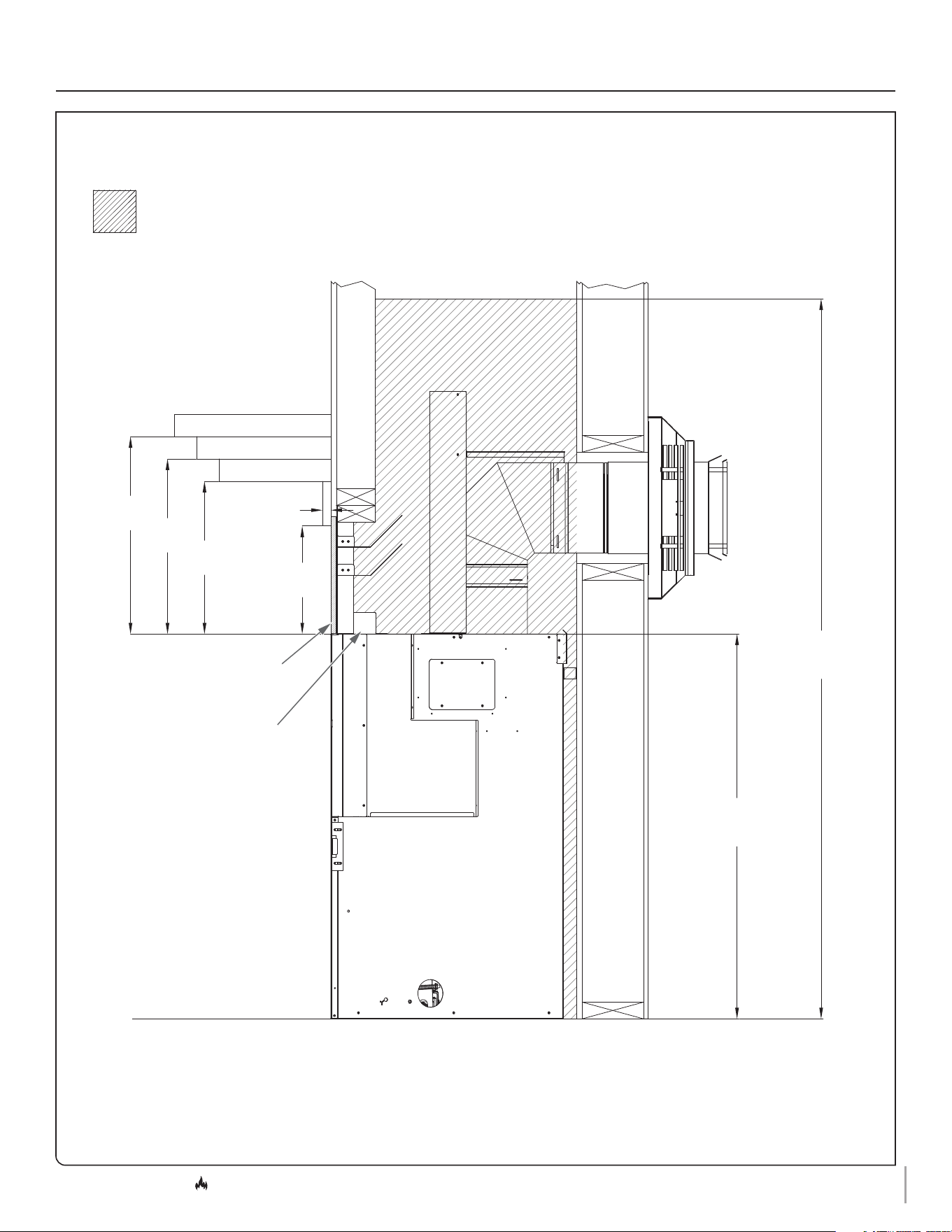

FIGURE 4.1 Combustible Mantel Requirements
Nominal 2“ x 4” framing used in enclosure framing
Facing and Finishing Requirements
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
24
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
64½”
(1638mm)
34
½”
(876mm)
6”
(152mm)
12”
(305mm)
12” (305mm)
9” (229mm)
6” (152mm)
Non-combustible Zone
Non-combustible
material only
Insulation piece MUST rest
against non-combustible material
Combustible floor
Non-combustible
material only

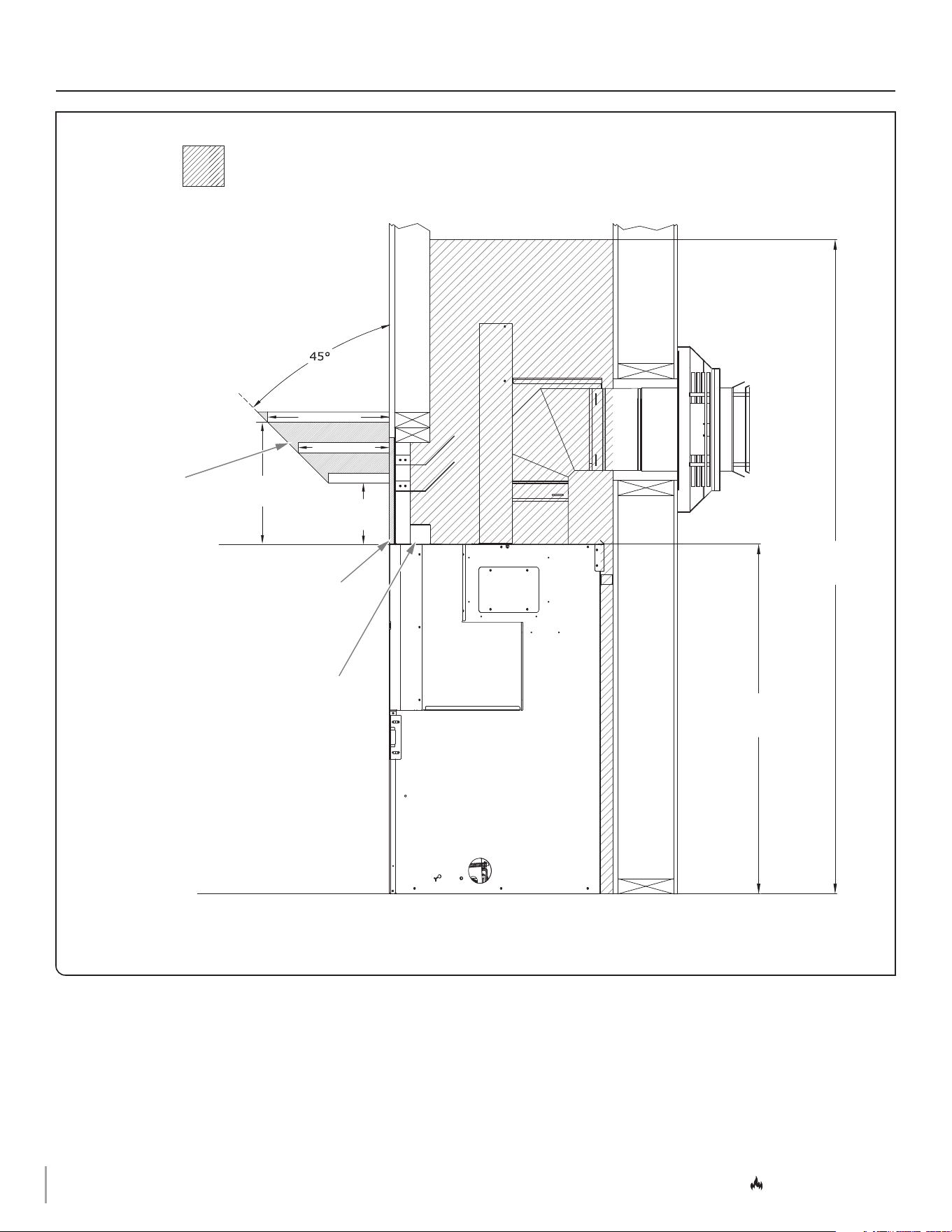

FIGURE 4.2 Non-Combustible Mantel Requirements
Nominal 2“ x 4” framing used in enclosure framing
Facing and Finishing Requirements
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
25
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
64½”
(1638mm)
1
¼”
(32mm)
unlimited

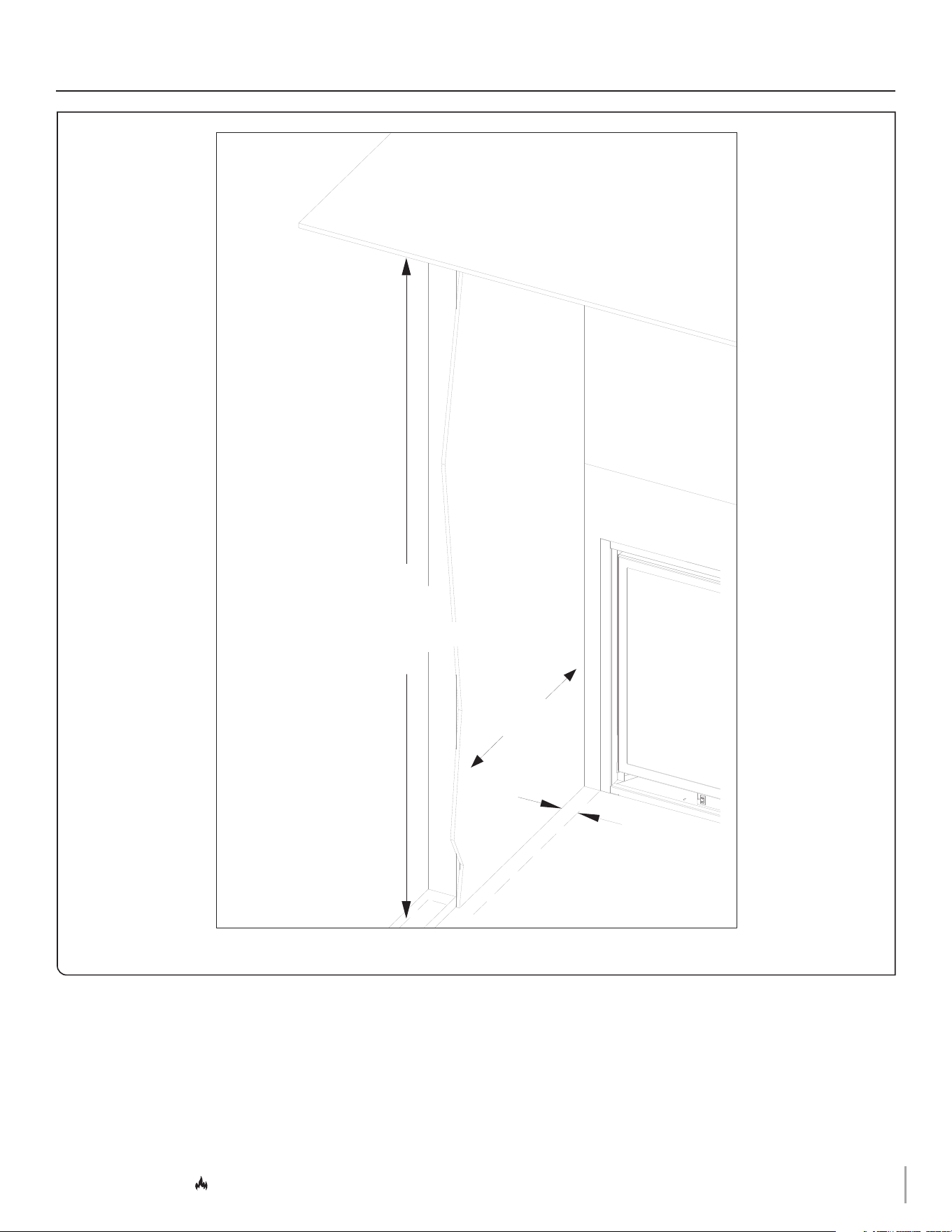

FIGURE 4.3 Sidewall Clearance
Facing and Finishing Requirements
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
26
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
10”
(254mm)
39
¾”
(1010mm)
Non-combustible Zone
NOTE: A 41-1/4” x 10-1/2” non-combustible
material (board) is supplied with the replace
and allows a 3/4” overlap onto framing sides
and 1/2” onto header

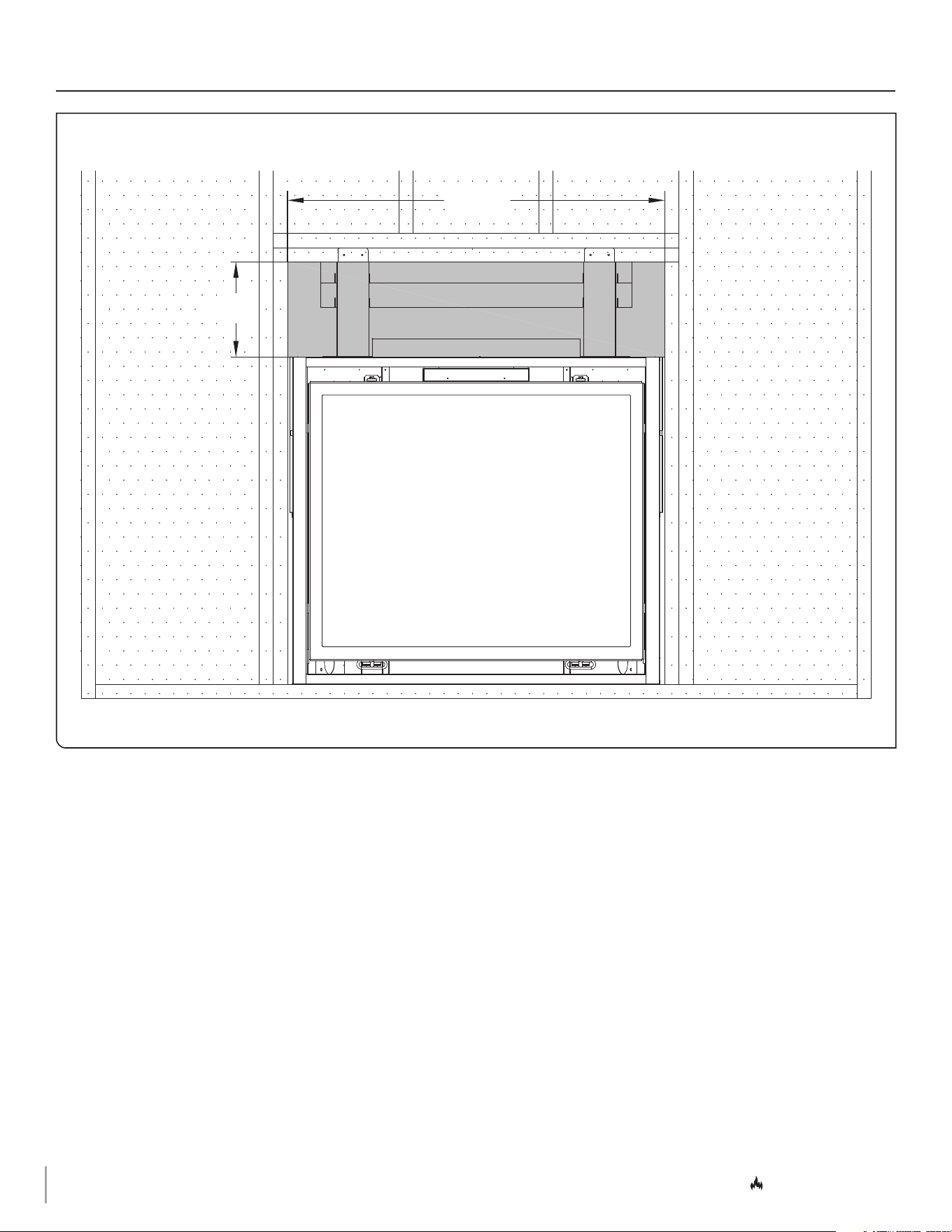

FIGURE 4.4 Non-Combustible Material
Nominal 2“ x 4” framing used
Optional Finishing Trim Kit (FTK): #C39-FTK
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
27
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
4.2 Optional Finishing Trim
Kit (FTK): #C39-FTK
This optional nishing trim kit (included with the replace) provides
a 3/4" (19mm) nished edge (black metal) to allow a 1/2" nish board
and tile or stone to nish up against creating a shadow box for the
safety front.
Use this when nishing around the replace with tile or stone. Do not
use if you are nishing with 1/2" drywall or non-combustible only, as
it will leave 1/4" exposed.
Do not use with inside mount safety barrier C39-RSF2, where this
nishing trim kit is not necessary.
IMPORTANT: This trim kit must be attached before replace installation.

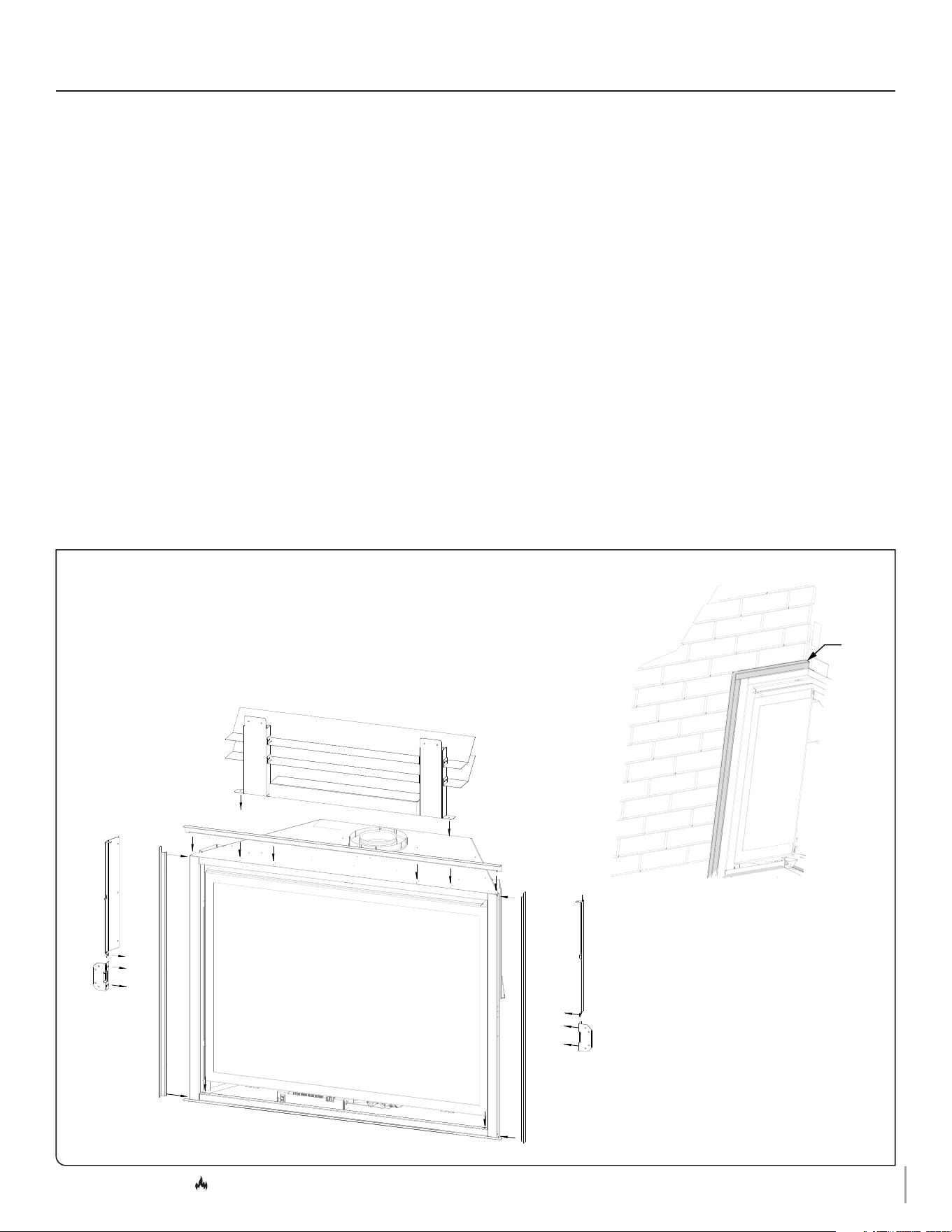

NOTE: This trim panel assembly should be installed with the stand-
o assembly, insulation piece, and header heat shields. Refer to
section 3.3, STAND-OFF ASSEMBLY AND HEADER HEAT SHIELDS
on page 12.
1. If installed, remove and discard the existing bottom front
frame portion.
2. Install the bottom trim panel with the ange positioned as
shown below. Insert the tabs on the trim panel into the slots on
the bottom opening of the replace.
3. If installed, remove the stand-o assembly, header heat shields,
and insulation piece.
4. Install the top trim panel. Align the holes in the top trim panel
with the front holes in the stand-o assemblies and attach to
the replace top. Place insulation back on top of the replace in
between the two stand-o assemblies. The insulation piece must
be pushed tight against the required non-combustible material.
Secure with the screws previously removed and included in the
components packet.
5. Reattach the lower header heat shield to the stand-o assembly
(8) screws.
6. If installed, remove the nailing anges from the sides of the
replace.
7. Remove the side heat shields.
8. Install side trim panels, utilizing the existing screws from
the top and bottom sides of the replace. Install side heat
shields and nailing anges after trim panels, using screws
previously removed.
9. Use screws included in the components packet to complete side
panel installation.
10. Position replace into rough opening before reattaching the
upper header heat shield. Attach the upper header heat shield to
the stand-o assembly with (8) screws.
3/4”
Trim
FIGURE 4.5 Finishing Trim Kit
Safety Barrier Installation
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
28
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
4.3 Safety Barrier Installation
4.3.1 Inside Fit - Recessed Installation
Model #C39-RSF2
1. Insert the upper hood ange into clips located at the top of the
upper air passage. Note: this will be a fairly tight t.
2. Install the bottom frame piece. Align the hooks on the bottom
frame piece to the corresponding holes in the inside ange on
each side of the rebox oor. The bottom frame piece is shipped
with safety barrier #C39-RSF2 and must be installed.
3. Center the screen front over the glass frame assembly,
allowing the screen front’s mounting brackets to t inside the
air openings.
4. Align the notched tabs (located on the back of the screen front)
with the slots in the replace. Raise slightly and push back
into position.
5. Lower screen front until the notched tabs are rmly in position.
• To remove safety screen: lift the screen up and out of slots.
Upper hood
Safety screen

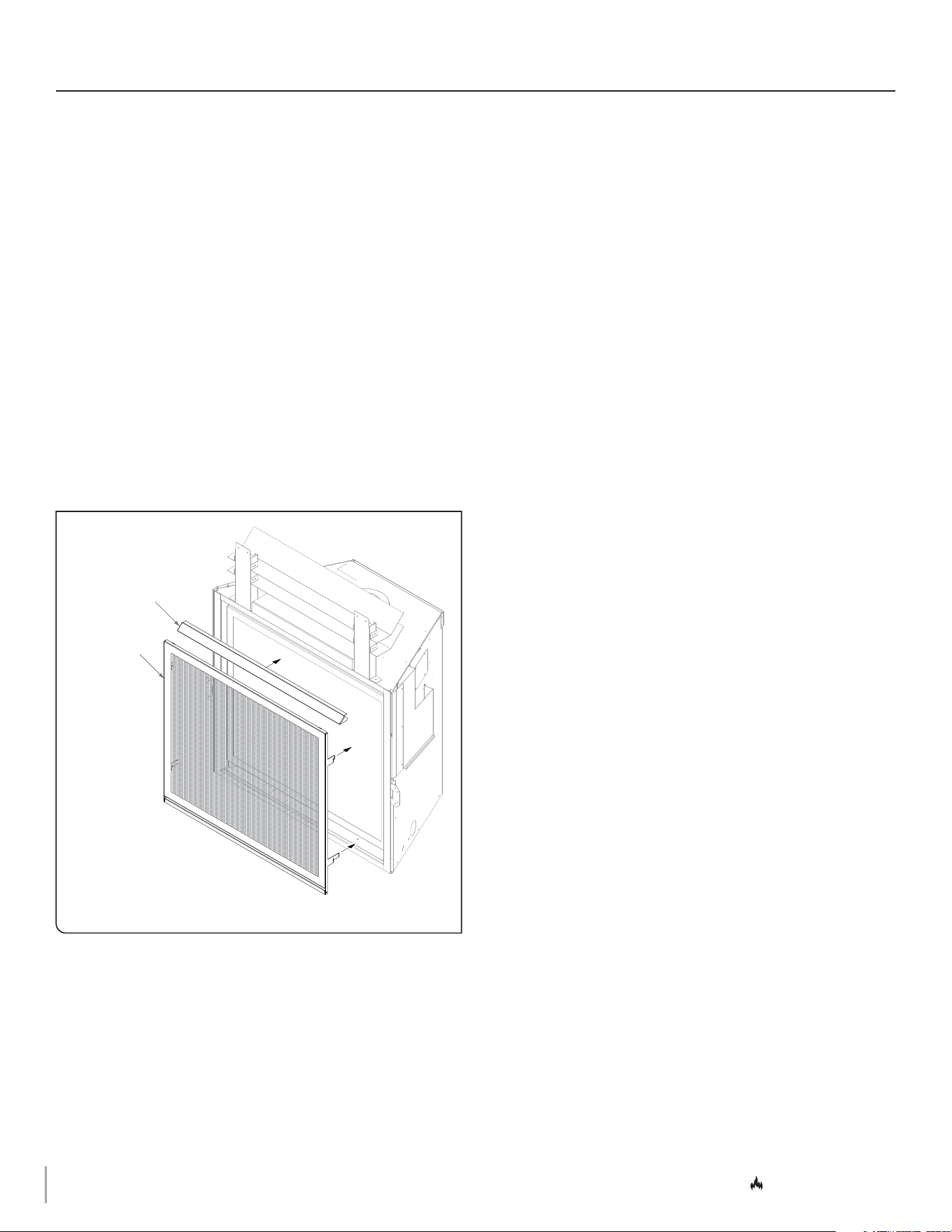

FIGURE 4.6 #C39-RSF2 Installation
Safety Barrier Installation
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
29
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
4.3.2 Overlap Fit - Hanging Installation with
Adjustable Louvers (Open Bracket)
Model #C39A-FPDSF2
The listed safety barriers are equipped with the louver built into the
safety screen face. The hanging brackets located on the back of screen
front are equipped with (2) notched brackets to allow the louver to be
adjusted to accommodate facing material thickness. The safety barrier
is shipped with the louver in the rst notch position.
To adjust louver position:
1. Locate the (2) louver brackets at the bottom of the safety screen.
One of the louvers bracket end is open at the top to allow
removal and adjustment of the louver depending on the safety
barrier position for installation and facing material thickness.
2. Slide the louver up and out on the open bracket end and pull it
out of the closed bracket end.
3. Adjust the louver to the desired notch in order to accommodate
facing material and to cover the control compartment as
you see t.
NOTE: The position of the louver should match with the desired
position of the notched tabs needed for your installation. The louver
in the rst notch position will match with the rst notch position in
the notched tabs, the louver in the second notch position will match
the second notch in the notched tabs, etc.
4. Reinstall the louver into the closed bracket rst, then slide the
other end into the open bracket
5. Install safety barrier. Center the screen front over the glass
frame assembly, allowing the hanging brackets to t inside the
air openings.
6. Align the notched tabs with the slots in the replace. Raise
slightly and push back to desired position.
7. Lower the screen front until the notched tabs are rmly in
position. Verify the depth accommodates nish material, and the
notched tabs position matches the louver notch position.
8. To remove safety screen: lift the screen up and out of slots.
OPEN END BRACKETOPEN END BRACKET
LOUVER IN FIRST LOUVER IN FIRST
POSITION ON OPEN POSITION ON OPEN
END BRACKETEND BRACKET
LOUVER IN FIRST LOUVER IN FIRST
POSITION ON CLOSED POSITION ON CLOSED
END BRACKETEND BRACKET
CLOSED END BRACKETCLOSED END BRACKET

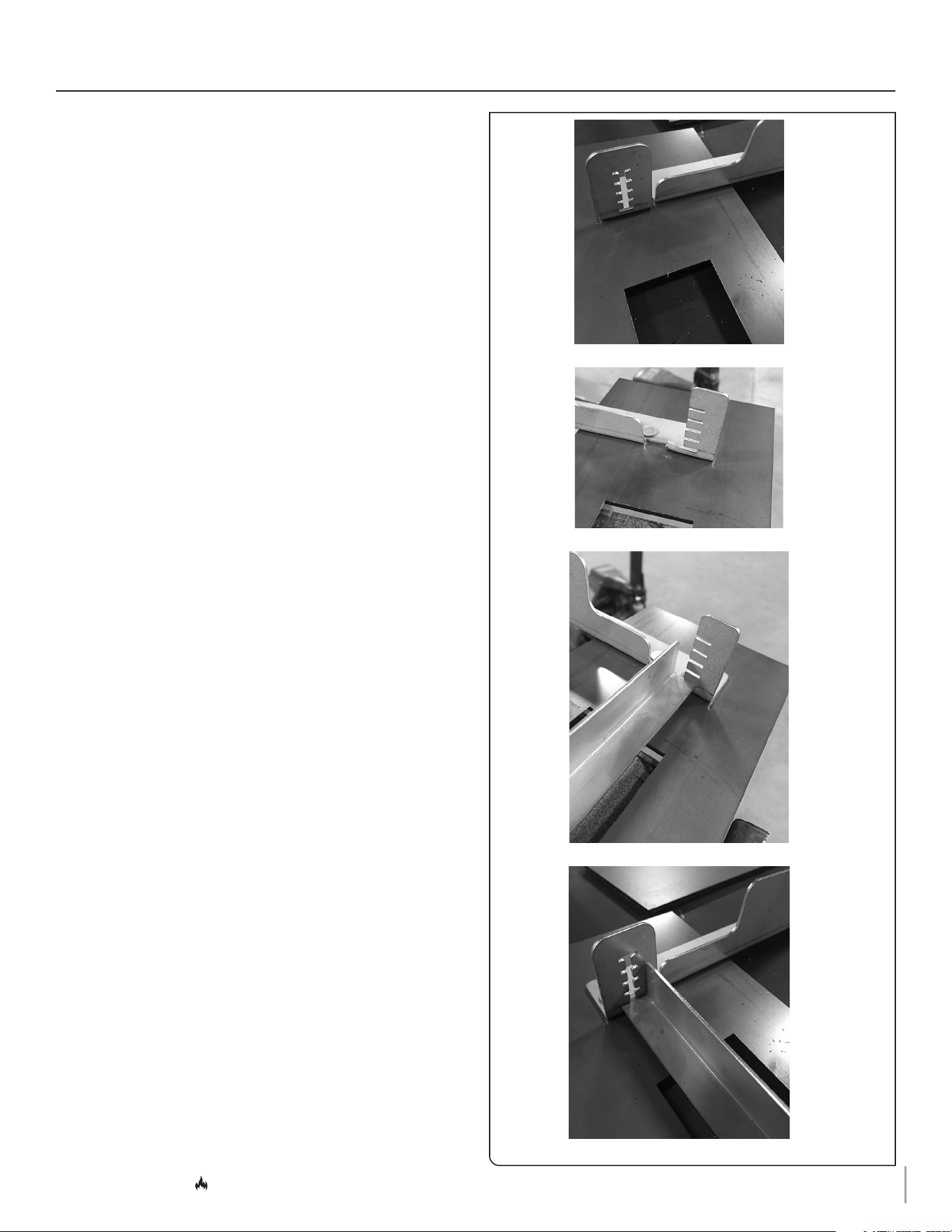

FIGURE 4.7 Adjustable Louver for C39A-MSF, R-MSF, and A-FPDSF
Safety Barrier Installation
SECTION 4 FACING AND FINISHING
#CAR-39
R.11 February 2022
30
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
4.3.3 Overlap Fit - Hanging Installation with
Adjustable Louvers (Closed Brackets)
Models #C39-FRSF and #C39-PSF
The listed safety barriers are equipped with the louver built into the
safety screen face. The hanging brackets located on the back of screen
front are equipped with notches to allow the louver to be adjusted to
accommodate facing material thickness. The safety barrier is shipped
with the louver in the rst notch position.
To adjust louver position:
1. Locate the (3) screws on each hanging bracket at the back of the
screen front.
2. Loosen (6) screws on both hanging brackets. This will allow
you to bend the bracket outward to adjust the louver to the
desired position.
NOTE: The position of the louver should match with the desired
position of the notched tabs needed for your installation. The louver
in the rst notch position will match with the rst notch position in
the notched tabs, the louver in the second notch position will match
the second notch in the notched tabs, etc.
3. Adjust the louver to the desired notch in order to accommodate
facing material and to cover the control compartment as you see
t. Re-tighten screws on hanging brackets.
4. Install safety barrier. Center the screen front over the glass
frame assembly, allowing the hanging brackets to t inside the
air openings.
5. Align the notched tabs with the slots in the replace. Raise
slightly and push back to desired position.
6. Lower the screen front until the notched tabs are rmly in
position. Verify the depth accommodates nish material, and the
notched tabs position matches the louver notch position.
7. To remove safety screen: lift the screen up and out of slots.
FIRST POSITION LOUVER NOTCH
FIRST POSITION
NOTCHED TAB
LOUVER
NOTCHED TABS
(3) SCREWS SECURING
HANGING BRACKET
FIGURE 4.10 Adjust Louver
FIGURE 4.9 Screw Location on Hanging Bracket
FIGURE 4.8 Safety Screen Louver and Notch locations
5.0 GAS LINE CONNECTION
5.1 Gas Conversion
ATTENTION: The conversion shall be carried out in accordance with the
requirements of the provincial authorities having jurisdiction and in
accordance with the requirements of the ANSI Z223.1 installation code.
This replace is manufactured for use with natural gas. Follow the
instructions included with the conversion kit if converting to propane.

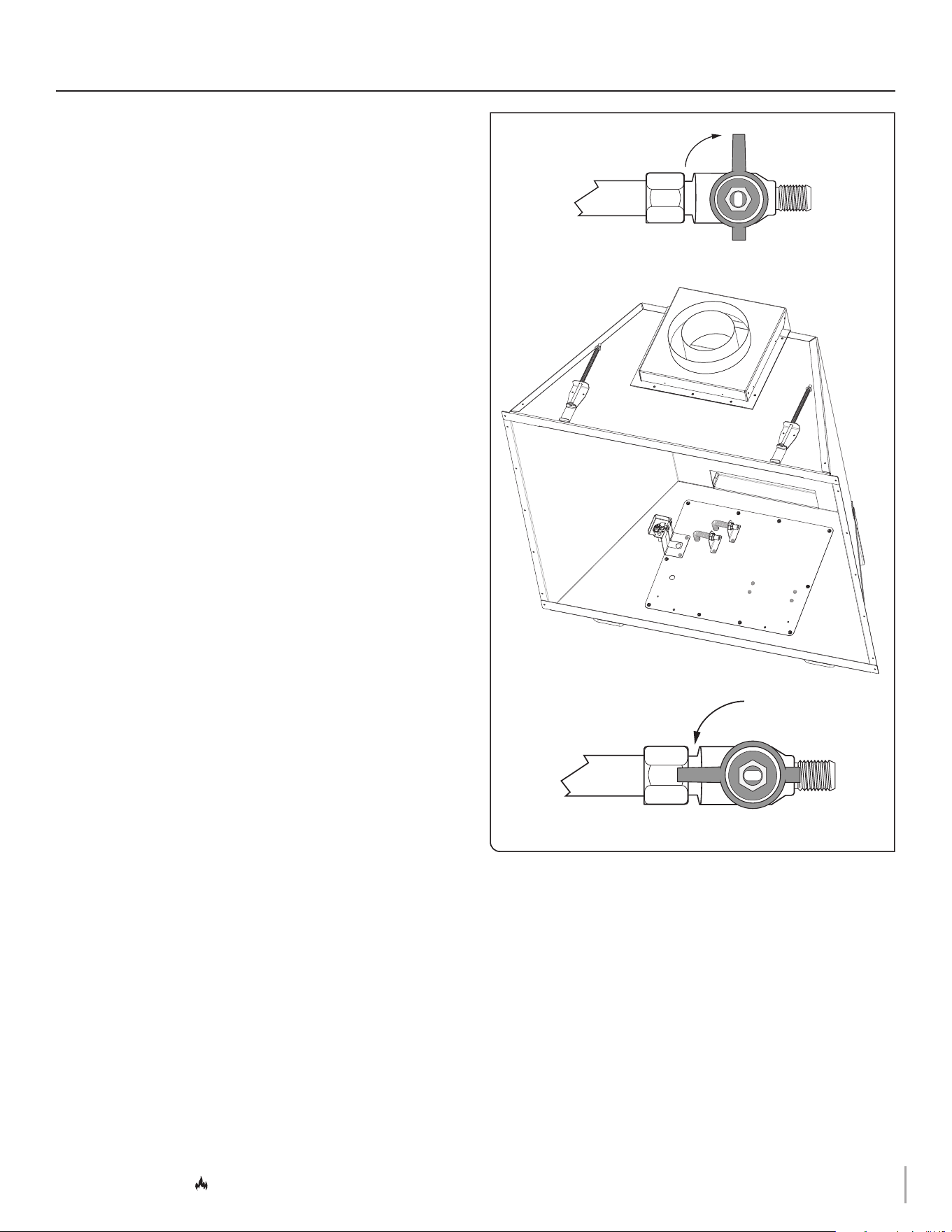

5.2 Gas Line Installation
CAUTION: Installation of the gas line must only be done by a qualied
person in accordance with local building codes, if any. If not, follow
ANSI Z223.1. Commonwealth of Massachusetts installations must be
done by a licensed plumber or gas tter.
NOTE: The appliance and its individual shuto valve must be
disconnected from the gas supply piping system during any pressure
testing of that system at pressures in excess of ½ psi (3.5 kPa). For test
pressures equal to or less than ½ psi (3.5 kPa), the appliance must be
isolated from the gas supply piping system by closing its individual
manual shut-o valve.
• A listed (and Commonwealth of Massachusetts approved)
1/2” (13mm) tee handle manual shut-o valve and exible gas
connector are to be connected to the 1/2” (13 mm) control valve
inlet. If substituting for these components, please consult local
codes for compliance.
• This replace is equipped with a 3/8” (10mm) x 18” (457mm) long
exible gas connector and manual shut-o valve.
• Run gas line into replace. The gas line should be run to the
point of connection where the shut-o valve and exible gas
line will connect. See FIGURE 2.1, #CAR-39 DIMENSIONS
on page 9.
• Do not run gas line in a manner that would obstruct fan
operation.
• For high altitude installations, consult the local gas distributor or
the authority having jurisdiction for proper rating methods.
Table 5.1, Inlet Pressure Requirements
Gas Pressure Natural Gas Propane
Minimum Inlet
Pressure
5” WC (1.25 kPa) 12” WC (2.99 kPa)
Maximum Inlet
Pressure
10” WC (2.49 kPa) 13” WC (3.24 kPa)
SECTION 5 GAS LINE CONNECTION
Gas Conversion–Gas Line Installation
#CAR-39
R.11 February 2022
#CAR-39
R.11 February 2022
31
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
Vertical Vent Cap Clearance
SECTION 6 TERMINATION LOCATIONS
#CAR-39
R.11 February 2022
32
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
6.0 TERMINATION LOCATIONS
6.1 Vertical Vent Termination
WARNING: This appliance must not share or be connected to a chimney
ue serving a separate solid-fuel burning appliance.
Minimum height (H) from roof
Roof Pitch Feet Meters
Flat to 6/12 1.0 0.30
Over 6/12 to 7/12 1.25 0.38
Over 7/12 to 8/12 1.5 0.46
Over 8/12 to 9/12 2.0 0.61
Over 9/12 to 10/12 2.5 0.76
Over 10/12 to 11/12 3.25 0.99
Over 11/12 to 12/12 4.0 1.22
Over 12/12 to 14/12 5.0 1.52
Over 14/12 to 16/12 6.0 1.83
Over 16/12 to 18/12 7.0 2.13
Over 18/12 to 20/12 7.5 2.27
Over 20/12 to 21/12 8.0 2.44
12
x
HH
Lowest
discharge
opening
Approved cap
Approved
vent pipe
Roof pitch = x/12
H - Minimum height from roof
to lowest discharge opening
Minimum
12” (.30m)

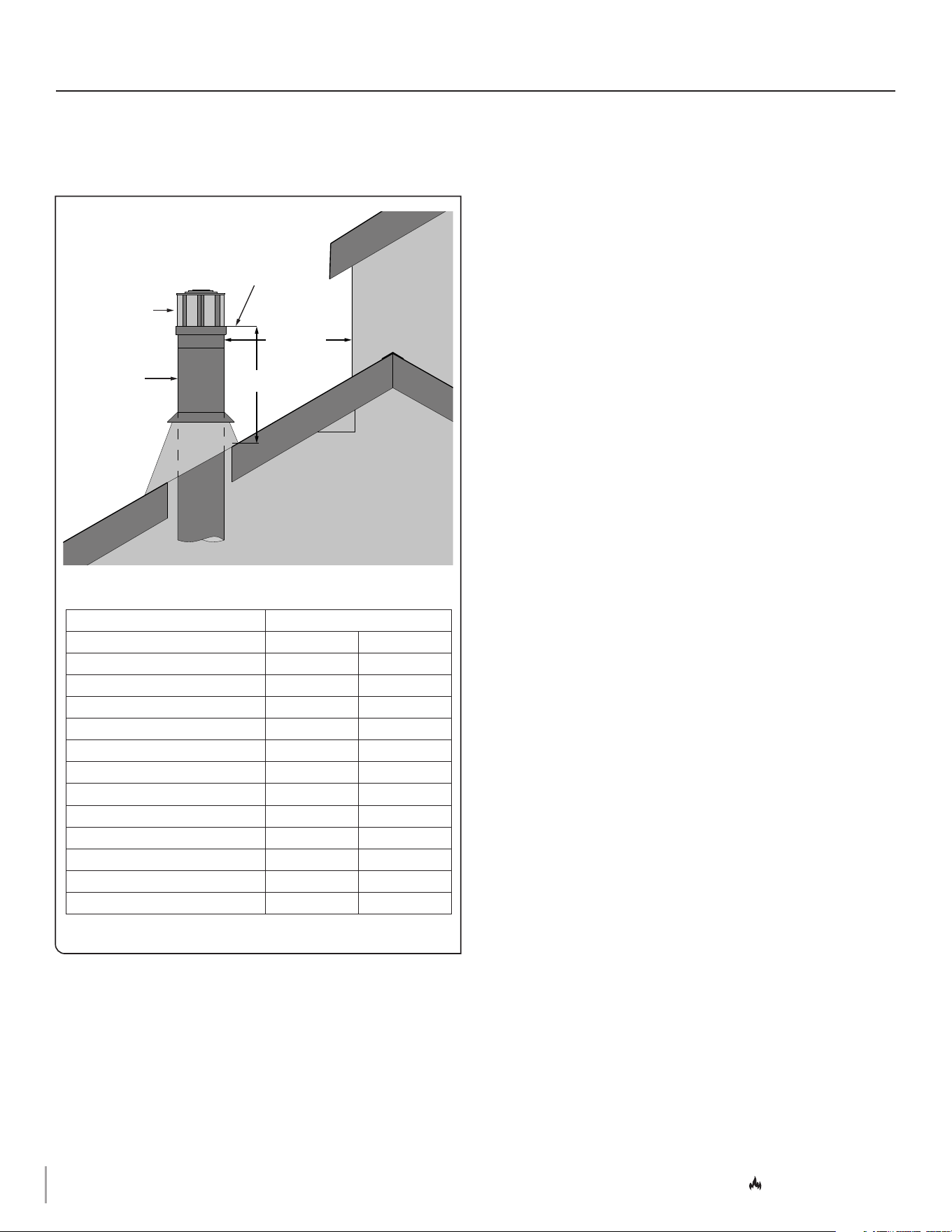

FIGURE 6.1 Vertical Vent Cap Clearance
Vent Termination Locations and Clearances
SECTION 6 TERMINATION LOCATIONS
#CAR-39
R.11 February 2022
33
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
6.2 Minimum Vent Termination Clearances
Canadian installations US installations
A Clearance above grade, veranda, porch, deck, or balcony 12” (30cm) 12” (30cm)
B Clearance to window or door that may be opened 12” (30cm) 9” (23cm)
C Clearance to permanently closed window (recommended to prevent condensation on
window)
12” (30cm)* 12” (30cm)*
D Vertical clearance to ventilated sot located above the terminal within a horizontal
distance of 2 feet (61 cm) from the edge of the terminal
24” (61cm)* 24” (61cm)*
E Clearance to unventilated sot 12” (30cm)* 12” (30cm)*
F Clearance to outside corner 0” (0cm)* 0” (0cm)*
G Clearance to inside corner 12” (30cm)* 12” (30cm)
H Clearance to each side of center line extended above meter/regulator assembly 3’ (91cm) within a height
15’ (4.5m) above the meter/
regulator assembly
*
I Clearance to service regulator vent outlet 3’ (91cm) *
J Clearance to non mechanical air supply inlet to building or the combustion air inlet to
any other appliance
12” (30cm) 9” (23cm)
K Clearance to mechanical air supply inlet 6’ (1.83m) 3’ (91cm) above if within 10’
(3m) horizontally
Massachusetts: 10’ (3m)
L Clearance above paved sidewalk or paved driveway located on public property 7’ (2.13m)† *
M Clearance under veranda, porch deck, or balcony 12” (30cm)‡ 12” (30cm)
N Clearance between two horizontal terminations 12” (30cm) 12” (30cm)
O Clearance between two vertical terminations (may be same height) 12” (30cm) 12” (30cm)
P Above furnace exhaust or inlet 12” (30cm) 12” (30cm)
* Clearance in accordance with local installation codes and the requirements of the gas supplier.
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
VINYL SOFFIT, VINYL CEILING, AND VINYL OVERHANG DISCLAIMER: Clearances to heat resistant material (i.e. wood, metal). This does not include vinyl. Hussong
Manufacturing Co., Inc. will not be held responsible for heat damage caused from terminating under vinyl overhangs, vinyl ceilings, or vinyl ventilated/unventi-
lated sots.
AREA WHERE TERMINAL
IS NOT PERMITTED
B
B
L
J
K
C
G
P
H
I
D
E
A
N
F
M
O
FIGURE 6.2 Vent Termination Locations and Clearances
SECTION 7 VENTING
Approved Vent Systems–Venting Requirements
#CAR-39
R.11 February 2022
#CAR-39
R.11 February 2022
34
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.0 VENTING
7.1 Approved Vent Systems
This appliance is equipped for use with a 5” (127mm) exhaust by 8”
(203mm) air intake co-axial vent pipe system.
This appliance is approved for use for Kozy Heat 800 Series Flexible
Vent Kit (sold separately).
Vertical 5” x 8” co-axial exible vent pipe with vertical terminations are
not approved for use with this replace.
This appliance is approved for use with manufacturers (horizontal
and vertical terminations): American Metal Products (Ameri-Vent),
BDM, ICC, Metal Fab*, Olympia Chimney Supply, Inc., Selkirk, and
Simpson DuraVent.
*WHEN INSTALLING METAL FAB VENT SYSTEM with this appliance
an adapter must be used. Use adapter part number 5DDA.
The following termination caps are not allowed: BDM 940285 Round
and 94040836 Snorkel; Simpson DuraVent 58DVA-H2, 58DVA-H2-
SNK14, 58DVA-H2-SNK36
Natural gas and propane vent installations terminating with a snorkel
cap require a minimum of 12” (305mm) of vertical rise o the top of
the appliance before the use of an elbow.
Refer to the vent manufacturer’s installation manual for complete
installation instructions. Vent installation must conform with venting
requirements and restrictions as outlined in this manual.
7.2 Venting Requirements
NOTE: Consult the local and national installation codes to assure
adequate combustion and ventilation air is available. Venting
requirements apply to both natural gas and propane.
• Flame height and appearance will vary depending upon venting
conguration and the type of fuel used.
• Provide a means for visually checking the vent connection to the
appliance after the replace is installed.
• A minimum of 1” (25mm) clearance on all sides of the vertical
vent pipe must be maintained. Attic insulation shields may
be insulated using unfaced insulation products listed as
noncombustible per ASTM E 136.
• The vent heat shield assembly must be installed for minimum
horizontal venting installations for natural gas and propane. The
vertical vent heat shield of the assembly MUST be installed for
every venting installation and application.
• Kozy Heat’s #800-WPT3 series, or wall thimble products that
comply with the required 1” (25mm) top clearance and 1”
(25mm) side and bottom clearance to combustibles, must be
installed for all horizontal (rigid or exible) vent runs that pass
through interior or exterior walls. These wall thimble products
may be insulated using unfaced insulation products listed as
noncombustible per ASTM E 136.
Vent Restriction
SECTION 7 VENTING
#CAR-39
R.11 February 2022
35
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.3 Vent Restriction
Burner ame appearance and characteristics are aected by altitude,
fuel quality, venting conguration, and other factors. To achieve
desirable ame appearance, the vent exhaust may be restricted by
the restrictor plate (included in components packet) and/or adjust
the built-in restrictor located in the replace bae.
The restrictor plate is shipped with all inner rings intact, and when
installed, provides the most vent restriction. There are (2) inner rings
that can be knocked out. The innermost ring knocked out will create
less restriction, and the outer most ring knocked out will create the
least amount of restriction. Closing the bae restrictor will create
more vent exhaust restriction.
Follow FIGURE 7.1 for restrictor plate installation before attaching
venting or through the bae restrictor if venting is already attached.
If you are adjusting the bae restrictor, loosen the (2) thumb screws
to adjust the setting to achieve desired ame appearance.
For vent restriction recommendations and adjustments, see section
11.2.2, VENT RESTRICTION (AFTER INSTALLATION) on page 55.
Thumb Screws
Exhaust
Baffle Restrictor
Restrictor Plate
Slide restrictor into exhaust pipe on
top of replace with the tabs facing
towards you prior to attaching venting
Bend tabs to approx. 80° angles to create
tension to hold itself in place when installed
Remove innermost circle
to create less restriction
Remove all inner rings for
the least restriction

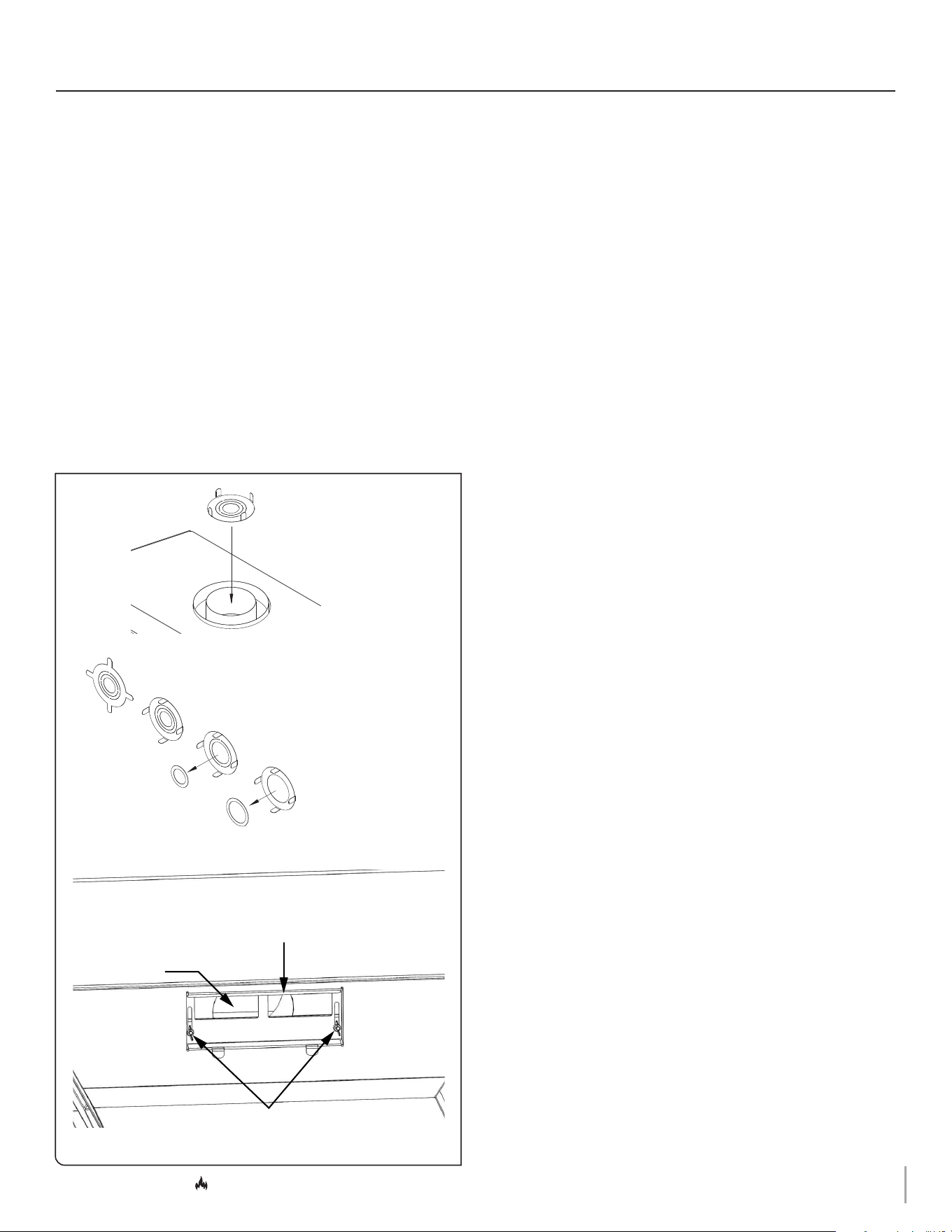

FIGURE 7.1 Restrictor Plate Installation
Vent Heat Shield Assembly Installation
SECTION 7 VENTING
#CAR-39
R.11 February 2022
36
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.4 Vent Heat Shield Assembly Installation
IMPORTANT: The vertical vent heat shield MUST be installed for every
type of venting installation. The horizontal vent heat shield must
be installed with minimum horizontal venting for natural gas and
propane installations.
NOTE: There are (6) screw holes located in front of the ue outlet to
move the vent heat shield assembly in front of the vent pipe. Align the
heat shield as necessary for your venting installation.
7.4.1 Vertical Vent Heat Shield Installation
1. Position the vertical vent heat shield in front of the vent pipe,
with the anges facing towards the replace face as necessary
for the type of installation.
2. Align the (2) slots on the vertical heat shield anges with
corresponding screw holes located in front of the ue outlet on
the top of the replace.
3. Secure the vertical vent heat shield to the replace with (2)
attachment screws (provided in the components package).
7.4.2 Minimum Horizontal Venting
1. Bend at perforation on the (3) hand-tabs down on the horizontal
vent heat shield.
2. Locate (3) screw holes on the vertical vent heat shield. There
are (2) sets of screws holes, allowing for either natural gas or
propane minimum horizontal venting. See FIGURE 7.3
3. Align the (3) slots on horizontal vent heat shield tabs to th.e
corresponding (3) screws holes on the vertical vent heat shield
necessary for your installation.
4. Attach the horizontal vent heat shield with screws (provided)
through the screw holes on the vertical vent heat shield. The 1”
(25mm) vent stand-o tab will rest on top of the vent pipe.
Horizontal heat shield
Vent stand-off tab
Propane location
Natural gas location
Shown at location for
natural gas
Attachment screws
FIGURE 7.3 Installed Horizontal Vent Heat Shield
FIGURE 7.2 Installed Vent Heat Shield Assembly
Vertical Terminations
SECTION 7 VENTING
#CAR-39
R.11 February 2022
37
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.5 Natural Draft Vent Installation
The vertical vent heat shield must be installed for vertical terminations.
Refer to section 7.4, VENT HEAT SHIELD ASSEMBLY INSTALLATION
on page 36.
7.5.1 Vertical Terminations
Natural Gas and Propane
(i) Minimum / Maximum Vertical Terminations*:
4’ (1219mm) minimum vertical length / 50’ (15.24m) maximum
vertical length + termination cap
*Hussong Mfg. Co., Inc. recommends natural gas venting
installations, with at least 4’ (1219mm) of vertical vent height, to
adjust the front air shutter opening to 1/8” (3mm), and to close
the back air shutter opening.
i
B
A
DIAG. 1 NATURAL GAS & PROPANE VERTICAL TERMINATIONS
(A) Vertical Vent Heat Shield (B) Termination Cap
Natural Gas Combination Venting
SECTION 7 VENTING
#CAR-39
R.11 February 2022
38
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.5.2 Natural Gas Combination Venting
IMPORTANT: Horizontal vent sections require ¼” (6mm) rise for every
12” (305mm) of travel.
IMPORTANT: Natural gas and propane vent installations terminating
with a snorkel cap require a minimum of 12” (305mm) of vertical
venting o the top of the appliance before the use of an elbow.
The vertical vent heat shield must be installed for every combination
venting installation. The vent heat shield assembly (horizontal and
vertical vent head shields) must be installed when installing minimum
vertical rise combination venting. Refer to section 7. 4 on page 36.
(i) Minimum 6“ Vertical Venting / Minimum / Maximum Horizontal
Termination
6” (152mm) minimum vertical rise + 90° elbow + 6” (152mm)
minimum horizontal run / 10’ (3m) maximum horizontal run +
termination cap
(ii) Typical Corner Installation
6” (152mm) minimum vertical rise + 90° elbow + 6” (152mm)
minimum horizontal run + termination cap
(iii) Minimum 18” Vertical Venting / Minimum / Maximum
Horizontal Termination
18” (457mm) minimum vertical rise + 90° elbow + 6” (152mm)
minimum horizontal run / 20’ (6m) maximum horizontal run +
termination cap
i
ii
iii
A
B
C
B
A
A
B
C
D
D
D
6” (152mm)
10’ (3m)
6” (152mm)
20’ (6m)
6” (152mm)
18” (457mm)
DIAG. 2 NATURAL GAS COMBINATION VENTING
(A) 90° Elbow
(B) Vertical Vent Heat Shield
(C) Horizontal Vent Shield
(D) Termination Cap
Natural Gas Combination Venting
SECTION 7 VENTING
#CAR-39
R.11 February 2022
39
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.5.2.1 Natural Gas Maximum Combination Venting
For maximum vertical and maximum horizontal combination venting,
the vent terminations must be within the shaded area in FI G UR E 7.4.
• 25’ (7.6m) maximum vertical rise + 25’ (7.6m) maximum
horizontal run = 50’ (15.2m) of total length
• Maximum of (5) 90° elbows.
• For each additional 90° elbow used after the rst elbow, 3’
(914mm) must be subtracted from maximum venting allowed.
• For each 45° elbow used, 18” (457mm) must be subtracted from
maximum venting allowed.
• (2) 45° degree elbows may be used in place of (1) 90° elbow.

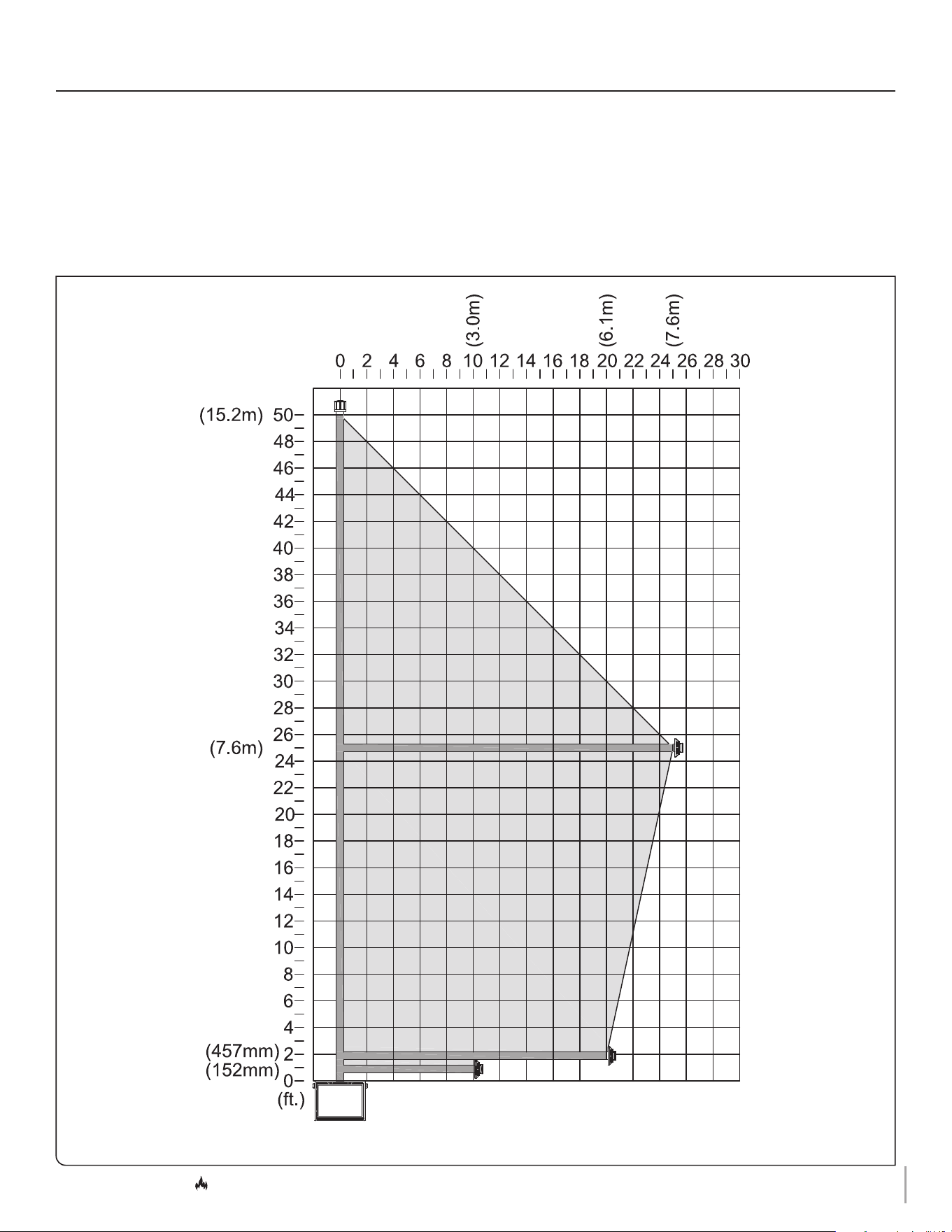

FIGURE 7.4 Natural Gas Combination Venting
Propane Combination Venting
SECTION 7 VENTING
#CAR-39
R.11 February 2022
40
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.5.3 Propane Combination Venting
IMPORTANT: Horizontal vent sections require ¼” (6mm) rise for every
12” (305mm) of travel.
IMPORTANT: Natural gas and propane vent installations terminating
with a snorkel cap require a minimum of 12” (305mm) of vertical
venting o the top of the appliance before the use of an elbow.
The vertical vent heat shield must be installed for every combination
venting installation. The vent heat shield assembly (horizontal and
vertical vent head shields) must be installed when installing minimum
vertical rise combination venting. Refer to Section 7. 4 on page 36.
(i) Minimum 12“ Vertical Venting / Minimum / Maximum Horizontal
Termination
12” (305mm) minimum vertical rise + 90° elbow + 6” (152mm)
minimum horizontal run / 4’ (1219m) maximum horizontal run +
termination cap
(ii) Typical Corner Installation
12” (305mm) minimum vertical rise + 90° elbow + 6” (152mm)
minimum horizontal run + termination cap
(iii) Minimum 18” Vertical Venting / Minimum / Maximum
Horizontal Termination
18” (457mm) vertical rise + 90° elbow + 6” (152mm) minimum
horizontal run / 8’ (2.4m) maximum horizontal run + termination
cap
i
ii
iii
C
A
B
D
A
D
A
B
C
D
B
6” (152mm)
4’ (1219mm)
12” (305mm)
18” (457mm)
6” (152mm)
8’ (2.4m)

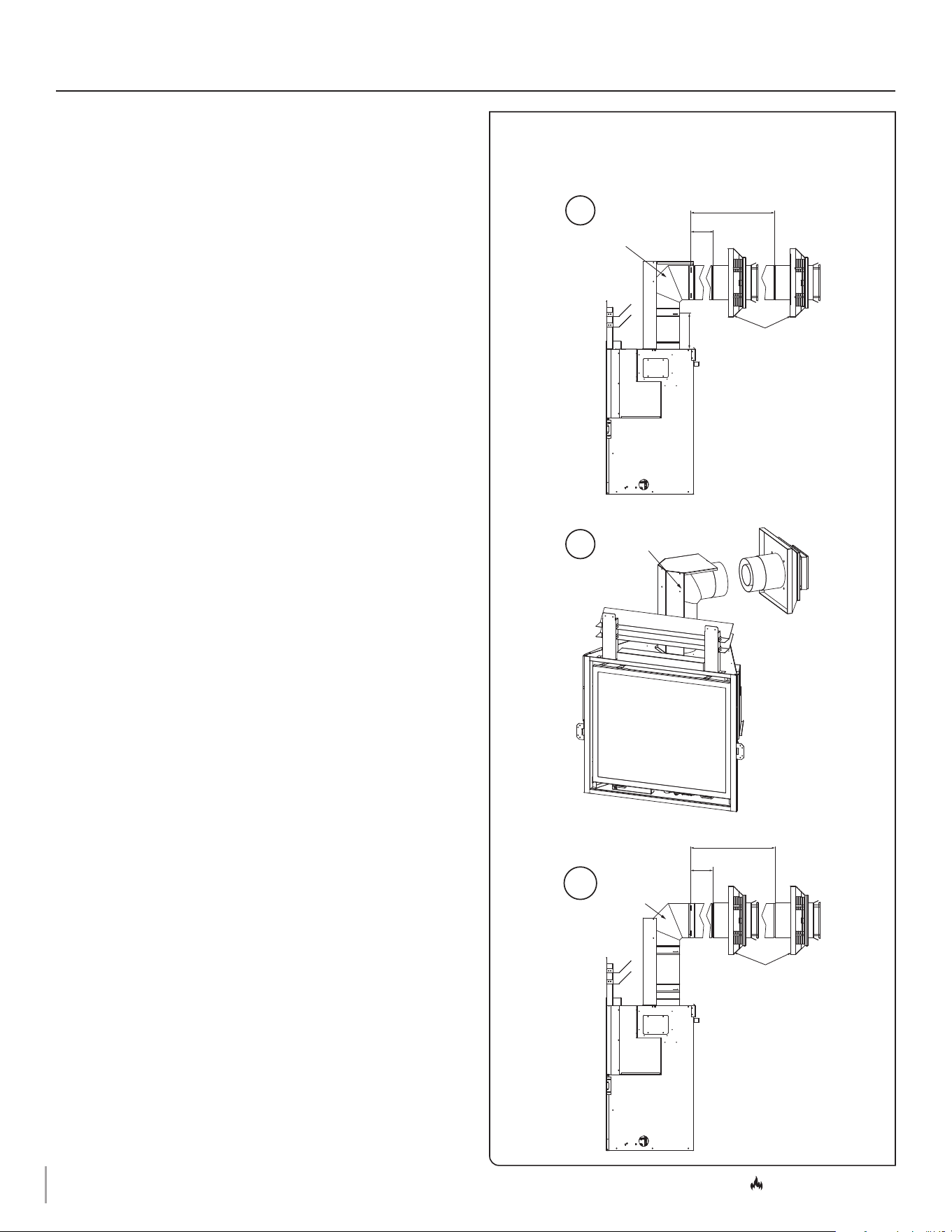

DIAG. 3 PROPANE COMBINATION VENTING
(A) 90° Elbow
(B) Vertical Vent Heat Shield
(C) Horizontal Vent Shield
(D) Termination Cap
Propane Combination Venting
SECTION 7 VENTING
#CAR-39
R.11 February 2022
41
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
7.5.3.1 Propane Maximum Combination Venting
For maximum vertical and maximum horizontal combination venting,
the vent terminations must be within the shaded area in FI G UR E 7. 5.
• 25’ (7.6m) maximum vertical rise + 25’ (7.6m) maximum
horizontal run = 50’ (15.2m) of total length
• Maximum of (5) 90° elbows.
• For each additional 90° elbow used after the rst elbow, 3’
(914mm) must be subtracted from maximum venting allowed.
• For each 45° elbow used, 18” (457mm) must be subtracted from
maximum venting allowed.
• (2) 45° degree elbows may be used in place of (1) 90° elbow.

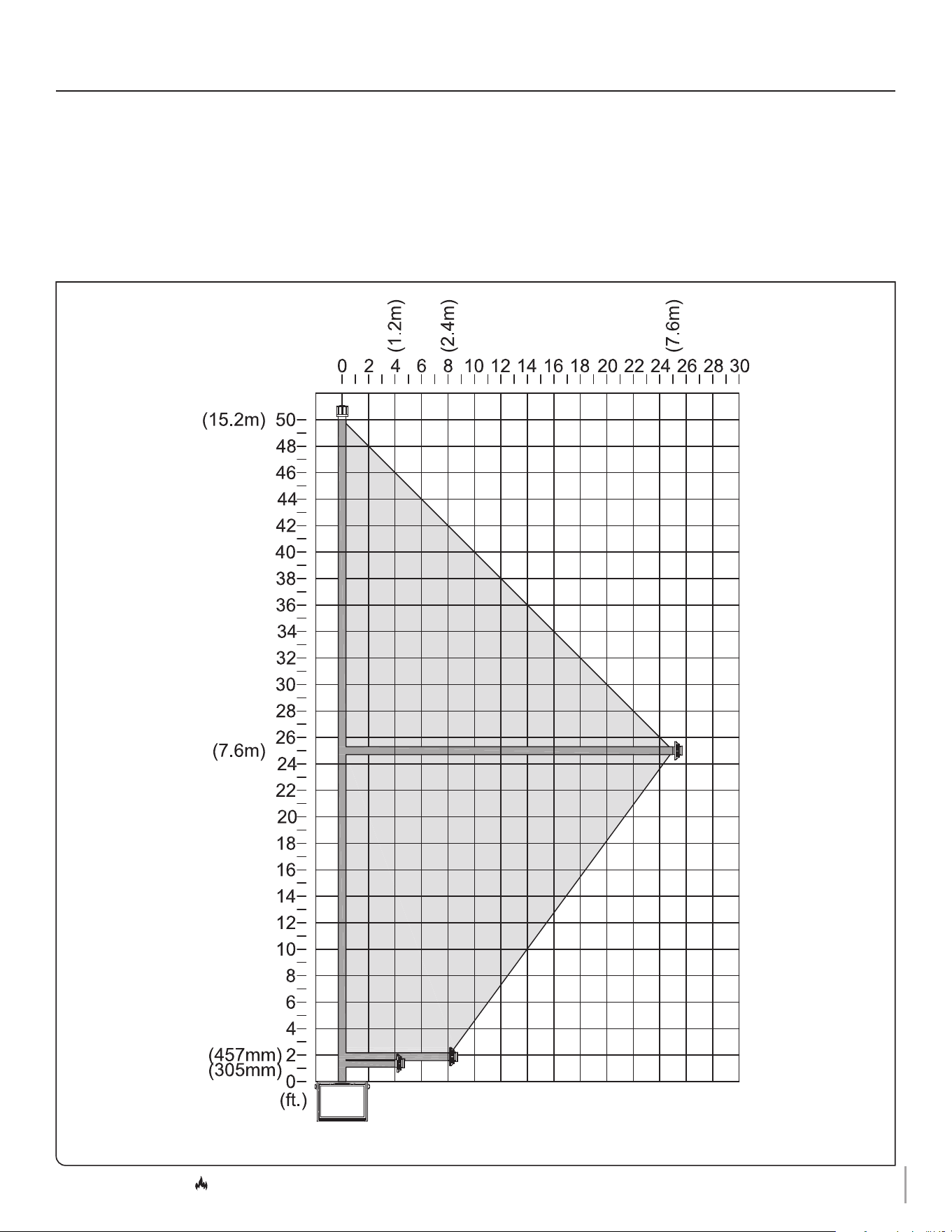

FIGURE 7.5 Propane Combination Venting
#800-1 Series Direct Vent Termination Kit(s) Installation
SECTION 7 VENTING
#CAR-39
R.11 February 2022
42
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

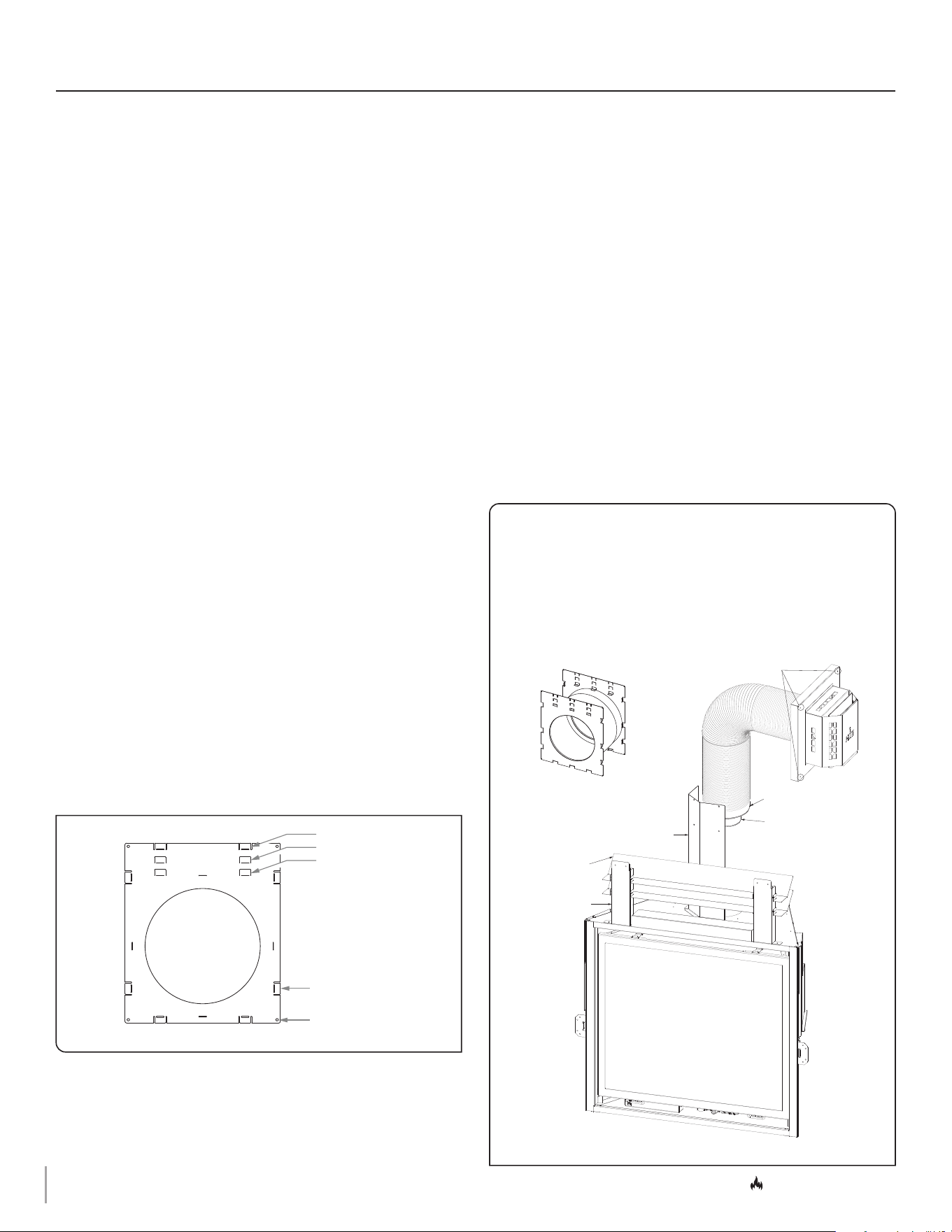

7.6 #800-1 Series Direct Vent
Termination Kit(s) Installation
IMPORTANT: The vertical vent heat shield included with this replace
must be installed for all venting installations. Use the vent heat shield
assembly when installing the exible pipe at the minimum bend radius
6” (152mm) to center.
IMPORTANT: The ex pipe is permanently attached to the exterior plate.
DO NOT ATTACH either #844-1 or #845-1 termination kit to replace (or
extension kit) until it has passed through the wall. Install termination
plates to the outside wall exterior.
IMPORTANT: The minimum bend radius to center is 6” (152mm)
required for installation of the exible vent pipe. Care should be taken
when installing the exible vent pipe to avoid a tight bend that may
cause abrasion or damage to the exible pipe.
• If terminating against vinyl siding, a vinyl siding protector must
be used (included with the #844-1 and #845-1 direct vent kits).
Follow instructions included.
• Each #846-1 extension kit contains enough 5” & 8” exible
aluminum pipe to extend chimney an additional 6’ (1.83 m).
7.6.1 #800-WPT3 Installation Instructions
IMPORTANT: The heat shield within the wall thimble must overlap
a minimum of 1-1/2” (38mm). An extension will be needed if going
through a thicker wall than 6-1/2” (165mm). Refer to BDM vent
manufacturer if wall extension is necessary.
1. Hand bend the (2) tabs on the top of the wall pass through at
the 1” (25mm) top required clearance. Hand bend the (6) tabs on
the sides and bottom of the wall pass through. Repeat for the
other section.
2. From the interior, install one section of the wall pass through.
Secure with (4) screws (not provided).
3. From the exterior, install the other section of the wall pass
through, overlapping the heat shields as necessary to
accommodate wall thickness. The sections must overlap a
minimum of 1-1/2” (38mm). Secure to exterior wall with (4)
screws (not provided).
4. Follow vent manufacturer installation instructions for vent
installation.
7.6.2 Assembly and Installation
1. Mount the required #800-WPT3 wall pass through (G) with the
required 1” (25mm) top clearance and 1” (25mm) side clearances
to the exterior wall, and seal.
2. (OPTIONAL) insulate the wall-pass through with any unfaced
insulation products listed as non-combustible per ASTM E 136.
3. Apply a liberal bead of exterior sealant around outer edge of
termination box (A), placing assembly through the wall-pass
through in exterior wall. Place screws through the four holes (B),
securing it in place.
4. Form the 5” & 8” exible aluminum pipes on termination kit
(#844-1 or #845-1), and if applicable, on each extension kit.
5. Gently pull 5” & 8” pipes down to the top of the replace, or if
applicable, the extension kit.
DO NOT stretch extension kit beyond 6’ (1.83m); DO NOT
stretch beyond what is required. It is very dicult to
decompress ex pipes once stretched.
6. Place a bead of sealant outside 5” ex pipe collar (C) (end with
EXTERNAL LIP) and sliding it into 5” pipe on extension kit or top
of replace (D). Secure with 3 evenly spaced screws.
7. Place a bead of sealant inside 8” ex pipe collar (E) (end with
the INTERNAL lip), sliding it over 8” pipe on top of replace (F).
Secure with 3 evenly spaced screws.
8. If additional extension kits are required, repeat Steps 4 and 5,
placing 5” & 8” pipes onto previous extension kit.
HAND BEND TABS
SCREW HOLES
1”
2”
3”
Vertical vent heat shield
Header heat shield
Stand-off assembly
#800-WPT3
A
B
E
C
G
FIGURE 7.6 #800-WPT3
DIAG. 4 #800-1 SERIES INSTALLATION
(A) Termination Box
(B) Exterior wall plate holes
(3 shown)
(C) 5” ex pipe collar
(D) 5” pipe on replace or
extension kit (not shown)
(E) 8” ex pipe collar
(F) 8” pipe on replace or extension
kit (not shown)
(G) #800-WPT3 or wall thimble with
1” (25mm) top clearance
(H) Vinyl Siding Protector
(not shown)
Glass Frame Assembly
SECTION 8 FIREPLACE SETUP
#CAR-39
R.11 February 2022
43
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

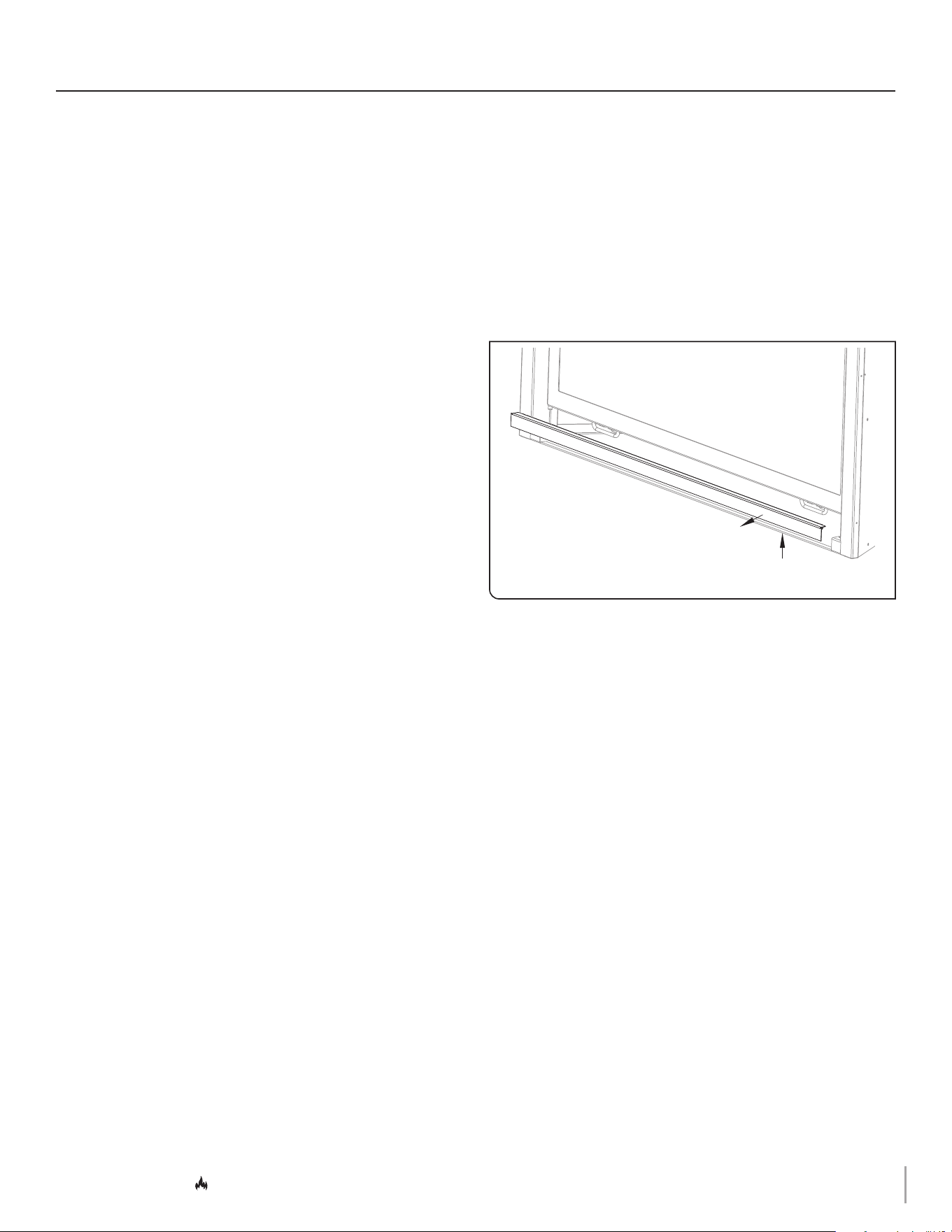

8.0 FIREPLACE SETUP
8.1 Glass Frame Assembly
WARNING: Do not operate this replace with the glass removed,
cracked, or broken. Replacement of the glass assembly should be done
by a licensed or qualied service person.
8.1.1 Remove Glass Frame Assembly
WARNING: Do not remove the glass assembly when hot.
1. Remove the safety barrier.
2. Locate (2) spring-loaded latches securing the glass assembly at
the bottom of the rebox.
3. Pull the spring-loaded latches out and down to release the
bottom of the glass assembly.
4. Lift glass assembly up and o of the (2) tabs located at the top of
the rebox.
8.1.2 Install Glass Frame Assembly
1. Align the slots on top of the glass assembly over the tabs at
the top of the rebox while lowering the bottom of the glass
assembly into position.
2. Pull the spring-loaded latches out and up to secure the bottom
of glass to the bottom of the replace.
3. Reinstall safety barrier.
8.2 Light Kit
CAUTION: Disconnect all electrical power from the replace before
performing this task.
ATTENTION: If converting to propane, complete the conversion before
installing any light kit components. Follow instructions provided with
the conversion kit (sold separately).
NOTE: To avoid damage and prolong the life of the halogen bulbs,
never touch with bare hands. Always use a soft cloth when handling.
8.2.1 Install Light Kit
1. Remove the safety barrier and glass frame assembly.
2. Remove log set (if installed).
3. Remove crushed glass media (if installed).
4. Remove ember panel.
5. Install (4) halogen bulbs (included in components packet) into
lamp bases.
6. Reinstall ember panel. Place the crushed glass media (included
with the replace) into cavity in front of the burner.
7. Randomly place lava rock on top of glass media.
8. Reinstall log set, glass frame assembly, and safety barrier.
8.3 Bottom Frame Removal
and Installation
To access the control module housing, the bottom frame will need to
removed. It must be reinstalled after servicing to maintain clearances.
1. Remove the safety barrier.
2. Locate the bottom frame.
3. Lift the bottom frame up and out of slots on rebox oor.
4. To reinstall, align the tabs on the bottom frame and lower into
position.
5. Reinstall safety barrier.
FIGURE 8.1 Bottom Frame Removal
#C39-50B Log Set Installation
SECTION 8 FIREPLACE SETUP
#CAR-39
R.11 February 2022
44
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
8.4 #C39-50B Log Set Installation
CAUTION: Do not place logs directly over burner port holes. Improper
log placement may aect ame appearance and cause excessive soot
to build upon the logs and glass.
• If converting to propane, complete the conversion before
installing the log set. Follow the conversion instructions included
with the kit.
• Log numbers are located on the bottom of each log. Refer to the
following instructions and illustrations for proper log placement.
1. Position the ember panel in front of the burner.
2. Align the slots in the bottom of log C39-1B with the mounting
pins on the back log plate / burner bracket required for your
installation. Push log down to seat.
3. Align the holes in the bottom of base logs C39-2B, C39-3B, C39-
4B, C39-5B, C39-6B and C39-13B with the mounting pins on the
burner. Push logs down on to pins to seat.
4. Align logs C39-7B, C39-8B, and C39-9B with the notches on the
base logs.
5. Align log C39-11B with the notch on log C39-8B.
6. Align logs C39-10B and C39-12B with the notches on the
ember panel.
7. Distribute rockwool embers onto the logs and burner using a
sti bristle brush.
FIGURE 8.3 Installed Log Set
FIGURE 8.2 Base Logs
Control Board Removal and Installation
SECTION 8 FIREPLACE SETUP
#CAR-39
R.11 February 2022
45
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
8.5 Control Board Removal and Installation
WARNING: If burner and/or pilot have been burning,
use appropriate protection to avoid burns or damage
to personal property before removing any components.
DO NOT OPERATE THIS APPLIANCE WITHOUT THE SEALING GASKET
(LOCATED UNDER THE CONTROL BOARD) IN PLACE. IF GASKETING IS
DAMAGED, IT MUST BE REPLACED.
CAUTION: Check all connections for leaks with soapy water, whether
eld or factory made.
8.5.1 Control Board Removal
1. Disconnect electrical power.
2. Locate the manual valve installed by your qualied service
technician.
3. Turn the manual valve clockwise to the OFF position.
4. Remove the safety barrier and glass frame assembly.
5. Remove logs.
6. Remove the front burner from the rebox (2 screws).
7. Remove the back burner tube.
8. Remove the back log plate/burner bracket (2) screws.
9. Remove the burner heat shield (2) screws.
10. Remove the light kit assembly.
11. Remove and save (10) screws securing the control board. Raise
the control board to unplug control module and fan wiring from
the control module.
12. Lift the control board and control module out of the rebox,
being careful not to damage sealing gasket underneath.
8.5.2 Control Board Installation
1. Place the control module through the rebox and into the
control compartment. Plug in control module and fan wiring.
VERIFY SEALING GASKET IS IN PLACE.
2. Secure the control board to the rebox using (10) screws
previously removed.
3. Reinstall the light kit assembly.
4. Reinstall the burner heat shield (2) screws.
5. Reinstall the back log plate/burner bracket (2) screws.
6. Reinstall the front burner. Align the burner over the ports and
position the venturi over burner orice. Secure with (2) screws.
7. Reinstall the back burner tube, positioning the venturi over the
burner orice.
8. Reinstall log set.
9. Reinstall the glass frame assembly and safety barrier.
10. Turn the manual valve counterclockwise to the ON position.
11. Reconnect electrical power.
12. Verify proper log placement, operation of replace, and any
electrical components.
FIGURE 8.4 Control Board Removal and Installation
SECTION 9 ELECTRICAL INFORMATION
#CAR-39
R.11 February 2022
46
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
9.0 ELECTRICAL INFORMATION
WARNING: Do not use this replace if any part has been under water.
Immediately call a qualied service technician to inspect this appliance
and to replace any part of the control system and any gas control which
has been under water.
WARNING - Electrical Grounding Instructions: This appliance is
equipped with a three-prong (grounding) plug for your protection
against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding
prong from this plug.
9.1 Electrical Specications
This appliance, when installed, must be electrically grounded in
accordance with local codes, or in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
9.2 Wiring Requirements
The wiring diagram for this appliance is shown in FIGURE 9.1 below.
• The Komfort 8K1 system requires 120 VAC of electricity and/or
batteries to operate.
• Using the battery backup will operate ame modulation of
the burner.
• The fan component and light kit will not function on battery
backup power.
BLACK
BLACK
RED
RED
RED
RED
BROWN
GROUND
EV2
GREEN
(MAIN)
EV1
ORANGE
(PILOT)
MALE END
AUX 3
(FAN)
RED BOOT
(FLAME SENSOR)
BLACK BOOT
(IGNITER)
MALE END
AUX 1
(LIGHT KIT)
6V DC
TRANSFORMER
KOMFORT 8K1
CONTROL MODULE
PILOT
FAN
BATTERY PACK
6V DC
(with 1 amp fuse)
DEXEN MH3V
GAS VALVE
AUX 300
ON/OFF
ROCKER SWITCH
LIGHT KIT
FIGURE 9.1 Komfort 8K1 Wiring Diagram

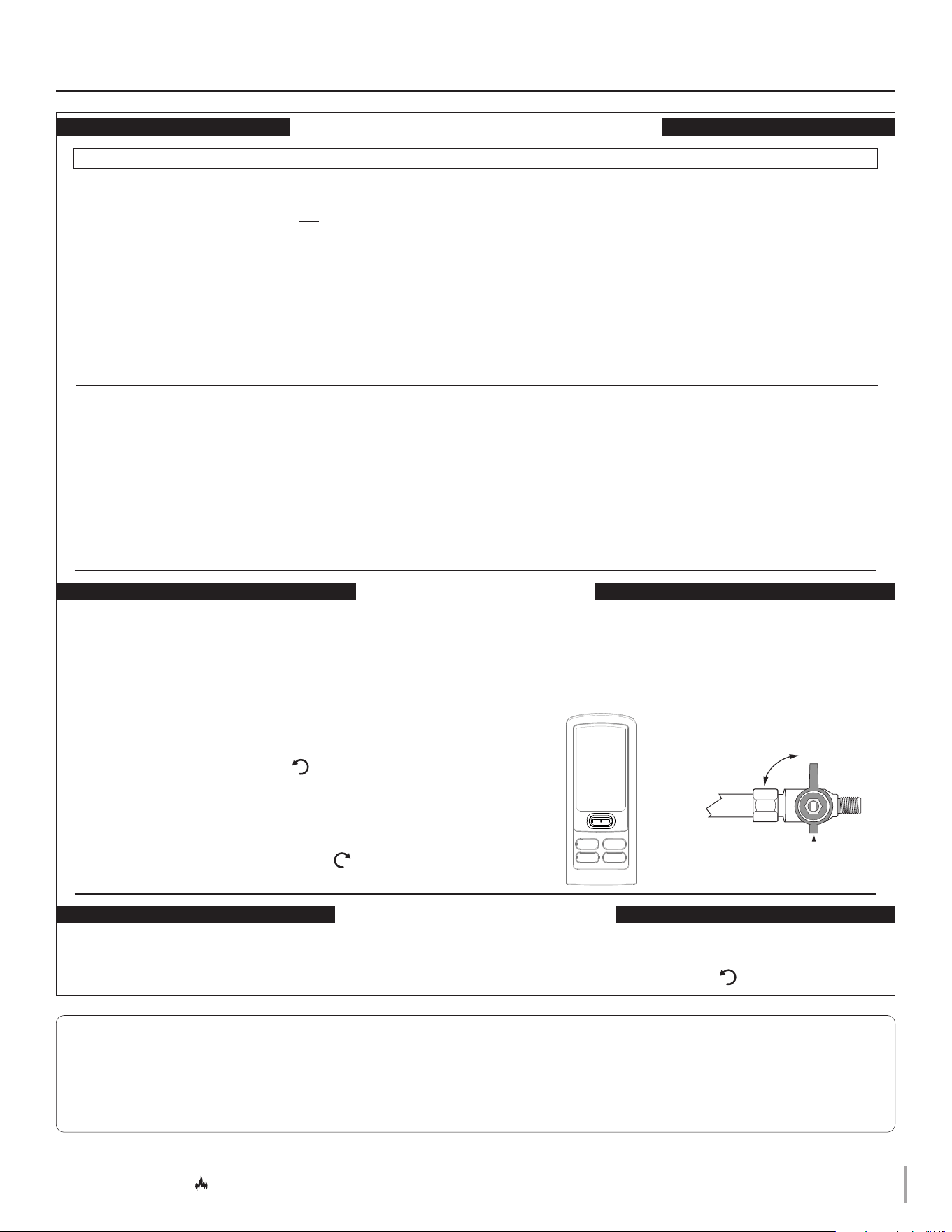

10.0 OPERATING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
SECTION 10 OPERATING INSTRUCTIONS
#CAR-39
R.11 February 2022
47
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
WARNING
Do not operate appliance with the glass front removed, cracked, or
broken. Replacement of the glass should be done by a licensed or
qualied service person.
Under no circumstances should any solid fuel (wood, coal, paper,
cardboard, etc.) be used in this appliance.
Children and adults should be alerted to the hazards of high surface
temperature and should stay away to avoid burns or clothing ignition.
CAUTION
Clothing or other ammable material should not be placed on or near
the appliance.
Young children should be carefully supervised when they are in the
same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict
access to a replace or stove, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out of the room
and away from hot surfaces.
WARNING: If you do not follow these instructions exactly, a re or explosion may result causing property damage, personal injury, or loss of life.
1. STOP! Read all the safety information above on this page.
2. Press the wireless remote POWER button.
3. Turn o all electric power to the appliance.
4. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by
hand.
5. Locate the manual valve installed by your qualied service
technician.
6. Turn the manual valve clockwise
to the OFF position.
7. Wait ve (5) minutes to clear out any gas. Then, smell
for gas, including near the oor. If you smell gas, STOP!
Follow ‘B’ in the safety information above. If you do not smell
gas, go to the next step.
8. Turn the manual valve counterclockwise
to the ON position.
9. Turn on all electric power to the appliance.
10. Press the wireless remote POWER button.
11. If the appliance will not operate, follow the instructions, “To
Turn O Gas To Appliance” and call your service technician or
gas supplier.
OPERATING INSTRUCTIONS
A. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by
hand.
B. BEFORE OPERATING smell around the appliance area for gas.
Be sure to smell next to the oor because some gas is heavier
than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to turn the gas control manual valve. Never
use tools. If the valve will not turn by hand, do not try to repair
it; call a qualied service technician. Force or attempted repair
may result in a re or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system and
any gas control that has been under water.
1. Press the wireless remote POWER button.
2. Turn o all electric power to the appliance if service is to be
performed.
3. Locate the manual valve installed by your qualied service
technician.
4. Turn the manual valve clockwise
to OFF position.
FOR YOUR SAFETY READ BEFORE OPERATING
ON
OFF
POWER
ON/OFF
NOTE
When this replace is initially lit, condensation will appear on the glass. This is normal in all gas replaces and will disappear after several
minutes. A paint smell will occur during the rst few hours of burning. It is recommended to leave the fan o during this period to help speed
the paint curing process.
This replace may produce noises of varying degree as it heats and cools due to metal expansion and contraction. This is normal, and does not
aect the performance or longevity of the replace.
SECTION 10 OPERATING INSTRUCTIONS
Setup Komfort 8K1 Control Module–Additional Diagnostic Information
#CAR-39
R.11 February 2022
#CAR-39
R.11 February 2022
48
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
10.1 Setup Komfort 8K1 Control Module
1. Set the main ON/OFF rocker switch in the OFF position.
2. Remove the remote control components from packaging.
3. Install (3) AAA batteries (included in the components packet) in
the remote control battery bay.
4. Connect the transformer to an AC power supply.
5. Connect the fan to the AUX 300 control module (FIGURE
8.1, page 31).
10.2 Initialize the Komfort
8K1 Control System
1. Verify the ON/OFF/REMOTE switch is in the REMOTE position. A
green LED will illuminate and blink three times.
2. Using a small item, such as a paper clip, press and release the
LEARN button located near the ON/OFF/REMOTE switch.
3. The control module will beep once and illuminate a green LED
for 10 seconds.
4. While the green LED is blinking, press the POWER button on the
remote control. The control module will emit a double beep to
indicate that the remote is initialized to the control system.
10.3 Automatic Safety Turn-o
This system will execute an automatic turn OFF command after 8
hours of continuous main burner operation.
10.4 Backup Battery Operation
This appliance will operate on the backup battery pack in a power
outage. The lifespan of the backup batteries depends on various
factors, such as the quality of the batteries, number of ignitions, etc.
Only install backup batteries in power outages only. Do not leave
batteries installed in the backup battery pack.
10.5 Control System 7 Day Time-out
If your Komfort 8K1 control system is set to pilot-on-demand ignition
with 7 consecutive days without ignition of the main burner, the
pilot will turn o. This is a standard safety feature of the Komfort 8K1
control system.
Once you turn the pilot-on-demand on, the 7 day timer will start. If at
any time during the following 7 days your main burner ignites, it will
reset the timer back to 7 days.
See section 10.8.7 on page 50 for more information about pilot
ignition selection.
How to check if your system is set to pilot-on-demand:
• The remote control screen will display the snowake with text
PILOT icon.
To select the preferred pilot ignition:
1. Press the MENU button to activate the menu.
2. Using the UP and DOWN arrows, highlight the PILOT icon and
press SELECT.
3. Use the UP and DOWN arrows to turn the pilot-on-demand ON
or OFF, then press SELECT.
• A single beep will be emitted from the control module indicating
pilot-on-demand feature has been activated.
• A double beep will be emitted from the control module
indicating the pilot-on-demand feature has been deactivated.
10.6 Komfort 8K1 Control System
Ignition Sequence
The Komfort 8K1 control module will attempt (1) time for ignition, for
approximately 60 seconds.
If there is no ame ignition (rectication) within the (60) second time
frame, the Komfort 8K1 system will go into a lockout. The control
module will display an error code (see section 10.7), followed by a
blinking red/green LED, indicating a system lockout.
10.6.1 Reset Control Module after Lockout
10.6.1.1 Disconnect Power Supply
• Disconnect the power supply to the control module. After
approximately (5) second, reconnect power supply.
10.6.1.2 ON/OFF/REMOTE Switch
• Turn the ON/OFF/REMOTE switch on the control module to OFF.
Wait approximately (5) seconds, and turn the ON/OFF/REMOTE
switch to REMOTE. The control module will illuminate a green
LED (2) times and emit a beep.
• Turn the ON/OFF/REMOTE switch on the control module to OFF.
Wait approximately (5) seconds, and turn the ON/OFF/REMOTE
switch to ON. The control module will illuminate a green LED (2)
times and emit a beep. The ignition sequence will start again.
10.7 Additional Diagnostic Information
Diagnostic codes are outlined below and should be used as an
additional troubleshooting tool.
Red LED will blink (1) time, then a red/green LED blink (lockout)
• Error caused by fuel-type selector switch is in incorrect position
or fuel-type selector switch is damaged. Verify selector is in
correct position. If condition persists, replace the control module.
Red LED will blink (2) times, then a red/green LED blink (lockout)
• Error caused by Insucient voltage from ignition coil to
pilot ame igniter. Clear the lockout (see section 10.6.1
above) and attempt ignition. If condition persists, replace the
control module.
Red LED will blink (3) times, then a red/green LED blink (lockout)
• Error caused by inadequate gas supply. Verify proper inlet
pressure to the gas line.
• Error caused by detection of false ame or short in sensor lead.
Verify that pilot leads are correctly terminated to the control
module, and that no shorted wires exist.
• Error caused by sense and/or igniter lead disconnected. Verify
that the pilot sensor rod, igniter rod, and hood are clean.
Remote Control Operation
SECTION 10 OPERATING INSTRUCTIONS
#CAR-39
R.11 February 2022
49
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

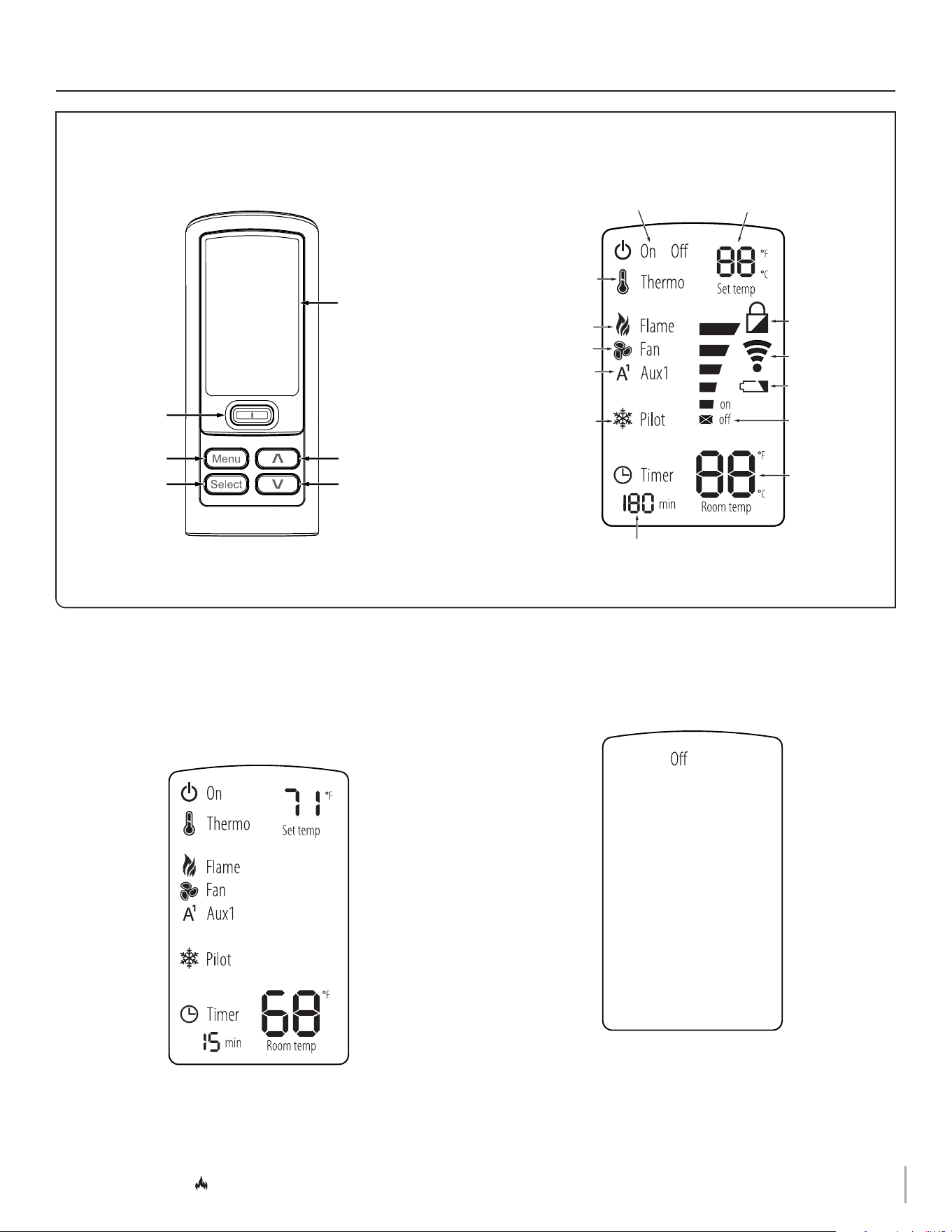

10.8 Remote Control Operation
10.8.1 Idle Mode
The remote control will go into an idle mode when the remote is ON
if no buttons are pressed within (5) seconds. Press any button to
resume full functionality. In idle mode, only active functions will show
on the screen.
10.8.2 Standby Mode
The remote control will go into a standby mode if no buttons are
pressed within (5) minutes. Press the POWER button to reactivate the
remote control to ON mode. Active functions will be displayed once
in ON mode.
POWER BUTTON
MENU BUTTON
SELECT BUTTON
UP ARROW BUTTON
DOWN ARROW BUTTON
LCD DISPLAY
THERMOSTAT
FLAME HEIGHT
FAN SPEED
ADJUSTABLE
AUXILIARY
PILOT-ON-DEMAND
ROOM TEMP
DISPLAY
FUNCTION LEVEL
INDICATOR
LOW BATTERY
INDICATOR
TRANSMISSION
INDICATOR
CHILD LOCK
INDICATOR
TIMER DISPLAY/FUNCTION
FIREPLACE STATUS
THERMOSTAT DESIRED
TEMP SETTING
Komfort 8K1 Remote Control
Remote Control Display
FIGURE 10.1 Komfort 8K1 Remote Control and Remote Control Display
Remote Control Operation
SECTION 10 OPERATING INSTRUCTIONS
#CAR-39
R.11 February 2022
50
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

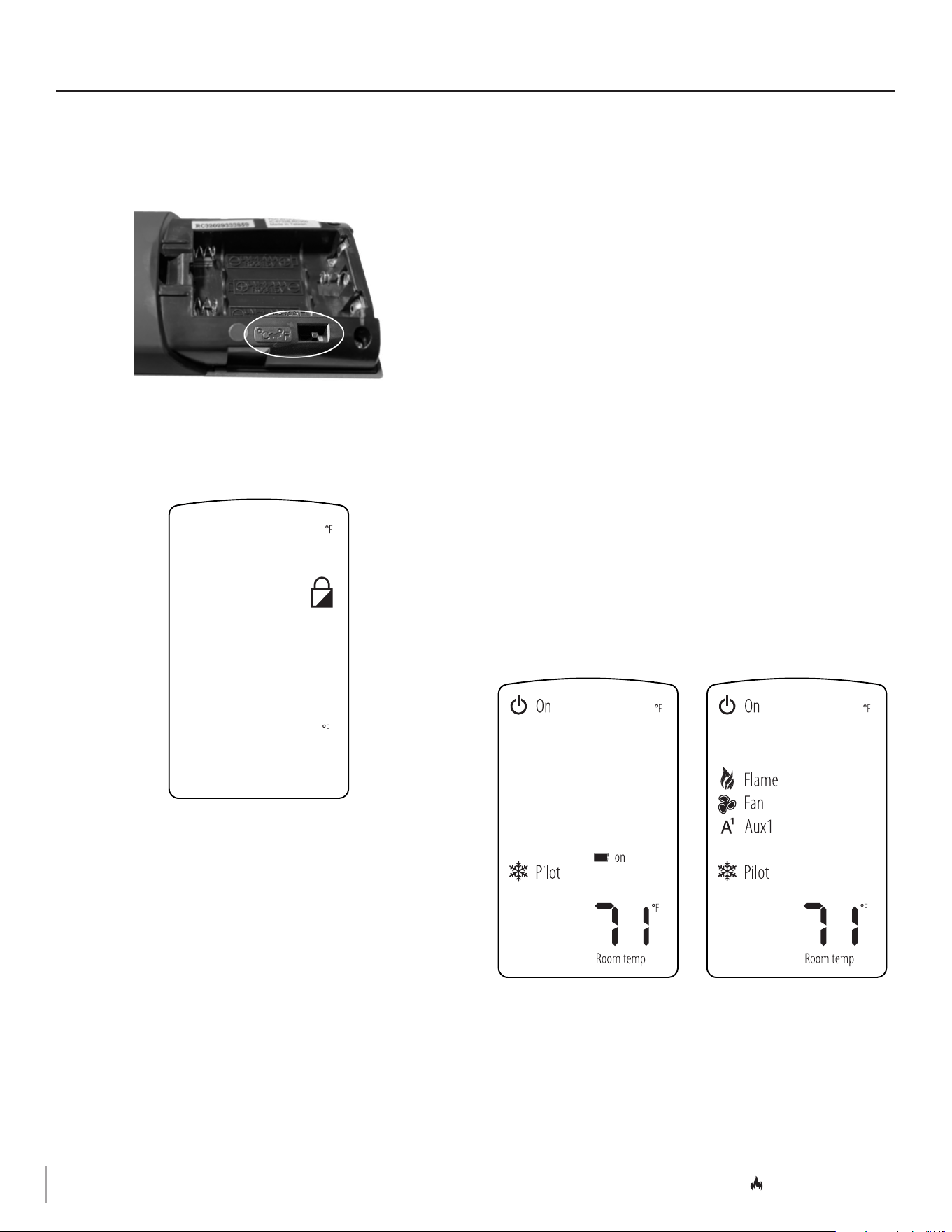

10.8.3 Temperature Display
To change the temperature display between Celsius and Fahrenheit,
Remove the battery cover from the back of the control. Slide the
switch to desired temperature scale. Reinstall batteries and
battery cover.
10.8.4 Child Lock
To lock the remote to avoid unsupervised operation,
Press and hold the MENU and UP arrow buttons simultaneous for 4
seconds to enable or disable the child lock feature.
10.8.5 Turn ON the Appliance
With the system in the OFF position, press the remote control POWER
button to turn ON the appliance.
• The appliance will attempt to ignite the pilot (if Pilot-on-Demand
function is OFF). Once the pilot ame is rectied, the main
burner will ignite.
• Whenever the appliance is cycled from OFF to ON, the main
burner will light on high for 10 seconds before returning to the
previous user setting.
• All functions can be accessed when the remote control is
ON. Only active functions will be displayed when the remote
control is ON.
• The transmission indicator icon will ash and a single beep will
conrm the reception of the command.
10.8.6 Turn OFF the Appliance
With the system in the ON position, press the remote control POWER
button to turn OFF the appliance.
• Functions AUX1, AUX2, and Pilot-on-Demand can be accessed
when the remote control is OFF. Only active functions will be
displayed when the remote control is OFF.
• The transmission indicator icon will ash and a single beep will
conrm the reception of the command.
10.8.7 Pilot Ignition Selection (Intermittent
or Pilot-on-Demand)
This system has the option of a pilot-on-demand, allowing the system
to change from a spark-to-pilot system to the pilot-on-demand
option. The pilot-on-demand will keep the rebox warm and establish
a draft in the vent, which allows the main burner to ignite with less
air-ow disruption.
To select the preferred
1. Press the MENU button to activate the menu.
2. Using the UP and DOWN arrows, highlight the PILOT icon and
press SELECT.
3. Use the UP and DOWN arrows to turn the pilot-on-demand ON
or OFF, then press SELECT.
• The transmission indicator icon will ash and a single beep will
be emitted from the control module indicating pilot-on-demand
feature has been activated. The remote control screen will
display the snowake with text PILOT icon.
• The transmission indicator icon will ash and a double beep will
be emitted from the control module indicating the pilot-on-
demand feature has been deactivated. The remote control will
not display the snowake with text PILOT icon.
Remote Control Operation
SECTION 10 OPERATING INSTRUCTIONS
#CAR-39
R.11 February 2022
51
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
10.8.8 Flame Adjustment
This control system has (5) ame levels. Flame height will not be
adjustable for the rst (10 )seconds when the appliance is turned ON.
The control system will remember the previous ame level setting
and will automatically adjust after (10) seconds.
To adjust the ame level,
1. Press the MENU button to activate the menu.
2. Using the UP and DOWN arrows, highlight the FLAME icon and
press SELECT.
3. Use the UP and DOWN arrows to adjust the ame level to desired
setting, then press SELECT.
• The transmission indicator icon will ash and a single beep will
conrm the reception of the command.
10.8.9 Thermostat Operation
The remote control can operate as a room thermostat. The thermostat
can be set to a desired temperature to control a room’s comfort level.
This control system requires a two degree Fahrenheit or higher
temperature dierence between the room temperature and set
temperature for the replace to turn on.
The system will remember the previous temperature setting when
thermostat mode is cycled ON or OFF.
To activate this function,
1. Press the MENU button to activate the menu.
2. Using the UP and DOWN arrows, highlight the THERMO icon and
press SELECT.
3. Use the UP and DOWN arrows to turn the THERMO ON or OFF,
then press SELECT. The SET TEMP will start blinking. Using the
UP and DOWN arrows, select the desired temperature and
press SELECT.
• If the thermostat function is on, the set temperature can be
adjusted at any time by pressing the UP and DOWN arrows.
• As the room temperature approaches the set temperature, the
remote system will automatically adjust the ame height.
• If the room temperature rises above the set temperature, the
replace will shut down the main burner. The replace will
turn back on after the room temperature drops below the set
temperature.
10.8.10 Fan Speed Control
The fan speed can be adjust through (3) speeds: HIGH, MEDIUM, LOW.
The fan is controlled by a timer built into the control module. After
the replace is turned ON, the timer will wait for (3) minutes before
turning on the fan. After the replace is turned OFF, the fan will
remain on for (12) minutes.
To activate this function,
1. Press the MENU button to activate the menu.
2. Using the UP and DOWN arrows, highlight the FAN icon and
press SELECT.
3. Use the UP and DOWN arrows to adjust to desired fan speed,
then press SELECT.
• The transmission indicator icon will ash and a single beep will
conrm the reception of the command.
Remote Control Operation
SECTION 10 OPERATING INSTRUCTIONS
#CAR-39
R.11 February 2022
52
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

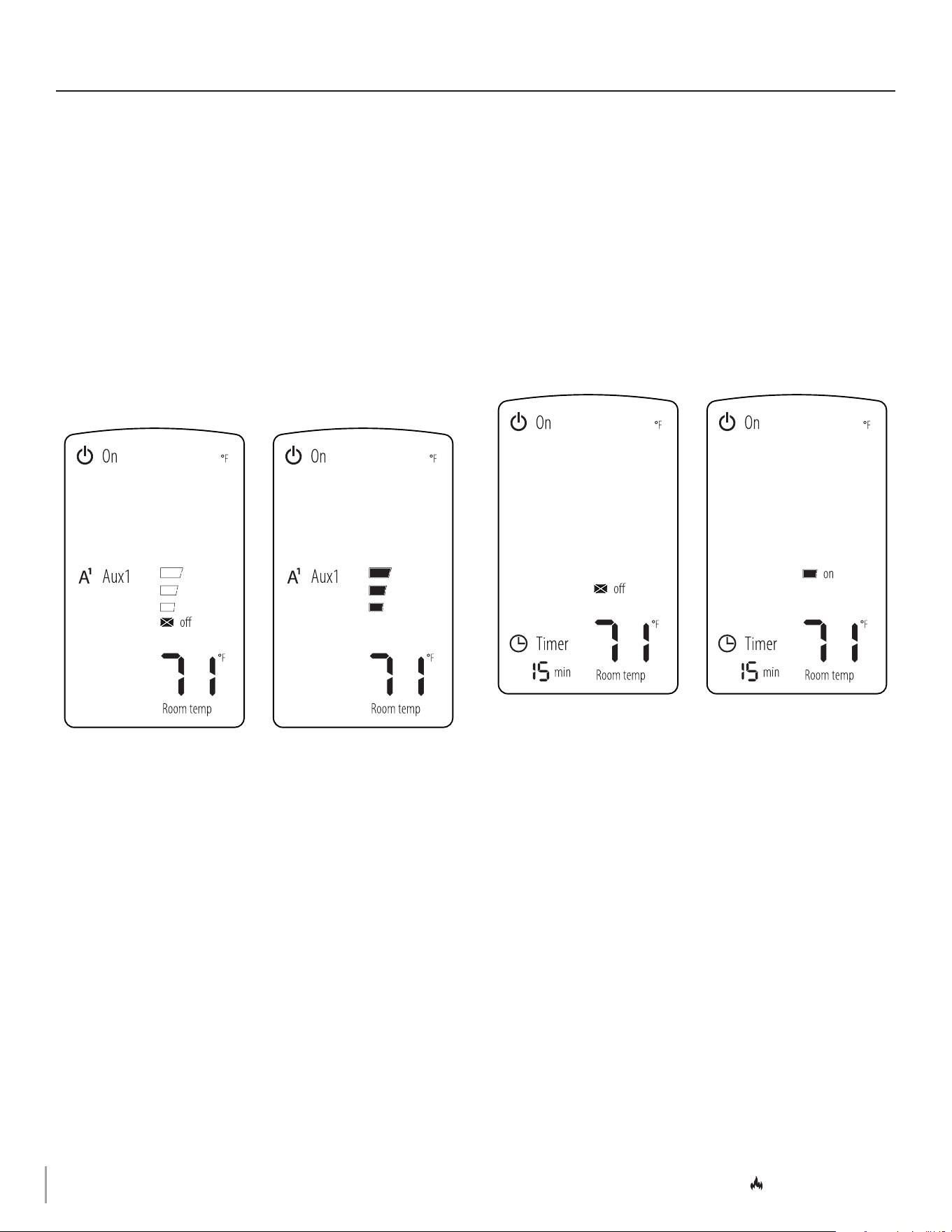

10.8.11 AUX1 Function (Light Kit)
The light kit intensity can be adjusted through (4) levels: HIGH,
MEDIUM, LOW, and OFF.
The system will remember the previous AUX1 setting from the menu.
However, when the appliance is turned OFF, AUX1 function will be
turned o. AUX1 can be activated when the remote control is OFF.
When the appliance is turned back ON, the AUX1 setting will be
restored to the previous ON setting.
To activate this function,
1. Press the MENU button to activate the menu.
2. Using the UP and DOWN arrows, highlight the AUX1 icon and
press SELECT.
3. Use the UP and DOWN arrows to adjust to desired light kit
intensity.
• The transmission indicator icon will ash and a single beep will
conrm the reception of the command.
10.8.12 Timer Adjustment
This control system has the option to set a timer function to turn OFF
the main burner operation. The timer operates in increments of 15,
30, 45, 60, 90, 120, and 180 minutes.
To activate this function,
1. Press the MENU button to activate the menu.
2. Using the UP and DOWN arrows, highlight the TIMER icon and
press SELECT.
3. Use the UP and DOWN arrows to turn the TIMER ON or OFF, then
press select.
4. Using the UP and DOWN arrows, select the desired set time and
press SELECT.
• The transmission indicator icon will ash to conrm the
reception of the command.
Pressure Testing
SECTION 11 ADJUSTMENT
#CAR-39
R.11 February 2022
53
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

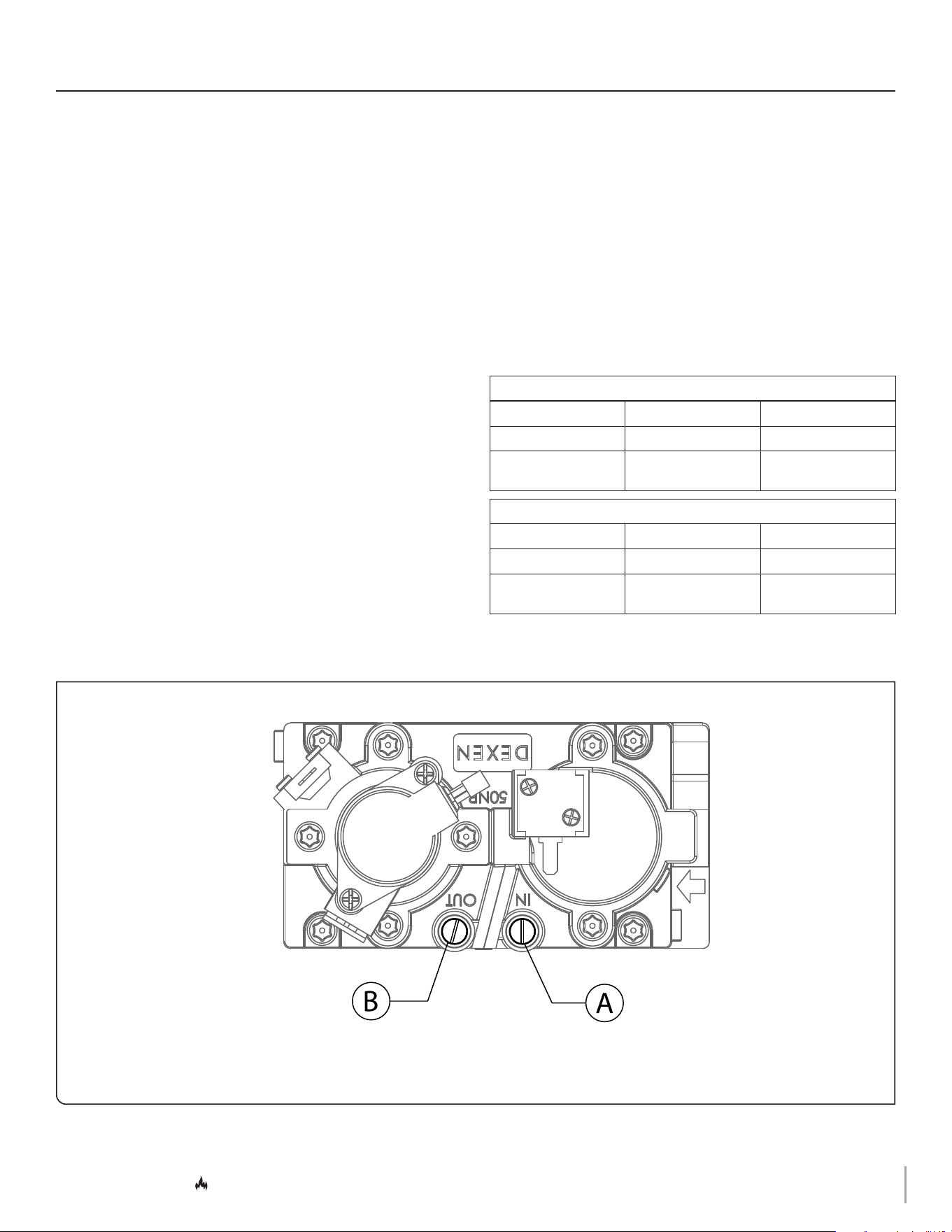

11.0 ADJUSTMENT
11.1 Pressure Testing
NOTE: The appliance and its appliance main gas valve must be
disconnected from the gas supply piping system during any pressure
testing of the system at test pressures in excess of ½ psi (3.5 kPa).
IMPORTANT: Pressure check taps for manifold (outgoing) and inlet
(incoming) pressure have been incorporated into the valve. The
pressure tap marked OUT measures outgoing pressure. The pressure
tap marked IN measures incoming pressure.
11.1.1 Inlet Pressure Test
NOTE: Make sure to apply these incoming pressure test with all
other gas appliances on, or at full capacity in the house for proper
pressure reading.
IMPORTANT: If the inlet pressure reading is too high or too low, contact
the gas company. Only a qualied gas service technician should adjust
incoming gas pressure.
1. Loosen the inlet (IN) pressure tap by turning screw counter-
clockwise. See (A) in FIG UR E 11.1.
2. Attach manometer using a ¼” (6mm) I.D. hose.
3. Light pilot and burner. Check pressure to ensure it is between
the minimum and maximum recommended pressure settings.
4. Turn o burner and pilot.
5. Disconnect hose and tighten the inlet (IN) pressure tap by
turning screw clockwise. Screw should be snug. Do not
over tighten.
6. Relight pilot and burner. Then reattach manometer to the
inlet pressure tap (A) to verify the tap is completely sealed.
Manometer should read no pressure.
11.1.2 Manifold Pressure Test
1. Light pilot.
2. Loosen manifold (OUT) pressure tap by turning screw counter-
clockwise. See (B) in FIG U RE 11.1.
3. Attach manometer to pressure tap using a ¼” (6mm) I.D. hose.
4. Light burner. Check manometer reading.
5. Turn burner and pilot o.
6. Disconnect manometer hose and tighten the manifold (OUT)
pressure tap by turning screw clockwise. Screw should be snug.
Do not over tighten.
7. Attach the manometer to the manifold pressure tap (B) to verify
it is completely sealed. The manometer should read no pressure
when pilot and burner are on.
Table 11.1, Inlet Pressures
Fuel Natural Gas Propane
Gas Supply Min - Max Min - Max
Inlet Pressure
Tap (A)
5” - 10” WC
(1.25 - 2.49 kPa)
12” - 13” WC
(2.99 - 3.24 kPa)
Table 11.2, Manifold Pressure
Fuel Natural Gas Propane
Gas Supply Low - High Low - High
Manifold Pressure
Tap (B)
1.0” - 3.5” WC
(0.24 - 0.87 kPa)
2.7” - 10” WC
(0.67 - 2.49 kPa)
Inlet pressure tap
Manifold pressure tap
FIGURE 11.1 Pressure Check Taps
Burner Flame Adjustments–Burner Venturi
SECTION 11 ADJUSTMENT
#CAR-39
R.11 February 2022
54
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

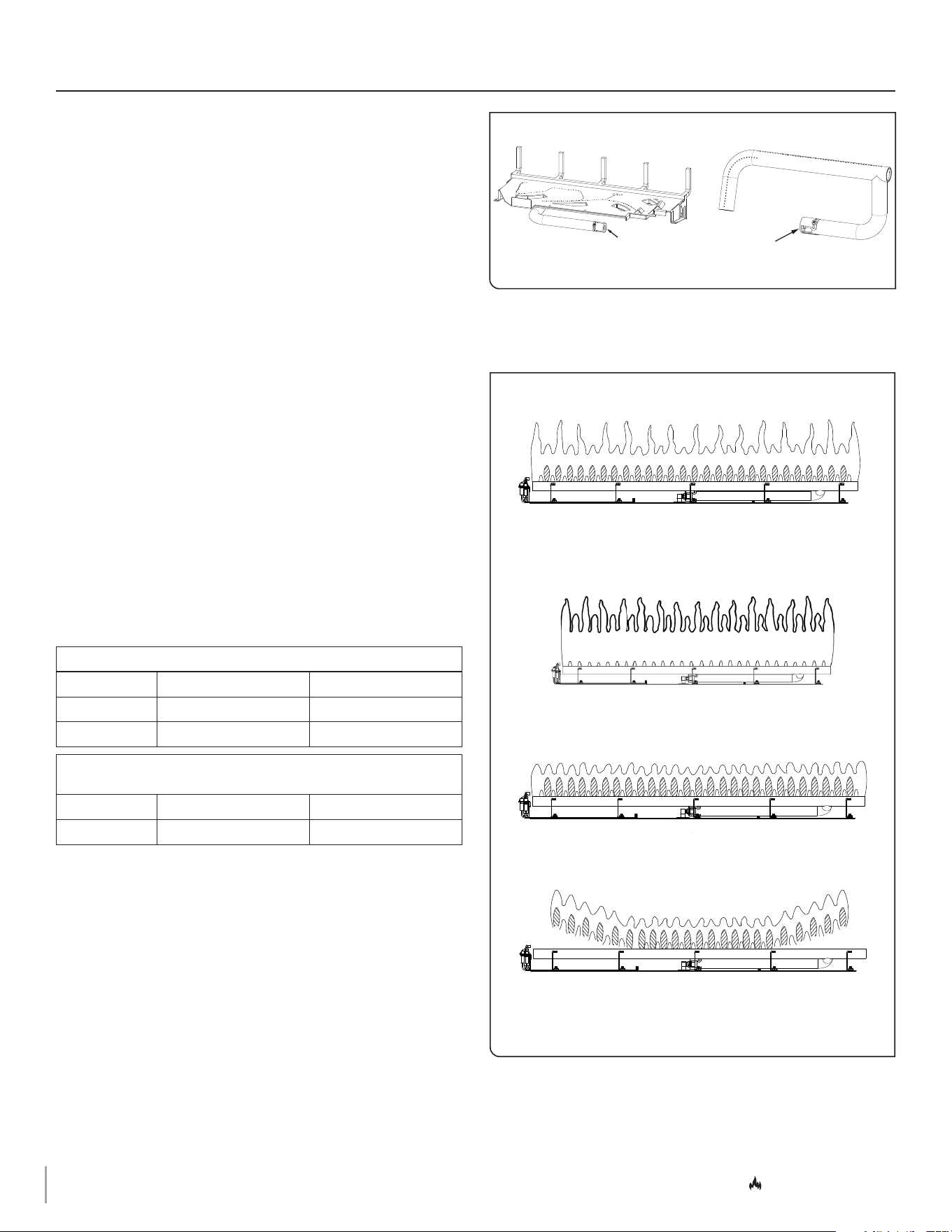

11.2 Burner Flame Adjustments
WARNING: To avoid property damage or personal injury, allow the
replace ample time to cool before making any adjustments.
Burner ame appearance and characteristics are aected by
altitude, fuel quality, venting conguration, and other factors. After
installation, this appliance may need additional adjustments to
achieve optimum ame appearance and visual aesthetics.
11.2.1 Burner Venturi
WARNING: VENTURI ADJUSTMENT MUST BE DONE BY A QUALIFIED
SERVICE TECHNICIAN.
NOTE: Burner venturi air shutter settings have been factory set. Refer
to TABLE 11.3.
When this appliance is rst lit, the burner ames will appear blue.
During the rst 15 minutes of operation, ame appearance will
gradually turn to the desired yellow appearance. If the ames remain
blue, or become dark orange with evidence of sooting (black tips),
adjustment of the air shutter opening may be necessary.
Regardless of venturi orientation, closing the air shutter will achieve a
desired yellow ame, but may produce soot on the glass. Opening the
air shutter will cause a short, blue ame that may lift o the burner.
Slight adjustments to the venturi opening will create dramatic results.
Adjust at slight increments until desired look is achieved.
The air shutter on this appliance is factory set for horizontal
terminations, and may need adjustment for natural gas installations,
depending on venting length and conguration. Hussong Mfg.
Co., Inc. recommends natural gas venting installation with at least
4’ (1219mm) of vertical height to adjust the air shutter openings as
outlined in TABLE 11.4.
Table 11.3, Factory Set Venturi Openings
Fuel Front Back
Natural Gas 1/8” (3mm) open 1/8” (3mm) open
Propane 7/16” (11mm) open 5/16” (8mm) open
Table 11.4, Recommended Venturi Opening for
Natural Gas Vertical Venting
Fuel Front Back
Natural Gas 1/8” (3mm) open Closed
11.2.1.1 Venturi Adjustment
NOTE: If soot is present on the glass, check log placement (section 8.4
on page 44) before adjusting the venturis.
1. Remove the safety barrier, glass frame assembly, and log set.
2. Remove the front burner from the rebox (2) screws.
3. Remove the back burner tube.
4. Loosen screw on venturis and adjust as necessary. Tighten screw.
5. Reinstall all components previously removed.
Lazy, yellow flames - no adjustment necessary
Ideal Flame Appearance
Venturi(s) settings closed too far. Open venturi(s) slightly.
Dark, orange flames with black tips
Venturi(s) open too far. Close venturi settings(s) slightly.
Short, blue flames
Venturi settings(s) closed too far. Open venturi(s) slightly
OR gas pressure too high - check manometer settings
Lifting (ghosting) flames
Front Venturi
Back Venturi
FIGURE 11.3 Flame Appearance and Characteristics
FIGURE 11.2 Burner Venturis
Burner Flame Adjustments–Vent Restriction (after installation)
SECTION 11 ADJUSTMENT
#CAR-39
R.11 February 2022
55
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

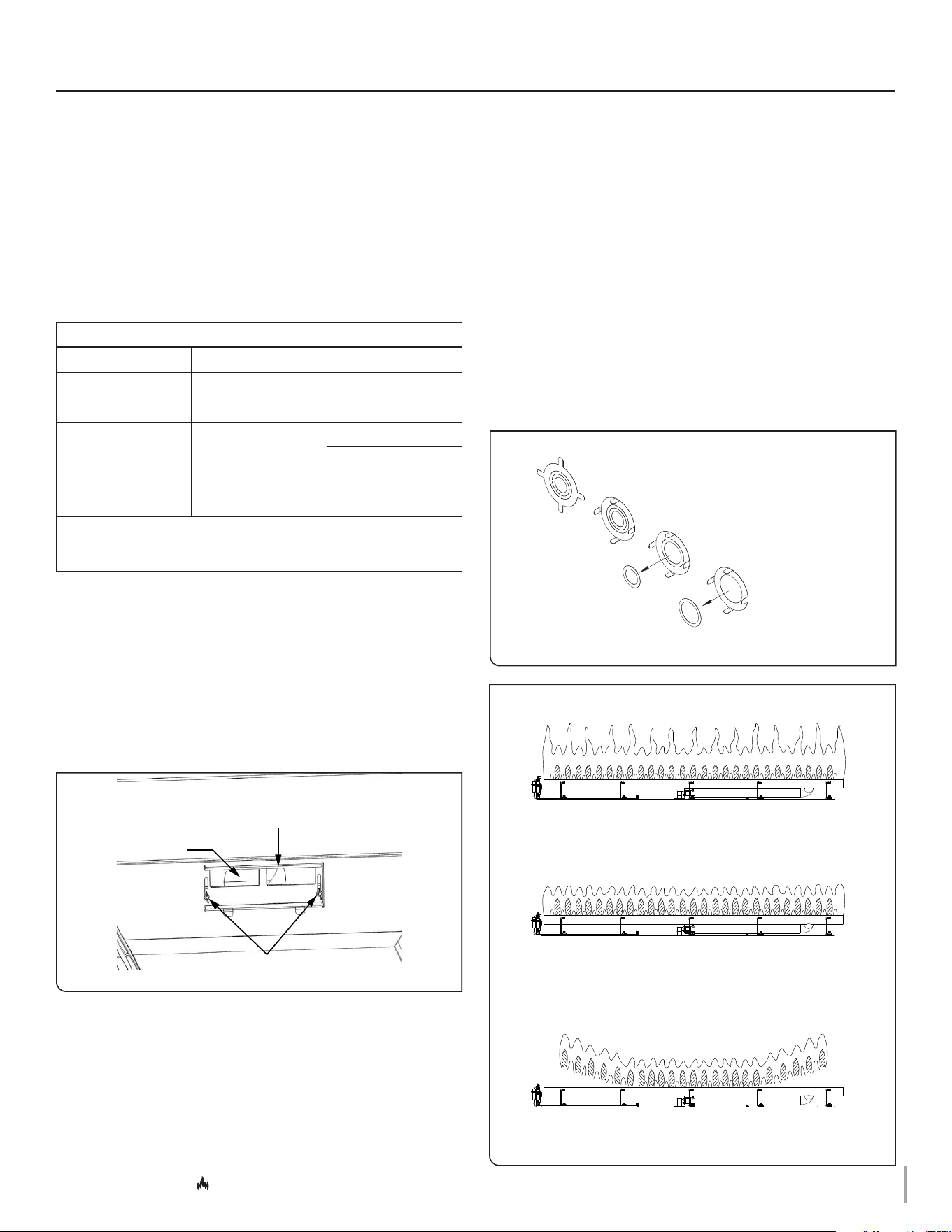

11.2.2 Vent Restriction (after installation)
WARNING: To avoid property damage or personal injury, allow the
replace ample time to cool before making any adjustments.
WARNING: Improper vent installation may cause the burner ames
to lift or “ghost.” Perform a visual check on ame appearance after
restriction adjustment to ensure proper performance.
Vertical terminations may display an active, compact ame. If this
appearance is not desirable, a restrictor plate may need to be installed
or modied after vent termination installation. Access to the vent exit
for restriction can be reached through the replace bae. Allow the
replace to burn for 15 minutes before making any adjustments.
Table 11.5, Restrictor Plate Adjustment Guidelines
Flame Appearance Draft Problem Solution
Short, ickering Excessive draft
Not enough restriction
Close bae restrictor
Add restrictor plate
Lifting or ghosting* Insucient draft Open bae restrictor
Remove inner ring(s)
on restrictor plate, or
Remove restrictor
plate
*If ames continue to lift or ghost after opening the restrictor and verifying
correct vent installation, shut o the gas supply and call a qualied service
technician.
11.2.2.1 Bae Restrictor Adjustment
NOTE: Verify the bae door restrictor is set into ‘down’ position and
not ipped ‘up.’
1. Remove the safety barrier and glass frame assembly to access
the bae restrictor adjustment handle.
2. Loosen (2) thumb screws to adjust the setting to achieve desired
ame appearance.
3. Tighten screws after adjustment.
4. Reinstall the glass frame assembly and safety barrier.
11.2.2.2 Restrictor Plate Installation
1. Remove the safety barrier and the glass frame assembly.
2. To access the vent exit through the replace bae, push bae
restrictor back.
3. Bend the tabs on the restrictor plate (included in components
packet) to approximately 80° angles. This will create tension
when the restrictor is inserted into the exhaust pipe.
4. Insert restrictor into the 5” (127mm) exhaust pipe with the tabs
pointing towards you.
5. Set the bae restrictor back into position.
6. Reinstall all components previously removed.
11.2.2.3 Restrictor Plate Modication
1. Remove the safety barrier and the glass frame assembly.
2. To access the vent exit through the replace bae, push bae
restrictor back.
3. Remove the restrictor by pulling it down and out of the 5”
(127mm) exhaust pipe.
4. Make necessary modications to achieve desired ame
appearance.
5. Insert restrictor into the 5” (127mm) exhaust pipe with the tabs
pointing towards you.
6. Set the bae restrictor back into position.
7. Reinstall all components previously removed.
Thumb Screws
Exhaust
Baffle Restrictor
Restrictor Plate
Remove innermost circle to
create less restriction
Remove all inner rings for
the least restriction
Bend tabs to approx. 80˚ angles to create tension
to hold itself in place when installed
Ideal Flame Appearance
Short, flickering flames
Lifting (ghosting) flames
Excessive draft - not enough restriction
Add restrictor plate
Insufficent draft - too much restriction
Remove innner ring(s) on restrictor plate or remove restrictor plate
Lazy, yellow flames - no adjustment necessary
FIGURE 11.5 Restrictor Plate
FIGURE 11.4 Bae Restrictor
FIGURE 11.6 Flame Appearance and Characteristics for Restricting Vent
SECTION 12 TROUBLESHOOTING
#CAR-39
R.11 February 2022
56
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
12.0 TROUBLESHOOTING
ATTENTION: Troubleshooting must be performed by a qualied
technician.
Before proceeding with the steps in the following
troubleshooting guide,
• Verify proper 120VAC power supply to the 6V DC transformer.
• Verify the control module back-up battery pack and the remote
control batteries are fresh and installed with correct polarity.
• Verify all connections between the wire harnesses and the
system components are proper and positive.
• Verify the communication link is established between the remote
control and the Komfort 8K1 control module.
• Verify inlet pressure meets the recommended inlet pressure. If
necessary, adjust line pressure regulator.
• To isolate remote functionality from the control system when
troubleshooting, turn the ON/OFF/REMOTE selector switch on
the control module to ON.
Issue Cause Solution
Pilot will not light
Electrical power interrupted or
disconnected
Restore electrical power to appliance or use battery back-up.
Wiring disconnection
Ensure batteries are fully charged if using battery back-up as power
source.
Use wiring schematic in this manual to determine that all wiring
connections are secure and correct.
Control module selector switch
not set properly
Verify the ON/OFF/REMOTE selector switch is ON mode or REMOTE
mode.
Gas supply turned o
Check remote shut-o valves from the appliance. Usually there is a valve
near the main gas line. There may be more than (1) valve between the
appliance and main gas line.
LP/NG switch on control system
not engaged
Verify the switch on the control module is set to the correct gas fuel type.
Pilot will not stay lit No propane in tank Check propane tank. Rell if necessary.
Low gas pressure Consult a plumber or a gas supplier.
Can be caused by situations such as a bent line, too narrow diameter or
pipe, or a low line pressure.
Pilot ame not making contact
with the ame rectication sensor
on the pilot assembly
Verify the pilot ame envelopes the top of the ame sensor and extends
far enough onto burner for ignition.
To adjust pilot ame, turn pilot adjustment screw on the gas valve
clockwise to decrease ame, and counterclockwise to increase ame.
Pilot adjustment screw not sealed Seal pilot adjustment screw. Do not over-tighten.
Pilot ame always on, or
will not extinguish
Control system set to Pilot-on-
Demand ignition mode
Set control system to intermittent pilot ignition mode. Refer to section
10.8.7, PILOT IGNITION SELECTION on page 50.
SECTION 12 TROUBLESHOOTING
#CAR-39
R.11 February 2022
57
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
Issue Cause Solution
Main burner ame will not
light
ON/OFF rocker switch in ON
position
Switch rocker switch to OFF position.
Gas supply turned o Check for multiple shut-os in the supply line. Verify gas supply is turned
on.
Low gas supply Consult with plumber or gas supplier.
Check propane tank. Rell if necessary.
Wiring disconnection or improper
wiring
Check for faulty or incorrect wiring. Refer to section 9.0, ELECTRICAL
INFORMATION on page 46.
Plugged main burner orice Remove blockage.
Pilot ame Verify the pilot ame is properly directed to ignite burner. See pilot
ame troubleshooting in this section.
Remote control not working
properly
Replace batteries.
No call for heat
Verify remote control is powered ON and thermostat operation is turned
OFF.
Pilot and burner extinguish
while in operation
No propane in tank Check propane tank. Rell if necessary.
Incorrect glass assembly
installation
Refer to section 8.1, GLASS FRAME ASSEMBLY on page 43.
Incorrect vent cap installation Adjust if necessary.
Vent cap blockage Remove debris if necessary.
Improper pitch on horizontal
venting
1/4” (6mm) rise for every 12” (305mm) of travel is required on horizontal
venting
Exhaust vent pipe leaking exhaust
gases back into rebox
Check for leaks and repair if necessary.
Excessive draft A restrictor may need to be installed or modied. Refer to section 11.2.2,
VENT RESTRICTION (AFTER INSTALLATION) on page 55.
Soot appears on glass Improper log placement Refer to section 8.4, #C39-50B LOG SET INSTALLATION on page 44.
Improper venturi setting Venturi air shutter may need to be opened slightly to allow more air into
the gas mix. Refer to section 11.2.1, BURNER VENTURI on page 54.
Incorrect vent cap installation Adjust if necessary.
Vent cap blockage Remove debris if necessary.
SECTION 12 TROUBLESHOOTING
#CAR-39
R.11 February 2022
58
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
Issue Cause Solution
Flame burns blue and lifts
o burner
Improper venturi setting The venturi air shutter may need to be closed slightly to allow less air
into the gas mix. Refer to section 11.2.1, BURNER VENTURI on page
54.
Incorrect vent cap installation Adjust if necessary.
Blockage or leakage of the vent
system
Check the vent pipes for leaks, and the vent cap for debris. Repair the
vent pipes or remove debris from vent cap, if necessary.
No reaction to command Battery back batteries or remote
control batteries low
Replace batteries.
No communication between
remote control and control
module
Reprogram remote control to Komfort 8K1 module. Refer to section 10.2,
INITIALIZE THE KOMFORT 8K1 CONTROL SYSTEM on page 48.
A maximum number of failed
ignitions or ame restorations has
been reached
Reset Komfort 8K1 control module. Refer to section 10.2, INITIALIZE
THE KOMFORT 8K1 CONTROL SYSTEM on page 48.
Firebox
SECTION 13 MAINTENANCE
#CAR-39
R.11 February 2022
59
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
13.0 MAINTENANCE
ATTENTION: Installation and repair should only be done by a qualied
service person. The appliance should be inspected before use and at
least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control compartments, burners,
and circulating air passageways of the appliance be kept clean. Use a
vacuum to clean all components.
WARNING: The appliance area must be kept clear and free from
combustible materials, gasoline and other ammable vapors
and liquids.
13.1 Firebox
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Vacuum and clean any
debris in the rebox that is not supposed
to be there.
• Inspect and operate the bottom latch assembly. Verify the
assembly is free from obstruction to operate. The handles must
have spring tension but be able to move forward freely.
13.2 Fan
CAUTION: Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Performed by: Qualied Service Person
Frequency: Every 6 months
Action:
• Disconnect the fan from electrical current and vacuum.
• The bearings are sealed and require no oiling.
13.3 Vent System
NOTE: If the vent-air intake system is disassembled for any reason,
reinstall per instructions provided with installation. Refer to section
7.0, VENTING on page 34.
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Examination of the vent system is required.
• Inspect the condition of vent and vent terminal for sooting or
obstruction and correct if present.
• The ow of combustion and ventilation air must not be
obstructed.
13.4 Glass Assembly
CAUTION: Do not operate appliance with the glass assembly removed,
cracked, or broken. Use protective gloves to handle any broken or
damaged glass assembly components.
WARNING: Do not use substitute materials.
WARNING: Avoid striking or slamming glass assembly. Avoid abrasive
cleaner. DO NOT clean glass while it is hot.
IMPORTANT: Any safety screen, guard, or barrier removed for servicing
the appliance must be replaced prior to operating the appliance.
Performed by: Homeowner
Frequency: Annually
Action:
• Prepare a work area large enough to accommodate the glass
assembly on a at, stable surface.
• Remove safety screen and glass frame assembly.
• Clean glass window with a suitable replace glass cleaner using
a soft cloth. Abrasive cleaners must not be used. Be careful not to
scratch the glass when cleaning.
• Reinstall glass assembly and safety screen. Do not operate
replace without safety screen.
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Clean glass window with a suitable replace glass cleaner using
a soft cloth. Abrasive cleaners must not be used. Be careful not to
scratch the glass when cleaning.
• Inspect the glass for cracks, scratches, and nicks.
• Verify the glass assembly is properly intact and not damaged.
• Replace the glass and the assembly #701-007T as necessary.
• Only Hussong Mfg. Co., Inc. will supply the replacement of glass
assembly as a complete unit.
Burner and Pilot System
SECTION 13 MAINTENANCE
#CAR-39
R.11 February 2022
60
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES

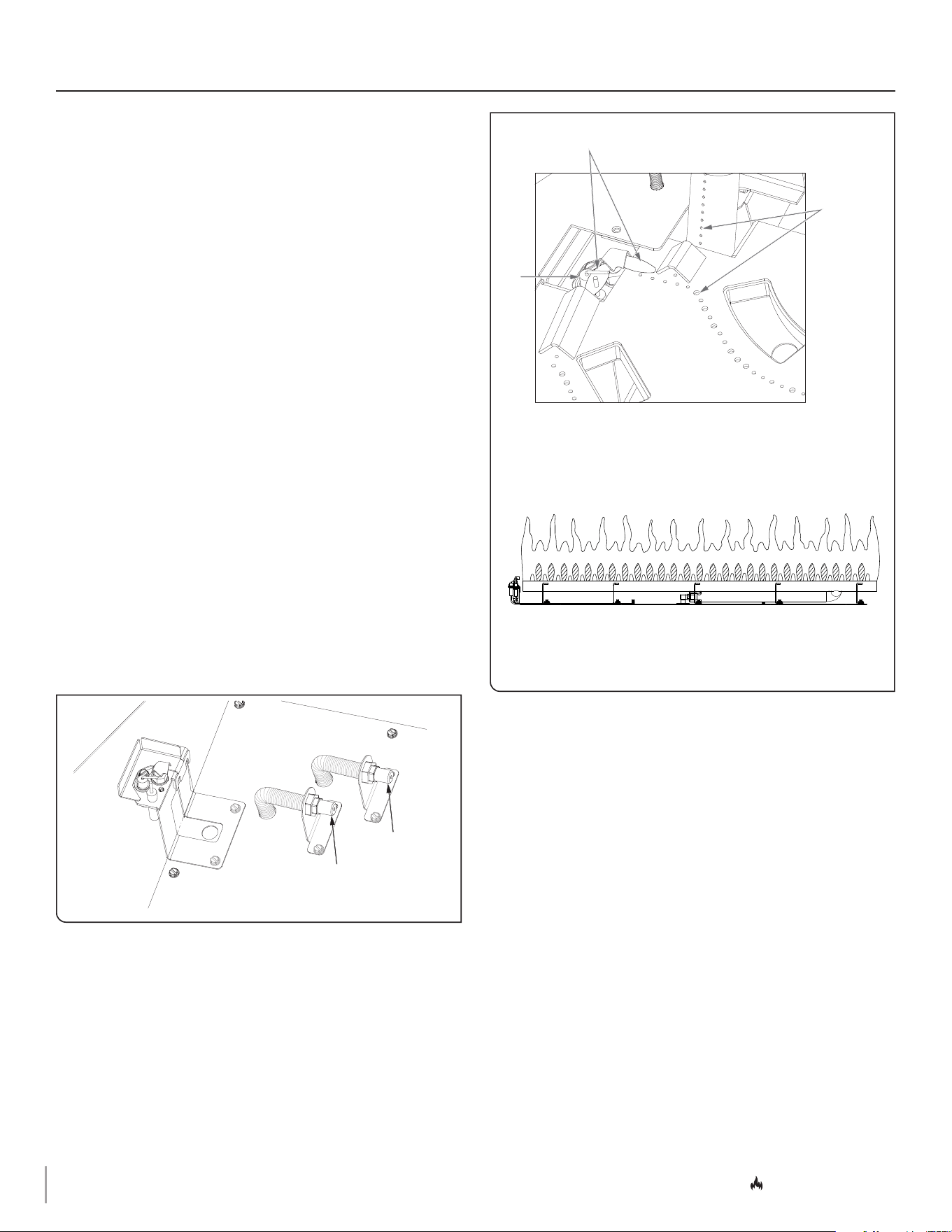

13.5 Burner and Pilot System
The burner assembly may be removed for easier access to the control
compartment.
Refer to section 8.5, CONTROL BOARD REMOVAL
AND INSTALLATION on page 45 for instructions. Verify gas supply
is turned on and lled. Consult with plumber or gas supplier as
necessary.
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Vacuum all components of the burner system.
• Check all accessible gas-carrying tubes, connections, pipes and
other components for leaks.
• Inspect the operation of the ame safety system Pilot or Flame
rectication device. Visually check pilot light when in operation.
• Inspect and ensure the lighting of the main burner occurs within
(4) seconds of the main gas valve opening. Check for faulty or
incorrect wiring and correct or replace as necessary. Inspect
primary air openings (burner ports) for blockage, especially near
the pilot.
• Visually check burner ame pattern when in operation. Flames
should be steady, not lifting or oating.
• Test and measure the ame failure response time of the ame
safety system. It must de-energize the safety shuto in no more
than (30) seconds.
Burner ports
Pilot flame
Pilot
Pilot assembly
Front burner orice
Back burner orice
Lazy, yellow flames
Ideal Flame Appearance
FIGURE 13.2 Pilot and Burner Correct Flame Appearance
FIGURE 13.1 Burner System
14.0 REPLACEMENT PARTS LIST
Replacement parts are available through your local dealer. Contact your local dealer for availability and pricing.
WARNING: This product can expose you to chemicals including Lead, which is [are] known to the State of California to cause cancer, birth
defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
The following warning is for replacement parts for this appliance.
Hussong Manufacturing Co., Inc.
204 Industrial Park Drive PO Box 577
Lakeeld, MN 56150-0577, USA
CAR-39
CAR-39 CONTROL BOARD AND PARTS
C39-D350 Dexen Control Board - Natural Gas DEX-SMN Dexen Valve Step Motor - Natural Gas
C39-D351 Dexen Control Board - Propane DEX-SMLP Dexen Valve Step Motor - Propane
DEX-3VN Dexen MH3V Gas Valve - Natural Gas 700-213B 18” Black Flex Tube (Gas Line to Valve)
DEX-3VLP Dexen MH3V Gas Valve - Propane 700-226F Flexible Gas Line - Valve to Burner Connection
DEX-8K1 Komfort 8K1 Control Module 700-244 NG Burner Orice #44 FRONT
DEX-AUX3 AUX 300 Control Module 700-245 NG Burner Orice #45 BACK
DEX-MWH Main Wire Harness 700-255 Propane Burner Orice #55 FRONT
DEX-A1WH AUX 1 Wire Harness 700-255 Propane Burner Orice #55 BACK
DEX-191 NG Dexen PSE IPI Pilot Assembly (700-191) NCK-C39-D Dexen Conversion Kit - Natural Gas
DEX-191-1 Propane Dexen PSE IPI Pilot Assembly (700-191-1) LCK-C39-D Dexen Conversion Kit - Propane
DEX-RC3 Dexen Transmitter (Remote Control) C39-035A Burner Tube
700-094-P Pilot Orice - Natural Gas #.018 NG C39-350A Burner Plate (Front)
700-095-P Pilot Orice - Propane #.012 LP C39-351A Log Plate with Burner Bracket (Rear)
GLASS AND GLASS GASKET
701-007T 28-5/8” x 34-1/2” - Glass with Gasket
900-006 1-1/8” Glass Gasket
C39-005 Replacement Valance
SAFETY BARRIERS
C39-FRSF Full Rectangular Screen Front
C39-PSF Prairie Screen Front
C39-RSF2 Rectangle Screen Front
C39A-MSF Arched Mission Screen Front
C39A-FPDSF2 Arched Full Prairie Door Screen Front
C39R-MSF Rectangular Mission Screen Front
ADDITIONAL COMPONENTS
900-086 5” (127mm) Restrictor Plate
700-203 Manual Gas Shut-o Valve
C39-HHS Vent Heat Shield Assembly
C39-201B Bottom Frame
FAN KIT
IPI-075 Fan Assembly
LIGHT KIT
C39-LKT Light Kit
600-676 20W 120V Halogen Bulb
600-697 1.5 lb (0.68kg) Ember Panel Crushed Glass
TRADITIONAL LOG SET
C39-50B 13 Piece Log Set
C39-900E Ember Panel
C39-1B #C39 1B Log
C39-2B #C39 2B Log
C39-3B #C39 3B Log
C39-4B #C39 4B Log
C39-5B #C39 5B Log
C39-6B #C39 6B Log
C39-7B #C39 7B Log
C39-8B #C39 8B Log
C39-9B #C39 9B Log
C39-10B #C39 10B Log
C39-11B #C39 11B Log
C39-12B #C39 12B Log
C39-13B #C39 13B Log
900-REMB Rock Wool Embers
SECTION 14 REPLACEMENT PARTS LIST
#CAR-39
R.11 February 2022
61
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
LIMITED LIFETIME WARRANTY
Warranty Coverage
Hussong Manufacturing Company, Inc. (Hussong Mfg.) warrants this
Kozy Heat gas appliance from the date of purchase to the original
purchaser, that it is free of defects in materials and workmanship at
the time of manufacture. Registering your replace warranty does not
require any documents to be sent in to Hussong Mfg. Please retain
your proof of purchase reecting the date of purchase along with the
serial number and model of your replace for any future warranty
claims.
If a defect is noted within the warranty period, the customer should
contact their authorized dealer for service within 30 days.
30 Days: Parts & Labor*
• Paint
• Light bulbs
• Gasket material
• Glass media and media dam
Year 1: Parts & Labor*
• All parts and material except the items listed in the 30 day
warranty and any exclusions or limitations that may apply.
*Hussong Mfg. will issue labor reimbursement to an authorized dealer
only. Hussong Mfg. will not be liable for charges occurred as a result of
any service performed by a non-authorized service provider, without
pre-authorization.
Years 2 through Lifetime: Parts Only
• Firebox
• Heat Exchanger
• Logs
• Burner tube or pan
• Outer shell
• Heat shield(s)
• Front Viewing Glass (thermal shock only)
• Refractory Firebox liner (excluding enamel and glass panels)
EXCLUSIONS AND LIMITATIONS
1. This appliance must be installed by a licensed, authorized service technician or contractor. It must be installed, operated and maintained
at all times in accordance with the instructions in the owner’s manual or the warranty is void.
2. This warranty is nontransferable and is made to the original purchaser only.
3. This warranty excludes standard wear and tear of the appliance which is considered normal usage over time.
4. Discoloration and some minor expansion, contraction or movement of certain parts, resulting in noise, is normal and not a defect.
5. Warranty is automatically voided if the appliance’s serial number and/or testing label is removed or if the appliance is altered or
tampered with in any way.
6. Warranty is void if the appliance is subject to submersion in water or prolonged periods of dampness or condensation. Any damage
to any part of the appliance due to water or weather damage which is the result of, but not limited to, improper chimney/venting
installation will also render this warranty void.
7. This warranty does not cover installation and operational related problems such as environmental conditions, nearby trees, buildings,
hilltops, mountains, inadequate venting or ventilation, excessive osets, negative air pressures caused by any mechanical systems.
8. Chimney components and other Non-Hussong Mfg. accessories used in conjunction with the installation of this appliance are not
covered under this warranty.
9. Damage to plated surfaces or accessories, if applicable, caused by scratches, ngerprints, melted items or other external sources left on
the surfaces from the use of cleaners is not covered under this warranty.
10. It is expressly agreed and understood that this warranty is Hussong Mfg.’s sole obligation and purchaser’s exclusive remedy for defective
replace equipment. Hussong Mfg. is free of liability for any damages caused by this appliance, as well as inconvenience expenses
and materials. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or
consequential damage may not apply. Hussong Mfg. shall not be held to implied warranties and this warranty shall replace all previous
warranties.
11. This limited lifetime warranty is the only warranty supplied by Hussong Mfg. Any warranties extended to the purchaser by the dealer/
distributor, whether expressed or implied, are hereby disclaimed and the purchaser’s recourse is expressly limited to the warranties set
forth herein.
12. Any part repaired or replaced during the limited warranty period will be warranted under the terms of the limited warranty for a period
not to exceed the remaining term of the original limited warranty.
13. Any replacement part repaired after the warranty period will include a 90 day parts coverage
14. Hussong Mfg. may require the defective part to be returned using a pre-authorized RGA number or a photo of the defective component.
Failure to provide either can result in a denied claim.
15. This warranty does not cover the appliances ability to heat a desired space, as there are many factors that can impact the heating
performance in each home. Consideration should be implied to the appliance’s location, room size, home design, environmental
conditions, insulation, and tightness of the home.
16. Hussong Mfg. reserves the right to make changes at any time, without notice, in design, material, specications, and prices. Hussong
Mfg. reserves the right to discontinue models and products.
July 2018
SECTION 15 LIMITED LIFETIME WARRANTY
#CAR-39
R.11 February 2022
63
HUSSONG MFG. CO., INC. KOZY HEAT FIREPLACES
