HUSSONG MANUFACTURING CO., INC.
INSTALLATION AND
OPERATION MANUAL
ͷ Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
ͷ WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
ͷ Installation and service must be performed
by a qualied installer, service agency or
the gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
This appliance may be installed in
an aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d’installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez
www.kozyheat.com
.
DANGER
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns
from the hot viewing glass is provided with this
appliance and shall be installed for the protection
of children and other at-risk individuals.
Hussong Mfg. Co., Inc. • SLA-36 Report No: 0216GF039S • Rev. 8, December 2018
SLAYTON-36
Model #SLA-36
Direct Vent Linear Gas Fireplace
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces
3
Read this manual before installation or operating this appliance.
Please retain this owner’s manual for future reference.
CONGRATULATIONS!
We welcome you as a new owner of a Kozy Heat gas replace. Kozy Heat products are designed with superior components and
materials, and assembled by trained craftsmen who take pride in their work. To ensure you receive a quality product, the burner
and valve assembly are 100 percent test-red, and the complete replace is thoroughly inspected before packaging. Our commitment
to quality and customer satisfaction has remained the same for over 40 years. We offer a complete line of gas and wood replaces,
along with stylish accessories to complement any decor. Adding a replace is one of the best ways to increase the value of your home,
and we are proud to offer a network of dealers throughout the country to help make your experience everything you imagine. We
pride ourselves in being dedicated not only to functionality and reliability, but also customer safety. We offer our continual support
and guidance to help you achieve the maximum benet and enjoyment from your Kozy Heat gas replace.
Jim Hussong
President
Dudley Hussong
Board Chairman
Homeowner Reference Information
We recommend you record the following information:
Model Name: ___________________________________________
Serial Number: __________________________________________
Dealership Purchased from: _______________________________
Date purchased/installed: _________________________________
Location of fireplace: _____________________________________
Dealer phone: ___________________________________________
Notes: _____________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
____________________________________________________________________________________________________________________
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TABLE OF CONTENTS 5
TABLE OF CONTENTS
TABLE OF CONTENTS ...................................................................5
1.0 INTRODUCTION ......................................................................7
1.1 Appliance Certification ..................................................................7
1.2 California Proposition 65 Warning ..............................................7
1.3 Requirements for the Commonwealth of Massachusetts ......7
2.0 SPECIFICATIONS .................................................................... 8
2.1 Heating Specifications .................................................................. 8
2.2 Appliance Dimensions ..................................................................9
2.3 Safety Barrier Dimensions ...........................................................10
3.0 FRAMING .................................................................................11
3.1 Appliance Placement Considerations ........................................11
3.2 Stand-off Assembly and Installation ...........................................11
3.3 Clearances to Combustibles .......................................................12
3.4 Wall Enclosure Rough Opening ..................................................13
3.5 Floor Support and Protection ......................................................14
3.6 Recess Construction ..................................................................... 14
3.7 Vent Termination Framing ............................................................. 15
3.8 Outdoor Covered Fireplace Installation ....................................16
4.0 #970 HEAT DUCT KIT ............................................................17
4.1 Kit Components ..............................................................................17
4.2 Specifications .................................................................................17
4.3 Attach Heat Duct to Fireplace ..................................................... 18
4.4 Install Register Mounting Frame and Junction Box ................18
4.5 Install and Wire Fan Assembly ....................................................18
4.6 Run and Secure Duct Pipe ..........................................................19
4.7 Complete the Installation ..............................................................19
4.8 Operating Instructions ..................................................................19
4.9 Maintenance ...................................................................................19
5.0 FACING AND FINISHING ........................................................ 20
5.1 Nailing Flange Assembly and Installation .................................20
5.2 Facing and Finishing Requirements ...........................................21
5.3 Optional Trim Kit Assembly #SL36-FTK ...................................23
6.0 GAS LINE CONNECTION .......................................................24
6.1 Gas Conversion (sold separately) ..............................................24
6.2 Gas Line Installation ......................................................................24
7.0 TERMINATION LOCATIONS ...................................................25
7.1 Vertical Vent Cap Termination .....................................................25
7.2 Minimum Termination Clearances ............................................... 26
8.0 VENTING ..................................................................................27
8.1 Approved Vent Systems ...............................................................27
8.2 Venting Requirements ................................................................... 27
8.3 Elbows .............................................................................................. 27
8.4 Restrictor Plate Assembly and Installation ...............................27
8.5 Vertical Terminations ..................................................................... 28
8.6 Combination Venting .....................................................................29
8.7 #800-1 Series Direct Vent Termination Kit(s) ..........................32
9.0 FIREPLACE SET UP ................................................................33
9.1 Glass Frame Assembly .................................................................33
9.2 Light Kit ............................................................................................ 33
9.3 Glass Media ....................................................................................34
9.4 Control Board Removal and Installation .................................... 35
10.0 ELECTRICAL INFORMATION ............................................... 36
10.1 Electrical Specifications .............................................................36
10.2 Wiring Requirements ...................................................................36
10.3 #SL42-028 Optional Fan Kit .....................................................37
11.0 OPERATING INSTRUCTIONS .............................................. 38
11.1 Setup Proflame 2 IFC Module ...................................................39
11.2 Initialize the Control System ......................................................39
11.3 Reset the System for Manual Operation ................................. 39
11.4 Automatic Safety Restart ............................................................39
11.5 Backup Battery Operation ........................................................ 39
11.6 IFC Module Ignition Sequence .................................................40
11.7 Additional Diagnostic Information .............................................40
11.8 Remote Control Operation ........................................................41
12.0 ADJUSTMENT ....................................................................... 44
12.1 Pressure Testing ..........................................................................44
12.2 Flame Appearance Adjustment .................................................45
13.0 TROUBLESHOOTING ........................................................... 47
14.0 MAINTENANCE .....................................................................49
14.1 Firebox ...........................................................................................49
14.2 Fan .................................................................................................. 49
14.3 Vent System .................................................................................. 49
14.4 Glass Assembly ...........................................................................49
14.5 Burner and Pilot System ...........................................................50
15.0 REPLACEMENT PARTS LIST ............................................... 51
LIMITED LIFETIME WARRANTY.................................................... 52
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INTRODUCTION 7
1.0 INTRODUCTION
1.1 Appliance Certication
Laboratory: OMNI-Test Laboratories in Portland, Oregon
Standards:
ANSI Z21.88-2016/CSA 2.33-2016, Vented Gas Fireplace Heaters
CSA 2.17 2017, Gas-Fired Appliances for Use at High Altitudes
This installation must conform with local codes, or in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
the Natural Gas and Propane Installation Code, CSA B149.1.
1.2 California Proposition 65 Warning
WARNING: This product can expose you to chemicals including
Carbon Monoxide, that is an externally vented by-product of fuel
combustion, which is [are] known to the State of California to
cause cancer, birth defects or other reproductive harm. For more
information, visit www.P65Warnings.ca.gov.
1.3 Requirements for the
Commonwealth of Massachusetts
The following requirements reference various Massachusetts and
national codes not contained in this manual.
For all sidewall horizontally vented gas fueled equipment installed
in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than (7) feet above nished grade in the area of the venting,
including but not limited to decks and porches, the following
requirements shall be satised:
1.3.1 Installation of Carbon Monoxide Detectors
At time of installation of side wall horizontally vented gas fueled
equipment, the installing plumber or gas-tter shall observe that
a hard wired carbon monoxide detector with an alarm and battery
back-up is installed on the oor level where the gas equipment is
to be installed. In addition, the installing plumber or gas-tter shall
observe that a battery operated or hard wired carbon monoxide
detector is installed on each additional level of the dwelling, building
or structure served by the side wall horizontal vented gas fueled
equipment. It shall be the responsibility of the property owner
to secure the services of qualied licensed professionals for the
installation of hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fueled
equipment is installed in a crawl space or attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed
on the next adjacent oor level. In the event that the requirements
of this subdivision can not be met at the time of completion of
installation, the owner shall have a period of thirty (30) days to
comply with the above requirements; provided, however, that during
said thirty (30) day period, a battery operated carbon monoxide
detector with an alarm shall be installed.
1.3.2 Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accordance with the
above provisions shall comply with NFPA 720 and be ANSI/UL 2034
listed and IAS certied.
1.3.3 Signage
A metal or plastic identication plate shall be permanently mounted
to the exterior of the building at a minimum of eight (8) feet
above grade directly in line with the exhaust vent terminal for the
horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print no less the one-half inch (½) in size, “GAS VENT
DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
1.3.4 Inspection
The state or local gas inspector of the side wall horizontally vented
gas fueled equipment shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide detectors and
signage installed in accordance with the provisions of 248 CMR 5.08
(2) (a) 1 through 4.
1.3.5 Exemptions
The following equipment is exempt from 248 CMR 5.08 (2) (a) 1
through 4: The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition of NFPA 54 as
adopted by the Board; and Product Approved side wall horizontally
vented gas fueled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or in part for
residential purposes.
1.3.6 Manufacturer Requirements
1.3.6.1 Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall horizontally
vented gas equipment provides a venting system design or venting
system components with the equipment, the instructions provided
by the manufacturer for installation of the equipment and the
venting system shall include:
• Detailed instructions for the installation of the venting system
design or the venting system components; and
• A complete parts list for the venting system design or venting
system.
1.3.7 Gas Equipment Venting
System NOT Provided
When the manufacturer of Product Approved side wall horizontally
vented gas equipment does not provide the parts for venting the
ue gases, but identies “special venting systems”, the following
requirements shall be satised by the manufacturer:
• The referenced “special venting systems” instructions shall
be included with the appliance or equipment installation
instructions and;
• The “special venting systems” shall be Product Approved by the
Board, and the instructions for that system shall include a parts
list and detailed installation instructions.
A copy of all installation instructions for all Product Approved
side wall horizontally vented gas fueled equipment, all venting
instructions, all parts lists for venting instructions, and/or all venting
design instructions shall remain with the appliance or equipment at
the completion of the installation.
8 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
2.0 SPECIFICATIONS
2.1 Heating Specications
Natural Gas Propane
Maximum
Input Rating
33,000 Btu/h
(9.67 kW)
33,000 Btu/h
(9.67 kW)
Minimum
Input Rating
17,000 Btu/h
(4.98 kW)
17,000 Btu/h
(4.98 kW)
Manifold Pressure
(High)
3.8” WC
(0.95 kPa)
11” WC
(2.74 kPa)
Manifold Pressure
(Low)
1.1” WC
(0.27 kPa)
2.9” WC
(.72 kPa)
Orice Size (DMS) #37 #.0625
2.1.1 Altitude Adjustment
This appliance may be installed at higher altitudes. Please refer to
National Fuel Gas Code ANSI Z223.1/NFPA 54, CSA-B149.1 Natural
Gas and Propane Installation Code, local authorities, or codes having
jurisdiction in you area regarding derate guidelines.
2.1.1.1 US Installations
Refer to the American Gas Association guidelines for the gas designed
appliances derating method. For elevations above 2,000 ft (610 m),
input ratings are to be reduced by 4% for each 1,000 ft (305 m) above
sea level.
2.1.1.2 Canadian Installations
When the appliance is installed at elevations above 4,500 ft (1,372 m),
the certied high altitude rating shall be reduced at the rate of 4% for
each additional 1,000 ft (305 m).
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces SPECIFICATIONS 9
2.2 Appliance Dimensions
19”
(483mm)
3⁄8
”
(10mm)
9
15⁄16
”
(252mm)
12
1⁄16
”
(306mm)
8
1⁄16
”
(204mm)
15
13⁄16
”
(402mm)
48
¾
”
(1238mm)
6
1⁄8
”
(155mm)
5
1⁄8
”
(130mm)
36
5⁄8
”
(930mm)
7
¾
”
(198mm)
28
13⁄16
”
(732mm)
39
¼
”
(997mm)
43
5⁄8
”
(1108mm)
48
¾
”
(1238mm)
7
7⁄8
”
(200mm)
18”
(457mm)
5
13⁄16
”
(148mm)
4
3⁄16
”
(107mm)
4
¾
”
(121mm)
TOP
FRONTLEFT SIDE RIGHT SIDE
PREFERRED
GAS LINE
HOLE
ELECTRICAL
ACCESS
ALTERNATE
GAS LINE
HOLE

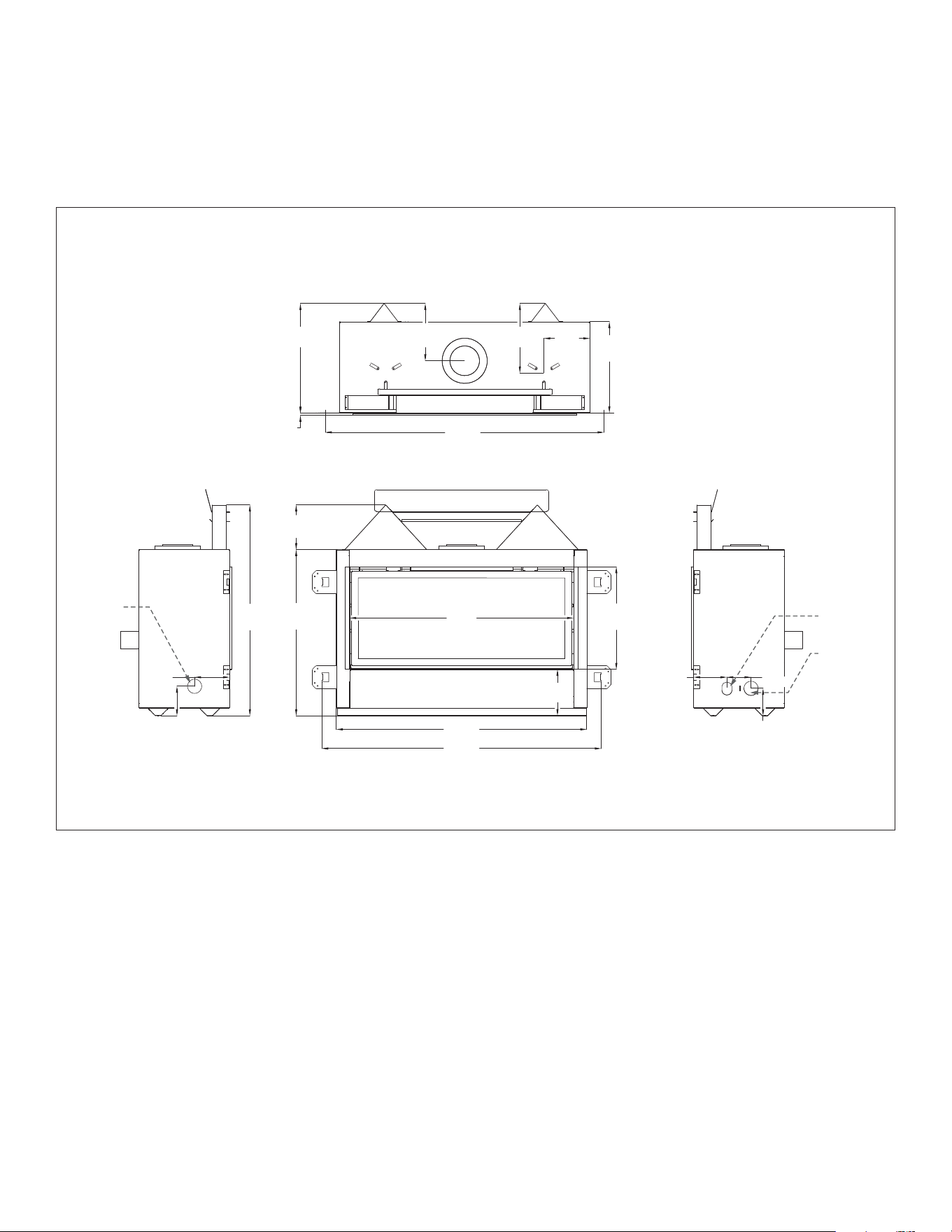

Figure 2.1, SLA-36 Dimensions
10 SPECIFICATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

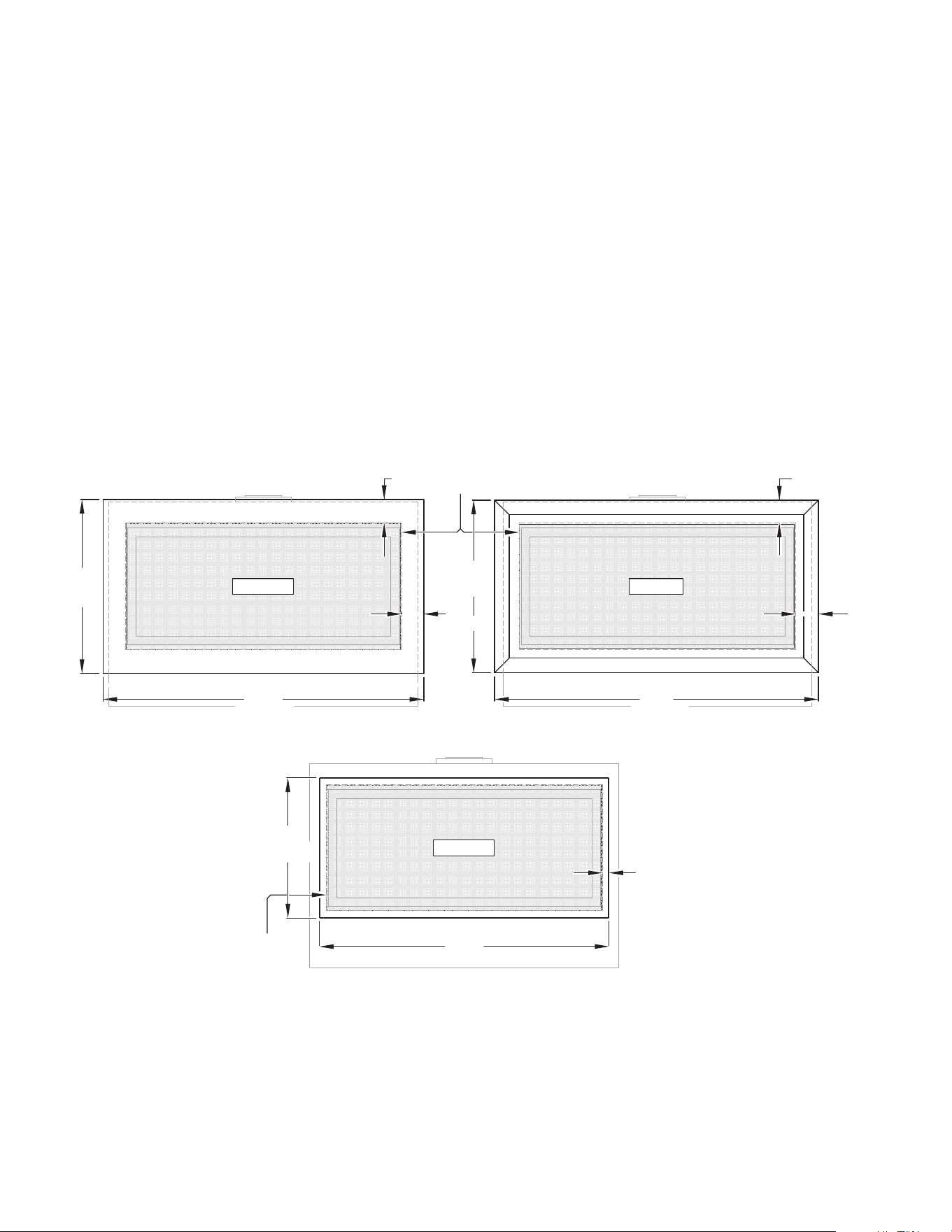

2.3 Safety Barrier Dimensions
WARNING: A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be installed for
the protection of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall be replaced with
Hussong Mfg.’s barriers for this appliance. Only doors certied with the
appliance shall be used.
For optional trim kit assembly instructions for use with safety barrier
#SL36-RSF, refer to Section 5.3 Optional Trim Kit Assembly #SL36-FTK
on page 23.
2.3.1 Safety Barrier Installation
1. Center the screen front over the glass frame assembly, allowing
the screen front’s mounting brackets to t inside the air
openings.
2. Align the notched tabs (located on the back) with the slots in the
replace. Raise slightly and push back to desired position.
3. Lower the screen front until the notched tabs are rmly in
position, verifying the depth accommodates nish material.
• To remove safety screen: lift the screen up and out of slots.
249⁄16”
(624mm)
3
5⁄16”
(84mm)
45
5⁄16”
(1151mm)
3
1⁄8”
(79mm)
24
3⁄8”
(619mm)
3
¼”
(83mm)
3
3⁄16”
(81mm)
45
¾”
(1162mm)
15⁄16”
(24mm)
40
15⁄16”
(1040mm)
19
13⁄16”
(503mm)
FINISHING
EDGE
SL36-CXSF
SL36-BSF
SL36-RSF
FINISHING
EDGE
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FRAMING 11
3.0 FRAMING
3.1 Appliance Placement Considerations
WARNING: Due to high temperatures, the appliance should be located
out of trac and away from furniture and draperies.
FIRE HAZARD: Do NOT install this appliance directly on carpeting,
vinyl, or any other combustible material other than wood.
• This appliance must be installed on a level surface capable
of supporting the replace and venting. If possible, place the
replace in a position where the vent terminates between two
studs, eliminating the need for any additional framing.
• This replace may be installed in a bedroom.
• Please be aware of the large amount of heat this replace will
produce when determining a location.
3.2 Stand-o Assembly and Installation
WARNING: The top stand-os provide the 7¾ in (197 mm) minimum
clearance to the header. Use only non-combustible material in this
area for the entire width of the replace. DO NOT use wood, sheetrock,
et cetera, in this zone.
Top stand-o brackets must be formed and attached prior to
positioning replace into framed opening.
1. Remove and save the (4) screws securing the top stand-o heat
shield and the top stand-o brackets. Then form each stand-o
bracket as shown.
2. Re-attach the top stand-o brackets to the replace using screws
previously removed, along with (4) screws provided in the
replace components packet.
3. Bend stand-o heat shield as shown. Attach heat shield to
the top stand-o brackets with the (4) screws provided in the
replace components packet.
4. Attach top heat shield. Do not bend until positioned in wall. Once
in position, hand-bend rear ange up to align with angle on top
of stand-os.

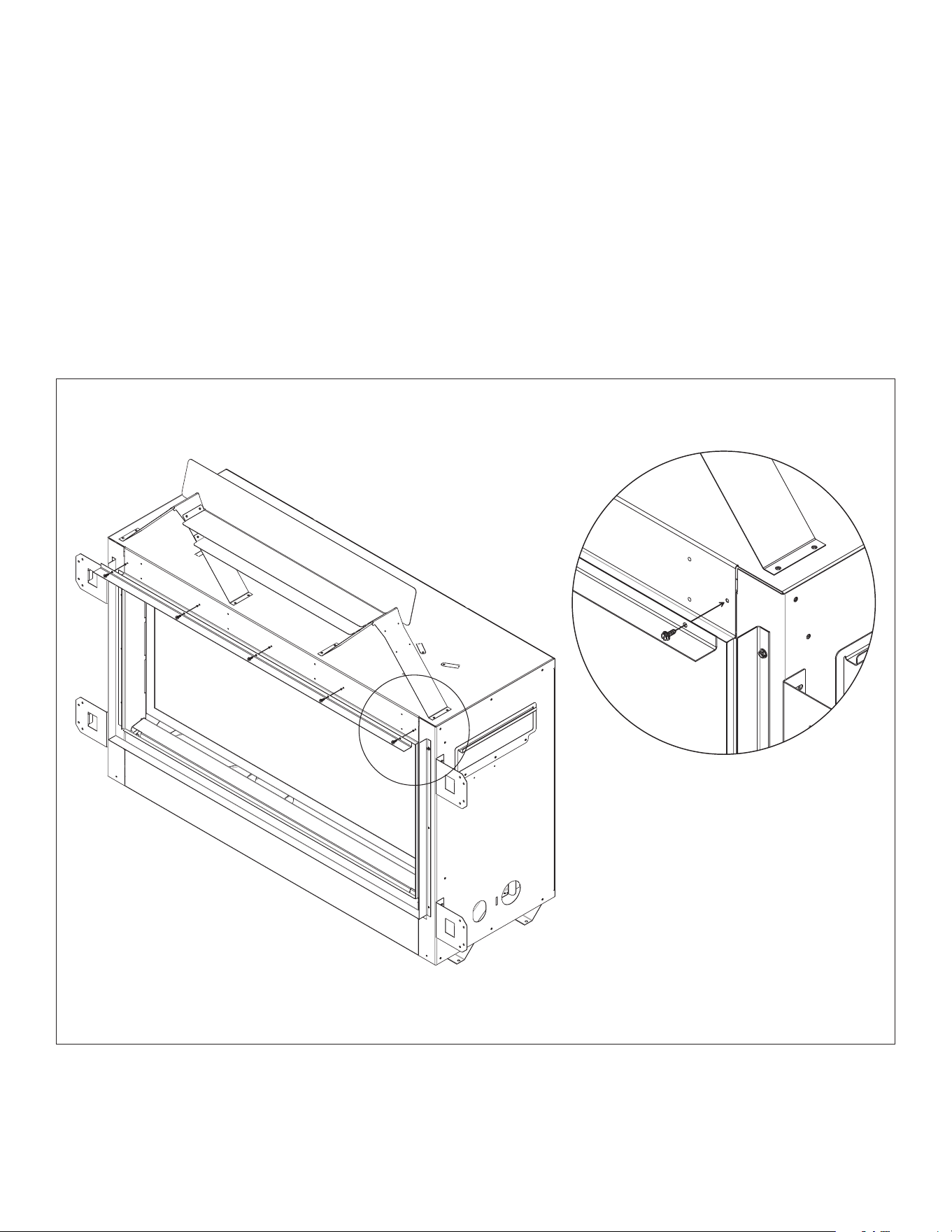

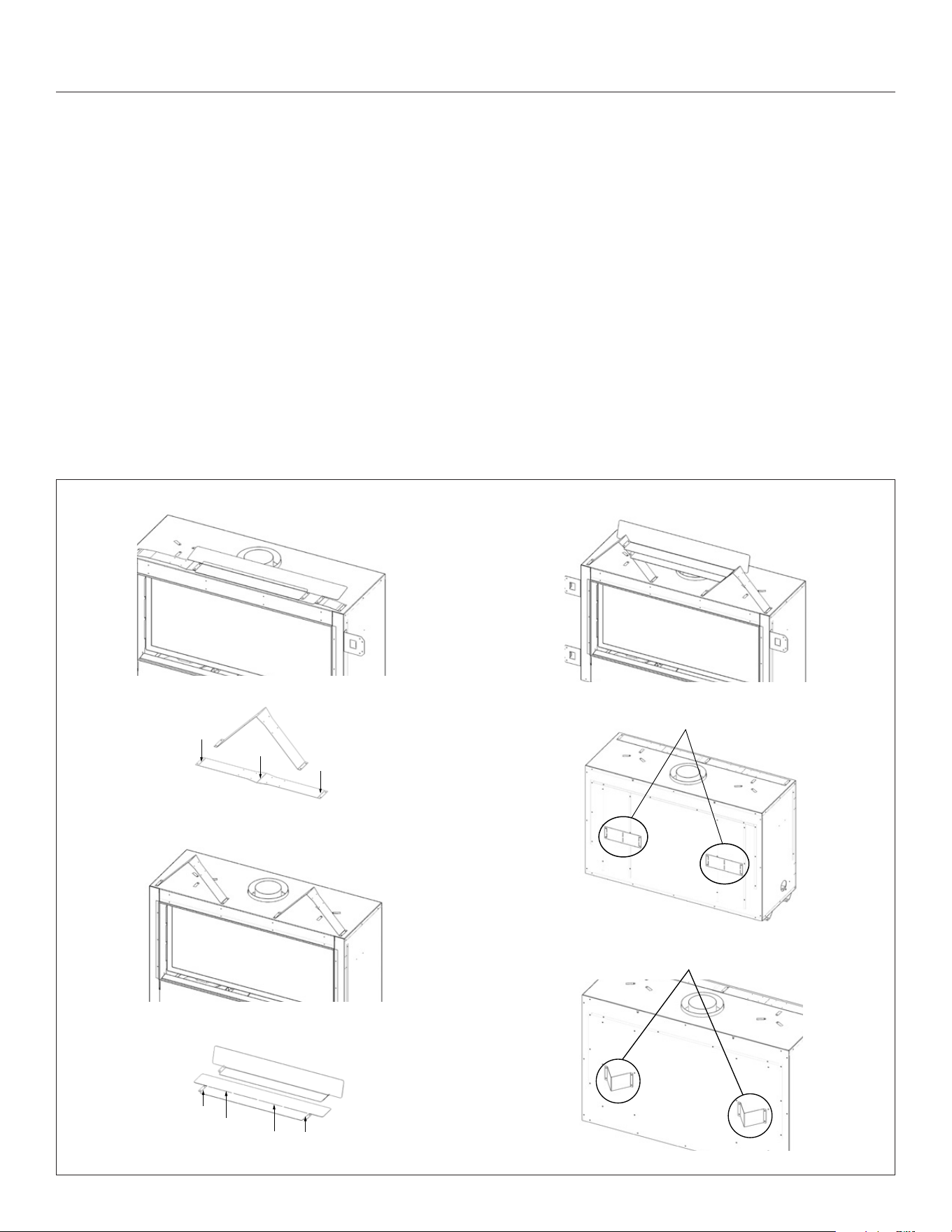

Figure 3.1, Stand-o Assembly and Installation
TOP STAND-OFF BRACKETS AND HEAT SHIELDS AS SHIPPED
BEND AT PEFORATIONS. DO NOT FORM STAND-OFF HEAT
SHIELD UNTIL AFTER INSTALLATION.
TOP STAND-OFF BRACKETS INSTALLED
FORMED STAND OFF
BEND AT PERFORATIONS
STAND-OFF HEAT SHIELD AS INSTALLED.
DO NOT FORM UNTIL SECURED.
BACK STAND-OFFS BRACKETS AS SHIPPED
BACK STAND-OFF BRACKETS INSTALLED
12 FRAMING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

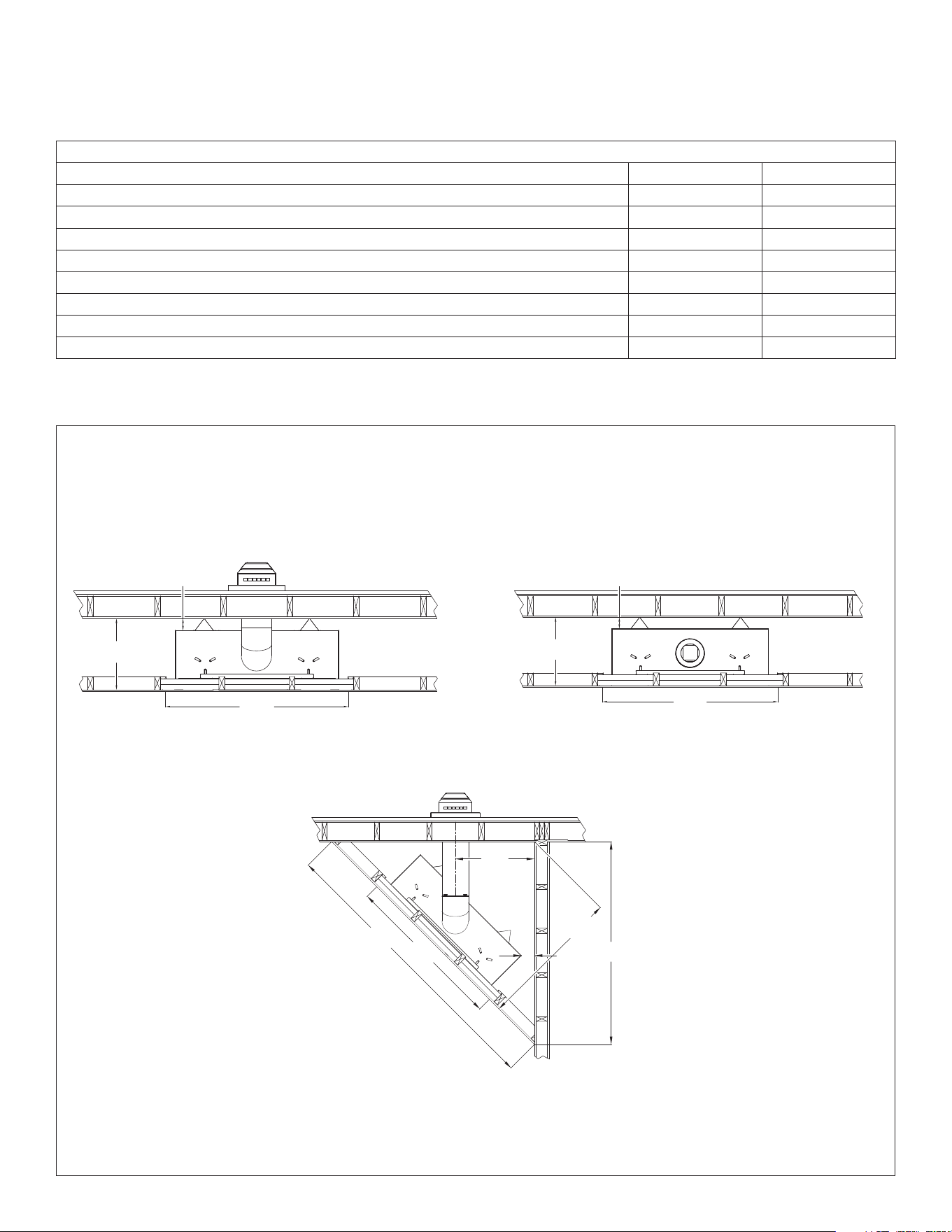

19”
(483mm)
3
3⁄16”
(80mm)
48
¾”
(1238mm)
19”
(483mm)
3
3⁄16”
(80mm)
48
¾”
(1238mm)
48
¾”
(1238mm)
87
¾”
(2228mm)
24
¼”
(616mm)
43
7⁄8”
(1114mm)
4”
(102mm)
62”
(1575mm)
TYPICAL HORIZONTAL INSTALLATION
TYPICAL VERTICAL INSTALLATION
TYPICAL CORNER INSTALLATION

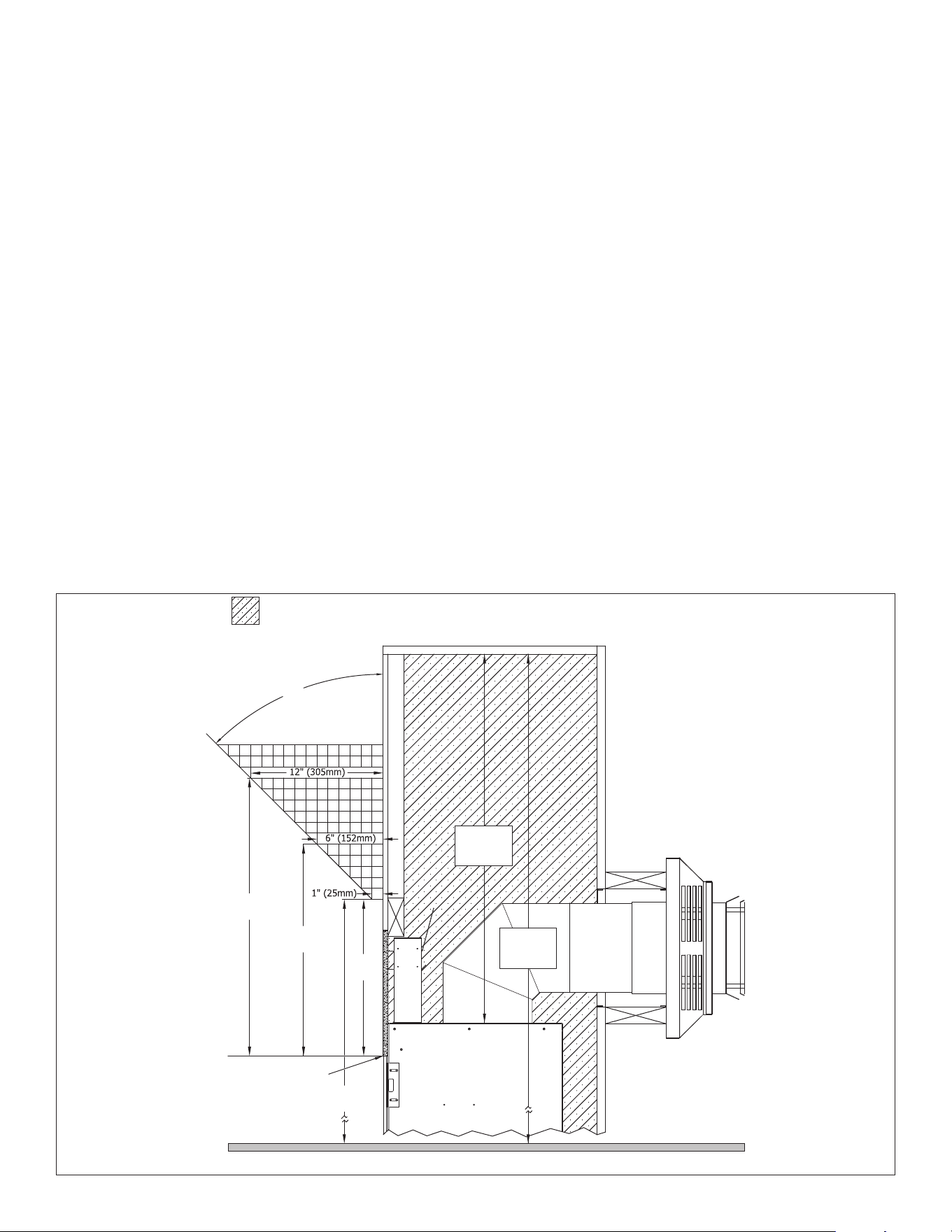

3.3 Clearances to Combustibles
Table 3.1, Minimum Appliance Clearances to Combustible Material
From appliance top stand-os 0 in 0 mm
From appliance left and right side stand-os 0 in 0 mm
From appliance back stand-os 0 in 0 mm
From appliance bottom stand-os 0 in 0 mm
From appliance corners 4 in 102 mm
From appliance front 36 in 914 mm
Top of nishing edge to ceiling 36 in 914 mm
Sides of nishing edge to adjacent sidewall 6 in 152 mm
Mantel 1 in (25 mm) deep from nishing edge 14-1/4 in 362 mm

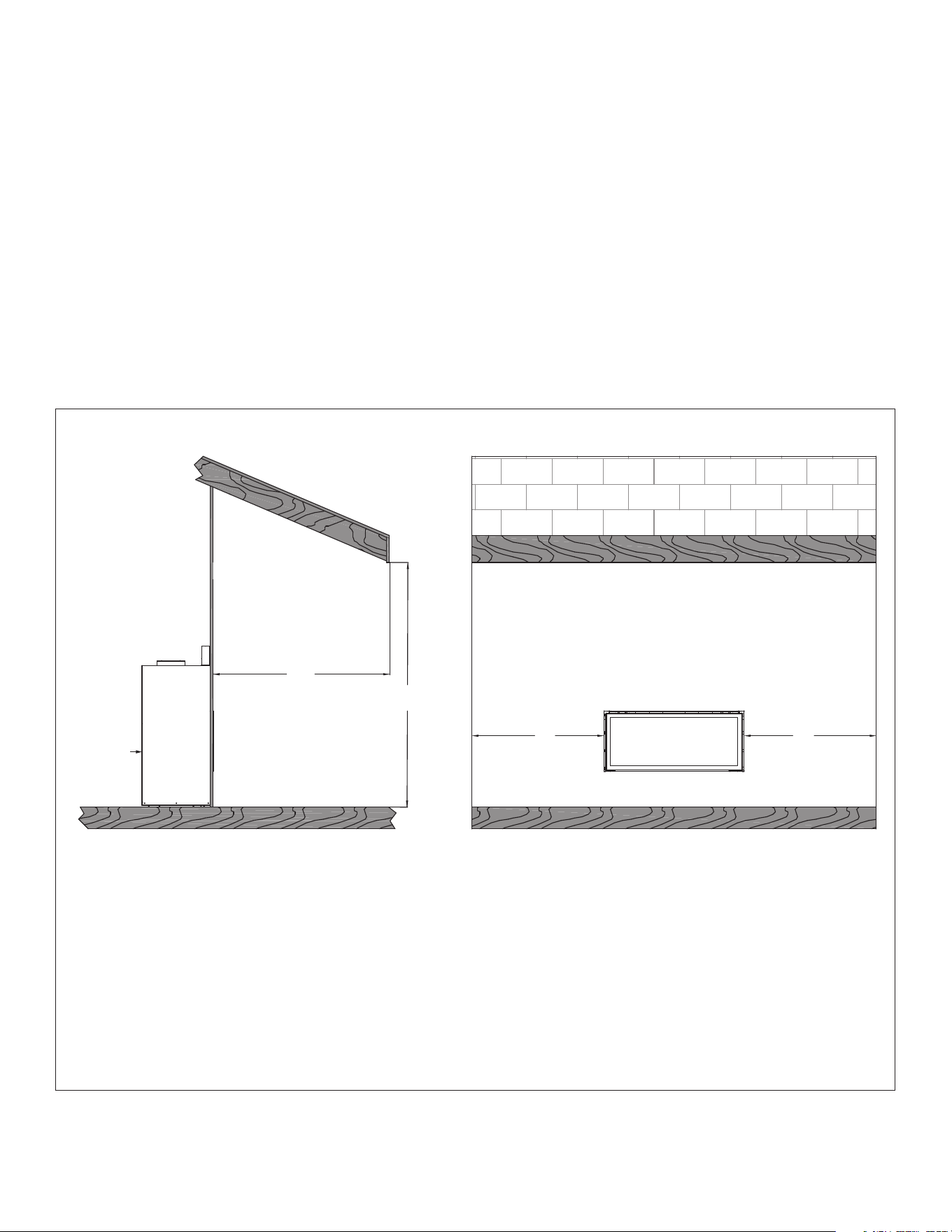

Figure 3.2, Typical Install Options
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FRAMING 13
3.4 Wall Enclosure Rough Opening
WARNING: Provide adequate clearances around air openings into
the combustion chamber. Provide adequate clearance in front of the
replace for barrier removal, component access, gas line installation,
service access, etc.
• Determine if the replace face will be ush with the wall surface
(where the wall surface and replace will be covered with non-
combustible material, such as tile) or the replace face will be
ush with framing (at wall appearance).
• Framing dimensions should allow for wall covering thickness
and replace facing materials. If using a hearth, adjust the rough
opening size as necessary to maintain minimum clearance
requirements.
• This replace may be elevated o the oor as shown below,
provided it is properly supported by framing materials and
maintains ceiling clearances.
• If masonry is to be used (optional), prepare the necessary
foundation for the masonry load. When masonry construction is
to be used, a lintel must be used over the top of the appliance to
support the additional weight.
• If installing the optional heat duct kit, refer to Section 4.0 #970
Heat Duct Kit on page 17.

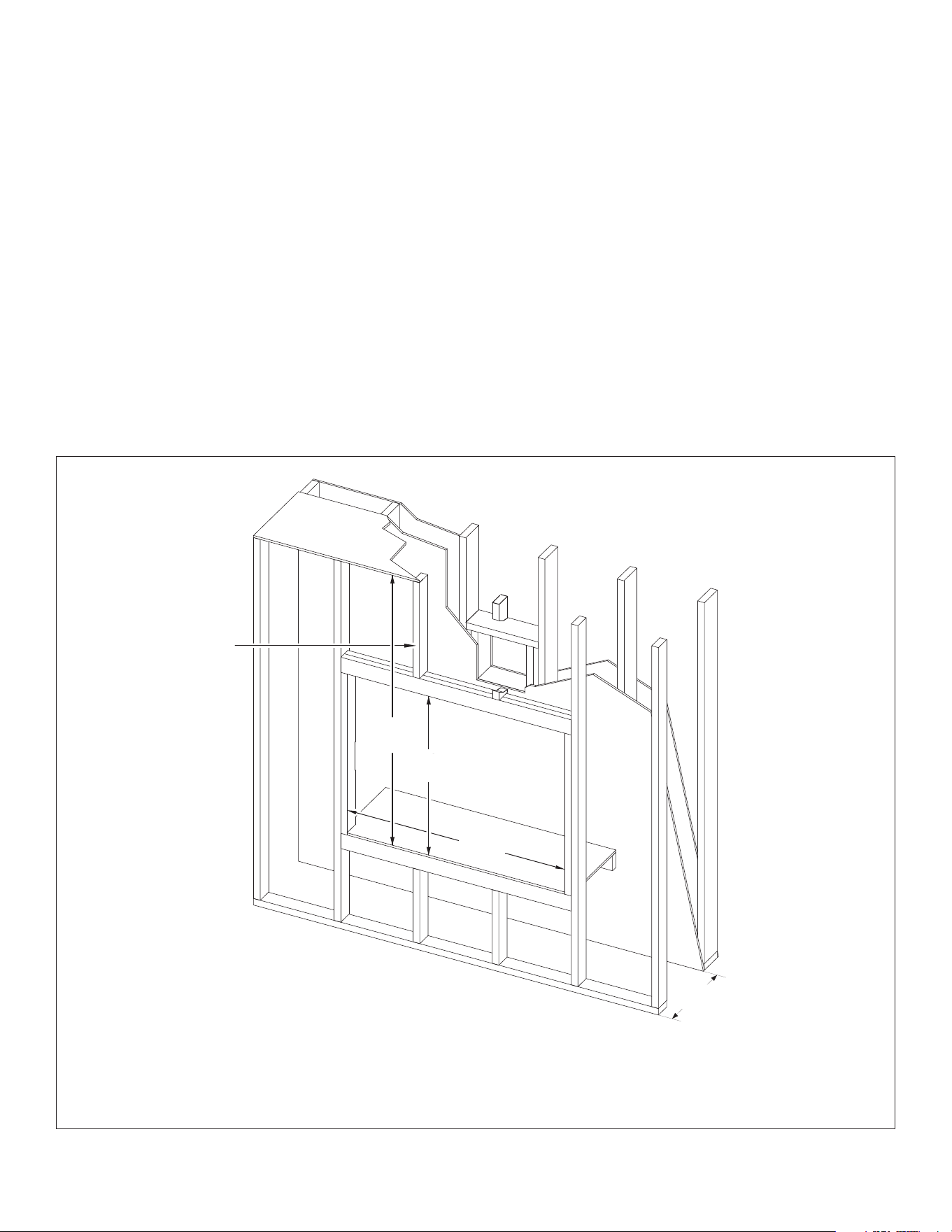

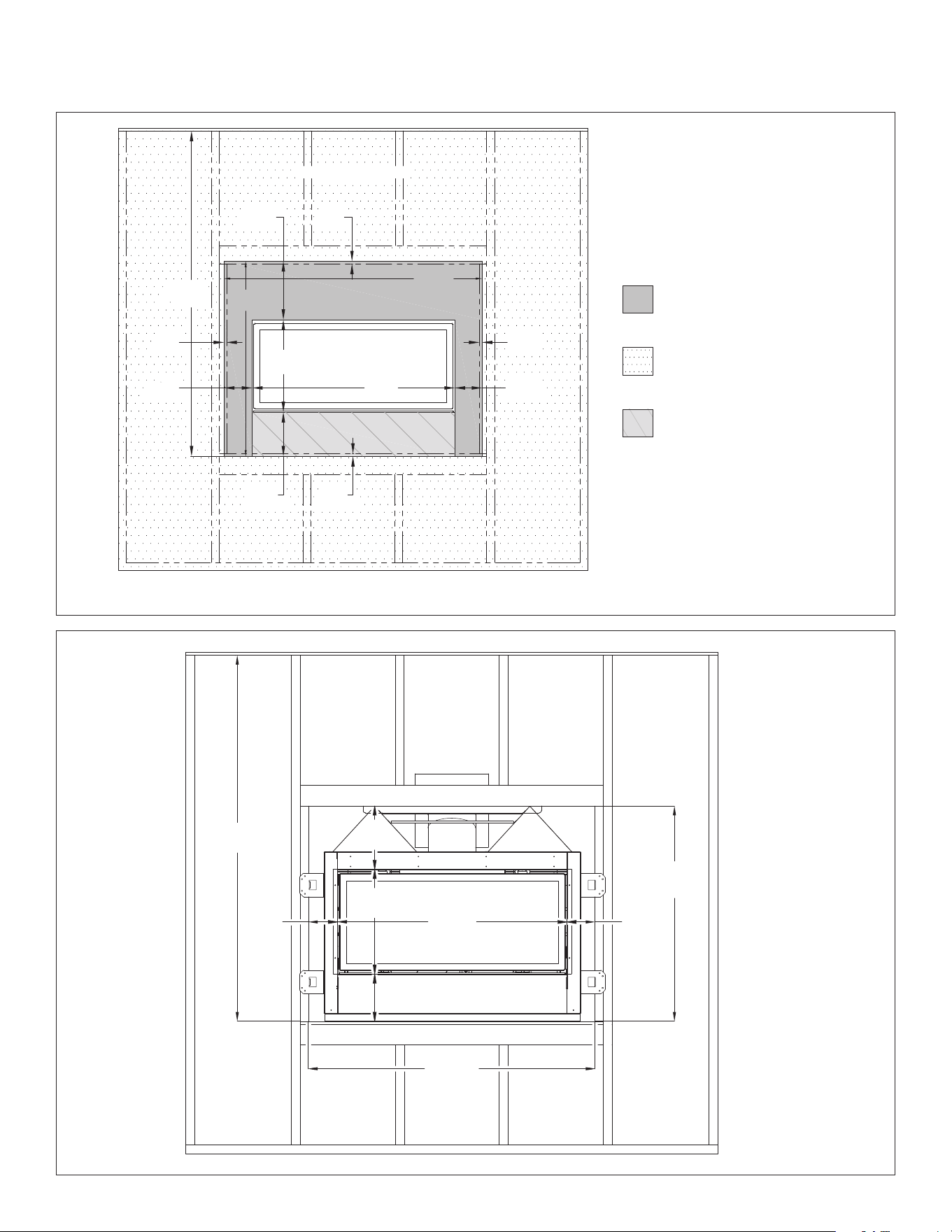

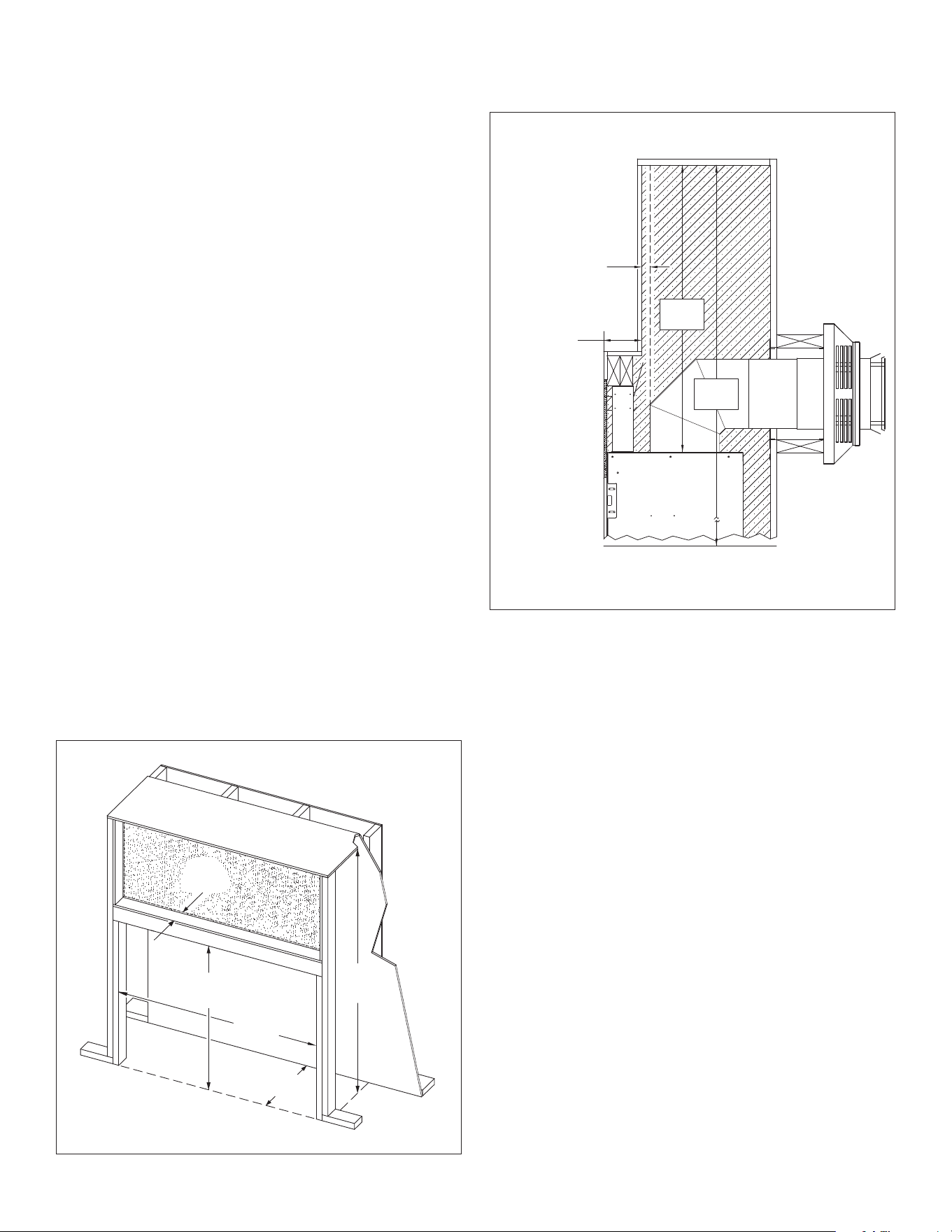

Figure 3.3, Finished Opening Dimensions
62¼”
(1581mm)
36
5⁄8”
(930mm)
48
¾”
(1238mm)
19”
(483mm)*
FRAMING STUDS
MUST MAINTAIN
1” (25mm) CLEARANCE
TO VENTING
*19” (483mm) IS THE MINIMUM WALL DEPTH REQUIRED FOR WALL SURFACE MATERIAL TO COVER FIREPLACE FRONT.
IF FIREPLACE FACE IS TO BE FLUSH WITH WALL SURFACE, SUBTRACT
½” (13mm) (TYPICAL NON-COMBUSTIBLE
FINISH MATERIAL) FROM DIMENSION. IF OTHER MATERIAL IS TO BE USED, ADJUST ACCORDINGLY.
14 FRAMING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
3.5 Floor Support and Protection
• The replace must be placed directly on a wood or non-
combustible surface (not linoleum or carpet) extending the
entire depth and width of the replace.
• If this appliance is to be installed directly on carpeting, tile,
or other combustible material other than wood ooring, this
appliance shall be installed on a metal or wood panel extending
the full width and depth of the appliance.
• If the appliance is to be installed above oor level, a solid,
continuous platform must be constructed below the appliance.
• Consider the height of hearth nish material (stone, brick, et
cetera) when building a replace platform. The bottom of the
replace must be level with nished hearth to allow for a proper
t of the safety barriers.
• Build the hearth to desired size and height. If a hearth extension
is desired, combustible material may be used.
3.6 Recess Construction
WARNING: All clearances to venting must be maintained.
Mounting a television above a replace has become a common
practice. Television surface temperatures are aected by mantel
depth, ceiling heights, and wall and mantel construction material.
Most television manufacturers specify in their instructions that a
television should not be installed on, near, or above a heat source.
Television location rests solely on the homeowner. It is the
homeowner’s responsibility that the preferred TV mounting and
mantel design will not exceed the listed maximum operation
temperature of their electronic goods.
Tests performed determined that surface temperatures did not exceed
150°F (66°C) when a 4¼ in (108mm) deep recess is constructed above the
replace. See illustrations below.
Figure 3.4, Recess Framing
Figure 3.5, Framing Clearances for Recess Construction
4¼”
(108mm)
33
3⁄8”
(848mm)
62
¼”
(1581mm)
1” (25mm) MINIMUM
CLEARANCE TO VENTING
FIREPLACE ENCLOSURE FLOOR
MAXIMUM DEPTH
4¼”
(108mm)
36
5⁄8”
(930mm)
48
¾”
(1238mm)
19”
(483mm)
62
¼”
(1581mm)
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FRAMING 15
3.7 Vent Termination Framing
IMPORTANT: Vent cap location must be in compliance with Section 7.2
Minimum Termination Clearances on page 26.
WARNING: DO NOT RECESS THE VENT CAP INTO WALL OR SIDING.
3.7.1 Vertical Terminations
CAUTION: Cold air transfer area. The surround replace chase
must comply with all clearances as outlined in this manual, and be
constructed in compliance with local building codes. Outside walls
should be insulated to prevent cold air from entering room.
• Follow vent pipe manufacturer’s installation instructions for
vertical terminations.
• A minimum of 1 in (25 mm) clearance on all sides of the vertical
vent pipe must be maintained.
• Attic insulation shields may be insulated using unfaced
insulation products listed as non-combustible per ASTM E 136.
3.7.2 Horizontal Terminations
IMPORTANT: Horizontal vent sections require 1/4 in (6 mm) rise for
every 12 in (305 mm) of travel.
NOTE: Wall thimble products that comply with the required 1 in (25
mm) clearance to combustibles must be installed for all horizontal vent
runs that pass through interior or exterior walls. These wall thimble
products may be insulated using unfaced insulation products listed as
noncombustible per ASTM E 136.
1. Measure from oor level of the replace to the center of
where the vent pipe will penetrate the wall. Elbows listed with
approved vent systems for this appliance vary in vertical length.
Please consult the vent manufacturer’s instructions to determine
the elbow dimension used for installation. Adjust the wall pass-
through rough opening dimensions as necessary to maintain
clearance requirements.
2. Cut and frame an opening in the wall to allow the vent system to
run level through the wall pass-through.
3. Follow the vent pipe manufacturer’s installation instructions for
vent installation.

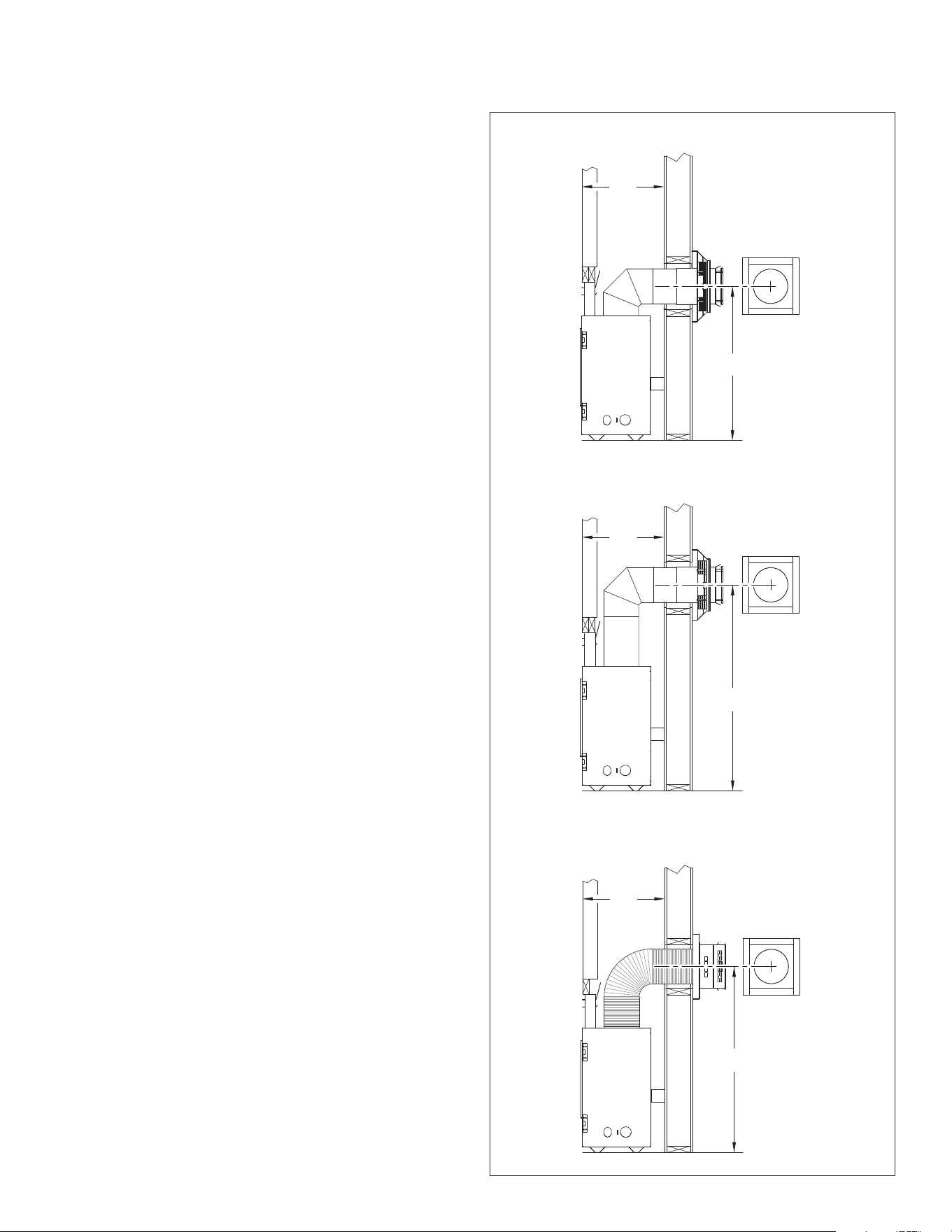

Figure 3.6, Minimum Horizontal Termination Framing
19”
(483mm)
35
5⁄8”
(905mm)
47
5⁄8”
(1210mm)
43”
(1092mm)
19”
(483mm)
19”
(483mm)
MINIMUM HORIZONTAL RIGID VENT PIPE TERMINATION
NATURAL GAS AND PROPANE
MINIMUM HORIZONTAL RIGID VENT PIPE TERMINATION
PROPANE
MINIMUM HORIZONTAL FLEX VENT PIPE TERMINATION
NATURAL GAS AND PROPANE
16 FRAMING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
A
B
CC
The overhang (A) must be a minimum of 1/2 or
greater of the rooine elevation (B) above the base
of the replace.
The width of the overhang to each side of the
appliance (C) must be a minimum of 1/2 or
greater of the rooine elevation (B) above the
base of the replace.
EXAMPLE: If rooine (B) is 10 ft above the base of replace, the overhang (A) must be 5 ft
or greater. The width of the overhang to EACH side of the replace (C) must be 5 ft or greater.
SIDE OF
FIREPLACE
BACK OF
FIREPLACE
FRONT OF
FIREPLACE
ROOF OVERHANG
Figure 3.7, Outdoor Covered Fireplace Install
3.8 Outdoor Covered Fireplace Installation
A outdoor covered replace installation allows a replace to be
installed in an outdoor covered area, where the appliance is protected
from direct precipitation. All Kozy Heat gas replaces allow for this
installation.
Follow the instructions and illustration below for installation
procedures.
3.8.1 Safety Screen Barriers
Hussong Mfg. highly recommends to use black painted safety barriers
in outdoor installations. Other screen barriers that incorporate
a plated or patina nish are highly susceptible to oxidation and
discoloration.
3.8.2 Requirements
• Fireplace operation is approved from 40°F to 110°F.
• All wiring connections shall be in accordance with outdoor
requirements of NECA NFPA 70.
• All clearances and requirements in your appliance manual must
be adhered to.
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #970 HEAT DUCT KIT 17
4.0 #970 HEAT DUCT KIT
CAUTION : Read and follow instructions carefully prior to and during
the installation of the optional heat duct kit.
WARNING: Installation of this heat duct kit and its electrical wiring
must be performed by a qualied service person, and must be in
accordance with local codes, or in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
Do not substitute the exible heat duct pipe with plastic vent pipe.
4.1 Kit Components
NOTE: A junction box, cover, and hardware must be purchased to
mount the speed control.
(1) 6” (152 mm) diameter exible heat duct
pipe, expandable to 20 ft. (6.10 m)
(2) Mounting brackets
(1) Register mounting frame with collar (11) Sheet metal screws
(1) Register cover with screws (4) Sheet rock screws
(1) Duct collar (3) Flange nuts
(1) Fan assembly (1) Strapping cord
(1) Fan housing cover plate (3) Wire nuts
(1) Speed control mounting bracket (2) Fan wire connectors
(1) Speed control
4.2 Specications
• The appliance is manufactured with (2) heat duct knock-outs.
One, or both, may be utilized.
• The register mounting frame is designed to t between 2” x 4”
stud walls, 16 in (406mm) on center.
• An oval duct pipe (equivalent to 6 in [152 mm] round) can be
used in conjunction with the included 6 in (152 mm) diameter
exible heat duct pipe, included with this kit. It must be
purchased from a HVAC supplier.
• Carefully plan location of duct pipe runs and register in relation
to replace.
Table 4.1, Heat Duct Clearances
From exible duct to combustibles 0 in 0 mm
From air duct to ceiling 2 in 51 mm
Table 4.2, Heat Duct Vent runs
Vent Run Minimum Maximum
Any direction, including
downward
2 ft 609 mm 20 ft 6.1 mm

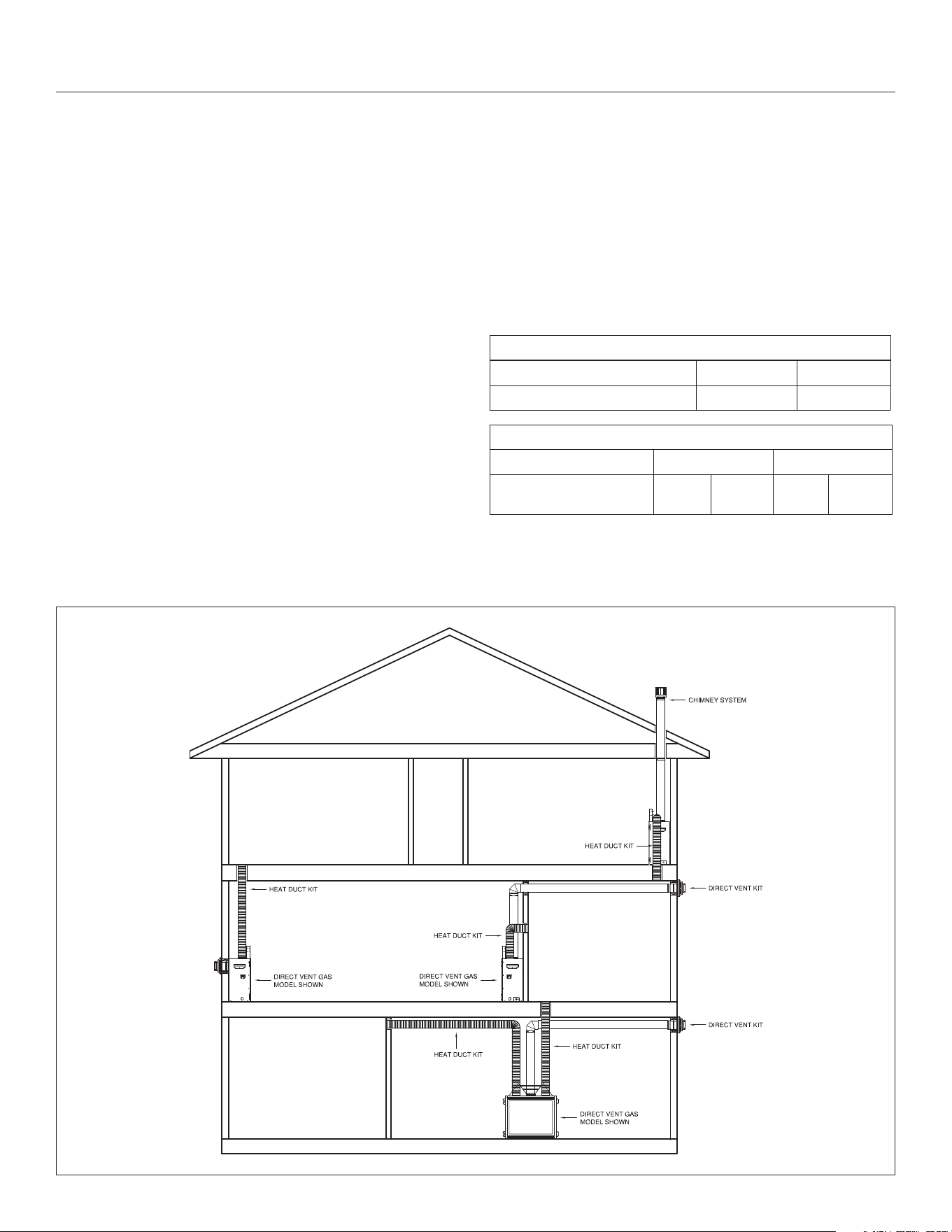

Figure 4.1
18 #970 HEAT DUCT KIT Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
4.3 Attach Heat Duct to Fireplace
1. Bend the tabs on replace top up. With circulation holes facing
down, use (3) screws to fasten the tabs to the duct collar.
2. Secure the exible pipe to the duct collar. Verify screws penetrate
both the exible pipe and the duct collar.
3. Do not cover circulation holes on the duct pipe.
4. Position the replace in the desired location.
4.4 Install Register Mounting
Frame and Junction Box
1. The register mounting frame and the fan housing are designed
to t between 2” x 4” stud walls, 16 in (406mm) on center.
Additional framing is required if larger opening exists.
2. Locate and mark the position of the register.
3. Insert the register mounting bracket into the 16 in (406 mm)
opening.
4. Level and adjust the mounting bracket. The sides of the bracket
should be ush with the front of the framing studs, and the front
of the bracket should protrude ½ in from the studs to allow for
½” sheetrock installation.
5. Secure the mounting bracket to framing with the provided (4)
sheetrock screws.
6. Install the junction box on the wall at desired location. The
junction box is used to house the speed control assembly, which
controls fan speed and operation.

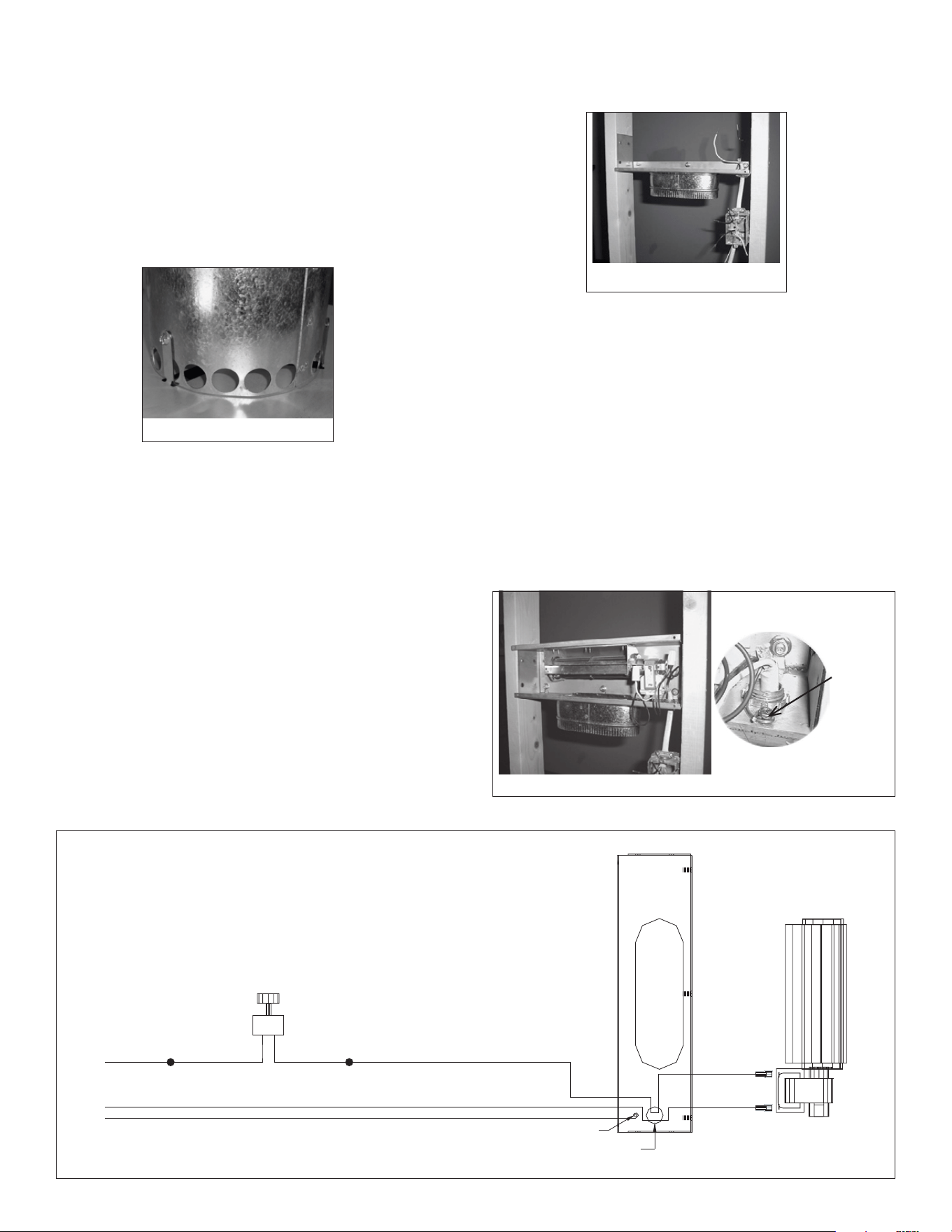

4.5 Install and Wire Fan Assembly
1. Attach, but do not tighten, ange nuts to the mounting studs on
the back of the register mounting bracket.
2. Align (3) slots on the fan assembly to studs, then slide the fan
into position. Tighten the ange nuts to secure.
3. Slide the included fan wire connectors into the fan terminals.
4. Properly wire the 110 VAC wire to the hot and neutral fan wires,
and the speed control wires, with provided wire nuts.
5. Run 110 VAC to fan speed control, then from the fan speed
control through the romex connector (on the register bracket).
6. Secure grounding wire to the grounding screw installed in
register mounting bracket. Fan must be properly grounded.
BLACK BLACK
WHITE
OR
BLACK
WHITE
OR
BLACK
SPEED
CONTROL
WHITE
GROUND
GROUNDING SCREW
ROMEX CONNECTOR
BLACK
WHITE
Figure 4.5
Figure 4.3
Grounding
Screw
Figure 4.4
Figure 4.2
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #970 HEAT DUCT KIT 19
4.6 Run and Secure Duct Pipe
4.6.1 Oval Duct Pipe
1. Run the oval and round duct pipe to the register location.
2. Shape the 6 in (152 mm) round duct pipe to t outside the oval
duct pipe. Secure with the screws provided.
3. Slide the oval duct pipe over the oval collar on the register
mounting bracket. Secure with the sheet metal screws provided.
4. OPTIONAL: Secure duct pipe with any additional screws
provided.
4.6.2 Round Duct Pipe
1. Run the round duct pipe to the register location.
2. Shape the 6 in (152 mm) round duct pipe so it will t outside the
oval collar on the register mounting bracket.
3. Slide the round duct pipe until it touches the register mounting
bracket.
4. Position the locking strap around the 6 in (152 mm) duct pipe,
above the crimped metal.
5. Pull the locking strap tight enough to rmly secure the duct
pipe.
4.7 Complete the Installation
1. Install sheetrock or wall nish material as desired before
attaching the register cover and fan housing cover plate.
2. Position the cut-out portion of the fan housing cover plate over
the fan chute to allow air ow. Align the holes in the fan housing
cover plate to the corresponding holes in the register mounting
plate and fan assembly. Secure with (4) screws provided.
3. Slide the speed control through the mounting bracket. Secure
with the mounting nut.
4. Secure mounting bracket to the junction box with the (2) screws
provided.
5. Center the register cover over the fan housing cover plate to
install. Secure register cover to stud wall with the provided
mounting screws.
6. Attach a cover plate (not provided), then install the control knob
for the speed control.
7. Complete the replace installation by following the instructions
included with the replace.
4.8 Operating Instructions
1. After complete replace installation and subsequent initial burn
period, turn the replace burner ON by following the lighting
instructions included with the replace.
2. Allow the replace to produce heat for approximately 15
minutes.
3. To operate the heat duct fan, turn the wall-mounted speed
control clockwise until it stops. The fan should turn on and be
operating at its highest speed. Adjust the speed to desired air
ow level by turning the speed control knob counter-clockwise
until it ‘clicks’ o.
4.9 Maintenance
• The duct register must be kept clear and unobstructed. Clean
and vacuum as necessary to remove dust, lint, etc. from fan
which will inhibit air ow.
• Detach the register cover and the fan housing cover plate at
least once a year to remove dust, lint, etc. from the fan. More
frequent cleaning may be necessary.
• The replace must be maintained and serviced as outlined in
the unit installation and operating instructions.

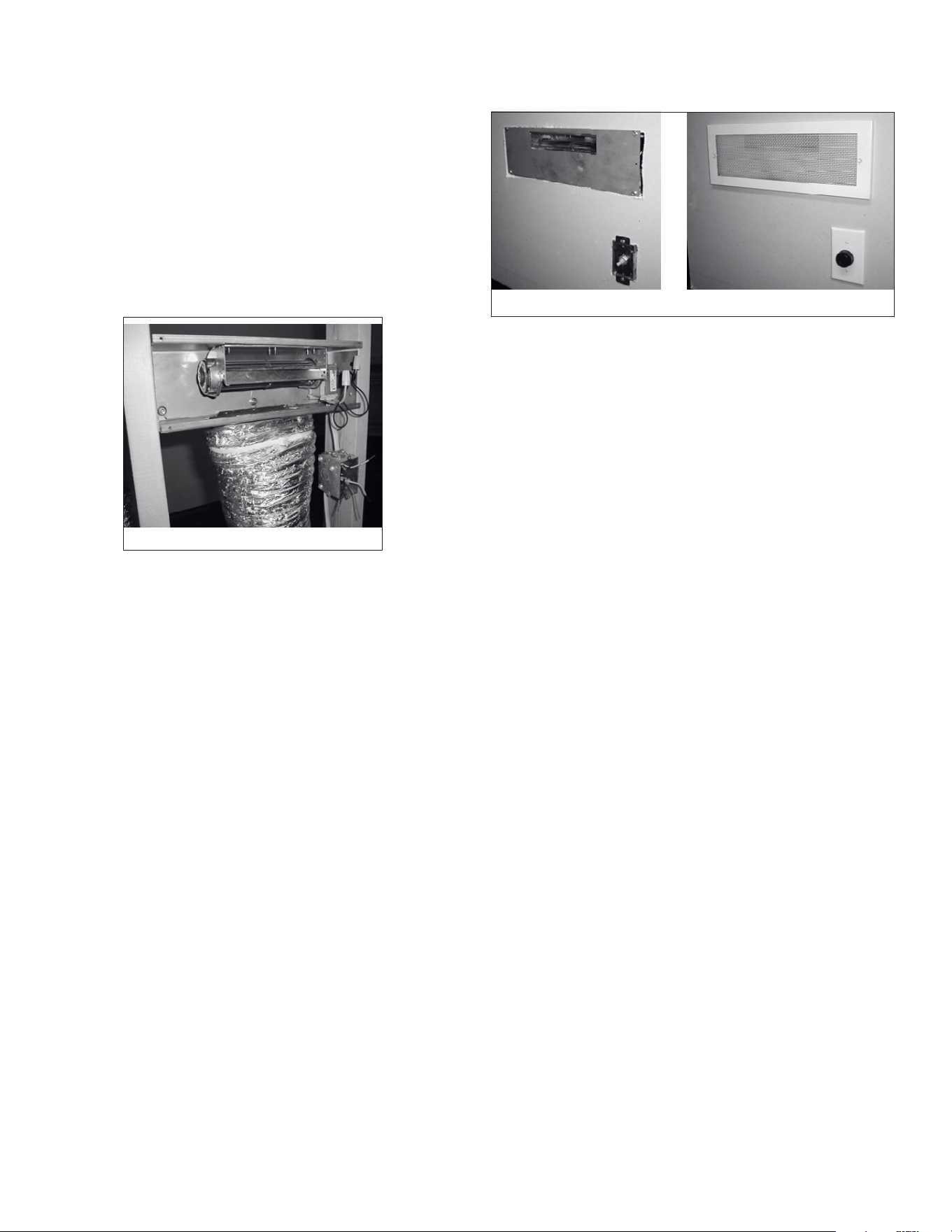

Figure 4.7
Figure 4.6
20 FACING AND FINISHING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
5.0 FACING AND FINISHING

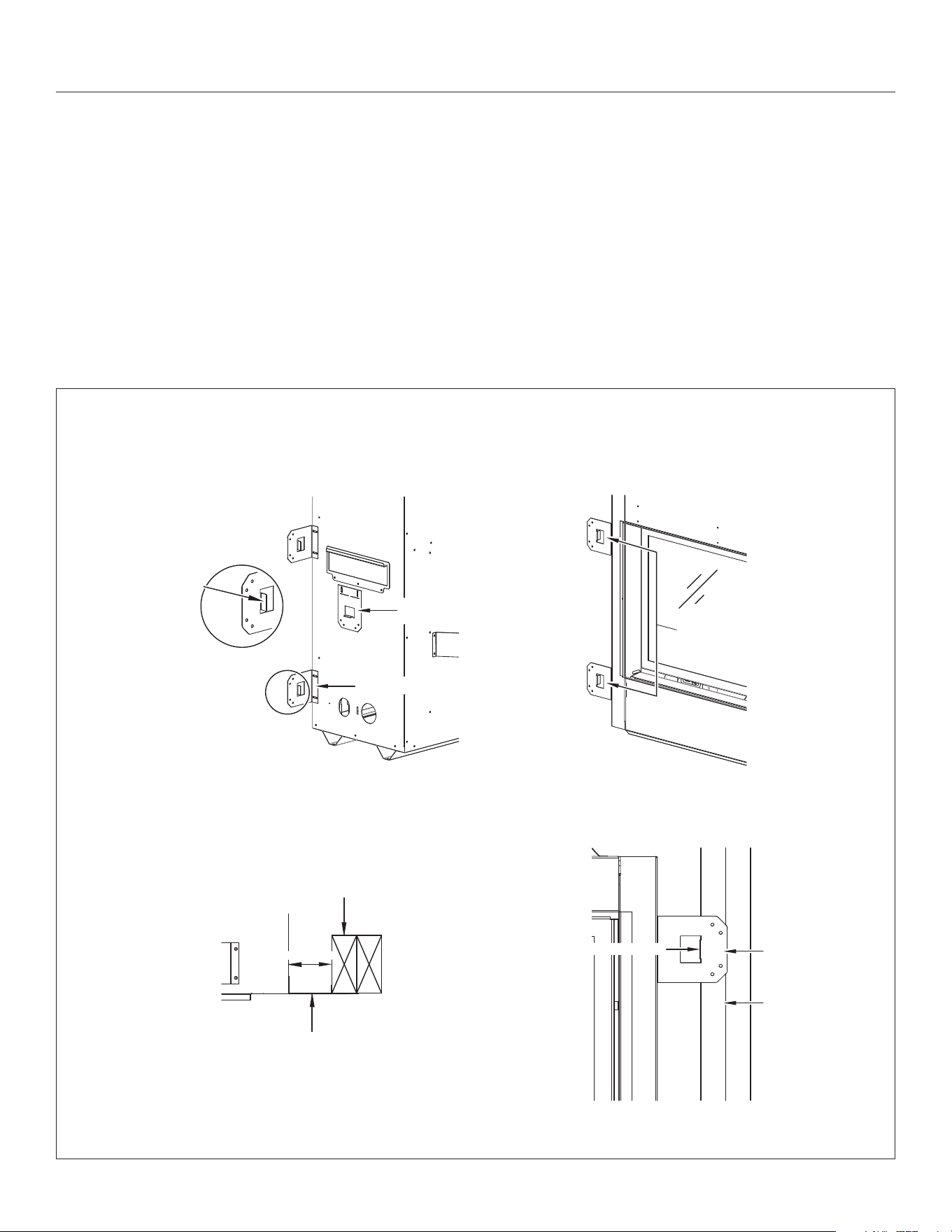

5.1 Nailing Flange Assembly
and Installation
CAUTION: Never permanently remove these assemblies from the
replace—they must be secured regardless of nish material used.
1. Remove (4) nailing anges from the right and left side of the
replace.
2. Align nailing ange with holes on outside corners of replace,
with the stand-o anges on the nailing anges facing away
from the replace
3. Secure the nailing anges to the replace with screws (provided)
through the slots in nailing anges.
4. Bend perforation on nailing ange until parallel with replace
face. Do not bend toward replace face.
5. Position framing stud against the small stand-o (located on
backside of nailing ange). Secure with nails or screws.
• When installed, the nailing anges provide the minimum
2½ in (64 mm) clearance from the sides of the replace to
framing.
Figure 5.1, Nailing Flange Installation
STAND-OFF FLANGE
NAILING FLANGE
AS SHIPPED
NAILING FLANGE INSTALLED
NAILING FLANGE
INSTALLED
FRAMING STUD
NAILING FLANGE
STAND-OFF FLANGE
FRAMING STUD
NAILING FLANGE
2½”
(64mm)
CLEARANCE
BACK VIEW FRONT VIEW
TOP VIEW FRONT VIEW
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING 21
25¼”
(641mm)
19
¼”
(489mm)
14
¼”
(362mm)
40”
(1016mm)
33
3⁄8”
(848mm)
62
¼”
(1581mm)
NON-COMBUSTIBLE ZONE
COMBUSTIBLE FLOORING
FINISHING EDGE
EACH SQUARE REPRESENTS
1” (25mm)
OF MANTEL PROJECTION
45°
Figure 5.2, Mantel Clearances
5.2 Facing and Finishing Requirements
5.2.1 Mantel Requirements
WARNING: Maintain all minimum clearances to combustibles from the
appliance and vent system.
• Combustible Mantel Projections - Minimum Vertical and
Maximum Horizontal: 14-1/4 in (362 mm) is the minimum
vertical clearance from the top of the nishing edge to 1 in (25
mm) maximum depth of a combustible mantel. Combustible
mantels at the minimum vertical clearance may be 0 in (0 mm)
to 1 in (25mm) depth with minimum vertical clearance 14-1/4” in
(362 mm).
• Non-combustible Mantel Projections - Minimum Vertical and
Maximum Horizontal: A minimum vertical clearance of 6 in (152
mm) above the nishing edge to a maximum 6 in (152 mm)
depth of a non-combustible mantel. Follow projection 1 in (25
mm) up for every 1 in (25 mm) deeper
5.2.2 Facing Requirements
• Non-combustible material is required at the top and sides of
the replace. This replace is designed to accommodate non-
combustible facing material up to ½ in (13mm) thick.
• Install facing material up to the nishing edge that surrounds
the glass frame assembly. Do not apply any material beyond this
point. The glass frame assembly must be removable.
• Do not secure material to the lower cover panel using screws.
This may damage control system components. To secure material
to this area, use a silicone sealant that has a 300°F (149°C)
continuous exposure rating.
• It is acceptable to pre-drill holes and to use self-tapping screws
prior to attach the non-combustible material to the top and
sides of the replace face. Do not use excessively long screws.
5.2.3 Finishing Recommendations
NOTE: The surface area above the appliance may be aected by high
temperatures emitted from this appliance. To help avoid or reduce the
possibility of the sheetrock to crack, Hussong Mfg. recommends the
following methods:
• Ensure the non-combustible material and sheetrock is dry and
dust free.
• For taping and mudding seams, we recommend heat resilient
tape, mesh and joint compounds, such as Durabond. Mud must
be cured as per manufacturer’s recommendations.
• For a painted surface, use a high quality acrylic latex primer
and nish coat. Avoid at or light-colored paints to prevent
discoloring.
22 FACING AND FINISHING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
62¼”
(1581mm)
4
¾”
(121mm)
10
¾”
(274mm)
18”
(457mm)
39
¼”
(997mm)
77⁄8”
(200mm)
48
¾”
(1238mm)
36
5⁄8”
(930mm)
4
¾”
(121mm)
NON-COMBUSTIBLE MATERIAL ONLY
COMBUSTIBLE MATERIAL ALLOWED
COMBUSTIBLE MATERIAL ALLOWED
NO SCREWS
LOWER COVER PANEL
COMBUSTIBLE MATERIAL ALLOWED
NO SCREWS ABOVE FRAMING
(BOTTOM 3/4” [19mm])
COMBUSTIBLE MATERIAL
ALLOWED
NON-COMBUSTIBLE MATERIAL ONLY
11½”
(292mm)
¾”
(19mm)
50
¼”
(1276mm)
5
½”
(140mm)
63”
(1600mm)
8
5⁄8”
(219mm)
18”
(457mm)
38
1⁄8”
(968mm)
39
¼”
(997mm)
¾”
(19mm)
¾”
(19mm)
¾”
(19mm)
5
½”
(140mm)
Figure 5.3, Minimum Non-Combustible Material Dimensions
Figure 5.4, Framed Opening Dimensions
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING 23
5.3 Optional Trim Kit Assembly #SL36-FTK
For use ONLY with safety barrier #SL36-RSF.
IMPORTANT: This trim kit assembly must be attached before replace
installation.
1. Locate the pre-drilled holes on the replace face surrounding
the glass frame assembly. There are (5) holes above and (5) holes
below the replace opening, and (3) holes on each side.
2. Align the top and bottom trim panels with the pre-drilled holes
on the replace face. Position the ange on the trim panel as
pictured below. Secure with screws included in components
packet.
3. Align the left and right trim panels with the pre-drilled holes
on the replace face. Position the ange on the trim panel as
pictured below. Secure with screws included in components
packet.
Figure 5.5, Trim Kit Installation
9/1 Rev 4: ADDED OPTIONAL TRIM KIT ASSEMBLY #SL36-FTK
new brackets do not need to removed for installation, removed the rst line where top and bottom safety brackets
need to be removed
24 GAS LINE CONNECTION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
6.0 GAS LINE CONNECTION
6.1 Gas Conversion (sold separately)
ATTENTION: The conversion shall be carried out in accordance with the
requirements of the provincial authorities having jurisdiction and in
accordance with the requirements of the ANSI Z223.1 installation code.
This replace is manufactured for use with natural gas. Follow the
instructions included with the conversion kit if converting to Propane.
6.2 Gas Line Installation
CAUTION: Installation of the gas line must only be done by a qualied
person in accordance with local building codes, if any. If not, follow
ANSI 223.1. Commonwealth of Massachusetts installations must be
done by a licensed plumber or gas tter.
NOTE: The appliance and its individual shuto valve must be
disconnected from the gas supply piping system during any pressure
testing of that system at pressures in excess of ½ psi (3.5 kPa). For test
pressures equal to or less than ½ psi (3.5 kPa), the appliance must be
isolated from the gas supply piping system by closing its individual
manual shut-o valve.
• A listed (and Commonwealth of Massachusetts approved) ½
in. (13 mm) tee handle manual shut-o valve and exible gas
connector are to be connected to the ½ in. (13 mm) control valve
inlet. If substituting for these components, please consult local
codes for compliance.
• This replace is equipped with a 3/8” (10 mm) x 18” (457 mm)
long exible gas connector and manual shut-o valve.
• Run gas line into replace. The gas line should be run to the
point of connection where the shut-o valve and exible gas line
will connect.
• Do not run gas line in a manner that would obstruct fan
operation.
• For high altitude installations, consult the local gas distributor or
the authority having jurisdiction for proper rating methods.
Table 6.1, Inlet Gas Supply Pressures
Fuel Minimum Pressure Maximum Pressure
Natural Gas 5” WC (1.25 kPa) 10.5” WC (2.62 kPa)
Propane 12” WC (2.99 kPa) 13” WC (3.24 kPa)
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TERMINATION LOCATIONS 25
7.0 TERMINATION LOCATIONS

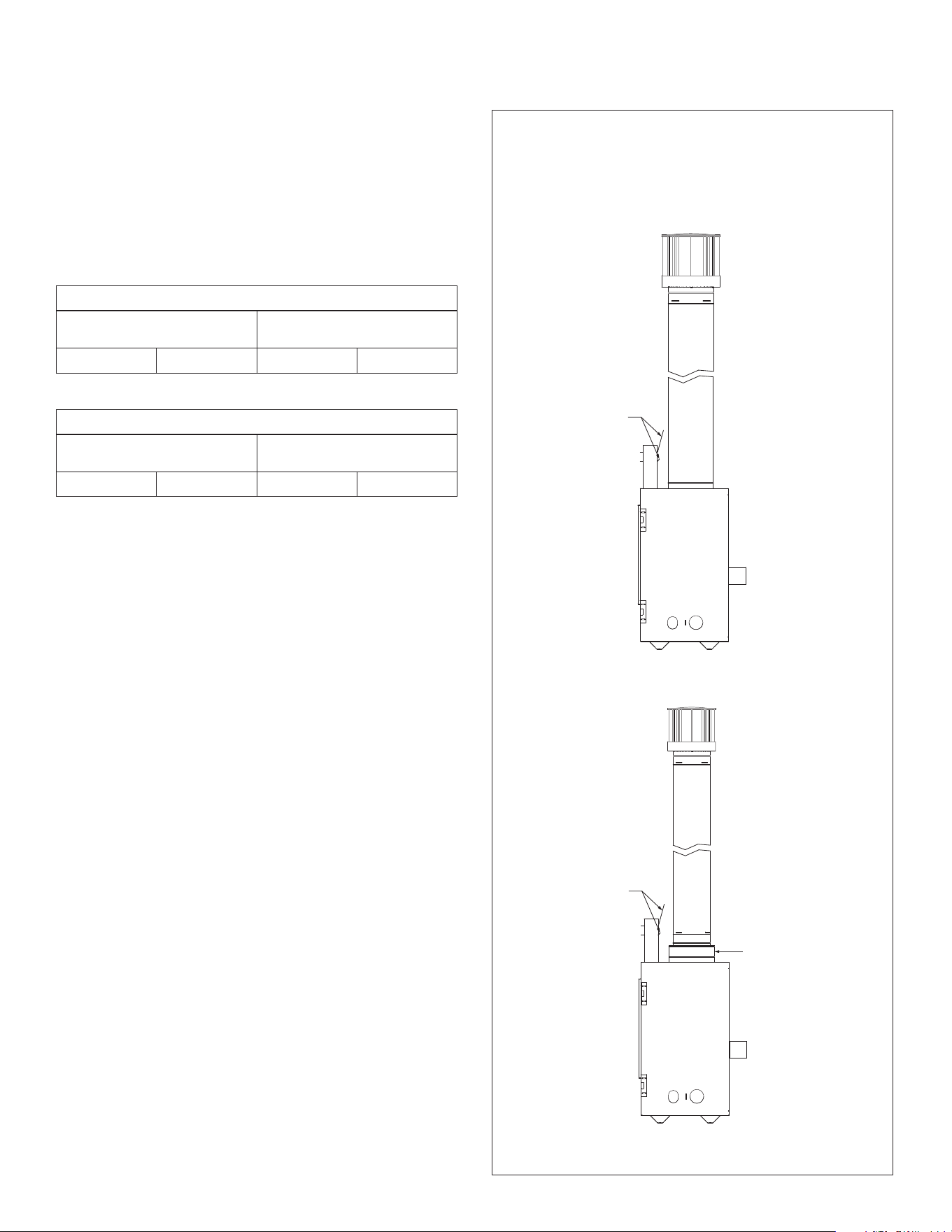

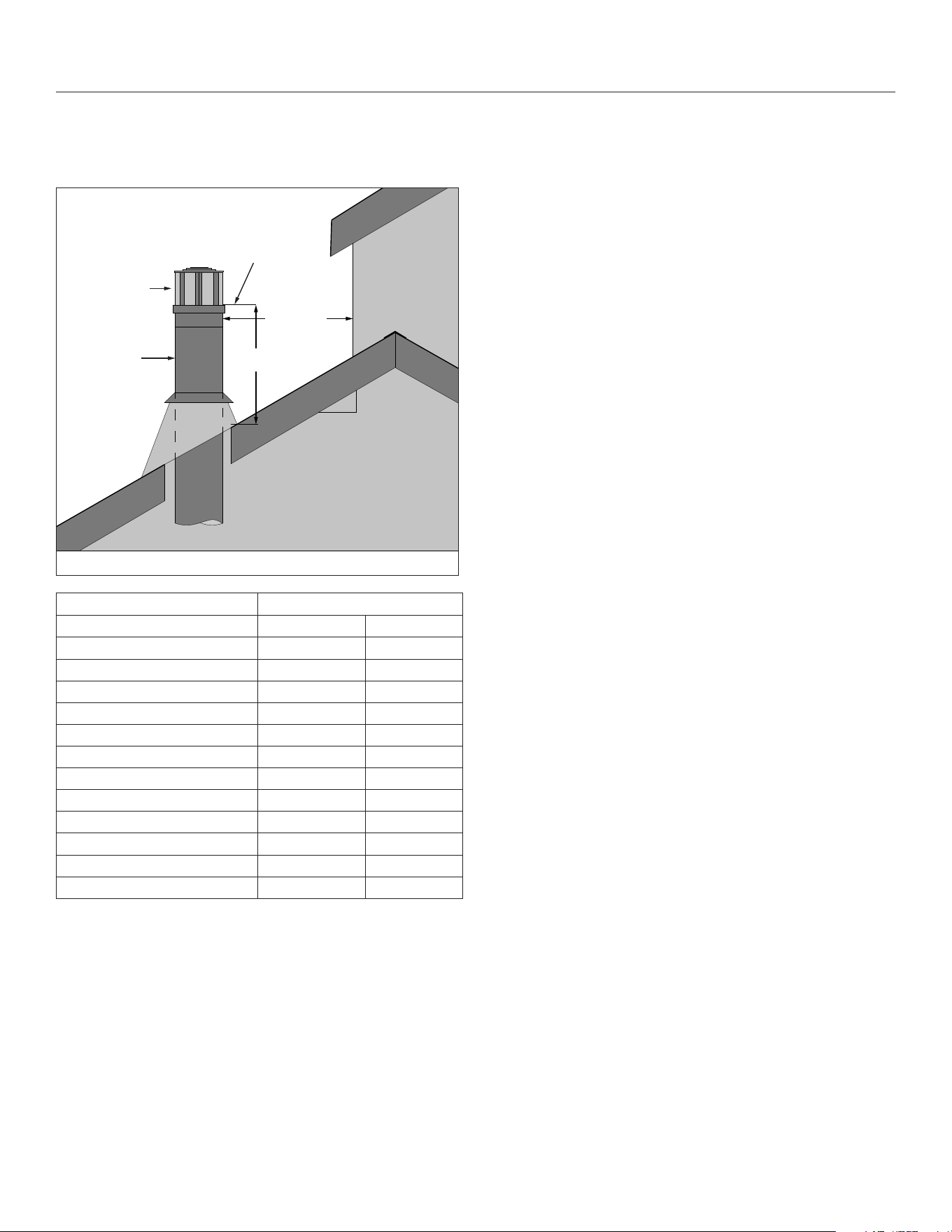

7.1 Vertical Vent Cap Termination
WARNING: This gas appliance must not be connected to a chimney
serving any other appliance.
Minimum height (H) from roof
Roof Pitch Feet Meters
Flat to 6/12 1.0 0.30
Over 6/12 to 7/12 1.25 0.38
Over 7/12 to 8/12 1.5 0.46
Over 8/12 to 9/12 2.0 0.61
Over 9/12 to 10/12 2.5 0.76
Over 10/12 to 11/12 3.25 0.99
Over 11/12 to 12/12 4.0 1.22
Over 12/12 to 14/12 5.0 1.52
Over 14/12 to 16/12 6.0 1.83
Over 16/12 to 18/12 7.0 2.13
Over 18/12 to 20/12 7.5 2.27
Over 20/12 to 21/12 8.0 2.44
12
x
HH
LOWEST
DISCHARGE
OPENING
APPROVED CAP
APPROVED
VENT PIPE
ROOF PITCH = x/12
H - MINIMUM HEIGHT FROM ROOF TO
LOWEST DISCHARGE OPENING
MINIMUM
12” (.30m)
Figure 7.1, Vertical Vent Cap Clearance
26 TERMINATION LOCATIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

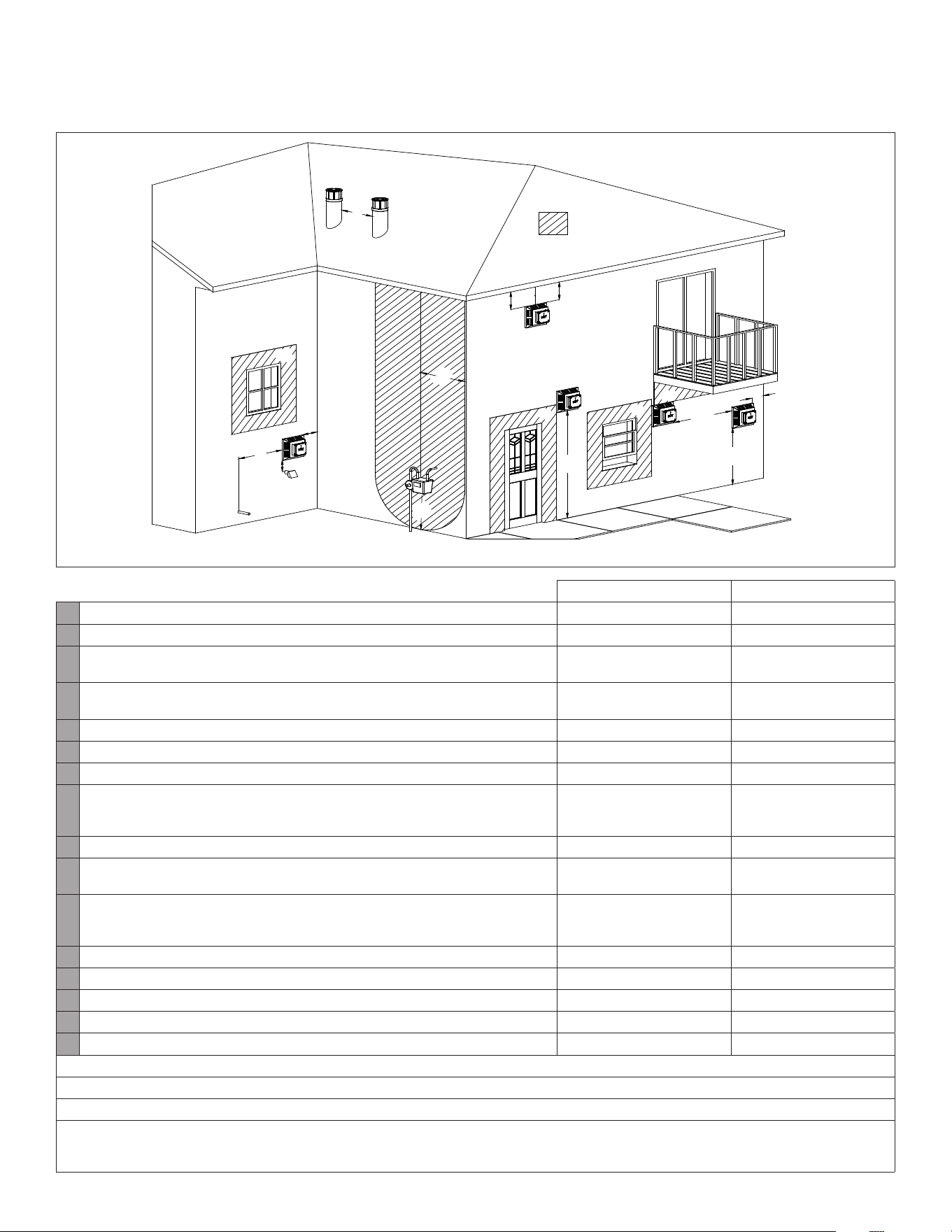

7.2 Minimum Termination Clearances
AREA WHERE TERMINAL
IS NOT PERMITTED
B
B
L
J
K
C
G
P
H
I
D
E
A
N
F
M
O
Canadian installations US installations
A Clearance above grade, veranda, porch, deck, or balcony 12 in (30 cm) 12 in (30 cm)
B Clearance to window or door that may be opened 12 in (30 cm) 9 in (23 cm)
C Clearance to permanently closed window (recommended to prevent condensation on
window)
12 in (30 cm)* 12 in (30 cm)*
D Vertical clearance to ventilated sot located above the terminal within a horizontal dis-
tance of 2 feet (61 cm) from the cent line of the terminal
24 in (61 cm)* 24 in (61 cm)*
E Clearance to unventilated sot 12 in (30 cm)* 12 in (30 cm)*
F Clearance to outside corner 0 in (0 cm)* 0 in (0 cm)*
G Clearance to inside corner** 12 in (30 cm)* 12 in (30 cm)
H Clearance to each side of center line extended above meter/regulator assembly 3 ft (91 cm) within a height
15 ft (4.5 m) above the meter/
regulator assembly
*
I Clearance to service regulator vent outlet 3 ft (91 cm) *
J Clearance to non mechanical air supply inlet to building or the combustion air inlet to any
other appliance
12 in (30 cm) 9 in (23 cm)
K Clearance to mechanical air supply inlet 6 ft (1.83 m) 3 ft (91 cm) above if within
10 ft (3 m) horizontally
Massachusetts: 10 ft (3 m)
L Clearance above paved sidewalk or paved driveway located on public property 7 ft (2.13 m)† *
M Clearance under veranda, porch deck, or balcony 12 in (30 cm)‡ 12 in (30 cm)
N Clearance between two horizontal terminations 12 in (30 cm) 12 in (30 cm)
O Clearance between two vertical terminations (may be same height) 12 in (30 cm) 12 in (30 cm)
P Above furnace exhaust or inlet 12 in (30 cm) 12 in (30 cm)
* Clearance in accordance with local installation codes and the requirements of the gas supplier.
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
VINYL SOFFIT, VINYL CEILING, AND VINYL OVERHANG DISCLAIMER: Clearances to heat resistant material (i.e. wood, metal). This does not include vinyl. Hussong
Manufacturing Co., Inc. will not be held responsible for heat damage caused from terminating under vinyl overhangs, vinyl ceilings, or vinyl ventilated/unventi-
lated sots.
Figure 7.2, Vent Cap Locations
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces VENTING 27

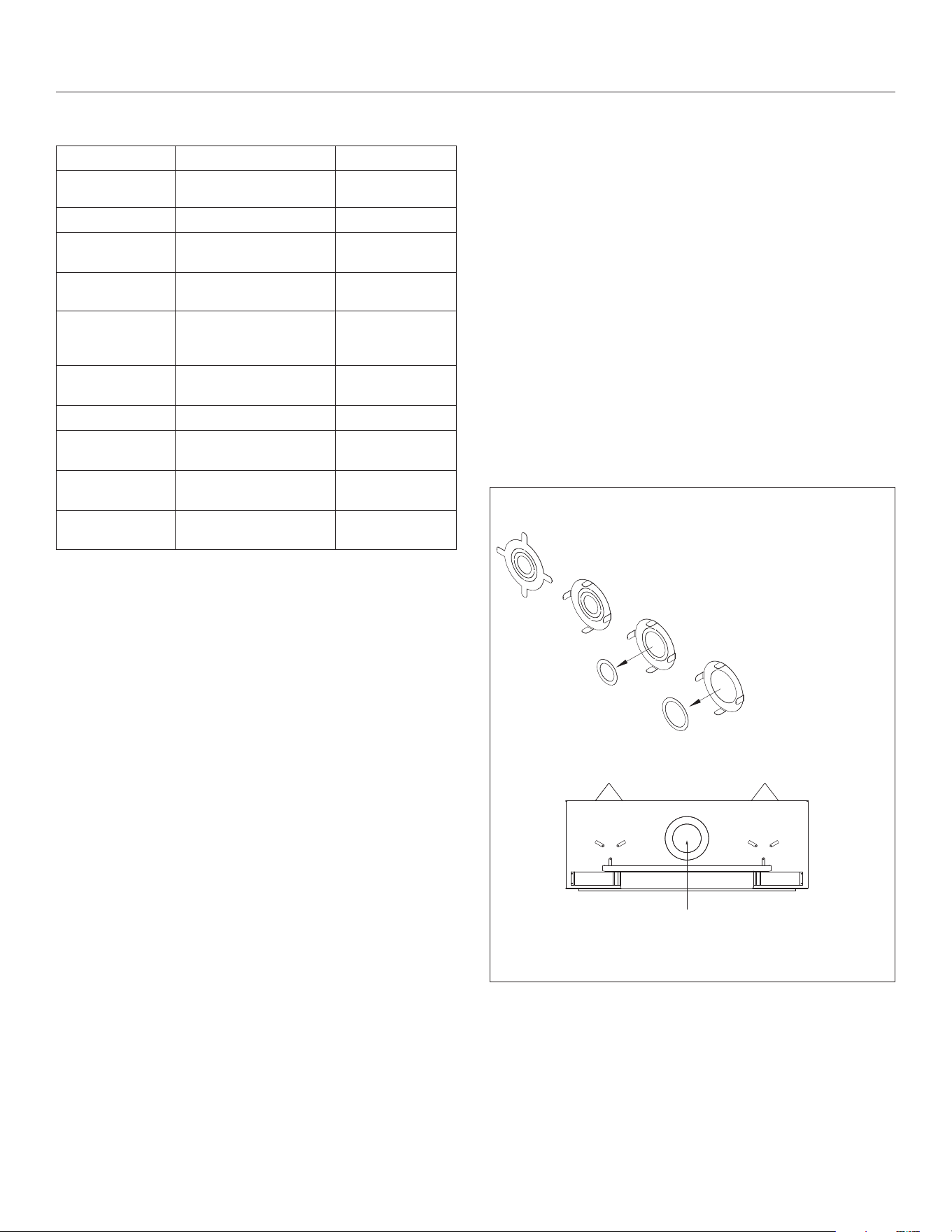

8.0 VENTING
8.1 Approved Vent Systems
Vent Manufacturer Direct Vent System Termination
American Metal
Products
Ameri-Vent 5” x 8” Horizontal & Vertical
BDM Pro-Form 5” x 8” Horizontal & Vertical
ICC EXCELDirect 5” x 8”
EXCEPT TM5VT CAP
Horizontal & Vertical
Kozy Heat 800 Series Flexible
Vent Kit
Horizontal Only
Metal Fab Direct Vent Chimney
5” x 8” EXCEPT 5DST36
SNORKEL CAP
Horizontal & Vertical
Olympia Chimney
Supply, Inc.
Ventis Direct Vent 5” x 8” Horizontal & Vertical
Selkirk Direct Temp 5” x 8” Horizontal & Vertical
Selkirk Model DT 5” x 8” to 4” x
6-5/8” reducer
Horizontal & Vertical
Simpson
DuraVent
DV-GS 5” x 8” EXCEPT SNK14
SNORKEL CAP
Horizontal & Vertical
Simpson
DuraVent
5” x 8” to 4” x 6-5/8” reducer Horizontal and
Vertical
8.2 Venting Requirements
Consult the local and national installation codes to assure adequate
combustion and ventilation air is available. Venting requirements
apply to both natural gas and Propane.
• Flame height and appearance will vary depending upon venting
conguration and the type of fuel used.
• A 5” x 8” to a 4” x 6-5/8” vent reducer may be used for horizontal
or vertical vent runs for DuraVent and Selkirk vent systems.
• A minimum of 1 in (25 mm) clearance on all sides of the
vertical vent pipe must be maintained. Attic insulation shields
may be insulated using unfaced insulation products listed as
noncombustible per ASTM E 136.
• A minimum of 1 in (25 mm) clearance on all sides of the
horizontal vent pipe at the wall pass-through must be
maintained. Wall thimble products that comply with the required
1 in (25 mm) clearance to combustibles must be installed for all
horizontal vent runs that pass through interior or exterior walls.
These wall thimble products may be insulated using unfaced
insulation products listed as noncombustible per ASTM E 136.
If using 4” x 6-5/8” reducer, follow vent pipe manufacturer’s wall
thimble installation instructions.
• Refer to the vent manufacturer’s installation manual for
complete installation instructions. Vent installation must
conform with venting requirements and restrictions as outlined
in this manual.
• Provide a means for visually checking the vent connection to the
appliance after the replace is installed.
8.3 Elbows
• MAXIMUM NUMBER OF 90° ELBOWS: 5
• For each additional 90° elbow used after the rst elbow, 3 ft (91.4
cm) must be subtracted from maximum venting allowed.
• For each 45° elbow used, 1½ ft (457 mm) must be subtracted
from maximum venting allowed.
• (2) 45° degree elbows may be used in place of (1) 90° elbow.
8.4 Restrictor Plate Assembly
and Installation
A restrictor plate (included in components packet) may be used
to achieve desired ame appearance on any venting installation
with at least 8 ft (2.4 m) of vertical pipe or more. A restrictor plate is
recommended for 30 ft (9.14m) to 50 ft (15.2m) of vertical venting
if no elbows are used. Section 12.2.2 Vent Restriction on page 46
outlines restrictor plate recommendations depending on burner
ame appearance, and instructions on installation after venting is
completed.
RESTRICTOR PLATE
REMOVE INNER MOST CIRCLE
TO CREATE LESS RESTRICTION
REMOVE ALL INNER RINGS FOR
THE LEAST RESTRICTION
BEND TABS TO APPROX. 80˚ ANGLES TO CREATE
TENSION TO HOLD ITSELF IN PLACE WHEN INSTALLED
SLIDE RESTRICTOR INTO EXHAUST PIPE ON TOP OF FIREPLACE
WITH TABS FACING TOWARDS YOU PRIOR TO ATTACHING VENTING
Figure 8.1, Restrictor Assembly and Installation
28 VENTING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
8.5 Vertical Terminations
Attic insulation shields may be insulated using unfaced insulation
products listed as non-combustible per ASTM E 136.
NOTE: A 4” x 6-5/8” reducer may be necessary to terminate vent system
to depending on your particular vent installation.
NOTE: A restrictor plate is recommended for 30 ft (9.14m) to 50 ft
(15.2m) of vertical venting if no elbows are used.
8.5.1 5” x 8” Vent Congurations
Table 8.1, NG & Propane - Minimum / Maximum Vertical Terminations
Minimum 5” x 8”
Vertical Length
Maximum 5” x 8”
Vertical Length
2 ft 610 mm 50 ft 15.2 m
8.5.2 4” x 65/8” Reducer Vent Congurations
Table 8.2, NG & Propane - Minimum / Maximum Vertical Terminations
Minimum 4” x 65/8”
Vertical Length
Maximum 4” x 65/8”
Vertical Length
2 ft 610 mm 50 ft 15.2 m
DIAG.1 VERTICAL TERMINATIONS
(A) Stand-o Brackets
(B) Stand-o Heat Shields
(C) 90° Elbow (not applicable)
(D) 4” x 65/8” Reducer
(E) Termination Cap
2 ft (610mm) MIN / 50 ft (15.2m) MAX
B
A
E
REDUCER + 2 ft (610mm) MIN / 50 ft (15.2m) MAX
A
B
E
E
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces VENTING 29
8.6 Combination Venting
8.6.1 5” x 8” Vent Congurations
8.6.1.1 Natural Gas Installations
IMPORTANT: Horizontal vent sections require ¼ in (6 mm) rise for every
12 in (305 mm) of travel.
Table 8.3, NG - Minimum Horizontal Vent Terminations
Minimum 5” x 8”
Vertical Rise
Minimum 5” x 8”
Horizontal Run
Maximum 5” x 8”
Horizontal Run
90° elbow 9 in 229 mm 4 ft 1219 mm
Table 8.4, NG - Max Vertical / Max Horizontal Combination
Maximum 5” x 8”
Vertical Rise
Maximum 5” x 8”
Horizontal Run
Total 5” x 8” Length
20 ft 6 m 20 ft 6 m 40 ft 12.2 m
Maximum number of 90° elbows: 5

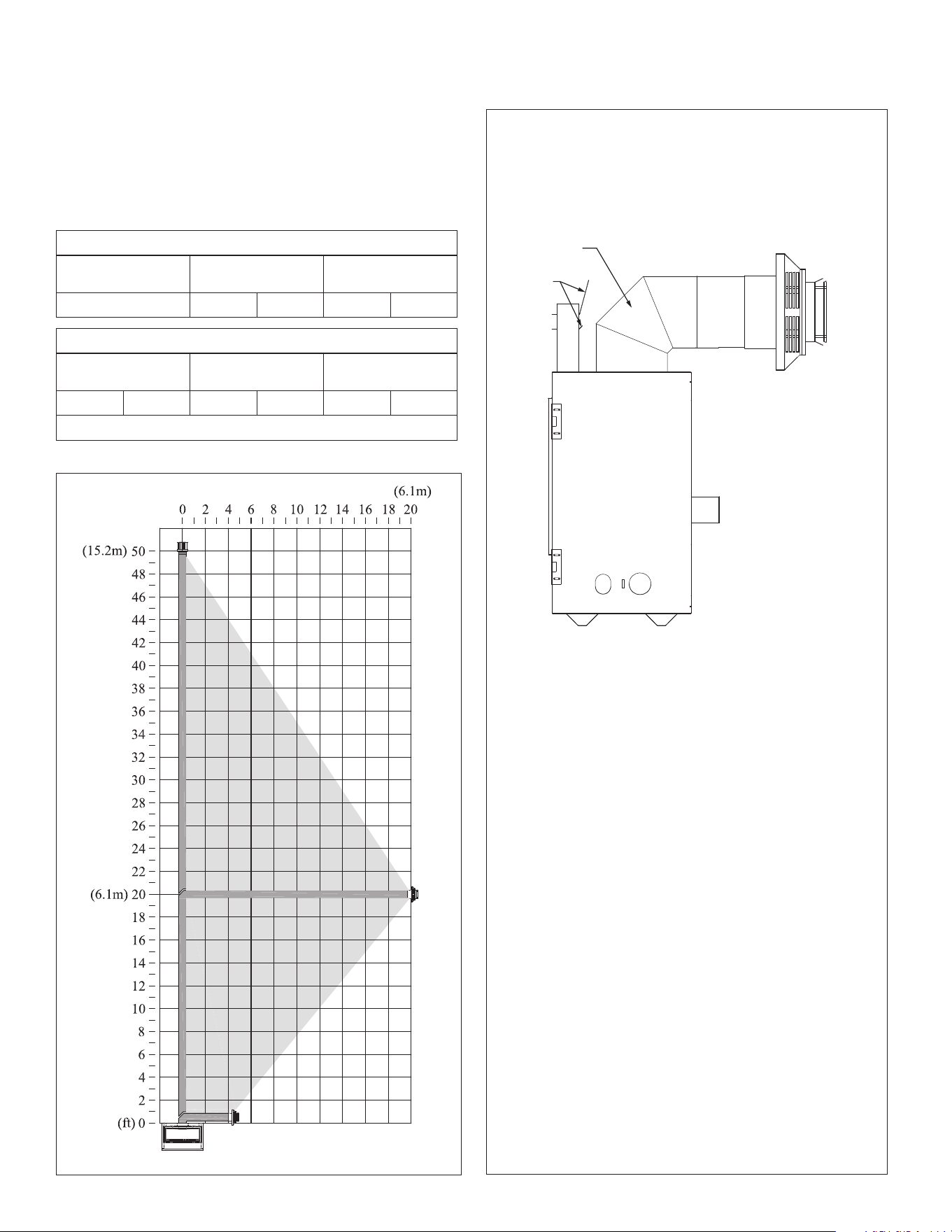

Figure 8.2, Natural Gas 5” x 8” Combination Venting
DIAG.2 NATURAL GAS 5” x 8” MINIMUM HORIZONTAL VENTING
(A) Stand-o Brackets
(B) Stand-o Heat Shields
(C) 90° Elbow
(D) 4” x 65/8” Reducer (not
applicable)
(E) Termination Cap
A
B
C
E
90° ELBOW + 9” (229mm) MIN / 4 ft (1219mm) MAX
30 VENTING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

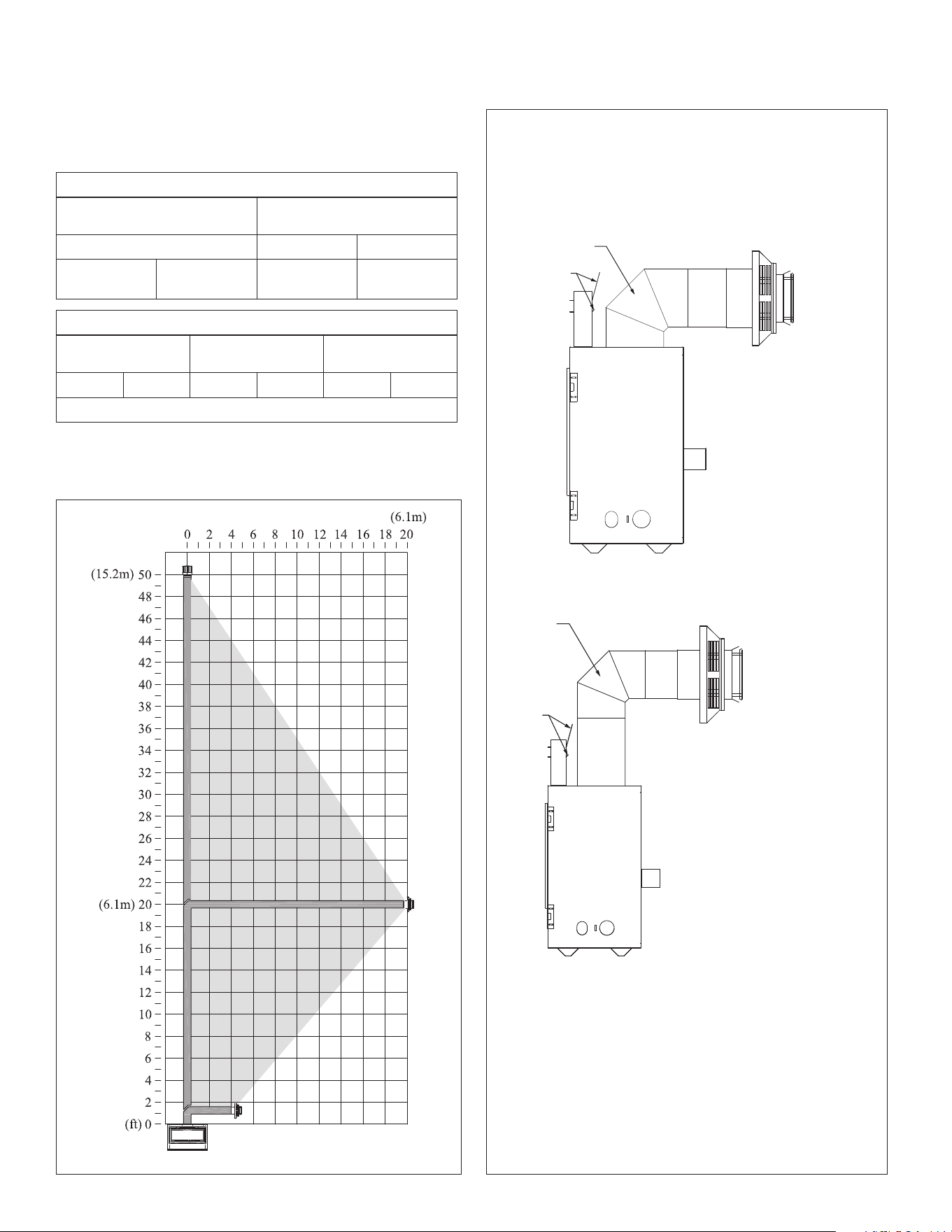

8.6.1.2 Propane Installations
IMPORTANT: Horizontal vent sections require ¼ in (6 mm) rise for every
12 in (305 mm) of travel.
Table 8.5, Propane - Minimum / Maximum Horizontal Terminations
Minimum 5” x 8”
Vertical Rise
Maximum 5” x 8”
Horizontal Run
90° elbow 9 in 229 mm
6 in + 9 in 153 mm +
229 mm
4 ft 1219 mm
Table 8.6, Propane - Max Vertical / Max Horizontal Combination
Maximum 5” x 8”
Vertical Rise
Maximum 5” x 8”
Horizontal Run
Total 5” x 8” Length
20 ft 6 m 20 ft 6 m 40 ft 12.2 m
Maximum number of 90° elbows: 5
Figure 8.3, Propane 5” x 8” Combination Venting
DIAG.3 PROPANE 5” x 8” MINIMUM HORIZONTAL VENTING
(A) Stand-o Brackets
(B) Stand-o Heat Shields
(C) 90° Elbow (not applicable)
(D) 4” x 65/8” Reducer (not
applicable)
(E) Termination Cap
A
B
C
E
90° ELBOW + 9” (229mm) MAX
A
B
C
E
6” (152mm) AND 9” (229mm) + 90° ELBOW + 4 ft (1219mm) MAX
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces VENTING 31

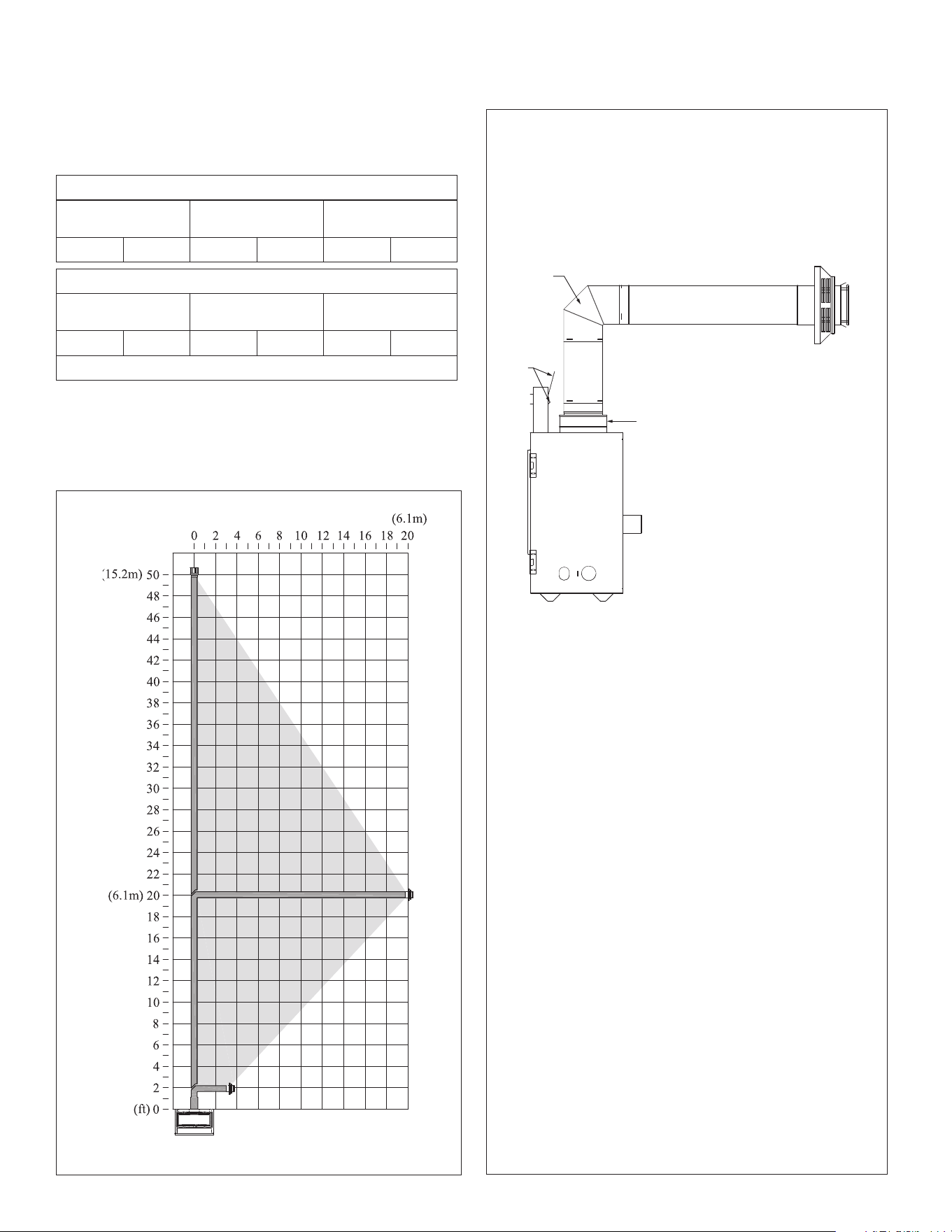

8.6.2 4” x 65/8” Reducer Vent Congurations
IMPORTANT: Horizontal vent sections require ¼ in (6 mm) rise for every
12 in (305 mm) of travel.
Table 8.7, NG & Propane - Minimum Horizontal Vent Terminations
Minimum 4” x 65/8”
Vertical Rise
Minimum 4” x 65/8”
Horizontal Run
Maximum 4” x 65/8”
Horizontal Run
12 in 305 mm 9 in 229 mm 3 ft 914 mm
Table 8.8, NG & Propane - Max Vertical / Max Horizontal Combination
Maximum 4” x 65/8”
Vertical Rise
Maximum 4” x 65/8”
Horizontal Run
Total 4” x 65/8” Length
20 ft 6 m 20 ft 6 m 40 ft 12.2 m
Maximum number of 90° elbows: 5
DIAG.4 NATURAL GAS AND PROPANE 4” x 6-5/8”
MINIMUM HORIZONTAL VENTING
(A) Stand-o Brackets
(B) Stand-o Heat Shields
(C) 90° Elbow
(D) 4” x 65/8” Reducer
(E) Termination Cap
A
B
C
E
D
REDUCER + 12” (305mm) + 90° ELBOW + 9” (229mm) MIN / 3 ft (914mm) MAX
Figure 8.4, Natural and Propane 4” x 6-5/8” Combination Venting
32 VENTING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

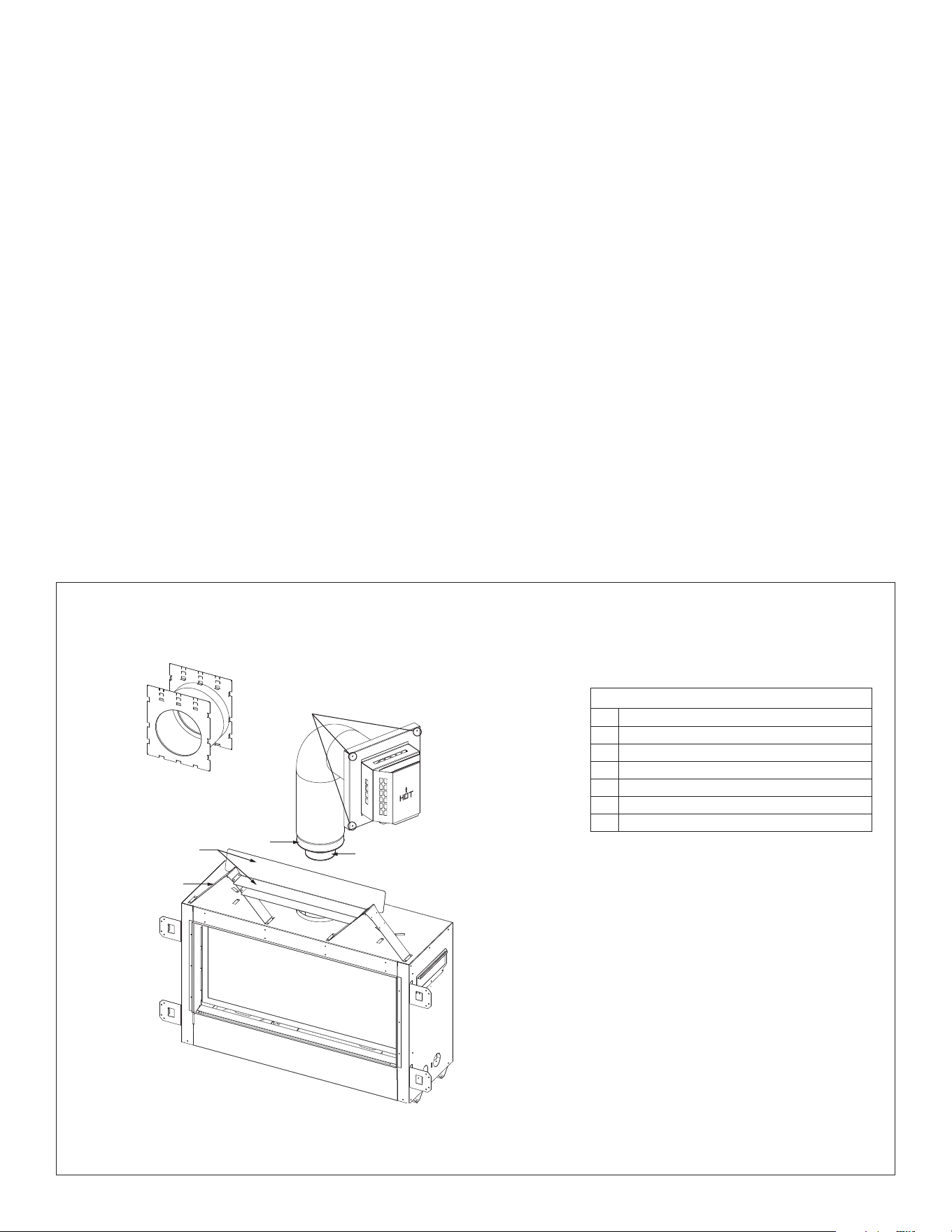

8.7 #800-1 Series Direct Vent
Termination Kit(s)
IMPORTANT: The ex pipe is permanently attached to the exterior plate.
DO NOT ATTACH either #844-1 or #845-1 termination kit to replace (or
extension kit) until it has passed through the wall. Install termination
plates to the outside wall exterior.
IMPORTANT: The minimum bend radius to center is 6 in (152 mm)
required for installation of the exible vent pipe. Care should be taken
when installing the exible vent pipe to avoid a tight bend that may
cause abrasion or damage to the exible pipe.
• If terminating against vinyl siding, a vinyl siding protector must
be used (included with the #844-1 and #845-1 direct vent kits).
Follow instructions included.
• Each #846-1 extension kit contains enough 5” & 8” exible
aluminum pipe to extend chimney an additional 6 ft (1.83 m).
8.7.1 Assembly and Installation
1. Mount the required wall thimble (G) with the required 1 in (25
mm) top clearance and 1 in (25 mm) side clearances to the
exterior wall, and seal.
2. (OPTIONAL) insulate the wall-pass through with any unfaced
insulation products listed as non-combustible per ASTM E 136.
3. Apply a liberal bead of exterior sealant around outer edge of
termination box (A), placing assembly through the wall-pass
through in exterior wall. Place screws through the four holes (B),
securing it in place.
4. Form the 5” & 8” exible aluminum pipes on termination kit
(#844-1 or #845-1), and if applicable, on each extension kit.
5. Gently pull 5” & 8” pipes down to the top of the replace, or if
applicable, the extension kit.
DO NOT stretch extension kit beyond 6 ft. (1.83 m); DO NOT stretch
beyond what is required. It is very dicult to decompress ex pipes
once stretched.
6. Place a bead of sealant outside 5” ex pipe collar (C) (end with
EXTERNAL LIP) and sliding it into 5” pipe on extension kit or top
of replace (D). Secure with 3 evenly spaced screws.
7. Place a bead of sealant inside 8” ex pipe collar (E) (end with
the INTERNAL lip), sliding it over 8” pipe on top of replace (F).
Secure with 3 evenly spaced screws.
8. If additional extension kits are required, repeat Steps 4 and 5,
placing 5” & 8” pipes onto previous extension kit.
LEGEND
A Termination box
B Holes in exterior wall (only 3 shown)
C 5” ex pipe collar
D 5” pipe on replace or extension kit (not shown)
E 8” ex pipe collar
F 8” pipe on replace or extension kit (not shown)
G Wall thimble with 1 in (25mm) clearance
Figure 8.5, Installation and Assembly #800-1 Series
G
B
A
C
E
STAND-OFF HEAT SHIELDS
STAND-OFF BRACKETS
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FIREPLACE SET UP 33

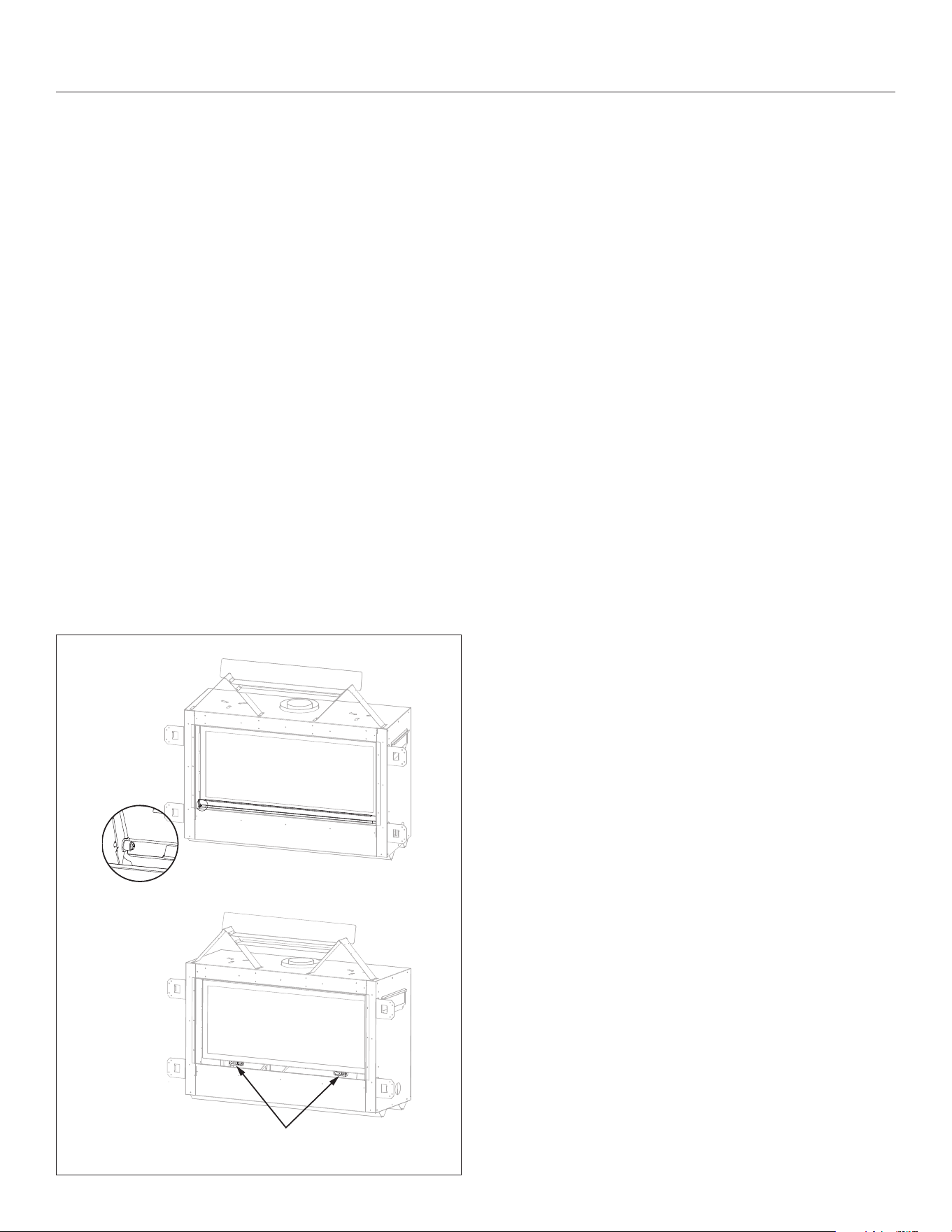

9.0 FIREPLACE SET UP
9.1 Glass Frame Assembly
WARNING: Do not operate this replace with the glass removed,
cracked, or broken. Replacement of the glass assembly should be done
by a licensed or qualied service person.
9.1.1 Remove Glass Frame Assembly
WARNING: Do not remove the glass assembly when hot.
1. Remove safety barrier.
2. Open the valve access cover by lifting the front up, and rotating
it towards the glass frame.
3. Using a phillips head screwdriver, remove screws securing valve
access cover (1 ea. side).
4. Loosen, but do not remove (2) wing nuts securing component
upper heat shield. Pull component board forward (secured to
heat shield with magnet). Remove heat shield.
5. Locate (2) spring loaded handles at bottom of rebox. Pull
handles out and down to release.
6. Lift glass frame assembly up and o (2) tabs at top of rebox.
9.1.2 Install Glass Frame Assembly
1. Place glass frame assembly top over tabs at top of rebox.
2. Pull bottom handles out and up to secure assembly bottom.
3. Reinstall component upper heat shield, secure with wing nuts,
re-attach component board magnet to upper heat shield.
4. Reinstall valve access cover, using screws previously removed.
5. Reinstall safety barrier.
9.2 Light Kit
CAUTION: Disconnect all electrical power from the replace before
performing this task.
ATTENTION: If converting to Propane, complete the conversion before
installing any light kit components. Follow instructions provided with
the conversion kit (sold separately).
NOTE: To avoid damage and prolong the life of the halogen bulbs,
never touch with bare hands. Always use a soft cloth when handling.
9.2.1 Install Light Kit
1. Remove the safety barrier and glass frame assembly.
2. Remove glass media (if installed).
3. Remove (10) screws securing burner cover. Lift cover out of
rebox.
4. Install (6) halogen bulbs (included in component packet) into
lamp bases.
5. Reinstall the burner cover with (10) screws previously removed.
6. Reinstall glass media, glass frame assembly, and safety barrier.
HINGE SCREW SECURING VALVE
TO ACCESS COVER (1 EACH SIDE)
HANDLE LOCATION
Figure 9.1, Glass Frame Assembly Removal and Installation
34 FIREPLACE SET UP Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

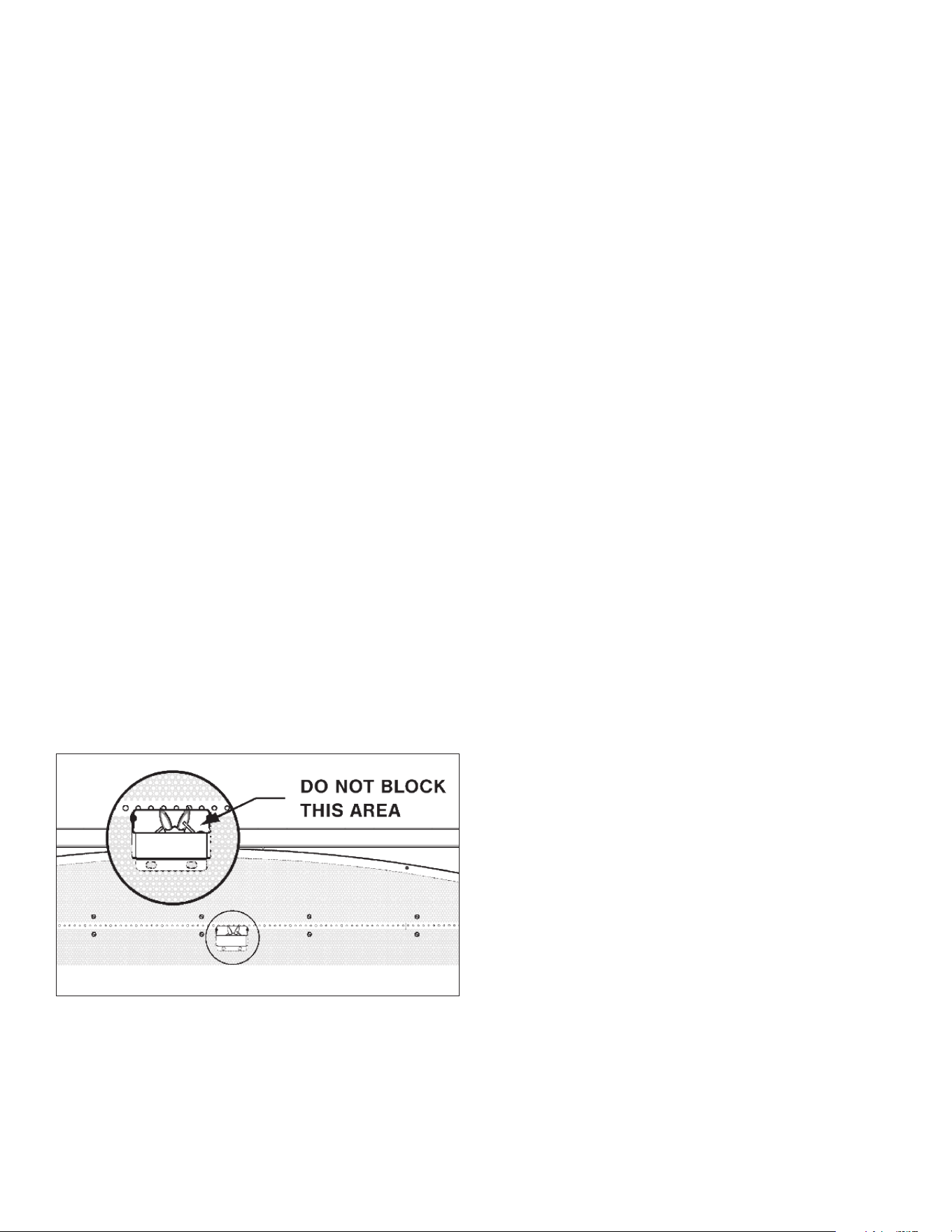

9.3 Glass Media
WARNING: DO NOT BLOCK PILOT WITH GLASS MEDIA. A BLOCKED
PILOT MAY CAUSE DELAYED IGNITION.
NOTE: Follow instructions below for proper installation of your specic
glass media. Do not substitute materials.
9.3.1 #109 Series Glass Media Installation
1. Remove glass media from its packaging. The glass media may be
cleaned prior to installation. See 9.3.4 below.
2. Install 9 lbs. (4.08 kg) of glass beads onto burner assembly and
pilot shield.
3. Verify glass media is one layer deep across the rebox and does
not block any burner ports. Do not block the pilot assembly.
4. Save any unused media for later use.
9.3.2 #201 Series Glass Media Installation
1. Remove glass media from its packaging. The glass media may be
cleaned prior to installation. See 9.3.4 below.
2. Install 10 lbs. (4.5 kg) of crushed glass onto burner assembly and
pilot shield.
3. Remove 50% of the crushed glass covering the burner ports. Do
not block the pilot assembly.
4. Save any unused media for later use.
9.3.3 #309 Series Glass Media
1. Remove glass media from its packaging. The glass media may be
cleaned prior to installation. See 9.3.4 below.
2. NATURAL GAS INSTALLATIONS: Install 9 lbs. (4.08 kg) of reective
glass onto the burner assembly and pilot shield. Do not block
pilot assembly.
3. PROPANE INSTALLATIONS: Install 7 lbs. (3.175 kg) of reective
glass onto the burner assembly and pilot shield. Do not block
pilot assembly.
4. Save any unused media for later use.
Figure 9.2, Pilot Assembly Area
9.3.4 Cleaning Glass Media
As a natural reaction from direct contact to heat and exposure to
ame, glass media may discolor or produce a ne oil residue. Follow
instructions below to clean glass media. Contact your local authorized
dealer for replacement glass media.
• Remove glass media from rebox using protective gloves.
• Clean glass media with mild dish soap and water.
• Drain and rinse the glass media thoroughly. Verify the glass
media is completely dry before placing on media tray.
• Follow instructions above for your specic glass media
reinstallation. Do not block the pilot assembly with glass media.
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FIREPLACE SET UP 35

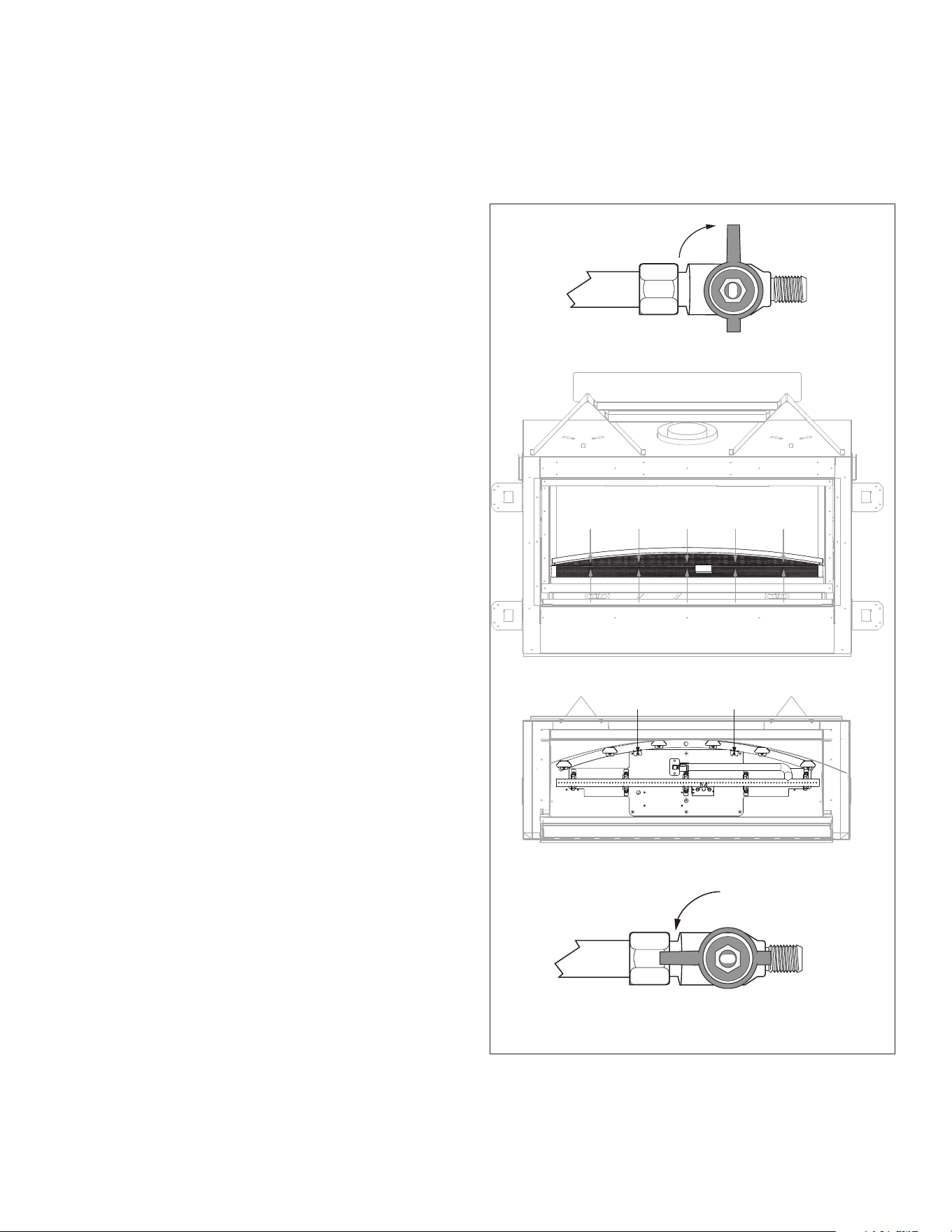

9.4 Control Board Removal and Installation
WARNING: If burner and/or pilot have been burning,
use appropriate protection to avoid burns or damage
to personal property before removing any components.
DO NOT OPERATE THIS APPLIANCE WITHOUT THE SEALING GASKET
(LOCATED UNDER THE CONTROL BOARD) IN PLACE. IF GASKETING IS
DAMAGED, IT MUST BE REPLACED.
CAUTION: Check all connections for leaks with soapy water, whether
eld or factory made.
9.4.1 Control Board Removal
1. Disconnect electrical power.
2. Locate the manual valve installed by your qualied service
technician.
3. Turn the manual valve clockwise to the OFF position.
4. Remove the safety barrier and glass frame assembly.
5. Remove glass media and media dam.
6. Remove burner cover (10) screws.
7. Remove burner venturi housing.
8. Use a 7/16” wrench to remove (1) ¼” ange nut securing the
burner tube to the control board. Remove burner tube from
mounting cradles. Remove burner tube from mounting cradles.
9. Remove (2) nuts securing light bar to control board. Carefully
move light bar backwards far enough to clear board.
10. Remove (8) screws securing control board. Lift the control board
out of rebox, being careful not to damage sealing gasket lying
underneath.
9.4.2 Control Board Installation
1. Place control board in rebox, aligning holes in the board to the
holes in the rebox oor. VERIFY SEALING GASKET IS IN PLACE.
2. Secure the control board to the rebox using (8) screws
previously removed.
3. Reinstall light bar onto control board, secure with (2) nuts
previously removed.
4. Reinstall burner venturi housing.
5. Reinstall the burner tube. Position the burner venturi over burner
orice, aligning the burner tube with mounting cradles on
control board. Secure with (1) ¼” ange nut previously removed.
6. Reinstall burner cover, aligning holes in cover to corresponding
holes in burner tube mounting cradles. Secure with (10) screws
previously removed.
7. Reinstall the media dam.
8. Reinstall glass media, being careful not to block pilot.
9. Reinstall the glass frame assembly and safety barrier.
10. Turn the manual valve counterclockwise to the ON position.
11. Reconnect electrical power.
12. Verify proper glass media placement, operation of replace, and
any electrical components.
Figure 9.3, Control Board Removal and Installation
(10) SCREWS SECURING BURNER COVER
(2) NUTS SECURING LIGHT BAR
(8) SCREWS SECURING CONTROL BOARD
2/16/17 REV 5: added instructions to remove and reinstall the ange nut securing the burner tube to the con-
trol board.
36 ELECTRICAL INFORMATION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
10.0 ELECTRICAL INFORMATION
WARNING: Do not use this replace if any part has been under water.
Immediately call a qualied service technician to inspect this appliance
and to replace any part of the control system and any gas control which
has been under water.
WARNING - Electrical Grounding Instructions: This appliance is
equipped with a three-prong (grounding) plug for your protection
against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding
prong from this plug.
10.1 Electrical Specications
This appliance, when installed, must be electrically grounded in
accordance with local codes, or in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
10.2 Wiring Requirements
• The IFC System Module requires 120V of electricity and/or
batteries to operate.
• Using the battery back-up will operate the burner only.
• Fan and light components will not function on battery back up
power.
MALE END
VARIABLE
SPEED FAN
VARIABLE
LIGHT
APPLIANCE
GROUND STAR
BATTERY
PACK
885 PROFLAME
MAIN ON/OFF
SWITCH
PILOT
PILOT
BURNER
FLAME
SENSOR
IGNITER
SW1 BUTTON (RED)

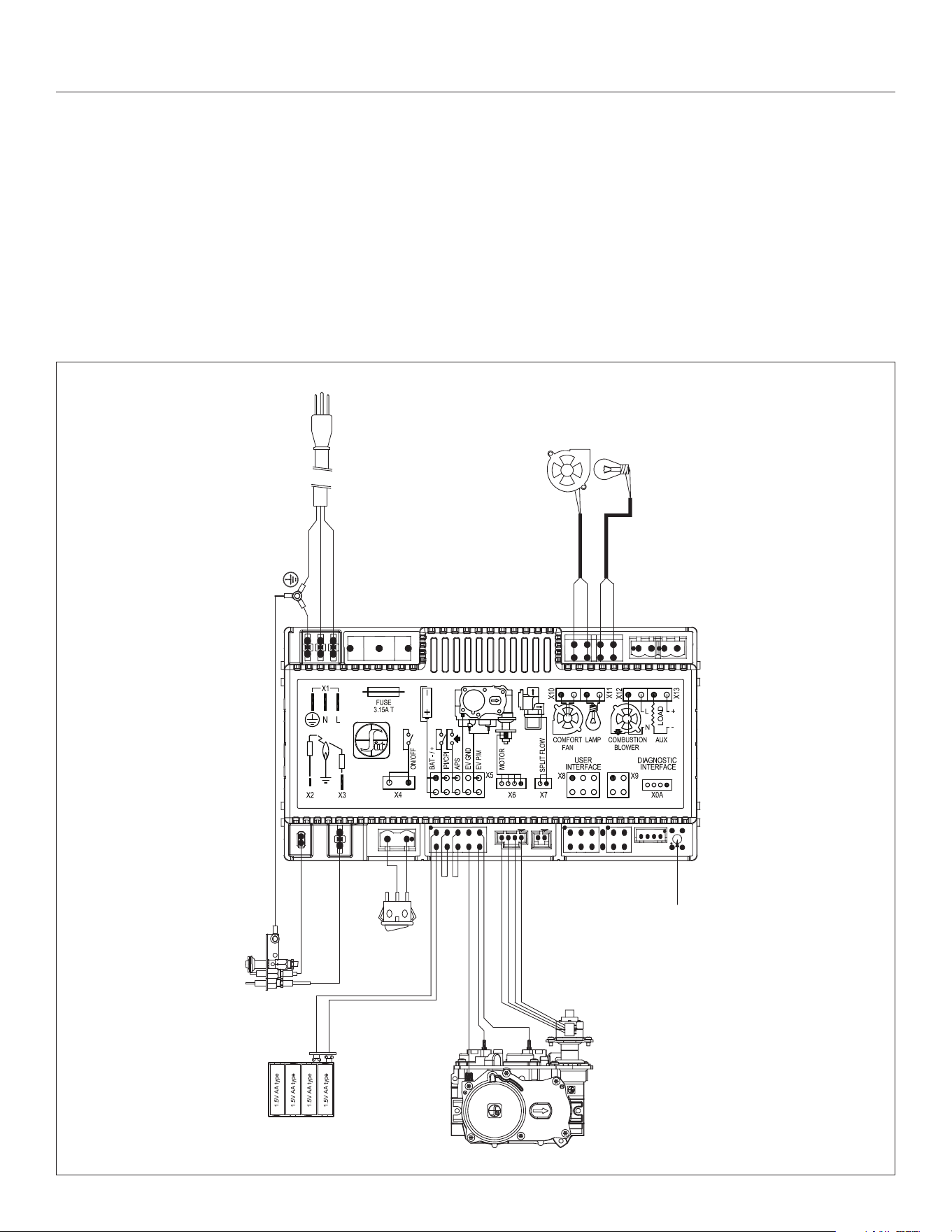

Figure 10.1, Wiring Schematics
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ELECTRICAL INFORMATION 37

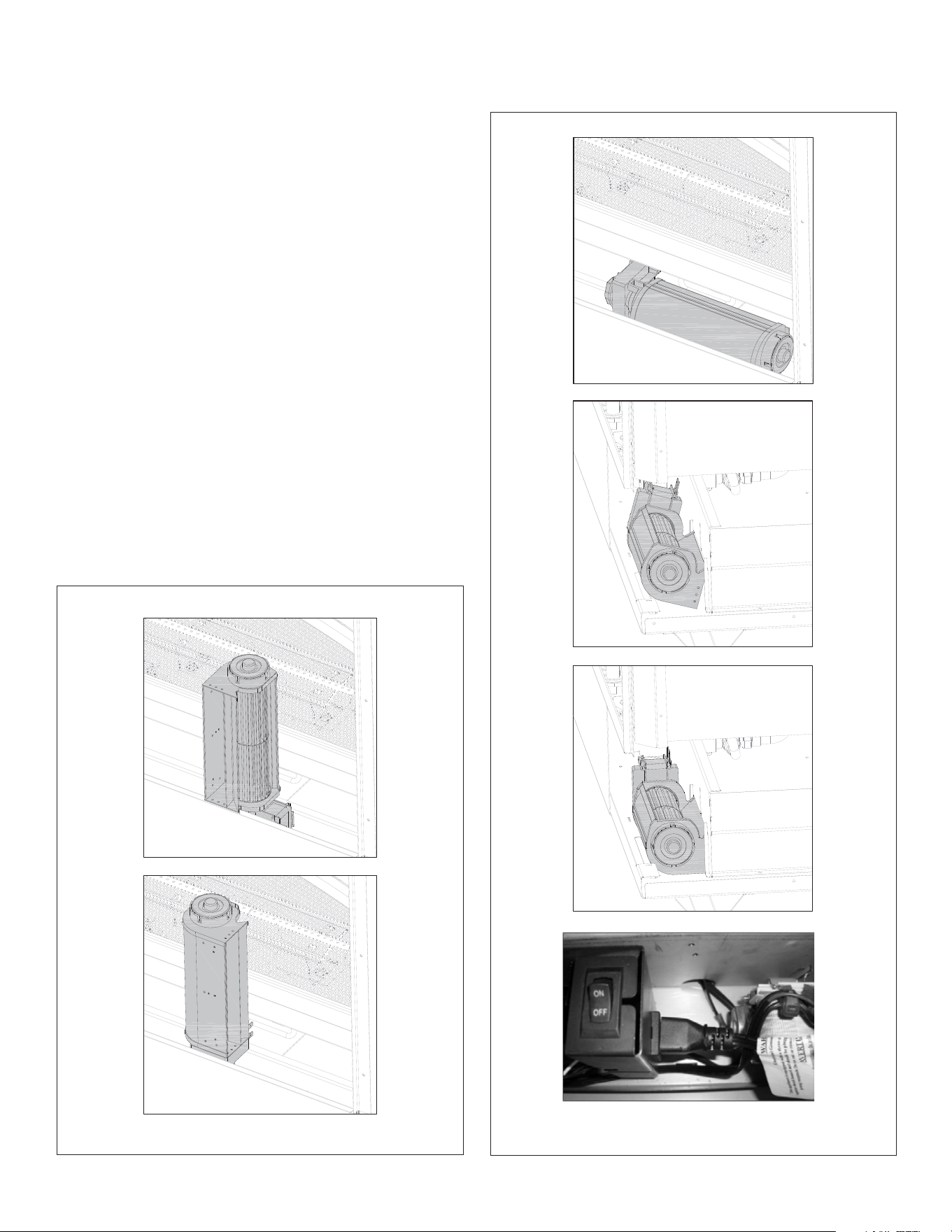

10.3 #SL42-028 Optional Fan Kit
ATTENTION: Installation of this fan kit should be done only by a
qualied installer.
WARNING: Verify household breaker is shut o prior to working on
any electrical lines. Disconnect all electric power from replace before
performing any of these tasks.
1. Remove safety barrier and glass frame assembly.
2. Disconnect wiring terminals from fan motors.
3. With the motor end of the fan’s right side facing down and to the
right, insert fan into chamber.
4. When the motor end clears the replace face, turn the fan to the
left.
5. Rotate the top end down and to the right, lowering the fan into
control compartment.
6. Position fan as shown in.. As you rotate the fan towards you, the
upper edge of the fan discharge will lock behind the top edge of
replace air channel opening, securing fan into place. DO NOT
LET THE FAN REST ON ANY ELECTRICAL CORDS.
7. Repeat for the left fan, noting the fan rotation in steps above will
be opposite of the right fan.
8. Reattach wiring terminals to fan motors.
9. Plug the fan cord into the receptacle on the IFC control module.
See wiring schematic on previous page.
10. Reinstall the glass frame assembly and safety barrier.
Figure 10.2, Steps 3 and 4
Figure 10.3, Steps 5 through 9
38 OPERATING INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

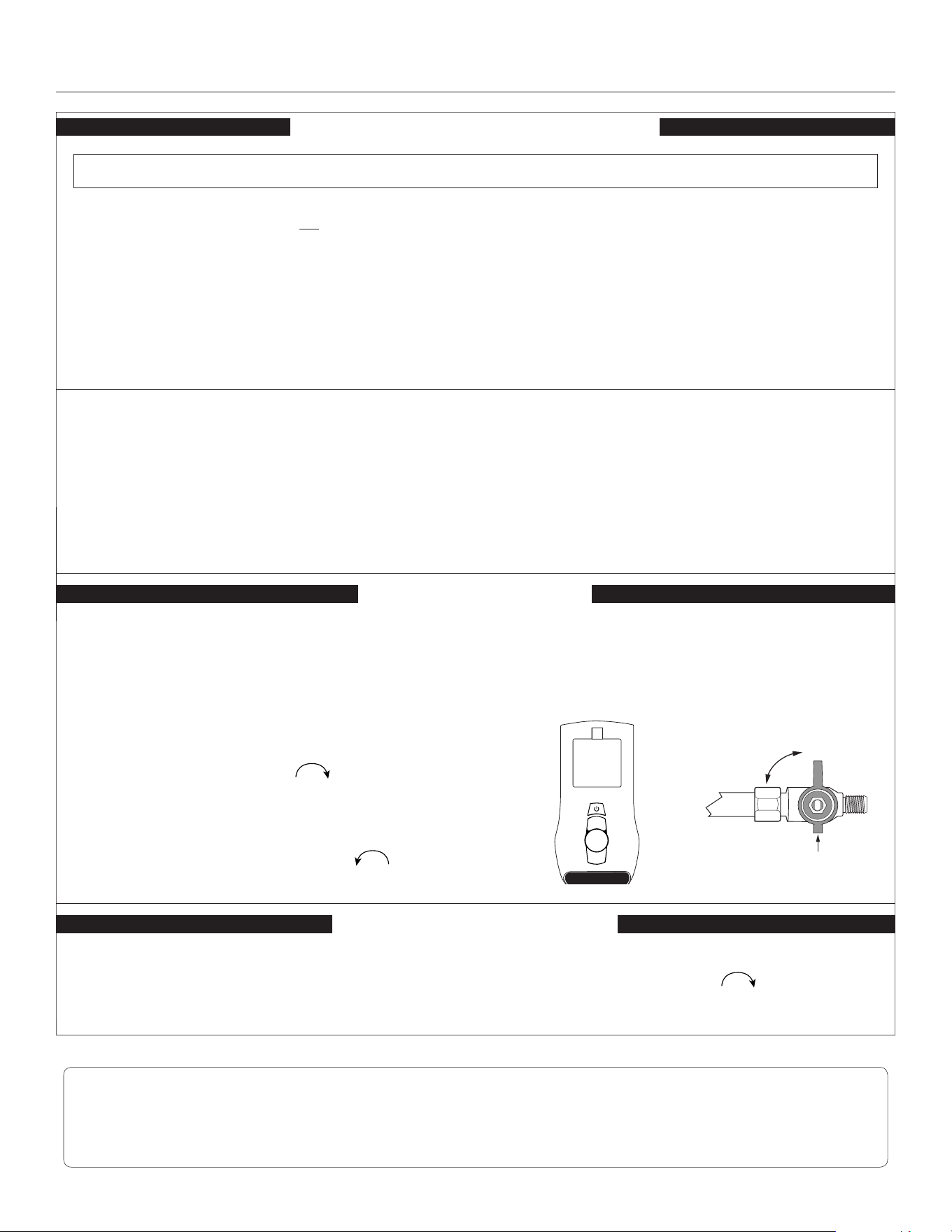

11.0 OPERATING INSTRUCTIONS
WARNING
Do not operate appliance with the glass front removed, cracked, or
broken. Replacement of the glass should be done by a licensed or
qualied service person.
Under no circumstances should any solid fuel (wood, coal, paper,
cardboard, etc.) be used in this appliance.
Children and adults should be alerted to the hazards of high surface
temperature and should stay away to avoid burns or clothing ignition.
CAUTION
Clothing or other ammable material should not be placed on or near
the appliance.
Young children should be carefully supervised when they are in the
same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict
access to a replace or stove, install an adjustable safety gate to keep
toddler, young children and other at risk individuals out of the room
and away from hot surfaces.
WARNING: If you do not follow these instructions exactly, a re or explosion may result causing property damage, personal injury, or loss of life.
1. STOP! Read all the safety information above on this page.
2. Press the wireless remote OFF button.
3. Turn o all electric power to the appliance.
4. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by
hand.
5. Locate the manual valve installed by your qualied service
technician.
6. Turn the manual valve clockwise to the OFF position.
7. Wait ve (5) minutes to clear out any gas. Then, smell
for gas, including near the oor. If you smell gas, STOP!
Follow ‘B’ in the safety information above. If you do not smell
gas, go to the next step.
8. Turn the manual valve counterclockwise to the ON
position.
9. Turn on all electric power to the appliance.
10. Press the wireless remote ON button.
11. If the appliance will not operate, follow the instructions, “To
Turn O Gas To Appliance” and call your service technician or
gas supplier.
OPERATING INSTRUCTIONS
NOTE
When this replace is initially lit, condensation will appear on the glass. This is normal in all gas replaces and will disappear after several
minutes. A paint smell will occur during the rst few hours of burning. It is recommended to leave the fan o during this period to help speed
the paint curing process. This replace may produce noises of varying degree as it heats and cools due to metal expansion and contraction.
This is normal, and does not aect the performance or longevity of the replace.
A. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the pilot by
hand.
B. BEFORE OPERATING smell around the appliance area for gas. Be
sure to smell next to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
C. Use only your hand to turn the gas control manual valve. Never
use tools. If the valve will not turn by hand, do not try to repair
it; call a qualied service technician. Force or attempted repair
may result in a re or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system and
any gas control that has been under water.
ON/OFF
ON
OFF
1. Press the wireless remote OFF button.
2. Turn o all electric power to the appliance if service is to be
performed.
3. Locate the manual valve installed by your qualied service
technician.
4. Turn the manual valve clockwise to OFF position.
FOR YOUR SAFETY READ BEFORE OPERATING
TO TURN OFF GAS TO APPLIANCE
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS 39
11.1 Setup Proame 2 IFC Module
1. Set the main ON/OFF rocker switch in the OFF position.
2. Install (4) AA batteries (included in the components packet) into
backup battery holder on the control module.
3. Install (3) AAA batteries (included in the components packet) in
the remote control battery bay, located at the base of the remote.
4. Connect the IFC Module to an AC power supply.
11.2 Initialize the Control System
IMPORTANT: Remove all packaging and combustible material from the
rebox before initializing the control system.
NOTE: Performing the next steps will initiate pilot start-up in manual
mode, where the pilot igniter will spark repeatedly. The pilot will ignite
if gas is supplied to the replace.
1. Locate the red SW1 button the IFC module.
2. Press the SW1 button. The IFC module will BEEP (3) times and
illuminate an amber LED. This indicates the receiver is ready to
synchronize with the transmitter.
3. Within (5) seconds, push the ON/OFF button on the remote
control. The receiver will BEEP (4) times to indicate the transmitter’s
command is accepted, and is set to the transmitter’s particular
code. The pilot will automatically ignite.
4. Press the remote control ON/OFF button again. The pilot will
extinguish, conrming the remote control command. The control
system is now initialized.
5. Set the main ON/OFF rocker switch to ON position for remote
control operation of the main burner and replace features.
11.3 Reset the System for
Manual Operation
1. Set the ON/OFF rocker switch to OFF position.
2. Press the red SWI button on the IFC module until it emits (3) beeps
and an amber LED is illuminated.
3. Within (5) seconds, press the red SWI button again. This will
close synchronization with the remote control. The pilot will
automatically light.
• Turn the main burner ON by setting the ON/OFF switch in ON
position. The main burner will only operate on HI.
• Turn the main burner OFF by setting the ON/OFF switch in the
OFF position. The pilot will remain lit even if burner is turned o,
provided CPI mode is turned on.
11.4 Automatic Safety Restart
• This system will execute an automatic turn OFF command for
approximately (5) seconds within (24) hours of a continued pilot
ame ignition to perform a safety check. This allows the system to
verify correct safety functions.
• After the turn OFF sequence is completed, the IFC module will re-
execute the latest command.
11.5 Backup Battery Operation
This appliance will operate on the backup battery pack when electric
power is interrupted, or in a power outage. The lifespan of the backup
batteries depend on various factors, such as the quality of the batteries,
number of ignitions, et cetera.
• When the backup battery pack is low, the IFC module will emit a
double-beep while receiving an ON/OFF command.
• No commands will be accepted after this alert until the back up
batteries are replaced.
• Once replaced, the IFC module will emit a ‘beep’ as soon as it is
powered.

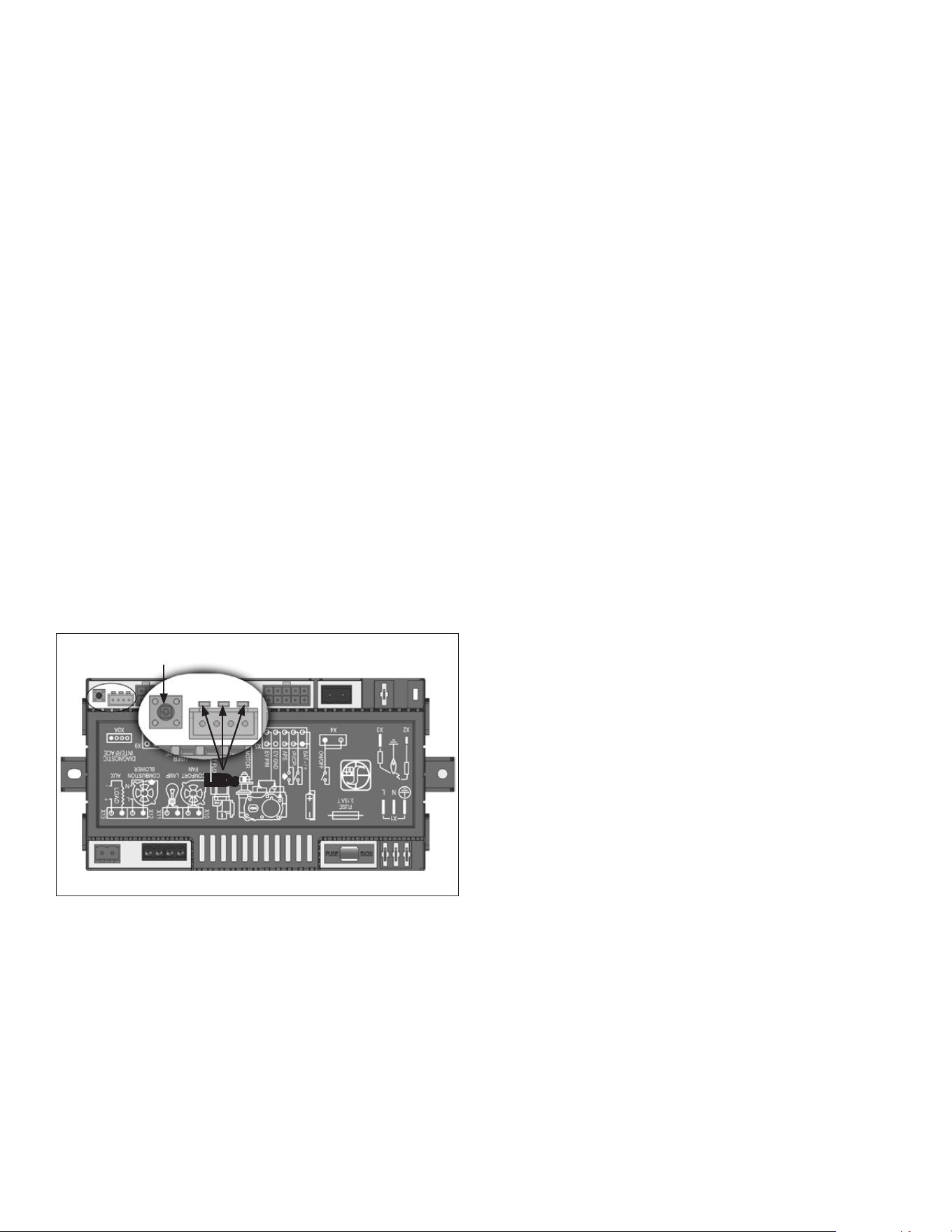

Figure 11.1, IFC Module
SW1
BUTTON
LEDs
40 OPERATING INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
11.6 IFC Module Ignition Sequence
The IFC module will try (2) times for ignition, each lasting
approximately (60) seconds, with approximately (35) seconds
between each attempt.
1. With the system in OFF position, press the remote control ON/OFF
key. Approximately (4) seconds after this key is depressed, the IFC
module will generate sparks to the pilot hood.
2. First ignition attempt will generate sparks for (60) seconds.
3. If there is no ame ignition (rectication) within the (60) second
time frame, the IFC module will stop generating sparks for
approximately (35) seconds.
4. After (35) seconds of wait time, the IFC module will generate
sparks for another (60) seconds for the second ignition attempt.
5. If there is no positive rectication after (60) seconds, the IFC
module will go into a lock out. The red LED will blink (3) times, in
intervals, until the system is reset.
11.6.1 Reset IFC Module after Lockout
11.6.1.1 ON/OFF Rocker Switch
1. Set the ON/OFF rocker switch to the OFF position.
2. After approximately (2) seconds, move the switch to the ON
position. The ignition sequence will start again.
11.6.1.2 Remote Control ON/OFF Key
1. Press the remote control ON/OFF key to turn the system OFF.
2. After approximately (2) seconds, press the ON/OFF key again. The
ignition sequence will start again.
11.6.1.3 Cycling Flame
1. Press the remote control down arrow key during ame adjustment
mode to reduce the ame to OFF (indicated by OFF displayed on
the LCD screen).
2. After approximately (2) seconds, press the up arrow key. The
ignition sequence will start again.
11.7 Additional Diagnostic Information
Low Battery Condition (<4V) Remote Control:
• Battery Icon will appear on LCD remote control display.
• Replace batteries.
Low Battery Condition (<4V) Battery Backup:
• The red LED Indicator will blink (1) time in intervals.
• A low double-beep emits from the IFC control module when it
receives an ON/OFF command from the remote control..
• Replace Batteries.
Pilot Flame Error Condition:
• Red LED Indicator will blink (2) times in intervals. Contact your
dealer if this occurs.
System Lock Out Condition:
• Red LED Indicator will blink (3) times in intervals.
• Verify gas is turned on.
• Verify sensor is not shorted.
• Follow Section 11.2 Initialize the Control System.
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS 41

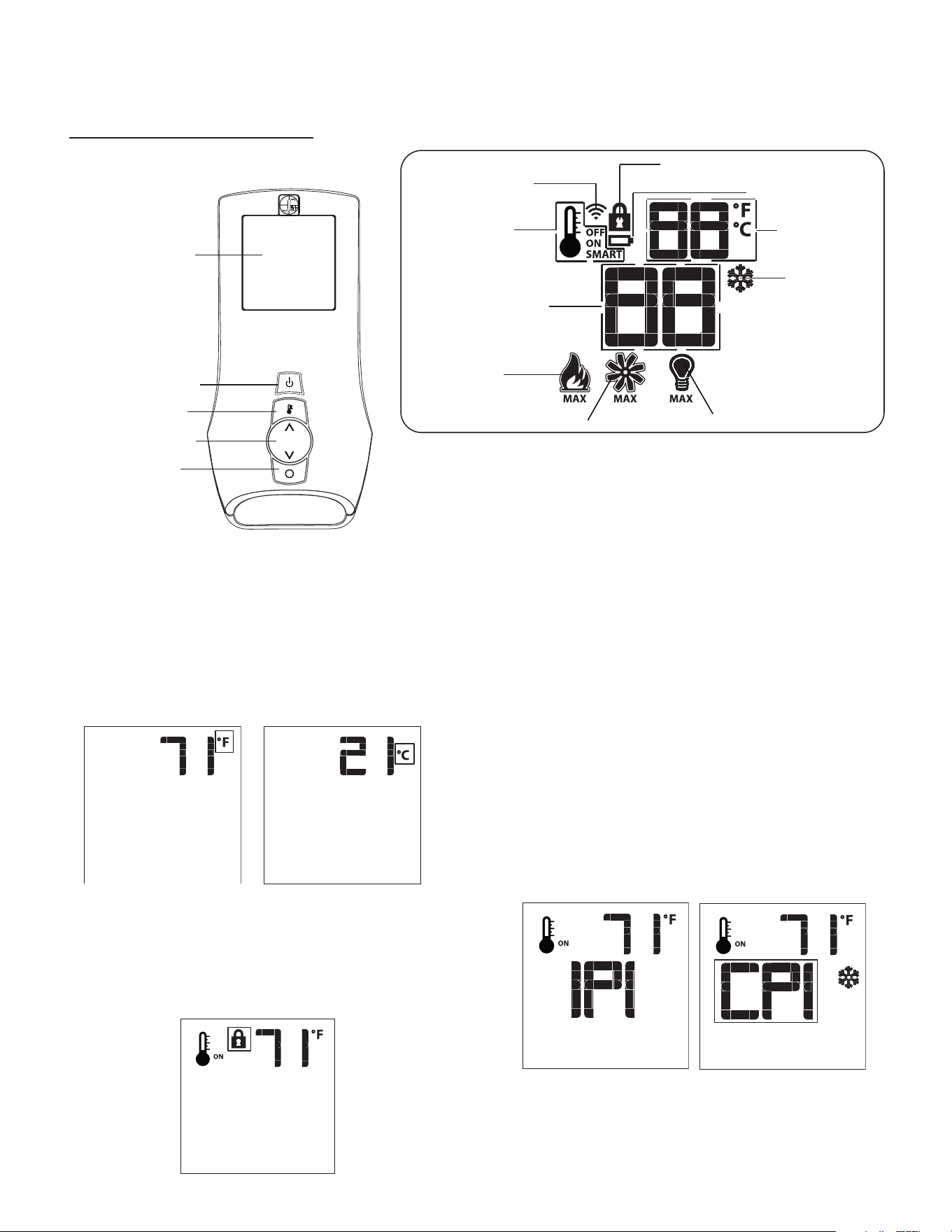

11.8 Remote Control Operation
11.8.1 Temperature Display
1. With the system in the OFF position, simultaneously press the
thermostat key and the mode key to change degrees from °F to
°C.
2. Visually check the LCD screen to verify either °F or °C is displayed
on the right side of the room temperature display.
11.8.2 Key Lock
This function locks the keys to avoid unsupervised operation. Once
activated, a lock icon will appear on the LCD screen.
1. Simultaneously press the mode key and the up arrow key to
activate or deactivate this function.
11.8.3 Pilot Ignition Selection (IPI/CPI)
This system has the option of a continuous (standing) pilot. This
features allows the system to change from a spark-to-pilot system
to the standing pilot option. The standing pilot will keep the rebox
warm and establish a draft in the vent, which allows the main burner
to ignite with less air-ow disruption.
When the system is OFF, the LCD screen will display the snowake icon
during the setup of either IPI or CPI mode. To select the preferred pilot
ignition feature,
1. With the system in the OFF position, press the mode key to index
the CPI mode icon.
2. Press the up arrow key to activate CPI.
3. Press the down arrow key to return to IPI. A single ‘beep’ will
conrm reception of the command.
When the system is ON,
IPI mode: LCD screen will not display the snowake icon
CPI mode: LCD screen will display the snowake icon
LOW BATTERY ALARM
KEY LOCK
LIGHT ON
ROOM
TEMPERATURE
SET POINT
TEMPERATURE/LEVEL/STATE
FLAME ON
THERMOSTAT
OFF/ON/SMART
FAN
TRANSMISSION
CPI MODE
LCD DISPLAY
ON/OFF KEY
THERMOSTAT KEY
UP/DOWN ARROWS
MODE KEY
BLUE BACK
LCD DISPLAY
PROFLAME 2 TRANSMITTER
42 OPERATING INSTRUCTIONS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018

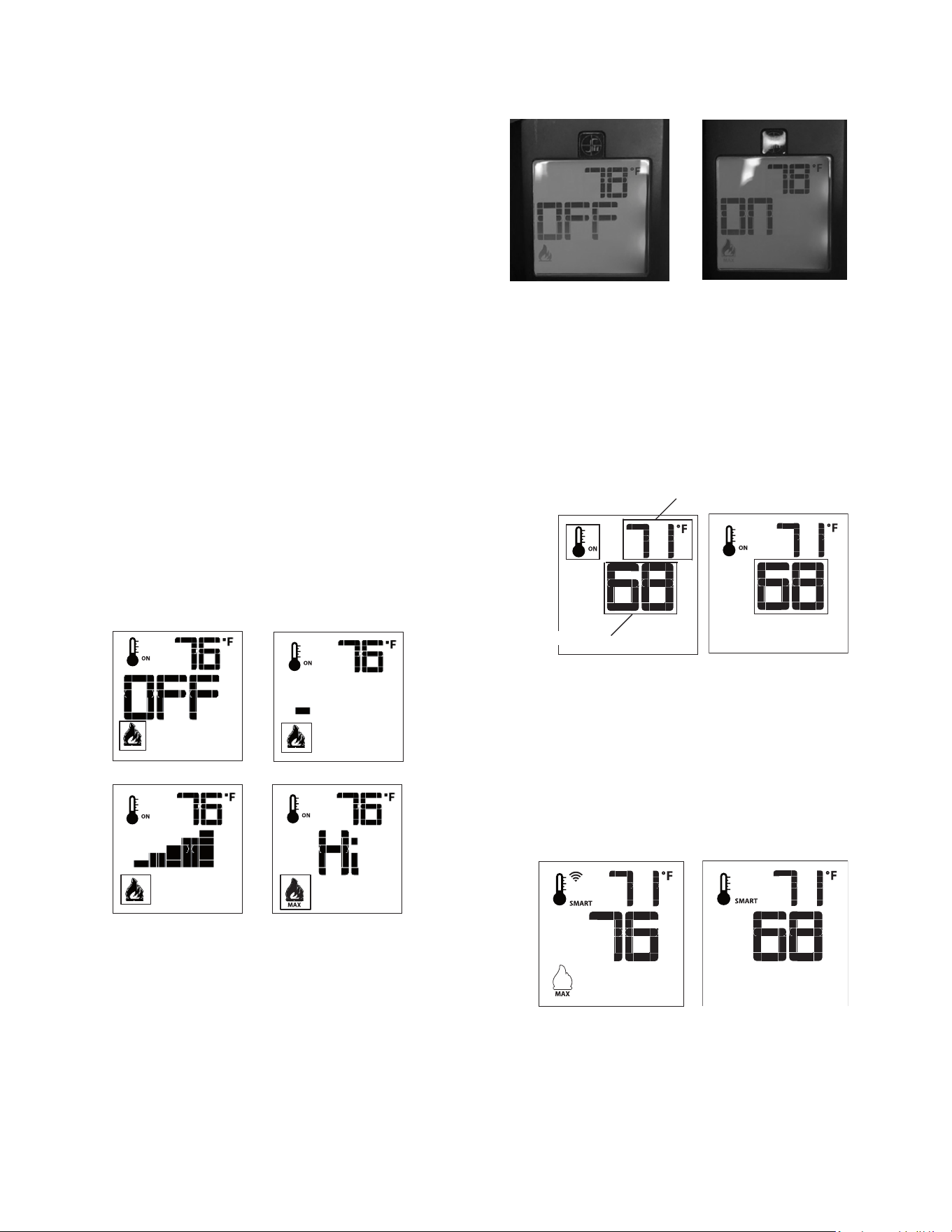

11.8.4 Turn ON the Appliance
1. With the system in the OFF position, press the remote control
ON/OFF key to turn ON the appliance.
A single ‘beep’ will emit from the IFC module to conrm
reception of the command.
The LCD screen will display all active icons, and the IFC module will
start the ignition sequence.
11.8.5 Turn OFF the appliance
1. With the system in the OFF position, press the remote control
ON/OFF key to turn ON the appliance.
A single ‘beep’ will emit from the IFC module to conrm
reception of the command.
The LCD screen will only display the room temperature and its icon,
and the IFC module will turn o the main burner.
11.8.6 Remote Control Flame Adjustment
This control system has (6) ame levels. If the smart thermostat
operation is activated, then the manual adjustment of the ame
height will be disabled.
1. Verify the system is in the ON position and the ame level is set
at maximum.
2. Press the down arrow key once to reduce ame height by one
level until the ame is turned o.
3. Press the up arrow key once to increase ame height by one
step. If the up arrow key is pressed while the system is on, but
the ame is o, the ame will ignite on HI.
4. A single ‘beep’ will conrm reception of the command.
11.8.6.1 Deactivate Flame Modulation
1. Verify all (3) AAA batteries are installed in the remote control
battery bay.
2. Remove (1) AAA battery.
3. Press and hold the on/o key and the mode key at the same
time.
4. Reinsert (1) AAA battery.
5. While still holding the on/o key, let go of ONLY the mode key.
6. Index over to the ame graphic on the LCD screen to edit. Use
the up or down arrow key to choose ‘ON’ or ‘OFF’.
11.8.7 Remote Control Thermostat Operation
11.8.7.1 Room Thermostat
The remote control can operate as a room thermostat. The thermostat
can be set to a desired temperature to control a room’s comfort level.
To activate this function,
1. Press the thermostat key. The LCD screen will display a
temperature bulb graphic, the room temperature and set
temperature.
2. To adjust the set temperature, press the up or down arrow keys
until the desired temperature is displayed on the LCD screen.
11.8.7.2 Smart Thermostat
The smart thermostat function will adjust the ame height based
on the set temperature and the actual room temperature. The smart
thermostat function automatically adjusts the ame down when the
room temperature reaches the set point. To activate this function,
1. Press the thermostat key until the ‘SMART’ appears on LCD
screen on the right side of the temperature bulb graphic.
2. To adjust the set temperature, press the up or down arrow keys
until the desired temperature is displayed on the LCD screen.
11.8.7.3 Deactivate Remote Control
Thermostat Operation
The thermostat operation function can be deactivated. The remote
control will still operate the main burner on and o, and function
ame, fan, and light modulation. To deactivate this function,
1. Verify all (3) AAA batteries are installed in the remote control.
2. Remove (1) AAA battery.
Flame Off
Flame Level 1
Flame Level 5 Flame Level Maximum
SET TEMPERATURE
ROOM TEMPERATURE
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces OPERATING INSTRUCTIONS 43

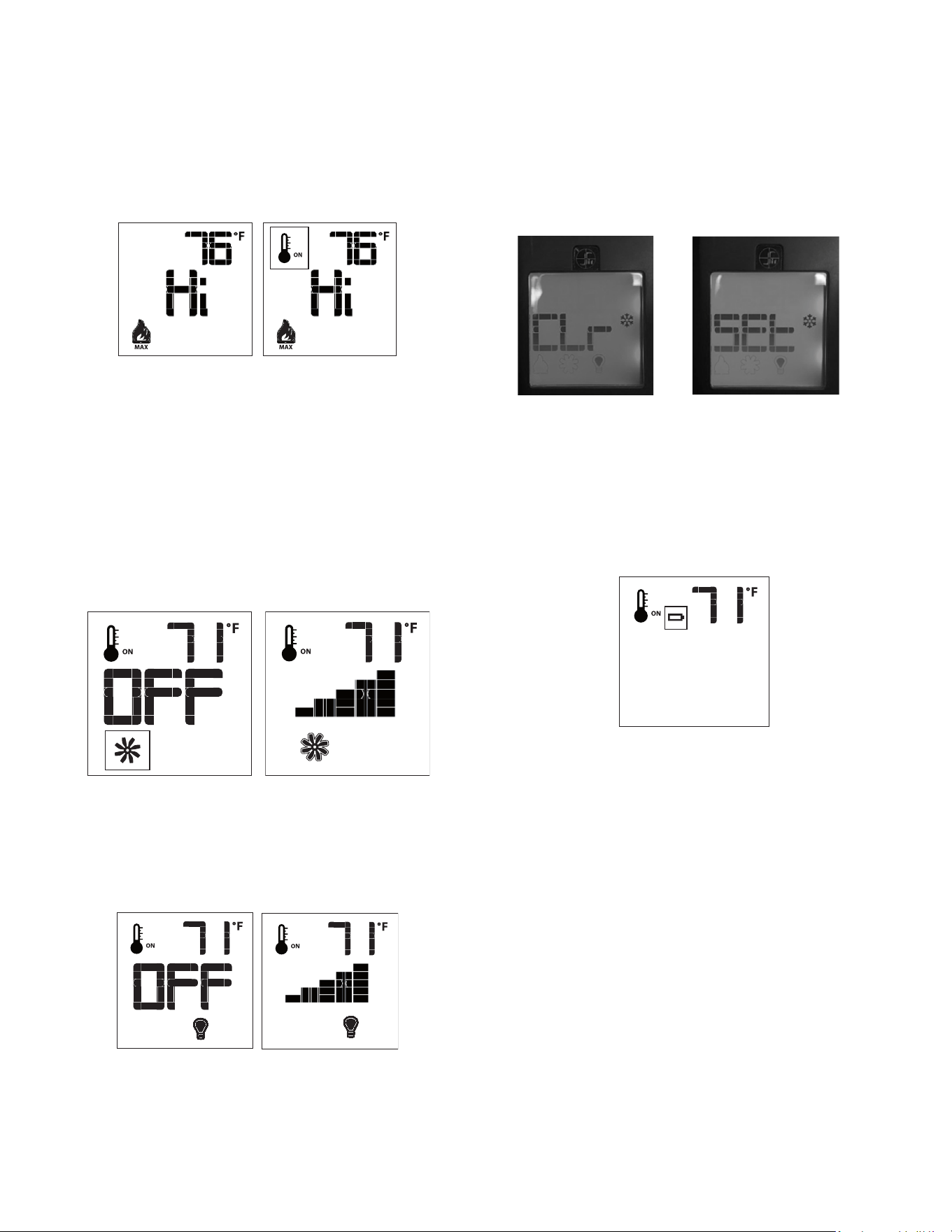

3. While reinserting the battery, push and hold the thermostat key.
The temperature bulb graphic will not be displayed on the LCD
screen.
4. To reactivate remote thermostat operation, follow the same key
sequence procedure above. The temperature bulb graphic will
reappear on the LCD screen.
11.8.8 Fan Speed Control (optional)
Fan speed can be adjusted through (6) speeds. To activate this
function,
1. Press the mode key to index to the fan control icon.
2. Press the up or down arrow keys to turn on, o, or to adjust fan
speed.
Thermostat mode: Fan(s) have a (5) minute delay time when the
replace is let. This allows time for heat to build in replace before
fan operation. The fan will continue to operate for approximately (12)
minutes after the replace has been turned o.
Manual mode: Fan(s) will operate at previous setting. There is no delay
in start up or stop time.
11.8.9 Accent Light Kit (if applicable)
The light intensity can be adjusted through (6) levels.
1. Press the mode key to index to the light icon.
2. Press the up or down arrow keys to adjust the intensity level.
3. A single ‘beep’ will conrm reception of the command.
11.8.9.1 Deactivate Light Kit Modulation
1. Verify all (3) AAA batteries are installed in the remote control
battery bay.
2. Remove (1) AAA battery.
3. Press and hold the on/o key and the mode key at the same
time.
4. Reinsert (1) AAA battery.
5. While still holding the on/o key, let go of ONLY the mode key.
6. Index over to the bulb graphic on the LCD screen to edit. Use the
up or down arrow key to choose ‘SET’ or ‘CLR’.
11.8.10 Remote Control Low Battery Detection
Remote control battery lifespan depends on various factors including
battery quality, number of ignitions, changes to room thermostat set
point, etcetera.
• When the remote control battery are low, a battery icon will
appear on the LCD display before all battery power is lost.
• When the batteries are replaced, this icon will disappear.
44 ADJUSTMENT Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
12.0 ADJUSTMENT
12.1 Pressure Testing
NOTE: The appliance and its appliance main gas valve must be
disconnected from the gas supply piping system during any pressure
testing of the system at test pressures in excess of ½ psi (3.5 kPa).
IMPORTANT: Pressure check taps for manifold (outgoing) and inlet
(incoming) pressure have been incorporated into the valve. The
pressure tap marked OUT measures outgoing pressure. The pressure
tap marked IN measures incoming pressure.
12.1.1 Inlet Pressure Test
NOTE: Make sure to apply these incoming pressure test with all other
gas appliances on, or at full capacity in the house for proper pressure
reading.
IMPORTANT: If the inlet pressure reading is too high or too low, contact
the gas company. Only a qualied gas service technician should adjust
incoming gas pressure.
1. Loosen the inlet (IN) pressure tap by turning screw counter-
clockwise. See (A) in Figure 12.1.
2. Attach manometer using a ¼ in (6 mm) I.D. hose.
3. Light pilot and burner. Check pressure to ensure it is between
the minimum and maximum recommended pressure settings.
4. Turn o burner and pilot.
5. Disconnect hose and tighten the inlet (IN) pressure tap by
turning screw clockwise. Screw should be snug. Do not over
tighten.
6. Relight pilot and burner. Then reattach manometer to the
inlet pressure tap (A) to verify the tap is completely sealed.
Manometer should read no pressure.
12.1.2 Manifold Pressure Test
1. Light pilot.
2. Loosen manifold (OUT) pressure tap by turning screw counter-
clockwise. See (B) in Figure 12.1.
3. Attach manometer to pressure tap using a ¼ in (6 mm) I.D. hose.
4. Light burner. Check manometer reading.
5. Turn burner and pilot o.
6. Disconnect manometer hose and tighten the manifold (OUT)
pressure tap by turning screw clockwise. Screw should be snug.
Do not over tighten.
7. Attach the manometer to the manifold pressure tap (B) to verify
it is completely sealed. The manometer should read no pressure
when pilot and burner are on.
Table 12.1, Inlet Pressures
Fuel Natural Gas Propane
Gas Supply Min - Max Min - Max
Inlet Pressure
Tap (A)
5” - 10.5” WC
(1.25 - 2.62 kPa)
12” - 13” WC
(2.99 - 3.24 kPa)
Table 12.2, Manifold Pressure
Fuel Natural Gas Propane
Gas Supply Low - High Low - High
Manifold Pressure
Tap (B)
1.1” - 3.8” WC
(.27 - .95 kPa)
2.9” - 11” WC
(.72 - 2.74 kPa)

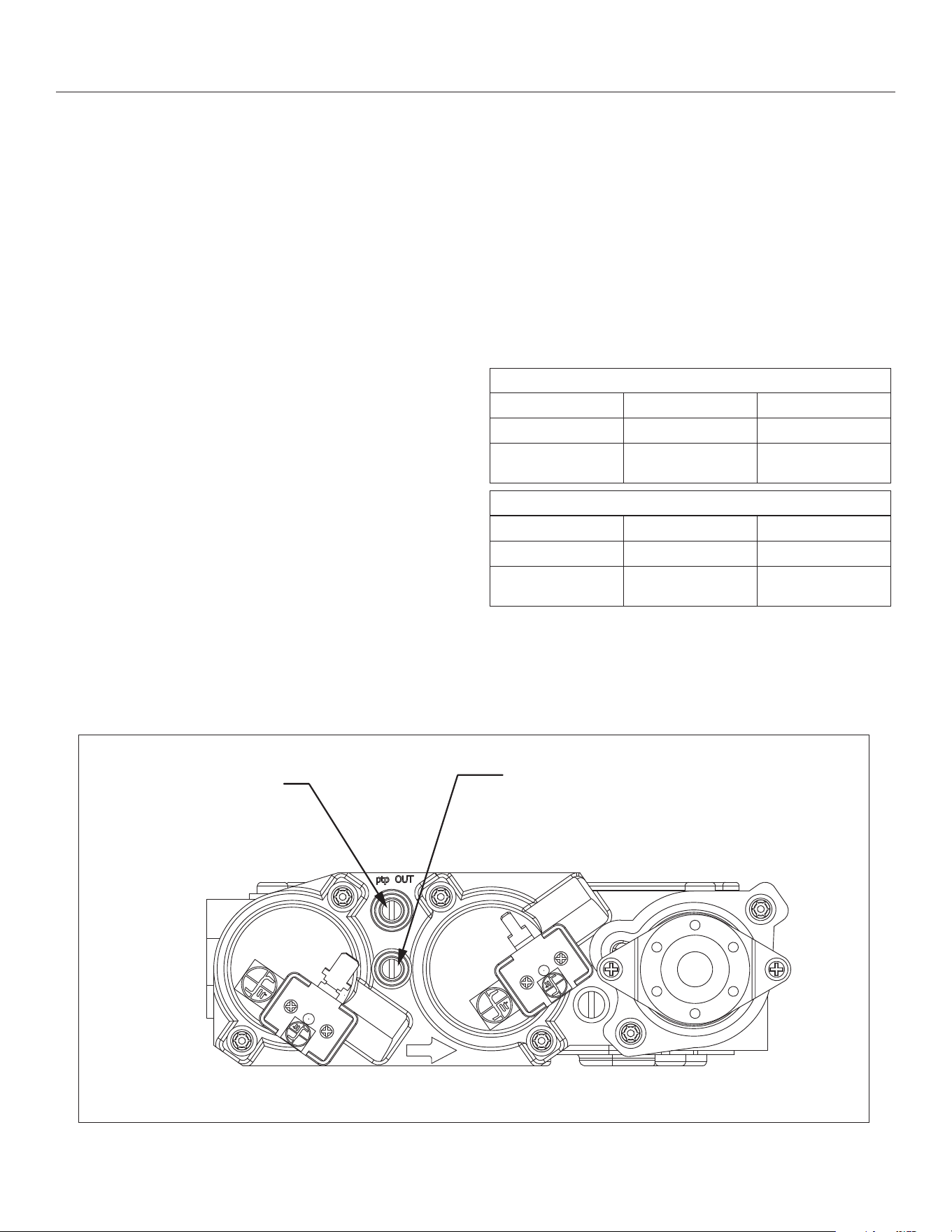

Figure 12.1, Pressure Check Taps
(B) MANIFOLD
PRESSURE TAP
(A) INLET PRESSURE
TAP
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ADJUSTMENT 45
12.2 Flame Appearance Adjustment
WARNING: To avoid property damage or personal injury, allow the
replace ample time to cool before making any adjustments.
Burner ame appearance and characteristics are aected by
altitude, fuel quality, venting conguration, and other factors. After
installation, this appliance may need additional adjustments to
achieve optimum ame appearance and visual aesthetics.
12.2.1 Burner Venturi
WARNING: VENTURI ADJUSTMENT MUST BE DONE BY A QUALIFIED
SERVICE TECHNICIAN.
NOTE: Burner venturi air shutter settings have been factory set. Refer
to Table 12.3.
When this appliance is rst lit, the burner ames will appear blue.
During the rst 15 minutes of operation, ame appearance will
gradually turn to the desired yellow appearance. If the ames remain
blue, or become dark orange with evidence of sooting (black tips),
adjustment of the air shutter opening may be necessary.
Regardless of venturi orientation, closing the air shutter will achieve a
desired yellow ame, but may produce soot on the glass. Opening the
air shutter will cause a short, blue ame that may lift o the burner.
12.2.1.1 Venturi Opening Adjustment
IMPORTANT: Slight adjustments to the venturi opening will create
dramatic results. Adjust at slight increments until desired look is
achieved.
1. Remove the safety barrier, glass frame assembly, and glass
media.
2. Remove burner cover (10) screws.
3. Remove burner venturi housing and burner from rebox.
4. Loosen the screw on burner venturi and adjust as necessary. Re-
tighten screw.
5. Reinstall all components previously removed.
Table 12.3, Factory Set Venturi Openings
Fuel Air Shutter Opening
Natural Gas 1/8” (3 mm)
Propane 5/8” (16 mm)
Table 12.4, Flame Appearance Venturi Adjustment
Flame Characteristic Cause Solution
Dark, orange ame
with black tips
Venturi closed too far Open venturi slightly
Short, blue ames Venturi open too far Close setting slightly
Lifting (ghosting)
ames
Gas pressure too high
Venturi closed too far
Check manometer
settings
Open venturi setting
slightly

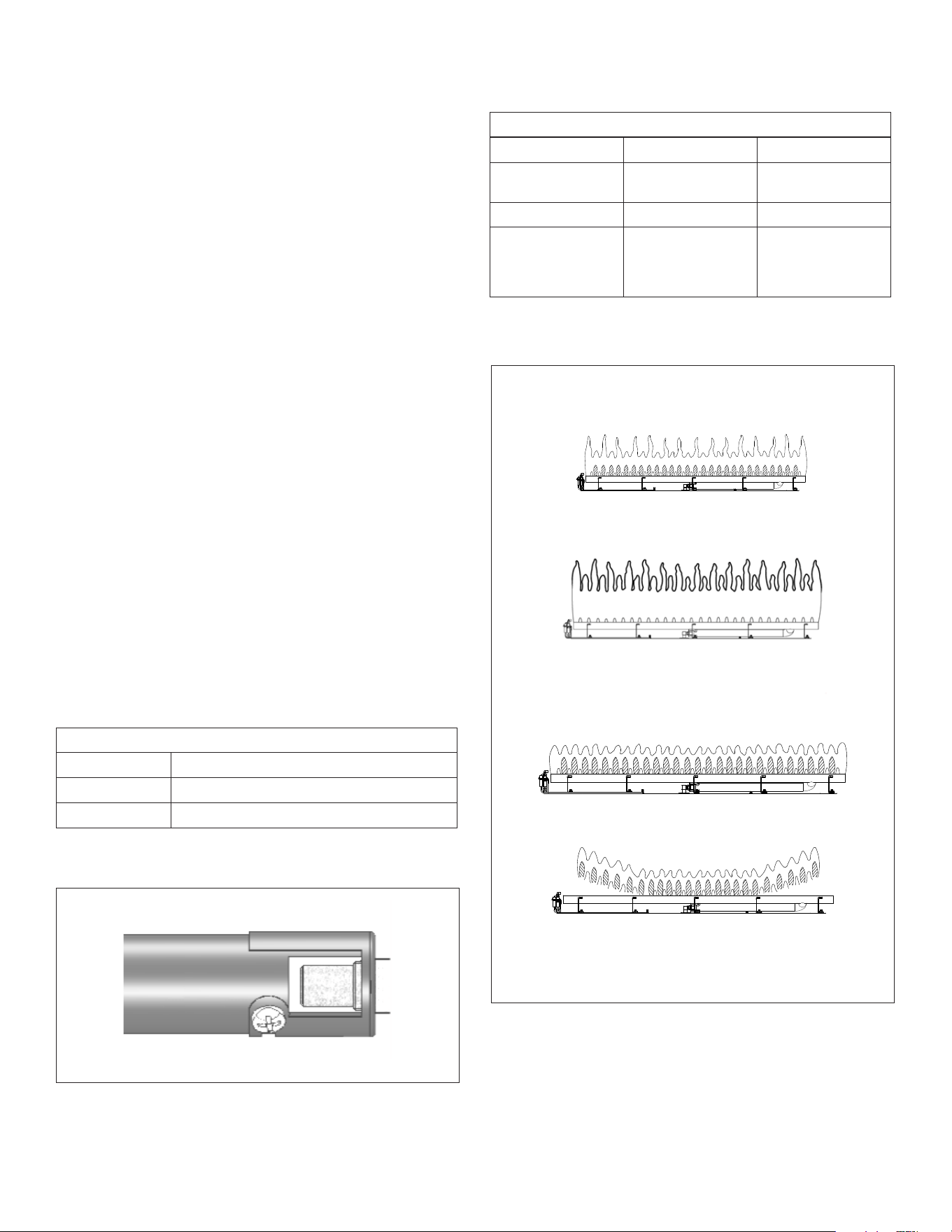

Figure 12.2, Burner Venturi
LAZY, YELLOW FLAMES
IDEAL
SHORT, BLUE FLAMES
LIFTING (GHOSTING) FLAMES
Figure 12.3, Flame Appearance and Characteristics
DARK, ORANGE FLAMES
WITH BLACK TIPS
46 ADJUSTMENT Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
12.2.2 Vent Restriction
WARNING: To avoid property damage or personal injury, allow the
replace ample time to cool before making any adjustments.
WARNING: Improper vent installation may cause the burner ames
to lift or “ghost.” Perform a visual check on ame appearance after
restrictor adjustment to ensure proper performance.
Vertical terminations may display an active, compact ame. To
achieve desirable ame appearance, the vent exit may be restricted
by the restrictor plate (included in components packet). A restrictor
plate is recommended for 30 ft (9.14m) to 50 ft (15.2m) of vertical
venting if no elbows are used.
Follow the tables below to adjust the restrictor plate to desired ame
appearance. Allow the replace to burn for 15 minutes before making
any adjustments to the restrictor setting.
Table 12.5, Restrictor Adjustment for Flame Appearance
Flame Appearance Draft Problem Vent Restriction
Short, ickering Excessive draft
Not enough
restriction
Install restrictor plate
Lifting or ghosting* Insucient draft
Too much
restriction
Remove inner ring(s) on
restrictor plate, or remove
restrictor plate
*If ames continue to lift or ghost after opening the bae restrictor or
installing and verifying correct vent installation, shut o the gas supply
and call a qualied service technician.
12.2.2.1 Restrictor Plate Installation
1. Remove the safety barrier and the glass frame assembly.
2. Remove (2) screws securing termination access panel. Release
panel tabs from slots in bae.
3. Bend the tabs on the restrictor plate (included in components
packet) to approximately 80° angles. This will create tension
when the restrictor is inserted into the exhaust pipe.
4. Insert restrictor into the 5 in (127 mm) exhaust pipe with the tabs
pointing towards you.
5. Reinstall termination access panel by inserting tabs in panel into
slots in bae. Secure with (2) screws previously removed.
6. Reinstall all components previously removed.
12.2.2.2 Restrictor Plate Modication
1. Remove the safety barrier and the glass frame assembly.
2. Remove (2) screws securing termination access panel. Release
panel tabs from slots in bae.
3. Remove the restrictor by pulling it down and out of the 5 in (127
mm) exhaust pipe.
4. Make necessary modications to achieve desired ame
appearance.
5. Insert restrictor into the 5 in (127 mm) exhaust pipe with the tabs
pointing towards you.
6. Reinstall termination access panel by inserting tabs in panel into
slots in bae. Secure with (2) screws previously removed.
7. Reinstall all components previously removed.
RESTRICTOR PLATE
REMOVE INNER MOST CIRCLE
TO CREATE LESS RESTRICTION
REMOVE ALL INNER RINGS FOR
THE LEAST RESTRICTION
BEND TABS TO APPROX. 80˚ ANGLES TO CREATE
TENSION TO HOLD ITSELF IN PLACE WHEN INSTALLED

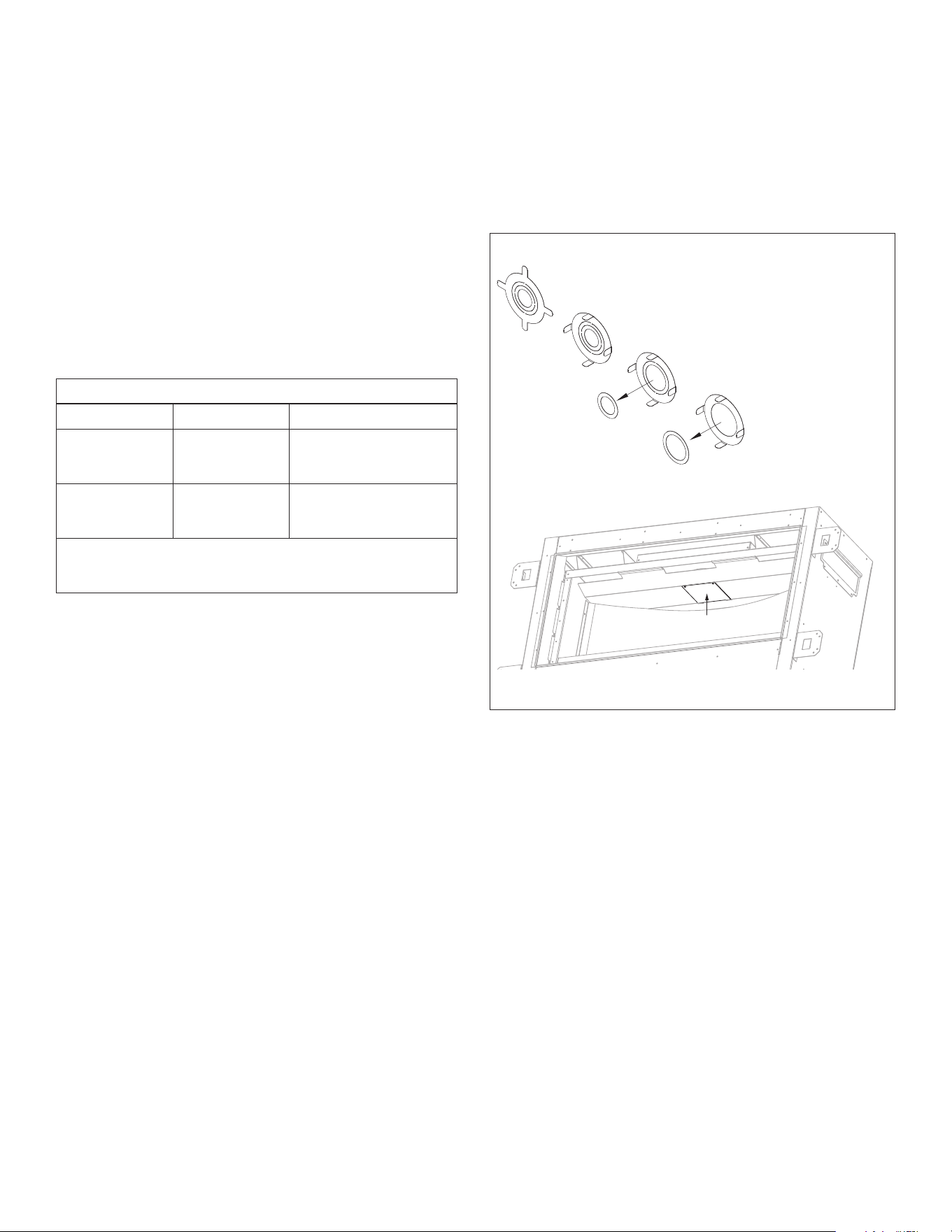

Figure 12.4, Restrictor Installation and Modication
TERMINATION ACCESS PANEL
(2 SCREWS)
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces TROUBLESHOOTING 47
13.0 TROUBLESHOOTING
ATTENTION: Troubleshooting must be performed by a qualied
technician.
Before proceeding with the steps in the following troubleshooting
guide,
• Verify proper 120VAC power supply to the control module.
• Verify the control module battery pack and the remote control
batteries are fresh and installed with correct polarity.
• Verify all connections between the wire harnesses and the
system components are proper and positive.
• Verify the communication link is established between the remote
control and the IFC module.
• Verify inlet pressure meets the recommended inlet pressure. If
necessary, adjust line pressure regulator.
Issue Cause Solution
Pilot will not light
Electrical power interrupted or
disconnected
Restore electrical power to appliance or use battery back-up.
Wiring disconnection
Ensure batteries are fully charged if using battery back-up as power
source.
Use wiring schematic to determine that all wiring connections are
secure and correct.
Gas supply turned o
Check remote shut-o valves from the appliance. Usually there
is a valve near the main gas line. There may be more than (1) valve
between the appliance and main gas line.
Pilot will not stay lit
No Propane in tank
Check propane tank. Rell if necessary.
Low gas pressure Consult a plumber or a gas supplier.
Can be caused by situations such as a bent line, too narrow diameter
or pipe, or a low line pressure.
Pilot ame not making contact
with the ame rectication sensor
on the pilot assembly
Verify the pilot ame envelopes the top of the ame sensor and
extends far enough onto burner for ignition.
To adjust pilot ame, turn pilot adjustment screw on the gas valve
clockwise to decrease ame, and counterclockwise to increase ame.
Pilot adjustment screw not sealed
Seal pilot adjustment screw. Do not over-tighten.
Pilot ame always on, or
will not extinguish
Control system set to CPI mode Set control system to IPI mode
Main burner ame will not
light
ON/OFF rocker switch in OFF
position
Switch rocker switch to ON position.
Gas supply turned o Check for multiple shut-os in the supply line. Verify gas supply is
turned on.
Low gas supply Consult with plumber or gas supplier.
Check Propane tank. Rell if necessary.
Wiring disconnection or
improper wiring
Check for faulty or incorrect wiring.
Plugged main burner orice Remove blockage.
Pilot ame Verify the pilot ame is properly directed to ignite burner. See pilot
ame troubleshooting above.
Remote control not working
properly
Replace batteries.
No call for heat
Verify remote control is powered ON and thermostat operation is
turned OFF.
48 TROUBLESHOOTING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
Issue Cause Solution
Pilot and burner extinguish
while in operation
No Propane gas in tank Check Propane tank. Rell if necessary.
Incorrect glass assembly
installation
Section 9.1 Glass Frame Assembly on page 33
Incorrect vent cap installation Adjust if necessary.
Vent cap blockage Remove debris if necessary.
Improper pitch on horizontal
venting
¼ in. (6 mm) rise per foot (30 cm) is required on horizontal venting
Inner vent pipe leaking exhaust
gases back into rebox
Check for leaks and repair if necessary.
Excessive draft Restrictor setting may need to be adjusted. Section 12.2.2 Vent
Restriction on page 46
Soot appears on glass Improper glass media placement Section 9.3 Glass Media on page 34
Improper venturi setting Venturi air shutter may need to be opened slightly to allow more air
into the gas mix. Section 12.2.1 Burner Venturi on page 45
Incorrect vent cap installation Adjust if necessary.
Vent cap blockage Remove debris if necessary.
Improper pitch on horizontal
venting
¼ in. (6 mm) rise per foot (30 cm) is required on horizontal venting
Flame burns blue and lifts
o burner
Improper venturi setting Venturi air shutter may need to be opened slightly to allow more air
into the gas mix. Section 12.2.1 Burner Venturi on page 45
Incorrect vent cap installation Adjust if necessary.
Blockage or leakage of the vent
system
Check the vent pipes for leaks, and the vent cap for debris. Repair the
vent pipes or remove debris from vent cap, if necessary.
No reaction to command Battery back batteries or remote
control batteries low
Replace batteries.
No communication between
remote control and IFC module
Reprogram remote control to IFC module
A maximum number of failed
ignitions or ame restorations
has been reached
Reset IFC module
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces MAINTENANCE 49
14.0 MAINTENANCE
ATTENTION: Installation and repair should only done by a qualied
service person. The appliance should be inspected before use and at
least annually by a professional service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control compartments, burners,
and circulating air passageways of the appliance be kept clean. Use a
vacuum to clean all components.
WARNING: The appliance area must be kept clear and free from
combustible materials, gasoline and other ammable vapors and
liquids.
14.1 Firebox
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Vacuum and clean any debris in the rebox that is not supposed
to be there.
• Inspect and operate the bottom latch assembly. Verify the
assembly is free from obstruction to operate. The handles must
have spring tension but be able to move forward freely.
14.2 Fan
CAUTION: Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Performed by: Qualied Service Person
Frequency: Every 6 months
Action:
• Disconnect the fan from electrical current and vacuum.
• The bearings are sealed and require no oiling.
14.3 Vent System
NOTE: If the vent-air intake system is disassembled for any reason,
reinstall per instructions provided with installation. Refer to Section
8.0 Venting on page 47.
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Examination of the vent system is required.
• The ow of combustion and ventilation air must not be
obstructed.
14.4 Glass Assembly
CAUTION: Do not operate appliance with the glass assembly removed,
cracked, or broken. Use protective gloves to handle any broken or
damaged glass assembly components.
WARNING: Do not use substitute materials.
WARNING: Avoid striking or slamming glass assembly. Avoid abrasive
cleaner. DO NOT clean glass while it is hot.
IMPORTANT: Any safety screen, guard, or barrier removed for servicing
the appliance must be replaced prior to operating the appliance.
Performed by: Homeowner
Frequency: Annually
Action:
• Prepare a work area large enough to accommodate the glass
assembly on a at, stable surface.
• Remove safety screen and glass frame assembly.
• Clean glass window with a suitable replace glass cleaner using
a soft cloth. Abrasive cleaners must not be used. Be careful not to
scratch the glass when cleaning.
• Reinstall glass assembly and safety screen. Do not operate
replace without safety screen.
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Clean glass window with a suitable replace glass cleaner using
a soft cloth. Abrasive cleaners must not be used. Be careful not to
scratch the glass when cleaning.
• Inspect the glass for cracks, scratches, and nicks.
• Verify the glass assembly is properly intact and not damaged.
• Replace the glass and the assembly #700-185T as necessary.
• Only Hussong Mfg. Co., Inc. will supply the replacement of glass
assembly as a complete unit.
50 MAINTENANCE Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
14.5 Burner and Pilot System
The burner assembly may be removed for easier access to the control
compartment. Refer to Section 9.5 Control Board Removal and
Installation on page 48 for instructions. Verify gas supply is turned on
and lled. Consult with plumber or gas supplier as necessary.
Performed by: Qualied Service Person
Frequency: Annually
Action:
• Vacuum all components of the burner system.
• Check all accessible gas-carrying tubes, connections, pipes and
other components for leaks.
• Inspect the operation of the ame safety system Pilot or Flame
rectication device. Visually check pilot light when in operation.
• Inspect and ensure the lighting of the main burner occurs within
(4) seconds of the main gas valve opening. Check for faulty or
incorrect wiring and correct or replace as necessary. Inspect
primary air openings (burner ports) for blockage, especially near
the pilot.
• Visually check burner ame pattern when in operation. Flames
should be steady, not lifting or oating.
• Test and measure the ame failure response time of the ame
safety system. It must de-energize the safety shuto in no more
than (30) seconds.
LAZY, YELLOW FLAMES
IDEAL

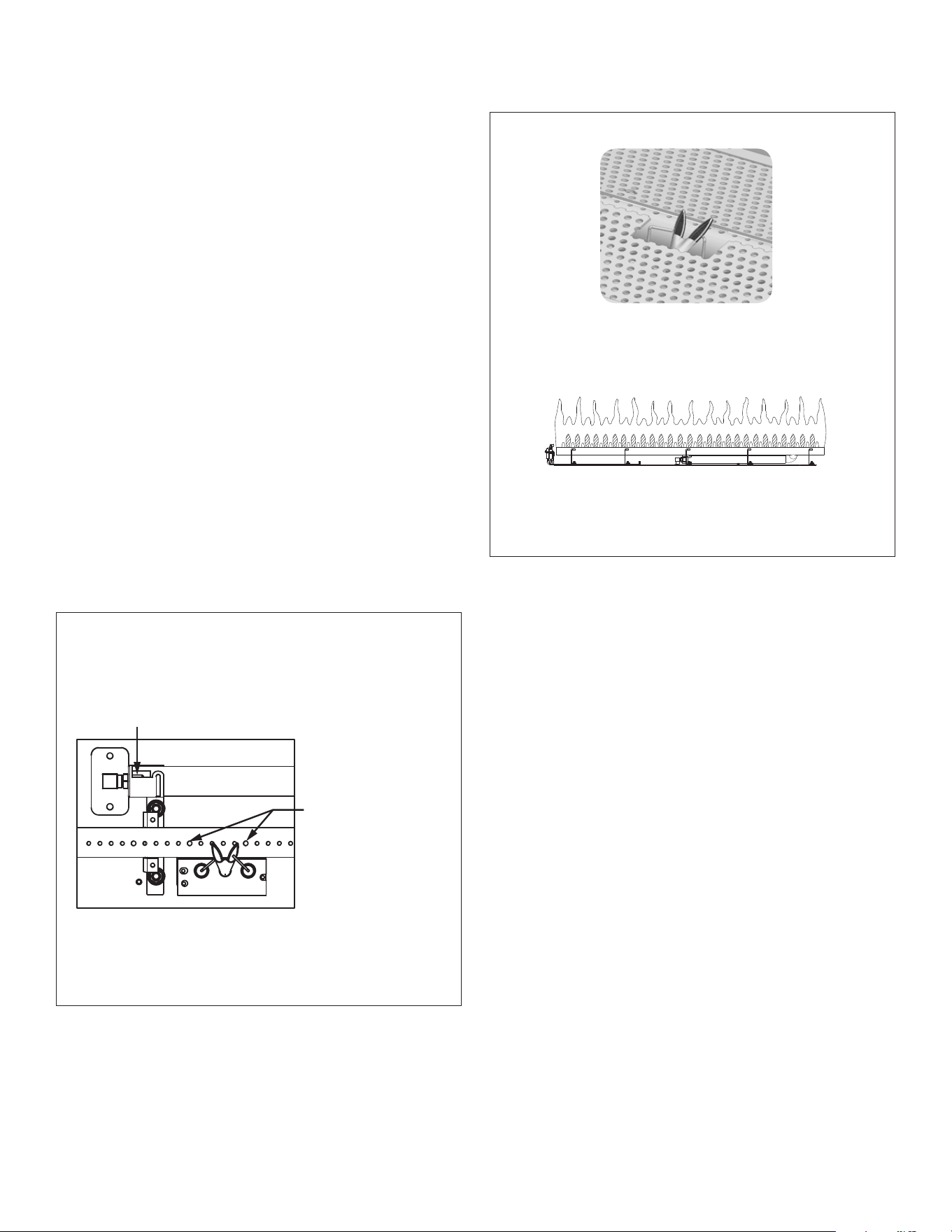

Figure 14.1, Burner System
Figure 14.2, Pilot and Burner Correct Flame Appearance
BURNER ORIFICE
BURNER PORTS
#SLA-36 R.8 December 2018 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces REPLACEMENT PARTS LIST 51
15.0 REPLACEMENT PARTS LIST
Replacement parts are available through your local dealer. Contact your local dealer for availability and pricing.
CONTROL BOARD AND PARTS
Control Board - NG SL36-150 Valve Step Motor - NG 700-504
Control Board - Propane SL36-151 Valve Step Motor - Propane 700-504-1
S.I.T. IPI Gas Valve - NG 700-567 18 in. Flexible Gas Line - Black 700-213B
S.I.T. IPI Gas Valve - Propane 700-567-1 Flexible Gas Line - Valve to Burner Connection 700-226F
Proame 2 IFC Board 700-652 NG Burner Orice #37 700-237
IFC Wire Harness Assembly 700-653 Propane Burner Orice #.0625 700-625
Pilot Assembly - NG 700-596A Conversion Kit - NG NCK-SL36-SP
Pilot Assembly - Propane 700-596A-1 Conversion Kit - Propane LCK-SL36-SP
Transmitter (Remote Control) 700-408 Burner Tube SL36-035
Pilot Orice - NG #.023N 700-123 Media Tray SL36-350
Pilot Orice - Propane #.014LP 700-114
GLASS AND GLASS PARTS
38.875” x 16” Glass with Gasket 700-185T
Replacement Valance SL36-005
1-1/8” (29mm) Glass Gasket with adhesive 900-006
Media Dam 700-184
Hussong Manufacturing Co., Inc.
P.O. Box 577
204 Industrial Park Drive
Lakeeld, MN 56150-0577
SLA-36
SAFETY BARRIERS
Rectangle Screen Front SL36-RSF
Convex Screen Front SL36-CXSF
Beveled Screen Front SL36-BSF
LIGHT KIT
Light Kit SL36-SLK
20W 130V Halogen Bulb 600-676
9/5 REV 4: Removed safety barrier SL36-MSF, Added part number for media 700-184
11/12/18: updated pse cobra pilot 700-596A & 700-596A-1;
WARNING: This product can expose you to chemicals including Lead, which is [are] known to the State of California to cause cancer, birth
defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
The following warning is for replacement parts for this appliance.
ADDITIONAL COMPONENTS
5 in (127mm) Restrictor Plate 900-086
Manual Gas Shut-o Valve 700-203
FAN KIT
Fan Kit SL42-028
52 LIMITED LIFETIME WARRANTY
Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces #SLA-36 R.8 December 2018
LIMITED LIFETIME WARRANTY
Warranty Coverage
Hussong Manufacturing Company, Inc. (Hussong Mfg.) warrants this
Kozy Heat gas appliance from the date of purchase to the original
purchaser, that it is free of defects in materials and workmanship at
the time of manufacture. Registering your replace warranty does not
require any documents to be sent in to Hussong Mfg. Please retain
your proof of purchase reecting the date of purchase along with the
serial number and model of your replace for any future warranty
claims.
If a defect is noted within the warranty period, the customer should
contact their authorized dealer for service within 30 days.
30 Days: Parts & Labor*
• Paint
• Light bulbs
• Gasket material
• Glass media and media dam
Year 1: Parts & Labor*
• All parts and material except the items listed in the 30 day
warranty and any exclusions or limitations that may apply.
*Hussong Mfg. will issue labor reimbursement to an authorized dealer
only. Hussong Mfg. will not be liable for charges occurred as a result of
any service performed by a non-authorized service provider, without
pre-authorization.
Years 2 through Lifetime: Parts Only
• Firebox
• Heat Exchanger
• Logs
• Burner tube or pan
• Outer shell
• Heat shield(s)
• Front Viewing Glass (thermal shock only)
• Refractory Firebox liner (excluding enamel and glass panels)
EXCLUSIONS AND LIMITATIONS
1. This appliance must be installed by a licensed, authorized service technician or contractor. It must be installed, operated and maintained
at all times in accordance with the instructions in the owner’s manual or the warranty is void.
2. This warranty is nontransferable and is made to the original purchaser only.
3. This warranty excludes standard wear and tear of the appliance which is considered normal usage over time.
4. Discoloration and some minor expansion, contraction or movement of certain parts, resulting in noise, is normal and not a defect.
5. Warranty is automatically voided if the appliance’s serial number and/or testing label is removed or if the appliance is altered or
tampered with in any way.
6. Warranty is void if the appliance is subject to submersion in water or prolonged periods of dampness or condensation. Any damage
to any part of the appliance due to water or weather damage which is the result of, but not limited to, improper chimney/venting
installation will also render this warranty void.
7. This warranty does not cover installation and operational related problems such as environmental conditions, nearby trees, buildings,
hilltops, mountains, inadequate venting or ventilation, excessive osets, negative air pressures caused by any mechanical systems.
8. Chimney components and other Non-Hussong Mfg. accessories used in conjunction with the installation of this appliance are not
covered under this warranty.
9. Damage to plated surfaces or accessories, if applicable, caused by scratches, ngerprints, melted items or other external sources left on
the surfaces from the use of cleaners is not covered under this warranty.
10. It is expressly agreed and understood that this warranty is Hussong Mfg.’s sole obligation and purchaser’s exclusive remedy for defective
replace equipment. Hussong Mfg. is free of liability for any damages caused by this appliance, as well as inconvenience expenses
and materials. Incidental or consequential damages are not covered by this warranty. In some states, the exclusion of incidental or
consequential damage may not apply. Hussong Mfg. shall not be held to implied warranties and this warranty shall replace all previous
warranties.
11. This limited lifetime warranty is the only warranty supplied by Hussong Mfg. Any warranties extended to the purchaser by the dealer/
distributor, whether expressed or implied, are hereby disclaimed and the purchaser’s recourse is expressly limited to the warranties set
forth herein.
12. Any part repaired or replaced during the limited warranty period will be warranted under the terms of the limited warranty for a period
not to exceed the remaining term of the original limited warranty.
13. Any replacement part repaired after the warranty period will include a 90 day parts coverage
14. Hussong Mfg. may require the defective part to be returned using a pre-authorized RGA number or a photo of the defective component.
Failure to provide either can result in a denied claim.
15. This warranty does not cover the appliances ability to heat a desired space, as there are many factors that can impact the heating
performance in each home. Consideration should be implied to the appliance’s location, room size, home design, environmental
conditions, insulation, and tightness of the home.
16. Hussong Mfg. reserves the right to make changes at any time, without notice, in design, material, specications, and prices. Hussong
Mfg. reserves the right to discontinue models and products.
July 2018
