UNIMAC TOLACMUM1C6FA Twin Tank Air Compressor 116PSI User Manual

User Manual

[Revision 2.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

ACM-160s Oil Free Air Compressor

E&OE © Unimac 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well-ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

Keep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

General Safety Warnings

•

Read this material before using this product. Failure to do so can result in serious injury. Save This Manual.

• WARNING! READ ALL SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY

RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE

REFERENCE.

• The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may

occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product but must be

supplied by the operator.

Work area safety

•

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate the compressor in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Compressor motors

produce sparks which may ignite the dust or fumes.

• Keep children and bystanders away from an operating compressor.

Electrical Safety

•

Compressor plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded compressors. Standard

plugs and matching outlets will reduce risk of electric shock.

• Do not expose compressor to rain or wet conditions. Water entering a compressor will increase the risk of electric shock.

• Do not abuse the cord. never use the cord for unplugging the compressor. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

Personal Safety

•

Stay alert, watch what you are doing and use common sense when operating this compressor. Do not use this compressor while you are tired or

under the influence of drugs, alcohol, or medication. A moment of inattention while operating a compressor may result in serious personal injury.

• Use personal protective equipment. always wear ANSI-approved eye protection during setup and use.

• Prevent unintentional starting. ensure the switch is in the off position before connecting to power source or moving the compressor.

Compressor Use and Care

•

Do not use the compressor if the switch does not turn it on and off. Any compressor that cannot be controlled with the switch is dangerous and

must be repaired.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 4

• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the compressor. Such preventive

safety measures reduce the risk of starting the compressor accidentally.

• Store an idle compressor out of the reach of children and do not allow persons unfamiliar with the compressor or these instructions to operate it.

A compressor is dangerous in the hands of untrained users.

• Maintain the compressor. Keep the compressor clean for better and safer performance. Follow instructions for lubricating and changing

accessories. Keep dry, clean, and free from oil and grease. check for misalignment or binding of moving parts, breakage of parts and any other

condition that may affect the compressor’s operation. if damaged, have the compressor repaired before use. Many accidents are caused by a

poorly maintained compressor.

• Use the compressor in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the

compressor for operations different from those intended could result in a hazardous situation.

Service

•

Have your compressor serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the

compressor is maintained.

Air Compressor Safety Warnings

• RIS

K OF FIRE OR EXPLOSION - DO NOT SPRAY FLAMMABLE LIQUID IN A CONFINED AREA OR TOWARDS A HOT SURFACE. SPRAY

AREA MUST BE WELL-VENTILATED. DO NOT SMOKE WHILE SPRAYING OR SPRAY WHERE SPARK OR FLAME IS PRESENT. ARCING

PARTS – KEEP COMPRESSOR AT LEAST 20 FEET AWAY FROM EXPLOSIVE VAPOURS, SUCH AS WHEN SPRAYING WITH A SPRAY

GUN.

• RISK OF BURSTING - DO NOT ADJUST REGULATOR HIGHER THAN MARKED MAXIMUM PRESSURE OF ATTACHMENT.

• RISK OF INJURY - DO NOT DIRECT AIR STREAM AT PEOPLE OR ANIMALS.

• DO NOT USE TO SUPPLY BREATHING AIR.

• DO NOT LEAVE COMPRESSOR UNATTENDED FOR AN EXTENDED PERIOD WHILE PLUGGED IN. UNPLUG COMPRESSOR AFTER

WORKING.

• KEEP COMPRESSOR WELL-VENTILATED. DO NOT COVER COMPRESSOR DURING USE.

• Drain Tank daily and after use. Internal rust causes tank failure and explosion.

• Do not remove the valve cover or adjust internal components.

• Compressor head gets hot during operation.

• Do not touch it or allow children nearby during or immediately following operation.

• Do not use the air hose to move the compressor.

• Release the pressure in the storage tank before moving.

• The use of accessories or attachments not recommended by the manufacturer may result in a risk of injury to persons.

• All air line components, including hoses, pipe, connectors, filters, etc., must be rated for a minimum working pressure of 150 PSI, or 150% of the

maximum system pressure, whichever is greater.

• USE OF AN EXTENSION CORD IS NOT RECOMMENDED. IF YOU CHOOSE TO USE AN EXTENSION CORD, USE THE FOLLOWING

GUIDELINES:

• Make sure your extension cord is in good condition.

• Be sure to use an extension cord which is heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line

voltage resulting in loss.

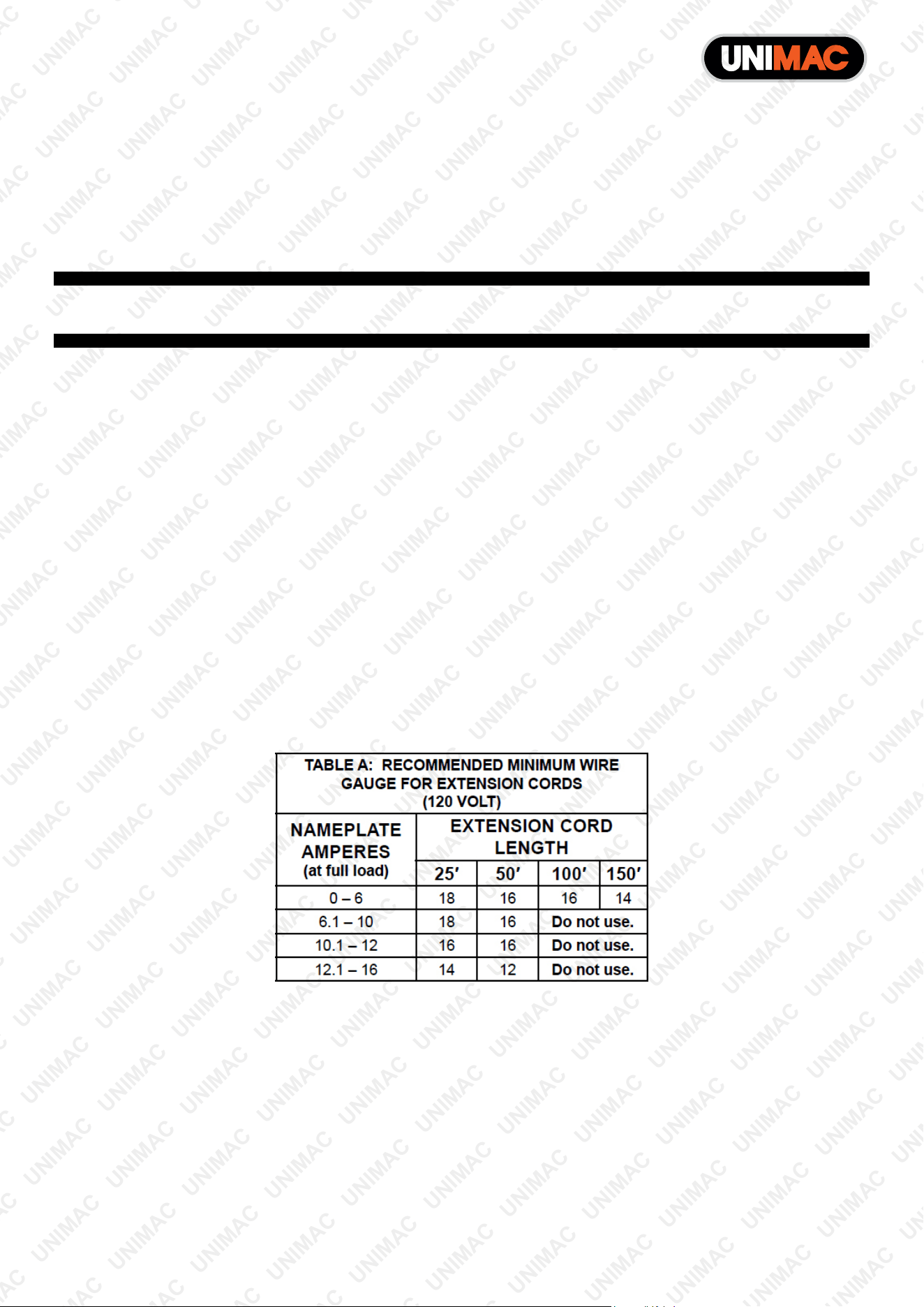

• of power and overheating. Table A shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next

heavier gauge. The smaller the gauge number, the heavier the cord.

• Industrial applications must follow OSHA guidelines.

• Maintain labels and nameplates on the compressor. These carry important safety information.

• This product is not a toy. Keep it out of reach of children.

• Operate unit on level surface.

• People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause

pacemaker interference or pacemaker failure.

• SAVE THESE INSTRUCTIONS.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 5

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 6

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 7

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 5

Parts Identification ....................................................................................................................................... 8

Set-Up ............................................................................................................................................................ 9

Operation ..................................................................................................................................................... 11

Compressor Area Set Up ......................................................................................................................................... 11

General Operation .................................................................................................................................................... 11

Emergency Depressurization ................................................................................................................................... 12

Internal Thermal Protector ........................................................................................................................................ 12

Maintenance and Servicing ....................................................................................................................... 13

Cleaning, Maintenance, and Lubrication .................................................................................................................. 13

Maintenance Schedule ............................................................................................................................................. 13

Draining Moisture from the Tank .............................................................................................................................. 14

Air Filter Maintenance ............................................................................................................................................... 14

Troubleshooting ......................................................................................................................................... 15

Specifications ............................................................................................................................................. 17

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 8

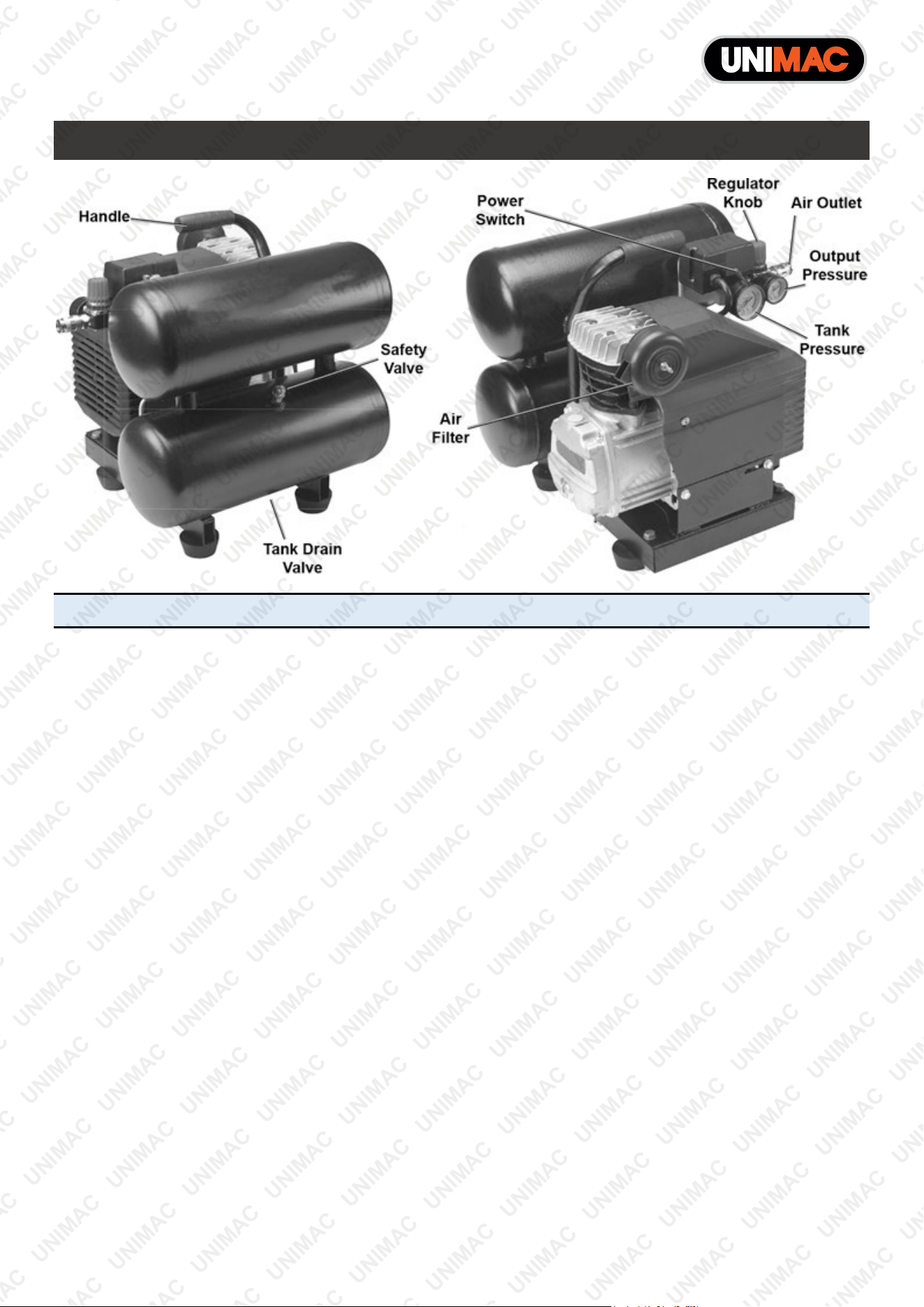

Parts Identification

NOTE: Appearance may vary.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 9

Set-Up

Break in the new Air Compressor as follows:

1. Turn the Power Switch off and unplug the unit. Insert a male coupler (sold separately) into the female Quick

Coupler and fully open all regulators and valves.

2. Plug in the Power Cord.

3. Turn the Power Switch ON.

4. Let the unit run for 30 minutes. Air will expel freely through the Coupler.

5. Turn the Power Switch OFF.

6. Unplug the Power Cord and remove the male coupler.

Connect a regulator valve, an inline shut off valve and a 1/4″ NPT air hose to the Quick Coupler (all sold

separately). The air hose must be long enough to reach the work area with enough extra length to allow free

movement while working.

NOTE: An in-line shutoff ball valve is an important safety device because it controls the air supply even

if the air hose is ruptured. the shutoff valve should be a ball valve because it can be closed quickly.

Depending on the tool which you will be using with this compressor, you may need to incorporate additional

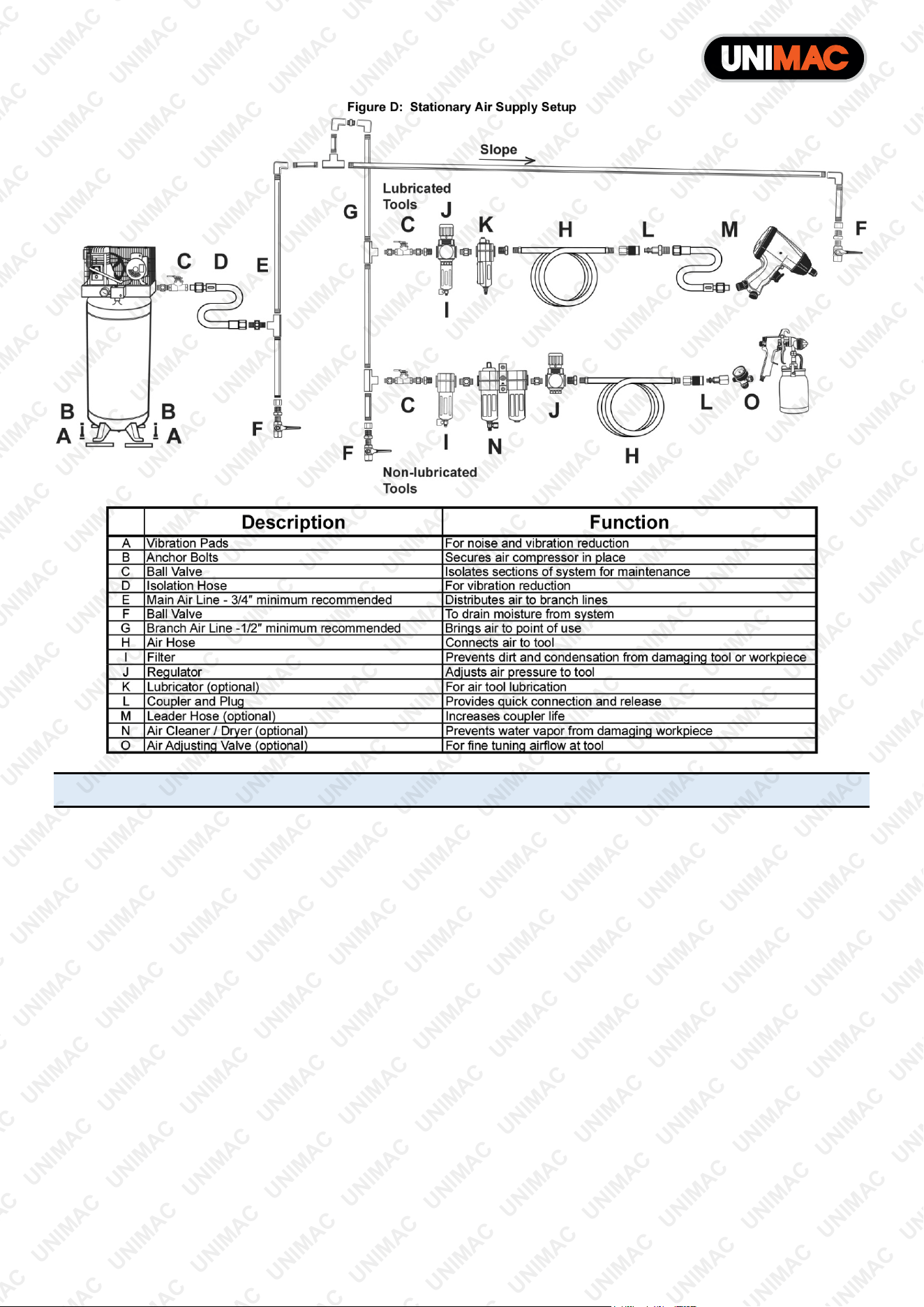

components, such as an in-line oiler, a filter, or a dryer (all sold separately), as shown on Figure C and Figure D.

Consult your air tool’s manual for needed accessories.

NOTE: Product appearance may vary.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 10

NOTE: Product appearance may vary.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 11

Operation

WARNING! To prevent serious injury from accidental operation: turn the power Switch “OFF” and

unplug the air compressor from its electrical outlet before assembling or making any adjustments to the

compressor.

Read the entire important safety information section at the beginning of this manual including all text

under subheadings therein before set up or use of this product.

Compressor Area Set Up

1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to

prevent injury.

2. Locate the Compressor on a flat level surface to ensure proper pump lubrication and to prevent damage to

the unit. Keep at least 12″ of space around the unit to allow air circulation.

3. Route the power cord from the compressor to the grounded wall outlet, along a safe path without creating a

tripping hazard or exposing the power cord to possible damage.

General Operation

1. IMPORTANT: First, turn the power Switch OFF. This releases tank pressure and allows the motor to

start freely, without tripping the Circuit Breaker.

2. Close the Drain Valve.

3. Close the in-line Shutoff Valve between the compressor and the air hose.

4. Plug the Air Compressor Power Cord into a grounded 120 VAC electrical outlet.

5. Turn the Power Switch ON.

6. Allow the Air Compressor to build up pressure until it cycles off.

NOTE: At the beginning of the day’s first use of the Air Compressor, check for air leaks by applying

soapy water to connections while the Air Compressor is pumping and after pressure cutout. Look for air

bubbles. If air bubbles are present at connections, tighten connections. Do not use the Air Compressor

unless all connections are airtight, the extra air leaking out will cause the compressor to operate too

often, increasing wear on the compressor.

NOTE: As long as the Power Switch is ON, the operation of the Air Compressor is automatic, controlled

by an internal pressure switch. The Compressor will turn on automatically when the air pressure drops

to 95 PSI, and will turn off automatically when the air pressure reaches 125 PSI.

WARNING! TO PREVENT SERIOUS INJURY AND DEATH FROM EXPLOSION: Do not adjust the internal

pressure switch. Any change to the automatic pressure levels may cause excess pressure to

accumulate, causing a hazardous situation.

7. Adjust the Regulator Knob so that the air output is enough to properly power the tool, but the output will not

exceed the tool’s maximum air pressure at any time. Turn the knob clockwise to increase the pressure and

counterclockwise to decrease pressure. Adjust the pressure gradually, while checking the air output gauge

to set the pressure.

8. Make sure the air tool’s throttle or switch is in the off position. Connect the air tool to the air hose.

9. Open the in-line Shutoff Valve.

10. Use the air tool as needed.

11. After the job is complete, turn the Power Switch OFF.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 12

Note: Turn the switch off before unplugging the compressor.

12. Unplug the Air Compressor.

13. Close the in-line Shutoff Valve.

14. Bleed air from the tool then disconnect the tool.

15. Open the Drain Valve, at the bottom of the Tank, to release any built-up moisture and the internal tank

pressure. Close the valve after moisture has drained out. Do not remove the Drain Valve.

16. Clean, then store the Air Compressor indoors.

Emergency Depressurization

If it is necessary to quickly depressurize the Compressor, turn the Power Switch OFF. Then, pull on the ring on

the Safety Valve to quickly release stored air pressure.

Internal Thermal Protector

The factory has set a thermal protector inside the motor. the unit cannot work if the inside protector has jumped.

The user needs to unplug the power and plug back after 10 minutes.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

E&OE © Unimac 13

Maintenance and Servicing

WARNING! Procedures not specifically explained in this manual must be performed only by a qualified

technician. To prevent serious injury from accidental operation: Turn the power Switch “OFF” and

unplug the compressor from its electrical outlet before performing any inspection, maintenance, or

cleaning procedures. To prevent serious injury from compressor failure: Do not use damaged

equipment. if abnormal noise or vibration occurs, have the problem corrected before further use.

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends

on factors such as proximity to the ocean and humidity or condensation of water vapour on metal

surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied

periodically, it will prevent rust from forming.

Cleaning, Maintenance, and Lubrication

1. Before each use, inspect the general condition of the air compressor. Check for:

− Loose hardware,

− Misalignment or binding of moving parts,

− Cracked or broken parts,

− Damaged electrical wiring, and

− Any other condition that may affect its safe operation.

2. After use, wipe external surfaces of the compressor with a clean cloth.

WARNING! if the supply cord of this compressor is damaged, it must be replaced only by a qualified

service technician.

Maintenance Schedule

Following are general guidelines for maintenance checks of the Air Compressor.

NOTE: The environment in which the compressor is used, and the frequency of use can affect how often

you will need to check the Air Compressor components and perform maintenance procedures.

Daily:

•

Make sure all nuts and bolts are tight.

•

Drain moisture from air tank.

•

Check for abnormal noise or vibration.

•

Check for air leaks. *

•

Wipe off any dirt from the compressor. **

* To check for air leaks, apply soapy water to joints while the Air Compressor is pressurized. Look for air

bubbles.

** To clean the compressor surface, wipe with a damp cloth, using a mild detergent or mild solvent.

Weekly:

•

Inspect Air Filter.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

Monthly:

•

Inspect Safety Valve.

Draining Moisture from the Tank

The Drain Valve is located under the Tank. It must be used daily to release all trapped air and moisture from the

Tank. This will eliminate condensation which can cause tank corrosion.

1. Turn the Power switch of the compressor off.

2. Place a collection pan under the Drain Valve.

3. Turn the Drain Valve lever downward to open it.

4. When all the pressure and moisture is released, close the Drain Valve.

Air Filter Maintenance

Check the Air Filter weekly to see if it needs replacement. If working in dirty environments, you may need to

replace the filter more often.

1. Remove the Cover.

2. Remove the Air Filter.

3. Replace with a new Air Filter.

4. Replace the Cover.

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC `

UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC UNIMAC

ACM-160s Oil Free Air Compressor

Troubleshooting

Follow all safety precautions whenever diagnosing or servicing the compressor. Disconnect power

supply before service.

Problem Possible Causes Likely Solutions

Compressor does not start or

restart

1. Tank(s) already pressurized.

2. Power cord not plugged in

properly.

3. Incorrect power supply.

4. No power at outlet.

5. Thermal overload switch tripped.

6. Building power supply circuit

tripped or blown fuse.

7. Cord wire size is too small, or cord

is too long to properly power

compressor.

8. Compressor needs service.

1. No problem. Compressor will start

when needed.

2. Check that cord is plugged in

securely.

3. Check that circuit matches

compressor requirements.

4. Reset circuit breaker, or have

outlet serviced by a qualified

technician.

5. Turn off Compressor and wait for

it to cool down. Press Reset

Button. Resume operation.

6. Reset circuit or replace fuse.

Check for low voltage conditions.

It may be necessary to disconnect

other electrical appliances from

the circuit or move the

compressor to its own circuit.

7. Use larger diameter or shorter

extension cord or eliminate

extension cord. See

Recommended Wire Gauge for

Extension Cords in Safety section.

8. Have unit inspected by a qualified

technician.

Compressor builds pressure too

slowly

1. Incorrect power supply.

2. Working environment too cold.

3. Safety valve leaking.

4. Loose fittings.

1. Check that circuit matches

compressor requirements.
