Thank you for purchasing your new Eureka vacuum!
Important instructions
For easy assembly, please take a few moments
to read this owner’s guide.
If you have questions about your new vacuum,
please contact our customer service HELPLINE
at 1-800-282-2886.
We’re here to help!
Eureka stands by our
Clean Promise seal.
Learn more at
www.eureka.com/cleanpromise
www.eureka.com
Owner’s Guide
NEW200 series
Wet/Dry vacuum cleaner; household type
2 Eureka Customer Service HELPLINE 1-800-282-2886
Contents
Important safeguards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
What comes in the carton ............................. 4
How to identify parts of your vacuum cleaner .............. 5
How to assemble your vacuum cleaner. . . . . . . . . . . . . . . . . . . 6
.............................. 7
How to clean area rugs ............................... 8
Using self-cleaning function. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance: Emptying dirty water tank ................. 10
How to clean the brushroll and cover ................... 11
Problem solving .................................... 12
The Eureka limited warranty .......................... 13
How to order replacement parts ....................... 14
Write the model, type and serial number here:
Date of purchase (keep your receipt) ______________
Model number and type _________________________
Serial number ________________________________
Find these numbers on a label on the middle back side
of the vacuum cleaner. Refer to these numbers when
ordering parts and accessories or if service is needed.
To register your product visit www.eureka.com
Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage.
Each unit is tested and thoroughly inspected before shipping. For instructions regarding any
shipping damage, call Eureka Customer Service HELPLINE 1-800-282-2886 immediately.
!
Follow caution information wherever you see this symbol.
www.eureka.com 3
Motor
the motor or the brush roll at any time. The bearings are permanently lubricated
and sealed.
WARNING
shock, or injury:
• Do not use outdoors.
•
Turn off the switch and unplug the electrical cord
when not in use and before servicing.
• Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
• Use only as described in this manual. Use only
• Do not use with damaged cord or plug.
If vacuum cleaner is not working as it should,
has been dropped, damaged, left outdoors, or
dropped into water, call the Eureka Customer
Service HELPLINE at 1-800-282-2886.
• Do not pull or carry by cord. Do not use cord as
a handle. Do not close a door on cord or pull
cord around sharp edges or corners. Do not run
vacuum cleaner over cord. Keep cord away from
heated surfaces.
• Do not use extension cords or outlets with
inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet
hands.
• Do not put any object into openings. Do not use
with any openings blocked; keep free of dust,
• This vacuum cleaner creates suction and
contains a revolving brush roll. Keep hair, loose
openings and moving parts.
• Do not place vacuum cleaner on furniture or
stairs as the brush roll may cause damage. Use
extra care when cleaning stairs.
• Do not pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
•
brushroll and brushroll cover in place.
• Belt pulleys can become hot during normal use.
To prevent burns, avoid touching the belt pulley
when servicing the drive belt.
•
liquids such as gasoline, or use in areas where
they may be present.
• Store your vacuum cleaner indoors in a cool,
dry area.
• Keep your work area well lit.
• Unplug electrical appliances before vacuuming
them.
• Always use Eureka cleaning solution in your
machine, other cleaning solutions may damage
the machine and void the warranty.
• Do not use an excessive amount of cleaning
solution or it may cause internal damage to the
machine.
• Do not immerse in liquid. Use only on surfaces
moistened by the cleaning process.
• Use only on level surfaces for optimal cleaning
results.
• Do not use to pick up toxic substances
(solvents, ammonia, gasoline, chlorine bleach,
acidic substances, drain cleaner, etc.).
• Do not lift, carry or shake appliance while
in use.
•
or on its side to prevent the dirty water from
• This product can expose you to
chemicals including Styrene, which is known
to the State of California to cause cancer,
and Bisphenol-A, which is known to the State
of California to cause birth defects or other
reproductive harm. For more information go to
www.P65Warnings.ca.gov.
this appliance has a polarized plug (one blade is wider than the other).
!
4 Eureka Customer Service HELPLINE 1-800-282-2886

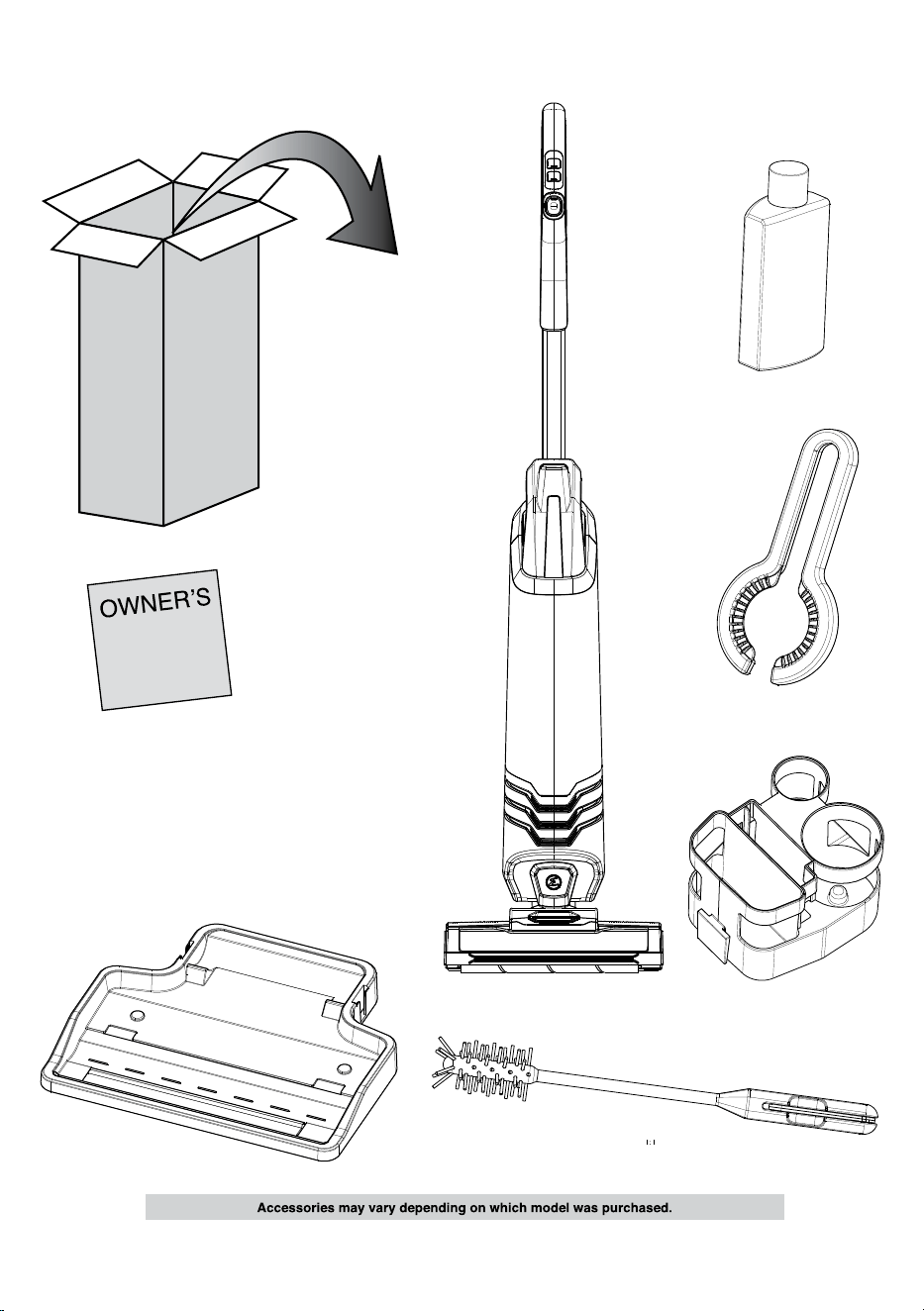

What Comes in the Carton
GUIDE
Important
safeguards
Vacuum
Accessory Drying Rack
Cleaning
Solution
Brushroll Cleaning
Tool
Tank Cleaning Brush
Storage Base
www.eureka.com 5
Spray trigger
HARD FLOOR
mode button
mode button
SELF
button
Handle
Brush roll
Brush roll cover
release button
Cord
wraps
Dirty water tank
release button
Dirty water tank
Clean water tank
Floor nozzle
Brushroll cover
6 Eureka Customer Service HELPLINE 1-800-282-2886
Click!
Release
Insert handle into opening at top of vacuum
until you hear a click.
To remove handle, press button under the
covering on back of vacuum and pull the
handle up at the same time.
The clean water tank is
located on the upper front
of the vacuum and the dirty
water tank is located on the
lower back of the vacuum.
Remove the clean water
tank by lifting it straight up
off the vacuum.
Twist to unscrew the
cap on the clean water
tank.
Fill the clean water
tank have to the Max
and add ONE capful of
cleaning solution.
back on the water tank.
Align the water tank
with the holder and slide
down until it clicks into
place.
Use warm water and Eureka cleaning solution. Always use Eureka cleaning solution in your machine, other cleaning
solutions may damage the machine and void the warranty.
Do not use water warmer than 140 degrees Fahrenheit. Do not use boiling water or heat water or tank in microwave.
www.eureka.com 7
Locate spray trigger on underside
of the handle. Before each use
hold the solution spray trigger
for 10 seconds to get cleaning
To clean hold the solution spray
trigger to apply solution on both
forward and backward strokes. To
down the spray trigger on the
second pass.
To turn off press HARD FLOOR
button a second time.
!
Plug power cord into outlet.
handle to lower into position for
vacuuming. Brushroll will only
spin only when handle is lowered
into reclined position.
When vacuum is
upright the brushroll will not spin.
turned the vacuum on pressing
the HARD FLOOR button once.
Suggestion: For challenging and stuck on messes on your hard floors use the AREA RUG mode and hold the
vacuum over the mess. Use short strokes while holding the spray trigger to allow for a concentrated clean.
8 Eureka Customer Service HELPLINE 1-800-282-2886
Plug power cord into outlet.
Locate spray trigger on underside
of the handle. Before each use
hold the solution spray trigger
for 10 seconds to get cleaning
handle to lower into position for
vacuuming. Brushroll will only
spin only when handle is lowered
into reclined position.
When vacuum is
upright the brushroll will not spin.
turned the vacuum on pressing
the button once.
To clean hold the solution spray
trigger to apply solution on both
forward and backward strokes.
For an optimal clean, make a few
wet passes followed by a few dry
passes over each area of you
clean on your rugs.
To turn off press
button a second time.
The mode
dispenses twice the solution of
the HARD FLOOR mode for
optimized cleaning on area rugs.
!
Do not over wet the carpet. Be careful not to run the vacuum over large solid debris or edges of
area rugs as this may stall the brushroll and result in premature belt failure.
Before cleaning area rugs test a small area of the rug for color fastness. Also please check manufacturers cleaning
instructions before cleaning area rugs. Do not use for on silk or delicate rugs or wall to wall carpeting.
www.eureka.com 9
!
Do not remove the dirty water tank until after using the self-cleaning function empty
as this will allow remaining debris under the brushroll and suction tube to be sucked
into the dirty water tank.
After use, keep machine plugged into a power source and
place the machine back onto the base and press the SELF
button on the front of the handle to start the
self-cleaning function.
function runs for 40 seconds and
stops on its own.
After running the SELF
function disconnect
the power cord from the wall and
wrap the cord around the cord
hooks on the back of the machine.
Before putting machine back onto
the base, be sure to wipe the
base to remove any remaining
water or debris.
Remove machine from base
to access brushroll and when
reinstalling the brushroll cover.
10 Eureka Customer Service HELPLINE 1-800-282-2886
Pour dirty water and
debris out. Rinse the
inside of the dirty water
tank ensuring no debris
remains in the tank.
and screen with warm
water.
Rinse the whole lid and
ensuring no debris
remains.
Once parts are dry, place
tank lid and place the lid
back on top of the tank
ensuring it is fully installed
Align the water tank
with the holder and slide
down until it clicks into
place.
Empty and rinse out the clean water tank and allowed to dry before reinstalling. Do not store
machine with water and or cleaning solution in the tanks.
!
Empty and clean The Dirty water tank after every
use.
To remove The Dirty water tank press down on the
release button on the top of the tank.
Grasp the front handle while pressing down on button
an pull the dirty water tank straight out of machine.
Fully remove the dirty
water tank from the
machine and grasp the
recessed areas on top of
the lid and pull straight
up to remove the lid.
the top of The Dirty
water tank by pulling it
straight up.
Wipe the area where
the dirty water tank sits
clean with a towel.
Leave parts out to
dry thoroughly before
reinstalling.
www.eureka.com 11
1. To remove the brushroll cover grasp
the release button and pull up and
forward.
2. Remove brushroll by pulling up on
the tab located on the left side.
3. Rinse brushroll and brushroll cover.
Use brushroll cleaning tool to help
remove debris and her on the roller.
4. Wipe the brushroll chamber
thoroughly to remove any debris.
5. Put the brush roll upright in the
drying stand let your brush roll and
cover dry thoroughly for 24 hours
before reassembling.
The brushroll, brushroll cover,
dirty water tank, clean water tank, lids
Please follow cleaning instructions in
this manual.
6. Install brushroll by inserting the right
end of the roller into the right side
aligning the tab on the left side with
the slot and pressing into place.
7. To reinstall the brushroll cover, tilt
the window back and align both tabs
on the lower edges of the cover with
push in and downwards until it clicks
into place.
Store the machine on its base in a dry,
protected area. Ensure machine is not
exposed to freezing temperatures or
internal components could be damaged
and warranty will be void.
1
Never operate vacuum cleaner without
cover in place.
!
2
3 4
12 Eureka Customer Service HELPLINE 1-800-282-2886
!
This vacuum cleaner has a special thermostat that protects the vacuum in case of motor
overheating.
proceed as follows: 1) Push the power switch to off and
unplug the vacuum. 2) Check the vacuum for a possible source of overheating such as a full
them and wait at least 30 minutes before attempting to use the vacuum. 3) After the 30 minute
period, plug the vacuum back in and turn on the switch. If the vacuum still does not work, call
the Eureka Customer Service HELPLINE at 1-800-282-2886.
The brushroll is entangled with debris,
brushroll is not properly installed or
vacuum is locked in the upright position.
Check brushroll chamber for debris
Recline machine to make sure
brushroll is activated
The dirty water tank has reached its
capacity
Empty dirty water tank
Brushroll, brushroll cover and/or dirty
water tank are not properly installed
Turn machine off and reinstall making
in place
The roller brush is entangled with debris Check brushroll chamber for debris
The suction nozzle or pipe is blocked Clean the debris in the suction nozzle
or pipe
is dirty
Empty dirty water tank and clean
Filter is clogged
and dry thoroughly before reinstalling
The suction nozzle is blocked Remove clogs/debris from pipe
and/or brushroll chamber
The dirty water tank has reached its
capacity
Empty dirty water tank
Clean water tank is empty
The clean water tank is not properly
installed
Turn machine off and reinstall making
in place
properly installed
Turn machine off and reinstall making
in place
completely dry 24 hours
www.eureka.com 13
Midea America Corp. (“Eureka”), subject to the
terms and conditions herein, warrants this vacuum
cleaner to be free from defects in material and
workmanship for a term of two years from the date
of original purchase when used in accordance with
the Eureka operating and maintenance instructions
and under normal household usage. This warranty
is granted only to the original purchaser and
members of immediate household, and is applicable
only to original purchases from Eureka authorized
resellers.
Eureka will, at its option, repair or replace a
defective vacuum or vacuum part that is covered
by this warranty. Repairs may be performed using
new or refurbished parts that meet or exceed
elects to replace the vacuum, the replacement may
be a reconditioned unit. Depending on availability
of products, Eureka reserves the right to provide
you with a replacement product that is the same
or similar, or substitute equivalent of the original
product. As a matter of warranty policy, Eureka will
• Normal wear and tear of the vacuum and vacuum
parts that require replacement under normal use
light bulbs, brush-roll, bristles, impellers and
cleaning.
• Damages or malfunctions resulting from:
improper or unreasonable use or maintenance,
abuse, negligence, failure to follow instructions
contained in any written materials that accompany
the product, deterioration by reason of excess
moisture, corrosive atmosphere, lightning, power
surges, connections to improper voltage supply,
unauthorized alteration, or other external causes
such as extremes in temperature or humidity,
accidents, misuse, or acts of God. This warranty
also does not cover damage resulting from repair
or attempted repair by anyone other than Eureka
or an authorized Eureka Warranty Station. This
warranty is not applicable to any product that has
been altered or on which the serial number has
erasing, or forging any proof-of-purchase
documents voids any applicable product warranty.
To obtain warranty service you must contact the
Eureka Service Team, toll free, at 1-800-282-2886 or
email customerserviceusa@midea.com, to discuss
the warranty claim and procedures to be followed.
All warranty claims must include submission of
proof-of-purchase documentation. For additional
information, you may also visit www.eureka.com.
insurance charges if the defective product(s)
must be shipped for warranty service or warranty
evaluation; however, Eureka or a Eureka Authorized
Warranty Station will pay the return shipping
charges if repairs are covered by the warranty.
When returning parts for repair, you must include
the model, type and serial number located on the
rating plate on the lower backside of the vacuum.
If any product submitted for warranty service is
found to be ineligible, an estimate of repair cost
will be furnished and the repair performed only
if requested by the owner and upon receipt of
payment or acceptable arrangements for payment.
Any warranty that may be implied in connection with
your purchase or use of the vacuum, including any
warranty of Merchantability or any warranty of
Fitness For A Particular Purpose is limited to the
duration of this limited warranty. Some states do not
allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
limited to the relief expressly provided above. In
no event shall the manufacturer be liable for any
consequential or incidental damages you may incur
in connection with your purchase or use of the
vacuum. Some states do not allow the exclusion or
limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply
to you.
may also have other rights, which may vary by
state.
14 Eureka Customer Service HELPLINE 1-800-282-2886
W0004
W0003
W0006
W0011
W0009
W0002
W0005
W0007
W0010
W0008
Brushroll cleaning tool
Brushroll
Filter
Accessory drying rack
Cleaning brush
1L Cleaning solution
machine comes with
236ml bottle of cleaning solution
Clean water bottle
Filter top
Storage base
Dirty water tank
www.eureka.com 15
Do not return to the store, call
Eureka Customer Service
HELPLINE 1-800-282-2886
www.eureka.com
Eureka stands by
our Clean Promise seal.
Learn more at
www.eureka.com/cleanpromise
Owner’s Guide
© 2018 Midea Corp. Printed in China 02155180_WMT_rev4
