GENPOWER GENPINGPRA7M0 Inverter Generator 4500W User Manual

E&OE © GenPower 1

User Manual

[Revision 13.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

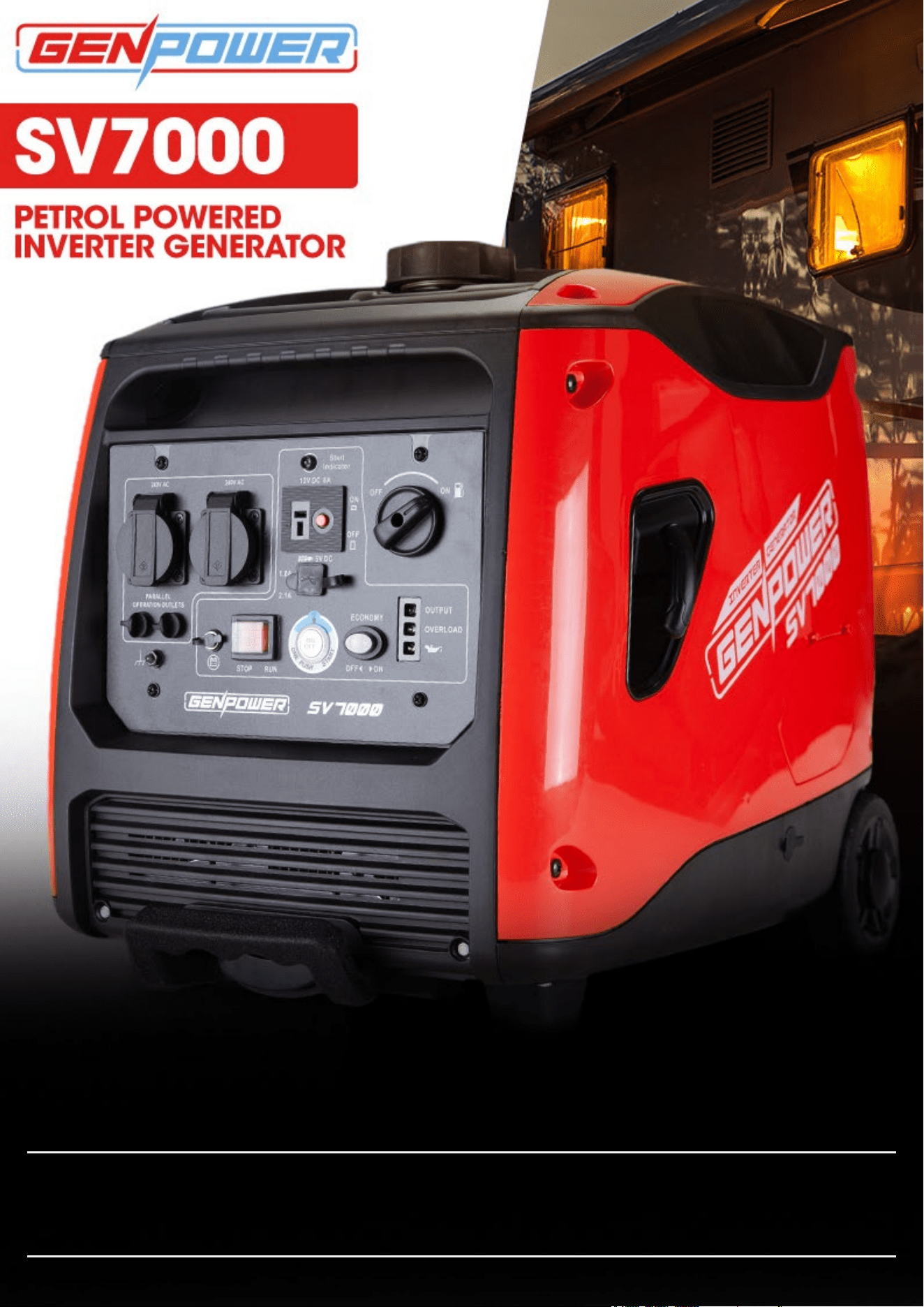

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Wor

k areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear

appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

• P

etrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well-ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

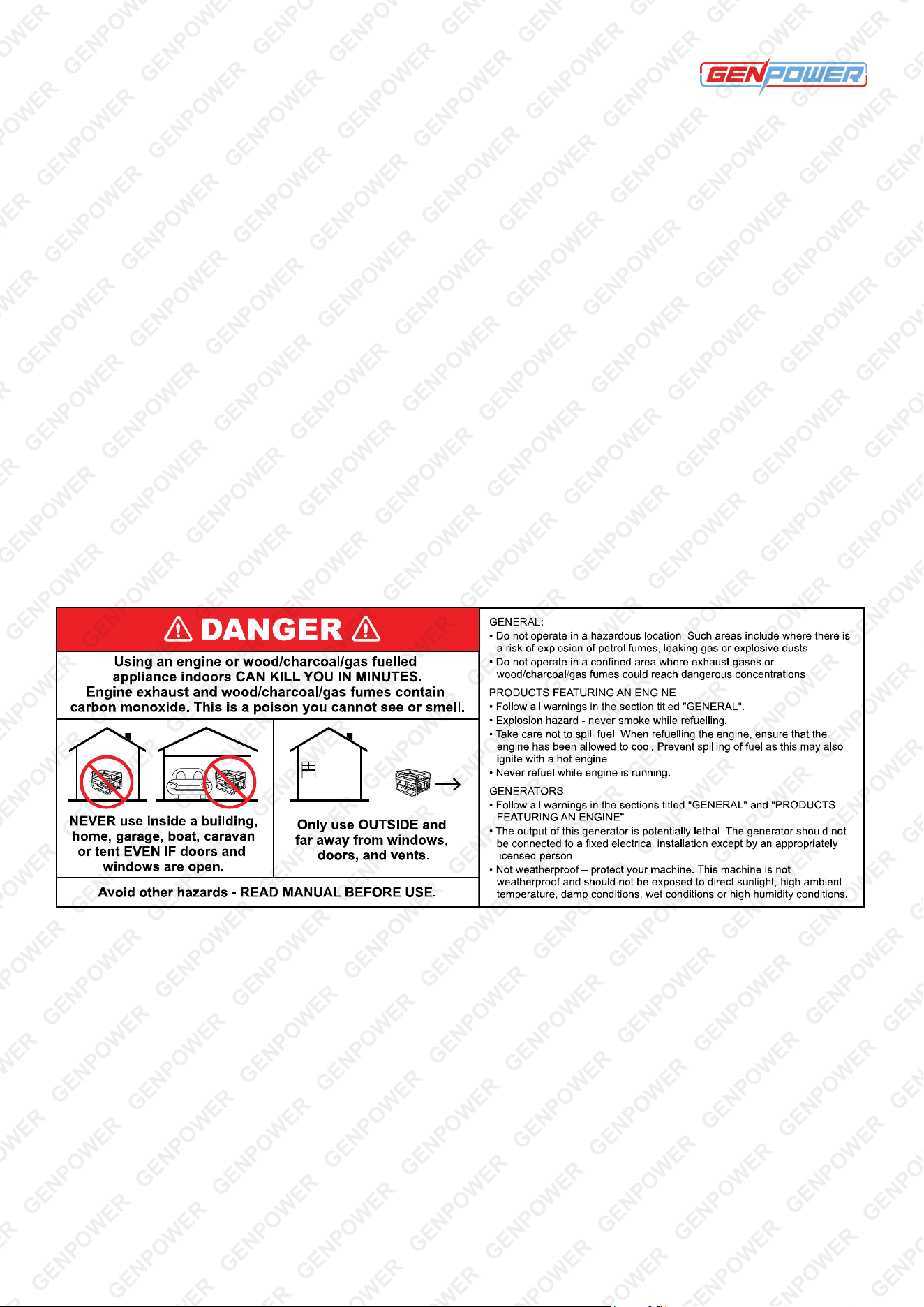

General Carbon-Monoxide Safety

• U

sing a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

General Equipment Use and Care

• K

eep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 3

General Electrical Safety

• I

nspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• E

lectrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• T

he equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Inverter Generators Safety

• T

he manufacturer cannot anticipate every possible hazardous circumstance that the user may encounter. Therefore, the warnings in this manual,

on tags, and on affixed decals are not all-inclusive. To avoid accidents, the user must understand and follow all manual instructions and use good

common sense.

• WARNING! Read and understand this manual in its entirety before operating this generator. Improper use of this generator could result

in serious injury or death.

• WARNING! Do not operate indoors or in a confined space that prevents dangerous carbon monoxide gas from dissipating.

• Using a generator indoors CAN KILL YOU IN MINUTES!

• Carbon monoxide gas is a poisonous, odorless gas that can cause headache, confusion, fatigue, nausea, fainting, sickness, seizures, or

death. If you start to experience any of these symptoms, IMMEDIATELY get fresh air and seek medical attention.

• Never use indoors, in a covered area, or in a confined space, even if doors and windows are open.

• Install a battery-operated carbon monoxide alarm near bedrooms.

• Keep exhaust from this unit from entering a confined area through windows, doors, vents, or other openings.

• When working in areas where vapours could be inhaled, use a respirator rated for carbon monoxide protection.

• WARNING! Engine exhaust contains chemicals that can cause cancer and birth defects. Always wash hands after handling generator.

• WARNING! To reduce the risk of serious injury, do not attempt to lift the generator alone.

• WARNING! Never exceed generator’s wattage / amperage capacity. This could damage the generator and / or connected electrical

devices. Check operating voltage and frequency of all electrical devices prior to plugging in to generator.

• WARNING! Never start or stop engine with electrical devices plugged in to the receptacles. Failure to do so could damage the

generator and/or connected electrical devices. Always start the engine and let it stabilize before connecting any electrical devices. Disconnect

all electrical devices before stopping the engine.

• WARNING! Starter recoil and other moving parts can catch on clothing, jewellery, and hair. Do not wear loose clothing or loose gloves.

Remove jewellery or anything else that could be caught in moving parts. Tie back hair, or wear protective head covering to contain long hair.

• WARNING! Keep engine away from flammable objects and other hazardous materials.

• The fuel and its vapors used to power this unit are highly flammable and could explode resulting in serious injury or death.

• Never fill or drain fuel tank indoors.

• Never overfill fuel tank. If fuel spills, move the unit at least 30 feet away from the spill and wipe up any remaining fuel on the unit before starting

the engine.

• Never smoke while operating or fueling this unit.

• Never operate or store this unit near an open flame, heat, or any other ignition source.

• Generator should be far away from buildings or other equipment during operation.

• Keep engine free of grass, leaves, or grease and other flammable debris.

• When adding or draining fuel, unit should be turned off for at least 2 minutes to cool before removing fuel cap. If unit has been running, the fuel

cap may be under pressure, remove slowly.

• To keep fuel from spilling, secure unit so it cannot tip while operating or transporting.

• When transporting unit, disconnect the spark plug wire and make sure the fuel tank is empty with the fuel shutoff valve turned to the off

position.

• WARNING! Pull cord recoils rapidly and can pull arm towards engine faster than you can let go which could result in injury. To avoid

recoil, pull starter cord slowly until resistance is felt, then pull rapidly.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 4

• WARNING! Avoid contacting hot areas of this unit. Use caution around the muffler, cylinder, and other engine parts as they can be

extremely hot. Allow hot components to cool before touching.

• WARNING! This generator produces high voltage which could result in burns or electrocution causing serious injury or death.

• Never handle the generator, electrical devices, or any cord while standing in water, while barefoot, or when hands or feet are wet.

• Always keep the generator dry. Never operate generator in rain or under wet conditions.

• Use a ground fault circuit interrupter (GFCI) in a damp or highly conductive area, such as metal decking or steel work.

• Never plug electrical devices into generator having frayed, worn, or bare wires. Never touch bare wires or contact receptacles.

• Never permit a child or unqualified person to operate generator. Always keep children a minimum of 10 feet away from the generator.

• If using the generator for backup power, notify the utility company.

• If connecting generator to a building’s electrical system for standby power, you must use a qualified electrician to install a transfer switch.

Failure to isolate the generator from the power utility could result in serious injury or death to electric utility workers.

• WARNING! Generator must be properly grounded to prevent electrocution. Only operate generator on a level surface. If connected to a

structure, connect the ground terminal on the frame to an appropriate ground.

• WARNING! Never modify this unit in any way or modify governed speed.

• Increasing governed speed is dangerous which can result in personal injury and / or damaged equipment.

• Decreasing governed speed adds an excessive load and can damage equipment.

• Only when operating at the preset governed speed this generator will supply the correct rated frequency and voltage.

• WARNING! Only use this unit as intended or serious injury or death could result.

• Do not bypass any safety device. Moving parts are covered with guards. Make sure all protective covers are in place.

• Never transport or make adjust this unit while it is running.

• Never insert objects through cooling slots.

• WARNING! Never operate this unit if there are any broken or missing parts and only use replacement parts specifically designed for

this unit.

• Improper treatment of generator can damage the unit and shorten its life.

• Always repair this unit as specified in this manual. If you have any questions, contact your dealer, or consult a qualified service centre.

• Shut generator off if electrical output is missing, unit vibrates excessively or begins to smoke, spark, or emit flames.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 5

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 6

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 7

Table of Contents

Safety ......................................................................................................................................................... 2

Safety Symbols ........................................................................................................................................................... 5

Parts Identification .................................................................................................................................... 9

Before Starting......................................................................................................................................... 10

Control Panel Functions ......................................................................................................................... 11

Fuel Valve ................................................................................................................................................................. 11

USB Outlet ................................................................................................................................................................ 11

Oil Warning Indicator Light ....................................................................................................................................... 12

Engine Overload Indicator Light ............................................................................................................................... 12

AC Pilot Indicator Light ............................................................................................................................................. 13

Engine Economy Control .......................................................................................................................................... 13

Parallel Outlets ......................................................................................................................................................... 13

Fuel Tank Cap .......................................................................................................................................................... 13

Grounding the Generator .......................................................................................................................................... 14

Assembly ................................................................................................................................................. 15

Connecting the Generator to an Electrical System .................................................................................................. 15

Adding Fuel ............................................................................................................................................................... 15

Adding/Checking Engine Oil ..................................................................................................................................... 16

Operation ................................................................................................................................................. 17

Grounding the Generator .......................................................................................................................................... 17

Standard Atmospheric Conditions ............................................................................................................................ 17

Starting the Engine ................................................................................................................................................... 17

Push Start ................................................................................................................................................................. 17

How to Stop the Engine ............................................................................................................................................ 18

How to Attach Electronic Devices ............................................................................................................................. 18

Charging the Battery ................................................................................................................................................. 19

Battery Removal ....................................................................................................................................................... 19

AC Parallel Operation ............................................................................................................................................... 20

Avoid Overloading the Generator ............................................................................................................................. 20

Maintenance ............................................................................................................................................. 23

Pre-Operation Steps ................................................................................................................................................. 23

After Each Use .......................................................................................................................................................... 23

Maintenance Schedule ............................................................................................................................................. 23

Checking the Spark Plug .......................................................................................................................................... 24

Carburettor Adjustment ............................................................................................................................................ 24

Oil Recommendations .............................................................................................................................................. 24

Changing Oil ............................................................................................................................................................. 25

High Altitude Operation ............................................................................................................................................ 26

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 8

Air Filter .................................................................................................................................................................... 26

Checking the Muffler and the Spark Arrester ........................................................................................................... 26

Fuel Tank Filter ......................................................................................................................................................... 27

Fuel Filter .................................................................................................................................................................. 27

Storage and Transportation ...................................................................................................................................... 28

Long-Term Storage of the Engine ............................................................................................................................ 28

Draining the Fuel ...................................................................................................................................................... 28

Troubleshooting ...................................................................................................................................... 29

Specifications .......................................................................................................................................... 30

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 9

Parts Identification

No. Name

1

Flat-proof wheels

2

Engine service panel

3 Telescoping handle

4 Fuel tank cap

5 Carry handles

6 Recoil handle

7

Oil access cover

7

6

5

4

3

2

1

Spare parts available

for purchase, scan QR

code below:

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 10

Before Starting

Step 1: Remove the right-side cover with a Phillips

head screwdriver, there are a total of x4 screws.

Step 2: The battery will arrive with a safety plug on

the battery lead.

Step 3: Remove the plug.

Step 4: Connect the battery lead to the other end of

the connector.

Step 5: The battery is now connected, and the unit

can be started via the Push Start button on the face

of the control panel.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 11

Control Panel Functions

Fuel Valve

When the start switch is in the “OFF” position, the fuel valve is switched off and the engine will not run.

USB Outlet

The Generator offers a convenient (5V DC 2.1A) USB outlet to allow charging of USB devices like tablets, MP3

players, GPS, Digital Cameras and other USB chargeable devices.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 12

Oil Warning Indicator Light

When the oil falls below the minimum level, the oil warning indicator light comes on and the engine stops

automatically. The engine will not start until the proper amount of oil is in the crank case.

NOTE: If the oil warning indicator light does not come on and the engine stalls, turn the fuel valve to “ON” and

pull the recoil starter.

Engine Overload Indicator Light

If the engine overload indicator light comes on, the generator’s wattage/amperage capacity has been exceeded

by connected electrical devices or by a power surge. When this occurs, the green AC Pilot Indicator Light will go

off. The engine will continue to run, (but the red Engine Overload Indicator Light will stay on and power will no

longer be supplied to connected electronic devices.)

NOTE: The engine overload indicator light may turn on for a few seconds when attaching a load due to a power

surge. This is normal.

How to Correct

1. Disconnect any electronic devices, then stop the engine.

2. Reduce the total wattage of the connected electronic devices until it is within the generator’s rated output.

3. Inspect the Air Inlet and Control Panel for any blockage. Remove blockage, if found.

4. Restart Engine.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 13

AC Pilot Indicator Light

The green AC Pilot Indicator Light comes on when the engine starts and generates power.

Engine Economy Control

•

When the Engine Economy switch is turned to the “ON” position, the economy control unit automatically

determines the generator’s proper engine speed based on the connected electronic load. This results in

superior fuel economy and reduces noise.

•

When the Economy switch is turned to the “OFF” position, the engine runs at the rated speed of 3,100 r/min.

NOTE: The Economy switch must be turned to the “OFF” position when using electronic devices that require a

large starting current, such as a compressor.

Parallel Outlets

Located just above the Ground Terminal, the generator’s Parallel Outlets enable a user to run two generators

simultaneously. This operation requires special cables. When operating parallel generators, the rated output is

7.4kVA and the rated current is 61.6A/120VAC. For cables and instructions consult an authorised dealer for a

parallel operation cable kit.

WARNING! Never connect generators that are different models. Only connect this generator to

another SV7000 Generator. Only use a parallel operation cable kit designed to work with this

Generator.

Fuel Tank Cap

Turn anti-clockwise to remove the fuel tank cap.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 14

Grounding the Generator

The portable generator is equipped with a terminal for the connection of a ground electrode conductor where a

grounding electrode system is required by NEC Article 250.34(A). The equipment grounding conductors of the

generator receptacles are bonded to the generator frame. Where the generator supplies power to cord and plug

connected equipment, like power tools, the frame of the generator is not required by the NEC to be connected to

an earthen ground electrode. The generator neutral conductor is bonded to the generator frame in accordance

with NEC Article 250.34(C).

WARNING! Generator must be properly grounded to prevent electrocution. Only operate

generator on a level surface. When connected to a structure connect the ground terminal to an

earthen ground.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 15

Assembly

Connecting the Generator to an Electrical System

If connecting the generator to a building electrical system for standby power,

you must use a qualified electrician to install a transfer switch. The power

from the generator must be isolated from the utility power source. The

connection must comply with all electrical codes and applicable laws.

WARNING! This generator produces high voltage which

could result in burn or electrocution causing serious

injury or death.  Never handle the generator, electrical devices, or any cord

while standing in water, while barefoot, or when hands or feet are wet. 

Always keep the generator dry. Never store or operate generator in rain or

under wet conditions.  Use a ground fault circuit interrupter (GFCI) in a damp

or highly conductive area, such as metal decking or steel work.  Never plug

electrical devices into generator having frayed, worn, or bare wires. Never

touch bare wires or contact receptacles.  Never permit a child or unqualified person to operate generator.

Always keep children a minimum of 10 feet away from the generator.  If using the generator for backup power,

notify the utility company.  If connecting generator to a building’s electrical system for standby power, you must

use a qualified electrician to install a transfer switch. Failure to isolate the generator from the power utility could

result in serious injury or death to electric utility workers.

Adding Fuel

1. Set generator outdoors in a well-ventilated area, away from structures and people.

2. Gently remove fuel cap.

3. Insert a funnel into the fuel tank and carefully pour gasoline into the tank until fuel level reaches 1 ½ inches

below the top of the neck. Be careful not to overfill the tank to allow space for fuel expansion.

Turn cap anti-clockwise to remove.

Do not smoke when adding fuel

Do not overfill the fuel tank.

Provide space for fuel expansion.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 16

Adding/Checking Engine Oil

1. Place generator on a

level surface.

2. Unclip and remove the

oil service panel to

access the oil fill/drain

plug.

3. Remove the crankcase

dipstick.

Recommended Oil:

SAE 10W-30

Oil Capacity: 0.6L

(20.2oz)

4. Be sure to replace dipstick and securely tighten before attempting to start the engine.

5. Insert a funnel into the crankcase dipstick hole and carefully add the specified amount of 4-Cycle engine oil

(SAE 10W-30) to empty reservoir until or oil reaches the outer edge of the oil fill hole (crankcase dipstick

hole).

6. To check oil, set generator on a level surface, wipe dipstick clean, then reinsert dipstick without re-threading.

CAUTION! Generator has been shipped without engine oil. You must add oil before first

operating this generator. Always check oil level before each operation.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 17

Operation

Grounding the Generator

To avoid electrocution, this generator must be properly grounded prior to use.

Standard Atmospheric Conditions

•

Ambient Temperature: 77ºF (25ºC)

•

Barometric Pressure: 100kPa

•

Relative Humidity: 30%

Generator output will vary due to changes in temperature, altitude, and humidity. If the temperature, humidity, or

altitude are higher than standard atmospheric conditions, the generator’s output will be reduced. The load

attached to the generator must be reduced.

Starting the Engine

1. Place generator on a level surface. All electrical loads MUST be disconnected from generator.

2. Turn the Economy switch to “OFF”

3. Turn the Start Switch to “ON”

4. Pull the recoil starter grip slowly until resistance is felt, then pull rapidly.

5. Let engine run for several seconds.

Push Start

IMPORTANT: The internal battery must be charged before first use. Use the included 240v charger.

1. Place generator on a level surface. All electrical loads MUST be disconnected from generator.

2. Turn the Economy switch to “OFF”

3. Turn the Start Switch to “ON”

4. Push start button until generator starts.

CAUTION! Pull cord recoils rapidly and can pull arm towards engine faster than you can let go

could result in injury. Pull starter cord slowly until resistance is felt, then pull rapidly.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 18

To start the generator with the Economy switch in the “ON” position:

1. Disconnect all electrical loads from generator.

2. If ambient temperature is below 32ºF (0ºC) allow about 3 minutes for the engine to warm up.

3. The Economy is in “ON” position, the unit returns to normal operation after the above warm up time.

4. Economy switch must be turned to the “OFF” position when using electronic devices that require a large

starting current, such as a compressor.

How to Stop the Engine

1. Turn the Economy switch to the “OFF” position.

2. Disconnect any electronic device. All loads MUST be disconnected from the generator. Never start or stop

the engine with electrical devices plugged in to the receptacles.

3. Turn the Start Switch to the “OFF” position.

WARNING! Never start or stop engine with electrical devices plugged in to the receptacles.

Failure to heed this warning could damage the generator and / or connected electrical devices.

Always start the engine and let it stabilize before connecting any electrical devices. Disconnect all

electrical devices before stopping the engine.

How to Attach Electronic Devices

1. Before Starting the generator:

a. Make sure the generator is grounded.

b. Make sure the attached load is within the generator rated output and the receptacle’s rated current.

c. Make sure all electrical cords and receptacles are in good condition.

d. Make sure all electronic devices are turned “OFF” before plugging them into the generator.

2. Start the engine.

3. If the attached load is small, turn the Economy switch to the “ON” position. For a larger load, or if attaching

multiple electronic devices, turn the Economy switch to the “OFF” position.

4. Make sure the green AC pilot indicator light is on.

5. When engine has stabilized, plug in, and turn on first load. It is strongly recommended to plug in devices with

the largest output first and the smallest output last to help prevent overloading the generator.

6. Allow generator output to stabilize (engine and attached devices run evenly) before plugging in the next load.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 19

Charging the Battery

See the charging port located on the front panel above. Use the included charger to charge the internal battery

for push start activation.

Battery Removal

The battery is held in place by a plastic bracket. In the event you need to replace the battery, simply remove the

2 bolts on either side of the bracket (highlighted in blue).

WARNING! Battery electrolyte is poisonous and dangerous. • Do not disconnect battery

clamps while charging. Batteries produce explosive gasses. Disconnecting the battery

clamps while charging could spark and ignite. • Do not charge battery in an enclosed area.

• Never smoke while charging the battery or operating or fueling this generator. • Battery electrolyte

contains sulfuric acid. Avoid contact with skin, eyes, and clothing. Always wear eye protection when

charging battery.  If battery acid contacts skin, flush with water immediately. If it contacts eyes, flush

with water for 15 minutes and get immediate medical attention. For internal ingestion, drink large

quantities of water or milk, followed by milk of magnesia, beaten egg, or vegetable oil. Contact a medical

physician immediately.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 20

AC Parallel Operation

It is possible to connect two SV7000 generators to each other, using a parallel cable kit, to increase available

power output.

1. Connect parallel operation cables to two SV7000 generators according to the instructions provided with the

cable kit.

2. Make sure the Economy switch is in the same position on both generators.

3. All electronic devices should be turned “OFF” and disconnected from generators prior to starting generator

engines.

4. Start generator engines. Make sure the green output indicator light comes on for each generator.

5. When engines have stabilized, plug in electronic device to AC receptacle and turn on first load.

6. Allow generator output to stabilize (engine and attached devices run evenly) before plugging in the next load.

Limit operation time to 3 seconds for load requiring maximum output. For continuous operation, do not exceed

the rated output.

NOTE: It is strongly recommended to plug in devices with the largest output first and the smallest output

last to help prevent overloading the generator. Most electronic devices require power beyond its rated

wattage to start. This additional power is referred to as surge watts and usually lasts between 2-3 seconds.

When an electronic device is started, the red overload indicator may come on. This is normal. If the light stays

on disconnect all electronic devices and stop the engine. Refer to Engine Overload Indicator Light.

WARNING! Only connect electronic devices to the generator that are in good working order and

do not exceed the rated power supply of the parallel generators or the desired receptacle. • A

faulty appliance or power cord can create an electric shock. Do not use electronic devices that

have a damaged cord or plug. • If an appliance begins to operate abnormally, becomes sluggish, or

stalls, turn off and disconnect appliance immediately. The appliance may have a fault, or its rated load

capacity exceeds the power supply of the generator. • To avoid damage to generator or electronic

device, do not connect a load to the generator if its electrical rating exceeds that of the receptacle. 

Never connect generators that are different models.  Only connect this generator to another SV7000

generator.  Only use a supplier approved parallel operation cable kit to connect generators.  Never

exceed the maximum may be used for no more than 30 minutes.  The parallel cable must be removed if

operating only one generator.  Never disconnect or remove the parallel operation cable while generator

is still running.

Avoid Overloading the Generator

Make sure you can supply enough rated watts and surge watts for all electrical loads connected to the

generator. Rated watts refer to the power a generator must supply to keep a device running. Surge watts refer to

the power a generator must supply to start an electrical device. This power surge for starting a device usually

lasts between 2-3 seconds but this additional output must be considered when selecting the electrical devices,

you plan to attach to the generator. To prevent overloading the generator, take the following steps:

Operating voltage and frequency requirement of all electrical equipment should be checked prior to plugging

them into this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage

variation, and +/- 3 Hz frequency variation from the generator name plate ratings. To reduce the risk of damage,

always have an additional load plugged into the generator if solid-state equipment (such as television set) is

used. A power line conditioner is recommended for some solid-state applications.

Wattage Reference Guide

(Wattages listed are just approximations. Check electronic device for actual wattage)

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 21

Rated Watts Surge Watts

Essentials

75W Light Bulbs 75 each 75 each

18 CU Ft Refrigerator / Freezer 800 2200

Furnace Fan (⅓

HP) 800 2350

Sump Pump (⅓ HP) 1000 2000

Water Pump (⅓

HP) 1000 3000

Heating/Cooling

Dehumidifier 650 800

Table Fan 200 300

Window AC (10k BTU) 1200

3600

Central Air (4 ton) 1500 6000

Electric Blanket 400

400

Space Heater 1800 1800

Kitchen

Blender 300 900

Toaster (2 slice) 1000 1000

Coffee Maker 1500

1500

Electric Range (1 element) 1500 1500

Dishwasher 1500

2000

Electric Oven 3500 3500

Electric Water Heater 4000

4000

Laundry Room

Iron 1200 1200

Washing Machine 1150 2400

Gas Clothes Dryer 700

1500

Electric Clothes Dryer 5400 6750

Bathroom

Hair Dryer 1250 1250

Curling Iron 1000 1000

Family Room

X-Box or Play Station 40 40

AM/FM Radio 10 10

VCR 100

100

TV or Monitor (40”) 200 200

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

E&OE © GenPower 22

Rated Watts Surge Watts

Home Office

Fax Machine 65 65

Personal Computer (17” Monitor) 800 800

Laser Printer 250

950

Copy Machine 700 800

Power Tools

1000W Quartz Halogen Work Light 1000 1000

Airless Sprayer (⅓ HP) 600 800

Reciprocating Saw 750

950

Circular Saw (7 ¼”) 1400 2300

Miter Saw (10”) 800

1200

Table/Radial Arm Saw 1000 2000

Electric Drill (½ HP, 5.4 Amps) 600

900

Hammer Drill 700 1000

Air Compressor 1600

4500

Other

Home Security System 500 500

Garage Door Opener (⅓ HP) 750 750

WARNING! Never exceed generator’s wattage/amperage capacity. This could damage the

generator and/or connected electrical devices. Check operating voltage and frequency

requirements of all electrical devices prior to plugging in to the generator.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

Maintenance

Regular maintenance will extend the life of this generator and improve its performance. The warranty does not

cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty,

operator must maintain the generator as instructed in this manual, including proper storage.

WARNING! Before inspecting or servicing this machine, make sure the engine is off and

no parts are moving. Disconnect the spark plug wire and move it away from the spark

plug. If you are unsure of how to perform a maintenance task, have the unit serviced by an authorised

dealer. Only use specified supplier-approved replacements parts.

Pre-Operation Steps

Before starting the engine, perform the following pre-operation steps:

•

Check the level of the engine oil and the fuel tank level.

•

Make sure the air filter is clean.

•

Remove any debris that has collected on the generator and around the muffler and controls. Use a vacuum

cleaner to pick up loose debris. If dirt is caked on, use a soft bristle brush.

•

Inspect the work area for hazards.

After Each Use

Follow the following procedure after each use:

•

Close the Fuel Valve.

•

Switch OFF the engine.

•

Wait for the generator to become cool to the touch.

•

Store unit in a clean and dry area.

Maintenance Schedule

After First 5 Hours Change Oil

After 8 Hours or Daily

Clean Debris from Generator and Air Filter ar

ea

Check Engine Oil Level

Annually (25 hr. use)

Check and Clean Air Cleaner

Change Engine Oil (Service more often under dirty or dusty conditions)

Check Muffler and Spark Arrester

Annually (100 hr. use)

Service Spark Plug (Replace with NGK BP6ES, Champion N9YC or equivalent)

Inspect Fuel Valve and Fuel Lines for leaks or damage

Inspect Muffler and Spark Arrester

Check and Clean Air Cleaner Assembly, Replace Air Filter

Clean Cooling System Cylinder Head Fins and Flywheel Fan

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

Checking the Spark Plug

1. Remove the Engine Service Panel to gain access to the Spark plug

2. Remove cap. Then remove spark plug cap.

3. Disconnect the spark plug wire from the spark plug.

4. Before removing the spark plug, clean the area around its base to prevent debris from entering the engine.

5. Insert a spark plug socket wrench through the opening on the outside of the cover. Turn the wrench anti-

clockwise.

6. Check for discoloration and clean carbon deposits off the electrode with a wire brush.

7. Check the electrode gap and slowly adjust to 0.6 - 0.7mm (0.024-0.028 in) if necessary.

8. Reinstall spark plug and tighten to Torque 20.0Nm (14.8ft-lb).

9. If spark plug is worn replace only with an equivalent replacement part. Spark plug should be replaced

annually.

10. Reconnect spark plug wire.

11. Replace spark plug cap, then replace cap.

•

Standard Spark Plug: F7TC/F7RTC

•

Spark Plug Gap: 0.6 - 0.7mm (0.024-0.028 in)

•

Spark Plug Torque: 20.0Nm (14.8ft-lb)

Carburettor Adjustment

The carburettor is low emission and is equipped with a non-adjustable idle mixture valve. If adjustment is needed

contact an authorised dealer.

Oil Recommendations

•

Do not use special additives.

•

Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best

viscosity for the outdoor temperature range expected.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

NOTE: The use of SAE 30 below 4°C will result in hard starting. The use of 10W-30 above 27°C may cause

increased oil consumption. Check oil level more frequently.

Changing Oil

1. Run the Generator until the Engine is warm, then shut OFF.

2. Place generator on a level surface.

3. Remove the crankcase dipstick.

4. Place an oil pan underneath the oil drain hole to collect used oil.

5. Remove the oil drain plug and allow oil to drain completely.

6. Reinstall oil drain plug, tighten securely.

7. Carefully add SAE 30 or 10W-30 to empty reservoir until the oil reaches the threads of the oil fill hole

(Crankcase Dipstick hole).

8. Replace crankcase dipstick.

Oil Recommendations:

•

Do not use special additives.

•

Outdoor temperatures can affect proper oil viscosity for the engine.

•

Use the chart to select the best viscosity for the outdoor temperature range expected.

Recommended Engine Oil: SAE 10W-30

Recommended Engine Oil Grade: API Service SE type or higher quality of engine oil.

Engine Oil Quantity: 0.6L (20.2 oz)

CAUTION! Do not tilt generator when adding oil. This could result in overfilling, which could damage the

engine. Make sure no foreign matter enters the crankcase.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

High Altitude Operation

At high altitude, the standard carburettor air/fuel mixture will be too rich. Performance will decrease, and fuel

consumption will increase. A rich mixture will also foul the spark plug and cause hard starting. Operation at an

altitude that differs from that at which this engine was certified, for extended periods of time, may increase

emissions. High altitude performance can be improved by specific modifications to the carburettor.

If you always operate your generator at altitudes above 5,000 feet (1,500 meters), have your dealer perform this

carburettor modification. This engine, when operated at high altitude with the carburettor modifications for high

altitude use, will meet each emission standard throughout its useful life.

Even with carburettor modification, engine horsepower will decrease about 3.5% for each 1,000-foot (300-meter)

increase in altitude. The effect of altitude on horsepower will be greater than this if no carburettor modification is

made.

Air Filter

A dirty air filter will reduce the life span of the engine, make it difficult to start the engine, and reduce the unit's

performance. Replace with new fitter annually.

1. To clean, remove the screws then remove outer casing

2. Turn the clip to lift then open the air filter cover.

3. Remove the foam element.

4. Blow the dust away with a blow dryer

5. Reinsert the foam element into the air filter case.

CAUTION! Do not run the generator without reinstalling the foam element or excessive piston

and cylinder wear may result.

Checking the Muffler and the Spark Arrester

1. Inspect the muffler for cracks, corrosion, or other damages.

2. Remove screws, then remove the muffler cover, as shown.

3. Remove all covers, then remove the muffler cap, muffler screen, and the spark arrester.

4. Check the muffler screen and spark arrester for carbon deposits. Remove any carbon deposits with a wire

brush.

5. Check the muffler screen and spark arrester for any damages. If there are any damages, replace only with

supplier-approved replacement parts specifically designed for this unit.

6. Re-install the spark arrester. Align the spark arrester projection with the hole in the muffler pipe.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

7. Re-install the muffler screen and muffler cap.

8. Re-install the outer casing and tighten the screws.

WARNING! Avoid contacting hot areas of this unit.  Be cautious around the muffler, cylinder,

and other engine parts as they can be extremely hot.  Allow hot components to cool before

touching them.

Fuel Tank Filter

1. To clean, remove the fuel cap and filter.

2. Clean the filter with fuel.

3. Wipe the filter with a clean rag.

4. Re-install the filter.

5. Re-install the fuel cap.

Fuel Filter

1. To clean, remove screws, remove outer casing, and drain fuel.

2. Lift and hold onto the clamp, then remove hose from tank.

3. Take out the fuel filter.

4. Clean the filter with fuel.

5. Wipe the filter with a clean rag and return the filter to the tank.

6. Re-install the hose and clamp.

7. Open the fuel valve. Inspect for leakages.

8. Re-install the outer casing and re-tighten screws.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

Storage and Transportation

When transporting the generator, turn the Start Switch (ON/OFF and Choke) OFF. Keep the generator level to

prevent fuel spillage. Fuel vapor or spilled fuel may ignite.

•

Remove any debris that has collected on the generator and around the muffler and control panel. Use a

brush or vacuum to remove loose dirt.

•

Inspect air cooling slots. Remove any debris if obstructed.

•

For short-term storage, start the generator once every 7 days.

•

For medium-term storage, add fuel stabilizer to prevent stale fuel from causing acid and gum deposits in the

fuel system and carburettor.

•

For long-term storage, drain the fuel.

•

Store indoors to prevent freezing and use a protective cover to protect from dust.

•

The generator must be shipped, run, and stored in the upright position.

WARNING! Contact with a hot engine or exhaust system can cause serious burns or fires. Let the

engine cool before transporting or storing the generator.

CAUTION! Take care not to drop or strike the generator when transporting. Do not place heavy objects

on the generator.

Long-Term Storage of the Engine

1. Remove the spark plug and pour about 1 teaspoon of 10W30 engine oil into the spark plug hole. Re-install

the spark plug. With the 3 in 1 switch in the “OFF” position, pull the recoil starter cord several times to coat

the cylinder walls with oil.

2. Gently pull the recoil starter cord until you feel the engine build compression (when you feel resistance).

Leave the engine in this state as this will prevent any corrosion on the cylinder walls if stored for a long

period of time.

Draining the Fuel

1. Turn the fuel valve to the OFF position.

2. Turn the engine OFF

3. Remove the fuel line that leads from the carburettor to the petcock by squeezing the ends of the hose

clamps and sliding the fuel line off.

4. If needed, install a fuel hose that will extend to a suitable fuel container large enough to catch the fuel being

drained from the tank.

5. Turn the fuel valve to the ON position and open the fuel tank cap slightly to equalize pressure.

6. When the fuel has drained from the tank, close the fuel valve, and reinstall fuel line securely on petcock.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

Troubleshooting

Problem Cause Solution

Engine is running, but AC output is

not available

1. Open circuit breaker

2. Poor connection

3. Defective cord set

4. Connected device is faulty

5. Fault in generator

1. Reset circuit breaker

2. Check and repair

3. Check and repair

4. Connect a device that is working

properly

5. Contact service centre

Engine runs well without load but

bogs down when loads are

connected

1. Short circuit in connected

device

2. Generator is overloaded

3. Clogged fuel filter

4. Engine speed is too slow

5. Short circuit in generator

1. Disconnect device

2. Don’t overload generator

3. Clean or replace fuel filter

4. Contact service centre

5. Contact service centre

Engine will not start, shuts down

during operation, or starts and runs

roughly.

1. ON/OFF switch set to “OFF”

2. Dirty Air filter

3. Clogged fuel filter

4. Stale fuel

5. Spark plug wire disconnected

from spark plug

6. Bad spark plug

7. Water in fuel

8. Fuel valve is in “OFF” position

9. Over choking

10. Low oil level

11. Rich fuel mixture

12. Intake valve stuck open or

closed

13. Loss of engine compression

14. Engine is flooded

1. Turn switch to “ON”

2. Replace Air filter

3. Clean or replace fuel filter

4. Replace fuel

5. Reconnect spark plug wire

6. Replace spark plug

7. Drain fuel tank and replace fuel

8. Turn fuel valve to “ON” position

9. Turn off choke

10. Fill crankcase to proper oil level &

place generator on a level surface

11. Contact service centre

12. Contact service centre

13. Contact service centre

14. Wait 5 minutes and crank engine

Engine lacks power

1. Generator is overloaded

2. Clogged fuel filter

3. Dirty Air filter

4. Engine needs servicing

1. Don’t overload generator

2. Clean or replace fuel filter

3. Replace Air filter

4. Contact service centre

Engine “hunts” or falters

1. Choke was opened too soon

2. Clogged fuel filter

3. Carburettor is running too rich

or too lean

1. Move choke to middle position until

engine runs smoothly

2. Clean or replace fuel filter

3. Contact service centre

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Petrol Powered Inverter Generator - SV7000

Specifications

Peak Output 4500W / 4.5kW (Starting watts)

Continuous Rated Output 3500W / 3.5kW

NOTE: Continuous Rated Output is what power this generator consistently

and reliably provides. We strongly recommend that you consider this

figure when determining whether this model suits your requirements.

AC Outlets 2 x 240V 10A

USB Outlets 2 x 5V (2.1A, 1.0A)

DC Outlet 1x 12V (8A)

Fuel Tank Capacity 13 Litres

Engine Type 4-stroke Petrol Engine

Engine Displacement 224cc

Engine Output 6.1HP

Fuel Type Regular unleaded (Min 95 RON), E10

Engine Oil Type 10W-30 non-synthetic engine oil (not included with purchase)

Runtime 5 Hours (10.5 hours @ 50% load)

Noise Level 59dB @ 50% load, 64dB @ 100% load

Ignition System CDI

Parallel Outlets 1

Warranty 3 Years

Terms of 3 Month Money Back

Satisfaction Guarantee

•

The duration of the Satisfaction Guarantee is calculated from the date

of purchase.

•

A maximum of one product may be returned.

•

The Satisfaction Guarantee covers the amount paid for the product

less the original shipping cost, and less the return freight cost.

•

The product must be packed in a manner suitable for return freight.

GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER GENPOWER

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

GENPOWER GENPINGPRA7M0 Inverter Generator 4500W

Product's Documents

Product manual

Specifications

GENPOWER GENPINGPRA7M0 Questions and Answers
