Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
Familiarise yourself with the application and limitations of the garden hose reel, as well as the specific hazards.
WARNING! Disconnect the garden hose reel from the water supply before servicing or performing any maintenance.
Maintain the garden hose reel in good condition (use an authorised service agent).
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the
warranty.
Locate and fix the garden hose reel in a suitable working area, ensure that the correct fixings are used to secure the unit to the wall.
DO NOT position the hose in direct sunlight, or in areas of extreme heat or cold.
Keep the extended garden hose clean and away from heat, oil and sharp edges. Avoid debris entering the housing.
Check the garden hose for wear before each use and ensure all connections are secure.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
DO NOT operate the garden hose reel if any parts are damaged or missing as this may cause failure and/or personal injury.
DO NOT use the garden hose reel for any purpose other than that for which it is designed.
DO NOT yank the hose from the water supply.
DO NOT operate the garden hose reel when you are tired or under the influence of alcohol, drugs or intoxicating medication.
DO NOT direct water from the garden hose at yourself or others.
When not in use ensure the water supply is turned off. Disconnect from the water supply and retract the hose into the case.
WARNING! DO NOT dismantle the hose reel casing. To do so may result in damage to the appliance and/or personal injury and will
invalidate the warranty. Internal maintenance, which will require the opening of the casing, must only be undertaken by an authorised
service agent.
MODEL No:.......... RWH20 ......RWH30
Hose length: ............20M .........30M
Hose Size ID/OD:.... 13/16mm ....13/16mm
Composite housing with heavy-duty wall mounting swivel bracket. Fitted with high quality Ø13mm PVC garden hose with spray/jet nozzle.
Innovative design features three key points. Hose can be extended and stopped at any length. Controlled, slow rewind which, unlike traditional
retractable reels, returns the water hose at a safe speed. Auto layering mechanism distributes water hose evenly back into reel housing
preventing it from jamming. Supplied with 2mtr leader hose with quick coupler and tap connector. Available in 20mtr and 30mtr versions.
Composite housing with heavy-duty wall mounting swivel bracket.

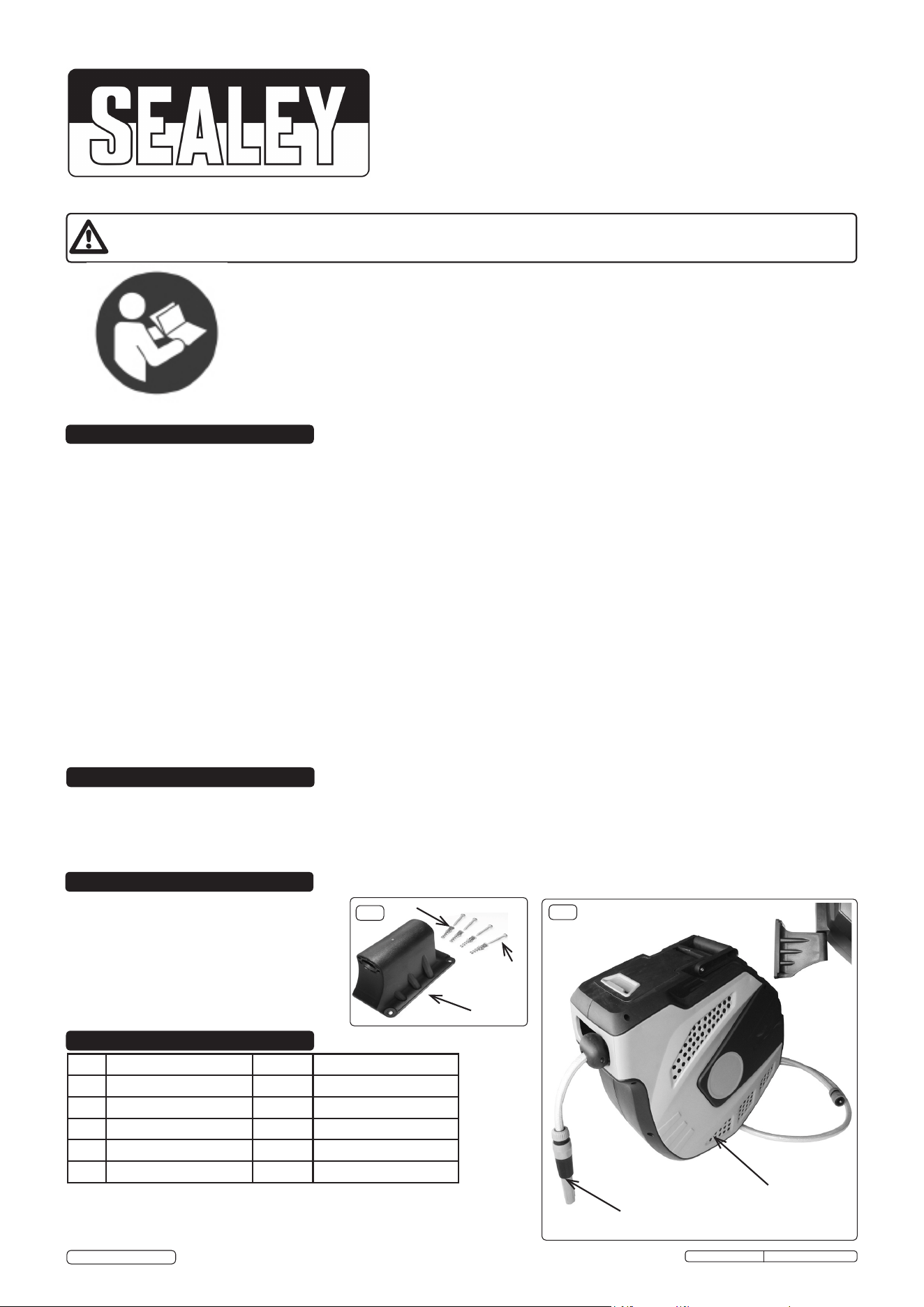

INSTRUCTIONS FOR:
AUTO REWIND CONTROL GARDEN HOSE
REELS 20MTR / 30MTR
MODEL NOS: RWH20 / RWH30
1. SAFETY
2. INTRODUCTION
3. SPECIFICATION
Refer to the instruction manual
RWH20 RWH30 Issue: 1 - 11/09/15
Original Language Version
© Jack Sealey Limited
4. CONTENTS
1
3
2
Item Description Qty Remarks
1 Hose Reel c/w Housing 1 Auto rewind
2 Spray and Jet Nozzle 1 Plastic
3 Pivot Bracket 1 Composite
4 Cross Head Screws 4 No 14 x 48
5 Plastic Plug 4 Ø10 x 45
g.1
5
4
g.2
WARNING! Before attempting maintenance or inspection, vent any pressure remaining in the hose.
To ensure reliable operation, clean the hose and casing regularly. DO NOT spray or wet the product, but clean with a damp cloth and
warm water. DO NOT use solvents or detergents, as these may permanently damage the item. The hose reel does not require special
maintenance as it is lubricated for life. If the product needs to be opened, consult your nearest authorised service agent.
WARNING: DO NOT attempt to loosen, or remove, any casing screws yourself.
Replacement of the supply hose should be carried out by skilled personnel only, consult your nearest authorised service agent.
STORAGE: Before storing the hose reel, ensure it is clean and dry. Store it in a dark, safe, dry, childproof location, where the
temperature will remain reasonably stable.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
01284 757500
sales@sealey.co.uk
www.sealey.co.uk
01284 703534
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk
IP32 7AR
WARNING! Ensure the hose is disconnected from the water supply. DO NOT position the hose in direct sunlight or in areas
of extreme heat or cold. A clearance of 750mm either side of the pivot position is required for a full 180° sweep of the casing.
5.1. Wall mounting.
5.1.1. Remove all items from the packaging.
5.1.2. Using the pivot bracket, item 3, as a template, mark the wall or substantial post, where the hose reel is to be mounted and drill four
10mm diameter holes 50mm deep, 40mm centres horizontally and 164mm vertically. (Suggest 800mm approximately from the floor
to the under edge of the hose reel casing)
5.1.3. Insert the four plastic plugs, item 5, into the holes and mount the bracket securely, flat face uppermost (fig.1), with the four self tapping
screws, item 4.
5.1.4. With assistance, offer the hose reel pivot shaft into the pivot bracket, check for full sweep angle. No further fitting required.
5.1.5. Connect to a mains water supply.
5.2. Extending the hose.
5.2.1. Pull the hose out slowly to the length required and stop, pause momentarily to enable the ratchet to engage. Operate the hose by
opening the faucet, tap or valve of the mains water supply. Adjust the flow from spray to jet as required by gripping the nozzle barrel
with one hand and twisting the nozzle end with the other.
5.3. Retracting the hose.
5.3.1. Close the faucet, tap or valve. To release the hose and allow it to automatically rewind, pull the hose out from the locked position and
then release the tension on the hose. Carry the nozzle with the hose back to the hose reel housing.
WARNING! The reel tension is factory set, if any adjustment is required contact an authorised service agent.
Web
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product
becomes completely unserviceable and requires disposal, dispose of the product according to local regulations.
5. OPERATION
6. MAINTENANCE

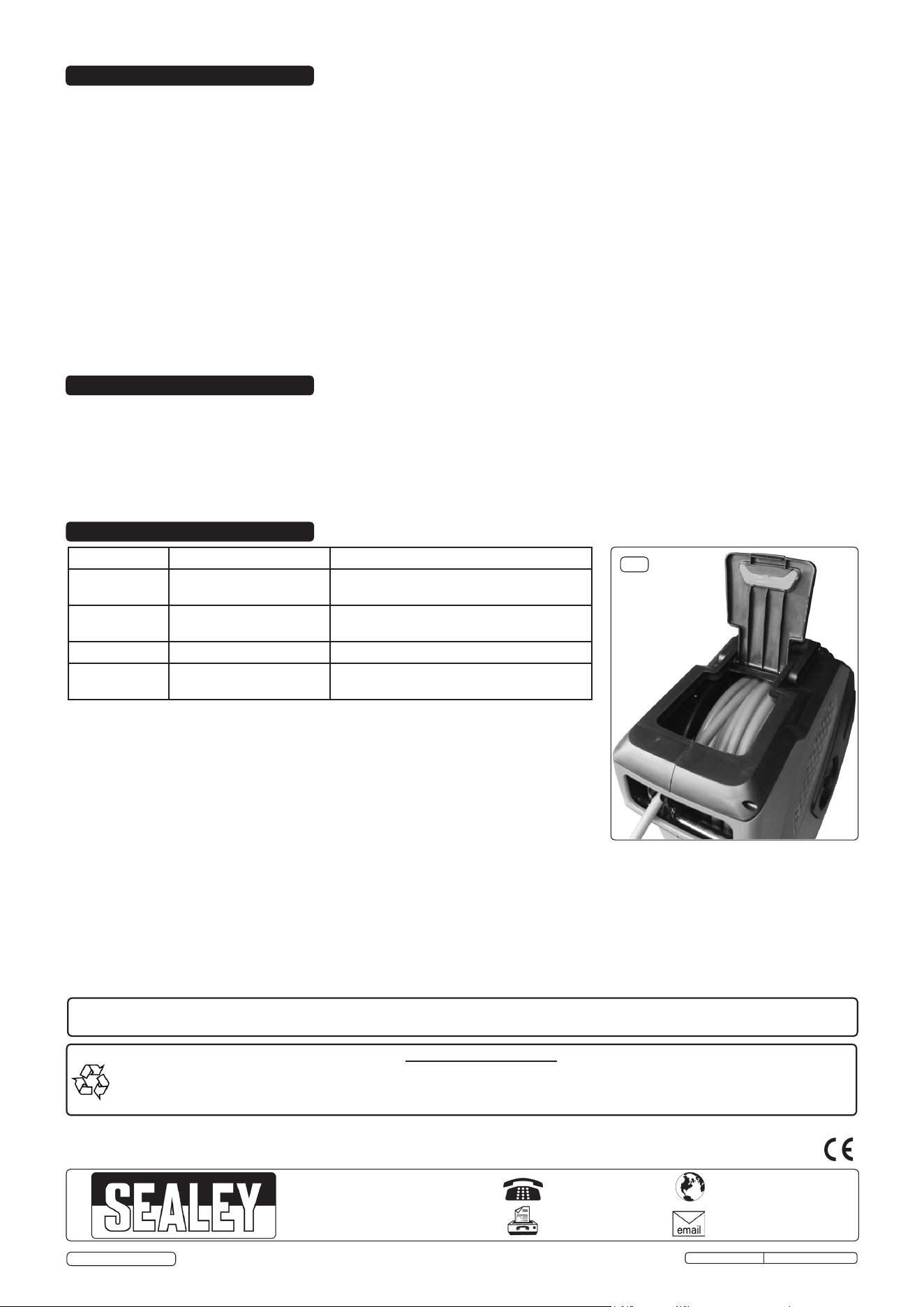

7. TROUBLESHOOTING
RWH20 RWH30 Issue: 1 - 11/09/15
Original Language Version
© Jack Sealey Limited
Fault Possible Cause Possible remedy
Hose will not
retract
Hose extended too far and
locked
Open the top lid and turn the reel to free the
lock. (g.3)
The spring has lost some
torsion
Contact an authorised service agent. DO
NOT attempt the repair yourself.
Hose twisted in housing. Draw the hose from the reel to check.
Torsion (main spring)
fatigued.
Contact an authorised service agent.DO
NOT attempt the repair yourself.
g.3
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500.
