HEAVY-DUTY HOSE REEL CART
MODEL NO: HRCHD
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Disconnect the hose reel from the water supply before changing accessories, servicing or performing any maintenance.
9 Maintain the hose reel trolley in good condition.
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the
warranty.
8 DO NOT operate the hose reel trolley if any parts are damaged or missing as this may cause failure and/or personal injury.
8 DO NOT exceed the rated capacity of the hose reel trolley.
8 DO NOT use the hose reel trolley for any purpose other than that for which it is designed.
8 DO NOT operate the hose reel when you are tired or under the inuence of alcohol, drugs or intoxicating medication.
8 DO NOT direct water from the water hose at yourself or others.
2. INTRODUCTION
Lightweight & durable tubular steel design. Perfect for keeping longer water hoses neat and tidy. Includes a 1.8m leader hose with 3/4” BSP
brass ttings. Can hold up to 120m of Ø13mm standard water hose or 50m of Ø19mm H/D hose (hose not included). Features a non-slip
handle and a storage basket for frequently used tools. Fitted with easy rolling 10” puncture proof PU wheels and solid axle for rough terrain.
3. SPECIFICATION
Model No: .................................................................. HRCHD
Nett Weight: ................................................................ 18.5kg
4. ASSEMBLY
g.1
g.2
HRCHD Issue 1 28/08/19
Original Language Version
© Jack Sealey Limited
Refer to
instructions

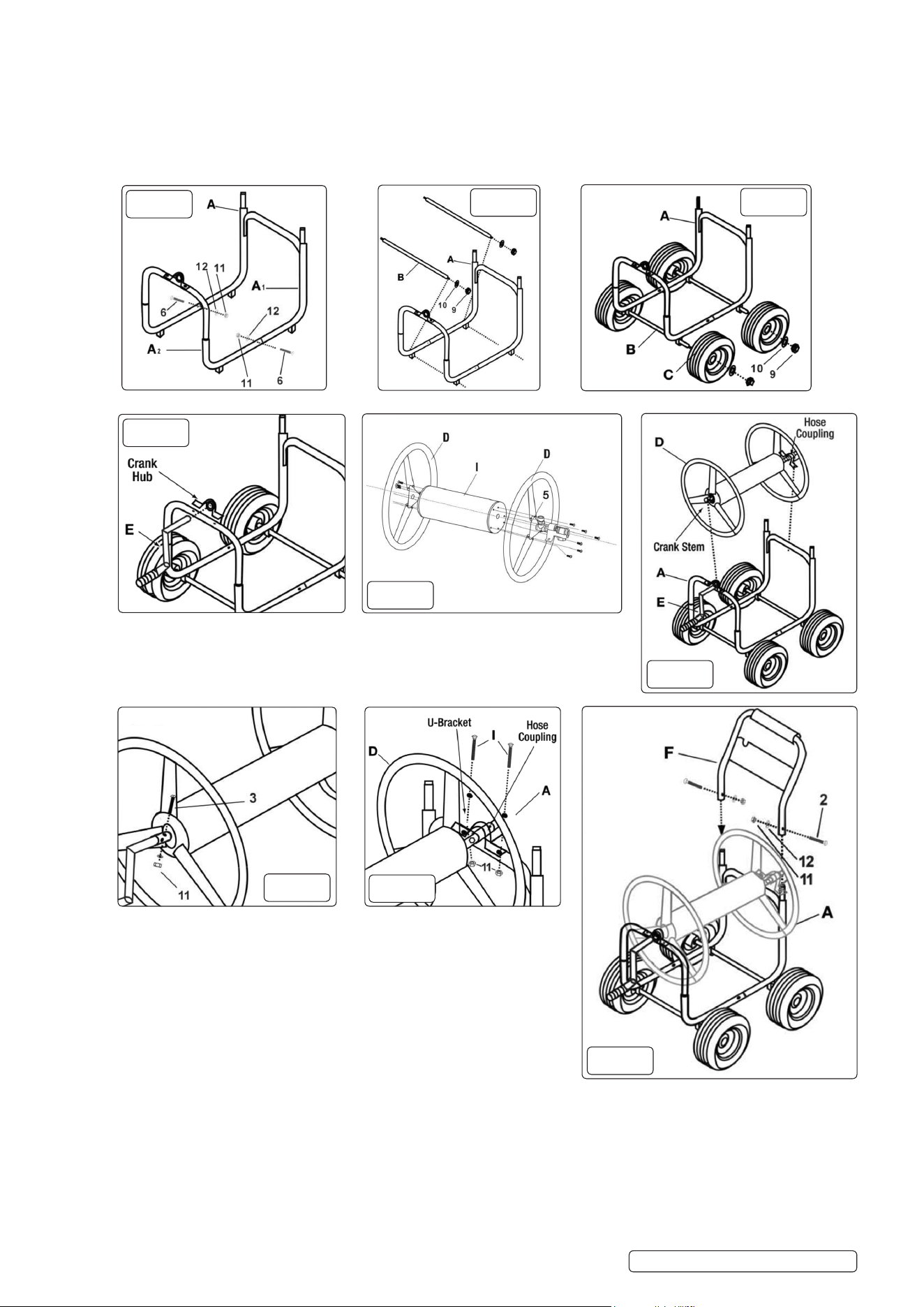

4.1. Place Frame (g.3.A1) into Frame (g.3.A2) insert Bolt (g.2.6) and place at washer (g.2.12) onto Bolt. Fasten frame using lock
nut (g.2.11).
4.2. Remove and retain lock nut (g.2.9) and at washer (g.2.10) from axle (g.4.B). Stand frame assembly (g.4.A) upright.
Slide each axle (g.4.B) through both ends of frame (g.4.A).
4.3. Slide wheels (g.5.C) onto ends of each axles (g.5.B), with the wheel valve stems facing outward. Fasten each wheel to
axle using at washers (g.2.10) and lock nuts (g.2.9). DO NOT over tighten.
4.4. Insert the end of crank handle (g.6.E) through crank hub of frame (g.6.A).
4.5. Attach the rst hose reel (g.7.D) to the roller (g.7.I), on the end with the crank
handle stem, using 6 bolts (g.2.5).
4.6. Place hose reel (g.8.D) into frame assembly (g.8.A). Insert end of crank stem from
hose reel (g.8.D) onto crank handle (g.8.E). Align crank handle (g.8.E) mounting holes
with crank stem mounting holes.
4.7. (g.9.) Insert bolt (g.2.3) through inside hole of crank stem and crank handle
hole, Place at washer (g.2.10) onto bolt (g.2.3) fasten with lock nut (g.2.11).
Tighten securely.
4.8. Attach hose coupling end of hose reel (g.10.D) to frame (g.10.A), using
U-bracket. Fasten U-bracket to frame with carriage bolts (g.2.3) and lock
nuts (g.2.11). Tighten securely.
4.9. Place handle (g.11. F) onto vertical posts of frame (g.11. A). Align mounting
holes. Slide bolt (g.2.2) through mounting holes and place at washer (g.2.12)
onto bolt (g.2.2). Fasten handle (g.11. F) using lock nut (g.2.11).
4.10. Attach basket (g.12.H) to handle (g.12.F). Place at washer (g.2.8)
onto bolt (g.2.4) and slide both bolts through mounting holes of handle (g.12.F).
Place basket (g.12.H) mounting tabs onto bolts (g.2.4) then place at washer (g.2.8) onto both bolts. Fasten basket using hex
nuts (g.2.7).
g.4
g.3
g.5
g.6
g.7
g.8
g.10
g.11
g.9
HRCHD Issue 1 28/08/19
Original Language Version
© Jack Sealey Limited
4.11. Place rubber washer (g.2.13) into female end of water coupling on hose reel (g.13.D) drum. Attach one end of leader hose
(g.13.G) to water coupling on hose reel (g.13.D) drum. Attach the other end of leader hose (g.13.G) to the water supply spigot.
Attach garden hose to threaded garden hose connector and wind garden hose around hose reel (g.13.D).
NOTE: The hose reel will hold up to 400 feet of 5/8” garden hose. (Garden hose not included)
5. STORAGE
5.1. Prior to storing the hose and reel, ensure that the water supply is turned off and any accessories are disconnected. Drain as much
water from the hose as possible. Place in a dark, safe, dry, childproof location, where the hose will be protected from frost.
g.12
g.13
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
