ASSEMBLY AND USER’S GUIDE
SKU: 96033
HOSE REEL CART
Read all safety warnings and instructions. Failure to follow
the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
DANGER
96033
THIS PAGE INTENTIONALLY LEFT BLANK
1
TABLE OF CONTENT
CUSTOMER SERVICE
If you have any questions about ordering our pool pumps and replacement parts or other products,
please feel free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
IMPORTANT SAFETY INSTRUCTIONS .........................................................
Legends and Symbols ...............................................................................................
GENERAL SAFETY INFORMATION ...............................................................................
PRODUCT INFORMATION .............................................................................
OVERVIEW ......................................................................................................................
INTRODUCTION ..............................................................................................................
SPECIFICATION ..............................................................................................................
ASSEMBLY INSTRUCTIONS ..........................................................................
STEP 1 ..............................................................................................................................
STEP 2 .............................................................................................................................
STEP 3 .............................................................................................................................
STEP 4 .............................................................................................................................
STEP 5 .............................................................................................................................
STEP 6 .............................................................................................................................
REPLACEMENT PARTS .................................................................................
PARTS DIAGRAM & PARTS LIST ....................................................................................
PARTS DIAGRAM & PARTS LIST ....................................................................................
DISCLAIMER ...................................................................................................
Disclaimer ..................................................................................................................
Customer Service ......................................................................................................
1
2
3
4
4-5
6
6
7
7
8
9
10
11
12
13
13
14
15
15
15
2
IMPORTANT SAFETY INSTRUCTIONS
For safety reasons, children should not be allowed to use this product.
Packing materials and plastic bags are not toys. Keep them away from children to prevent the risk
of suffocation.
Failure to comply with all instructions and warnings may lead to severe bodily
injury or even death. For optimal safety and functionality, it is advisable to have the product installed
and serviced by a certified service professional. Prior to using this product, installers, operators, and
owners must carefully review these warnings and all instructions provided in the owner's manual. It
is essential to leave these warnings and the owner's manual with the owner for their reference and
safety.
ATTENTION INSTALLER: This manual contains vital information regarding the installation,
operation, and safe use of this product. It is essential to provide this manual to the end user of the
product. Failure to read and follow all instructions could lead to severe injuries.
USE OF NON-XTREMEPOWERUS REPLACEMENT PARTS VOIDS WARRANTY
DANGER: Ignoring these hazards can result in death, severe personal injury, or
significant property damage.
WARNING: Indicates potential hazards that can result in severe personal injury,
death, or significant property damage. Ignoring these warnings presents a real
danger.
CAUTION: Indicates potential hazards that can result in minor or moderate
personal injury, property damage, or actions that are unpredictable and unsafe.
Ignoring these cautions presents a potential hazard.
NOTICE: This label indicates important special instructions that are not directly
related to hazards.
This guide provides instructions for installing and using the Hose Reel Cart. If you have any
questions about the equipment, please contact XtremepowerUS.
This guide contains important information about safely installing and operating this product. After
installation, make sure to share this information with the owner/operator or leave it with them for
their reference.
Legends and Symbols
When you come across the safety-alert symbol on your equipment or in this manual, pay attention
to the following signal words and remain vigilant about the potential for personal injury.
IMPORTANT SAFETY INSTRUCTIONS
DANGER
WARNING
WARNING
CAUTION
NOTE
DANGER
3
IMPORTANT SAFETY INSTRUCTIONS
DANGER
WARNING
CAUTION
NOTE
GENERAL SAFETY INFORMATION
• Assembly Safety: Failure to securely fasten all parts during assembly can result in the cart
collapsing during use, leading to severe injuries.
• Weight Capacity: Exceeding the maximum weight capacity can cause the cart to tip over or
collapse, posing a risk of serious injury or damage to property.
• Hose Pressure: Never wind or unwind the hose while it is under high water pressure. This
can cause sudden release or equipment failure, leading to injuries.
• No Passengers: Never allow children or others to ride in or on the equipment.
• Usage Restrictions: This item is not to be used as a step ladder or for any purpose other
than its intended function
• Proper Use: Follow the manufacturer’s instructions for proper use.
• Moving the Cart: Ensure the hose is wound securely before moving the cart. Improperly
secured hoses can create tripping hazards or cause the cart to become unbalanced.
• Stability and Balance: Position the cart on a flat surface and lock the wheels (if applicable)
to prevent it from rolling unintentionally.
• Inspection and Maintenance: Regularly inspect bolts, screws, and fasteners for looseness.
Failing to tighten them may cause the cart to malfunction during use.
• Lifting Precautions: Use proper lifting techniques when moving the cart manually. Improper
lifting could lead to strain or minor injuries.
• Frozen Hose: Do not wind a frozen hose onto the reel. This may cause damage to both the
hose and the reel mechanism.
• Turning and Reversing: Avoid sharp turns and exercise extra caution when turning or
operating on challenging surfaces. Use care when reversing.
• Stopping Distance: Stopping distance increases with both speed and the weight of the
towed load. Travel slowly and allow extra time and distance to stop safely.
• Assembly and Maintenance: Firmly secure all bolts, screws, and knobs before use.
• Pre-Use Inspection: Reconfirm that all bolts, screws, and knobs are properly secured
before every use. Conduct routine checks to ensure continued safety and reliability.
• Instruction Retention: Retain these instructions for future reference to ensure proper
assembly, maintenance, and safe usage.
• Proper Usage: Do not use the cart on steep inclines or uneven surfaces to avoid tipping,
which may cause moderate injury or equipment damage.
• Children and Pets: Keep the cart out of reach of children and pets. Misuse of the cart could
result in injuries.
• Weather Considerations: Exposure to extreme weather (e.g., prolonged rain, direct
sunlight, or snow) can weaken the cart, leading to unexpected failures during use.
• Hose Storage: Leaving the hose under tension when not in use can damage the reel
mechanism, leading to malfunction or hazards during operation.
4

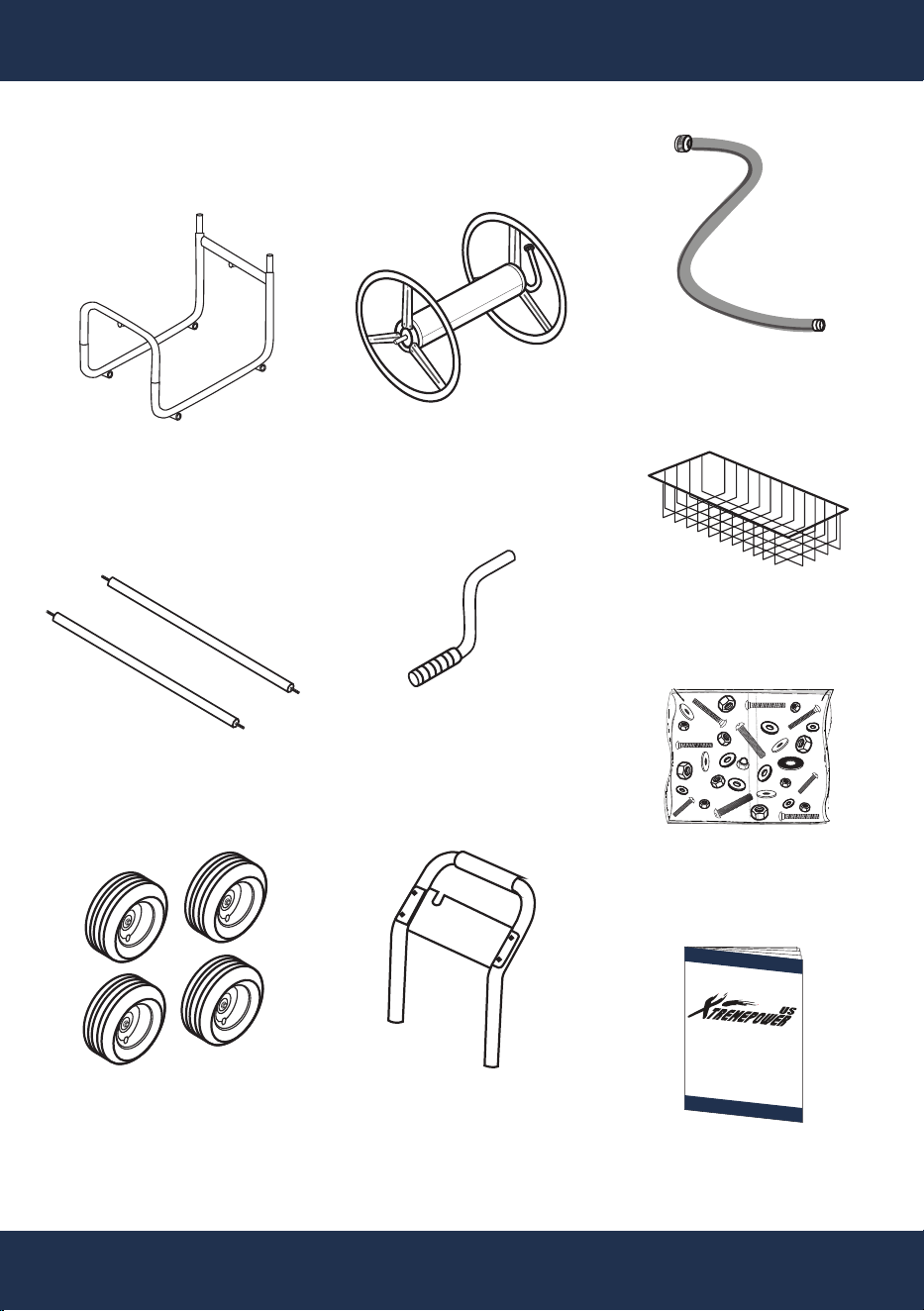

OVERVIEW (PRODUCT INFORMATION)
P96033-1
FRAME
1 PC(S)
P96033-4
HOSE REEL
1 PC(S)
P96033-7
LEADER HOSE
1 PC(S)
P96033-6
HANDLE
1 PC(S)
P96033-3
WHEELS
4 PC(S)
PACKAGE CONTENTS
PARTS
P96033-9
HARDWARE BAG
1 PC(S)
INSTRUCTION
MANUAL
P96033-2
AXLES
2 PC(S)
P96033-5
CRANK HANDLE
1 PC(S)
P96033-8
ACCESSORIES BASKET
1 PC(S)
5

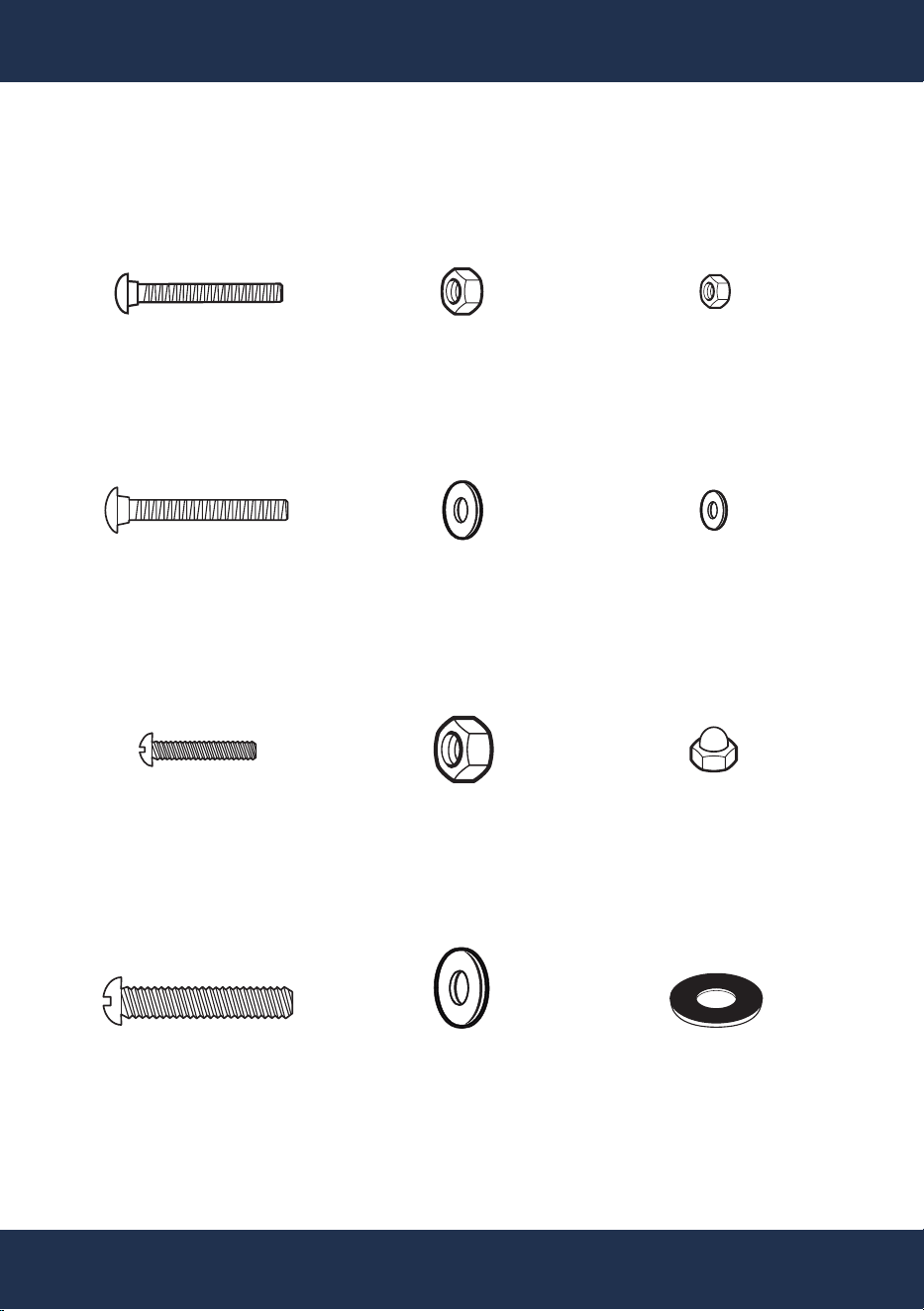

OVERVIEW (PRODUCT INFORMATION)
P96033-H
WASHER
4 PC(S)
P96033-A
BOLT
2 PC(S)
P96033-E
NUT
2 PC(S)
P96033-B
BOLT
2 PC(S)
6 x 33mm
8mm
P96033-K
ACORN NUT
1 PC(S)
P96033-D
BOLT
2 PC(S)
P96033-G
NUT
4 PC(S)
12mm
PACKAGE CONTENTS
HARDWARE BAG - P96033-9
6 x 39mm
P96033-L
RUBBER WASHER
1 PC(S)
P96033-I
NUT
5 PC(S)
6mm
6mm
12mm
P96033-C
BOLT
2 PC(S)
P96033-J
WASHER
3 PC(S)
P96033-F
WASHER
4 PC(S)
8mm
6mm
6 x 30mm
8 x 45mm
6
OVERVIEW (PRODUCT INFORMATION)
OVERVIEW (PRODUCT INFORMATION)
FRONT
REAR

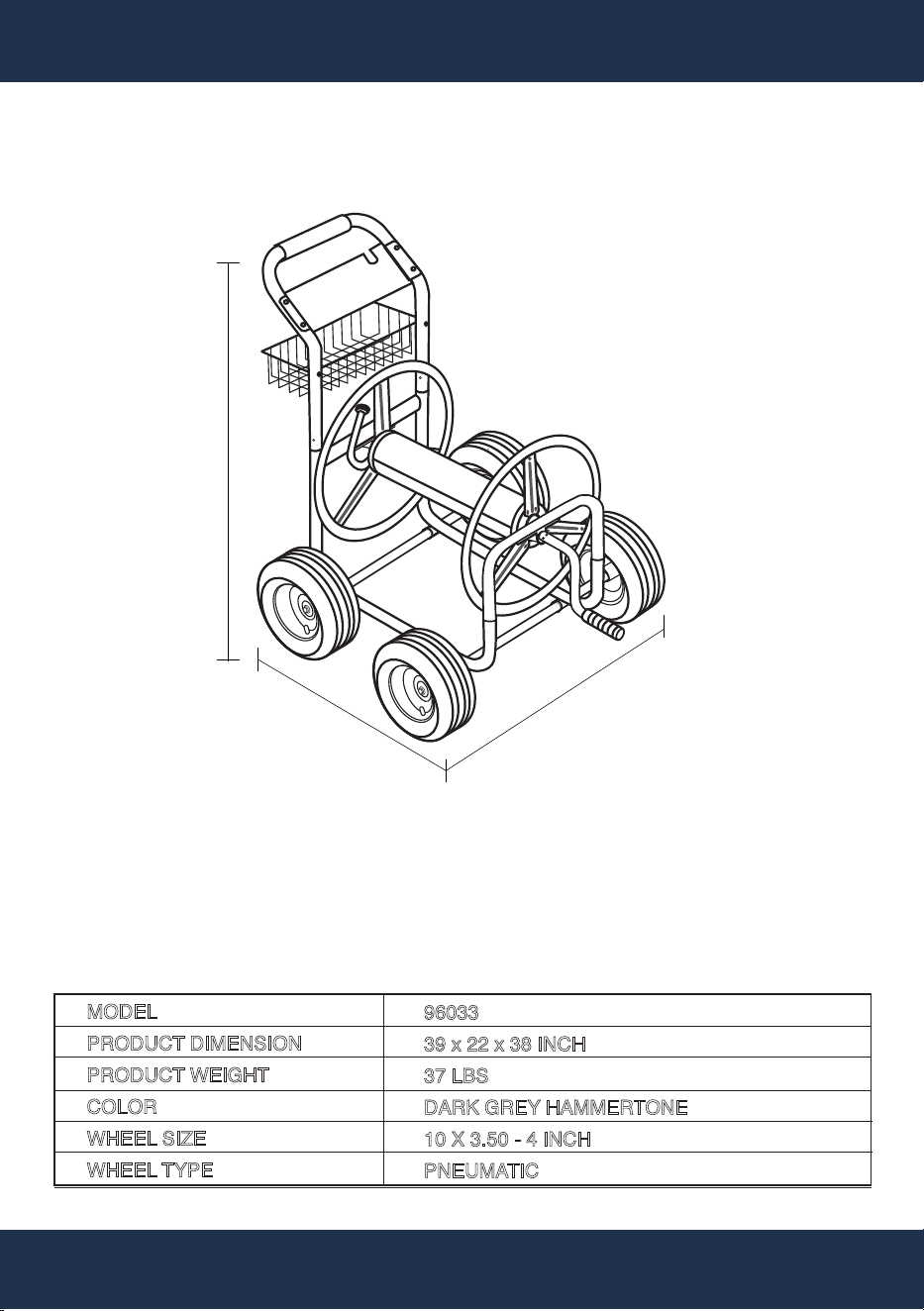

SPECIFICATIONS
MODEL
PRODUCT DIMENSION
PRODUCT WEIGHT
COLOR
WHEEL SIZE
WHEEL TYPE
96033
39 x 22 x 38 INCH
37 LBS
DARK GREY HAMMERTONE
10 X 3.50 - 4 INCH
PNEUMATIC
22”
39”
38”
The XtremepowerUS Hose Reel Cart is a versatile tool designed to improve efficiency, safety,
and convenience in hose management. By keeping hoses well-organized and easily
transportable, this hose reel cart helps users minimize tripping hazards, prevent wear and tear
on hoses, and reduce physical strain during watering or irrigation tasks.
INTRODUCTION
7
ASSEMBLY
1x 2x
ASSEMBLY INSTRUCTION

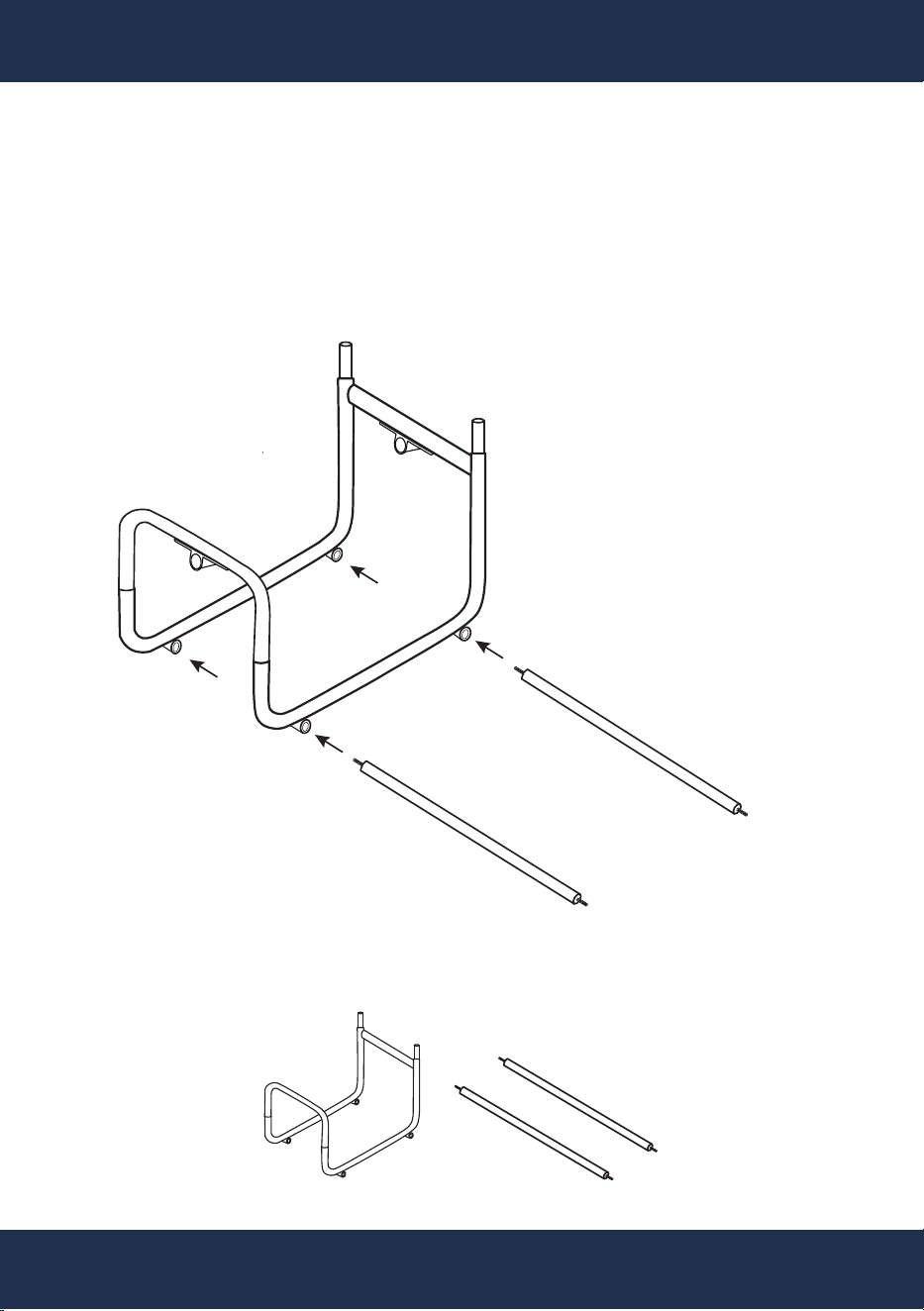

STEP 1
Attach PART: P96033-1 to PART: P96033-2.
Secure by sliding each axle through the bottom holes.
PART: P96033-1
PART: P96033-2
8
ASSEMBLY

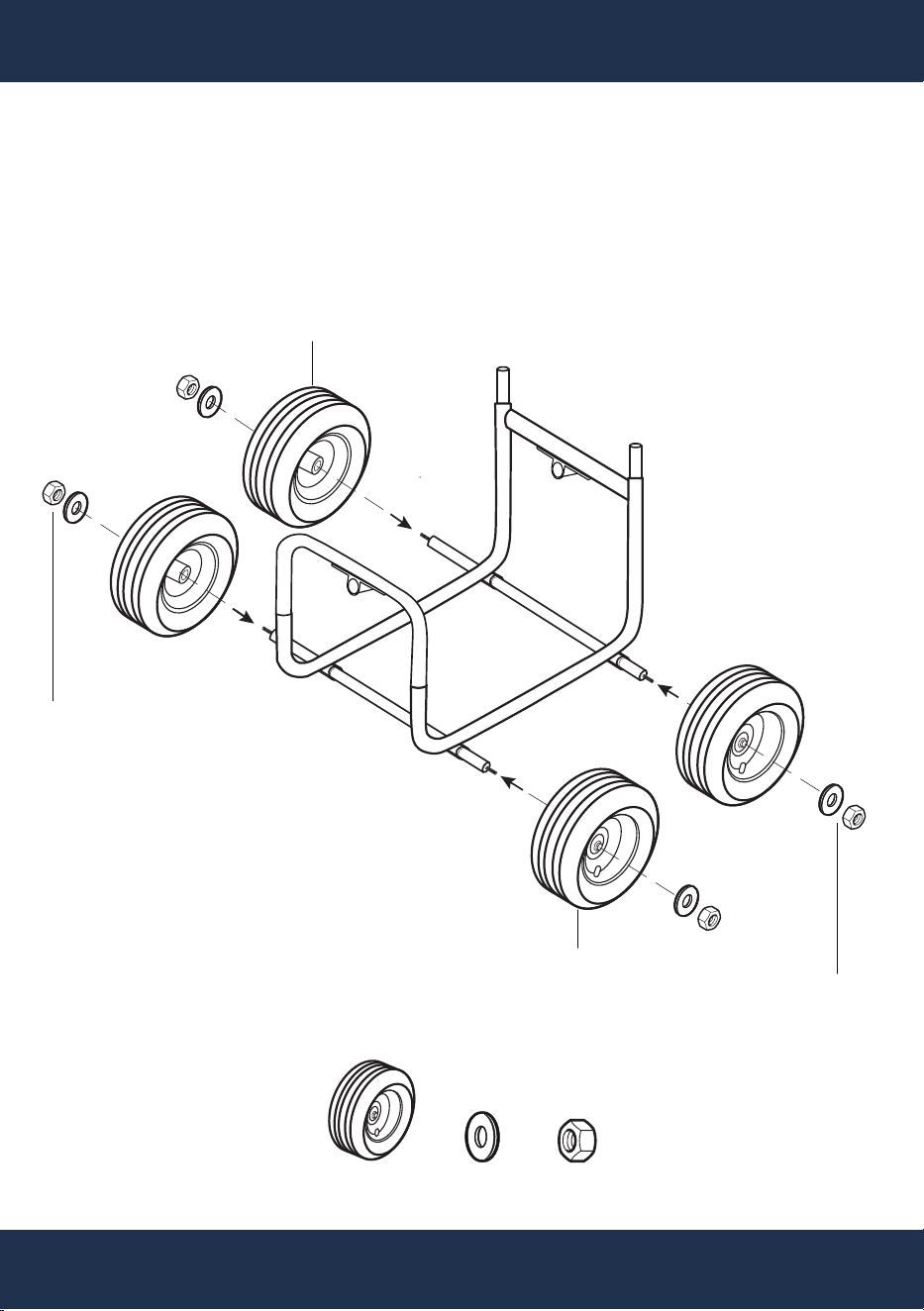

STEP 2
Attach PART: P96033-3 to the end of each axles. Secure it using PART: P96033-G,
and PART: P96033-H. Repeat the same process for the other three wheels.
4x 4x 4x
HOSE REEL CART FRAME
PART:
P96033-3
PART: P96033-G
P96033-H
PART: P96033-G
P96033-H
PART: P96033-3
9
ASSEMBLY

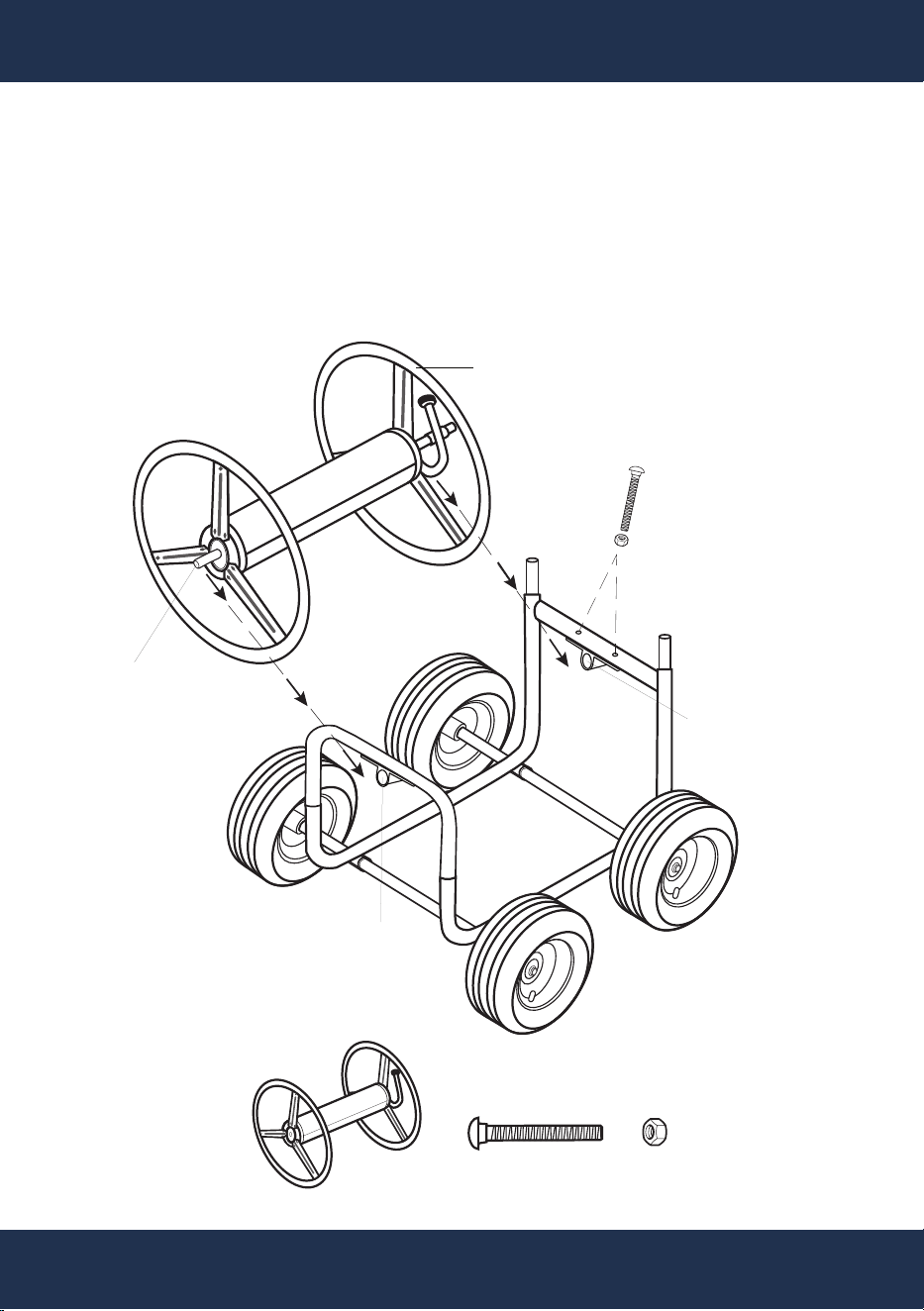

Attach PART: P96033-4 to the HOSE REEL CART FRAME. Insert the end of the
Crank Stem from PART: P96033-4 into the first mounting hole on the frame.Align
the Crank Stem with both mounting holes to ensure proper positioning. Secure the
crank stem in place using PART: P96033-A and PART: P96033-I.
STEP 3
1x 2x 1x
PART: P96033-4
HOSE REEL
CART FRAME
MOUNTING HOLE
MOUNTING HOLE
CRANK STEM
PART: P96033-A
P96033-I
10
ASSEMBLY
1x 2x 1x 1x

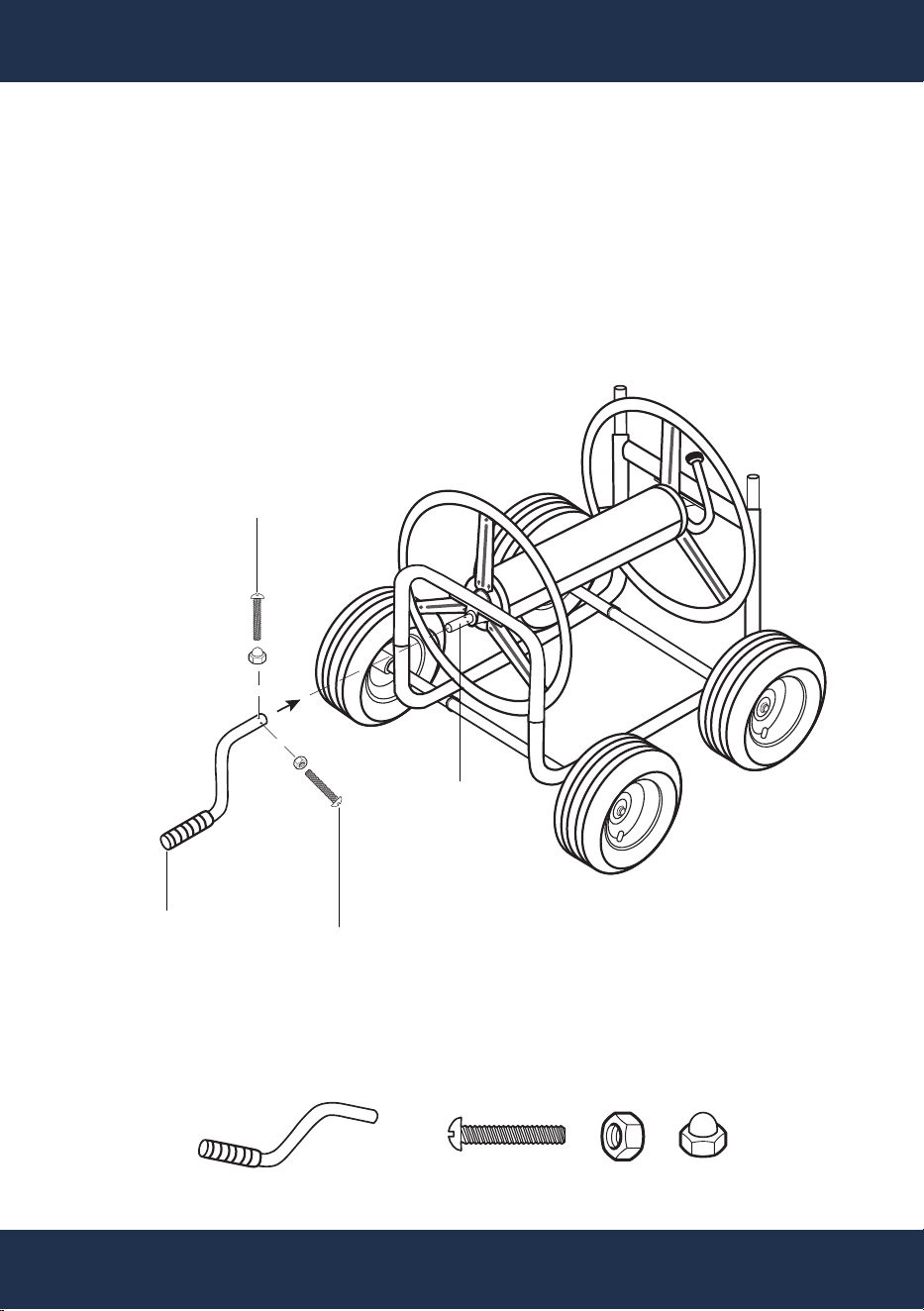

Attach PART: P96033-5 to the Crank Stem.
Secure them using PART: P96033-C, PART: P96033-I and PART: P96033-K.
STEP 4
PART: P96033-C
P96033-K
PART: P96033-5
HOSE REEL
CART FRAME
CRANK STEM
PART: P96033-C
P96033-I
11
ASSEMBLY

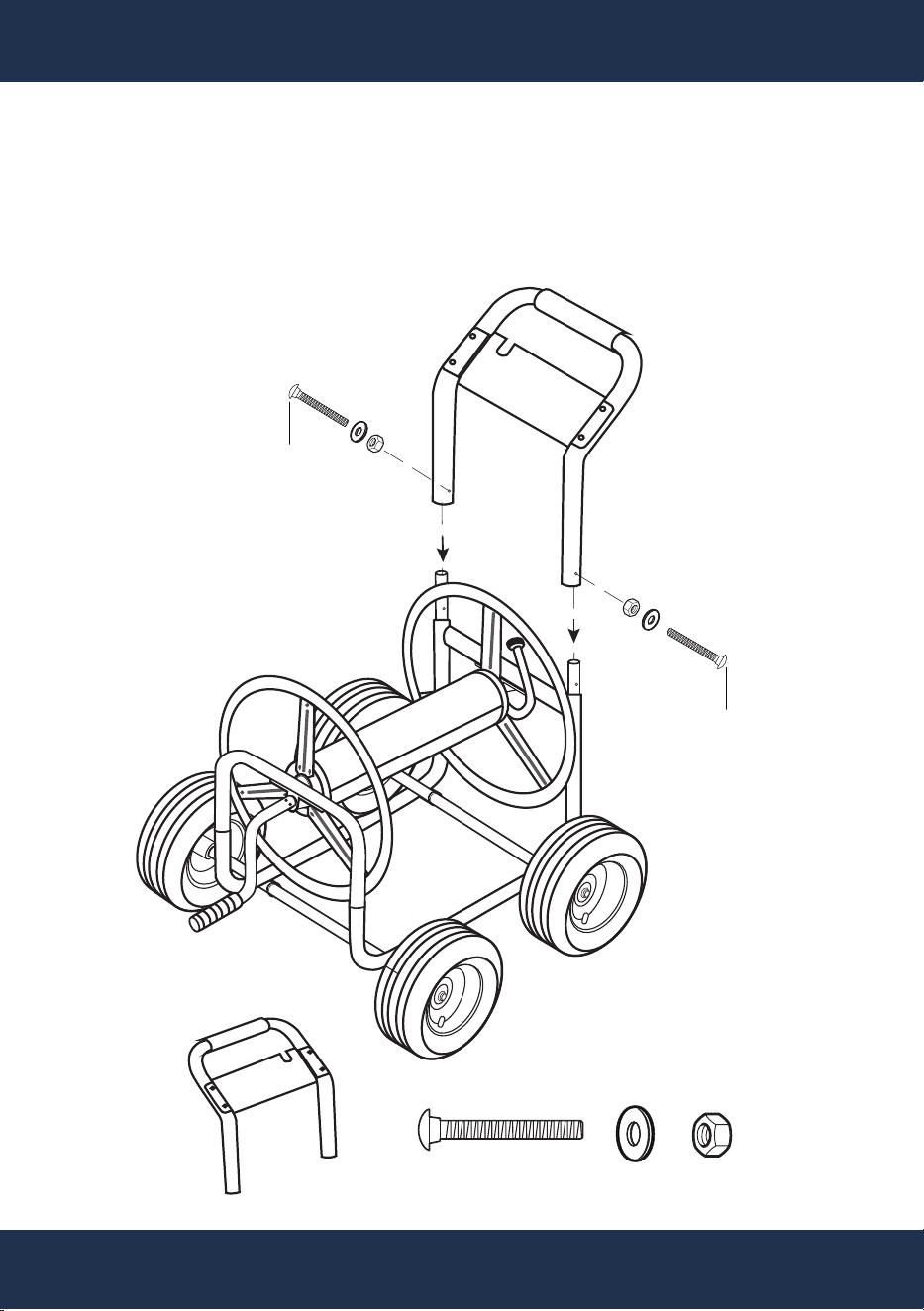

Attach PART: P96033-6 to the HOSE REEL CART FRAME.
Secure it using PART: P96033-B, PART: P96033-I and PART: P96033-J.
STEP 5
1x 2x 2x 2x
PART: P96033-B
P96033-I
P96033-J
PART: P96033-6
HOSE REEL
CART FRAME
PART: P96033-B
P96033-I
P96033-J
12
ASSEMBLY

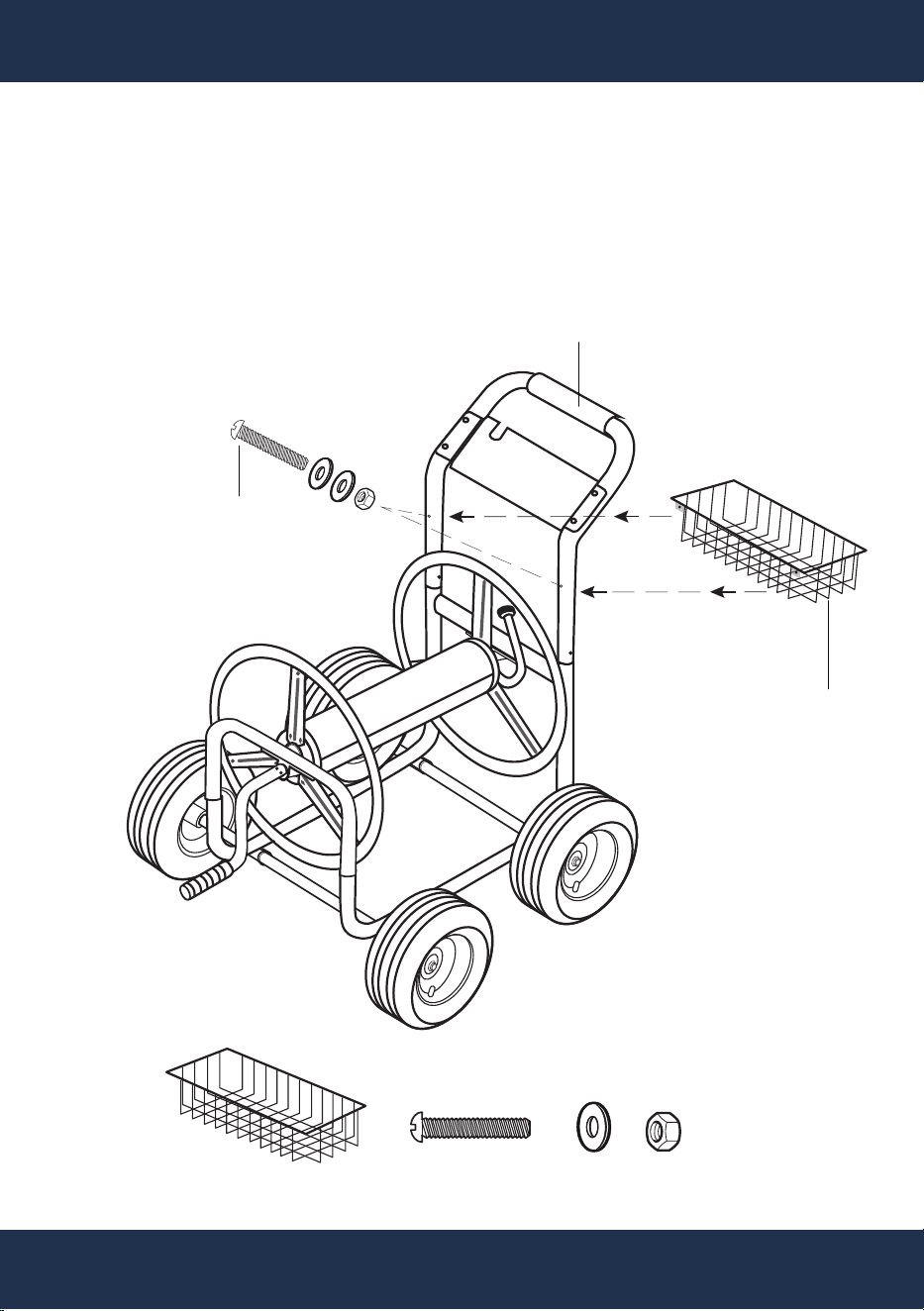

STEP 6
1x 2x 4x 2x
Attach PART: P96033-8 to the HANDLE.
Secure it using PART: P96033-D, PART: P96033-E and PART: P96033-F.
PART: P96033-8
PART: P96033-D
P96033-E
P96033-F
HOSE REEL
CART FRAME
HANDLE
13

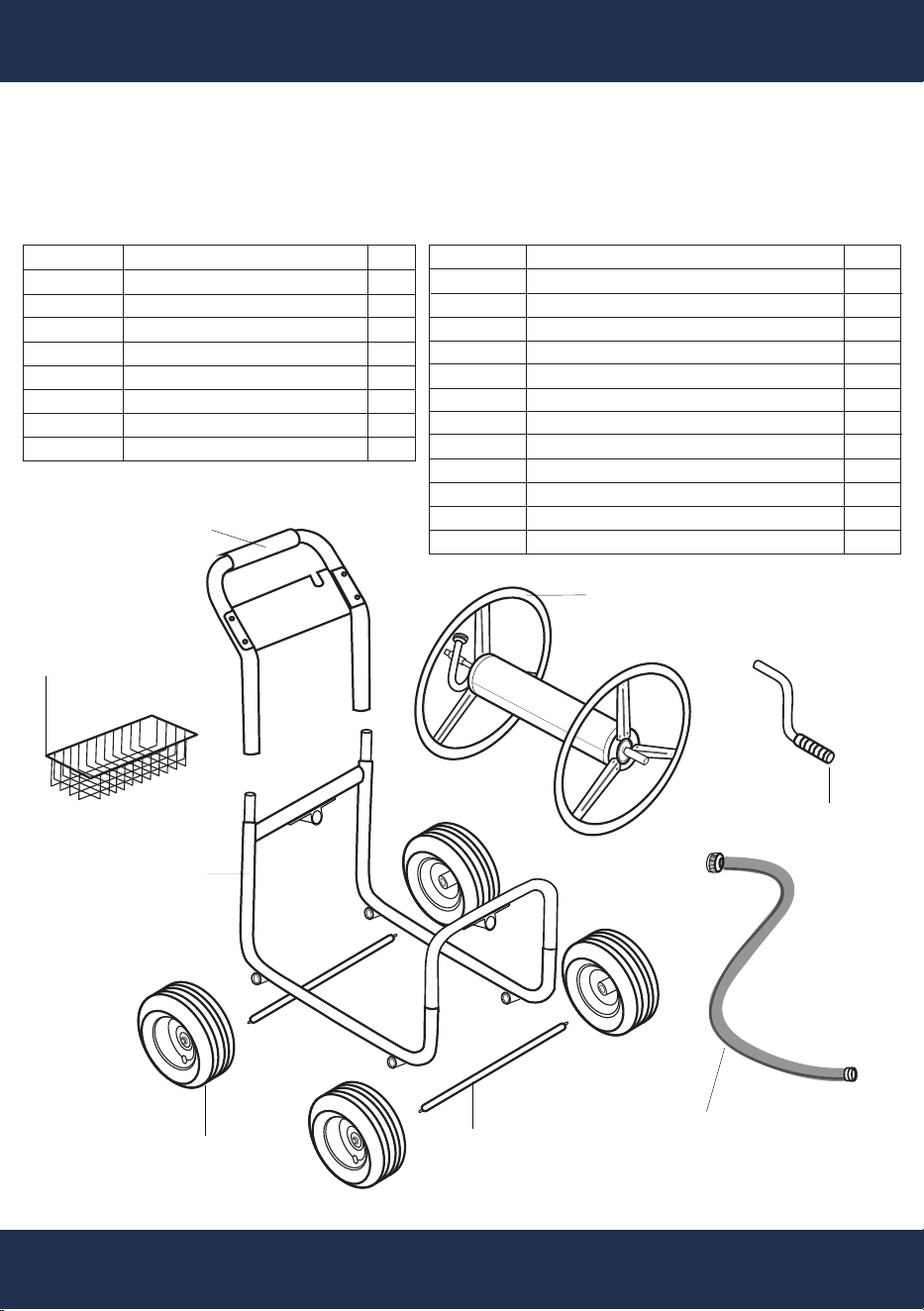

REPLACEMENT PARTS
REPLACEMENT PARTS
PARTS DIAGRAM
PART
P96033-1
P96033-2
P96033-3
P96033-4
P96033-5
P96033-6
P96033-7
P96033-8
DESCRIPTION
FRAME
AXLES
WHEELS
HOSE REEL
CRANK HANDLE
HANDLE
LEADER HOSE
ACCESSORIES BASKET
QTY
1
2
4
1
1
1
1
1
PART
P90633-A
P90633-B
P96033-C
P96033-D
P96033-E
P96033-F
P96033-G
P96033-H
P96033-I
P96033-J
P96033-K
P96033-L
DESCRIPTION
BOLT
6 X 33mm
BOLT 6 x 39mm
BOLT 6 x 30mm
BOLT 8 x 45mm
HEX NUT 8mm
WASHER 8mm
LOCK NUT 12mm
WASHER 12mm
LOCK NUT 6mm
WASHER 6mm
ACORN NUT 6mm
RUBBER WASHER
QTY
2
2
2
2
2
4
4
4
5
3
1
2
PART: P96033-9
PART: P96033-1 - P96033-8
(HARDWARE BAG)
PART: P96033-2
PART: P96033-6
PART: P96033-3
PART: P96033-1
PART: P96033-8
PART: P96033-5
PART: P96033-4
PART: P96033-7
14

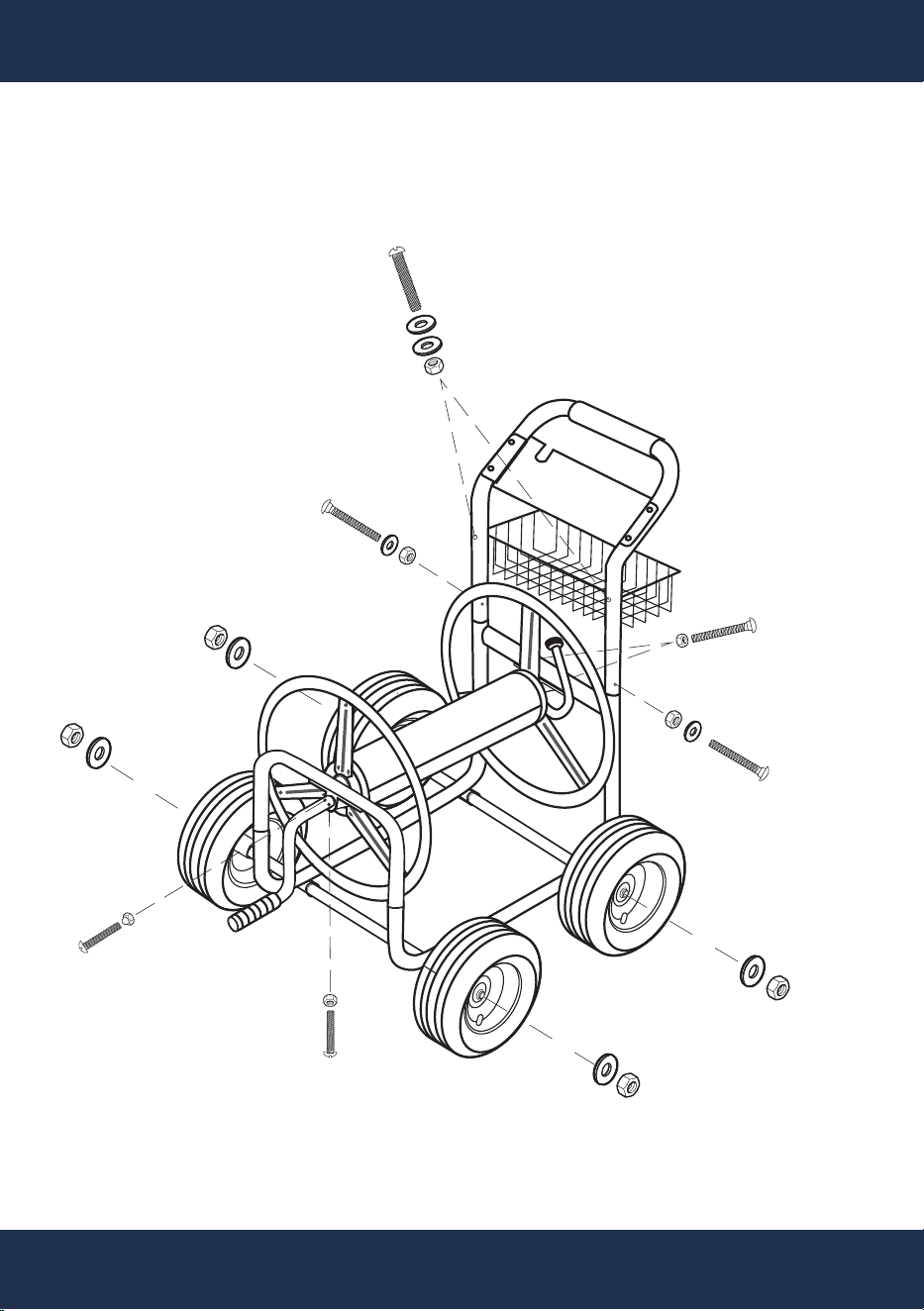

REPLACEMENT PARTS
REPLACEMENT PARTS
PARTS DIAGRAM
PART: P96033-B
P96033-I
P96033-J
PART: P96033-B
P96033-I
P96033-J
PART: P96033-D
P96033-E
P96033-F
PART: P96033-C
P96033-I
PART: P96033-C
P96033-K
PART: P96033-G
P96033-H
PART: P96033-G
P96033-H
PART: P96033-A
P96033-I
15
DISCLAIMER
DISCLAIMER
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual
for reference purposes only. They do not make any representation or warranty to the buyer that they
are qualified to make repairs to the product or replace any parts of the product. In fact, the
manufacturer and/or distributor expressly state that all repairs and parts replacements should be
undertaken by certified and licensed technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or replacement
parts or arising from their installation of replacement parts. It is strongly advised that qualified
professionals handle any repairs or replacements to ensure safety and proper functioning of the
product. Improper installation and operation may result in injury, property damage, or voiding of
warranty. The manufacturer and/or distributor shall not be held responsible for any accidents,
damages, or malfunctions resulting from the buyer's installation and operation of the product. It is
essential to follow all safety guidelines and recommendations provided in this manual and to seek
professional assistance if unsure about the installation or operation procedures.
CUSTOMER SERVICE
If you have any questions about ordering our pool pumps and replacement parts or other products,
please feel free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
