HOSE CART WITH HOSE
GUIDE INSTALLED
Model HC03C
Read before use & keep for future reference.
For more information visit giraffetools.com or contact our customer service by sending an email to service@giraffetools.com
MANUAL CONTENTS
Product Information
What’s Included
Open-Box Check
Tools Requirement
----------
--------------
-------------
-----------
----------------
---------------
-------------------------
--------
Installation Steps
Problems Solution
Warranty
Recommended Products
03
04
05
05
05
1 1
1 2
1 4
3

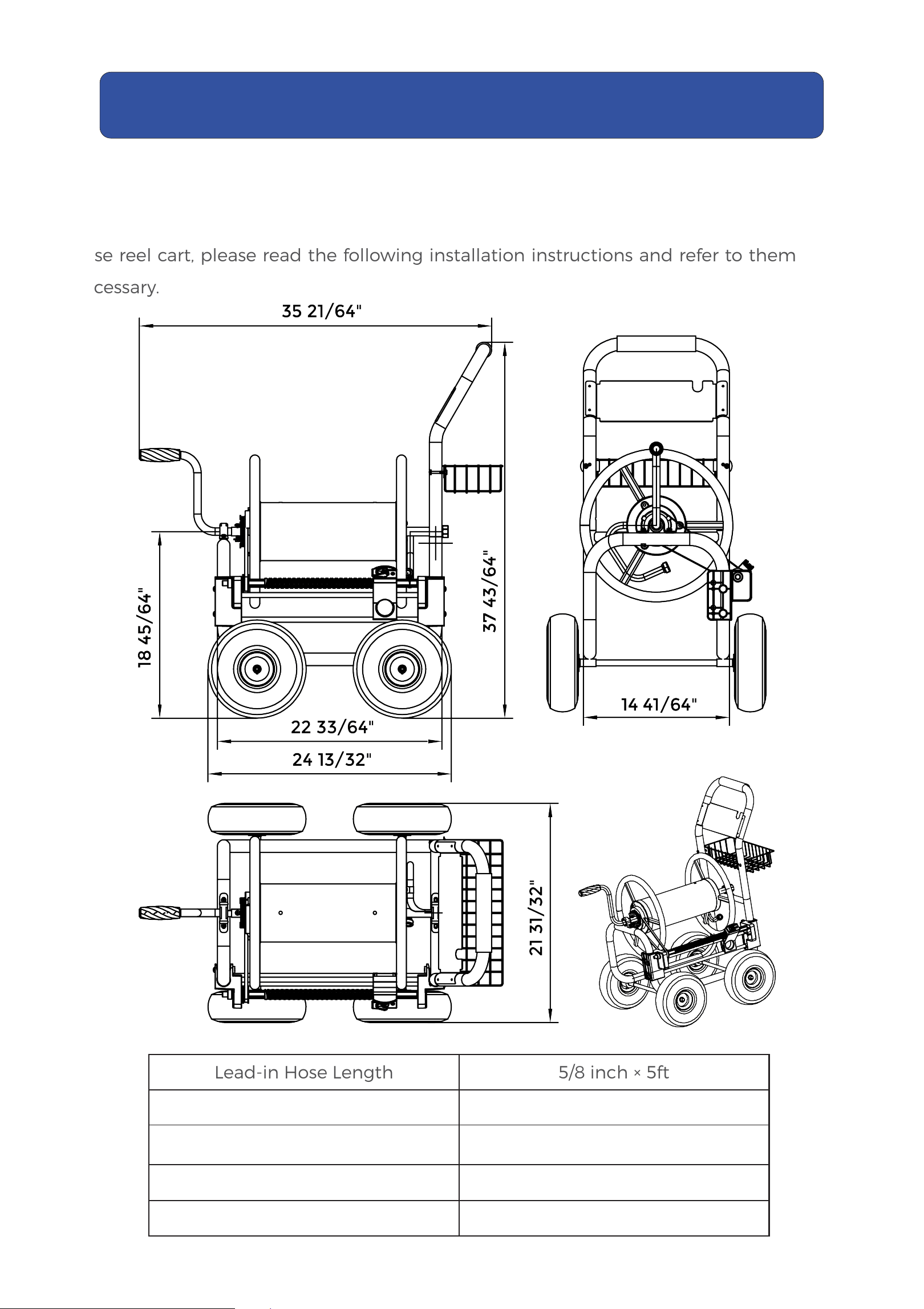

PRODUCT INFORMATION
Thank you for choosing Giraffe Tools garden hose reel cart which features a large capacity
of 250-feet of 5/8" garden hose. Our product contains a 5ft lead in hose. Before using the
hose reel cart, please read the following installation instructions and refer to them when
necessary.
Lead-in Hose Length 5/8 inch × 5ft
Hose Capacity 5/8 inch × 250ft
Temperature Range 0°F — 104°F
Shipping Weight
17.7 KG/39.2 LBS
Shipping Box Size
24 x 20 x 17 inches
4

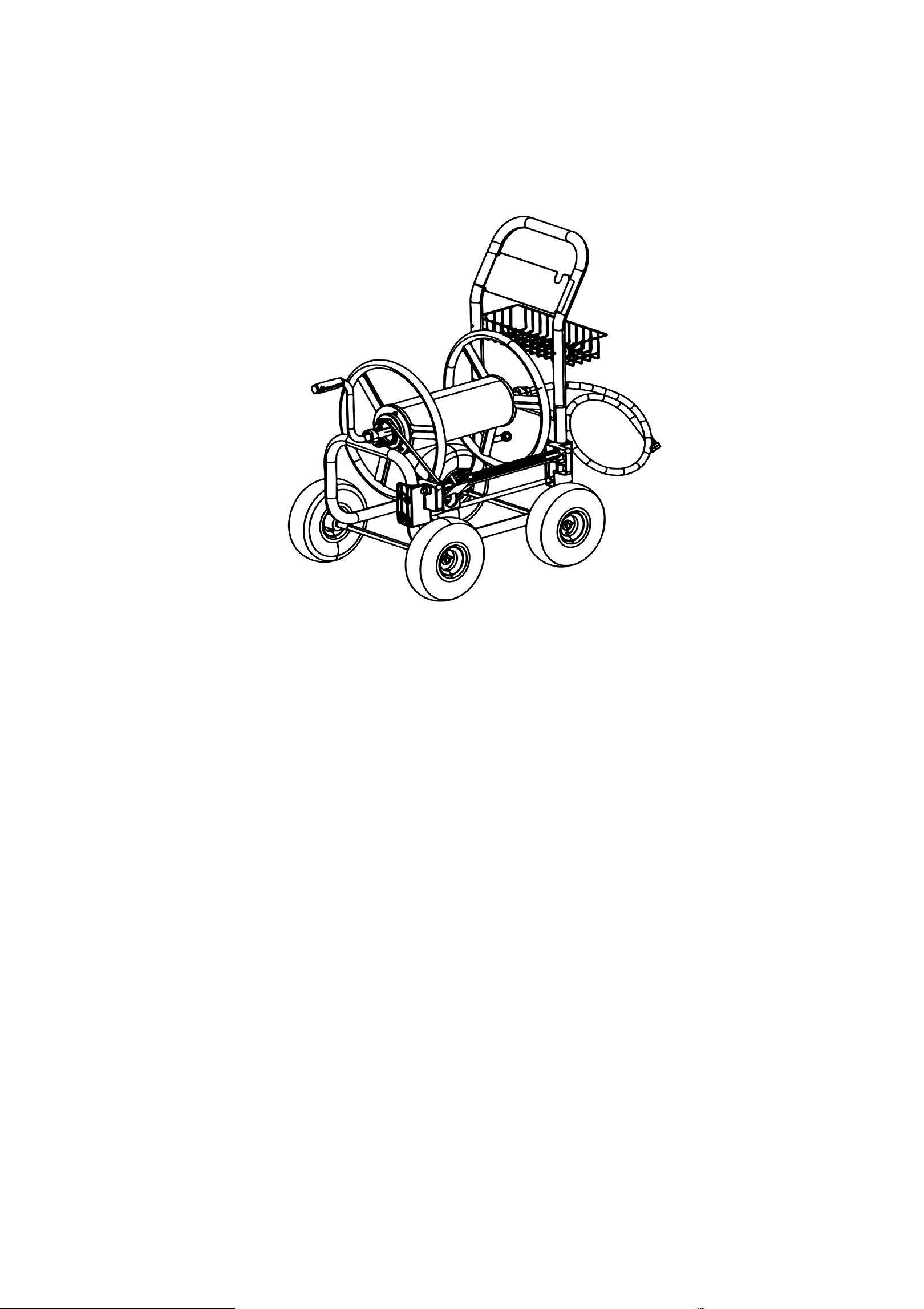

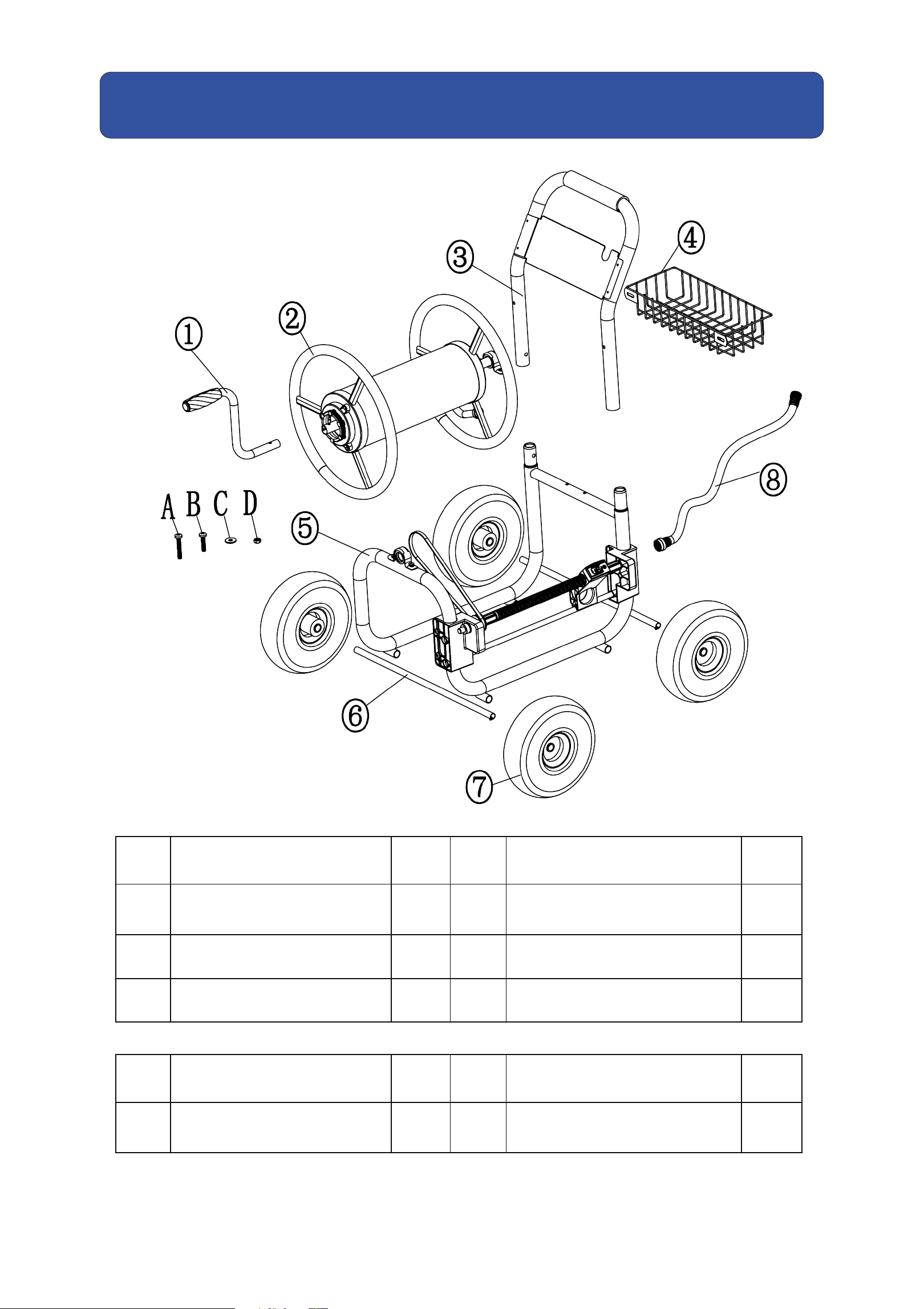

WHAT’S INCLUDED
①
Crank Handle ×1
②
Hose Reel ×1
③
Push Handle ×1
④
Accessories Basket ×1
⑤
Hose Guide Frame ×1
⑥
Axel ×2
⑦
Wheel ×4
⑧
Leader Hose ×1
A M6 X 45 bolt ×4 B M6 X 30 bolt ×1
C M6 flat washer ×5 D M6 nylon nut ×5
Note:
Accessory B is pre-installed on the crank handle, which is not included in the
accessory package.
5
OPEN-BOX CHECK
1. Confirm that the above parts are included in your package.
2. Check for any scratches or damage done to the product.
3. If your product is missing parts or has visible damage upon receipt, please contact the
Giraffe Tools customer service team at
service@giraffetools.com
.
Note:
If you notice an initial aroma upon opening your package,this is due to the sealed
environment in which the package traveled overseas.
TOOLS REQUIREMENT
●
Screwdriver
●
Wrench
Note:
Please go to the Amazon details page or Youtube to view the installation video
for this product. If you encounter any problems during the installation process, please
contact us via
service@giraffetools.com
INSTALLATION STEPS
6

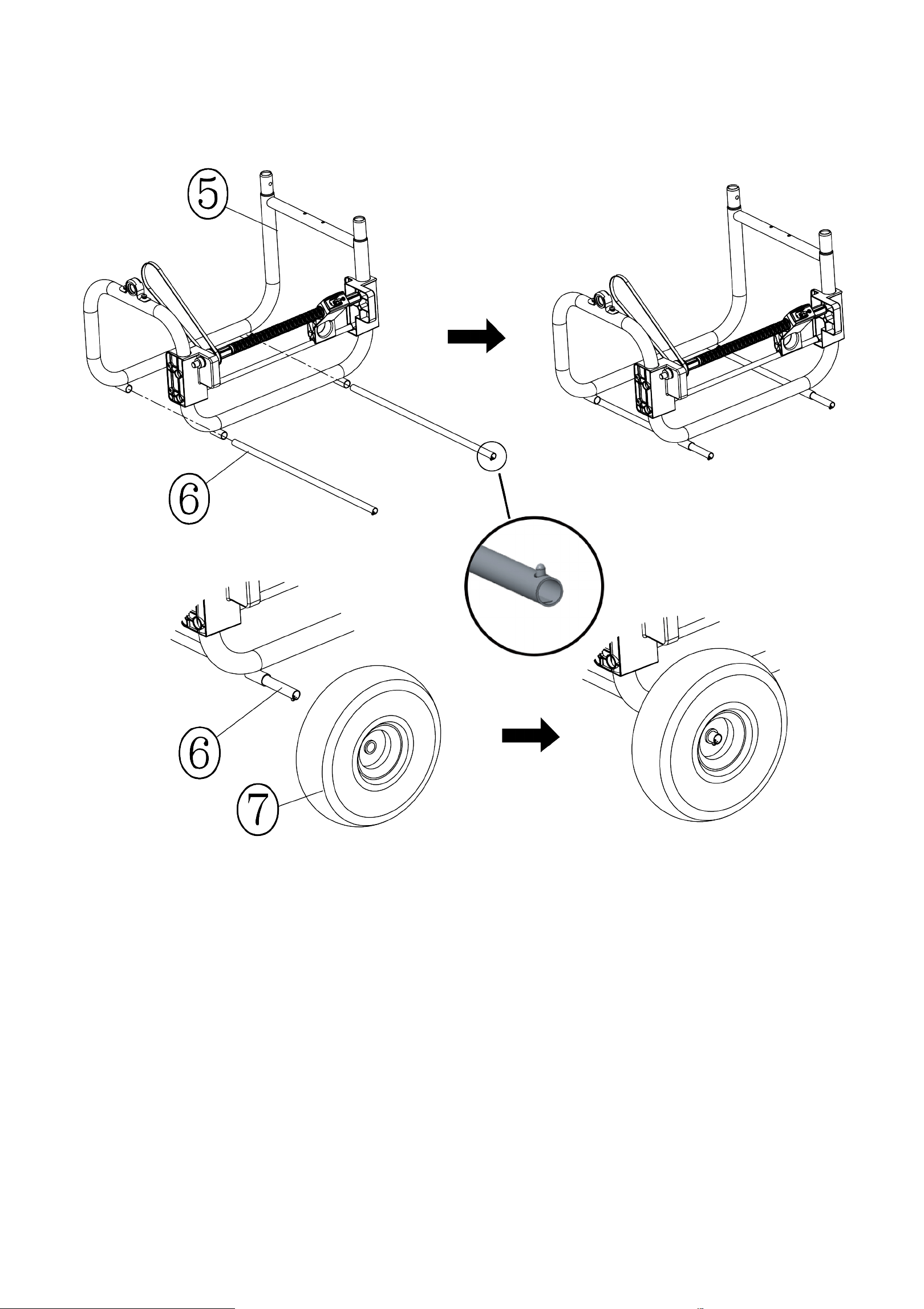

Step 1
：
Press the snap button on
axel
⑥
and insert it through the holes of the
frame
⑤
.
Press the snap button on each side again and insert the holes of the
wheels
⑦
.
Note:
The snap button is on both sides of the axels.
7

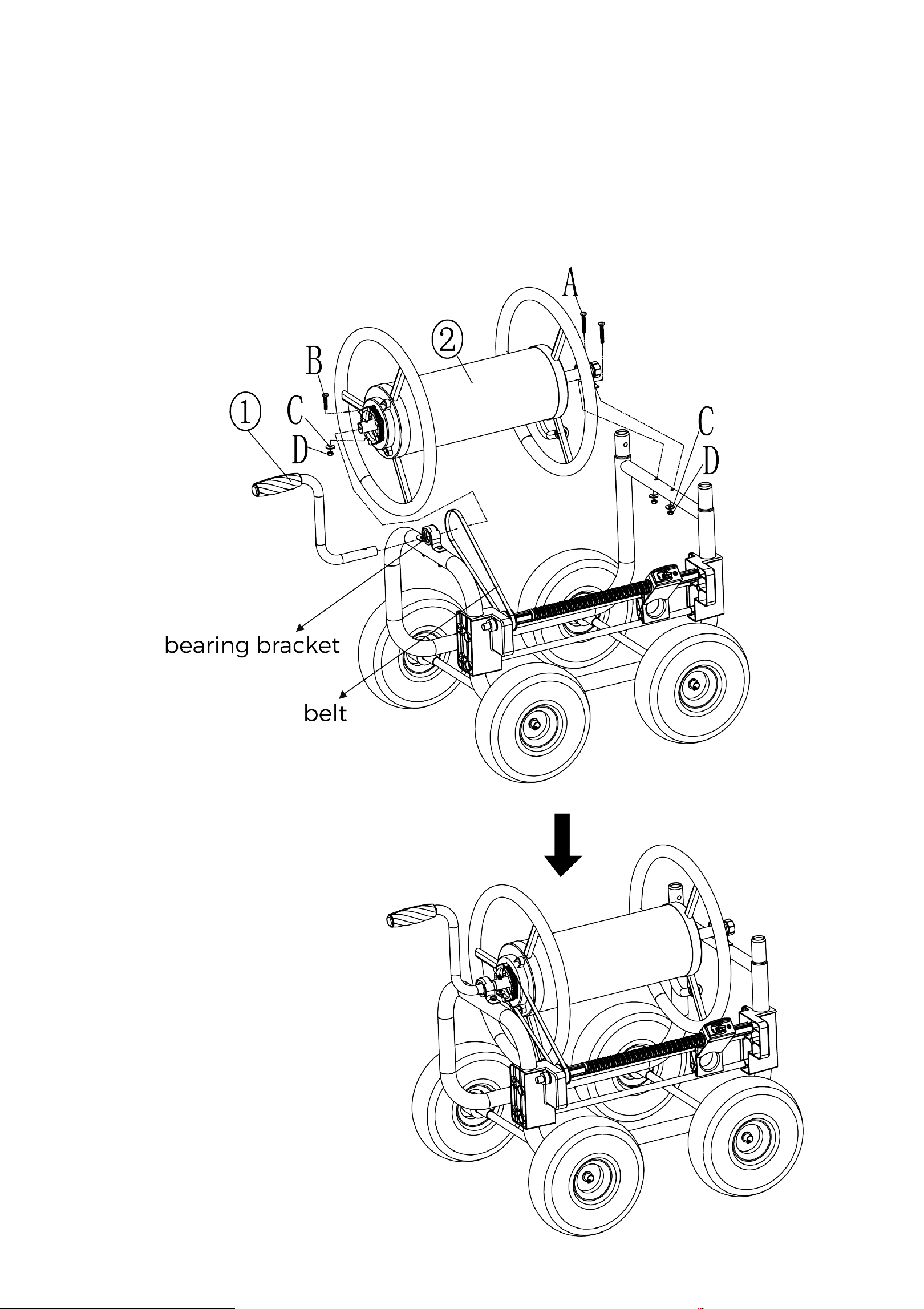

Step 2
：
Insert the
crank handle
①
to the hole of the bearing bracket (do not cross the belt).
Put the
hose reel
②
on hose guide frame and assemble the belt on the gear of
the hose reel. Last, insert the crank handle all in.
Use the M6 x 30 bolt (B), M6 flat washer (C), M6 Nylon nut (D) to install the crank
handle. Use the M6 x 45 bolt (A), M6 flat washer (C), M6 Nylon nut (D) to install the
hose reel, which is shown in picture as follows.
8

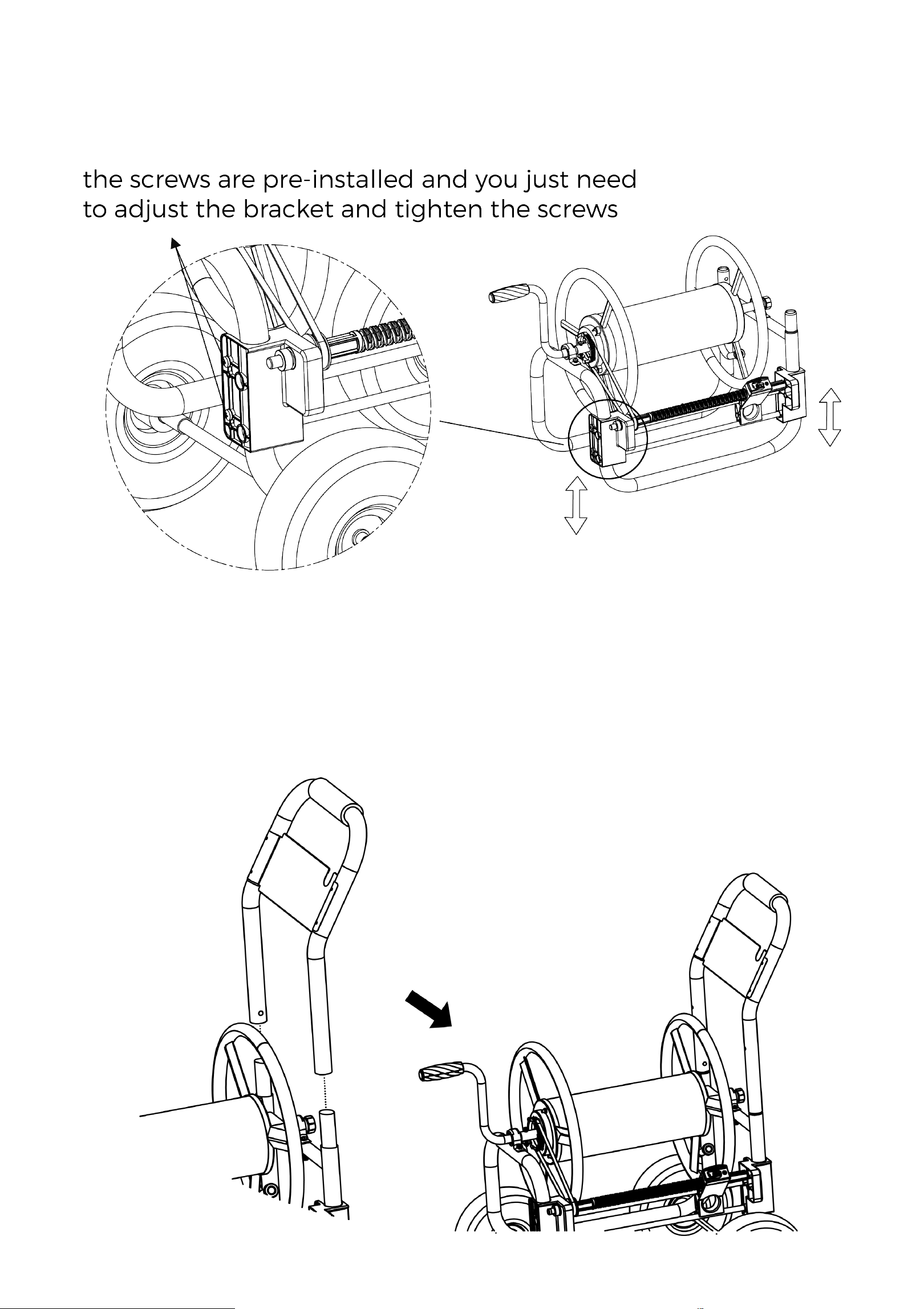

Step 4
：
Insert Push Handle into Frame in the direction shown in the photo. When Push
Handle touches the Snap Button, press the Snap Button on both sides of Push
Handle and continue to insert Push Handle until the Snap Button pop up.
Step 3
：
Adjust screw rod brackets on both sides to make sure the belt is connected with
driving gear and drive gear. And tighten the screws on both sides.
9

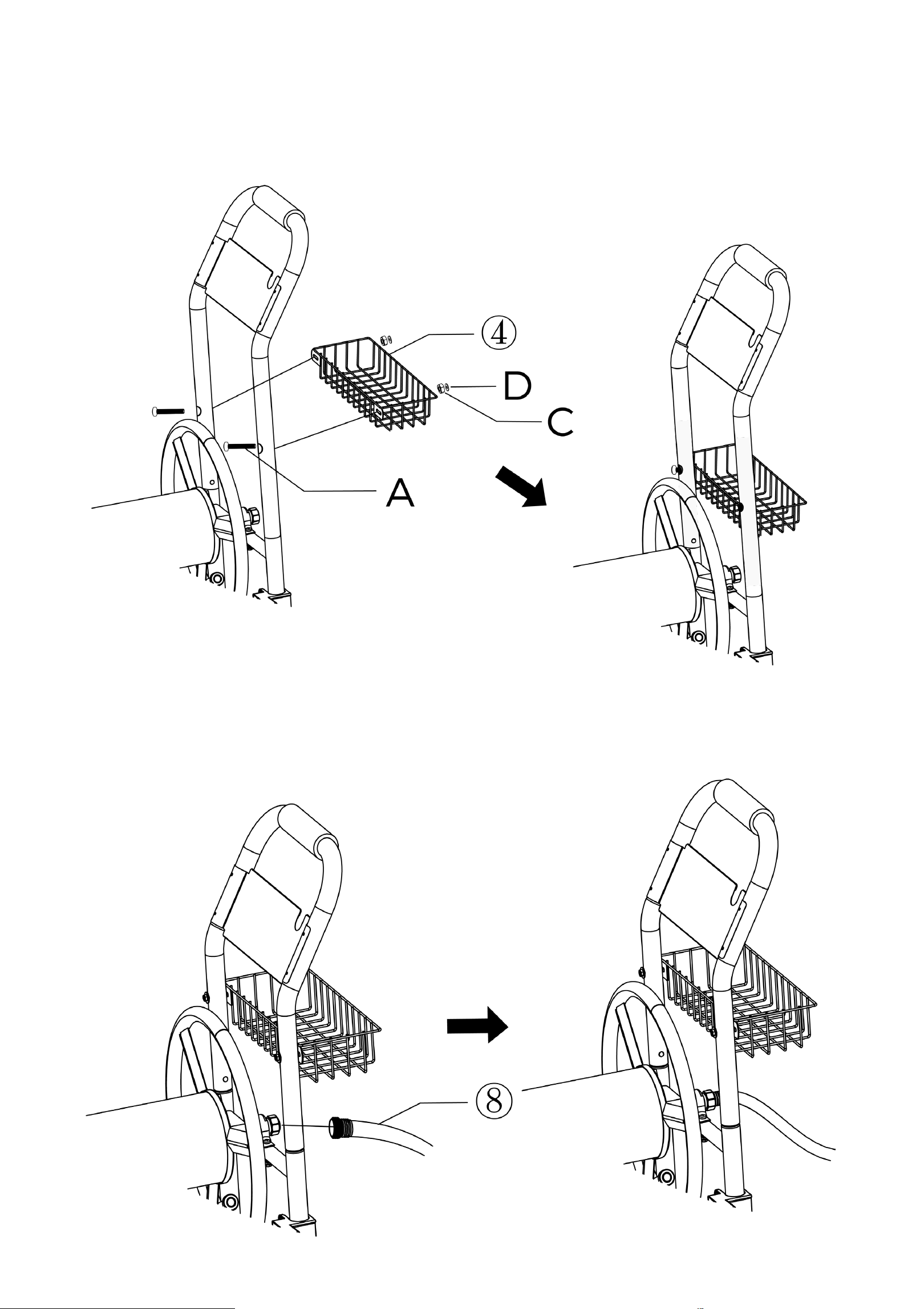

Step 5
：
Assemble
accessories basket
④
on push handle in the direction shown in the
photo. Assemble M6 x 45 bolt (A), M6 flat washer (C) and M6 Nylon nuts (D) to
tighten them.
Step 6
：
Screw
leader hose
⑧
into water inlet as shown in the photo and fully tighten it
with a wrench (not included).
10
Step 7
：
Turn the crank handle to move the hose guide system to the water inlet side.
Insert one side of long hose (not included) through the hole of hose guide system
and then connect it to water outlet joint.
11
PROBLEMS SOLUTION
Part Missing / Other Quality Damage
If your package is missing some parts or any other quality damage, please contact
customer service at
service@giraffetools.com
with your order number, shipping info, and
an accompanying photo of the damaged parts.
Lead-in Hose Leakage
Welding Rust
Unique Guide is Not Work
First please check the rubber washer of the two connectors. If the leaking is from the
metal joint or exist a hole inside the lead-in hose. Please contact customer service at
service@giraffetools.com
with your order number. We will resolve your issue.
If the product is rusted from instead of while usage, first please apply anti-rust paint to
the welding part. If you need more help, please contact customer service at
service@
giraffetools.com
with your order number with the damaged pictures to get support.
In generally speaking, the unique guide system helps to evenly and neatly distribute hose
around the reel. If the guide can not move from left to right to left, please try to turn the
black pin in the opposite position, if this does not work, please contact customer service
at
service@giraffetools.com
with your order number with a short video to get support.
12
WARRANTY
At Giraffe Tools, we conduct rigorous testing on every machine before it leaves the factory
and perform a lifetime test on every thousand machines to ensure they will withstand
many years of use beyond the warranty period.
In addition to our thorough testing, we offer a
24-month warranty
on all original Giraffe
Tools new products. The following specifics apply:
Giraffe Tools warrants its products against defects in parts and materials for a period
of 24 months from the original purchase date. Please note that this warranty does not
apply to
products acquired second hand
.
All warranty periods commence on the date of purchase and are non-transferable.
The warranty is limited to the provision of a replacement or refund free of charge
within the specified period, provided that the above conditions are met, and the
original proof of purchase is presented.
1.
2.
3.
Process:
For quality-related warranty claims, items will be replaced with a new item of equal
value when available. In situations where a replacement is not available or preferred,
Giraffe Tools will offer a full refund.
Warranties on all replacements follow the same 24-month warranty time frame as the
original defective item. Warranties on fully refunded products will be voided after the
refund is released.
4.
5.
●
Buyers must provide sufficient proof of purchase.
●
Giraffe Tools must document what happens when buyers troubleshoot the product.
●
Visible proof depicting the defect, such as pictures or videos, is required.
●
It may be necessary to return an item for quality inspection.
●
For defective items that Giraffe Tools needs to have returned, warrantion those replacements
are voided if the wrong item is returned to Giraffe Tools or if the defective item is not returned.
13
Valid proof of purchase:
●
Order number from online purchases made through Giraffe Tools or Giraffe Tools’s
authorized resellers.
●
Sales invoice that shows a description of the product along with its price.
Not Covered Under Warranty:
●
Purchases from unauthorized resellers.
●
Alterations not carried out or authorized by Giraffe Tools authorized resellers.
●
Products without sufficient proof of purchase.
●
Second-hand products.
●
Items that have expired their warranty period.
●
Damage from misuse of products, including, but not limited to, improper storage,
falls, extreme temperatures, water, and improper operation of devices.
14
