RETRACTABLE
HOSE REEL
Model AW30
Read before use & keep for future reference.
For more information visit giraffetools.com or contact our customer service by sending an email to contact@giraffetools.com
MANUAL CONTENTS
Product Information
What’s Inside The Box
Open Box Check
Tools Requirement
Start To Install
Product Testing
----------
---------
--------------
------------
-----------------
---------------
----------------------------
--------------------
----------------------
--------------------------
---------
-------------
How To
Problem Guide
Maintenance
Warranty
Products Recommended

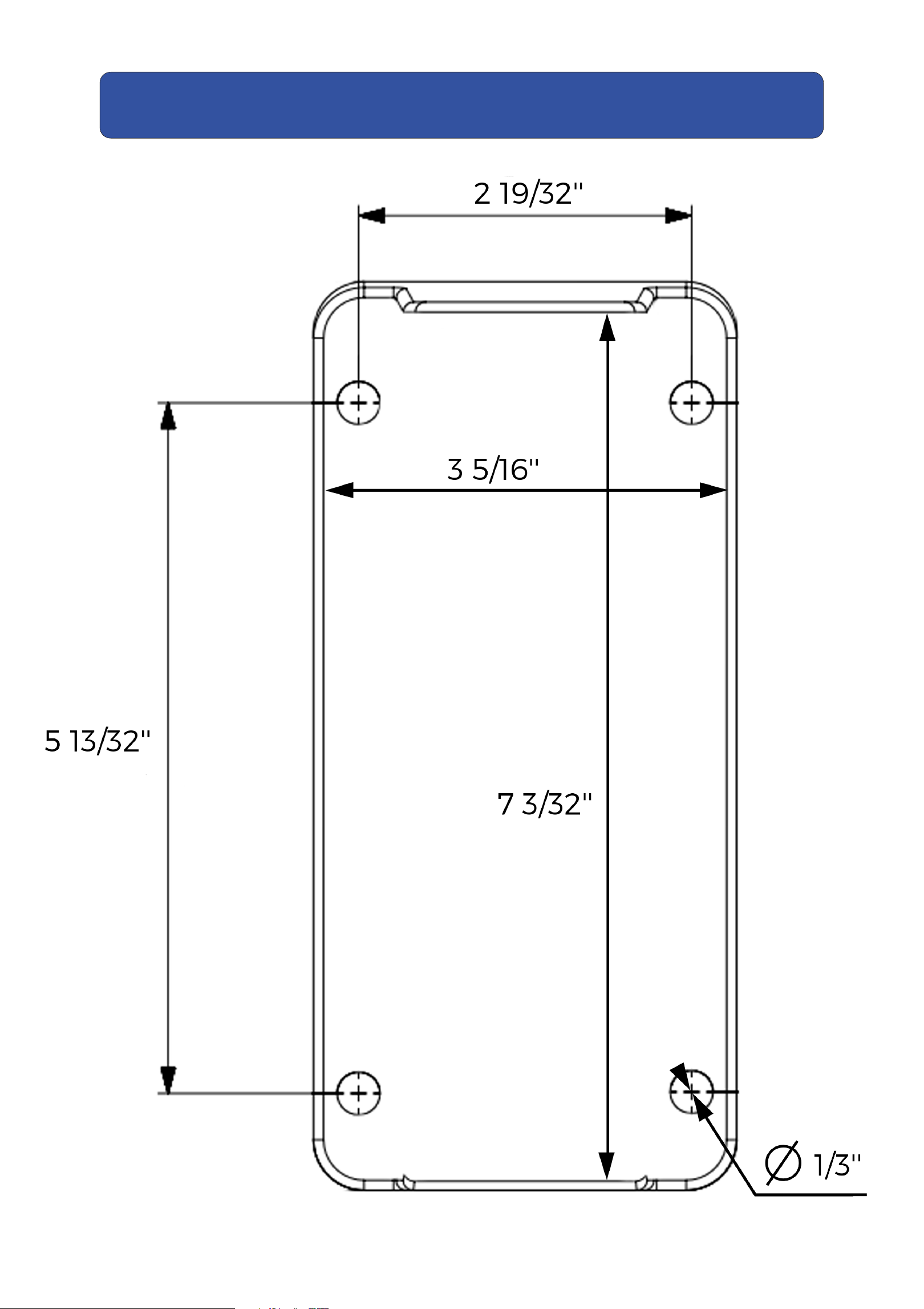

Installation Template
03
04
05
05
05
07
08
09
10
12
14
15
3

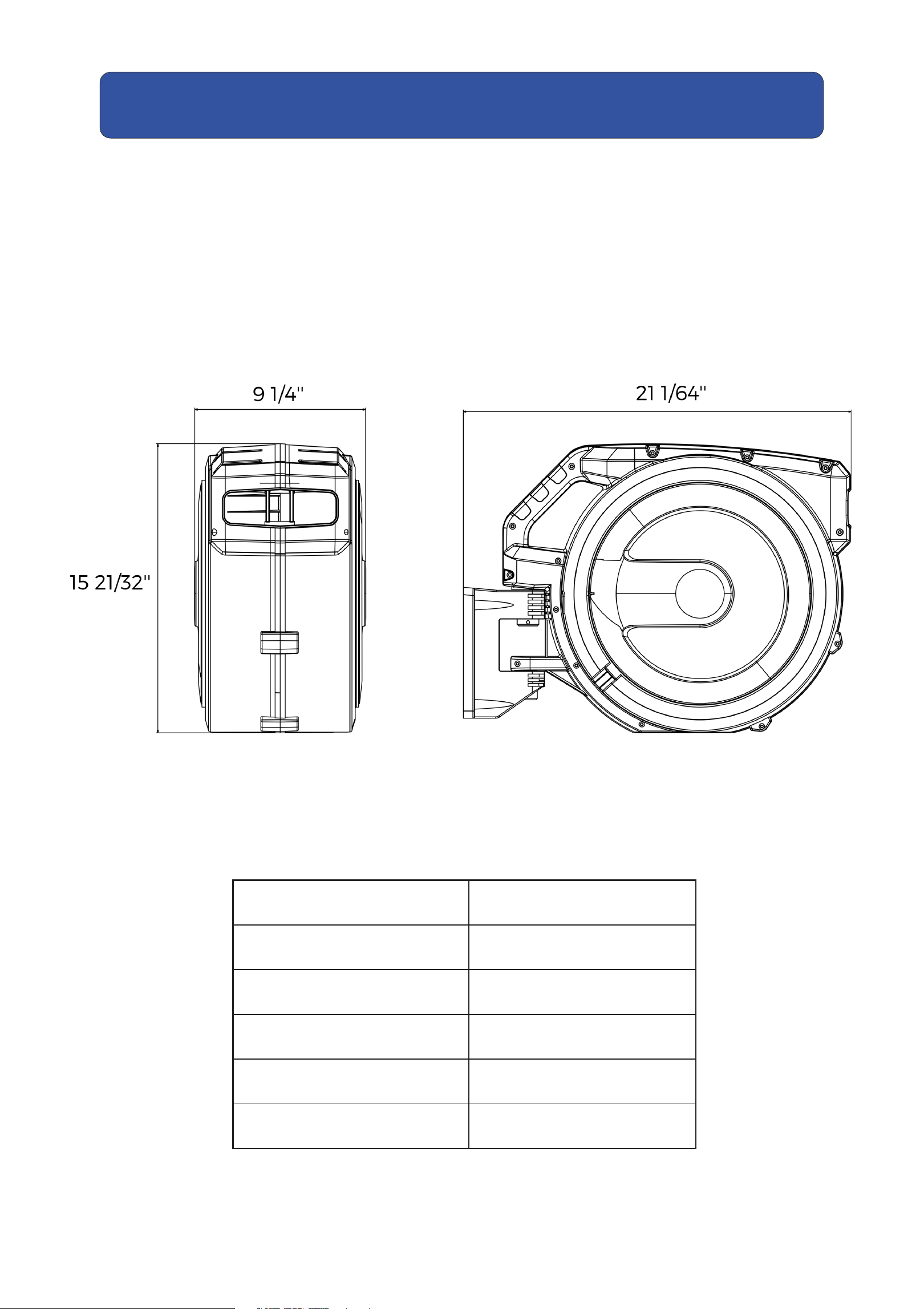

PRODUCT INFORMATION
Thank you for choosing the Giraffe Tools retractable hose reel. Our product uses a 100ft
reinforced hose for extra strength and durability, it also has a multi-function hose nozzle.
Before using the retractable hose reel, please read the following installation instructions
and refer to them when necessary.
Hose Capacity 1/2 in. x 100 feet
Connection Type 3/4 in. GHT
Working Temperature 0 - 104 °F
Max. Working Pressure 1.2 MPA
Mount Type Swivel on Wall, Post
Item Weight 11 kg / 24.3 lbs
4

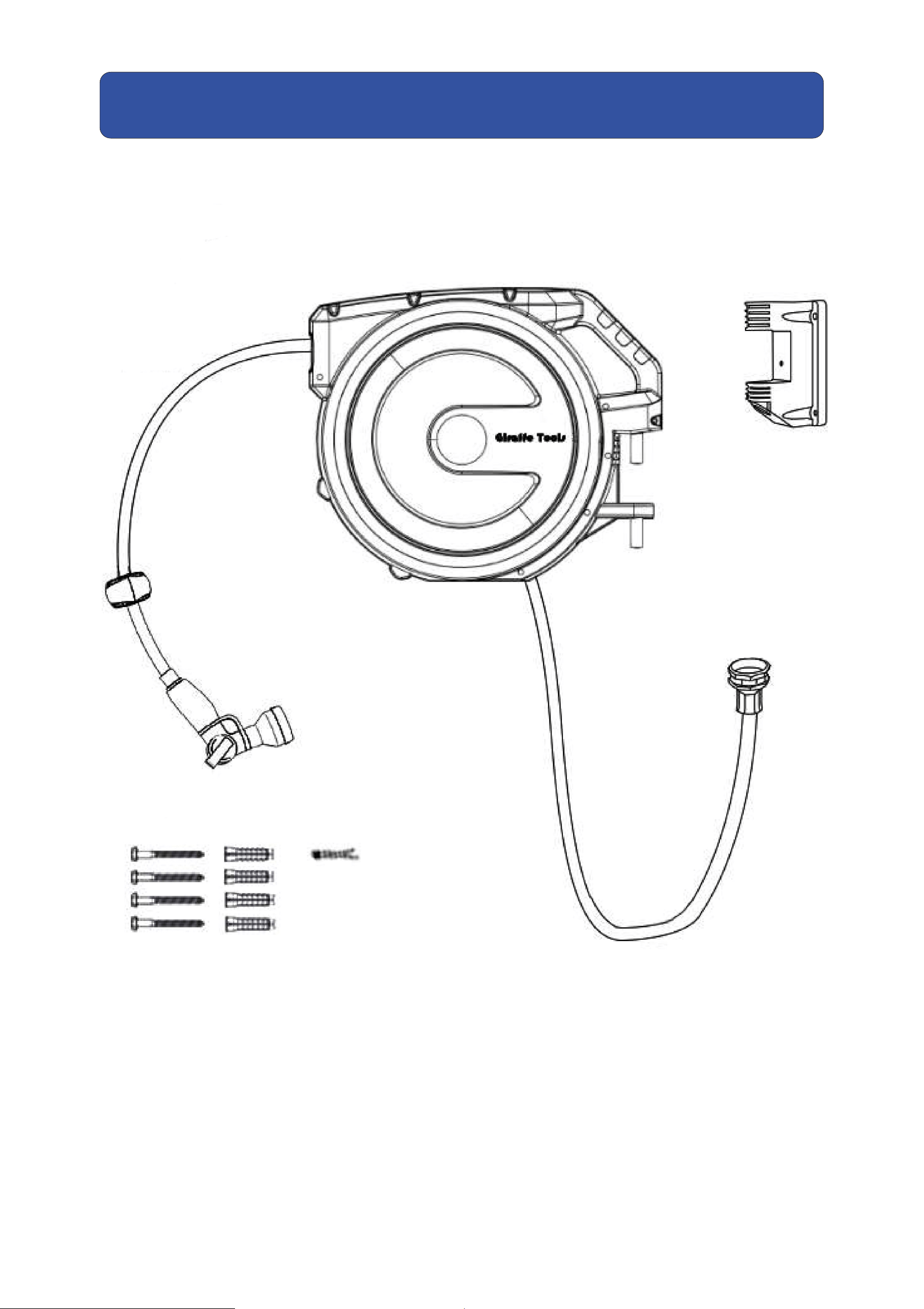

WHAT’S INSIDE THE BOX
1 x Retractable Hose Reel
1 x Bracket
1 x 5ft Leader Hose
1 x 9-Mode Nozzle
4 x Ribbed Plastic Anchor:
Φ
12*50
4 x Screw:
Φ
8*70
1 x Split Pin
1 x Owner’s Manual
5
OPEN-BOX CHECK
TOOLS REQUIREMENT
START TO INSTALL
1. Check if the above parts are complete.
2. Check if there are (white) scratches on the product.
If you have any of the above two questions, please contact the giraffe tools customer
service team right away.
Tips: If the received package smells, this is caused bythe sealed environmentduring the shipment
overseas.
●
Electric drill (7/16" OR 3/8" FOR WALL AND 5/16" FOR WOODEN POST)
●
Hammer
●
Socket set or a Phillips screwdriver
Choose a place
Due to the weight of the filled reel and the pulling force during use, the bracket must be
installed on a solid surface.
Note: Please install the hose reel at a height of approximately 31 in above
the ground to maximize the function of auto-retraction.
Notice: The surface needs to be able to withstand 30kg of force. As a matter of convenience, please install
the hose reel nearest to your chosen water source. Make sure the leader hose can reach the faucet prior
to mounting. The hose reel can be mounted on a wall or a post. If you want to mount the hose reel to a
wooden post, there is no need for wall anchors as the screws can screw directly into the wood. Using the
precise size drill will ensure a secure fit of the bracket. Please measure the correct drill bit width before
use. To make sure the anchors have a secure fit, you may drill slightly under size since masonry materials
all have different properties.
6
Wall
Due to the weight of the filled reel and the pulling force during use, the bracket must be
installed on a solid surface.
Notice: The surface needs to be able to withstand 30kg of force. As a matter of convenience, please

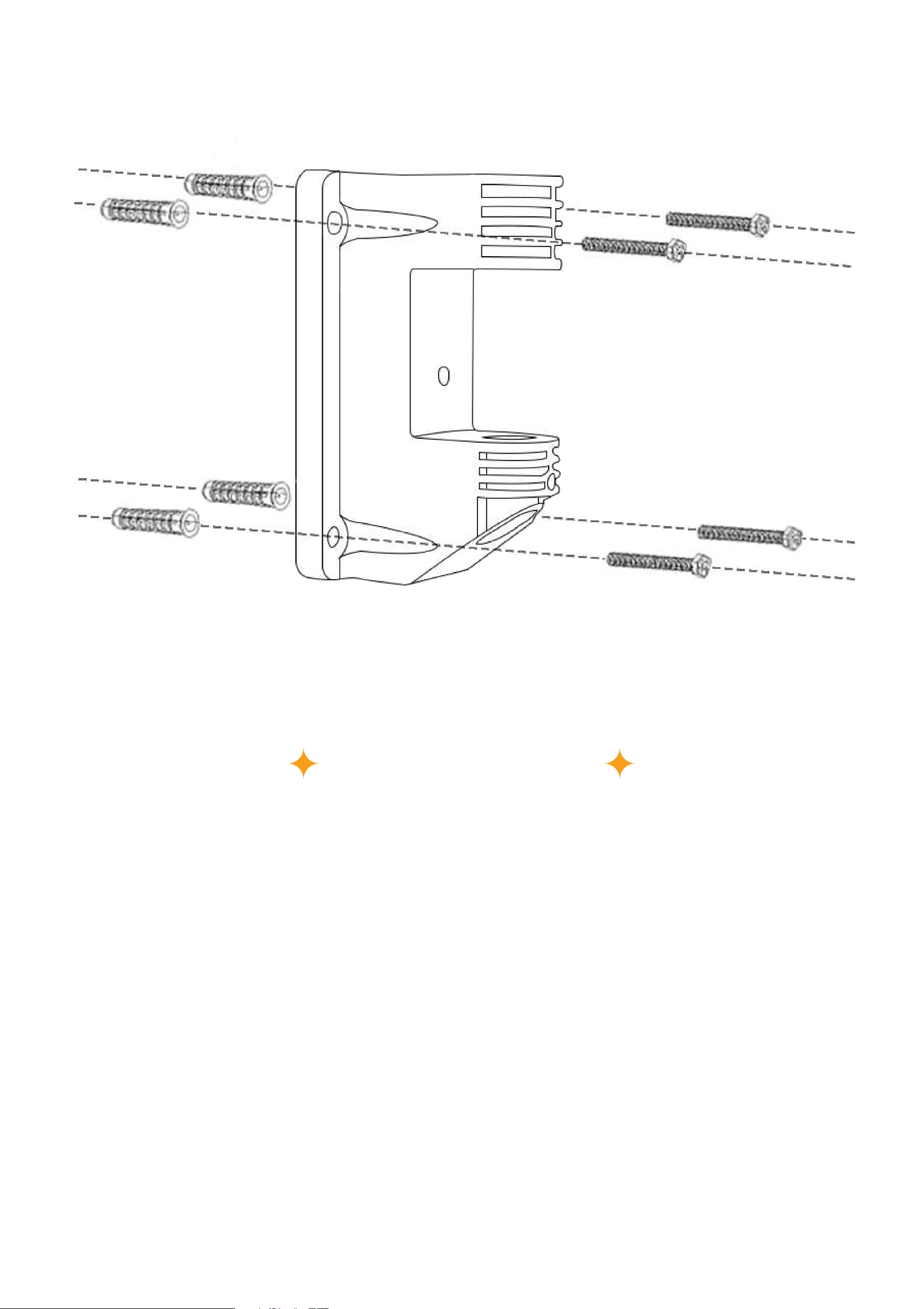

Installing the bracket
Use the installation template(page 15) to mark the location of the 4 holes.
First recommend a 7/16" drill, if not available you can choose a 3/8" drill, then drill
1-31/32''/4.98cm deep holes.
Hammer wall anchors into the 4 holes.
Hold the bracket in place, then put the screws in, and use a socket set or a Phillips
screwdriver to tighten.
1.
2.
3.
4.
Tips: Depth is important. Mark a 1-31/32''/4.98cm depth with tape around the drill bit. If the drilled hole is
too deep and the wall anchor rotates, use a matchstick or a similar tool to tighten the hole.
7
Setting up retractable hose reel
Wooden post
Tips: We don’t recommend wooden posts that can only carry weight up to 20kg, to install the bracket.
PRODUCT TESTING
Use the installation template(page 15) to mark the location of the 4 holes.
Use a 5/16" drill bit to drill 1-31/32''/4.98cm deep holes.
Hold the bracket in place.
Put the screws in and then tighten the screws.

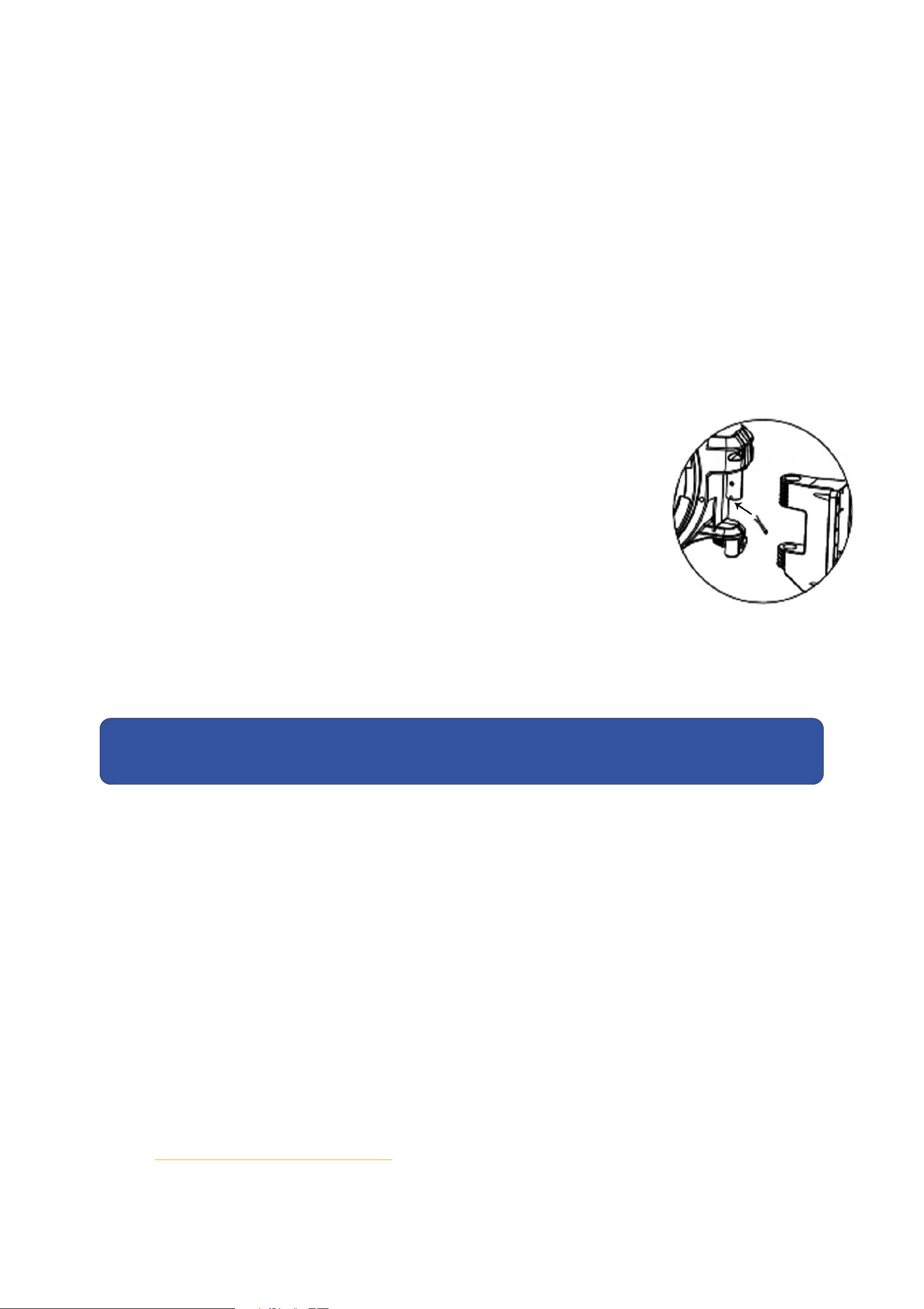

Lift the reel and slide it into the bracket holes.
Insert the split pin to the upper supporting bar of the hose
reel, split the two ends.
Connect the leader hose connector to the faucet.
Connect the nozzle to the hose.
Tighten the nozzle and leader hose connector.
Check if the water hose is leaking:
- Leaking near the faucet
- Leaking near the hose reel
Check whether the nozzle is leaking.
Check whether the hose retracts normally:
- Can't retract automatically
- Unable to pause
Check whether there is an o-ring in the hose connection.
If you have any of the above issues, please contact our customer service, by sending an
email to c[email protected]om and provide your corresponding video and order
number.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
4.
Your hose reel is now installed and ready to use!
8
HOW TO
Lock / Extend the hose
Recommended usage
Remove the hose reel from bracket
Retract / Shorten the hose
Pull the hose to the desired length and stop, the hose will lock.
To extend the hose to a longer length, pull the hose once more and stop at the new
desired length.
To unlock the hose, give the hose a small tug and release the force, the hose will start
retraction.
To shorten the hose, let the hose retract to the new desired length, pull the hose out
a little more, and then stop.
Tips: Hose can only be locked during pulling out process, and can not be locked during retraction.
Always gently retract the hose. If this is not done with caution, the hose reel and nozzle might get
damaged. When walking backwards at a steady speed, the self-segmenting mechanism inserts the
hose and weaves neatly into the reel, to ensure that it is free from kinks and tangles.
Clamp the end of the split pin with pointed pliers and pull out the split pin.
Lift the hose reel out of the bracket and store it for next use.
1.
2.
1.
2.
1.
2.
1.
2.
Before retracting the hose, turn off the faucet and squeeze the nozzle trigger to
release any additional pressure. Always retract the hose after each use.
There is an "STOP" indication sticker 3.28 feet before the maximum length, don't pull
the hose past this point, otherwise, the retraction mechanism will be destroyed.
9
PROBLEM GUIDE
The hose will not retract to its full length
The hose cannot be retracted or extended
Leakage near the connection point of the leader hose
The hose is hard to pull
The bracket fell off the wall
Turn off the faucet and pull out the hose completely.
Squeeze the nozzle trigger to release excess pressure.
Unscrew the nozzle and disconnect it from the hose.
Retract the hose into the reel.
Check for physical damage. (i.e., The reel makes a hoarse sound, there are obvious
cracks in the cover plate, the hose reel box is smashed, etc.)
It is possible for the hose to become jammed if it retracts unassisted. To free the hose of
a jam, pull the hose firmly until it is fully extended. It should now be able to retract once
again. Be sure to walk with the hose in hand at a slow speed as it retracts, until it is fully
stowed.
If leakage occurs where the hose is connected to the reel, try to tighten it and ensure that
the connector is threaded correctly when screwing tight. You may also want to check to
make sure there is an o-ring in the hose connection.
Confirm that the hose reel is installed at a high enough height to be parallel to the
user. If it is too low, the hose may rub on the opening, making it difficult to pull. Check
for physical damage. If you continue to have issues, please contact customer service at
contact@giraffetools.com and provide your order number and an accompanying video
or photos of the issue at hand.
Check whether the bracket was installed correctly.
1.
2.
3.
4.
5.
10
Hose kinks
Low water pressure
Bracket cracking
Extend the hose and fully open the faucet to eliminate any kinks.
Make sure that the hose reel is installed at the correct height. A hose that is too low
will rub against the hole and cause kinks.
Be sure to pull out the hose when needed. Do not leave the water hose stay outside
the reel for a long time, because you don't know if the hose will be pressed by a heavy
object.
Remove the nozzle, checking the water pressure to ensure the pressure issue is not
caused by the nozzle.
Fully extend the hose, check for kinks, and open the faucet completely for full water
flow to eliminate possible pinch points.
Connect the nozzle end of the hose to the faucet, making the water flow in the
opposite direction in the hose to clear any blockages.
If bracket cracking occurs, please contact customer service team by sending an email to
contact@giraffetools.com
with your order number and a picture of the issue.
1.
2.
3.
1.
2.
3.
MAINTENANCE
DO NOT ALLOW THE HOSE TO RETRACT AT HIGH SPEED UNASSISTED
DO NOT OPEN THE HOSE REEL CASING
This may damage the hose reel and nozzle. Always walk backwards at a steady pace with
the hose in hands.
Unscrewing the case will void the warranty. The internal spring mechanism is held under
tension and is dangerous when released. If leaking or retraction problems occur, please
contact the Giraffe Tools customer service team for advice and assistance.
11
DO NOT LEAVE THE FAUCET TURNED ON WHEN NOT IN USE
DO NOT DISASSEMBLE THE HOSE REEL BY YOURSELF
DO NOT EXPOSE THE HOSE REEL TO THE COLD ENVIRONMENT IN WINTER
CLEANING THE HOSE
DO NOT USE ANY CHEMICALS
DO NOT IMMERSE THE HOSE REEL IN WATER
This puts the hose under unnecessary pressure.
Internal metal parts are irreplaceable.
In winter, the plastic cover might become brittle, and the water in the hose will expand
and contract. The water might freeze and in turn crack the hose.
Wipe the hose with a damp cloth to keep the hose clean. This will prevent dust and
sand from being pulled into the reel, which could damage the lock and shrink-back
mechanism.
Do not use any chemicals or substances on this hose, such as dialysis, petroleum solvents,
lactic acid, etc., as this might result in damage.
Do not immerse the hose reel in water when cleaning. It is easy to wipe the housing with
a damp cloth to extend the life of the hose reel. The outer shell of the hose reel has been
treated with UV stabilization and can be used continuously.
12
WARRANTY
At Giraffe Tools, we conduct rigorous testing on every machine before it leaves the factory
and perform a lifetime test on every thousand machines to ensure they will withstand
many years of use beyond the warranty period.
In addition to our thorough testing, we offer a
24-month warranty
on all original Giraffe
Tools new products. The following specifics apply:
Giraffe Tools warrants its products against defects in parts and materials for a period
of 24 months from the original purchase date. Please note that this warranty does not
apply to
products acquired second hand
.
All warranty periods commence on the date of purchase and are non-transferable.
The warranty is limited to the provision of a replacement or refund free of charge
within the specified period, provided that the above conditions are met, and the
original proof of purchase is presented.
1.
2.
3.
For quality-related warranty claims, items will be replaced with a new item of equal
value when available. In situations where a replacement is not available or preferred,
Giraffe Tools will offer a full refund.
Warranties on all replacements follow the same 24-month warranty time frame as the
original defective item. Warranties on fully refunded products will be voided after the
refund is released.
4.
5.
Process:
●
Buyers must provide sufficient proof of purchase.
●
Giraffe Tools must document what happens when buyers troubleshoot the product.
●
Visible proof depicting the defect, such as pictures or videos, is required.
●
It may be necessary to return an item for quality inspection.
●
For defective items that Giraffe Tools needs to have returned, warrantion those replacements
are voided if the wrong item is returned to Giraffe Tools or if the defective item is not returned.
13
Valid proof of purchase:
●
Order number from online purchases made through Giraffe Tools or Giraffe Tools’s
authorized resellers.
●
Sales invoice that shows a description of the product along with its price.
Not Covered Under Warranty:
●
Purchases from unauthorized resellers.
●
Alterations not carried out or authorized by Giraffe Tools authorized resellers.
●
Products without sufficient proof of purchase.
●
Second-hand products.
●
Items that have expired their warranty period.
●
Damage from misuse of products, including, but not limited to, improper storage,
falls, extreme temperatures, water, and improper operation of devices.
14
If you are interested in the above products, you can visit giraffetools.com or search for
Giraffe Tools on Amazon
PRODUCTS RECOMMENDED
5/8" Retractable Hose
Reel, 60-115ft
1/2" Retractable Hose
Reel, 78-155ft
Retractable Air
Hose Reel
Grandfalls
Pressure Washer
Grandfalls Pressure
Washer, 65ft
Pressure Hoses
25-100ft
Hose Reel Cart
150-250ft
Hybrid Hose with
Swivel Grip 2.5-100ft
Customized Garden
Hose 6-100ft
Scan code to visit Giraffe Tools
store on Amazon.com
Scan code to visit giraffetools.com Scan code to join our
facebook group
15
INSTALLATION TEMPLATE
WE WILL DO THE HEAVY LIFTING
giraffetools.com
To purchase Giraffe Tools products and more, visit giraffetools.com or
search for Giraffe Tools on Amazon.com.
+1 (833)583-0881
(9am - 5pm EST)
Complete your registration online for a
100 DAYS WARRANTY EXTENSION
