retractable water hose reel
18mtr 12mm id pvc hose
model no: rGh18.v2
thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. safety
9 Familiarise yourself with the application and limitations of the hose reel, as well as the specific hazards.
warNiNG! disconnect the hose reel from the water supply before changing accessories, servicing or performing any maintenance.
9 maintain the hose reel in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 locate and fix the hose reel in a suitable working area. do Not position the hose in direct sun light, or in areas of extreme heat or
cold.
9 ensure there is adequate lighting.
warNiNG! ensure maximum water pressure is not exceeded.
9 Keep extended air hose away from heat, oil and sharp edges. Check hose for wear before each use, and ensure all connections are
secure.
9 maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.
9 Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery and contain and/or tie back long hair.
9 Keep children and unauthorised persons away from the working area.
8 do Not operate the hose reel if any parts are damaged or missing as this may cause failure and/or personal injury.
8 do Not exceed the rated capacity of the hose reel.
8 do Not use the hose reel for any purpose other than that for which it is designed.
8 do Not operate the hose reel when you are tired or under the influence of alcohol, drugs or intoxicating medication.
9 When not in use ensure the water supply is turned off and tools disconnected. disconnect from water supply and retract hose into case.
warNiNG! DO NOT dismantle the hose reel casing, or attempt to remove the screws and covers on the sides. To do so may result in
damage to the appliance and/or personal injury and will invalidate the warranty. Internal maintenance, which will require the opening of
the casing, must only be undertaken by an authorised service agent.
2. iNtroductioN
Tough, impact resistant, durable, composite case with wall/ceiling mounting bracket. Fitted with 18mtr high quality PVC hose. Complete with 2mtr
leader hose and water gun.
3. specificatioN
model no: ..............................................................RGH18.V2
Hose Id: ....................................................................... 12mm
length: .......................................................................... 18mtr
Weight: .......................................................................... 8.5kg
4. iNstallatioN
WARNING! DO NOT position the reel in areas of extreme heat or cold.
NOTE: Prolonged exposure to direct and intense sunlight may affect the integrity of the polymers within the moulded
components. Avoid, if possible, positioning the reel in direct sunlight.
4.1. mouNtiNG the reel
4.1.1. due to the way the retractable hose operates, the reel should only be mounted in one of two positions shown below. The brackets
supplied will enable you to mount the reel in either position.
4.1.2. ensure the wall, ceiling or other structure, to which the hose reel is to be fixed, is of sound construction and that the securing
points will hold the working strain of the hose when in use.
4.1.3. Using the mounting holes template (cut from box lid), drill appropriate holes for the desired mounting or see diagram below.
4.1.4. When wall mounted the hose exit point should not be more than 2.4 mtrs above floor level. Above this height ceiling mounting is
recommended. See diagrams overleaf.
4.1.5. Fix one bracket to the chosen surface using fixings that are appropriate to the substrate and strong enough to carry the weight
of the reel plus the working strain exerted on it when in use. Position the hose reel onto the rst bracket, then proceed to x the
second bracket into place and ensure the reel is secure.
Original Language Version
© Jack Sealey limited
Refer to
instructions
RGH18.V2 | Issue:3 (H,F) 17/07/18
5. operatioN
5.1. Pull out the hose to the required length. A clicking noise will be heard every half revolution of the drum.
5.2. To latch the reel, allow the reel to slowly retract after hearing the 1st, 2nd or 3rd click.
5.3. To unlatch the reel, slowly pull out the hose until the clicking noise stops, then let the hose slowly retract until the hose stopper rests
against the reel mouth.
Note: Remove tools from the hose when they are no longer required for use.
WARNING! To prevent injury or damage occurring, DO NOT let go of the hose during rewinding.
6. maiNteNaNcea
warNiNG! Before carrying out routine maintenance or inspection, vent any pressure remaining in the hose.
6.1. The hose reel does not require special maintenance as it is lubricated for life. To ensure reliable operation, clean the hose and
casing regularly. do Not spray or wet the product, but clean with a cloth and warm water. do Not use solvents or detergents, as
these may permanently damage the plastic.
6.2. There are no user serviceable parts. All maintenance and repairs which require the case to be opened or dismantled should be
carried out by an authorised service agent only.
warNiNG! DO NOT dismantle the hose reel casing, or attempt to remove the screws and covers on the sides. To do so may result in
damage to the appliance and/or personal injury and will invalidate the warranty.
6.3. storaGe
6.3.1. Should you wish to store the hose, ensure it is clean and dry. Place the item in a dark, safe, dry, childproof location, where the
temperature will remain reasonably stable. do Not store in a nylon or plastic bag, as this will encourage condensation.
7. troubleshootiNG
RGH18.V2 | Issue:3 (H,F) 17/07/18
Original Language Version
© Jack Sealey limited

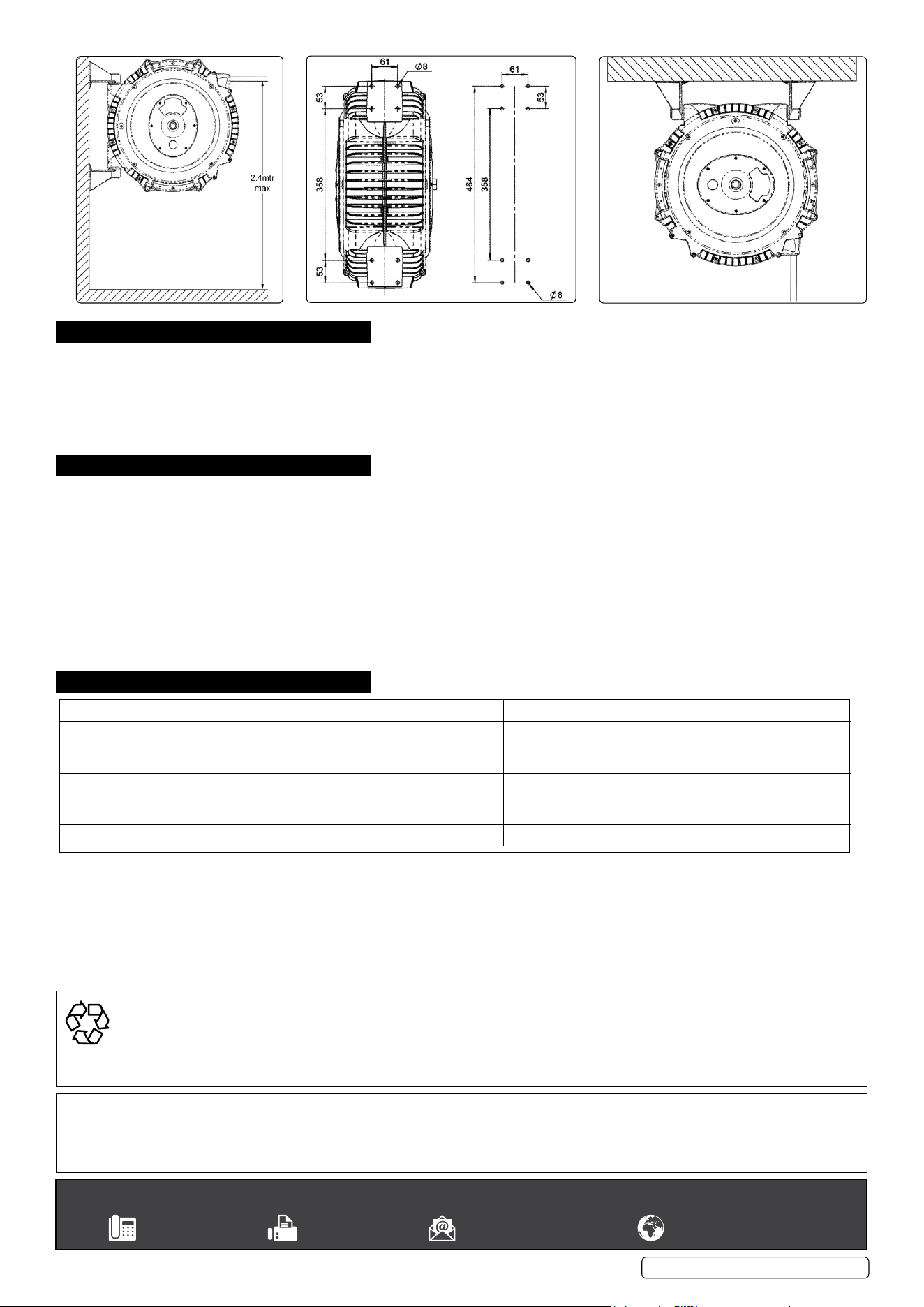

1. wall mouNtiNG
2. ceiliNG mouNtiNG
problem possible cause solutioN
Hose will not retract: Hose bunching within reel.
Spring tension too tight.
Replacement hose too heavy.
Pull hose out of reel and guide back in.
Have spring tension adjusted by authorised service agent.
Have correct hose fitted by authorised service agent.
Reel will not latch: The hose has been pulled past the latching teeth.
Broken latching pawl or pawl spring.
Allow reel to retract slowly after hearing 1st, 2nd or 3rd click.
Have new latching pawl or pawl spring fitted by authorised
service agent.
Reel leaks: damaged hose. Have new hose fitted by authorised service agent.
sealey Group, Kempson way, suffolk business park, bury st edmunds, suffolk. ip32 7ar
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
important: no liability is accepted for incorrect use of this product.
warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
eNviroNmeNt protectioN
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
