IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USE.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
RECHARGEABLE
MISTING FAN
Model: MS12
[email protected] www.turbro.com
SAFETY INSTRUCTIONS

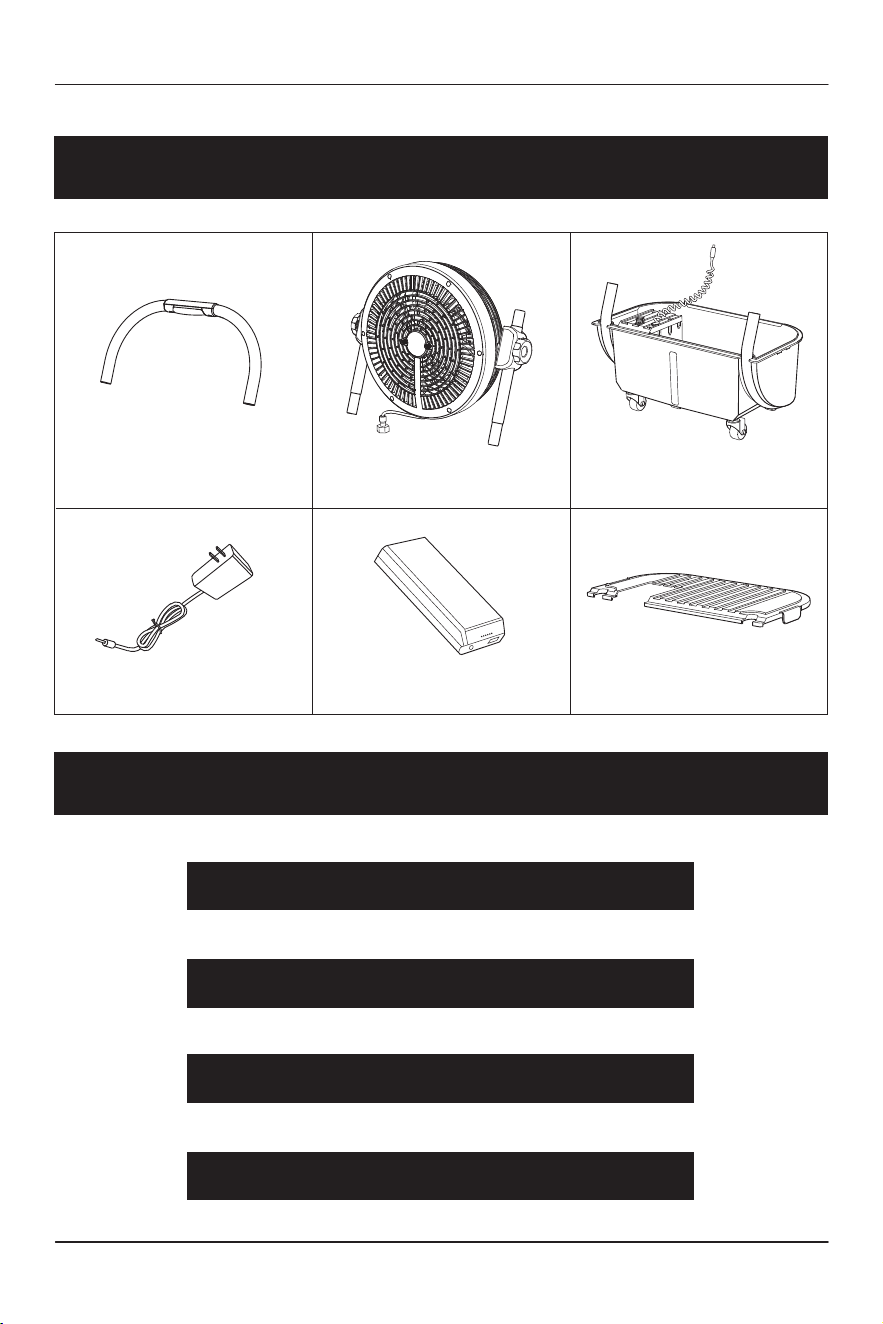

PACKAGE CONTENTS
SPECIFICATIONS
PRODUCT FEATURES
ASSEMBLY
HOW TO USE
MAINTENANCE AND CARE
WARRANTY INFORMATION
·························································02
·····························································04
·····································································04
······························································05
················································································06
·············································································12
······················································15
·····················································18
CONTENTS
01
Please read all instructions before aempting to assemble, operate or install
the product.
● Please keep the fan out of reach of children, and the fan is not intended for
children.
● Keep children and bystanders away while operating an appliance.Distractions
can cause you to lose control.
● Please turn o the fan before moving the fan or leaving.
● Please place the fan on horizontal, steady and stable surface in order to
prevent overturning.
● When the fan is running, please don’t put finger, pencil or any other object
into the fan guard.
● It is forbidden to dismount, modify or use the fan for any other purpose.
● The power plug should be pulled out before cleaning the fan.
● It is forbidden to plug the charger into the outlet / pull the charger out of the
outlet with wet hands.
● If the charger or power cord is damaged, it must be replaced by the
manufacturer or its service agent or personnel with similar qualification so
as to avoid danger.
● The charger we provide is dedicated, please don’t use other charger.
● Do not use the provided charger for charging other products, as it is
designed for specific use.
● Avoid using any solid-state speed regulating device to control the fan, as
it may pose a risk of fire or electric shock.
● Before plugging in the outlet, make sure the rated voltage and frequency of
the power supply is consistent with as shown on the charger label.
● It is forbidden to place the fan in or near fire, because there is baery inside
the fan; otherwise, it may explode.
● Please don’t charge for more than 24 hours continuously, and pull out the
charger plug after being fully charged.
● Charging shall be completed indoor, please plug in the waterproof silicone
cover at the charging port when using outdoor.
[email protected] www.turbro.com
SAFETY INSTRUCTIONS
02
● Please cut o power prior to cleaning, it is forbidden to detach/open rotor
protective cover to clean the rotor blade.
● Ensure that the baery compartment cover is completely closed to prevent
water from contacting baery or entering baery port.
● Please don’t disassemble or modify the fan baery.
● When cleaning the fan, please discharge the fan until the product is out of
operation and out of charging state, use wet soft cloth with detergent or
alcohol to clean the greasy dirt and dust (don’t use gasoline or other liquid
which is corrosive to plastic and oil paint), then wipe with dry cloth. Be
careful not to collide with the fan blades and change the angle of the blades.
● Use appliance only with specifically designated baery packs. Use of any
other baery packs may create a risk of injury and fire.
● Don’t expose the baery to liquid or to strong mechanical impact.
● When detachable baery is not used, please keep it away from other metal
object, such as clip, coin, key, nail, bolt or other lile metal object. These
metal objects can be connected from one terminal to another, short circuit
of baery terminals can lead to sparkle, burn or fire.
● Do not expose a baery pack or appliance to fire or excessive temperature.
Exposure to fire or temperature above 113°F (45°C) may cause explosion.
● User should not disassemble and replace internal components of the fan
randomly; in case of failure, please contact with after-sales service
department for maintenance.
● Never direct mist or water toward any electrical wiring or devices.
● Any technological improvement to this product is subject to change without
prior notice.
DISPOSAL
We actively encourage you to participate in the electronic recycling program,
so please properly dispose of waste electronic products in accordance with
local regulations, and do not treat the products as household garbage.
[email protected] www.turbro.com
03
PACKAGE CONTENTS
SPECIFICATIONS
[email protected] www.turbro.com
04
Upper Bracket
Fan Unit Water Tank Unit
Power Supply Charger
Baery Pack Water Tank Lid
MS12Model
100-240V, 50/60HzPower Supply
24V DC, 1.2AInput Rating
11L / 2.9GalWater Tank
15.4 LBS / 7.0KGNet Weight
3200mAh x 6 cellsLithium-ion Baery
1500CFMAirflow
PRODUCT FEATURES
[email protected] www.turbro.com
05

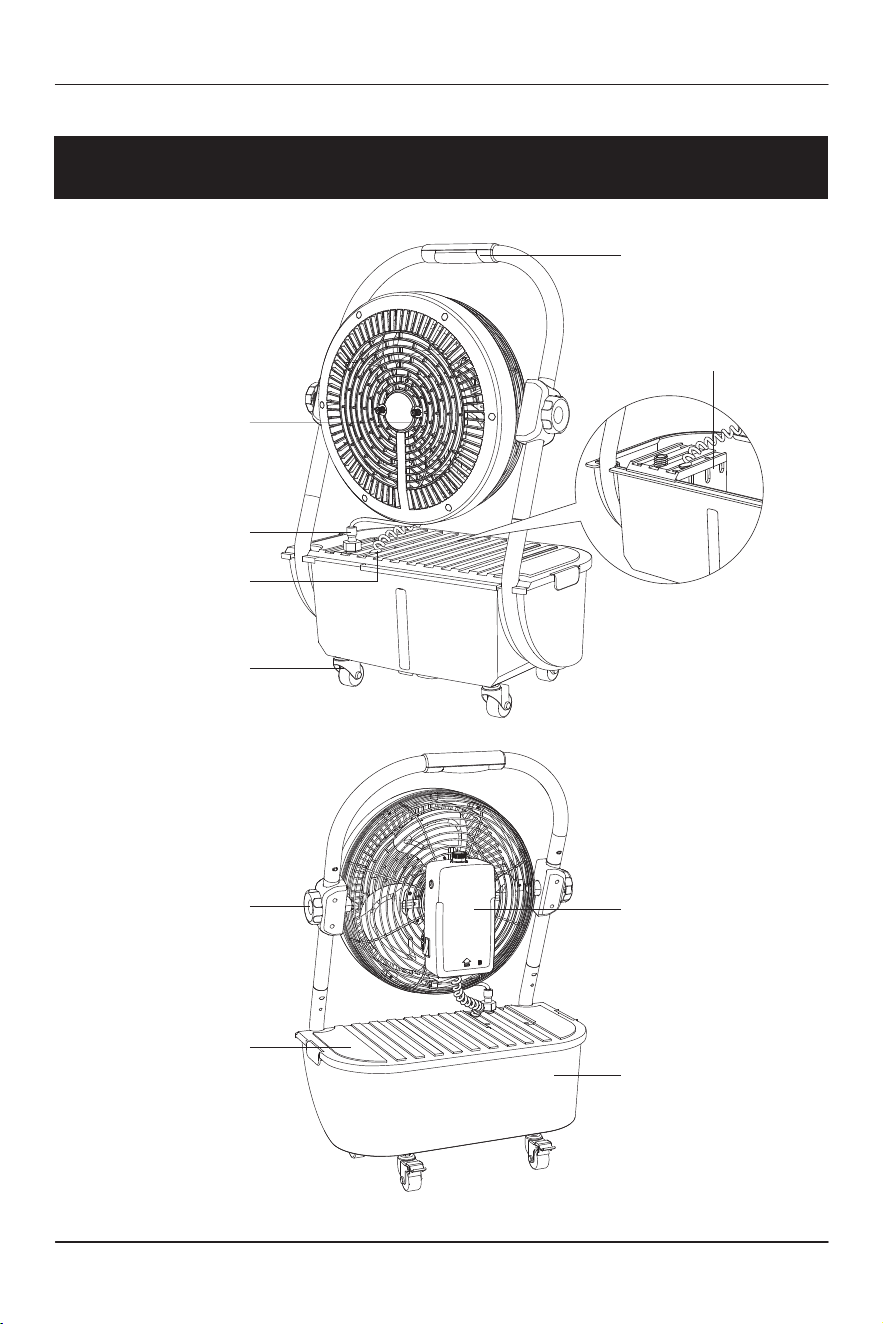

Top Handle
Adjustment Knob
Water Tank
Baery
Compartment
Misting Nozzles
Water Hose
Water Tank Lid
Swivel Caster
Wheels
Pump Power Line
Pump
[email protected] www.turbro.com
06

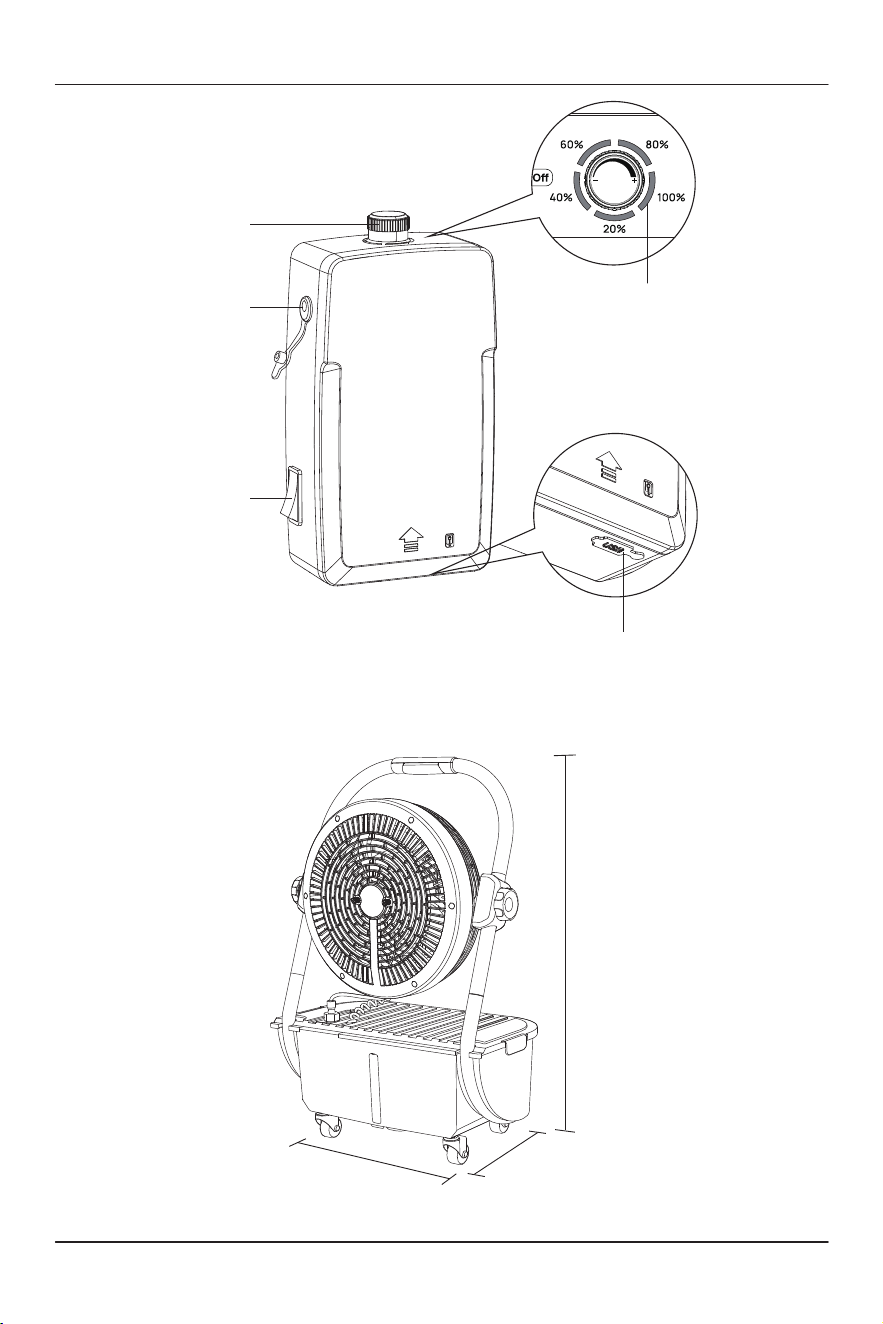

Switching Knob
& Fan Speed Knob
Pump Switch
USB Output
Baery Capacity
Indicator
Power Supply
Jack
Dimensions
10.4in
29.6 in
19in
[email protected] www.turbro.com
07
WARNING: If any parts are damaged or missing, do not operate this
product until the parts are replaced. Use of this product with damaged or
missing parts could result in serious personal injury.

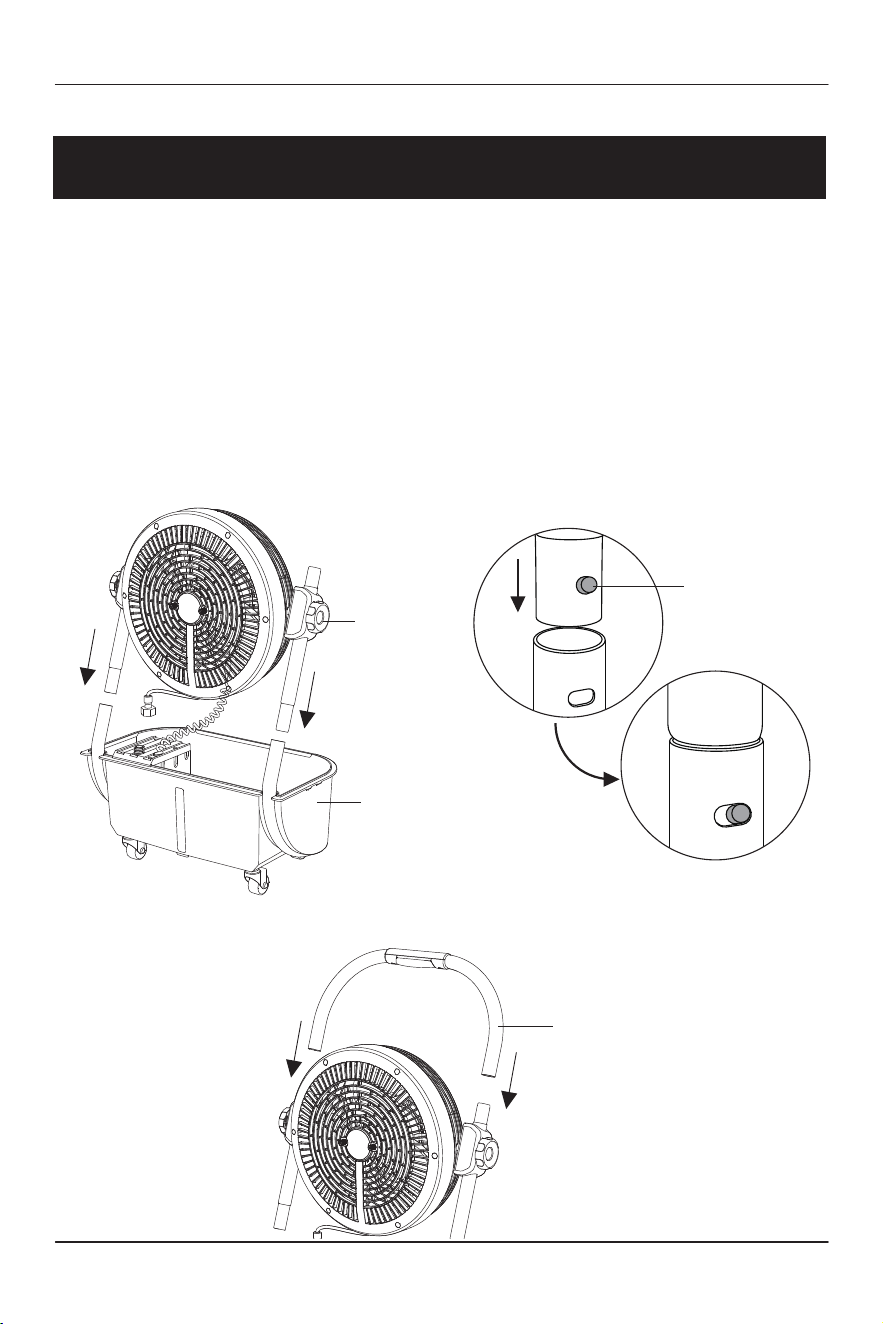

Step 1. Connect the Fan Unit and the Water Tank Unit, install the Main
Support from the Fan Unit into the Subframe.Please pay aention to that
the front direction of the fan is consistent with the front direction of the
Water Tank. Press the Marbles on Main Support installation position and
then align and plug them into the Subframe. The Marbles will bounce o
and fit into place.
INSTALLATION
Fan Unit
Water Tank
Unit
Step 2. Install the Upper Bracket into the Fan Unit refer to Step 1.
Upper Bracket
Marbles
[email protected] www.turbro.com
08

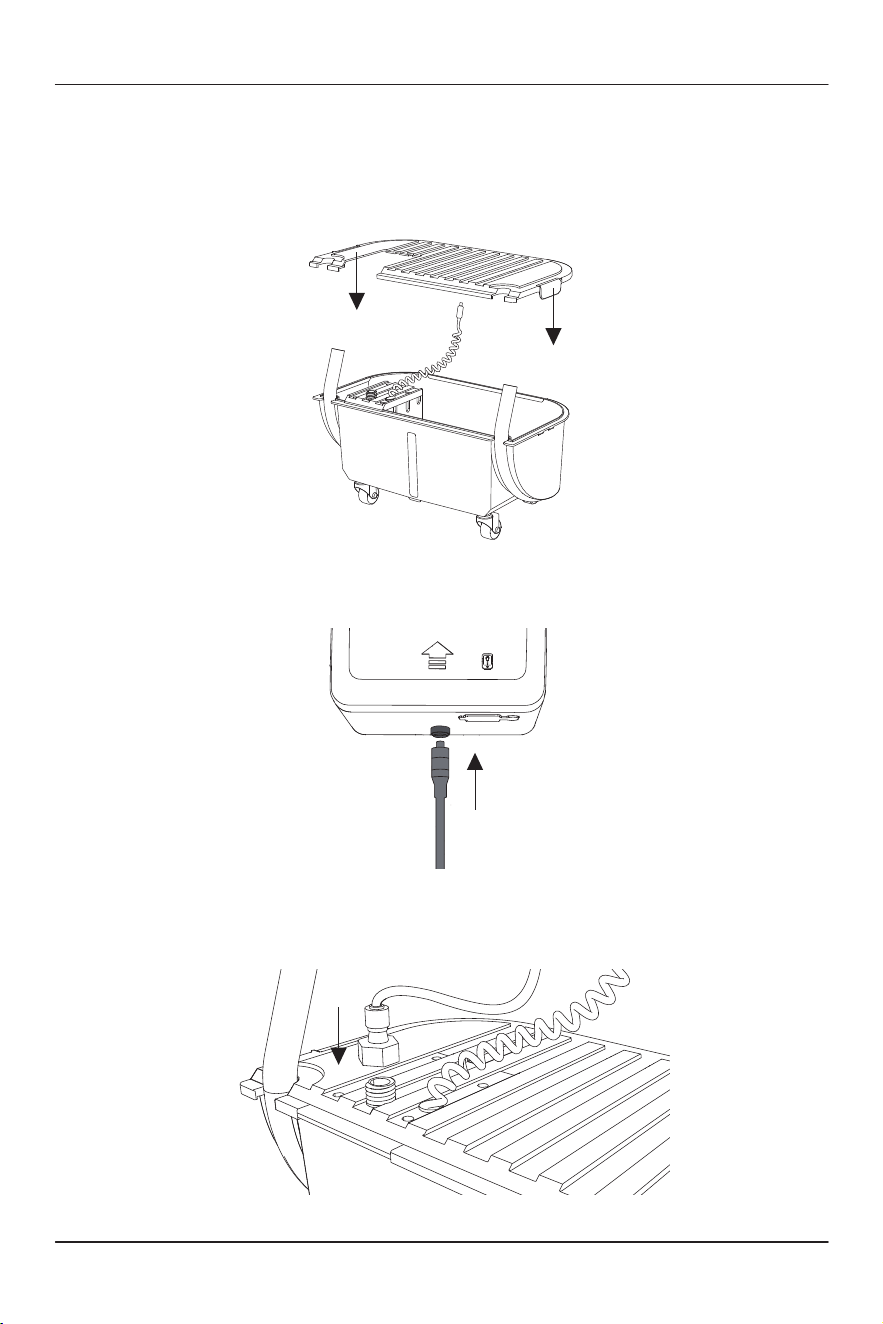

Step 4. Install Water Pump Power Line to the round socket at the boom
of the Baery Compartment.
Step 5. Connect and fasten the Water Hose to the Pump.
Step 3. Place the Water Tank Lid and make both lifting handles fasten with
the Water Tank.
[email protected] www.turbro.com
09
1. Before disassembling the product, please take out the Baery Pack and
make sure that the fan is OFF.
2. Unscrew the Water Hose from the Pump and pull out the power line of the
water pump.
3. Press down the marbles and pull out the Upper Bracket.
4. Press down the marbles and pull out the Fan Unit away from the Water Tank

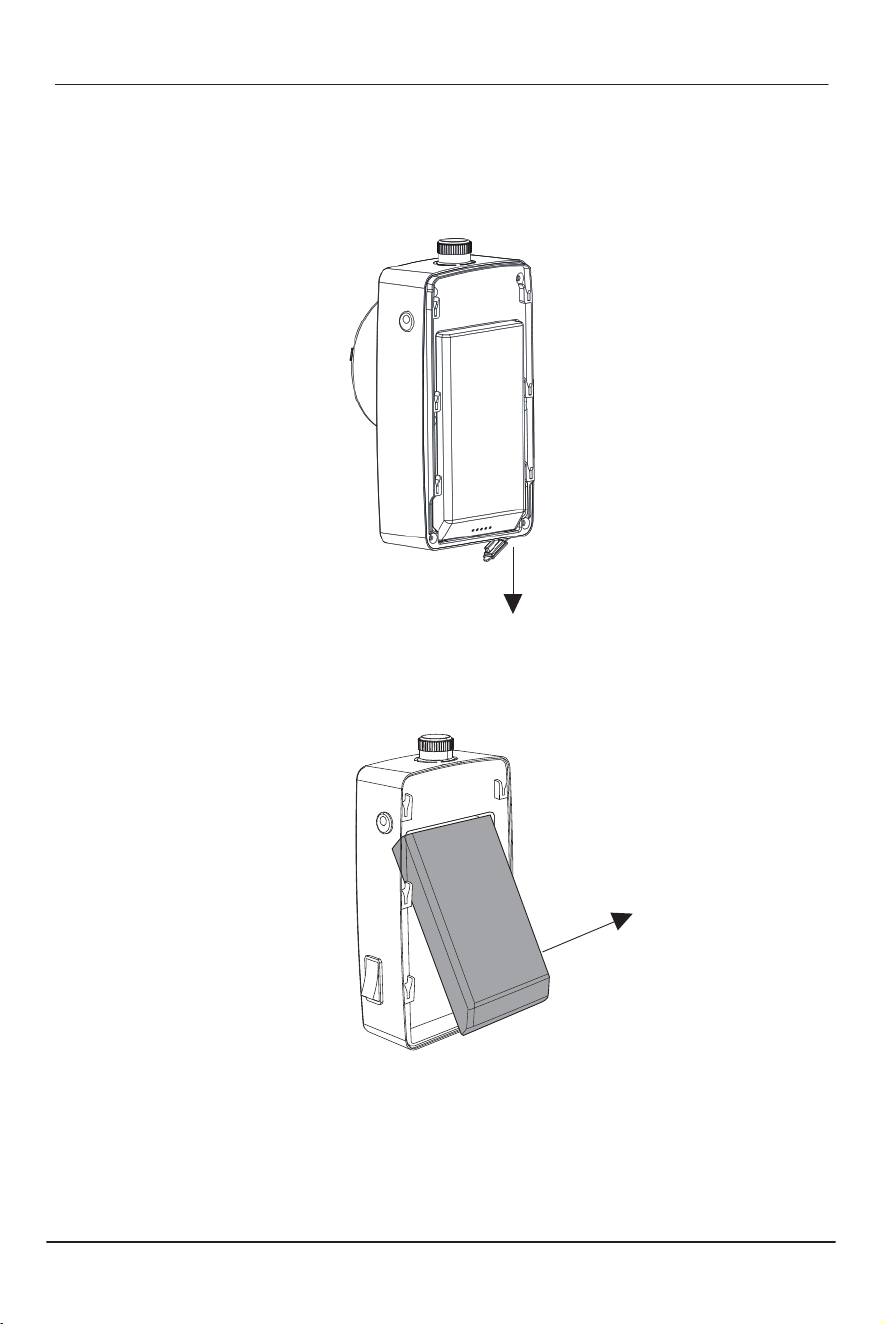

2. To install the baery pack.
a. Hold the baery with hands and push-up from the top of the baery
into the baery slot.
Disassemble

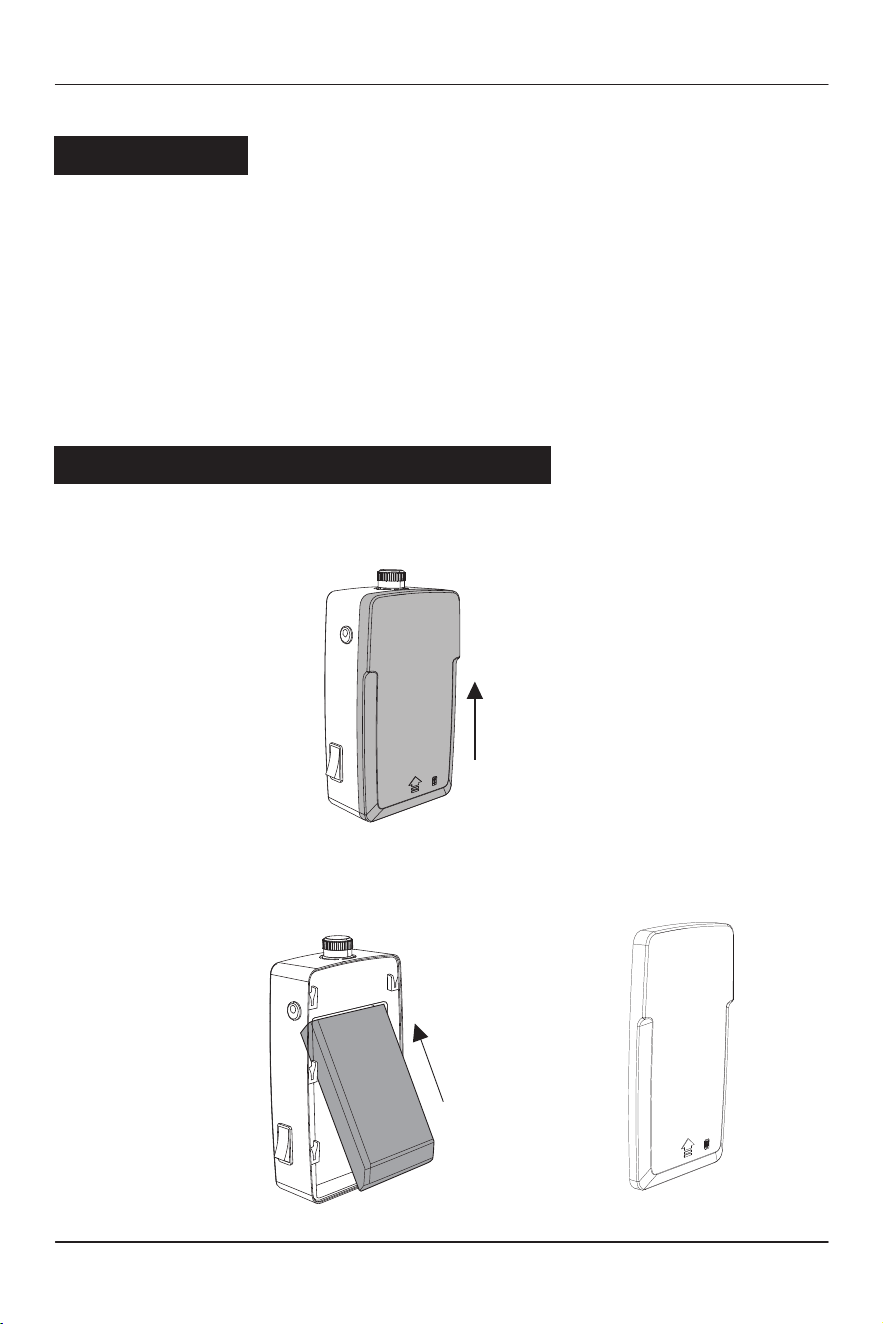

1. Remove the baery cover by pushing it upward.
To Install / Remove the baery pack
3. To detach the baery pack
a. Uncover the USB waterproof silicone cover at the boom.
b. Hold two sides (bevel edge) of the baery boom with hands and pull
out the baery outwards.
[email protected] www.turbro.com
10

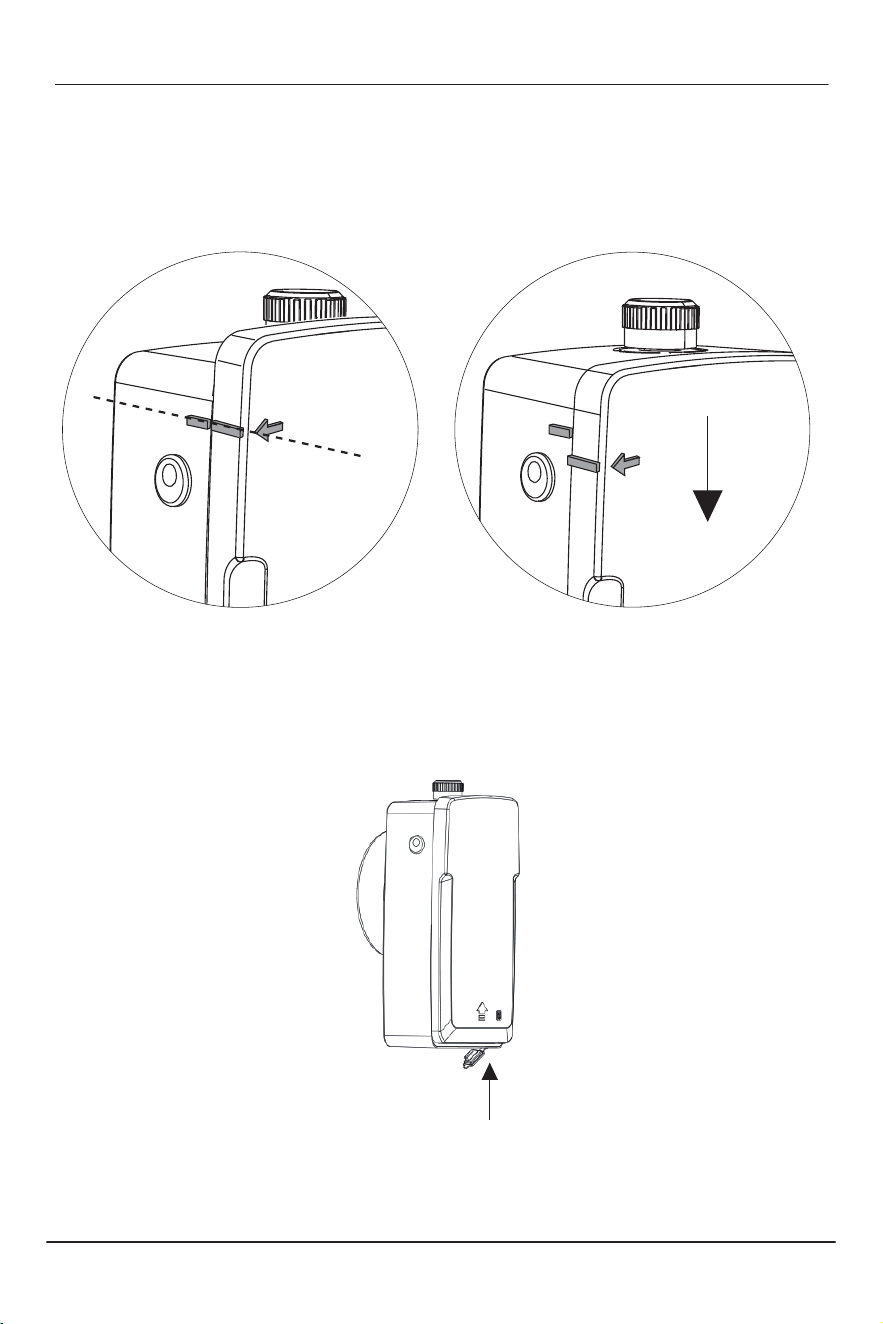

4. Dislocate the rear cover slightly upward (Align the reference lines of the
baery compartment and rear cover, as shown in Figure 1 below) and then
push-down and fasten（as shown in Figure 2 below）
5. Fasten down the USB waterproof silicone cover at the boom.
Note: Ensure that it is completely closed to prevent water from contacting
baery or entering baery port.
[email protected] www.turbro.com
11
Figure 2Figure 1
CHARGE THE BATTERY PACK BEFORE FIRST USE
You can use the Fan function and Misting function separately or together.
Fan Function
Rotate the Switch Knob on the control panel to turn on the fan. This fan adopts
stepless speed regulation, after starting the fan, rotate indication point of the
rotary switch from the symbol “-” to “+” to gradually increase the wind speed
(please be noted that after rotary switch is at fixed point, wind speed shows
1 second delay in acceleration).
Misting Function
Make sure the Water Pump Power cord to the round socket under the baery
compartment, and the water hose is connected to the Pump.
Note: Use cold or room temperature clean water only.
1. Pour water into the water tank, the water should not exceed the maximum
water level. And close the water tank lid correctly.
2. Press the pump switch buon to start misting.
Note: If the water tank is short of water, the water pump will automatically
stop working. Please fill the water to the water tank and the water pump
switch needs to be turned back on to work properly.

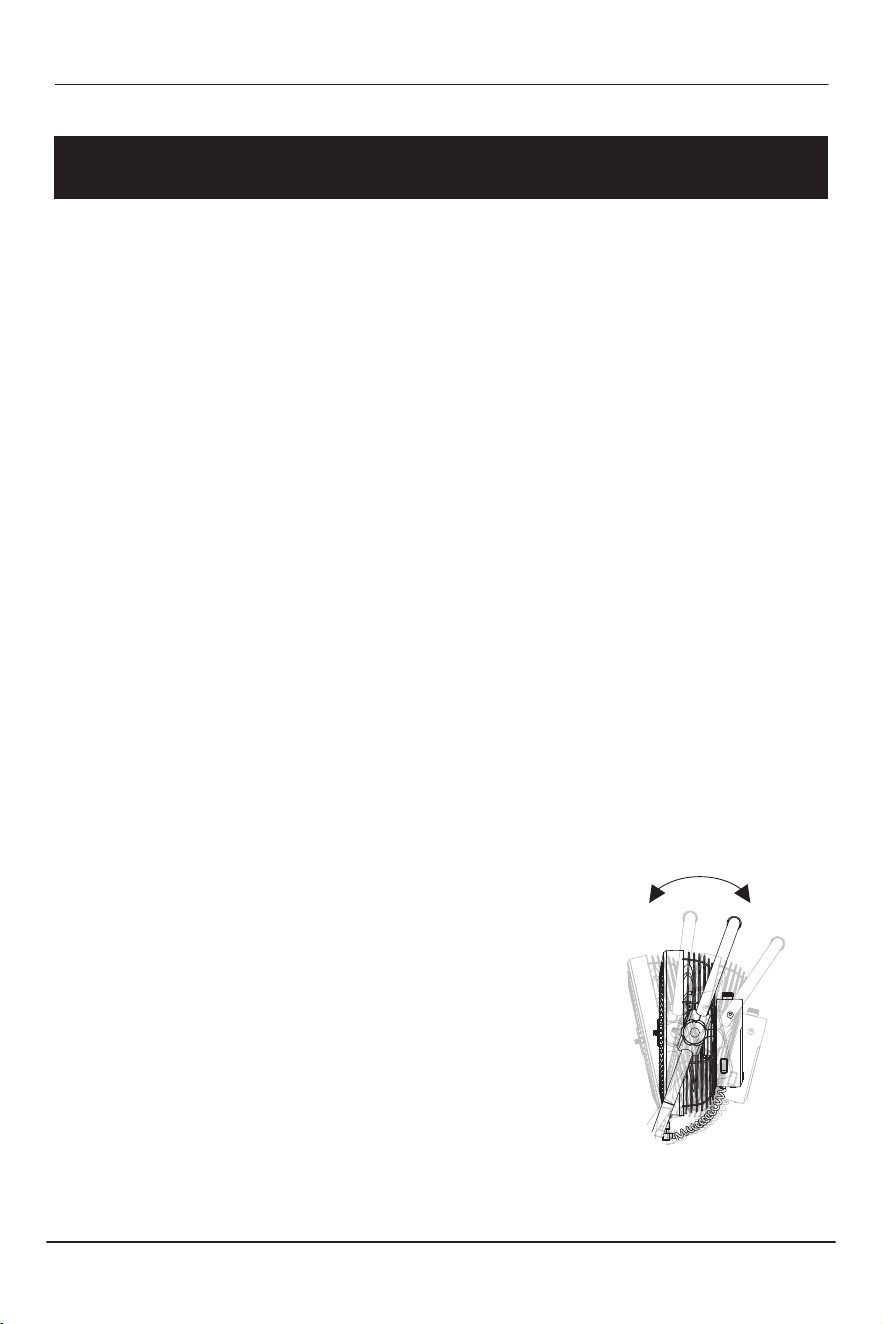

Adjusting the fan angle
1. Rotate the Adjustment Knob counterclockwise
to loosen the adjustable fan enclosure.
2. Tilt the adjustable fan enclosure forward or
backward to your desired angle. (as shown in
Figure 3).
3. Rotate the Adjustment Knob clockwise to
secure the fan enclosure at your desired angle.
HOW TO USE
[email protected] www.turbro.com
12
Figure 3
[email protected] www.turbro.com
13

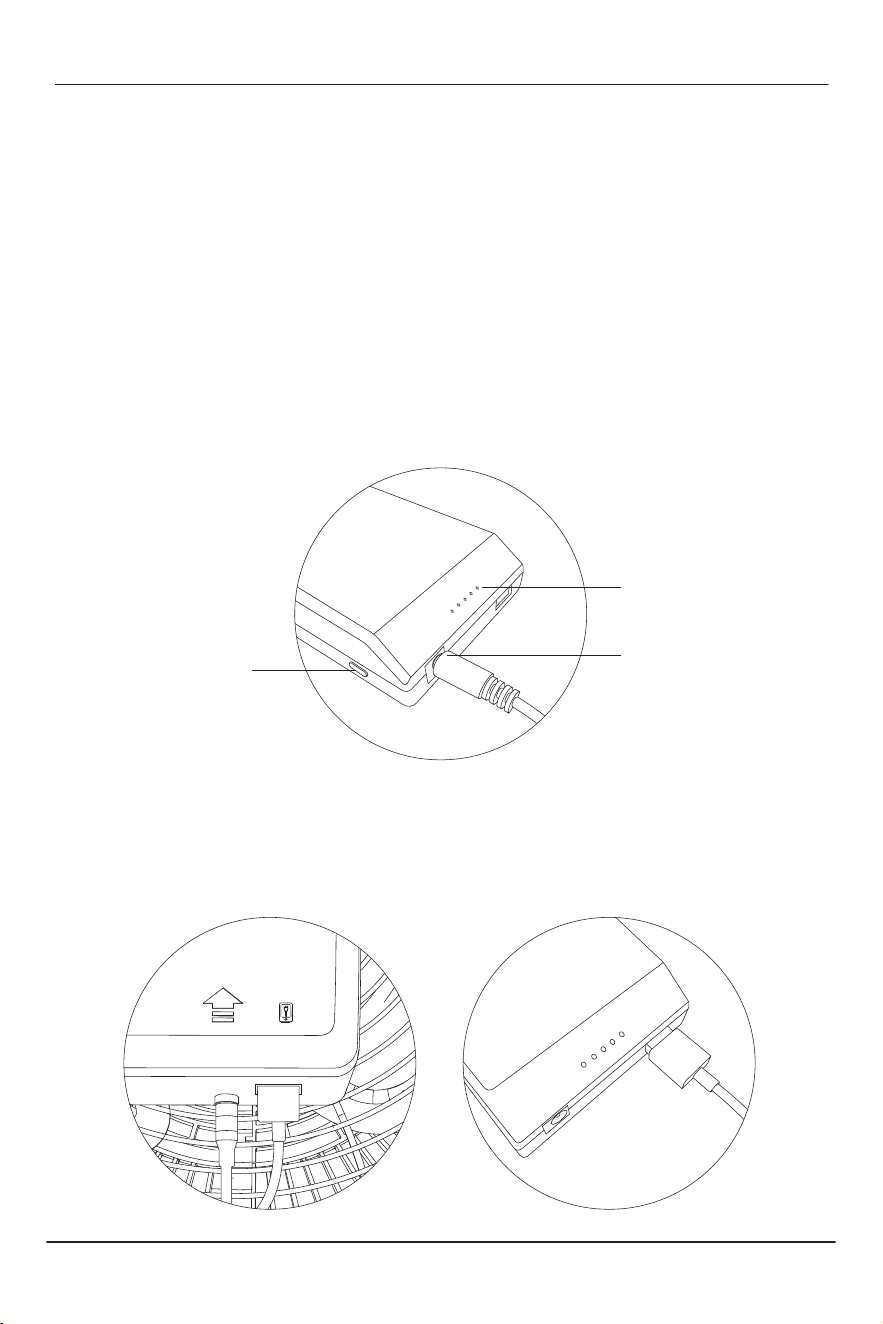

Charging via Power Supply Jack
Please pull out the waterproof cover at the power supply jack, connect the
power cord with the power supply jack at first, and then plug the charger to a
suitable electrical outlet, the Baery Capacity Indicator light corresponding
with the residual current will be in the state of flickering when charging. All
indicator lights on top of the control panel are all on after being fully charged,
and go out about 50 minutes later.
After charging, please insert the waterproof cover back to prevent water
from contacting the charging port.
Charging the baery
WARNING
This method of charging cannot be used when using the mist function or
using outdoors, or areas exposed to water or moisture.
Power Supply Jack
Waterproof Cover
Charge the baery pack separately
After the product is discharged and it is necessary to take down the baery
pack to charge separately, please take down the baery pack by step, there
is power display enable buon at the side of detachable baery; in case of
pressing this enable buon, 5 indicator lights at the boom of the baery
will display the residual current, which will be evenly distributed 20%~100%
of electricity, connect the power cord with the baery input port at first, and
then plug the charger to a suitable electrical outlet, power indicator light c
orresponding to the residual current will be in the state of flickering when
charging. After being fully charged, all power indicator lights on the baery
pack will be on.
USB Charging Port
The USB charging port on the Baery Compartment / Baery Pack can be
used to recharge digital devices such as smart phones (USB cable NOT
included). The output of USB port is 5V 1A.
[email protected] www.turbro.com
14
Indicator Lights
Input Port
Enable Buon
Warning: To avoid serious personal injury, always remove the baery pack
from the product when cleaning or performing any maintenance.
Fan Body Maintenance
Clean the body of the fan with a damp cloth, wipe it clean, or clean it with a
vacuum cleaner. Do not use gasoline、thinners、solvents、ammonias or
other chemicals for cleaning. Pay aention not to collide with the fan blade
and change the angle of the fan blades.
Baery Maintenance
Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of baery pack may create a risk of fire when used with
another baery pack.
IMPORTANT
Before long-term storage, turn o the fan and fully recharge it. The
baery may discharge if not used. If the baery reaches zero for an
extended period, it may malfunction, It’s recommended to recharge
it again within 3 months of storage.
Mist Nozzles Maintenance
Ensure that all misting nozzle maintenance is performed properly to prevent
water leaks. The leaks can result in a slippery surface creating a slip and fall
hazard or cause property damage. Irregular mist paerns or leakage may be
the result of a clogged or dirty nozzle.
[email protected] www.turbro.com
MAINTENANCE AND CARE
15
To clear the nozzles
Clear Clogged
Water Tank Maintenance
1. Use cold or room temperature clean water only.
2. Always drain away water in the water tank thoroughly after use every time.
Clean and dry the water tank prior to storing the product.
3. There is drain hole at the boom of the water tank, please take this product
to where it is possible to drain away water, place the product vertically on the
horizontal floor, open the drain hole at the boom of the water tank to drain
away water.

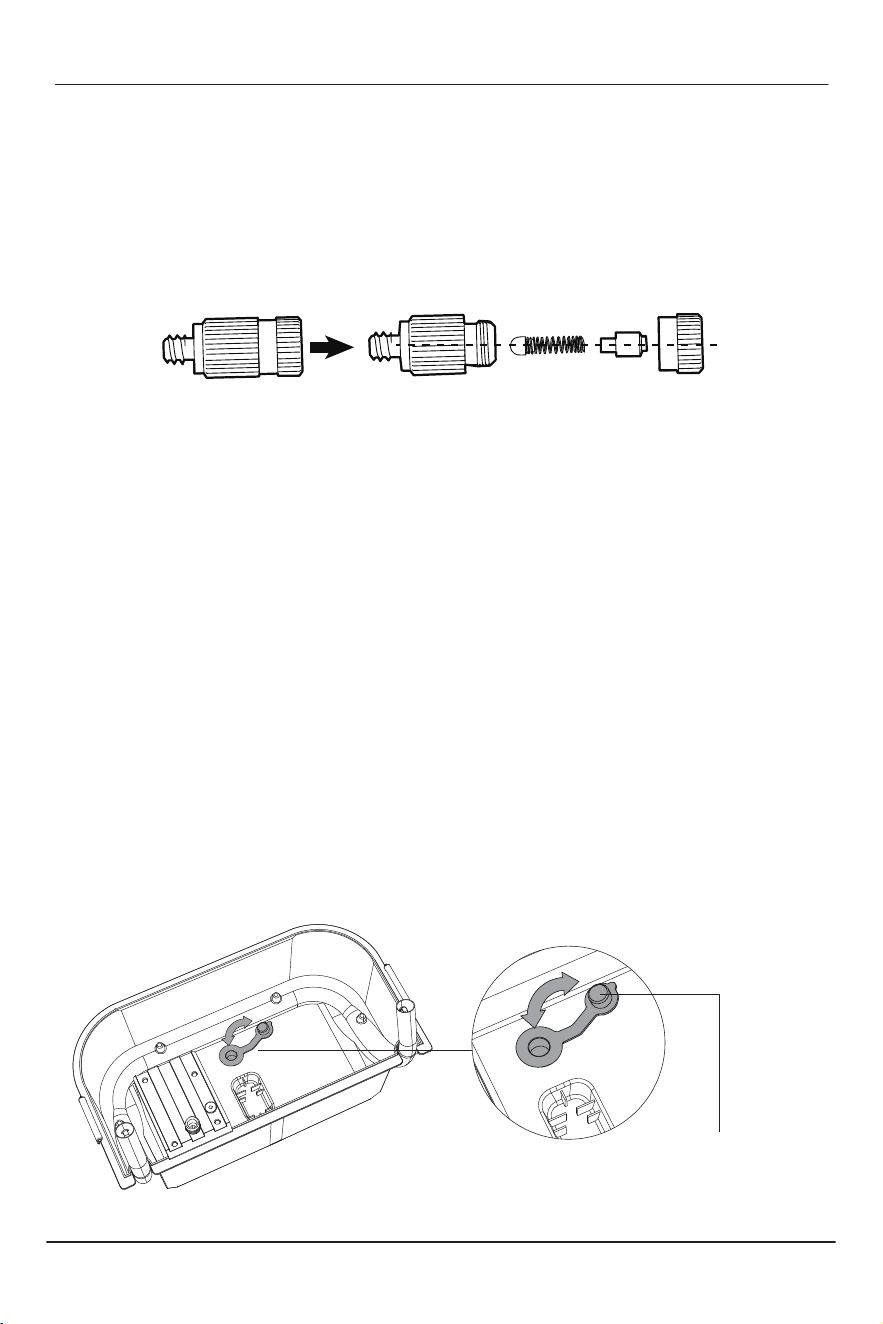

1. Turn o the pump and the fan.
2. Remove the misting nozzles from the front grill by rotating them in a
counterclockwise direction.
3. Disassemble each aected nozzle into parts.
4. To remove any foreign particles clogging or restricting the nozzles, flush
the nozzle parts with water. To remove scale (mineral) buildup, clean the
nozzle parts with white vinegar or other de-scaling agent as necessary.
5. Reassemble the nozzles.
NOTICE: To prevent clogging, make sure that the nozzle is assembled exactly.
6. Reaach the cleaned nozzles to the front grill.
[email protected] www.turbro.com
16
Drain Cover

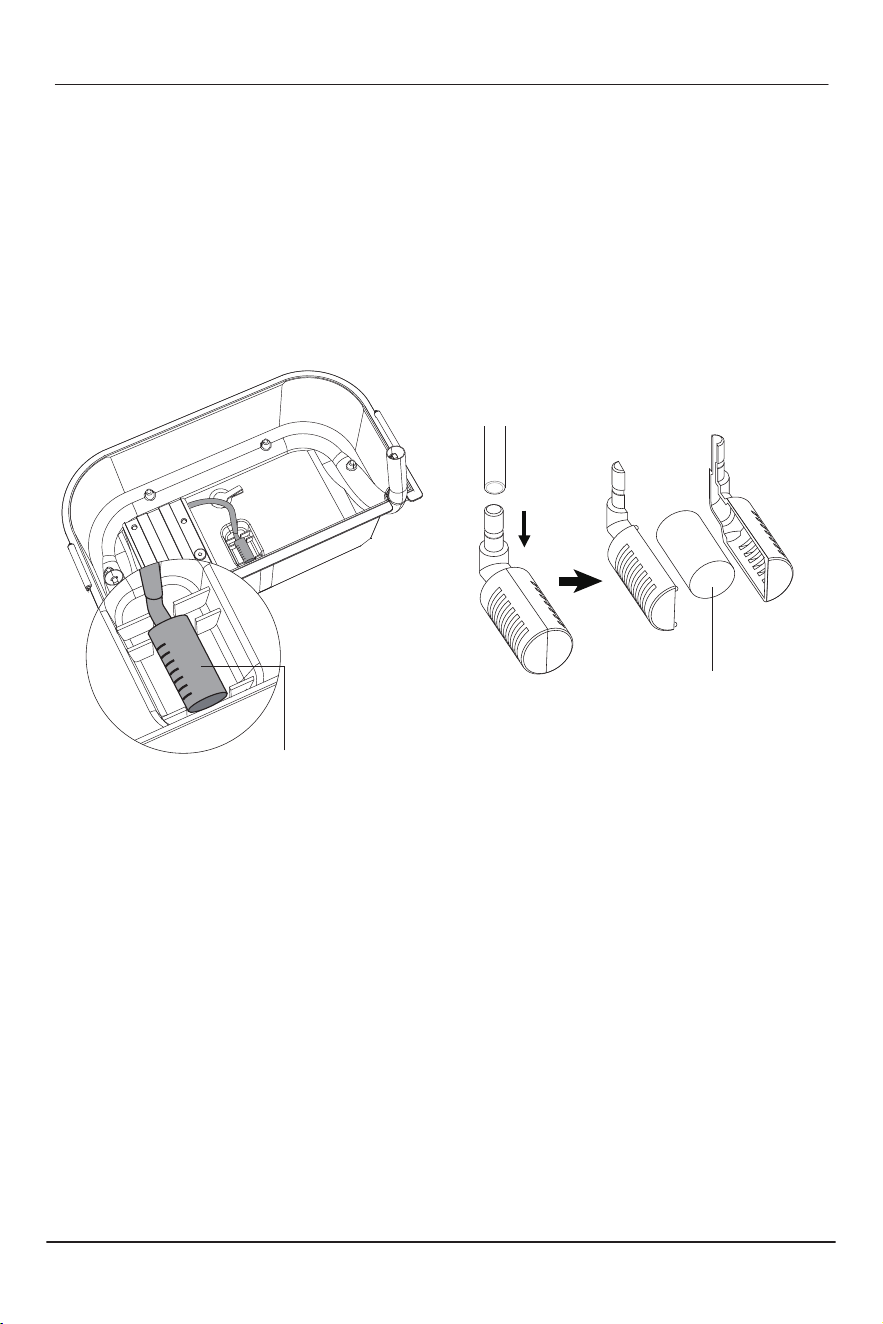

Filter Maintenance
In order to avoid blocking the misting nozzle hole, water inlet end of the water
pump is provided with filter head and inside with filter sponge, periodically
examine the filter at the end of the water inlet to make sure that it is in good
condition.
To clean it, please dismount the filter head or clean the sponge regularly
based on the actual situation.
[email protected] www.turbro.com
17
Sponge
Filter Head
TURBRO provides a 1-year limit for TURBRO Misting Fan, from the date of
purchase, subject to the following conditions and limitations.
WHAT IS COVERED?
● Any alteration or misuse of the product will nullify this warranty.
● This warranty is non-transferable and is eective for the original buyer from
the authorized seller only.
● This warranty is limited to the repair or replacement of part(s) proved to be
defective in material or workmanship after said defect is confirmed by the
manufacturer’s inspection.
● The manufacturer may, at its discretion, fully discharge all obligations with
respect to this warranty by refunding the wholesale price of the defective
part(s).
WHAT IS NOT COVERED?
● Damage caused by the owner when aempting to fix or alter the product
themselves.
● Damage caused by misuse, abuse, neglect, alterations, or unauthorized
repair.
● Natural depreciation.
HOW TO REQUEST WARRANTY SERVICES?
● To obtain the benefit of this warranty please leave a message online
( turbro.com/pages/contact-us ) , or send an email to [email protected]om.
Our customer service will address your issue within 24 hours.
WHAT WILL TURBRO DO?
● Replace the item.
● Refund the item under certain circumstances.
[email protected] www.turbro.com
WARRANTY INFORMATION
18
