User Manual
24” OVER THE RANGE
1.3 CU.FT. MICROWAVE
MODEL:
KM-MOT-OP1SS
MICROWAVE
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions,
your microwave oven will provide you with many years of good
service.
SAVE THESE INSTRUCTIONS CAREFULLY
Intended for household use. Unit must be
kept clear of combustibles at all times.
For any service-related Issues, please contact us:
Phone Number: 718-576-6342
Email address: [email protected]
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not ope
rate the oven if it is damaged. It is particular important that
the oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
open-door
S
l
y
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External
Dimensions:
Net Weight:
Approx.
120V~60Hz
1000W
KM-MOT-OP1SS
1500W
1.3 cu.ft.
13.5"
23.8" x 16.1" x 17"
57 lbs
2
IMPORTANT SAFETY INSTRUCTIONS
WARNING -
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
combustible materials are placed
inside the oven to facilitate cooking.
only to properly grounded outlet. See
found on page
accordance with the provided installation
instructions.
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
" GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
by qualified service personnel.
Contact
nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors.
Do not use this p
roduct near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do no
t immerse cord or plug in water.2
1 . Kee
p cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disco
nnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liq
uids, such as water, coffee, or tea are able to be overheated beyond the boiling
precautions should be followed, including
When using electrical appliances basic safety
follo
wing:the
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
or
4.
3
stand in the microwave oven for a short time
before removing the container.
spoon or other utensil into the container.
This appliance must be grounded. In the event of
an electrical short circuit, grounding
of electric shock by providing an escape wire for the
appliance is equipped with a
cord having a
plugged into an outlet that is
properly installed and grounded.
GROUNDING INSTRUCTIONS
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED
INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
grounding wire with a grounding plug.
reduces the risk
electric current. This
The plug
SA E THESE INSTRUCTIONS
must be
V
ease should not be allowed to accumulate on
hood or filter.
Corrosive cleaning agents, such as
r use above both gas and electric cooking equipment.
4
lye-based oven cleaners, may damage the filter
18. Clean Ventilation Hoods Frequently - Gr
19. When flaming foods under the hood, turn the fan on.
20. Use care when cleaning the vent-hood filter.
21. Suitable fo
1. Operation of the microwave oven may cause interference to your radio, TV
or similar
2. When there is interference, it may be reduced or eliminated by taking the
following
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
are on different branch circuits.
RADIO INTERFERENCE
equipment.
measures:
and receiver
1
.
A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
-
WARNING -
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the
grounding instructions
are not
completely
or if doubt exists as to whether the appliance is
properly grounded.
extension cord, use only a 3-wire extension cord that
has a
The marked rating of the extension cord shall be
equal to or greater than the electrical
appliance.
understood,
If it is necessary to use an
3-blade grounded plug, and 3-slot
receptacle that will accept the plug on the appliance.
rating of the
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death.
disassemble this appliance.
DANGER -
Do not
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
WARNING -
5
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic
pierced before cooking.
Utensil T est:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave
4.
Do not exceed 1 minute cooking time.
UTENSILS
See the instructions on "Materials you can use in
microwave oven or to be avoided in
There may be certain non-metallic utensils that are not
safe to use for microwaving. If
utensil in question following the procedure below.
CAUTION -
pouches should be
microwave oven."
in doubt, you can test the
utensil in question.
cooking.
Materials you can use in microwave oven
Utensils Remarks
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short*erm cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Dinnerware
6
Materials you can use in microwave oven
Utensils Remarks
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Plastic
Plastic wrap
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
7
OPERATING INSTRUCTIONS

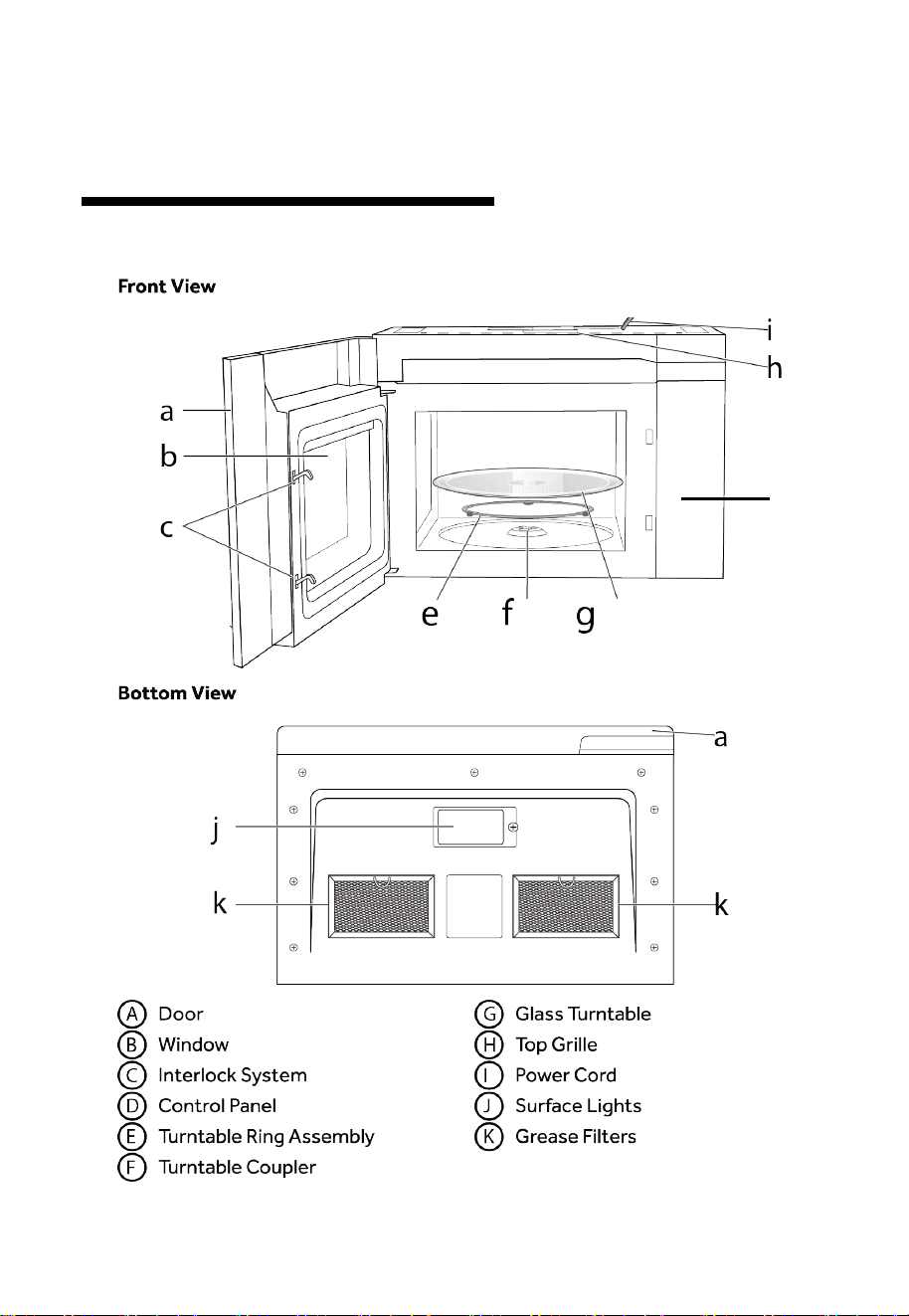

FEATURES OF YOUR
MICROWAVE
d
8
1
3
4
8
7
10
2
6
5
14
13
12
11
9
CONTROLS
1) Sensor
2) Popcorn
3) Sensor Reheat
4) Power Level
6) Defrost
7) Turntable ON/OFF
8) Light O
/
11) Number Pads
12) Stop/Cancel
13) Start/ 30Sec.
5) kitchen Timer
1
4) Dispplay Screen
9) Vent Fan HI O FF
10) Clock
+
O L
- -
OFFN
9
10 power levels are available.
Level 10 9 8 7 6 5 4 3 2 1
Power
Display PL-HI
PL-90
PL-80
PL-70
PL-60
PL-50
PL-40
PL-30
PL-20
PL-10
100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
1) the screen will display "12:00 PRESS CLOCK
2) Press the number keys and enter the correct time. For example, time is 10:12 now,
please press " 1,0,1,2 "
in turn.
3) Press "
In waiting state, press " " once.
The clock can be set in 12-hour mode.
"
and
99 seconds)
" button to cnfirm the clock.
counting down.
once,
" ENTER TIME " will blink in the display.
Clock
Start/+30 Sec
1 . Power Level
Operation
1) Press "
2) Press the number keys and enter the timer time.(The maximum cooking time is 99 minutes
3) Press "
2 . Power On
When the microwave oven is electrified, the screen will display " 12:00 PRESS CLOCK
ENTER TIME " . The buzzer will ring once. Press number keys to set clock or press
" " to exit clock setting mode. If there is no operation within 5 minutes, the
STOP/Cancel
oven will enter waiting state.
3 . Clock
" to confirm setting. The kitchen time will start
Start/+30 Sec
4 . Kitchen Timer
ENTER TIME".
10
Kitchen Timer
PL-0
0%
0
1) ress
t
he n um ber ke ys t
o
set
t
h
e co oki
n
g
t
i
me.(The m
a
ximum co oki ng time
and 99 seconds)
2) Press " " repeatedly to adjust the power level. The default power is PL-HI.
3) Press " " to start microwave cooking.
I
n
w
a
i
t
i
n
g
s
tate
,
p
is
99
m
i
n
ut
e
s
Power Level
Start/+30 Sec
5 . Time Cook
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing " ". Each press on the same button will increase
cooking time by 30 seconds. The maximum cooking time is 99 minutes and 99 seconds.
(1) In waiting state, instant cooking at 100% power level can be started by select a cooking
time from 1 to 9 minutes by pressing number pads1 to 9.
7 . Speedy Cooking
11
Start/+30 Sec
6. Lock-out Function for Children
Lock：In waiting state， press
STOP/CANCEL
STOP/CANCEL
for 3seconds， there will be a loog beep
denoting
entering the children-lock state.
The lock indicator
will light and current time
will display if
the
time has been set.
Lock quitting In Iocked state. press
for 3seconds， there will be a loog beep
denoting that the lock is released
：
.
12
1) Press " " once, the screen will display "MEAT".
" repeatedly to choose the desired function. And "MEAT",
"POULTRY" , "FISH" or "BREAD" will display in turn .
2)
Press
"
3)
Press " " to confirm the function. The screen will display "ENTER
4) Press the number keys to set the weight of the food.
" to start defrosting.
5) Press "
Auto Defrost
Auto Defrost
Auto Defrost programs
Food Weight range
0.1 - 6.0 lbs
9. Auto Defrost
Meat
Poultry
Fish
Bread
0.1 - 6.0 lbs
0.1 - 6.0 lbs
0.1 - 6.0 lbs
START/+30SEC
WEIGHT".
START/+30SEC
Press button
1
2
3
4
" repeatedly until the number you wish appears in the display.
"1"SET: approximate 3.3 ounces
2"SET: approximate 3.0 ounces
3"SET: approximate 1.75 ounces
For example, press " " once , "3.3" appears in the screen.
2) Press" " to cook.
Popcorn
Popcorn
8. Popcorn
1) Press "
START/+30SEC
13
Sensor Reheat programs
10. Sensor Reheat
" repeatedly until the menu you wish appears in the display.
"
Sensor Cook
Sensor Cook
11. Sensor Cook
1) Press "
2) Press "
3) Press " " to start sensor cook mode. The appliance starts sensing.
The microwave is operating during sensing. When sensing is complete, beeps will
sound and the calculated cook time will start to count down.
Note: Do not open the door during the sensing process, or the program will be cancelled.
once , the screen will display "BAKED POTATO".
START/+30SEC
" repeatedly until the menu you wish appears in the display.
"
Sensor Reheat
1) Press "
2) Press "
3) Press " " to start sensor cook mode. The appliance starts sensing.
The microwave is operating during sensing. When sensing is complete, beeps will
sound and the calculated cook time will start to count down.
Note: Do not open the door during the sensing process, or the program will be cancelled.
once , the screen will display "BAKED POTATO".
START/+30SEC
Sensor Reheat
1 - 3 cups
Quantity
1
2
3
4
5
Menu
1 plate
1-3 cups
10.5 oz
Program
no.
Beverage
Dinner Plate
Soup/Sauce
Casserole/Lasagna
Pizza
1 - 4 slices
14
Baked Potato 1 - 4 potatoes
Quantity
Sensor Cook programs
12 .Operating the Ventilation Fan
1) Press " " once to start ventilation fan, the screen will display "HIGH" .
Vent Hi-Lo-Off
The oven will return to waiting state after 2 seconds.
" twice, the screen will display "LOW" .
Vent Hi-Lo-Off
The oven will return to waiting state after 2 seconds.
" thrice , the screen will
Vent Hi-Lo-Off
The oven will return to waiting state after 2 seconds.
2)
Press "
3) Press " to turn off the ventilation fan
display "OFF" .
1
2
3
4
5
6
7
8
Menu
Fresh Vegetable
Frozen Vegetable
Bacon
Frozen Dinner
Rice
Frozen Breakfast
Frozen Pizza
2 cups
2 cups
1 - 3 slices
10/20 oz
1 - 2 cups
8 - 12 oz
12 oz
Program
no.
The appliance is equipped with a cooking surface light,
to light the surface
With the" " button you can set two
Brightness
High
Low
Off
underneath the appliance.
levels.
13 .Turning the Light on/off
Display
LO
HI
OFF
Light On/Off
brightness
For best cooking results, leave the turntable on. It can be
turned off for
To turn the turntable off, press" " once.
The
large dishes.
14 .Turning the turntable on / off
Turntable
screen will display "OFF" for 2 seconds. Press" "
On/Off
Turntable
On/Off
again to
turn the turntable on. The screen will display " ON " for 2 seconds.
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE
POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suit ble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods
Cooking time, power level is
not suitable.
Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
M
AINTENANCE
a
16
WARRANTY
LIMITED WARRANTY
LIMITED WARRANTY KOOLMORE SUPPLY, INC. warrants to the original consumer or purchaser this KOOLMORE product is free
from defects in material or workmanship for a period of One (1) year from the date of purchase. If any such defect is discovered
within the warranty period,
KOOLMORE SUPPLY, INC., at its discretion, will repair or replace the product at no cost or pay for replacement parts and repair
labor to correct defects in materials or workmanship that existed when this major appliance was purchased or that are the result of
normal usage when this major appliance is installed, operated and maintained according to instructions attached to or furnished with
the product, At its sole discretion. Koolmore Supply Inc may determine to replace the product. In the event of product replacement,
your appliance will be warranted for the remaining term of the original unit's warranty period.
This limited warranty is good only to the original purchaser of the product and effectivee only when used in the United States.
This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain
service under this limited warranty.
YOU’RE SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED
HEREIN.
Service must be provided by a Koolmore designated service company.
For warranty or repair service: Email us at [email protected] include your name, address, phone number, warranty repair
request, and a copy of your proof of purchase receipt.
You can also visit us at koolmore.com and use the contact us page.
KOOLMORE customer service will contact you and arrange prompt service for your appliance.
Thank you for choosing KOOLMORE.
THIS LIMITED WARRANTY DOES NOT APPLY TO
1.Failure of product to perform during power failures and interruptions or inadequate electrical service
2.Damage caused by transportation or handling.
3.Damage caused to the product by accident, vermin, lightnin winds, fire, floods, or acts of God.
4.Damage resulting from accident, alteration, misuse, abuse, or improper installation, repair, or maintenance. Improper use includes
using an external device that alters or converts the voltage or frequency of electricity
5.Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts.
6.Abnormal cleaning and maintenance as described in the user's manual.
7.
Use of accessories or components that are not compatible with this product.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
