Introduction. . . . . . . . . . . . . . . . . . 2
Cleaning And Care
. . . . . . . . . . .
18-21
22
23
Precautions Microwave Energy . . . . . . . 3
Service Call Check . . . . . . . . . . . . .
Important Safety Instructions . . . . .
. .
4-7
Warranty . . . . . . . . . . . . . . . .
Maintenance
. . . . . . . . . . . . . .
17

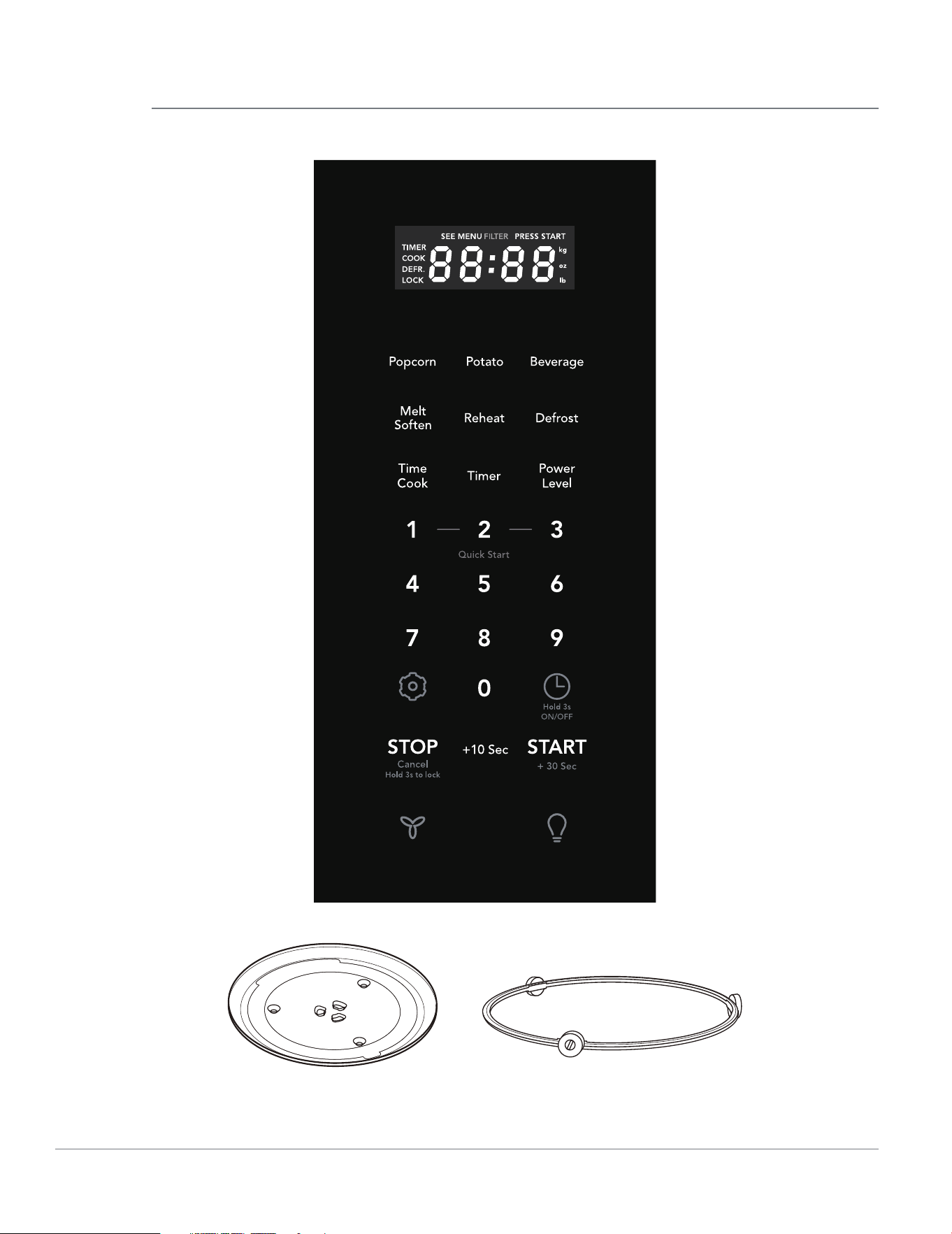

Names Of Oven Parts An
d Accessories . .
.
8
Operation
. . . . . . . . . . . . . . . . . 9
-1 6
Frigidaire.com USA 1-800-374-4432
A06823460 (August 2023)
use
&
care
Microwave Oven
2
INTRODUCTION
Thank you for bringing Frigidaire into your home!
We see your purchase as the beginning of a long
relationship together.
This manual is your resource for the use and care
of your product. Please read it before using your
appliance. Keep it handy for quick reference. If
something doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning products, and
kitchen and home accessories are available at www.
frigidaire.com.
We are here for you! Visit our website, chat with an
agent, or call us if you need help. We may be able
to help you avoid a service visit. If you do need
service, we can get that started for you
Let's make it ocial! Be sure to register your prod-
.
uct.
Keep your product info here so it’s easy to find.
Model Number:
Serial Number:
Purchase Date:
Let’s make it official! Be sure to register your product.
Visit us at Frigidaire.com/register
Or use your mobile device to scan the QR code.
Welcome to our
family
Serial Number Location
Do not attempt to operate this oven
with the door open since open door operation can
result in harmful exposure to microwave energy. It
is important not to defeat or tamper with the safety
interlocks.
Do not place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) DOOR (bent)
(2)HINGES AND LATCHES (broken or loosened)
(3)DOOR SEALS AND SEALING SURFACES.
The oven should not be adjusted or repaired by
anyone except properly qualified service
personnel.
PRECAUTIONS MICROWAVE ENERGY
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
WARNING
To reduce the risk of burns, electric shock, fire,
in
jury to persons or exposure to excessive
microwave energy:
This device complies with part 18 of the FCC Rules.
RADIO INTERFERENCE
• Operation of the microwave oven may cause
interference to your radio, TV or similar
equipment.
• When there is interference, it may be reduced
or eliminated by taking the following measures:
- Clean door and sealing surface of the oven.
- Reorient the receiving antenna of radio or
television.
- Relocate the microwave oven with respect to
the receiver.
- Move the microwave oven away from the
receiver.
- Plug the microwave oven into a different outlet
so that microwave oven and receiver are on
different branch circuits.
UTENSILS
CAUTION
• Personal Injury Hazard
• Tightly-closed utensils could explode. Closed
containers should be opened and plastic pouches
should be pierced before cooking.
• See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave
oven."
There may be certain non-metallic utensils that are
not safe to use for microwaving. If in doubt, you
can test the utensil in question following the
procedure below.
Utensil Test:
- Fill a microwave-safe container with 1 cup of
cold water (250ml) along with the utensil in
question.
- Cook on maximum power for 1 minute.
- Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
- Do not exceed 1 minute cooking time.
SAVE THESE INSTRUCTIONS
3
WARNING
Indicates a potentially hazardous situation which,
if not avoided, may result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
IMPORTANT
Indicates installation, operation or main-tenance
information which is important but not hazard-
related.
Read all instructions before using this appliance.
This manual contains important safety symbols and instructions. Please pay attention to these symbols
and follow all instructions given.
Do not attempt to install or operate your appliance until you have read the safety precautions in this
manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based
on the risk type.
Warnings and important instructions appearing in this guide are not meant to cover all possible conditions
and situations that may occur. Common sense, caution, and care must be exercised with installing,
maintaining, or operating your appliance.
DEFINITIONS
This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or death.
NOTE
Indicates a short, informal reference – something
written down to assist the memory or for future
reference.
IMPORTANT SAFETY INSTRUCTIONS
NOTE
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz,
1.5 kilowatts and 14.2 amps. This product must be
connected to a seperate and dedicated supply
circuit of the proper voltage and frequency. Wire
size must conform to the requirements of the
National Electrical Code or the prevailing local
code for this kilowatt rating. The power supply
cord and plug should be brought to a seperate
and dedicated 15- to 20- ampere branch circuit
single grounded outlet. The outlet box should be
located in the cabinet above the microwave oven.
The outlet box and supply circuit should be
installed by a qualifed electrician and conform to
the National Electrical Code or the prevailing
local code.
IMPORTANT
1. If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service person.
2. Neither Electrolux nor the dealer can
accept
any liability for damage to the microwave oven
or personal injury resulting from failure to
observe the
correct electrical connection
procedures.
SAVE THESE INSTRUCTIONS
4
When using electrical appliances basic safety
precautions should be followed, including the
following:
WARNING
To reduce the risk of burns, electric shock, fire,
injury to persons or exposure to excessive
microwave energy:
• Read all instructions before using the appliance.
• Read and follow the specific:
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found on page
• This appliance must be grounded. Connect only
to properly grounded
outlet. See
"GROUNDING INSTRUCTIONS" found on page 6.
• Install or locate this appliance only
in accordance with the provided installation
instructions.
• Some products such as whole eggs and sealed
containers - for example, closed glass jars - are
able to explode and should not be heated in this
oven.
• Use this appliance only for its intended use as
described in the manual. Do
not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
• HOT CONTENTS CAN CAUSE SEVERE BURNS.
DO NOT ALLOW CHILDREN TO USE THE
MICROWAVE. Use caution when removing hot
items.
• Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it
has been damaged or dropped.
• This appliance should be serviced only by
qualified service personnel. Contact nearest
authorized service facility for examination, repair,
or adjustment.
• Do not cover or block any openings on the
appliance.
• Do not store this appliance outdoors. Do not use
this product near water - for example, near a
kitchen sink, in a wet basement, near a swimming
pool, or similar location.
• Do not immerse cord or plug in water.
• Keep cord away from heated surface.
• Do not let cord hang over edge of table or
counter. When cleaning surfaces of door and
oven that comes together on closing the door,
use only mild, nonabrasive soaps, or detergent
applied with a sponge or soft cloth.
• To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance
when paper, plastic, or
other combustible
materials are placed inside the oven to facilitate
cooking.
- Remove wire twist-ties from paper or plastic bag
before when placing bag in oven.
- If material inside of the oven ignite, keep oven
door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
- Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
• Liquids, such as water, coffee, or tea
are able to be
overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUID SUDDENLY BOILING OVER
WHEN THE CONTAINER IS DISTURBED OR A
UTENSIL IS INSERTED INTO THE LIQUID. To reduce
the risk of injury to persons:
• Do not overheat the liquid.
• Stir the liquid both before and halfway through
heating it.
• Do not use straight-sided containers with narrow
necks.
• After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
• Use extreme care when inserting a spoon or other
utensil into the container.
• Oversized food or oversized metal utensils should
not be inserted in a microwave/toaster oven as they
may create a fire or risk of electric shock. Do not
clean with metal scouring pads. Pieces can burn off
the pad and touch electrical parts involving a risk of
electric shock.
• Do not use paper products when appliance is
operated in the toaster, air fry or convection mode.
• Do not store any materials, other than
manufacturer's recommended accessories, in this
oven when not in use.
• Do not cover racks or any other part of the oven
with metal foil. This will cause over- heating of the
oven.
• Clean Ventilation Hoods Frequently -Grease should
not be allowed to accumulate on hood or filter.
• When flaming foods under the hood, turn the fan on.
• Use care when cleaning the vent-hood filter.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the filter.
• Suitable for use above both gas and electric cooking
equipment.
3.
IMPORTANT SAFETY INSTRUCTIONS
5
SAVE THESE
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING
Improper use of the grounding can result in a risk
of electric shock.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded. If it is necessary to
use an extension cord, use only a
3-wire extension cord that has a 3-blade grounded
plug, and 3-slot receptacle that will accept the
plug
on the appliance.The marked rating of the
extension cord shall be equal to or greater than the
electrical rating of the appliance.
DANGER
Electric Shock Hazard
Touching some of the internal components can
cause serious personal injury or death. Do not
disassemble this appliance.
6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT
1. If you have any questions about the
grounding or electrical instructions, consult a
qualified electrician or service
person.
2. Neither Electrolux nor the dealer can accept
any liability for damage to the microwave
oven or personal injury resulting from failure
to observe the
correct electrical connection
procedures.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
• A short power supply cord is provided
to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.
• Longer cord sets or extension cords are available
and may be used if care is exercised in their use.
• If a long cord or extension cord is used:
- The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
- The extension cord must be a grounding-type 3-
wire cord.
- The longer cord should be arranged so that it
will not drape over the counter top or tabletop
where it can be
pulled on by children or tripped
over unintentionally.
Materials you can use in microwave oven
Browning dish
Follow manufacturer instructions. The bottom of browning dish must be at
least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use cracked
or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass jars are
not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not
use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer instructions. Do not close with metal tie. Make slits to
allow steam to escape.
Paper plates and cups
Use for short term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer instructions. Should be labeled
"Microwave Safe". Some plastic containers soften, as the food inside gets hot.
"Boiling bags" and tightly closed plastic bags should be slit, pierced or vented
as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain moisture. Do
not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
7
IMPORTANT SAFETY INSTRUCTIONS
Materials to be avoided in microwave oven
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed to high
temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.
8
NAMES OF OVEN PARTS AND ACCESSORIES
Glass turntable
Turntable Ring Assembly
9
SETTING THE CLOCK
Example: setting clock display for 9:00:
Press pad once.
Enter time using number
pads.
Press START pad.
SETTING THE CLOCK ON/OFF
Clock Display OFF.
Time will display, after 3s,
oFF will display.
oFF
Clock display ON default.
Press and hold pad .
When display is on, tap (short
press) will display time for 3 sec.
on
SETTING THE TIMER
Example: setting timer for 5 minutes:
Press Timer pad once.
Enter desired time using
number pads.
Press Timer pad.
Timer count down does not stop even if the door
is opened. To stop/cancel the timer, press the
Timer key once . When the timer has reached the
end of set time, you will hear beep alerts indicating
the timer has run out.
NOTE
The display will return to default after 15 minutes
if a cooking cycle is stopped and not restarted.
EXHAUST HIGH / LOW / OFF
The exhaust ventilation removes steam and other
cooking vapors from the cooking surface of the
range below the microwave oven.
To operate the exhaust vent, Press the
Exhaust High/Low/Off pad once for
the highest speed setting. Press the
pad again to choose the Low speed
setting and a 3rd time to turn the
exhaust ventilation off.
NOTE
If the temperature gets too hot around the
microwave oven, the fan in the exhaust vent hood
will automatically turn on at the LOW setting
to cool the oven. The fan will automatically turn
off when the internal parts are cool. When this
occurs, the vent cannot be turned off.
SURFACE LIGHT ON / OFF
Press the Surface Light On/Off pad
once to turn on the surface light.
Press the pad again to turn the light
off.
Hold Clock button 3s, display
is on.
1.
2
.
3.
1.
2.
1.
2.
1.
2
.
3.
OPERATION
10
CONTROL LOCK
You may lock the control panel to prevent the
microwave from being accidentally started or used
by children.
The control lock feature is very useful when
cleaning the control panel. The lock will prevent
accidental programming when wiping the control
panel clean.
Example: to set the control lock ON:
Press and hold the Stop pad for more
than 3 seconds. The Lock icon will
appear in the display window along
with 1 beep.
Example: to change the control lock from ON to
OFF:
Press
and hold the Stop pad for
more than 3 seconds. The Lock
icon will disappear in the display
window.
Press number pads 2 for desired
minutes of cook time.
NOTE
the Ready Set function cannot be set when using
the Defrost (by weight) feature.
NOTE
“Food” will be displayed if a quick start cooking
cycle is not selected within 5 minutes of placing
food in the microwave. You must open then close
the door again to clear ''Food'' from the display.
HEATING WITH HIGH POWER LEVEL
Example: to heat for 5 minutes at 100% power:
Press Time Cook pad.
Use the number pads to enter
desired heating time (cook time
may be set up to 99 minutes and
99 seconds).
Press START pad.
When heating has finished you will hear beeps and
"End" will display.
HEATING WITH LOWER POWER LEVELS
Using the highest power level to heat foods with
does not always give the best results when some
types of food need slower cooking, such as roasts,
baked goods or custards. Your oven has nine other
power levels you may choose.
Example: to heat for 4 minutes at 70% power:
Press Time Cook.
Use the number pads to enter
desired heating time (cook
time may be set up to 99
minutes and 99 seconds).
Press Power Level pad once
for power level 10 (100%
pow
er).
Use the number key to
change the power level to 7.
P-70 appears in the display
(70 % power).
Press START pad.
USING READY SET
Microwave heating or cooking may be quickly set
at 100% power level for 1, 2 or 3 minutes. Use the
number keys 1, 2 or 3 to choose the desired minutes
of cook time {this option will only work using the 1,
2 or 3 numeric pads):
Example: to quickly heat for 2 minutes at
100% power:
1.
2
.
3.
1.
2
.
3.
4.
5.
OPERATION
When heating has finished you will hear beeps and
"End" will display.
HEATING WITH MULTIPLE COOKING
STAGES
For best results, some microwa
ve recipes call for
different power levels or different lengths of time
for cooking. Your microwave may be set to
change
11
from one stage to another automatically (2 stages
maximum).
Example: to cook food for 3 minutes at 80%
power and then 50% power for 6 minutes 30
seconds:
Press TimeCook.
Use the number pads to enter
heating time for the 1st stage (cook
time may be set up to 99 minutes
and 99 seconds).
Press Power Level pad once.
Use the number keys to enter
power level for the 1 st stage.
P-80 appears in the display {80 %
power).
Press Time Cook pad for 2nd
stage.
Use the number pads to enter
heating time for the 2nd stage
{cook time may be set up to 99
minutes
and 99 seconds).
Press Power Level pad for 2nd
stage.
Use the number key to enter
power level for the 2nd stage.
P-50 appears in the display 50 %
power).
press START pad.
When heating has finished you will hear beeps and
"End" will display.
NOTE
Power level must always be programmed for first
stage.
USING THE STOP/CANCEL KEY
This feature will let you quickly stop or cancel the
cooking
process.
USING THE +10 SEC /+ 30 SEC KEY
This feature will let you quickly start or add 10 or 30
seconds
Press the +10 sec/+30 sec pad to:
+10 Sec / +30 Sec
1. Start programmed cooking.
2. Start cooking for 10 seconds/30 seconds at 100%
power level.
3. Extend cooking time in multiples of 10
seconds/30 seconds each time this pad is
pressed during microwave cooking.
Example: to add 1 minute of cook time during
100% microwave cooking :
Press the +10 sec/+30 sec pad to:
NOTE
"Food" will be displayed if a quick start cooking
cycle or + 10 Sec / +30 Sec key is pressed more
than 5 minutes after the door of microwave oven
is closed. You must open t hen close the door
again to clear ''Food'' from the display.
SETTING DEFROST (BY WEIGHT)
Example: to defrost 1lb. of food with the
default power level and cook time determined
automatically:
Press the Stop pad to:
Erase if you have entered wrong
information.
Cancel timer se
tting process
Press pad once to pause the oven
temporarily during cooking.
(Press START pad again to
resume cooking).
Return the time of day (clock) to
the display
after cooking cycle is completed.
Cancel a program during cooking,
press twice.
1.
2
.
3.
4 .
5.
6.
7.
8.
9.
1.
2
.
3.
4
5.
6.
1.
OPERATION
(
12
Press Defrost pad once. 0.0 will
appear in the display.
Use the numeric pads to input weight
of food to defrost in pounds (10 =
1.0lb.) You may enter any weight
from 0.1 to 6.0lbs.
Press START pad.
When defrosting has finished you will hear beeps
and "End" will display.
NOTE
The weight amount must be a valid entry for this
feature to start. A valid weight entry is 0.1 to 6.0
pounds.
SETTING DEFROST (BY TIME)
Example: to defrost food with the default 30%
power level for 5 minutes:
Press Defrost pad twice. 0.00 will
appear in the display.
Use the number pads to enter
desired defrost time (defrost time
may be set up to 99 minutes and
99 seconds).
Press START pad.
When heating has finished you will hear beeps and
"End" will display.
NOTE
Power levels cannot be changed for both defrost
(by weight) or defrost (by time) because the
defrost performance will be adversely affected.
SPECIAL NOTES FOR DEFROSTING BY
TIME
• After pressing START key, the display will count
down remaining defrost time. The oven will beep
during the defrost cycle. At this time open the
door and turn the food if needed and remove
any portions that have already thawed. Press the
START key to resume the defrost cycle.
• When heating has finished you will hear beeps.
DEFROSTING TIPS
• When using the defrost weight feature, the
weight entered should always be pounds (valid
entries are from 0.1 to 6.0 pounds).
• Use both defrost weight and defrost time
features for raw food items only. Defrosting
gives best results when food to be thawed
is a minimum of 0°F (taken directly from a
true freezer). If the food has been stored in a
refrigerator-freezer that does not maintain a
temperature of 5° F or below, always program a
lower food weight or lower cook time to prevent
cooking the food.
• If the frozen food is stored outside the freezer
for up to 20 minutes, enter a reduced cook time
or weight.
• The shape of the package will alter the
defrosting time. Shallow rectangular food
packets defrost more quickly than a deep frozen
block of food.
• Separate pieces as they begin to defrost.
Separated frozen pieces of food defrost better.
• Shield warm areas of food with small pieces of
foil if they start to become warm.
• You may use small pieces of aluminum foil to
shield food items like chicken wings, leg tips and
fish tails, but do not allow the foil to touch the
oven cavity walls when defrosting.
DEFROSTING SUGGESTIONS FOR MEATS
For best results, please read these suggestions
when defrosting meats.
Meat
Normal
amount
Suggestions
Roast
beef or
pork
2.5 to 6 lbs.
(40 to 96
oz.)
Start with the food
placed fat side down.
After each stage,
turn the food over
and shield any warm
portions with narrow
strips of aluminum foil.
Let stand, covered for
15-30 minutes.
1.
2
.
3.
1.
2
.
3
.
OPERATION
13
Steaks,
chops
or fish
0.5 to 3 lbs.
(8 to 48
oz.)
After each stage,
rearrange the food. If
there are any warm
or thawed portions of
food, shield them with
narrow flat pieces of
aluminum foil. Remove
any pieces of food that
are nearly defrosted.
Let stand, covered for
about 5 to 10 minutes.
Ground
meat
0.5 to 3 lbs
(8 to 48
oz.).
After each stage,
remove any pieces of
food that are nearly
defrosted. Let stand,
covered with foil for 5
to 10 minutes.
Whole
chicken
2.5 to 6 lbs.
(40 to 96
oz.)
Remove giblets before
freezing poultry. Start
defrosting with the
breast side down.
After the 1st stage,
turn the chicken over
and shield any warm
portions with narrow
strips of aluminum foil.
After the 2nd stage,
again shield any warm
portions with narrow
strips of aluminum foil.
Let stand, covered, for
30 to 60 minutes in the
refrigerator.
Chicken
pieces
0.5 to 3 lbs.
(8 to 48
oz.)
After each stage,
rearrange or remove
any pieces of food that
are nearly defrosted.
Let stand for 10-20
minutes.
REHEAT
The reheat feature provides 3 quick preset settings
based on serving size to reheat food for your
cooking convenience.
Example: to reheat 24 ounces of food.
Press Reheat pad 3 times (see
reheat category table) to reheat
24oz. of food. 24oz will appear in
the display.
Press START pad.
MELT / SOFTEN
The oven uses low power to melt and soften items.
See the following table.
Example: to melt 8 oz. of Cream Cheese.
Press Melt/Soften pad 4 times
to reheat 8oz. of food. So-4 will
appear in the display (see Melt/
Soften category table).
Then press number pad, weight
will appear in the display .
Press ST
ART pad.
MELT / SOFTEN CATEGORY
PRESS
DIS
PLAY
CATE
GORY
AMOUNT
NUMBER
PAD
Melt
Soften
x 1
So-1
BUT
TER
1 stick
2 sticks
1
2
Melt
Soften
x 2
So-2
CHOCO
LATE
2 oz.
4 oz.
8 oz.
1
2
3
Melt
Soften
x 3
So-3
ICE
CREAM
1 Pint
1.5 Quart
1
2
Reheat
Category
Press Display
8 ounces of
food
once 8 oz
16 ounces of
food
twice 16 oz
24 ounces of
food
3 times 24 oz
Melt
Soften
x 4
So-4
CREAM
CHEESE
3 oz.
8 oz.
1
2
1.
2.
3.
1.
2.
OPERATION
14
SUGGESTED POWER LEVELS FOR
COOKING
The 10 power levels available with this
microwave will help you to adjust to the
power output best suited for the food
type you are preparing. As with any food
preparation in the microwave, it is best to
follow the microwave instructions that are
printed on food packaging.
The table below provides suggested power
levels for various types of food that you
can prepare in the microwave.
Power
level
Microwave
output
Use to prepare when:
10
High
100 %
• Boiling water.
• Cooking ground beef.
• Making candy.
• Cooking fresh fruits &
vegetables
• Cooking fish &
poultry.
• Preheating browning
dish.
• Reheating beverages.
• Cooking bacon slices.
9 90 %
• Reheating meat slices
quickly.
• Saute onions, celery
& green peppers.
8 80 %
• All reheating.
• Cooking scrambled
eggs.
7 70 %
• Cooking breads &
cereal products.
• Cooking cheese
dishes & veal.
• Cakes, muffins,
brownies & cupcakes.
6 60 % • Cooking pasta.
5 50 %
• Cooking meats &
whole poultry.
• Cooking custard.
• Cooking spare ribs,
rib roast & sirloin
roast.
4 40 %
• Cooking less tender
cuts of meat.
• Reheating frozen
packaged foods.
3 30 %
• Thawing meat,
poultry & seafood.
• Cooking small
quantities of food.
• Finish cooking
casseroles, stew &
some sauces.
2 20 %
• Softening butter &
cream cheese.
• Heating small
amounts of food.
1 10 %
• Softening ice cream.
• Raise yeast dough.
SUGGESTIONS FOR GETTING THE BEST
RESULTS
To help you achieve the best possible results
from your microwave oven, read the following
suggestions below;
• Storage temperature
Foods taken from the freezer or refrigerator take
longer to cook than the same foods would at
room temperature.
• Size
Small pieces of food cook faster than large ones.
Pieces similar in size and shape will cook more
evenly when cooked together. For more even
results, reduce the power levels when cooking
large pieces of food.
• Natural moisture
Very moist foods cook more evenly because
microwave energy heats water molecules very
efficiently.
• Stirring
Stir foods such as casseroles and vegetable from
the outside to the center to distribute the heat
more evenly. This will allow the food to cook
OPERATION
15
faster. Constant stirring is not necessary.
• Turn over items
Turn over foods such as pork chops, roasts or
whole cauliflower halfway through the cook
time. This will help to expose all sides equally to
microwave energy.
• Food placement
Place delicate areas of food items, such as
asparagus tips, toward the center of the
turntable tray.
• Food arrangement
Arrange unevenly shaped foods, such as chicken
pieces or salmon, with the thicker or meatier
parts toward the outside of the turntable tray.
• Let the food stand
After removing the food from the microwave,
cover the food with foil or a casserole lid and let
it stand to finish cooking. This will help the food
finish in the center and avoids overcooking the
out edges, The length of stand time depends on
the density and surface area of the food items.
• Wrapping in paper towels or waxed paper
Sandwiches and many other food types
containing pre-baked bread should be wrapped
prior to placing in the microwave to help prevent
the food items from drying out while heating.
POPCORN
CAUTION
DO NOT leave microwave oven unattended while
popping corn.
The popcorn feature lets you pop 3 different
commercially packaged microwave popcorn sized
bags. Use the table below to determine the setting
to use.
Amount
Press popcorn pad
3.3 oz. (default setting)
once
3.0 oz.
2 times
1.75 oz.
3 times
Example: to pop a 3.0 oz. bag of popcorn
automatically.
Press Popcorn pad 2 times.
Press START pad.
The microwave will beep when
finished.
POTATO
The potato feature cooks 1, 2 , 3 or 4 (cooking times
based on 8 to 36 oz.) potatoes automatically. Use
the table below to determine the setting to use.
Amount
Press potato
pad
1 potato (default setting) once
2 potatoes 2 times
3 potatoes 3 times
4 potatoes 4 times
Example: to cook 1 potato automatically.
Press Potato pad once.
Press START pad.
The microwave will beep when
finished.
NOTE
• Before cooking, pierce potatoes with fork
several times.
• After cooking, let potatoes stand for 5
minutes.
BEVERAGE
The beverage feature heats 1 or 2 cups of beverage.
Use the table below to determine the setting to use.
Amount
Press beverage pad
1 cup ( about 8 oz.)
once (default setting)
2 cups (about 16 oz.) 2 times
1.
2.
2
.
1.
OPERATION
16
Example: to heat 1 cup of a beverage.
Press Beverage pad once.
Press START pad.
The microwave will beep when
finished.
SETTING THE SOUND
Turning Sound Low/nor/Hi/Off
Audible signals are available to guide you when
setting and using your oven.
• A programming tone will sound each time you
touch a pad.
• Two tones signal the end of a Kitchen Timer
count down.
• Two tones signal the end of a cooking cycle.
Example: setting audible signal off:
Press pad one.
op-1 will display and the
START needs to be pressed to
select.
Lo/ nor/ HI /oFF auto scrolls every
2 seconds through each selection.
Press START pad to confirm when
the LED shows oFF.
NOTE
When the cooking cycle is completed END will be
displayed and the audible signal will sound if the
sound is turned on.
1.
2.
3.
4
1.
2.
OPERATION
SETTING WEIGHT IB/KG
Example: setting weight between pounds &
kilograms:
Press pad 2 times .
op-2 will display and the START
needs to be pressed to select.
I b/kg auto scrolls every 2
seconds through each selection.
Press START pad to confirm your
selection.
NOTE
If the display shows kg, pressing the START pad
will select the oven controls to kg.
Setting Demo Mode
Example: setting the demo mode on:
Suppose you want to enter Demo mode. When
Demo mode is ON programming functions will work
in a rapid countdown mode with no cooking power.
Press pad 3 times .
op-3 will display and the START
needs to be pressed to select.
on / oFF auto scrolls every 2
seconds through each selection.
Press START pad to confirm when
the display shows on.
NOTE
1.
2.
3.
4.
1.
2.
3.
4
.
If the display shows oFF, pressing the
START pad will select the demo mode o.
If the display shows on, pressing the
START pad will select the demo mode on.
The display lights up in sequence
SEE MENU
PRESS START TIMER COOK DEFR. LOCK.
17
MAINTENANCE
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
• Electrical cord for oven is not
plugged in.
• Door is open.
• Wrong operation is set.
• Plug into the outlet.
• Close the door and try again.
• Check instructions.
Arcing or sparking
• Materials to be avoided in
microwave oven were used.
• The oven is operated when empty.
• Spilled food remains in the cavity.
• Use microwave-safe cookware only.
• Do not operate with oven empty.
• Clean cavity with wet towel.
Unevenly cooked
foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted completely.
• Cooking time, power level is not
suitable.
• Food is not turned or stirred.
• Use microwave-safe cookware only.
• Completely defrost food.
• Use correct cooking time, power
level.
• Turn or stir food.
Overcooked foods
• Cooking time, power level is not
suitable.
• Use correct cooking time, power
level.
Undercooked foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted completely.
• Oven ventilation ports are
restricted.
• Cooking time, power level is not
suitable.
• Use microwave-safe cookware only.
• Completely defrost food.
• Check to see that oven venti-
lation ports are not restricted.
• Use correct cooking time, power
level.
Improper defrosting
• Materials to be avoided in
microwave oven were used.
• Cooking time, power level is not
suitable.
• Food is not turned or stirred.
• Use microwave-safe cookware only.
• Use correct cooking time, power
level.
• Turn or stir food.
18
CLEANING AND CARE
Disconnect the power cord or leave the door open to deactivate the oven during
cleaning. Disconnect the power cord before replacing filters and lights.
EXTERIOR
The outside surface is precoated steel and plastic.
Clean the outside with mild soap and water; rinse
and dry with a soft cloth. Do not use any type of
household or abrasive cleaner.
DOOR
Wipe the window on both sides with a soft cloth
to remove any spills or spatters. Metal parts will
be easier to maintain if wiped frequently with a
soft cloth. Avoid the use of spray and other harsh
cleaners as they may stain, streak or dull the door
surface.
EASY CARE™ STAINLESS STEEL/
SMUDGE.PROOF™ ST
AINLESS STEEL /
BLACK STAINLESS STEEL(some models)
Your microwave oven(some models) may have a
Stainless Steel finish or coating. Clean the stainless
with warm soapy water using a clean sponge or
cloth. Rinse with clean water and dry with a soft
clean cloth. DO NOT use ANY store bought
cleaners like Stainless Steel cleaners or any other
types of cleaners containing any abrasive,
chlorides, chlorines or ammonia. It is recommended
to use mild dish soap and water or a 50/50 solution
of water and vinegar.
TOUCH CONTROL PANEL
Care should be taken in cleaning the touch control
panel. If the control panel becomes soiled, open the
microwave oven door before cleaning. Wipe the
panel with a cloth dampened slightly with water
only. Dry with a soft cloth. Do not scrub or use any
sort of chemical cleaners. Close door and touch
STOP/Cancel
INTERIOR
Cleaning is easy because little heat is generated
to the interior surfaces . To clean the interior
surfaces, wipe with a soft cloth and warm water. DO
NOT USE ABRASIVE OR HARSH CLEANERS OR
SCOURING PADS. For heavier soil, use baking soda
or a mild soap; rinse thoroughly with hot water. The
round wire rack and shelf can be cleaned with hot
soapy water, rinsed and dried.
WAVEGUIDE COVER
The waveguide cover is located on the right side
in the microwave oven cavity. It is made from mica
so requires special care. Keep the waveguide cover
clean to assure good microwave oven performance.
Carefully wipe with a damp cloth any food spatters
from the surface of the cover immediately after
they occur. Built-up splashes may overheat and
cause smoke or possibly catch fire. DO NOT
REMOVE THE WAVEGUIDE COVER.
ODOR REMOVAL
Occasionally, a cooking odor may remain in the
microwave oven. To remove, combine 1 cup water,
grated peel and juice of 1 lemon in a 2-cup glass
measuring cup.
Boil for several minutes using 100% power.
Allow to set in microwave oven until cool. Wipe
interior with a soft cloth.
TURNTABLE/TURNTABLE SUPPORT
The turntable and turntable support can be
removed for easy cleaning. Wash them in mild,
sudsy water; for stubborn stains use a mild
cleanser and non-abrasive scouring sponge. They
are also dishwasher-proof. Use upper wirerack
of dishwasher. The turntable motor shaft is not
sealed, so excess water or spills should be wiped up
immediately.
19
CLEANING AND CARE
CAUTION
To avoid risk of personal injury or property
damage, do not operate oven hood without
filters properly in place.
Front
Rear
Tab
Grease
filters
• To remove the grease ventilation filters, slide
the filter to the rear. Then pull filter downward
and push to the other side. The filter will drop
out. Repeat for the 2nd filter.
• Soak the grease filters in hot water using a mild
detergent. Rinse well and shake to dry or wash
in a dishwasher
Do not use ammonia. The aluminum on the filter
will corrode and darken.
• To reinstall the
grease ventilation filter, slide it
into the side slot, then push up and toward oven
to lock. Reinstall the 2nd filter using the same
procedure.
SURFACE LIGHT REPLACEMENT
CAUTION
To avoid risk of personal injury or property
damage, wear gloves when replacing the light
bulbs.
• Unplug the microwave oven or turn off power at
the main circuit breaker.
• Remove the old incandescent bulb, then replace
with a new incandescent bulb.
CLEANING THE GREASE FILTERS
The oven ventilation exhaust filters should be
removed and cleaned often; generally at least once
every month.
Vent exhaust filter part number 5304478913.
To order parts call 800-599-7569.
Disconnect the power cord or leave the door open to deactivate the oven during
cleaning. Disconnect the power cord before replacing filters and lights.
ScrewScrew
Screw
Screw
Incandescent
20
CLEANING AND CARE
CHARCOAL FILTER REPLACEMENT
Charcoal filter part number FRPAMRAF.
To order parts call 800-599-7569.
Charcoal Filter when installed in your microwave
oven, is used for non-vented, recirculated
installation. The filter should be changed every 6
to 12 months depending on use.
• Disconnect power to the microwave oven at the
circuit breaker panel or by unplugging.
• Remove the charcoal filter by pushing the top of
the filter inwards, then pull it forward out from
the unit.
• Slide the top of the new charcoal filter into the
top area of the filter cavity.
• Press the bottom of charcoal filter to place it
into the correct position.
Disconnect the power cord or leave the door open to deactivate the oven during
cleaning. Disconnect the power cord before replacing filters and lights.
• Remove the vent grill mounting screws.
• Pull the vent grill away from the unit.
main circuit breaker.
supply or turn the power back on at the
• Plug the microwave back into the power
•
•
•
Light bulb part number: 5304519338.
To order parts call 800-599-7569.
Replace the base plate and secure it with
the screws.
21
CLEANING AND CARE
• Put the vent grill bottom tabs into the slots
then push the top of the vent grille into place.
OVEN LIGHT REPLACEMENT
Remove the vent grill (see steps 1-4 in charcoal filter
replacement section.
• Remove the screw and remove the lamp cover.
• Replace the microwave oven light cover by
carefully pushing into place (make sure the
light cover rear tab is inserted into slot at rear),
replace the screw.
• Replace the charcoal filter (if installed).
Push the vent grill back into place (engaging
both the bottom and top tabs) and replace the
vent grill mounting screws.
• Reinstall the vent grill screws.
Disconnect the power cord or leave the door open to deactivate the oven during
cleaning. Disconnect the power cord before replacing filters and lights.
• Remove the old incandescent bulb, then
replace with a new bulb.
• Light bulb part number: 5304519338.
• To order parts call 800-599-7569.
22
SERVICE CALL CHECK
AC Line Voltage: Single phase 120V, 60Hz, AC only
AC Power Required:
Output Power*: 1000 W
Frequency: 2450 MHz (Class B/Group2)**
”(H)Outside Dimensions (including handle):
Cavity Dimensions:
Microwave oven Capacity***:
Cooking Uniformity: Turntable
Weight:
Work/Night Light:
Oven Light:
SPECIFICATIONS
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the microwave oven and close the
door securely. Operate the microwave oven for one minute at HIGH 100%.
NO ____YES ____
YES ____ NO ____
NO ____YES ____
NO ____YES ____
The Int* ernational Electiotechnical Commission's standardized method for measuring output wattage.
omplies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,
D -HHS
C
Subchapter J.
Inc. for use in USA or Canada.
- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
- This symbol on the nameplate means the product is listed by Underwriters Laboratories,
method is widely recognized test method
**
This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International
Standard CISPR11.
***
Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for
holding food is less.
In compliance with standards set by:
F C - Federal Communications Commission Authorized.
29 .88 ”(W) x 15.04 ”(D) x 16.41
1500W 12.5 amps.
1.7 Cu.Ft.
”(W) x 13.78 ”(D) x 9.09 ”(H)
A
Does the microwave oven light come on?
B
Does the cooling fan work? (Put your hand at top above Display.)
Does the turntable rotate? (It is normal for the turntable to turn in eitherC
direction.)
Is the water in the microwave oven warm?
19.84
1. If time appearing in the display is counting
down very rapidly, check Demonstration
Mode on page 16.
2. If the oven is set for more than 30 minutes at
90 or 100 percent power level, after the first
30 minutes the power level will automatically
adjust itself to 80 percent power to avoid
overcooking.
sApprox. (net) 49 lbs, (gross) 56 lb
If “NO” is the answer to any of the above questions,
please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT
YOUR NEAREST ELECTROLUX AUTHORIZED
SER-VICER.
A microwave oven should never be serviced by a
“do-it-yourself” repair person.
NOTE
D
C
1*20W Incandescent, the part number is 5304519338.
1*20W
Incandescent,
the part number is 5304519338
.
23
WARRANTY
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not
in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air fi lters, water fi lters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the fi nish of appliance or home incurred during installation, including but not limited to
fl oors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes
such as abuse, misuse, inadequate power supply, accidents, fi res, or acts of God.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major
Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.
Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifi cations as described or illustrated are subject to change without notice.
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR
OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL
NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY
IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
Canada
1-800-265-8352
L5V 3E4
Printed in China
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
U
SA
1-800-374-4432
Electrolux Home Products,
Inc., 10200 David Taylor
Drive Charlotte, NC 28262
Y
our appliance is covered by a one year limited warranty. For one year from your original
date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this
appliance that prove to be defective in materials or workmanship when such appliance is
installed, used and maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
If You Need Service
Frigidaire.com
1-800-374-4432
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
PN:16170000A98869
welcome
home
