Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352
A06823435September 2023
use
&
care
Microwave Oven
Introduction. . . . . . . . . . . . . . . . . . 2
Cleaning
And Care
. . . . . . . . . . .
19-22
23
24
Precautions Microwave Energy . . . . . . . 3
Service Call Check . . . . . . . . . . . . .
Important Safety Instructions. . . . . . .
4-7
Warranty . . . . . . . . . . . . . . . .
Maintenance
. . . . . . . . . . . . . .
1
8

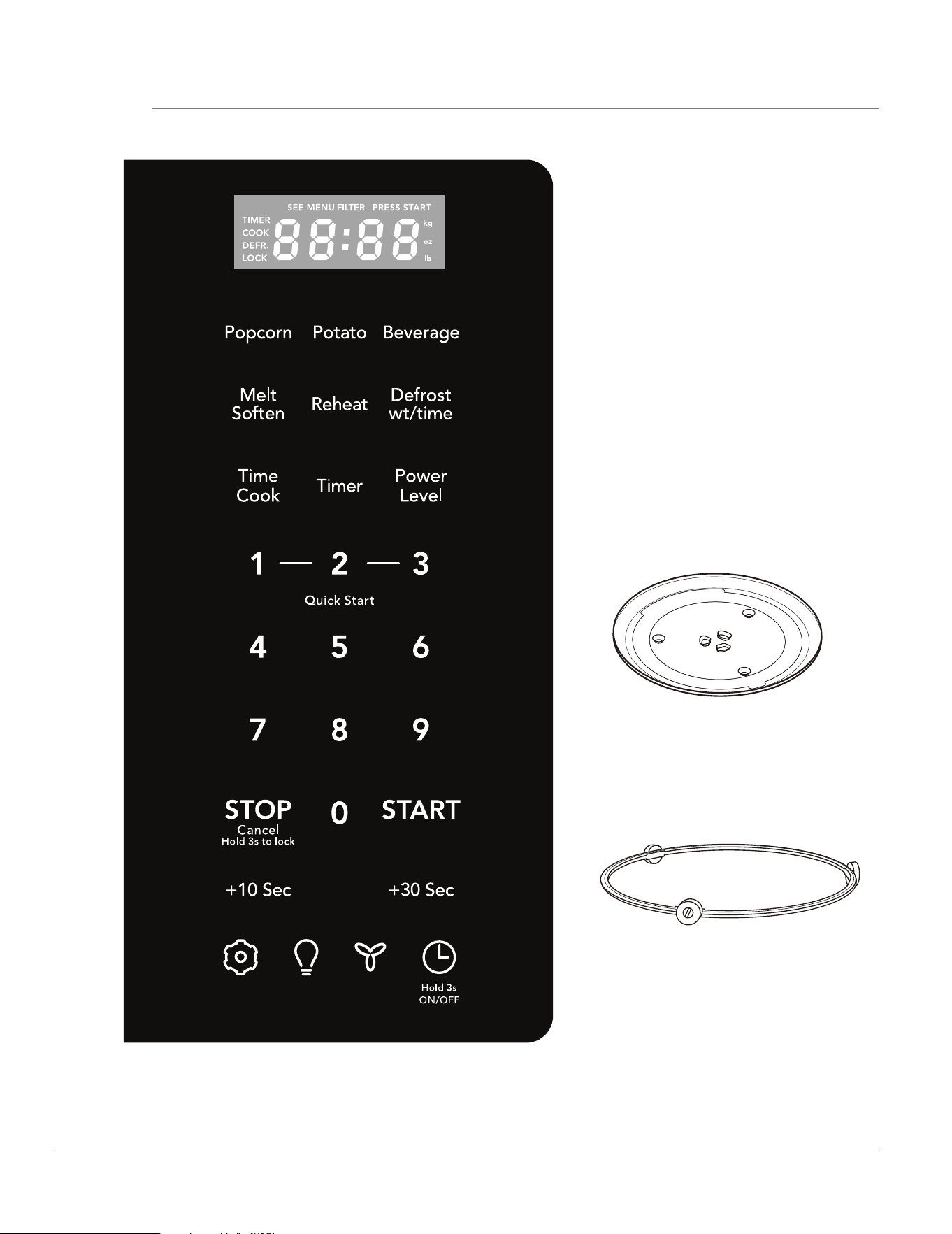

Names Of Oven Parts And Accessories . .
.
8
Operation
. . . . . . . . . . . . . . . . . 9
-17
2
INTRODUCTION
INTRODUCTION
Thank you for bringing Frigidaire into your home!
We see your purchase as the beginning of a long
relationship together.
This manual is your resource for the use and care
of your product. Please read it before using your
appliance. Keep it handy for quick reference. If
something doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning products, and
kitchen and home accessories are available at www.
frigidaire.com.
We are here for you! Visit our website, chat with an
agent, or call us if you need help. We may be able
to help you avoid a service visit. If you do need
service, we can get that started for you
Let's make it ocial! Be sure to register your prod-
.
uct.
Keep your product info here so it’s easy to find.
Model Number:
Serial Number:
Purchase Date:
Let’s make it official! Be sure to register your product.
Visit us at Frigidaire.com/register
Or use your mobile device to scan the QR code.
Welcome to our
family
Serial Number Location
Do not attempt to operate this oven
with the door open since open door operation can
result in harmful exposure to microwave energy. It
is important not to defeat or tamper with the safety
interlocks.
Do not place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) DOOR (bent)
(2)HINGES AND LATCHES (broken or loosened)
(3)DOOR SEALS AND SEALING SURFACES.
The oven should not be adjusted or repaired by
anyone except properly qualified service
personnel.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
WARNING
To reduce the risk of burns, electric shock, fire,
in
jury to persons or exposure to excessive
microwave energy:
This device complies with part 18 of the FCC Rules.
RADIO INTERFERENCE
• Operation of the microwave oven may cause
interference to your radio, TV or similar
equipment.
• When there is interference, it may be reduced
or eliminated by taking the following measures:
- Clean door and sealing surface of the oven.
- Reorient the receiving antenna of radio or
television.
- Relocate the microwave oven with respect to
the receiver.
- Move the microwave oven away from the
receiver.
- Plug the microwave oven into a different outlet
so that microwave oven and receiver are on
different branch circuits.
UTENSILS
CAUTION
• Personal Injury Hazard
• Tightly-closed utensils could explode. Closed
containers should be opened and plastic pouches
should be pierced before cooking.
• See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave
oven."
There may be certain non-metallic utensils that are
not safe to use for microwaving. If in doubt, you
can test the utensil in question following the
procedure below.
Utensil Test:
- Fill a microwave-safe container with 1 cup of
cold water (250ml) along with the utensil in
question.
- Cook on maximum power for 1 minute.
- Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
- Do not exceed 1 minute cooking time.
SAVE THESE INSTRUCTIONS
(Only for USA)
3
PRECAUTIONS MICROWAVE ENERGY
WARNING
Indicates a potentially hazardous situation which,
if not avoided, may result in death or serious
inju
ry.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
IMPORTANT
Indicates installation, operation or main-tenance
information which is important but not hazard-
related.
Read all instructions before using this appliance.
This manual contains important safety symbols and instructions. Please pay at-tention to these symbols
and follow all instructions given.
Do not attempt to install or operate your appliance until you have read the safety precautions in this
manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based
on the risk type.
Warnings and important instructions ap-pearing in this guide are not meant to cover all possible
conditions and situations that may occur. Common sense, caution, and care must be exercised with
installing, maintaining, or operating your appliance.
DEFINITIONS
This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or death.
NOTE
Indicates a short, informal reference – something
written down to assist the memory or for future
reference.
NOTE
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz,
1.5 kilowatts and 13.5 amps.This product must be
connected to a seperate and dedicated supply
circuit of the proper voltage and frequency. Wire
size must conform to the requirements of the
National Electrical Code or the prevailing local
code for this kilowatt rating. The power supply
cord and plug should be brought to a seperate
and dedicated 15- to 20-ampere branch circuit
single grounded outlet. The outlet box should be
located in the cabinet above the microwave oven.
The outlet box and supply circuit should be
installed by a qualifed electrician and conform to
the National Electrical Code or the prevailing local
code.
IMPORTANT
1. If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service
person.
2. Neither Electrolux nor the dealer can accept
any liability for damage to the microwave oven
or personal injury resulting from failure to
observe the
correct electrical connection
procedures.
SAVE THESE INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety
precautions should be followed, including the
following:
WARNING
To reduce the risk of burns, electric shock, fire,
injury to persons or exposure to excessive
microwave energy:
• Read all instructions before using the appliance.
• Read and follow the specific:
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found on page 3.
• This appliance must be grounded. Connect only
to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 6.
• Install or locate this appliance only
in accordance with the provided installation
instructions.
• Some products such as whole eggs and sealed
containers - for example, closed glass jars - are
able to explode and should not be heated in this
oven.
• Use this appliance only for its intended use as
described in the manual. Do
not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
• HOT CONTENTS CAN CAUSE SEVERE BURNS.
DO NOT ALLOW CHILDREN TO USE THE
MICROWAVE. Use caution when removing hot
items.
• Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it
has been damaged or dropped.
• This appliance should be serviced only by
qualified service personnel. Contact nearest
authorized service facility for examination, repair,
or adjustment.
• Do not cover or block any openings on the
appliance.
• Do not store this appliance outdoors. Do not use
this product near water - for example, near a
kitchen sink, in a wet basement, near a swimming
pool, or similar location.
• Do not immerse cord or plug in water.
• Keep cord away from heated surface.
• Do not let cord hang over edge of table or
counter. When cleaning surfaces of door and
oven that comes together on closing the door,
use only mild, nonabrasive soaps, or detergent
applied with a sponge or soft cloth.
• To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
- Remove wire twist-ties from paper or plastic bag
before when placing bag in oven.
- If material inside of the oven ignite, keep oven
door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
- Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
• Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without
appearing to
be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is
not always present. THIS COULD RESULT IN VERY
HOT LIQUID SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A UTENSIL IS
INSERTED INTO THE LIQUID. To reduce the risk of
injury to persons:
• Do not overheat the liquid.
• Stir the liquid both before and halfway through
heating it.
• Do not use straight-sided containers with narrow
necks.
• After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
• Use extreme care when inserting a spoon or other
utensil into the container.
• Oversized food or oversized metal utensils should
not be inserted in a microwave oven as they
may create a fire or risk of electric shock. Do not
clean with metal scouring pads. Pieces can burn off
the pad and touch electrical parts involving a risk of
electric shock.
• Do not store any materials, other than
manufacturer's recommended accessories, in this
oven when not in use.
• Do not cover racks or any other part of the oven
with metal foil. This will cause over- heating of the
oven.
• Clean Ventilation Hoods Frequently -Grease should
not be allowed to accumulate on hood or filter.
• When flaming foods under the hood, turn the fan on.
• Use care when cleaning the vent-hood filter.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the filter.
• Suitable for use above both gas and electric cooking
equipment.
IMPORTANT SAFETY INSTRUCTIONS
5
SAVE THESE INSTRUCTIONS
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING
Improper use of the grounding can result in a risk
of electric shock.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded. If it is necessary to
use an extension cord, use only a
3-wire extension cord that has a 3-blade grounded
plug, and 3-slot receptacle th
at will accept the
plug on the appliance.The marked rating of the
extension cord shall be equal to or greater than the
electrical rating of the appliance.
DANGER
Electric Shock Hazard
Touching some of the internal components can
cause serious personal injury or death. Do not
disassemble this appliance.
6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT
1. If you have any questions about the
grounding or electrical instructions, consult a
qualified electrician or service person.
2. Neither Electrolux nor the dealer can accept
any liability for damage to the microwave
oven or personal injury resulting from failure
to observe the
correct electrical connection
procedures.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
• A short power supply cord is provided to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.
• Longer cord sets or extension cords are available
and may be used if care is exercised in their use.
• If a long cord or extension cord is used:
- The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
- The extension cord must be a grounding-type 3-
wire cord.
- The longer cord should be arranged so that it
will not drape over the counter top or tabletop
where it can be pulled on by children or tripped
over unintentionally.
Materials you can use in microwave oven
Browning dish
Follow manufacturer instructions. The bottom of browning dish must be at
least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use cracked
or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass jars are
not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not
use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer instructions. Do not close with metal tie. Make slits to
allow steam to escape.
Paper plates and cups
Use for short term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer instructions. Should be labeled
"Microwave Safe". Some plastic containers soften, as the food inside gets hot.
"Boiling bags" and tightly closed plastic bags should be slit, pierced or vented
as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain moisture. Do
not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
IMPORTANT SAFETY INSTRUCTIONS
Materials to be avoided in microwave oven
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed to high
temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.
7
8
NAMES OF OVEN PARTS AND ACCESSORIES
Glass turntable
Turntable Ring Assembly
9
SETTINGS
Key press Option
OP-1
Sound
Lo/nor/Hi/off
OP-2 Weight (lbs/kg)
OP-3
on yes/off yes/reset
yes/reset no
Press pad once.
Press START pad.
oFF
Press and hold pad .
When display is on, tap (short
press) will display time for 3 sec.
on
Press Timer pad once.
NOTE
NOTE
SURFACE LIGHT ON / OFF
Hold Clock button 3s, display
is on.
1.
2.
3.
Demo Mode (on/off)
4.
OP-4
3
2
OPERATION
• The microwave oven has settings that allow you to
customize the operation for your convenience.
Below is the table showing the various settings.
Press the key multiple times to scroll to the
desired setting function.
SETTING THE CLOCK
Example: setting clock display for 9:00:
SETTING THE CLOCK ON/OFF
Clock Display OFF.
Clock display ON default.
2. Enter time using number
pads.
2. Time will display, after 3s,
oFF will display.
2. Enter desired time using
number pads.
3. Press Timer pad.
SETTING THE TIMER
Example: setting timer for 5 minutes:
Timer count down does not stop even if the door is
opened. To stop/cancel the timer, press the Timer
key once . When the timer has reached the end of
set time, you will hear beep alerts indicating the
timer has run out.
EXHAUST HIGH / LOW / OFF
The exhaust ventilation removes steam and other
cooking vapors from the cooking surface of the
range below the microwave oven.
To operate the exhaust vent, Press
the Exhaust High/Low/Off pad once
for the highest speed setting. Press
the pad again to choose the Low
speed setting and a 3rd time to turn
the exhaust ventilation off.
Press the Surface Light On/Off pad
once to turn on the surface light.
Press the pad again to turn the light
off.
The display will return to default after 15 minutes
if a cooking cycle is stopped and not restarted.
If the temperature gets too hot around the
microwave oven, the fan in the exhaust vent hood
will automatically turn on at the LOW setting to
cool the oven. The fan will automatically turn off
when the internal parts are cool. When this
occurs, the vent cannot be turned off.
10
Example: to change the control lock from ON to
OFF:
NOTE
NOTE
HEATING WITH HIGH POWER LEVEL
Example: to heat for 5 minutes at 100% power:
Press Time Cook pad.
Press START pad.
Press Time Cook.
Press START pad.
5
OPERATION
When heating has finished you will hear beeps and
"End" will display.
CONTROL LOCK
You may lock the control panel to prevent the
microwave from being accidentally started or
used by children.
The control lock feature is very useful when
cleaning the control panel. The lock will prevent
accidental programming when wiping the control
panel clean.
Example: to set the control lock ON:
USING READY SET
Microwave heating or cooking may be quickly set
at 100%power level for 1, 2 or 3 minutes. Use the
number keys 1, 2 or 3 to choose the desired
minutes of cook time (this option will only work
using the 1, 2 or 3 numeric pads):
Example: to quickly heat for 2 minutes at
1
00% power:
Press and hold the Stop/Cancel pad
for more than 3 seconds. The Lock
icon will appear in the display window
along with 1 beep.
Press and hold the Stop/Cancel pad
for more than 3 seconds. The Lock
icon will disappear in the display
window.
Press number pads 2 for desired
minutes of cook time.
the Ready Set function cannot be set when using
the Defrost (by weight) feature.
“Food” will be displayed if a quick start cooking
cycle is not selected within 5 minutes of placing
food in the microwave. You must open then close
the door again to clear ''Food'' from the display.
2. Use the number pads to enter
desired heating time (cook
time may be set up to 99
minutes and 99 seconds).
2. Use the number pads to enter
desired heating time (cook
time may be set up to 99
minutes and 99 seconds).
3. Press Power Level pad once
for power level 10 (100%
power).
4. Use the number key to
change the power level to 7.
P-70 appears in the display
(70 % power).
When heating has finished you will hear beeps and
"End" will display.
HEATING WITH LOWER POWER LEVELS
Using the highest power level to heat foods with
does not always give the best results when some
types of food need slower cooking, such as roasts,
baked goods or custards. Your oven has nine other
power levels you may choose.
Example: to heat for 4 minutes at 70% power:
11
Press TimeCook.
press START pad.
When heating has finished you will hear beeps and
"End" will display.
NOTE
USING THE +10 SEC /+ 30 SEC KEY
This feature will let you quickly start or add 10 or
30 seconds
Press the +10 sec/+30 sec pad to:
+10 Sec / +30 Sec
Press +30 pad twice.
NOTE
Press the Stop/Cancel pad to:
9
OPERATION
When heating has finished you will hear beeps
and "End" will display.
"Food" will be displayed if a quick start cooking
cycle or + 10 Sec/+30 Sec key is pressed more
than 5 minutes after the door of microwave oven
is closed. You must open then close the door
again to clear ''Food'' from the display.
HEATING WITH MULTIPLE COOKING
STAGES
For best results, some microwave recipes call for
different power levels or different lengths of time
for cooking. Your microwave may be set to change
from one stage to another automatically (2 stages
maximum).
Example: to cook food for 3 minutes at 80%
power and then 50% power for 6 minutes
30 seconds:
2. Use the number pads to enter
heating time for the 1st stage
(cook time may be set up to 99
minutes and 99 seconds).
1. Erase if you have entered wrong
information.
2. Cancel timer setting process.
3. Press pad once to pause the oven
temporarily during cooking.
(Press START pad again to resume
cooking.)
4. Return the time of day (clock) to
the display after cooking cycle is
completed.
5. Cancel a program during cooking,
press twice.
1. Start programmed cooking.
2. Start cooking for 10 seconds/30 seconds at 100%
power level.
3. Extend cooking time in multiples of 10
seconds/30 seconds each time this pad is
pressed during microwave cooking.
4. Use the number keys to enter
power level for the 1st stage.
P-80 appears in the display (80
% power).
5. Press Time Cook pad for 2nd
stage.
6. Use the number pads to enter
heating time for the 2nd stage
(cook time may be set up to 99
minutes and 99 seconds).
7. Press Power Level pad for 2nd
stage.
8. Use the number key to enter
power level for the 2nd stage.
P-50 aappears in the display
(50 % power).
3. Press Power Level pad once.
USING THE STOP/CANCEL KEY
This feature will let you quickly stop or cancel
the cooking process.
Example: to add 1 minute of cook time during
100% microwave cooking :
12
When defrosting has finished you will hear beeps
and "End" will display.
NOTE
When heating has finished you will hear beeps and
"End" will display.
NOTE
DEFROSTING TIPS
SPECIAL NOTES FOR DEFROSTING
BY TIME
OPERATION
The weight amount must be a valid entry for this
feature to start. A valid weight entry is 0.1 to 6.0
pounds.
Power levels cannot be changed for both defrost
(by weight) or defrost (by time) because the
defrost performance will be adversely affected.
1. Press Defrost wt/time pad once. 0.0
will appear in the display.
2. Use the numeric pads to input
weight of food to defrost in pounds
(10 = 1.0lb.) You may enter any
weight from 0.1 to 6.0lbs.
3. Press START pad.
1. Press Defrost wt/time pad twice.
0.00 will appear in the display.
2. Use the number pads to enter
desired defrost time (defrost time
may be set up to 99 minutes and 99
seconds).
3. Press START pad.
SE
TTING DEFROST (BY WEIGHT)
Example: to defrost 1lb. of food with the default
power level and cook time determined
automatically:
SETTING DEFROST (BY TIME)
Example: to defrost food with the default 30%
power level for 5 minutes:
• After pressing START key, the display will count
down remaining defrost time. The oven will beep
during the defrost cycle. At this time open the
door and turn the food if needed and remove
any portions that have already thawed. Press the
START key to resume the defrost cycle.
• When heating has finished you will hear beeps.
• When using the defrost weight feature, the
weight entered should always be pounds (valid
entries are from 0.1 to 6.0 pounds).
• Use both defrost weight and defrost time
features for raw food items only. Defrosting
gives best results when food to be thawed is a
minimum of 0°F (taken directly from a true
freezer). If the food has been stored in a refrig-
erator-freezer that does not maintain a tempera-
ture of 5° F or below, always program a lower
food weight or lower cook time to prevent
cooking the food.
• If the frozen food is stored outside the freezer
for up to 20 minutes, enter a reduced cook time
or weight.
• The shape of the package will alter the defrost-
ing time. Shallow rectangular food packets
defrost more quickly than a deep frozen block of
food.
• Separate pieces as they begin to defrost. Sepa-
rated frozen pieces of food defrost better.
• Shield warm areas of food with small pieces of
foil if they start to become warm.
• You may use small pieces of aluminum foil to
shield food items like chicken wings, leg tips and
fish tails, but do not allow the foil to touch the
oven cavity walls when defrosting.
Meat
Normal
amount
Suggestions
2.5 to 6 lbs.
(40 to 96
oz.)
13
0.5 to 3 lbs
(8 to 48
oz.)
0.5 to 3 lbs
(8 to 48
oz.).
2.5 to 6 lbs.
(40 to 96
oz.)
0.5 to 3 lbs.
(8 to 48
oz.)
Reheat
Category
Press Display
8 ounces of
food
once 8 oz
16 ounces of
food
twice 16 oz
24 ounces of
food
3 times 24 oz
OPERATION
Start with the food
p
laced fat side down.
After each stage, turn
the food over and shield
any warm portions wi
th
narrow strips of
aluminum foil. Let stand,
covered for 15-30
minutes.
Roast
beef or
pork
After each stage,
rearrange the food. If
there are any warm or
thawed portions of food,
shield them with nar
row
flat pieces of aluminum
foil. Remove any pieces
of food that are nearly
defrosted. Let stand,
covered for about 5 to 10
minutes.
Steaks,
chops
or fish
After each stage, remove
any pieces of food that
are nearly defrosted. Let
stand, covered with foil
for 5 to 10 minutes.
Ground
meat
Remove giblets befor
e
freezing poultry. Start
defrosting with the
breast side down. After
the 1st stage, turn the
chicken over and shield
any warm portions with
narrow strips of
aluminum foil. After the
2nd stage, again shield
any warm portions with
narrow strips of
aluminum foil. Let stand,
covered, for 30 to 60
minutes in the
refrigerator.
After each stage,
rearrange or remove any
pieces of food that are
nearly defrosted. Let
stand for 10-20 minutes.
Whole
chicken
Chicken
pieces
1. Press Reheat pad 3 times (see
reheat category table) to reheat
24oz. of food. 24oz will appear in
the display.
2. Press START pad.
3. Press START pad.
REHEAT
The reheat feature provides 3 quick preset settings
based on serving size to reheat food for your cook-
ing convenience.
Example: to reheat 24 ounces of food.
1. Press Melt/Soften pad 4 times to
reheat 8oz. of food. So-4 will
appear in the display
(see Melt/Soften category table).
2. Then press 2 number pad, weight
will appear in the display .
Example: to melt 8 oz. of Cream Cheese.
MELT/ SOFTEN
The oven uses low power to melt and soften items.
See the following table.
DEFROSTING SUGGESTIONS FOR MEATS
For best results, please read these suggestions
when defrosting meats.
MELT / SOFTEN CATEGORY
PRESS
DIS
PLAY
CATE
GORY
AMOUNT KEY
Melt
Soften
x 1
So-1
BUTTER
1 stick
2 sticks
1
2
Melt
Soften
x 2
So-2
CHOCO
LATE
2 oz.
4 oz.
8 oz.
1
2
3
Melt
Soften
x 3
So-3
ICE
CREAM
1 Pint
1.5 Quart
1
2
Melt
Soften
x 4
So-4
CREAM
CHEESE
3 oz.
8 oz.
1
2
14
Power
level
Microwave
output
Use to prepare when:
10
High
100 %
9 90 %
8 80 %
7 70 %
6 60 % • Cooking pasta.
5 50 %
4 40 %
3 30 %
2 20 %
1 10 %
OPERATION
SUGGESTED POWER LEVELS FOR
COOKING
The 10 power levels available with this microwave
will help you to adjust to the power output best
suited for the food type you are preparing. As with
any food preparation in the microwave, it is best to
follow the microwave instructions that are printed
on food packaging.
The table below provides suggested power levels
for various types of food that you can be prepare in
the microwave.
• Boiling water.
• Cooking ground beef.
• Making candy.
• Cooking fresh fruits &
vegetables
• Cooking fish &
poultry.
• Preheating browning
dish.
• Reheating beverages.
• Cooking bacon slices.
• Reheating meat slices
quickly.
• Saute onions, celery &
green peppers.
• All reheating.
• Cooking scrambled
eggs.
• Cooking breads &
cereal products.
• Cooking cheese
dishes & veal.
• Cakes, muffins,
brownies & cupcakes.
• Cooking meats &
whole poultry.
• Cooking custard.
• Cooking spare ribs,
rib roast & sirloin
roast.
• Cooking less tender
cuts of meat.
• Reheating frozen
packaged foods.
• Thawing meat,
poultry & seafood.
• Cooking small
quantities of food.
• Finish cooking
casseroles, stew &
some sauces.
• Softening butter &
cream cheese.
• Heating small
amounts of food.
• Softening ice cream.
• Raise yeast dough.
SUGGESTIONS FOR GETTING THE BEST
RESULTS
To help you achieve the best possible results from
your microwave oven, read the following
suggestions below;
• Storage temperature
Foods taken from the freezer or refrigerator
take longer to cook than the same foods would
at room temperature.
15
POPCORN
CAUTION
DO NOT leave microwave oven unattended while
popping corn.
The popcorn feature lets you pop 3 different
commercially packaged microwave popcorn sized
bags. Use the table below to determine the setting
to use.
Amount
Press
popcorn pad
3.3 oz. (default setting)
once
3.0 oz. 2 times
1.75 oz. 3 times
Example: to pop a 3.0 oz. bag of popcorn
automatically.
Example: to heat 1 cup of a beverage.
Press START pad.
The microwave will beep when
finished.
Amount
Press
potato pad
1 potato (default setting)
once
2 potatoes
2 times
3 potatoes
3 times
4 potatoes
4 times
Press Potato pad once.
Press START pad.
The microwave will beep when
finished.
2
2
OPERATION
1. Press Popcorn pad 2 times.
• Size
Small pieces of food cook faster than large ones.
Pieces similar in size and shape will cook more
evenly when cooked together. For more even
results, reduce the power levels when cooking
large pieces of food.
• Natural moisture
Very moist foods cook more evenly because
microwave energy heats water molecules very
efficiently.
• Stirring
Stir foods such as casseroles and vegetable from
the outside to the center to distribute the heat
more evenly. This will allow the food to cook
faster. Constant stirring is not necessary.
• Turn over items
Turn over foods such as pork chops, roasts or
whole cauliflower halfway through the cook
time.
This will help to expose all sides equally to
microwave energy.
• Food placement
Place delicate areas of food items, such as
asparagus tips, toward the center of the
turntable tray.
• Food arrangement
Arrange unevenly shaped foods, such as chicken
pieces or salmon, with the thicker or meatier
parts toward the outside of the turntable tray.
• Let the food stand
After removing the food from the microwave,
cover the food with foil or a casserole lid and let
it stand to finish cooking. This will help the food
finish in the center and avoids overcooking the
out edges, The length of stand time depends on
the density and surface area of the food items.
• Wrapping in paper towels or waxed paper
Sandwiches and many other food types
containing pre-baked bread should be wrapped
prior to placing in the microwave to help prevent
the food items from drying out while heating.
POTATO
The potato feature cooks 1, 2 , 3 or 4 (cooking
times based on 8 to 36 oz.) potatoes
automatically. Use the table below to determine
the setting to use.
Example: to heat 1 cup of a beverage.
Example: setting audible signal off:
NOTE
Amount
Press
beverage pad
1 cup ( about 8 oz.)
once (default
setting)
2 cups (about 16 oz.) 2 times
16
Press pad one.
Press START pad to confirm when
the LED shows oFF.
OPERATION
• Before cooking, pierce potatoes with fork
several times.
• After cooking, let potatoes stand for 5
minutes.
BEVERAGE
The beverage feature heats 1 or 2 cups of beverage.
Use the table below to determine the setting to use.
1. Press Beverage pad once.
2. Press START pad.
The microwave will beep when
finished.
2. op-1 will display and the
START needs to be pressed to
select.
3. Lo/ nor/ HI /oFF auto scrolls
every 2 seconds through each
selection.
CONVENIENCE COOKING SUGGESTIONS
Co
nvenience
category
Amount Suggestions
Popcorn
1.75,3.0,
3.3 oz.
1 pkg.
Cook a single
“microwave-only”
bag of
popcorn at a time. Use
caution when removing
and opening the hot
popcorn bag from the
oven. Let microwave
oven cool down at least
5 minutes
before using
again.
Potato
1,2,3,4
potatoes
8,16,
24,36 oz
Pierce each potato
several times using a
fork. Place on turntable
in
spoke-like fashion. After
cooking, let stand for
3-5 minutes.
Let oven
cool for at least 5.
minutes before using
again. Use the START
pad to increase cook
time for larger potatoes.
Beverage
1,2
cups
(8 oz,
16 oz)
Use a microwave-safe
measuring cup or mug;
do not cover. Place the
beverage in the
microwave. After
heating, stir well. Let
oven cool for at least 5
minutes before using
again. Beverages heated
with the beverage
category may be very
hot. Remove the
container with care.
SETTING THE SOUND
Turning Sound Low/nor/Hi/Off
Audible signals are available to guide you when
setting and using your oven.
• will sound each time you touch a pad.
• Two tones signal the end of a Kitchen Timer
count down.
• Two tones signal the end of a cooking cycle.
NOTE
Press pad 2 times .
NOTE
NOTE
OPERATION
17
2. op-2 will display and the START
needs to be pressed to select.
3. lb/kg auto scrolls every 2 seconds
through each selection.
4. Press START pad to confirm your
selection.
Press
pad 4 times .
2. op-4 will display and the START
needs to be pressed to select.
3. on/oFF auto scrolls every 2
seconds through each selection.
4. Press START pad to confirm when
the display shows on.
4. Press START pad to confirm the
LED shows on.
On yes
Filter indicator light on by default
for recirculation.
The filter indicator light will track
the vent fan on time.
Off yes
Turn off the filter indicator light
when vented to outside.
The filter indicator light will not
track the vent fan on time.
When the cooking cycle is completed END will be
displayed and the audible signal will sound if the
sound is turned on.
SETTING WEIGHT IB/KG
Example: setting weight between pounds
& kilograms:
Press pad 3 times .
2. op-3 will display an d the START
needs to be pressed to select.
3. on yes/oFF yes/rest yes/rest no
auto scrolls every 2 seconds
through each selection.
SETTING THE FILTER
Example: setting the filter on:
SETTING DEMO MODE
Example: setting the demo mode on:
If the display shows kg, pressing the START
button will select the oven controls to kg.
Rest yes
Reset Filter Indicator
The filter indicator light on the
display will track the vent fan on
time.
When it is time to change the
charcoal filter the indicator light on
the display will come on. Once the
charcoal filter is changed, use reset
yes to turn filter indicator off and
begin new time for charcoal filter
replacement.
Rest no
Will not reset the time for filter
indicator light.
Suppose you want to enter Demo mode. When
Demo mode is ON programming functions will work
in a rapid countdown mode with no cooking power.
If the display shows oFF, pressing the START
button will select the demo mode off.
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center
.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
• Electrical cord for oven is not
plugged in.
• Door is open.
• Wrong operation is set.
• Plug into the outlet.
• Close the door and try again.
• Check instructions.
Arcing or sparking
• Materials to be avoided in
microwave oven were used.
• The oven is operated when empty.
• Spilled food remains in the cavity.
• Use microwave-safe cookware only.
• Do not operate with oven empty.
• Clean cavity with wet towel.
Unevenly cooked
foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted completely.
• Cooking time, power level is not
suitable.
• Food is not turned or stirred.
• Use microwave-safe cookware only.
• Completely defrost food.
• Use correct cooking time, power
level.
• Turn or stir food.
Overcooked foods
• Cooking time, power level is not
suitable.
• Use correct cooking time, power
level.
Undercooked foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted completely.
• Oven ventilation ports are
restricted.
• Cooking time, power level is not
suitable.
• Use microwave-safe cookware only.
• Completely defrost food.
• Check to see that oven venti-
lation ports are not restricted.
• Use correct cooking time, power
level.
Improper defrosting
• Materials to be avoided in
microwave oven were used.
• Cooking time, power level is not
suitable.
• Food is not turned or stirred.
• Use microwave-safe cookware only.
• Use correct cooking time, power
level.
• Turn or stir food.
18
MAINTENANCE
CLEANING AND CARE 19
Disconnect the power cord or leave the door open to deactivate the oven
during cleaning. Disconnect the power cord before replacing filters and lights.
WAVEGUIDE COVER
The waveguide cover is located on the right side
in the microwave oven cavity. It is made from
mica so requires special care. Keep the
waveguide cover clean to assure good
microwave oven performance. Carefully wipe
with a damp cloth any food spatters from the
surface of the cover immediately after they
occur. Built-up splashes may overheat and cause
smoke or possibly catch fire. DO NOT REMOVE
THE WAVEGUIDE COVER.
ODOR REMOVAL
Occasionally, a cooking odor may remain in the
microwave oven. To remove, combine 1 cup
water, grated peel and juice of 1 lemon in a
2-cup glass measuring cup.
Boil for several minutes using 100% power.
Allow to set in microwave oven until cool. Wipe
interior with a soft cloth.
TURNTABLE/TURNTABLE SUPPORT
The turntable and turntable support can be
removed for easy cleaning. Wash them in mild,
sudsy water; for stubborn stains use a mild
cleanser and non-abrasive scouring sponge.
They are also dishwasher-proof. Use upper
wirerack of dishwasher. The turntable motor
shaft is not sealed, so excess water or spills
should be wiped up immediately.
EXTERIOR
The outside surface is precoated steel and
plastic. Clean the outside with mild soap and
water; rinse and dry with a soft cloth. Do not use
any type of household or abrasive cleaner.
DOOR
Wipe the window on both sides with a soft cloth
to remove any spills or spatters. Metal parts will
be easier to maintain if wiped frequently with a
soft cloth. Avoid the use of spray and other
harsh cleaners as they may stain, streak or dull
the door surface.
EASY CARE™ STAINLESS STEEL /
SMUDGE _PRO OF™ STAINLESS STEEL /
BLACK STAINLESS STEEL(SOME MODELS)
Your microwave oven(some models) may have a
Stainless Steel finish or coating. Clean the
stainless with warm soapy water using a clean
sponge or cloth. Rinse with clean water and dry
with a soft clean cloth. DO NOT use ANY store
bought cleaners like Stainless Steel cleaners or
any other types of cleaners containing any
abrasive, chlorides, chlorines or ammonia. It is
recommended to use mild dish soap and water
or a 50/50 solution of water and vinegar.
TOUCH CONTROL PANEL
Care should be taken in cleaning the touch
control panel. If the control panel becomes
soiled, open the microwave oven door before
cleaning. Wipe the panel with a cloth dampened
slightly with water only. Dry with a soft cloth. Do
not scrub or use any sort of chemical cleaners.
Close door and touch STOP/Cancel
INTERIOR
Cleaning is easy because little heat is generated
to the interior surfaces . To clean the interior
surfaces, wipe with a soft cloth and warm water.
DO NOT USE ABRASIVE OR HARSH CLEANERS
OR SCOURING PADS. For heavier soil, use
baking soda or a mild soap; rinse thoroughly
with hot water. The round wire rack and shelf
can be cleaned with hot soapy water, rinsed and
dried.
CAUTION
CAUTION
SURFACE LIGHT REPLACEMENT
20
CLEANING AND CARE
Disconnect the power cord or leave the door open to deactivate the oven
during cleaning. Disconnect the power cord before replacing filters and lights.
Front
Rear
Surface lights
Ventilation filters
Tab
To avoid risk of person al injury or pro perty
damage, do not operate oven hood without
filters properly in place.
To avoid risk of personal injury or property
damage, wear gloves when replacing the light
bulbs.
CLEANING THE EXHAUST FILTERS
The oven ventilation exhaust filters should be
removed and cleaned often; generally at least once
every month.
Vent exhaust filter part number 5304478913
To order parts call 800-599-7569
• To remove the exhaust ventilation filters, slide
the filter to the rear. Then pull filter downward
and push to the other side. The filter will drop
out. Repeat for the 2nd filter.
• To reinstall the exhaust ventilation filter, slide it
into the side slot, then push up and toward oven
to lock.
Reinstall the 2nd filter using the same
procedure.
• Unplug the microwave oven or turn off power at
the main circuit breaker.
• Remove the LED light cover mounting screw
under the microwave.
• Remove the LED light mounting screw.
• Soak the ventilation filters in hot water using a
mild detergent. Rinse well and shake to dry or
wash in a dishwasher. Do not use ammonia. The
aluminum on the filter will corrode and darken.
CLEANING AND CARE 21
Disconnect the power cord or leave the door open to deactivate the oven
during cleaning. Disconnect the power cord before replacing filters and lights.
• Unplug the LED light from the harness, replace
with part 5304499540.To order parts call
800-599-7569.Then reconnect the harness.
• Re-install LED light and mounting screw.
When re-installing mounting screw be careful
not to damage the LED light.
• Re-install LED light cover and mounting screw.
• Plug the microwave back into the power supply
or turn the power back on at the main circuit
breaker.
• Disconnect power to the microwave oven at the
circuit breaker panel or by unplugging.
• Press the " Push" position on the cover.
• And then open the cover.
CHARCOAL FILTER REPLACEMENT
Charcoal filter part number
FRPAMRAF
To order parts call 800-599-7569
Charcoal Filter when installed in your microwave
oven, is used for nonvented, recirculated
Installation. When it is time to replace the charcoal
filter, the FILTER light on display will turn on.
If your microwave is vented to the outside, then
you can turn off the filter light in the settings.
• Remove the charcoal filter by pushing the top of
the filter inwards, then pull it forward out from
the unit.
• Slide the top of the new charcoal filter into the
top area of the filter cavity.
• Press the bottom of charcoal filter to place it
into the correct position.
• Press the "Push" to close the cover.
22
CLEANING AND CARE
Disconnect the power cord or leave the door open to deactivate the oven
during cleaning. Disconnect the power cord before replacing filters and lights.
OVEN LIGHT REPLACEMENT
Remove the vent grill (see steps 1-4 in charcoal
filter replacement section.
• Remove the screw and remove the lamp cover.
• Remove the LED bracket and light assembly.
Remove the LED light from the bracket by
removing the mounting screw and replace only
with part 5304499540.
To order parts call 800-599-7569.
• Re-install LED light to the bracket with mount-
ing screw.
When re-installing mounting screw be careful
not to damage the LED light.
• Reconnect LED light to the harness and place
the LED light assembly back into the plastic
housing.
• Replace the microwave oven light cover by
carefully pushing into place (make sure the light
cover rear tab is inserted into slot at rear),
replace the screw.
• Replace the charcoal filter (if installed).
Push the vent grill back into place (engaging
both the bottom and top tabs) and replace the
vent grill mounting screws.
SPECIFICATIONS
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the microwave oven and close the
door securely. Operate the microwave oven for one minute at HIGH 100%.
YES ____ NO ____
YES ____ NO ____
YES ____ NO ____
YES ____ NO ____
* The International Electiotechnical Commission's standardized method for measuring output wattage.
omplies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,
DHHS -
C
Subchapter J.
Inc. for use in USA or Canada.
- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
- This symbol on the nameplate means the product is listed by Underwriters Laboratories,
method is widely recognized. test method
**
This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International
Standard CISPR11.
***
Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for
holding food is less.
In compliance with standards set by:
F C - Federal Communications Commission Authorized.
A
Does the microwave oven light come on?
B
Does the cooling fan work? (Put your hand at top above Display.)
C Does the turntable rotate? (It is normal for the turntable to turn in either
direction.)
Is the water in the microwave oven warm?
1. If time appearing in the display is counting
down very rapidly, check Demonstration
Mode on page 20.
2. If the oven is set for more than 30 minutes at
90 or 100 percent power level, after the fi rst
30 minutes the power level will automatically
adjust itself to 80 percent power to avoid
overcooking.
If “NO” is the answer to any of the above questions,
please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT
YOUR NEAREST ELECTROLUX AUTHORIZED
SER-VICER.
A microwave oven should never be serviced by a
“do-it-yourself” repair person.
NOTE
D
C
SERVICE CALL CHECK 23
AC Line Voltage: Single phase 120V, 60Hz, AC only
AC Power Required:
Output Power*: 1000 W
Frequency: 2450 MHz (Class B/Group2)**
Outside Dimensions (including handle): 29 .88 ” (W) x 15.04 ” (D) x 16.41 ” (H)
Cavity Dimensions:
Microwave oven Capacity***:
Cooking Uniformity: Turntable
Weight:
Work/Night Light:
Oven Light:
1500W 13.5 amps.
1.8 Cu.Ft.
”(W) x 13.78 ”(D) x 9.09 ”(H)
1*1.2W LED, the part number is 5304499540.
1*1.2W
LED,
the part number is 5304499540.
19.84
Approx. (net) 55.2 lbs, (gross) 60.7 lbs
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not
in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air fi lters, water fi lters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the fi nish of appliance or home incurred during installation, including but not limited to
fl oors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes
such as abuse, misuse, inadequate power supply, accidents, fi res, or acts of God.
Canada
1.800.265.8352
L5V 3E4
Printed in China
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
USA
1-800-374-4432
Electrolux Home Products,
Inc., 10200 David Taylor
Drive Charlotte, NC 28262
Your appliance is covered by a one year limited warranty. For one year from your original
date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this
appliance that prove to be defective in materials or workmanship when such appliance is
installed, used and maintained in accordance with the provided instructions.
This warranty does not cover the following:
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR
OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL
NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY
IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major
Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.
Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
company. Product features or specifi cations as described or illustrated are subject to change without notice.
24
WARRANTY
welcome
home
Frigidaire.com
1-800-374-4432
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
