ROSSI TOLWDRROA05X Portable Plasma Cutter Built-in Air User Manual

User Manual

[Revision 4.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

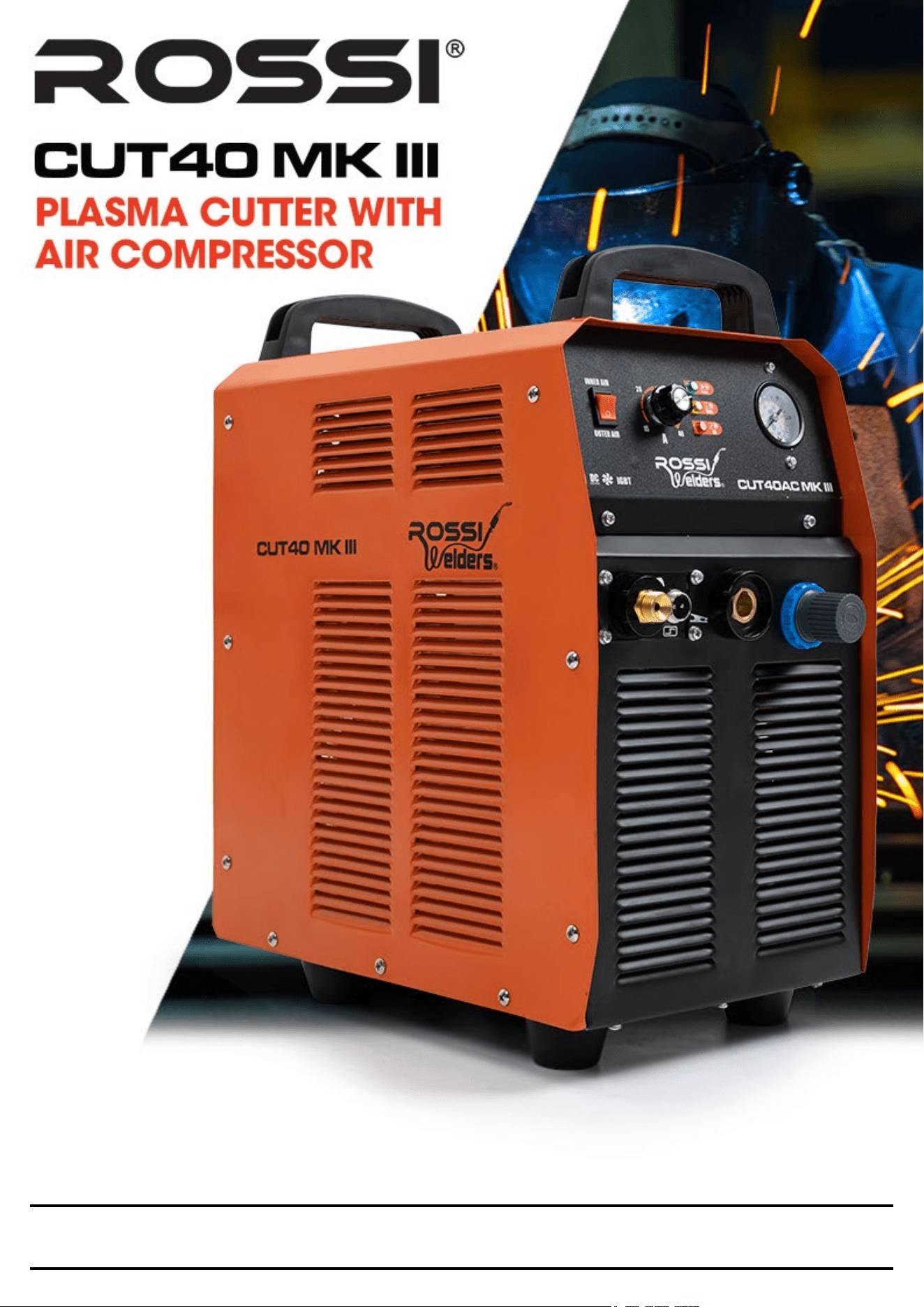

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Plasma Cutter Safety

•

On the process of welding or cutting, there will be possibility of injury, so please take protection into consideration during operation. For more

details, please review this User Manual often, which complies with the preventive requirements of the manufacturer.

• ELECTRIC SHOCK: MAY LEAD TO DEATH

• Set the earth fittings according to applying standard.

• DO NOT touch electric parts and the electrode with bare skin, wet gloves, or clothes.

• Make sure you are properly insulated from the ground and the workshop.

• Make sure you are in safe position.

• GASES AND FUMES: MAY BE HARMFUL TO HEALTH

• Keep your head out of the gases and fumes.

• When arc welding, ventilators or air extractors should be used to avoid breathing gases.

• ARC RAYS: HARMFUL TO YOUR EYES, BURN YOUR SKIN.

• Wear suitable protective mask, light filter and protective garment to protect eyes and body.

• Prepare suitable protective mask or curtains to protect other people in the work area.

• FIRE

• Welding spark may cause fire, make sure there is no tinder material around the welding area.

• NOISE: EXCESSIVE NOISES WILL BE HARMFUL TO HEARING

• Use ear protector or others means to protect your hearing.

• Warn other people in the work area that noise can be harmful to their hearing.

• MALFUNCTION: WHEN TROUBLE HAPPENS, CONTACT A QUALIFIED TECHNICIAN OR AN AUTHORISED SERVICE CENTRE

• If trouble happens during installation and operation, please follow this manual instruction to check up.

• If you fail to fully understand the manual, or fail to solve the problem with the instruction, you should contact a qualified technician or an

authorised service centre for help.

• WARNING! CREEPAGE-PROTECTING SWITCH SHOULD BE ADDED WHEN USING THE MACHINE

• WARNING! The machine is mainly used in industrial settings. It will produce radio waves, so user should make adequate preparation

for his/her protection.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 4

Preventive Measures

• E

nvironment

• The machine can be performed in an environment where conditions are dry with a dampness level of max 90%.

• Ambient temperature is between -10 to 40 degrees centigrade.

• Avoid welding under direct sun or wet/dripping conditions.

• Do not use the machine in an environment where conditions are polluted with conductive dust in the air or corrosiveness gas on the air.

• Avoid gas welding in the environment of strong airflow.

Safety Norms

•

The cutting machine has been installed with a protection circuit of over voltage, over current and overheating. When voltage and output current

and temperature of machine have exceeded the rate standard, welding machine will stop working automatically. Because that will be damage to

welding machine, user must pay attention to the following notice.

• The working area is adequately ventilated

• The cutting machine is powerful machine, when it is being operated, it is generated by high currents, and natural wind will not satisfy machine

cool demands. So, there is a fan in inner machine to cool down machine. Make sure the intake is not in block or covered, it is 0.3 meter from

welding machine to objects of environment. User should make sure the working area is adequately ventilated. It is important for the

performance and the longevity of the machine.

• Do not overload

• The operator should remember to watch the max duty current (Response to the selected duty cycle). Keep welding current is not exceed max

duty cycle current. Over-load current will damage and burn up machine.

• No over voltage

• Power voltage can be found in diagram of main technical data. Automatic compensation circuit of voltage will assure that welding current kept

in allowable arrangement. If power voltage is exceeding allowance arrangement limited, it will damage the components of machine. The

operator should understand the situation and take preventive measures.

• There is a grounding screw behind welding machine, with grounding marker on it. Mantle must be grounded reliable with cable which section is

over 6 square millimetres to prevent from static electricity and leaking.

• If welding time is exceeded duty cycle limited, welding machine will stop working for protection. If the machine is overheated, temperature control

switch is on “ON” position and the indicator light is red. In this situation, you don't have to pull the plug, in order to let the fan cool the machine.

When the indicator light is off, and the temperature goes down to the standard, so it can weld again.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 5

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 6

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 7

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 5

Parts Identification ....................................................................................................................................... 8

Installation ..................................................................................................................................................... 9

General ....................................................................................................................................................................... 9

Air Regulator Installation and Operation .................................................................................................................. 10

Operation ..................................................................................................................................................... 11

Maintenance ................................................................................................................................................ 12

Troubleshooting ......................................................................................................................................... 13

General ..................................................................................................................................................................... 13

Troubleshooting Table .............................................................................................................................................. 14

Specifications ............................................................................................................................................. 15

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 8

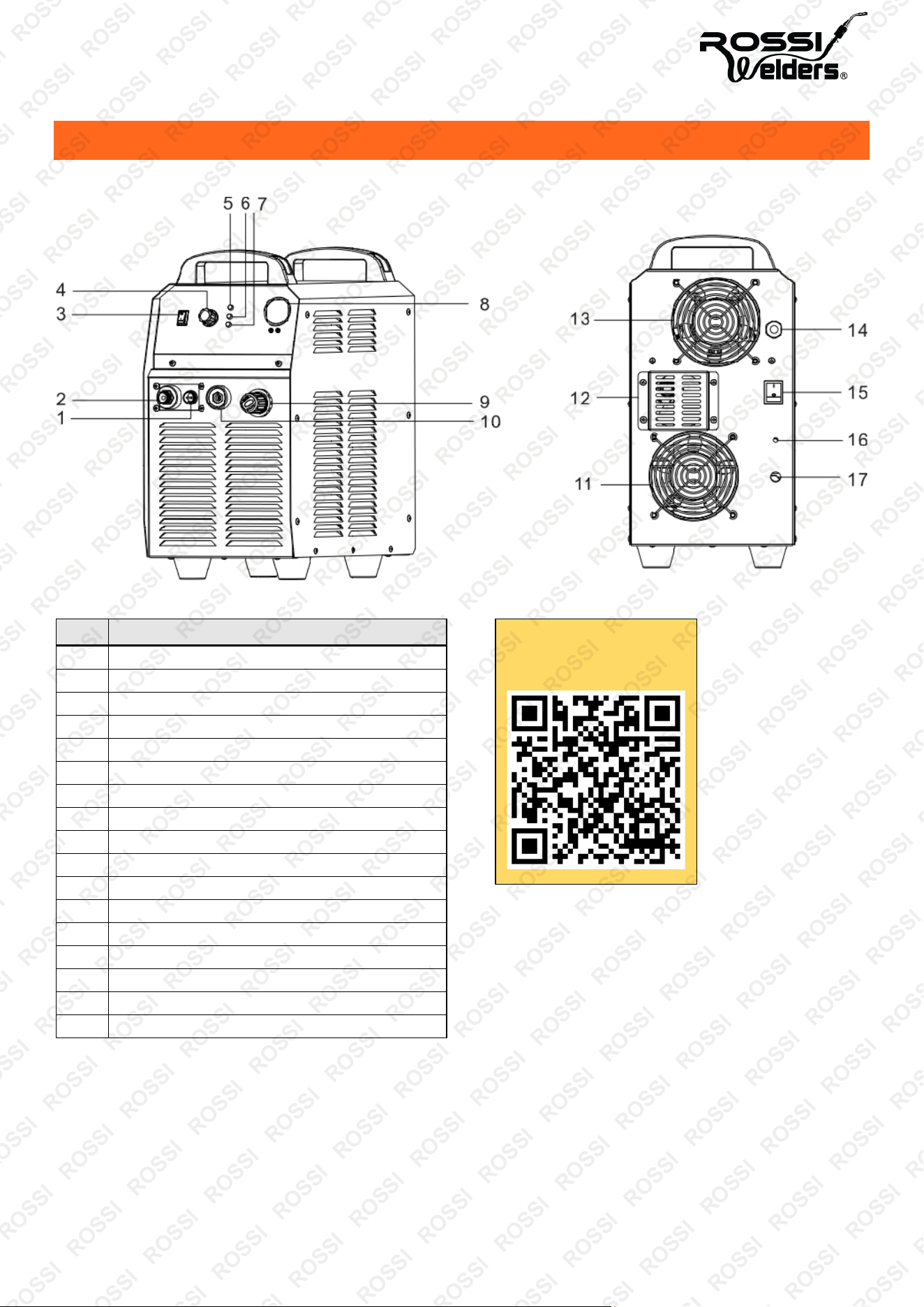

Parts Identification

No. Name

1 Aviation socket

2 Gas-electric integrated socket (-)

3 Gas button (Internal and external gas switching)

4

Current adjustment knob

5

Power indicator

6

Overheat indicator

7

Fault protection indicator

8 Gas pressure meter

9 Gas pressure adjustment knob

10

Positive output (+)

11

Fan net

12

Oil-water separator

13 Fan

14 Power cable

15 ON/OFF switch

16 Grounding screw

17

Gas inlet

Spare parts available

for purchase, scan QR

code below:

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 9

Installation

General

The plasma cutter is equipped with a power voltage compensation equipment. When the power voltage

fluctuates between ±15% of rated voltage, it can still work normally.

When the machine is used with long cables, to prevent the voltage form going down, a bigger section cable is

recommended. If cable is too long, it may affect the performance of the power system. Thus, it is recommended

that you use a configured cable length.

1. Make sure the intake of the machine isn’t blocked or covered to avoid malfunctioning the system.

2. Use the cable (section not less than 6mm) to connect the housing and the ground. The way is from the

connecting screw in the back of the power source, or make sure it is grounded firmly. For safety, both ways

cab be used.

3. Use a pressure-resisting air pipe to connect the air intake and compressed air source and use a hoop and

other ways to tighten the joint. Air source should supply suitable pressure flow and should be dry. If your air

source does not meet the above requirements, you should consider using sole compressor of the right

power and air-decompressing filter, to supply suitable pressure and eliminate impurities and moisture from

the air.

4. Install the air-electricity system plug to the socket in the panel and secure it clockwise. Air plug of the cutting

torch and arc-keeping cable should be connected to the relevant socket, and secure with a screw.

5. Put the loop cable plug to the fastening socket, and tighten clockwise, another terminal will hold the work

piece.

6. As per input voltage grade, connect a power supply box of relevant voltage grade. Make sure there is no

errors and make sure the voltage is different among the permission rang.

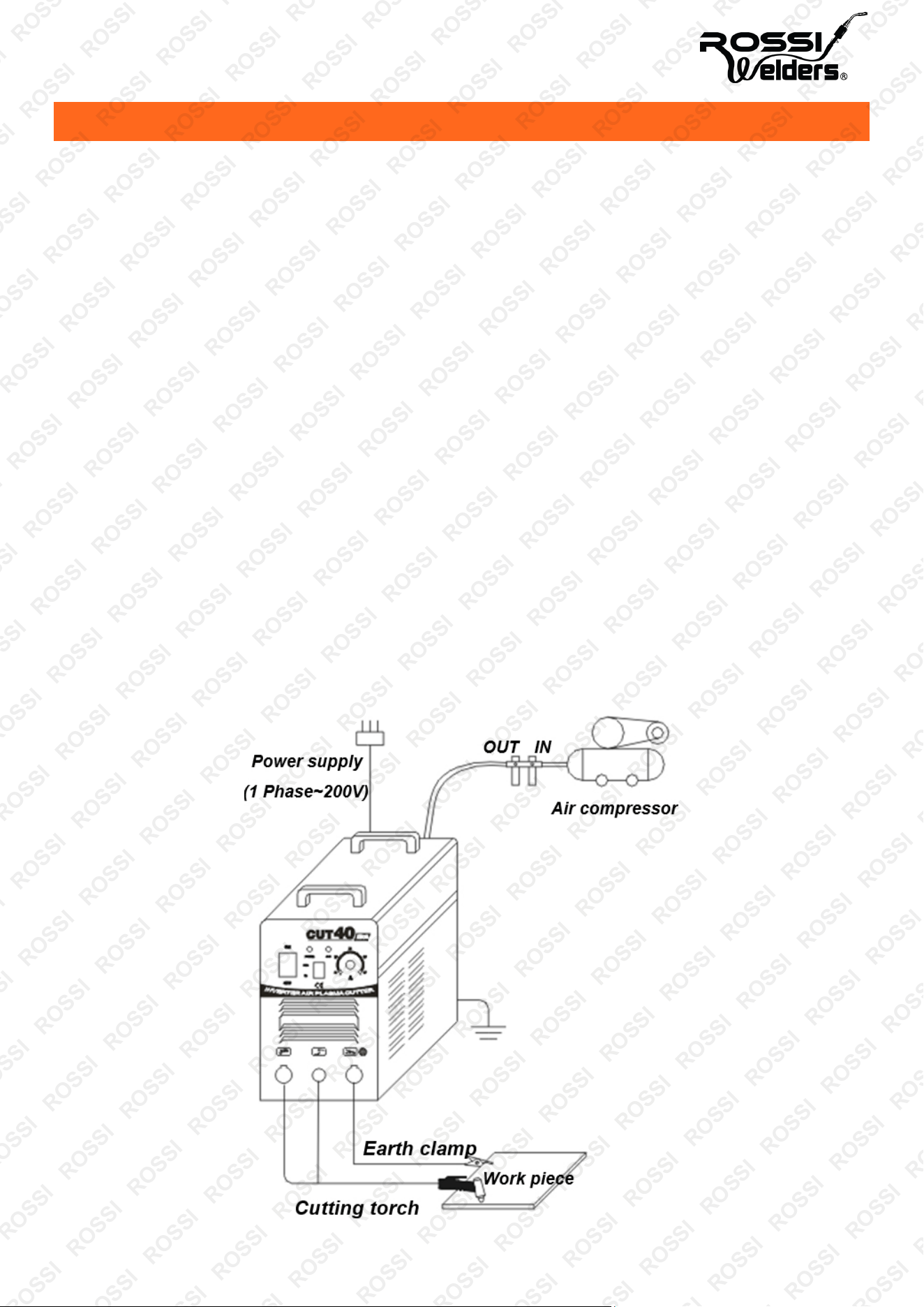

7. Connect the cable as the example image shown, then you can start cutting.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

E&OE © Rossi 10

Air Regulator Installation and Operation

1. Firmly tighten and seal the copper air hole at the IN and OUT terminal with a high-pressure rubber tube

firmly.

2. Tighten and seal the meter with a meter face rubber tube.

3. Secure the connecting shelf with a screw as the regulator position.

4. Remove the plastic screw and fix the regulator on the shelf.

5. Turn on the air valve, then turn up the pressure adjusting knob. Turn the pressure to rated volume (meter

inside shows Kgf/cm2), and then turn down the knob (+ means increasing pressure, - means decreasing

pressure).

6. If water in the gas filtering bottle is too much, please turn on the water valve to release the excess water.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

Operation

1. Turn on the power switch at the front panel, ensuring that the power switch is in the “ON” position. The time

indicator of the power switch is on.

2. Adjust the gas pressure to be adequate to the machine, then turn on the valve of the compressed air.

3. Press the control knob of the torch, the electromagnetic valve will start. The sound of HF arc-striking can be

heard, and the torch burner should flow out gas (burner of arc-supporting cutter should spurt fire).

4. Give about 1mm from the copper tip to work piece (further if it is arc-supporting cutter), then press the torch

knob and burn and strike arc, sparks of HF arc-striking will diminish immediately. Welding machine can

begin to cut.

NOTE: To let the plasma cutting machine to reach its best capacity and result, current and air pressure must be

matched well. Thus, when the current is set, the pressure and flow must be adjusted suitably. If the air flow is too

big and the cooling effect is too strong, it will cause an arc pause, and if the air flow is too small, the nozzle and

electrode will be too hot and burnt out.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

Maintenance

WARNING! Power must be turned off for all checking and maintenance, before opening the housing,

make sure the power plug is disconnected.

WARNING! Blind experiments and careless repair may lead to more problems of the machine that will

make formal check and repair more difficult. When the machine is electrified, the bare parts contain life-

threatening voltage. Any direct and indirect contact will cause electric shocks, and severe electric shock

can lead to death.

•

Remove dust by dry and clean compressed air regularly, if welding machine is operating in environment

where is polluted with smokes and pollution air, the machine need removing dust every month.

•

Pressure of compressed air must be inside the reasonable arrangement to prevent damaging to small

components of inner machine.

•

Check internal circuit of welding machine regularly and make sure the cable circuit is connected correctly

and connectors are connected tightly (especially insert connector and components). If scale and loose are

found, please give a good polish to them, then connect them again tightly.

•

Avoid water and steam from entering the inner-machine, if they enter the machine, please dry inner-machine

then check insulation of machine.

•

If welding machine will not be operated long time, it must be put into packing box and stored in dry

environment.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

Troubleshooting

General

Fittings, welding materials, environment factor, supply powers may have something to do with welding. User

must try to improve the level of the welding environment.

Cutting surface is rough, poor cutting result

The machine may be not well operated. You can check it as follow:

•

Make sure the compressed air supply has enough pressure which is not less than 0.3MPa (3Kg/cm

2

), and its

range is ±0.05Mpa.

•

Electrode and nozzle are not matched with current. Check as follow:

Current 10-30A 30-40A 60-100A 100-120A

Nozzle φ1.0mm φ1.2mm φ1.3mm φ1.4mm

Arc-striking is difficult and easy to pause

•

Make sure quality of tungsten electrode is high.

•

Cutting current is too small and air flow is too big. And if cooling effect is too strong, it will lead to arc pause.

•

Power net voltage is low and input cable is too long.

Output current is not up to the rated value

When power voltage departs from the rated value, it will make the output current not matched with rated value;

When voltage is lower than rated value, the max output may be also lower than rated value.

Current is not stabilizing when machine is operating

It has something to do with factors as following:

•

Electric wire net voltage has been changed.

•

There is harmful interference from electric wire net or other equipment.

Electrode or nozzle burnt often

•

Current is too big, or nozzle is too small.

•

Air pressure is low and cooling effect is weak and nozzle is too hot.

Arc cannot cut into the steel plate fully, or too much spatter.

•

Maybe the machine capacity cannot meet the demand of that thickness, please use a bigger machine.

•

Electrode or nozzle is burnt, please change it.

NOTE: For normal operation, you should cut from the edge of the work piece, in this way you can protect the

torch from damage by spatter conglutination.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

Troubleshooting Table

NOTE: If user wants to operate machine as following, the operator must be an expert or knowledgeable in a

specific field of electricity and safety and hold the relevant certificate that proves their ability and knowledge.

Before maintenance, contacting an authorized service centre or a qualified technician is suggested.

Fault symptom Remedy

Switch indicator is on, fan is not working,

and control knob is out of work.

Over voltage protection is working. Turn off machine then turn

on it again after several minutes.

Switch indicator is lit, and fan is working.

However, pressing control knob of torch,

there is no HF arc-striking sound and

electromagnetic valve is not working.



Check if torch is open circuit.



Check if control knob of torch is damaged.



Part of assistant power of top board is damaged and there

is no DC 24V output.

Switch indicator is lit, and fan is working.

However, pressing control knob of torch,

there is no HF arc striking sound and inner

red diode is lit.



Rising transformer of bottom board is damaged.



Control mould is damaged.

Switch indicator is lit, and fan and

electromagnetic valve are working.

However, there is no sound of HF arc-

striking and inner red diode is not lit.

There is some trouble in part of arc-striking, such as:



It is too far between discharge tip or there is adhesion in

discharge tip.



Primary coil of arc-striking transformer is damaged or poor

contact.



Check if four times voltage rectifier diode is stricken.



Check if HF electric capacity 102/10KV is leaking.



Relay is damaged.

Other of machine is normal, but arc is not

stricken when it is be operating.



Input voltage is too low.



Pressure of air compressor is too high or too low.

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

CUT40 Mk III Plasma Cutter with Air Compressor

Specifications

Input Voltage 190-250V 50-60Hz (15A Plug)

Output Current 15-40 A

Post Flow Timer 15 Seconds

Output Voltage 96V

Duty Cycle 60%

Efficiency 85%

Input Air Pressure 0.45Mpa

Cutting Capacity 1-12mm

GENERATOR SAFE - 8.0kVA recommended

Power Cord length 1.8m (total 2m)

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or
