BAUMR-AG CONSAWBMRA6C0 Concrete Road Saw Cutter Tools Push User Manual

Video Tutorial:

Starting a 4-Stroke

User Manual

[Revision 9.0 October 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequat

e engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Concrete Saw

i

Table of Contents

Safety ............................................................................................................................................................. 1

Operation ....................................................................................................................................................... 2

Front Pointer Alignment .............................................................................................................................................. 2

Adjusting Depth of Cut Gauge .................................................................................................................................... 2

Quick Start Guide ....................................................................................................................................................... 3

When Finished ............................................................................................................................................................ 4

Maintenance .................................................................................................................................................. 4

Spark Plug .................................................................................................................................................................. 4

Air Filter ...................................................................................................................................................................... 5

Oil................................................................................................................................................................................ 5

Specifications ............................................................................................................................................... 7

Concrete Saw

Safety

•

DO NOT operate or service this equipment before reading the entire manual

．

•

This equipment should not be operated by persons under 18 years of age

．

•

NEVER operate this equipment without proper protective clothing, shatterproof glasses, steel- toed boots

and other protective devices required by the job

．

•

NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine

．

•

NEVER operate this equipment under the influence of drugs or alcohol

．

•

NEVER use accessories or attachments, which are not recommended by our Company for this equipment

．

Damage to the equipment and/or injury to user may result．

•

The manufacturer does not assume responsibility for any accident due to equipment modifications

．

•

Whenever necessary, replace nameplate, operation and safety decals when they become difficult to read

．

•

ALWAYS check the machine for loosened threads or bolts before starting

．

•

NEVER touch the hot exhaust manifold, muffler or cylinder. Allow these parts to cool before servicing

engine or saw

．

•

High Temperatures -Allow the engine to cool before adding fuel or performing service and maintenance

functions. Contact with hot components can cause serous bums

．

•

The engine section of this cutter requires an adequate free flow of cooling air. NEVER operate the cutter in

any enclosed or narrow area where free flow of the air is restricted. If the air flow is restricted it will cause

serious damage to the saw or engine and may cause injury to people. Remember the cutter's engine gives

off DEADLY carbon monoxide gas

．

•

ALWAYS refuel in a well-ventilated area, away from sparks and open flames

．

•

ALWAYS use extreme caution when working with flammable liquids. When refuelling, stop the engine and

allow it to cool. DO NOT smoke around or near the machine. Fire or explosion could result from fuel

vapours, or if fuel is spilled on a hot engine．

•

NEVER operate the cutter in an explosive atmosphere or near combustible materials. An explosion or fire

could result causing severe bodily harm or even death

．

•

Topping-off to the fuel filler port is dangerous, as it tends to spill fuel

．

•

NEVER use fuel as a cleaning agent．

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Concrete Saw

Operation

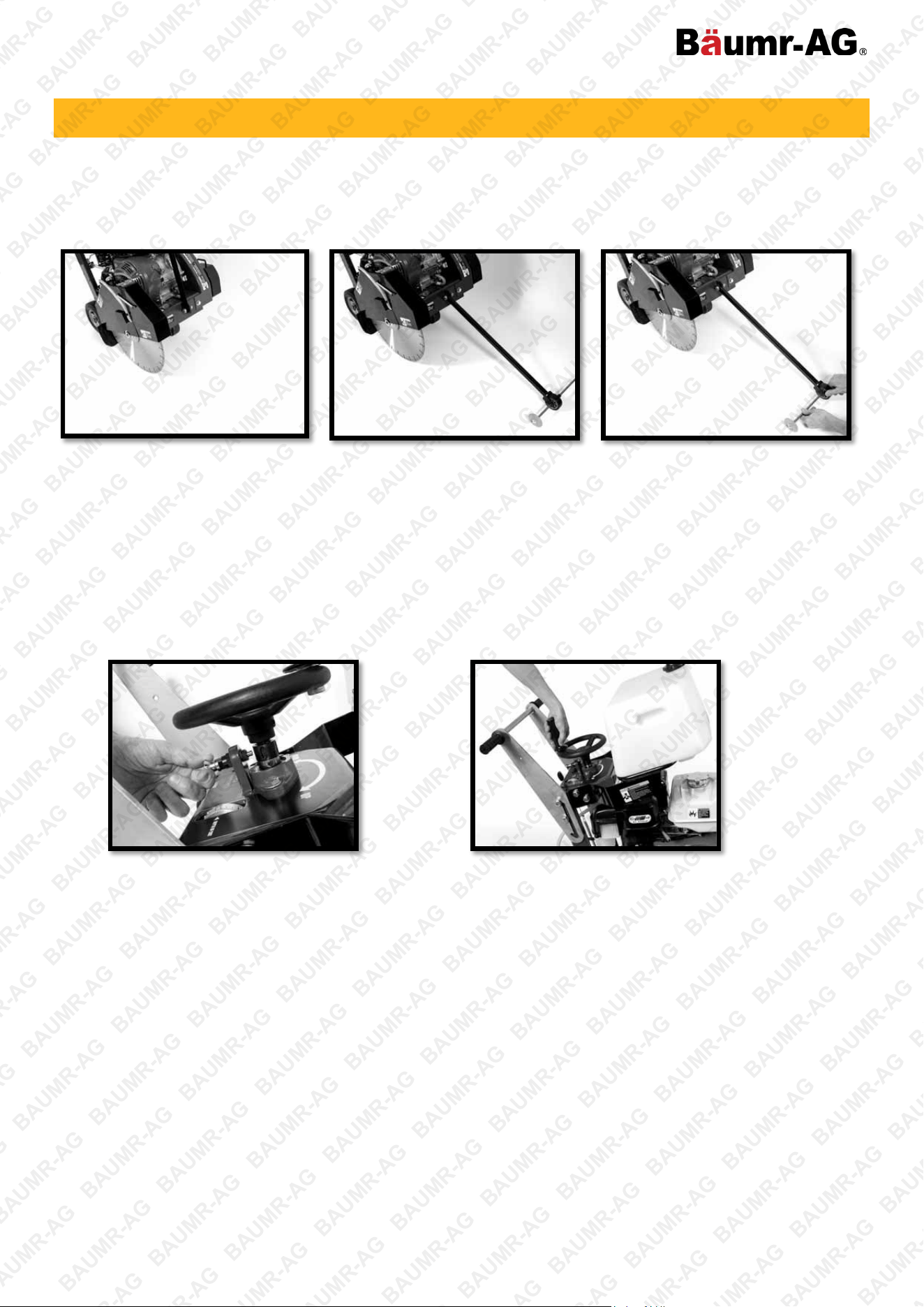

Front Pointer Alignment

The pointer should be checked for proper alignment with the blade after every use.

(A)

Mark a 4 feet long straight line on a

smooth level surface. Place saw parallel

to line; lower blade and center it over the

line.

(B)

With the blade parallel to the line, lower

the front pointer assembly and position

the pointer over the line.

(C)

Adjust the pointer in or out if the orange

wheel is off the line by loosening the bolt

on the end of pointer. Align orange wheel

with line.

Adjusting Depth of Cut Gauge

(A)

Unlock crank wheel.

(B)

Turn crank wheel until blade touches the ground.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Concrete Saw

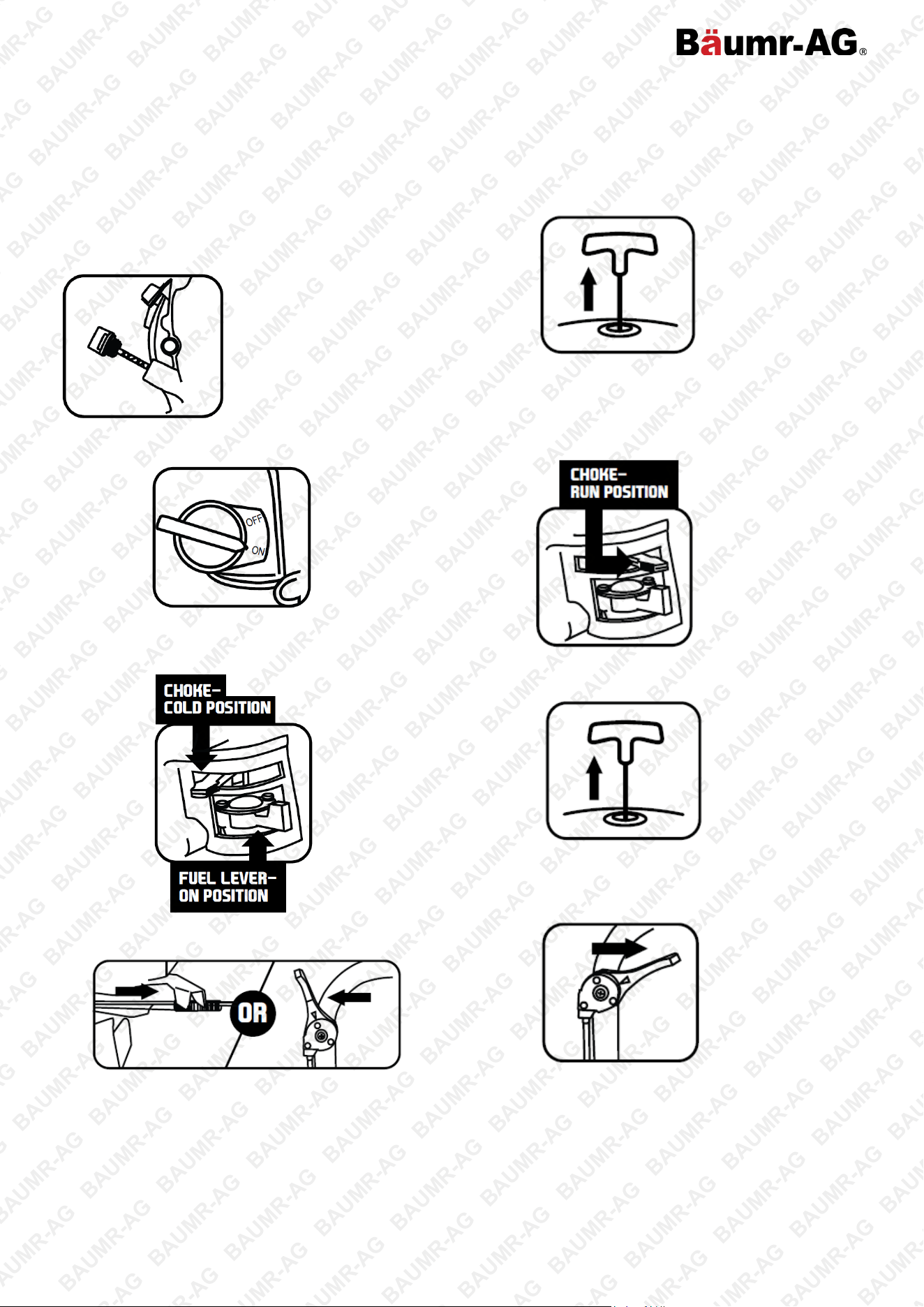

Quick Start Guide

Step 1: Remove oil dipstick (or cap) and ensure

enough engine oil (10W30 recommended 600ML).

NOTE: Fill oil with the blade removed and the engine

level. This way you will get an accurate reading and

avoid overfilling the unit with oil. Overfilling can result in

a seized engine.

Step 5: Pull starter cord until it kicks (About 3-4

times, more if cold weather)

Step 2: Locate on/off switch and turn on

Step 6: Turn choke on

Step 3: Turn fuel lever on and choke to cold

Step 7: Pull starter cord until engine starts

Step 8: Adjust throttle lever as needed

Step 4: Ensure throttles is on low

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Concrete Saw

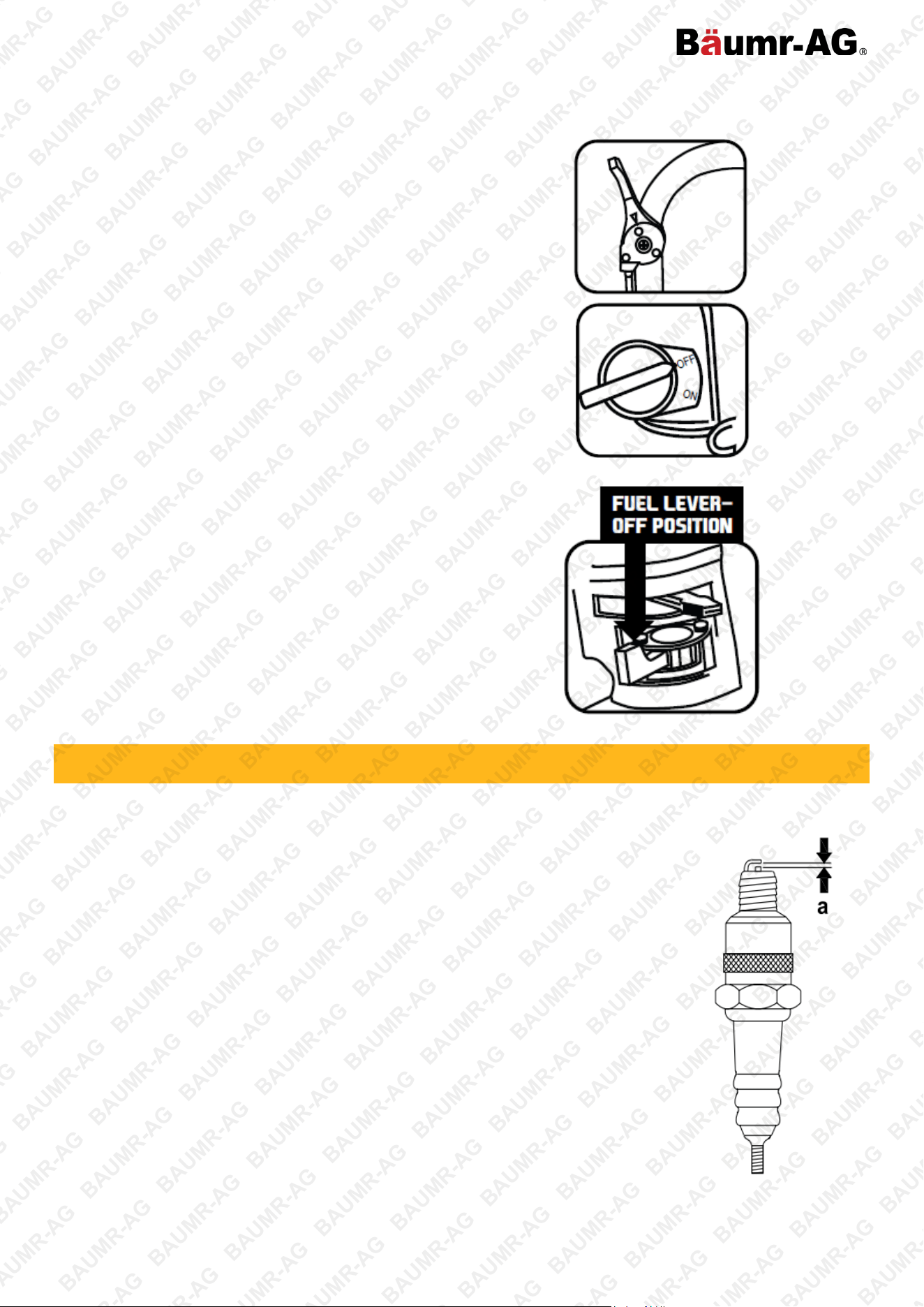

When Finished

Step 1: When finished, turn throttle to low

Step 2: Switch off engine

Step 3: Turn fuel lever off when stored

Maintenance

Spark Plug

Clean or replace the spark plug as needed to ensure proper operation.

Refer to the table below for frequency.

The spark plug becomes very hot during operation and remains hot for a while after

stopping the engine. Do not touch the spark plug while it is hot.

Note: Refer to the Technical Data for the recommended spark plug type and the

electrode gap setting.

•

Remove the spark plug and inspect it.

•

Replace the spark plug if the insulator is cracked or chipped.

•

Clean the spark plug electrodes with a wire brush.

•

Set the electrode gap (a) 0.6 – 0.7 mm

•

Tighten the spark plug securely.

0.6 – 0.7 mm

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Concrete Saw

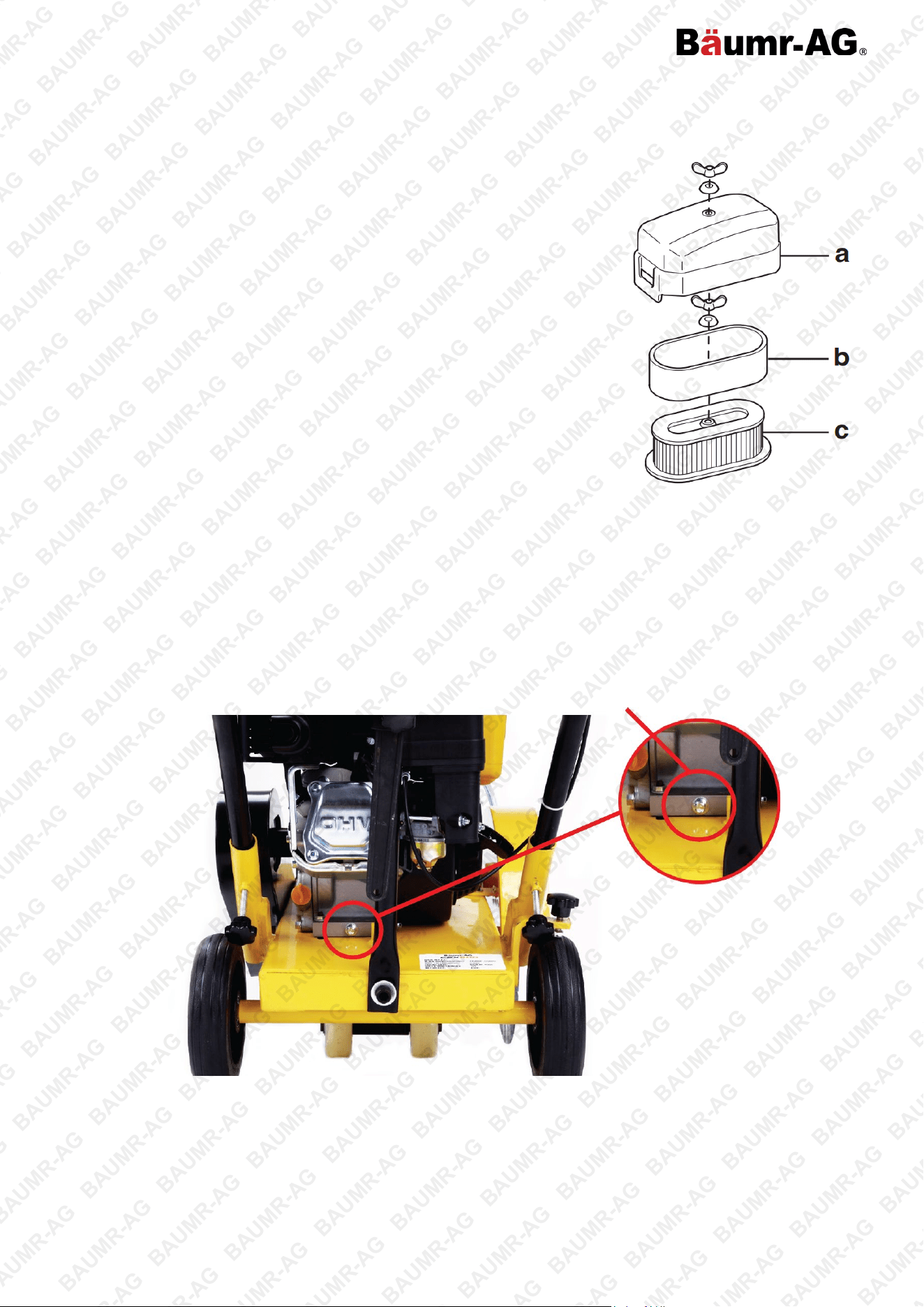

Air Filter

NOTICE: NEVER run the engine without the air cleaner. Severe engine

damage will occur.

The engine is equipped with a dual-element air cleaner.

Under normal operating conditions, the elements should be cleaned once

every week. Under severe, dry and dusty conditions, the elements should

be maintained daily. Replace an element when it is saturated with dirt that

cannot be removed.

•

Remove the air cleaner cover (a). Remove the filter assembly by pulling

it straight up. Inspect both elements for holes or tears. Replace

damaged elements.

•

Wash the foam element (b) in a solution of mild detergent and warm

water. Rinse it thoroughly in clean water. Allow the element to dry

thoroughly.

•

Tap the paper element (c) lightly to remove excess dirt or blow

compressed air through the filter from the inside out. Replace the paper

element if it appears heavily soiled.

Oil

Please check oil before every use. To drain the oil, remove the drain plug with a 10mm socket.

10mm screw

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Concrete Saw

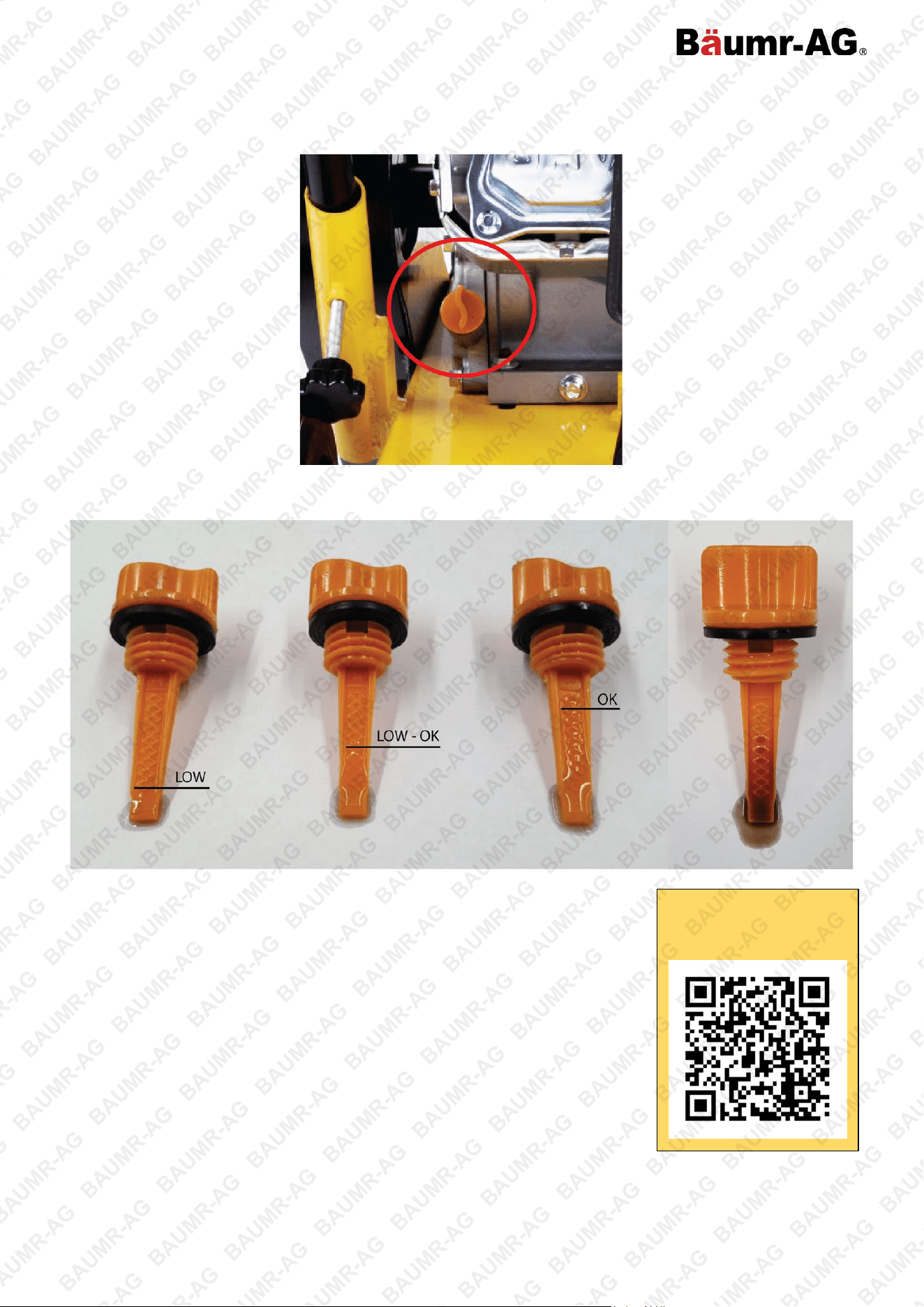

Once drained, fasten the screw plug back in. Refill with 600ml of 10W30 (recommended) engine oil by removing

the dipstick (circled in red) and pouring into cavity.

Check oil by removing dipstick and wiping it clean. Dip it back into its cavity without fully screwing it back in.

LOW – Needs refilling or more added

LOW-OK – Enough but will need refilling soon

OK – Enough

Consider replacing oil if in far-right condition.

IMPORTANT! Do not fill past the "OK" section of the dipstick. Filling the

engine without the blade installed on a level surface is recommended.

Spare parts available

for purchase, scan QR

code below:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Concrete Saw

Specifications

Engine type 4-Stroke OHV

Displacement 196CC

Max. Output 7hp/3600rpm

Fuel Type Regular Unleaded 95 +RON

Fuel Capacity 3.6L

Oil Capacity 0.6L

Engine Oil Grade SAE 10W 30

Blade Type / Diameter Diamond / 350mm

Blade Width 3mm

Circumferential Speed 2800R/Min

Blade Revolution 3600rpm

Max. Cutting Depth 80mm

Water Consumption 60L/h

Water Tank 12L

Drive Manual push

Product Dimensions (L x W x H) 1720 x 480 x 940mm

Product Weight 68.8kg

Carton Dimensions (L x W x H) 540 x 900 x 960mm

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAU

MR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any product

may cause serious injury or death. To help reduce your risk of serious injury or

death, refer to the information below. For more information, see

www.datastreamserver.com/safety



Consult all documentation, packaging and

product labelling before use. Note that some

products feature documentation available

online. It is recommended to print and retain

the documentation.



Before each use, check the product for

loose/broken/damaged/missing parts, wear or

leaks (if applicable). Never use a product with

loose/broken/damaged/missing parts, wear or

leaks.



Products must be inspected and serviced (if

applicable) by a qualified technician every 6

months. This is based on average residential

use by persons of average size and strength,

and on a property of average metropolitan

size. Use beyond these recommendations

may require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed access

to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific application or

description of application. Be sure to attain third-party approval

from a qualified specialist for your application before use,

regardless of any assurances from the retailer or its

representatives.



This product is not intended for use where fail-safe operation is

required. As with any product (for example, automobile,

computer, toaster), there is the possibility of technical issues

that may require the repair or replacement of parts, or the

product itself. If the possibility of such failure and the associated

time it may take to rectify could in any way inconvenience the

user, business or employee, or financially affect the user,

business or employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but not

limited to, a condition requiring product return, replacement,

parts replacement or service by a technician may cause

financial loss, loss of employee time or an inconvenience

requiring compensation.



If this product has been purchased in error when considering

the information presented here, contact the retailer directly for

details of their returns policy, if required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical,

including photocopying, scanning or recording, or any information storage and retrieval system, without express

permission or consent from the publisher.

BAUMR-AG CONSAWBMRA6C0 Concrete Road Saw Cutter Tools Push Construction Petrol 7HP Wet

Product's Documents

Product manual

Specifications

BAUMR-AG CONSAWBMRA6C0 Questions and Answers
