BAUMR-AG ENGPTLBMRC39R 13HP Petrol Stationary Engine User Manual

E&OE © Bäumr-AG

Models may vary

User Manual

[Revision 8.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to

add adequat

e engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Stationary Engines

E&OE © Bäumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is vital that you read and understand

this user manual before using the product,

including safety warnings, and any

assembly and operating instructions.

Keep the manual for future reference.

Safety precautions and recommendations

detailed here must be fully understood

and followed to reduce the risk of injury,

fire, explosion, electrical hazard, and/or

property damage.

Safety information presented here is

generic in nature – some advice may not

be applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered

or combustion engine powered.

• Before Use - If you are not familiar with

the safe operation/handling of the

equipment, or are in any way unsure of

any aspect of suitability or correct use

for your application, you should

complete training conducted by a

person or organization qualified in safe

use and operation of this equipment,

including fuel/electrical handling and

safety.

• Do NOT operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. The equipment

may create sparks or heat that may

ignite flammable substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the

equipment unless they have read this

manual and are adequately trained.

• Keep packaging away from children -

risk of suffocation! Operators must use

the equipment correctly. When using

the equipment, consider conditions and

pay due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting

dust extraction / collection facilities,

ensure these are connected and used

properly. Dust collection can reduce

dust-related hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in

the operating area of the equipment to

help protect from eye and ear injury,

poisoning, burns, cutting and crush

injuries. Protective equipment such as

safety goggles, respirators, non-slip

safety footwear, hard hat, hearing

protection etc should be used for

appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective

equipment. Do not wear loose clothing

or jewellery, which can be caught in

moving parts. Keep hair and clothing

away from the equipment.

• Stay alert and use common sense

when operating the equipment. Do not

over-reach. Always maintain secure

footing and balance.

• Do not use the equipment if tired or

under the influence of drugs, alcohol or

medication.

• This equipment is not intended for use

by persons with reduced physical,

sensory or mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely

flammable – keep clear of naked flames

or other ignition sources.

• Do not spill fuel. If you spill fuel, wipe it

off the equipment immediately – if fuel

gets on your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

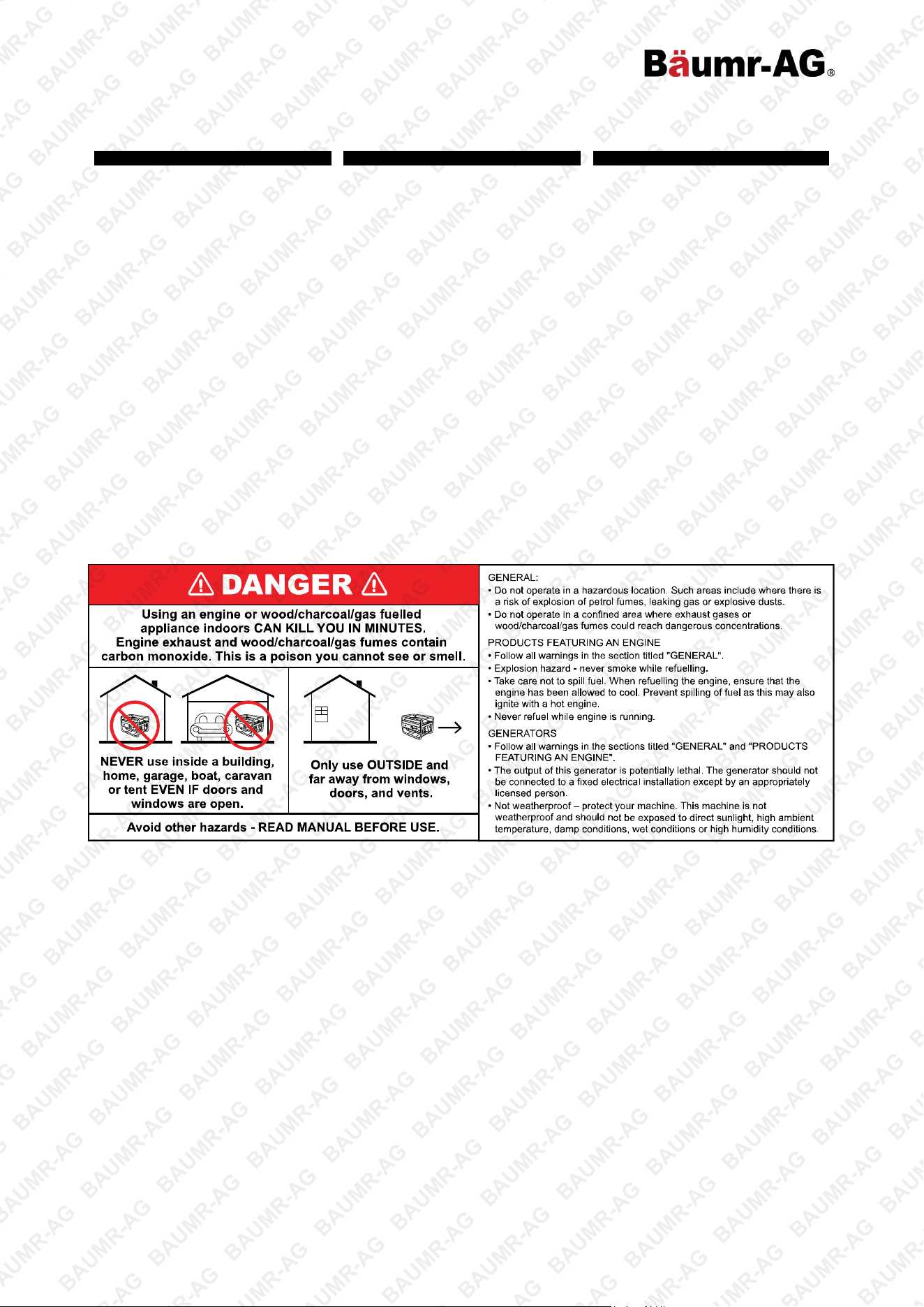

General Carbon-Monoxide Safety

•

Using a combustion engine indoors

CAN KILL IN MINUTES. Engine

exhaust contains carbon-monoxide – a

poison you cannot smell or see.

• Use combustion engines OUTSIDE

only, and far away from windows, doors

and vents.

General Equipment Use and Care

• Keep packaging away from children

and pets, potential risk of suffocation or

choking.

• The equipment is designed for

domestic use only.

• Handle the equipment safely and

carefully.

• Before use, inspect the equipment for

misalignment or binding of moving

parts, loose components, damage or

any other condition that may affect its

operation. If damaged, have the

equipment repaired by an authorised

service centre or technician before use.

• Prevent unintentional starting of the

equipment - ensure equipment and

power switches are in the OFF position

before connecting or moving

equipment. Do not carry equipment

with hands or fingers touching any

controls. Remove any tools or other

items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be

safer when used within its design and

usage parameters.

• Use the equipment and accessories

etc. in accordance with these

instructions, considering working

conditions and the work to be

performed. Using the equipment for

operations different from those

intended could result in hazardous

situations.

• Always keep equipment components

(engines, hoses, handles, controls,

frames, housings, guards etc) and

accessories (cutting tools, nozzles, bits

etc) properly maintained. Keep the

equipment clean and, where

applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the

equipment near flammable materials,

combustible gases or liquids etc.

• The equipment is not weather-proof,

and should not be stored in direct

sunlight, at high ambient temperatures

or locations that are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 3

• For specific equipment safety use and

care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings

for damage or wear before each use.

Repair or replace damaged equipment

immediately.

• Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and

safety codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating

this item (electrical items only).

• High voltage / high current power lines

may be present. Use extreme caution

to avoid contact or interference with

power lines. Electrical shock can be

fatal.

General Electrical Safety

• Electrically grounded equipment must

have an approved cord and plug and be

connected to a grounded electrical

outlet.

• Do NOT bypass the ON/OFF switch

and operate equipment by connecting

and disconnecting the electrical cord.

• Do NOT use equipment that has

exposed wiring, damaged switches,

covers or guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift,

move or carry equipment.

• Do NOT coil or knot electrical cords,

and ensure electrical cords are not trip

hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres

by qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to

ensure equipment safety is maintained.

• Do NOT attempt any maintenance or

repair work not described in this

manual.

• After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect

spark plugs and/or electrical power

sources and/or batteries from it before

making adjustments, changing

accessories or performing repair or

maintenance.

• Do NOT make adjustments while the

equipment is running.

• Perform service related activities in

suitable conditions, such as a

workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 4

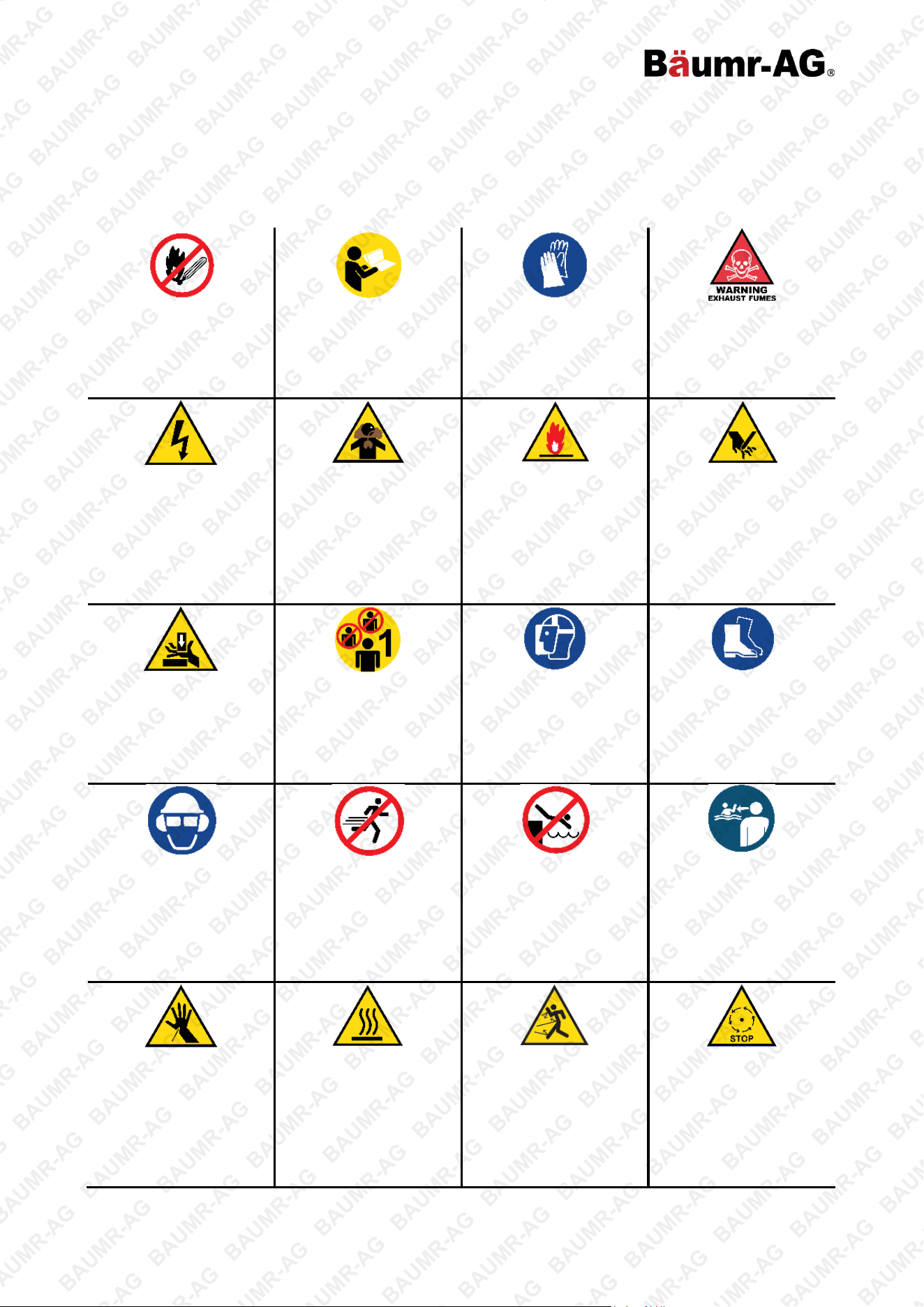

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on

your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and

open flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc

before using the product.

Use Hand Protection

Wear appropriate hand

protection and take due care

as the product or use of the

product may present hand

hazards.

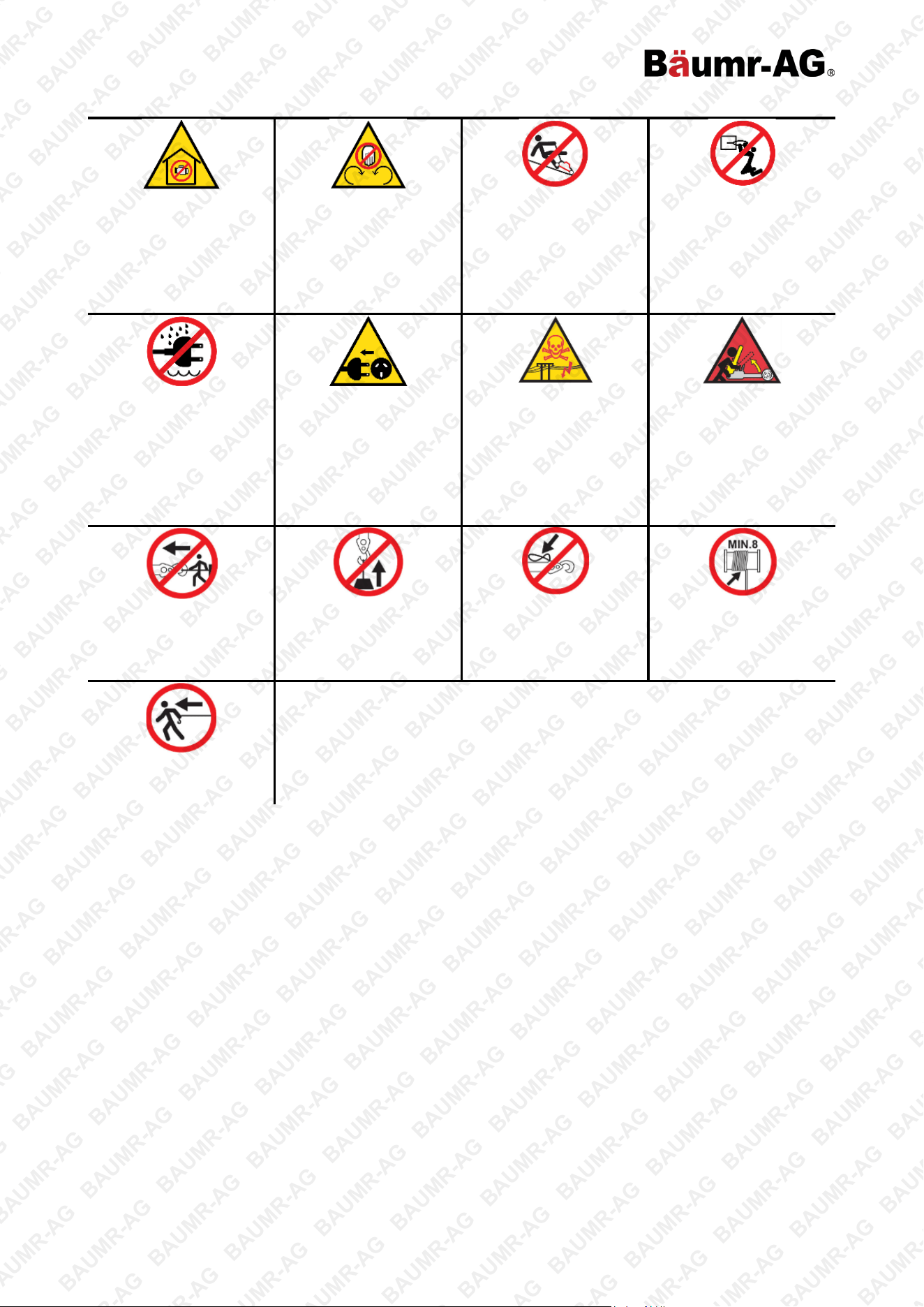

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Electrocution / Electrical

Shock Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling

electrical products, cables,

plugs and leads. Electrical

shock can be fatal.

Toxic Fumes / Dust Hazard

Using the product or by-

products from use may

produce fumes, smoke or

particles that could be harmful

if inhaled. Wear appropriate

breathing protection and have

adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be

present. Avoid ignition sources

and open flames. Danger of

explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices

that can cause severe cut

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Crush Hazard

The product may have blades,

edges or mechanical devices

that can cause severe crush

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Single Operator Only

The product must be operated

by a single person only. More

than one person operating the

product may introduce

additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care

as the product or use of the

product may present face and

eye hazards.

Use Foot Protection

Wear appropriate foot

protection and take due care

as the product or use of the

product may present foot

hazards.

Use Eye / Ear / Head

Protection

Wear appropriate eye and / or

ear and / or head protection

and take due care as the

product or use of the product

may present eye, hearing and

head hazards.

Running Hazard

Do not run on or near the

product as doing so may

present a fall hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or

objects that can cause severe

injury to fingers, limbs, blood

etc. Take due care when

handling and using the

product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures

and hot surfaces that can

cause burn injuries.

Flying Debris Hazard

Be aware that the product or

use of the product may

present hazards produced by

flying debris. Wear appropriate

clothing and protectiove

devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts

to stop fully before handling

the product, adjusting,

maintenence etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 5

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due

care when handling and using

the product.

Slope / Fall Injury Hazard

Be aware that using the

product on sloping surfaces or

in slippery conditions may

present additional dangers

from falls and contact with

blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

maneouvres as this may result

in severe injury due to falling,

product breakage or collapse

etc.

Electrocution / Electrical

Shock Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do

NOT use in rain, damp or wet

conditions. Electrical shock

can be fatal.

Electrocution / Electrical

Shock Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product.

Always disconnect the product

from the electrical supply

before handling the product,

adjusting, maintenence etc.

Power Line Electrocution

Hazard

High voltage / high current

power lines may be present.

Use extreme caution to avoid

contact or interference with

power lines. Electrical shock

can be fatal.

"Kick-Back" Hazard

High level of "kick-back"

hazard that can cause the

machine to suddenly rotate

towards operator. Kick-back

injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch

to move people.

Winch Lift Hazard

Do NOT LIFT load vertically.

Use machine to PULL only.

Cable Hazard

Ensure that load bearing cable

is not kinked or knotted.

Winch Cable Hazard

Ensure that there is a

minimum number of cable

coils on winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 6

Table of Contents

Safety ................................................................................................................................................ 2

Safety Symbols ............................................................................................................................................ 4

Applicable Models ........................................................................................................................... 8

Parts Identification ......................................................................................................................... 10

Petrol Engines ............................................................................................................................................ 10

Diesel 4-Stroke Engines ............................................................................................................................. 11

Spare Parts ..................................................................................................................................... 12

Assembly ........................................................................................................................................ 14

Before Use Checklist ..................................................................................................................... 15

Engine Oil ................................................................................................................................................... 15

Air Filter ...................................................................................................................................................... 15

Fuel ............................................................................................................................................................ 15

Priming the Fuel System ..................................................................................................................... 16

Mounting and Connecting to the Engine ..................................................................................... 17

Petrol Engines ............................................................................................................................................ 17

Diesel Engines ........................................................................................................................................... 18

Engine Starting and Operation ..................................................................................................... 19

Starting Petrol Engines .............................................................................................................................. 19

Starting Diesel Engines .............................................................................................................................. 20

Electric Starting .......................................................................................................................................... 20

Jump-Starting ...................................................................................................................................... 21

Stopping the Engine ................................................................................................................................... 21

Stopping in an Emergency .................................................................................................................. 21

Stopping in Normal Use ....................................................................................................................... 21

Engine Operation ....................................................................................................................................... 21

Environmental Considerations ................................................................................................................... 21

Maintenance ................................................................................................................................... 22

Maintenance Schedule – Petrol Engines / Machines ................................................................................ 23

Maintenance Schedule – Diesel Engines / Machines ................................................................................ 24

Engine Oil ................................................................................................................................................... 25

Air Filter ...................................................................................................................................................... 27

Inspection and Cleaning ...................................................................................................................... 27

Removal/Installation – 4-Stroke Petrol Engines .................................................................................. 27

Air Filter Removal/Installation – 4-Stroke Diesel Engines ................................................................... 28

Spark Plug .................................................................................................................................................. 29

Cleaning and Gap Checking ................................................................................................................ 29

Removal/Installation ............................................................................................................................ 29

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 7

Transportation and Storage .......................................................................................................... 30

Troubleshooting ............................................................................................................................. 31

Specifications ................................................................................................................................. 34

Engine Service and Maintenance Record .................................................................................... 35

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 8

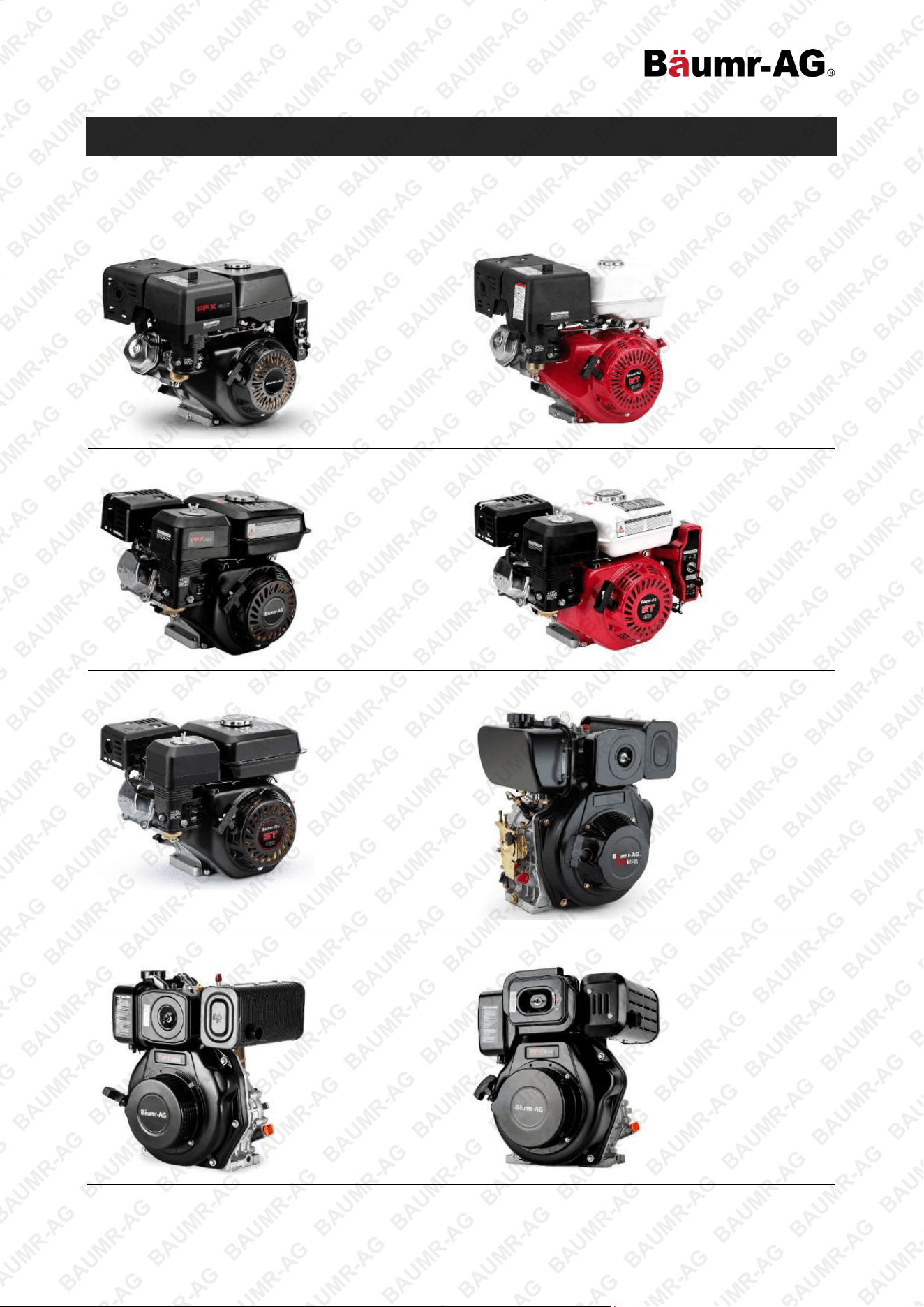

Applicable Models

This manual applies to the following stationary engines:

PFX407 407cc Petrol

ST389 389cc Petrol

PFX210 210cc Petrol

ST196 196cc Petrol

PFX163 163cc Petrol

RX305 305cc Diesel

PFX305 305cc Diesel

PFX419 418cc Diesel

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 9

RX460E 460cc Diesel

SX450E 448cc Petrol

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 10

Parts Identification

It is strongly recommended that you familiarise yourself with all major components of the machine before

using it or performing any maintenance tasks.

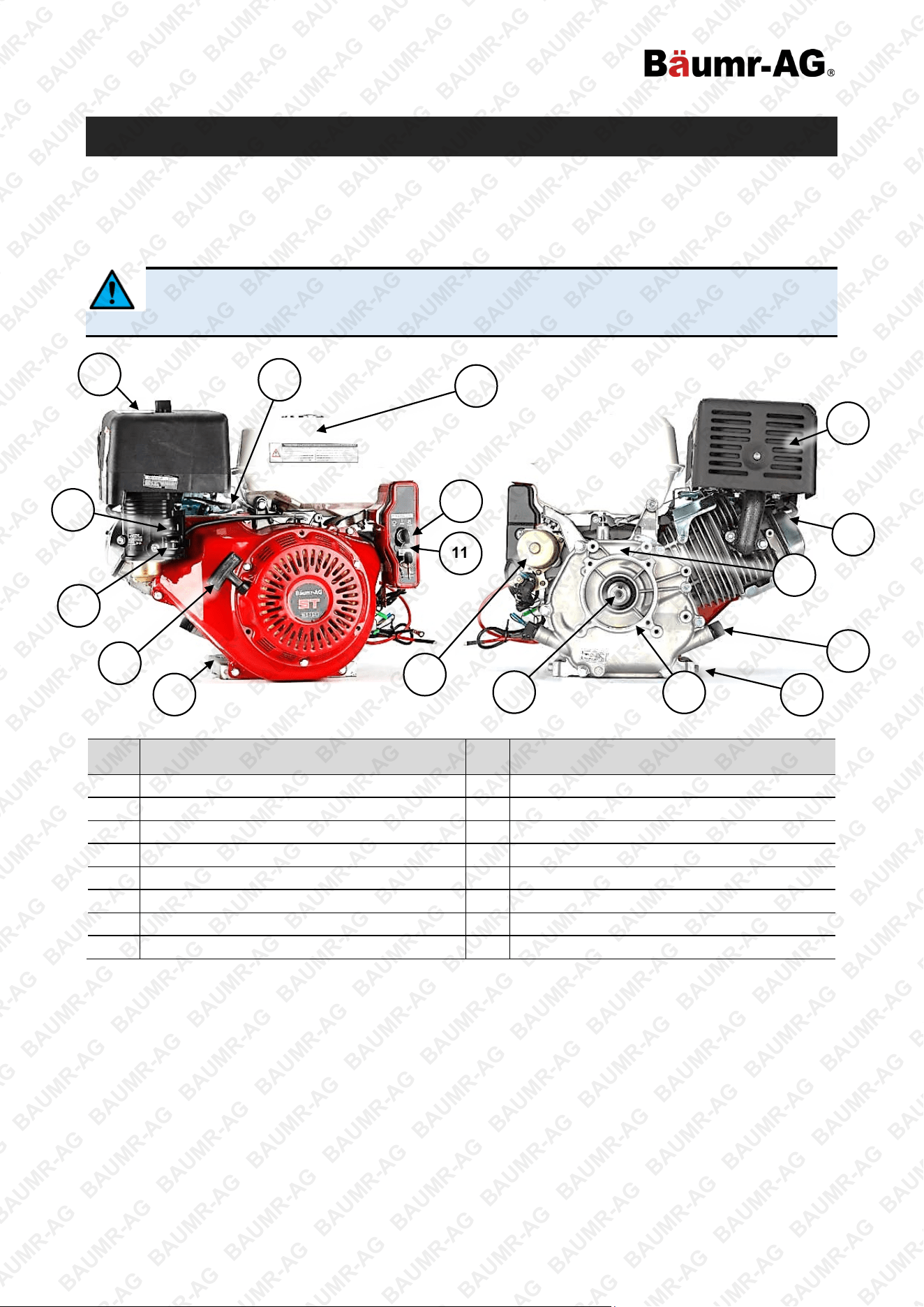

Petrol Engines

Products detailed in this manual may vary in appearance, inclusions, description and packaging

from those shown or described. This section shows typical major components common to most 4-

stroke petrol engines.

No. Name No. Name

1

Exhaust

9

Engine ON/OFF Switch

2

Fuel Tank (fuel filler on top)

10

Starter Cord

3 Air Intake Assembly (filter inside) 11 Electric Start Module (electric start models)

4 Choke 12 Starter Motor (electric start models)

5 Throttle 13 Output Shaft (output shaft drive key supplied)

6 Fuel Tap 14 Output Shaft Mounting Flange

7

Oil Filler/Dipstick (some models have 2)

15

Engine Mounting Hole (4)

8

Oil Drain Plug (some models have 2)

16

Spark plug (not visible)

1

3

2

7

6

11

8

9

14

4

5

6

10

13

12

15

16

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 11

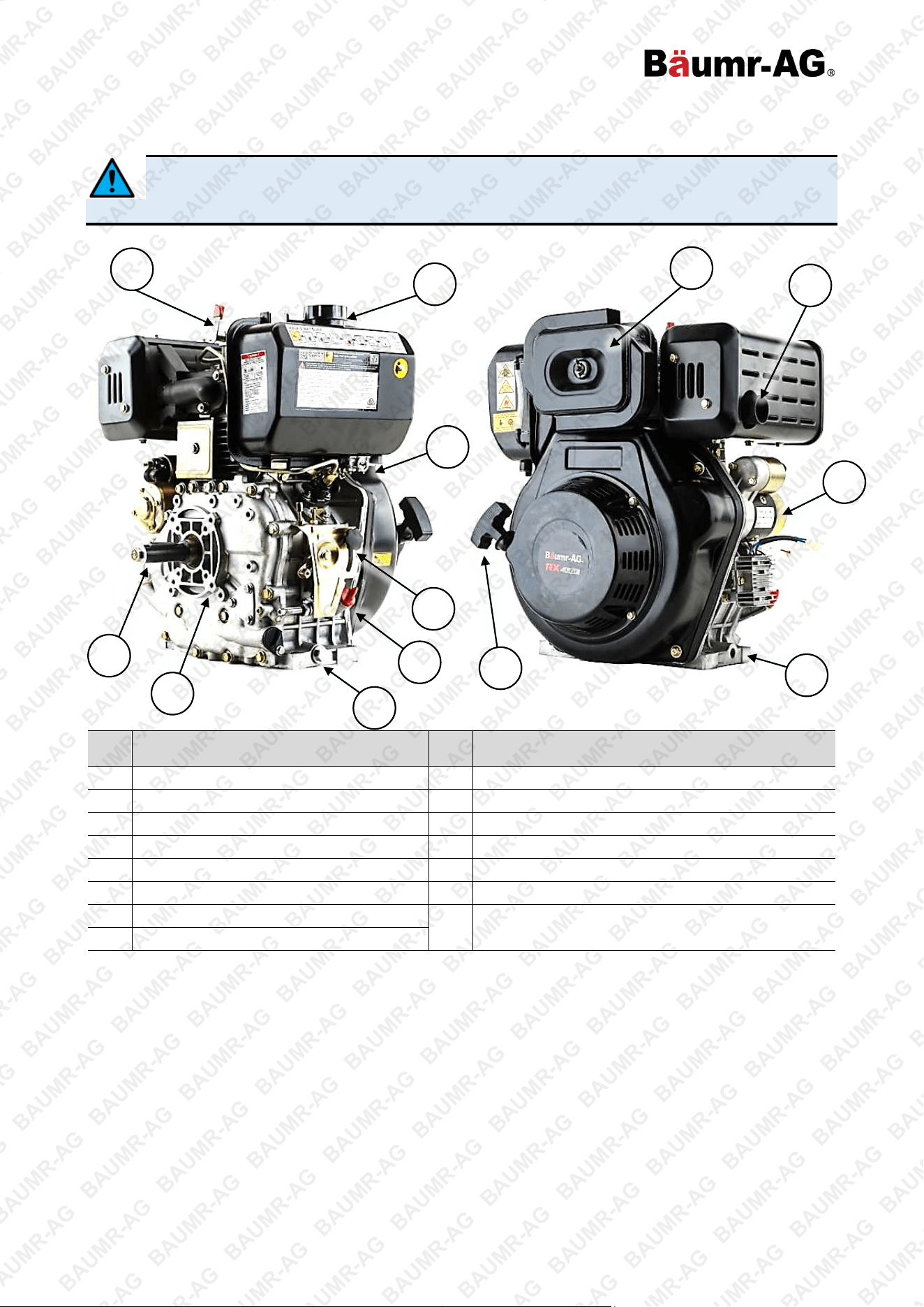

Diesel 4-Stroke Engines

Products detailed in this manual may vary in appearance, inclusions, description and packaging

from those shown or described. This section shows typical major components common to most 4-

stroke diesel engines.

No. Name No. Name

1 Exhaust 9 Air Intake Assembly (filter inside)

2 Fuel Filler 10 Fuel Tank

3 Decompression Lever 11 Electric Start Module (electric start models) (not shown)

4 Oil Filler/Dipstick (some models have 2) 12 Starter Motor (electric start models)

5

Oil Drain Plug (some models have 2)

13

Output Shaft (output shaft drive key supplied)

6

Throttle

14

Output Shaft Mounting Flange

7

Fuel Tap 15 Engine Mounting Hole (4)

8

Starter Cord

1

3

2

4

5

12

8

6

7

9

13

15

14

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 12

Spare Parts

Spare parts available for purchase, scan QR code/s below:

QR Code SKU QR Code SKU

ENGPTLBMRA21R

ENGPTLBMRC17R

ENGPTLBMRC20E

ENGPTLBMRC20R

ENGPTLBMRC21E

ENGPTLBMRC21R

ENGPTLBMRC39E

ENGPTLBMRC39R

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 13

QR Code SKU QR Code SKU

ENGPTLBMRC41E

ENGPTLBMRC41R

ENGDSLBMRC30R

ENGDSLBMRC46E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 14

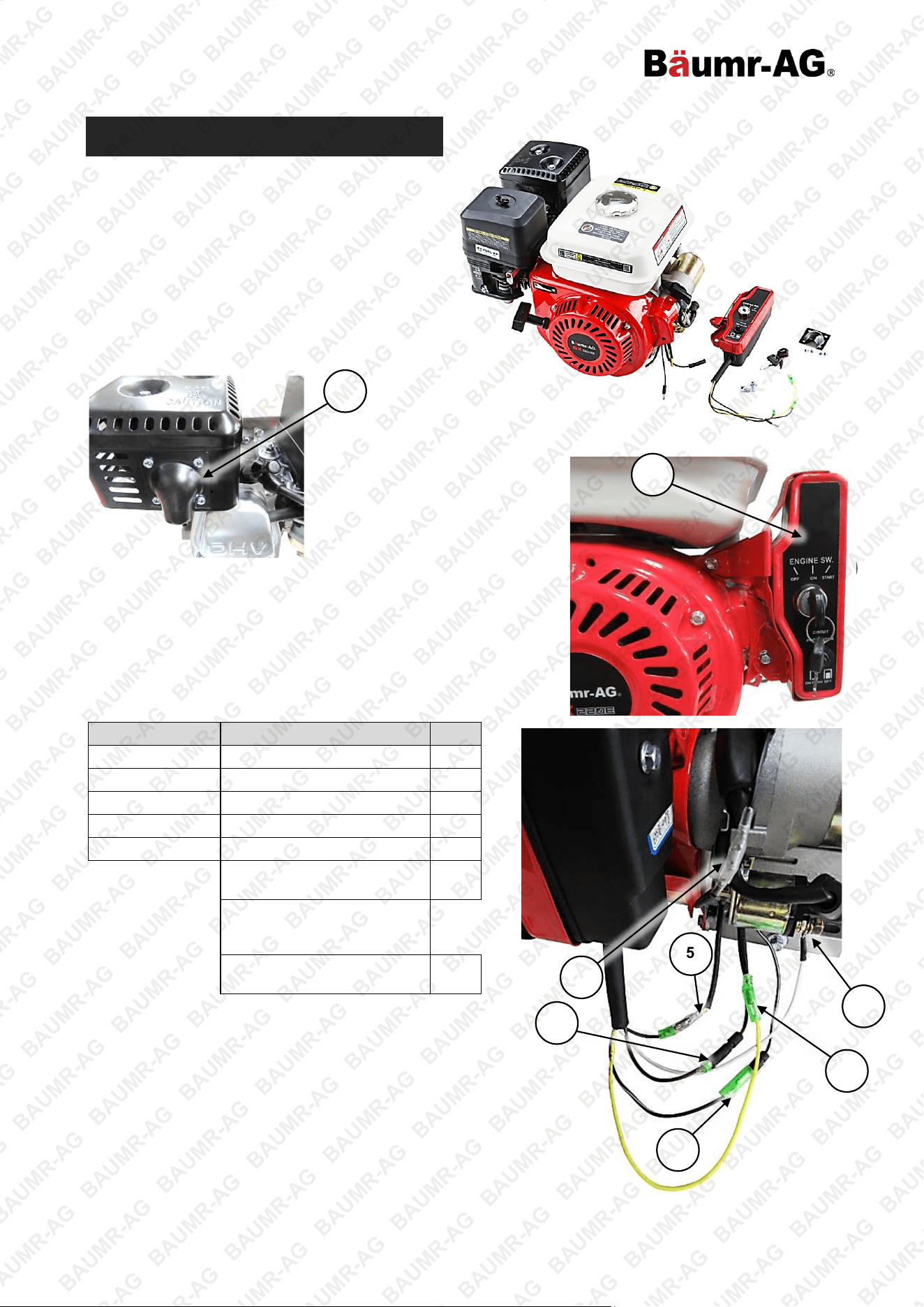

Assembly

Typically, most engines are fully assembled,

however, some models may require the following

assembly (as applicable). The image below shows

an unassembled electric start petrol model with

exhaust shroud.

Exhaust Shroud

Place the shroud (A) over the exhaust port –

generally with the opening facing down and attach

it using the 4 supplied screws.

Electric Start

For some models with electric start, if the switch block has been

supplied unassembled, it will require attachment to the engine and

the wiring connected. Attach the switch block (B) to the brackets on

the engine using the 2 supplied bolts. The mounting brackets on the

engine may vary slightly between models, however, the switch block

is always located next to the starter motor. Connect wires as

follows:

Switch Block Engine Ref.

WHITE Starter Solenoid Terminal 1

YELLOW YELLOW to Oil Level Sensor 2

BROWN

3

BLACK

/

WHITE

BLACK

/

WHITE

4

BLACK

YELLOW

to Rectifier

5

BLACK

from Rectifier to

BLACK

from Coil

6

NEGATIVE (-) Battery terminal

to engine mounting bolt or

case stud

POSITIVE (+) Battery terminal

to Starter Solenoid Terminal

1

A

B

A

1

2

3

4

5

6

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 15

Before Use Checklist

Ensure that you carry out all procedures below before starting the engine or operating the

equipment. All procedures described are generic in nature and slight variations between

different models may exist. Failure to follow the checklist and carry out the procedures correctly may

result in making the product warranty void. The product is NOT supplied with engine oil, although traces

of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct

type to the engine before use – see Engine Oil. Failure to add engine oil will void the product warranty.

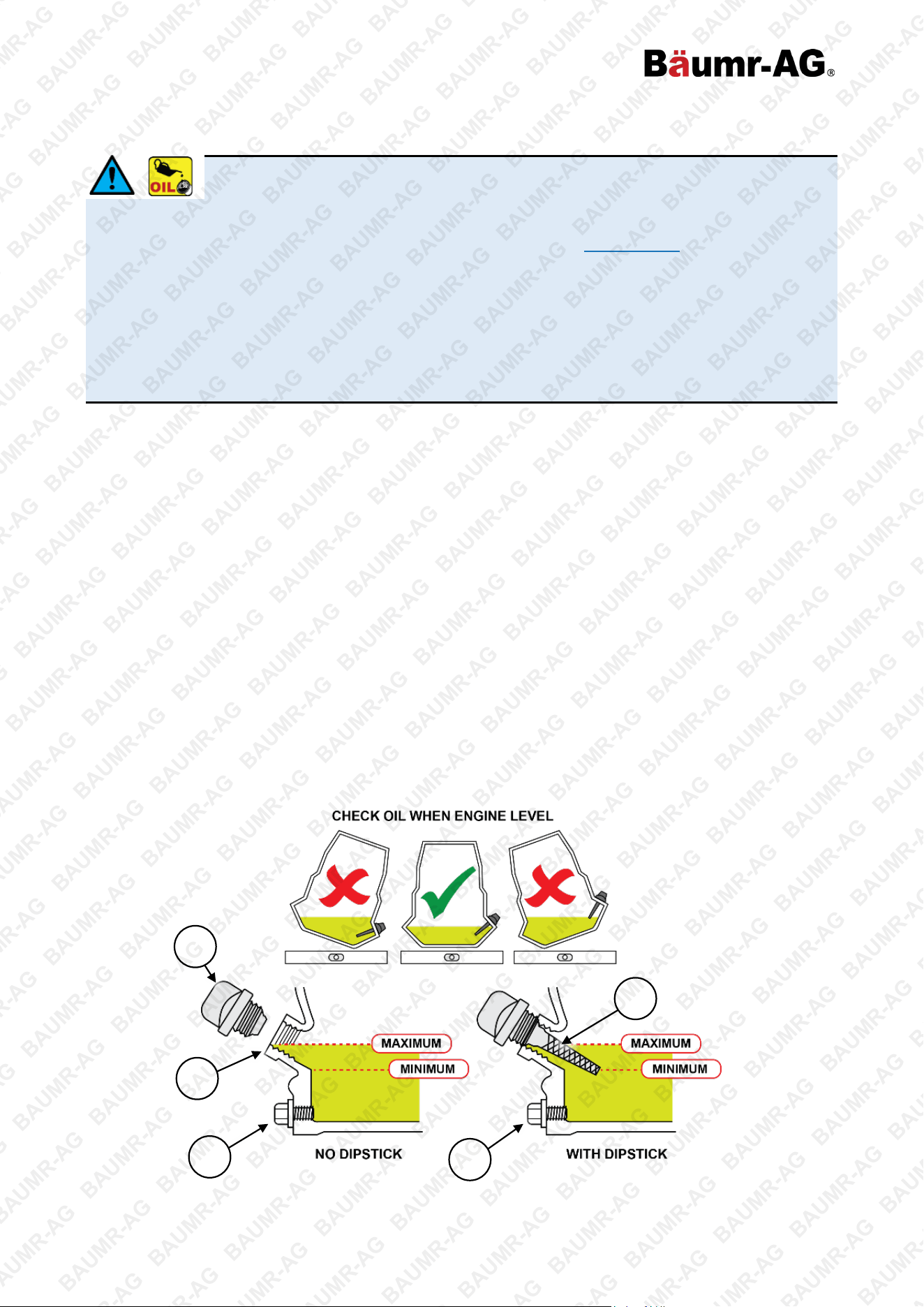

Engine Oil

Four-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance. Check the engine oil level and ensure that the oil level is at or just under the maximum

level indicator.

Some machines may feature an oil level sensor that will prevent the engine being started or automatically

stop the engine if the oil level falls below an acceptable level. This system, however, is not to be solely relied

upon. Always check that the engine oil level is at or near the "MAX" indicator before starting the

engine. See Engine Oil

.

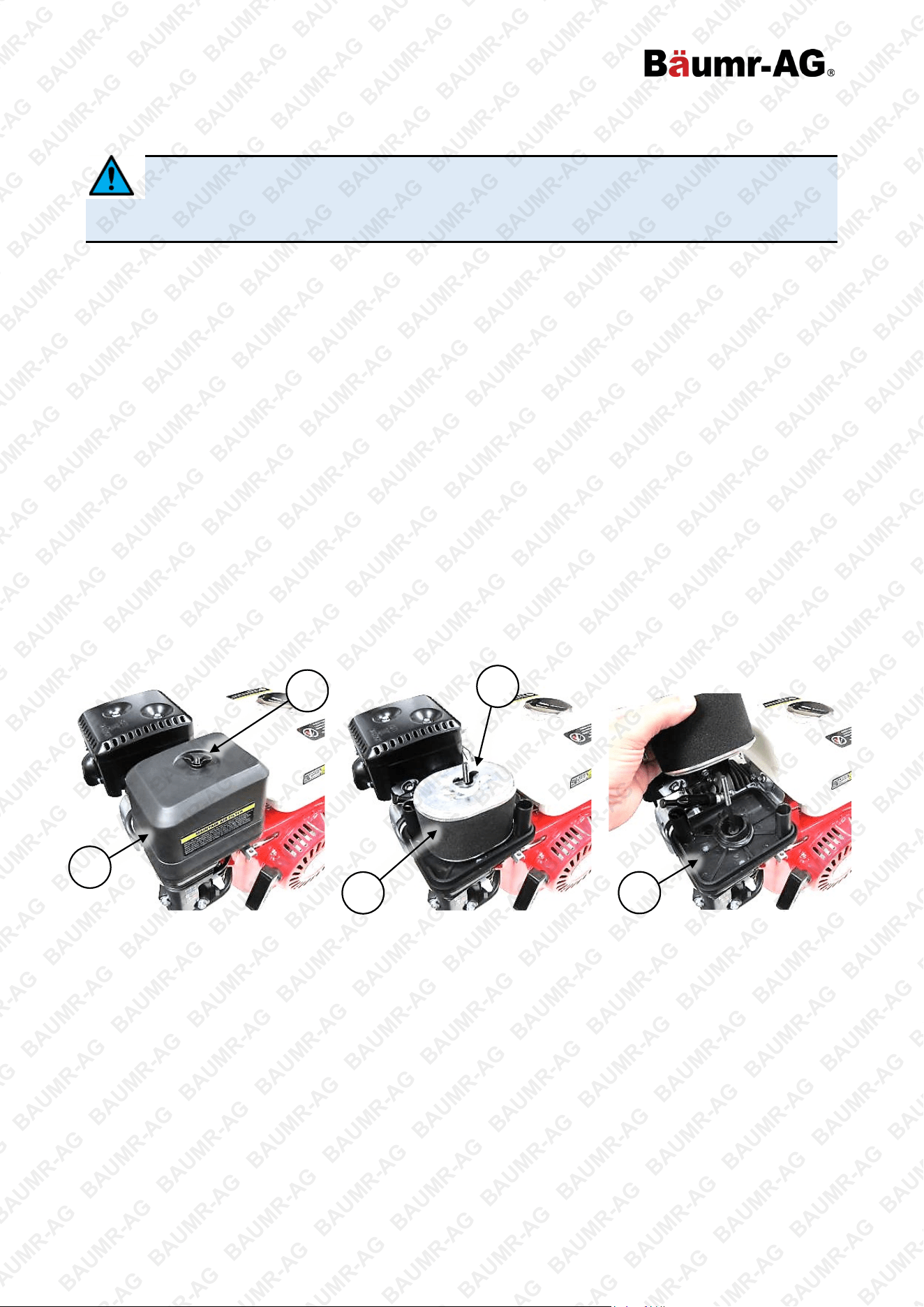

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance.

Always check the air filter before starting the engine. See Air Filter.

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The engine must be cool before refuelling.

Adequately fill the fuel tank with the correct fuel type.

• For 4-stroke petrol engines, use non-ethanol unleaded petrol (higher RON values will provide best

engine performance). Do not use old or contaminated fuel.

• For diesel engines, use commercial non-bio diesel fuel. Do not use old or contaminated fuel.

To fill or top up fuel:

1. Place the machine in an upright position on a flat and level surface.

2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap

is removed.

3. Remove (rotate left) the fuel filler cap.

4. Using a funnel, carefully fill the tank with fuel. Do not fill above the top of the strainer (if equipped) or

otherwise overfill the tank.

5. When finished, reinstall (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the

machine. If fuel has been spilt, move the pump away from the spillage before starting the engine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 16

Priming the Fuel System

When an engine is new or has been completely run out of fuel it may be

necessary to "prime" the fuel system before attempting to start the engine.

This means removing any air from the fuel line. To prime:

1. Fill the fuel tank with fuel.

2. Remove the fuel line (A) from the carburettor or fuel injector using pliers

to loosen the hose-clamp. Hold a container beneath the fuel line to catch

any spilt fuel.

3. Place the fuel tap in the “ON” position and allow fuel to flow out (into the

container) until no air bubbles can be seen in the fuel stream.

4. Push the fuel line back onto its connection point and re-fasten the hose

clamp.

5. Clean up any spilled fuel. If fuel has been spilt, move the pump away

from the spillage before starting the engine.

6. Start the engine.

A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 17

Mounting and Connecting to the Engine

Always measure the actual unit before building or drilling mounting frames, drive pulleys etc.

Each engine features a set of holes in the base for mounting and a keyed output shaft. It is essential that the

engine be mounted to a suitable surface, frame etc that is capable of supporting the weight of the engine as

well as any twisting forces it generates.

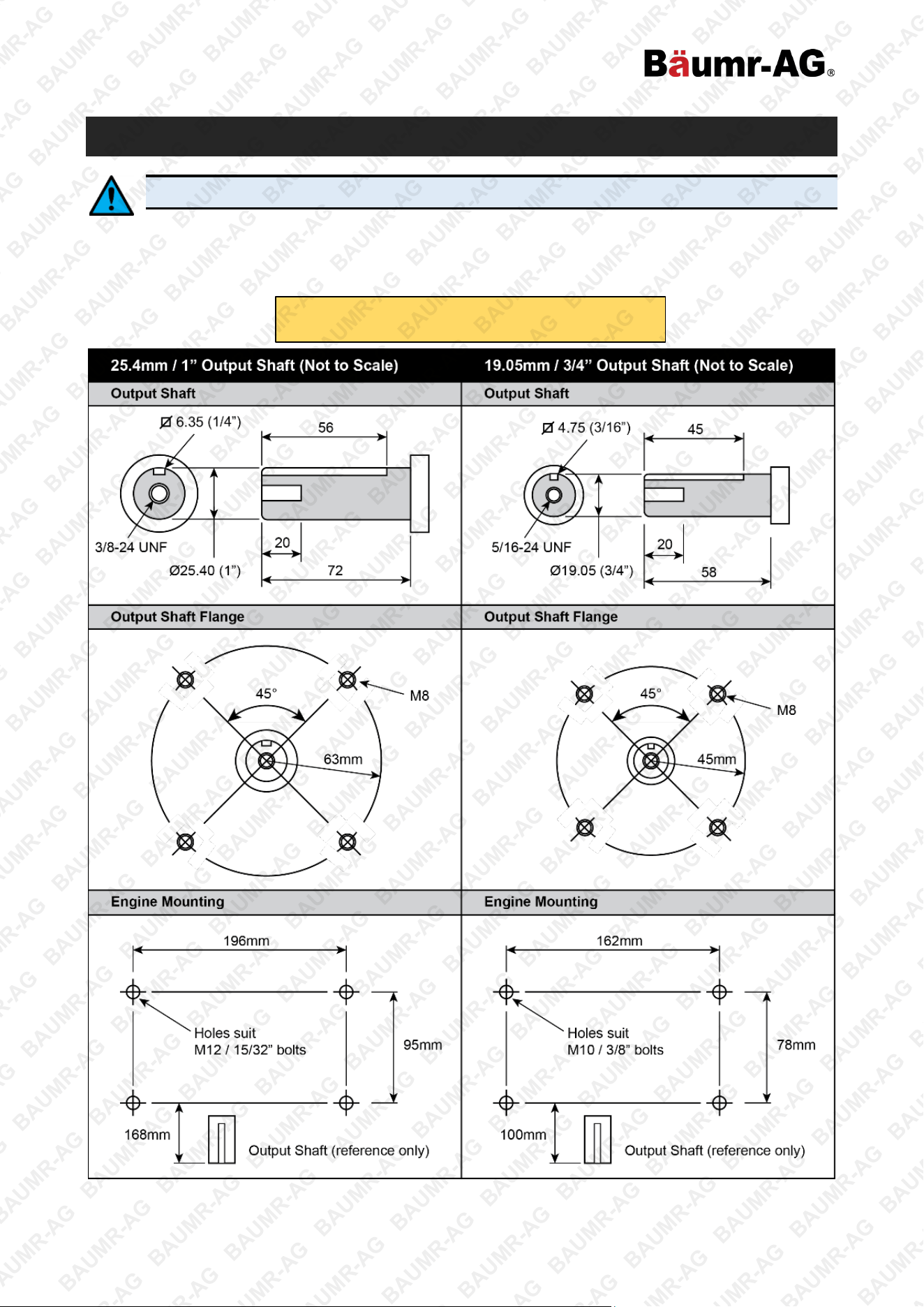

Petrol Engines

Keyway width varies between models. Always refer to the

product listing for required measurements and dimensions.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 18

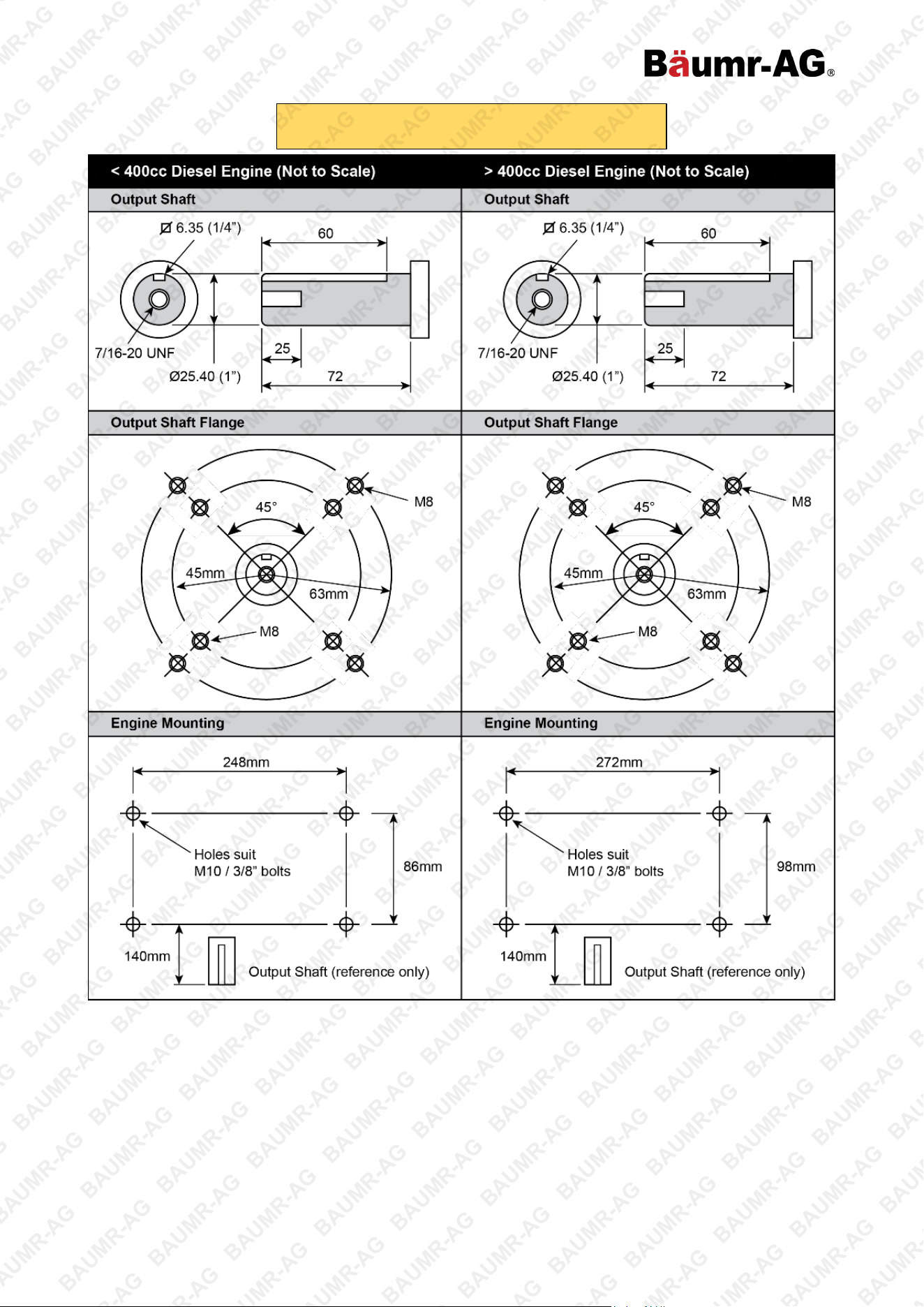

Diesel Engines

Keyway width varies between models. Always refer to the

product listing for required measurements and dimensions.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 19

Engine Starting and Operation

Before starting the engine, ensure that you have followed

all procedures described in the Before Use Checklist. The

product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be

present. It is essential to add adequate engine oil of the correct type to the engine before use – see Engine

Oil. Failure to add engine oil will void the product warranty.

Different models may feature variations in design; for example, some have different engine types, electric

start etc. The following procedures and images are typical to all models, however, the position or appearance

of controls etc may vary. All major engine controls are identified on the machine by way of stickers or other

markings.

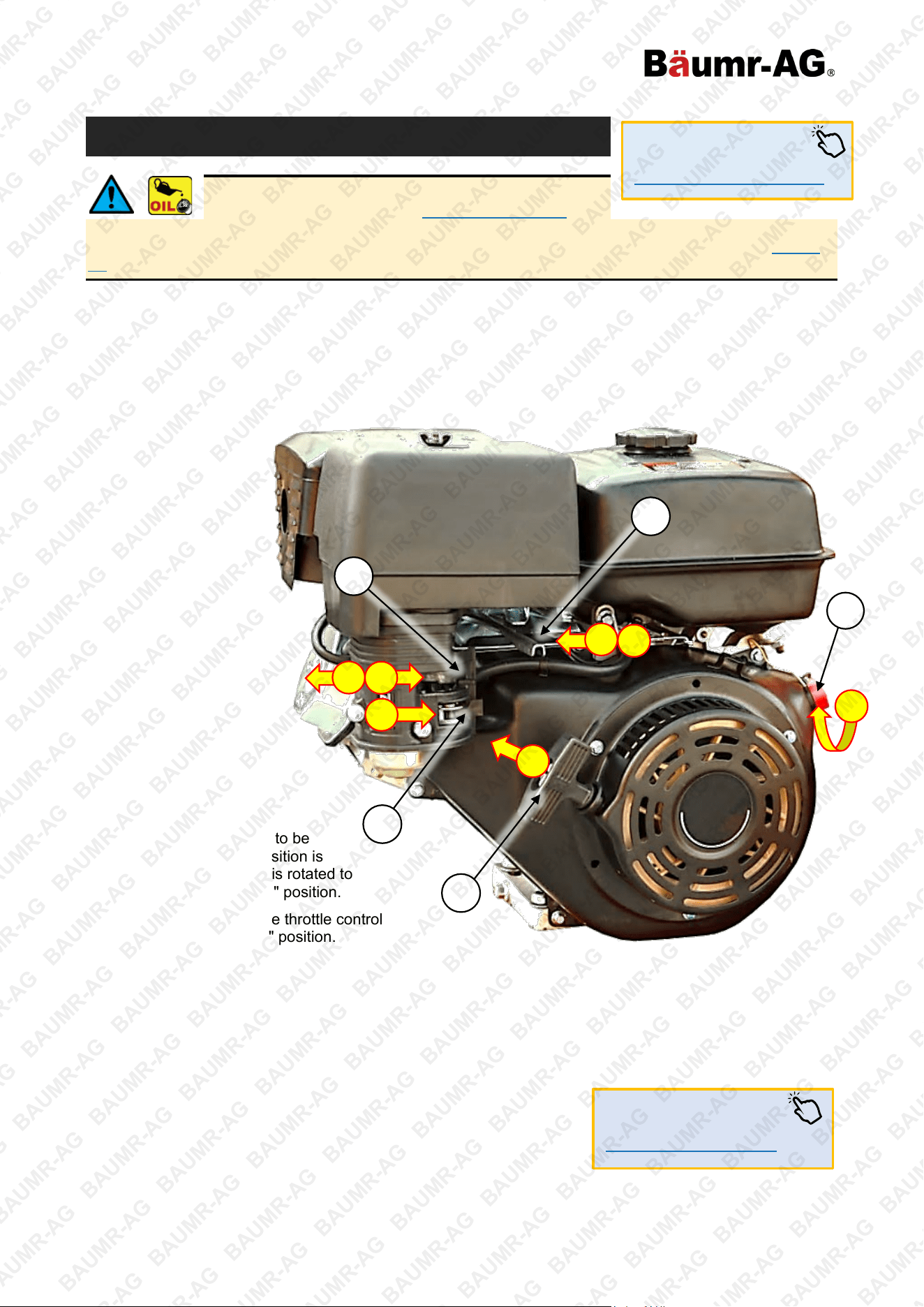

Starting Petrol Engines

1. FUEL – Place the

fuel tap (A) in the

"ON" position (to

the right).

2. CHOKE – If the

engine is cold,

place the choke (B)

in the "COLD"

position (to the left).

If the engine is

warm or ambient

temperature is high,

place in the "HOT"

position (to the

right).

3. IGNITION – Place

the engine ON/OFF

switch (C) or key

switch (if equipped)

in the "ON" ("I")

position. For key

switches, the "OFF"

position allows the key to be

removed. The "ON" position is

reached when the key is rotated to

the right from the "OFF" position.

4. THROTTLE – Place the throttle control

(D) just off the "SLOW" position.

5. START – Slowly pull out the starter cord (E) until you feel it engage with the engine, then pull it out

rapidly (use both hands if necessary). The engine should start. Allow the starter cord to rewind slowly –

do not let it "snap" back.

6. WARM-UP – Allow the engine to warm-up and run smoothly. If choke is being applied, place the choke

(B) in the "HOT" position.

7. THROTTLE – Adjust the throttle control (D) for the required engine speed.

Video Tutorial:

Starting 4-Stroke Engines

A

B

C

1

2

5

4

6

7

3

D

E

C

Video Tutorial:

Starting Petrol Engines

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 20

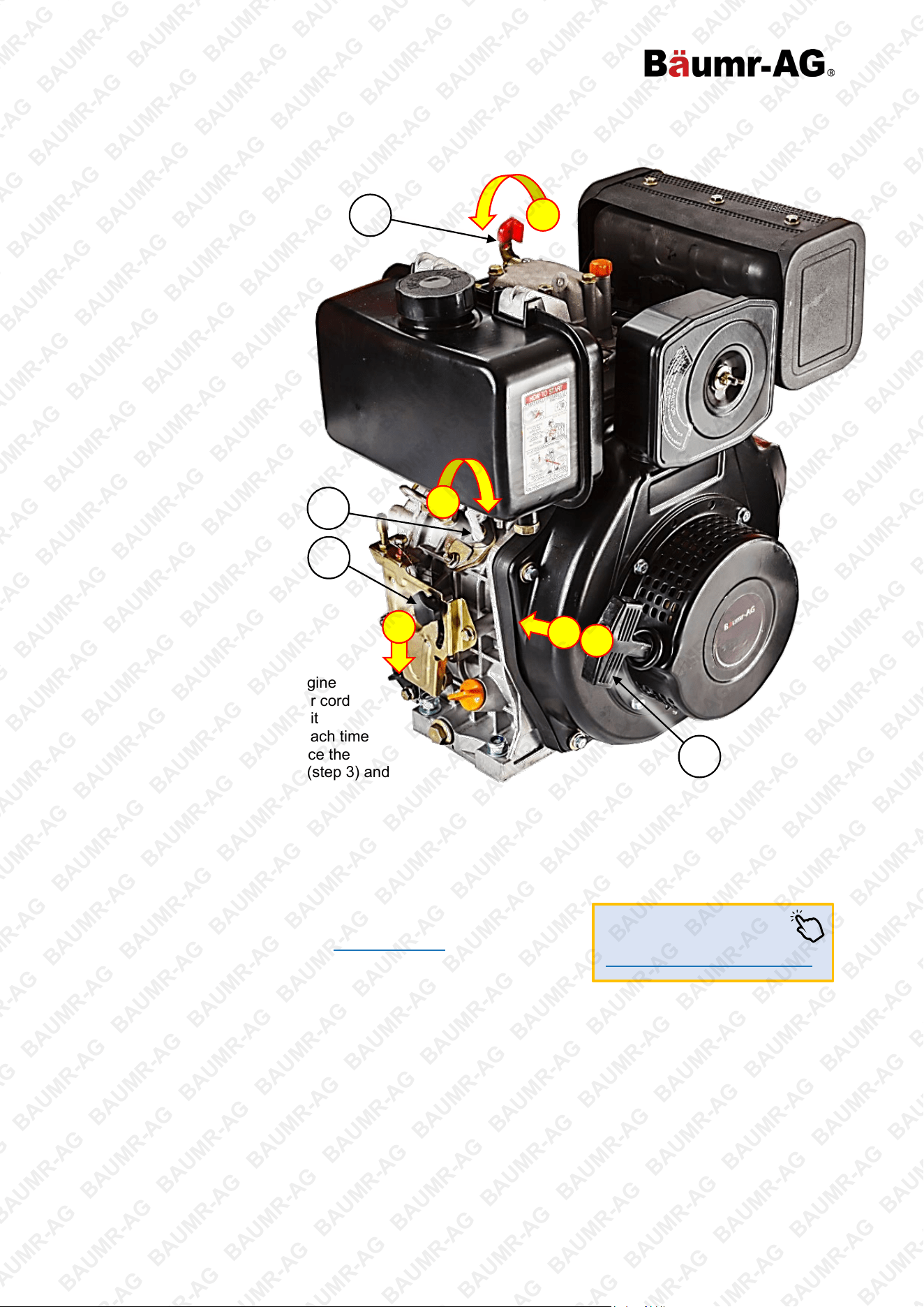

Starting Diesel Engines

1. FUEL – Place the fuel

tap (A) in the "ON"

position.

2. THROTTLE – Place the

throttle control (B) in the

"RUN" position (down).

Some models use a

screw to secure the

throttle in position – to

adjust, loosen the screw

and move it to the

required position, then

tighten it again.

3. TOP DEAD CENTRE –

Slowly pull out the starter

cord (D) until you feel it

engage with the engine,

then allow it to return to

the retracted position.

4. DECOMPRESS – Place

the decompression lever

(C) in the "down"

position, otherwise you

may not be able to start

the engine.

5. START – Rapidly pull the

starter cord (D) (use both

hands if necessary). The engine

should start. Allow the starter cord

to rewind slowly – do not let it

"snap" back to the engine. Each time

you use the starter cord, place the

engine at "top dead centre" (step 3) and

the decompression lever in the "down"

position (step 4) first.

6. WARM-UP – Allow the engine to warm-up and run smoothly.

7. THROTTLE – Adjust the throttle control (B) for the required engine speed. Some models use a screw to

secure the throttle in position – to adjust, loosen the screw and move it to the required position, then

tighten it again.

If the engine does not start, repeat step 3 onward. If the engine fails to

start after several attempts, refer to Troubleshooting

.

Electric Starting

For models equipped with an electric start option, charge the battery then connect a suitable battery cable

(cables may be supplied) between the battery POSITIVE ("+") terminal and the starter solenoid POSITIVE

terminal (this usually has rubber caps for the connectors). Then, connect a battery cable between the battery

NEGATIVE ("-") terminal and an engine case stud / bolt..

1. Follow steps 1 to 5 as per manual/pull starting.

2. START – Turn the ignition key fully to the right to engage the starter motor. The engine should start.

3. WARM-UP – Allow the engine to warm-up and run smoothly.

C

A

B

D

3

2

5

1

4

Video Tutorial:

Pull-Starting Diesel Engines

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 21

4. THROTTLE – Adjust the throttle control for the required engine speed. Some models use a screw to

secure the throttle in position – to adjust, loosen the screw and move it to the required position, then

tighten it again.

If the engine does not start, repeat step 2 onward. If the engine fails to start after several attempts, refer to

Troubleshooting.

Jump-Starting

If the battery does not have enough charge to sufficiently crank the engine, the engine can be jump-started.

Use a fully charged battery (the "jump" battery) and suitable jump-starting cables. To jump-start:

1. Ensure the ignition is OFF (for some models, this is the position that allows the key to be removed).

2. Connect the jump battery positive ("+") terminal to the engine battery positive ("+") terminal.

3. Connect the jump battery negative ("-") terminal to the engine battery negative ("-") terminal.

4. Follow the normal electric start procedure from step 2 onward.

Stopping the Engine

Stopping in an Emergency

1. To stop the engine immediately, place the engine ON/OFF switch or key switch in the OFF position.

Stopping in Normal Use

1. Place the throttle control in the "SLOW" position.

2. Place the engine ON/OFF switch or key switch in the "OFF" position.

3. Place the fuel tap in the "OFF" position.

Engine Operation

Once the engine is running and has warmed up, adjust the engine speed as required by moving the throttle

lever. In most applications generally, the engine is used at full throttle.

For electric start models, when the engine is running, normal battery charging will occur. The engine must

run for several hours to fully charge the battery.

Environmental Considerations

Altitude - If the engine is being used in altitudes at or above 1500m (approximately 5000'), adjustments to

the carburettor may be required. This is because there is less oxygen in the air as altitude increases, which

effectively “enriches” the ratio of fuel to air going into the engine and the higher the altitude, the richer the

fuel mixture becomes. If the engine is being permanently operated at high altitude, it is recommended to

have an authorized service centre make the necessary carburettor adjustments. If the engine is used

occasionally at altitude (not extreme altitudes), no adjustments should be required, however, a slight

decrease in engine performance can be expected.

Temperature - If the engine is being used in extremely cold or

hot environments; for example, desert or snow conditions, the

type of engine oil may need to be changed to suit environmental

temperatures. Oil thickens as the temperature decreases and

thins as temperature increases, which means that if the engine

oil is not suited to the temperature its ability to properly lubricate

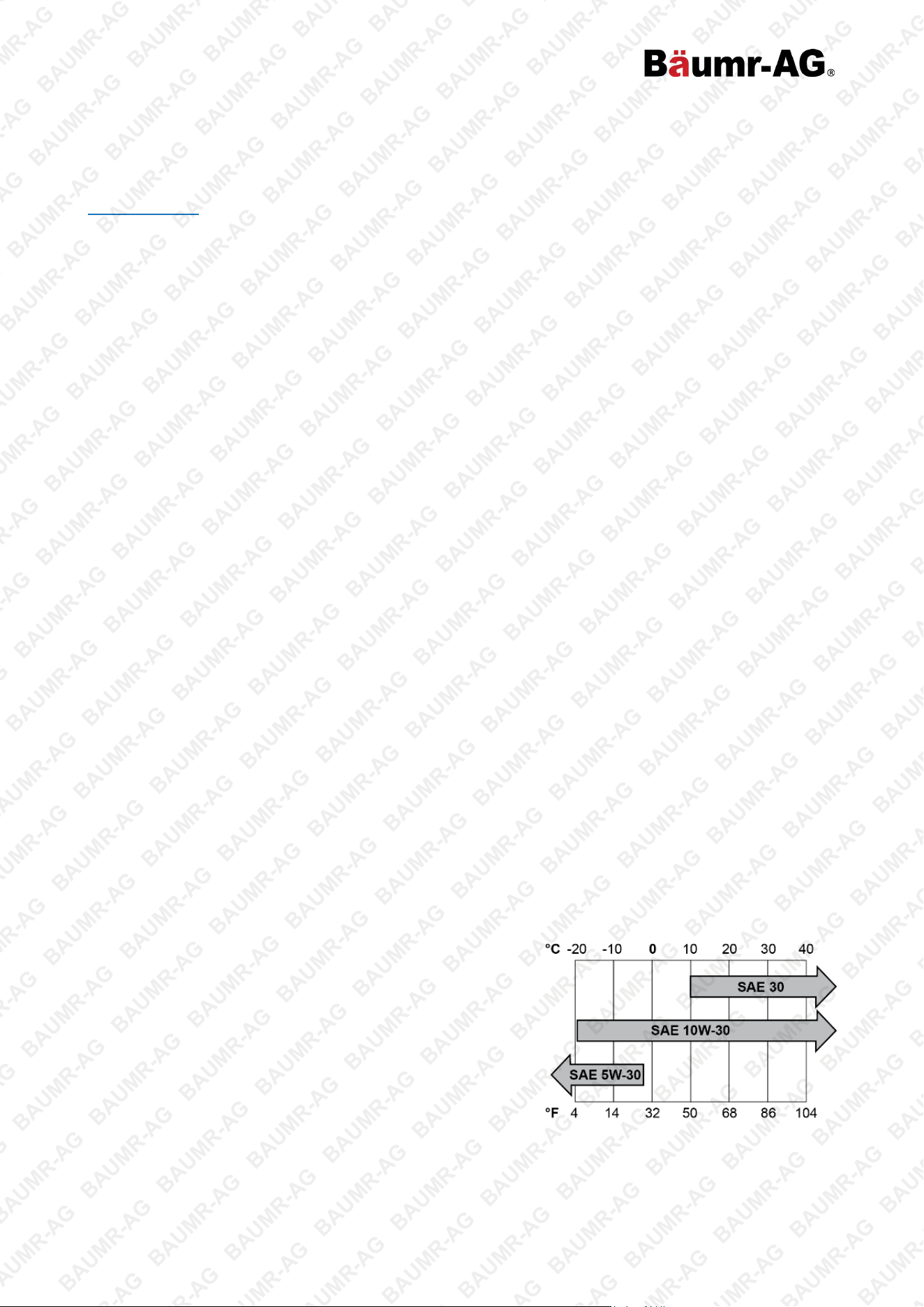

the engine may be affected. Use the following chart to determine

the correct engine oil:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 22

Maintenance

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run

a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows and vents. • Petrol / fuel

/ gasoline is extremely flammable – keep clear of naked flames or other ignition sources. •

Do not have the engine running during inspection and maintenance unless specifically required. • The engine

should be cool enough to touch before performing maintenance activities. • Some maintenance activities

may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or

do not have the necessary tools, experience or knowledge for – take the unit to an authorised service centre

or qualified technician for servicing. • Harsh operating environments such as extreme temperatures, dust etc

may necessitate more frequent maintenance. • Failure to follow the maintenance schedule, using

incorrect or non-compatible accessories or replacements parts, or general negligence may result in

making the product warranty void.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. The

maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks

and how often they should be performed. The schedule applies to multiple engines; some engines may not

include some components, so maintenance on those components is not applicable.

Maintenance Schedule

Use the following maintenance schedule for a list of regular maintenance tasks and how often they need to

be performed. Maintenance frequency is based on average usage. Be aware of how much the machine is

used and be sure to follow the schedule according to time or usage, whichever comes first.

Towards the end of this document is a form you can use for maintenance record keeping. It is recommended

that you keep a reference of all maintenance.

Major Servicing and "Heavy-Duty" Usage - For engines that are subject to "heavy-duty" use,

which can be defined as being used under loads of 85% or more and / or in use more than

approximately 300 hours per year (for example, generators and water pumps), more frequent "Major

Service" maintenance is required. In addition to normal service requirements, and as with many smaller

machine and off-road bike engines, the following parts (as applicable for petrol, diesel or 2-stroke engines)

may require replacement during a major service:

• Piston rings.

• Big-end bearings.

• Small-end bearings.

• Gudgeon pin.

• Oil rings.

• Gaskets and seals.

• Valve seats.

Inspection of the following items is required:

• Piston for cracks and stress fractures.

• Bore for wear requiring reconditioning.

• Full machine for broken, worn or loose parts.

Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or

replacements parts, or general negligence may result in making the product warranty void.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 23

Maintenance Schedule – Petrol Engines / Machines

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

Repl

ace

Replace

Check. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean. Replace as necessary

6 Months /

50

Hours Use

3 Months /

25

Hours Use

Check

After First 5

Hours Use

Every Use

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check tension.

Adjust

as necessary

Component / Task

Engine Oil

****

Engine Oil Filter

*

Loose Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

*

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

**** Briggs & Stratton "EXi" engines do NOT require engine oil changes; just ensure that oil level is correct.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

E&OE © Bäumr-AG 24

Maintenance Schedule – Diesel Engines / Machines

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Clean. Replace as necessary

Check. Tighten as necessary

Replace

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

Repl

ace

Replace

Check. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean. Replace as necessary

6 Months /

50

Hours Use

3 Months /

25

Hours Use

After First

5

Hours Use

Every Use

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check

tension.

Adjust

as necessary

Component / Task

Engine Oil

Engine Oil Filter

*

Loose Engine / Machine

Fasteners

Air Filter

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

*

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Engine Oil

The product is NOT supplied with engine oil, although traces of oil from the manufacturing

process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use. Failure to add engine oil will void the product warranty. • Always check engine oil

level when the machine is in an upright position on a flat and level surface. • Do not use used or

contaminated engine oils. • Use only engine oils of the correct type (see Specifications). • Perform the first oil

change within the first 20 hours of use. Subsequently, change the oil every 20 hours of use. • It is

recommended that the engine be warm, but not hot, when performing oil changes. When the oil is warm it

drains faster. • Using dirty or incorrect engine oil may cause engine damage and void any warranty • Always

use suitable tools. • Always dispose of used oil in an environmentally responsible manner and according to

regulations. • Some engines feature oil level detection, which will prevent the engine being started or

automatically stop a running engine if there is insufficient oil. • Always check the oil level and ensure is at

or near the "MAX" indicator before using the machine. • Some models may have 2 oil drain plugs and

fillers on either side of the engine – it does not matter which one is used.

Four-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance as per the maintenance schedule.

To check engine oil level:

1. Place the machine in an upright position on a flat and level surface.

2. Clean the machine around the oil filler cap (A) so that no dirt or other material enters the engine when

the cap is removed.

3. Remove the oil filler cap (rotate left) until fully unscrewed. For machines without a dipstick, the oil level is

determined by how close the oil is to the edge of the filler hole (B). For machines equipped with an oil

level dipstick:

a. Remove the dipstick (C) and wipe clean with a piece of cloth or paper.

b. Insert the dipstick into the oil filler but do not screw it in.

c. Remove and inspect the dipstick – the oil level is determined by where oil can be seen on it.

4. Ensure that the oil level is at or just under the "maximum". If the oil level is low, add additional oil until the

correct level is reached. If the oil level is too high, drain some oil until the correct level is reached.

5. When finished, re-install (rotate right) the oil filler cap until firm. Wipe off any residual oil from the

machine.

A

B

C

D

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

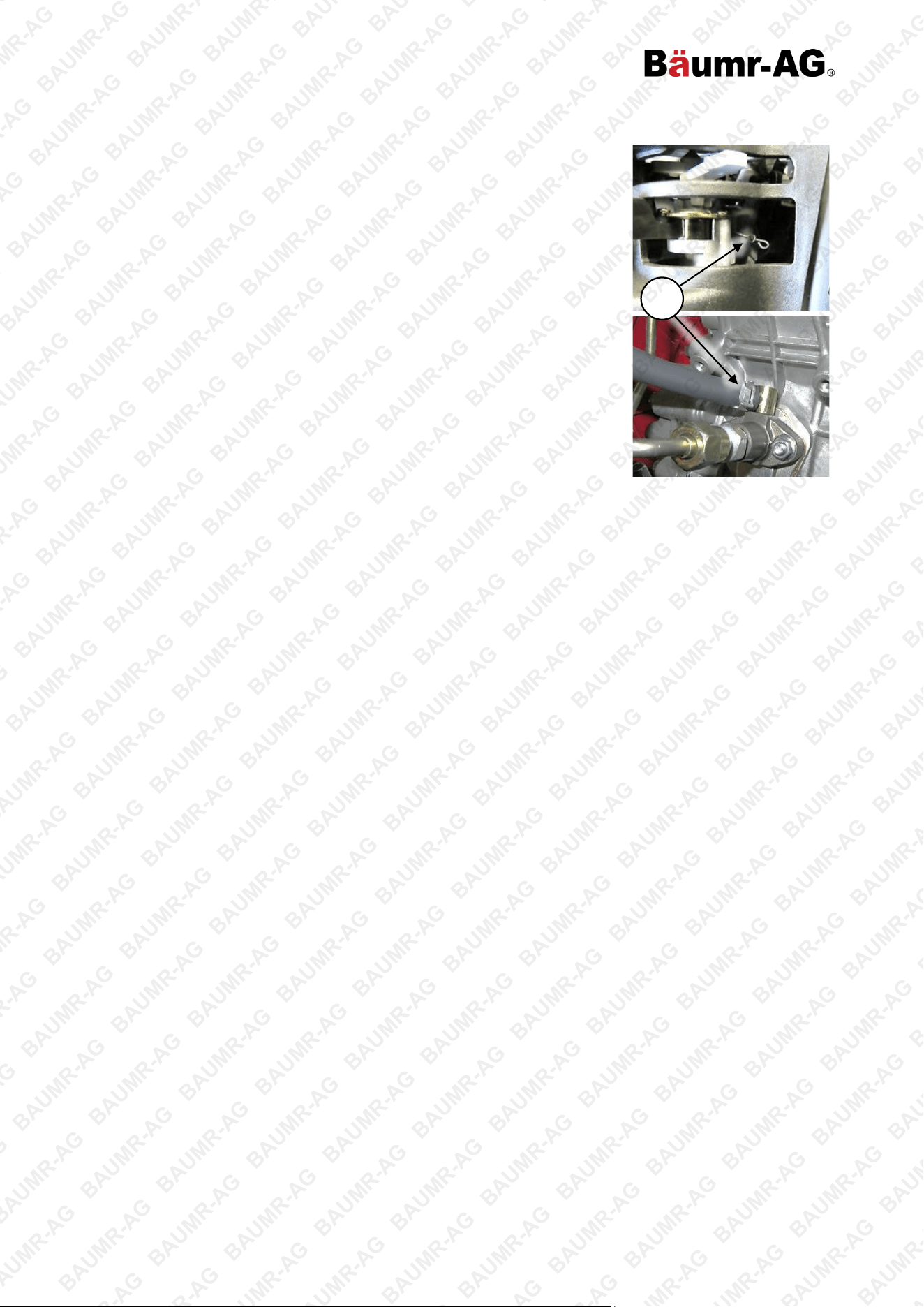

To change the engine oil:

1. Place the machine on a suitable work surface that is flat and level and have a container ready to catch

drained oil.

2. Clean the machine around the oil drain plug (D) and oil filler (A) so that no dirt or other material enters

the engine when the plug or cap is removed.

3. Unscrew (rotate left) and remove the drain plug and washer.

4. Tilt the machine and drain all oil from the engine. Once drained, allow the machine to sit level again.

5. Clean the drain plug and washer and then reinstall them. Screw in fully (rotate right) and firmly tighten.

6. Remove the oil filler cap (rotate left) until fully unscrewed. Wipe the oil level indicator clean with a piece

of cloth or paper.

7. Using a funnel, carefully add oil to the engine until the "maximum" level is reached. Double- check the oil

level (described above).

8. When finished, re-install (rotate right) the oil filler cap until firm. Wipe off any residual oil from the

machine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Air Filter

Operating the machine without a functional air filter may cause severe engine damage and will void

any warranty. • A dirty or oil saturated air filter will restrict air flow, which can be mistaken as fuel

system problems. Check the condition of the air filter before adjusting engine idle speed, where applicable. •

If the air filter is damaged (torn, broken, disintegrating), replace it.

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance as per the maintenance schedule.

Inspection and Cleaning

Inspect the air filter for dirtiness and debris, damage etc. Clean or replace the filter element as necessary. To

clean air filters:

• For foam filters, wash the filter in warm water and mild detergent, then rinse and allow to dry.

• For paper filters, use compressed air to blow particles from it. The air should be blown from the engine

side of the filter.

• Clean all other air filter assembly components using water and mild detergent, then dry them.

• For foam filters, place a few drops of clean engine oil on the filter then squeeze it a few times to spread

the oil through the filter material and remove any excess oil.

Removal/Installation – 4-Stroke Petrol Engines

To remove the air filter:

1. Unscrew (rotate left) the wing nut (B) securing the air filter cover (C) and remove the cover from the air

intake assembly (A).

2. Unscrew (rotate left) the wing nut (D) and remove the filter element (E).

To install the air filter:

1. Re-install the filter element and ensure it is seated correctly on the air intake assembly.

2. Re-install (rotate right) the wing nut and tighten by hand so that the filter element is secure. Do not over-

tighten.

3. Re-install the filter cover and secure it with the wing nut (rotate right). Tighten the nut by hand. Do not

over-tighten.

C

B

A

D

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

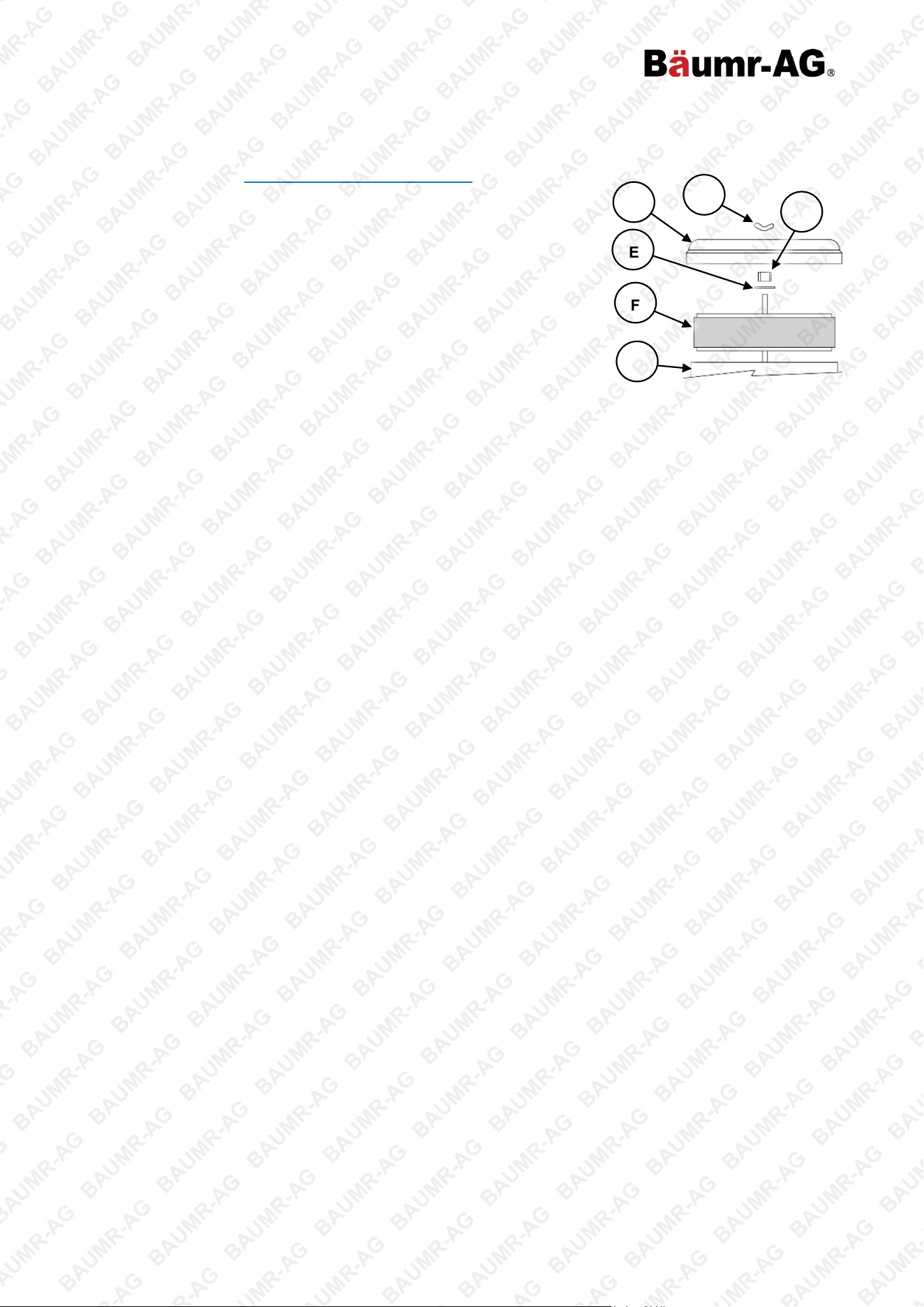

Air Filter Removal/Installation – 4-Stroke Diesel Engines

Some engine may feature a 2-stage air filter, with a foam "envelope" around a paper element. Cleaning

procedures are as per Air Filter Inspection and Cleaning.

To remove the air filter:

1. Unscrew (rotate left) the wing nut (B) securing the air filter cover (C)

and remove the cover from the air intake assembly (A).

2. Unscrew (rotate left) the nut (D) and washer (E) and remove the filter

element (F).

To install the air filter:

1. Push the filter element onto the mounting screw and secure with the

washer and nut (rotate right) and tighten. Do not over-tighten.

2. Place the air filter cover in position. Re-install the wing nut (rotate

right) and tighten by hand so that all filter components are secure. Do not over-tighten.

A

F

E

C

B

D

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

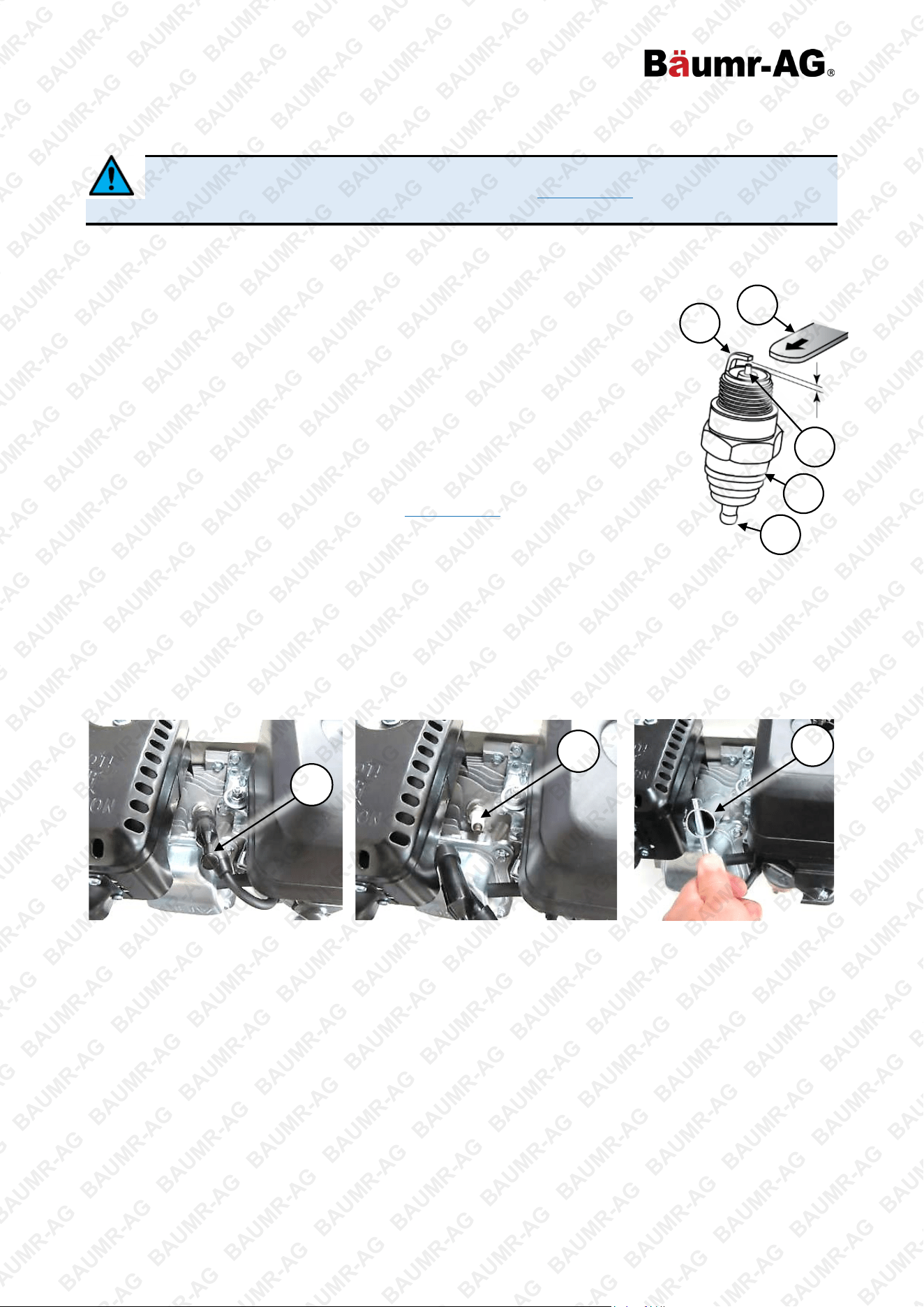

Spark Plug

If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. •

Always use spark plugs of the correct "heat range" - see Specifications. Spark plug maintenance is

not applicable to diesel engines.

The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one

end and an electrical terminal on the other. The spark plug requires regular maintenance.

Cleaning and Gap Checking

The spark plug should be checked and cleaned as per the maintenance schedule.

1. Remove any carbon deposits on the spark plug (A) electrodes (B) with a wire

brush.

2. Clean the spark plug threads and the electrical terminal (C) on the top.

To check and adjust the spark plug "gap":

1. Use "feeler" or "thickness" gauges (X) to measure the existing gap. The gauge

must drag a little when being slid between the electrodes (2) – this means the

measurement is fairly accurate.

2. Adjust the gap to within specification (see Specifications

). If the gap needs to be

reduced, gently tap the electrode as required. If the gap needs to be increased,

use pliers to gently pull the electrode as required.

3. Measure the gap again and ensure it is within the specified range before re-ins

talling the spark plug.

Removal/Installation

1. Pull the electrical lead (B) from the terminal on top of the spark plug (A).

2. Clean the area around the spark plug so that no dirt or other material can enter the engine when the

spark plug is removed.

3. Use the spark plug tool (C) to remove the spark plug (rotate left).

To re-install the spark plug:

1. Place the spark plug in its hole and screw it in (rotate right) until "finger tight".

2. Use the spark plug tool to tighten the spark plug approximately one quarter turn (do not over-tighten).

3. Place the electrical lead over the spark plug terminal and push it down so that it connects firmly with the

terminal.

A

B

X

C

B

A

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Transportation and Storage

Always ensure that the machine is cool enough to touch before transporting or

storing. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or

other ignition sources. • Always transport the machine with the fuel tap and engine ON / OFF switch (where

applicable) in the "OFF" position. • Drain the fuel tank before transportation or storage.

Preparing for Transport and Storage

• Drain the fuel system by allowing the engine to run until it stops. It is advised to have the fuel tank as

empty as possible before draining.

• Ensure that the fuel tap (if applicable), engine ON/OFF or key switch (where applicable) is in the "OFF"

position.

• Disconnect the spark plug lead.

• Avoid exposing the equipment to direct sunlight, particularly during transportation.

• Ensure the equipment is secure and upright during transport.

• Store the unit in a dry, well-ventilated area and out of the reach of children.

Long Term Storage

Follow the normal procedures for storage, then:

• Unscrew (rotate left) the carburettor drain plug. Use a suitable container to catch the draining fuel, and

allow the fuel to drain. Store the drained fuel in a properly sealed container.

• Re-install (rotate right) the carburettor drain plug and tighten.

• Remove the spark plug and put 10ml of clean engine oil into the cylinder. Pull the starter cord slowly to

distribute the oil. Re-install the spark plug.

• Cover the equipment to protect it.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Troubleshooting

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a

combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows and vents. •

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The product is NOT supplied with engine oil, although traces of oil from the manufacturing process

may be present. It is essential to add adequate engine oil of the correct type to the engine before use – see

Engine Oil. Failure to add engine oil will void the product warranty. • Do not have the engine running

during inspection and maintenance unless specifically required. • The engine should be cool enough to touch

before performing maintenance activities. • Some maintenance activities may be beyond the scope of some

users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools,

experience or knowledge for – take the unit to an authorised service centre or qualified technician for

servicing.

The following information may assist in identifying a problem and rectifying it.

Difficulty starting the engine.

Possible Fault Action

Lack of fuel Check that there is sufficient fuel in the tank and the fuel tap (if equipped) is in the "ON"

position. • To further check if fuel is reaching the carburettor, remove the carburettor drain

plug and check if fuel drains.

Engine “OFF” Ensure the engine ON / OFF switch (if equipped) is in the "ON" position.

Carbon build-up on spark plug Perform a spark plug service. Not applicable to diesel engines.

Spark plug faulty Remove the spark plug, then reconnect the plug lead to it. Place the fuel tap (if equipped) in

the "OFF" position and the engine ON/OFF switch (if equipped) in the "ON" position. Touch

the spark plug electrode to a part of the engine crankcase, away from the spark plug hole,

and attempt to start the engine – a spark should be visible across the electrodes as the

engine is rotated. If no spark is visible, replace the spark plug. Not applicable to diesel

engines.

Engine “flooded” with fuel Place the choke (if applicable) in the "HOT" or "RUN" position. Leave the engine ON / OFF

switch (if equipped) in the "OFF" position. Pull the starter cord several times to assist

clearing excess fuel from engine before attempting to start engine.

Not enough or too much engine oil Check oil level and ensure that the level is at or just below the recommended maximum

level. For some engines, an engine oil sensor will automatically switch off the engine or

prevent starting if a low engine oil level is detected.

Electric engine start not working.

Possible Fault Action

Battery fuse blown Check and replace fuse if required.

Battery no longer serviceable Replace battery.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Engine starts but does not idle.

Possible Fault Action

Blocked air filter Perform an air filter service.

Idle speed requires adjustment Adjust idle speed (if applicable) until engine runs smoothly and at a reasonable speed when

idling.

Engine starts but runs erratically.

Possible Fault Action

Spark plug lead loose Ensure the spark plug lead is undamaged and is securely connected to the spark plug

terminal. Not applicable to diesel engines.

Choke ON Set the choke (if applicable) to the "HOT" or "RUN" position.

Blocked fuel line or stale fuel. Clean the fuel line. Fill the tank with clean, fresh fuel.

Water or dirt in fuel system Drain fuel tank and carburettor. Refill with fresh fuel.

Dirty air filter Perform an air filter service.

Difficulty restarting the engine after use or engine stops suddenly during use.

Possible Fault Action

No fuel or engine oil Check fuel level and ensure adequate fuel is available. For some engines, an engine oil

sensor will automatically switch off the engine or prevent starting if a low engine oil level is

detected.

Overheating Allow engine to cool before restarting. If possible, improve engine cooling, such as operating

in lower temperatures.

Carbon build-up on spark plug Perform a spark plug service. Not applicable to diesel engines.

Fuel system blockage Clean fuel lines / fuel filter / carburettor / fuel injector.

Reduced engine speed/power during use.

Possible Fault Action

Blocked air filter Perform an air filter service.

Carbon build-up in engine and/or

entry to exhaust silencer

Remove the engine cylinder head and clean any carbon from the combustion chamber. For

the exhaust silencer, remove it and clean any carbon deposits from the exhaust entry port.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Carbon build-up on spark plug Perform a spark plug service. Not applicable to diesel engines.

Fuel system blockage Clean fuel lines / fuel filter / carburettor / fuel injector.

Engine overheats.

Possible Fault Action

Engine oil level low Fill the crankcase with the correct engine oil type to the "MAX" indicator or just under.

Dirty air cleaner Perform an air filter service.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Specifications

163cc / 196cc / 210cc Petrol Engines

Engine Type 4-stroke, single cylinder

Fuel Type Unleaded non-ethanol petrol

Fuel Tank Capacity 3.6l

Spark Plug Type F7TC, F7RTC

Spark Plug Gap 0.7 to 0.8mm (0.028 to 0.032")

Valve Clearance

Inlet: 0.15mm ± 0.02mm (0.006" ± 0.001")

Exhaust: 0.2mm ± 0.02mm (0.008" ± 0.001")

Engine Oil Type SAE 10W-30 automotive engine oil recommended for general use

Engine Oil Capacity Approximately 0.6l (always check level)

389cc / 407cc Petrol Engines

Engine Type 4-stroke, single cylinder

Fuel Type Unleaded non-ethanol petrol

Fuel Tank Capacity 6l

Spark Plug Type F

7TC, F7RTC

Spark Plug Gap 0.7 to 0.8mm (0.028 to 0.032")

Valve Clearance

I

nlet: 0.15mm ± 0.02mm (0.006" ± 0.001")

Exhaust: 0.2mm ± 0.02mm (0.008" ± 0.001")

Engine Oil Type SAE 10W-30 automotive engine oil recommended for general use

Engine Oil Capacity A

pproximately 1.1l (always check level)

305cc Diesel Engines

Engine Type 4-stroke, single cylinder, diesel

Fuel Type Unleaded non-bio diesel

Fuel Tank Capacity 3.5l

Valve Clearance

Inlet: 0.15mm ± 0.02mm (0.006" ± 0.001")

Exhaust: 0.15mm ± 0.02mm (0.008" ± 0.001")

Engine Oil Type SAE 10W-30 automotive engine oil recommended for general use

Engine Oil Capacity A

pproximately 1.1l (always check level)

418cc / 460cc Diesel Engines

Engine Type 4-stroke, single cylinder, diesel

Fuel Type Unleaded non-bio diesel

Fuel Tank Capacity 5.5l

Valve Clearance

In

let: 0.15mm ± 0.02mm (0.006" ± 0.001")

Exhaust: 0.15mm ± 0.02mm (0.008" ± 0.001")

Engine Oil Type SAE 10W-30 automotive engine oil recommended for general use

Engine Oil Capacity Approximately 1.6l (always check level)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Engine Service and Maintenance Record

Use the following tables as a record of machine servicing and maintenance. Keeping accurate records will

help ensure longest machine service life and may simplify fault diagnosis and any possible warranty claims.

Fill out date, number of hours of use and the activity performed, as required (see Maintenance Schedule

).

Date Hours Use Maintenance Task / Notes

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Stationary Engines

Some experts believe the incorrect or prolonged use of almost any product could cause serious

injury or death. For information that may reduce your risk of serious injury or death, consult the

points below and additionally, the information available at www.datastreamserver.com/safety

• Consult all documentation, packaging and product

labelling before use. Note that some products feature

online documentation which should be printed and kept

with the product.

• Check product for loose / broken / damaged / missing

parts, wear or leaks (if applicable) before each use.

Never use a product with loose / broken / damaged /

missing parts, wear or leaks (if applicable).

• Products must be inspected and serviced (if applicable)

by a qualified specialist every 6 months assuming

average residential use by a person of average weight

and strength, above average technical aptitude, on a

property matching average metropolitan specification.

Intended use outside these guidelines could indicate

the product is not suitable for intended use or may

require more regular inspection or servicing.

• Ensure all possible users of the product have

completed an industry recognized training course

before being given access to the product.

• The product has been supplied by a general merchandise retailer that

may not be familiar with your specific application or your description

of the application. Be sure to attain third-party approval for your

application from a qualified specialist before use regardless of prior

assurances by the retailer or its representatives.

• This product is not intended for use where fail-safe operation is

required. As with any product (take an automobile, aircraft, computer

or ball point pen for example), there is always a small chance of

technical issues that needs to be repaired or may require

replacement of the product or a part. If the possibility of such failure

and the associated time it takes to rectify could in any situation

inconvenience the user, business or employee then the product is not

suitable for your requirements. This product is not for use where

incorrect operation or a failure of any kind, including but not limited to

a condition requiring product return, replacement, service by a

technician or replacement of parts could cause a financial loss, loss

of employee time or an inconvenience requiring compensation.

• If this item has been purchased in error after considering the points

above, simply contact the retailer directly for details of their returns

policy, if required.
