PNEUMATIC GREASE GUN
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: LD-801
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Pneumatic Grease Gun
- 2 -
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow
all instructions listed below may result in serious injury.
Various dangers may occur if the grease gun is improperly handled during
installation, commissioning and daily operation.
Risk of injury and damage to material property because of improper
handling.
Hold the manual at the disposal of the operating staff at the usage site of
the unit.
Country-specific safety measures and accident prevention regulations
must be observed.
Only qualified and authorized persons are allowed to operate the grease
gun.
Persons are qualified if they are, due to their training, experience,
instruction and knowledge of the relevant standards, able to assess
assigned tasks and to identify potentially hazardous situations.
All persons charged with installation, operation, maintenance and repair
work, must have read and understood this operation instructions.
Always wear safety glasses when using a grease gun. Keep work
area clean and remove any excess grease from tools, hands, and
clothing after use. Do not use grease gun whip hose for other
applications or at pressure levels above rated pressures.
CAUTION: Excess pressure can result in the bursting of the grease gun
head and of accessories!
Excess pressure at the greasing point can damage the grease nipple and
even the machine.
Comply with the machine manufacturer‘s maintenance and service
- 3 -
instructions
Disconnect the compressed air line supply before servicing the
Gun.
Defective accessories can lead to personal injury and material damage.
Grease hoses must not be kinked, twisted or stretched.
During their period of use, accessories must be checked for wear,cracks,
and other damage.
Defective accessories should be replaced immediately.
Do not open the grease gun when it is under pressure!
Every time that the grease gun head and barrel are to be separated, the
push rod must be fully retracted and automatically locked by means of the
safety catch.
Excess pressure can result in the bursting of the grease gun head and of
Equipment.
SAVE THESE INSTRUCTIONS.
- 5 -

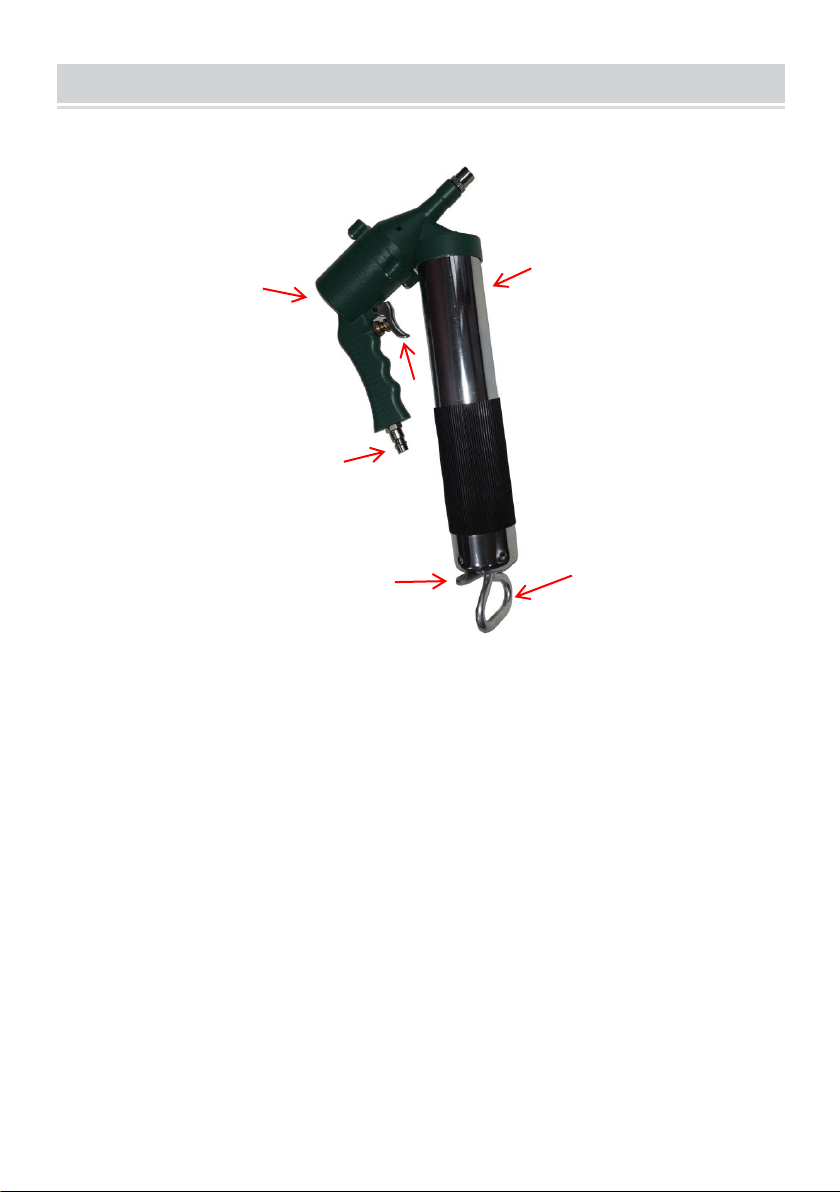

STRUCTURE DIAGRAM
1.Quick Coupler Air Fitting
2.Pumping Chamber
3.Barrel
4. Plunger Rod Handle
5. Safety Catch
6. Trigger
1
2
3
4
5
6
- 6 -
COMPONENTS
LD-801
Grease Gun
1
Grease Hose
1
Bent Metal Pipe
1
Coupler
1
Pointed Coupler
1
Locking Clamp Coupler
1
User Manual
1
Mode
l
Parts
- 7 -
OPERATING INSTRUCTIONS

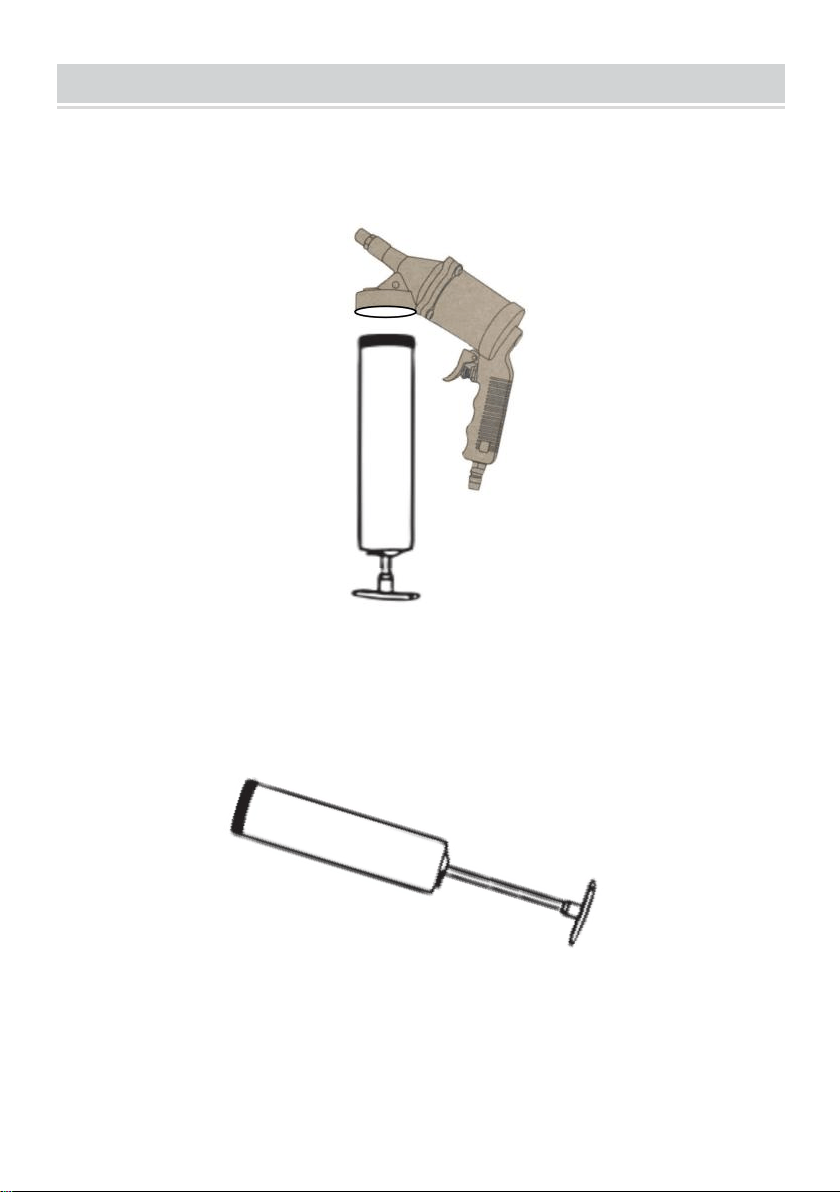

Step1：Hold the head of the grease gun and unscrew the barrel.
Step2：Pull back the plunger rod handle and fill the barrel with grease.
- 8 -

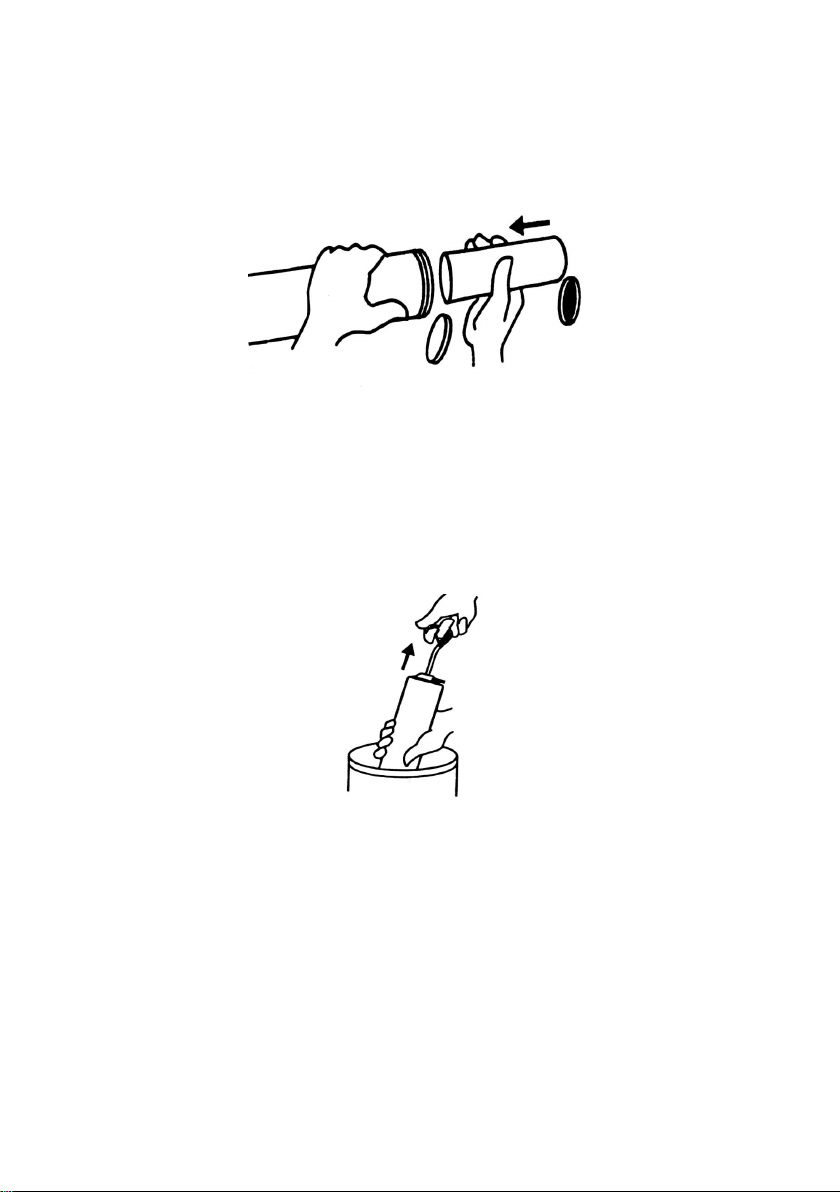

Grease filling options:
1) Cartridge Loading: Remove the plastic cap from the cartridge
and insert the open end of the cartridge into the grease gun barrel until the
rim of the pull-tab end meets the rim of the barrel.
2) Suction Fill: Insert the open end of the barrel about 2” into the grease
container.Slowly pull the plunger rod handle to draw in grease into the
empty barrel while pushing the barrel deeper into the grease until the
plunger rod is completely extended.The outside surface may have a lot of
grease stuck to it and should be wiped clean for safety.
- 9 -

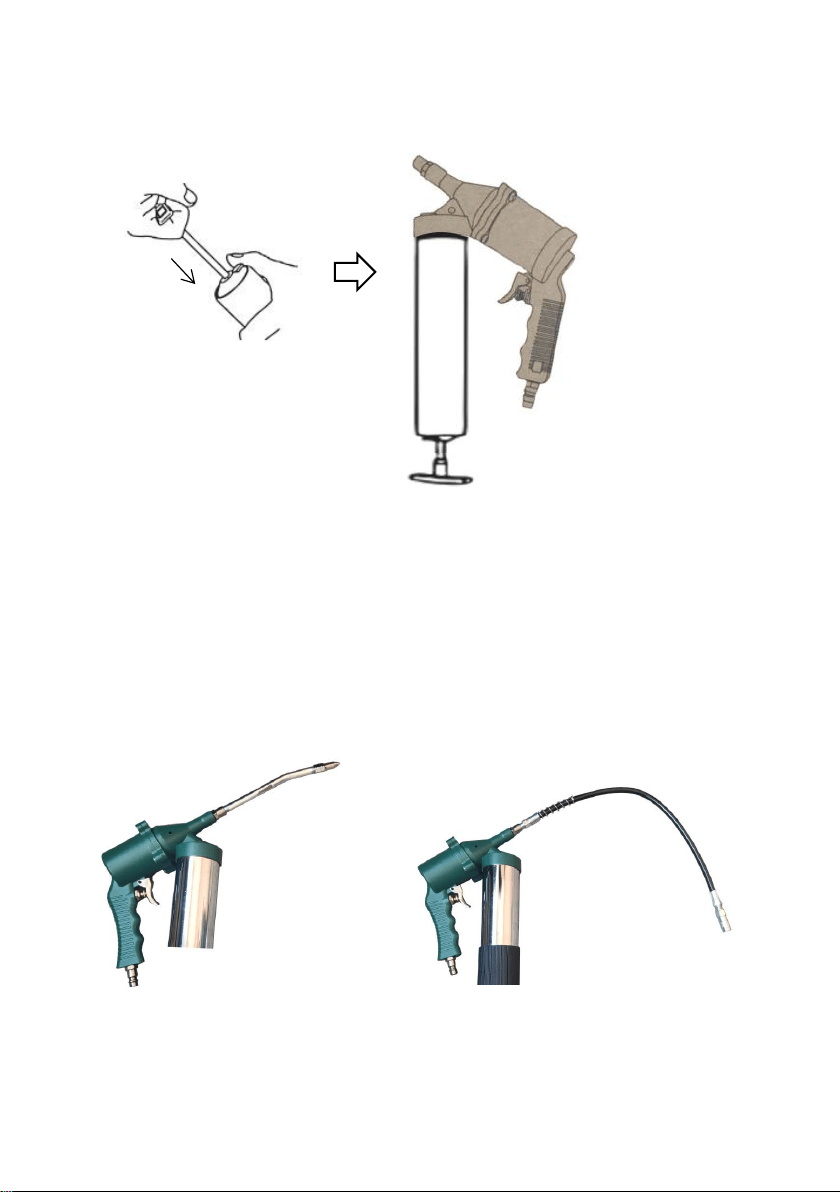

Step3：Assemble the barrel back into the grease gun.Activate the
safety catch and push the push rod back into the Barrel.
Step4：Exhaust air by pressing the air release valve or loosening the gun
head and barrel (half a turn maximum).
Step5：Install the required fittings as required as shown below.(Fig 1,Fig 2)
Note: If necessary, wrap 3~5 loops of raw material tape around the joint.
Fig 1. Fig 2.
- 10 -
Step6：Attach the male quick connect coupler air fitting supplied with
the gun onto the air inlet. Make sure the connection is tight so that there is
no leakage of air.Press the trigger repeatedly for grease filling.
NOTE:
The male quick connect coupler air fitting has 1/8” NPT threads.
Air Supply: Dry air is needed to operate this gun. Make sure
FRL (Filter, Regulator, and Lubricator) unit is installed in airline.
Moisture in the air will damage the grease gun.Inlet air supply should have
a pressure between 0.6~0.8 M pa.
This is a one shot grease gun, whereby there is grease discharge with
every press of the trigger.
Do not keep the trigger pressed during operation. The trigger must be
repeatedly pressed and released while greasing. Also, do not repeat the
action too fast, as the piston needs to complete a full cycle before starting
a new one.
- 11 -

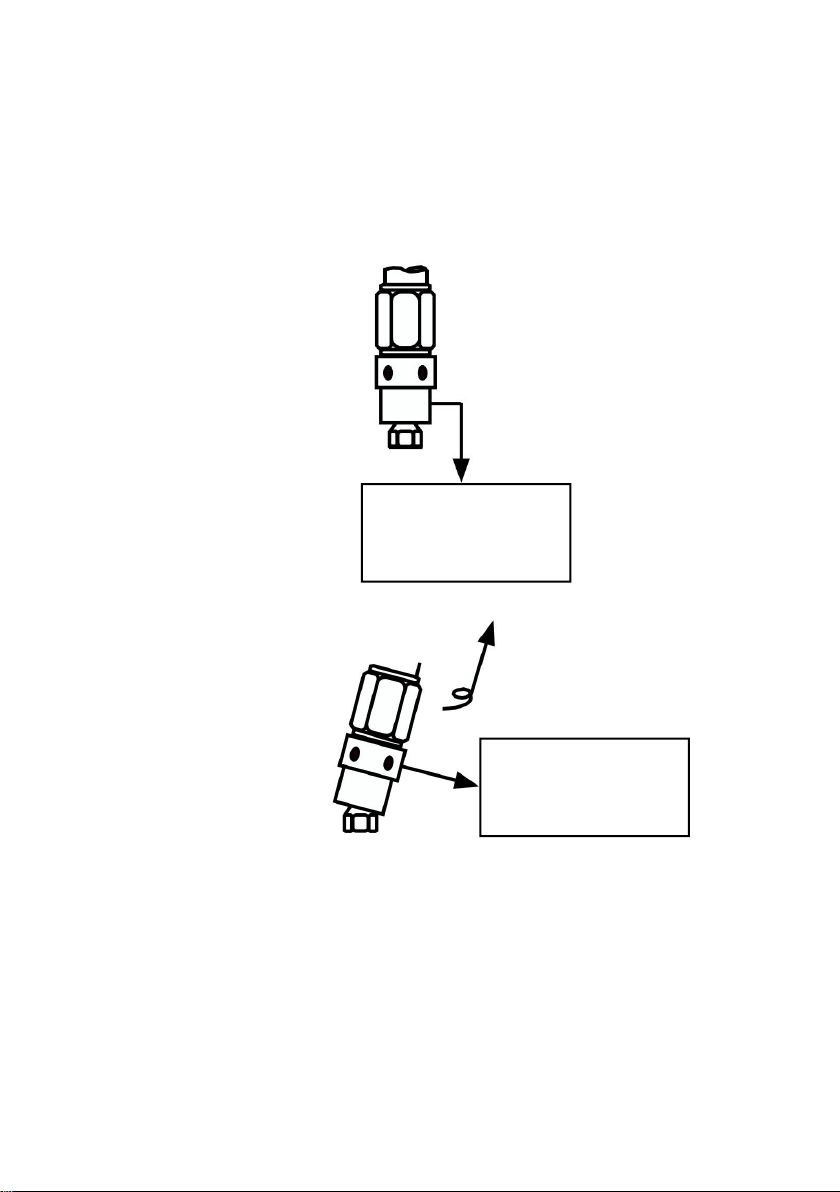

Step7: Press the coupler straight onto the grease fitting,Start operating the
handle for grease filling.
Once greasing is done, slightly tilt the coupler, twist and pull back. The tilt
and twist action will allow easy removal of the coupler from the grease
fitting.
To engage,push
straight on
To remove,Tilt,
Twist&Pull
- 12 -
TROUBLESHOOTING
Problem
Possible Cause
Possible Solution
Grease gun pumps
little or no grease
Air is trapped in grease
Empty air
Blocked hose
Clean or replace the
hose
Grease too thick or
cold
Store grease gun and
grease away from
extreme cold or use
thinner grease
Excessive grease
leaks out from the back
side of the
grease gun around the
plunger rod
Rubber follower is
damaged
Replace the grease
gun
Grease leaks from the
connection between
the grease gun head &
the extension or
between extension &
coupler
Loose connection
Tighten the connection
using raw material
tape
- 13 -
MAINTENANCE
Before each use, inspect general condition of Grease Gun. Check for
cracked or damaged parts, misaligned or bending of moving parts, leaking
connections, and any other condition that may affect product’s safe
operation. If a problem occurs, have the problem corrected before further
use.Do not use damaged equipment.
After every use, dry with a soft cloth, remove all grease and debris from
Grease Gun. Do not use solvents to clean or immerse in any liquids.
When storing, keep in a clean, dry and safe location away from children.
Like all air equipment, this grease gun needs regular lubrication. To
lubricate, add a few drops of oil through the air inlet on the grease gun. It is
recommended to use SAE 30 or higher viscosity oil.
All maintenance, service, and repairs not discussed in manual should only
be performed by qualified service technician.
