DRUM PUMP
USER MANUAL
Model:YOILP-WS-32，YOILP-HG0008，YOILP-HG0012A
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
DRUM PUMP
- 2 -
1. Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions
may result in serious personal injury.
GENERAL SAFETY RULES
1. Select the appropriate product type according to the liquid type.
2.Always keep hazardous, flammable or combustible liquids, other
fuels and cleaners out of reach of children. Keep stored hazardous,
flammable or combustible liquids far from open flames or heat.
3.A maintained fire extinguisher should be kept nearby when
working with hazardous, flammable or combustible liquids.
4.Adequate ventilation is essential! Clean up all spills immediately
when pumping or handling flammable liquids.
5. ABSOLUTELY NO SMOKING!
6. DO NOT use torches or apply fire or flames to this pump, pump
components or any containers used with this pump.
7.Be sure that the discharge line is secure before pumping. An
insecure discharge line may slide, possibly causing personal injury
and/or property damage.
8. Over-tightening non-metallic fittings will strip threads. Once fitting
is “hand tight” turn one more full rotation, this is usually enough to
- 3 -
prevent leaking. Thread sealant can be used on all threaded joints,
including the delivery spout.
9.Before each use, check hoses for weak or worn spots. Check the
security of all connections.
10.Regularly inspect the pump and components, performing routine
maintenance when required.
11.Dispel all liquids from the pump and components before
performing routine maintenance
SAVE THESE INSTRUCTIONS
- 4 -
MODEL AND PARAMETERS
Model
YOILP-WS-32
YOILP-HG0008
YOILP-HG0012A
Max. Flow Rate
19L/Min
23L/Min
24.6L/Min
Rotation Times
Max.100rev/min
Max.100rev/min
Max.100rev/min
Style
Rotary
Rotary
Rotary
Available
Drums
5~55gal
NPT2
5~55gal
NPT2
5~55gal
NPT2
Material
Cast Iron,Steel
Aluminum
Polypropylene
Application
Used for Diesel, Kerosene, Machine oil
(Not for gasoline,paint and water)
Used for
Acid,Alkali,Urea,
Water，DEF
- 5 -
STRUCTURE DIAGRAM
1.U-tube
2.Pump body
3.Cover Adapter
4.Filter
5.Handle
6.Suction tube
1
2
3
6
4
5
- 6 -
COMPONENTS
NO.
Name
Qty of
YOILP-W
S-32
Qty of
YOILP-H
G0008
Qty of
YOILP-H
G0012A
1
U-Tube
1
1
1
2
Pump body
1
1
1
3
Cover
Adapter
/
1
/
1
/
1
4
Filter
1
1
1
5
Handle
1
1
1
6
Suction
tubeⅠ
/
2
3
7
Suction
tubeⅡ
3
1
/
- 7 -
8
Filter
1
1
1
9
Tube
Sleeve
2
/
/
10
Hose
1
1
1
11
Clamp
1
1
1
12
PTFE
tape
1
/
/
- 8 -
ASSEMBLY
Step1：Assemble the three suction tube, and assemble the filter(8), and
then put them into the cover adapter(3),take YOILP-HG0008 as an
example.
3
8
6
7
- 9 -
Step2：Attach the handle(5) to the pump body(2) and tighten the screw.
Step3：Install the U-tube(1) on the pump body,make sure to use PTFE
tape.
Install the hose(10) on the U-tube and lock it with the clamp(11).
2
5
1
10
11
- 10 -

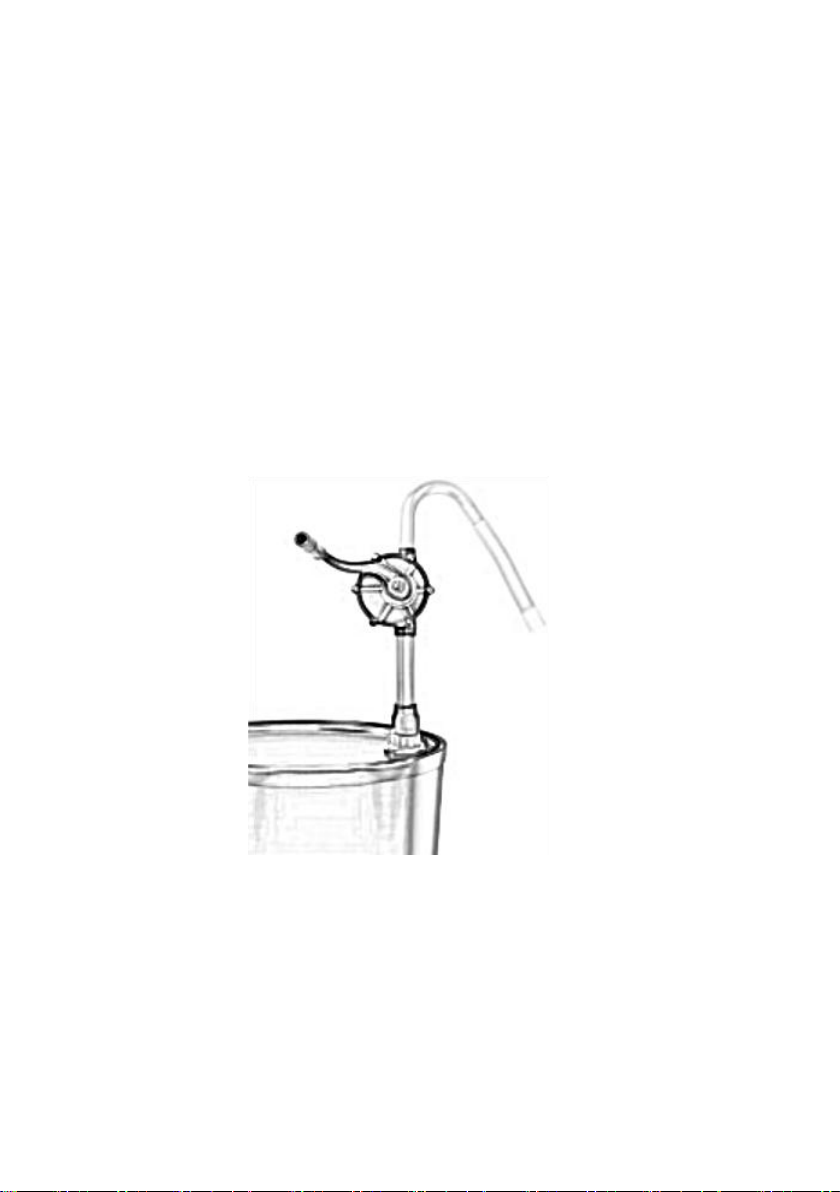

Step4：Install the installed suction tube on the pump body, as shown
below.
- 11 -
Step5：Operation:
— Determine the proper length of the suction tube for your application
and attach to the pump.
— Insert the suction tube through the bung hole located on the container
lid,attach the cover adapter located on the bottom of the pump to the
container lid.
— Pump the handle several times to prime the pump.
— Continue pumping until the desired volume of solution is delivered.
Above is the YOILP-HG0008 installation,and the installation of the
YOILP-WS-32，YOILP-HG0012A is the same as that of YOILP-HG0008.
- 12 -
MAINTENANCE
1.After each use of the product, it is recommended to clean it and keep it
dry.
2. When using this product to extract a variety of liquids, it is
recommended to clean this product before extracting another liquid.
3. If the pump has not been used for an extended length of time, or has
had low usage the pump should be flushed and cleaned.
TROUBLESHOOTING
THE PUMP IS NOT WORKING
1. Check the suction tubes to be sure they are airtight. The pump will not
pump if the suction tube allows air to enter. Thread sealing PTFE tape is
recommended during assembly.
2.Rinse pump with water or the appropriate solution in regards to what
was just pumped. Some chemicals may harden or cause the internal parts
to swell, this prohibits the operation of the pump . You may need to open
the pump body and clean the internal parts. While inside, visually review
the vane for chemical permeation or swelling. If this has occurred replace
the pump.
