SEWAGE PUMP
INSTALLATION INSTRUCTIONS
MODEL:FLO700
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:FLO700
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
SEWAGE PUMP
- 2 -
Kindly Reminder
The FL0700 has been developed with the utmost care, and it is tested in the
factory. Therefore, it is possible that the test water remains in the appliance.
GENERAL DESCRIPTION
The equipment should be avoided for commercial use; the FL0700 is
exclusively reserved for indoor use.The macerator pump system of the
appliance is integrated in a special way, which is only suitable for toilets
with a horizontal outlet(P-trap toilet). The macerating pump starts
automatically when a certain water level is reached. For the proper
operation of the grinder, it is necessary important to follow the installation
and maintenance instructions in this manual.
When properly installed and maintained according to the instructions 1n
this user manual, the appliance is very powerful, safe, and reliable.
- 3 -

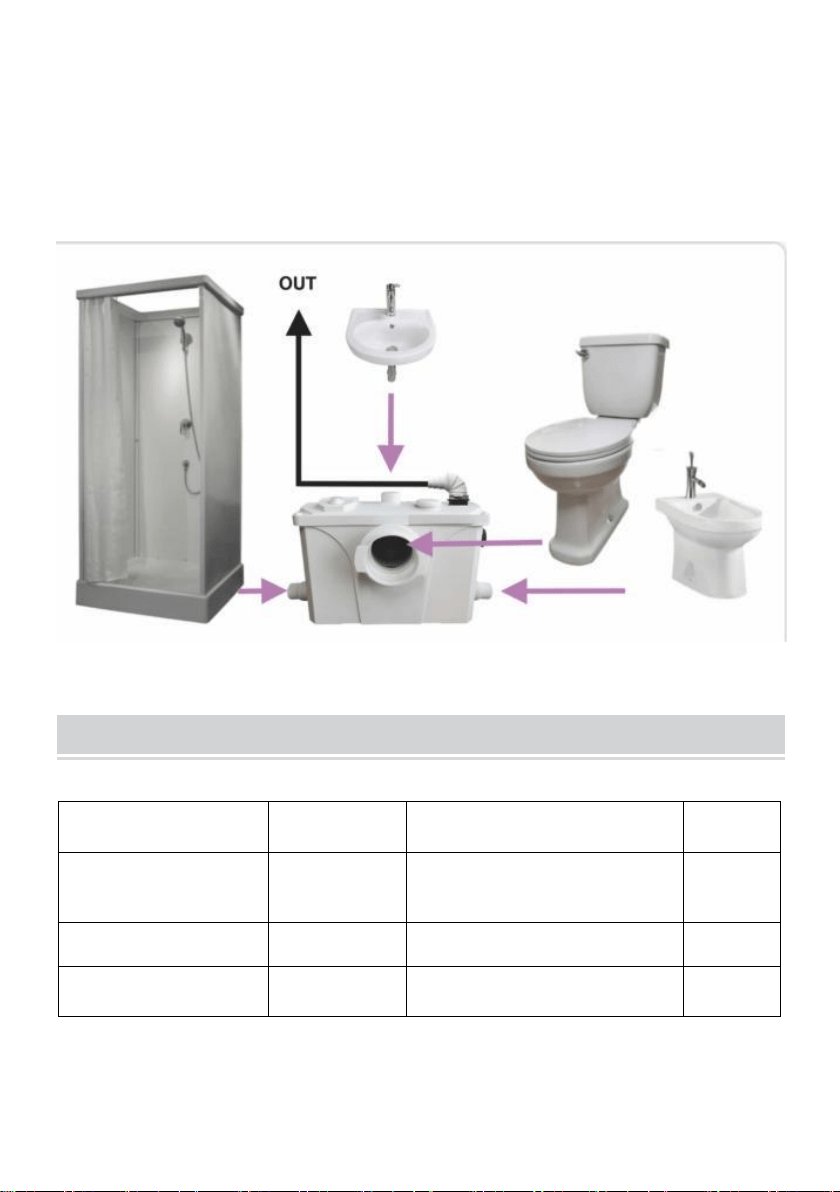

FLO700 is specially used to connect with:
WC
Shower cabin
Wash basin
Washing machine
Bidet
Urinal
SPECIFICATIONS
Input Power Rating:
0.9HP
Max Vertical Lift:
32.8FT
Input Voltage:
110-120V,
60HZ
Max Temperature:
90℃
Flow Rated:
2540GPH
Noise Level:
45 dBA
Max Horizontal Lift:
328FT
Degree of Protection:
IPX4
- 2 -

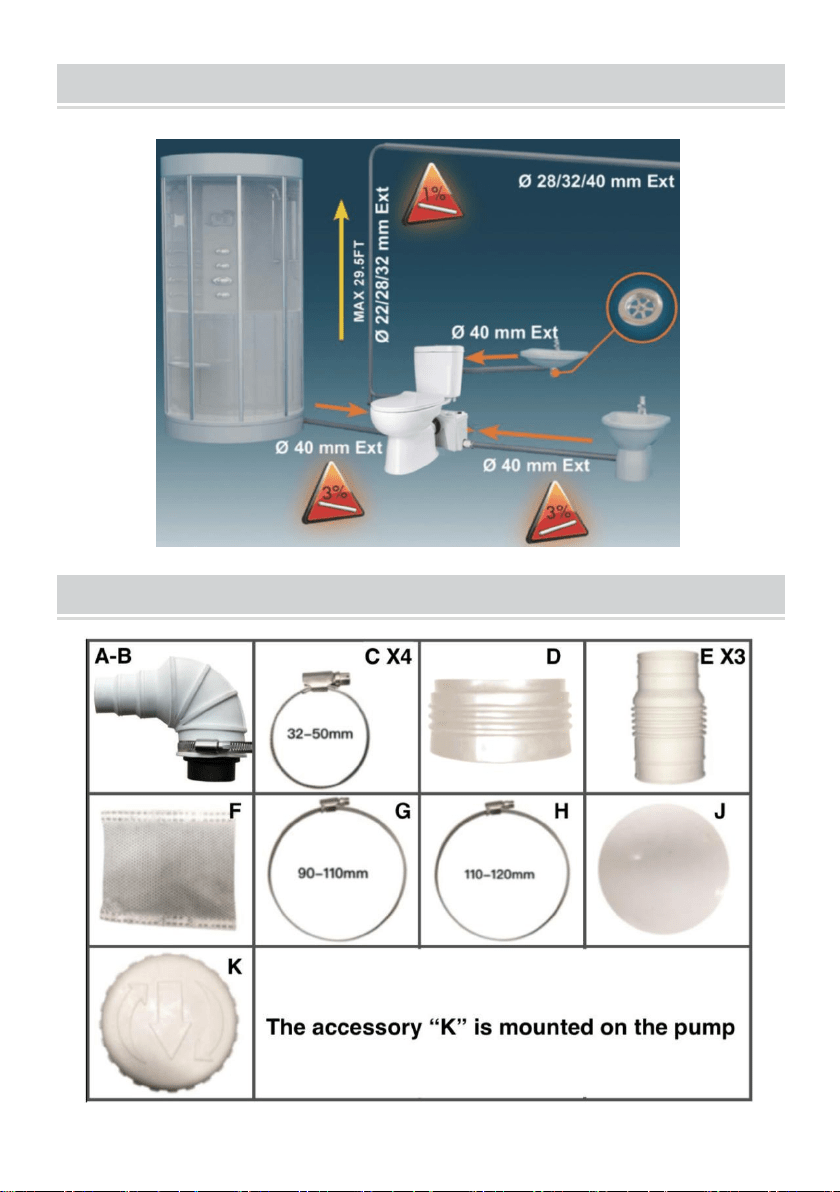

INSTALLATION (DIAGRAM)
ACCESSORY LIST
- 3 -
S/N
Name
Number
A-B
Check valve with plastic elbow
1
C
Hose Clamp (32-50mm)
4
D
Rubber ring to connected the Intelflo toilet and Intelflo
pump
1
E
Plastic hose
3
F
Activated Carbon
1
G
Hose Clamp (90-110mm)
1
H
Hose Clamp (110-120mm)
1
J
Lid
1
K
Plug(It Mounted On The Pump)
3
INSTALLATION INSTRUCTIONS

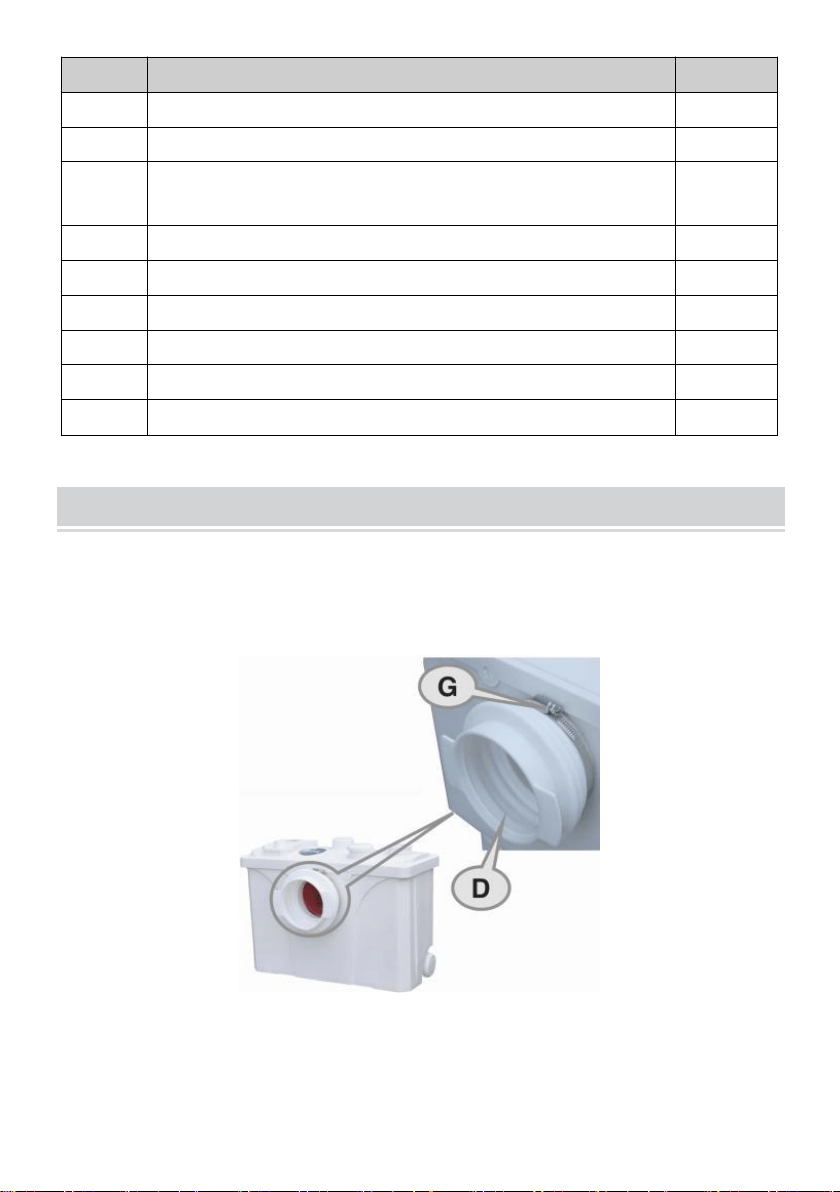

(5-1), Install the rubber sleeve (D) onto the sewage pump and lock it with a
90- 110mm hose clamp(G). Be careful not to install the rubber backwards.

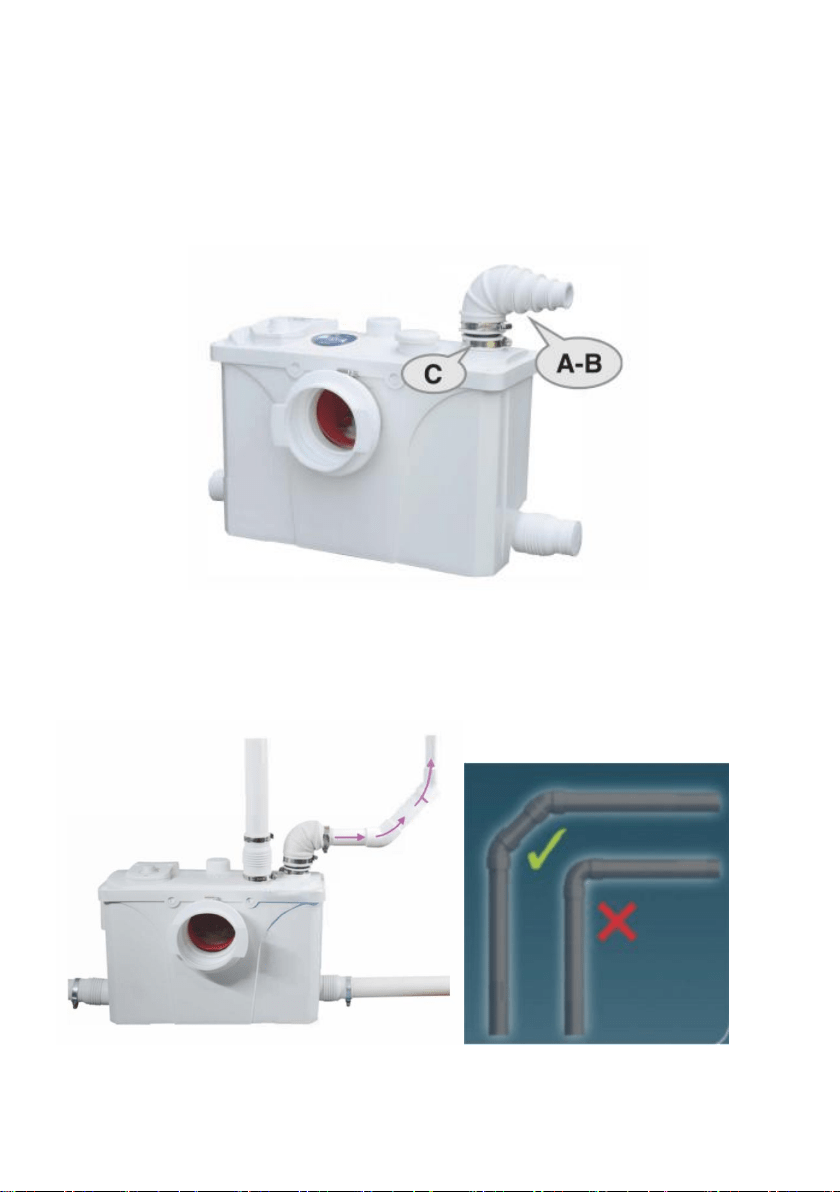

(5-2), The customer can select accessory A-B and check that the hose
clamp of the accessory is locked before installation. Then the customer
chooses the size of the drain pipe, which is available in l" (28mm), 1- 1/4"
(32mm), or 40mm (l- l/4") sizes. The dimensions are marked on the
- 4 -
accessories, and the customer is free to choose. In this installation
example, we choose the 1-1/4"(32mm) drain pipe size. Then use a knife to
cut the extra.
Note: The smaller the pipe diameter, the higher the lift.
(5-3), In addition, at the corner of the PVC water pipe, be sure to use a
large elbow composed of two 45-degree elbows, not a right-angle elbow;
otherwise, it will affect the vertical lifting height.
- 5 -

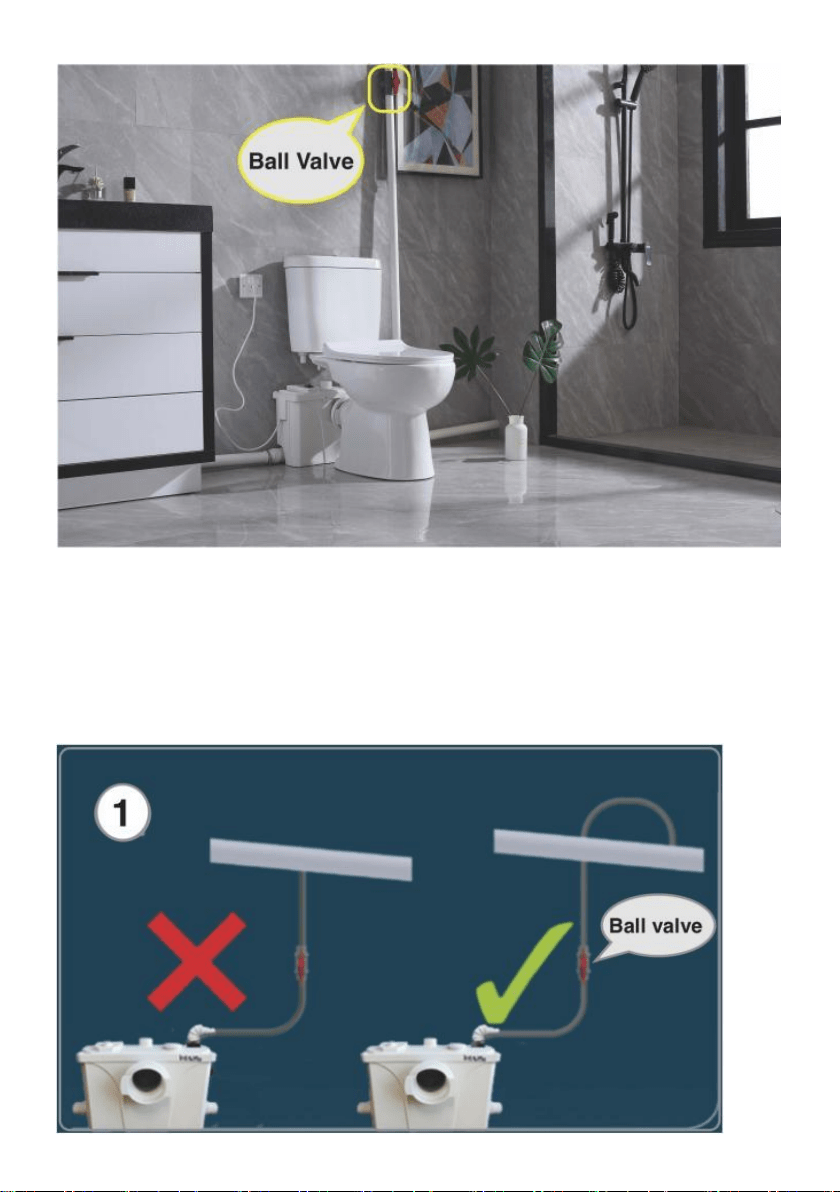

(5-4), Please install a ball valve (not provided) near the water outlet to
prevent sewage leakage when the pump is disassembled.
(5-5),When connecting to the main pipe, the drain pipe must flow in from
above the main pipe to prevent back-flow. As shown below:
- 6 -
8/13

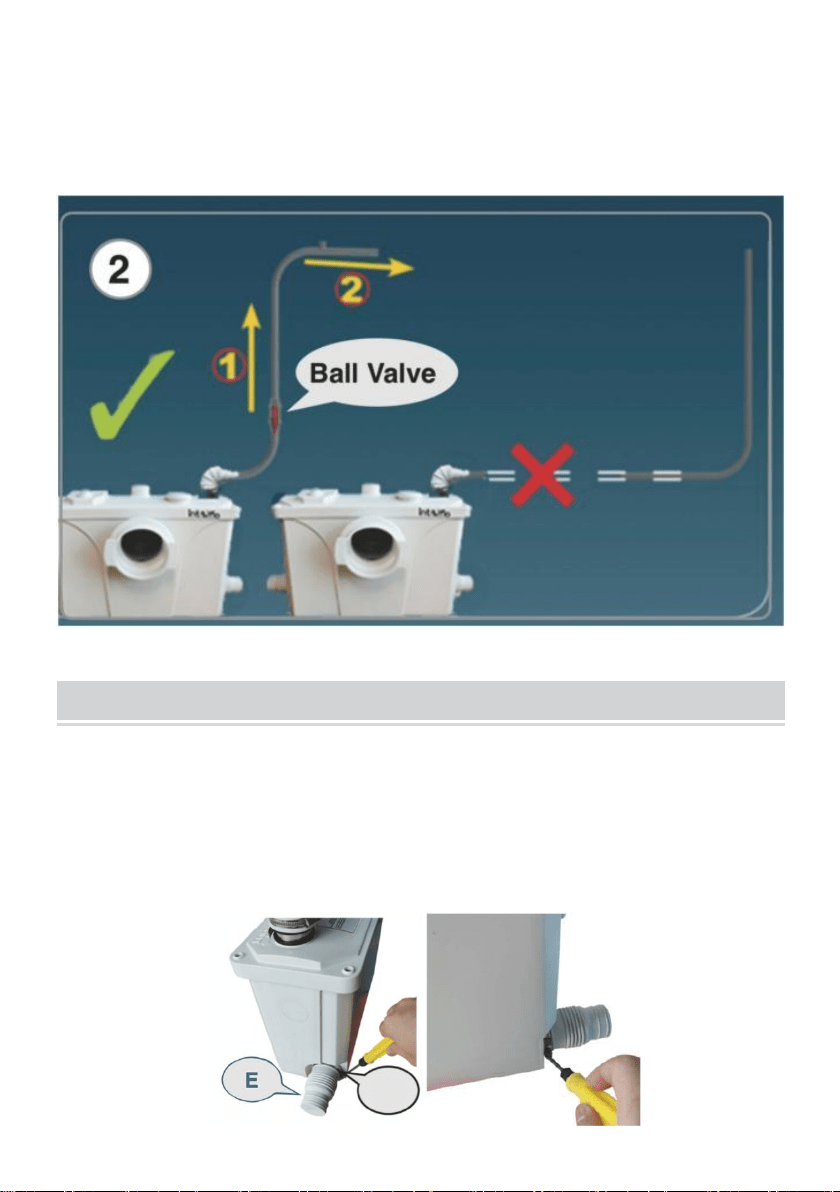

(5-6), For best performance, please drain upward first and then drain the
drain pipe to the main pipe at a 2%-3% incline: otherwise, the sewage will
flow back.
INSTALLATION OF CONNECTING PIPE IN THE SHOWER ROOM
(6-1), Install the plastic hose fitting (E) and lock it with the hose clamp (C).
There are two inlet holes on the left and right sides of the sewage pump.
They are used to connect the shower room and the sink. If the water inlet is
not used, it can be plugged in with accessory K.
C
- 7 -

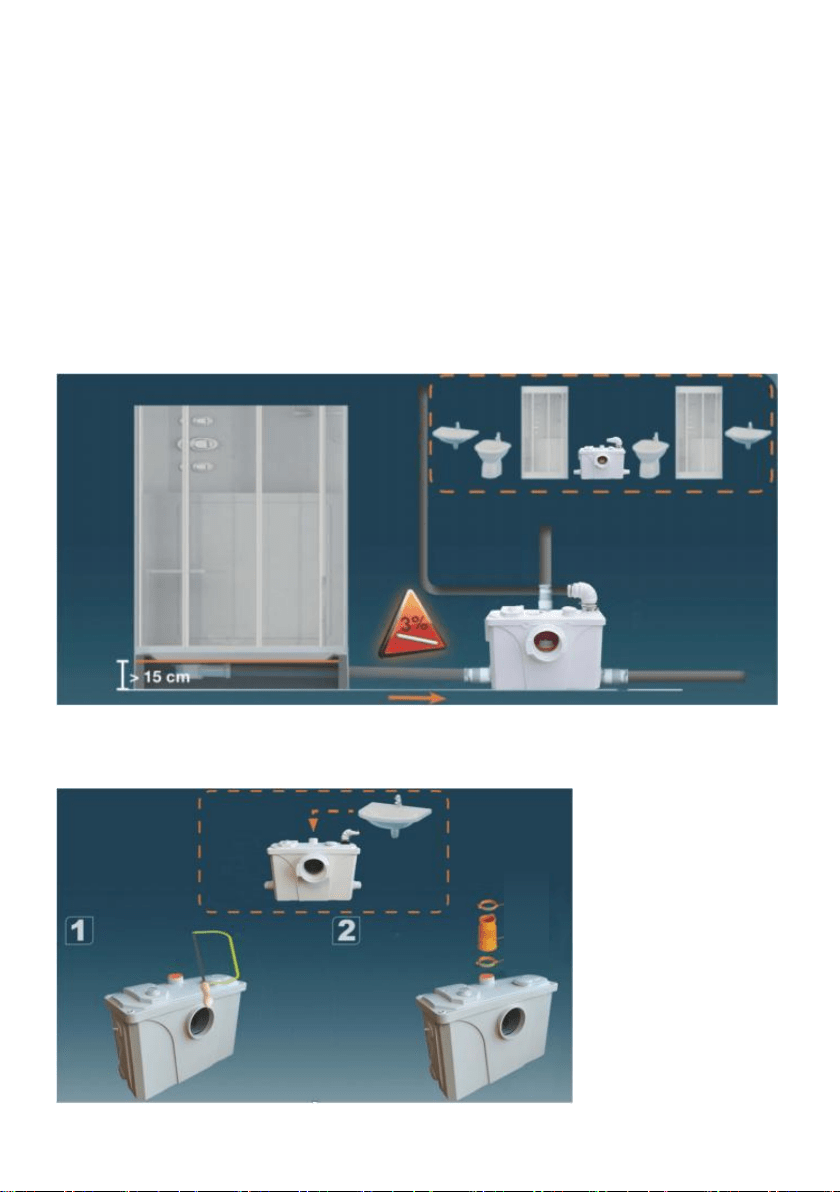

(6-2), When installing the shower room, first, you can install a wooden
or iron shower base or build a cement platform. For wastewater from the
shower and bath, ensure that the slope of the siphon is at least 3% (0.4
inches per 40 inches) so that the wastewater flows through the natural
gravity to the unit position. If other sanitary units are connected to the
disposal line along the disposal circuit, install check valves in the
appropriate waste pipes to prevent backflow.
Note: Please make sure that the shower room chassis is raised to a
minimum height of 6 inches (15 cm). It also depends on the distance
between the shower room and the pump.
(6-3), If you need to connect more equipment and use the top water inlet,
please open it with a saw and connect it with a hose.
- 8 -

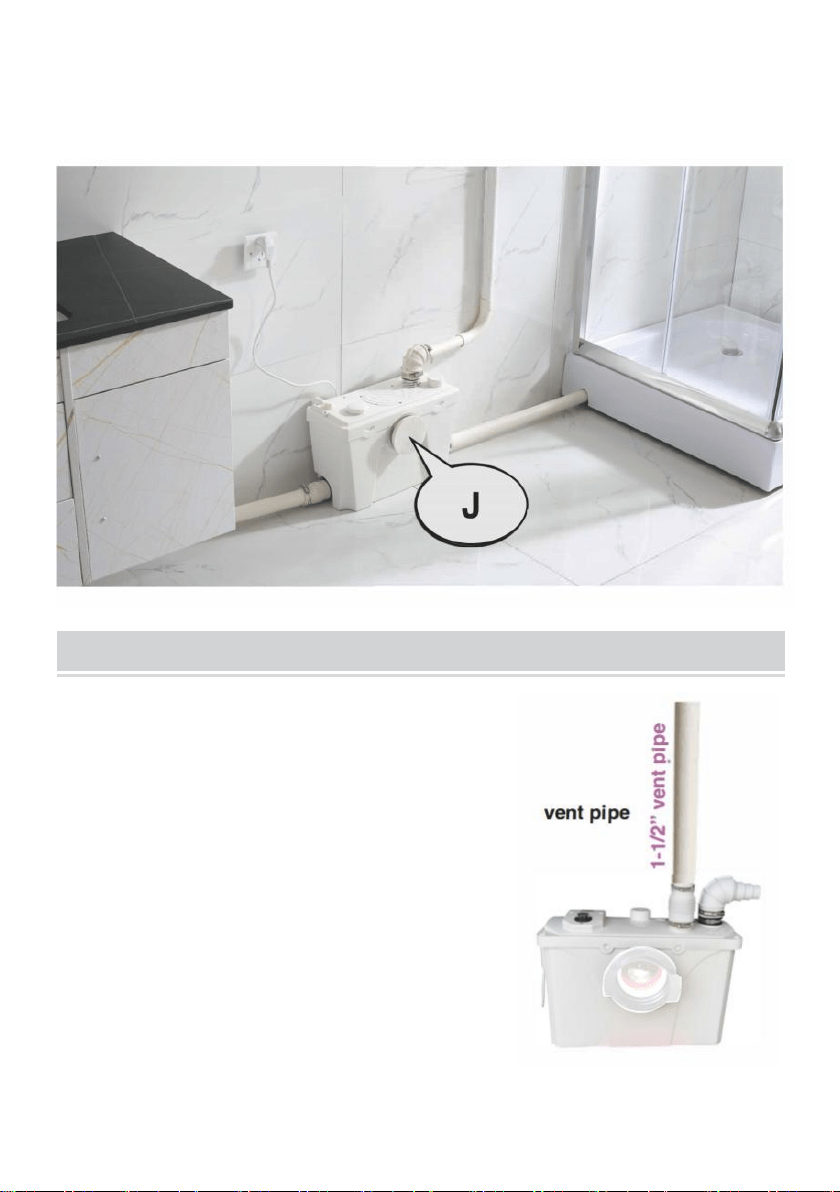

(6-4), If the toilet is not connected, you can use the lid (J) to block the
toilet water inlet and then use the clamp (G) to fix the toilet. Then only
connect the sink, shower room, and washing machine.
DOUBLE DEODORANT FUNCTION
One is activated carbon to deodorize, put a
bag of activated carbon into the vent, and
then cover it tightly.
And the other is deodorization with ventilation
ducts. See the picture on the right. The size
of the vent pipe is 1 -1 /2" (40mm).
It is also possible to not install ventilation
ducts, which will save a lot of trouble and cost.
But activated carbon must be replaced once
a year.
- 9 -

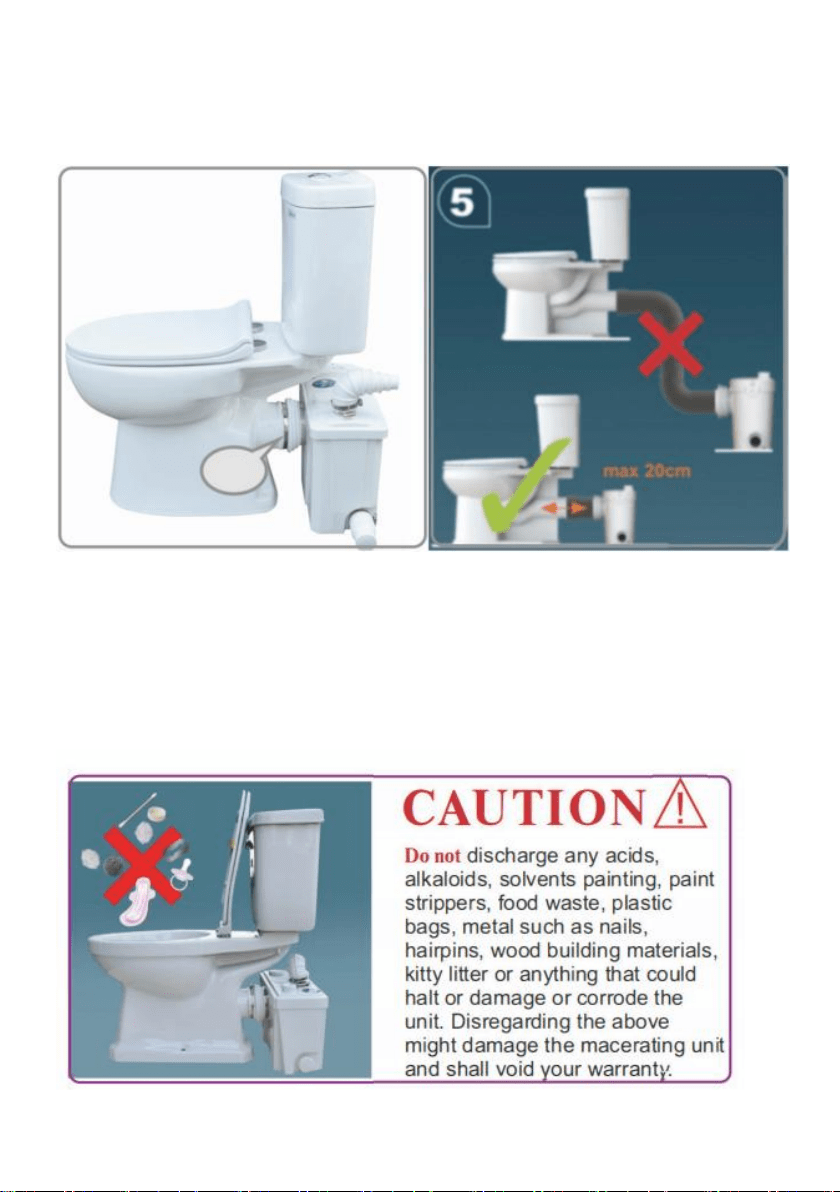

8-1 , Finally connect the toilet and lock it with a 110-120mm hose clamp
(H). The installation Position of the macerating pump should be parallel to
the toilet.
8-2, Do not discharge any acids, alkaloids, solvents painting, paint
strippers, food waste, plastic bags, metal such as nails, hairpins, wood
building materials, kitty litter, or anything that could halt or damage or
corrode the unit. Disregarding the above might damage the macerating unit
and shall void your warranty.
H
- 10 -
WARNINGS
(1)Electrical installation:
■The connection shall be carried out by a qualified technician and the rules
for electrical installations (NEN l010) shall be met.
■If the power cord of the appliance is damaged, it shall be replaced by the
manufacturer or supplier of the appliance. This will avoid creating
dangers.
■ The connection of your appliance is Class l.
Connect the appliance to a socket with a protective conductor connection.
(2) Thermal protection:
■This appliance is equipped with thermal protection, which switches off the
power supply of the appliance after overheating for safety reasons.
When the device returns to normal temperature, it will start automatically.
■Power on the electrical connection only when the appliance is fully
installed.
■ In case of prolonged absence (e.g., vacation), the water supply to the
appliance shall be closed.
■ Do not expose the appliance to temperatures below 0°C or above 50°C.
(3) If the indications are not followed, it could cause personal security risks.
(4) Wrong Use
Use only for human excrement+soluble toilet paper.Equipment damage
due to Improper use is not covered by the warranty.Some examples of
damage caused by improper use include grinding cotton wool, tampons,
sanitary napkins, panty liners, food, condoms, towels hair and rinsing
liquids and solvents or oils.
- 11 -
TROUBLE SHOOTINGS
Some malfunctions of the grinder are not practically serious. You can
correct it by yourself. To diagnose and find a solution to the Trouble, refer
to the diagram below. For other malfunctions, contact the supplier or a
qualified professional.
MALFUNCTIONS
POSSIBLE CAUSES
SOLUTIONS
The appliance occasionally
starts to work
The connected pipelines are
leaking
Check the installation in front
of the appliance
The check valve is leaking
Clean or replace the check valve
The motor is running properly,
but the water runs slowly
away.
The aerator in the lid is blocked
Clean the aerator
The engine is running
properly but non-stop or runs
for a long time
The height or length of the drain
is too large,or too many bends
are used(power failure)
Check the installation
The pump is blocked
Turn off the power,
disassemble the pump and
unblock
The motor is not switched on
The power supply is not
switched on
Switch the on power supply
(repeat)
The plug is defective
Repair the plug
The trouble with the motor or
sensor
Remove the lid,flush clean,and
dry the sensor up(hair dryer)
The motor rattles with a noise
There's a strange object in the
motor
Remove the lid,clean it and
remove the object
The motor is buzzing and
does not rotate
The condensator is broken or has
trouble with the motor
Get in contact with a qualified
specialist or the supplier
There's a strange object in the
Remove the lid,clean it and
motor
Remove the lid,clean it and
remove the object
- 12 -
