9694 • 111521
1
If a problem cannot be remedied or you are experiencing diculty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
52” OGUN
CEILING FAN
Owner’s Manual
Model #20747
SKU #355-0722

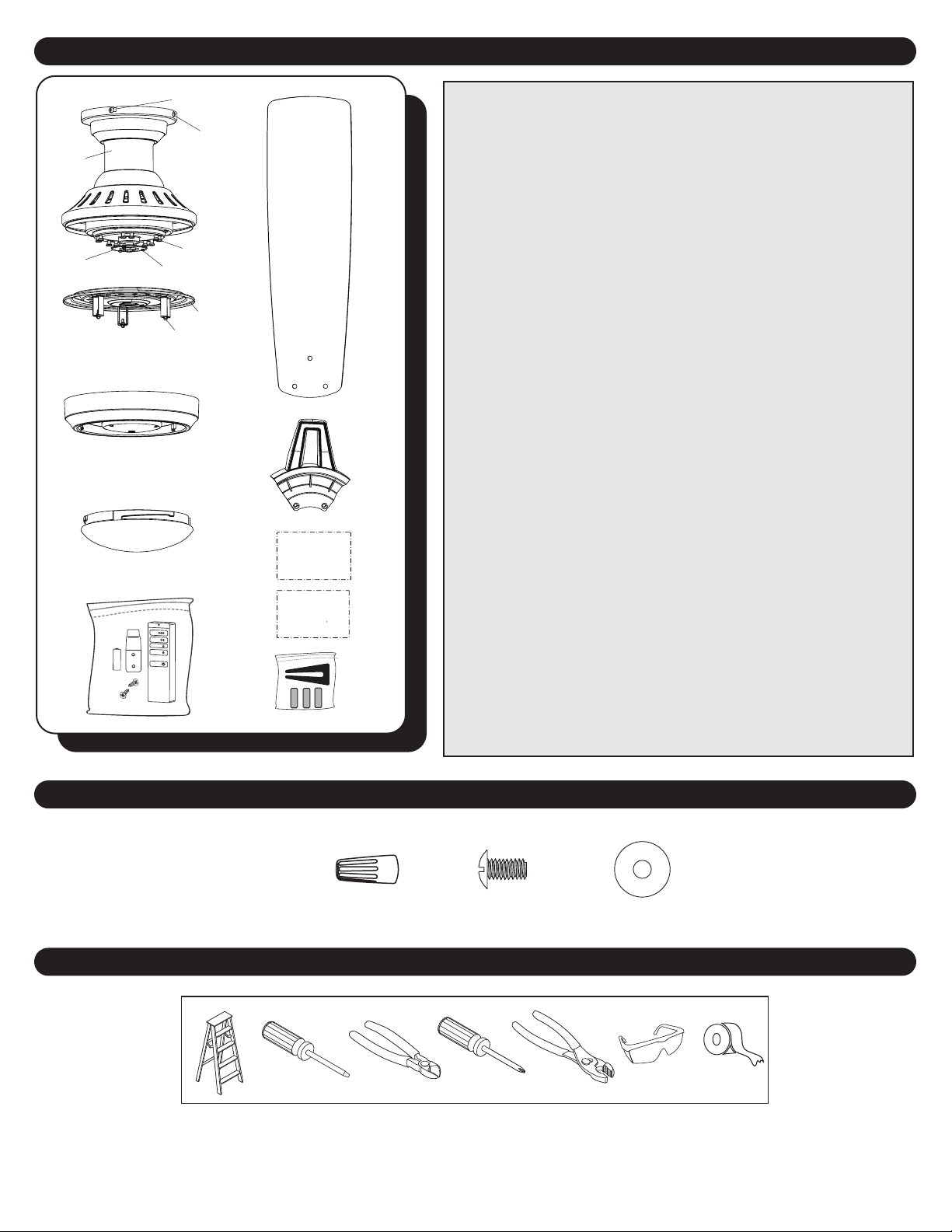

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Mounting Bracket
2. Mounting Bracket Screw
(x 4)
3. Motor Assembly
4. Fitter Plate
5. Fitter Plate Screw (x 3)
6. Motor Screws (x10)
7. Light Pan
8. Light Pan Screw (x3)
9. Light Kit
10. Glass Bowl
11. Remote Pack
12. Blade (x5)
13. Blade Arm (x5)
14. Hardware Kit
15. Owner’s Manual
16. Blade Balancing Kit
AA. Wire Connector (x3)
BB. Blade Screw (x15)
CC. Blade Washer (x15)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
AA BB
CC
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
11
12
13
14
15
16
9
8
10
7
6
5
3
4
2
1

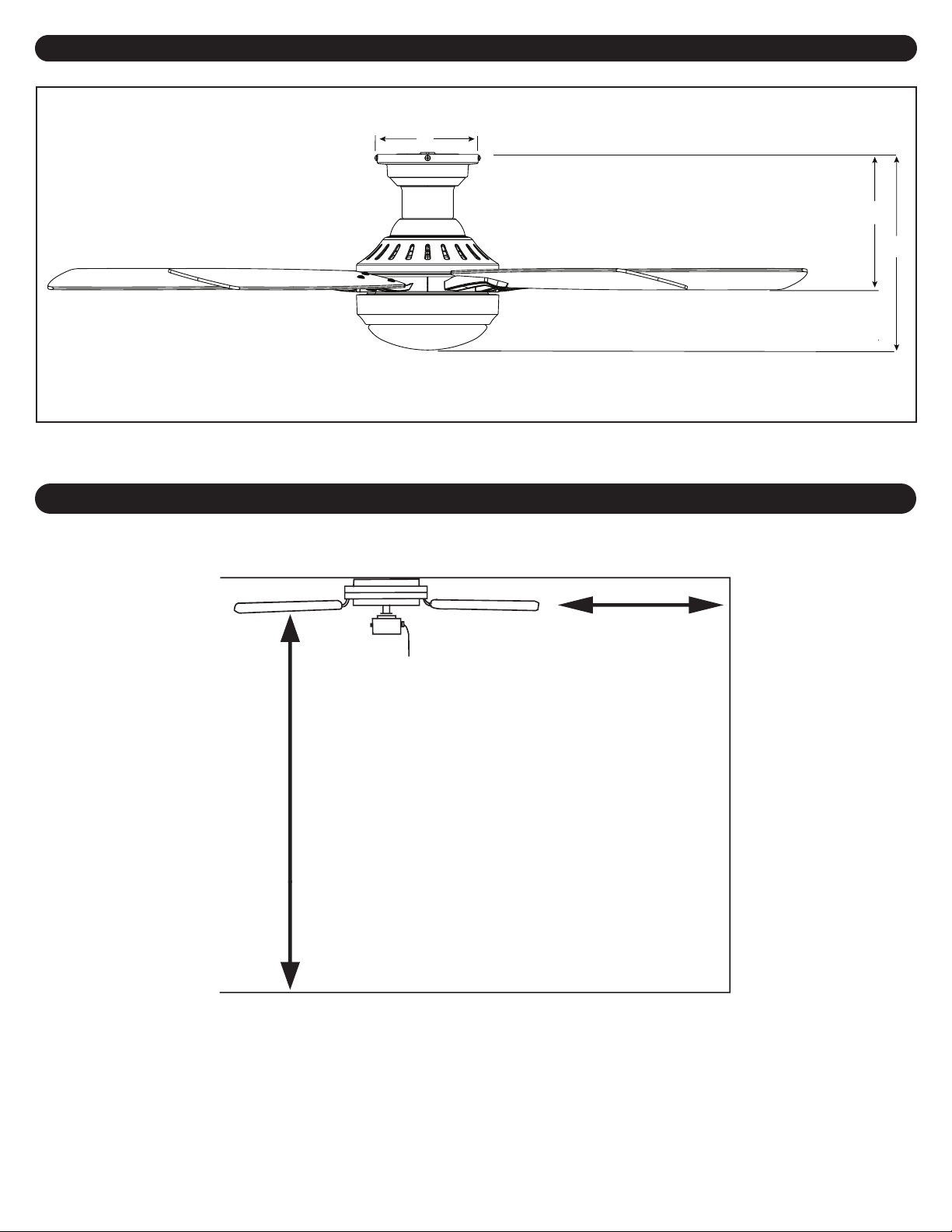

LOCATION FOR INSTALLATION
3
A. 13.01 in. B. 9.02 in. C. 6.69 in.
DIMENSION REFERENCE
C
A
B
When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction
and at least 7 feet above the oor.
7 ft. Min
30 in. Min
Wall
Ceiling
Floor
4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 17.73 lbs (8,04 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:
Motor Screw
Motor Block
Mounting
Bracket
Outlet Box
5

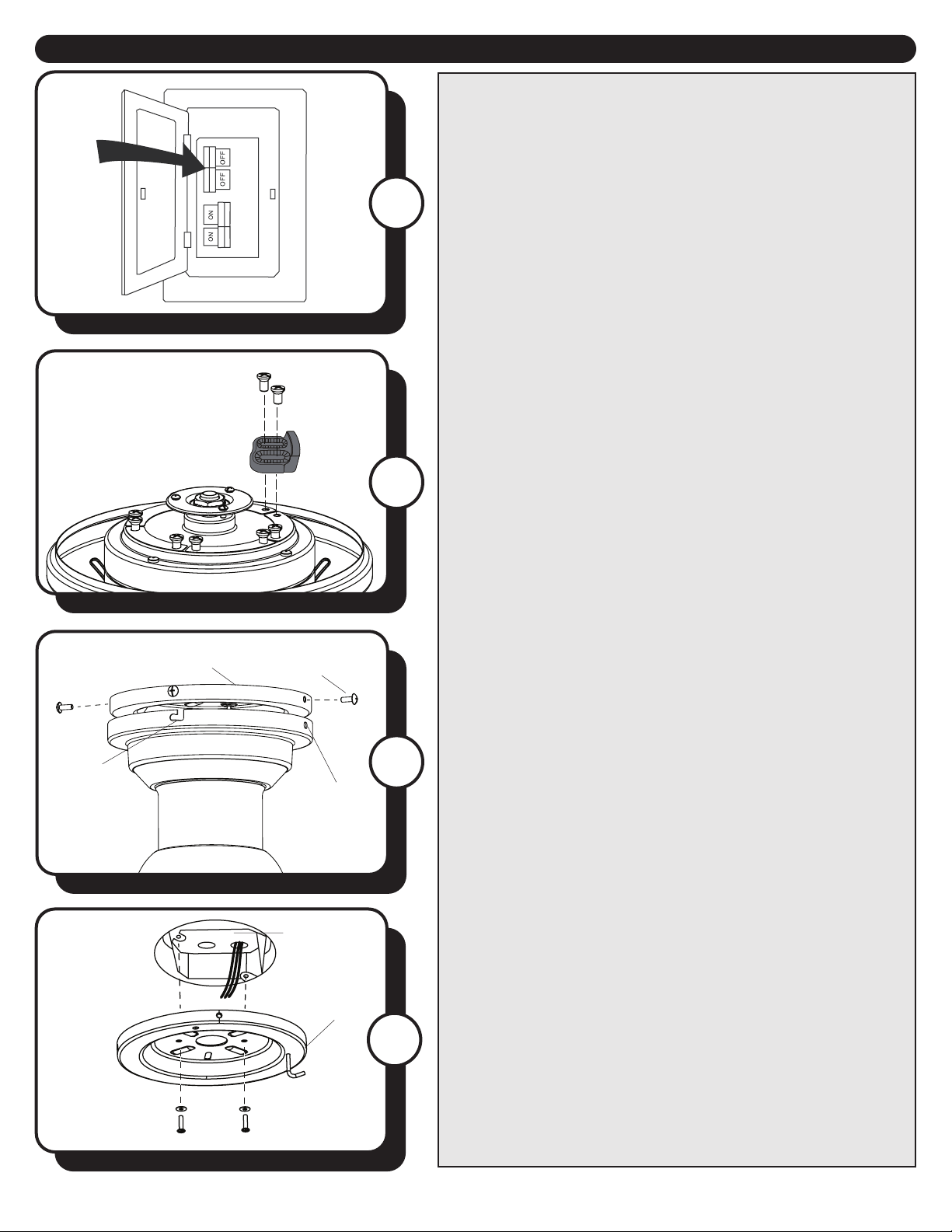

ASSEMBLY INSTRUCTIONS
2
1
3. Loosen all four mounting bracket screws located on
the mounting bracket and completely remove the two
screws from the round holes in the top edge of the motor
assembly. Save the screws for later. Remove the mounting
bracket from the motor assembly.
2. Remove the ten motor screws and ve motor blocks
from the underside of the motor. Discard the motor blocks
but save the motor screws for blade arm installation.
4
4. Feed the supply wires from the outlet box through the
center hole in the mounting bracket. Then, secure the
mounting bracket to the outlet box (not included) using
screws and washers provided with the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
Mounting
Bracket
J-Slot
Round
Hole
Mounting
Bracket Screw
3
6
Mounting
Bracket
Hook
Motor
Assembly

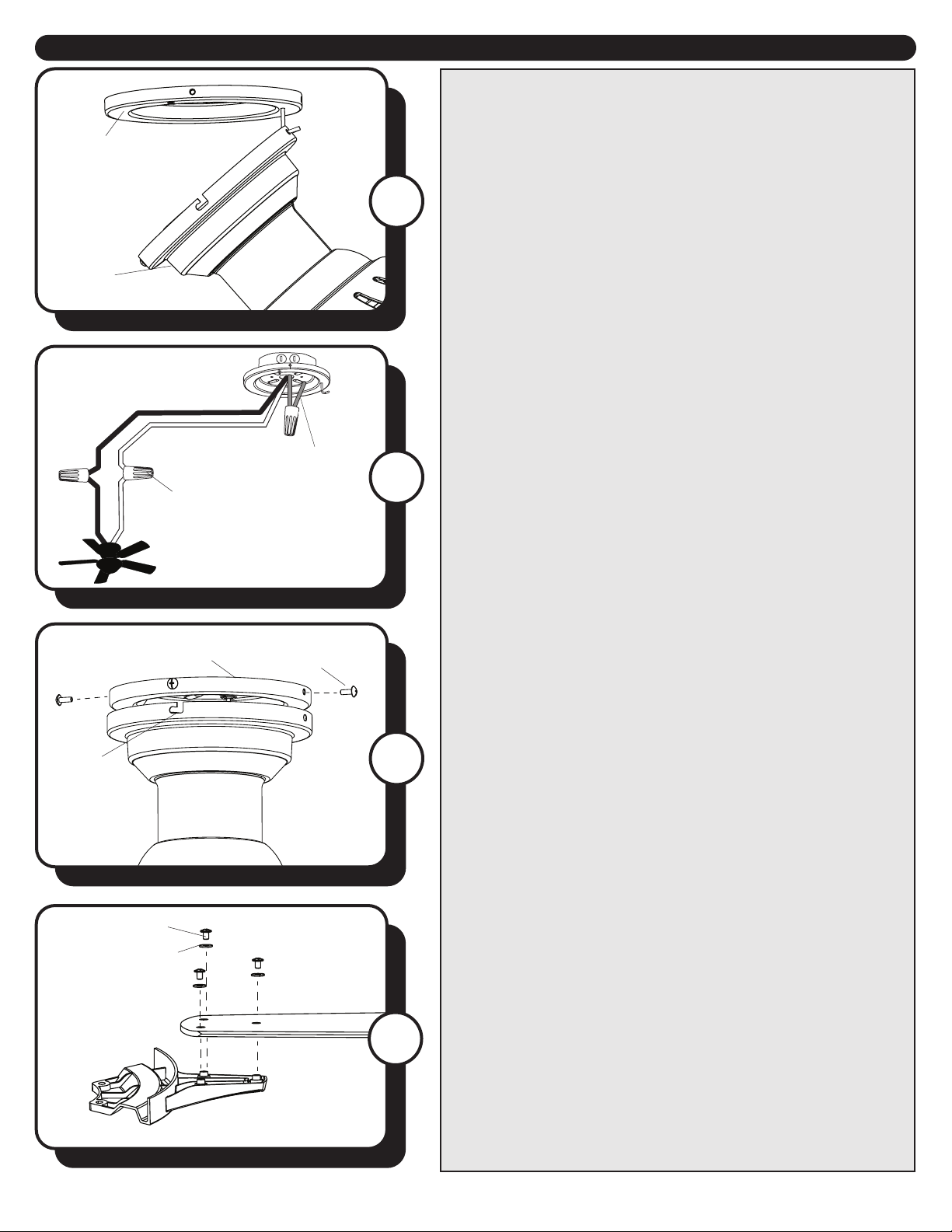

ASSEMBLY INSTRUCTIONS
7
6
5
8. Partially insert the blade screws along with the blade
washers through the blade and into the blade arm.
Tighten each blade screw with a Phillips screwdriver (not
included), starting with the one in the middle. Repeat
this step for the remaining blades and blade arms.
8
Mounting
Bracket
J-Slot
Blade Screw
Blade Washer
Blade Arm
Blade
Mounting
Bracket Screw
7. Lift the motor assembly, ensure the two mounting
bracket screws are aligned with the J-slots in the
motor assembly. Then turn the motor assembly in a
clockwise direction until the mounting bracket screws
are completely engaged in the J-slots. Install the two
previously removed mounting bracket screws in the
round holes. Securely tighten all mounting bracket
screws.
6. Connect supply and fan wires according to the diagram
and these steps:
• Connect the Green wire from the mounting bracket to
the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black wire from the fan to the Black (live)
supply wire.
• Secure all wiring connections together with wire
connectors.
Note: The Black wire is hot power. The White wire is
neutral. The Green wire is the ground wire. If supply wires
are dierent colors than referred to above, a professional
electrician should determine the proper wiring.
Black (live)
White (neutral)
Bare/Green
(ground)
Black
White
Warning: Do NOT use a
full-range dimmer switch to
control the fan speed.
Wire Connector
5. Lift the fan and place one of the round holes at top
of the motor assembly onto the hook on the mounting
bracket, temporarily leaving hands free for the wiring
process.
7

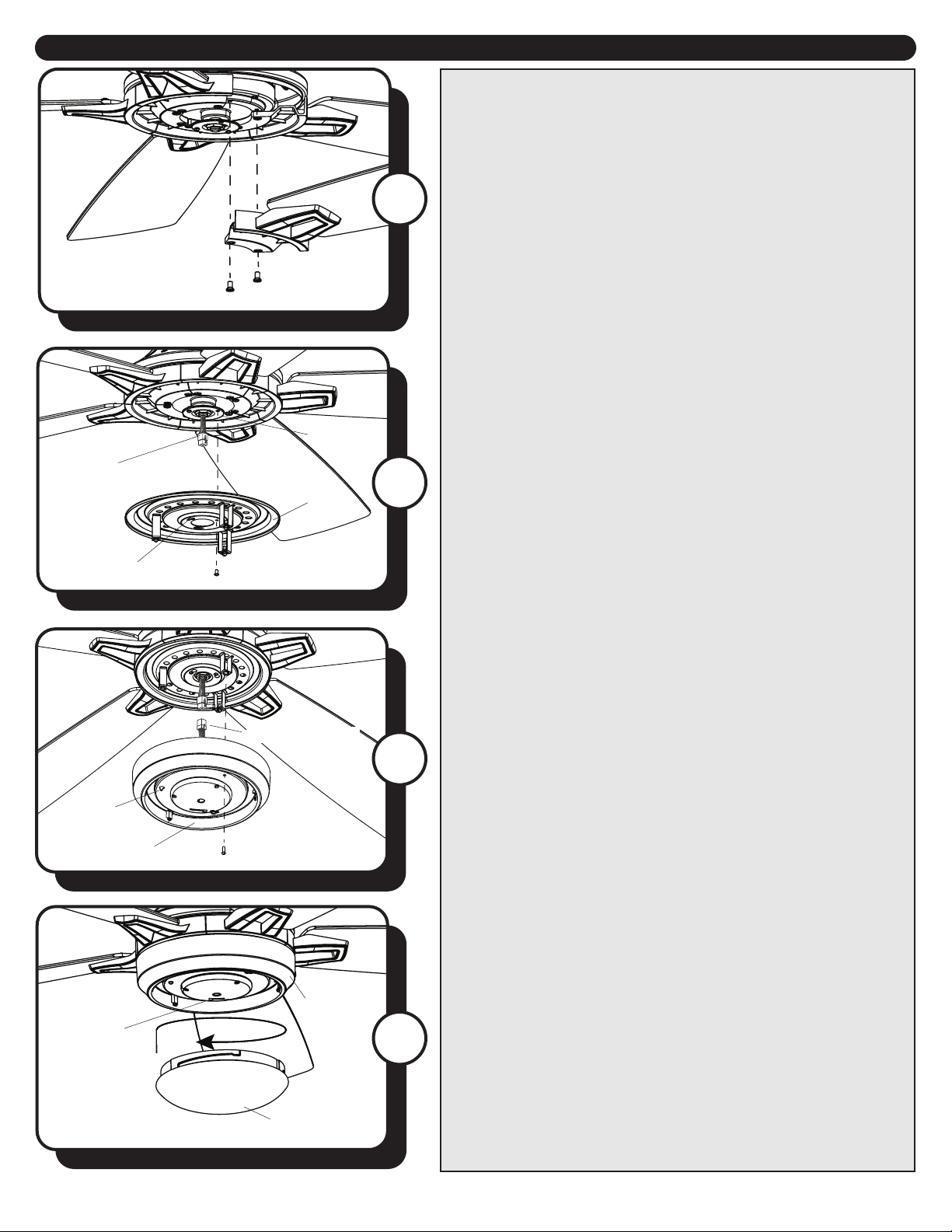

ASSEMBLY INSTRUCTIONS
Glass Bowl
LED Color
Switch
12
11
9
10
6-Pin
Connector
Motor Screw
10. Remove one of the three tter plate screws
preassembled to the tter plate and loosen the other two
but do not remove. Feed the 6-pin connector through the
center hole in the light pan. Align the keyhole slots in the
light pan with the loosened screws in the tter plate. Turn
light pan clockwise and replace the previously removed
tter plate screw. Tighten all screws.
9. Install the blade arm to the underside of the motor
assembly with previously removed motor screws. Tighten
each blade arm completely before moving to the next.
11. Remove one of the three light pan screws from the
light pan and loosen the other two but do not remove.
Connect the 6-pin connector from the light pan to the
6-pin connector from the light kit. Lift the two keyhole
slots in the light kit over the two loosened light pan
screws and turn in a clockwise direction. Then, use the
previously removed light pan screw to secure the light kit
to the light pan. Tighten all screws.
12. The LED has ve color settings that range from 2700K
(soft white) to 6500K (cool white). The factory setting for
the LED is 2700K. If desired, adjust the LED color switch to
change the color temperature.
Then, attach the glass bowl to the light kit by twisting the
glass bowl rmly in a clockwise direction until it is secure.
CAUTION: Avoid cross-threading the glass during
installation. Improper installation could cause the glass
bowl to be dicult to remove or fall, which could cause
serious injury.
Light Pan Screw
6-pin Connector
Fitter Plate Screw
Light Kit
Keyhole
Slot
Keyhole Slot
Light Pan
Fitter Plate
Light Kit
8
15. Turn on the circuit breakers and the wall switch to the
fan supply lead lines.
Assembly is complete.
15

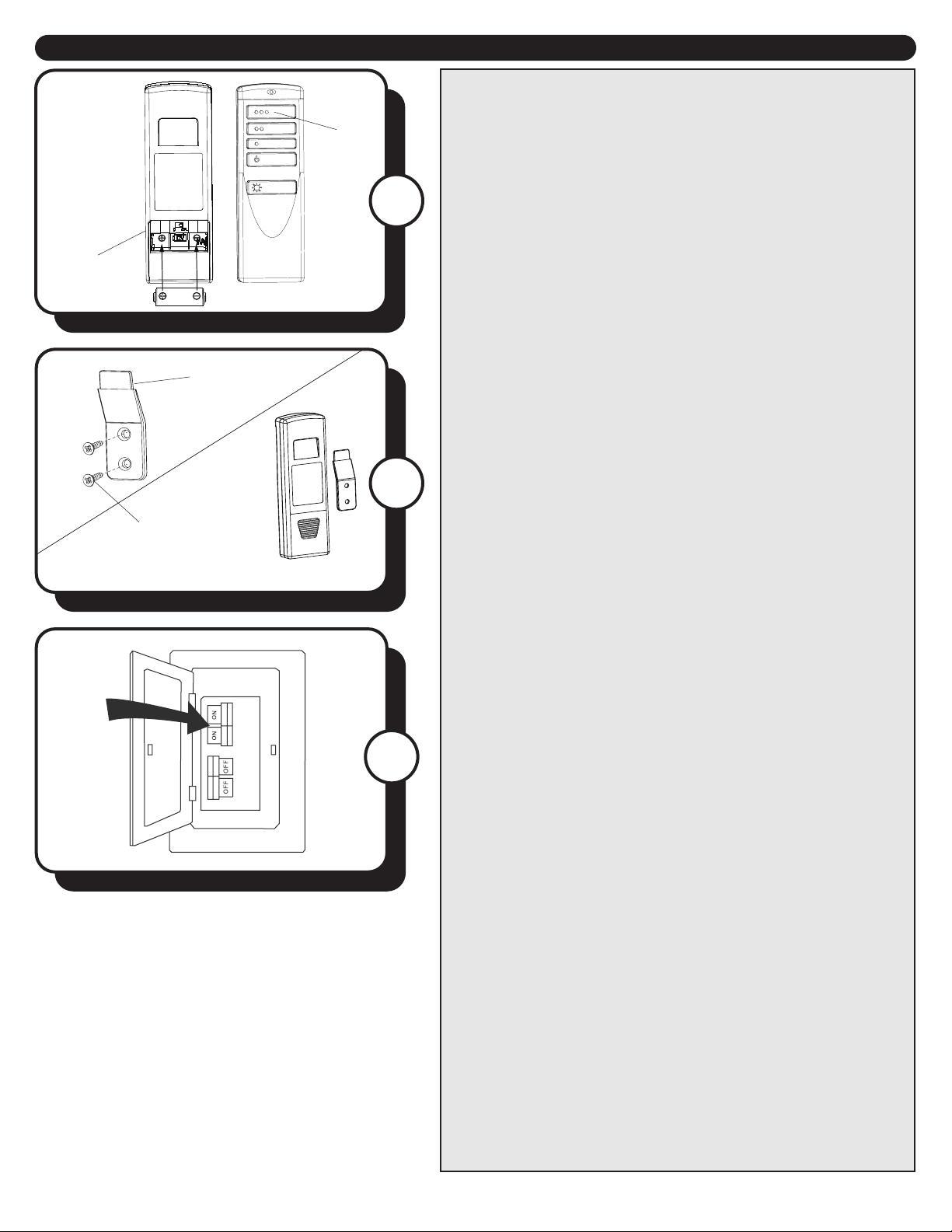

ASSEMBLY INSTRUCTIONS
Wall Bracket
Mounting Screw
Battery
Compartment
High
Speed
13. Remove the battery cover from the back of the
remote. Insert the A23, 12V battery from remote pack
into the remote; ensure polarity of battery matches the
polarity indicated in the battery compartment -- positive
(+) to positive (+) and negative (-) to negative (-). Replace
the battery cover and press the High Speed button on
the remote to ensure the remote turns on the fan.
Note: If remote does not turn on fan, see page 10.
14. If desired, the wall bracket in remote pack can be
installed to a wall using the provided mounting screws.
Store the remote on the wall bracket when not in use.
14
13
LED Indicator
High Speed
Medium Speed
Low Speed
Light Control
Fan O
D CFL
LEARN
2

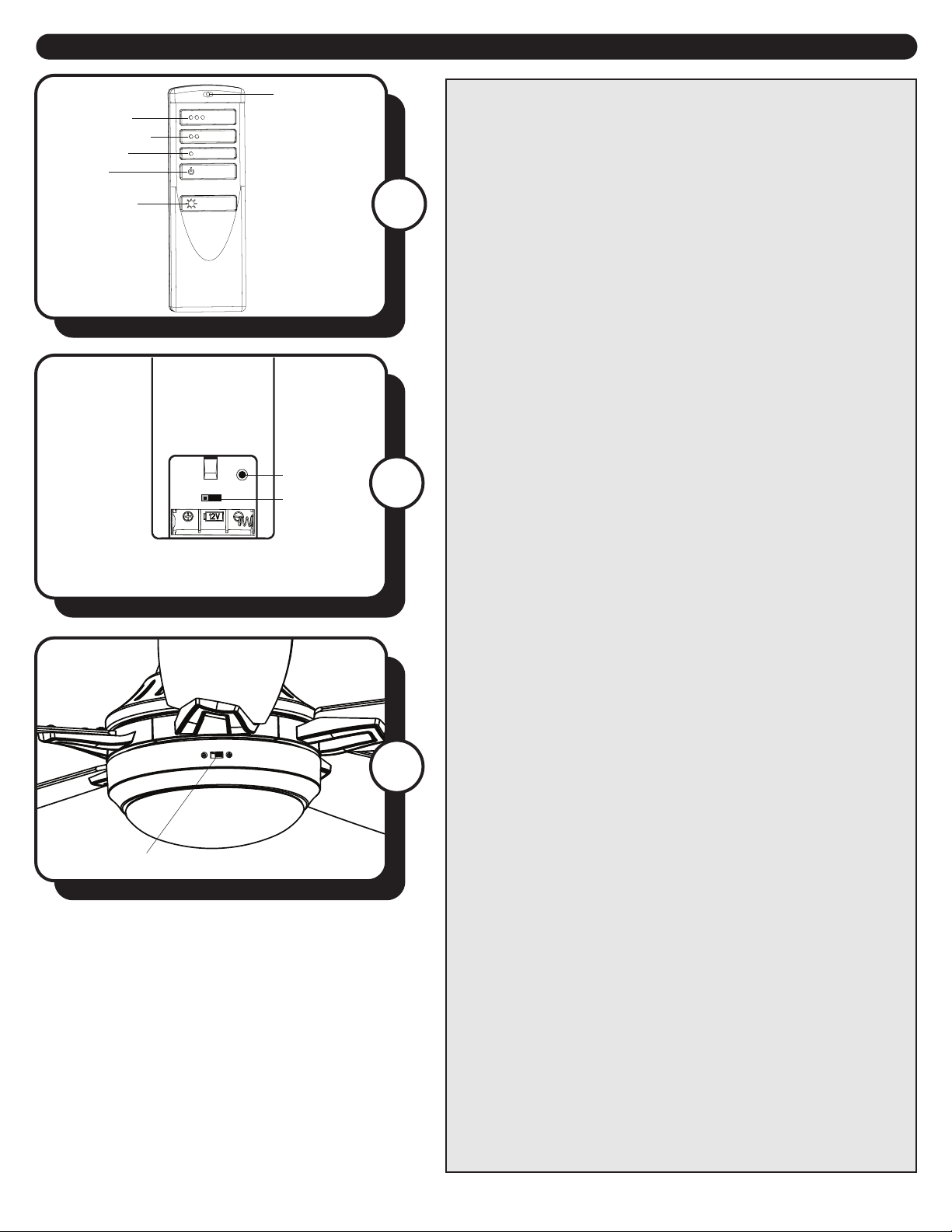

OPERATING INSTRUCTIONS
1
2. Remove battery door from back o the remote to
access the following:
D/CFL Switch - Switch was set to “D” at the factory to
ensure the LED board is dimmable.
LEARN - Syncs remote to receiver (see troubleshooting
for instructions).
3. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left, which
will result in downward airow creating a wind chill
eect.
In cooler weather, push the reverse switch right, which
will result in upward airow that can help move hot air
o the ceiling.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the switch is set in the middle position, the
fan will not operate.
2
3
1. To operate the fan using the remote, press and release the
following buttons:
High Speed - Turns the fan on high.
Medium Speed - Turns the fan on medium.
Low Speed - Turns the fan on low.
Fan Power - Turns the fan o.
Light Delay O mode - Press and hold the fan power
button for ve seconds, which will turn o light after one
minute. The LED indicator on the remote will ash four
times to conrm mode setting.
Light Control - Tap light control to turn light o and on.
Press and hold light control to dim or brighten the light.
LED Indicator will ash for one minute as a reminder to
replace the 12-volt battery.
Battery Compartment
(battery door removed)
9
LEARN
D/CFL
Reverse Switch
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
TROUBLESHOOTING
10
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the motor assembly.
5. Some fan motors are sensitive to signals from Solid State variable-speed controls. DO NOT
USE a Solid State variable-speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using a blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
Check for loose or disconnected 6-pin connectors in the light kit.
1. After installation is complete, switch the power o and back on again. Within 30
seconds, press and hold the “LEARN” button, located in the battery compartment, for
5 seconds. Fan will turn on at low speed and light o. This conrms that the SMART
SYNC is active.
2. Insert new 12V battery in battery compartment of the remote control.
3. If there are several fans in close proximity, turn power o to other fans and re-sync
the remote.
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
5. Remote control does
not work:
LIMITED LIFETIME WARRANTY
To obtain service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
Model Name: 52” Ogun Ceiling Fan
Model No: 20747 - (SKU: 355-0722)
11
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
