9495 • 111521
1
If a problem cannot be remedied or you are experiencing diculty in installation, please contact the
Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
RATED FOR
DAMP LOCATION
52” FLORIDA BREEZE
CEILING FAN
Owner’s Manual
Model #20699
SKU #355-0716

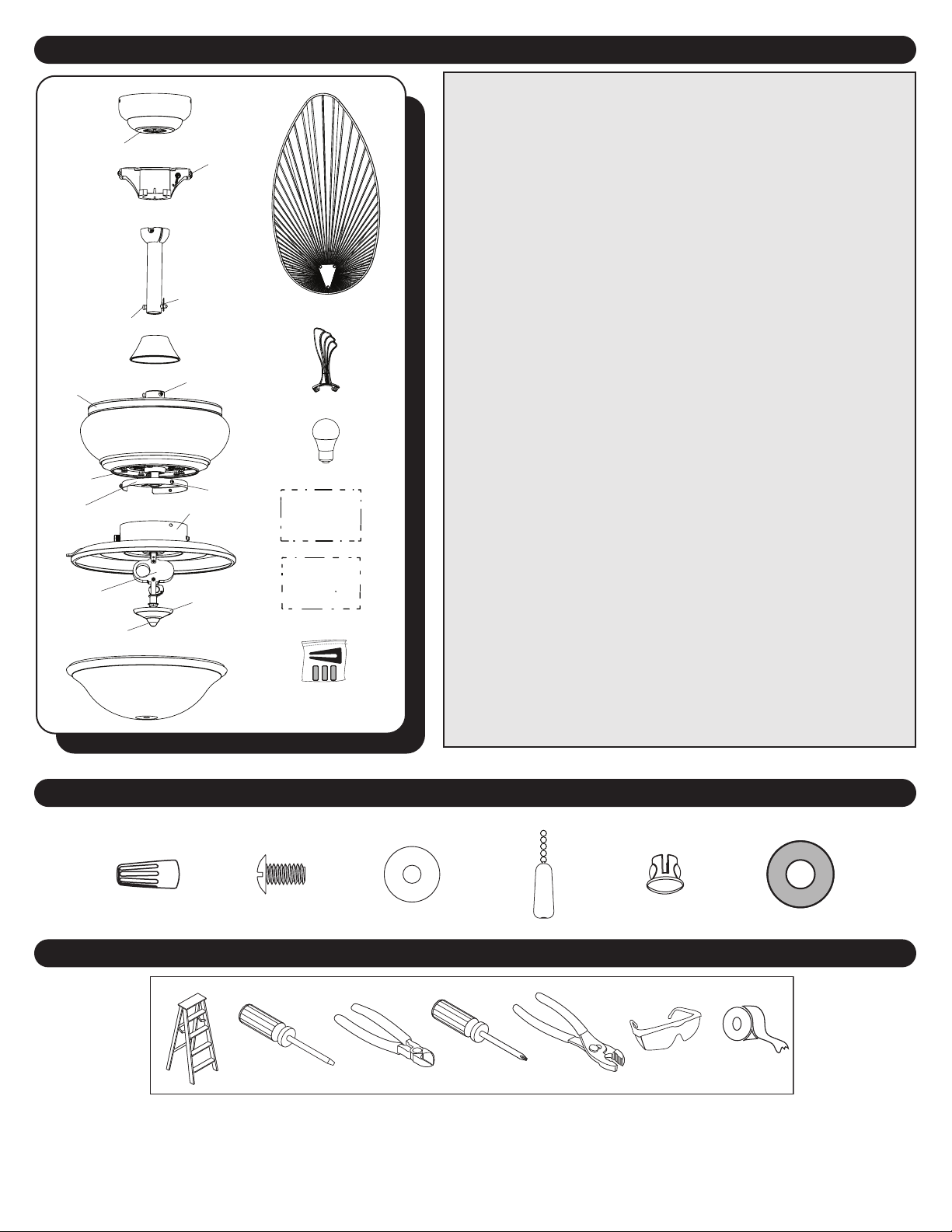

PACKAGE CONTENTS
2
HARDWARE CONTENTS
CCBB EEAA DD UU
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Clip
7. Downrod Pin
8. Yoke Cover
9. Set Screws (x2)
10. Motor Assembly
11. Motor Screw (x10)
12. Fitter Plate
13. Fitter Plate Screw (x3)
14. Switch Housing
15. Light Kit
16. Finial Cap
17. Finial
18. Glass Bowl
19. Blade (x5)
20. Blade Arm (x5)
21. E26-base LED Bulb (x2)
22. Hardware Kit
23. Owner’ s Manual
24. Blade Balancing Kit
AA. Wire Connector (x3)
BB. Blade Screw (x15)
CC. Blade Washer (x15)
DD. Pull Chain Extention (x2)
EE. Plug Button
UU. Metal Washer (x15)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
1
2
3
4
5
6
7
8
9
10
11
13
12
14
15
16
19
20
21
22
23
24
18
17

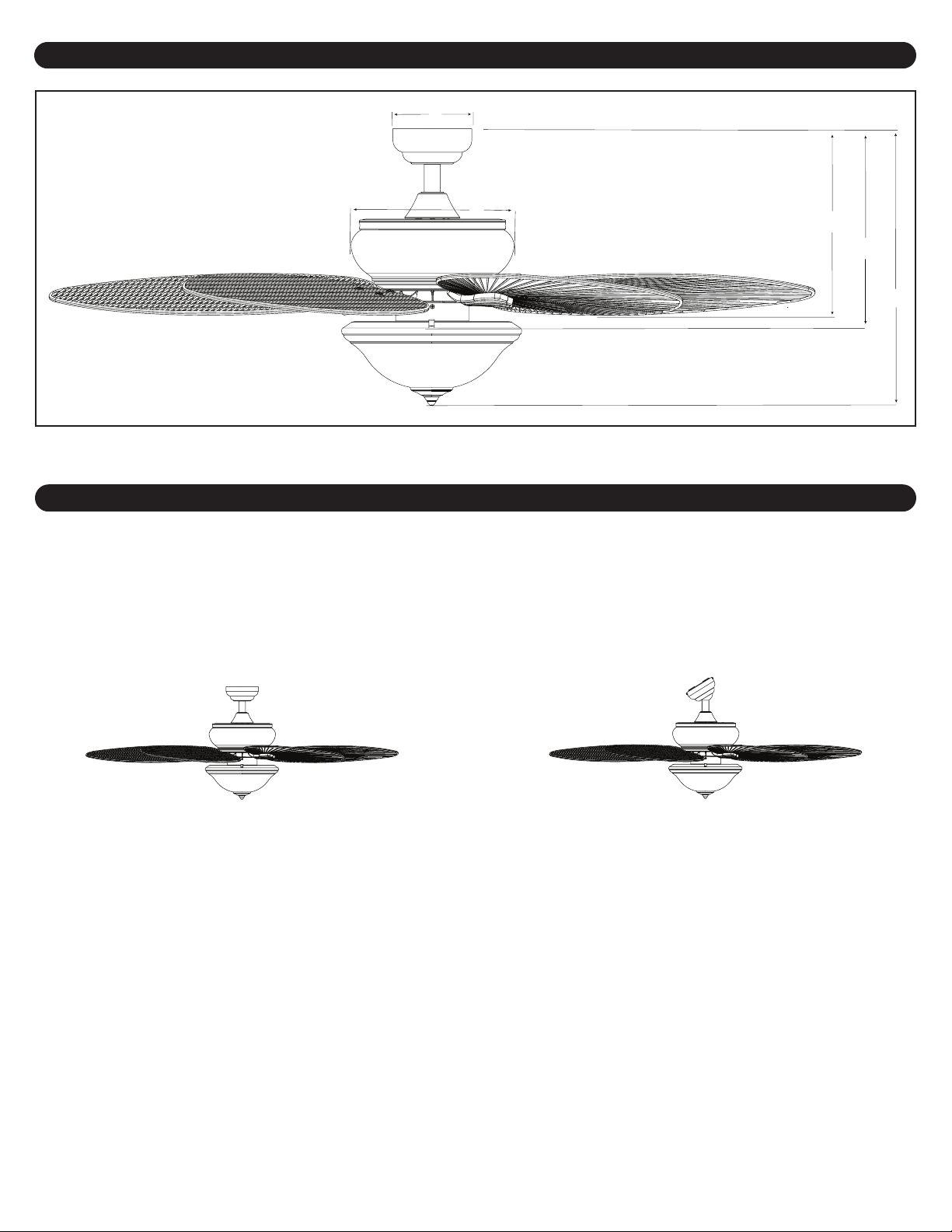

MOUNTING OPTIONS
3
Downrod MountAngled Ceiling Mount (Up to 16 degrees)
Dual Mounting Options
A. 20.48 in. B. 15.05 in. C. 13.97 in. D. 10.57 in. E. 5.13 in.
DIMENSION REFERENCE
E
D
C
A
B
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.
4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 22.7 lb (10.29 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:
5

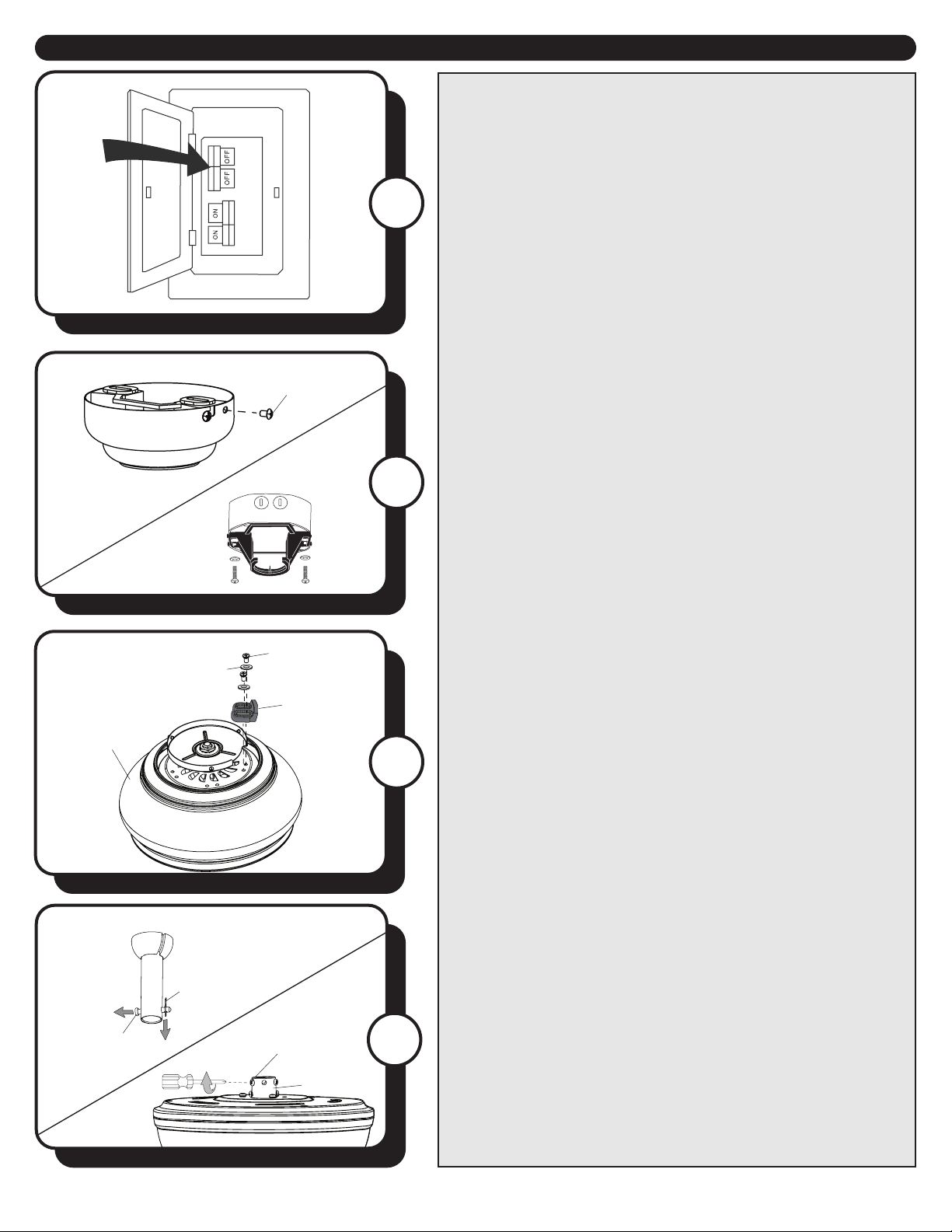

ASSEMBLY INSTRUCTIONS
1
4
3
4. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but don’t remove the two set
screws at the top of the yoke.
2
Mounting
Bracket Screw
Washer
Motor
Assembly
Downrod
Downrod
Pin
Set Screw
Yoke
Downrod
Clip
Motor Screw
Motor Block
3. Remove the ten motor screws, washers, and ve motor
blocks from the underside of the motor. Discard the motor
blocks and washers, but save the motor screws for blade
arm installation.
2. Loosen all four mounting bracket screws located on the
mounting bracket and completely remove the two screws
from the round holes in the canopy. Save the screws for
later. Remove the canopy from the mounting bracket.
Then, install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
1.Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
6
ASSEMBLY INSTRUCTIONS
Black (hot)
White (neutral)
Bare/Green
(ground)
Black
Blue
White
Green
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
Downrod
Canopy
Yoke Cover
Downrod Pin
Yoke
Set Screw
Downrod
Downrod Clip
Yoke
Tab
Slot
Downrod
Mounting
Bracket
Wire Connector
7
5
6

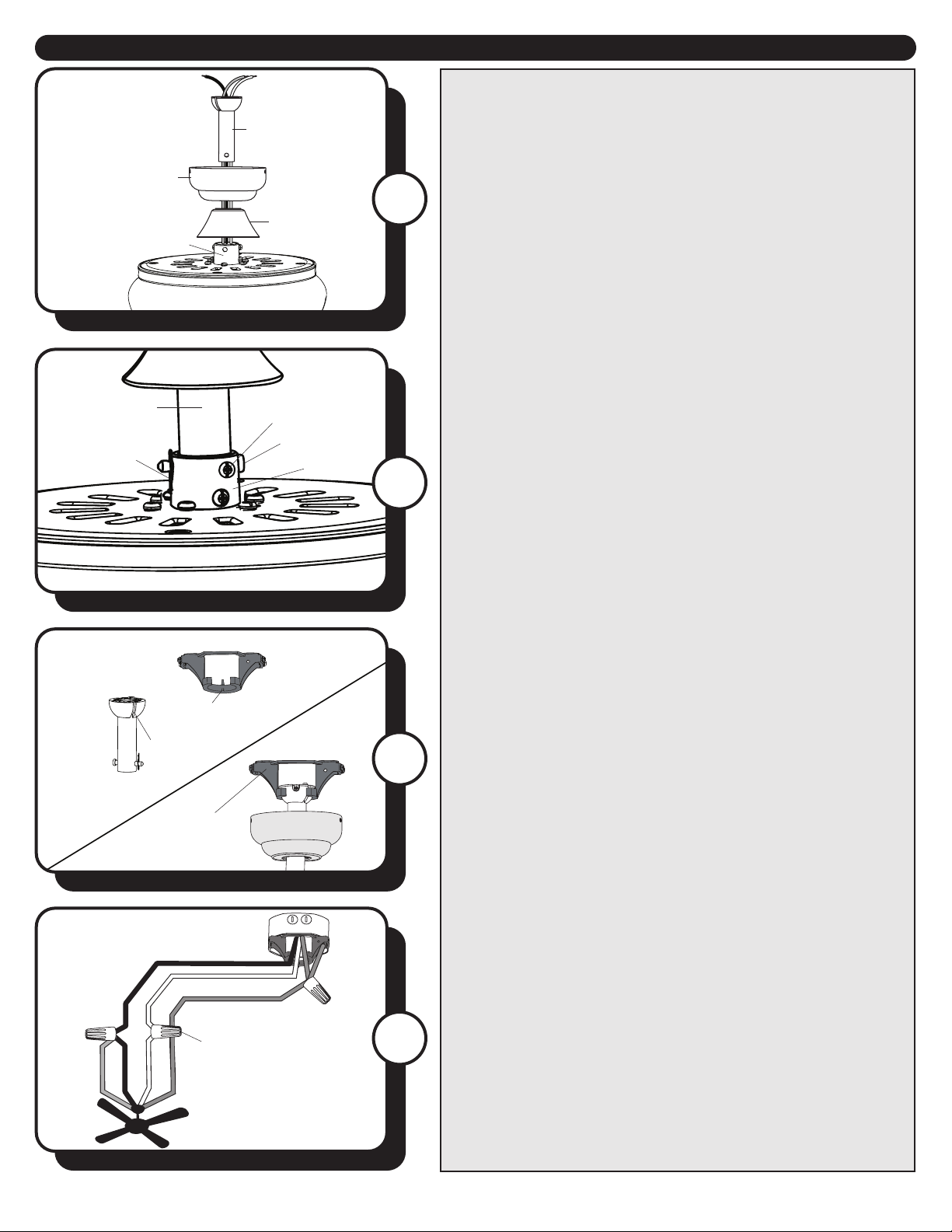

5. Feed the wires coming from the yoke through the yoke
cover, canopy and downrod.
6. Slide the downrod into the yoke of the motor assembly,
align the holes, then re-install the downrod pin and
downrod clip. Secure with the two set screws and slide
the yoke cover down until it rests on top of the motor
assembly.
Note: With wiring extending out of the downrod, measure
8 inches of lead wire and cut the excess wire with wire
cutters (not included). Then strip 1/2” of insulation from
the end of each wire.
7. Install the ball end of the downrod into the opening of
the mounting bracket. Rotate the downrod until the tab in
the mounting bracket is seated in the slot in the downrod
ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket, if installed correctly. Failure to align
the slot in the downrod ball with the tab on the mounting
bracket may result in fan falling causing serious injury or
death.
8
8. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
• Connect the green wire from the downrod and mounting
bracket to the bare/green (ground) supply wire.
Note: If a second hot/power wire is available from the
outlet box, connect it to the blue (light power) fan wire for
separate fan and light switches.
Important: After the connections have been made, the
wires should be turned upward and pushed carefully
up into the outlet box. Place the black and white wire
connections on opposite sides of the outlet box.
7
Fitter Plate
Screw
Fitter Plate
Light Kit
9-Pin
Connector
Canopy
J-Shaped Slot
Round
Hole
Blade Arm
Blade Screw
Blade Washer
Metal Washer
Blade
Mounting Bracket Screw
Blade Arm
Motor Screw
ASSEMBLY INSTRUCTIONS
11
10

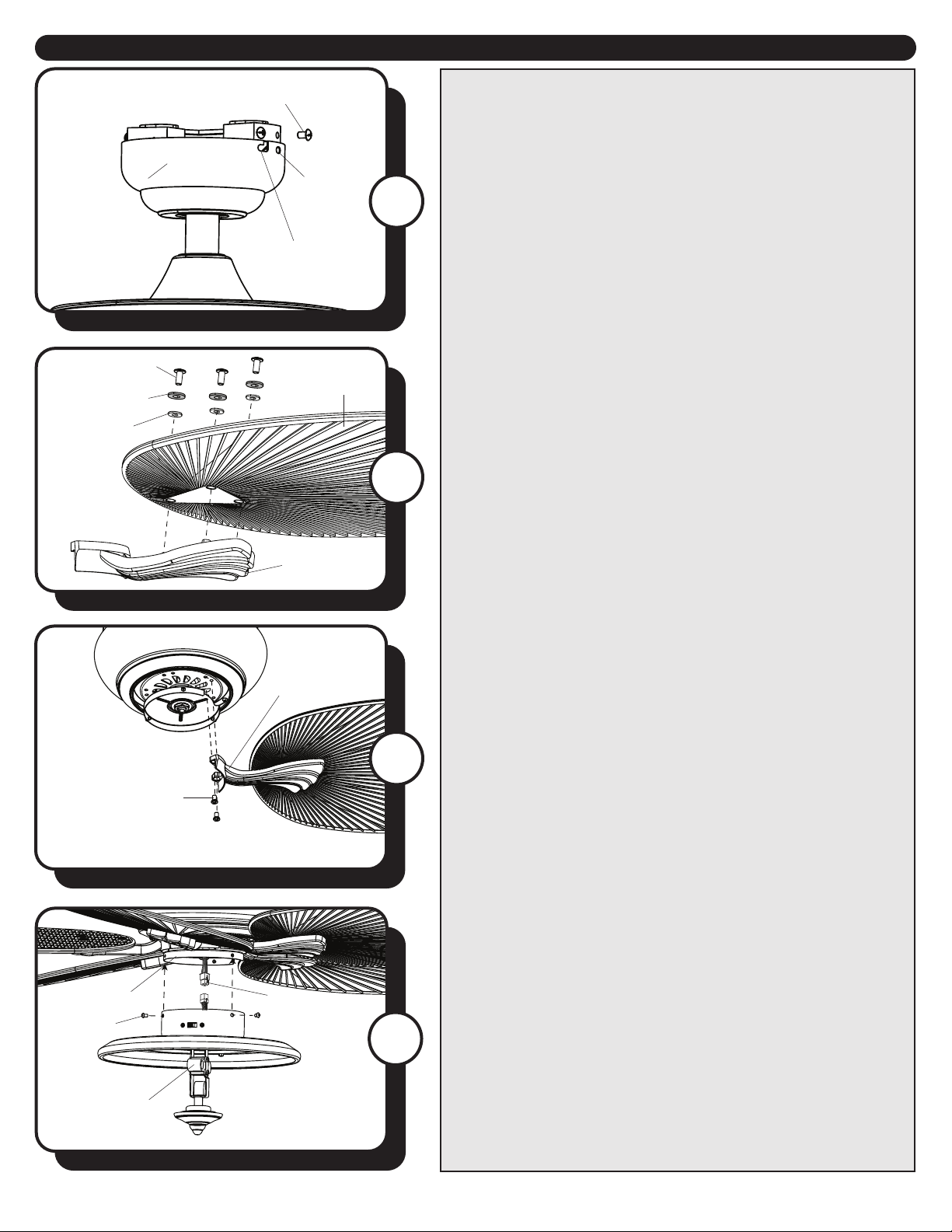

10. Insert the blade screws along with the metal washers
and blade washers through the blade and into the blade
arm. Tighten each blade screw with a Phillips screwdriver
(not included), starting with the one in the middle. Repeat
this step for the remaining blades and blade arms.
11. Install the blade arm to the underside of the motor
assembly with previously removed motor screws. Tighten
each blade arm completely before moving to the next.
To install the fan without the light kit, skip to step 15.
9. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy in a clockwise direction until the
mounting bracket screws are completely engaged in
the J-shaped slots. Install the two previously removed
mounting bracket screws in the round holes. Securely
tighten all mounting bracket screws.
9
12
12. Remove the three tter plate screws preassembled to
the tter plate. Then, connect the 9-pin connector from fan
to the 9-pin connector from the light kit. Secure the light
kit with the tter plate screws.
8
Switch Housing
Fitter Plate
Fitter Plate
Screw
9-pin
Connector
Bulb
Finial
Finial Cap
Glass Bowl
Light Kit
Switch
Housing
Plug Button
Switch
Housing
Light Kit
Lock Washer
Hex Nut
ASSEMBLY INSTRUCTIONS
14

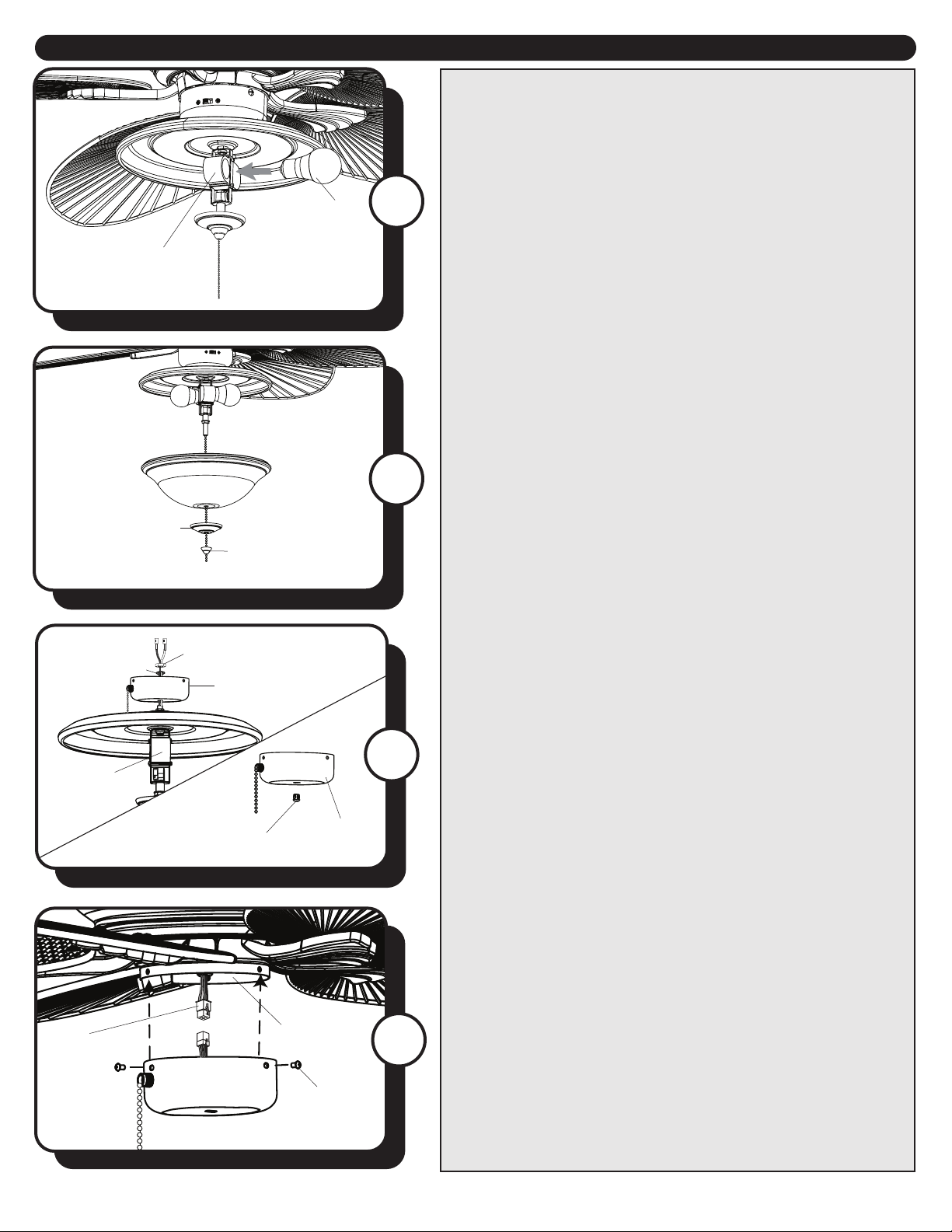

13. Install the E26-base LED bulbs into the sockets of the
light kit.
Important: Make sure you allow the bulbs and light kit to
cool before you replace the bulbs.
14. Remove the nial and nial cap from the threaded rod
at the bottom of the light kit. Lift the center hole in the
glass bowl over the threaded rod and secure with nial
cap and nial.
Skip to Step 17.
13
15
15. NO LIGHT KIT INSTALLATION OPTIONAL
To install the fan without the light kit, remove the
preassembled hex nut and lock washer from the threaded
rod inside the switch housing. Disconnect the single-pin
connectors inside the switch housing. Then, remove the
light kit from the switch housing. Insert the plug button
from the hardware kit into the center hole of the switch
housing.
16
16. NO LIGHT KIT INSTALLATION CONT’D
Remove the three tter plate screws from the tter plate.
Connect the 9-pin connector from the fan to the 9-pin
connector from the swith housing. Then, install the switch
housing to the tter plate with the three tter plate
screws.
9
ASSEMBLY INSTRUCTIONS

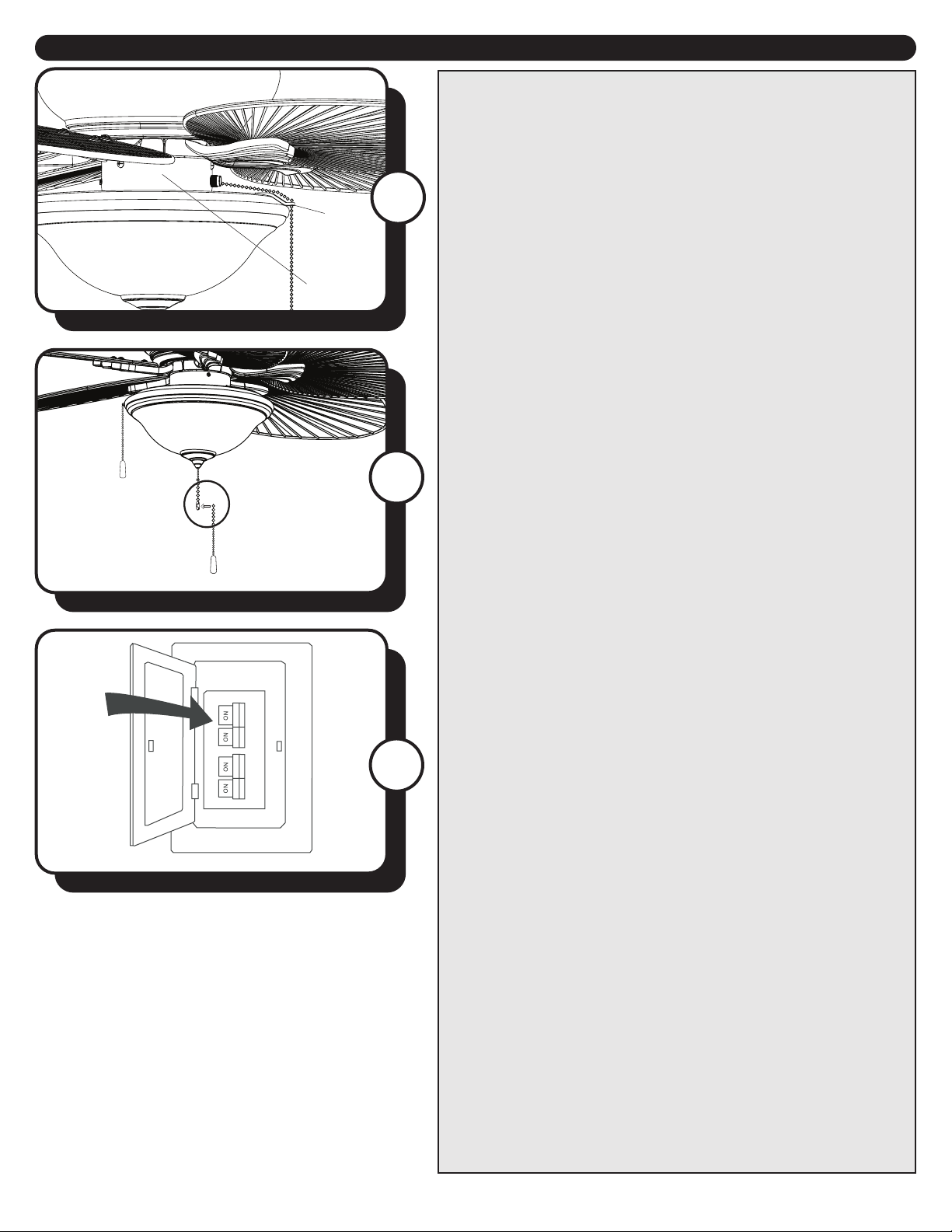

19. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Assembly is complete.
17
18
19

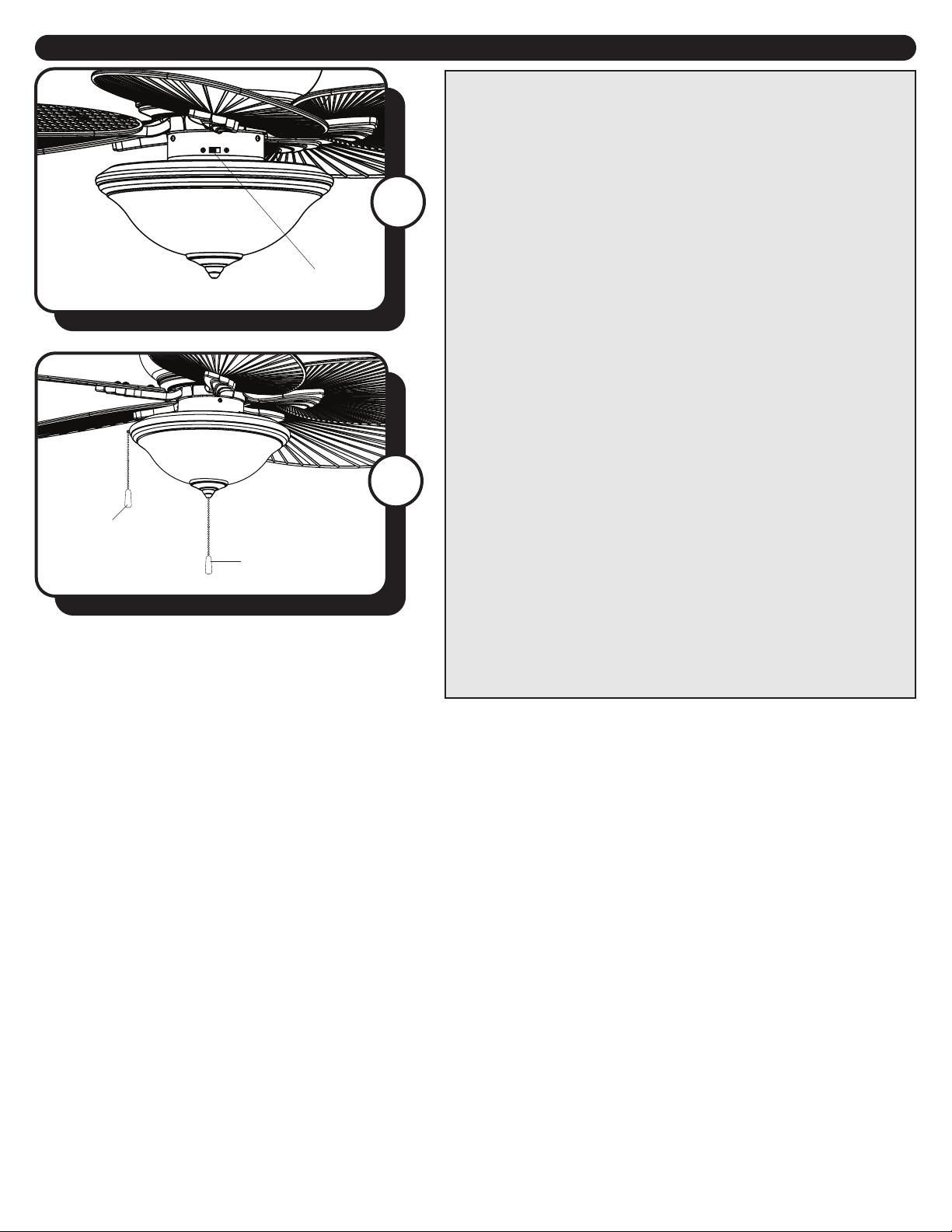

18. Attach pull chain extension(s) to the pull chain(s).
Note: The pull chain in the center of the light kit controls
the light.
17. Feed the pull chain coming from the switch housing
through the chain guide on top of the light kit.
Chain
Guide
Switch
Housing
Pull Chain
Extension
10
OPERATING INSTRUCTIONS
1
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right, which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
IMPORTANT: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF. The light pull chain has two
positions -- OFF and ON.
2
Fan Pull
Chain
Reverse Switch
Light Pull Chain
11
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not
operate when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the
interior wall of the canopy.
4. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using
the blade balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch
housing or light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs
only).
2. Fan is noisy
3. Fan wobbles
4. Light does not work
TROUBLESHOOTING
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
Model Name: 52” Florida Breeze Ceiling Fan
Model No: 20699 - Espresso (SKU: 355-0716)
12
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
