52” LINCOLN PARK II
CEILING FAN
Owner’s Manual
Model #20680
SKU # 355-0646
If a problem cannot be remedied or you are experiencing diculty in installation, please
contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
PACKAGE CONTENTS
2
HARDWARE CONTENTS
BB
AA
EEDDCC
1. Canopy
2. Canopy Cover
3. Mounting Bracket Screw
(x4)
4. Mounting Bracket
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Closemount Screws (x3)
11. Motor Assembly
12. Motor Screw (x10)
13. Fitter Plate
14. Fitter Plate Screws (x3)
15. Switch Housing
16. Light Kit
17. Finial Cap
18. Finial
19. Glass Bowl
20. E26-Base Bulb (x2)
21. Blade (x5)
22. Blade Arm (x5)
23. Hardware Kit
24. Owner’s Manual
25. Blade Balancing Kit
AA. Wire Connector (x3)
BB. Blade Screws (x15)
CC. Blade Washer (x15)
DD. Pull Chain Extension (x2)
EE. Plug Button
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Owner’s
Manual
Hardware Kit
1
2
3
4
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
MOUNTING OPTIONS
3
Downrod Mount
Closemount
Angled Ceiling Mount (Up to 16 degrees)
Three Mounting Options
A. 18.88 in. B. 13.27 in. C. 11.62 in. D. 11.18 in. E. 5.12 in.
DIMENSION REFERENCE
E
D
C
A
B
Choose one of the following mounting options:
Closemount is best suited for ceilings lower than 8 feet. It does not utilize the downrod.
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (sold separately).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.
4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 17.4 lb (7.9 kg). Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:
5
ASSEMBLY INSTRUCTIONS
1
4
Motor Screw
Motor Block
3
4. CLOSEMOUNT INSTALLATION (OPTIONAL)
a. Remove the canopy cover from the bottom of the
canopy.
b. Remove the three Phillips-head closemount screws from
the top of the motor assembly.
c. Align the holes in the bottom of the canopy with the
screw holes in the top of the motor housing. The larger
holes in the canopy will encompass the three pre-installed
screws.
d. Secure the canopy to the top of the motor housing with
the closemount screws.
e. Hang the fan on the hook of the mounting bracket.
Proceed to Step 9.
2
Mounting
Bracket Screw
Canopy
Mounting
Bracket
3. Remove the ten motor screws from the underside of
the motor assembly. Discard the motor blocks but keep
the motor screws for blade arm installation.
Note: The notch in the tter plate allows a Phillips
screwdriver access to the motor screws.
If you wish to use the Downrod Mount (as shown on
page 3), proceed to Step 5.
Closemount
Screw
Hook
Canopy
Mounting
Bracket
2. Loosen all four mounting bracket screws, then
completely remove the two mounting bracket screws
from the round holes of canopy. Set screws aside for later
use.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
1.Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
6
ASSEMBLY INSTRUCTIONS
7
5
6
DOWNROD MOUNT

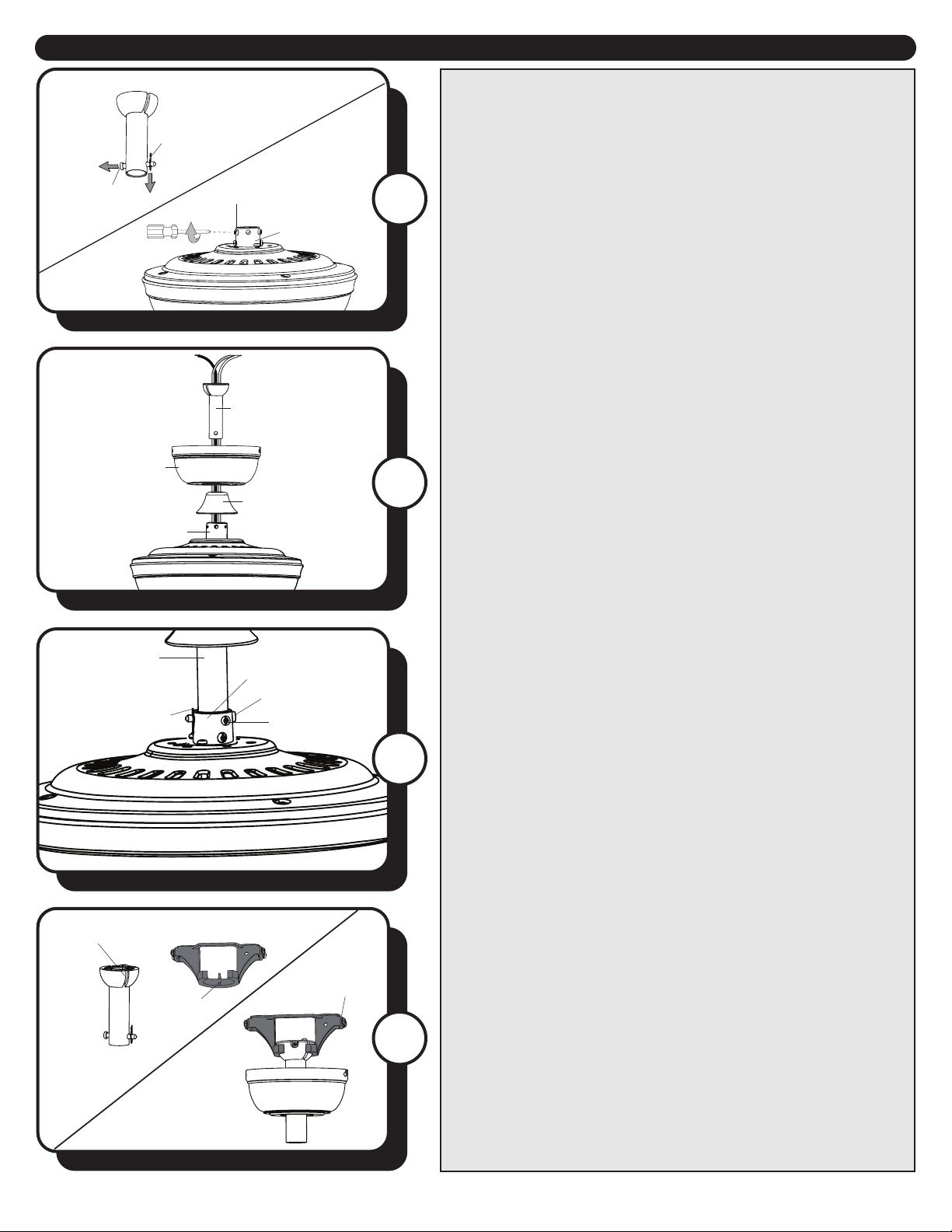

5. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but don’t remove the two set
screws in the yoke of the motor assembly.
6. Feed the wires coming from the yoke of the motor
assembly through the yoke cover, canopy and out
through the top of the downrod.
7. Insert the downrod into the yoke and reinstall the
downrod pin and downrod clip. Then retighten the two
set screws.
Note: With wires extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire
with wire cutters (not included). Then strip 1/2” of
insulation from the end of each wire and twist the ends
of each wire in a clockwise direction.
Downrod Clip
Downrod
Yoke
Set Screw
Canopy
Yoke Cover
Downrod Pin
Set Screw
Yoke
Downrod
Downrod Clip
Yoke
Downrod
Pin
8
8. Lift the downrod into the mounting bracket. Rotate the
downrod until the tab in the mounting bracket is seated in
the slot in the downrod ball.
WARNING: The fan should not rotate in the mounting
bracket, if installed correctly. Failure to align the slot in the
downrod ball with the tab on the mounting bracket may
result in fan falling causing serious injury or death.
Tab
Slot
Downrod
Mounting
Bracket
7
ASSEMBLY INSTRUCTIONS
Black (hot)
White (neutral)
Bare/Green
(ground)
Black
Blue
White
Green
11
10
10. Raise the canopy, ensuring the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy clockwise until the mounting
bracket screws are completely engaged in the J-shaped
slots. Install the two previously removed mounting
bracket screws in the round holes.
Securely tighten all four mounting bracket screws.
11. Partially insert three blade screws, along with the
blade washers, through the blade and into the blade arm.
Tighten each blade screw, starting with the one in the
middle. Repeat this step for the remaining blades and
blade arms.
9. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
• Connect the green wire from the fan and the mounting
bracket to the bare/green (ground) supply wire.
Note: If a second hot power wire is available from the
outlet box, connect it to the blue (light power) fan wire for
separate fan and light switches.
Important: After the connections have been made, the
wires should be turned upward and pushed carefully
up into the outlet box. Place the black and white wire
connections on opposite sides of the outlet box.
9
Canopy
J-shaped Slot
Wire Connector
Round
Hole
Blade
Arm
Blade Screw
Blade Washer
Blade
Mounting
Bracket Screw
Blade Arm
Motor Screw
Motor Assembly
12

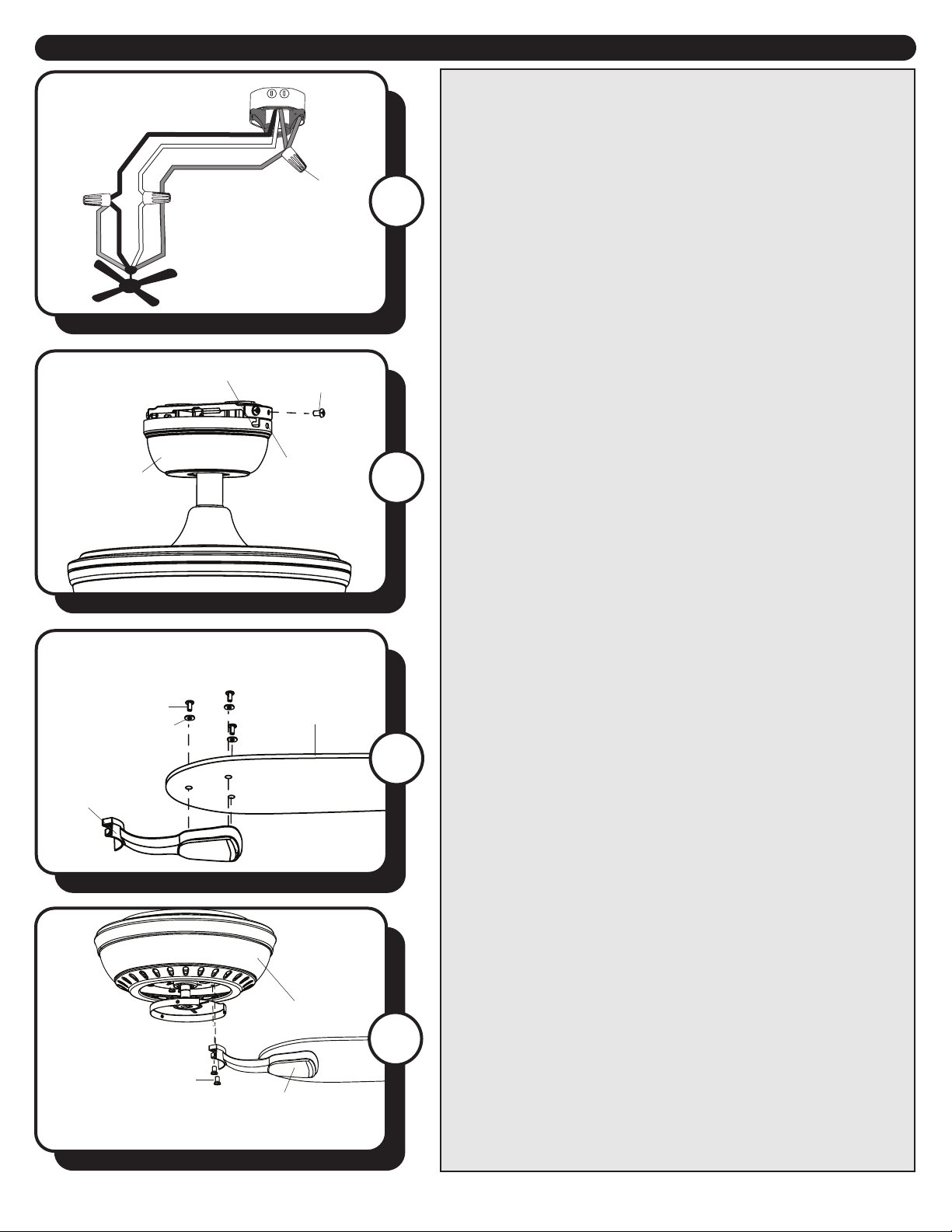

12. Install the blade arm to the underside of the motor
assembly with previously removed motor screws. Tighten
each blade arm completely before moving to the next.
Note: The notch in the tter plate allows a Phillips
screwdriver access to the motor screws.
To install the fan without the light kit, skip to step 16.
WARNING: Do NOT wire the
fan motor to a variable-speed
(dimmer) wall control.
8
ASSEMBLY INSTRUCTIONS
14

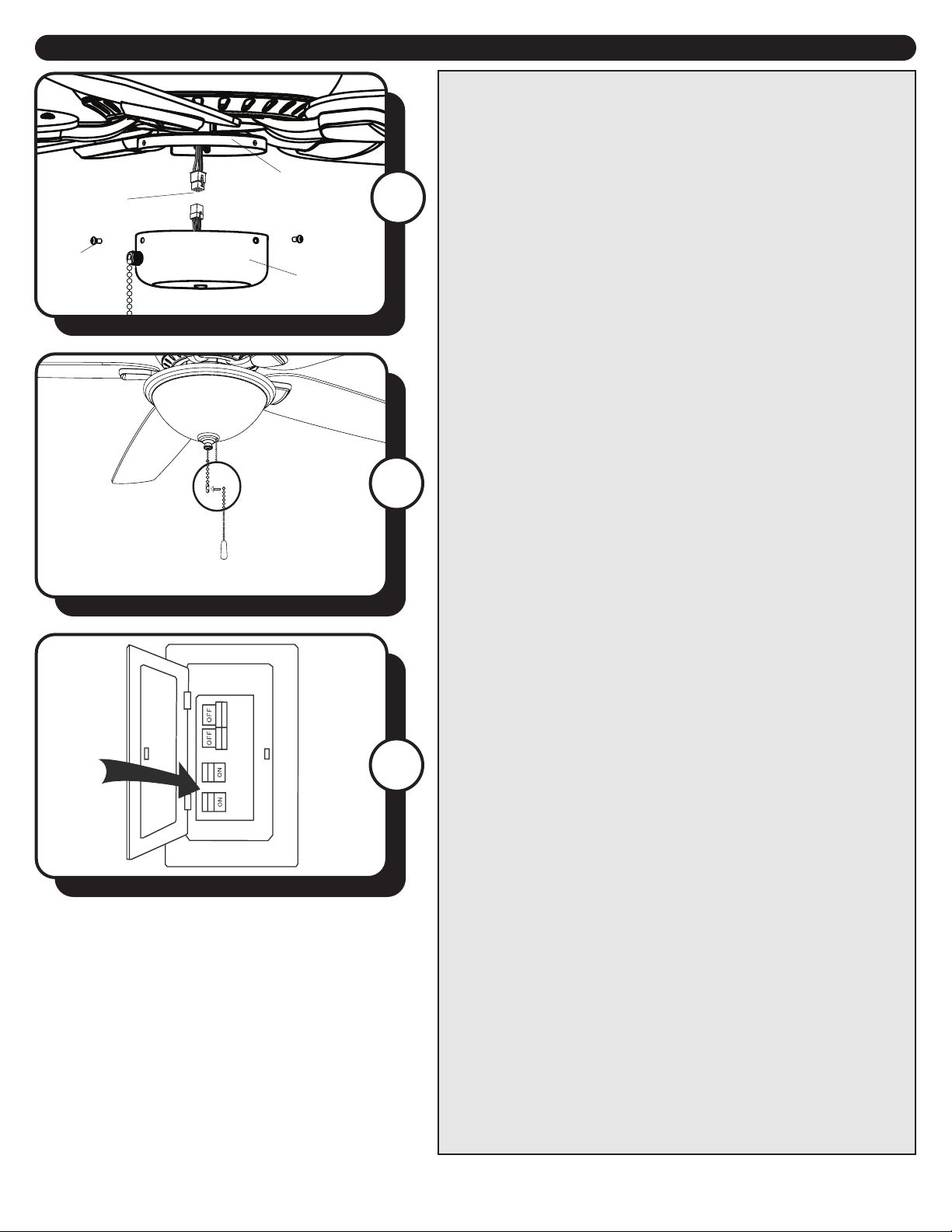

13. Remove the three tter plate screws from the tter
plate. Connect the 9-pin connector from the fan to the
9-pin connector from the light kit. Then, use the
tter plate screws to secure the light kit to the tter plate.
14. Remove the nial and nial cap from the threaded rod
at the bottom of the light kit. Feed the pull chain coming
from the switch housing through the grommet at the
bottom of the light kit.
13
Fitter Plate
Screw
9-pin
Connector
Switch Housing
Light Kit
Grommet
15

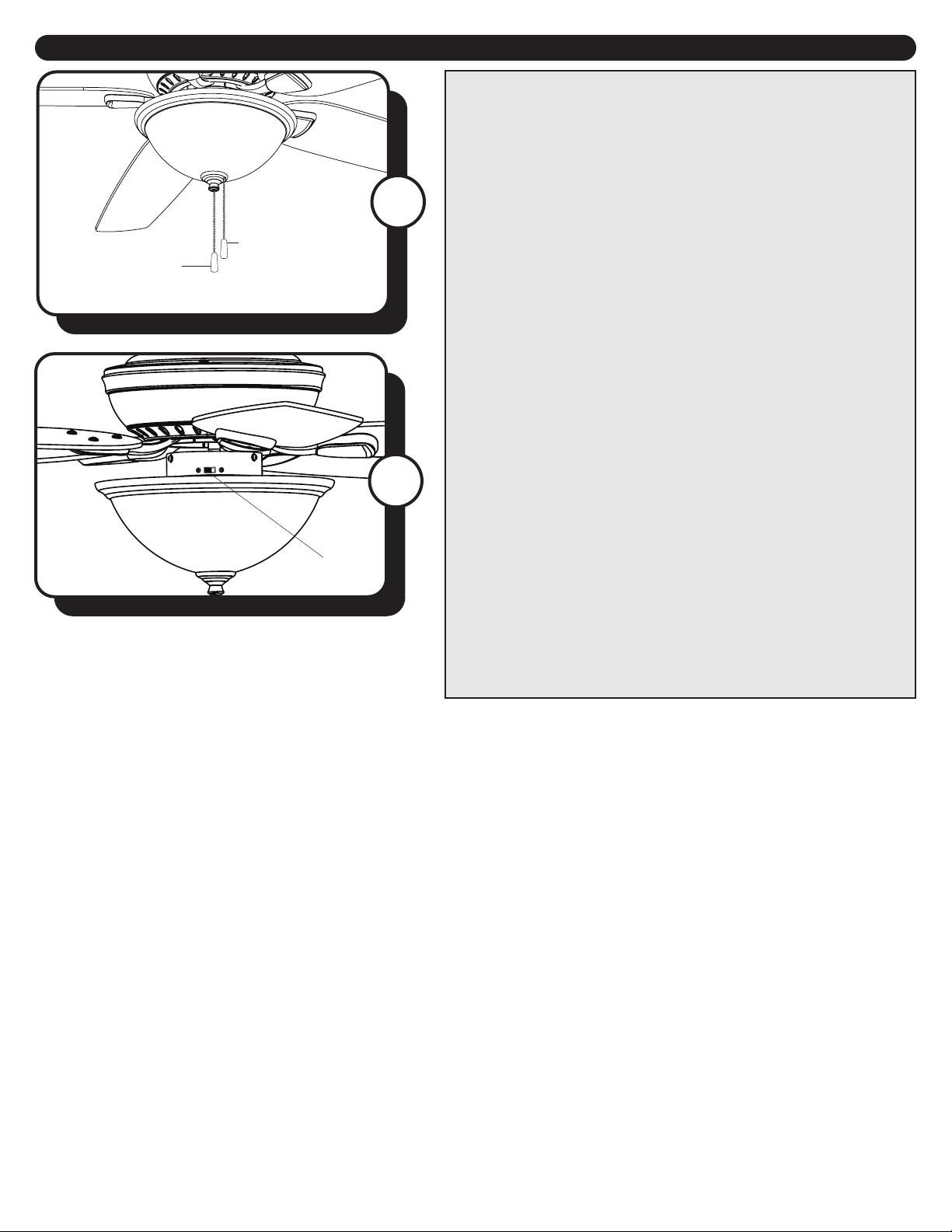

15. Feed the pull chains through the appropriate holes in
the glass bowl, the nial cap and the nial. Lift the center
hole in the glass bowl and nial cap over the threaded rod
of the light kit and secure with the nial. Then, install the
E26-base LED bulbs into the sockets of the light kit.
Note: Compatible with any E26-base LED, CFL, or
incandescent bulb (60 watt max.).
Skip to Step 18.
Finial Cap
Finial
Bulb
Finial
Finial Cap
Glass Bowl
16
Switch
Housing
Plug Button
Switch
Housing
Light Kit
Lock Washer
Hex Nut
16. NO LIGHT KIT INSTALLATION OPTIONAL
To install the fan without the light kit, remove the
preassembled hex nut and lock washer from the threaded
rod inside the switch housing. Disconnect the single-pin
connectors from inside the switch housing. Then detach
the light kit from the switch housing. Insert the plug
button from the hardware bag into the center hole of the
switch housing.
9
Pull Chain Extension
ASSEMBLY INSTRUCTIONS
19. Turn on the circuit breakers and the wall switch to the
fan supply lead lines.
Assembly is complete.
17. NO LIGHT KIT INSTALLATION CONT’D
a. Remove the three tter plate screws from the tter
plate.
b. Connect the 9-pin connector from the fan to the 9-pin
connector from the switch housing.
c. Install the switch housing to the tter plate with the
three tter plate screws.
Switch
Housing
Fitter Plate
Fitter Plate
Screw
9-Pin
Connector
17
18
19
18. Attach pull chain extension(s) to the pull chain(s).
10
OPERATING INSTRUCTIONS
1
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right, which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
IMPORTANT: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
1. The fan pull chain is located in the o-center hole in the
nial cap. It has four positions to control fan speed. One
pull is HIGH, two is MEDIUM, three is LOW and four turns
the fan OFF. The light pull chain is located in the center of
the nial. It turns the light ON and OFF.
2
Fan Pull
Chain
Reverse Switch
Light Pull
Chain
11
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
TROUBLESHOOTING
PROBLEM SUGGESTED REMEDY
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left/right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
4. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin connectors in switch housing or light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs only).
2. Fan is noisy:
3. Fan wobbles:
4. Light does not work:
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
Model Name: 52” Lincoln Park II Ceiling Fan
Model No: 20680 Oil-Rubbed Bronze (SKU: 355-0646)
12
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
