9494 • 112221
1
If a problem cannot be remedied or you are experiencing diculty in installation, please contact
the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
RATED FOR
DAMP LOCATION
52” SLADE
CEILING FAN
Owner’s Manual
Model #20705
SKU #355-0710

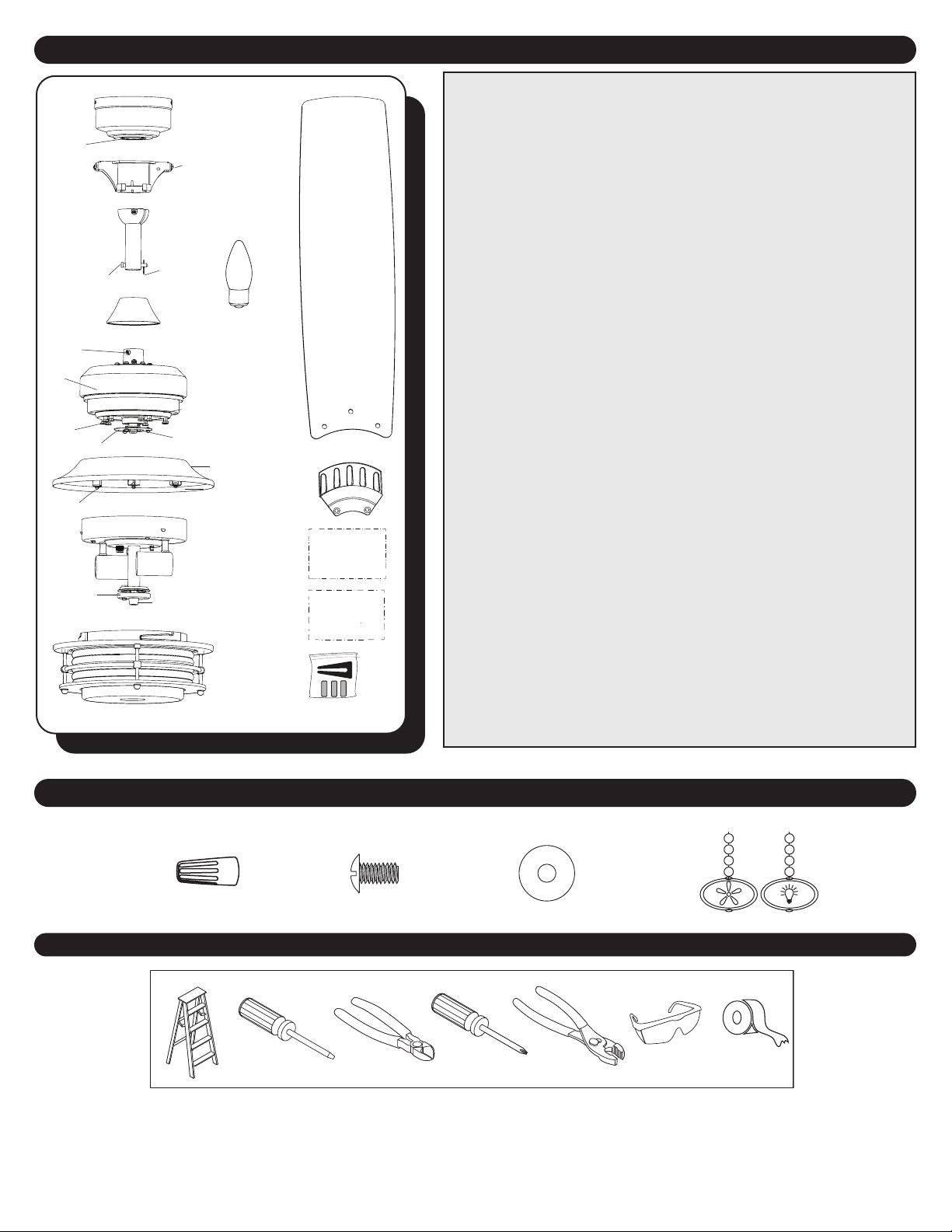

PACKAGE CONTENTS
2
HARDWARE CONTENTS
AA BB CC DD
1. Canopy
2. Canopy Cover
3. Mounting Bracket Screw
(x4)
4. Mounting Bracket
5. Downrod
6. Downrod Clip
7. Downrod Pin
8. Yoke Cover
9. Set Screws (x2)
10. Motor Assembly
11. Motor Screw (x10)
12. Adapter Plate
13. Adapter Plate Screw (x3)
14. Light Pan
15. Light Pan Screw (x3)
16. Light Kit
17. Finial Cap
18. Finial
19. Light Cage
20. E26-base LED Bulb (x2)
21. Blade (x5)
22. Blade Arm (x5)
23. Hardware Kit
24. Owner’s Manual
25. Blade Balancing Kit
AA. Wire Connector (x3)
BB. Blade Screw (x15)
CC. Blade Washer (x15)
DD. Pull Chain Extention (x2)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOL REQUIRED (not included)
Tool required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
1
2
3
4
5
6
7
8
9
10
11
13
12
14
15
16
19
23
20
22
21
24
25
18
17

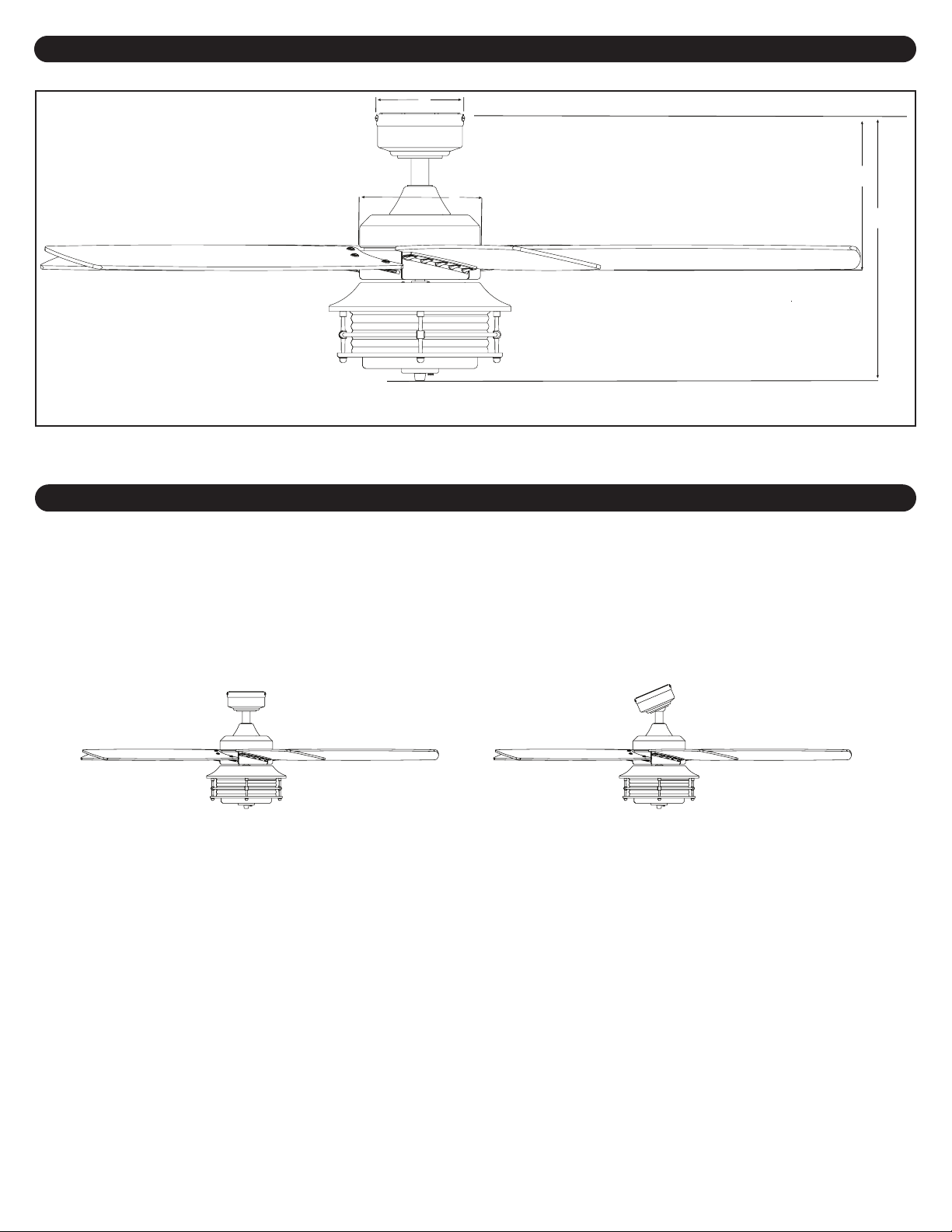

MOUNTING OPTIONS
3
Downrod MountAngled Ceiling Mount (Up to 16 degrees)
Dual Mounting Options
A. 15.74 in. B. 9.27 in. C. 7.09 in. D. 5.13 in.
DIMENSION REFERENCE
D
C
A
B
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.
4
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 18.56 lb (8,42 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US, 3350 Players Club Pkwy. #225, Memphis, TN 38125, 1-877-459-3267
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not sucient
to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the oor
and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan
support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a qualied
licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
CAUTION:
5

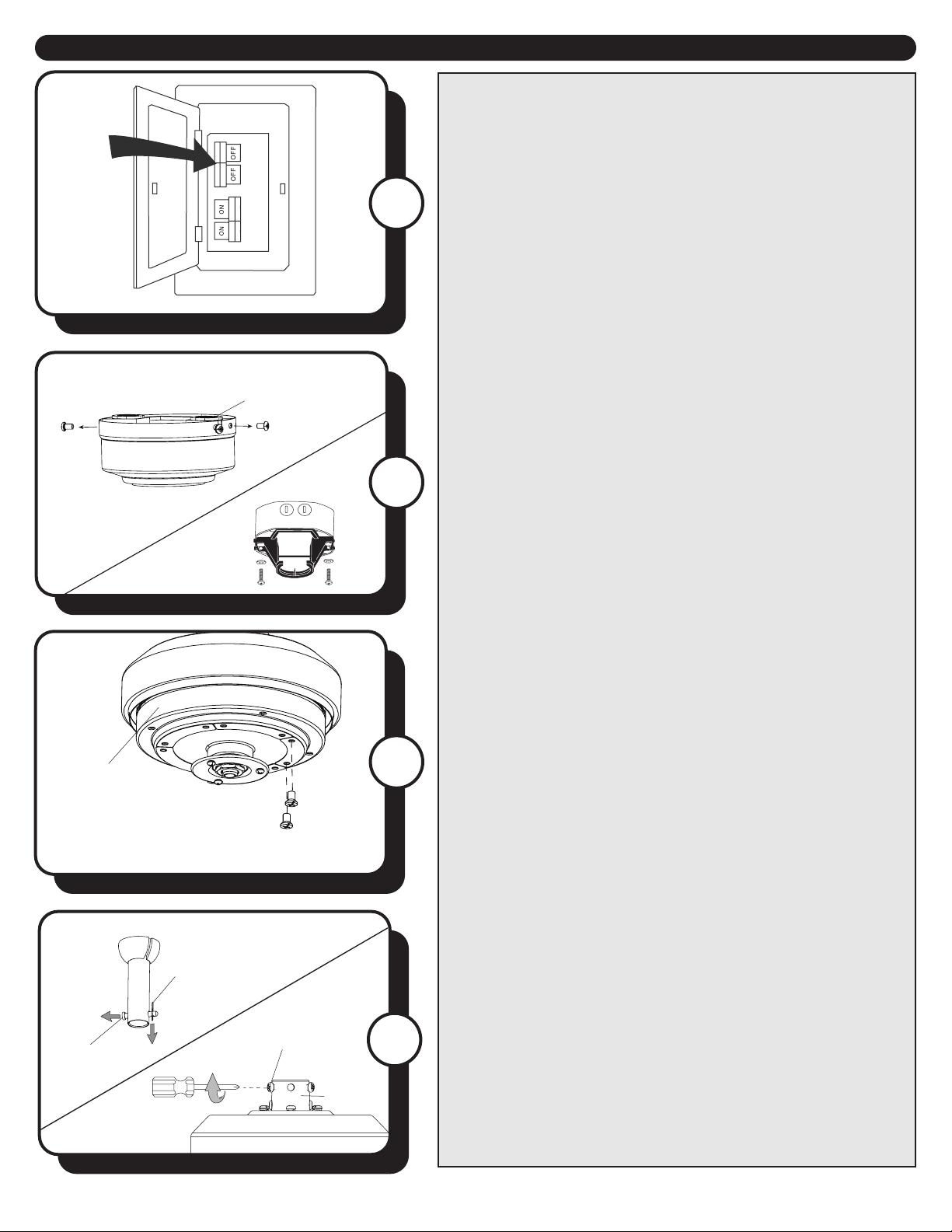

ASSEMBLY INSTRUCTIONS
1
4
3
4. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but do not remove the two set
screws in the yoke of the motor assembly.
2
Mounting
Bracket Screw
Downrod Clip
Set Screw
Yoke
Motor Screw
Motor Assembly
Downrod Pin
3. Remove the ten motor screws from the underside of the
motor assembly and save for blade arm assembly.
2. Loosen all four mounting brackets screws, then
completely remove the two mounting bracket screws
from the round holes of canopy. Set aside screws for later
use. Install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to an outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
1.Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
6

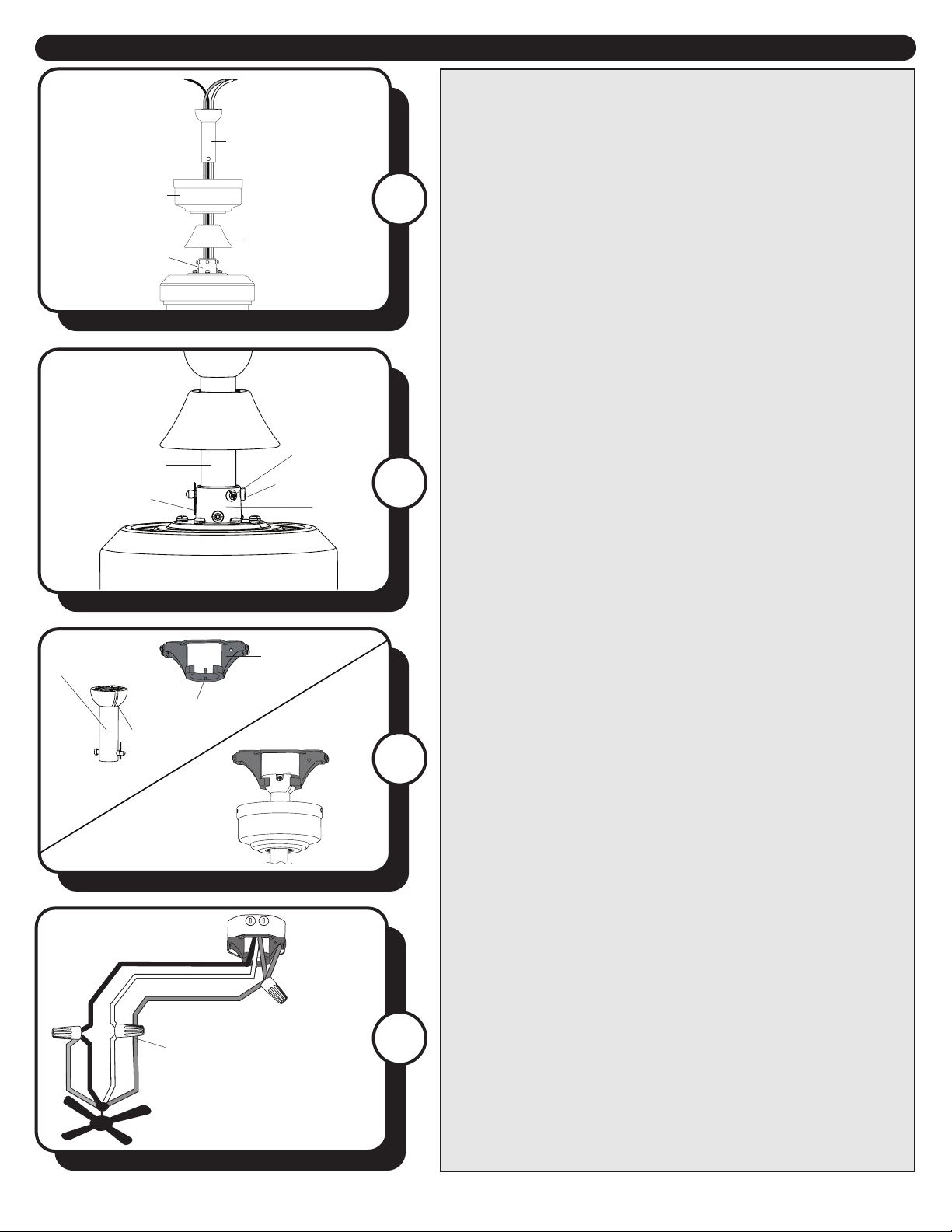

ASSEMBLY INSTRUCTIONS
Black (hot)
White (neutral)
Bare/Green
(ground)
Black
Blue
White
Green
WARNING: Do NOT wire the
fan motor to a variable-speed
(dimmer) wall control.
Downrod
Canopy
Yoke Cover
Downrod Pin
Yoke
Downrod
Downrod Clip
Set Screw
Yoke
Tab
Slot
Downrod
Mounting
Bracket
7
5
6
5. Feed the wires coming from the yoke through the
yoke cover, canopy and downrod.
6. Insert the downrod into the yoke in the top of the
motor assembly and reinstall the downrod pin and
downrod clip. Then retighten the two set screws.
7. With wires extending out of the top of the downrod,
measure 8 inches of lead wire and cut the excess
wire with wire cutters (not included). Then strip 1/2”
of insulation from the end of each wire and lift the
downrod into the mounting bracket. Rotate the
downrod until the tab in the mounting bracket is seated
in the slot in the downrod ball.
WARNING: The fan and/or downrod should not rotate
in the mounting bracket if installed correctly. Failure to
align the slot in the downrod ball with the tab may result
in fan falling causing serious injury or death.
8
8. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
• Connect the green wire from the fan and mounting
bracket to the bare/green (ground) supply wire.
Note: If a second hot/power wire is available from the
outlet box, connect it to the blue (light power) fan wire for
separate fan and light switches.
Important: After the connections have been made, the
wires should be turned upward and pushed carefully
up into the outlet box. Place the black and white wire
connections on opposite sides of the outlet box.
Wire Connector
7
Adapter Plate Screw
Adapter
Plate
Canopy
J-shaped Slot
Round Hole
Blade
Arm
Blade Screw
Blade Washer
Blade
Mounting
Bracket Screw
Blade Arm
Motor Screw
Motor Assembly

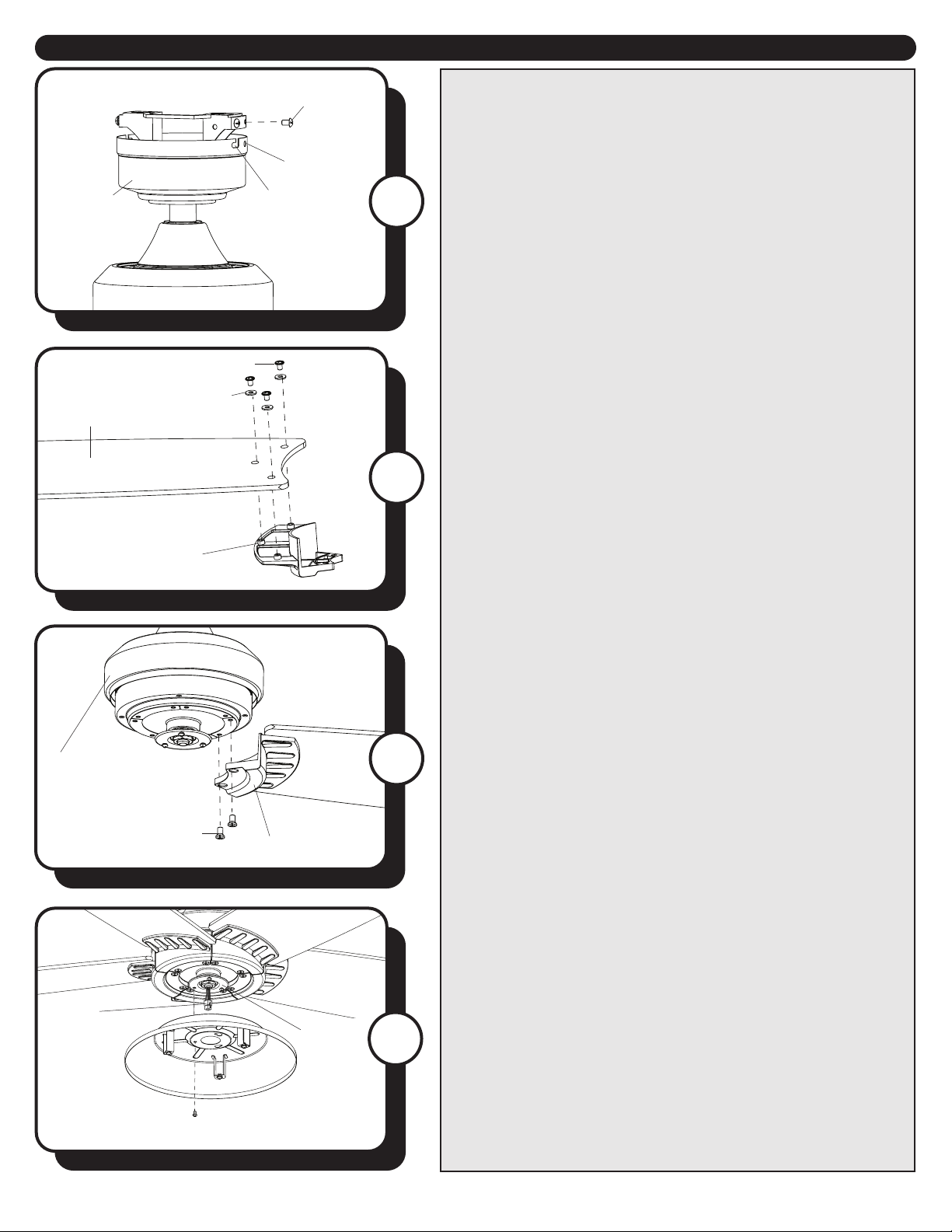

ASSEMBLY INSTRUCTIONS
11
10
10. Partially insert three blade screws, along with their
washers, through the blade and into the blade arm.
Tighten each blade screw with a Phillips screwdriver (not
included), starting with the one in the middle. Repeat this
step for the remaining blades and blade arms.
11. Secure the blade arm to the underneath side of the
motor assembly using motor screws removed in Step 3.
Completely secure each blade arm to motor assembly
before moving to the next.
9. Raise the canopy, ensuring the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy clockwise until the mounting
bracket screws are completely engaged in the J-shaped
slots. Install the two previously removed mounting
bracket screws in the round holes. Securely tighten all four
mounting bracket screws.
9
12
12. Remove one of the three adapter plate screws
installed in the adapter plate. Then, loosen but do not
remove the other two adapter plate screws. Align the
keyholes of the light pan with the remaining two adapter
plate screws. Feed the 9-pin connector through the center
of the light pan. Lift and rotate the light pan clockwise
and re-install the previously removed adapter plate screw.
Tighten all three adapter plate screws.
Light Pan
9-pin
Connector
8
Finial
Threaded
Rod
Finial Cap
9-pin Connector
Bulb
Light Pan Screw
Light Pan
Light Cage
Light Kit
Light Kit
Finial Cap
Finial
Light Kit
Grommet

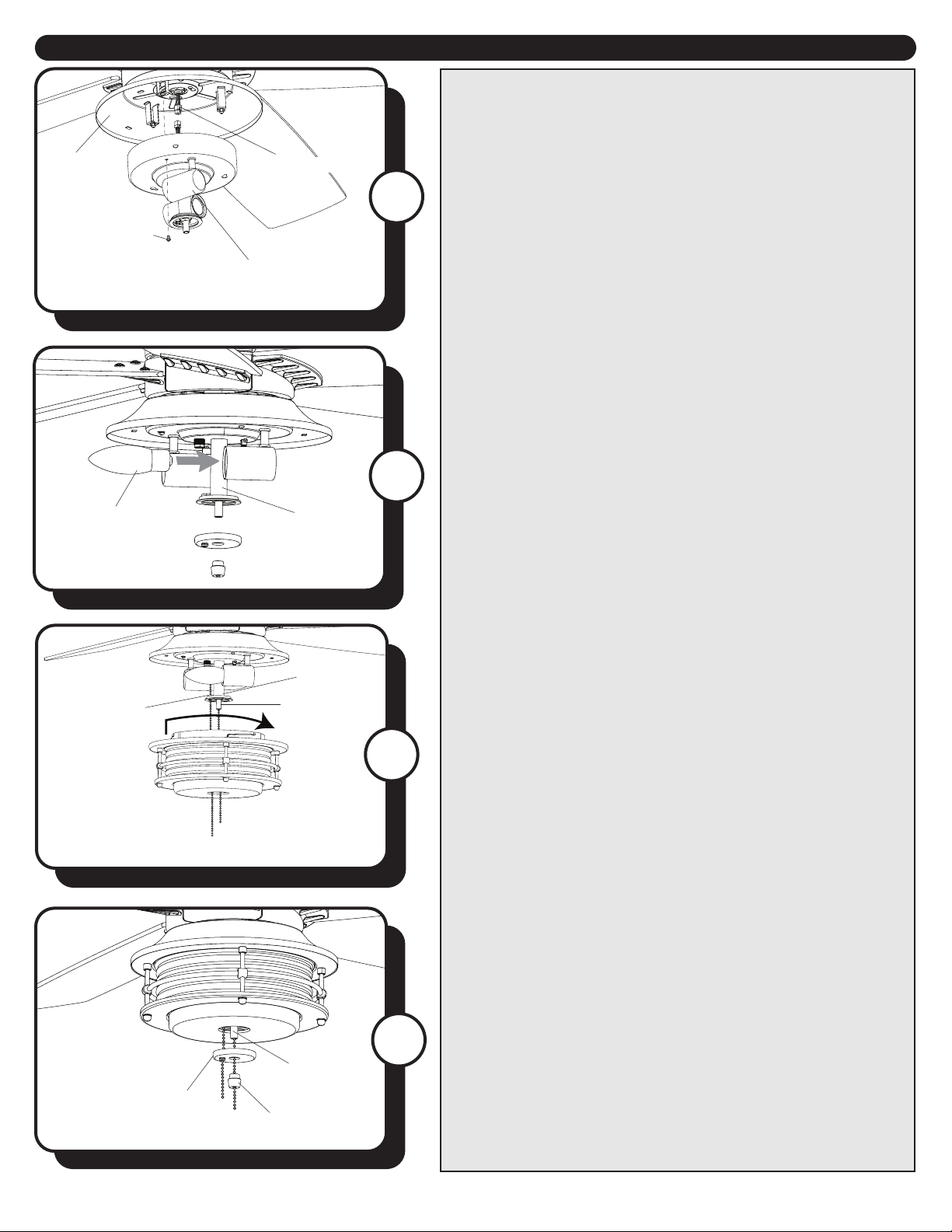

ASSEMBLY INSTRUCTIONS
14
13. Remove one and loosen the other two light pan
screws from the light pan. Connect the 9-pin connector
from the motor assembly to the 9-pin connector from the
light kit. Then, raise the light kit. Align the keyholes with
the remaining two light pan screws. Lift and rotate the
light kit clockwise and re-install the previously removed
light pan screw. Tighten all three light pan screws.
14. Install the E26-base LED bulbs into the sockets of the
light kit. Remove the preassembled nial and nial cap
from the threaded rod at the bottom of the light kit.
13
15
15. Feed the o-center pull chain from the light kit
through the grommet. Then lift the light cage into the
light pan and turn in a clockwise direction until the light
cage is secure.
Note: The o-center pull chain and threaded rod should
be visible through hole in light cage.
16
16. Feed the pull chain coming from the threaded rod
through the center hole in the nial cap and the o-center
pull chain through the o-center hole in the nial cap.
Secure using the nial.
Threaded
Rod
9
ASSEMBLY INSTRUCTIONS

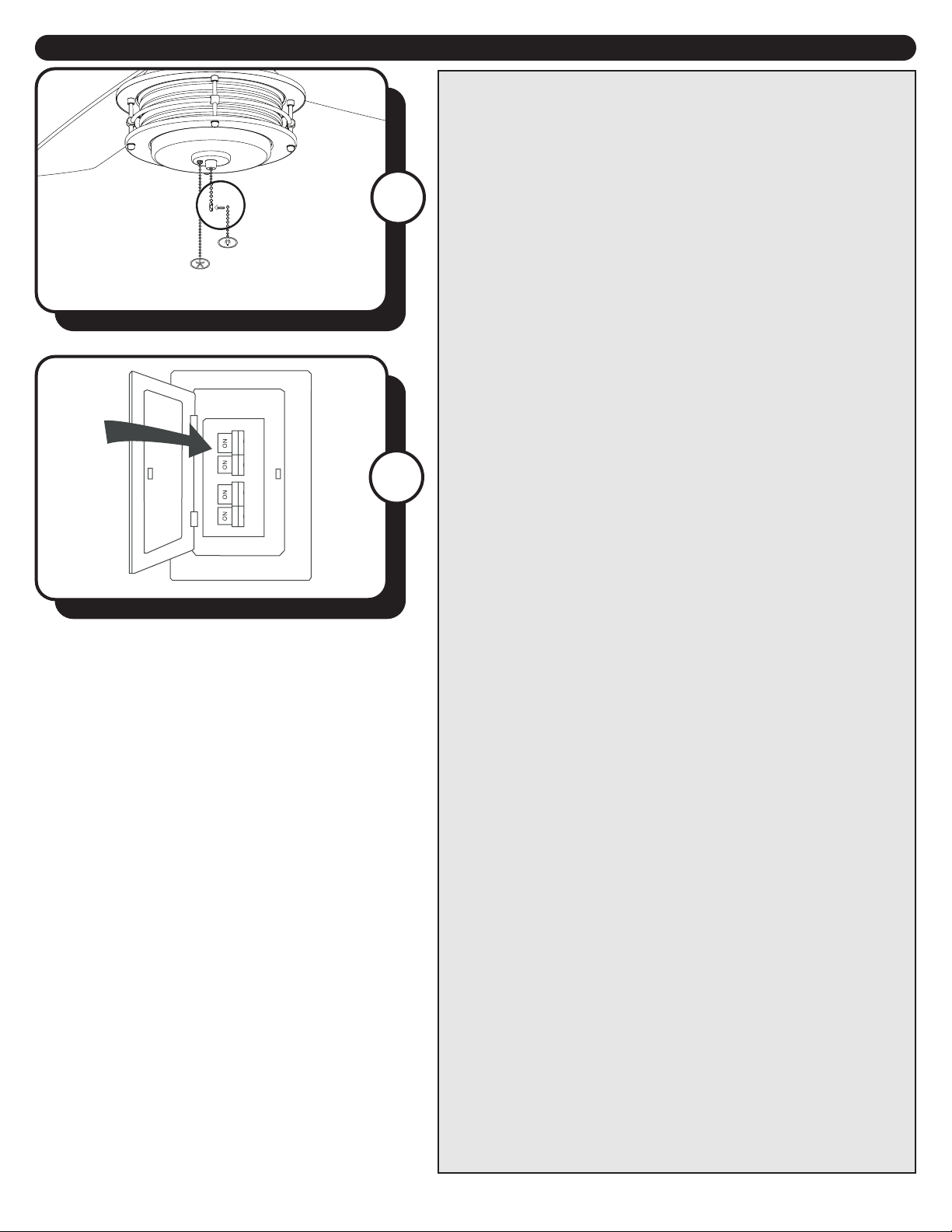

17
18
18. Restore the power at the main fuse or circuit breaker
and the wall switch.
Assembly is complete.
17. Attach pull chain extensions to the pull chains. Note:
The light chain extends from the center hole in the nial
and the fan pull chain extends from the o-center hole.
Fan Pull
Chain
Light Pull
Chain
10

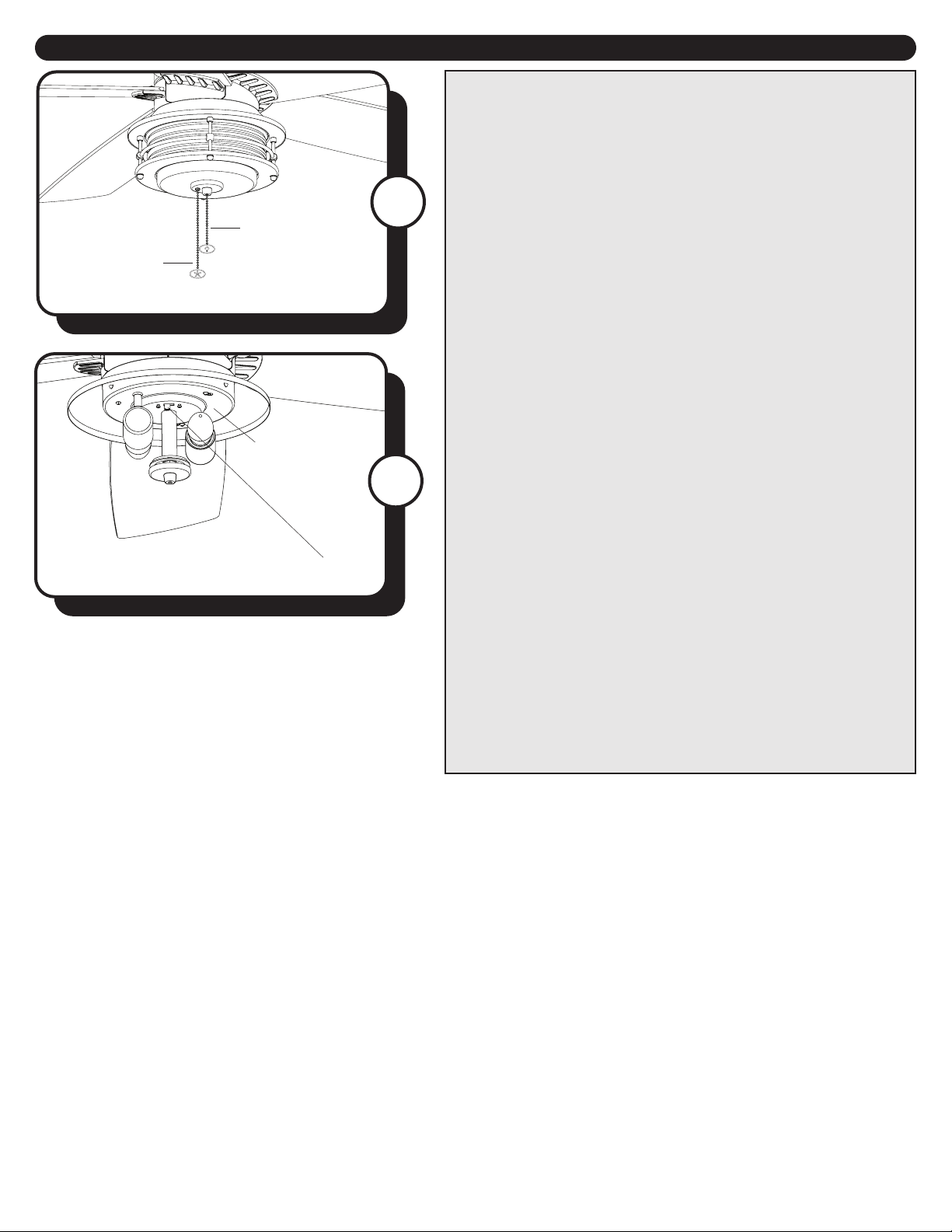

OPERATING INSTRUCTIONS
1
2. The reverse switch is located on the light kit. Using a
ceiling fan will allow you to raise your thermostat setting
in summer and lower your thermostat setting in winter
without feeling a dierence in your comfort.
Note: Wait for the fan to stop before moving the reverse
switch.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right, which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
Important: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
1. The fan pull chain extends from the o-center hole in
the nial cap. It has four positions to control fan speed.
One pull is HIGH, two is MEDIUM, three is LOW and four
turns the fan OFF. The light pull chain is located in the
center of the nial. It turns the light ON and OFF.
2
Fan Pull
Chain
Reverse Switch
Light Kit
Light Pull
Chain
11
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch is pushed completely left or right. Fan will not
operate when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade arms to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the
interior wall of the canopy.
4. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed control.
5. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are screwed rmly into blade arms.
3. Ensure all blade arms are tightened securely to motor.
4. Switch one blade with a blade from the opposite side. Or balance the fan using
the blade balancing kit.
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check for loose or disconnected 9-pin and/or single-pin connectors in switch
housing or light kit.
2. Ensure the blue wire from fan is connected to hot power supply wire.
3. Check for faulty light bulbs.
4. Ensure total wattage of bulbs does not exceed 180 watts (for incandescent bulbs
only).
2. Fan is noisy
3. Fan wobbles
4. Light does not work
TROUBLESHOOTING
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
Model Name: 52” Slade Ceiling Fan
Model No: 20705 - Matte Black (SKU: 355-0710)
12
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against
defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser
due to defects in material or workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan blades, pull chain switch, reverse switch, or any accessory, except glass globes and light
bulbs, fails at any time within one year after the original date of purchase due to a defect in material and
workmanship, we will repair or, if we choose, replace the defective blades, switch, or accessory free of
charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or tness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability
or tness for a particular purpose, do not cover glass globes, light bulbs, or nish on any metal portions
of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability
or tness for a particular purpose, with respect to any Patriot Lighting Ceiling Fan motor, blades, switch,
or accessories, is expressly limited to the period of the express warranty set forth above for such motor,
blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are caused by
repairs by persons not authorized by us, use of parts or accessories not authorized by us, mishandling,
improper installation, modications or damage to the fan while in your possession, or unreasonable use,
including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and freight or
other transportation charges to our factory or service center. A copy of sales receipt is required in order
to obtain service. We will return your fan freight prepaid. Your fan should be properly packed to avoid
damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which
case the above limitation or exclusion may not apply.
This warranty gives you specic legal rights and you may also have other rights which vary from state to
state.
