56” LIDA
CEILING FAN
Owner’s Manual
Model #20692 (355-0708)
1
If a problem cannot be remedied or you are experiencing diculty in installation,
please contact the Service Department: 1-877-459-3267, 9 a.m. - 5 p.m. Central time.

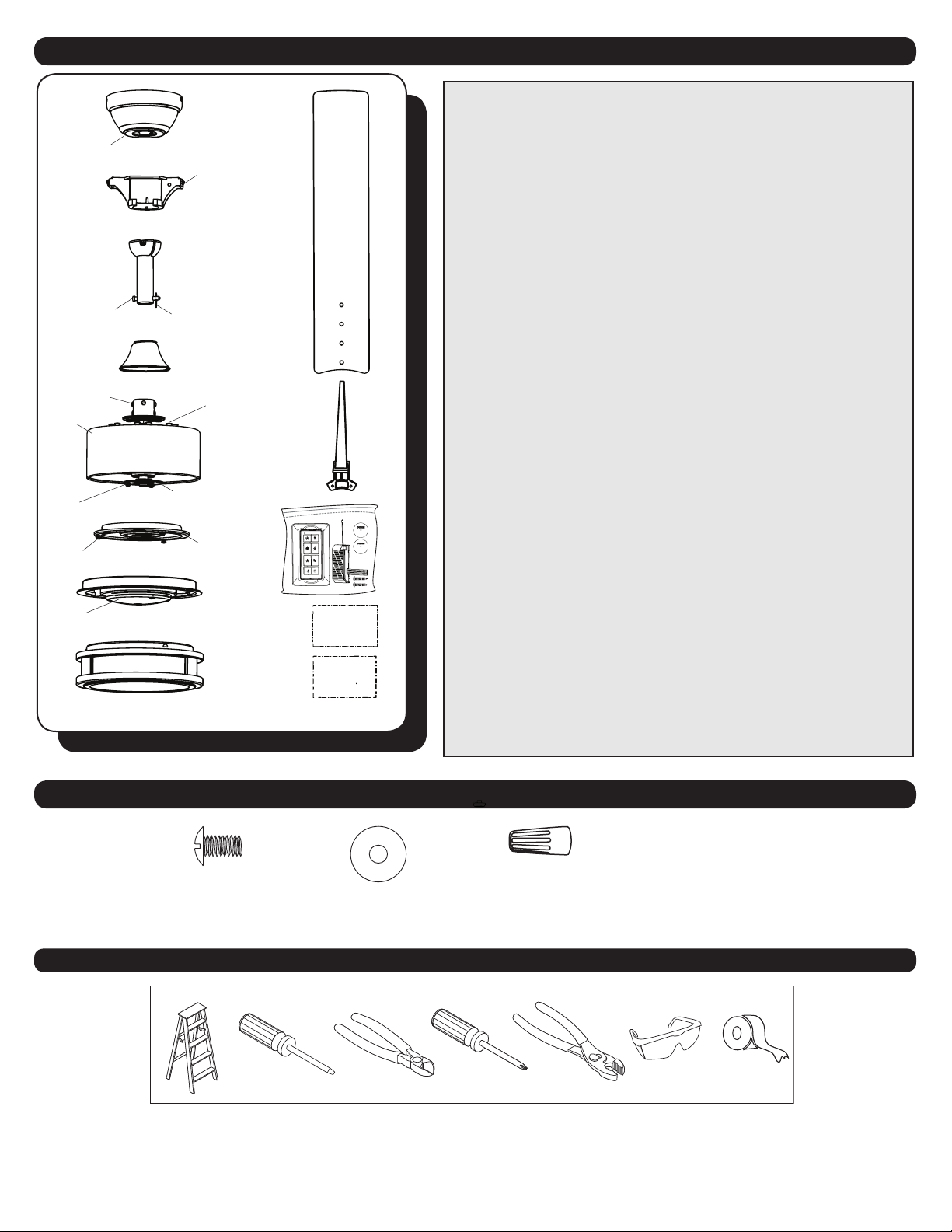

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket Screw
(x4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Motor Assembly
10. Set Screw (x2)
11. Fitter Plate
12. Fitter Plate Screw (x3)
13. Light Pan
14. Light Pan Screw (x3)
15. Light Kit
16. Glass Cage
17. Owner’s Manual
18. Hardware Kit
19. Remote Pack
20. Blade Arm (x6)
21. Blade (x6)
22. Motor Screw (x12)
23. Blade Screw (x18)
24. Blade Washer (x18)
25. Wire Connector (x6)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
23 2524
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
TOOL REQUIRED (not included)
Tool required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
12
11
9
19
8
10
7
6
5
16
17
18
20
21
22
13
3
4
14
15
2
1

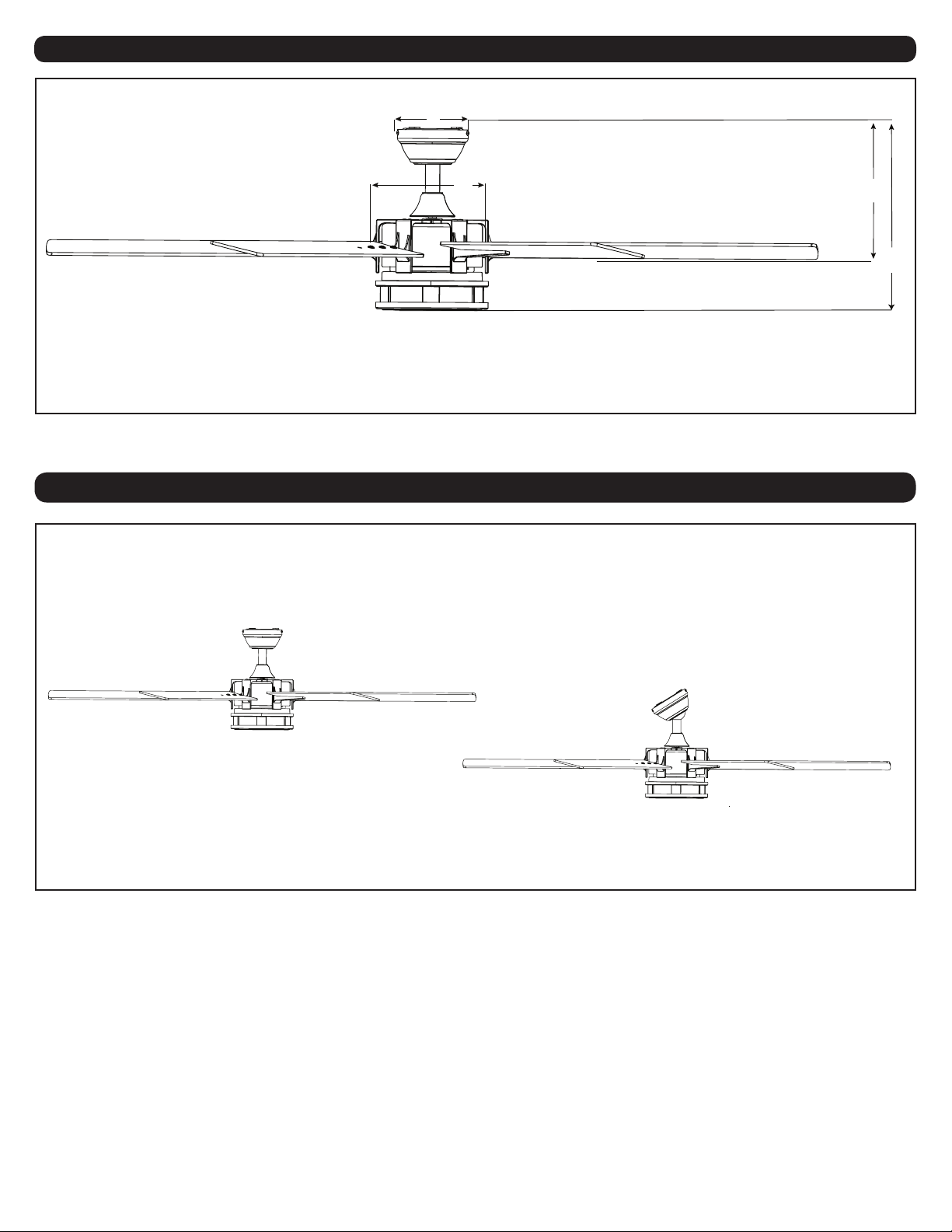

MOUNTING OPTIONS
3
A. 12.83 in. B. 9.21 in. C. 8.11 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
B
A
Two Mounting Options
Downrod Mount
Angled Ceiling Mount (Up to 10 degrees)
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may need to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance from the ceiling. If using the angled ceiling mount, check to ensure the ceiling
angle is not steeper than 10°.
4
WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ansi/nfpa 70-1999 and local
codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 21.01 lbs. Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-459-3267
SAFETY INSTRUCTIONS
CAUTION:
5
ASSEMBLY INSTRUCTIONS
1
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
3
2. Remove the mounting bracket by removing the two
mounting bracket screws from the round holes in the
canopy. Then loosen but do not remove the other two
mounting bracket screws from the J-shaped slots. Save
the mounting bracket screws for later.
3. Install the mounting bracket to the outlet box (not
included) using the screws and washers provided with
the outlet box.
Warning: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” using the mounting screws
and washers provided with the outlet box.
Mounting
Bracket Screw
J-Shaped Slot
2

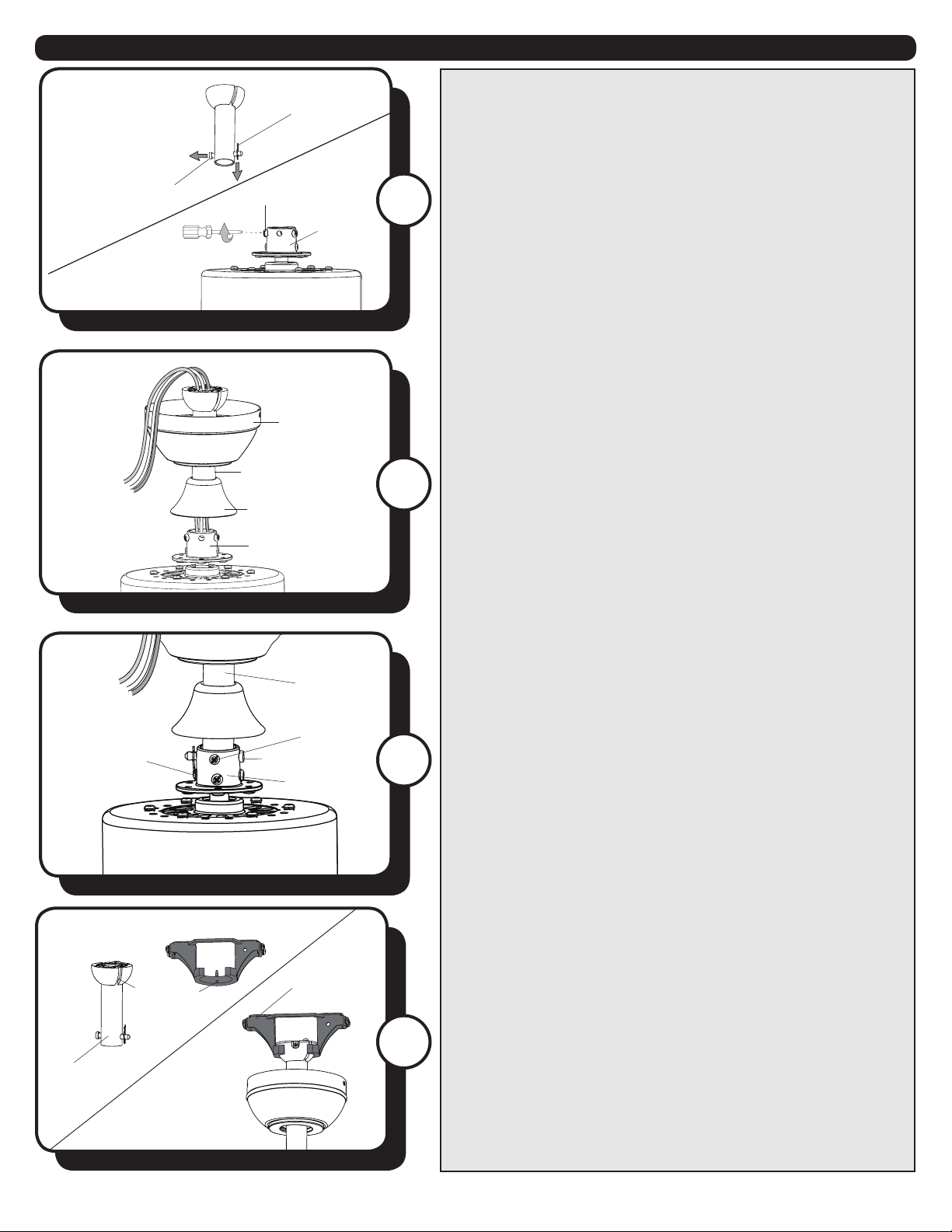

4. Remove the twelve motor screws from the top of the
motor assembly and save for blade arm installation.
4
Motor Screw
Motor Assembly
6
Tab
Slot
Downrod
Mounting
Bracket
8. Lift the downrod into the mounting bracket. Rotate
the downrod until the tab in the mounting bracket is
seated in the slot in the downrod ball.
WARNING: The fan and/or downrod should
not rotate in the mounting bracket if installed
correctly. Failure to align the slot in the downrod ball
with the tab on the mounting bracket may result in fan
falling causing serious injury or death.
Downrod
Canopy
Yoke Cover
Downrod Pin
Downrod Clip
Yoke
Downrod
Set Screw
Yoke
7. Insert the downrod into the yoke and reinstall the
downrod pin and downrod clip. Then retighten the two
set screws.
Note: With the wires extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire with
wire cutters (not included). Then strip 1/2” of insulation
from the end of each wire.
7
8
Downrod
Clip
Set Screw
Yoke
Downrod
Pin
Downrod
6. Feed the wires coming from the yoke through the yoke
cover, canopy and downrod.
5. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but do not remove the two set
screws at the top of the yoke.
6
5
ASSEMBLY INSTRUCTIONS
7
ASSEMBLY INSTRUCTIONS
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Red
White
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
12
11
11. Align the canopy over the loosened mounting bracket
screws. Place the J-shaped slot of the canopy onto the
mounting bracket screws and rotate clockwise. Secure
the canopy with the two previously removed mounting
bracket screws. Tighten all the mounting bracket screws
securely.
12. Partially insert three blade screws, along with their
blade washers, through the blade and into the blade arm.
Tighten each blade screw with a Phillips screwdriver (not
included), starting with the one in the middle. Repeat this
step for the remaining blades and blade arms.
10. Use wire connectors to connect the receiver and fan
wires to the supply wires from outlet box according to the
wiring diagram and the following instructions:
• Connect the blue wire from receiver to blue (light power)
wire from fan.
• Connect the black wire from receiver to black (fan power)
wire from fan.
• Connect the red wire from receiver to black (hot/power)
supply wire.
• Connect the white wire with red label from receiver to
white (neutral/common) supply wire.
• Connect the white wire with white label from receiver to
white wire from the fan.
• Connect the green wires from the downrod and mounting
bracket to the bare/green (ground) supply wire.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
10
9. Insert the receiver into the opening of the mounting
bracket with at side facing up.
9
Blade Screw
Blade Washer
Blade Arm
Blade
Canopy
Wire Connector
Mounting
Bracket Screw
ReceiverMounting
Bracket
J-shaped Slot
Round
Hole
Motor Screw
Blade Arm
8
ASSEMBLY INSTRUCTIONS

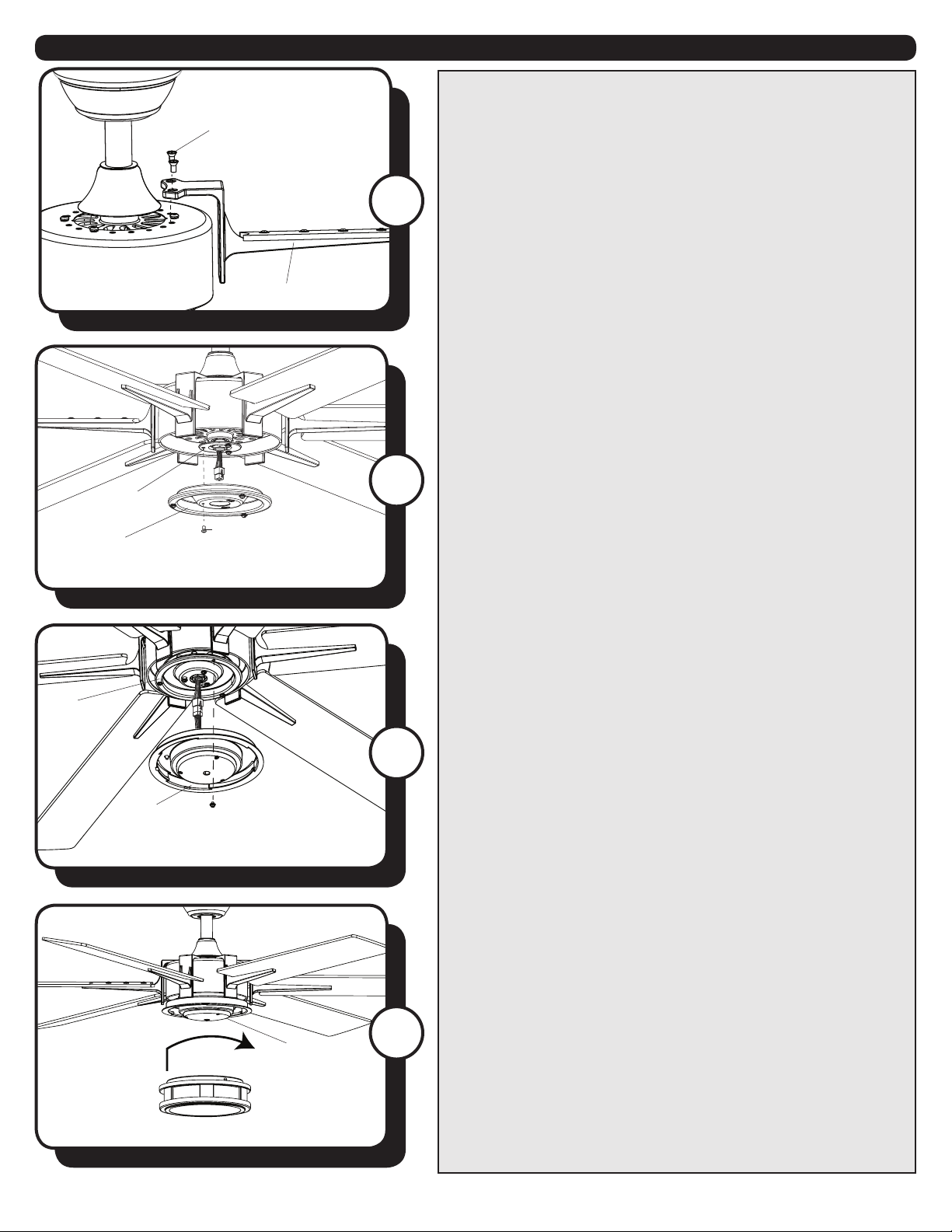

15. Loosen two and completely remove one of the light
pan screws from the light pan. Then, connect the 9-pin
connector from the fan to the 9-pin connector from the
light kit. Place the keyholes of the light kit over the light
pan screws and turn clockwise. Secure the light kit with
the previously removed light pan screw. Tighten all three
light pan screws.
16. Lift the glass cage into the light kit and turn in a
clockwise direction until it is secure. Note: Remove rubber
shipping blocks from glass cage before installation.
15
16
Fitter Plate
Light Pan
Light Pan
Fitter Plate Screw
Light Pan Screw
Glass Cage
Light Kit
Light Kit
13. Secure the blade arm to the top side of the motor
assembly using the previously removed motor screws.
Repeat for the remaining blade arms, making sure to
completely secure each blade arm before proceeding to
the next.
14. Loosen two and completely remove one of the tter
plate screws from the tter plate. Then, lift the light
pan up. Align the screw holes of the light pan with the
loosened tter plate screws and turn in a clockwise
direction. Replace previously removed tter plate screw;
then tighten all screws.
Note: Feed the 9-pin connector through the center hole
in the light pan.
14
13
9
ASSEMBLY INSTRUCTIONS
17
18
17. Remove the battery door from the back of the remote
using a at-head screwdriver (not included). Insert the two
CR2032 batteries into the remote; ensure the positive pole
of the batteries face up (as pictured) and then replace the
battery door.
Note: Your fan and wall control/remote were synced at the
factory. If the wall control does not operate the fan, see
TROUBLESHOOTING, page 11.
18. Install the Wall Bracket to the wall using the two
Mounting Screws. Store the remote In the Wall Bracket
when not in use.
Mounting
Screw
Battery Door
Battery Compartment
Front Back
Wall Bracket
10
OPERATING INSTRUCTIONS
1
2
LED Indicator
High Speed
Medium Speed
Low Speed
Fan O
Light On/O
Light Delay
Variable Breeze
Home Shield
LEARN Button
Battery Compartment
(battery door removed)
2. LEARN - Syncs remote to receiver (see
TROUBLESHOOTING for instructions).
Note: To access LEARN button, remove battery door from
back of the remote using a at-head screwdriver.
1. To operate the fan using the remote, press and release
the following buttons:
Fan O - Turns the power to fan o.
Light On/O - Turns the light on and o. Press and
hold to dim or brighten lights.
High Speed - Turns on fan at high speed.
Light Delay - Light stays on for 60 seconds to allow for
safe exit from room. Tap Light Delay once to activate.
Fan light blinks once to conrm Light Delay is active.
Press any button to cancel.
Medium Speed - Turns on fan at medium speed.
Variable Breeze - Simulates a breeze in nature. Press
button for fan speed to change automatically. Press
any fan speed button to cancel.
Low Speed - Turns on fan at low speed.
Home Shield - Simulates occupancy while away from
home. Fan remains o and the light randomly turns
on for a minimum of ve times and a maximum of
20 minutes. The light remains o for 60 minutes
between events. Press and hold button to activate.
Light will blink twice to conrm Home Sheild is active.
Press any button to cancel.
LED indicator should illuminate when any remote
button is pressed. If not, replace the DC3V, CR2032
batteries.
3. The reverse switch is located on the light kit. Using a
ceiling fan will allow you to raise your thermostat setting
in summer and lower your thermostat setting in winter
without feeling a dierence in your comfort.
Note: Wait for the fan to stop before moving the reverse
switch.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right, which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
IMPORTANT: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
3
Reverse Switch
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Check main and branch circuit fuses or circuit breakers.
2. Check the wire connections from the fan and outlet box.
CAUTION: Make sure main power is turned o.
3. Make sure the reverse switch is pushed completely left or right. Fan will not operate when
switch is in the middle.
4. Make sure that the wall switch is turned ON.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws which attach the blade arm to the motor are tight.
3. DO NOT USE a Solid State variable speed control.
4. Fan noise can be caused by fan wobble, see solutions below.
1. Ensure all blades are screwed rmly into blade arms.
2. Ensure all blade arms are tightened securely to motor.
3. Ensure canopy and mounting bracket are tightened securely to outlet box and outlet box
is mounted rmly to ceiling joist.
4. Switch one blade with a blade from the opposite side. Or balance the fan using a
balancing kit (sold seperately).
5. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1. Ensure the 9-pin connectors from the tter plate are rmly connected to the 9-pin
connectors from the light kit.
2. Check for loose or disconnected wires in tter plate.
3. Check for loose or disconnected wires in light kit.
1. To re-sync wall control to the fan - Switch the power to the fan o and back on again.
Within 30 seconds, press and hold the HIGH SPEED and LOW SPEED buttons (or the
“LEARN” button, located in the battery compartment) for 5 seconds. Fan will turn on at
low speed and light o. This conrms the syncing process is successful.
2. Insert new CR2032 batteries in battery compartment of the wall control.
3. If there are several fans in close proximity, turn power o to other fans and re-sync the
remote (see Corrective Action 1 above).
2. Fan is noisy
3. Fan wobbles
4. Light does not work:
4. Remote control does
not work:
TROUBLESHOOTING
11
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-459-3267, 9 a.m.- 5 p.m. Central time.
Model Name: 56” Lida Ceiling Fan
Model No: 20692- Brushed Nickel (SKU: 355-0708)
12
Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants
the fan motor for this ceiling fan to be free from defects in workmanship and material for fteen years. Also,
subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the motor
and parts made in whole or in part with glass) to be free from defects in workmanship and material for a
period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
To obtain warranty service, please write down your model number and call Customer Service at
1-877-459-3267. Please have a copy of the receipt as proof of purchase.
