Installation Instructions
WARRANTY REGISTRATION
Register your product today and be automatically entered
to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
Cat8 STP Class 1 Field
Termination Plug,
568A/568B
Model: N233-SHC8-1
Este manual está disponible en español en la página
de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web
de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства
представлена на веб-сайте компании Tripp Lite по
адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der
Tripp Lite-Website verfügbar: tripplite.com
2

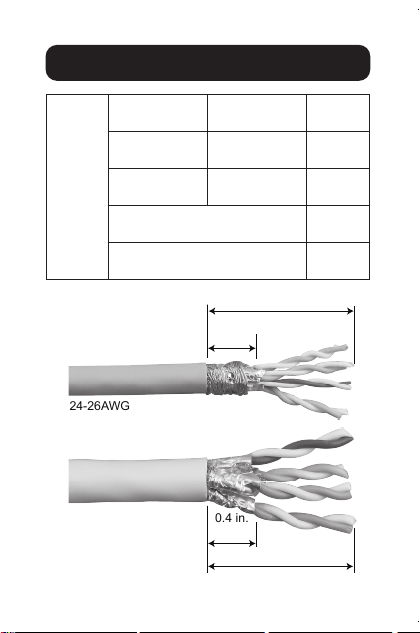

Installation
JACK PIN
DESIGNATIONS
TIA / EIA
T568A
TIA / EIA
T568B
INDUS-
TRIAL
1
2
White/Green
Green
White/Orange
Orange
Yellow
Orange
3
6
White/Orange
Orange
White/Green
Green
White
Blue
4
5
Blue
White/Blue
7
8
White/Brown
Brown
1.2 in. (30 mm)
0.4 in.
(10 mm)
0.4 in.
(10 mm)
1.2 in. (30 mm)
24-26AWG
22-23AWG
(No folded braiding)
3
Installation
Step 1:
Insert cable through the cable gland boots. Strip
o the cable jacket, as shown. Fold back the drain
wire/braiding. Fan out all four twisted pairs and cut
the conductors, as shown.
1.2 in.
(30 mm)
0.4 in.
(10 mm)
Individual Foil
Shield
4
Installation

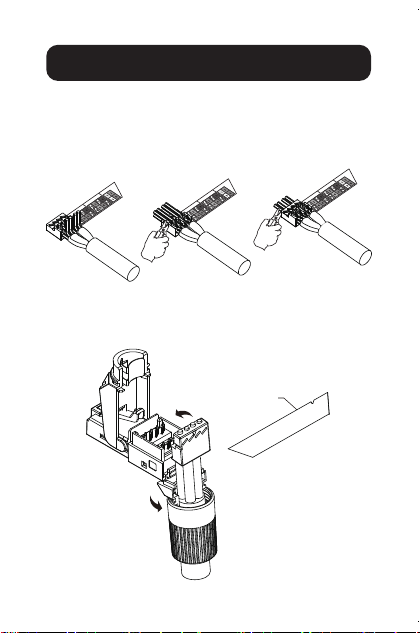

Step 2:
Follow the color-coding label to insert each
conductor into its proper slot in the wiring cap. Trim
the ends of any excess conductors.
Step 3:
Remove the wiring label before placing the wiring
cap on the plug.
T568A
T568B
INDUSTRIAL
T568A
T568B
INDUSTRIAL
T568A
T568B
INDUSTRIAL
Wiring Label
5
Installation

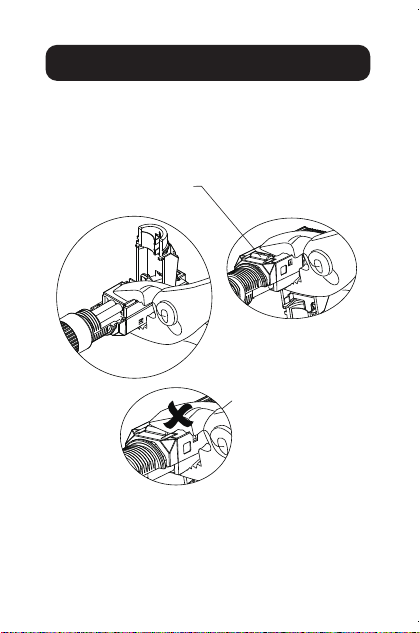

Step 4:
Place the wiring cap on the plug. Clamp down the
wiring cap with pliers until it completely snaps in to
complete the connection.
Hinge
Caution
Do not crimp on
hinge
6
Installation

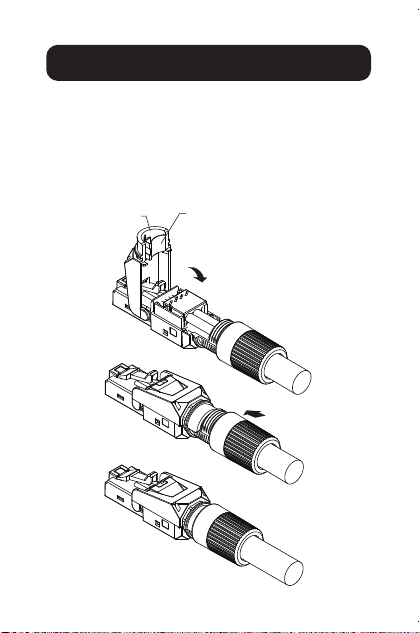

Step 5:
Close the plug cover. Make sure the drain wire is
in proper contact with the grounding clip on the
plug. Pull back the cable gland boots to cover the
plug. Rotate the cable gland to fasten and complete
installation.
Plug Cover
Grounding Clip
7
Installation

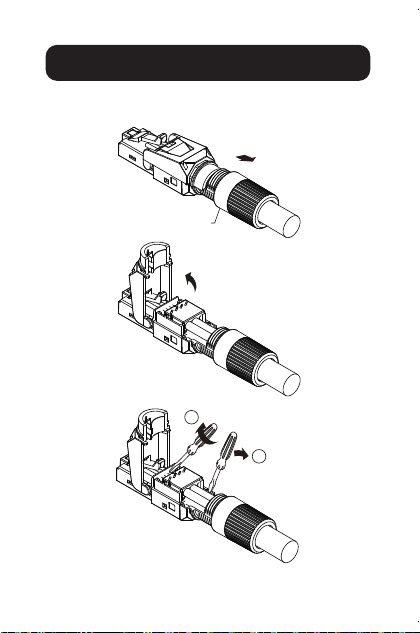

Uninstalling the Cable
1
2
Release Cable Gland
Open Plug Cover
Release Wiring Cap
8
