Cat6a DIN Mount/Desktop
STP Patch Panel
8-Port Model: N250-SH08-DIN6A
12-Port Model: N250-SH12-DIN6A
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2022 Tripp Lite. All rights reserved.
Installation Instructions
Este manual está disponible en español en la página de Tripp Lite:
tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite :
tripplite.com
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website
verfügbar: tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
2
Installation

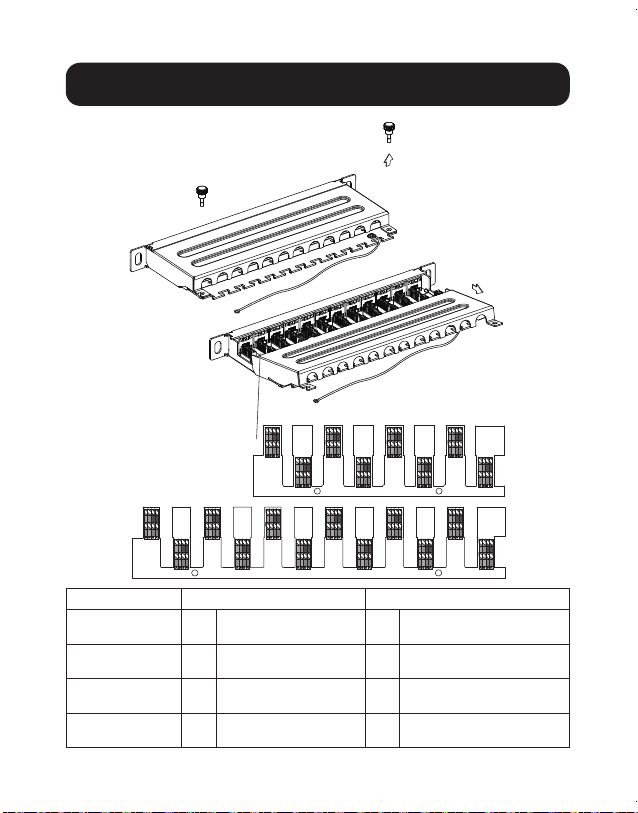

Step 1:
Release the cover screws. Lift left and right sides of the metal
cover and slide the metal cover backwards to remove it.
Shown: N250-SH08-DIN6A
Shown: N250-SH12-DIN6A
FRONT
3
Installation
IDC Terminals T568A Pair/Wire Color T568B Pair/Wire Color
Pin 5
Pin 4
1 White/Blue
Blue
1 White/Blue
Blue
Pin 1
Pin 2
2 White/Green
Green
2 White/Green
Green
Pin 3
Pin 6
3 White/Orange
Orange
3 White/Orange
Orange
Pin 7
Pin 8
4 White/Brown
Brown
4 White/Brown
Brown
Wiring Label
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
1
2
3
6
6
3
2
1
7
7
8
8
5
5
4
4
Wiring Label
4
Installation

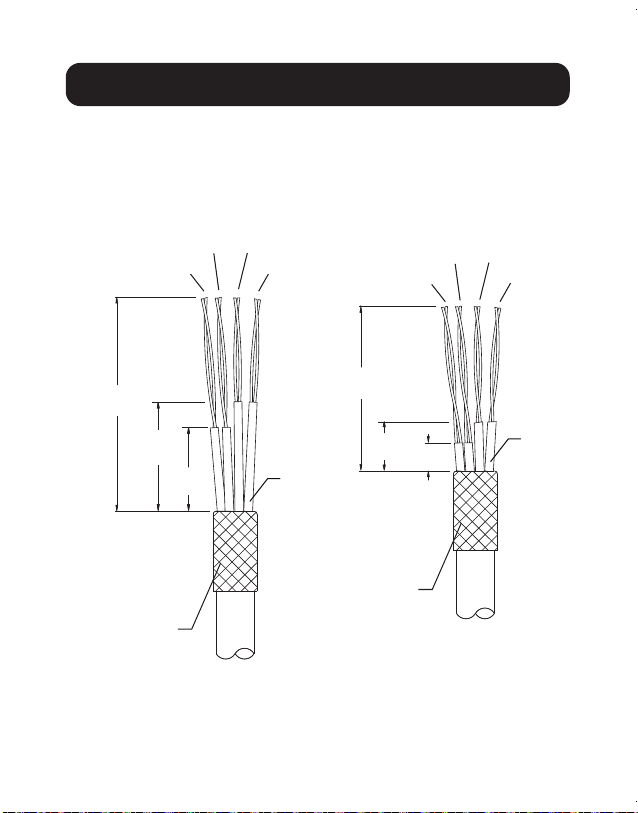

Step 2:
Strip and remove the cable jacket at the recommended length.
Fold the braid shielding back over the cable jacket. Leave the
foil on pairs intact and keep the pair foil at suggested length.
2.4 in.
(60 mm)
0.4 in.
(10 mm)
B
0.7 in.
(18 mm)
3.15 in.
(80 mm)
1.2 in.
(30 mm)
1.5 in.
(38 mm)
A
1 Pair
1 Pair
4 Pair
Foil
Braid Shield
Braid Shield
Foil
4 Pair
3 Pair
3 Pair
2 Pair
2 Pair
5
Installation

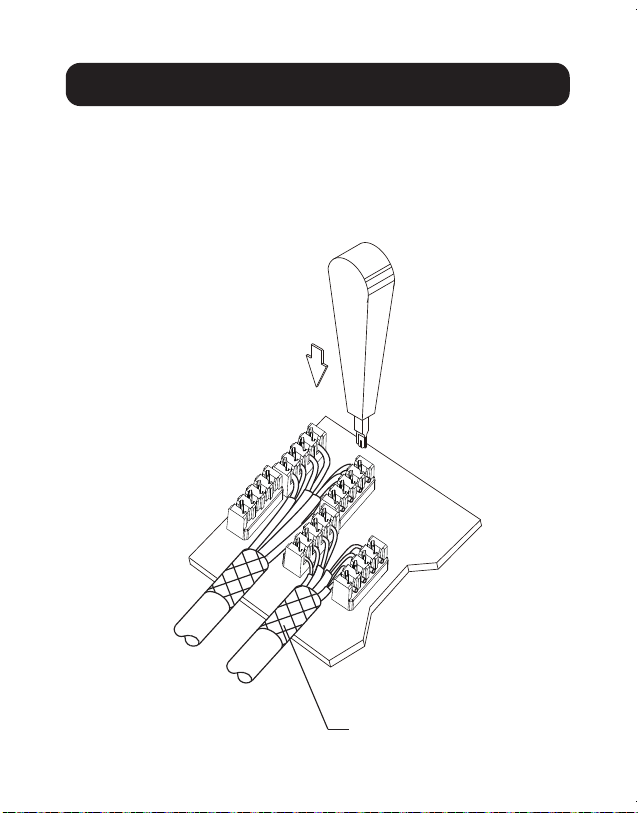

Step 3:
Refer to the color coding labels to allocate the pairs according
to the color coding in sequence. Use a punch down tool to
press each conductor. Trim excess length until all pairs are
terminated.
A
B
Braid Shield
6
Installation

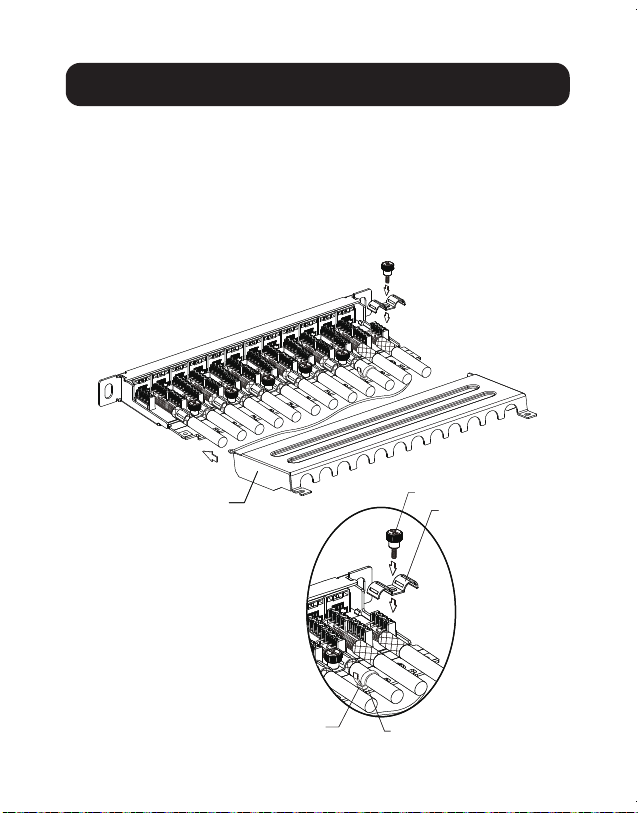

Step 4:
Place the grounding clip on the cables, then screw on the bolt
until the cables are fastened to secure grounding between
cable and panel. Use supplied cable ties to tighten up the
cables. Mount the metal cover to the panel and secure it into
place to nish the installation.
Metal Cover
Cable Tie
Cable Fixture Hole
Screw (Bolt)
Grounding Clip
7
