Installation Instructions
WARRANTY REGISTRATION
Register your product today and be automatically entered
to win an ISOBAR
®
surge protector in our monthly drawing!
tripplite.com/warranty
Cat6a Class EA UTP
Field Termination Plug,
568A/568B
Model: N232-USC6A-1
Este manual está disponible en español en la página
de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web
de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства
представлена на веб-сайте компании Tripp Lite по
адресу: tripplite.com
Dieses Handbuch ist in deutscher Sprache auf der
Tripp Lite-Website verfügbar: tripplite.com
2
Installation
JACK PIN
DESIGNATIONS
TIA / EIA
T568A
TIA / EIA
T568B
INDUS-
TRIAL
1
2
White/Green
Green
White/Orange
Orange
Yellow
Orange
3
6
White/Orange
Orange
White/Green
Green
White
Blue
4
5
Blue
White/Blue
7
8
White/Brown
Brown
Step 1:
Insert cable through cable gland, strip o 1.2 in.
(30 mm) of cable jacket. Fan out all four twisted
pairs, cut the conductors as shown.
1.2"(30mm)
3
Installation

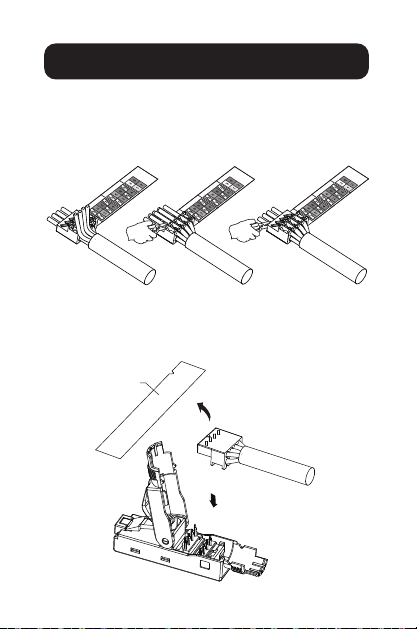

Step 2:
Follow the color-coding label and insert each
conductor into the proper slots on the wiring cap.
Trim the ends of excess conductors.
T568A
T568B
INDUSTRIAL
T568A
T568B
INDUSTRIAL
T568A
T568B
INDUSTRIAL
Step 3:
Remove the wiring label before placing the wiring
cap on the plug.
Wiring Label
4
Installation

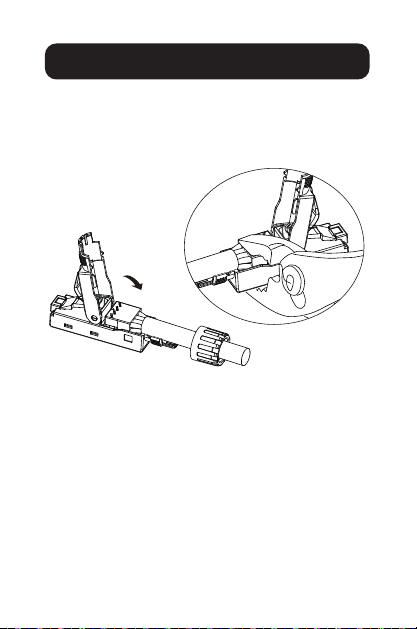

Step 4:
Place the wiring cap on the plug. Clamp down the
wiring cap with pliers until it completely snaps in to
establish a connection.
5
Installation

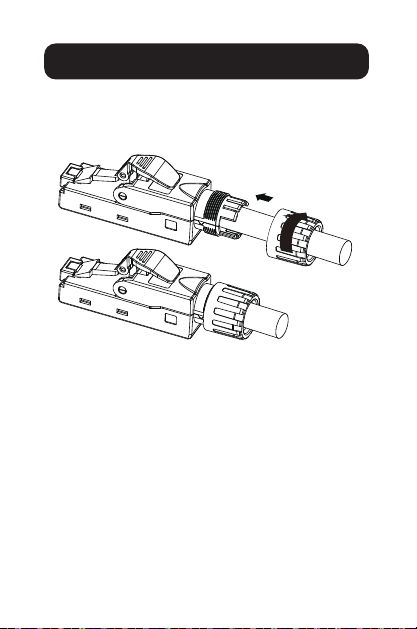

Step 5:
Close the plug cover and screw on the cable gland
to fasten and complete the installation.
6

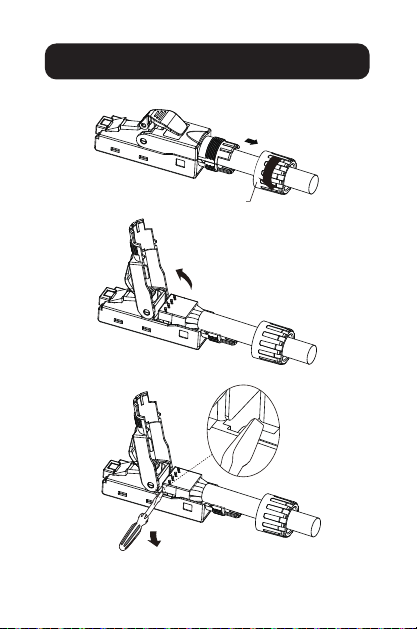

Uninstalling the Cable
Step 1:
Step 2:
Step 3:
Release Cable gland
Open Plug Cover
Release Wiring Cap
